Immediate vs. Delayed Implant Placement Following Alveolar Ridge Procedures with Xeno-Hybrid Bovine Bone Graft: A Retrospective Cohort with Operator-Level Comparison

1
Center for Oral and Maxillofacial Surgery, Department of Dentistry, Faculty of Medicine and Dentistry, Danube Private University, Steiner Landstraße 124, 3500 Krems, Austria
2
Clinical Application of Artificial Intelligence in Dentistry (CAAID) Group, Department of Dentistry, Faculty of Medicine and Dentistry, Danube Private University, Steiner Landstraße 124, 3500 Krems an der Donau, Austria
3
Medical Image Analysis & Artificial Intelligence (MIAAI) Group, Faculty of Medicine and Dentistry, Danube Private University, Steiner Landstrasse 124, 3500 Krems, Austria
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Diagnostics 2026, 16(8), 1231; https://doi.org/10.3390/diagnostics16081231
Submission received: 10 March 2026 / Revised: 5 April 2026 / Accepted: 13 April 2026 / Published: 20 April 2026
(This article belongs to the Section Clinical Diagnosis and Prognosis)

Abstract

Background: In everyday practice, we observed an increased number of complications with a xeno-hybrid bovine graft in challenging cases, prompting a systematic review of timing strategies and the impact of the operator. Objective: To compare early safety and rehabilitation timelines for immediate versus delayed implant placement after alveolar ridge procedures with a xeno-hybrid bovine graft, and to examine operator-level effects. Materials and Methods: Single center retrospective cohort (Danube Private University, Krems, Austria; January 2021–October 2023). Consecutive patients undergoing alveolar ridge preservation (ARP) or reconstruction (ARR; conservative protocol without meshes or rigid frameworks) with a xeno-hybrid bovine graft and subsequent implant were included. Strata: ARP, ARR, ARP with immediate implant placement (ARP+II), ARR with immediate implant placement (ARR+II). Primary endpoint: early implant loss < 12 months after the index surgery. Secondary endpoints: days to implant exposure and days to definitive prosthesis. Results: We analyzed 158 coded interventions (ARP 33; ARR 16; ARP+II 32; ARR+II 77). Early implant loss was uncommon (7/158; 4.4%) and occurred only with immediate implant placement (ARP+II 6.3%; ARR+II 6.5%); no early failures occurred in delayed strata. Immediate implant placement accelerated rehabilitation (exposure: 358/364 vs. 144/162 days; prosthesis: 406/419 vs. 196/204 days; both p < 0.0001). After adjustment for treatment base, timing, and age, no independent operator level effect on early loss was detected. Conclusions: In this university cohort using a xeno-hybrid bovine graft, early implant loss was rare and confined to immediate implant placement, which nonetheless shortened the pathway to exposure and restoration by ~5–7 months. Differences across providers were explained by case selection and protocol choice after adjustment. Clinical Significance: With appropriate case selection and surgical execution, immediate implant placement after ARP/ARR can reduce treatment time by ~5–7 months without a clear increase in early failure within the limits of this cohort; treatment protocol and case triage are the main levers of early outcome.

1. Introduction

Tooth extraction leads to dimensional remodeling of the alveolar ridge. After unassisted healing, about 29–63% of ridge width (2.5–4.6 mm) and 11–22% of ridge height (0.8–1.5 mm) are typically lost within roughly six months, most of it during the first 3–6 months [1,2]. These reductions compromise prosthetically driven implant positioning and may necessitate secondary augmentation at implant placement.
Alveolar ridge preservation (ARP) and alveolar ridge reconstruction (ARR) aim to attenuate this physiologic collapse. Systematic reviews and meta-analyses show that, compared with spontaneous healing over 3–6 months, ARP prevents ≈2 mm of horizontal loss and ≈1–2 mm of vertical loss at mid-buccal/lingual landmarks, particularly when socket grafting is combined with resorbable coverage [3,4,5]. Beyond dimensional benefits, early ridge management reduces the frequency and magnitude of ancillary grafting and can streamline rehabilitation [1,6].
From a safety perspective, ARP is associated with low short-term event rates. Typical soft-tissue issues are limited to wound dehiscence or membrane exposure; pooled estimates in ARP/GBR settings place exposure in the low-to-mid teens, particularly with extensive flaps or non-resorbable barriers [7]. Early implant loss after ARP is uncommon and broadly comparable to non-grafted controls, with meta-analyses and cohort studies reporting high short-term survival [5,8,9]. In contrast, ARR carries a higher soft-tissue complication burden, with overall healing complications around 16–20% [10,11,12]. Even so, when complications are prevented or managed early, implant survival in regenerated sites remains high and broadly comparable to that in native bone [13].
By contrast, deferring augmentation until implant placement often confronts a more atrophic ridge, increasing reliance on horizontal/vertical guided bone regeneration (GBR) with membranes/meshes or sinus augmentation procedures with greater technical complexity and a meaningful risk of complications (exposure, dehiscence, infection) that can jeopardize vertical gain and prolong care pathways [14,15,16,17]. Recent vertically oriented augmentation trials and network meta-analyses likewise report that techniques achieving greater vertical gain tend to show higher healing-complication incidence, with membrane/mesh exposure as a pivotal determinant of outcome [18,19].
Against this biologic and procedural backdrop, implant timing remains debated. Aggregated comparisons generally show similar survival for immediate vs. delayed placement. In contrast, immediate strategies shorten the path to functional restoration, provided that case selection and soft-tissue management are rigorous [11,16]. Longer-term analyses suggest that context (e.g., risk profile, aesthetic zone) may influence survival beyond 5–6 years, underscoring the importance of real-world studies stratified by treatment type and operating environment [20].
Material choice is integral to this calculus. Bovine-derived xenografts, including xeno-hybrid composites (bovine mineral matrices reinforced with polymer/collagen), are widely used in ARP/ARR; recent clinical and materials reports describe favorable osteoconductive integration and site-specific remodeling for xeno-hybrid grafts, while acknowledging that high-level randomized evidence for xeno-hybrids is still developing [18,19].
Beyond general considerations of graft selection, this project was motivated by an internal signal at our center: in routine practice, a xeno-hybrid bovine graft appeared to be associated with more frequent complications in clinically demanding situations, particularly in cases with multi-socket or segmental defects requiring ridge reconstruction, reduced residual bone volume affecting primary stability, compromised soft-tissue conditions affecting tension-free closure, and simultaneous augmentation with immediate implant placement; this concern was first raised around lateral-window sinus procedures [21]. While reports on xeno-hybrid materials in maxillofacial reconstruction are emerging, comparative data for alveolar ridge procedures (ARP/ARR) remain sparse. To our knowledge, no prior cohort has evaluated immediate versus delayed implant placement after ARP/ARR using a xeno-hybrid bovine graft while also examining operator-level effects. This gap, together with our in-house signal, underpins the present study.
Within a university care setting, where operator level (OMFS specialists vs. supervised students and general dentists) co-varies with case complexity, the practical question is whether immediate vs. delayed implant placement after ARP/ARR with a xeno-hybrid bovine graft differs in early complications and time-to-rehabilitation, and whether any observed differences persist after accounting for treatment selection and case-mix. We therefore conducted a single-center retrospective cohort to: (1) compare early severe complications (implant loss in the first year) across immediate vs. delayed strategies following ARP/ARR with a xeno-hybrid bovine graft; (2) explore operator-level effects in adjusted analyses, hypothesizing accelerated rehabilitation without a material increase in early events and attenuation of operator-level differences after adjustment; and (3) quantify days to implant exposure and days to prosthetic restoration.

2. Material and Methods

2.1. Study Design and Setting

We conducted a single-center retrospective cohort study at the Danube Private University (DPU) in Krems, Austria, within a university-based dental and maxillofacial surgery (OMFS) service. The cohort reflects everyday clinical practice and was intentionally broad to capture a real-world case-mix. We included all consecutive patients treated during the study period who underwent ridge preservation or reconstruction with a specific xeno-hybrid bovine bone graft and subsequently received a dental implant at the exact center. A curated Master dataset and operator-level source sheets formed the analytical basis; for operator-focused analyses, the Master sheet and operator sheets were not co-analyzed together to avoid duplication.
Study period. Consecutive eligibility from January 2021 through October 2023.
Reporting standard. The study follows STROBE guidance for observational cohort studies [22].
Ethics. The study protocol was reviewed and approved by the Danube Private University Ethics Committee, Krems an der Donau, Austria (DPU-EK/066, approved 30 April 2024). Given the retrospective design and the use of de-identified records, the requirement for individual informed consent was waived. The study was conducted in accordance with the Declaration of Helsinki and applicable data-protection regulations (GDPR), and reporting follows STROBE guidance for observational cohort studies.

2.2. Data Sources and Cohort Assembly

Eligibility. All consecutive patients managed at DPU Krems between January 2021 and October 2023 who received a specific xeno-hybrid bovine graft for ridge procedures (ARP or ARR) and subsequently received an implant at the exact center; the cohort was deliberately heterogeneous to mirror real-world care.
Assembly and flow. Source sheets were harmonized and merged into a Master dataset. For operator-level analyses, operator sheets were analyzed separately from the Master to prevent duplicate counting.
Uncoded/NA. Records lacking definitive treatment coding were retained only for cohort flow/baseline counts and excluded from all inferential comparisons (odds ratios, timeline tests) and from operator-stratified analyses.

2.3. Definitions and Group Coding

Index surgery. The surgical appointment initiates the recorded pathway; all time-to-event measures start here.
Treatment strata (mutually exclusive).
  • ARP: single extraction socket grafted immediately after extraction to mitigate dimensional change using resorbable barriers only; implant delayed.
  • ARR: augmentation of the alveolar ridge involving multiple sockets or segments, performed either as a staged procedure on a healed ridge or immediately after or during tooth extraction when multiple adjacent sockets are grafted; performed without titanium meshes or rigid frameworks and using resorbable barriers only; implant placement delayed unless coded as ARR+II.
  • ARP+II: ARP with immediate implant placement at index surgery.
  • ARR+II: ARR with immediate implant placement at index surgery.
Immediate vs. delayed. Immediate = implant at index surgery; Delayed = implant after healing. This definition applies to both ARP and ARR; when ARR is performed immediately after or during extraction, implant insertion in the same session is coded as ARR+II, whereas implant insertion after healing is coded as ARR.
Operator level. Operators were categorized based on formal training background and clinical responsibility within the university setting. The OMFS group comprised board-certified specialists in oral and maxillofacial surgery. The non-OMFS group included general dentists and dental students performing procedures under supervision within a structured clinical teaching environment. This grouping reflects differences in formal surgical training and level of autonomy rather than individual case volume. Case allocation was not randomized and followed routine clinical workflow, with supervision and case complexity influencing assignment. Rows without an operator label were excluded from operator-level analyses. Handling of Uncoded/NA. Kept only for cohort flow/baseline; excluded from all hypothesis tests and operator analyses.

2.4. Outcomes

Primary outcome. The primary endpoint was early implant loss occurring <12 months after the index surgery. Other early postoperative issues (e.g., dehiscence, exposure, infection) were recorded when available but were not part of the primary endpoint and are reported descriptively only. Although soft-tissue complications such as dehiscence or membrane exposure were not part of the primary endpoint, their occurrence may represent precursor events contributing to early implant loss, particularly in immediate placement scenarios.
Secondary outcomes (time to rehabilitation, days).
  • Days to implant exposure: calendar days from index surgery to uncovering/second-stage.
  • Days to prosthetic restoration: calendar days from index surgery to delivery of the definitive prosthesis.
For time-to-event analyses, listwise exclusion was applied within the endpoint if required dates were missing; no imputation beyond recorded dates.

2.5. Covariates

Pre-specified covariates for adjusted analyses were: age at operation (years, continuous); immediate implant (II) (binary; implant placed at the index surgery); treatment base (ARP vs. ARR) to distinguish socket-level from staged multi-segment contexts; and operator level (OMFS vs. non-OMFS) for operator-focused models.
Comorbidities and medications. We also recorded patient comorbidities (e.g., diabetes, cardiovascular disease) and regular medications (e.g., antiplatelets, anticoagulants, antiresorptives). These variables were summarized descriptively but were not included in adjusted models due to heterogeneous documentation, sparse categories, and a low number of primary outcome events, which could increase the risk of overfitting and destabilize estimates in rare-event settings.

2.6. Data Curation and Missing Data

Harmonization and parsing. Source sheets were standardized; clinical free text on adverse events was parsed into the binary complication endpoint using pre-specified rules.
Uncoded/NA. Retained for flow/baseline only; excluded from (i) OR contrasts, (ii) timeline hypothesis tests, and (iii) operator-stratified analyses.
Operator labels. Rows without an operator label were excluded only from operator-level analyses.
Zero-event cells. Anticipated in some strata and handled using continuity-corrected estimators and penalized regression.
Endpoint-specific missingness. Time-to-event analyses used within-endpoint listwise exclusion when required dates were missing; no imputation beyond recorded values.

2.7. Statistical Analysis

Due to the retrospective design, no a priori sample size calculation was performed. Primary outcome. Group rates with Wilson 95% confidence intervals; odds ratios vs ARP estimated with Haldane–Anscombe continuity correction for zero cells. Uncoded/NA excluded.
Timelines. Kruskal–Wallis tests across coded treatment strata; Benjamini–Hochberg–adjusted pairwise Mann–Whitney tests where specified. Uncoded/NA excluded.
Operator models. Ridge-penalized logistic regression adjusted for treatment base, immediate implant placement, and age; operator coded OMFS vs. non-OMFS.

2.8. Software and Reporting Standards

All analyses were performed in Python 3.10.9 using pandas, NumPy, SciPy, statsmodels, matplotlib, plotly, and python-docx according to the pre-specified statistical plan in the analyst’s report. Reporting follows the STROBE guideline for observational cohort studies [22].

3. Results

3.1. Overall Cohort

We analyzed 183 interventions performed at a single university center between January 2021 and October 2023. Of these, 158 interventions were fully coded for inferential analyses, and 25 were retained for baseline/flow only (Uncoded/NA). Among coded cases, the treatment mix comprised ARP (n = 33), ARR (n = 16), ARP+II (n = 32), and ARR+II (n = 77), corresponding to 49 delayed placements (ARP, ARR) and 109 immediate implant placements (ARP+II, ARR+II). Age was available for 158 patients (mean 57.4 ± 12.7 years), with slightly higher means in ARR and ARR+II, consistent with a heterogeneous case mix.
Across the coded cohort, early implant loss < 12 months was uncommon (7/158; 4.4%) and occurred only in immediate implant placement strata; no early failures were recorded in delayed groups. The distribution of treatments and baseline characteristics is summarized in Table 1. The adjusted effects on early implant loss are illustrated in Figure 1 and summarized in Table 2 Complication rates across treatment strata are shown in Figure 2 and Table 3a, with continuity-corrected odds ratios presented in Table 3b. Immediate implant placement shortened rehabilitation: time to implant exposure and to definitive prosthesis were roughly five to seven months faster than delayed strategies (full distributions summarized below). The distribution of time to implant exposure and prosthetic restoration across treatment strata is shown in Figure 3 and Figure 4, and Table 4.

Operator-Level Comparison

Rows with missing operator labels were excluded from operator-only tests.

3.2. Stratified by Timing (Immediate vs. Delayed)

When grouped by timing, immediate implant placement (ARP+II, ARR+II combined) accounted for 109/158 cases and included all seven early losses. In contrast, delayed placement (ARP, ARR combined; 49/158 cases) showed no early implant loss in this cohort. Timelines favored immediate strategies: median time to exposure was 144 days [IQR 111–205] for ARP+II and 162 [119–212] for ARR+II versus 358 [298–491] for ARP and 364 [280–458] for ARR (Kruskal–Wallis p < 0.0001). The pattern was mirrored for definitive prosthesis: 196 [136–250] and 204 [151–261] days for ARP+II and ARR+II versus 406 [326–570] and 419 [356–587] days for ARP and ARR (p < 0.0001).

3.3. Stratified by Treatment Base (ARP vs. ARR)

Within ARP-based care, delayed ARP showed no early loss and substantially longer timelines than ARP+II, which achieved the expected acceleration without a detectable early-failure penalty in our small-event setting. Within ARR-based care (performed conservatively without meshes or rigid frameworks and including multi-socket contexts at or around extraction), delayed ARR likewise showed no early loss, whereas ARR+II carried the majority of events (5/77; 6.5 percent) alongside the same time advantage seen for immediate implant placement. These patterns are consistent with the combined demands of simultaneous augmentation and implant insertion.

3.4. Operator Context

Treatment allocation differed markedly by operator level, with OMFS specialists more often staging ARP and non-OMFS providers more often performing ARR+II. No early failures occurred in OMFS cases, and all seven arose in the non-OMFS stream; however, in ridge-penalized logistic regression adjusted for treatment base, immediate implant placement, and age, we found no independent operator-level effect on early implant loss (immediate placement adjusted OR ≈ 1.37; confidence intervals suppressed due to quasi-separation). The adjusted model results are illustrated in Figure 1 and detailed in Table 3. Taken together, these findings support confounding by indication and protocol as the primary explanation for the unadjusted distribution of events. The allocation of treatments by operator level is shown in Figure 5 and summarized in Table 5, with the association statistics reported in Table 6. Operator-specific complication rates are illustrated in Figure 6 and summarized in Table 7, with pairwise comparisons presented in Table 8. The adjusted operator model is reported in Table 9. Timeline differences by operator level are visualized in Figure 7 and Figure 8, with summary statistics provided in Table 10 and pairwise tests in Table 11 and Table 12. The relationship between treatment allocation and operator level is further illustrated in Figure 9.

4. Discussion

We observed seven early implant losses (7/158; 4.4%), with events confined to immediate implant placement strata and none in delayed groups or among OMFS cases, warranting a structured assessment of timing, operator context, and case selection.
In our cohort, early implant loss was rare overall and confined to immediate placement strata (2/32 ARP+II; 5/77 ARR+II); no early failures occurred after delayed placement (ARP/ARR) or among OMFS cases. The absence of early failures in delayed groups may also reflect differences in case complexity rather than timing alone. Immediate implant placement shortened time to implant exposure from roughly ~12 months to ~5–6 months, and time to definitive restoration from ~13–14 months to ~6–7 months. The absence of an independent operator-level effect after adjustment is likely multifactorial. First, all procedures were performed within a structured university environment with standardized surgical protocols for ARP/ARR and implant placement, which may reduce inter-operator variability. Second, non-OMFS providers operated under supervision, which likely mitigated differences in technical execution and clinical decision-making. Third, treatment allocation was not random: OMFS specialists more frequently performed staged approaches (ARP), whereas non-OMFS providers more often performed immediate ARR+II cases, reflecting differences in case selection and workflow. This pattern introduces confounding by indication, whereby more complex or time-sensitive cases are clustered within specific operator groups. After adjustment for treatment base, immediate placement, and age, the attenuation of the operator effect suggests that protocol choice and case-mix, rather than intrinsic operator performance, are the primary drivers of early outcomes in this setting. However, given the small number of events, these findings should be interpreted cautiously, and the absence of a detected operator-level effect should not be interpreted as evidence of absence given the limited statistical power.
Because ARR at our clinic is deliberately conservative (no meshes or rigid frameworks), potential pathways to early loss most likely reflect the combined demands of simultaneous augmentation and implant insertion, primary stability, tension free soft tissue closure, and graft stability, rather than mesh related exposure. The clustering of loss in immediate strata fits this rationale, while the lack of an adjusted signal underscores the role of case selection.
These findings should be interpreted cautiously. With seven early losses, precision is limited; absence of significance does not imply equivalence. Comorbidities and medications were recorded but not modeled due to heterogeneity and sparsity in documentation, leaving room for residual confounding. In practice, a low threshold for staging (ARP with delayed implant) remains sensible when surgical demands or soft-tissue conditions are marginal; when immediate implant placement is chosen, emphasis on primary stability, flap design, and early wound protection is key.
The xeno-hybrid graft is biologically plausible and operatively practical, with emerging clinical data indicating reliable osteoconductive behavior [16,20]. The polymer/collagen reinforcement of xeno-hybrid grafts may influence handling characteristics, graft cohesion, and early soft-tissue interaction, potentially affecting stability in simultaneous augmentation settings. These properties may be particularly relevant in demanding cases requiring immediate implant placement, where primary stability and soft-tissue sealing are critical. Our data do not allow conclusions regarding material-specific performance after adjustment. However, the rare-event context limits precision, and the study was not powered to detect small differences. Importantly, this study did not include a parallel comparator material; inferences about the xeno-hybrid graft are therefore context-specific to our timing and protocol choices rather than comparative claims of superiority or inferiority. Nevertheless, given the in-house signal that motivated this analysis, attention to flap design, wound protection, and primary stability is warranted whenever simultaneous augmentation and implantation are combined.
The descriptive absence of early failures in OMFS cases, together with longer timelines in that stream, is most consistent with staging choices and case triage, a view supported by the adjusted models, which did not identify an operator-level risk signal. In supervised university settings, protocol selection outweighs title. When indications are matched and procedures are structured, non-OMFS providers can achieve early outcomes comparable to specialists while still leveraging the time advantages of immediate implant placement in suitable cases.
The retrospective design and the relatively small number of early failures (n = 7) limit precision. Confidence intervals are wide, so non-significant results should not be taken as evidence of equivalence. A small subset lacked definitive treatment coding and was therefore excluded from inference. Although we recorded comorbidities and regular medications, heterogeneous documentation and sparse categories prevented their use in adjusted models, leaving room for residual confounding. Follow-up focused on early outcomes; longer-term biologic and esthetic endpoints and patient-reported measures were not captured systematically.
This study has several limitations. First, the retrospective design limits causal inference and is susceptible to selection bias. Second, the number of early implant loss events was low (n = 7), restricting statistical power and precision of effect estimates. Third, no a priori sample size calculation was performed due to the retrospective nature of the study. Fourth, the absence of a comparator graft material precludes any conclusions regarding material-specific performance. Fifth, treatment allocation was not randomized and likely reflects confounding by indication and case selection. Finally, comorbidities and medications were not included in adjusted models due to heterogeneous documentation, leaving room for residual confounding.
Although Uncoded/NA cases were excluded from inferential analyses, no systematic clustering suggesting differential risk was observed; however, exclusion of these cases may still introduce bias.
In appropriately selected cases, immediate implant placement after ARP/ARR can enable exposure and restoration ~5–6 months and ~6–7 months sooner, respectively, without a clear increase in early failure within the limits of this cohort. Where soft-tissue conditions are marginal or surgical demands are high, a low threshold for staging (ARP with delayed implant) remains prudent. Across providers, protocol choice and triage seem to have the most impact.
Prospective, multicenter cohorts with standardized capture of systemic risk factors, esthetic outcomes, and patient-reported measures are needed. Matched or randomized studies comparing xeno-hybrid vs conventional xenografts in both staged and simultaneous workflows would clarify whether any material-specific differences emerge under controlled soft-tissue conditions and longer follow-up.

5. Conclusions

In this real-world university cohort using a xeno-hybrid bovine graft, early implant loss was uncommon and occurred only in immediate implant placement strata. No early failures were observed after delayed placement or among OMFS cases. After adjustment for treatment base, timing, and age, we found no independent effect of operator level. Immediate implant placement consistently shortened the path to implant exposure and to definitive restoration by roughly five to seven months, a clinically meaningful difference.
Taken together, these data suggest that protocol selection and case triage, rather than material choice alone, are the primary drivers of early outcomes. When soft tissue conditions are limited or surgical demands are high, a staged approach with ARP and delayed implant placement remains a prudent default. When immediate implant placement is chosen, careful attention to primary stability, flap design, and early wound protection is essential. Although our analyses did not isolate a material-specific penalty for the xeno-hybrid bovine graft, the rare event context limits precision, and confirmation in larger prospective cohorts is warranted. Future studies should standardize the capture of systemic risk and patient-centered outcomes, and directly compare xeno-hybrid and conventional xenografts in both staged and simultaneous workflows.

Author Contributions

Conceptualization, M.M. and D.T.; methodology, S.F. and D.T.; validation, P.G., A.B., P.J. and F.T.; data collection, F.T.; statistical analysis, S.F.; writing-original draft preparation, M.M. and T.S.; writing-review and editing, P.G., S.F. and D.T. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

The study was conducted in accordance with the Declaration of Helsinki and approved by the Danube Private University Ethics Committee, Krems an der Donau, Austria (DPU-EK/066, approved 30 April 2024).

Informed Consent Statement

Patient consent was waived due to the retrospective design and the use of de-identified records, as approved by the Danube Private University Ethics Committee (DPU-EK/066).

Data Availability Statement

The original contributions presented in this study are included in the article. Further inquiries can be directed to the corresponding author.

Acknowledgments

The authors thank the clinical team at the Center for Oral and Maxillofacial Surgery for operational support.

Conflicts of Interest

All authors certify that they have no affiliations with or involvement in any organization or entity with any financial interest or non-financial interest in the subject matter or materials discussed in this manuscript.

References

  1. Couso-Queiruga, E.; Stuhr, S.; Tattan, M.; Chambrone, L.; Avila-Ortiz, G. Post-extraction dimensional changes: A systematic review and meta-analysis. J. Clin. Periodontol. 2021, 48, 126–144. [Google Scholar] [CrossRef] [PubMed]
  2. Tan, W.L.; Wong, T.L.T.; Wong, M.C.M.; Lang, N.P. A systematic review of post-extractional alveolar hard and soft tissue dimensional changes in humans. Clin. Oral Implant. Res. 2012, 23, 1–21. [Google Scholar] [CrossRef] [PubMed]
  3. Avila-Ortiz, G.; Elangovan, S.; Kramer, K.W.; Blanchette, D.; Dawson, D. Effect of alveolar ridge preservation after tooth extraction: A systematic review and meta-analysis. J. Dent. Res. 2014, 93, 950–958. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  4. Avila-Ortiz, G.; Chambrone, L.; Vignoletti, F. Effect of alveolar ridge preservation interventions following tooth extraction: A systematic review and meta-analysis. J. Clin. Periodontol. 2019, 46, 195–223, Erratum in: J Clin. Periodontol. 2020, 47, 129. https://doi.org/10.1111/jcpe.13212. PMID: 30623987. [Google Scholar] [CrossRef]
  5. Fok, M.R.; Pelekos, G.; Jin, L. Efficacy of Alveolar Ridge Preservation in Periodontally Compromised Molar Extraction Sites: A Systematic Review and Meta-Analysis. J. Clin. Med. 2024, 13, 1198. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  6. Rignon-Bret, C.; Wulfman, C.; Valet, F.; Hadida, A.; Nguyen, T.-H.; Aidan, A.; Naveau, A. Radiographic evaluation of a bone substitute material in alveolar ridge preservation for maxillary removable immediate dentures: A randomized controlled trial. J. Prosthet. Dent. 2022, 128, 928–935. [Google Scholar] [CrossRef] [PubMed]
  7. Barootchi, S.; Tavelli, L.; Majzoub, J.; Stefanini, M.; Wang, H.; Avila-Ortiz, G. Alveolar ridge preservation: Complications and cost-effectiveness. Periodontology 2000 2023, 92, 235–262. [Google Scholar] [CrossRef] [PubMed]
  8. A Atieh, M.; Payne, A.G.T.; Duncan, W.J.; De Silva, R.K.; Cullinan, M.P. Immediate placement or immediate restoration/loading of single implants for molar tooth replacement: A systematic review and meta-analysis. Int. J. Oral. Maxillofac. Implant. 2010, 25, 401–415. [Google Scholar] [PubMed]
  9. Bienz, S.P.; Ruales-Carrera, E.; Lee, W.-Z.; Hämmerle, C.H.F.; Jung, R.E.; Thoma, D.S. Early implant placement in sites with ridge preservation or spontaneous healing: Histologic, profilometric, and CBCT analyses of an exploratory RCT. J. Periodontal Implant. Sci. 2024, 54, 108–121. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  10. Alotaibi, F.F.; Rocchietta, I.; Buti, J.; D’AIuto, F. Comparative evidence of different surgical techniques for the management of vertical alveolar ridge defects in terms of complications and efficacy: A systematic review and network meta-analysis. J. Clin. Periodontol. 2023, 50, 1487–1519. [Google Scholar] [CrossRef] [PubMed]
  11. Urban, I.A.; Serroni, M.; Dias, D.R.; Baráth, Z.; Forster, A.; Araújo, T.G.; Saleh, M.H.A.; Cucchi, A.; Ravidà, A. Impact of Collagen Membrane in Vertical Ridge Augmentation Using Ti-Reinforced PTFE Mesh: A Randomised Controlled Trial. J. Clin. Periodontol. 2025, 52, 575–588. [Google Scholar] [CrossRef] [PubMed Central]
  12. Cucchi, A.; Bettini, S.; Tedeschi, L.; Urban, I.; Franceschi, D.; Fiorino, A.; Corinaldesi, G. Complication, vertical bone gain, volumetric changes after vertical ridge augmentation using customized reinforced PTFE mesh or Ti-mesh. A non-inferiority randomized clinical trial. Clin. Oral Implant. Res. 2024, 35, 1616–1639. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  13. Antón, M.M.-S.; Pérez-González, F.; Meniz-García, C. Titanium mesh for guided bone regeneration: A systematic review. Br. J. Oral Maxillofac. Surg. 2024, 62, 433–440. [Google Scholar] [CrossRef] [PubMed]
  14. Couso-Queiruga, E.; Mansouri, C.J.; Alade, A.A.; Allareddy, T.V.; Galindo-Moreno, P.; Avila-Ortiz, G. Alveolar ridge preservation reduces the need for ancillary bone augmentation in the context of implant therapy. J. Periodontol. 2022, 93, 847–856. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  15. Lam, L.; Ivanovski, S.; Lee, R.S.B. Alveolar ridge preservation in posterior maxillary teeth for reduction in the potential need for sinus floor elevation procedures: A pilot study. Clin. Oral Implant. Res. 2024, 35, 1568–1584. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  16. Kaya, S.; Barcellos, B.M.; Fan, S.; Azaripour, A.; Walter, C.; Hartmann, A.; Sagheb, K. Risk factors for dehiscence in alveolar ridge augmentation using patient-specific titanium mesh: A retrospective analysis. Int. J. Implant. Dent. 2025, 11, 42. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  17. Riachi, E.; Juodzbalys, G.; Maciuliene, D. Clinical Outcomes of Immediate, Early, and Delayed Implant Placement in the Esthetic Zone: A Systematic Review and Meta-analysis. Int. J. Oral Maxillofac. Implant. 2024, 39, e157–e173. [Google Scholar] [CrossRef] [PubMed]
  18. Schiegnitz, E.; Sagheb, K.; Raahimi, L.; König, J.; Azaripour, A.; Al-Nawas, B. Immediate versus delayed implant placement of novel fully tapered tissue-level implants—A retrospective multicenter clinical study. Clin. Oral Implant. Res. 2024, 35, 668–676. [Google Scholar] [CrossRef] [PubMed]
  19. Cheng, Y.; Lai, Z.; Yu, W. Influencing factors and survival rates in immediate vs. delayed dental implant placement: A six-year retrospective analysis. Front. Dent. Med. 2025, 6, 1563641. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  20. Ghiretti, R.; Grottoli, C.F.; Molinari, M.; Huynh, M.T.D.; Bonizzi, C.; Giani, C.; De Pace, R.; Perale, G. Bone Selective Remodeling of Xeno-Hybrid Grafts: A Case Series. J. Clin. Med. 2025, 14, 4457. [Google Scholar] [CrossRef]
  21. Grün, P.; Meier, M.; Anderl, A.; Kleber, C.; Turhani, F.; Schiepek, T.; Islam, S.M.R.S.; Fitzek, S.; Bandura, P.; Turhani, D. Focused Analysis of Complications Associated with Bovine Xenohybrid Bone Grafts Following Maxillary Sinus Augmentation via the Lateral Approach: A Retrospective Cohort Study. Diagnostics 2025, 15, 2089. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  22. Von Elm, E.; Altman, D.G.; Egger, M.; Pocock, S.J.; Gøtzsche, P.C.; Vandenbroucke, J.P.; STROBE Initiative. The Strengthening the Reporting of Observational Studies in Epidemiology (STROBE) statement: Guidelines for reporting observational studies. J. Clin. Epidemiol. 2008, 61, 344–349. [Google Scholar] [CrossRef] [PubMed]

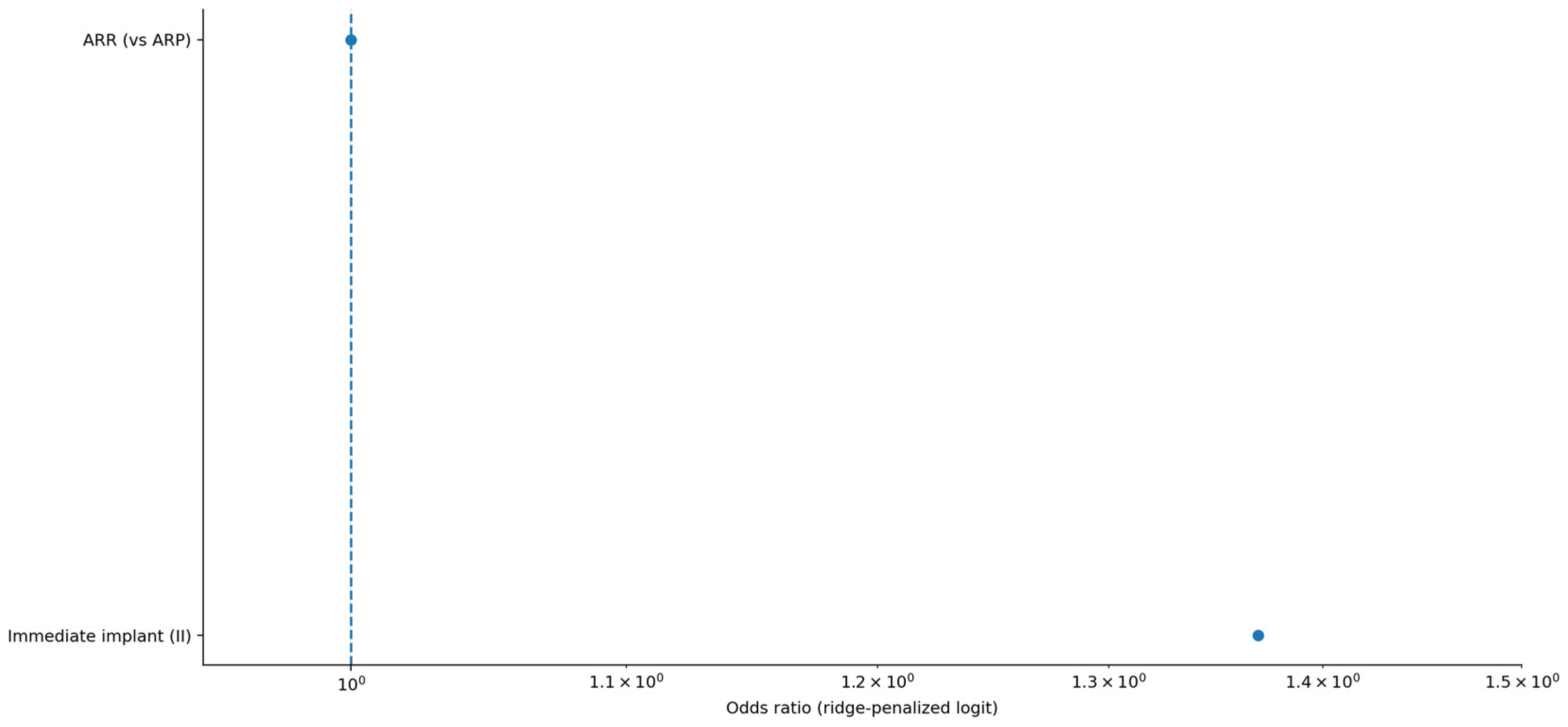

Figure 1. Ridge-penalized odds ratios for early implant loss. Dots indicate odds ratios; the dashed vertical line indicates OR = 1.
Figure 1. Ridge-penalized odds ratios for early implant loss. Dots indicate odds ratios; the dashed vertical line indicates OR = 1.
Diagnostics 16 01231 g001

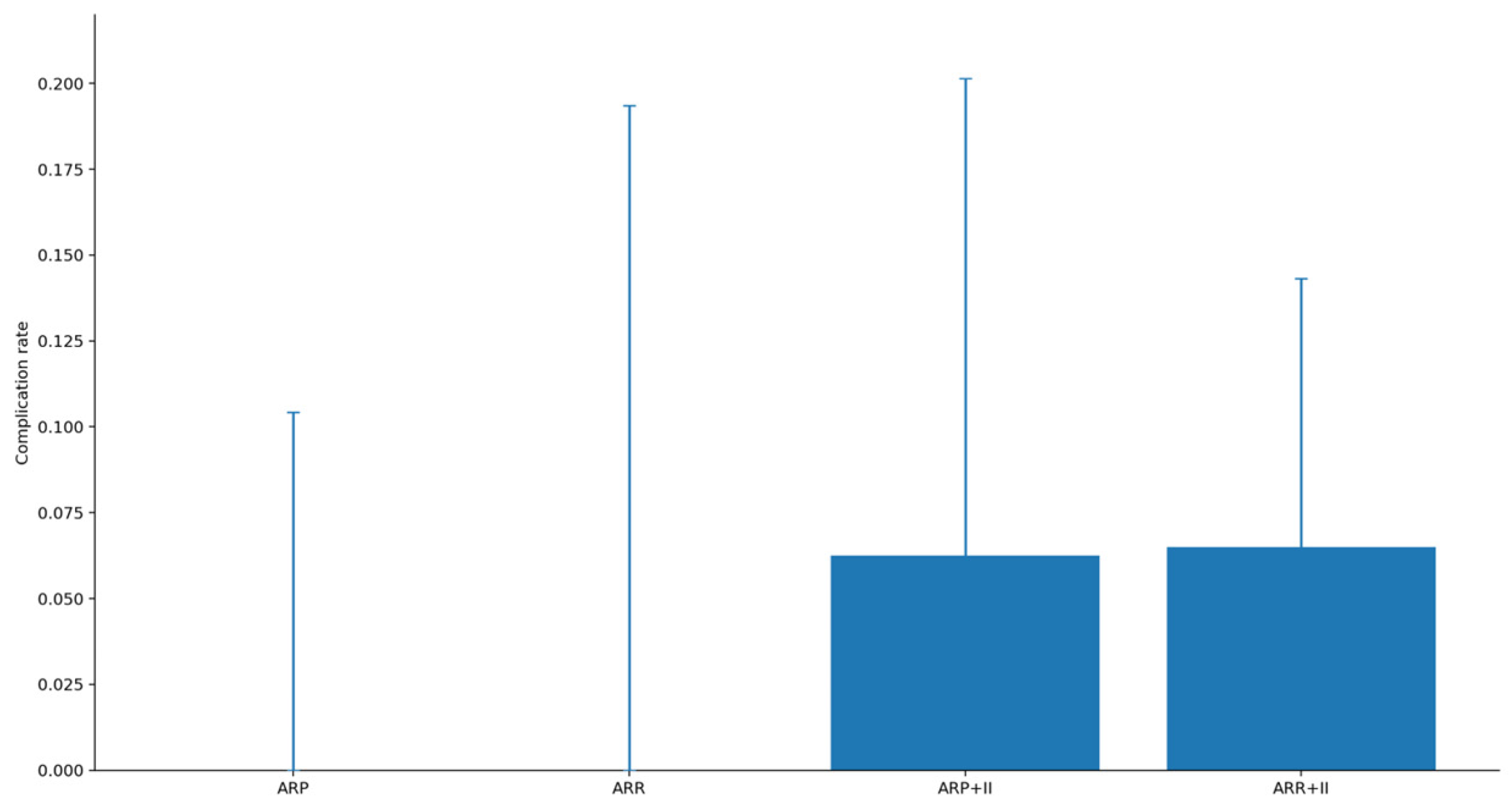

Figure 2. Early implant loss rates by treatment (Wilson 95% confidence intervals).
Figure 2. Early implant loss rates by treatment (Wilson 95% confidence intervals).
Diagnostics 16 01231 g002

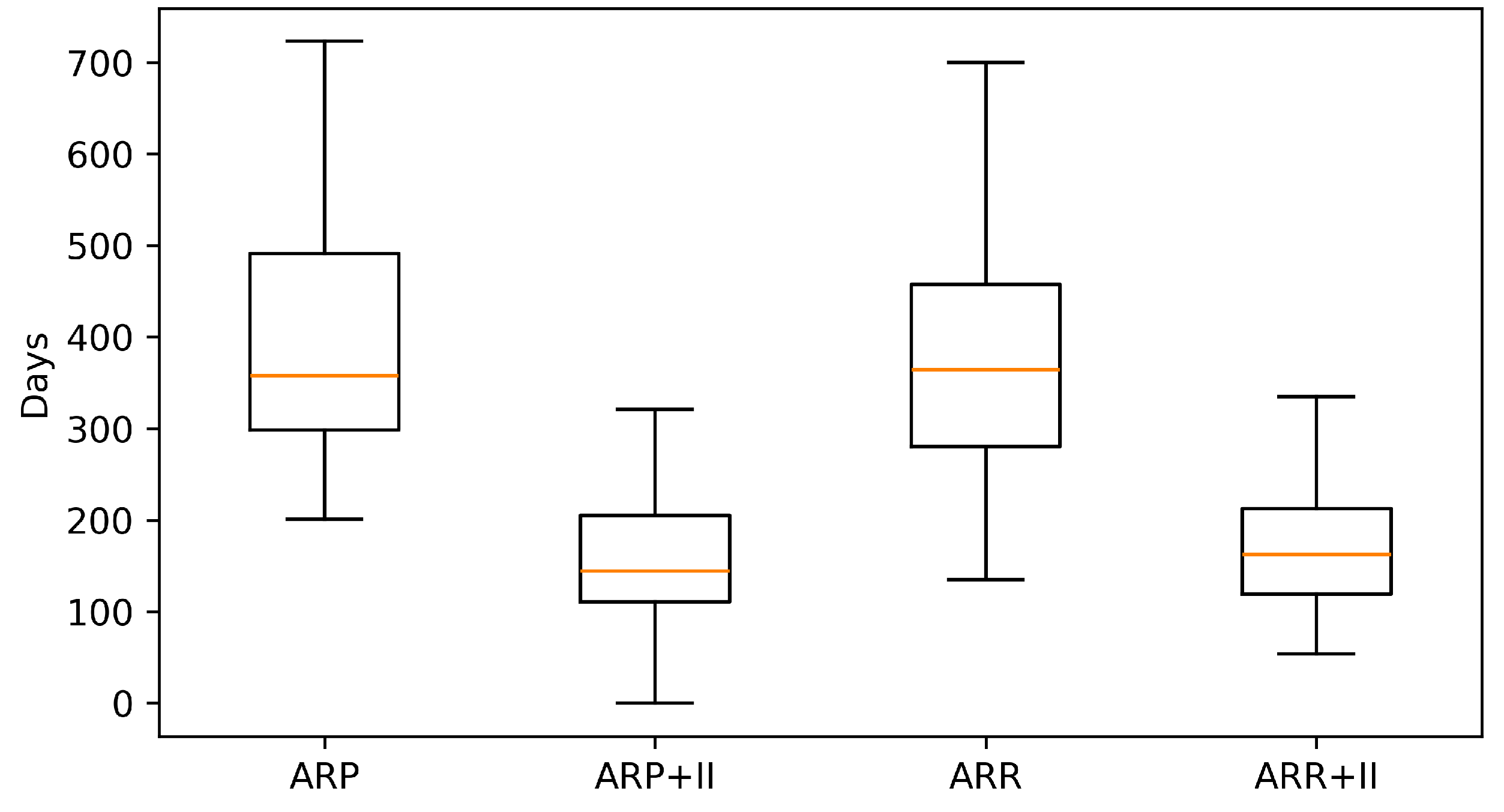

Figure 3. Days from surgery to implant exposure by treatment.
Figure 3. Days from surgery to implant exposure by treatment.
Diagnostics 16 01231 g003

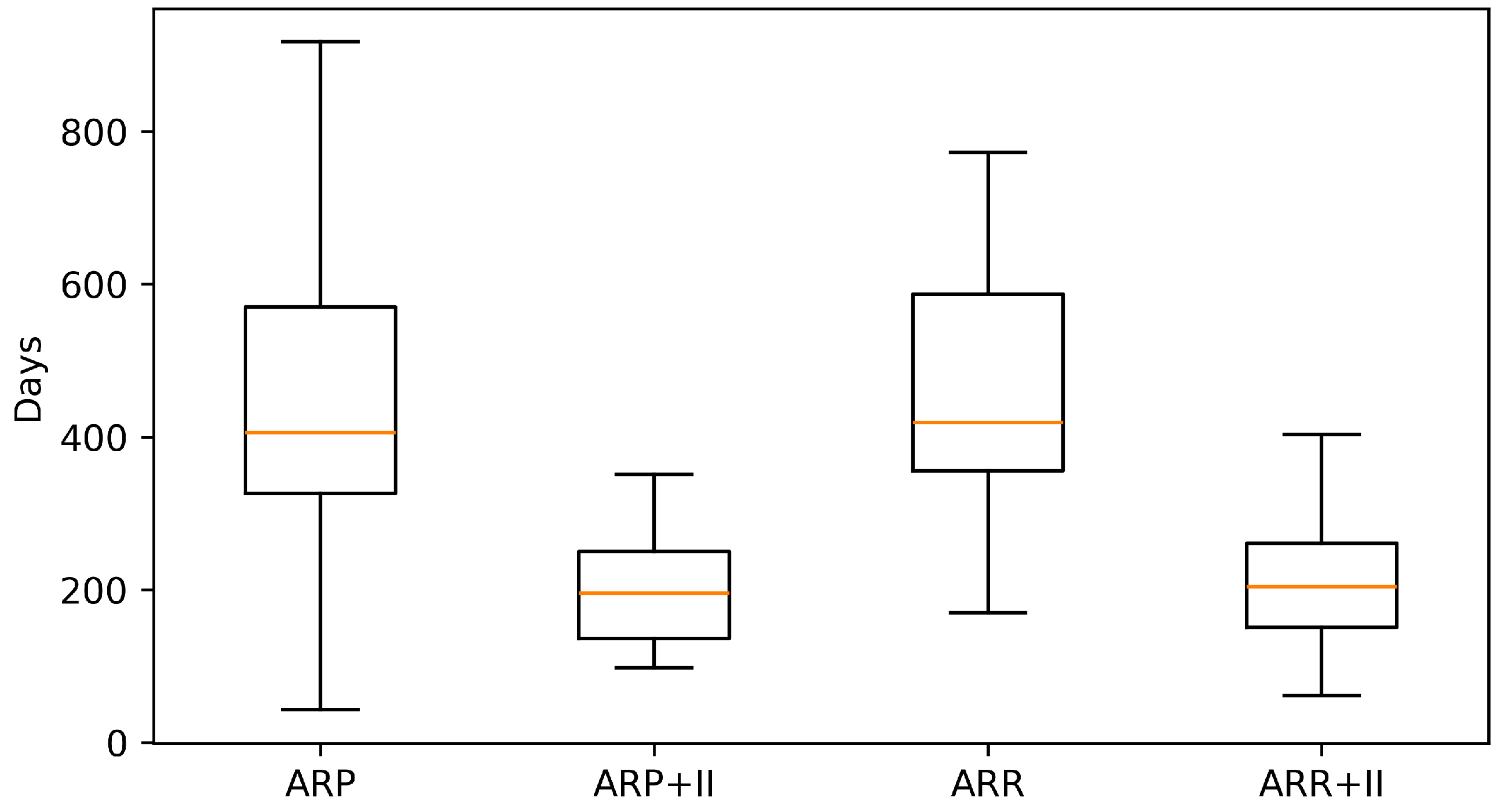

Figure 4. Days from surgery to definitive prosthetic restoration by treatment.
Figure 4. Days from surgery to definitive prosthetic restoration by treatment.
Diagnostics 16 01231 g004

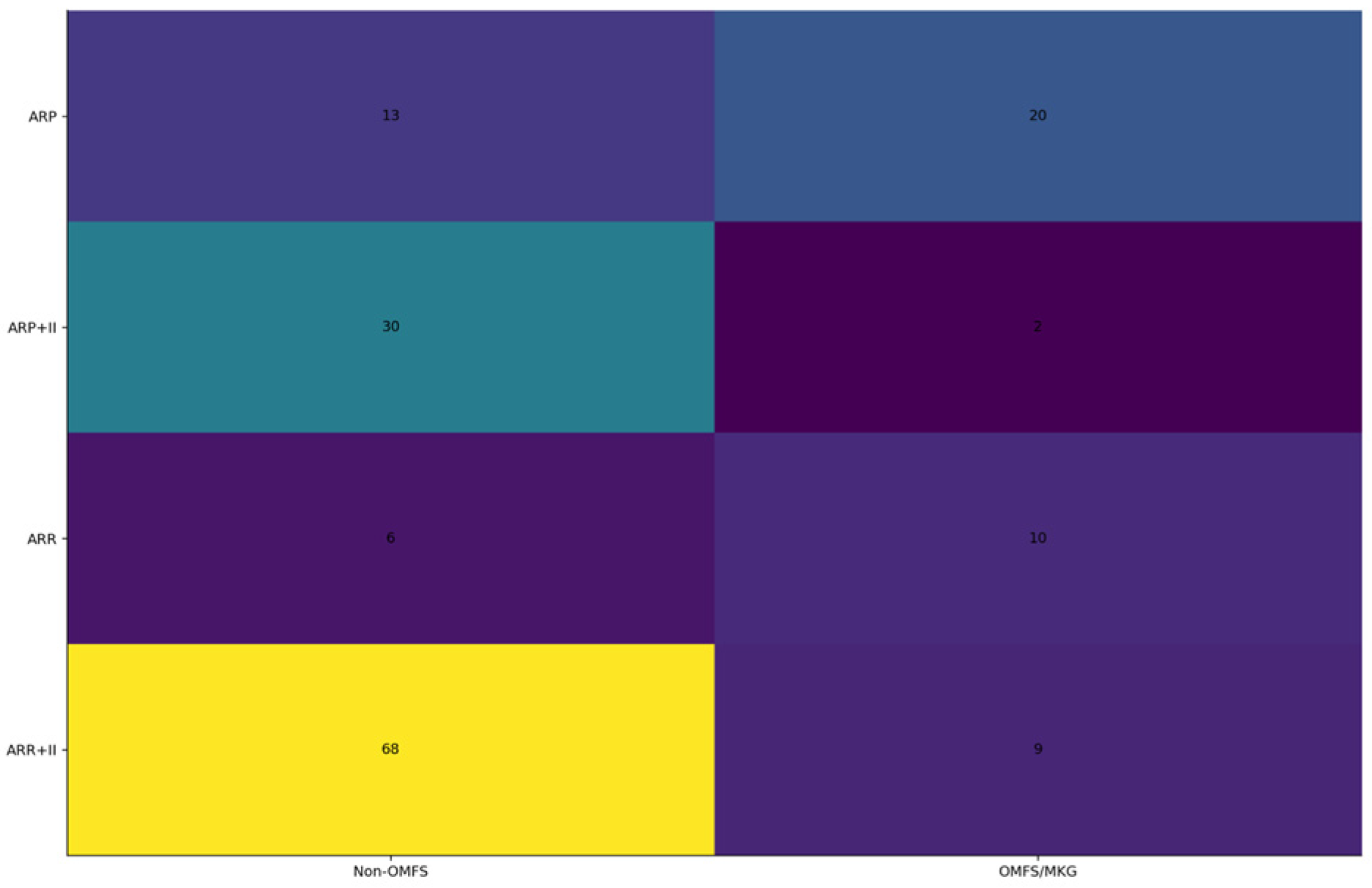

Figure 5. Treatment-by-operator heatmap. Cell shading reflects counts; darker cells indicate larger counts.
Figure 5. Treatment-by-operator heatmap. Cell shading reflects counts; darker cells indicate larger counts.
Diagnostics 16 01231 g005

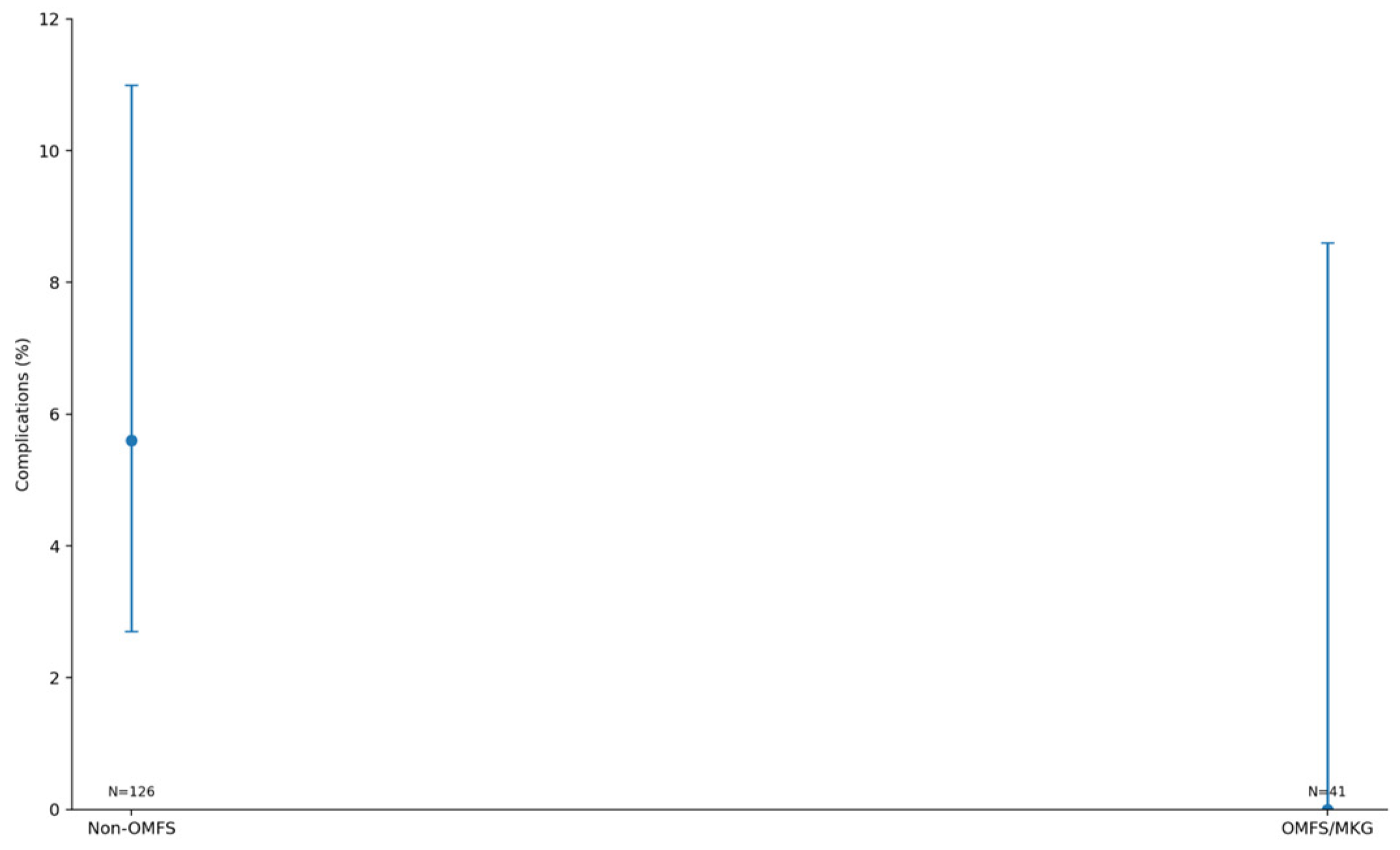

Figure 6. Early implant loss rate by operator (Wilson 95% confidence intervals). Points indicate rates; vertical bars indicate 95% confidence intervals.
Figure 6. Early implant loss rate by operator (Wilson 95% confidence intervals). Points indicate rates; vertical bars indicate 95% confidence intervals.
Diagnostics 16 01231 g006

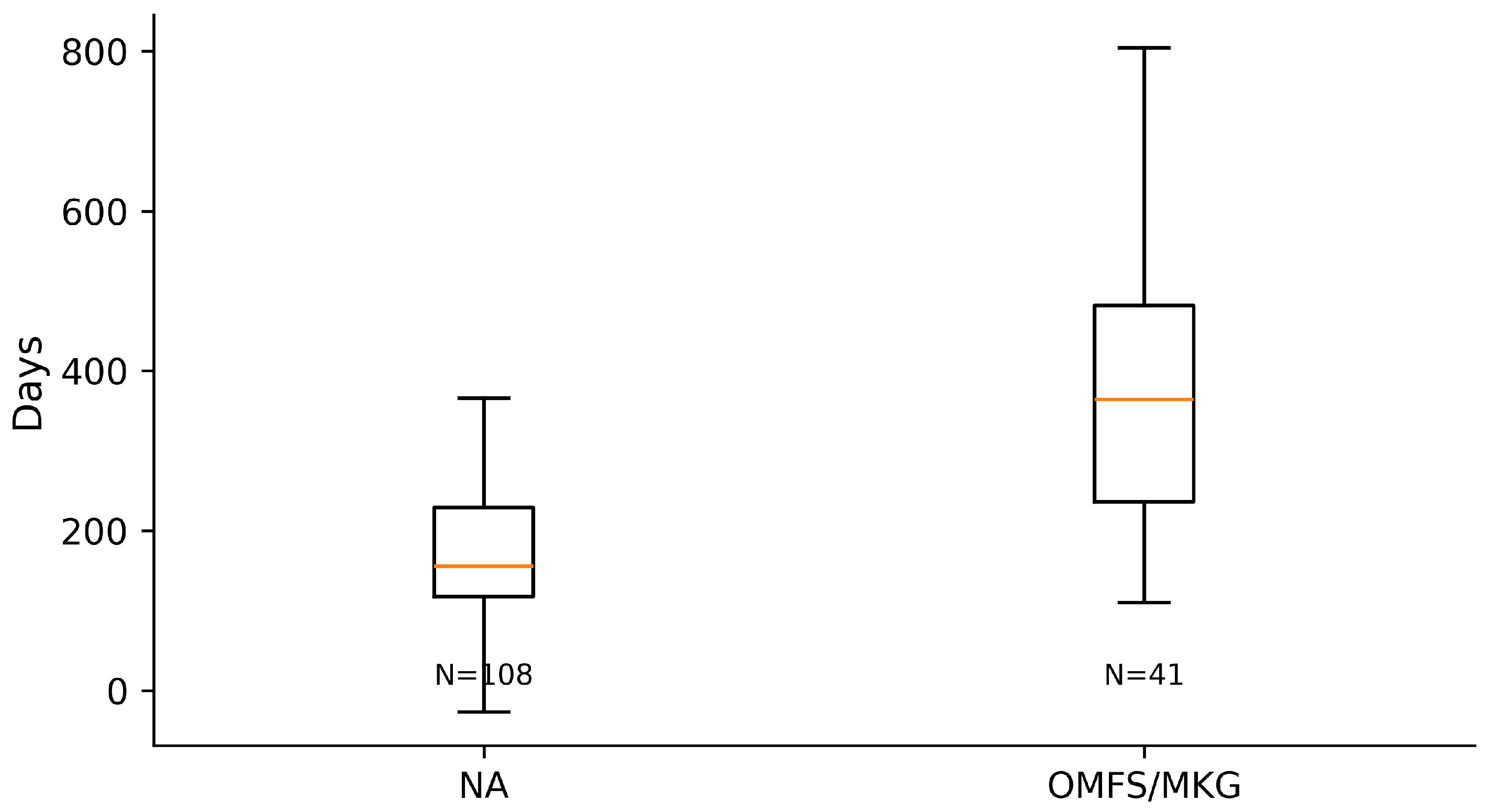

Figure 7. Days from surgery to implant exposure by operator.
Figure 7. Days from surgery to implant exposure by operator.
Diagnostics 16 01231 g007

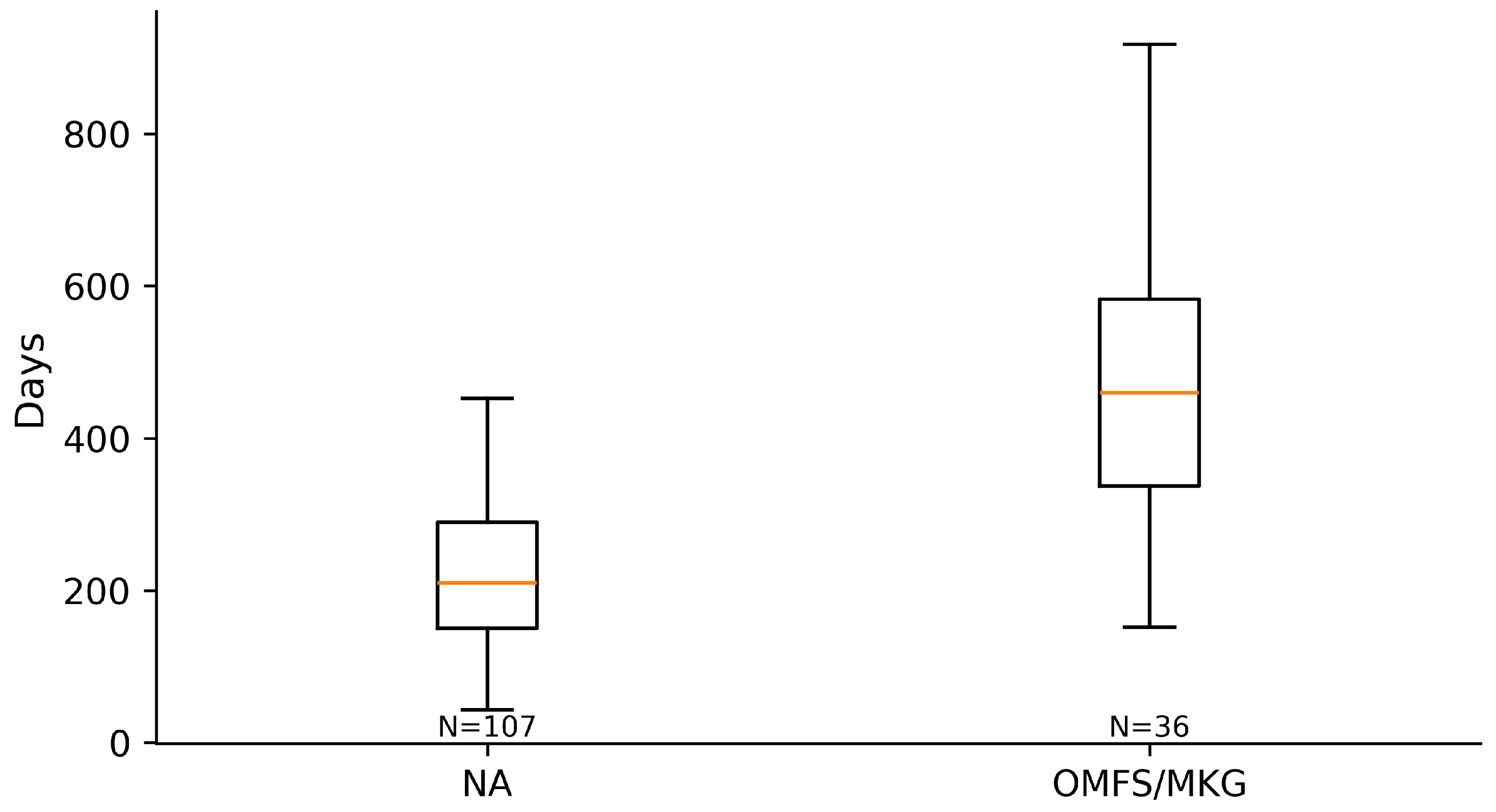

Figure 8. Days from surgery to definitive prosthetic restoration by operator.
Figure 8. Days from surgery to definitive prosthetic restoration by operator.
Diagnostics 16 01231 g008

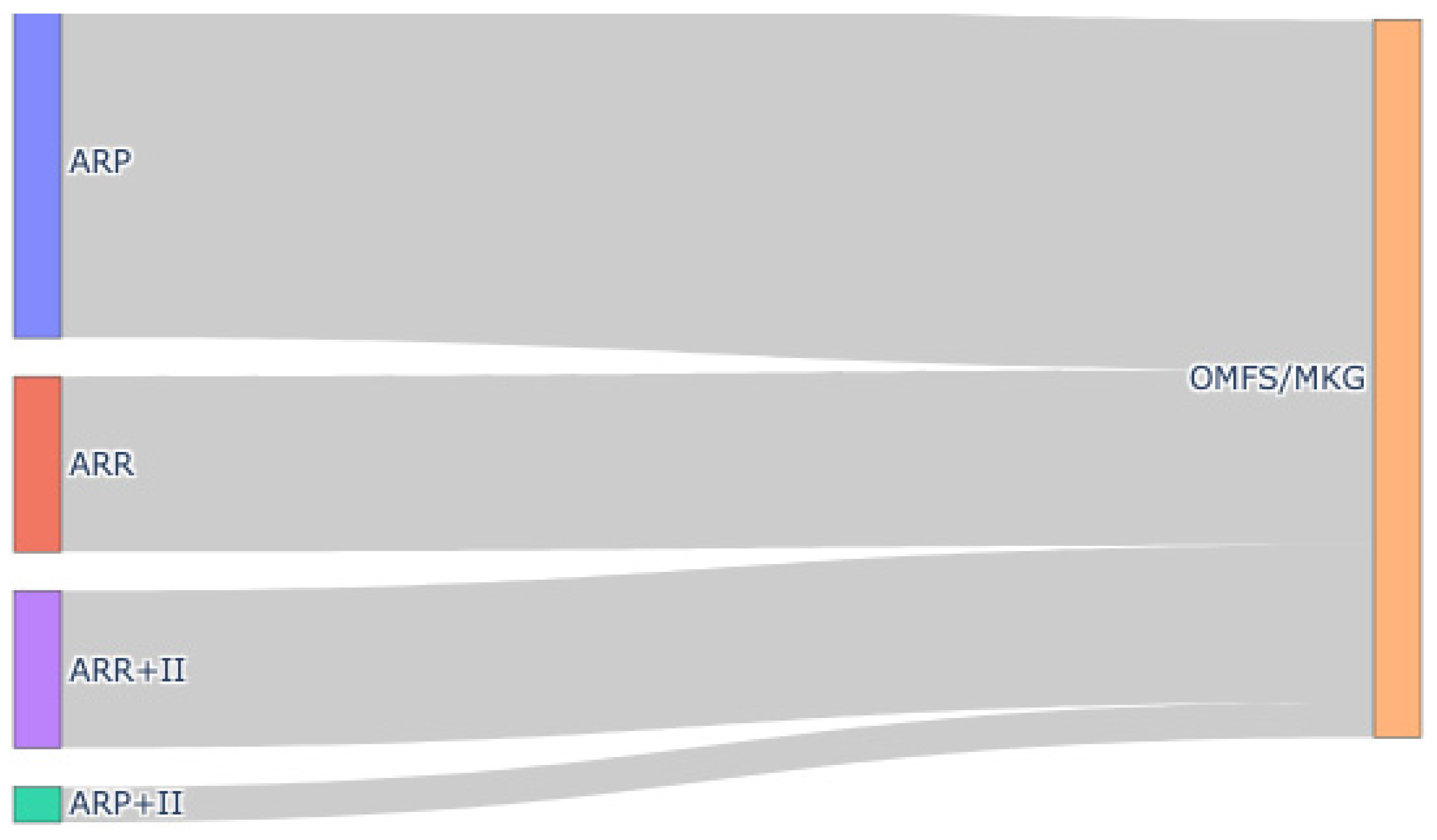

Figure 9. Treatment-to-operator flow diagram. Colors identify treatment strata; band width is proportional to case count.
Figure 9. Treatment-to-operator flow diagram. Colors identify treatment strata; band width is proportional to case count.
Diagnostics 16 01231 g009
Table 1. Sample characteristics by treatment (Master dataset).
Table 1. Sample characteristics by treatment (Master dataset).
TreatmentNAge_NAge_MeanAge_SD
ARP333353.24311.675
ARR161663.93713.388
ARP+II323255.94713.586
ARR+II777758.46212.112
Uncoded/NA250
Total18315857.41712.702
Table 2. Ridge-penalized logistic regression (OR; CIs omitted).
Table 2. Ridge-penalized logistic regression (OR; CIs omitted).
TermCoefficientORNote
const−3.1570.043Ridge-penalized logit; confidence intervals omitted due to quasi-separation.
treatment_base_ARR0.01.0Ridge-penalized logit; confidence intervals omitted due to quasi-separation.
immediate_ii0.3141.369Ridge-penalized logit; confidence intervals omitted due to quasi-separation.
Table 3. Early implant loss by treatment: (a) rates with Wilson 95% confidence intervals and (b) continuity-corrected odds ratios versus ARP.
Table 3. Early implant loss by treatment: (a) rates with Wilson 95% confidence intervals and (b) continuity-corrected odds ratios versus ARP.
(a) Rates by treatment (Wilson 95% confidence intervals)
TreatmentNComplicationsRateCI95_LoCI95_Hi
ARP3300.00.00.104
ARR1600.00.00.194
ARP+II3220.0620.0170.201
ARR+II7750.0650.0280.143
Uncoded/NA2500.00.00.133
(b) Continuity-corrected odds ratios versus ARP
ComparisonORCI95_LoCI95_Hi
ARR vs. ARP2.030.039106.931
ARP+II vs. ARP5.4920.253118.984
ARR+II vs. ARP5.0830.27394.606
Table 4. Rehabilitation timelines by treatment (median [IQR]; Kruskal-Wallis).
Table 4. Rehabilitation timelines by treatment (median [IQR]; Kruskal-Wallis).
MetricTreatmentNMedian [IQR]
days_to_freilegARP32358 [298, 491]
days_to_freilegARP+II30144 [111, 205]
days_to_freilegARR15364 [280, 458]
days_to_freilegARR+II72162 [119, 212]
days_to_freileg[Kruskal-Wallis]149KW p = 0.0000
days_to_prosARP31406 [326, 570]
days_to_prosARP+II30196 [136, 250]
days_to_prosARR13419 [356, 587]
days_to_prosARR+II69204 [151, 261]
days_to_pros[Kruskal-Wallis]143KW p = 0.0000
Table 5. Treatment × operator (counts).
Table 5. Treatment × operator (counts).
TreatmentNon-OMFSOMFS/MKG
ARP1320
ARP+II302
ARR610
ARR+II689
Table 6. Chi-square association and Cramér’s V.
Table 6. Chi-square association and Cramér’s V.
Chi-SquaredfpCramer’s V
46.36330.00.542
Table 7. Complication rate by operator (Wilson 95% CI).
Table 7. Complication rate by operator (Wilson 95% CI).
OperatorNEventsRateCI95_LoCI95_Hi
Non-OMFS12670.0560.0270.11
OMFS/MKG4100.00.00.086
Table 8. Pairwise Fisher tests (BH–FDR).
Table 8. Pairwise Fisher tests (BH–FDR).
Pairp_Rawp_adj_BH
Non-OMFS vs. OMFS/MKG0.1960.196
Table 9. Ridge-penalized logistic regression (operator effects adjusted).
Table 9. Ridge-penalized logistic regression (operator effects adjusted).
TermCoefficientORNote
const−2.220.109Ridge-penalized logit; CIs omitted due to quasi-separation.
operator_OMFS/MKG−0.9440.389Ridge-penalized logit; CIs omitted due to quasi-separation.
treatment_base_ARR0.01.0Ridge-penalized logit; CIs omitted due to quasi-separation.
immediate_ii0.01.0Ridge-penalized logit; CIs omitted due to quasi-separation.
age_at_op_years−0.0090.991Ridge-penalized logit; CIs omitted due to quasi-separation.
Table 10. Timelines by operator (median [IQR]; Kruskal–Wallis).
Table 10. Timelines by operator (median [IQR]; Kruskal–Wallis).
MetricOperatorNMedian [IQR]
days_to_freilegNon-OMFS108156 [118, 229]
days_to_freilegOMFS/MKG41364 [236, 482]
days_to_freileg[Kruskal-Wallis]149KW p = 0.0000
days_to_prosNon-OMFS107210 [150, 290]
days_to_prosOMFS/MKG36460 [337, 582]
days_to_pros[Kruskal-Wallis]143KW p = 0.0000
Table 11. Pairwise Mann–Whitney (days to Freilegung, BH–FDR).
Table 11. Pairwise Mann–Whitney (days to Freilegung, BH–FDR).
MetricPairp_Rawp_adj_BH
days_to_freilegNon-OMFS vs. OMFS/MKG0.00.0
Table 12. Pairwise Mann–Whitney (days to prosthesis, BH–FDR).
Table 12. Pairwise Mann–Whitney (days to prosthesis, BH–FDR).
MetricPairp_Rawp_adj_BH
days_to_prosNon-OMFS vs. OMFS/MKG0.00.0
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Meier, M.; Grün, P.; Schiepek, T.; Jankowski, P.; Bandura, A.; Fitzek, S.; Turhani, F.; Turhani, D. Immediate vs. Delayed Implant Placement Following Alveolar Ridge Procedures with Xeno-Hybrid Bovine Bone Graft: A Retrospective Cohort with Operator-Level Comparison. Diagnostics 2026, 16, 1231. https://doi.org/10.3390/diagnostics16081231

AMA Style

Meier M, Grün P, Schiepek T, Jankowski P, Bandura A, Fitzek S, Turhani F, Turhani D. Immediate vs. Delayed Implant Placement Following Alveolar Ridge Procedures with Xeno-Hybrid Bovine Bone Graft: A Retrospective Cohort with Operator-Level Comparison. Diagnostics. 2026; 16(8):1231. https://doi.org/10.3390/diagnostics16081231

Chicago/Turabian Style

Meier, Marius, Pascal Grün, Tim Schiepek, Pina Jankowski, Anna Bandura, Sebastian Fitzek, Flora Turhani, and Dritan Turhani. 2026. "Immediate vs. Delayed Implant Placement Following Alveolar Ridge Procedures with Xeno-Hybrid Bovine Bone Graft: A Retrospective Cohort with Operator-Level Comparison" Diagnostics 16, no. 8: 1231. https://doi.org/10.3390/diagnostics16081231

APA Style

Meier, M., Grün, P., Schiepek, T., Jankowski, P., Bandura, A., Fitzek, S., Turhani, F., & Turhani, D. (2026). Immediate vs. Delayed Implant Placement Following Alveolar Ridge Procedures with Xeno-Hybrid Bovine Bone Graft: A Retrospective Cohort with Operator-Level Comparison. Diagnostics, 16(8), 1231. https://doi.org/10.3390/diagnostics16081231

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
