The Effect of Periodontitis Severity on Diabetic Retinopathy: An Optical Coherence Tomography Study

by
Hatice Turkogullari
1,
Gozde Nur Aydogan
1,
Nur Yorgancilar
1,*,
Oguz Kose
1 and
Huseyin Findik
2
1
Department of Periodontology, Faculty of Dentistry, Recep Tayyip Erdoğan University, 53020 Rize, Turkey
2
Department of Ophthalmology, Division of Surgical Medical Sciences, Faculty of Medicine, Recep Tayyip Erdoğan University, 53100 Rize, Turkey
*
Author to whom correspondence should be addressed.
Diagnostics 2026, 16(5), 654; https://doi.org/10.3390/diagnostics16050654
Submission received: 12 January 2026 / Revised: 11 February 2026 / Accepted: 19 February 2026 / Published: 24 February 2026
(This article belongs to the Section Biomedical Optics)
Browse Figures
Versions Notes

Abstract

Background: The aim of this study was to comprehensively investigate the potential degenerative effects of periodontitis severity on retinal and choroidal structures in patients with different types of diabetic retinopathy (DR). Materials and Methods: The study’s Clinical Trials Registration Number is NCT07137013. A total of 100 participants (56 females and 44 males), each group consisting of 20 individuals, were allocated into five groups: systemically healthy controls (G1), diabetic patients without DR (G2: DM+ DR−), non-proliferative DR without diabetic macular edema (G3: NPDR DME−), non-proliferative DR with diabetic macular edema (G4: NPDR DME+), and proliferative DR (G5: PDR). Ocular examinations were performed using optical coherence tomography (OCT) and OCT angiography (OCTA). Retinal layer thicknesses, choroid-sclera interface (CSI), ganglion cell layer (GCL), retinal nerve fiber layer (RNFL), and peripapillary CSI were assessed by OCT, whereas superficial and deep retinal vessel densities and the foveal avascular zone (FAZ) were evaluated by OCTA. Clinical periodontal status was assessed using plaque index (PI), gingival index (GI), bleeding on probing (BOP), probing pocket depth (PPD), and clinical attachment loss (CAL). Results: In the G3 and G5 groups, the presence of stage III–IV periodontitis was associated with a marked increase in retinal layer thickness. GCL + Inner Plexiform Layer (GCL+) thickness was significantly reduced in individuals with stage III–IV periodontitis in almost all regions of the G5 group, except for the 3 mm nasal and inferior areas. Peripapillary CSI values showed a significant decrease with increasing periodontitis severity. RNFL thickness was significantly reduced in individuals with stage III–IV periodontitis, particularly in the G5 group. OCTA analyses demonstrated significant reductions in superficial and deep retinal vessel densities in several regions in the presence of stage III–IV periodontitis. Moreover, FAZ areas were significantly enlarged in individuals with stage III–IV periodontitis in the G2 and G5 groups. Conclusions: Periodontal inflammation, particularly in advanced periodontitis (stage III–IV), induces degenerative changes in the retinal microvasculature and neural tissues. Increasing periodontitis severity may represent a potential provoking factor in the pathogenesis of DR.

1. Introduction

Diabetic retinopathy (DR) is a common microvascular complication of diabetes mellitus (DM) and a major global public health concern, representing one of the leading causes of visual impairment among adults worldwide [1,2]. In DR, thickening of the retinal capillary basement membrane and increased vascular permeability occur, followed by progressive neovascularization and vascular proliferation within the retinal layers [3]. Contemporary imaging modalities are widely used to investigate structural and microvascular changes in the retina [4,5]. Among these, optical coherence tomography (OCT) and OCT angiography (OCTA) are currently considered gold-standard, non-invasive techniques for retinal assessment [6]. OCT enables high-resolution, contact-free measurement of retinal, choroidal, retinal nerve fiber layer (RNFL), and ganglion cell layer (GCL) thicknesses, whereas OCTA allows layer-by-layer visualization of retinal plexuses and quantitative evaluation of microvascular alterations at the capillary level [5,7]. Together, these modalities provide valuable insights into retinal structural and vascular changes in systemic diseases such as DM and periodontitis [8,9,10].
The pathogenesis of DR is primarily driven by chronic hyperglycemia, oxidative stress, inflammatory cytokine release, and endothelial dysfunction [11]. Periodontitis is likewise a chronic inflammatory disease characterized by similar pathophysiological mechanisms and affects nearly half of the global population, with a prevalence exceeding 60% among individuals aged ≥ 65 years [12,13,14,15]. DR is also more frequently observed in older individuals [16]. The association between DR and periodontitis can therefore be explained by shared pathways involving systemic inflammation, oxidative stress, and endothelial dysfunction [14]. Indeed, recent observational studies have suggested a potential link between these two diseases; however, investigations specifically addressing the impact of periodontal disease severity on retinal layer thickness in patients with DR remain limited [8,9,17,18,19,20].
In this context, the hypothesis that periodontal inflammation-induced systemic inflammatory burden may lead to microvascular alterations in the retina, thereby affecting retinal layer thickness, provides an important conceptual framework for explaining the association between DR and periodontitis. Therefore, the present study aimed to evaluate the relationship between periodontitis severity and retinal layer thickness in individuals with different types of DR using OCT and OCTA, and to comprehensively assess the potential effects of periodontal disease on retinal microstructures.

2. Materials and Methods

2.1. Ethical Approval

This cross-sectional study was conducted between February and June 2025 with the participation of 100 individuals aged ≥ 60 years (56 females and 44 males) who presented to the Department of Ophthalmology, Faculty of Medicine, Recep Tayyip Erdoğan University (RTEU). The study protocol was approved by the RTEU Non-Interventional Clinical Research Ethics Committee (Approval No: 2025/59) and was carried out in accordance with the principles of the Declaration of Helsinki. The study details were explained to all participants, and both written and verbal informed consent were obtained prior to enrollment. The study’s Clinical Trials Registration Number is NCT07137013.

2.2. Study Groups

Participants who met the inclusion criteria were allocated into five groups, each consisting of 20 individuals: Systemically healthy controls (G1), diabetic patients without DR (G2: DM+ DR−), patients with non-proliferative DR without diabetic macular edema (G3: NPDR DME−), patients with non-proliferative DR with diabetic macular edema (G4: NPDR DME+), and patients with proliferative DR (G5: PDR). All ophthalmologic diagnoses were established by an experienced ophthalmologist (H.F.).
According to the current periodontal disease classification [15], participants were further categorized into two groups based on periodontitis severity: stage I–II and stage III–IV.
A diagnosis of DM required an HbA1c level ≥ 6.5% [21]. Individuals with autoimmune diseases, osteoporosis, malignancy, those using immunosuppressive agents, oral contraceptives, or bisphosphonates, pregnant individuals, patients with vitreoretinal, optic nerve, or choroidal vascular diseases, cataract, glaucoma, retinal degeneration, uveitis, Behçet’s disease, or scleritis, a history of refractive or intraocular surgery, active infectious diseases (e.g., acute hepatitis, tuberculosis, AIDS), chronic medication use affecting periodontal tissues (e.g., cyclosporine A, phenytoin), or antioxidant supplementation were excluded from the study.

2.3. Sample Size Calculation

Sample size estimation was performed using G*Power (ver.3.1.9.7) software. Based on an effect size (d) of 0.40, a type I error rate (α) of 0.05, and a statistical power of 90% (1 − β), the total required sample size was calculated as 100 participants, with at least 20 individuals per group.

2.4. Examiner Calibration

Calibration for OCTA foveal avascular zone (FAZ) measurements and clinical periodontal measurements was performed by four examiners (H.F. and H.T., G.N.A, N.Y., respectively) in 10 individuals (5 with stage I–II and 5 with stage III–IV periodontitis) who were not included in the study, at two time points (baseline and 2 weeks later). The intraclass correlation coefficients were 0.969 for FAZ measurements and 0.978 for probing pocket depth (PPD), indicating excellent reproducibility. With a 99% confidence interval, these results were considered highly reliable (p < 0.0001).

2.5. Clinical Periodontal Measurements

Plaque index (PI) [22], gingival index (GI) [22], bleeding on probing (BOP) [23], PPD [24], and clinical attachment loss (CAL) [24] were recorded using a Williams periodontal probe (Hu-Friedy, Chicago, IL, USA). PPD was defined as the distance between the gingival margin and the deepest point of the periodontal pocket, and CAL as the distance between the cemento-enamel junction and the base of the pocket. Measurements were obtained at six sites per tooth (mesiobuccal, mid-buccal, distobuccal, mesiolingual, mid-lingual, and distolingual) for all teeth except third molars. PI and GI were assessed at four sites (mesial, distal, buccal, and palatal).

2.6. Optical Coherence Tomography Measurements

Prior to OCT imaging, pupil dilation was performed in all participants. Measurements were obtained by an experienced ophthalmologist (H.F.) using swept-source OCT and OCTA (DRI OCT Triton; Topcon, Tokyo, Japan).
Macular thickness was evaluated using a nine-sector map centered on the fovea according to the Early Treatment Diabetic Retinopathy Study (ETDRS) (Bethesda, MD, USA) grid. The central 1 mm circle represented the foveal area, the surrounding 3 mm ring corresponded to the inner retinal layers, and the outer 6 mm ring represented the outer retinal layers (Figure 1A).
Based on the ETDRS grid, retinal layer thickness, choroid–sclera interface (CSI), GCL+ (GCL + inner plexiform layer (IPL)), and RNFL thicknesses were measured in nine regions. In addition, peripapillary CSI (BM–CSI) thickness was measured in four quadrants (superior, inferior, nasal, and temporal) using grid mode 4 [25] (Figure 1B). RNFL total thickness was defined as the global average thickness obtained from a circular peripapillary scan and automatically calculated by the OCT device as the mean value of the superior, inferior, nasal, and temporal quadrants. Measurements from the right and left eyes were averaged to obtain a single subject-level value for each parameter, and all statistical analyses were conducted using average data.

2.7. Optical Coherence Tomography Angiography Measurements

OCTA was used to assess vessel density and FAZ parameters in both superficial and deep retinal layers. A 6 × 6 mm scan area was applied for all images. The superficial retinal layer was defined as the region from 2.6 to 15.6 μm from the inner limiting membrane (ILM), and the deep retinal layer as the region from 15.6 to 70.2 μm from the ILM.
Vessel density was measured in the foveal area (central 1 mm diameter) and the parafoveal ring (1–3 mm), which was further divided into four quadrants: superior, inferior, nasal, and temporal (Figure 2).
The central retinal region in which no vascular structures were detectable was defined as the FAZ. The FAZ area was manually measured in all patients. Two reference lines passing through the center of the FAZ were drawn on each image: one along the superior-inferior axis (vertical) and the other along the temporal-nasal axis (horizontal). These lines symmetrically divided the FAZ into four quadrants, thereby establishing a central reference framework. Using these reference axes, the inner boundary of the FAZ was carefully delineated manually according to the points where the surrounding capillary network began. During this process, the innermost points of the capillary loops bordering the vessel-free zone were used as reference points for boundary delineation. The resulting closed contour was subsequently measured by the analysis software to calculate the FAZ area.

2.8. Statistical Analysis

Statistical analyses were performed using SPSS Statistics version 26 (IBM Corp., Armonk, NY, USA). The normality of the distribution of continuous variables was assessed using skewness and kurtosis values. Since parametric assumptions were satisfied, independent samples t-tests were used for comparisons between two groups, and one-way analysis of variance (ANOVA) was applied for comparisons among three or more groups. The chi-square (χ2) test was used to analyze categorical variables such as age and sex. p value < 0.05 was considered statistically significant.

3. Results

3.1. Demographic Findings

The study population consisted of 56 females and 44 males. 57 participants were in the 60–65 age range, and 43 were 66 years and older. Chi-square analysis revealed no statistically significant differences in gender (χ2 = 1.440; p = 0.230) or age (χ2 = 1.96; p = 0.162) distributions. When the distribution of participants according to the five study groups (G1–G5) was examined, it was observed that the ratio of women to men (χ2 = 3.409, p = 0.492) and the age distribution (χ2 = 1.877, p = 0.758) were relatively balanced in each group. This indicates that the groups were demographically homogeneous (Table 1) (Supplementary Table S1) (Changes in HbA1c values are presented in Supplementary Table S1).

3.2. Association Between Retinal Layer Thickness and Periodontal Disease Severity

With increasing periodontitis stage, significant increases were observed in the 1 mm central, 3 mm superior and temporal, and 6 mm inferior retinal layer thicknesses in the G4 and G5 groups. In contrast, in the G3 group, negative correlations with periodontitis stage were detected in the 1 mm central and 6 mm temporal retinal layers. A statistically significant increase in the 6 mm nasal retinal layer thickness was observed only in the G5 group (p = 0.025) (Table 2).

3.3. Association Between CSI Values and Periodontal Disease Severity

In the G3, G4, and G5 groups, significant decreases were observed in the 1 mm central, 3 mm superior and nasal, and 6 mm nasal CSI layers as periodontitis stage increased. In addition, statistically significant reductions were detected in the temporal regions (3 mm and 6 mm) in the G3 and G5 groups. A significant decrease was observed in the 3 mm inferior region in the G3 group and in the 6 mm superior region in the G4 group. As periodontitis severity increased, a significant decrease was noted in the 6 mm nasal region in the G2 group, whereas a significant increase was detected in the 6 mm inferior region in the G1 group (p = 0.012) (Table 3).

3.4. Association Between GCL+ Values and Periodontal Disease Severity

In the G5 group, statistically significant reductions were observed in almost all regions, except for the 3 mm nasal and inferior areas. Moreover, thinning the 1 mm central GCL+ was detected in the G3 and G4 groups with increasing periodontitis stage (Table 4).

3.5. Association Between RNFL Values and Periodontal Disease Severity

In the G5 group, statistically significant decreases were observed across all regions as periodontitis stage increased. Additionally, in the superior RNFL, a significant decrease was detected in the G4 group, whereas a significant increase was observed in the G1 group (Table 5).

3.6. Association Between Peripapillary CSI (BM–CSI) Values and Periodontal Disease Severity

In all groups, a statistically significant decrease in nasal CSI was detected with increasing periodontitis stage. In the superior and temporal CSI regions, significant reductions were observed in all groups except for G1. In the inferior CSI region, a statistically significant decrease associated with periodontitis severity was observed only in the G5 group (p = 0.049) (Table 6).

3.7. Association Between Superficial Retinal Layer Vessel Density (ILM 2.6- IPL/INL15.6) and Periodontal Disease Severity

As periodontitis stage increased, statistically significant decreases in superficial retinal layer vessel density were observed in the central region in the G3 group, the inferior region in the G4 group, and the nasal region in the G5 group (Table 7).

3.8. Association Between Deep Retinal Layer Vessel Density (ILM 15.6-IPL/INL70.2) and Periodontal Disease Severity

In the G3 and G4 groups, significant decreases in vessel density were recorded in the deep central and temporal regions with increasing periodontitis stage. In addition, a similar decrease was observed in the deep temporal region in the G2 group. The reduction in vessel density was statistically significant in the deep inferior region in the G4 group and in the deep superior region in the G5 group (Table 8).

3.9. Association Between FAZ (Superficial and Deep) Values and Periodontal Disease Severity

In both superficial and deep FAZ measurements, a statistically significant increase was detected in the G2 group as periodontitis stage increased. Furthermore, in the G5 group, a significant increase was observed only in the deep FAZ (Table 9).

4. Discussion

The association between periodontitis and DR is primarily attributed to shared mechanisms involving systemic inflammation, oxidative stress, and endothelial dysfunction [12,13,14,17,18,19]. In diabetes, hyperglycemia-induced overproduction of reactive oxygen species and the accumulation of advanced glycation end products (AGEs) promote endothelial dysfunction, which underlies the development of microvascular complications. This process is closely linked to the vascular damage and heightened inflammatory response observed in DR [3,26]. Similarly, periodontitis, as a chronic source of oral inflammation, increases the systemic inflammatory burden through the release of pro-inflammatory mediators such as Tumor necrosis factor (TNF)-α, Interleukin (IL)-6, and C-reactive protein into the circulation, thereby potentially impairing endothelial function [12,27]. These mechanisms may aggravate diabetic microangiopathy and facilitate the progression of DR. Moreover, periodontitis-related systemic inflammation may contribute to pathological retinal neovascularization by enhancing Vascular Endothelial Growth Factor expression secondary to retinal hypoxia [12,13,14]. In this cross-sectional study, we comprehensively evaluated the relationship between periodontal disease severity and retinal structural changes using advanced imaging modalities. OCT and OCTA enabled the assessment of retinal thickness, CSI, GCL, RNFL, peripapillary CSI, as well as superficial and deep retinal vessel densities and FAZ areas. To our knowledge, this is the first study to demonstrate, in a layer-specific manner, the potential impact of periodontal disease severity on both retinal microvasculature and neural tissues. The findings offer a novel interdisciplinary biomarker perspective for understanding how oral inflammation is reflected in systemic microvascular structures.
In the present study revealed significant structural alterations in retinal, choroidal, and neural layers with increasing periodontal disease severity in patients with DR. The increase in retinal thickness observed particularly in the G4 and G5 groups among individuals with stage III–IV periodontitis, together with regional thinning in the G3 group, indicates that periodontal inflammation extends beyond a localized oral pathology and may influence retinal microvascular structures via systemic pathways. Consistent with our findings, a previous study evaluating intraretinal layer thickness reported significant intergroup differences across all macular regions, with thinning in DM without DR and mild DR, and thickening in moderate DR, likely reflecting edema-related changes (p < 0.001) [28]. Similarly, we observed retinal thinning in the G2 group compared with G1, whereas thickening associated with edema and proliferative changes was evident in advanced DR stages.
In DR, pathological changes including disruption of retinal vascular structures, increased blood-retina barrier permeability, and ischemia-induced microaneurysms, edema, exudation, and neovascularization extend beyond the retina and also affect choroidal thickness and volume [29,30,31]. The choroid, located beneath the retinal pigment epithelium and characterized by rich vascularization, plays a critical role in supplying the outer retinal layers [32]. Several studies have demonstrated a close relationship between DR severity and choroidal alterations [33,34,35,36]. In the cross-sectional study, choroidal thickness generally decreased with increasing periodontal disease severity, with only a few regions remaining unaffected in certain groups. This pattern may reflect a periodontitis-related systemic subclinical pro-inflammatory state. Fernández-Espinosa et al. [36] demonstrated an inverse relationship between increased retinal thickness and choroidal thickness within the underlying pathophysiological processes. Wang et al. [33] reported that in patients with type 2 diabetes and DR, choroidal thickness increased in certain regions, whereas a general thinning was observed as disease severity progressed. Supporting our findings, Lains et al. [34], found that choroidal thickness was significantly lower in patients with PDR compared with the control group. Consistent with previous studies, our findings further demonstrate, for the first time, that both retinal and choroidal layer thicknesses increase in the early stages of periodontitis and decrease in the advanced stages.
In our study, GCL and RNFL thickness progressively decreased with increasing periodontitis severity. The more pronounced alterations observed in the G5 group suggest that periodontal inflammation may interact with DR-related vascular dysfunction, thereby accelerating neurodegenerative processes. Consistent with our findings, Sung et al. [37] reported a progressive reduction in GC-IPL thickness across all retinal layers with advancing stages of DR, while another case–control study [38] demonstrated significantly reduced GC-IPL thickness in both patients with DM without DR and those with DR compared with healthy controls. [38] In a study that included control subjects, patients with DM without DR, and those with NPDR, and evaluated RNFL thickness [39], it was reported that thickness was significantly lower than in the control group only in the superior temporal region in the DM group and in the inferior temporal region in the NPDR group. Although our study is methodologically different, it is valuable in that it compares RNFL thickness according to the severity stages of periodontitis and also includes a proliferative group. Moreover, our findings indicate generally statistically significant reductions in RNFL thickness in the G5 group. In individuals with diabetes, pre-existing microangiopathy may amplify the effects of inflammatory mediators and thereby accelerate neurodegenerative processes [40]. These findings are consistent with the existing literature, suggesting that periodontitis may exert adverse effects on the retina through systemic inflammation and vascular dysfunction [41,42,43].
Interestingly, RNFL thickening was observed in individuals with stage III–IV periodontitis in the G1 group. This finding may reflect transient edema-like changes or increased local vascular permeability induced by periodontal inflammation, as suggested in previous studies [41,44,45]. Thus, in nondiabetic individuals, periodontitis may lead to edema-like reversible retinal changes rather than true neurodegeneration. Supporting this interpretation, Arslan et al. [8] reported increased RNFL thickness in individuals with advanced periodontitis compared with those with early stages. In line with the findings of Arslan et al., it is suggested that periodontitis may induce subclinical inflammatory responses, thereby affect the ocular microvasculature and potentially lead to measurable changes in RNFL thickness. Additionally, in this study, regions showing a significant decrease in peripapillary choroidal thickness also exhibited concomitant and similarly directed significant reductions in RNFL thickness. This finding indicates a positive and significant association between peripapillary choroidal thickness and RNFL thickness.
OCTA findings further demonstrated that increasing periodontal disease severity was associated with significant reductions in superficial and deep retinal vessel densities in specific regions. These results align with previous reports of decreased foveal vessel density in metabolic syndrome and periodontitis [8], reduced superficial capillary density in mild NPDR [46], and diminished deep plexus density in eyes with DME+ [47]. Studies comparing type 1 and type 2 diabetes have also shown significant alterations in both capillary plexuses [48], while others have documented superficial capillary loss in diabetic individuals [49]. Moreover, reductions in peripapillary vessel density with increasing DR severity [50] and associations between vascular density loss and disease duration and severity [48,51,52] further support our observations. The observation of significant increases in superficial and deep FAZ values, particularly in the G2 group [53,54], as the severity of periodontitis increases, indicates that the stage of periodontitis is a factor affecting the FAZ in the early stages of diabetes [8,9,55]. In advanced stages, damage to the retina over time, such as changes in retinal thickness, becomes more pronounced, potentially masking the subtle FAZ changes observed earlier.
This cross-sectional study has several important limitations. Firstly, the failure to evaluate right and left eye data separately [56] precluded the identification of potential interocular differences in retinal layer thickness. This methodological limitation may have led to the neglect of intraocular asymmetries, in addition to interindividual variability, thereby restricting both clinical interpretability and the scientific validity of the findings. Secondly, periodontal disease involves a complex pathophysiological process driven by both chronic inflammatory responses and microbial infection. Considering that these two key mechanisms may affect retinal tissues through distinct biological pathways, evaluating their effects without distinguishing between the inflammatory and infectious components may complicate the biological interpretation of our data. Thirdly, the relatively small sample size and limited number of subgroups restrict the generalizability of the results. Furthermore, the relatively high standard deviations observed in some variables and the limited sample size in the subgroups may have reduced the statistical power to detect significant differences. Another significant limitation is that, because the study design was planned as an image-based cross-sectional analysis, systemic or local inflammatory biomarkers were not evaluated. Additionally, the lack of detailed treatment-related variables, concomitant systemic conditions, and inflammatory laboratory markers may have limited a more comprehensive assessment of potential confounding factors. Finally, the short follow-up period of the study did not allow comprehensive monitoring of structural changes that may occur over time in retinal and periodontal tissues and limited the evaluation of long-term effects. Therefore, future large-scale, long-term, and multicenter studies with larger sample sizes, incorporating multidisciplinary approaches that include systemic and local biomarkers as well as infectious mechanisms, are recommended to advance understanding in this critical field.

5. Conclusions

This cross-sectional study suggests that periodontal inflammation is associated with systemic microvascular dysfunction and may contribute to the pathophysiology of DR. The effects of periodontitis severity on retinal layer thickness and vascularization appear to be more pronounced in the advanced stages of DR.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/diagnostics16050654/s1, Supplementary Table S1: Changes in HbA1c values.

Author Contributions

The study was conceptualized and designed by O.K., H.T. and H.F. Clinical periodontal measurements were performed by H.T., G.N.A. and N.Y. Optical coherence tomography and optical coherence tomography angiography measurements were carried out by H.F. The manuscript was written by H.T., G.N.A. and N.Y., and critically revised and edited by O.K. and H.F. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

The study protocol was approved by the Non-Interventional Clinical Research Ethics Committee of Recep Tayyip Erdoğan University (6 February 2025-Decision No: 2025/59) and conducted in accordance with the principles of the Declaration of Helsinki (2013 revision). Clinical Trial Number is NCT07137013. It was recorded retrospectively (Record date: 16 August 2025).

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

The data that support the findings of this study are available from the corresponding author upon reasonable request.

Acknowledgments

This study has been supported by the Recep Tayyip Erdoğan University Development Foundation (Grant number: 02026002004088).

Conflicts of Interest

The authors declare no conflicts of interest.

Abbreviations

DRDiabetic retinopathy
DMDiabetes mellitus
OCTOptical coherence tomography
OCTAOptical coherence tomography angiography
CSIChoroid-sclera interface
GCLGanglion cell layer
RNFLRetinal nerve fiber layer
FAZFoveal avascular zone
ILMInner limiting membrane
PIPlaque index
GIGingival index
PPDProbing pocket depth
CALClinical attachment loss
RTEURecep Tayyip Erdoğan University
AGEsAdvanced glycation end products
TNFTumor necrosis factor
ILInterleukin

References

  1. Teo, Z.L.; Tham, Y.C.; Yu, M.; Chee, M.L.; Rim, T.H.; Cheung, N.; Bikbov, M.M.; Wang, Y.X.; Tang, Y.; Lu, Y.; et al. Global Prevalence of Diabetic Retinopathy and Projection of Burden through 2045: Systematic Review and Meta-analysis. Ophthalmology 2021, 128, 1580–1591. [Google Scholar] [CrossRef] [PubMed]
  2. Tan, T.E.; Wong, T.Y. Diabetic retinopathy: Looking forward to 2030. Front. Endocrinol. 2022, 13, 1077669. [Google Scholar] [CrossRef]
  3. Kang, Q.; Yang, C. Oxidative stress and diabetic retinopathy: Molecular mechanisms, pathogenetic role and therapeutic implications. Redox Biol. 2020, 37, 101799. [Google Scholar] [CrossRef] [PubMed]
  4. Sinclair, S.H.; Schwartz, S. Diabetic retinopathy: New concepts of screening, monitoring, and interventions. Surv. Ophthalmol. 2024, 69, 882–892. [Google Scholar] [CrossRef] [PubMed]
  5. Yang, Z.; Tan, T.E.; Shao, Y.; Wong, T.Y.; Li, X. Classification of diabetic retinopathy: Past, present and future. Front. Endocrinol. 2022, 13, 1079217. [Google Scholar] [CrossRef]
  6. Ramakrishnan, M.S.; Kovach, J.L.; Wykoff, C.C.; Berrocal, A.M.; Modi, Y.S. American Society of Retina Specialists Clinical Practice Guidelines on Multimodal Imaging for Retinal Disease. J. VitreoRetin. Dis. 2024, 8, 234–246. [Google Scholar] [CrossRef]
  7. Tang, F.Y.; Chan, E.O.; Sun, Z.; Wong, R.; Lok, J.; Szeto, S.; Chan, J.C.; Lam, A.; Tham, C.C.; Ng, D.S.; et al. Clinically relevant factors associated with quantitative optical coherence tomography angiography metrics in deep capillary plexus in patients with diabetes. Eye Vis. 2020, 7, 7. [Google Scholar] [CrossRef]
  8. Arslan, H.; Yorgancilar, N.; Kose, O.; Aslan, M.G.; Altin, A.; Bayrakdar, S.K.; Yemenoglu, H.; Findik, H.; Yilmaz, A. Periodontitis Provokes Retinal Neurodegenerative Effects of Metabolic Syndrome: A Cross-Sectional Study. Dent. J. 2024, 12, 351. [Google Scholar] [CrossRef]
  9. Lindner, M.; Arefnia, B.; Ivastinovic, D.; Sourij, H.; Lindner, E.; Wimmer, G. Association of periodontitis and diabetic macular edema in various stages of diabetic retinopathy. Clin. Oral. Investig. 2022, 26, 505–512. [Google Scholar] [CrossRef]
  10. Crincoli, E.; Sacconi, R.; Querques, L.; Querques, G. OCT angiography 2023 update: Focus on diabetic retinopathy. Acta Diabetol. 2024, 61, 533–541. [Google Scholar] [CrossRef]
  11. Wang, W.; Lo, A.C.Y. Diabetic Retinopathy: Pathophysiology and Treatments. Int. J. Mol. Sci. 2018, 19, 1816. [Google Scholar] [CrossRef] [PubMed]
  12. Lomeli Martinez, S.M.; Cortes Trujillo, I.; Martinez Nieto, M.; Mercado Gonzalez, A.E. Periodontal disease: A silent factor in the development and progression of diabetic retinopathy. World J. Diabetes 2024, 15, 1672–1676. [Google Scholar] [CrossRef] [PubMed]
  13. Arjunan, P. Eye on the Enigmatic Link: Dysbiotic Oral Pathogens in Ocular Diseases; The Flip Side. Int. Rev. Immunol. 2021, 40, 409–432. [Google Scholar] [CrossRef] [PubMed]
  14. Zhao, Y.; Shen, Q.Q. Link between periodontitis and diabetic retinopathy: Inflammatory pathways and clinical implications. World J. Diabetes 2024, 15, 1842–1846. [Google Scholar] [CrossRef]
  15. Papapanou, P.N.; Sanz, M.; Buduneli, N.; Dietrich, T.; Feres, M.; Fine, D.H.; Flemmig, T.F.; Garcia, R.; Giannobile, W.V.; Graziani, F.; et al. Periodontitis: Consensus report of workgroup 2 of the 2017 World Workshop on the Classification of Periodontal and Peri-Implant Diseases and Conditions. J. Periodontol. 2018, 89, S173–S182. [Google Scholar] [CrossRef]
  16. Leley, S.P.; Ciulla, T.A.; Bhatwadekar, A.D. Diabetic Retinopathy in the Aging Population: A Perspective of Pathogenesis and Treatment. Clin. Interv. Aging 2021, 16, 1367–1378. [Google Scholar] [CrossRef]
  17. Anil, S.; Joseph, B.; Pereira, M.A.; Arya, S.; Syamala, S.; Sweety, V.K.; Jayasinghe, R. Diabetic Retinopathy and Periodontitis: Implications from a Systematic Review and Meta-Analysis. Int. Dent. J. 2025, 75, 453–463. [Google Scholar] [CrossRef]
  18. Tandon, A.; Kamath, Y.S.; Gopalkrishna, P.; Saokar, A.; Prakash, S.; Sarpangala, S.B.; Bhandary, S.V. The association between diabetic retinopathy and periodontal disease. Saudi J. Ophthalmol. 2020, 34, 167–170. [Google Scholar] [CrossRef]
  19. Alvarenga, M.O.P.; Miranda, G.H.N.; Ferreira, R.O.; Saito, M.T.; Fagundes, N.C.F.; Maia, L.C.; Lima, R.R. Association Between Diabetic Retinopathy and Periodontitis—A Systematic Review. Front. Public Health 2020, 8, 550614. [Google Scholar] [CrossRef]
  20. Almarhoumi, R.; Alvarez, C.; Harris, T.; Tognoni, C.M.; Paster, B.J.; Carreras, I.; Dedeoglu, A.; Kantarci, A. Microglial cell response to experimental periodontal disease. J. Neuroinflammation 2023, 20, 142. [Google Scholar] [CrossRef]
  21. WHO. Use of Glycated Haemoglobin (HbA1c) in the Diagnosis of Diabetes Mellitus; Abbreviated Report of a WHO Consultation; WHO: Geneva, Switzerland, 2011. [Google Scholar]
  22. Loe, H. The Gingival Index, the Plaque Index and the Retention Index Systems. J. Periodontol. 1967, 38, 610–616. [Google Scholar] [CrossRef]
  23. Ainamo, J.; Bay, I. Problems and proposals for recording gingivitis and plaque. Int. Dent. J. 1975, 25, 229–235. [Google Scholar]
  24. Glavind, L.; Loe, H. Errors in the clinical assessment of periodontal destruction. J. Periodontal Res. 1967, 2, 180–184. [Google Scholar] [CrossRef] [PubMed]
  25. Early Treatment Diabetic Retinopathy Study Research Group. Grading diabetic retinopathy from stereoscopic color fundus photographs—An extension of the modified Airlie House classification. ETDRS report number 10. Ophthalmology 1991, 98, 786–806. [Google Scholar]
  26. Giacco, F.; Brownlee, M. Oxidative stress and diabetic complications. Circ. Res. 2010, 107, 1058–1070. [Google Scholar] [CrossRef]
  27. Janket, S.J.; Jones, J.A.; Meurman, J.H.; Baird, A.E.; Van Dyke, T.E. Oral infection, hyperglycemia, and endothelial dysfunction. Oral Surg. Oral Med. Oral Pathol. Oral Radiol. Endod. 2008, 105, 173–179. [Google Scholar] [CrossRef]
  28. Shah, J.; Tan, B.; Wong, D.; Abdul Gani, N.F.B.; Hu, Q.; Liu, X.; Chua, J. Evaluation of thickness of individual macular retinal layers in diabetic eyes from optical coherence tomography. Sci. Rep. 2024, 14, 17909. [Google Scholar] [CrossRef]
  29. Lupidi, M.; Coscas, G.; Coscas, F.; Fiore, T.; Spaccini, E.; Fruttini, D.; Cagini, C. Retinal Microvasculature in Nonproliferative Diabetic Retinopathy: Automated Quantitative Optical Coherence Tomography Angiography Assessment. Ophthalmic Res. 2017, 58, 131–141. [Google Scholar] [CrossRef]
  30. Orduna-Hospital, E.; Perdices, L.; Sanchez-Cano, A.; Acha, J.; Cuenca, N.; Pinilla, I. Choroidal Changes of Long-Term Type 1 Diabetic Patients without Retinopathy. Diagnostics 2020, 10, 235. [Google Scholar] [CrossRef]
  31. Haydinger, C.D.; Ferreira, L.B.; Williams, K.A.; Smith, J.R. Mechanisms of macular edema. Front. Med. 2023, 10, 1128811. [Google Scholar] [CrossRef]
  32. Di Pippo, M.; Santia, C.; Rullo, D.; Ciancimino, C.; Grassi, F.; Abdolrahimzadeh, S. The Choroidal Vascularity Index Versus Optical Coherence Tomography Angiography in the Evaluation of the Choroid with a Focus on Age-Related Macular Degeneration. Tomography 2023, 9, 1456–1470. [Google Scholar] [CrossRef] [PubMed]
  33. Wang, W.; Liu, S.; Qiu, Z.; He, M.; Wang, L.; Li, Y.; Huang, W. Choroidal Thickness in Diabetes and Diabetic Retinopathy: A Swept Source OCT Study. Investig. Ophthalmol. Vis. Sci. 2020, 61, 29. [Google Scholar] [CrossRef] [PubMed]
  34. Lains, I.; Talcott, K.E.; Santos, A.R.; Marques, J.H.; Gil, P.; Gil, J.; Figueira, J.; Husain, D.; Kim, I.K.; Miller, J.W.; et al. Choroidal Thickness in Diabetic Retinopathy Assessed with Swept-Source Optical Coherence Tomography. Retina 2018, 38, 173–182. [Google Scholar] [CrossRef] [PubMed]
  35. Abadia, B.; Sunen, I.; Calvo, P.; Bartol, F.; Verdes, G.; Ferreras, A. Choroidal thickness measured using swept-source optical coherence tomography is reduced in patients with type 2 diabetes. PLoS ONE 2018, 13, e0191977. [Google Scholar] [CrossRef]
  36. Fernandez-Espinosa, G.; Orduna-Hospital, E.; Boned-Murillo, A.; Diaz-Barreda, M.D.; Sanchez-Cano, A.; Sopena-Pinilla, M.; Pinilla, I. Choroidal and Retinal Thicknesses in Type 2 Diabetes Mellitus with Moderate Diabetic Retinopathy Measured by Swept Source OCT. Biomedicines 2022, 10, 2314. [Google Scholar] [CrossRef]
  37. Sung, J.Y.; Lee, M.W.; Lim, H.B.; Ryu, C.K.; Yu, H.Y.; Kim, J.Y. The Ganglion Cell-Inner Plexiform Layer Thickness/Vessel Density of Superficial Vascular Plexus Ratio According to the Progression of Diabetic Retinopathy. Investig. Ophthalmol. Vis. Sci. 2022, 63, 4. [Google Scholar] [CrossRef]
  38. Ng, D.S.; Chiang, P.P.; Tan, G.; Cheung, C.G.; Cheng, C.Y.; Cheung, C.Y.; Wong, T.Y.; Lamoureux, E.L.; Ikram, M.K. Retinal ganglion cell neuronal damage in diabetes and diabetic retinopathy. Clin. Exp. Ophthalmol. 2016, 44, 243–250. [Google Scholar] [CrossRef]
  39. Cao, Z.; Tian, T.; Liu, R.; Peng, J.; Kuang, G. Quantitative analysis of peripapillary RNFL capillary density and thickness in patients with mild nonproliferative diabetic retinopathy. Front. Endocrinol. 2024, 15, 1404157. [Google Scholar] [CrossRef]
  40. Simo, R.; Stitt, A.W.; Gardner, T.W. Neurodegeneration in diabetic retinopathy: Does it really matter? Diabetologia 2018, 61, 1902–1912. [Google Scholar] [CrossRef]
  41. Karesvuo, M.; Hayry, S.; Karesvuo, P.; Kanclerz, P.; Tuuminen, R. Association between periodontitis and blood-ocular barrier disruption. Eur. J. Ophthalmol. 2023, 33, 1473–1479. [Google Scholar] [CrossRef]
  42. Karesvuo, M.; Sorsa, T.; Tuuminen, R. Association between Oral Active-Matrix Metalloproteinase-8 Levels and Subretinal Fibrosis among Wet Age-Related Macular Degeneration Patients. Curr. Eye Res. 2024, 49, 288–294. [Google Scholar] [CrossRef] [PubMed]
  43. Arjunan, P.; Swaminathan, R.; Yuan, J.; Elashiry, M.; Tawfik, A.; Al-Shabrawey, M.; Martin, P.M.; Muthusamy, T.; Cutler, C.W. Exacerbation of AMD Phenotype in Lasered CNV Murine Model by Dysbiotic Oral Pathogens. Antioxidants 2021, 10, 309. [Google Scholar] [CrossRef] [PubMed]
  44. Liu, T.; Bi, H.; Wang, X.; Wang, G.; Li, H.; Wu, H.; Qu, Y.; Wen, Y.; Cong, C.; Wang, D. Change of retinal nerve fiber layer thickness in patients with nonarteritic inflammatory anterior ischemic optic neuropathy. Neural Regen. Res. 2012, 7, 2778–2783. [Google Scholar] [PubMed]
  45. Serbecic, N.; Beutelspacher, S.C.; Geitzenauer, W.; Kircher, K.; Lassmann, H.; Reitner, A.; Khan, A.; Schmidt-Erfurth, U. RNFL thickness in MS-associated acute optic neuritis using SD-OCT: Critical interpretation and limitations. Acta Ophthalmol. 2011, 89, e451–e460. [Google Scholar] [CrossRef]
  46. Shen, C.; Yan, S.; Du, M.; Zhao, H.; Shao, L.; Hu, Y. Assessment of capillary dropout in the superficial retinal capillary plexus by optical coherence tomography angiography in the early stage of diabetic retinopathy. BMC Ophthalmol. 2018, 18, 113. [Google Scholar] [CrossRef]
  47. AttaAllah, H.R.; Mohamed, A.A.M.; Ali, M.A. Macular vessels density in diabetic retinopathy: Quantitative assessment using optical coherence tomography angiography. Int. Ophthalmol. 2019, 39, 1845–1859. [Google Scholar] [CrossRef]
  48. Oliverio, G.W.; Meduri, A.; De Salvo, G.; Trombetta, L.; Aragona, P. OCT Angiography Features in Diabetes Mellitus Type 1 and 2. Diagnostics 2022, 12, 2942. [Google Scholar] [CrossRef]
  49. Yao, Y.; Wang, Q.; Yang, J.; Yan, Y.; Wei, W. Associations of retinal microvascular alterations with diabetes mellitus: An OCTA-based cross-sectional study. BMC Ophthalmol. 2024, 24, 245. [Google Scholar] [CrossRef]
  50. Ghassemi, F.; Berijani, S.; Roohipoor, R.; Mohebbi, M.; Babeli, A.; Gholizadeh, A.; Sabour, S. Vascular density of optic nerve head in diabetic retinopathy using optical coherence tomography angiography. Int. J. Retin. Vitr. 2020, 6, 62. [Google Scholar] [CrossRef]
  51. Temel, E.; Demirel, S.; Batioglu, F.; Ozmert, E. Association Between Optical Coherence Tomography Angiography Findings and Inner Retinal Thickness in Diabetic Patients. Turk. J. Ophthalmol. 2022, 52, 331–337. [Google Scholar] [CrossRef]
  52. Cao, D.; Yang, D.; Huang, Z.; Zeng, Y.; Wang, J.; Hu, Y.; Zhang, L. Optical coherence tomography angiography discerns preclinical diabetic retinopathy in eyes of patients with type 2 diabetes without clinical diabetic retinopathy. Acta Diabetol. 2018, 55, 469–477. [Google Scholar] [CrossRef] [PubMed]
  53. Dimitrova, G.; Chihara, E.; Takahashi, H.; Amano, H.; Okazaki, K. Quantitative Retinal Optical Coherence Tomography Angiography in Patients with Diabetes without Diabetic Retinopathy. Investig. Ophthalmol. Vis. Sci. 2017, 58, 190–196. [Google Scholar] [CrossRef] [PubMed]
  54. Ratra, D.; Dalan, D.; Prakash, N.; Kaviarasan, K.; Thanikachalam, S.; Das, U.N.; Angayarkanni, N. Quantitative analysis of retinal microvascular changes in prediabetic and diabetic patients. Indian J. Ophthalmol. 2021, 69, 3226–3234. [Google Scholar] [CrossRef] [PubMed]
  55. Veena, H.R.; Natesh, S.; Patil, S.R. Association between Diabetic Retinopathy and Chronic Periodontitis—A Cross-Sectional Study. Med. Sci. 2018, 6, 104. [Google Scholar]
  56. Chaudhary, S.; Kaur, M.; Monhanty, L.; Kurmi, N. Comparison of Retinal Thickness in Diabetic Patients with Healthy Controls: A Cross-sectional Study. J. Clin. Diagn. Res. 2025, 19, 1. [Google Scholar] [CrossRef]
Diagnostics 16 00654 g001

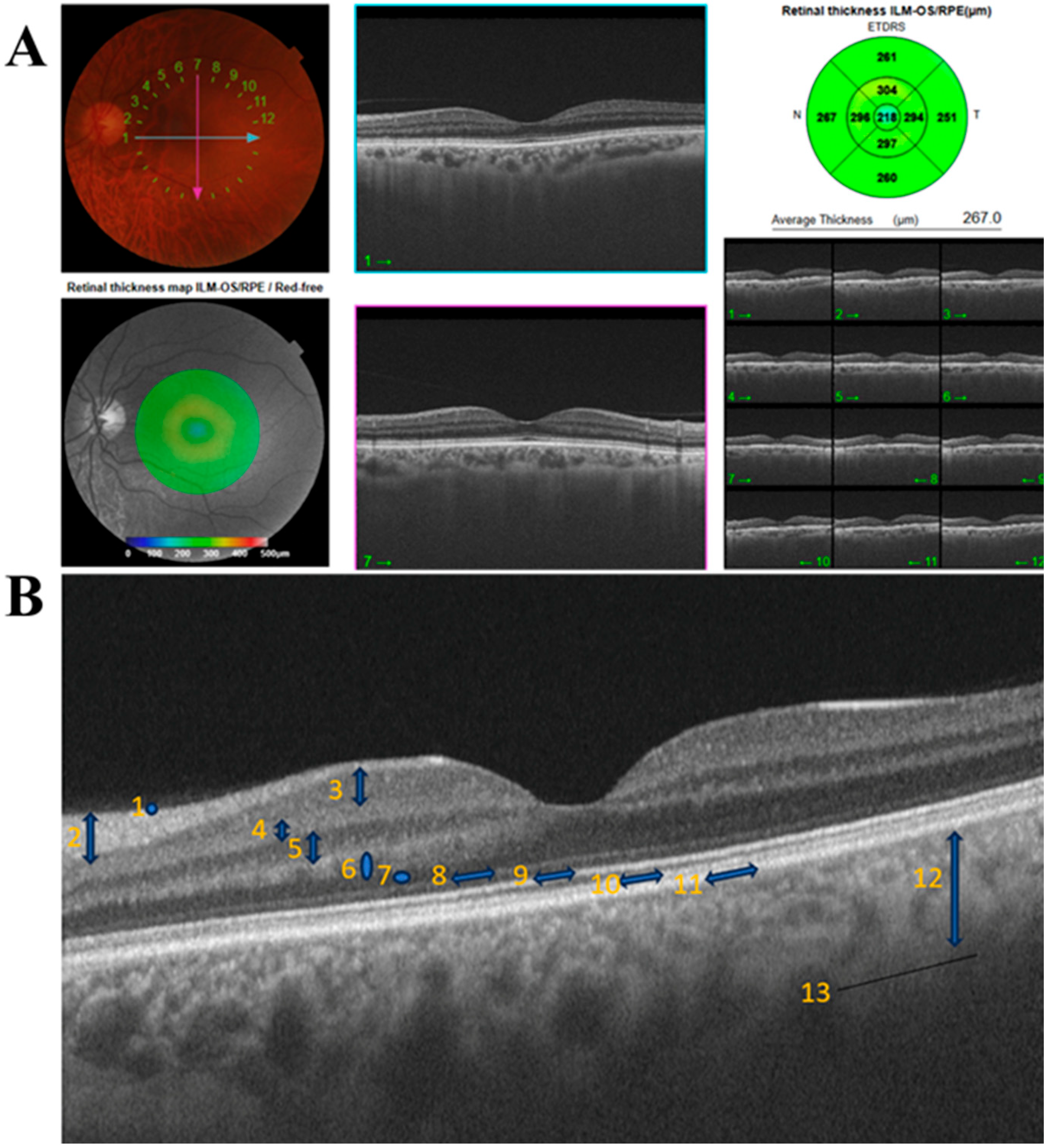

Figure 1. (A) Retinal Layer Thickness Measurement by OCT (B) Retina and Choroid Layers (1: Inner Limiting Membrane (ILM); 2: Retinal Nerve Fiber Layer (RNFL); 3: Ganglion Cell Layer (GCL); 4: Inner Plexiform Layer (IPL); 5: Inner Nuclear Layer (INL); 6: Outer Plexiform Layer (OPL); 7: Outer Nuclear Layer (ONL); 8: Outer Limiting Membrane (OLM); 9: Ellipsoid Zone; 10: Interdigitation Zone; 11: Rpe/Bruch’s Complex; 12: Choroid; 13: Choroid Sclera Interface (CSI)).
Figure 1. (A) Retinal Layer Thickness Measurement by OCT (B) Retina and Choroid Layers (1: Inner Limiting Membrane (ILM); 2: Retinal Nerve Fiber Layer (RNFL); 3: Ganglion Cell Layer (GCL); 4: Inner Plexiform Layer (IPL); 5: Inner Nuclear Layer (INL); 6: Outer Plexiform Layer (OPL); 7: Outer Nuclear Layer (ONL); 8: Outer Limiting Membrane (OLM); 9: Ellipsoid Zone; 10: Interdigitation Zone; 11: Rpe/Bruch’s Complex; 12: Choroid; 13: Choroid Sclera Interface (CSI)).
Diagnostics 16 00654 g001
Diagnostics 16 00654 g002

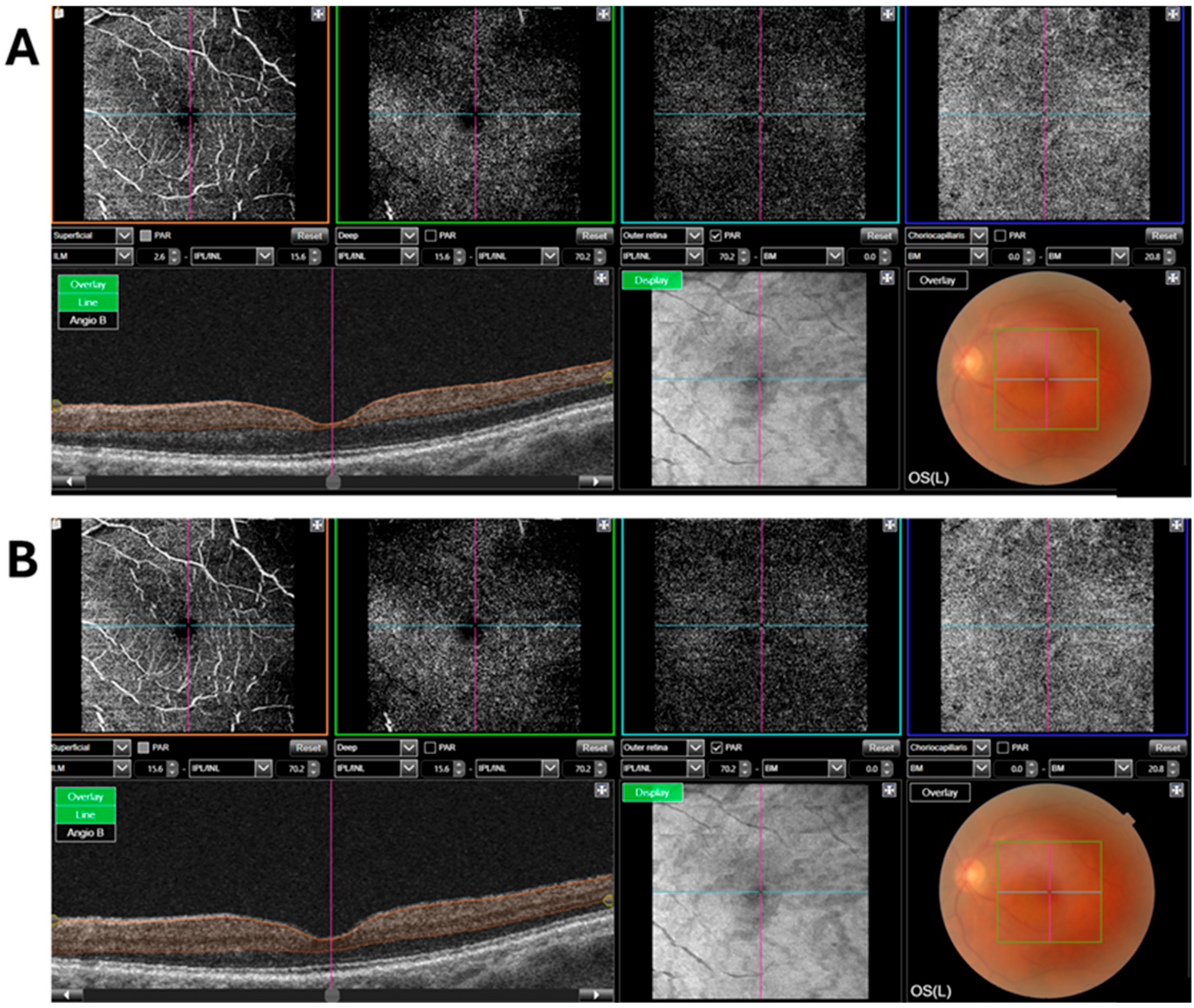

Figure 2. Optical Coherence Tomography Angiography (OCTA) Measurements of Retinal Vessel Density (A) Superficial Retinal Layer and (B) Deep Retinal Layer.
Figure 2. Optical Coherence Tomography Angiography (OCTA) Measurements of Retinal Vessel Density (A) Superficial Retinal Layer and (B) Deep Retinal Layer.
Diagnostics 16 00654 g002
Table 1. Demographic Findings.
Table 1. Demographic Findings.
VariableCategoryTotal
N		G1
N (%)		G2
N (%) 		G3
N (%)		G4
N (%) 		G5
N (%)
GenderFemale56 13 (65)12 (60)9 (45)13 (65)9 (45)
Male44 7 (35)8 (40)11 (55)7 (35)11 (55)
χ2 (p) 1.440 (0.230)3.409 (0.492)
Age60–65 years579 (45)13 (65)12 (60)12 (60)11 (55)
≥66 years4311 (55)7 (35)8 (40)8 (40)9 (45)
χ2 (p) 1.960 (0.162)1.877 (0.758)
Age (Mean ± S.D.) 64.07 ± 6.90
(G1: systemically healthy group; G2: patients with diabetes mellitus without diabetic retinopathy (DR); G3: patients with non-proliferative DR without diabetic macular edema; G4: patients with non-proliferative DR with diabetic macular edema; G5: patients with proliferative DR; N: frequency, %: percentage, SD: standard deviation, X2: one-sample chi-square test, p * < 0.05).
Table 2. Changes in Retinal Thickness.
Table 2. Changes in Retinal Thickness.
GroupStage I–IIStage III–IVtp
Mean
(µm)		S.D.Mean
(µm)		S.D.
OU 1 mm retinal layer thicknessG1233.0818.99234.3617.7−0.1470.885
G2241.524.84235.0733.240.4230.677
G3281.9458.4253.0834.893.1250.047 *
G4283.5454.64333.6370.59−1.0710.029 *
G5290.6387.19349.7968.92−0.5390.026 *
OU 3 mm superior retinal layer thicknessG1299.5825.32311.3619.72−1.0650.301
G2294.4223.12292.8934.910.0970.924
G331332.62295.8733.031.1410.269
G4304.0613.07331.9616.14−3.1660.026 *
G5313.6313.68342.9612.43−2.9080.016 *
OU 3 mm inferior retinal layer thicknessG1298.3823.26307.6424.25−0.8370.414
G227039.13282.0438.99−0.6320.535
G3306.8846.96304.3321.110.1440.889
G4325.4441.75329.6367.15−0.1570.877
G5319.6375.08322.3347.8−0.110.914
OU 3 mm nasal retinal layer thicknessG1303.7718.29314.7118.82−1.2640.222
G2293.9222.63293.6131.890.0210.983
G3304.3747.73301.3316.390.1740.866
G431241.82322.2930.61−0.6010.555
G5313.1351.03329.9664.45−0.5580.584
OU 3 mm temporal retinal layer thicknessG1288.6220.18296.5721.5−0.8230.422
G2274.9230.31267.8653.970.2980.769
G3316.1342.24295.4225.731.3690.188
G4305.0616.3332.8810.28−4.9660.034 *
G5312.2579.43327.3869.87−0.4420.016 *
OU 6 mm superior retinal layer thicknessG1266.8525.51275.1415.53−0.780.445
G2252.7519.28254.8230.43−0.1530.88
G3283.5620.21273.1322.81.0470.309
G4275.9440.97298.2950.01−0.430.674
G5304.5631.64317.3847.41−0.4420.664
OU 6 mm inferior retinal layer thicknessG1260.8818.7264.3613.2−0.4340.669
G2244.5842.66248.7528.6−0.4120.685
G3271.4447.11269.9623.380.0940.926
G4279.54.72297.889.2−3.1090.028 *
G5288.758.95321.8813.56−4.450.012 *
OU 6 mm nasal retinal layer thicknessG1280.6219.29288.1412.3−0.9290.365
G2274.1719.15276.3624.8−0.2580.799
G3284.3834.2528416.930.0330.974
G4290.9431.92293.3818.12−0.9410.359
G5292.4411.99313.969.56−3.1770.025 *
OU 6 mm temporal retinal layer thicknessG1255.6517.2257.0716.23−0.1790.86
G2236.6722.37230.544.330.1920.85
G3286.3823.15262.6720.32.3560.034 *
G4282.3148.74291.8853.01−0.5730.574
G5296.574.17316.9651.53−0.6480.53
(OU: Oculus Uterque; mm: millimeters; µm: micrometers; G1: systemically healthy group; G2: patients with diabetes mellitus without diabetic retinopathy (DR); G3: patients with non-proliferative DR without diabetic macular edema; G4: patients with non-proliferative DR with diabetic macular edema; G5: patients with proliferative DR; OU values represent the mean of right and left eye measurements for each participant; SD: standard deviation; p * < 0.05).
Table 3. Changes in CSI Values.
Table 3. Changes in CSI Values.
GroupStage I–IIStage III–IVtp
Mean
(µm)		S.D.Mean
(µm)		S.D.
OU 1 mm CSIG1234.0859.41280.0747.99−1.7560.096
G2213.4281.11219.561.61−0.1840.856
G3284.9458.17212.7155.422.7720.015 *
G4262.519.78223.6728.381.990.038 *
G5264.3818.5721629.62.130.028 *
OU 3 mm superior CSIG1230.7752.58262.5745.56−1.3470.195
G2221.4272.47224.0756.08−0.0890.93
G3262.1315.01214.3820.471.9270.046 *
G4260.8815.34206.2932.641.9030.048 *
G5247.0631.1422017.53.230.027 *
OU 3 mm inferior CSIG1219.0454.17260.8646.84−1.7210.102
G2216.5862.47217.568.77−0.0280.978
G3273.6352.79218.3858.662.1920.043 *
G4251.8165.26206.9262.221.5350.146
G5257.8865.4122584.760.9260.367
OU 3 mm nasal CSIG1239.0854.09264.5732.51−1.1330.272
G2213.6773.79207.6175.110.1670.871
G3288.9475.81203.5851.942.7790.017 *
G4261.7566.84217.7188.081.9080.043 *
G5253.1330.3202.9625.982.250.034 *
OU 3 mm temporal CSIG1232.3158.4251.7156.69−0.7160.483
G2209.2579.51216.6172.96−0.1940.85
G3257.1949.46207.2550.892.0930.049 *
G4235.3863.54209.38104.251.3180.208
G5252.9481.65209.1752.672.190.035 *
OU 6 mm superior CSIG1219.9256.59235.2945.85−0.6150.546
G2211.5845.12208.1155.420.1350.894
G3240.1343.22192.67581.6910.115
G4231.6329.37190.1719.652.3410.019 *
G5224.1970.36204.2185.730.5690.577
OU 6 mm inferior CSIG1196.2348.58253.8632.82−2.7960.012 *
G2198.4272.93190.8274.210.2110.835
G3233.7555.13194.4643.782.650.016 *
G4231.5673.17188.4269.423.170.012 *
G522429.55206.9241.430.4740.642
OU 6 mm nasal CSIG1201.7358.31209.8635.81−0.3340.742
G2186.1710.45165.468.122.5640.041 *
G3234.4470.86164.5847.542.5240.021 *
G4218.5635.23180.5423.742.390.038*
G5219.7589.52168.1366.613.280.011 *
OU 6 mm temporal CSIG1192.2752.25222.6461.66−1.1660.259
G2192.6747.89200.1157.54−0.2770.785
G3240.8158.34183.0444.152.4450.032 *
G4213.1364.84191.13108.260.5680.577
G523486.42196.6370.981.980.045 *
(OU: Oculus Uterque; CSI: Choroid-Sclera Interface; mm: millimeters; µm: micrometers; G1: systemically healthy group; G2: patients with diabetes mellitus without diabetic retinopathy (DR); G3: patients with non-proliferative DR without diabetic macular edema; G4: patients with non-proliferative DR with diabetic macular edema; G5: patients with proliferative DR; OU values represent the mean of right and left eye measurements for each participant; SD: standard deviation; p * < 0.05).
Table 4. Changes in GCL+ Values.
Table 4. Changes in GCL+ Values.
GroupStage I–IIStage III–IVtp
Mean
(µm)		S.D.Mean
(µm)		S.D.
OU 1 mm GCL+G144.548.3744.7110.42−0.0410.968
G254.3316.1747.9614.140.8860.387
G367.2517.1148.4215.312.2920.042 *
G470.256.2561.718.792.450.039 *
G567.7512.457.9213.291.980.049 *
OU 3 mm superior GCL+G186.3110.1391.579.52−1.1310.273
G286.089.1884.8615.210.1820.858
G384.514.3383.7911.930.1160.91
G485.388.4577.0825.140.8930.384
G586.7512.4376.178.932.190.045 *
OU 3 mm inferior GCL+G186.6510.2989.7910.68−0.6410.53
G281.511.179.7916.640.270.791
G385.2518.0382.8810.930.3680.717
G480.1919.2881.8816.82−0.2070.838
G571.949.3776.6321.37−0.670.513
OU 3 mm nasal GCL+G187.929.4493.868.66−1.3780.185
G284.5812.1384.2913.180.0490.962
G387.1321.5182.3713.810.6040.553
G481.8817.728320.72−0.130.898
G579.567.4978.2121.360.2020.843
OU 3 mm temporal GCL+G181.6510.1886.369.85−0.9960.332
G279.514.1178.9314.660.0820.936
G387.1919.4580.33110.9050.387
G485.510.6980.0421.160.760.458
G585.7514.5274.3310.252.150.039 *
OU 6 mm superior GCL+G162.466.8763.715.38−0.4170.682
G257.425.8659.6811.27−0.4610.651
G363.568.1964.3810.13−0.1970.846
G468.4410.4659.1715.51.5970.128
G568.5615.0257.6710.542.290.037 *
OU 6 mm inferior GCL+G160.656.5561.795.15−0.3950.698
G259.5817.4159.0710.80.5880.564
G367.7511.8761.0810.691.280.221
G464.1921.0562.7512.350.1740.865
G57616.296215.732.670.035 *
OU 6 mm nasal GCL+G166.126.9667.575.49−0.4770.639
G264.758.1367.9610.93−0.0810.936
G364.8112.1467.719.44−1.280.221
G467.197.869.259.67−0.5260.606
G571.9410.862.7113.622.970.028 *
OU 6 mm temporal GCL+G167.966.6768.937.08−0.3030.765
G261.759.0260.7115.40.6440.528
G372.9411.4968.0811.140.320.753
G472.6315.2167.7511.960.8020.433
G580.5612.0163.4614.492.8690.011 *
(OU: Oculus Uterque; GCL+: Ganglion Cell Layer plus Inner Plexiform Layer; mm: millimeters; µm: micrometers; G1: systemically healthy group; G2: patients with diabetes mellitus without diabetic retinopathy (DR); G3: patients with non-proliferative DR without diabetic macular edema; G4: patients with non-proliferative DR with diabetic macular edema; G5: patients with proliferative DR; OU values represent the mean of right and left eye measurements for each participant; SD: standard deviation; p * < 0.05).
Table 5. Changes in RNFL Values.
Table 5. Changes in RNFL Values.
GroupStage I–IIStage III–IVtp
Mean
(µm)		S.D.Mean
(µm)		S.D.
OU TT RNFLG199.6512.81109.865.55−1.9890.062
G2100.2518.8899.2512.150.1430.888
G394.3119.1898.3318.23−0.4740.642
G498.3116.9494.7115.560.490.63
G5100.137.6885.5019.762.3150.035 *
OU superior RNFLG1122.6914.96139.146.25−2.7550.013 *
G2122.8324.90124.6820.31−0.1740.863
G3119.7921.56107.7528.271.0820.294
G4123.6915.87112.3714.262.1590.042 *
G5111.6311.1198.9617.531.8620.041 *
OU inferior RNFLG1126.1216.97139.9312.73−1.8790.077
G2128.6725.90125.2916.790.3510.73
G3118.1930.32123.5026.50−0.4030.693
G4124.4431.38120.3323.300.3360.74
G5122.3711.68106.9217.072.160.038 *
OU nasal RNFLG180.6916.3287.438.07−1.0180.322
G281.6713.3179.798.680.3790.709
G379.4215.4773.7512.130.9150.373
G470.8114.8473.6717.40−0.380.708
G578.1310.9964.8810.852.8490.022 *
OU temporal RNFLG168.7714.9573.296.26−0.7570.459
G271.7510.5967.2911.250.8260.419
G373.8813.1170.8826.080.3420.736
G474.1916.4672.4213.700.2620.797
G587.8112.4972.4615.932.4080.027 *
(OU: Oculus Uterque; TT: Total Thickness; RNFL: Retinal Nerve Fiber Layer; µm: micrometers; G1: systemically healthy group; G2: patients with diabetes mellitus without diabetic retinopathy (DR); G3: patients with non-proliferative DR without diabetic macular edema; G4: patients with non-proliferative DR with diabetic macular edema; G5: patients with proliferative DR; OU values represent the mean of right and left eye measurements for each participant; SD: standard deviation; p * < 0.05).
Table 6. Changes in Peripapillary CSI (BM–CSI) Values.
Table 6. Changes in Peripapillary CSI (BM–CSI) Values.
GroupStage I–IIStage III–IVtp
Mean
(µm)		S.D.Mean
(µm)		S.D.
OU superior CSIG1148.2769.68175.4337.50−0.9520.354
G2168.3321.94130.6132.082.3730.027 *
G3167.3131.81137.8333.922.400.034 *
G4168.7480.15130.4169.722.300.023 *
G5185.6465.09147.0957.092.400.027 *
OU inferior CSIG1119.1563.41157.5059.20−1.3190.204
G2127.7550.83110.1165.670.5840.566
G3112.9442.51132.6374.45−0.7510.463
G4148.1971.91115.0063.621.0860.292
G5163.7538.12132.1731.671.970.049 *
OU nasal CSIG1121.7345.21187.1453.52−2.7490.019 *
G2150.4238.99118.0727.972.3970.023 *
G3157.3815.97127.9216.972.120.032 *
G4166.1935.24126.4628.703.190.017 *
G5165.1938.48111.2133.764.1420.012 *
OU temporal CSIG1150.1554.77152.5067.31−0.0790.938
G2161.7530.65129.8223.771.900.046 *
G3178.3825.98143.2920.572.980.021 *
G4183.6922.04128.4634.574.230.015 *
G5185.4338.45145.2735.482.300.026 *
(OU: Oculus Uterque; CSI: Choroid–Sclera Interface; µm: micrometers; G1: systemically healthy group; G2: patients with diabetes mellitus without diabetic retinopathy (DR); G3: patients with non-proliferative DR without diabetic macular edema; G4: patients with non-proliferative DR with diabetic macular edema; G5: patients with proliferative DR; OU values represent the mean of right and left eye measurements for each participant; SD: standard deviation; p * < 0.05).
Table 7. Changes in Superficial Retinal Vessel Density.
Table 7. Changes in Superficial Retinal Vessel Density.
GroupStage I–IIStage III–IVtp
Mean
(%)		S.D.Mean
(%)		S.D.
OU S centralG116.803.4017.643.39−0.5270.605
G218.422.5219.154.48−0.3740.713
G320.495.3416.403.402.1070.049 *
G422.365.7320.816.560.5410.595
G522.819.4324.329.15−0.3570.725
OU S superiorG139.134.3641.262.10−1.2080.243
G237.565.3538.394.28−0.3670.718
G334.965.1636.724.81−0.7760.448
G436.062.3336.425.28−0.2040.841
G538.875.3437.075.030.7640.455
OU S inferiorG139.642.7439.362.750.2140.833
G236.677.9436.055.720.20.844
G335.324.9536.454.09−0.5360.601
G436.221.7832.586.352.370.045 *
G534.024.0535.214.48−0.6020.555
OU S nasalG139.243.7941.032.64−1.1030.285
G237.564.8437.404.020.0780.939
G335.726.1136.094.34−0.1490.884
G436.761.5236.664.930.0650.949
G536.932.3834.061.132.4650.03 *
OU S temporalG140.814.8042.572.57−0.8910.385
G240.924.4438.684.611.0070.327
G338.372.1037.913.850.3050.764
G437.961.6036.206.690.8740.398
G538.742.4237.253.761.0790.295
(OU: Oculus Uterque; S: superficial; %: percentage; G1: systemically healthy group; G2: patients with diabetes mellitus without diabetic retinopathy (DR); G3: patients with non-proliferative DR without diabetic macular edema; G4: patients with non-proliferative DR with diabetic macular edema; G5: patients with proliferative DR; OU values represent the mean of right and left eye measurements for each participant; SD: standard deviation; p * < 0.05).
Table 8. Changes in Deep Retinal Vessel Density.
Table 8. Changes in Deep Retinal Vessel Density.
GroupStage I–IIStage III–IVtp
Mean
(%)		S.D.Mean
(%)		S.D.
OU D centralG115.463.2216.513.44−0.6790.506
G216.432.6919.606.80−1.0930.289
G323.019.6415.923.592.3420.031 *
G423.397.2221.556.741.9830.047 *
G525.7210.5125.289.660.0970.924
OU D superiorG142.893.5545.252.63−1.540.141
G240.356.4939.865.880.1660.87
G337.805.1238.815.96−0.3930.699
G438.533.8438.076.130.190.851
G540.351.6238.801.511.990.049 *
OU D inferiorG142.253.9843.012.55−0.4540.655
G240.677.5138.126.510.7680.453
G338.055.9138.104.94−0.0210.984
G437.573.4734.285.952.110.039 *
G534.844.2435.704.68−0.4280.674
OU D nasalG142.955.1745.712.63−1.3120.206
G241.606.6339.735.660.6440.528
G339.015.6937.916.010.410.687
G438.473.0738.774.86−0.1510.882
G536.823.2635.395.870.6990.493
OU D temporalG142.986.4445.482.80−0.9690.346
G242.322.5540.512.101.970.041 *
G341.271.5539.871.272.140.039 *
G439.241.8537.211.672.3280.047 *
G539.024.5839.213.15−0.1030.919
(OU: Oculus Uterque; D: deep; %: percentage; G1: systemically healthy group; G2: patients with diabetes mellitus without diabetic retinopathy (DR); G3: patients with non-proliferative DR without diabetic macular edema; G4: patients with non-proliferative DR with diabetic macular edema; G5: patients with proliferative DR; OU values represent the mean of right and left eye measurements for each participant; SD: standard deviation; p * < 0.05).
Table 9. Changes in FAZ Values.
Table 9. Changes in FAZ Values.
GroupStage I–IIStage III–IVtp
Mean
(mm2)		S.D.Mean
(mm2)		S.D.
FAZ S OUG1418.72132.72424.1081.89−0.1190.906
G2357.3732.25408.1146.71−2.140.032
G3431.0992.35457.61132.22−0.4910.629
G4442.66152.05467.67158.75−0.3510.73
G5426.02146.96441.80163.10−0.220.828
FAZ D OUG1431.33114.55443.8976.45−0.2360.816
G2374.6350.40477.16112.39−2.8420.011 *
G3437.6696.29442.92128.28−0.0990.923
G4431.34100.28491.02180.19−0.9480.356
G5390.1250.90452.3450.49−2.670.027 *
(FAZ S OU: Foveal Avascular Zone-Superficial-Oculus Uterque; FAZ D OU: Foveal Avascular Zone-Deep-Oculus Uterque; mm2: square millimeters; G1: systemically healthy group; G2: patients with diabetes mellitus without diabetic retinopathy (DR); G3: patients with non-proliferative DR without diabetic macular edema; G4: patients with non-proliferative DR with diabetic macular edema; G5: patients with proliferative DR; OU values represent the mean of right and left eye measurements for each participant; SD: standard deviation; p * < 0.05).
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Turkogullari, H.; Aydogan, G.N.; Yorgancilar, N.; Kose, O.; Findik, H. The Effect of Periodontitis Severity on Diabetic Retinopathy: An Optical Coherence Tomography Study. Diagnostics 2026, 16, 654. https://doi.org/10.3390/diagnostics16050654

AMA Style

Turkogullari H, Aydogan GN, Yorgancilar N, Kose O, Findik H. The Effect of Periodontitis Severity on Diabetic Retinopathy: An Optical Coherence Tomography Study. Diagnostics. 2026; 16(5):654. https://doi.org/10.3390/diagnostics16050654

Chicago/Turabian Style

Turkogullari, Hatice, Gozde Nur Aydogan, Nur Yorgancilar, Oguz Kose, and Huseyin Findik. 2026. "The Effect of Periodontitis Severity on Diabetic Retinopathy: An Optical Coherence Tomography Study" Diagnostics 16, no. 5: 654. https://doi.org/10.3390/diagnostics16050654

APA Style

Turkogullari, H., Aydogan, G. N., Yorgancilar, N., Kose, O., & Findik, H. (2026). The Effect of Periodontitis Severity on Diabetic Retinopathy: An Optical Coherence Tomography Study. Diagnostics, 16(5), 654. https://doi.org/10.3390/diagnostics16050654

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
