Article

Impact of Dual-Energy Computed Tomography (DECT) Postprocessing Protocols on Detection of Monosodium Urate (MSU) Deposits in Foot Tendons of Cadavers

by
Andrea Sabine Klauser
1,
Sylvia Strobl
1,
Christoph Schwabl
1,*,
Christian Kremser
1,
Werner Klotz
2,
Violeta Vasilevska Nikodinovska
3,
Hannes Stofferin
4,
Yannick Scharll
1 and
Ethan Halpern
5
1
Department for Radiology, Medical University of Innsbruck, 6020 Innsbruck, Austria
2
Department of Internal Medicine, Medical University of Innsbruck, 6020 Innsbruck, Austria
3
University Surgical Clinic “St. Naum Ohridski”, Faculty of Medicine, Ss. Cyril and Methodius University, 1000 Skopje, North Macedonia
4
Institute of Clinical and Functional Anatomy, Medical University of Innsbruck, 6020 Innsbruck, Austria
5
Jefferson Prostate Diagnostic and Kimmel Cancer Center, Department of Radiology and Urology, Thomas Jefferson University, Philadelphia, PA 19107, USA
*
Author to whom correspondence should be addressed.
Diagnostics 2023, 13(13), 2208; https://doi.org/10.3390/diagnostics13132208
Submission received: 1 June 2023 / Revised: 21 June 2023 / Accepted: 22 June 2023 / Published: 29 June 2023
(This article belongs to the Section Medical Imaging and Theranostics)
Browse Figures
Review Reports Versions Notes

Abstract

:
Objective: To evaluate two different dual-energy computed tomography (DECT) post-processing protocols for the detection of MSU deposits in foot tendons of cadavers with verification by polarizing light microscopy as the gold standard. Material and Methods: A total of 40 embalmed cadavers (15 male; 25 female; median age, 82 years; mean, 80 years; range, 52–99; SD ± 10.9) underwent DECT to assess MSU deposits in foot tendons. Two postprocessing DECT protocols with different Hounsfield unit (HU) thresholds, 150/500 (=established) versus 120/500 (=modified). HU were applied to dual source acquisition with 80 kV for tube A and 140 kV for tube B. Six fresh cadavers (4 male; 2 female; median age, 78; mean, 78.5; range 61–95) were examined by DECT. Tendon dissection of 2/6 fresh cadavers with positive DECT 120 and negative DECT 150 studies were used to verify MSU deposits by polarizing light microscopy. Results: The tibialis anterior tendon was found positive in 57.5%/100% (DECT 150/120), the peroneus tendon in 35%/100%, the achilles tendon in 25%/90%, the flexor halluces longus tendon in 10%/100%, and the tibialis posterior tendon in 12.5%/97.5%. DECT 120 resulted in increased tendon MSU deposit detection, when DECT 150 was negative, with an overall agreement between DECT 150 and DECT 120 of 80% (p = 0.013). Polarizing light microscope confirmed MSU deposits detected only by DECT 120 in the tibialis anterior, the achilles, the flexor halluces longus, and the peroneal tendons. Conclusion: The DECT 120 protocol showed a higher sensitivity when compared to DECT 150.

1. Introduction

Gout is a common form of crystal-induced arthritis and can lead to the development of tophaceous deposits in the cartilage, bursae, synovial membranes, and tendons [1,2].
Concerning imaging methods [3,4,5,6,7,8,9], DECT is an established method to detect monosodium urate (MSU) deposits in soft tissue adjacent to joints and is increasingly used for the diagnosis and follow-up of gout with a reported sensitivity of 78–100% and specificity of 89–100% [10]. Furthermore, DECT is part of the 2018 gout classification criteria of the American College of Radiology/European League Against Rheumatism (ACR/EULAR) [11,12].
The deposition of MSU in tendons is important because it may lead to reduced strength and increased risk of rupture.
Tendons are soft connective tissues that are composed of closely packed, parallel collagen fiber bundles. Tendons play an essential role in the musculoskeletal system by transferring tensile loads from muscle to bone so as to enable joint motions and stabilize joints. The impact of tendon MSU crystal deposition on musculoskeletal function is currently uncertain. Tendon rupture due to tophus infiltration has been described in patients with chronic gout, although this appears to be an uncommon event and only a small number of studies reported ruptures of the quadriceps, tibialis anterior, and calcaneus tendons [13,14,15,16].
Racide et al. [17] reported that MSU crystal deposits occur within the substance of tendons at the sites of rupture and that urate crystals lead to a reduction in the tensile strength of the tendon [18].
In the last few years, studies concerning extraarticular MSU deposits have become more frequent [19,20]. However, a general consensus regarding a sensitive DECT protocol has not yet been established, as there is ongoing discussion regarding which MSU deposits found by DECT are urate or merely artifacts [21,22,23,24].
Several typical artifacts have been well described in the literature, e.g., finger nails, tendons and vessels [25]. Only a few studies correlated DECT findings with polarizing light microscopy [26]. Given the lack of verification by microscopy of extraarticular MSU deposits in published studies, it remains questionable whether these findings represent true urate or artifact.
The aim of this study was to assess the change of sensitivity with verification by microscopy as gold standard of MSU deposits in foot tendons of cadavers detected with two different DECT postprocessing protocols, comparing DECT 150, an established DECT postprocessing protocol (Hounsfield unit (HU) threshold of 150/500 (min/max)) [27,28] with DECT 120 (modified postprocessing HU threshold of 120/500 (min/max)) at constant kV of Tubes A and B.

2. Materials and Methods

2.1. Cadavers

A total of 40 embalmed cadavers (15 male; 25 female; median age, 82 years; mean, 80.5; range, 52–99; SD ± 10.9) were examined by DECT to detect the presence and amount of MSU deposits in foot tendons.
Informed consent was provided according to the last wills of the donors, who had donated their bodies to human research studies. All embalmed and fresh cadavers were referred to DECT after death and were in legal custody of the Anatomy institution, Medical University Innsbruck. No medical history was available including gouty arthritis or hyperuricemia.
In addition to the embalmed cadavers, six fresh cadavers (4 male; 2 female; median age, 78; mean, 78.5; range 61–95) were examined by DECT. Two of these cadavers showed the presence of MSU deposits in foot tendons, verified by polarizing light microscopy. The fresh cadavers were referred to DECT within 48 h after death.
The following predefined anatomical sites were assessed for MSU deposits and graded as shown in Table 1: the extensor halluces longus tendon (EHLT), extensor digitorum longum tendon (EDLT), tibialis anterior tendon (TAT), flexor halluces longus tendon (FHL), tibialis posterior tendon (TP), peroneus tendons (PT), achilles tendon (AT), and plantar flexors (PF). To exclude artifacts, MSU crystal characterization using polarized light microscopy was performed for the tibialis anterior, achilles, flexor halluces longus, plantar flexor, and peroneal tendons with positive DECT 120 findings but negative results in the DECT 150 in fresh cadavers.
According to ACR/EULAR guidelines nail bed deposits, submillimeter deposits, skin deposits, and deposits obscured by motion, beam hardening, and vascular artefact were not classified as positive findings in our study [8,12].

2.2. DECT

All cadavers were scanned with a 128-row dual-source CT scanner (Somatom Definition Flash; Siemens Healthineers, Forchheim, Germany). Data were acquired at 80/140 kV. For post-processing, the standard protocol using a min/max houndsfield unit (HU) threshold of 150/500 (DECT 150) was compared to a modified protocol with a lowered HU threshold of 120/500 (DECT 120), see Table 2.
The fundamental principle behind the use of DECT is to differentiate materials based on their relative absorption of X-rays at different photon energy levels (typically at 80 and 140 kVp).
A dual-source DECT scanner can perform simultaneous acquisitions at two energy levels (80 and 140 kVp) using two separate X-ray tubes and detectors positioned 90 to 95 degrees apart [20]. The standard protocol settings are 80 kV/100–140 mAs for tube A and 140 kV/200–250 mAs for tube B, with a ratio of 1.36, range 4, minimum HU of 150, and maximum HU of 500. Using independent tube current modulation in combination with iterative reconstruction and integrated circuits within the detector module, high-resolution images with excellent material separation are obtained without an increase in radiation dose [28].
The acquired datasets are reconstructed in the required planes and processed with dual-energy software utilizing a standardized two-material decomposition algorithm designed for specific clinical applications. The gout algorithm is performed to separate MSU from calcium using soft tissue as the baseline. The two-material decomposition algorithm is based on the principle that materials with a high atomic number such as calcium would demonstrate a higher increase in attenuation at higher photon energies than does a material composed of low atomic number materials such as MSU. This difference in attenuation is independent of density or concentration of the material or tissue. Once separated and characterized, the materials are color-coded and overlaid on multi-planar reformatted cross-sectional images.
We chose green pixels for MSU deposits using the software of the Syngovia workstation (Siemens Healthineers, Erlangen, Germany). The post-processing software enables real-time manipulation of the images at source resolution, in any plane and in two- as well as three-dimensions, to best depict the MSU deposits. Preprocessed and processed images are transferred to the picture archiving system (PACS). Corresponding pre-processed grey-scale images are reviewed for presence of deposits.
The software can not differentiate confounding artifacts that should not be included in the detection/quantification of MSU deposits, but an experienced and trained radiologist can differentiate MSU deposits from artifacts, as previously described in the literature.
Scan parameters were 2 × 64 × 0.6 mm at a rotation time of 280 ms, DLP 219 mGycm, CTDI vol 11.5 L, and total mAs 3415. Transverse sections, coronal and sagittal reformations were reconstructed from the DE datasets with an increment of 0.5 mm and a resolution slice thickness of 0.4 mm in soft tissue kernel (D30) and bone kernel (B60). D30 kernel was used for DE processing and MSU detection.
A commercially available picture archiving and communication system (PACS) was used to view the images (IMPAX; Agfa-Gevaert, Mortsel, Belgium).
Two radiologists with 4 and 15 years of experience in gout imaging by DECT evaluated DECT images in consensus. Each cadaver was read as a single observation, either positive or negative. Multiple positive sites in a single tendon were counted as a single observation with the largest size deposit recorded.

2.3. Polarizing Microscopic Evaluation

DECT-positive MSU foot tendons from fresh cadavers were dissected for gross anatomic sections obtained at defined anatomic landmarks. Specimens were cut unfixed into 5 × 5 mm sections, embedded using Tissue-Tek® O.C.T.™ (Sakura Finetek USA, Inc., Torrance, CA, USA) compound medium and sectioned at 5 μm using a Leica CM1950 S cryostat (Leica Biosystems, Wetzlar, Germany). After mounting on microscope slides and covering using glycerine/PBS solution, cryostat sections examination was performed with compensated polarized light microscopy (PLM) at 400× magnification. First-order red compensation (X) was performed to identify MSU crystals by their needle-like appearance and strong negative birefringence. The performing pathologist was blinded to radiological results.

2.4. Statistical Analysis

Statistical analysis was performed using R Project for Statistical Computing 3.4.1 [29]. The presence of a positive or negative final diagnosis for gout, presence of MSU deposits in foot tendons and grading of tophus size were tabulated for DECT 120 and DECT 150. To analyze the agreement between DECT 120 and 150, contingency tables were created, and the overall agreement was calculated. The agreement of overall positive and negative findings between DECT 120 and 150 was determined using a McNemar’s Chi- square test and quadratic weighted kappa. The relationship between the gradings of MSU deposits obtained with DECT120 and DECT150 was analyzed using a Pearson Chi-square for the symmetry test. In general, results were considered significant for p-values less than 0.05.

3. Results

In eight cadavers a tendon MSU deposit was identified by DECT 120 detection, while DECT 150 was negative. In the remaining 32 specimens both DECT 120 and DECT 150 agreed in their positive final reading.
Although this resulted in an overall agreement between DECT 150 and DECT 120 of 80%, McNemar´s Chi-square test and quadratic weighted kappa revealed a significant difference in MSU detection between both methods (p = 0.013). Table 3 gives the overall agreement between DECT 120 and DECT 150 regarding the MSU grading for all individual tendons and the corresponding p-values for the Pearson Chi2 test of independence.
The overall agreement between the two methods was relatively low (0–30%), and the difference was statistically significant, except for the achilles tendon.
The tibialis anterior tendon (TAT), peroneus tendons (PT), and flexor halluces longus tendon (FHL) were the most commonly involved tendons, followed by the tibialis posterior tendon (TP), achilles tendon (AT), and extensor halluces longus tendon (EHLT), as shown in Table 4.
The most common Score 3 MSU deposition site detected by DECT 120 was the achilles tendon followed by the tibialis anterior tendon, Table 5, Figure 1.
A major reason for the low agreement was that MSU deposit size was larger detected by DECT 120 than by DECT 150 (p < 0.001) for all tendons leading to different MSU gradings, see Table 5.
In 2/6 fresh cadavers MSU deposits in DECT 120, not visible in DECT 150 could be verified by microscopy in the tibialis anterior, achilles, flexor halluces longus, and peroneal tendons, see Figure 2 and Figure 3.
No false positive MSU interpretations were found on pathologic review of our DECT 120 readings in the fresh cadavers.

4. Discussion

Tendon involvement in patients with gout has been evaluated by US and DECT [30,31,32] and it has been shown that tendons are a frequent location of extraarticular MSU deposition in the lower limbs, especially in longstanding gout. DECT demonstrated high sensitivity, specificity, and reproducibility in the detection of MSU deposits in tendons in previous studies [26,31,33,34]. Yuan et al. [3] reported tendons as the most frequent anatomical location site of MSU deposits in a DECT study of 184 joints, regardless of whether the intraarticular DECT results were positive or negative.
In a DECT study of 92 patients with longstanding tophaceous gout, Dalbeth et al. [31] reported that tendons were the most frequent site of MSU deposits showing a high prevalence in the achilles tendon of 39.1%, followed by peroneal tendons in 18.1%. Involvement by MSU was found in 7% and 5%, respectively for the TAT and FHL, which is in contrast to our results where the TAT was involved in 57.5%/100% (DECT 150/120) and AT in 25%/90% (DECT 150/120).
Recently, Dubief et al. [23] described the prevalence of MSU deposits in foot tendons by using different DECT postprocessing protocols. Using the minimum HU 120 setting, they classified most of the findings as artifacts, but they did not have verification by histology as the gold standard, which we performed in our study. DECT 120 showed a better correlation regarding tophus size when compared to the US in previous studies [35].
Dalbeth et al. [36] reported that DECT is a highly reproducible method for measuring urate deposits within tophi, revealing the composition of tophi that contains variable urate deposits embedded within soft tissue where MSU deposits are scattered across the tophus surrounded by soft tissue. These findings are consistent with a previous histological analysis of tophi from the same team.
As reported by Melzer et al. [37], DECT can identify ‘dense’ tophi (with at least 15–20% urate volume in the tophus), but tophi with lower urate volumes may not be detected. This limitation might be overcome by the use of DECT 120, as shown in our study. When only considering DECT 150, we would have missed 20% of the MSU deposits in foot tendons. Lowering the HU threshold without changing scan parameters (tube A and B at 80/140 kV) was helpful to better identify tophi with low MSU concentration with verification by histology.
Though DECT 120 shows great potential, it is not without limitations. It has to be noted that DECT 120 is more susceptible to artifacts and an increased amplification of noise, see Figure 4.
Therefore, imaging results should be interpreted with caution by an experienced radiologist who is well-trained to recognize artifacts. Locations notorious for artifacts are nose, skin, calluses, and nail beds [4,24,25] which were obviously more prevalent and increased in size when using DECT 120 (Figure 1).
Furthermore, MSU deposits shown in DECT 120 and not visible in DECT 150 were only histologically verified in fresh cadavers not in embalmed cadavers because of potential interference with the fixation process in embalmed cadavers. This is a clear limitation of our study, as we cannot clearly prove that some of the positive observations at DECT 120 were not false positives. Nonetheless, our experience with the six fresh cadavers suggests that the interpretation of our experienced observers did not yield a significant number of false positive results, as all of their positive interpretations in the fresh specimens were confirmed by polarized light microscopy.
An additional limitation of this study is the lack of assessment of inter-observer agreement, and the lack of a medical history for the cadavers. Finally, note that our ex-vivo results need to be repeated in live patients to demonstrate clinical applicability.
We are fully aware that the results we report do not agree with many existing publications on tendon involvement in gout. However, there are individual publications that show similarly high numbers of MSU deposits in tendons. It should be noted that most studies worked with higher cut-off values regarding the HU, and many regions of the tendons were not classified as true MSU but as artifacts. Our study is the first to examine these regions which were previously presumed to represent artifacts utilizing histological processing. The rate of 80% MSU deposits in tendons is strikingly high and raises many questions regarding the composition and nature of tendons, as well as the pathomechanism and clinical relevance of tendon MSU deposits in gout.
In addition to assisting with the diagnosis of gout, DECT may help to monitor the efficacy of urate-lowering therapy and to prove therapeutic outcomes not only in joints but also in tendons [38].

5. Conclusions

The DECT 120 protocol showed a higher sensitivity when compared to DECT 150.

Author Contributions

Conceptualization, A.S.K., S.S., C.S., C.K., W.K., V.V.N., H.S., Y.S. and E.H.; Data curation, A.S.K., C.S., W.K., Y.S. and H.S.; Formal analysis, A.S.K., S.S., C.S., W.K. and C.K.; Investigation, A.S.K., S.S., C.S. and V.V.N.; Methodology, A.S.K., S.S., C.S. and H.S.; Project administration, A.S.K. and C.S.; Resources, A.S.K.; Software, C.S.; Supervision, A.S.K. and E.H.; Validation, C.S. and A.S.K.; Visualization, W.K. and H.S.; Writing—original draft, A.S.K., S.S. and C.S.; Writing—review and editing, A.S.K., C.S. and Y.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data supporting reported results may be provided upon reasonable request.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Harris, M.D.; Siegel, L.B.; Alloway, J.A. Gout and hyperuricemia. Am. Fam. Physician 1999, 59, 925–934. [Google Scholar] [PubMed]
  2. Choi, H.K.; Mount, D.B.; Reginato, A.M. Pathogenesis of gout. Ann. Intern. Med. 2005, 143, 499–516. [Google Scholar] [CrossRef]
  3. Yuan, Y.; Liu, C.; Xiang, X.; Yuan, T.L.; Qiu, L.; Liu, Y.; Luo, Y.B.; Zhao, Y.; Herrmann, M. Ultrasound scans and dual energy CT identify tendons as preferred anatomical location of MSU crystal depositions in gouty joints. Rheumatol. Int. 2018, 38, 801–811. [Google Scholar] [CrossRef]
  4. Glazebrook, K.N.; Guimarães, L.S.; Murthy, N.S.; Black, D.F.; Bongartz, T.; Manek, N.J.; Leng, S.; Fletcher, J.G.; McCollough, C.H. Identification of intraarticular and periarticular uric acid crystals with dual-energy CT: Initial evaluation. Radiology 2011, 261, 516–524. [Google Scholar] [CrossRef] [PubMed]
  5. Bongartz, T.; Glazebrook, K.N.; Kavros, S.J.; Murthy, N.S.; Merry, S.P.; Franz, W.B., 3rd; Michet, C.J.; Veetil, B.M.A.; Davis, J.M.; Mason, T.G.; et al. Dual-energy CT for the diagnosis of gout: An accuracy and diagnostic yield study. Ann. Rheum. Dis. 2015, 74, 1072–1077. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Pascart, T.; Grandjean, A.; Capon, B.; Legrand, J.; Namane, N.; Ducoulombier, V.; Motte, M.; Vandecandelaere, M.; Luraschi, H.; Godart, C.; et al. Monosodium urate burden assessed with dual-energy computed tomography predicts the risk of flares in gout: A 12-month observational study: MSU burden and risk of gout flare. Arthritis Res. Ther. 2018, 20, 210. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Zhang, Z.; Zhang, X.; Sun, Y.; Chen, H.; Kong, X.; Zhou, J.; Zhou, Y.; Ma, L.; Jiang, L. New urate depositions on dual-energy computed tomography in gouty arthritis during urate-lowering therapy. Rheumatol. Int. 2017, 37, 1365–1372. [Google Scholar] [CrossRef]
  8. Gamala, M.; Linn-Rasker, S.P.; Nix, M.; Heggelman, B.G.F.; van Laar, J.M.; Pasker-de Jong, P.C.M.; Jacobs, J.W.G.; Klaasen, R. Gouty arthritis: Decision-making following dual-energy CT scan in clinical practice, a retrospective analysis. Clin. Rheumatol. 2018, 37, 1879–1884. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  9. Schwabl, C.; Taljanovic, M.; Widmann, G.; Teh, J.; Klauser, A.S. Ultrasonography and dual-energy computed tomography: Impact for the detection of gouty deposits. Ultrasonography 2021, 40, 197–206. [Google Scholar] [CrossRef]
  10. Dalbeth, N.; Choi, H.K. Dual-energy computed tomography for gout diagnosis and management. Curr. Rheumatol. Rep. 2013, 15, 301. [Google Scholar] [CrossRef]
  11. Neogi, T.; Jansen, T.L.; Dalbeth, N.; Fransen, J.; Schumacher, H.R.; Berendsen, D.; Brown, M.; Choi, H.; Edwards, N.L.; Janssens, H.J.; et al. 2015 Gout classification criteria: An American College of Rheumatology/European League Against Rheumatism collaborative initiative. Ann. Rheum. Dis. 2015, 74, 1789–1798. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Richette, P.; Doherty, M.; Pascual, E.; Barskova, V.; Becce, F.; Castaneda, J.; Coyfish, M.; Guillo, S.; Jansen, T.; Janssens, H.; et al. 2018 updated European League Against Rheumatism evidence-based recommendations for the diagnosis of gout. Ann. Rheum. Dis. 2020, 79, 31–38. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. De Yoe, B.E.; Ng, A.; Miller, B.; Rockett, M.S. Peroneus brevis tendon rupture with tophaceous gout infiltration. J. Foot Ankle Surg. 1999, 38, 359–362. [Google Scholar] [CrossRef] [PubMed]
  14. Lagoutaris, E.D.; Adams, H.B.; DiDomenico, L.A.; Rothenberg, R.J. Longitudinal tears of both peroneal tendons associated with tophaceous gouty infiltration. A case report. J. Foot Ankle Surg. 2005, 44, 222–224. [Google Scholar] [CrossRef] [PubMed]
  15. Patten, A.; Pun, W.K. Spontaneous rupture of the tibialis anterior tendon: A case report and literature review. Foot Ankle Int. 2000, 21, 697–700. [Google Scholar] [CrossRef]
  16. Jerome, J.T.; Varghese, M.; Sankaran, B.; Thomas, S.; Thirumagal, S.K. Tibialis anterior tendon rupture in gout—Case report and literature review. Foot Ankle Surg. 2008, 14, 166–169. [Google Scholar] [CrossRef]
  17. Radice, F.; Monckeberg, J.E.; Carcuro, G. Longitudinal tears of peroneus longus and brevis tendons: A gouty infiltration. J. Foot Ankle Surg. 2011, 50, 751–753. [Google Scholar] [CrossRef]
  18. Heckman, D.S.; Gluck, G.S.; Parekh, S.G. Tendon disorders of the foot and ankle, part 1: Peroneal tendon disorders. Am. J. Sports Med. 2009, 37, 614–625. [Google Scholar] [CrossRef]
  19. Barazani, S.H.; Chi, W.W.; Pyzik, R.; Chang, H.; Jacobi, A.; O’Donnell, T.; Fayad, Z.A.; Ali, Y.; Mani, V. Quantification of uric acid in vasculature of patients with gout using dual-energy computed tomography. World J. Radiol. 2020, 12, 184–194. [Google Scholar] [CrossRef]
  20. Khanna, P.; Johnson, R.J.; Marder, B.; LaMoreaux, B.; Kumar, A. Systemic Urate Deposition: An Unrecognized Complication of Gout? J. Clin. Med. 2020, 9, 3204. [Google Scholar] [CrossRef]
  21. Ahn, S.J.; Zhang, D.; Levine, B.D.; Dalbeth, N.; Pool, B.; Ranganath, V.K.; Benhaim, P.; Nelson, S.D.; Hsieh, S.S.; FitzGerald, J.D. Limitations of dual-energy CT in the detection of monosodium urate deposition in dense liquid tophi and calcified tophi. Skelet. Radiol. 2021, 50, 1667–1675. [Google Scholar] [CrossRef] [PubMed]
  22. Pascart, T.; Carpentier, P.; Choi, H.K.; Norberciak, L.; Ducoulombier, V.; Luraschi, H.; Houvenagel, E.; Legrand, J.; Verclytte, S.; Becce, F.; et al. Identification and characterization of peripheral vascular color-coded DECT lesions in gout and non-gout patients: The VASCURATE study. Semin. Arthritis Rheum. 2021, 51, 895–902. [Google Scholar] [CrossRef] [PubMed]
  23. Dubief, B.; Avril, J.; Pascart, T.; Schmitt, M.; Loffroy, R.; Maillefert, J.F.; Ornetti, P.; Ramon, A. Optimization of dual energy computed tomography post-processing to reduce lower limb artifacts in gout. Quant. Imaging Med. Surg. 2022, 12, 539–549. [Google Scholar] [CrossRef] [PubMed]
  24. Park, E.H.; Yoo, W.H.; Song, Y.S.; Byon, J.H.; Pak, J.; Choi, Y. Not All Green Is Tophi: The Importance of Optimizing Minimum Attenuation and Using a Tin Filter to Minimize Clumpy Artifacts on Foot and Ankle Dual-Energy CT. Am. J. Roentgenol. 2020, 214, 1335–1342. [Google Scholar] [CrossRef]
  25. Mallinson, P.I.; Coupal, T.; Reisinger, C.; Chou, H.; Munk, P.L.; Nicolaou, S.; Ouellette, H. Artifacts in dual-energy CT gout protocol: A review of 50 suspected cases with an artifact identification guide. Am. J. Roentgenol. 2014, 203, W103–W109. [Google Scholar] [CrossRef]
  26. Klauser, A.S.; Strobl, S.; Schwabl, C.; Klotz, W.; Feuchtner, G.; Moriggl, B.; Held, J.; Taljanovic, M.; Weaver, J.S.; Reijnierse, M. Prevalence of Monosodium Urate (MSU) Deposits in Cadavers Detected by Dual-Energy Computed Tomography (DECT). Diagnostics 2022, 12, 1240. [Google Scholar] [CrossRef]
  27. Jeon, J.Y.; Lee, S.W.; Jeong, Y.M.; Baek, H.J. The effect of tube voltage combination on image artefact and radiation dose in dual-source dual-energy CT: Comparison between conventional 80/140 kV and 80/150 kV plus tin filter for gout protocol. Eur. Radiol. 2019, 29, 1248–1257. [Google Scholar] [CrossRef]
  28. Chou, H.; Chin, T.Y.; Peh, W.C. Dual-energy CT in gout—A review of current concepts and applications. J. Med. Radiat. Sci. 2017, 64, 41–51. [Google Scholar] [CrossRef]
  29. R Core Team. R: A Language and Environment For Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2013; Available online: https://www.R-project.org/ (accessed on 1 June 2023).
  30. De Ávila Fernandes, E.; Sandim, G.B.; Mitraud, S.A.; Kubota, E.S.; Ferrari, A.J.; Fernandes, A.R. Sonographic description and classification of tendinous involvement in relation to tophi in chronic tophaceous gout. Insights Imaging 2010, 1, 143–148. [Google Scholar] [CrossRef] [Green Version]
  31. Dalbeth, N.; Kalluru, R.; Aati, O.; Horne, A.; Doyle, A.J.; McQueen, F.M. Tendon involvement in the feet of patients with gout: A dual-energy CT study. Ann. Rheum. Dis. 2013, 72, 1545–1548. [Google Scholar] [CrossRef]
  32. Ventura-Ríos, L.; Sánchez-Bringas, G.; Pineda, C.; Hernández-Díaz, C.; Reginato, A.; Alva, M.; Audisio, M.; Bertoli, A.; Cazenave, T.; Gutiérrez, M.; et al. Tendon involvement in patients with gout: An ultrasound study of prevalence. Clin. Rheumatol. 2016, 35, 2039–2044. [Google Scholar] [CrossRef] [PubMed]
  33. Klauser, A.S.; Halpern, E.J.; Strobl, S.; Abd Ellah, M.M.H.; Gruber, J.; Bellmann-Weiler, R.; Auer, T.; Feuchtner, G.; Jaschke, W. Gout of hand and wrist: The value of US as compared with DECT. Eur. Radiol. 2018, 28, 4174–4181. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Nicolaou, S.; Liang, T.; Murphy, D.T.; Korzan, J.R.; Ouellette, H.; Munk, P. Dual-energy CT: A promising new technique for assessment of the musculoskeletal system. Am. J. Roentgenol. 2012, 199 (Suppl. 5), S78–S86. [Google Scholar] [CrossRef] [PubMed]
  35. Strobl, S.; Kremser, C.; Taljanovic, M.; Gruber, J.; Stofferin, H.; Bellmann-Weiler, R.; Klauser, A.S. Impact of Dual-Energy CT Postprocessing Protocol for the Detection of Gouty Arthritis and Quantification of Tophi in Patients Presenting with Podagra: Comparison with Ultrasound. Am. J. Roentgenol. 2019, 213, 1315–1323. [Google Scholar] [CrossRef]
  36. Dalbeth, N.; Aati, O.; Gao, A.; House, M.; Liu, Q.; Horne, A.; Doyle, A.; McQueen, F.M. Assessment of tophus size: A comparison between physical measurement methods and dual-energy computed tomography scanning. J. Clin. Rheumatol. 2012, 18, 23–27. [Google Scholar] [CrossRef]
  37. Melzer, R.; Pauli, C.; Treumann, T.; Krauss, B. Gout tophus detection-a comparison of dual-energy CT (DECT) and histology. Semin. Arthritis Rheum. 2014, 43, 662–665. [Google Scholar] [CrossRef]
  38. Finkenstaedt, T.; Manoliou, A.; Toniolo, M.; Higashigaito, K.; Andreisek, G.; Guggenberger, R.; Michel, B.; Alkadhi, H. Gouty arthritis: The diagnostic and therapeutic impact of dual-energy CT. Eur. Radiol. 2016, 26, 3989–3999. [Google Scholar] [CrossRef]
Diagnostics 13 02208 g001 550

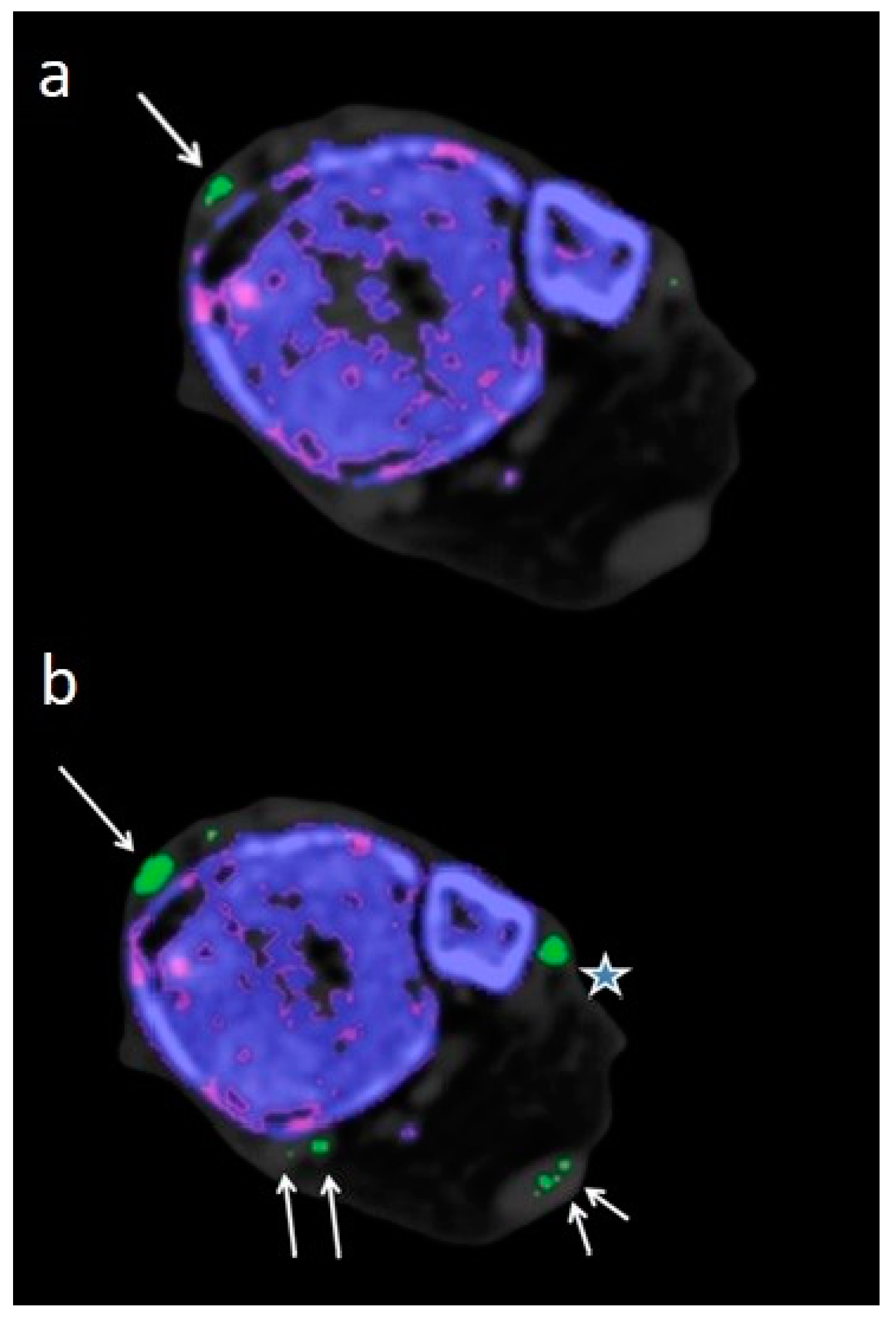

Figure 1. 85 year-old-male embalmed cadaver. (a) Axial DECT 150 image with Score 1 MSU deposits in tibialis anterior tendon (large arrow). (b) Corresponding axial DECT 120 image showing an increased size (Score 2) of the MSU deposit in tibialis anterior tendon (large arrow). MSU deposits were also detected in peroneal tendons (star), achilles tendon (small arrows), and tibialis posterior/flexor halluces longus tendon (middle sized arrows).
Figure 1. 85 year-old-male embalmed cadaver. (a) Axial DECT 150 image with Score 1 MSU deposits in tibialis anterior tendon (large arrow). (b) Corresponding axial DECT 120 image showing an increased size (Score 2) of the MSU deposit in tibialis anterior tendon (large arrow). MSU deposits were also detected in peroneal tendons (star), achilles tendon (small arrows), and tibialis posterior/flexor halluces longus tendon (middle sized arrows).
Diagnostics 13 02208 g001
Diagnostics 13 02208 g002 550

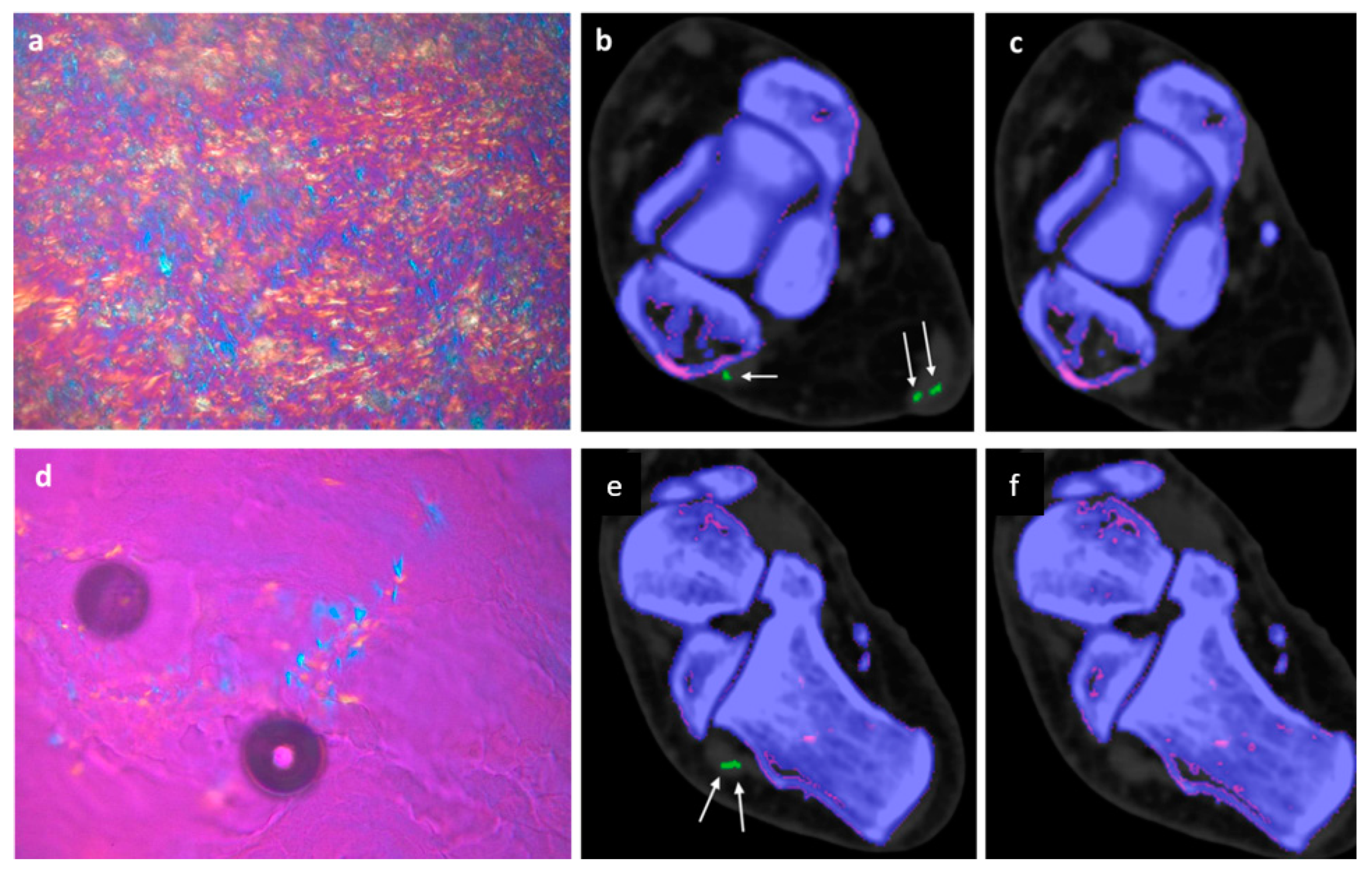

Figure 2. 77 year-old-male fresh cadaver. (a) Polarizing light microscopic evaluation of a sample taken from achilles tendon, showing large diffuse packed and patchy MSU crystals with strong negative birefringence (bluish structures). (b) Corresponding DECT 120 image showing large MSU deposits in the achilles tendon (large white arrows) and one small MSU deposit (small white arrow) in peroneus tendon. (c) Corresponding DECT 150 image without evidence of MSU deposits in the achilles and peroneus tendon. (d) Polarizing light microscopic evaluation of a sample taken from peroneus tendon, showing diffuse packed and patchy MSU crystals with strong negative birefringence (bluish structures). (e) Corresponding DECT120 image showing MSU deposits in peroneal tendons (white arrows). (f) Corresponding DECT 150 image without any MSU deposits in peroneal tendons.
Figure 2. 77 year-old-male fresh cadaver. (a) Polarizing light microscopic evaluation of a sample taken from achilles tendon, showing large diffuse packed and patchy MSU crystals with strong negative birefringence (bluish structures). (b) Corresponding DECT 120 image showing large MSU deposits in the achilles tendon (large white arrows) and one small MSU deposit (small white arrow) in peroneus tendon. (c) Corresponding DECT 150 image without evidence of MSU deposits in the achilles and peroneus tendon. (d) Polarizing light microscopic evaluation of a sample taken from peroneus tendon, showing diffuse packed and patchy MSU crystals with strong negative birefringence (bluish structures). (e) Corresponding DECT120 image showing MSU deposits in peroneal tendons (white arrows). (f) Corresponding DECT 150 image without any MSU deposits in peroneal tendons.
Diagnostics 13 02208 g002
Diagnostics 13 02208 g003 550

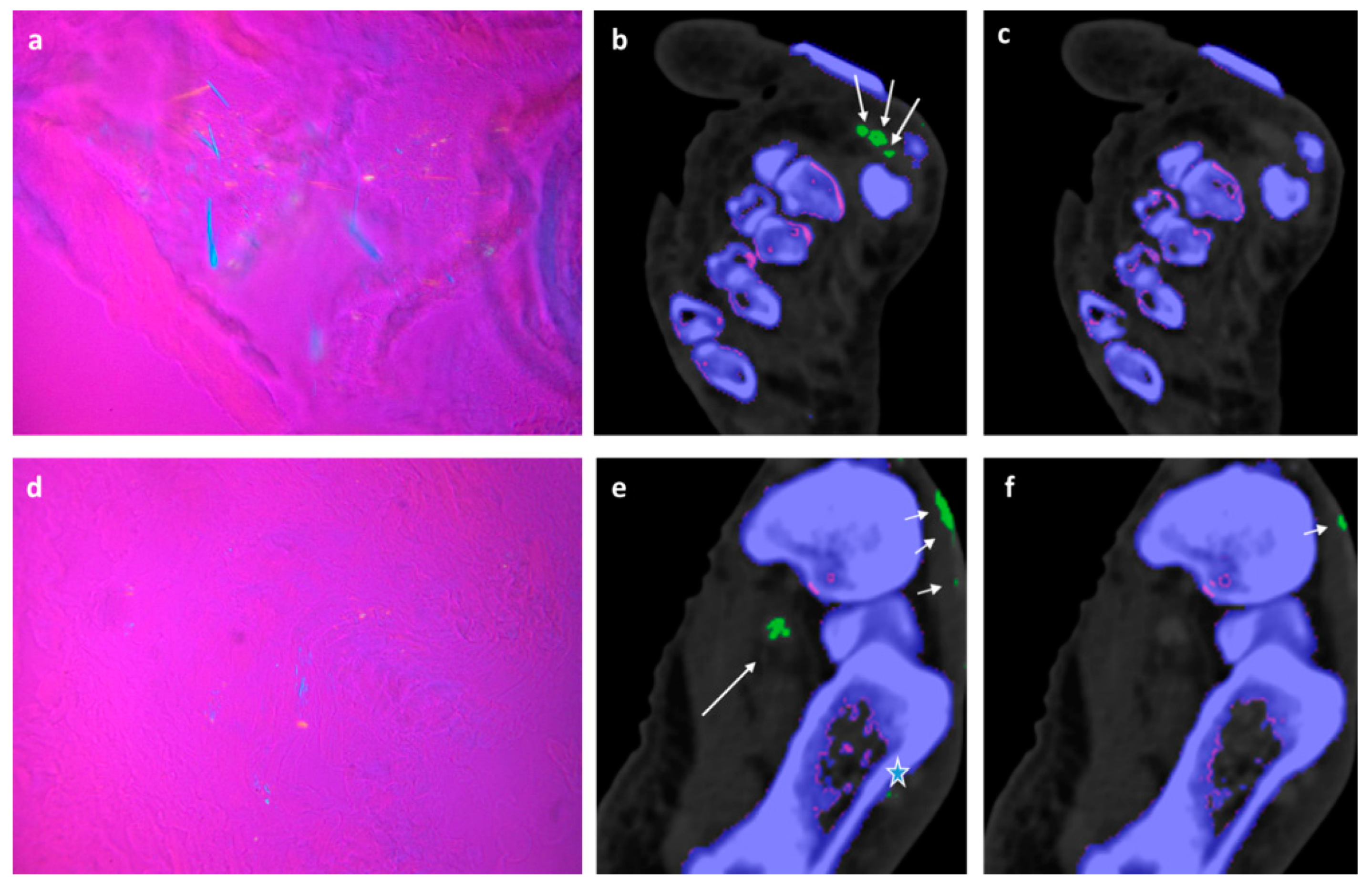

Figure 3. 77-year-old-male fresh cadaver. (a) Polarizing light microscopic evaluation of a sample taken from flexor halluces longus tendon, showing diffuse packed and patchy MSU crystals with strong negative birefringence. (b) Corresponding DECT 120 image showing large MSU deposits in the flexor halluces longus tendon of Digitus 1 (large white arrows). (c) Corresponding DECT 150 image without showing any MSU deposits in the flexor halluces longus tendon (d) Polarizing light microscopic evaluation of a sample taken from the plantar flexor tendon, showing diffuse packed and patch MSU crystals with strong negative birefringence. (e) Corresponding DECT 120 image showing large MSU deposits in plantar flexor tendon with skin artifacts (small white arrows), MSU deposits in the flexor halluces longus tendon (large white arrows) and small MSU deposit in peroneus tendon (STAR). (f) Corresponding DECT 150 image without showing any MSU deposits in plantar flexor tendon with skin artefact (small arrow).
Figure 3. 77-year-old-male fresh cadaver. (a) Polarizing light microscopic evaluation of a sample taken from flexor halluces longus tendon, showing diffuse packed and patchy MSU crystals with strong negative birefringence. (b) Corresponding DECT 120 image showing large MSU deposits in the flexor halluces longus tendon of Digitus 1 (large white arrows). (c) Corresponding DECT 150 image without showing any MSU deposits in the flexor halluces longus tendon (d) Polarizing light microscopic evaluation of a sample taken from the plantar flexor tendon, showing diffuse packed and patch MSU crystals with strong negative birefringence. (e) Corresponding DECT 120 image showing large MSU deposits in plantar flexor tendon with skin artifacts (small white arrows), MSU deposits in the flexor halluces longus tendon (large white arrows) and small MSU deposit in peroneus tendon (STAR). (f) Corresponding DECT 150 image without showing any MSU deposits in plantar flexor tendon with skin artefact (small arrow).
Diagnostics 13 02208 g003
Diagnostics 13 02208 g004 550

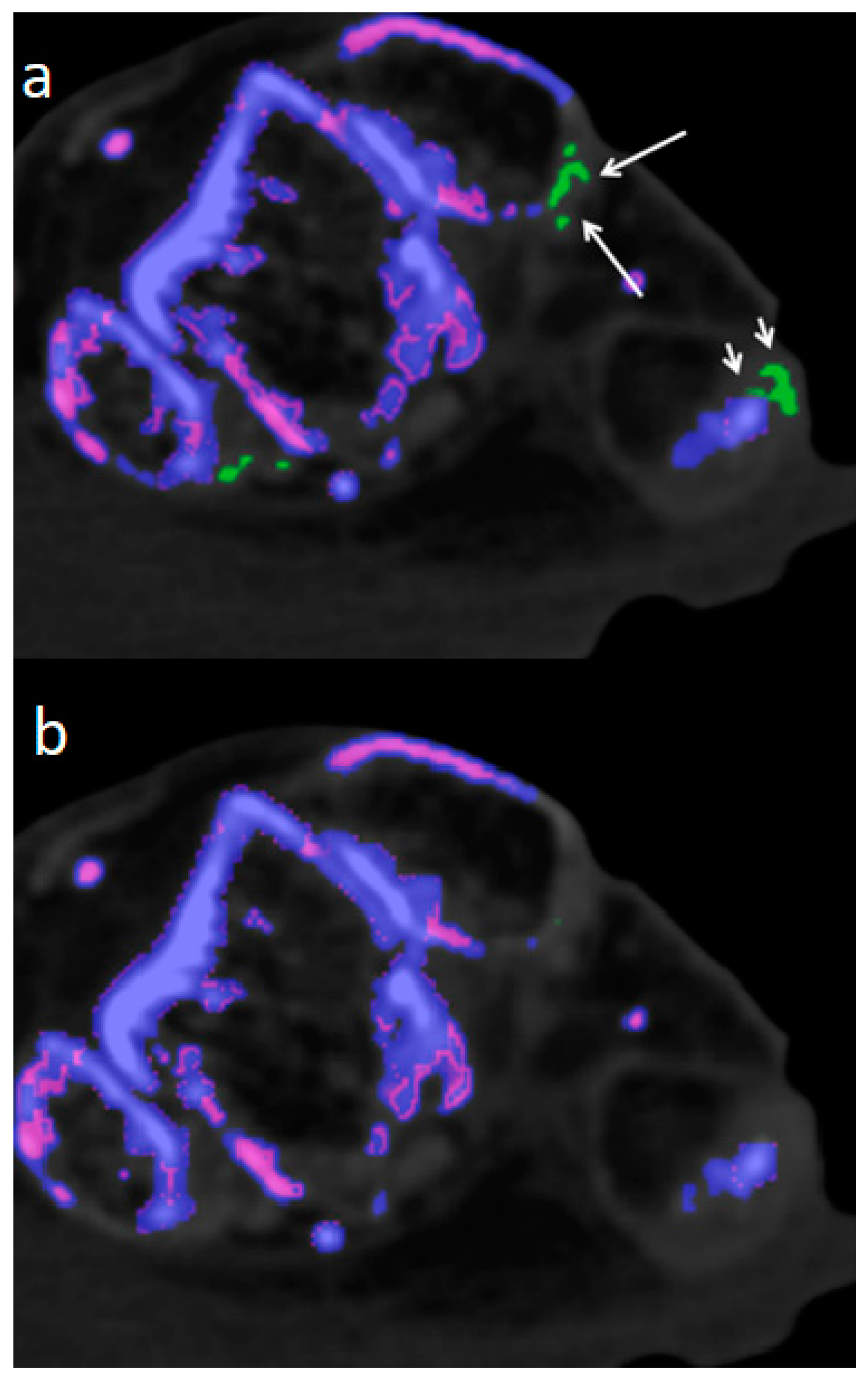

Figure 4. 70 year-old-male embalmed cadaver. (a) Artifacts shown at distal fibula (long arrows) and calcaneus (small arrows) in DECT 120. (b) Corresponding axial DECT 150 image without any artifacts.

Figure 4. 70 year-old-male embalmed cadaver. (a) Artifacts shown at distal fibula (long arrows) and calcaneus (small arrows) in DECT 120. (b) Corresponding axial DECT 150 image without any artifacts.
Diagnostics 13 02208 g004
Table
Table 1. Grading of MSU deposits.
Table 1. Grading of MSU deposits.
ScoreMSU Deposit Size
0MSU absent
12–5 mm
25–10 mm
3≥10 mm
Table
Table 2. Workstation settings of DECT.
Table 2. Workstation settings of DECT.
DECT Workstation Postprocessing SettingsTube ATube B
DECT 150DECT 120
Soft tissue (HU)505050
Ratio1.361.361.36
Range444
Threshold (HU)150120500
Air distance/bone distance5510
Table
Table 3. Overall agreement of DECT 150 and DECT 120 in different tendons of embalmed cadavers.
Table 3. Overall agreement of DECT 150 and DECT 120 in different tendons of embalmed cadavers.
Anatomical LocationOverall Agreement (%)Quadratic Weighted KappaChi2-Test
EHLT27.50.26p = 0.0015
EDLT300.26p = 0.016
TAT50.31p = 0.0005
FHL00.17p = 0.001
TP50.17p = 0.0255
PT50.21p = 0.0005
AT200.19p = 0.13
PF15 p = 0.001
Note: EHLT—extensor halluces longus tendon, EDLT—extensor digitorum longus tendon, TAT—tibialis anterior tendon, FHL—flexor halluces longus tendon, TP—tibialis posterior tendon, PT—peroneus tendons, AT—achilles tendon, and PF—Plantar flexor tendon.
Table
Table 4. Number of embalmed cadavers when MSU deposits were detected for DECT 150 (first row) and DECT 120 (second row).
Table 4. Number of embalmed cadavers when MSU deposits were detected for DECT 150 (first row) and DECT 120 (second row).
Anatomical LocationDECTPositive
EHLT15020/40 (50%)
12036/40 (90%)
EDLT15010/40 (25%)
12035/40 (75%)
TAT15023/40 (57.5%)
12040/40 (100%)
FHL1504/40 (10%)
12040/40 (100%)
TP1505/40 (12.5%)
12039/40 (97.5%)
PT15014/40 (35%)
12040/40 (100%)
AT15010/40 (25%)
12036/40 (90%)
PF1503/40 (7.5%)
12035/40 (87.5%)
Note: EHLT—extensor halluces longus tendon, EDLT—extensor digitorum longus tendon, TAT—tibialis anterior tendon, FHL—flexor halluces longus tendon, TP—tibialis posterior tendon, PT—peroneus tendons, AT—achilles tendon, and PF—Plantar flexor tendon.
Table
Table 5. Comparison of DECT 150 (first row) and DECT 120 (second row) in foot tendons of embalmed cadavers with regard to Score 0–3.
Table 5. Comparison of DECT 150 (first row) and DECT 120 (second row) in foot tendons of embalmed cadavers with regard to Score 0–3.
Anatomical LocationDECTScore 0Score 1Score 2Score 3
EHLT15020/40 (50%)19/40 (47.5%)1/40 (2.5%)0/40 (0%)
1204/40 (10%)19/40 (47.5%)14/40 (35%)3/40 (7.5%)
EDLT15030/40 (75%) 9/40 (22.5%)1/40 (2.5%) 0/40 (0%)
1205/40 (12.5%)30/40 (75%)3/40 (7.5%)2/40 (5%)
TAT15017/40 (42.5%) 17/40(42.5%) 6/40 (15%) 0/40 (0%)
1200/40 (0%)11/40(27.5%)23/40 (57.5%)6/40 (15%)
FHL15036/40 (90%)3/40 (7.5%)1/40 (2.5%)0/40 (0%)
1200/40 (0%)29/40 (72.5%)9/40 (22.5%)2/40 (5%)
TP15035/40 (87.5%) 4/40 (10%) 1/40 (2.5%) 0/40 (0%)
1201/40 (2.5%)28/40 (70%)9/40 (22.5%)2/40 (5%)
PT15026/40(65%) 13/40 (32.5%) 1/40 (2.5%) 0/40 (0%)
1200/40 (0%)21/40 (52.5%)17/40 (42.5%)2/40 (2.5%)
AT15030/40 (75%)9/40 (22.5%)1/40 (2.5%)0/40 (0%)
1204/40 (10%)21/40 (52.5%)8/40 (20%)7/40 (17.5%)
PF15037/40 (92.5%)1/40 (2.5%)2/40 (5%)0/40 (0%)
1205/40 (12.5%)30/40 (75%)3/40 (7.5%)2/40 (2.5%)
Note: EHLT—extensor halluces longus tendon, EDLT—extensor digitorum longus tendon, TAT—tibialis anterior tendon, FHL—flexor halluces longus tendon, TP—tibialis posterior tendon, PT—peroneus tendons, AT—achilles tendon, PF—Plantar flexor tendon; Score 0 = absent MSU deposits, Score 1 = MSU deposits 2–5 mm, Score 2 = MSU deposits 5–10 mm, and Score 3 = MSU deposits > 10 mm.
