Review

Arteriovenous Hemodialysis Access Stenosis Diagnosed by Duplex Doppler Ultrasonography: A Review

by
Jan Malik
1,2,*,
Cora de Bont
3,
Anna Valerianova
1,2,
Zdislava Krupickova
1,2 and
Ludmila Novakova
4
1
3rd Department of Internal Medicine, General University Hospital, U Nemocnice 2, 12808 Prague, Czech Republic
2
Center for Vascular Access, First Faculty of Medicine of General University Hospital, Charles University, 12108 Prague, Czech Republic
3
Vascular Laboratory, Bravis Hospital, 4624 VT Bergen op Zoom, The Netherlands
4
Faculty of Mechanical Engineering, Jan Evangelista Purkyne University, 40096 Usti nad Labem, Czech Republic
*
Author to whom correspondence should be addressed.
Diagnostics 2022, 12(8), 1979; https://doi.org/10.3390/diagnostics12081979
Submission received: 30 June 2022 / Revised: 9 August 2022 / Accepted: 10 August 2022 / Published: 16 August 2022
(This article belongs to the Special Issue Advances in Vascular Imaging)
Browse Figures
Review Reports Versions Notes

Abstract

:
Arteriovenous fistula (AVF) is currently the hemodialysis access with the longest life expectations for the patients. However, even the AVF is at risk for many complications, especially the development of stenosis. The latter can not only lead to inadequate hemodialysis but also lead to AVF thrombosis. Duplex Doppler ultrasonography is a very precise method, in the hands of experienced professionals, for the diagnosis of AVF complications. In this review, we summarize the ultrasound diagnostic criteria of significant stenoses and their indication for procedural therapy.

1. Introduction

Hemodialysis, a renal function replacement method, needs a regular entry into the bloodstream with sufficient blood flow (at least 500 mL/min). The insertion of a special central vein catheter, introduced into the superior or inferior vena cava, is an option. However, the long-term use of hemodialysis catheters is associated with a significantly increased risk of infection and mortality [1]. The preferred vascular access is an arteriovenous fistula (AVF), which is the direct connection of a patient’s artery and vein, or an arteriovenous graft (AVG), which is when an artificial (polytetrafluoroethylene) vascular graft is used for punctures in cases of abandoned superficial veins [2].
Both AVF and AVG bypass the resistant arterioles. Therefore, the flow volume through the extremity with the access is >10 times after AVF/AVG creation. Although AVFs are considered the best currently available hemodialysis access (over AVGs and catheters), their lifespan is limited by several complications, of which stenoses are by far the most frequent [3]. They lead to decreased flow through the AVF/AVG. Thrombus formation is accelerated, and access lifespan is in danger. Duplex Doppler ultrasonography (DUS) is a very sensitive and precise method for assessing AVF/AVG stenoses [3]. However, published articles differed significantly in stenosis definition criteria, as we show below.
The power of DUS to detect significant access stenosis, which could, in turn, lead to access thrombosis, was confirmed already in the early nineties [4,5]: >50% of stenosis is associated with a >50% risk of access thrombosis within 6 months. Currently, there is no doubt that DUS can diagnose access stenosis, and the measurement of residual diameter is very precise in comparison with angiography [6]. Moreover, the advantage over angiography is that it is more precise in the explanation of stenosis etiology (e.g., intimal hyperplasia, post-puncture scarring, and pressure of surrounding structures), the monitoring of access maturation, and the calculation of access flow volume.
In this review, we describe ultrasound diagnostics of AVF/AVG stenoses.

2. General Definition of Stenoses

Vascular narrowing of any etiology results in local hemodynamic and structural disturbances. Hemodynamic changes include flow acceleration, changes in wall shear stress, pressure drop, and decrease in flow volume. Flow velocity increase assessment in the stenotic segment or proximal to it is a part of stenosis quantification by DUS. Hemodynamic changes due to a stenosis are depicted in Figure 1.
AVF flow volume (Qa = amount of blood flowing over time, expressed as mL/min) depends on the perfusion pressure (the mean arterial pressure minus the central venous pressure) and on access resistance. The latter is determined mainly by the size of the arteriovenous anastomosis, but in stenotic AVF/AVGs, the stenosis increases access resistance (and thus decreases flow volume) more significantly [7]. It is particularly true for juxta-anastomotic or arterial stenoses.

3. Etiology and Types of Stenoses

Several etiologies play a role in the development of access stenoses.
Atherosclerosis and/or medial calcinosis are the most frequent causes of arterial narrowing. The former is represented by focal stenosis due to an atherosclerotic plaque; the latter affects diffusely, especially in forearm arteries.
Surgical manipulation and trauma contribute to the development of juxta-anastomotic stenoses.
Intimal or intimomedial hyperplasia is the most common etiology of AVF/AVG stenoses (Figure 2). In AVFs, it typically develops in the outflow vein within a few centimetres from the anastomosis and, sometimes, the cephalic arch is affected. Many mechanisms are suspected to be the cause, including trauma and wall shear stress alterations. In AVGs, intimal hyperplasia develops most frequently in the venous anastomosis, adjacent outflow vein, or more proximally in the basilic vein. The inability of the vein to dilate is another etiology that contributes to stenosis formation in the juxta-anastomotic region and cephalic arch. Other mechanisms include healed thrombophlebitis, thickened venous valves, and outer compression by a hematoma, seroma, cervical ribs, dilated aortic arch, etc., and by a pseudoaneurysm (Figure 3). The long-term placement of central venous catheters is a known risk factor for central vein stenosis.
Non-occluding thrombus could also cause a stenosis (Figure 4).

4. Predilectional Sites of Stenoses

The typical location of arteriovenous access stenosis is different for AVFs and AVGs (Figure 5). It also depends on the location of the access.
In native radiocephalic fistulas, stenoses typically occur in the juxta-anastomotic segment of the outflow vein (Figure 5) [8]. Suggested risk factors for stenosis formation in this site include loss of vasa vasorum during the surgical procedure, changes in shear stress, or increased blood flow turbulence [9,10]. The typical site for brachiocephalic fistula is represented by cephalic arch stenosis [8] that could be caused by a compression of the vein by the clavipectoral fascia, the sharp angle of the cephalic vein, or the higher frequency of valves causing turbulent flow [11]. Proximal swing stenosis is specific for brachiobasilic fistula, caused by kinking or compression in the artificial tunnel, constriction by fascia, or by turbulent flow caused by angulation of the vein [8,12]. According to the retrospective study by Badero et al. [9], proximal swing segment stenoses and juxta-anastomotic stenoses are dominant in native AVFs, followed by puncture site stenoses.
The most typical location of AVG stenosis is the venous anastomosis [13] and the adjacent segment of the outflow vein, probably due to altered haemodynamic conditions [14]. Other sites—in-graft stenoses, outflow vein stenoses, or stenoses of arterial anastomosis—are less frequent. Central vein stenoses are usually linked to the previous use of hemodialysis catheters [15]. Stenoses of the feeding artery are present only in a minority of AV accesses [16]. Their etiology includes atherosclerosis or medial calcinosis.
The feeding artery (including the subclavian artery) could be affected by atherosclerosis and/or medial calcinosis. Atherosclerosis is relatively rare in the upper extremity arteries but more frequent in the subclavian or innominate artery. The latter must be suspected when low Qa has no clear explanation (Figure 6). Severe subclavian artery stenosis or occlusion could also be visualized indirectly by the flow reversal in the ipsilateral vertebral artery. While atherosclerosis affects the intimal layer of the arterial wall, medial calcinosis affects the medial (muscle) layer and is typical, particularly for patients with advanced type 2 diabetes mellitus. Medial calcinosis can be specifically observed in the forearm (and hand) arteries and is characterized by a diffuse arterial narrowing and hyperechoic arterial wall. It could be responsible for slow AVF maturation, low Qa, and/or hand ischemia [17].

5. Significant Stenosis Definition by Ultrasonography

DUS is a method that is comparable to and, in some respects, better than angiography. The advantages of DUS over angiography not only include the noninvasive visualization of stenosis etiology and of surrounding tissues but also the calculation of access flow volume (Qa). Angiography determines the significance of a stenosis, usually by a luminal diameter reduction of ≥50% (associated with clinical and/or physiological abnormalities).
Traditionally, DUS determined AVF/AVG stenosis by the parameters that are used in other vascular beds. However, vascular access differs considerably from natural arteries and veins. Finding the thresholds of these traditional criteria to define which stenosis is significant in vascular access seems to be challenging. Studies that made attempts had their flaws, e.g., retrospective, selection bias, small sample size, DUS and angiography not performed at the same time, and the lack of including a control group [18,19,20,21]. Although these studies did agree on certain points, they were not uniform and had contradictive findings. Currently, stenosis criteria used by different authors include diameter/cross-sectional area reduction, the quantification of flow acceleration by the stenosis, and the assessment of Qa and residual diameter. Strict diagnostic criteria for a significant stenosis are of particular importance especially because the outflow vein diameter is often irregular and the unnecessary treatment of a non-significant stenosis brings more pain to the patient, higher costs and the quicker development of restenosis than the progression of an untreated and non-significant stenosis [22].
Stenosis leads to flow acceleration to maintain the transportation of the mass of fluid. DUS determined the increase in the peak systolic velocity (PSV) inside the stenotic segment and/or its ratio to the prestenotic segment. These parameters were introduced at the beginning of DUS, in which the low resolution made it impossible to grade stenosis and occlusion solely upon gray-scale images. The PSV ratio of 2.0 to 2.9 presents stenosis as 50% to 74%, and a PSV ratio of more than 3.0 presents stenosis as more than 75% [21]; therefore, the used cut-off for a significant stenosis is a PSV ratio of >2–3. In fact, flow acceleration inside a stenosis represents a drop in blood pressure (according to the Bernoulli equation). The disadvantages of using flow acceleration include natural accelerations in curved/kinked parts of the vascular tree.
Percent stenosis determination depends on what is being defined as the normal reference part of the vascular access, which is a weakness that DUS shares with angiography. After the access creation, the vein undergoes a nonuniform dilatation. Various levels of dilatation could be found at several points in the access, e.g., vessel curves, venous valves, cannulation sides, bifurcations, and the juxta-anastomotic side [23,24]. Hence, defining the normal reference value is challenging, and percent stenosis determination is fraught with uncertainty [6,23,24]. Despite these limitations, the concept of “stenosis > 50%” is still recommended in scientific articles [25].
The measurement of the residual or minimal lumen diameter (Figure 7), meaning the absolute minimal lumen diameter of the narrowest point within the stenosis (lesion), was introduced as a parameter to discriminate between significant and non-significant stenoses [6,26]. Studies have shown that the residual diameter is an accurate parameter in distinguishing functional from dysfunctional fistulas and has a superior correlation with the Qa when compared with a simple diameter reduction of >50% [27,28]. However, these studies differed in the used markers by which the dysfunctionality was determined. For example, one study found a cut-off value for RD of ≤2.7 mm to be representative of a dysfunctional radiocephalic fistula, but after including the value of the Qa, this cut-off changed towards a value of ≥3.2 mm for a functional fistula [29]. Residual diameter cut-off values for a significant stenosis differed between 1.9 and 4.5 mm in various studies [6,26,28]. We believe that higher values of residual diameter are not ideal because we frequently find well-functioning AVFs with 3.0 mm wide radial arteries or arteriovenous anastomoses. There is an ongoing debate about this topic.
The flow volume through the vascular access (Qa) is considered to be a functional marker. It can be measured during hemodialysis by dilution techniques and at any time by DUS. The principle of the Qa calculation by ultrasonography is shown in Figure 8. In native AVFs, Qa is usually measured in the brachial artery. This is because the outflow vein frequently has an irregular diameter, side branches, and is easily compressible by the ultrasound probe, which changes its circular cross-section to a parabolic one. When the cross-section changes to parabolic, the equation mentioned below is not valid anymore. In patients with arteriovenous grafts, Qa is measured directly in the graft and in a straight segment close to the venous anastomosis. However, some centers measure Qa directly in the outflow vein [30]. Measuring Qa at least three times and using the average value are advised. The sample volume should encompass the entire vessel’s diameter to include the low-velocity layers present along the vessel wall. Measurement in a straight vascular segment is mandatory to assure the quantification of a laminar flow. Usual Qa values reach 500–1500 mL/min in AVFs and 600–1500 mL/min in grafts. Low values bring the risk of inadequate hemodialysis and access thrombosis. Higher values could be associated with heart failure or hand ischemia [31]. Importantly, Qa physiologically fluctuates with blood pressure and hydration levels—as does the cardiac output [32].
Complex criteria: The Prague group has defined complex DUS criteria, which include two main parameters (percentage of diameter reduction and the value of flow acceleration) and additional ones [22]. They are described in Table 1. In these criteria, significance is based upon anatomical, functional, and hemodynamical parameters, which are regarded as complementary. These criteria also enable one to define a stenosis that has the potential to progress and needs closer and more frequent observation, so-called a borderline stenosis [33]. Although the aforementioned criteria [22] were originally designed for AVGs, research has shown that they can be used to define the severity of the stenosis in arteriovenous fistulas [34].

6. Arteriovenous Access Surveillance by Ultrasonography

Surveillance is the term used for the regular assessment of AVF/AVG by DUS. Given the advances of DUS, which include precise non-invasive visualization, including the quantification of the flow volume, the idea of performing DUS surveillance seems to be very attractive. Its philosophy is based on the regular ultrasound AVF/AVG assessment with preemptive intervention (usually by percutaneous balloon angioplasty) when a significant stenosis is present. Considering surveillance techniques, the higher is the risk of a stenosis in the access, the higher the benefit of surveillance. AVFs have the longest long-term patency, but up to 50% of AVFs never mature [35]. AVF maturation could be facilitated by PTA [36], and DUS can be effectively used for depicting the outflow vein and its stenosis (Figure 9). AVGs have shorter patency than AVFs, especially due to significantly more frequent stenosis development by intimomedial hyperplasia, especially in the venous anastomosis or adjacent outflow vein [37]. Shortly, surveillance could be more beneficial in AVGs, and indeed, most of the surveillance trials studied AVGs. Various randomized controlled trials analyzed the benefit of AVG surveillance [38,39,40,41,42]. Their findings were conflicting. However, the trials differed in the number of patients (the largest study included 192 subjects) by including incident or prevalent patients in the treatment methods (PTA vs. surgery), but particularly in the criteria of stenosis significance. While some authors used only the combination of lumen narrowing in B-mode + flow acceleration, others used more detailed complex criteria shown in Table 1 but with different cut-off values of the residual diameter. Unfortunately, two meta-analyses [43,44] put together all of these conflicting and heterogenous data and concluded that ultrasound surveillance does not bring benefit to the patients. As a result, instead of performing a larger multicentric trial and testing its benefits, currently, surveillance is not generally supported for AVGs and is considered doubtful for AVFs [45,46].

7. Symptoms of AVF/AVG Stenosis and When to Intervene a Stenosis

A regular physical examination of AVF/AVGs is recommended and supported by the KDOQI guidelines [46]. Clinical indicators (signs and symptoms) suggesting clinically significant stenoses are summarized in Table 2. The guidelines recommend the treatment of only symptomatic stenoses.
The stenosis of the feeding artery, anastomosis, and juxta-anastomotic part of the outflow vein usually lead to Qa reduction and higher recirculation of the dialyzed blood. This could be manifested by an easier collapsibility of the outflow vein during extremity elevation. Low Qa could lead to inadequate dialysis dose and excessive collapse of the outflow veins during arm elevation. Inadequate dialysis dose (Kt/V) could be a result of low Qa.
Cannulation problems are not rare but should be new in the patient to suspect a stenosis. Stenosis in the puncture area or low Qa could be responsible. Other explanations include situations when the outflow vein is diffusely narrow, deeply located (>6 mm from the skin surface), branched, etc.
Venous hypertension involves, i.e., the failure of outflow vein collapse during arm elevation or increased dynamic venous pressure, or prolonged bleeding from the puncture site that develops in proximal outflow vein stenosis, usually in the arm and also in the central veins. On the contrary, central vein stenosis seldom leads to decreased AVF flow volume and should not be treated if asymptomatic [46,47]. However, they are frequently missed by the ultrasound because the central veins are hidden behind bone structures.
Analysis of the symptoms relies on the experience of the hemodialysis staff and the available methods, such as Qa measurement by dilution methods. The indication for a preemptive balloon angioplasty has to be considered with caution, ideally with the cooperation between the dialysis staff, interventionalist, and ultrasonographer. The latter could contribute by using the precise criteria of a significant stenosis and the complex criteria mentioned above as an example. Importantly, the Doppler ultrasound is generally recommended in cases of any problem or uncertainty related to vascular access.

8. Conclusions

DUS is a non-invasive, cheap, and in educated and experienced hands, also a very precise method for diagnosing AVF/AVG stenoses. Its goal is to diagnose stenoses that cause clinical problems, choose an appropriate puncture site for percutaneous therapy, and identify stenoses that possess a high risk of access thrombosis without unnecessary interventions. The latter goal is, however, the most conflicting, and this is probably due to the nonuniform criteria of significant stenoses used in published articles. Therefore, the current general recommendation by the guidelines supports the treatment of only symptomatic stenoses [45,46]. Unfortunately, literary data on the role of physical examination in diagnosing significant AVF/AVG stenoses are conflicting [48,49,50,51,52,53]. We believe that this fact, together with the growing trust of the younger generation in instrumental methods, would further widen ultrasound diagnostics of AVF/AVG complications. However, this cannot be achieved without quality education and appropriate training in vascular access ultrasonography.

Author Contributions

Conceptualization: J.M. and L.N., writing—original draft preparation: J.M. and C.d.B., writing—review and editing: A.V. and Z.K., visualization, C.d.B., Z.K. and J.M. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by MH CZ—DRO (General University Hospital in Prague—VFN, 00064165) and by Charles University Research program, “Cooperatio—Cardiovascular Science”.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Soleymanian, T.; Sheikh, V.; Tareh, F.; Argani, H.; Ossareh, S. Hemodialysis vascular access and clinical outcomes: An observational multicenter study. J. Vasc. Access 2017, 18, 35–42. [Google Scholar] [CrossRef]
  2. Haddad, D.J.; Jasty, V.S.; Mohan, B.; Hsu, C.-H.; Chong, C.C.; Zhou, W.; Tan, T.-W. Comparing outcomes of upper extremity brachiobasilic arteriovenous fistulas and arteriovenous grafts: A systematic review and meta-analysis. J. Vasc. Access 2022, 23, 32–41. [Google Scholar] [CrossRef]
  3. Chytilova, E.; Jemcov, T.A.-O.; Malik, J.A.-O.; Pajek, J.A.-O.; Fila, B.; Kavan, J. Role of Doppler ultrasonography in the evaluation of hemodialysis arteriovenous access maturation and influencing factors. J. Vasc. Access 2021, 22 (Suppl. S1), 42–55. [Google Scholar] [CrossRef]
  4. Strauch, B.S.; O’Connell, R.S.; Geoly, K.L.; Grundlehner, M.; Yakub, Y.N.; Tietjen, D.P. Forecasting thrombosis of vascular access with Doppler color flow imaging. Am. J. Kidney Dis. 1992, 19, 554–557. [Google Scholar] [CrossRef]
  5. Gadallah, M.F.; Paulson, W.D.; Vickers, B.; Work, J. Accuracy of Doppler ultrasound in diagnosing anatomic stenosis of hemodialysis arteriovenous access as compared with fistulography. Am. J. Kidney Dis. 1998, 32, 273–277. [Google Scholar] [CrossRef]
  6. Kudlicka, J.; Kavan, J.; Tuka, V.; Malik, J. More precise diagnosis of access stenosis: Ultrasonography versus angiography. J. Vasc. Access 2012, 13, 310–314. [Google Scholar] [CrossRef]
  7. Sullivan, K.L.; Besarab, A.; Bonn, J.; Shapiro, M.J.; Gardiner, G.A.; Moritz, M.J. Hemodynamics of failing dialysis grafts. Radiology 1993, 186, 867–872. [Google Scholar] [CrossRef]
  8. Quencer, K.B.; Arici, M. Arteriovenous Fistulas and Their Characteristic Sites of Stenosis. Am. J. Roentgenol. 2015, 205, 726–734. [Google Scholar] [CrossRef]
  9. Badero, O.J.; Salifu, M.O.; Wasse, H.; Work, J. Frequency of swing-segment stenosis in referred dialysis patients with angiographically documented lesions. Am. J. Kidney Dis. 2008, 51, 93–98. [Google Scholar] [CrossRef]
  10. Ene-Iordache, B.; Cattaneo, L.; Dubini, G.; Remuzzi, A. Effect of anastomosis angle on the localization of disturbed flow in ‘side-to-end’ fistulae for haemodialysis access. Nephrol. Dial. Transplant. 2013, 28, 997–1005. [Google Scholar] [CrossRef]
  11. Sivananthan, G.; Menashe, L.; Halin, N.J. Cephalic arch stenosis in dialysis patients: Review of clinical relevance, anatomy, current theories on etiology and management. J. Vasc. Access 2014, 15, 157–162. [Google Scholar] [CrossRef]
  12. Shemesh, D.; Goldin, I.; Zaghal, I.; Berlowitz, D.; Raveh, D.; Olsha, O. Angioplasty with stent graft versus bare stent for recurrent cephalic arch stenosis in autogenous arteriovenous access for hemodialysis: A prospective randomized clinical trial. J. Vasc. Surg. 2008, 48, 1524–1531. [Google Scholar] [CrossRef]
  13. Bozof, R.; Kats, M.; Barker, J.; Allon, M. Time to symptomatic vascular stenosis at different locations in patients with arteriovenous grafts. Semin. Dial. 2008, 21, 285–288. [Google Scholar] [CrossRef]
  14. De Nisco, G.; Gallo, D.; Siciliano, K.; Tasso, P.; Rizzini, M.L.; Mazzi, V.; Calò, K.; Antonucci, M.; Morbiducci, U. Hemodialysis arterio-venous graft design reducing the hemodynamic risk of vascular access dysfunction. J. Biomech. 2020, 100, 109591. [Google Scholar] [CrossRef]
  15. Agarwal, A.K. Central vein stenosis. Am. J. Kidney Dis. 2013, 61, 1001–1015. [Google Scholar] [CrossRef]
  16. Asif, A.; Gadalean, F.N.; Merrill, D.; Cherla, G.; Cipleu, C.D.; Epstein, D.L.; Roth, D. Inflow stenosis in arteriovenous fistulas and grafts: A multicenter, prospective study. Kidney Int. 2005, 67, 1986–1992. [Google Scholar] [CrossRef]
  17. Pirozzi, N.; De Alexandris, L.; Scrivano, J.; Fazzari, L.; Malik, J. Ultrasound evaluation of dialysis access-related distal ischaemia. J. Vasc. Access 2021, 22 (Suppl. S1), 84–90. [Google Scholar] [CrossRef]
  18. Wo, K.; Morrison, B.J.; Harada, R.N. Developing Duplex Ultrasound Criteria for Diagnosis of Arteriovenous Fistula Stenosis. Ann. Vasc. Surg. 2017, 38, 99–104. [Google Scholar] [CrossRef]
  19. Plato, S.A., II; Kudlaty, E.A.; Allemang, M.T.; Kendrick, D.E.; Wong, V.L.; Wang, J.C.; Kashyap, V.S. Elevated Peak Systolic Velocity and Velocity Ratio from Duplex Ultrasound are Associated with Hemodynamically Significant Lesions in Arteriovenous Access. Ann. Vasc. Surg. 2016, 35, 68–74. [Google Scholar] [CrossRef]
  20. Doelman, C.; Duijm, L.E.; Liem, Y.S.; Froger, C.L.; Tielbeek, A.V.; Rossum, A.B.D.-V.; Cuypers, P.W.; Douwes-Draaijer, P.; Buth, J.; Bosch, H.C.V.D. Stenosis detection in failing hemodialysis access fistulas and grafts: Comparison of color Doppler ultrasonography, contrast-enhanced magnetic resonance angiography, and digital subtraction angiography. J. Vasc. Surg. 2005, 42, 739–746. [Google Scholar] [CrossRef]
  21. Robbin, M.L.; Oser, R.F.; Allon, M.; Clements, M.W.; Dockery, J.; Weber, T.M.; Hamrick-Waller, K.M.; Smith, J.K.; Jones, B.C.; E Morgan, D.; et al. Hemodialysis access graft stenosis: US detection. Radiology 1998, 208, 655–661. [Google Scholar] [CrossRef] [PubMed]
  22. Malik, J.; Kudlicka, J.; Novakova, L.; Adamec, J.; Malikova, H.; Kavan, J. Surveillance of arteriovenous accesses with the use of duplex Doppler ultrasonography. J. Vasc. Access 2014, 15 (Suppl. S7), S28–S32. [Google Scholar] [CrossRef] [PubMed]
  23. Swinnen, J. Duplex ultrasound scanning of the autogenous arterio venous hemodialysis fistula: A vascular surgeon’s perspective. Australas. J. Ultrasound Med. 2011, 14, 17–23. [Google Scholar] [CrossRef] [PubMed]
  24. Nassar, G.M.; Beathard, G. Exploring correlations between anatomic characteristics of dialysis arteriovenous fistula stenosis and arteriovenous fistula blood flow rate (Qa). J. Vasc. Access. 2020, 21, 60–65. [Google Scholar] [CrossRef] [PubMed]
  25. Manov, J.J.; Mohan, P.P.; Vazquez-Padron, R. Arteriovenous fistulas for hemodialysis: Brief review and current problems. J. Vasc. Access 2021. [Google Scholar] [CrossRef] [PubMed]
  26. Fahrtash, F.; Kairaitis, L.; Gruenewald, S.; Spicer, T.; Sidrak, H.; Fletcher, J.; Allen, R.; Swinnen, J. Defining a significant stenosis in an autologous radio-cephalic arteriovenous fistula for hemodialysis. Semin. Dial. 2011, 24, 231–238. [Google Scholar] [CrossRef]
  27. Kairaitis, L.K.; Collett, J.P.; Swinnen, J. Diameter of inflow as a predictor of radiocephalic fistula flow. J. Vasc. Access. 2018, 19, 548–554. [Google Scholar] [CrossRef]
  28. Ishii, T.; Suzuki, Y.; Nakayama, T.; Ohmori, M.; Masai, S.; Sasagawa, N.; Ohyama, K. Duplex ultrasound for the prediction of vascular events associated with arteriovenous fistulas in hemodialysis patients. J. Vasc. Access 2016, 17, 499–505. [Google Scholar] [CrossRef]
  29. Tirinescu, D.C.; Bondor, C.I.; Vladutiu, D.S.; Patiu, I.M.; Moldovan, D.; Orasan, R.; Kacso, I.M. Ultrasonographic diagnosis of stenosis of native arteriovenous fistulas in haemodialysis patients. Med. Ultrason. 2016, 18, 332–338. [Google Scholar] [CrossRef]
  30. Bae, M.; Jeon, C.H.; Han, M.; Jin, M.; Kim, H.J. Analysis of access flow using duplex ultrasonography and the ultrasound dilutional method. J. Vasc. Access 2022, 23, 286–294. [Google Scholar] [CrossRef]
  31. Malik, J.; Lomonte, C.; Rotmans, J.; Chytilova, E.; Roca-Tey, R.; Kusztal, M.; Grus, T.; Gallieni, M. Hemodialysis vascular access affects heart function and outcomes: Tips for choosing the right access for the individual patient. J. Vasc. Access 2021, 22 (Suppl. S1), 32–41. [Google Scholar] [CrossRef] [PubMed]
  32. Valek, M.; Lopot, F.; Dusilova-Sulkova, S.; Polakovic, V. Physiologic variability of vascular access blood flow for hemodialysis. Blood Purif. 2008, 26, 468–472. [Google Scholar] [CrossRef] [PubMed]
  33. Tuka, V.; Slavikova, M.; Krupickova, Z.; Mokrejsova, M.; Chytilova, E.; Malik, J. Short-term outcomes of borderline stenoses in vascular accesses with PTFE grafts. Nephrol. Dial. Transplant. 2009, 24, 3193–3197. [Google Scholar] [CrossRef] [PubMed]
  34. Castro, A.; Moreira, C.; Almeida, P.; De Matos, N.; Loureiro, L.; Teixeira, G.; Rego, D.; Teixeira, S.; Pinheiro, J.; Carvalho, T.; et al. The Role of Doppler Ultrassonography in Significant and Borderline Stenosis Definition. Blood Purif. 2018, 46, 94–102. [Google Scholar] [CrossRef]
  35. Berman, S.S.; Mendoza, B.; Westerband, A.; Quick, R.C. Predicting arteriovenous fistula maturation with intraoperative blood flow measurements. J. Vasc. Access 2008, 9, 241–247. [Google Scholar] [CrossRef]
  36. Chawla, A.; DiRaimo, R.; Panetta, T.F. Balloon angioplasty to facilitate autogenous arteriovenous access maturation: A new paradigm for upgrading small-caliber veins, improved function, and surveillance. Semin. Vasc. Surg. 2011, 24, 82–88. [Google Scholar] [CrossRef]
  37. Gameiro, J.; Ibeas, J. Factors affecting arteriovenous fistula dysfunction: A narrative review. J. Vasc. Access 2020, 21, 134–147. [Google Scholar] [CrossRef]
  38. Mayer, D.A.; Zingale, R.G.; Tsapogas, M.J. Duplex Scanning of Expanded Polytetrafluoroethylene Dialysis Shunts: Impact on Patient Management and Graft Survival. Vascular and Endovascular. Surgery 1993, 27, 647–658. [Google Scholar] [CrossRef]
  39. Lumsden, A.B.; MacDonald, M.J.; Kikeri, D.; Cotsonis, G.A.; Harker, L.A.; Martin, L.G. Prophylactic balloon angioplasty fails to prolong the patency of expanded polytetrafluoroethylene arteriovenous grafts: Results of a prospective randomized study. J. Vasc. Surg. 1997, 26, 382–390. [Google Scholar]
  40. Ram, S.J.; Work, J.; Caldito, G.C.; Eason, J.M.; Pervez, A.; Paulson, W.D. A randomized controlled trial of blood flow and stenosis surveillance of hemodialysis grafts. Kidney Int. 2003, 64, 272–280. [Google Scholar] [CrossRef]
  41. Robbin, M.L.; Oser, R.F.; Lee, J.Y.; Heudebert, G.R.; Mennemeyer, S.T.; Allon, M. Randomized comparison of ultrasound surveillance and clinical monitoring on arteriovenous graft outcomes. Kidney Int. 2006, 69, 730–735. [Google Scholar] [CrossRef] [PubMed]
  42. Malik, J.; Slavikova, M.; Svobodova, J.; Tuka, V. Regular ultrasonographic screening significantly prolongs patency of PTFE grafts. Kidney Int. 2005, 67, 1554–1558. [Google Scholar] [CrossRef] [PubMed]
  43. Tonelli, M.; James, M.; Wiebe, N.; Jindal, K.; Hemmelgarn, B. Ultrasound monitoring to detect access stenosis in hemodialysis patients: A systematic review. Am. J. Kidney Dis. 2008, 51, 630–640. [Google Scholar] [CrossRef] [PubMed]
  44. Ravani, P.; Quinn, R.R.; Oliver, M.J.; Karsanji, D.J.; James, M.T.; MacRae, J.M.; Palmer, S.C.; Strippoli, G.F. Preemptive Correction of Arteriovenous Access Stenosis: A Systematic Review and Meta-analysis of Randomized Controlled Trials. Am. J. Kidney Dis. 2016, 67, 446–460. [Google Scholar] [CrossRef]
  45. Schmidli, J.; Widmer, M.K.; Basile, C.; de Donato, G.; Gallieni, M.; Gibbons, C.P.; Haage, P.; Hamilton, G.; Hedin, U.; Kamper, L. Editor’s Choice—Vascular Access: 2018 Clinical Practice Guidelines of the European Society for Vascular Surgery (ESVS). Eur. J. Vasc. Endovasc. Surg. 2018, 55, 757–818. [Google Scholar] [CrossRef] [PubMed]
  46. Lok, C.E.; Huber, T.S.; Lee, T.; Shenoy, S.; Yevzlin, A.S.; Abreo, K.; Allon, M.; Asif, A.; Astor, B.C.; Glickman, M.H. KDOQI Clinical Practice Guideline for Vascular Access: 2019 Update. Am. J. Kidney Dis. 2020, 75, S1–S164. [Google Scholar] [CrossRef]
  47. Renaud, C.J.; Francois, M.; Nony, A.; Fodil-Cherif, M.; Turmel-Rodrigues, L. Comparative outcomes of treated symptomatic versus non-treated asymptomatic high-grade central vein stenoses in the outflow of predominantly dialysis fistulas. Nephrol. Dial. Transplant. 2012, 27, 1631–1638. [Google Scholar] [CrossRef]
  48. Maldonado-Carceles, A.B.; Garcia-Medina, J.; Torres-Cantero, A.M. Performance of physical examination versus ultrasonography to detect stenosis in haemodialysis arteriovenous fistula. J. Vasc. Access 2017, 18, 30–34. [Google Scholar] [CrossRef]
  49. Malik, J.; Slavikova, M.; Malikova, H.; Maskova, J. Many clinically silent access stenoses can be identified by ultrasonography. J. Nephrol. 2002, 15, 661–665. [Google Scholar]
  50. Caputo, B.C.; Leong, B.; Sibona, A.; Jhajj, S.; Kohne, C.; Gabel, J.; Shih, W.; Zamzam, A.A.; Bianchi, C.; Teruya, T. Arteriovenous fistula maturation: Physical exam versus flow study. Ann. Vasc. Surg. 2021, 77, 16–24. [Google Scholar] [CrossRef]
  51. Asif, A.; Leon, C.; Orozco-Vargas, L.C.; Krishnamurthy, G.; Choi, K.L.; Mercado, C.; Merrill, D.; Thomas, I.; Salman, L.; Artikov, S.; et al. Accuracy of physical examination in the detection of arteriovenous fistula stenosis. Clin. J. Am. Soc. Nephrol. 2007, 2, 1191–1194. [Google Scholar] [CrossRef] [PubMed]
  52. Tessitore, N.; Bedogna, V.; Melilli, E.; Millardi, D.; Mansueto, G.; Lipari, G.; Mantovani, W.; Baggio, E.; Poli, A.; Lupo, A. In search of an optimal bedside screening program for arteriovenous fistula stenosis. Clin. J. Am. Soc. Nephrol. 2011, 6, 819–826. [Google Scholar] [CrossRef] [PubMed]
  53. Campos, R.P.; Chula, D.C.; Perreto, S.; Riella, M.C.; Mazza do Nascimento, M. Accuracy of physical examination and intra-access pressure in the detection of stenosis in hemodialysis arteriovenous fistula. Semin. Dial. 2008, 21, 269–273. [Google Scholar] [CrossRef] [PubMed]
Diagnostics 12 01979 g001 550

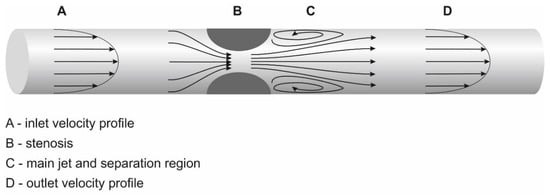

Figure 1. Arteriovenous fistula with a stenosis: hemodynamic implications.Legend: vascular segments are marked A–D. A = laminar flow; B = stenosis with flow acceleration; C = region of separation with reversed flow; D = area of flow reattachment. A significant stenosis causes blood pressure to drop, i.e., blood pressure in segment “A” is higher than in “B”. Flow acceleration depends on stenotic severity and on the geometry (asymmetric stenosis causes a higher pressure drop than symmetric stenosis). Flow separation that occurs just distal to the stenosis is responsible for the pressure drop but also narrows the flow jet even more significantly than the stenosis itself. Laminar flow is associated with physiological values of wall shear stress (WSS). WSS, however, increases inside the stenosis, where they can denudate endothelium and activate the von Willebrand factor. WSS has a changing vector in the segment “C”, which contributes to intimal hyperplasia development.
Figure 1. Arteriovenous fistula with a stenosis: hemodynamic implications.Legend: vascular segments are marked A–D. A = laminar flow; B = stenosis with flow acceleration; C = region of separation with reversed flow; D = area of flow reattachment. A significant stenosis causes blood pressure to drop, i.e., blood pressure in segment “A” is higher than in “B”. Flow acceleration depends on stenotic severity and on the geometry (asymmetric stenosis causes a higher pressure drop than symmetric stenosis). Flow separation that occurs just distal to the stenosis is responsible for the pressure drop but also narrows the flow jet even more significantly than the stenosis itself. Laminar flow is associated with physiological values of wall shear stress (WSS). WSS, however, increases inside the stenosis, where they can denudate endothelium and activate the von Willebrand factor. WSS has a changing vector in the segment “C”, which contributes to intimal hyperplasia development.
Diagnostics 12 01979 g001
Diagnostics 12 01979 g002 550

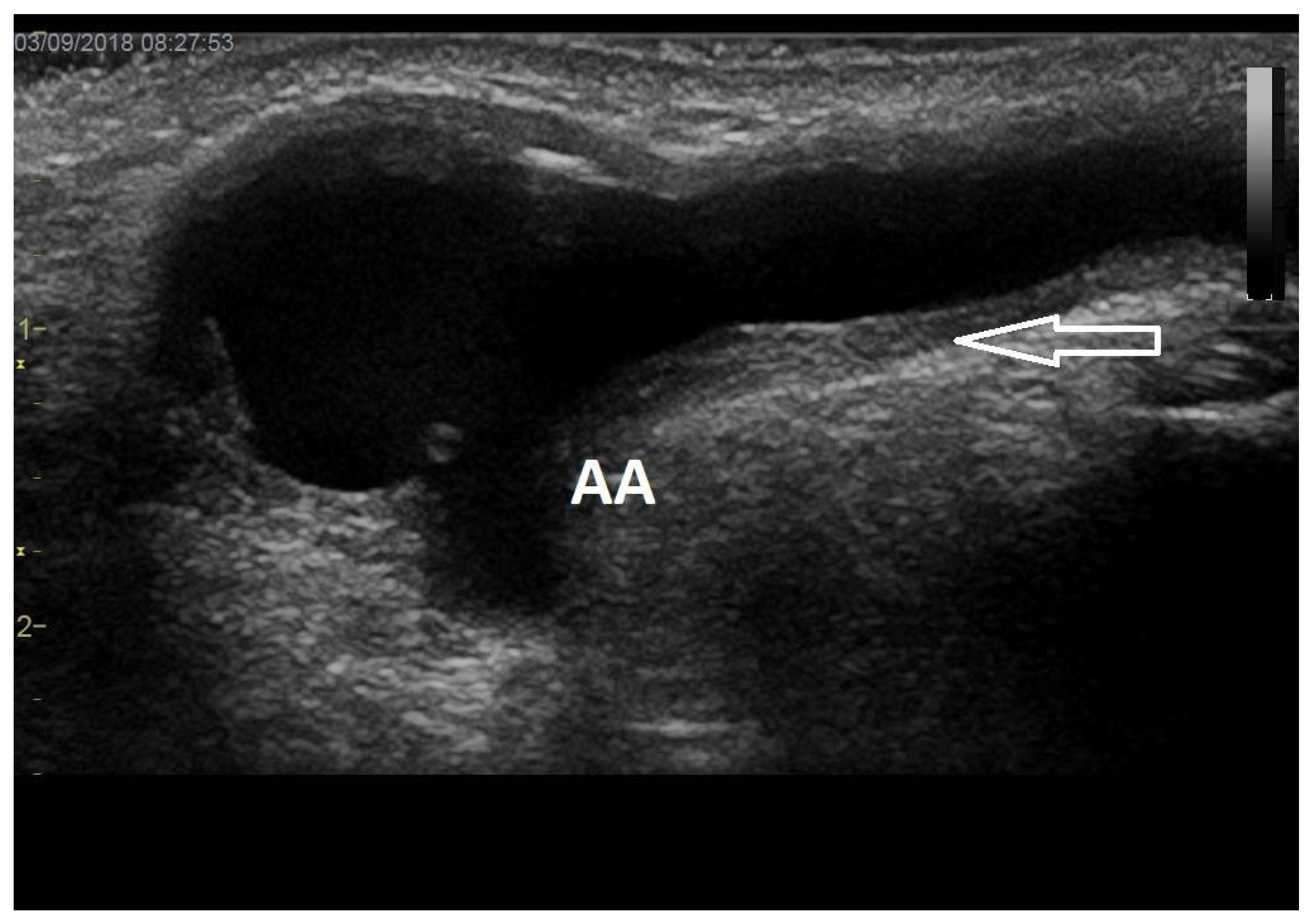

Figure 2. Juxta-anastomotic outflow vein stenosis.Legend: Juxta-anastomotic intimal hyperplasia (arrow) is visible here as the thickening of the venous wall leads to lumen narrowing. This is the most frequent etiology of AVF/AVG stenosis. AA stands for arterial anastomosis.
Figure 2. Juxta-anastomotic outflow vein stenosis.Legend: Juxta-anastomotic intimal hyperplasia (arrow) is visible here as the thickening of the venous wall leads to lumen narrowing. This is the most frequent etiology of AVF/AVG stenosis. AA stands for arterial anastomosis.
Diagnostics 12 01979 g002
Diagnostics 12 01979 g003 550

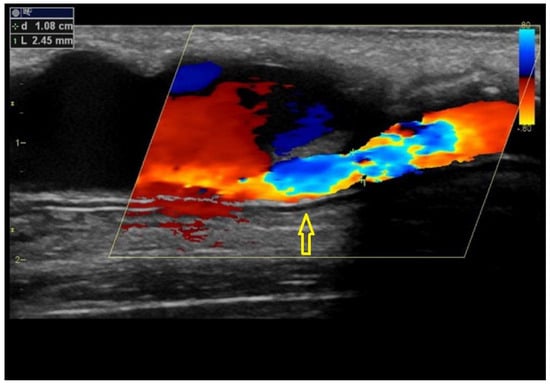

Figure 3. Pseudoaneurysm of an arteriovenous graft causing stenosis.Legend: Arteriovenous graft is affected by a large pseudoaneurysm, part of which compresses the graft itself (arrow). An unaffected part of the graft is on the right side. This is a less frequent etiology of AVG stenosis.
Figure 3. Pseudoaneurysm of an arteriovenous graft causing stenosis.Legend: Arteriovenous graft is affected by a large pseudoaneurysm, part of which compresses the graft itself (arrow). An unaffected part of the graft is on the right side. This is a less frequent etiology of AVG stenosis.
Diagnostics 12 01979 g003
Diagnostics 12 01979 g004 550

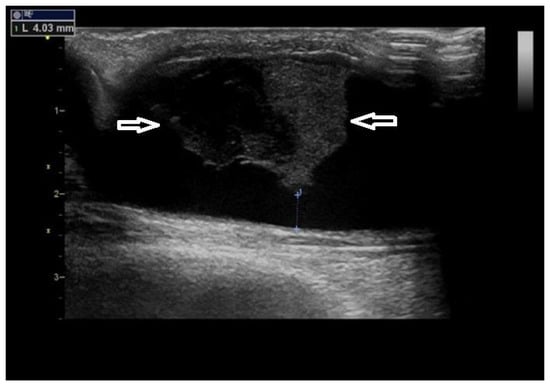

Figure 4. Thrombus in the outflow vein.Legend: A thrombus (arrows) in a dilated outflow vein. Acute thrombi are hypo-echoic (darker), as is the left part of this thrombus. The resulting stenosis is not significant (residual diameter 4 mm), albeit the thrombus could further progress. This one was dissolved by systemic anticoagulation therapy.
Figure 4. Thrombus in the outflow vein.Legend: A thrombus (arrows) in a dilated outflow vein. Acute thrombi are hypo-echoic (darker), as is the left part of this thrombus. The resulting stenosis is not significant (residual diameter 4 mm), albeit the thrombus could further progress. This one was dissolved by systemic anticoagulation therapy.
Diagnostics 12 01979 g004
Diagnostics 12 01979 g005 550

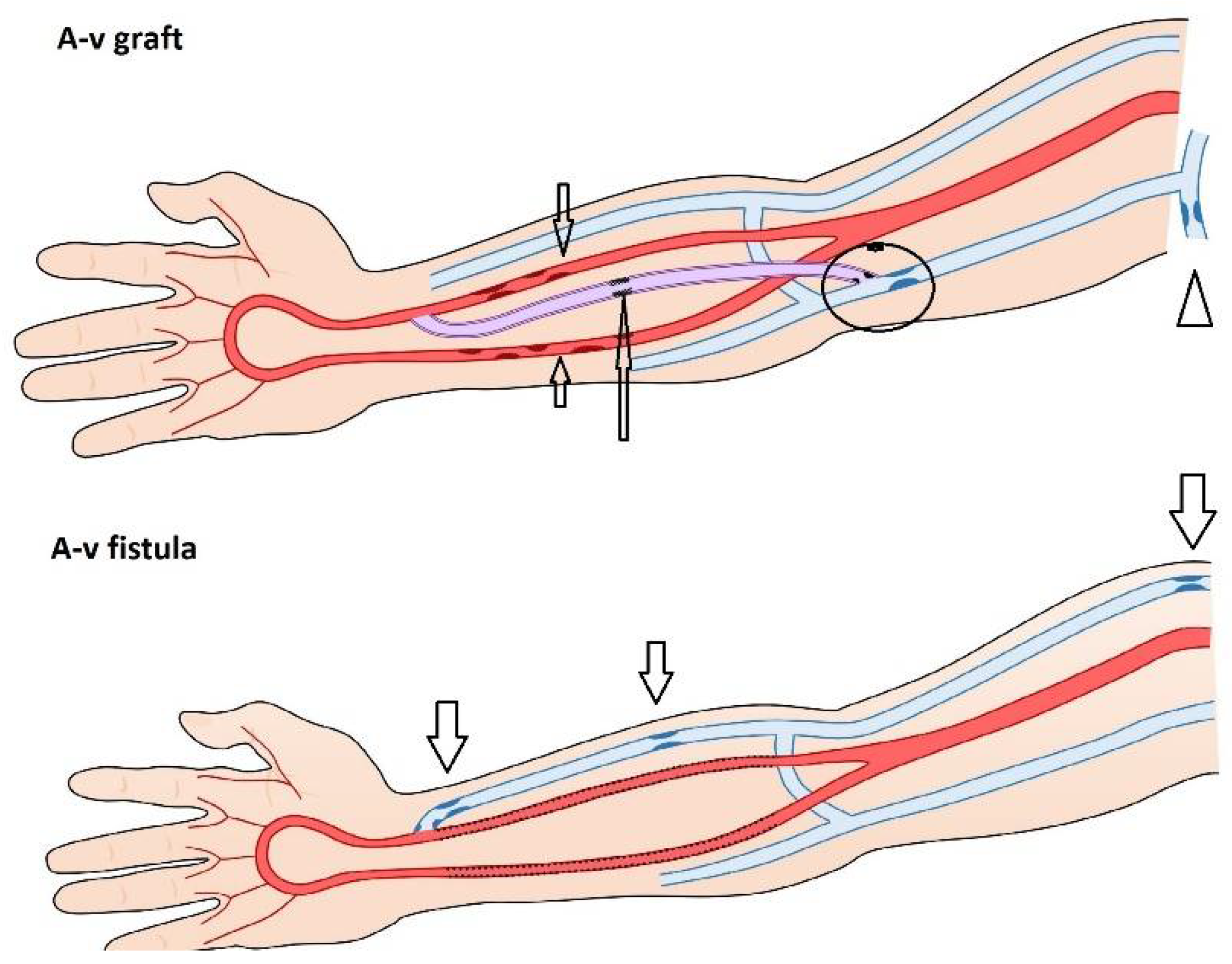

Figure 5. Typical sites of arteriovenous fistula or graft stenoses (arrows).Legend: Medial calcinosis of the forearm arteries may affect both AVF/AVGs. Native AVFs stenoses develop most frequently in the outflow vein just proximal to the anastomosis in the puncture area or more centrally—in the cephalic arch. In AVGs, stenoses may affect the venous anastomosis, the adjacent outflow vein segment, or the outflow vein more proximally. Again, repeated punctures into the same site could lead to graft stenosis induced by healing and scar formation.
Figure 5. Typical sites of arteriovenous fistula or graft stenoses (arrows).Legend: Medial calcinosis of the forearm arteries may affect both AVF/AVGs. Native AVFs stenoses develop most frequently in the outflow vein just proximal to the anastomosis in the puncture area or more centrally—in the cephalic arch. In AVGs, stenoses may affect the venous anastomosis, the adjacent outflow vein segment, or the outflow vein more proximally. Again, repeated punctures into the same site could lead to graft stenosis induced by healing and scar formation.
Diagnostics 12 01979 g005
Diagnostics 12 01979 g006 550

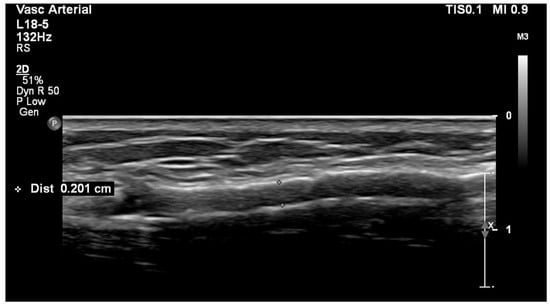

Figure 6. Medial calcinosis of the radial artery feeding a radiocephalic fistula.Legend: Longitudinal section with the use of a high-resolution probe. Hyper-echoic (white) structures are in the arterial wall and represent calcifications in the medial layer.
Figure 6. Medial calcinosis of the radial artery feeding a radiocephalic fistula.Legend: Longitudinal section with the use of a high-resolution probe. Hyper-echoic (white) structures are in the arterial wall and represent calcifications in the medial layer.
Diagnostics 12 01979 g006
Diagnostics 12 01979 g007 550

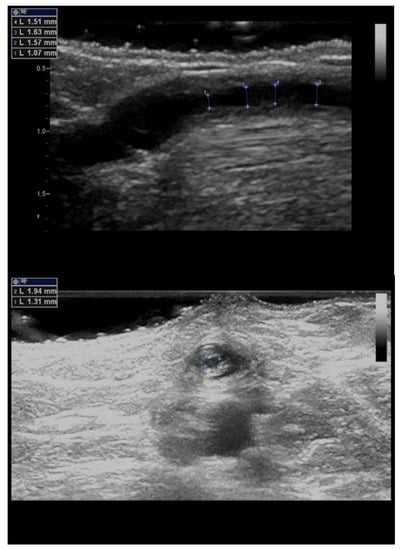

Figure 7. Residual diameter measurement by ultrasound.Legend: Longitudinal and cross-sectional views of stenoses caused by intimal hyperplasia. Small crosses represent caliper and the residual diameter value is shown on the upper left corner.
Figure 7. Residual diameter measurement by ultrasound.Legend: Longitudinal and cross-sectional views of stenoses caused by intimal hyperplasia. Small crosses represent caliper and the residual diameter value is shown on the upper left corner.
Diagnostics 12 01979 g007
Diagnostics 12 01979 g008 550

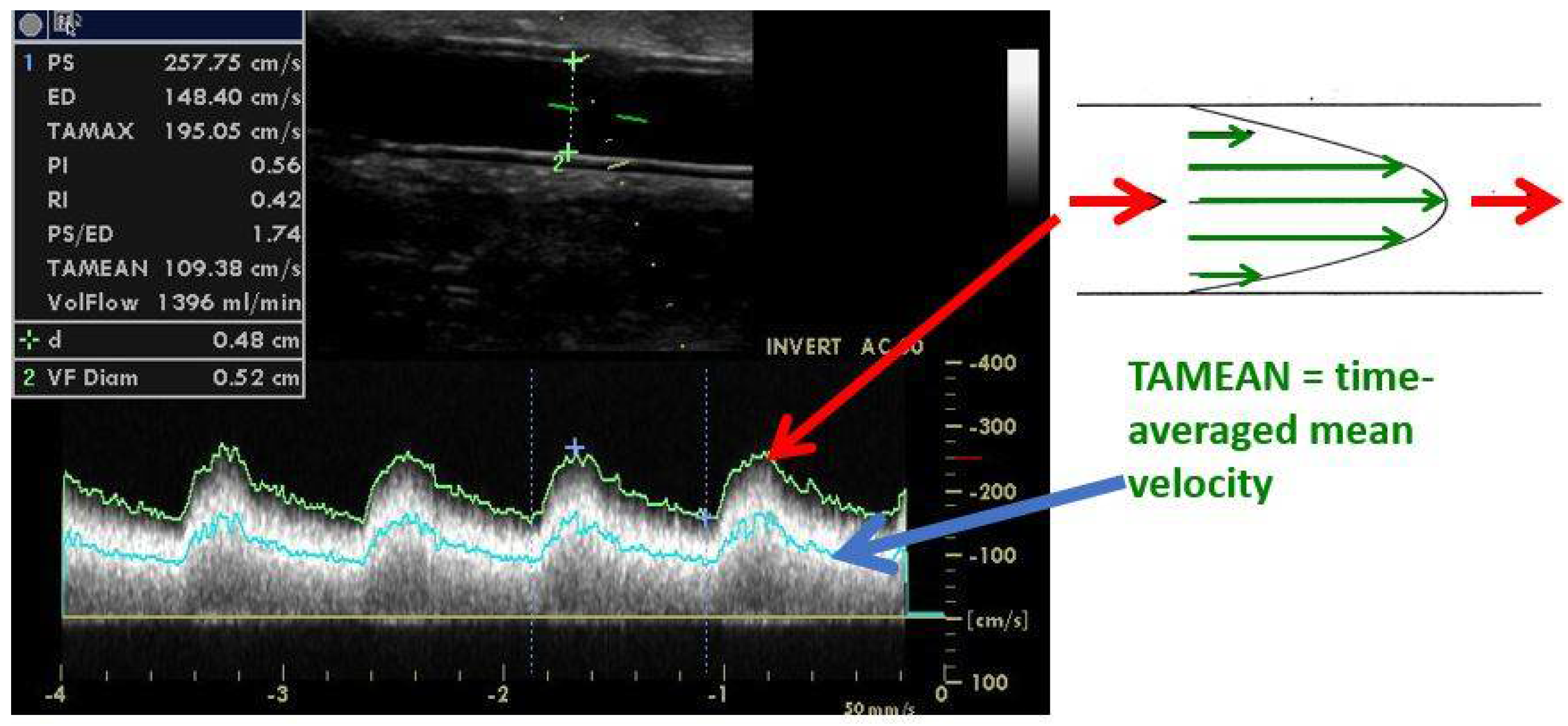

Figure 8. Flow volume calculation by ultrasound.Legend: AVF flow volume (Qa) is measured in the brachial artery, while AVG Qa is measured directly in the graft, as in this example. The calculation is based on the cross-sectional area (πr2, where r = radius) and time-averaged mean velocity (TAMEAN), which represents the mean velocity during a cardiac cycle. When the velocity is in cm/s, and the radius or diameter is in cm, the equation: Qa = πr2 × TAMEAN × 60 would give flow volume in mL/min. The same Doppler angle should be used for comparisons (usually 60° as in this case).
Figure 8. Flow volume calculation by ultrasound.Legend: AVF flow volume (Qa) is measured in the brachial artery, while AVG Qa is measured directly in the graft, as in this example. The calculation is based on the cross-sectional area (πr2, where r = radius) and time-averaged mean velocity (TAMEAN), which represents the mean velocity during a cardiac cycle. When the velocity is in cm/s, and the radius or diameter is in cm, the equation: Qa = πr2 × TAMEAN × 60 would give flow volume in mL/min. The same Doppler angle should be used for comparisons (usually 60° as in this case).
Diagnostics 12 01979 g008
Diagnostics 12 01979 g009 550

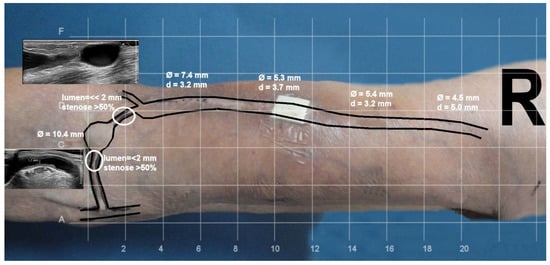

Figure 9. Depiction of a brachiocephalic fistula with the use of ultrasonography.Legend: Drawing venous segments on the patient’s skin is not only of value for hemodialysis nurses but also for interventionalists prior to a procedure. Both the depth from the skin surface (d) and venous diameter (φ) are presented.
Figure 9. Depiction of a brachiocephalic fistula with the use of ultrasonography.Legend: Drawing venous segments on the patient’s skin is not only of value for hemodialysis nurses but also for interventionalists prior to a procedure. Both the depth from the skin surface (d) and venous diameter (φ) are presented.
Diagnostics 12 01979 g009
Table
Table 1. Complex ultrasound criteria of a significant vs. borderline stenosis.
Table 1. Complex ultrasound criteria of a significant vs. borderline stenosis.
SIGNIFICANTBORDERLINE
Main criteria
Diameter reduction by >50%
Peak systolic velocity increase > 2–3x
+Additional criteria (≥1)
Residual diameter < 1.9–2.0 mmNo additional criterion
Flow volume decrease by >25% *
Flow volume < 600 mL/min for AVGs, <500 mL/min for AVFs
Legend: Two main criteria and at least one additional criterion characterized a significant stenosis. If only 1–2 main criteria are present, the stenosis is borderline, and re-evaluation is indicated within 6–8 weeks. Significant stenoses are indicated to correction. * Flow volume decrease by >25% if the previous value was <1000 mL/min. Stenoses characterized by none or only 1 main criterion are considered non-significant.
Table
Table 2. Clinical indicators suggesting clinically significant AVF/AVG lesion.
Table 2. Clinical indicators suggesting clinically significant AVF/AVG lesion.
Physical examinationIpsilateral extremity edema
Pulse alterations (weak or resistant pulse), difficult to compress in the area of stenosis
Abnormal thrill (weak, discontinuous) with only the systolic component in the stenotic area
Abnormal bruit (high pitched with a systolic component in the area of stenosis)
Failure of outflow vein collapse during arm elevation
Lack of pulse augmentation during arm elevation
Excessive collapse of the outflow veins during arm elevation
During hemodialysisNew difficulty with cannulation
Aspiration of blood clots
Inability to achieve the target dialysis blood flow
Prolonged bleeding after needle withdrawal for 3 consecutive dialysis sessions
Unexplained decrease in the target dialysis dose (Kt/V) on a constant dialysis prescription and without dialysis prolongation
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Malik, J.; de Bont, C.; Valerianova, A.; Krupickova, Z.; Novakova, L. Arteriovenous Hemodialysis Access Stenosis Diagnosed by Duplex Doppler Ultrasonography: A Review. Diagnostics 2022, 12, 1979. https://doi.org/10.3390/diagnostics12081979

AMA Style

Malik J, de Bont C, Valerianova A, Krupickova Z, Novakova L. Arteriovenous Hemodialysis Access Stenosis Diagnosed by Duplex Doppler Ultrasonography: A Review. Diagnostics. 2022; 12(8):1979. https://doi.org/10.3390/diagnostics12081979

Chicago/Turabian Style

Malik, Jan, Cora de Bont, Anna Valerianova, Zdislava Krupickova, and Ludmila Novakova. 2022. "Arteriovenous Hemodialysis Access Stenosis Diagnosed by Duplex Doppler Ultrasonography: A Review" Diagnostics 12, no. 8: 1979. https://doi.org/10.3390/diagnostics12081979

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
