Article

Autoantibodies to Oxidatively Modified Peptide: Potential Clinical Application in Coronary Artery Disease

by
I-Jung Tsai
1,†,
Wen-Chi Shen
2,†,
Jia-Zhen Wu
3,
Yu-Sheng Chang
4,5,* and
Ching-Yu Lin
1,3,*
1
Ph.D. Program in Medical Biotechnology, College of Medical Science and Technology, Taipei Medical University, Taipei 11031, Taiwan
2
Institute of Biotechnology, National Tsing Hua University, Hsinchu 30013, Taiwan
3
School of Medical Laboratory Science and Biotechnology, College of Medical Science and Technology, Taipei Medical University, Taipei 11031, Taiwan
4
Division of Allergy, Immunology and Rheumatology, Department of Internal Medicine, Shuang Ho Hospital, New Taipei City 23561, Taiwan
5
Division of Allergy, Immunology and Rheumatology, Department of Internal Medicine, School of Medicine, College of Medicine, Taipei Medical University, Taipei 11031, Taiwan
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Diagnostics 2022, 12(10), 2269; https://doi.org/10.3390/diagnostics12102269
Submission received: 7 August 2022 / Revised: 11 September 2022 / Accepted: 19 September 2022 / Published: 20 September 2022
(This article belongs to the Special Issue Cardiovascular Diseases: Diagnosis and Management)
Browse Figures
Versions Notes

Abstract

:
Coronary artery disease (CAD) is a global health issue. Lipid peroxidation produces various by-products that associate with CAD, such as 4-hydroxynonenal (HNE) and malondialdehyde (MDA). The autoantibodies against HNE and MDA-modified peptides may be useful in the diagnosis of CAD. This study included 41 healthy controls (HCs) and 159 CAD patients with stenosis rates of <30%, 30–70%, and >70%. The plasma level of autoantibodies against four different unmodified and HNE-modified peptides were measured in this study, including CFAH1211–1230, HPT78–108, IGKC2–19, and THRB328–345. Furthermore, feature ranking, feature selection, and machine learning models have been utilized to exploit the diagnostic performance. Also, we combined autoantibodies against MDA and HNE-modified peptides to improve the models’ performance. The eXtreme Gradient Boosting (XGBoost) model received a sensitivity of 78.6% and a specificity of 90.4%. Our study demonstrated the combination of autoantibodies against oxidative modification may improve the model performance.

1. Introduction

Coronary artery disease (CAD) is a global health care issue which affected nearly 1.72% of individuals worldwide [1]. The progression of CAD consists of three stages: fatty streak, plaque progression, and disruption. Starting from inflammatory cells recruitment and lipid accumulation, the inflammation may lead to plaque formation and eventually cause atherosclerosis [2]. Inflammation occurs with the accumulation of free radicals, which may accelerate the process of CAD progression and create a positive feedback loop to form additional free radicals [3]. Inflammation has been considered as the major factor of CAD progression. Hence, the diagnosis of CAD in the clinic focuses on the measurement of inflammation markers, such as C-reactive protein (CRP), cytokines, and adhesion molecules [4].
In addition to inflammation, lipid peroxidation can also generate free radicals; it has been considered as a process of oxidants’ attack on the lipids containing carbon–carbon double bonds [5]. Lipid peroxidation produces several by-products such as malondialdehyde (MDA), propenal (acrolein), hexanal, and 4-hydroxynonenal (4-HNE), which are associated with chronic diseases [5,6,7,8,9]. These by-products may modify macromolecules, and cause damage to the molecular functions of the macromolecules [6]. Furthermore, since MDA and 4-HNE are extremely toxic by-products derived from lipid peroxidation [10], numerous studies have reported the pathological processes with the participation of MDA and 4-HNE [5]. While MDA is the most abundant by-product in lipid peroxidation, 4-HNE shows the highest biological activity during the oxidation.
Although MDA has been considered as a reliable and popular biomarker for evaluating oxidative stress, an improvement in identifying free form MDA and total MDA is required [5,11]. A common detection method for MDA, a thiobarbituric acid (TBA) assay, exhibited non-specificity, poor reproducibility, lack of the recovery test results, and instability of MDA [12]. Aside from MDA, 4-HNE has recently been brought to researchers’ attention due to several advantages such as high stability. Not only does 4-HNE produce a large amount in tissues, but it also exhibits higher stability compared to MDA [13,14]. The formation of 4-HNE is attributed to the decomposition of the primary products of lipid peroxidation; once lipid hydroperoxides transform into peroxyl and alkoxyl (LO) radicals, they may form secondary products such as 4-HNE [15]. Part of the 4-HNE compounds enter the process of biotransformation, whereas part of the compounds form 4-HNE adducts by conjugating with various cellular components such as protein and DNA. Both 4-HNE modified adducts lead to genotoxicity and protein dysfunction [14]. The 4-HNE-modified proteins disrupt the process of protein degradation and eventually cause metabolism diseases, such as atherosclerosis and rheumatological diseases [16]. In addition, the protein modifications of MDA and 4-HNE are considered oxidation-specific epitopes (OSE) and recognized by autoantibodies [17,18]. OSE also presented on oxidized LDL (OxLDL), which has been associated with an increased risk of cardiovascular disease [19]. Circulating autoantibodies against OSE are involved in the initiation and the formation of atherosclerosis. Furthermore, OSE on lipoprotein can be measured as a biomarker in CAD [18].
Previously, we discovered four novel HNE-modified peptides in serum derived from patients with RA [20]. The 4-HNE-modified positions on the peptides were underlined: 1211-SHTLRTTCWDGKLEYPTCAK-1230 (complement factor H, CFAH1211–1230), 78-AVGDKLPECEADDGCPKPPEIAHGYVEHSVR-108 (haptoglobin, HPT78–108), 2-TVAAPSVFIFPPSDEQLK-19 (immunoglobulin kappa constant, IGKC2–19), and 328-TFGSGEADCGLRPLFEKK-345 (prothrombin, THRB328–345). Crowson et al. suggested that patients with RA have a twofold increased risk of developing CAD [21]. Moreover, it is one of the leading causes of death in patients with RA in Taiwan [22]. Hence, we speculated the autoantibodies we discovered in patients with RA may be useful in the diagnosis of CAD. In this study, we measured HNE-modified adducts and autoantibodies against unmodified and HNE-modified peptides in HCs and CAD patients with stenosis rates of <30%, 30–70%, and >70%. Furthermore, we incorporated feature ranking and selection techniques to optimize our machine learning models. Finally, the models were evaluated by accuracy, precision, f1 score, sensitivity, specificity, and area under the receiving operating characteristic curve (AUC).

2. Materials and Methods

2.1. Patients Sample

Plasma samples from 30 patients with RA (12 female and 18 male patients) and 30 patients with RA-CAD (11 female and 19 male patients) were obtained from the Division of Allergy, Immunology, and Rheumatology, Department of Internal Medicine and the Department of Laboratory Medicine, Shuang-Ho Hospital (NTPC, New Taipei City, Taiwan). Plasma samples from 159 patients with CAD (51 female and 108 male patients) and 41 healthy controls (HCs) were obtained from Cardiovascular Center of the Lo-Hsu Medical Foundation Luodong Poh-Ai Hospital. Patients defined as having pre-coronary artery disease were recorded with coronary atherosclerosis or angina pectoris, and were found to have coronary artery stenosis rate <30%. In the groups of patients with coronary artery disease, patients were separated into the group of coronary stenosis rate of 30–70% and the group of coronary stenosis rate of >70%. CAD patients who also were diagnosed as RA were excluded (Figure 1). As for comorbidity, patients were considered as having hyperglycemia with one of following criteria: total cholesterol ≥200 mg/dL, LDL-C ≥ 130 mg/dL, TG ≥ 200 mg/dL, and HDL-C < 40 mg/dL, or receiving lipid lowering drug prescription. Patients were considered as having hypertension with one of following criteria: systolic blood pressure ≥140, diastolic blood pressure ≥90, or receiving an antihypertensive drug prescription. Patients were considered as having diabetes with one of following criteria: diagnosis with diabetes or receiving a hypoglycemia drug prescription. Healthy controls (HCs) were excluded if they suffered from hyperglycemia, hyperlipidemia, hypertension, or angina pectoris. Ten mL of blood samples were collected from patients and HCs. After the blood samples were centrifuged 3000 rpm for 10 min, the plasma was stored at −80 °C until analyzed. This study was approved by the institutional review board of the study hospital, and all volunteers provided informed consent before participating. Patient samples were randomly selected. The demographic characteristics of patients are summarized in Table 1. The Taipei Medical University-Joint Institutional Review Board and the Institutional Review of Cathay General Hospital approved the study protocol (N201512049 (3 February 2017), CGP-LP106006 (15 June 2017)).

2.2. Detection of Plasma HNE Adducts

HNE-modified BSA (A7906, Sigma, Neustadt, Germany) standards (100 µL) or diluted samples (10 µg/mL) were added into a 96-well plate (Thermo Fisher, Waltham, MA, USA) and incubated at 37 °C for 2 h. For blocking, 3% of a BSA solution was added and incubated at 37 °C for 1 h after the plates were washed with PBS containing 0.05% Tween 20 (PBST). The plates were washed with PBST, and a rabbit anti-HNE antibody (ab46545, Abcam, Cambridge, MA, USA) was added. After incubating for 2 h at room temperature, the plates were washed with PBST. A mouse anti-rabbit antibody conjugated with horseradish peroxidase (HRP) was added into plates and incubated for 1 h. We washed the plates with PBST and detected the HRP with SureBlue Reserve™ TMB (Kirkegard and Perry Laboratories, Gaithersburg, MD, USA) for 30 min. The color reaction was stopped with 1N HCl, and the absorbance was measured at 450/620 nm. The concentration of HNE-protein adducts in plasma was calculated according to a standard HNE-modified BSA curve.

2.3. Detection of Plasma Autoantibodies against Unmodified and HNE Modified Peptide

The BSA and four peptides with 1mg/mL were modified with 4-Hydroxynonenal (Sigma, Neustadt, Germany). The BSA or peptides (10 µg/mL) were added into a 96-well plate and incubated at 37 °C for 2 h. For blocking, after washing with PBST, 3% of a BSA solution was added and incubated at 37 °C for 1 h. The plates were washed with PBST and the 100-fold diluted plasma samples were added. The plates were incubated at room temperature for 2 h. After the plates were washed, rabbit anti-human IgG-HRP (A80-118P, 1:30,000, BETHYL) or rabbit anti-human IgM-HRP (A0420, 1:10,000, Sigma) were diluted and added into plates. The plates were incubated at room temperature for 1 h. After that, the plates were washed completely and added with the SureBlue ReserveTM Peroxidase Substrate (Kirkegard & Perry Laboratories, Gaithersburg, MD, USA). The plates were incubated at room temperature for 15 min. The color reaction was stopped by adding 1N HCl, and the absorbance was measured at 450/620 nm. All ELISA experiments were conducted following the ELISA Guidebook. The quality controls samples were prepared with two replicates in each plate to calculate the percent coefficient of variation (CV%) across wells and plates. An experiment was repeated if the CV% was calculated above 20%.

2.4. Statistical Analysis and Machine Learning

The significance of IgG and IgM autoantibodies between HCs and RA, RA-CAD, or CAD patients were determined by Student’s t-test. The Student’s t-test was calculated by GraphPad Prism (v.8.0; GraphPad software, San Diego, CA, USA). The significance level of all statistical tests was set to p < 0.05. The feature ranking was conducted by WEKA (vers.3.8.5). The models we built in this study were based on eXtreme Gradient Boosting (XGBoost) and the Light Gradient Boosting Machine (GBM) with 5-fold cross validation with scikit-learn (vers.0.21.3). A confusion matrix was applied in this study to calculate the accuracy, precision, sensitivity, specificity, and f1 score. The value of AUC was calculated with scikit-learn (vers.0.21.3). The comparison of models was evaluated by an ANOVA test.

3. Results

3.1. Measurement of Autoantibodies against HNE Modified BSA

Plasma samples were subjected to ELISAs for measuring IgG and IgM autoantibodies against unmodified and HNE-modified BSA. Plasma levels of IgG and IgM against HNE-modified BSA were found to be increased in patients with RA and RA-CAD (Supplementary Figure S1A,B). Plasma levels of IgM against BSA were found significantly different between HC and RA (Supplementary Figure S1B).

3.2. Measurement of Autoantibodies against HNE-Modified Peptides and HNE Adducts

Plasma samples were analyzed with ELISA to detect IgG and IgM autoantibodies against unmodified and HNE-modified peptides (Supplementary Figure S2). Plasma levels of IgG against the CFAH1211–1230 unmodified peptide and HNE-modified peptide in CAD patients with a stenosis rate >70% were notably higher than HCs (p = 0.008, p = 0.0002). Plasma levels of IgM against the CFAH1211–1230 unmodified peptide and HNE-modified peptide in CAD patients with a stenosis rate >70% were significantly lower than HCs (p < 0.0001, p < 0.0001) and CAD patients with a stenosis rate <30% (p = 0.0092, p = 0.0211). Plasma levels of IgG against the HPT78–108 unmodified peptide and HNE-modified peptide in CAD patients with a stenosis rate >70% were significantly decreased compared to HCs (p = 0.0002, p = 0.0001). Plasma levels of IgM against the HPT78–108 unmodified peptide and HNE modified peptide in CAD patients with a stenosis rate >70% were notably lower than HCs (p < 0.0001, p < 0.0001). Plasma levels of IgG against the IGKC2–19 unmodified peptide in CAD patients with a stenosis rate >70% were significantly lower than HCs (p < 0.0001). In contrast, plasma levels of IgG against the IGKC2–19 HNE-modified peptide in CAD patients with stenosis rates of <30%, 30–70%, and >70% were decreased compared to HCs (p = 0.02, p = 0.001, p = 0.0002). Plasma levels of IgM against the IGKC2–19 unmodified peptide in CAD patients with a stenosis rate >70% were lower than HCs (p < 0.0001) and CAD patients with a stenosis rate <30% (p = 0.0056). Plasma levels of IgM against IGKC HNE-modified peptide in CAD patients with stenosis rates of <30%, 30–70%, and >70% were lower than HCs (p = 0.0001, p = 0.0005, p < 0.0001). Plasma levels of IgG against the THRB328–345 HNE-modified peptide in CAD patients with a stenosis rate >70% were higher than HCs (p < 0.0001) and CAD patients with stenosis rate <30% (p = 0.0039). Plasma levels of IgM against the THRB328–345 unmodified and HNE-modified peptide in CAD patients with a stenosis rate >70% were significantly higher than HCs (p = 0.0003, p = 0.0002) and CAD patients with stenosis rate <30% (p = 0.00498, p = 0.00486). Furthermore, HNE-modified protein adducts in patients with CAD were higher than HCs (Table 1).

3.3. Optimization of Machine Learning Algorithms with Autoantibodies against HNE Modified Peptides

To increase the performance of LightGBM and XGBoost, we firstly performed feature ranking with InfoGain + Ranker to list the features from the most important to less important in HCs against patients with stenosis rates of <30%, 30–70%, and >70% (Table 2). The autoantibody, IgG anti-IGKC2–19 HNE, was ranked as the top feature in each analysis. Next, we performed forward selection to further optimize LightGBM and XGBoost. In the LightGBM model, the features that were selected included IgG anti-IGKC2–19 HNE, IgM anti-CFAH1211–1230, IgG anti-CFAH1211–1230, IgM anti-CFAH1211–1230 HNE, IgG anti-CFAH1211–1230 HNE, IgM anti-HPT78–108, IgM anti-HPT78–108 HNE, IgG anti-HPT78–108 HNE, IgM anti-IGKC2–19, IgG anti-IGKC2–19, IgM anti-IGKC2–19 HNE, IgM anti-THRB328–345, IgG anti-THRB328–345, IgM anti-THRB328–345 HNE, and IgG anti-THRB328–345 HNE. In differentiating HCs and CAD patients with a stenosis rate of <30%, the model received an accuracy of 77%, a precision of 73%, a f1 score of 72.6%, a sensitivity of 78.2%, a specificity of 76.4%, and an AUC value of 0.832. In discriminating HCs and CAD patients with a stenosis rate of 30–70%, the model received an accuracy of 72.7%, a precision of 72.5%, a f1 score of 69.1%, a sensitivity of 71.5%, a specificity of 75.8%, and an AUC value of 0.816. As for HCs and CAD patients with stenosis rates of >70%, the model received an accuracy of 73%, a precision of 61%, a f1 score of 57.8%, a sensitivity of 62%, a specificity of 79.6%, and an AUC value of 0.819. In the XGBoost model, the features that were selected included IgG anti-IGKC2–19 HNE, IgG anti-CFAH, IgG anti-HPT78–108, IgM anti-HPT78–108 HNE, IgM anti-IGKC2–19, IgG anti-IGKC2–19, and IgM anti-IGKC2–19 HNE (Table 3). In discriminating HCs and CAD patients with stenosis rates of <30%, the model received an accuracy of 77.7%, a precision of 74.5%, a f1 score of 71.4%, a sensitivity of 74.2%, a specificity of 79.2%, and an AUC value of 0.845. As for HCs and CAD patients with stenosis rates of 30–70%, the model received an accuracy of 75.3%, a precision of 71.7%, a f1 score of 71.4%, a sensitivity of 75.6%, a specificity of 75.4%, and an AUC value of 0.825. In differentiating HCs and CAD patients with stenosis rates of >70%, the model received an accuracy of 77.3%, a precision of 66.9%, a f1 score of 62.8%, a sensitivity of 64.5%, a specificity of 83.2%, and an AUC value of 0.856 (Table 3).

3.4. Optimization of Machine Learning Algorithms with Autoantibodies against HNE and MDA-Modified Peptides

In our previous study, we had reported that the autoantibodies against four different MDA modified peptides may serve as biomarkers in diagnosing patients with CAD [23]. The MDA-modified positions were underlined: 76-ADYEKHKVYACEVTHQGLSSPVTK-99 (IGKC76–99), 284-LQHLENELTHDIITK-298 (alpha-1-antitrypsin, A1AT284–298), 824-VSVQLEASPAFLAVPVEK-841 (alpha-2-macroglobulin, A2M824–841,), and 4022-WNFYYSPQSSPDKKLTIFK-4040 (apolipoprotein B-100, ApoB1004022–4040). The IgG and IgM autoantibodies against unmodified, MDA, and HNE-modified peptides were summarized in Table 4. The autoantibody, IgG anti-IGKC1–18 HNE, was selected as the first feature. We then performed forward selection with autoantibodies against HNE and MDA-modified peptides (Table 5, Figure 2). In the LightGBM model, the features selected included IgG anti-IGKC1–18 HNE, IgM anti-A1AT MDA, IgM anti-IGKC1–18 MDA, IgG anti-A2M MDA, IgG anti-A1AT MDA, and IgM anti-CFAH HNE. In differentiating HCs and CAD patients with a stenosis rate of <30%, the model received an accuracy of 75.7%, a precision of 74.8%, a f1 score of 72%, a sensitivity of 75.1%, a specificity of 77.2%, and an AUC value of 0.848. As for HCs and CAD patients with a stenosis rate of 30–70%, the model received an accuracy of 76.1%, a precision of 72.2%, a f1 score of 71.3%, a sensitivity of 75.7%, a specificity of 76.6%, and an AUC of 0.845. In discriminating HCs and CAD patients with a stenosis rate of >70%, the model received an accuracy of 82.7%, a precision of 74.5%, a f1 score of 71.9%, a sensitivity of 75.2%, a specificity of 86.4%, and an AUC value of 0.904. In the XGBoost model, the features selected included IgG anti-IGKC1–18 HNE, IgM anti-A1AT MDA, and IgM anti-IGKC1–18 MDA. In the discrimination of HCs and CAD patients with a stenosis rate of <30%, the model received an accuracy of 78.2%, a precision of 76.8%, a f1 score of 75%, a sensitivity of 78.4%, a specificity of 78.8%, and an AUC value of 0.847. As for HCs and CAD patients with a stenosis rate of 30–70%, the model received an accuracy of 78.6%, a precision of 76.6%, a f1 score of 74.2%, a sensitivity of 77.1%, a specificity of 79.9%, and an AUC value of 0.881. In the differentiation of HCs and CAD patients with a stenosis rate of >70%, the model received an accuracy of 86.1%, a precision of 81.7%, a f1 score of 77.2%, a sensitivity of 78.6%, a specificity of 90.4%, and an AUC value of 0.935. Statistical tests were performed to validate the improvement.

4. Discussion

In this study, we examined the diagnostic performance of four HNE-modified peptides in CAD that had been previously reported in patients with RA [20]. Autoantibodies found in RA have been related to cardiovascular events [24]. Thus, we speculated that the autoantibodies we discovered previously may be useful in the diagnosis of CAD. We firstly examined the IgG and IgM autoantibodies against BSA and HNE-modified BSA (Supplementary Figure S1). The results indicated the diagnostic potential of IgG and IgM autoantibodies against HNE-modified adducts. Hence, we measured the IgG and IgM autoantibodies against peptides, including CFAH, HPT, IGKC2–19, THRB, and HNE-modified peptides. We found that IgG and IgM autoantibodies against CFAH, HPT, IGKC2–19, THRB, and HNE-modified peptides decreased in CAD patients.
The proteins were discovered to be associated with the development of CAD. For instance, CFAH has been found in early human coronary atherosclerotic lesions [25]. Lee et al. suggested that HPT may be elevated in the plasma derived from CAD patients [26]. Although no study has reported the elevation of IGKC in CAD patients, MDA-modified IgG was found to be significantly elevated in CAD patients [27]. The elevation of THRB fragments was reported in patients with peripheral artery disease (PAD), which is also a cardiovascular risk factor [28,29]. Increasing the level of 4-HNE and above-mentioned proteins in CAD patients may accelerate the increment of oxidized proteins, which play a crucial role in the formation of atherosclerosis. Therefore, the 4-HNE modified peptides may also trigger inflammation and strengthen the development of atherosclerosis. Studies indicated that autoantibodies may be associated with the severity of CAD [30,31]. The decreased level of autoantibodies against 4-HNE modified peptides possibly indicates the clearance of 4-HNE or immune dysregulation [32,33]. However, the role of autoantibodies against MDA and 4-HNE modified peptides in the development of CAD requires further investigation.
To date, no other study has investigated autoantibodies against HNE-modified peptides in patients with cardiovascular disease. However, HNE increment has been associated with oxidative stress and vascular disease [34,35]. In addition, the formation of HNE-modified adducts may induce the generation of autoantibodies [36]. Hence, we speculated that the decreasing level of IgG and IgM against HNE-modified peptides may result from the immune dysfunction of patients with CAD [37].
To further explore the diagnostic ability, we conducted feature selection (feature ranking + forward selection) and machine learning models. IgG anti-IGKC2–19 HNE was ranked as the most important feature during each ranking (Table 2). Thus, the following forward selection was initiated with IgG anti-IGKC2–19 HNE. Various types of machine learning algorithms have been applied into medical studies. Examples include decision tree, support vector machine, random forest, and neural network [38]. Recently, two advanced tree-based models, Light Gradient Boosting Machine (lightGBM) and eXtreme Gradient Boosting (XGBoost), have been popular in other studies. Wang et al. built their miRNA classifier with LightGBM and identified hsa-mir-139 as an important feature for breast cancer diagnosis [39]. Joo et al. analyzed the cohort data from Korean National Health and developed various machine learning prediction models to estimate 2-year and 10-year risks of cardiovascular disease (CVD). LightGBM owned the highest AUC value in estimating 10 year follow-ups without medication features [40]. Al’Aref et al. incorporated clinical features and coronary artery calcium scores (CACs) with an XGBoost model to estimate the pretest of obstructive CAD on coronary computed tomography angiography (CCTA). They received the best performance with an AUC of 0.866 [41]. Kim et al. enrolled 1312 patients with obstructive CAD on coronary angiography. They built a model with the XGBoost algorithm and received an AUC of 0.820 as the best model in their experiments [42].
In our study, we performed forward feature selection with LightGBM and XGBoost. We received the highest performance with features including IgG anti-IGKC2–19 HNE, IgM anti-A1AT284–298 MDA, and IgM anti-IGKC76–99 MDA. The XGBoost model received a sensitivity of 0.786 and a specificity of 0.904. Many biomarkers have been utilized in the clinic. For instance, the C-reactive protein (CRP) has been considered as a useful biomarker to predict cardiac death, AMI, and heart failure [43]. In addition, high sensitivity-CRP (hs-CRP) was found mildly elevated (up to 15 mg/L) in suspected ACS patients, which may be a meaningful prognostic marker in the clinic [44]. Furthermore, inflammation markers were studied in CAD. For example, the elevation of interleukin-6 (IL-6) was found in induced myocardial infarction [45]. Cyclophilin A was found elevated significantly in CAD patients with type 2 diabetes. It served as a high specificity biomarker for diagnosis of CAD patients with type 2 diabetes [46]. Furthermore, other researchers focus on circulating protein and RNA [47]. Together, a multiplex biomarker panel may improve the diagnosis with a comprehensive analysis [48]. In this study, we demonstrated a combination of autoantibodies against two types of oxidative modified peptides (MDA and HNE). The XGBoost model was improved the most after we incorporated autoantibodies against MDA and HNE-modified peptides together (Table 5). Our future work may incorporate other oxidative stress related markers to comprehend our oxidative model.
An in vitro diagnostic multivariate index assay (IVDMIA) combines multiple values with an algorithm to reach an improved accuracy compared to a single biomarker [49]. It has been applied to improve the diagnosis of ovarian cancer [50]. In addition, autoantibodies have been considered as valid biomarkers for various diseases such as cancer [51], RA [52], neurodegenerative disease [53], and CAD [54]. Together, these studies indicate the potential of improving diagnostic ability with an IVDMIA combined with an immunoassay in the clinic. However, several limitations should be noted. The machine learning models had been improved after we incorporated multiple autoantibodies against oxidatively modified peptides. Nevertheless, a larger sample size is required for further validation. Furthermore, other biomarkers from the clinic that may improve the diagnosis should be included, such as hs-CRP.

5. Conclusions

In this study, we firstly reported the plasma level of autoantibodies IgG and IgM against CFAH1211–1230, HPT78–108, IGKC2–19, and THRB328–345 and their HNE-modified peptides. In addition, we incorporated machine learning models to exploit the potential of their diagnostic performance. Moreover, we included autoantibodies IgG and IgM against MDA-modified peptides to further improve the performance of the models. Our study provided a demonstration that combining autoantibodies against two types of oxidative modification may improve the model performance.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/diagnostics12102269/s1, Supplementary Figure S1: Dot plots of plasma concentration of autoantibodies: IgG anti-BSA and IgG anti-HNE modified BSA (A), IgM anti-BSA and IgM anti-HNE-modified BSA (B) in healthy controls (HCs), rheumatoid arthritis (RA) patients and RA patients with coronary artery disease (CAD); Supplementary Figure S2: Dot plots of plasma concentration of autoantibodies: IgG anti-CFAH1211–1230 and IgG anti-CFAH1211–1230 HNE (A), IgG anti-HPT78–108 and IgG anti-HPT78–108 HNE (B), IgG anti-IGKC2–19 and IgG anti-IGKC2–19 HNE (C), IgG anti-THRB328–345 and IgG anti-THRB328–345 HNE (D), IgM anti-CFAH1211–1230 and IgM anti-CFAH1211–1230 HNE (E), IgM anti-HPT78–108 and IgM anti-HPT78–108 HNE (F), IgM anti-IGKC2–19 and IgM anti-IGKC2–19 HNE (G), IgM anti-THRB328–345 and IgM anti-THRB328–345 HNE (H) in healthy controls (HCs) and coronary artery disease patients with stenosis rates of <30%, 30–70%, and >70%.

Author Contributions

Conceptualization, C.-Y.L. and I.-J.T.; methodology, Y.-S.C.; software, I.-J.T.; validation, J.-Z.W., W.-C.S. and I.-J.T.; formal analysis, J.-Z.W.; investigation, W.-C.S.; resources, W.-C.S.; data curation, Y.-S.C.; writing—original draft preparation, W.-C.S.; writing—review and editing, I.-J.T. and Y.-S.C.; visualization, J.-Z.W.; supervision, C.-Y.L.; project administration, Y.-S.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

The Taipei Medical University–Joint Institutional Review Board and the Institutional Review of Cathay General Hospital approved the study protocol (N201512049 (3 February 2017), CGP-LP106006 (15 June 2017)).

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Khan, M.A.; Hashim, M.J.; Mustafa, H.; Baniyas, M.Y.; Al Suwaidi, S.; AlKatheeri, R.; Alblooshi, F.M.K.; Almatrooshi, M.; Alzaabi, M.E.H.; Al Darmaki, R.S.; et al. Global Epidemiology of Ischemic Heart Disease: Results from the Global Burden of Disease Study. Cureus 2020, 12, e9349. [Google Scholar] [CrossRef] [PubMed]
  2. Stenvinkel, P.; Pecoits-Filho, R.; Lindholm, B. Coronary Artery Disease in End-Stage Renal Disease: No Longer a Simple Plumbing Problem. J. Am. Soc. Nephrol. 2003, 14, 1927–1939. [Google Scholar] [CrossRef]
  3. Vichova, T.; Motovska, Z. Oxidative stress: Predictive marker for coronary artery disease. Exp. Clin. Cardiol. 2013, 18, e88–e91. [Google Scholar]
  4. Zakynthinos, E.; Pappa, N. Inflammatory biomarkers in coronary artery disease. J. Cardiol. 2009, 53, 317–333. [Google Scholar] [CrossRef]
  5. Ayala, A.; Muñoz, M.F.; Argüelles, S. Lipid peroxidation: Production, metabolism, and signaling mechanisms of malondialdehyde and 4-hydroxy-2-nonenal. Oxidative Med. Cell Longev. 2014, 2014, 360438. [Google Scholar] [CrossRef]
  6. Pillon, N.J.; Croze, M.L.; Vella, R.E.; Soulère, L.; Lagarde, M.; Soulage, C.O. The lipid peroxidation by-product 4-hydroxy-2-nonenal (4-HNE) induces insulin resistance in skeletal muscle through both carbonyl and oxidative stress. Endocrinology 2012, 153, 2099–2111. [Google Scholar] [CrossRef]
  7. Ramana, K.V.; Srivastava, S.; Singhal, S.S. Lipid Peroxidation Products in Human Health and Disease. Oxidative Med. Cell. Longev. 2013, 2013, 583438. [Google Scholar] [CrossRef]
  8. Murdolo, G.; Piroddi, M.; Luchetti, F.; Tortoioli, C.; Canonico, B.; Zerbinati, C.; Galli, F.; Iuliano, L. Oxidative stress and lipid peroxidation by-products at the crossroad between adipose organ dysregulation and obesity-linked insulin resistance. Biochimie 2013, 95, 585–594. [Google Scholar] [CrossRef]
  9. Mihalas, B.P.; De Iuliis, G.N.; Redgrove, K.A.; McLaughlin, E.A.; Nixon, B. The lipid peroxidation product 4-hydroxynonenal contributes to oxidative stress-mediated deterioration of the ageing oocyte. Sci. Rep. 2017, 7, 6247. [Google Scholar] [CrossRef]
  10. Esterbauer, H.; Eckl, P.; Ortner, A. Possible mutagens derived from lipids and lipid precursors. Mutat Res. 1990, 238, 223–233. [Google Scholar] [CrossRef]
  11. Giera, M.; Lingeman, H.; Niessen, W.M. Recent Advancements in the LC- and GC-Based Analysis of Malondialdehyde (MDA): A Brief Overview. Chromatographia 2012, 75, 433–440. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Khoubnasabjafari, M.; Ansarin, K.; Jouyban, A. Reliability of malondialdehyde as a biomarker of oxidative stress in psychological disorders. Bioimpacts 2015, 5, 123–127. [Google Scholar] [CrossRef]
  13. Esterbauer, H.; Schaur, R.J.; Zollner, H. Chemistry and biochemistry of 4-hydroxynonenal, malonaldehyde and related aldehydes. Free Radic. Biol. Med. 1991, 11, 81–128. [Google Scholar] [CrossRef]
  14. Csala, M.; Kardon, T.; Legeza, B.; Lizák, B.; Mandl, J.; Margittai, É.; Puskás, F.; Száraz, P.; Szelényi, P.; Bánhegyi, G. On the role of 4-hydroxynonenal in health and disease. Biochim. Et Biophys. Acta (BBA) Mol. Basis Dis. 2015, 1852, 826–838. [Google Scholar] [CrossRef]
  15. Guéraud, F.; Atalay, M.; Bresgen, N.; Cipak, A.; Eckl, P.M.; Huc, L.; Jouanin, I.; Siems, W.; Uchida, K. Chemistry and biochemistry of lipid peroxidation products. Free Radic. Res. 2010, 44, 1098–1124. [Google Scholar] [CrossRef]
  16. Castro, J.P.; Jung, T.; Grune, T.; Siems, W. 4-Hydroxynonenal (HNE) modified proteins in metabolic diseases. Free Radic. Biol. Med. 2017, 111, 309–315. [Google Scholar] [CrossRef]
  17. Porsch, F.; Mallat, Z.; Binder, C.J. Humoral immunity in atherosclerosis and myocardial infarction: From B cells to antibodies. Cardiovasc. Res. 2021, 117, 2544–2562. [Google Scholar] [CrossRef]
  18. Leibundgut, G.; Witztum, J.L.; Tsimikas, S. Oxidation-specific epitopes and immunological responses: Translational biotheranostic implications for atherosclerosis. Curr. Opin. Pharm. 2013, 13, 168–179. [Google Scholar] [CrossRef]
  19. Binder, C.J.; Papac-Milicevic, N.; Witztum, J.L. Innate sensing of oxidation-specific epitopes in health and disease. Nat. Rev. Immunol. 2016, 16, 485–497. [Google Scholar] [CrossRef]
  20. Tsai, K.-L.; Chang, C.-C.; Chang, Y.-S.; Lu, Y.-Y.; Tsai, I.J.; Chen, J.-H.; Lin, S.-H.; Tai, C.-C.; Lin, Y.-F.; Chang, H.-W.; et al. Isotypes of autoantibodies against novel differential 4-hydroxy-2-nonenal-modified peptide adducts in serum is associated with rheumatoid arthritis in Taiwanese women. BMC Med. Inform. Decis. Mak. 2021, 21, 49. [Google Scholar] [CrossRef]
  21. Crowson, C.S.; Liao, K.P.; Davis, J.M., 3rd; Solomon, D.H.; Matteson, E.L.; Knutson, K.L.; Hlatky, M.A.; Gabriel, S.E. Rheumatoid arthritis and cardiovascular disease. Am. Heart J. 2013, 166, 622–628.e621. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Kuo, C.F.; Luo, S.F.; See, L.C.; Chou, I.J.; Chang, H.C.; Yu, K.H. Rheumatoid arthritis prevalence, incidence, and mortality rates: A nationwide population study in Taiwan. Rheumatol. Int. 2013, 33, 355–360. [Google Scholar] [CrossRef] [PubMed]
  23. Hsu, Y.-C.; Tsai, I.-J.; Hsu, H.; Hsu, P.-W.; Cheng, M.-H.; Huang, Y.-L.; Chen, J.-H.; Lei, M.-H.; Lin, C.-Y. Using Anti-Malondialdehyde Modified Peptide Autoantibodies to Import Machine Learning for Predicting Coronary Artery Stenosis in Taiwanese Patients with Coronary Artery Disease. Diagnostics 2021, 11, 961. [Google Scholar] [CrossRef]
  24. Karpouzas, G.A.; Ormseth, S.R.; Hernandez, E.; Bui, V.L.; Budoff, M.J. Beta-2-glycoprotein-I IgA antibodies predict coronary plaque progression in rheumatoid arthritis. Semin. Arthritis Rheum. 2021, 51, 20–27. [Google Scholar] [CrossRef]
  25. Oksjoki, R.; Jarva, H.; Kovanen, P.T.; Laine, P.; Meri, S.; Pentikäinen, M.O. Association Between Complement Factor H and Proteoglycans in Early Human Coronary Atherosclerotic Lesions. Arterioscler. Thromb. Vasc. Biol. 2003, 23, 630–636. [Google Scholar] [CrossRef]
  26. Lee, C.W.; Cheng, T.M.; Lin, C.P.; Pan, J.P. Plasma haptoglobin concentrations are elevated in patients with coronary artery disease. PLoS ONE 2013, 8, e76817. [Google Scholar] [CrossRef]
  27. Shogenova, M.; Zhetisheva, R.; Karpov, A.; Efremov, E.; Masenko, V.; Naumov, V. Diagnostic value of modified immunoglobulin G determination in patients with coronary atherosclerosis. Atherosclerosis 2017, 263, e115. [Google Scholar] [CrossRef]
  28. Arfan, S.; Zamzam, A.; Syed, M.H.; Jain, S.; Jahanpour, N.; Abdin, R.; Qadura, M. The Clinical Utility of D-Dimer and Prothrombin Fragment (F1+2) for Peripheral Artery Disease: A Prospective Study. Biomedicines 2022, 10, 878. [Google Scholar] [CrossRef] [PubMed]
  29. Duran, N.E.; Duran, I.; Gürel, E.; Gündüz, S.; Göl, G.; Biteker, M.; Ozkan, M. Coronary artery disease in patients with peripheral artery disease. Heart Lung 2010, 39, 116–120. [Google Scholar] [CrossRef]
  30. Sveen, K.A.; Bech Holte, K.; Svanteson, M.; Hanssen, K.F.; Nilsson, J.; Bengtsson, E.; Julsrud Berg, T. Autoantibodies Against Methylglyoxal-Modified Apolipoprotein B100 and ApoB100 Peptide Are Associated with Less Coronary Artery Atherosclerosis and Retinopathy in Long-Term Type 1 Diabetes. Diabetes Care 2021, 44, 1402–1409. [Google Scholar] [CrossRef]
  31. Meier, L.A.; Binstadt, B.A. The Contribution of Autoantibodies to Inflammatory Cardiovascular Pathology. Front. Immunol. 2018, 9, 911. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Litvack, M.L.; Post, M.; Palaniyar, N. IgM Promotes the Clearance of Small Particles and Apoptotic Microparticles by Macrophages. PLoS ONE 2011, 6, e17223. [Google Scholar] [CrossRef]
  33. Bellini, R.; Bonacina, F.; Norata, G.D. Crosstalk between dendritic cells and T lymphocytes during atherogenesis: Focus on antigen presentation and break of tolerance. Front. Cardiovasc. Med. 2022, 9, 934314. [Google Scholar] [CrossRef]
  34. Dalleau, S.; Baradat, M.; Guéraud, F.; Huc, L. Cell death and diseases related to oxidative stress:4-hydroxynonenal (HNE) in the balance. Cell Death Differ. 2013, 20, 1615–1630. [Google Scholar] [CrossRef] [PubMed]
  35. Chapple, S.J.; Cheng, X.; Mann, G.E. Effects of 4-hydroxynonenal on vascular endothelial and smooth muscle cell redox signaling and function in health and disease. Redox Biol. 2013, 1, 319–331. [Google Scholar] [CrossRef] [PubMed]
  36. Mohammadi, M.; Oehler, B.; Kloka, J.; Martin, C.; Brack, A.; Blum, R.; Rittner, H.L. Antinociception by the anti-oxidized phospholipid antibody E06. Br. J. Pharmacol. 2018, 175, 2940–2955. [Google Scholar] [CrossRef] [PubMed]
  37. Fernández-Ruiz, I. Immune system and cardiovascular disease. Nat. Rev. Cardiol. 2016, 13, 503. [Google Scholar] [CrossRef]
  38. Azmi, J.; Arif, M.; Nafis, M.T.; Alam, M.A.; Tanweer, S.; Wang, G. A systematic review on machine learning approaches for cardiovascular disease prediction using medical big data. Med. Eng. Phys. 2022, 105, 103825. [Google Scholar] [CrossRef]
  39. Wang, D.; Zhang, Y.; Zhao, Y. LightGBM: An Effective miRNA Classification Method in Breast Cancer Patients. In Proceedings of the Proceedings of the 2017 International Conference on Computational Biology and Bioinformatics, Newark, NJ, USA, 18–20 October 2017; pp. 7–11. [Google Scholar]
  40. Joo, G.; Song, Y.; Im, H.; Park, J. Clinical Implication of Machine Learning in Predicting the Occurrence of Cardiovascular Disease Using Big Data (Nationwide Cohort Data in Korea). IEEE Access 2020, 8, 157643–157653. [Google Scholar] [CrossRef]
  41. Al’Aref, S.J.; Maliakal, G.; Singh, G.; van Rosendael, A.R.; Ma, X.; Xu, Z.; Alawamlh, O.A.H.; Lee, B.; Pandey, M.; Achenbach, S.; et al. Machine learning of clinical variables and coronary artery calcium scoring for the prediction of obstructive coronary artery disease on coronary computed tomography angiography: Analysis from the CONFIRM registry. Eur. Heart J. 2020, 41, 359–367. [Google Scholar] [CrossRef]
  42. Kim, J.T.; Cho, S.; Lee, S.Y.; Kim, D.; Lim, S.-H.; Kang, T.S.; Lee, M.-Y. The Use of Machine Learning Algorithms for the Identification of Stable Obstructive Coronary Artery Disease. J. Am. Coll. Cardiol. 2020, 75, 254. [Google Scholar] [CrossRef]
  43. Tiwari, R.P.; Jain, A.; Khan, Z.; Kohli, V.; Bharmal, R.N.; Kartikeyan, S.; Bisen, P.S. Cardiac Troponins I and T: Molecular Markers for Early Diagnosis, Prognosis, and Accurate Triaging of Patients with Acute Myocardial Infarction. Mol. Diagn. Ther. 2012, 16, 371–381. [Google Scholar] [CrossRef]
  44. Kaura, A.; Hartley, A.; Panoulas, V.; Glampson, B.; Shah, A.S.V.; Davies, J.; Mulla, A.; Woods, K.; Omigie, J.; Shah, A.D.; et al. Mortality risk prediction of high-sensitivity C-reactive protein in suspected acute coronary syndrome: A cohort study. PLOS Med. 2022, 19, e1003911. [Google Scholar] [CrossRef] [PubMed]
  45. Liebetrau, C.; Hoffmann, J.; Dörr, O.; Gaede, L.; Blumenstein, J.; Biermann, H.; Pyttel, L.; Thiele, P.; Troidl, C.; Berkowitsch, A.; et al. Release Kinetics of Inflammatory Biomarkers in a Clinical Model of Acute Myocardial Infarction. Circ. Res. 2015, 116, 867–875. [Google Scholar] [CrossRef]
  46. Hussain, M.M.; Abdel Hady Mohammed, E.A.M.; El-Sherbeny, A.A.; Shehata, A.R. Cyclophilin A: A novel biomarker for cardiovascular disease in patients with type 2 diabetes. Egypt. J. Intern. Med. 2019, 31, 416–422. [Google Scholar] [CrossRef]
  47. Wang, X.-M.; Li, X.-M.; Song, N.; Zhai, H.; Gao, X.-M.; Yang, Y.-N. Long non-coding RNAs H19, MALAT1 and MIAT as potential novel biomarkers for diagnosis of acute myocardial infarction. Biomed. Pharmacother. 2019, 118, 109208. [Google Scholar] [CrossRef]
  48. Adamcova, M.; Šimko, F. Multiplex biomarker approach to cardiovascular diseases. Acta Pharmacol. Sin. 2018, 39, 1068–1072. [Google Scholar] [CrossRef] [PubMed]
  49. Zhang, Z. An In Vitro Diagnostic Multivariate Index Assay (IVDMIA) for Ovarian Cancer: Harvesting the Power of Multiple Biomarkers. Rev. Obs. Gynecol 2012, 5, 35–41. [Google Scholar]
  50. Shulman, L.P.; Francis, M.; Bullock, R.; Pappas, T. Clinical Performance Comparison of Two In-Vitro Diagnostic Multivariate Index Assays (IVDMIAs) for Presurgical Assessment for Ovarian Cancer Risk. Adv. Ther. 2019, 36, 2402–2413. [Google Scholar] [CrossRef]
  51. Pedersen, J.W.; Wandall, H.H. Autoantibodies as Biomarkers in Cancer. Lab. Med. 2011, 42, 623–628. [Google Scholar] [CrossRef]
  52. Kang, E.H.; Ha, Y.J.; Lee, Y.J. Autoantibody Biomarkers in Rheumatic Diseases. Int. J. Mol. Sci 2020, 21, 1382. [Google Scholar] [CrossRef]
  53. DeMarshall, C.; Sarkar, A.; Nagele, E.P.; Goldwaser, E.; Godsey, G.; Acharya, N.K.; Nagele, R.G. Utility of autoantibodies as biomarkers for diagnosis and staging of neurodegenerative diseases. Int. Rev. Neurobiol. 2015, 122, 1–51. [Google Scholar] [CrossRef]
  54. Vuilleumier, N.; Montecucco, F.; Hartley, O. Autoantibodies to apolipoprotein A-1 as a biomarker of cardiovascular autoimmunity. World J. Cardiol. 2014, 6, 314–326. [Google Scholar] [CrossRef]
Diagnostics 12 02269 g001 550

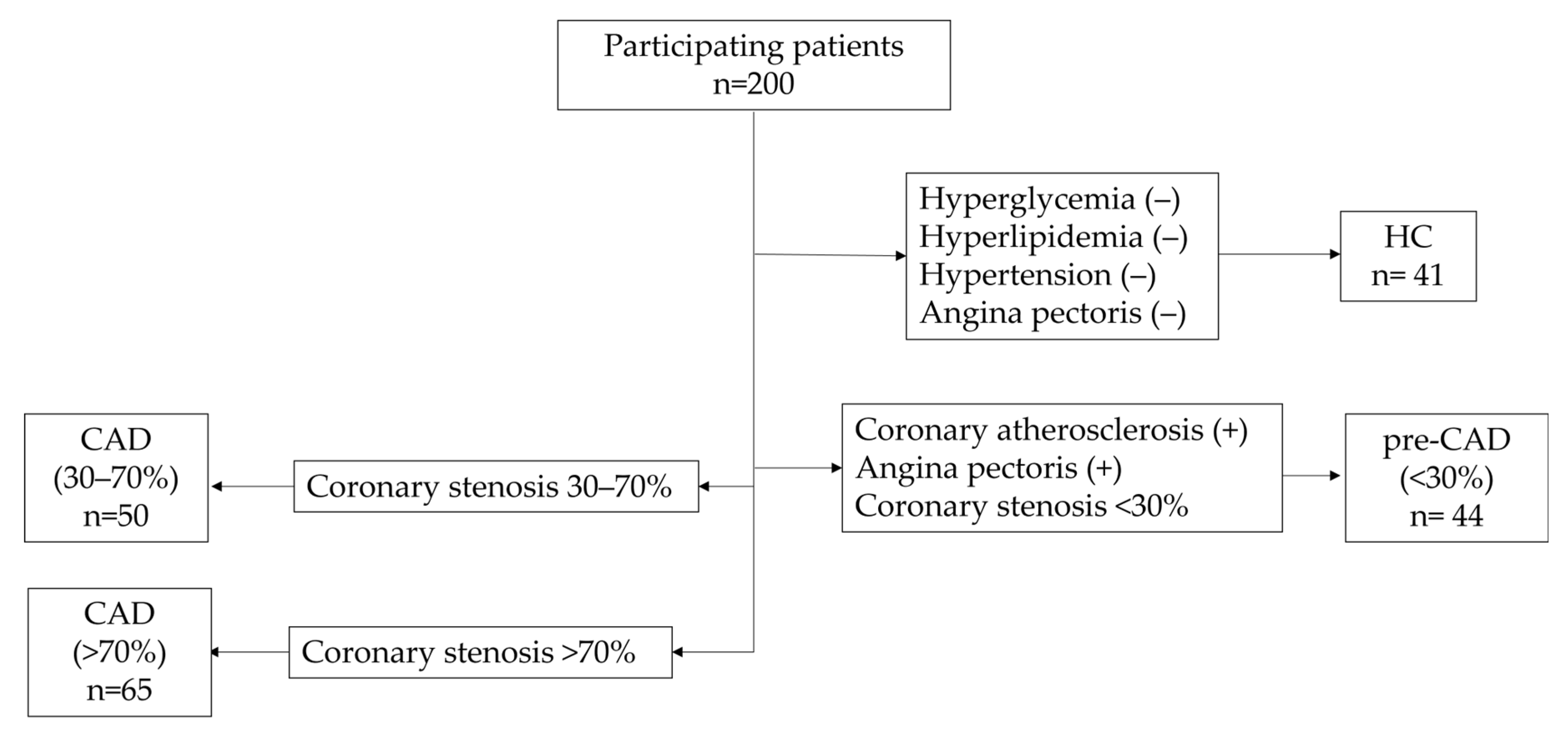

Figure 1. The participants were grouped into HC, pre-CAD (<30%), CAD (30–70%), and CAD (>70%).
Figure 1. The participants were grouped into HC, pre-CAD (<30%), CAD (30–70%), and CAD (>70%).
Diagnostics 12 02269 g001
Diagnostics 12 02269 g002 550
Figure 2. The flowchart of the developing oxidative model.
Figure 2. The flowchart of the developing oxidative model.
Diagnostics 12 02269 g002
Table
Table 1. Comparison of clinical characteristics between HC and CAD patients.
Table 1. Comparison of clinical characteristics between HC and CAD patients.
VariablesShuang-Ho Hospital Luodong Poh-Ai Hospital
Stenosis Rate of Patients
RA (n = 30)RA-CAD (n = 30)HC (n = 41)<30% (n = 44)30–70% (n = 50)>70% (n = 65)
Age (year)52.26 ± 4.2753.65 ± 9.1938.41 ± 10.4262.72 ± 10.3263.57 ± 9.5562.79 ± 9.27
Male122626292356 *
Drinker-111151210
Used to smoke--115 *10 *19
Current smoker--1741136 *
Diabetes---131530
Hypertension-- 303956
HNE-protein adducts--1.010 ± 0.088 1.044 ± 0.0971.054 ± 0.115 *1.120 ± 0.112 **
* means p < 0.05, ** means p < 0.0001.
Table
Table 2. Feature ranking results among HCs versus CAD patients with stenosis rates of <30%, 30–70% and >70%.
Table 2. Feature ranking results among HCs versus CAD patients with stenosis rates of <30%, 30–70% and >70%.
HC vs. <30%HC vs. 30–70%HC vs. >70%
ScoreAttributesScoreAttributesScoreAttributes
0.525IgG anti-IGKC HNE0.356IgG anti-IGKC HNE0.288IgG anti-IGKC HNE
0.27IgM anti-IGKC HNE0.275IgM anti-IGKC HNE0.278IgM anti-IGKC HNE
0.209IgG anti-THRB0.178IgM anti-THRB HNE0.172IgM anti-THRB HNE
0.167IgG anti-THRB HNE0.178IgG anti-THRB0.164IgM anti-THRB
0.14IgM anti-THRB HNE0.153IgG anti-THRB HNE0.156IgM anti-HPT
0.127IgM anti-HPT0.128IgM anti-THRB0.143IgM anti-CFAH HNE
0.126IgM anti-HPT0.128IgM anti-CFAH
0.126IgM anti-HPT HNE0.123IgM anti-HPT HNE
0.116IgG anti-THRB
0.109IgG anti-HPT
0.109IgG anti-THRB HNE
0.104IgG anti-CFAH HNE
Table
Table 3. The machine learning models incorporated autoantibodies against unmodified and HNE-modified peptides.
Table 3. The machine learning models incorporated autoantibodies against unmodified and HNE-modified peptides.
GroupsAccuracy (95%CI)Precision (95%CI)f1 Score (95%CI)Sensitivity (95%CI)Specificity (95%CI)AUC (95%CI)
LGBMIgG anti-IGKC HNE, IgM anti-CFAH, IgG anti-CFAH, IgM anti-CFAH HNE, IgG anti-CFAH HNE, IgM anti-HPT, IgM anti-HPT HNE, IgG anti-HPT HNE, IgM anti-IGKC, IgG anti-IGKC, IgM anti-IGKC HNE, IgM anti-THRB, IgG anti-THRB, IgM anti-THRB HNE, IgG anti-THRB HNE
HC vs. <30%77% (64.6–89.4%)73% (49.5–96.5%)72.6% (53–92.2%)78.2% (54.7–101.6%)76.4% (57.5–95.2%)0.832 (0.657–1.008)
HC vs. 30–70%72.7% (59.2–86.2%)72.5% (52.5–92.4%)69.1% (52.9–85.3%)71.5% (49.6–93.4%)75.8% (57–94.6%)0.816 (0.665–0.967)
HC vs. >70%73% (59.1–87%)61% (32.5–89.6%)57.8% (34.6–81.1%)62% (33.5–90.5%)79.6% (64.1–95.2%)0.819 (0.66–0.978)
GroupsAccuracy (95%CI)Precision (95%CI)f1 Score (95%CI)Sensitivity (95%CI)Specificity (95%CI)AUC (95%CI)
XGBIgG anti-IGKC HNE, IgG anti-CFAH, IgG anti-HPT, IgM anti-HPT HNE, IgM anti-IGKC, IgG anti-IGKC, IgM anti-IGKC HNE
HC vs. <30%77.2% (63.6–90.8%)74.5% (51.9–97.2%)71.4% (51.1–91.7%)74.2% (48.9–99.5%)79.2% (61.4–97.1%)0.854 (0.684–1.024)
HC vs. 30–70%75.3% (62.6–88%)71.7% (52.6–90.8%)71.4% (54.3–88.6%)75.6% (53.9–97.3%)75.4% (58.5–92.3%)0.825 (0.696–0.953)
HC vs. >70%77.3% (64–90.6%)66.9% (38.9–94.9%)62.8% (38.7–86.9%)64.5% (37.3–91.7%)83.2% (68.5–98%)0.856 (0.729–0.982)
LGBM: Light Gradient Boosting Machine (lightGBM), XGB: eXtreme Gradient Boosting (XGBoost).
Table
Table 4. The distribution of IgG and IgM autoantibodies against unmodified, MDA, and HNE-modified peptide in oxidative model.
Table 4. The distribution of IgG and IgM autoantibodies against unmodified, MDA, and HNE-modified peptide in oxidative model.
AttributesHC (n = 30)<30% (n = 30)30–70% (n = 30)>70% (n = 30)
IgG anti-A2M824–8413.32 ± 5.351.51 ± 2.41.79 ± 2.011.99 ± 1.92
IgG anti-A2M824–841 MDA9.87 ± 14.346.94 ± 11.94.66 ± 2.825.29 ± 2.8
IgG anti-ApoB1004022–40404.22 ± 7.253.75 ± 8.751.87 ± 1.191.78 ± 1.19
IgG anti-ApoB1004022–4040 MDA1.97 ± 2.575.89 ± 15.612.21 ± 2.262.32 ± 3.87
IgG anti-A1AT284–2983.63 ± 7.872.27 ± 2.752.39 ± 2.542.03 ± 1.16
IgG anti-A1AT284–298 MDA4.26 ± 4.512.79 ± 1.793.42 ± 2.693.04 ± 1.36
IgG anti-IGKC76–992.37 ± 2.552.86 ± 4.221.74 ± 2.373.09 ± 5.72
IgG anti-IGKC76–99 MDA4.41 ± 7.071.81 ± 3.021.52 ± 1.641.68 ± 1.43
IgM anti-A2M824–8410.95 ± 0.530.6 ± 0.280.65 ± 0.520.59 ± 0.31
IgM anti-A2M824–841 MDA2.03 ± 1.361.35 ± 0.611.57 ± 1.141.37 ± 0.65
IgM anti-ApoB1004022–40401.41 ± 0.961.02 ± 0.631.23 ± 1.531.18 ± 1.2
IgM anti-ApoB1004022–4040 MDA1.41 ± 1.120.99 ± 0.431.18 ± 1.240.83 ± 0.36
IgM anti-A1AT284–2981.41 ± 1.370.81 ± 0.71.8 ± 3.960.8 ± 1.09
IgM anti-A1AT284–298 MDA1.17 ± 0.50.91 ± 0.370.93 ± 0.470.78 ± 0.37
IgM anti-IGKC76–993.54 ± 8.991.21 ± 1.0616.3 ± 79.051.15 ± 1.97
IgM anti-IGKC76–99 MDA0.88 ± 0.760.47 ± 0.260.54 ± 0.50.39 ± 0.24
IgM anti-CFAH1211–123017.54 ± 17.811.2 ± 9.0813.26 ± 17.3312.59 ± 19.43
IgG anti-CFAH1211–123026.13 ± 15.0921.73 ± 31.6323.53 ± 25.3425.07 ± 25.65
IgM anti-CFAH1211–1230 HNE15.71 ± 10.2712.34 ± 8.2812.44 ± 9.6611.01 ± 11.05
IgG anti-CFAH1211–1230 HNE26.98 ± 14.423.91 ± 28.5324.71 ± 26.2924.38 ± 20.02
IgM anti-HPT78–10811.89 ± 6.3410.95 ± 9.519.94 ± 7.068 ± 4.44
IgG anti-HPT78–10837.11 ± 16.9532.09 ± 36.4934.67 ± 31.7736.63 ± 26.47
IgM anti-HPT78–108 HNE6.73 ± 4.146.9 ± 7.135.74 ± 5.534.43 ± 2.97
IgG anti-HPT78–108 HNE27.67 ± 13.0526.27 ± 27.4626.6 ± 24.5726.27 ± 18.45
IgG anti-IGKC2–1929.36 ± 11.9522.56 ± 19.6226.27 ± 17.3619.66 ± 10.1
IgM anti-IGKC2–1944.88 ± 9.836.22 ± 11.9833.87 ± 24.5431.56 ± 21.59
IgM anti-IGKC2–19 HNE30.11 ± 15.8418.16 ± 15.3719.99 ± 24.3614.96 ± 14.68
IgG anti-IGKC2–19 HNE42.7 ± 11.6933.82 ± 37.2134.86 ± 28.8443.94 ± 36.92
IgM anti-THRB328–34530.08 ± 26.516.98 ± 11.8723.5 ± 37.3718.83 ± 26.25
IgG anti-THRB328–34588.48 ± 32.8963.24 ± 46.271.84 ± 48.8974.58 ± 46.34
IgM anti-THRB328–345 HNE12.01 ± 11.937.96 ± 7.796.11 ± 5.227.23 ± 8.35
IgG anti-THRB328–345 HNE32.16 ± 13.3628.59 ± 35.4530.46 ± 27.2630.04 ± 19.74
Table
Table 5. The machine learning models incorporated autoantibodies against unmodified, MDA, and HNE-modified peptides.
Table 5. The machine learning models incorporated autoantibodies against unmodified, MDA, and HNE-modified peptides.
GroupsAccuracy (95%CI)Precision (95%CI)f1 Score (95%CI)Sensitivity (95%CI)Specificity (95%CI)AUC (95%CI)
LGBMIgG anti-IGKC HNE, IgM anti-A1AT MDA, IgM anti-IGKC MDA, IgG anti-A2M MDA, IgG anti-A1AT MDA, IgM anti-CFAH HNE
HC vs. <30%75.7% (62.4–88.9%)74.8% (52.4–97.2%)72% (53.6–90.4%)75.1% (51.7–98.6%)77.2% (57.5–96.9%)0.848 (0.706–0.99)
HC vs. 30–70%76.1% (62.6–89.6%)72.2% (49.3–95.1%)71.3% (51.7–90.9%)75.7% (51.6–99.7%)76.6% (58.1–95.2%)0.845 (0.687–1.002)
HC vs. >70%82.7% (72.3–93.1%) *74.5% (51.5–97.5%) *71.9% (52.2–91.5%) *75.2% (50.7–99.6%) *86.4% (73.8–99.1%)0.904 (0.783–1.025) *
GroupsAccuracy (95%CI)Precision (95%CI)f1 Score (95%CI)Sensitivity (95%CI)Specificity (95%CI)AUC (95%CI)
XGBIgG anti-IGKC HNE, IgM anti-A1AT MDA, IgM anti-IGKC MDA
HC vs. <30%78.2% (64.8–91.6%)76.8% (55.6–98%)75% (57.8–92.2%)78.4% (57.3–99.5%)78.8% (59.1–98.5%)0.847 (0.696–0.999)
HC vs. 30–70%78.6% (66.4–90.8%)76.6% (55.5–97.7%)74.2% (56.9–91.4%)77.1% (55.4–98.8%)79.9% (62.3–97.5%)0.881 (0.751–1.011)
HC vs. >70%86.1% (76.2–96%) *81.7% (60.5–103%) *77.2% (59–95.5%) *78.6% (55.8–101.4%) *90.4% (79.6–101.1%) *0.935 (0.846–1.024) *
* means p < 0.05; LGBM: Light Gradient Boosting Machine (lightGBM), XGB: eXtreme Gradient Boosting (XGBoost).
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Tsai, I.-J.; Shen, W.-C.; Wu, J.-Z.; Chang, Y.-S.; Lin, C.-Y. Autoantibodies to Oxidatively Modified Peptide: Potential Clinical Application in Coronary Artery Disease. Diagnostics 2022, 12, 2269. https://doi.org/10.3390/diagnostics12102269

AMA Style

Tsai I-J, Shen W-C, Wu J-Z, Chang Y-S, Lin C-Y. Autoantibodies to Oxidatively Modified Peptide: Potential Clinical Application in Coronary Artery Disease. Diagnostics. 2022; 12(10):2269. https://doi.org/10.3390/diagnostics12102269

Chicago/Turabian Style

Tsai, I-Jung, Wen-Chi Shen, Jia-Zhen Wu, Yu-Sheng Chang, and Ching-Yu Lin. 2022. "Autoantibodies to Oxidatively Modified Peptide: Potential Clinical Application in Coronary Artery Disease" Diagnostics 12, no. 10: 2269. https://doi.org/10.3390/diagnostics12102269

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
