Nitrous Oxide Emission from Full-Scale Anammox-Driven Wastewater Treatment Systems

by
Zhiman Lin
,
Kayan Ma
and
Yuchun Yang
*
State Key Laboratory of Biocontrol, School of Ecology, Sun Yat-sen University, Guangzhou 510275, China
*
Author to whom correspondence should be addressed.
Life 2022, 12(7), 971; https://doi.org/10.3390/life12070971
Submission received: 20 May 2022 / Revised: 16 June 2022 / Accepted: 27 June 2022 / Published: 28 June 2022
(This article belongs to the Special Issue Microbes in Global Carbon, Sulfur, and Nitrogen Cycles)
Browse Figures
Review Reports Versions Notes

Abstract

:
Wastewater treatment plants (WWTPs) are important contributors to global greenhouse gas (GHG) emissions, partly due to their huge emission of nitrous oxide (N2O), which has a global warming potential of 298 CO2 equivalents. Anaerobic ammonium-oxidizing (anammox) bacteria provide a shortcut in the nitrogen removal pathway by directly transforming ammonium and nitrite to nitrogen gas (N2). Due to its energy efficiency, the anammox-driven treatment has been applied worldwide for the removal of inorganic nitrogen from ammonium-rich wastewater. Although direct evidence of the metabolic production of N2O by anammox bacteria is lacking, the microorganisms coexisting in anammox-driven WWTPs could produce a considerable amount of N2O and hence affect the sustainability of wastewater treatment. Thus, N2O emission is still one of the downsides of anammox-driven wastewater treatment, and efforts are required to understand the mechanisms of N2O emission from anammox-driven WWTPs using different nitrogen removal strategies and develop effective mitigation strategies. Here, three main N2O production processes, namely, hydroxylamine oxidation, nitrifier denitrification, and heterotrophic denitrification, and the unique N2O consumption process termed nosZ-dominated N2O degradation, occurring in anammox-driven wastewater treatment systems, are summarized and discussed. The key factors influencing N2O emission and mitigation strategies are discussed in detail, and areas in which further research is urgently required are identified.

1. Introduction

Nitrous oxide (N2O), as a potent greenhouse gas (GHG), has a global warming potential of 298 CO2 equivalents [1] that contribute to the depletion of the ozone layer in the biosphere [2] and is considered the third most emitted GHG involved in global warming after carbon dioxide (CO2) and methane (CH4). Over the past decade, the atmospheric N2O concentration has been increasing at an average rate of ~0.31% per year [3]. A considerable proportion of N2O emission has occurred in domestic wastewater treatment systems, which contributed 1.6 Tg CO2 equivalents over the past two decades, equivalent to 1.6% of the global N2O emissions in 2010 [4]. It is therefore important to understand N2O emission mechanisms in wastewater treatment plants (WWTPs).
Anaerobic ammonia oxidation (anammox) has recently been developed as an energy-efficient way in wastewater treatment (70–90% of total nitrogen removal) [5], and over 100 anammox-processing full-scale WWTPs were implemented worldwide by 2014 [6]. Anammox bacteria provide a shortcut in the nitrogen cycle by direct transforming ammonium (NH4+) and nitrite (NO2−) to nitrogen gas (N2) [7], rendering this method more efficient and cost-effective than the conventional nitrification/denitrification process. Since the discovery of anammox by Mulder [8] in 1995, extensive research has been carried out to develop anammox-driven nitrogen removal technologies. Considering the limitations of the conventional wastewater treatment systems, the combination of biological processes such as in the sequencing batch reactor (SBR) stands as a promising and viable option for sewage treatment, with low cost, high efficiency, and high stability [9,10,11]. Additionally, the partial nitrification/anammox process (PNA) provides an effective new option for the treatment of high-strength NH4+ wastewater with a low C/N ratio and elevated temperature. It involves the partial oxidation of NH4+ to NO2− and the anaerobic oxidation of the remaining NH4+ and NO2− to N2. The integrated PNA process can be conducted either in independent dedicated two-stage PNA reactors separating partial nitrification from anammox or simultaneously in the same reactor where both partial nitrification and anammox occur under low dissolved oxygen (DO) conditions [12]. Early implementations of PNA systems employed a two-stage configuration for the efficient control of partial nitrification, whereas recently, the focus has turned mainly to a one-stage PNA system due to its low N2O emission [13,14] and operating costs [15].
Nevertheless, N2O emission is still one of the downsides of anammox-driven wastewater treatment. Although direct evidence of the metabolic production of N2O by anammox bacteria is lacking, the microorganisms coexisting in anammox-driven WWTPs, such as nitrifiers and denitrifiers, could produce a considerable amount of N2O and affect the sustainability of the wastewater treatment [16,17]. This work intends to offer an overview of the processes taking place during the biological production and consumption of N2O in anammox-driven WWTPs and to discuss the key factors influencing N2O emission and mitigation strategies. Potential strategies focusing on the microbial community structure in anammox-driven WWTPs deserve further investigations.

2. N2O Emission

In anammox-driven wastewater treatment systems, the net N2O emission is driven by four key reactions: hydroxylamine oxidation (NH4+ → NH2OH → N2O) and nitrifier denitrification (NO2− → NO → N2O or NH2OH → N2O or NH2OH + NO → N2O) catalyzed by nitrifiers as well as heterotrophic denitrification (NO3− → NO2− → NO → N2O) catalyzed by diverse denitrifiers are the three known N2O-forming biological processes, while nosZ-dominated N2O consumption (N2O → N2) is the unique N2O degradation biological process driven by denitrifiers (Figure 1).

2.1. Hydroxylamine Oxidation

Hydroxylamine (NH2OH), an inorganic and highly reactive chemical, is one of the main precursors of N2O production via nitrification under aerobic conditions [18]. It is produced as one of the intermediate products of the nitrification process, which begins by oxidizing ammonia (NH3) with ammonia monooxygenase (AMO) and particulate methane monooxygenase (pMMO) to yield NH2OH. Normally, NH2OH is then further oxidated to nitric oxide (NO) by either hydroxylamine dehydrogenase (HAO) or hydroxylamine oxidase (HOX) produced by ammonia-oxidizing archaea (AOA) and ammonia-oxidizing bacteria (AOB). The produced NO2− from NO oxidation is then oxidated to nitrate (NO3−) by nitrite-oxidizing bacteria (NOB) using a nitrite oxidoreductase (NXR). The process can also be achieved through complete ammonia oxidation (comammox) by comammox bacteria, which encode all enzymes for complete nitrification (NH4+ → NO2− → NO3−) [19,20].
If NH2OH production catalyzed by AMO and pMMO is faster than the conversion of HAO and HOX under aerobic conditions, the accumulated NH2OH can stimulate hydroxylamine oxidation to consume N2O, such that a metabolic imbalance is established [21]. The accumulated free NH2OH could be emitted from the cells and produce N2O through an abiotic chemical hybrid reaction with oxidants or extracellular NO2−, i.e., the hydroxylamine oxidation reaction [22,23], while the oxidized NO2− can be reduced to NH2OH to slow down the abiotic decay of NH2OH [23]. Based on NH2OH abiotic conversion rates, the maximum proportions of NH4+ converted to N2O via extracellular NH2OH during the incubation of AOB, AOA, and comammox (Nitrospira inopinata) have been estimated to be 0.12%, 0.08%, and 0.14%, respectively [24]. This result is consistent with a prior study on the NH4+:N2O conversion ratio by AOB and AOA, which demonstrated that the abiotic conversion of extracellular NH2OH contributes to N2O emission during aerobic ammonia oxidation [24].
Directly converting NH2OH to N2O or combining NO with NH2OH thus obtaining N2O, the anaerobic NH2OH detoxification pathway catalyzed by cytochrome P460 (CytL) in most AOB is also a significant source of N2O [25]. CytL can oxide 2 equivalents of NH2OH and 4 oxidizing equivalents to 1 equivalent of N2O under anoxic conditions [25]. Alternatively, it can reduce NO to N2O in the presence of NH2OH [25]. CytL is used by AOB to detoxify NH2OH and NO, such that AOB can abundantly emit N2O from hydroxylamine oxidation under anaerobic conditions, thereby establishing a direct enzymatic link between nitrification and N2O production via NH2OH [25,26].

2.2. Nitrifier Denitrification

NO and NH2OH are two of the precursors of N2O emission during denitrification by nitrifiers at low DO conditions [26]. During nitrifier denitrification, NO2− is reduced by nitrite reductases (NIR) to NO, which is further reduced to N2O through nitric oxide reductases (NOR) produced by nitrifiers. As such, this process is also a source of N2O in anammox-driven WWTPs [27], with Chen et al. [28] claiming that it produced 73% of N2O in a one-stage PNA reactor.
NO is a highly reactive and potent toxic molecule that can be converted to N2O by the enzyme NOR in AOB, AOA, and comammox [29]. Most AOB have NOR-encoding genes (norB and/or norC) to detoxicate NO [30]. Previously, despite the presence of nir genes in almost all AOA genomes, AOA were believed to be incapable of N2O production through nitrifier denitrification as they lack NOR [22,31,32]. However, a recent study found that cytochrome P450NOR in AOA can act as NOR leading to the production of N2O via nitrifier denitrification at low pH under aerobic conditions [33]. This notion is supported by the general N2O production pathway [2NO + NAD(P)H + H+ → N2O + H2O + NAD(P)+] by the enzyme P450NOR in archaea denitrification [34]. Putative cytochrome P450-encoding genes were found not only in the genomes of AOA but also in the genomes of AOB and comammox [34,35]. However, 15N isotope tracer analysis revealed that the comammox strain of N. inopinata cannot denitrify NO to N2O and thus emit N2O at a level that is comparable to that of AOA (much lower than that of AOB) under varying oxygen regimes, suggesting that N2O formed by N. inopinata mainly originates from the abiotic conversion of NH2OH [23]. Considering that P450NOR is not thought to be involved in energy conservation in fungal denitrifiers [36] and the contribution of the haem copper oxidase family (qNOR and cNOR) likely surpasses that of other NOR types due to their predominant roles in denitrification [37], it was suggested that AOA and comammox have weak N2O emission potential under anoxic conditions [23,31]. Although the N2O yield is significantly higher in nitrifier denitrification catalyzed by P450nor in AOA under aerobic conditions at low pH, it is still lower than that obtained by nitrifier denitrification catalyzed by NOR and hydroxylamine oxidation catalyzed by CytL in AOB under low-oxygen conditions [33]. Therefore, AOB are the dominant N2O producers during the partial nitrification process [23,24,38].

2.3. Heterotrophic Denitrification

Heterotrophic denitrification is one of the main nitrogen removal pathways based on the reduction of NO to N2O in wastewater by denitrifiers under anaerobic conditions, which begins by reducing NO3− to NO2− by nitrate reductases [27]. The produced NO2 is then reduced to NO through either haem-containing (cd1-NIR, nirS) or copper-containing (Cu-NIR, nirK) nitrite reductases, which is further reduced to N2O through NOR [27]. N2O is an intermediate product during denitrification, and part of N2O can escape from the cell before the final reduction to N2, resulting in N2O emission [39]. Microbial N2O reduction to N2 is the main sink of this powerful GHG, which is catalyzed by the enzyme nitrous oxide reductase (NOS) [27]. It is becoming apparent that complete denitrifiers that reduce NO3− all the way to N2 are the exception and that many denitrifiers, called incomplete denitrifiers, lack NOR or NOS and directly use NO or N2O as the end product [27].
In microbial processes, NO is generated via NO2− reduction catalyzed by NirS and NirK, which are functionally equivalent but structurally divergent [40]. The genes for these two enzymes rarely co-occur in the genome of denitrifiers [41,42]. Changes in the composition and diversity of the denitrifier community and differences in habitat preferences indicate a niche differentiation process leading to nirK- and nirS-type denitrifiers [42,43,44]. A clear separation of nirS and nirK communities was observed in saline and non-saline environments, with nirS communities dominating in marine environments [42]. Interestingly, the nosZ gene has a higher frequency of co-occurrence with nirS than with nirK, and nirS usually co-occur with nor [44]. Under favorable conditions, nirS-type denitrifiers are more likely to be capable of complete denitrification and usually contribute less to N2O emission than nirK-type denitrifiers [44]. The non-random patterns of nir/nor/nos gene occurrence [44] are important in determining the genetic N2O production potential in wastewater treatment systems and illustrate the importance of the microbial community structure for biotic N2O emission.

2.4. NosZ-Dominated N2O Sink

N2O-reducing microorganisms can reduce N2O to N2; therefore, their abundance and activity can strongly affect the net N2O emission from WWTPs. N2O degradation is catalyzed by members of either NosZ clade I or NosZ clade II. They can be distinguished by the signal peptide motif of twin-arginine translocation (Tat) or secretory (Sec) proteins, which govern the secretion pathway for N2O translocation across the cell membrane [45,46]. Clade II NosZ is characterized by a much broader diversity of microorganisms than Clade I NosZ. About 30% of Clade II NosZ lack a complete denitrification capability and are termed nosZ II non-denitrifiers [44,47]. The nosZ II non-denitrifiers are regarded as N2O reducers, as they lack other denitrifying enzymes that specifically consume N2O [16,44]. Hence, increasing the diversity and abundance of nosZ II-type non-denitrifiers could help N2O reduction in wastewater treatment systems [47,48]. Therefore, the community structure and regulatory mechanisms of nosZ II non-denitrifiers in anammox-driven wastewater treatment systems associated with N2O emission mitigation deserved more attention in future studies.
It is noteworthy that most studies attempting to characterize nosZ gene diversity using DNA-based PCR approaches only focused on Clade I nosZ, while the abundance and diversity of Clade II nosZ are underestimated [45,46]. The high diversity of Clade II NosZ makes it impossible to design a universal primer set that can effectively amplify all nosZ genes in this clade [49]. The Clade II nosZ community has yet to be thoroughly investigated, and characterizing its contributions to N2O consumption will significantly enhance our understanding of N2O emission in wastewater treatment.

3. N2O Emission Rate and Influence Factors

The N2O emission rate (0.057–2.3% of the total nitrogen load) varies substantially among different anammox-driven reactors (Table 1). The N2O emission rates are even higher in some anammox-driven reactors than in conventional nitrification/denitrification nitrogen removal systems (0.1–0.58% of the total nitrogen load) [50,51]. The high N2O emission rate is a major obstacle to the sustainable application of anammox systems for wastewater treatment. Factors such as DO, NH4+, and NO2− concentrations, chemical oxygen demand (COD), and the presence of floc could significantly influence N2O emission by impacting the microbial communities and their activity in anammox-driven nitrogen removal systems.

3.1. Dissolved Oxygen

DO is a crucial operation parameter in anammox-processing systems. Maintaining a relatively low oxygen supply is suggested for PNA reactors to achieve partial nitrification by limiting oxygen availability to AOB [28]. As most NOB in wastewater treatment systems have low oxygen affinity, a low level of DO could inhibit nitrite oxidation by suppressing the activity of NOB [57,58]. However, a low level of DO could also stimulate N2O emission through heterotrophic denitrification and nitrifier denitrification in PNA systems [14,25,26]. A high oxygen supply not only promotes the nitrification process thus producing NO2− rather than NO3− and indirectly yielding N2O through hydroxylamine oxidation [13], but also suppresses the activity of anammox due to oxygen inhibition and NO2− competition with NOB [59]. Balancing all factors, it is recommended that the oxygen concentration in anammox-driven nitrogen removal systems be kept at a low level to achieve partial nitrification and reduce N2O emission.

3.2. NH4+ and NO2− Concentrations

The concentrations of NH4+ and NO2− could significantly affect the level of N2O emission during wastewater treatment [51]. NH4+ can indirectly affect N2O emission through hydroxylamine oxidation or directly promote NO2− production through nitrification [13]. A high NH4+ influx promotes NH2OH production and results in NH2OH accumulation, and part of NH2OH could leak out of the cell and enhance N2O emission during nitrification [52]. NO2− is known to increase N2O emission through three main N2O production processes during wastewater treatment, i.e., hydroxylamine oxidation, nitrifier denitrification, and heterotrophic denitrification [60]. The presence of NO2− not only offers a reactant for hybrid N2O formation from NH2OH via hydroxylamine oxidation but also delays the overall NH2OH abiotic decay, further stimulating the conversion of NH2OH to N2O [24]. Furthermore, NO2− could increase N2O emission by inhibiting the N2O consumption activities of nosZ-containing denitrifiers [14]. Therefore, the concentration of NH4+ and NO2− in anammox-driven nitrogen removal systems should be cautiously controlled to mitigate N2O emission.

3.3. Organics Availability

The positive effect of organic carbon on N2O mitigation has been reported in different reactors [17,59], with the addition of organics significantly reducing N2O emission (COD/N = 1) [52] and improving nitrogen removal efficiency (COD/N = 1.4) [61]. The presence of organic carbon provides energy to the growth of denitrifiers and boosts N2O consumption by easing the carbon limitation of N2O reduction to N2, which is the last step of denitrification [52]. The enhancement of anammox performance for wastewater treatment by the addition of a small amount of acetate has been reported [62,63], contributing to a reduction in metabolic energy cost for the entire community under a low C/N ratio [63].
It is noteworthy that N2O emission is enhanced by NO2− accumulation from partial nitrification under low organics availability conditions [64,65]. Electron competition between nosZ-containing and other denitrifiers could be stimulated by low influent organics under high NO2− conditions, such that N2O reduction by nosZ-containing denitrifiers could be inhibited [52,64,66,67,68,69]. High concentrations of organics could suppress anammox activity in anammox-driven systems [52,70], likely due to the competition between anammox bacteria and heterotrophic denitrifiers [52,70,71,72]. Additionally, denitrifiers in the presence of organic could increase N2O emission by affecting the number of flocs and filamentary structures around the anammox granules [52,73]. The variations in granule morphology could further affect N2O emissions due to DO fluctuation [52].

3.4. Flocs Formation

Flocs are present in all types of granular sludge reactors and suspended sludge reactors [74,75,76]. It was reported that flocs, which constitute only ~10% of the total biomass, contributed to 60% of the total N2O emission from a high-rate anammox granular sludge reactor [53]. The presence of small amounts of flocs has a non-negligible impact on nitrogen removal and N2O emission in anammox granule systems [77]. The abundance of nirS was shown to much greater than that of nor in both granules and flocs, which resulted in transient NO accumulation in the anammox reactor [53]. Flocs are associated with a high oxygen penetration depth, resulting in a relatively low abundance of anammox bacteria compared to AOB [42], while granules contain a large number of anammox bacteria at anoxic zoon, which could rapidly eliminate NO from other microorganisms [53]. The anammox bacteria are favored in relatively large granules [75,78,79]. The abundant NO-dependent anammox bacteria in granules could rapidly consume NO without the production of N2O (Figure 2), which suggests that anammox is a net NO consumption process associated with N2O emission mitigation in anammox granules [52,79,80]. Thus, this may explain why flocs are a significant source of N2O, due to NO accumulation (Figure 2).
In the nitrification/denitrification activated sludge system, it was reported that large flocs (>200 μm), in which heterotrophic denitrification that led to the generation of N2O was conducted by denitrifiers, showed higher N2O generation rates than small flocs (<100 μm) [42]. Denitrifiers usually coexist with anammox bacteria under anoxic or anaerobic conditions in anammox-driven wastewater treatment systems [81,82]. However, the contribution of denitrifiers in anammox granule has not been demonstrated. Nonetheless, anammox bacteria compete with denitrifiers for NO2− in anammox-processing systems [71], so denitrifiers might not be as important as they are in nitrification/denitrification systems.

4. N2O Mitigation Strategies

Based on previous analyses, N2O emission in anammox-driven WWTPs can be reduced by (i) lowering DO concentrations (controlling the nitrification process), (ii) adopting intermittent aeration (motivating N2O degradation), (iii) reducing NO2− concentration (controlling the nitrification and denitrification processes), and (ⅳ) increasing the C/N ratio (controlling the heterotrophic denitrification process). Additionally, regulating the microbial community composition, such as eliminating N2O producers and increasing N2O consumers, can be a potential N2O emission mitigation strategy.

4.1. Operational Parameters Control

As shown in Table 1, DO control is the most frequently implemented strategy to mitigate N2O emission in anammox-processing systems. This strategy has been implemented in a full-scale conventional nitrification/denitrification WWTP, resulting in a 35% reduction of N2O production via the hydroxylamine oxidation pathway [51]. Instead of continuous aeration, intermittent aeration could reduce N2O emission by allowing heterotrophic denitrifiers to consume N2O and/or N2O precursors (NO, NO2−) during anaerobic periods, and hence is the most widely adopted approach. It was also suggested that NO2− can be maintained at relatively low levels using a recycling pump to avert N2O accumulation [54], especially under limited organics conditions (low C/N rate) [64,65]. It was demonstrated that a high NO2− concentration could stimulate N2O emission from nitrifier denitrification and heterotrophic denitrification processes and likely inhibit N2O reduction carried out by nosZ-containing denitrifiers [13,55]. The positive effect of a high NO2− concentration on N2O emission during wastewater treatment could be mitigated by the addition of organic carbon, reducing NO2− influence and maintaining a neutral pH [52].

4.2. Microbial Community Structure

The microbial community structure of activated sludge in WWTPs determines the nitrogen removal ability and the N2O emission potency [53]. Ammonia oxidizers, which provide anammox bacteria with NO2− by partly oxidizing NH4+, are essential for nitrogen removal in anammox-processing systems. However, aerobic ammonia oxidation is usually accompanied by N2O production via hydroxylamine oxidation and nitrifier denitrification [83]. AOB are deemed a significant source of N2O emissions in anammox-driven systems [13,14,54], but the newly discovered comammox organisms have relatively low N2O emission potential under anoxic conditions due to the lack of NO reduction enzymes [23]. Comammox organisms could outperform AOB in low-DO reaction tanks [82,84,85], ndicating that comammox bacteria are better substitutes for AOB for anammox-driven reactors.
Considering that nitrifier-enriched flocs are a significant source of N2O emission, the regular elimination of flocs from anammox granule systems is an effective way to mitigate N2O emission [52]. It was reported that removing 15% of flocs (2.8% of total biomass) can result in a significant decrease in N2O emission under constant DO conditions [52]. It should be noted that floc removal at a constant airflow rate could lead to DO fluctuations because of the reduced total oxygen consumption from nitrifiers [49,76]. Although part of AOB biomass is removed with the floc, a high DO concentration can stimulate hydroxylamine oxidation and hence generate more N2O. Therefore, a lower airflow rate is required during floc removal to maintain constant DO levels and control N2O emission from hydroxylamine oxidation.
Incomplete denitrification is also a significant source of N2O emission from WWTPs. The abundance of nir genes can exceed that of nosZ by up to an order of magnitude in various environments [45]. Thus, bacterial community composition and the co-occurrence of nirS, nirK, and nor with nosZ are expected to have a significant influence on the genetic N2O emission potential from wastewater treatment systems. Additionally, selectively inoculating and increasing N2O-consuming nosZ II non-denitrifiers in anammox-driven WWTPs is a promising N2O mitigation option [44,47,86].
Besides, anammox bacteria can reduce N2O emission by effectively consuming the accumulated NO in activated sludge or granules [52,79,80]. Anammox bacteria biomass is more abundant in granules than in flocs in the anammox granule system [53] so that granules have generally lower N2O emission rates compared to flocs [79]. Consequently, anammox may be a potential microbial process in NO and N2O emission control during wastewater treatment [79,80]. Inoculation of mature sludge with highly active anammox granules is an effective way to rapidly enrich anammox pellets and achieve a stable anammox-driven nitrogen removal process in ammonium-rich conventional WWTPs [82,84], which will significantly reduce N2O emission from nitrogen removal.

5. Evaluation of N2O Mitigation Strategies

N2O emission prediction models are a useful tool for evaluating the proposed N2O mitigation strategies and their effects on nutrient removal performance in full-scale WWTPs. The models typically use elements including microbial N2O generation and reduction pathways, as well as influence factors to simulate the real N2O emission and appraise mitigation strategies (Figure 3).
Mathematical models have been successfully applied to evaluate N2O mitigation strategies by quantifying nitrogen removal in conventional full-scale WWTPs [37]. Among various published mathematical N2O models, the ASM2d-N2O model developed by Massara et al. [87], which is a kind of activated sludge model (ASM), has been widely used for assessing N2O emission from full-scale WWTPs [38,88,89]. Besides the classical mathematical models, novel machine learning methods, such as deep neural network (DNN) and long short-term memory (LSTM), have also been used for N2O emission prediction [90].
Mathematical models developed based on the biological metabolic mechanisms of N2O production and consumption can easily calibrate N2O-related reactions by applying specific reaction kinetics parameters [87,91,92]. However, this requires a deep understanding of the N2O emission mechanisms and of the specific liquid–gas transformation variables in different WWTPs. On the contrary, deep learning models mainly rely on operational datasets with correlative features of the WWTPs. Hybrid modeling concepts, integrating mathematical models and deep learning models, have been suggested for evaluating N2O mitigation strategies [90]. A hybrid model combining mechanistic (ASMs) with an LSTM-based deep learning model has been successfully and accurately used for modeling N2O emission in a full-scale WWTP, with relatively low data requirements [90]. Anammox-driven nitrogen removal technologies have been widely used for wastewater treatment, but to our best knowledge, the current models have not been used to evaluate N2O emission in full-scale anammox-driven WWTPs. To increase the sustainability of anammox in wastewater treatment, more efforts are needed to evaluate the effects of the abundance and activities of anammox organisms and the mitigation strategies on N2O production in anammox-driven WWTPs.

6. Conclusions and Implications

Biologically toxic N2O is considered the third most emitted GHG contributing to global warming, and its concentration in the atmosphere has been steadily increasing in recent years. N2O emission is still one of the downsides of anammox-driven wastewater treatment, which accounts for 0.057–2.3% of nitrogen loading in anammox-driven systems and 0.1–0.58% of nitrogen loading in traditional nitrogen removal systems. In anammox-driven wastewater treatment systems, N2O is produced through three pathways, i.e., hydroxylamine oxidation, nitrifier denitrification, and heterotrophic denitrification, and is reduced through the unique pathway of nosZ-dominated N2O degradation. Biological processes, operational conditions (e.g., NH4+, NO2−, DO, COD), and microbial communities can affect N2O emission.
Common N2O mitigation strategies for WWTPs include DO control, aeration control, NO2− limitation, C/N ratio control, and flocs removal regulation. Nonetheless, other potential strategies deserve further investigations, These include (i) increasing the biomass and activity of anammox bacteria, which are net NO consumers; (ii) the inoculation of N2O-reducing organisms, such as nosZ II non-denitrifiers with high N2O-affinity; (iii) establishing a symbiotic association of low-N2O-yield comammox and anammox.
The feasibility and efficiency of the proposed mitigation strategies need to be verified and optimized by prediction models, such as mathematical models and deep learning models, in practical application. The development of high-throughput sequencing techniques and data analysis methods can elucidate the structure of the microbial community in WWTPs at high-resolution and low cost and can potentially uncover in great detail N2O production and consumption mechanisms by the major microorganisms present in WWTPs. Therefore, more omics studies are needed to extend our understanding of the metabolic mechanisms of N2O emission in anammox-driven WWTPs, which will help us find out and formulate effective N2O emission mitigation strategies.

Author Contributions

Conceptualization, Z.L. and Y.Y.; writing—original draft preparation, Z.L.; writing—review and editing, Y.Y., Z.L. and K.M.; figure preparation, Z.L.; supervision, Y.Y. and K.M. All authors have read and agreed to the published version of the manuscript.

Funding

This study was funded by the Natural Science Foundation of China (grant no. 32100086), the Basic and Applied Basic Research Foundation of Guangdong Province (Grant no. 2020A1515111033, 2021A1515011195), and the Fundamental Research Funds for the Central Universities, Sun Yat-sen University (Grant no. 22qntd2701).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Eggleston, S.; Buendia, L.; Miwa, K. 2006 IPCC Guidelines for National Greenhouse Gas Inventories: Intergovernmental Panel on Climate Change; Institute for Global Environmental Strategies: Hayama, Japan, 2006. [Google Scholar]
  2. Zumft, W.G.; Kroneck, P.M.H. Respiratory Transformation of Nitrous Oxide (N2O) to Dinitrogen by Bacteria and Archaea. In Advances in Microbial Physiology; Elsevier: Amsterdam, The Netherlands, 2006; Volume 52, pp. 107–227. ISBN 978-0-12-027752-0. [Google Scholar]
  3. Pachauri, R.K.; Allen, M.R.; Barros, V.R.; Broome, J.; Cramer, W.; Christ, R.; Church, J.A.; Clarke, L.; Dahe, Q.; Dasgupta, P.; et al. Climate Change 2014: Synthesis Report. Contribution of Working Groups I, II and III to the Fifth Assessment Report of the Intergovernmental Panel on Climate Change; Pachauri, R.K., Meyer, L., Eds.; IPCC: Geneva, Switzerland, 2014; p. 151. ISBN 978-92-9169-143-2. [Google Scholar]
  4. Hockstad, L.; Cook, B. Inventory of US Greenhouse Gas Emissions and Sinks: 1990–2010; USEPA: Washington, DC, USA, 2012. [Google Scholar]
  5. Cao, Y.; van Loosdrecht, M.C.M.; Daigger, G.T. Mainstream Partial Nitritation–Anammox in Municipal Wastewater Treatment: Status, Bottlenecks, and Further Studies. Appl. Microbiol. Biotechnol. 2017, 101, 1365–1383. [Google Scholar] [CrossRef]
  6. Lackner, S.; Gilbert, E.M.; Vlaeminck, S.E.; Joss, A.; Horn, H.; van Loosdrecht, M.C.M. Full-Scale Partial Nitritation/Anammox Experiences—An Application Survey. Water Res. 2014, 55, 292–303. [Google Scholar] [CrossRef] [PubMed]
  7. Russ, L.; Kartal, B.; Op Den Camp, H.J.M.; Sollai, M.; Le Bruchec, J.; Caprais, J.-C.; Godfroy, A.; Sinninghe Damsté, J.S.; Jetten, M.S.M. Presence and Diversity of Anammox Bacteria in Cold Hydrocarbon-Rich Seeps and Hydrothermal Vent Sediments of the Guaymas Basin. Front. Microbiol. 2013, 4, 219. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Zekker, I.; Mandel, A.; Rikmann, E.; Jaagura, M.; Salmar, S.; Ghangrekar, M.M.; Tenno, T. Ameliorating Effect of Nitrate on Nitrite Inhibition for Denitrifying P-Accumulating Organisms. Sci. Total Environ. 2021, 797, 149133. [Google Scholar] [CrossRef] [PubMed]
  9. Muangthong-on, T. Evaluation of N2O Production from Anaerobic Ammonium Oxidation (Anammox) at Different Influent Ammonia to Nitrite Ratios. Energy Procedia 2011, 8, 7–14. [Google Scholar] [CrossRef] [Green Version]
  10. Zekker, I.; Artemchuk, O.; Rikmann, E.; Ohimai, K.; Dhar Bhowmick, G.; Madhao Ghangrekar, M.; Burlakovs, J.; Tenno, T. Start-Up of Anammox SBR from Non-Specific Inoculum and Process Acceleration Methods by Hydrazine. Water 2021, 13, 350. [Google Scholar] [CrossRef]
  11. Mulder, A.; Graaf, A.A.; Robertson, L.A.; Kuenen, J.G. Anaerobic Ammonium Oxidation Discovered in a Denitrifying Fluidized Bed Reactor. FEMS Microbiol. Ecol. 1995, 16, 177–184. [Google Scholar] [CrossRef]
  12. Connan, R.; Dabert, P.; Moya-Espinosa, M.; Bridoux, G.; Béline, F.; Magrí, A. Coupling of Partial Nitritation and Anammox in Two- and One-Stage Systems: Process Operation, N2O Emission and Microbial Community. J. Clean. Prod. 2018, 203, 559–573. [Google Scholar] [CrossRef]
  13. Ma, C.; Jensen, M.M.; Smets, B.F.; Thamdrup, B. Pathways and Controls of N2O Production in Nitritation–Anammox Biomass. Environ. Sci. Technol. 2017, 51, 8981–8991. [Google Scholar] [CrossRef]
  14. Kampschreur, M.J.; van der Star, W.R.L.; Wielders, H.A.; Mulder, J.W.; Jetten, M.S.M.; van Loosdrecht, M.C.M. Dynamics of Nitric Oxide and Nitrous Oxide Emission during Full-Scale Reject Water Treatment. Water Res. 2008, 42, 812–826. [Google Scholar] [CrossRef]
  15. Chen, R.; Ji, J.; Chen, Y.; Takemura, Y.; Liu, Y.; Kubota, K.; Ma, H.; Li, Y.-Y. Successful Operation Performance and Syntrophic Micro-Granule in Partial Nitritation and Anammox Reactor Treating Low-Strength Ammonia Wastewater. Water Res. 2019, 155, 288–299. [Google Scholar] [CrossRef] [PubMed]
  16. Hallin, S.; Philippot, L.; Löffler, F.E.; Sanford, R.A.; Jones, C.M. Genomics and Ecology of Novel N2O-Reducing Microorganisms. Trends Microbiol. 2018, 26, 43–55. [Google Scholar] [CrossRef] [PubMed]
  17. Chen, X.; Ni, B.; Sin, G. Nitrous Oxide Production in Autotrophic Nitrogen Removal Granular Sludge: A Modeling Study. Biotechnol. Bioeng. 2019, 116, 1280–1291. [Google Scholar] [CrossRef] [Green Version]
  18. Wunderlin, P.; Mohn, J.; Joss, A.; Emmenegger, L.; Siegrist, H. Mechanisms of N2O Production in Biological Wastewater Treatment under Nitrifying and Denitrifying Conditions. Water Res. 2012, 46, 1027–1037. [Google Scholar] [CrossRef] [PubMed]
  19. Daims, H.; Lebedeva, E.V.; Pjevac, P.; Han, P.; Herbold, C.; Albertsen, M.; Jehmlich, N.; Palatinszky, M.; Vierheilig, J.; Bulaev, A.; et al. Complete Nitrification by Nitrospira Bacteria. Nature 2015, 528, 504–509. [Google Scholar] [CrossRef] [PubMed]
  20. van Kessel, M.A.H.J.; Speth, D.R.; Albertsen, M.; Nielsen, P.H.; Op den Camp, H.J.M.; Kartal, B.; Jetten, M.S.M.; Lücker, S. Complete Nitrification by a Single Microorganism. Nature 2015, 528, 555–559. [Google Scholar] [CrossRef] [Green Version]
  21. Caranto, J.D.; Lancaster, K.M. Nitric Oxide Is an Obligate Bacterial Nitrification Intermediate Produced by Hydroxylamine Oxidoreductase. Proc. Natl. Acad. Sci. USA 2017, 114, 8217–8222. [Google Scholar] [CrossRef] [Green Version]
  22. Hink, L.; Gubry-Rangin, C.; Nicol, G.W.; Prosser, J.I. The Consequences of Niche and Physiological Differentiation of Archaeal and Bacterial Ammonia Oxidisers for Nitrous Oxide Emissions. ISME J. 2018, 12, 1084–1093. [Google Scholar] [CrossRef]
  23. Kits, K.D.; Jung, M.-Y.; Vierheilig, J.; Pjevac, P.; Sedlacek, C.J.; Liu, S.; Herbold, C.; Stein, L.Y.; Richter, A.; Wissel, H.; et al. Low Yield and Abiotic Origin of N2O Formed by the Complete Nitrifier Nitrospira Inopinata. Nat. Commun. 2019, 10, 1836. [Google Scholar] [CrossRef]
  24. Liu, S.; Han, P.; Hink, L.; Prosser, J.I.; Wagner, M.; Brüggemann, N. Abiotic Conversion of Extracellular NH2OH Contributes to N2O Emission during Ammonia Oxidation. Environ. Sci. Technol. 2017, 51, 13122–13132. [Google Scholar] [CrossRef] [Green Version]
  25. Caranto, J.D.; Vilbert, A.C.; Lancaster, K.M. Nitrosomonas Europaea Cytochrome P460 Is a Direct Link between Nitrification and Nitrous Oxide Emission. Proc. Natl. Acad. Sci. USA 2016, 113, 14704–14709. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Soler-Jofra, A.; Pérez, J.; van Loosdrecht, M.C.M. Hydroxylamine and the Nitrogen Cycle: A Review. Water Res. 2021, 190, 116723. [Google Scholar] [CrossRef] [PubMed]
  27. Kuypers, M.M.M.; Marchant, H.K.; Kartal, B. The Microbial Nitrogen-Cycling Network. Nat. Rev. Microbiol. 2018, 16, 263–276. [Google Scholar] [CrossRef] [PubMed]
  28. Chen, G.; Zhang, Y.; Wang, X.; Chen, F.; Lin, L.; Ruan, Q.; Wang, Y.; Wang, F.; Cao, W.; Chiang, P. Optimizing of Operation Strategies of the Single-Stage Partial Nitrification-Anammox Process. J. Clean. Prod. 2020, 256, 120667. [Google Scholar] [CrossRef]
  29. Bowman, L.A.H.; McLean, S.; Poole, R.K.; Fukuto, J.M. The Diversity of Microbial Responses to Nitric Oxide and Agents of Nitrosative Stress. In Advances in Microbial Physiology; Elsevier: Amsterdam, The Netherlands, 2011; Volume 59, pp. 135–219. ISBN 978-0-12-387661-4. [Google Scholar]
  30. Kozlowski, J.A.; Kits, K.D.; Stein, L.Y. Comparison of Nitrogen Oxide Metabolism among Diverse Ammonia-Oxidizing Bacteria. Front. Microbiol. 2016, 7, 1090. [Google Scholar] [CrossRef] [Green Version]
  31. Hink, L.; Nicol, G.W.; Prosser, J.I. Archaea Produce Lower Yields of N2O than Bacteria during Aerobic Ammonia Oxidation in Soil: N2O Production by Soil Ammonia Oxidisers. Environ. Microbiol. 2017, 19, 4829–4837. [Google Scholar] [CrossRef] [Green Version]
  32. Stieglmeier, M.; Mooshammer, M.; Kitzler, B.; Wanek, W.; Zechmeister-Boltenstern, S.; Richter, A.; Schleper, C. Aerobic Nitrous Oxide Production through N-Nitrosating Hybrid Formation in Ammonia-Oxidizing Archaea. ISME J. 2014, 8, 1135–1146. [Google Scholar] [CrossRef] [Green Version]
  33. Jung, M.-Y.; Gwak, J.-H.; Rohe, L.; Giesemann, A.; Kim, J.-G.; Well, R.; Madsen, E.L.; Herbold, C.W.; Wagner, M.; Rhee, S.-K. Indications for Enzymatic Denitrification to N2O at Low PH in an Ammonia-Oxidizing Archaeon. ISME J. 2019, 13, 2633–2638. [Google Scholar] [CrossRef] [Green Version]
  34. Shoun, H.; Fushinobu, S.; Jiang, L.; Kim, S.-W.; Wakagi, T. Fungal Denitrification and Nitric Oxide Reductase Cytochrome P450nor. Philos. Trans. R. Soc. B 2012, 367, 1186–1194. [Google Scholar] [CrossRef] [Green Version]
  35. Sutka, R.L.; Adams, G.C.; Ostrom, N.E.; Ostrom, P.H. Isotopologue Fractionation during N2O Production by Fungal Denitrification. Rapid Commun. Mass Spectrom. 2008, 22, 3989–3996. [Google Scholar] [CrossRef]
  36. Daiber, A.; Shoun, H.; Ullrich, V. Nitric Oxide Reductase (P450nor) from Fusarium Oxysporum. In The Smallest Biomolecules: Diatomics and Their Interactions with Heme Proteins; Elsevier: Amsterdam, The Netherlands, 2008; pp. 354–377. ISBN 978-0-444-52839-1. [Google Scholar]
  37. Stein, L.Y.; Klotz, M.G. Nitrifying and Denitrifying Pathways of Methanotrophic Bacteria. Biochem. Soc. Trans. 2011, 39, 1826–1831. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Li, Z.; Wan, J.; Ma, Y.; Wang, Y.; Huang, Y.; Fan, H. A Comprehensive Model of N2O Emissions in an Anaerobic/Oxygen-Limited Aerobic Process under Dynamic Conditions. Bioprocess. Biosyst. Eng. 2020, 43, 1093–1104. [Google Scholar] [CrossRef] [PubMed]
  39. Yan, X.; Zheng, S.; Qiu, D.; Yang, J.; Han, Y.; Huo, Z.; Su, X.; Sun, J. Characteristics of N2O Generation within the Internal Micro-Environment of Activated Sludge Flocs under Different Dissolved Oxygen Concentrations. Bioresour. Technol. 2019, 291, 121867. [Google Scholar] [CrossRef] [PubMed]
  40. Zumft, W.G. Cell Biology and Molecular Basis of Denitrification. Microbiol. Mol. Biol. Rev. 1997, 61, 533–616. [Google Scholar] [PubMed]
  41. Haleem, D.; von Wintzingerode, F.; Moter, A.; Moawad, H.; Gobel, U. Phylogenetic Analysis of Rhizosphere-Associated Beta-Subclass Proteobacterial Ammonia Oxidizers in a Municipal Wastewater Treatment Plant Based on Rhizoremediation Technology. Lett. Appl. Microbiol. 2000, 31, 34–38. [Google Scholar] [CrossRef]
  42. Jones, C.M.; Hallin, S. Ecological and Evolutionary Factors Underlying Global and Local Assembly of Denitrifier Communities. ISME J. 2010, 4, 633–641. [Google Scholar] [CrossRef]
  43. Hallin, S.; Throback, I.; Dicksved, J.; Pell, M. Metabolic Profiles and Genetic Diversity of Denitrifying Communities in Activated Sludge after Addition of Methanol or Ethanol. Appl. Environ. Microbiol. 2006, 72, 5445–5452. [Google Scholar] [CrossRef] [Green Version]
  44. Graf, D.R.H.; Jones, C.M.; Hallin, S. Intergenomic Comparisons Highlight Modularity of the Denitrification Pathway and Underpin the Importance of Community Structure for N2O Emissions. PLoS ONE 2014, 9, e114118. [Google Scholar] [CrossRef] [Green Version]
  45. Jones, C.M.; Graf, D.R.; Bru, D.; Philippot, L.; Hallin, S. The Unaccounted yet Abundant Nitrous Oxide-Reducing Microbial Community: A Potential Nitrous Oxide Sink. ISME J. 2013, 7, 417–426. [Google Scholar] [CrossRef] [Green Version]
  46. Sanford, R.A.; Wagner, D.D.; Wu, Q.; Chee-Sanford, J.C.; Thomas, S.H.; Cruz-García, C.; Rodríguez, G.; Massol-Deyá, A.; Krishnani, K.K.; Ritalahti, K.M.; et al. Unexpected Nondenitrifier Nitrous Oxide Reductase Gene Diversity and Abundance in Soils. Proc. Natl. Acad. Sci. USA 2012, 109, 19709–19714. [Google Scholar] [CrossRef] [Green Version]
  47. Suenaga, T.; Ota, T.; Oba, K.; Usui, K.; Sako, T.; Hori, T.; Riya, S.; Hosomi, M.; Chandran, K.; Lackner, S.; et al. Combination of 15N Tracer and Microbial Analyses Discloses N2O Sink Potential of the Anammox Community. Environ. Sci. Technol. 2021, 55, 9231–9242. [Google Scholar] [CrossRef] [PubMed]
  48. Zhao, S.; Zhou, J.; Yuan, D.; Wang, W.; Zhou, L.; Pi, Y.; Zhu, G. NirS-Type N2O-Producers and NosZ II-Type N2O-Reducers Determine the N2O Emission Potential in Farmland Rhizosphere Soils. J. Soils Sediments 2020, 20, 461–471. [Google Scholar] [CrossRef]
  49. Chee-Sanford, J.C.; Connor, L.; Krichels, A.; Yang, W.H.; Sanford, R.A. Hierarchical Detection of Diverse Clade II (Atypical) NosZ Genes Using New Primer Sets for Classical- and Multiplex PCR Array Applications. J. Microbiol. Methods 2020, 172, 105908. [Google Scholar] [CrossRef] [PubMed]
  50. Joss, A.; Salzgeber, D.; Eugster, J.; König, R.; Rottermann, K.; Burger, S.; Fabijan, P.; Leumann, S.; Mohn, J.; Siegrist, H. Full-Scale Nitrogen Removal from Digester Liquid with Partial Nitritation and Anammox in One SBR. Environ. Sci. Technol. 2009, 43, 5301–5306. [Google Scholar] [CrossRef] [PubMed]
  51. Duan, H.; van den Akker, B.; Thwaites, B.J.; Peng, L.; Herman, C.; Pan, Y.; Ni, B.-J.; Watt, S.; Yuan, Z.; Ye, L. Mitigating Nitrous Oxide Emissions at a Full-Scale Wastewater Treatment Plant. Water Res. 2020, 185, 116196. [Google Scholar] [CrossRef]
  52. Wan, X.; Laureni, M.; Jia, M.; Volcke, E.I.P. Impact of Organics, Aeration and Flocs on N2O Emissions during Granular-Based Partial Nitritation-Anammox. Sci. Total Environ. 2021, 797, 149092. [Google Scholar] [CrossRef]
  53. Zhuang, J.; Zhou, Y.; Liu, Y.; Li, W. Flocs Are the Main Source of Nitrous Oxide in a High-Rate Anammox Granular Sludge Reactor: Insights from Metagenomics and Fed-Batch Experiments. Water Res. 2020, 186, 116321. [Google Scholar] [CrossRef]
  54. Jin, Y.; Wang, D.; Zhang, W. Effects of Substrates on N2O Emissions in an Anaerobic Ammonium Oxidation (Anammox) Reactor. SpringerPlus 2016, 5, 741. [Google Scholar] [CrossRef] [Green Version]
  55. Christensson, M.; Ekström, S.; Chan, A.A.; Le Vaillant, E.; Lemaire, R. Experience from Start-Ups of the First ANITA Mox Plants. Water Sci. Technol. 2013, 67, 2677–2684. [Google Scholar] [CrossRef]
  56. Yang, J.; Trela, J.; Plaza, E. Nitrous Oxide Emissions from One-Step Partial Nitritation/Anammox Processes. Water Sci. Technol. 2016, 74, 2870–2878. [Google Scholar] [CrossRef]
  57. Blackburne, R.; Yuan, Z.; Keller, J. Partial Nitrification to Nitrite Using Low Dissolved Oxygen Concentration as the Main Selection Factor. Biodegradation 2008, 19, 303–312. [Google Scholar] [CrossRef] [PubMed]
  58. Wyffels, S.; Van Hulle, S.W.H.; Boeckx, P.; Volcke, E.I.P.; Cleemput, O.V.; Vanrolleghem, P.A.; Verstraete, W. Modeling and Simulation of Oxygen-Limited Partial Nitritation in a Membrane-Assisted Bioreactor (MBR). Biotechnol. Bioeng. 2004, 86, 531–542. [Google Scholar] [CrossRef] [PubMed]
  59. Wan, X.; Baeten, J.E.; Volcke, E.I.P. Effect of Operating Conditions on N2O Emissions from One-Stage Partial Nitritation-Anammox Reactors. Biochem. Eng. J. 2019, 143, 24–33. [Google Scholar] [CrossRef]
  60. Daelman, M.R.J.; van Voorthuizen, E.M.; van Dongen, U.G.J.M.; Volcke, E.I.P.; van Loosdrecht, M.C.M. Seasonal and Diurnal Variability of N2O Emissions from a Full-Scale Municipal Wastewater Treatment Plant. Sci. Total Environ. 2015, 536, 1–11. [Google Scholar] [CrossRef] [PubMed]
  61. Jenni, S.; Vlaeminck, S.E.; Morgenroth, E.; Udert, K.M. Successful Application of Nitritation/Anammox to Wastewater with Elevated Organic Carbon to Ammonia Ratios. Water Res. 2014, 49, 316–326. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  62. Tang, C.-J.; Zheng, P.; Ding, S.; Lu, H.-F. Enhanced Nitrogen Removal from Ammonium-Rich Wastewater Containing High Organic Contents by Coupling with Novel High-Rate ANAMMOX Granules Addition. Chem. Eng. J. 2014, 240, 454–461. [Google Scholar] [CrossRef]
  63. Feng, Y. Discrepant Gene Functional Potential and Cross-Feedings of Anammox Bacteria Ca. Jettenia Caeni and Ca. Brocadia Sinica in Response to Acetate. Water Res. 2019, 11, 114974. [Google Scholar] [CrossRef]
  64. Hanaki, K.; Hong, Z.; Matsuo, T. Production of Nitrous Oxide Gas during Denitrification of Wastewater. Water Sci. Technol. 1992, 26, 1027–1036. [Google Scholar] [CrossRef]
  65. Zhou, Y.; Pijuan, M.; Zeng, R.J.; Yuan, Z. Free Nitrous Acid Inhibition on Nitrous Oxide Reduction by a Denitrifying-Enhanced Biological Phosphorus Removal Sludge. Environ. Sci. Technol. 2008, 42, 8260–8265. [Google Scholar] [CrossRef]
  66. Pan, Y.; Ni, B.-J.; Yuan, Z. Modeling Electron Competition among Nitrogen Oxides Reduction and N2O Accumulation in Denitrification. Environ. Sci. Technol. 2013, 47, 11083–11091. [Google Scholar] [CrossRef]
  67. Chung, Y.-C.; Chung, M.-S. BNP Test to Evaluate the Influence of C/N Ratio on N2O Production in Biological Denitrification. Water Sci. Technol. 2000, 42, 23–27. [Google Scholar] [CrossRef]
  68. Itokawa, H.; Hanaki, K.; Matsuo, T. Nitrous Oxide Production in High-Loading Biological Nitrogen Removal Process under Low COD/N Ratio Condition. Water Res. 2001, 35, 657–664. [Google Scholar] [CrossRef]
  69. Schalk-Otte, S. Nitrous Oxide (N2O) Production by Alcaligenes Faecalis during Feast and Famine Regimes. Water Res. 2000, 34, 2080–2088. [Google Scholar] [CrossRef]
  70. Chen, C.; Sun, F.; Zhang, H.; Wang, J.; Shen, Y.; Liang, X. Evaluation of COD Effect on Anammox Process and Microbial Communities in the Anaerobic Baffled Reactor (ABR). Bioresour. Technol. 2016, 216, 571–578. [Google Scholar] [CrossRef]
  71. Molinuevo, B.; Garcia, M.; Karakashev, D.; Angelidaki, I. Anammox for Ammonia Removal from Pig Manure Effluents: Effect of Organic Matter Content on Process Performance. Bioresour. Technol. 2009, 100, 2171–2175. [Google Scholar] [CrossRef]
  72. Ahn, Y.-H.; Hwang, I.-S.; Min, K.-S. ANAMMOX and Partial Denitritation in Anaerobic Nitrogen Removal from Piggery Waste. Water Sci. Technol. 2004, 49, 145–153. [Google Scholar] [CrossRef]
  73. Pijuan, M.; Ribera-Guardia, A.; Balcázar, J.L.; Micó, M.M.; de la Torre, T. Effect of COD on Mainstream Anammox: Evaluation of Process Performance, Granule Morphology and Nitrous Oxide Production. Sci. Total Environ. 2020, 712, 136372. [Google Scholar] [CrossRef]
  74. Innerebner, G.; Insam, H.; Franke-Whittle, I.H.; Wett, B. Identification of Anammox Bacteria in a Full-Scale Deammonification Plant Making Use of Anaerobic Ammonia Oxidation. Syst. Appl. Microbiol. 2007, 30, 408–412. [Google Scholar] [CrossRef]
  75. Vlaeminck, S.E.; Terada, A.; Smets, B.F.; De Clippeleir, H.; Schaubroeck, T.; Bolca, S.; Demeestere, L.; Mast, J.; Boon, N.; Carballa, M.; et al. Aggregate Size and Architecture Determine Microbial Activity Balance for One-Stage Partial Nitritation and Anammox. Appl. Environ. Microbiol. 2010, 76, 900–909. [Google Scholar] [CrossRef] [Green Version]
  76. Winkler, M.K.H.; Yang, J.; Kleerebezem, R.; Plaza, E.; Trela, J.; Hultman, B.; van Loosdrecht, M.C.M. Nitrate Reduction by Organotrophic Anammox Bacteria in a Nitritation/Anammox Granular Sludge and a Moving Bed Biofilm Reactor. Bioresour. Technol. 2012, 114, 217–223. [Google Scholar] [CrossRef]
  77. Hubaux, N.; Wells, G.; Morgenroth, E. Impact of Coexistence of Flocs and Biofilm on Performance of Combined Nitritation-Anammox Granular Sludge Reactors. Water Res. 2015, 68, 127–139. [Google Scholar] [CrossRef] [PubMed]
  78. Volcke, E.I.P.; Picioreanu, C.; De Baets, B.; van Loosdrecht, M.C.M. The Granule Size Distribution in an Anammox-Based Granular Sludge Reactor Affects the Conversion-Implications for Modeling. Biotechnol. Bioeng. 2012, 109, 1629–1636. [Google Scholar] [CrossRef] [PubMed]
  79. Hu, Z.; Wessels, H.J.C.T.; van Alen, T.; Jetten, M.S.M.; Kartal, B. Nitric Oxide-Dependent Anaerobic Ammonium Oxidation. Nat. Commun. 2019, 10, 1244. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  80. Prather, M.J. Time Scales in Atmospheric Chemistry: Coupled Perturbations to N2O, NOy, and O3. Science 1998, 279, 1339–1341. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  81. Yang, Y.; Azari, M.; Herbold, C.W.; Li, M.; Chen, H.; Ding, X.; Denecke, M.; Gu, J.-D. Activities and Metabolic Versatility of Distinct Anammox Bacteria in a Full-Scale Wastewater Treatment System. Water Res. 2021, 206, 117763. [Google Scholar] [CrossRef]
  82. Yang, Y.; Pan, J.; Zhou, Z.; Wu, J.; Liu, Y.; Lin, J.-G.; Hong, Y.; Li, X.; Li, M.; Gu, J.-D. Complex Microbial Nitrogen-Cycling Networks in Three Distinct Anammox-Inoculated Wastewater Treatment Systems. Water Res. 2020, 168, 115142. [Google Scholar] [CrossRef]
  83. Wan, X.; Volcke, E.I.P. Dynamic Modelling of N2O Emissions from a Full-scale Granular Sludge Partial Nitritation-anammox Reactor. Biotechnol. Bioeng. 2022, 119, 1426–1438. [Google Scholar] [CrossRef]
  84. Yang, Y.; Daims, H.; Liu, Y.; Herbold, C.W.; Pjevac, P.; Lin, J.-G.; Li, M.; Gu, J.-D. Activity and Metabolic Versatility of Complete Ammonia Oxidizers in Full-Scale Wastewater Treatment Systems. mBio 2020, 11, e03175-19. [Google Scholar] [CrossRef] [Green Version]
  85. Roots, P.; Wang, Y.; Rosenthal, A.F.; Griffin, J.S.; Sabba, F.; Petrovich, M.; Yang, F.; Kozak, J.A.; Zhang, H.; Wells, G.F. Comammox Nitrospira Are the Dominant Ammonia Oxidizers in a Mainstream Low Dissolved Oxygen Nitrification Reactor. Water Res. 2019, 157, 396–405. [Google Scholar] [CrossRef]
  86. Itakura, M.; Uchida, Y.; Akiyama, H.; Hoshino, Y.T.; Shimomura, Y.; Morimoto, S.; Tago, K.; Wang, Y.; Hayakawa, C.; Uetake, Y.; et al. Mitigation of Nitrous Oxide Emissions from Soils by Bradyrhizobium Japonicum Inoculation. Nat. Clim. Change 2013, 3, 208–212. [Google Scholar] [CrossRef]
  87. Massara, T.; Solis, B.; Guisasola, A.; Katsou, E.; Baeza, J. Development of an ASM2d-N2O Model to Describe Nitrous Oxide Emissions in Municipal WWTPs under Dynamic Conditions. Chem. Eng. J. 2018, 335, 185–196. [Google Scholar] [CrossRef] [Green Version]
  88. Solís, B.; Guisasola, A.; Pijuan, M.; Corominas, L.; Baeza, J.A. Systematic Calibration of N2O Emissions from a Full-Scale WWTP Including a Tracer Test and a Global Sensitivity Approach. Chem. Eng. J. 2022, 435, 134733. [Google Scholar] [CrossRef]
  89. Li, Z.; Yang, X.; Chen, H.; Du, M.; Ok, Y.S. Modeling Nitrous Oxide Emissions in Membrane Bioreactors: Advancements, Challenges and Perspectives. Sci. Total Environ. 2022, 806, 151394. [Google Scholar] [CrossRef] [PubMed]
  90. Li, K.; Duan, H.; Liu, L.; Qiu, R.; van den Akker, B.; Ni, B.-J.; Chen, T.; Yin, H.; Yuan, Z.; Ye, L. An Integrated First Principal and Deep Learning Approach for Modeling Nitrous Oxide Emissions from Wastewater Treatment Plants. Environ. Sci. Technol. 2022, 56, 2816–2826. [Google Scholar] [CrossRef]
  91. Blomberg, K.; Kosse, P.; Mikola, A.; Kuokkanen, A.; Fred, T.; Heinonen, M.; Mulas, M.; Lubken, M.; Wichern, M.; Vahala, R. Development of an Extended ASM3 Model for Predicting the Nitrous Oxide Emissions in a Full-Scale Wastewater Treatment Plant. Environ. Sci. Technol 2018, 52, 5803–5811. [Google Scholar] [CrossRef]
  92. Kaelin, D.; Manser, R.; Rieger, L.; Eugster, J.; Rottermann, K.; Siegrist, H. Extension of ASM3 for Two-Step Nitrification and Denitrification and Its Calibration and Validation with Batch Tests and Pilot Scale Data. Water Res. 2009, 43, 1680–1692. [Google Scholar] [CrossRef]
Life 12 00971 g001 550
Figure 1. Schematic diagram illustrating the microbial pathways leading to N2O production (green, blue and purple boxes) and consumption (white box) in the anammox-driven reactor. The blue and red colors in the background represent wastewater and sludge, respectively, the red circle denotes the anammox reaction, and the orange circle denotes the nitrification and denitrification reactions driven by nitrifiers and denitrifiers.
Figure 1. Schematic diagram illustrating the microbial pathways leading to N2O production (green, blue and purple boxes) and consumption (white box) in the anammox-driven reactor. The blue and red colors in the background represent wastewater and sludge, respectively, the red circle denotes the anammox reaction, and the orange circle denotes the nitrification and denitrification reactions driven by nitrifiers and denitrifiers.
Life 12 00971 g001
Life 12 00971 g002 550

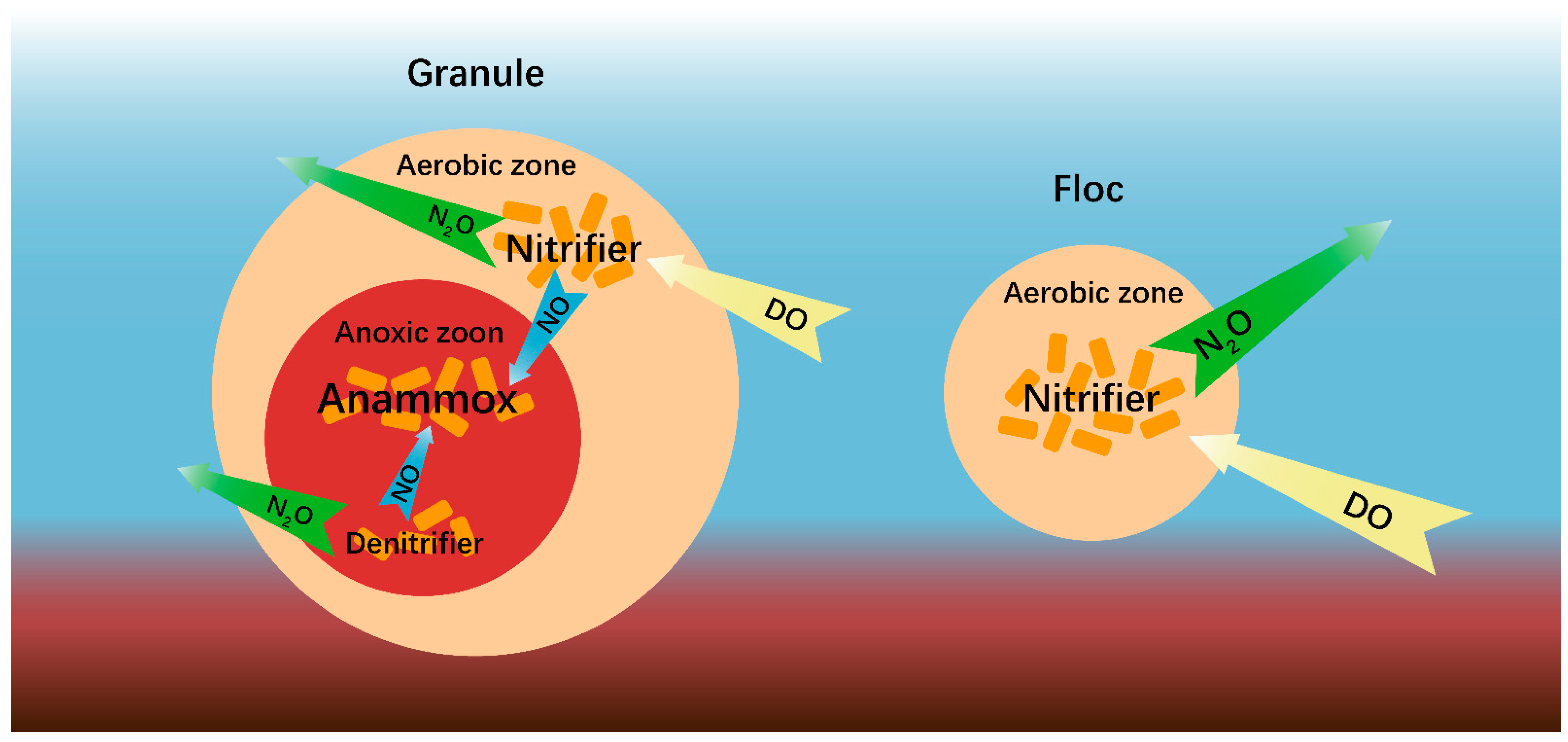

Figure 2. Flocs are a significant source of N2O emission in the anammox granule system. The blue and red colors in the background represent water and sludge, respectively. The yellow, blue, and green arrows indicate DO, NO, and N2O, while the red circle denotes the anoxic zoon containing anammox bacteria and denitrifiers, and the orange circle denotes the aerobic zoon containing nitrifiers. The number of deep orange square indicates the amount of nitrifiers, denitrifiers, and anammox bacteria in granule and floc.
Figure 2. Flocs are a significant source of N2O emission in the anammox granule system. The blue and red colors in the background represent water and sludge, respectively. The yellow, blue, and green arrows indicate DO, NO, and N2O, while the red circle denotes the anoxic zoon containing anammox bacteria and denitrifiers, and the orange circle denotes the aerobic zoon containing nitrifiers. The number of deep orange square indicates the amount of nitrifiers, denitrifiers, and anammox bacteria in granule and floc.
Life 12 00971 g002
Life 12 00971 g003 550
Figure 3. Schematic of strategies evaluation, mitigation strategies, influence factors, N2O biological processes, as well as N2O emission in anammox-driven WWTPs.
Figure 3. Schematic of strategies evaluation, mitigation strategies, influence factors, N2O biological processes, as well as N2O emission in anammox-driven WWTPs.
Life 12 00971 g003
Table
Table 1. Measured N2O emission flux and DO levels in different types of reactors. PNA, partial-nitrification/anammox, AMX, amammox.
Table 1. Measured N2O emission flux and DO levels in different types of reactors. PNA, partial-nitrification/anammox, AMX, amammox.
ReactorStrategiesDO (mg/L)Nitrogen
Removal
Efficiency (%)		N2O Emission
Rate (%) 1		Emission FactorsReference
Lab-scaleone-stage PNA<1-1 2DO, NH4+ and NO2−[13]
one-stage PNA0.2−2.370.87 ± 1.360.004−0.11Aeration control[28]
one-stage PNA273.8 ± 4.11.0−4.1 3Influent organics, aeration control, flocs and NO2−[52]
AMX≈086.7 ± 2.50.284O2 and aggregate size[47]
AMX<187.010.57 ± 0.07 3Flocs[53]
AMX<0.5>800.6−1.0 2NH4+[54]
Full-scaletwo-stage PNA2.5>901.7 (nitrification)-0.6 (anammox)DO and NO2−[14]
one-stage PNA<1>900.4DO[50]
one-stage PNA0.5−1.5>900.2−0.9 2DO[55]
one-stage PNA0.5−1.5810.35−1.33Aeration control and the nitrogen loads[56]
1 N2O-N of the total nitrogen load. 2 N2O/N2 yield of removed nitrogen. 3 N2O-N of the total nitrogen removal.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Lin, Z.; Ma, K.; Yang, Y. Nitrous Oxide Emission from Full-Scale Anammox-Driven Wastewater Treatment Systems. Life 2022, 12, 971. https://doi.org/10.3390/life12070971

AMA Style

Lin Z, Ma K, Yang Y. Nitrous Oxide Emission from Full-Scale Anammox-Driven Wastewater Treatment Systems. Life. 2022; 12(7):971. https://doi.org/10.3390/life12070971

Chicago/Turabian Style

Lin, Zhiman, Kayan Ma, and Yuchun Yang. 2022. "Nitrous Oxide Emission from Full-Scale Anammox-Driven Wastewater Treatment Systems" Life 12, no. 7: 971. https://doi.org/10.3390/life12070971

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
