Temporal Hierarchy and Context-Dependence of Quorum Sensing Signal in Pseudomonas aeruginosa

by
Stoyko Katzarov
and
Volker Behrends
*
The Centre for Integrated Research in Life and Health Sciences, University of Roehampton, London SW15 4JD, UK
*
Author to whom correspondence should be addressed.
Life 2022, 12(12), 1953; https://doi.org/10.3390/life12121953
Submission received: 17 October 2022 / Revised: 15 November 2022 / Accepted: 18 November 2022 / Published: 22 November 2022
(This article belongs to the Section Microbiology)
Browse Figures
Versions Notes

Abstract

:
The Gram-negative bacterium Pseudomonas aeruginosa can cause infections in a broad range of hosts including plants, invertebrates and mammals and is an important source of nosocomial infections in humans. We were interested in how differences in the bacteria’s nutritional environment impact bacterial communication and virulence factor production. We grew P. aeruginosa in 96 different conditions in BIOLOG Gen III plates and assayed quorum sensing (QS) signaling over the course of growth. We also quantified pyocyanin and biofilm production and the impact of sub-inhibitory exposure to tobramycin. We found that while 3-oxo-C12 homoserine lactone remained the dominant QS signal to be produced, timing of PQS production differed between media types. Further, whether cells grew predominantly as biofilms or planktonic cells was highly context dependent. Our data suggest that understanding the impact of the nutritional environment on the bacterium can lead to valuable insights into the link between bacterial physiology and pathology.

1. Introduction

Pseudomonas aeruginosa is an important opportunistic pathogen that has been shown to cause infections in plants, invertebrates, and vertebrates [1]. In humans, the pathogen can cause eye, ear or toe infections in healthy, immunocompetent people. Importantly, in healthcare settings, P. aeruginosa is responsible for burn wound and catheter-associated urinary tract infections as well as ventilator- and general healthcare-associated pneumonia [2,3]. Further, P. aeruginosa has been associated with long, chronic infections of the airways of people with cystic fibrosis (CF) [4,5,6,7].
Part of its pathogenic success is due to P. aeruginosa’s metabolic flexibility [6,8], its high resistance to antibiotics [9] and its large array of virulence factors [6,10,11,12]. These factors include different types of protein secretion systems and secreted proteins [13]. Depending on the type of secretion system, proteins are either secreted into the cell’s environment or directly injected into the target cell. The complement of effector proteins, more specifically whether the cell carries ExoU (a phospholipase) or ExoS (a bi-functional toxin with GTPase-activating protein and adenosine diphosphate ribosyl transferase activity), determines whether strains of P. aeruginosa are invasive or cytotoxic [14,15,16]. Other virulence factors include siderophores (pyoverdine, pyochelin [17]), redox-active phenazines and their derivative pyocyanin [18] as well as the toxin cyanide [19].
The regulation of several of these virulence factors occurs via quorum sensing (QS) [20,21], particularly if the cells are in a planktonic state [6,12,21]. P. aeruginosa has three interconnected QS systems (the lasR, rhlR and the pqs systems), but several environmental and physiological cues are integrated into these systems [22]. The signaling molecules of the las and rhl systems are acyl-homoserine lactones (HSLs), namely 3-oxo-dodecanoyl-HSL (3oC12-HSL) and butyryl-HSL (C4-HSL), respectively. The pqs (or Pseudomonas quinolone signal) molecule is 2-heptyl-3-hydroxy-4-quinolone, but other, structurally related alkyl quinolone (AQ) compounds with specific biological functions exist [23,24]. QS controls up to 10% of gene expression of P. aeruginosa [25]. In planktonic cells, several virulence factors, e.g., elastase, pyocyanin and cyanide are QS-controlled. Conversely, the Type-3-secretion system is repressed by QS [26].
Several studies have investigated context-dependence of biofilm formation [27] and eradication [28], virulence factor production [8,18,29,30] and/or antimicrobial resistance [31,32,33,34], though usually in a limited number of conditions at one time-point. Here, we were interested to investigate the interaction of cell number/growth phase and growth environment on different QS systems to elucidate their impact on virulence factor and biofilm production. We performed intermittent sampling across the growth curves in 96 conditions in a BIOLOG GenIII plate and quantified the QS signal, the virulence factor pyocyanin (by mass spectrometry) and biofilm production after 24 h. We found that while QS hierarchy follows expected patterns in rich media, the expression of virulence factors and biofilm formation was highly context dependent.

2. Materials and Methods

Pseudomonas aeruginosa wild-type PA14, a strain originally isolated due to its ability to infect plants as well as vertebrates [1], was grown in Luria Bertani (LB) broth (10 g/L NaCl, 10 g/L tryptone and 5 g/L yeast extract) overnight at 37 °C, shaking at 150 rpm. From these, starter cultures were inoculated by 1:100 dilution and left to grow until they reached an optical density at 600 nm of 0.6. At that point, 2 mL of the culture was harvested by centrifugation (5 min, 3000× g, RT), the supernatant discarded and the pellet washed and resuspended in 1 mL 10 mM phosphate buffered saline, pH 7. The process was repeated, and the resuspended cells were mixed with 10 mL inoculation fluid A and inoculated into BIOLOG Gen III plates (both BIOLOG, Hayward, CA, USA).
At 3, 5.5, 8, 11, 14, 17 and 20 h, readings at OD595 (for metabolic activity/oxidative metabolism) and OD750 (cell number) were taken, and 25 µL of culture were sampled, centrifuged (2000× g, 2 min, RT) and stored at −20 °C for extraction of QS molecules. After 24 h, we also assayed surface-attached biofilm formation using the crystal violet method [35]. To assess the impact of sub-inhibitory exposure to tobramycin, treated plates were mixed with 0.8 µg/mL tobramycin at inoculation and sampled after 20 h only.
To extract QS compounds, 10 µL of the supernatants was mixed with 90 µL acetonitrile (LC-MS grade) containing 0.1% formic acid (w/v), 1 uM heptyl homoserine lactone and 4-cyclohexyl-2(1H)-quinolone (for normalization of HSLs and PQS, respectively; both Merck, Darmstadt, Germany) and frozen at −20 °C for 1 h. For analysis, 10 µL of each sample were transferred to a high-recovery plate and mixed with 90 µL LC-MS grade water (Fisher Scientific, Hampton, NH, USA).
Detection of QS compounds by tandem mass spectrometry was based on a method published by Ortori et al. [36]. Separation was achieved on a Waters Acquity H Class Ultra Performance Liquid Chromatography (UPLC) system using a Waters HSS T3 UPLC column (2.1 mm × 100 mm, 1.8 µm particle size, equipped with a HSS T3 VanGuard pre-column) maintained at 45 °C. The UPLC system used 0.1% formic acid (in water) with 0.1 mM EDTA as phase A and 0.1% formic acid (in acetonitrile) as phase B. The gradient was 1% B for 0.75 min, then up to 35% B at 1.5 min, 75% B at 3 min and 99% B at 3.75 min. At 4.25 min, the system switched back to 1% B, which was held for 0.75 min.
Mass spectra were obtained on a Waters TQSmicro triple quad mass spectrometer with electrospray ionization in positive mode using multiple reaction monitoring. The source potential was 3.5 kV with the source held at 450 °C and a desolvation gas flow of 650 L/h. Transitions and mass spectral parameters (cone and collision voltages) were originally taken from [36] and optimized by manual infusion of 10 µM standard (at 10 µL/min) for C4-HSL, 3-oxo-C12-HSL, pyocyanin, PQS and HHQ. Biological quality control samples were injected every eight samples to control for drift in instrument sensitivity. Data analysis, including baseline correction and QC batch correction was carried out in Matlab using in-house scripts (modified from [37]).

3. Results

General Growth Characteristics on BIOLOG Gen III

BIOLOG Gen III plates contain 71 single carbon sources, one negative control (no carbon source), 23 sensitivity test conditions (rich media with a ‘stressor’) and one positive control (rich media only). While the single carbon source assays the ability of P. aeruginosa to grow on a substrate, the sensitivity test condition investigates the ability of the bacterium to overcome the ‘stressor’ (e.g., high salt stress or an antibiotic) in rich medium. To check which of these conditions supported oxidative metabolism (tetrazolium dye reduction) or measurable cell replication, we monitored optical densities at two wavelengths, 595 nm and 750 nm, respectively. Naturally, a different condition produced a high variety of outcomes with regards to growth rate and optical density reached after 20 h (Figure 1). Using exclusion criteria of reaching 10% of the recorded overall maximum value over the course of growth, we concluded that 52 conditions supported metabolic activity, 43 supported growth and 42 supported both, respectively (Figure 1, Table A1).
Surface-attached biofilm was detectable in several conditions of the BIOLOG Gen III plate after 24 h of growth (Figure 2). There is no clear correlation between measured optical cell density (highest value at 750 nm) and biofilm development, but there is some grouping based on media type. Cultures grown on single carbon sources supported lower planktonic cell numbers than the sensitivity assays, which have a rich base medium (Figure 2A,B, Table A1). The median ratio of biofilm formation to planktonic growth was significantly higher in single carbon sources than in sensitivity assays (median 2.26 vs. 0.86 for maximum-normalised optical density values, respectively, p < 0.001, Student’s t-test).
The temporal hierarchy of bacterial communication systems showed some variation between conditions (Figure 3A,B). In most wells, including the positive control (well A10), which contains a rich medium not unlike LB media routinely used for studies of pseudomonal QS, 3oC12-HSL was clearly produced before C4-HSL and PQS, in line with the established hierarchy of QS systems in P. aeruginosa [20]. The 3oC12-HSL was produced at fairly low cell densities and declined as peak cell numbers were reached, while C4-HSL and PQS levels increased more or less in line with cell number (median R2 to cell number (Pearson) 0.13, 0.86 and 0.83 for 3oC12-HSL, C4-HSL and PQS, respectively (Figure 1 and Figure 3)).
Interestingly, there is a clear difference with regards to stationary phase PQS levels. They increased with cell number in many conditions, but, in sensitivity assays, PQS levels rose with cell number and stayed near their maximum or even continued to increase for the recorded growth period. In most single carbon sources, PQS levels increased before cell number, peaked around 11 h post-inoculation and declined after that (Figure 3B). When investigating per-cell virulence factor production (pyocyanin per cell number) in the different condition sets, there are clear condition-dependent differences (Figure 3C). The per-cell pyocyanin production is about 20–30 fold higher in acetic acid-grown cultures or rich media supplemented with D-serine than in cultures grown at pH 5, respectively. When total levels of pyocyanin and PQS produced over the course of growth are compared and plotted against metabolic activity, it is evident that while overall correlation is good (R2 = 0.76 and 0.90, for pyocyanin and PQS, respectively), context-specific differences exist. For pyocyanin, production is generally lower than expected based on metabolic activity in a range of sensitivity assays (Figure 3D). For PQS, levels are higher than expected in wells with a sugar or disaccharide as the single carbon source (Figure 3D).
Finally, we were interested in the context-dependent impact of sub-inhibitory antibiotic exposure (Table 1). Metabolic activity did not exhibit a clear general trend (median log2 fold change across conditions of 0.02) but did exhibit a range of over six log2 units (log2 median fold change (log mfc) 3.99 for bromosuccinate to −2.16 for formic acid). Cellular growth and 3oC12-HSL exhibited similar profiles with median log mfc of 0.34 and 0.28, respectively, and ranges of log mfc from 3.76 (gluconic acid) to −1 (potassium tellurite) for cellular growth and log mfc from 4.33 (citric acid) to −1.98 (propionic acid) for 3oC12-HSL, respectively.
However, for the two other QS systems as well as pyocyanin, there was a clear negative impact of tobramycin exposure. The impact was moderate for C4-HSL and PQS. The median across conditions were of −1.26 and −1.36 with ranges from −2.81 (propionic acid) to −0.07 (malic acid) and from −3.39 (potassium tellurite) to −0.13 (gelatin), respectively. In contrast, the impact on pyocyanin production was pronounced, with a median across conditions of −3.12 log2 units and ranges of log mfc from a value of −9.17 (propionic acid) to log mfc −1.1 (pH 5).

4. Discussion

We compared growth and quorum sensing signaling dynamics, virulence factor (pyocyanin) production and impact of sub-inhibitory antibiotic exposure across 96 different growth conditions in BIOLOG GenIII plates. We found several differences, but also similarities across growth-supporting conditions.
For most growth-supporting conditions, P. aeruginosa maintained the top-level QS hierarchy with 3oC12-HSL the first signal to be produced. The prominent exception was cells grown at pH 5, but this is likely connected to the very slow growth in the condition. A second similarity was that planktonic growth mostly depended on media type, not individual carbon source. Rich media-based sensitivity tests (wells A10-H12) in general supported growth to higher optical densities than single carbon sources within the time frame of the experiment. In contrast, surface-attached biofilm production over the first 24 h of growth did not correlate to media type.
Interestingly, there is a large variance in planktonic/biofilm partitioning in the different carbon source/conditions. The lowest relative levels of biofilm were found in cells grown in citric acid and rich media supplemented with 1% sodium lactate. This is in line with previous findings in the literature. P. aeruginosa cultures grown on citric acid have been shown to have altered biofilm morphology in a flow-cell model [38], and decreased biofilm production in a process depended on the TctD-TctE two component system [39]. Sodium lactate led to a decrease in biofilm production in Shewanella putrefaciens [40]. The process is dependent on LrbS-LrbA-LrbR, which is thought to have similar functions to RocS1, RocR and RocA1 in P. aeruginosa [41]. In Pseudomonas, RocS1A1R regulate the expression of Cup adhesion proteins, essential for biofilm formation [42].
The highest relative levels of biofilm were found in cultures grown on arginine and alanine, respectively. This agrees with previous literature, as arginine was found to be crucial for the formation of biofilms in bacterial–epithelial cell interaction models [43]. There are also mechanistic links that tie arginine to high biofilm production. It can be used as a nitrate donor [44], and high NO3 is linked to elevated biofilm production [45], while its denitrification product NO leads to biofilm dispersal [28]. Interestingly, the rhl QS system, which represses the transcription of denitrification genes [46] is partially regulated by arginine availability due to a rare arginine codon on the rhlR mRNA [47]. We did not see a change in biofilm levels (relative to the positive control) if the media was supplemented with D-Serine. D-amino acids have been suggested to lead to biofilm dispersal, though this has been disputed recently [48,49].
Temporal hierarchy for C4-HSL and PQS also differed due to media type, though with considerable spread. In minimal media, PQS levels peaked earlier than in rich media/sensitivity assays and decayed towards the end of the observed growth period. One explanation is the iron chelation ability of PQS [50]. The compound could be upregulated in minimal media and enzymatically degraded to increase iron availability in stationary phase [51]. An important caveat to consider is that we are effectively measuring a planktonic-biofilm hybrid and that the crystal violet-based method ignores floating cell aggregates, which might differ in their physiology from both planktonic cells and surface-attached biofilms [52]. Further, it has been recently suggested that during surface attachment, the regulatory cascade with 3oC12-HSL promoting C4-HSL and PQS production, does not fully apply [53,54,55,56,57]. Rather, the production of cytotoxic alkyl quinolones seems to be driven by a process involving type IV pili and the surface sensor PilY1 [56,58,59]. Finally, in established biofilms (the formation of which is also controlled by QS [20,21]), virulence is generally thought to be lower than in planktonic or surface-attaching states [9,60].
PQS has been suggested previously to have a multifaceted role in P. aeruginsa, acting—among others—as QS signal [23,24], an iron chelator [50], a live/death signal via oxidative stress in Pseudomonas itself [61], an initiator of oxidative stress in host cells [62], a photosensitizer [63] and/or a warning signal of antibiotic stress on population level [64]. In our setting, we compared oxidative metabolic activity to PQS levels and found that—while generally well correlated—higher than expected levels of PQS in cultures grown on sugars and lower than expected levels of PQS in some sensitivity conditions. Given the multitude of roles, changes in PQS are likely to seen due to different triggers and should be investigated further.
Finally, we found that sub-inhibitory exposure to 1/10 × MIC tobramycin had marked impact on C4-HSL, PQS and pyocyanin production. Generally, virulence factor production is thought to be downregulated upon sub-inhibitory antibiotics exposure, often through downregulation of QS, though variety exists among studies [6,12]. Carbon sources were differentially impacted by antibiotic exposure, further confirming the impact of nutritional context on antibiotic tolerance [32,33,65].

5. Conclusions

Overall, our study highlights the context-dependence of bacterial QS, mode of growth and resistance. Understanding the specifics of these interactions can lead to improvements in bacterial treatment. Therefore, nutritional environments of infections sites should be surveyed and recreated in the laboratory to make models of infection more realistic. Future work should expand on this study using additional strains, e.g., clinical isolates from CF patients to take into account the evolutionary history in different niches.

Author Contributions

Conceptualization, V.B.; methodology, V.B.; software, V.B.; data acquisition, S.K. and V.B.; writing—original draft preparation, S.K. and V.B.; writing—review and editing, V.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Society for Applied Microbiology Students to Work grant.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Table
Table A1. An overview of the conditions of the BIOLOG Gen III plate and whether the met the criteria for supporting metabolic activity and/or cellular growth.
Table A1. An overview of the conditions of the BIOLOG Gen III plate and whether the met the criteria for supporting metabolic activity and/or cellular growth.
NameWellMetabolic ActivityPlanktonic GrowthBothBiofilmRatio bf/Cell
Negative ControlA1
D-RaffinoseB1
GlucoseC1xxxx1.87
D-SorbitolD1
GelatinE1xxxx2.49
PectinF1 x
p-Hydroxy-Phenylacetic AcidG1xxxx1.41
Tween 40H1xxxx1.45
DextrinA2
LactoseB2 x
D-MannoseC2 x
D-MannitolD2xxxx5.34
Glycyl-L-ProlineE2xxxx5.27
D-Galacturonic AcidF2x
Methyl PyruvateG2xxxx5.04
gamma-Amino-Butyric AcidH2xxxx2.43
D-MaltoseA3
D-MelibioseB3
D-FructoseC3x x
D-ArabinoD3x x
L-AlanineE3xxxx6.59
L-Galactonic Acid LactoneF3
D-Lactic Acid Methyl EsterG3
alpha-Hydroxy-Butyric AcidH3 x
D-TrehaloseA4xxxx2.10
alpha-Methyl-D-GlucosideB4
D-GalactoseC4
myo-InositolD4
L-ArginineE4xxxx5.75
D-Gluconic AcidF4xxxx1.90
L-Lactic AcidG4xxxx2.45
beta-Hydroxy-D,L-butyric AcidH4xxxx3.58
D-CellobioseA5
D-SalicinB5
3-Methyl GlucoseC5
GlycerolD5x x
L-Aspartic AcidE5xxxx1.39
D-Glucuronic AcidF5x
Citric AcidG5xxxx0.26
alpha-Keto-Butyric AcidH5 x
GentiobioseA6
N-Acetyl-D-GlucosamineB6xxxx1.20
D-FucoseC6x
D-Glucose-6-PO4D6
L-Glutamic AcidE6xxxx1.62
GlucuronamideF6x
alpha-Keto-Glutaric AcidG6xxxx1.80
Acetoacetic AcidH6
SucroseA7
N-Acetyl-D-MannosamineB7
L-FucoseC7
D-Fructose-6-PO4D7x x
L-HistidineE7xxxx3.95
Mucic AcidF7
D-Malic AcidG7 x
Propionic AcidH7xxxx2.43
D-TuranoseA8
N-Acetyl-D-GalactosamineB8
L-RhamnoseC8
D-Aspartic AcidD8
L-Pyroglutamic AcidE8x x
Quinic AcidF8 x
L-Malic AcidG8xxxx0.53
Acetic AcidH8xxxx2.73
StachyoseA9
N-Acetyl Neuraminic AcidB9
InosineC9x x
D-Serine_singleD9
L-SerineE9 x
D-Saccharic AcidF9
Bromo-Succinic AcidG9xxxx1.58
Formic AcidH9xxxx0.96
Positive ControlA10xxxx0.85
1% NaClB10xxxx0.82
1% Sodium LactateC10xxxx0.46
TroleandomycinD10xxxx1.53
LincomycinE10xxxx0.55
VancomycinF10xxxx0.67
Nalidixic AcidG10xxxx0.81
AztreonamH10
pH 6A11xxxx0.94
4% NaClB11xxxx0.38
Fusidic AcidC11xxxx1.03
Rifamycin SVD11xxxx0.87
Guanidine HClE11xxxx0.70
Tetrazolium VioletF11
Lithium ChlorideG11
Sodium ButyrateH11 x
pH 5A12xxxx1.70
8% NaClB12 x
D-SerineC12xxxx1.54
MinocyclineD12xxxx1.28
Niaproof 4E12xxxx1.78
Tetrazolium BlueF12
Potassium TelluriteG12xxxx0.77
Sodium BromateH12
Total 52434257

References

  1. Rahme, L.G.; Stevens, E.J.; Wolfort, S.F.; Shao, J.; Tompkins, R.G.; Ausubel, F.M.; Galaktionov, K.; Lee, A.; Eckstein, J.; Draetta, G.; et al. Common Virulence Factors for Bacterial Pathogenicity in Plants and Animals. Science 1995, 268, 1899–1902. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Turner, K.H.; Everett, J.; Trivedi, U.; Rumbaugh, K.P.; Whiteley, M. Requirements for Pseudomonas aeruginosa Acute Burn and Chronic Surgical Wound Infection. PLoS Genet. 2014, 10, e1004518. [Google Scholar] [CrossRef] [Green Version]
  3. Reynolds, D.; Kollef, M. The Epidemiology and Pathogenesis and Treatment of Pseudomonas aeruginosa Infections: An Update. Drugs 2021, 81, 2117–2131. [Google Scholar] [CrossRef] [PubMed]
  4. Folkesson, A.; Jelsbak, L.; Yang, L.; Johansen, H.K.; Ciofu, O.; Høiby, N.; Molin, S. Adaptation of Pseudomonas aeruginosa to the cystic fibrosis airway: An evolutionary perspective. Nat. Rev. Microbiol. 2012, 10, 841–851. [Google Scholar] [CrossRef] [PubMed]
  5. Williams, H.D.; Davies, J.C. Basic science for the chest physician: Pseudomonas aeruginosa and the cystic fibrosis airway. Thorax 2012, 67, 465–467. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Dolan, S.K. Current Knowledge and Future Directions in Developing Strategies to Combat Pseudomonas aeruginosa Infection. J. Mol. Biol. 2020, 432, 5509–5528. [Google Scholar] [CrossRef]
  7. Hogardt, M.; Heesemann, J. Microevolution of Pseudomonas aeruginosa to a chronic pathogen of the cystic fibrosis lung. In Current Topics in Microbiology and Immunology; Springer: Berlin/Heidelberg, Germany, 2011. [Google Scholar] [CrossRef]
  8. Behrends, V.; Bell, T.J.; Liebeke, M.; Cordes-Blauert, A.; Ashraf, S.N.; Nair, C.; Zlosnik, J.; Williams, H.; Bundy, J.G. Metabolite Profiling to Characterize Disease-Related Bacteria: Gluconate Excretion by Pseudomonas Aeruginosa Mutants and Clinical Isolates from Cystic Fibrosis Patients. J. Biol. Chem. 2013, 288, 15098–15109. [Google Scholar] [CrossRef] [Green Version]
  9. Moradali, M.F.; Ghods, S.; Rehm, B.H.A. Pseudomonas aeruginosa Lifestyle: A Paradigm for Adaptation, Survival, and Persistence. Front. Cell Infect. Microbiol. 2017, 7, 39. [Google Scholar] [CrossRef] [Green Version]
  10. Hauser, A.R. Pseudomonas aeruginosa: So many virulence factors, so little time*. Crit. Care Med. 2011, 39, 2193–2194. [Google Scholar] [CrossRef] [PubMed]
  11. Jurado-Martín, I.; Sainz-Mejías, M.; McClean, S. Pseudomonas aeruginosa: An Audacious Pathogen with an Adaptable Arsenal of Virulence Factors. Int. J. Mol. Sci. 2021, 22, 3128. [Google Scholar] [CrossRef]
  12. Nolan, C.; Behrends, V. Sub-Inhibitory Antibiotic Exposure and Virulence in Pseudomonas aeruginosa. Antibiotics 2021, 10, 1393. [Google Scholar] [CrossRef] [PubMed]
  13. Filloux, A. Protein Secretion Systems in Pseudomonas aeruginosa: An Essay on Diversity, Evolution, and Function. Front. Microbiol. 2011, 2, 155. [Google Scholar] [CrossRef] [Green Version]
  14. Sana, T.G.; Berni, B.; Bleves, S. The T6SSs of Pseudomonas aeruginosa Strain PAO1 and Their Effectors: Beyond Bacterial-Cell Targeting. Front. Cell Infect. Microbiol. 2016, 6, 61. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Sana, T.; Baumann, C.; Merdes, A.; Soscia, C.; Rattei, T.; Hachani, A.; Jones, C.; Bennett, K.L.; Filloux, A.; Superti-Furga, G.; et al. Internalization of Pseudomonas aeruginosa Strain PAO1 into Epithelial Cells Is Promoted by Interaction of a T6SS Effector with the Microtubule Network. mBio 2015, 6, e00712-15. [Google Scholar] [CrossRef] [Green Version]
  16. Jolly, A.L.; Takawira, D.; Oke, O.O.; Whiteside, S.A.; Chang, S.W.; Wen, E.R.; Quach, K.; Evans, D.J.; Fleiszig, S.M.J. Pseudomonas aeruginosa-Induced Bleb-Niche Formation in Epithelial Cells Is Independent of Actinomyosin Contraction and Enhanced by Loss of Cystic Fibrosis Transmembrane-Conductance Regulator Osmoregulatory Function. mBio 2015, 6, e02533. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Lee, K.; Lee, K.-M.; Go, J.; Ryu, J.-C.; Ryu, J.-H.; Yoon, S.S. The ferrichrome receptor A as a new target forPseudomonas aeruginosavirulence attenuation. FEMS Microbiol. Lett. 2016, 363, fnw104. [Google Scholar] [CrossRef] [Green Version]
  18. Jo, J.; Price-Whelan, A.; Cornell, W.C.; Dietrich, L.E.P. Interdependency of Respiratory Metabolism and Phenazine-Associated Physiology in Pseudomonas aeruginosa PA14. J. Bacteriol. 2020, 202, e00700-19. [Google Scholar] [CrossRef]
  19. Williams, H.D.; Zlosnik, J.E.A.; Ryall, B. Oxygen, Cyanide and Energy Generation in the Cystic Fibrosis Pathogen Pseudomonas Aeruginosa. Adv. Microb. Physiol. 2006, 52, 1–71. [Google Scholar]
  20. Williams, P.; Winzer, K.; Chan, W.; Camara, M. Look who’s talking: Communication and quorum sensing in the bacterial world. Philos. Trans. R. Soc. B Biol. Sci. 2007, 362, 1119–1134. [Google Scholar] [CrossRef] [Green Version]
  21. Lee, J.; Zhang, L. The hierarchy quorum sensing network in Pseudomonas aeruginosa. Protein Cell 2015, 6, 26. [Google Scholar] [CrossRef]
  22. Williams, P.; Cámara, M. Quorum sensing and environmental adaptation in Pseudomonas aeruginosa: A tale of regulatory networks and multifunctional signal molecules. Curr. Opin. Microbiol. 2009, 12, 182–191. [Google Scholar] [CrossRef] [PubMed]
  23. Dubern, J.-F.; Diggle, S.P. Quorum sensing by 2-alkyl-4-quinolones in Pseudomonas aeruginosa and other bacterial species. Mol. BioSyst. 2008, 4, 882–888. [Google Scholar] [CrossRef] [PubMed]
  24. Heeb, S.; Fletcher, M.P.; Chhabra, S.R.; Diggle, S.P.; Williams, P.; Cámara, M. Quinolones: From antibiotics to autoinducers. FEMS Microbiol. Rev. 2011, 35, 247–274. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Schuster, M.; Greenberg, E.P. A network of networks: Quorum-sensing gene regulation in Pseudomonas aeruginosa. Int. J. Med. Microbiol. 2006, 296, 73–81. [Google Scholar] [CrossRef] [PubMed]
  26. Pena, R.T.; Blasco, L.; Ambroa, A.; González-Pedrajo, B.; Fernández-García, L.; López, M.; Bleriot, I.; Bou, G.; García-Contreras, R.; Wood, T.K.; et al. Relationship Between Quorum Sensing and Secretion Systems. Front. Microbiol. 2019, 10, 1100. [Google Scholar] [CrossRef] [Green Version]
  27. Haney, E.; Trimble, M.; Cheng, J.; Vallé, Q.; Hancock, R. Critical Assessment of Methods to Quantify Biofilm Growth and Evaluate Antibiofilm Activity of Host Defence Peptides. Biomolecules 2018, 8, 29. [Google Scholar] [CrossRef] [Green Version]
  28. Sauer, K.; Cullen, M.C.; Rickard, A.H.; Zeef, L.A.H.; Davies, D.G.; Gilbert, P. Characterization of Nutrient-Induced Dispersion in Pseudomonas aeruginosa PAO1 Biofilm. J. Bacteriol. 2004, 186, 7312–7326. [Google Scholar] [CrossRef] [Green Version]
  29. Linares, J.F.; Moreno, R.; Fajardo, A.; Martínez-Solano, L.; Escalante, R.; Rojo, F.; Martínez, J.L. The global regulator Crc modulates metabolism, susceptibility to antibiotics and virulence in Pseudomonas aeruginosa. Environ. Microbiol. 2010, 12, 3196–3212. [Google Scholar] [CrossRef]
  30. Huang, J.; Sonnleitner, E.; Ren, B.; Xu, Y.; Haas, D. Catabolite Repression Control of Pyocyanin Biosynthesis at an Intersection of Primary and Secondary Metabolism in Pseudomonas aeruginosa. Appl. Environ. Microbiol. 2012, 78, 5016–5020. [Google Scholar] [CrossRef] [Green Version]
  31. Zhu, K.; Chen, S.; Sysoeva, T.; You, L. Universal antibiotic tolerance arising from antibiotic-triggered accumulation of pyocyanin in Pseudomonas aeruginosa. PLOS Biol. 2019, 17, e3000573. [Google Scholar] [CrossRef] [Green Version]
  32. Peng, B.; Su, Y.-B.; Li, H.; Han, Y.; Guo, C.; Tian, Y.-M.; Peng, X.-X. Exogenous Alanine and/or Glucose plus Kanamycin Kills Antibiotic-Resistant Bacteria. Cell Metab. 2015, 21, 249–261. [Google Scholar] [CrossRef] [Green Version]
  33. Bhargava, P.; Collins, J.J. Boosting Bacterial Metabolism to Combat Antibiotic Resistance. Cell Metab. 2015, 21, 154–155. [Google Scholar] [CrossRef] [Green Version]
  34. Lopatkin, A.J.; Stokes, J.M.; Zheng, E.J.; Yang, J.H.; Takahashi, M.; You, L.; Collins, J.J. Bacterial metabolic state more accurately predicts antibiotic lethality than growth rate. Nat. Microbiol. 2019, 4, 2109–2117. [Google Scholar] [CrossRef] [PubMed]
  35. O’Toole, G.A. Microtiter Dish Biofilm Formation Assay. J. Vis. Exp. 2011, 47, e2437. [Google Scholar] [CrossRef] [PubMed]
  36. Ortori, C.A.; Dubern, J.-F.; Chhabra, S.R.; Cámara, M.; Hardie, K.; Williams, P.; Barrett, D.A. Simultaneous quantitative profiling of N-acyl-l-homoserine lactone and 2-alkyl-4(1H)-quinolone families of quorum-sensing signaling molecules using LC-MS/MS. Anal. Bioanal. Chem. 2010, 399, 839–850. [Google Scholar] [CrossRef] [PubMed]
  37. Behrends, V.; Tredwell, G.D.; Bundy, J.G. A software complement to AMDIS for processing GC-MS metabolomic data. Anal. Biochem. 2011, 415, 206–208. [Google Scholar] [CrossRef]
  38. Klausen, M.; Aaes-Jørgensen, A.; Molin, S.; Tolker-Nielsen, T. Involvement of bacterial migration in the development of complex multicellular structures in Pseudomonas aeruginosa biofilms. Mol. Microbiol. 2003, 50, 61–68. [Google Scholar] [CrossRef] [Green Version]
  39. Taylor, P.K.; Zhang, L.; Mah, T.-F. Loss of the Two-Component System TctD-TctE in Pseudomonas aeruginosa Affects Biofilm Formation and Aminoglycoside Susceptibility in Response to Citric Acid. mSphere 2019, 4, e00102-19. [Google Scholar] [CrossRef] [Green Version]
  40. Liu, C.; Yang, J.; Liu, L.; Li, B.; Yuan, H.; Liu, W. Sodium Lactate Negatively Regulates Shewanella putrefaciens CN32 Biofilm Formation via a Three-Component Regulatory System (LrbS-LrbA-LrbR). Appl. Environ. Microbiol. 2017, 83, e00712-17. [Google Scholar] [CrossRef] [Green Version]
  41. Novović, K.; Malešević, M.; Dinić, M.; Gardijan, L.; Kojić, M.; Jovčić, B. RclS Sensor Kinase Modulates Virulence of Pseudo-monas Capeferrum. Int. J. Mol. Sci. 2022, 23, 8232. [Google Scholar] [CrossRef]
  42. Kulasekara, H.D.; Ventre, I.; Kulasekara, B.R.; Lazdunski, A.; Filloux, A.; Lory, S. A novel two-component system controls the expression of Pseudomonas aeruginosa fimbrial cup genes. Mol. Microbiol. 2004, 55, 368–380. [Google Scholar] [CrossRef] [PubMed]
  43. Anderson, G.G.; Moreau-Marquis, S.; Stanton, B.A.; O’Toole, G.A. In Vitro Analysis of Tobramycin-Treated Pseudomonas aeruginosa Biofilms on Cystic Fibrosis-Derived Airway Epithelial Cells. Infect. Immun. 2008, 76, 1423–1433. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Schobert, M.; Jahn, D. Anaerobic physiology of Pseudomonas aeruginosa in the cystic fibrosis lung. Int. J. Med. Microbiol. 2010, 300, 549–556. [Google Scholar] [CrossRef] [PubMed]
  45. Sabra, W.; Lünsdorf, H.; Zeng, A.-P. Alterations in the formation of lipopolysaccharide and membrane vesicles on the surface of Pseudomonas aeruginosa PAO1 under oxygen stress conditions. Microbiology 2003, 149, 2789–2795. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Toyofuku, M.; Nomura, N.; Fujii, T.; Takaya, N.; Maseda, H.; Sawada, I.; Nakajima, T.; Uchiyama, H. Quorum Sensing Regulates Denitrification in Pseudomonas aeruginosa PAO1. J. Bacteriol. 2007, 189, 4969–4972. [Google Scholar] [CrossRef] [Green Version]
  47. Gödeke, J.; Pustelny, C.; Häussler, S. Recycling of Peptidyl-tRNAs by Peptidyl-tRNA Hydrolase Counteracts Azithromycin-Mediated Effects on Pseudomonas aeruginosa. Antimicrob. Agents Chemother. 2013, 57, 1617–1624. [Google Scholar] [CrossRef] [Green Version]
  48. Kolodkin-Gal, I.; Romero, D.; Cao, S.; Clardy, J.; Kolter, R.; Losick, R. D-Amino Acids Trigger Biofilm Disassembly. Science 2010, 328, 627–629. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  49. Kao, W.T.K.; Frye, M.; Gagnon, P.; Vogel, J.P.; Chole, R. D-amino acids do not inhibit Pseudomonas aeruginosa biofilm formation. Laryngoscope 2017, 2, 4–9. [Google Scholar] [CrossRef]
  50. Bredenbruch, F.; Geffers, R.; Nimtz, M.; Buer, J.; Haussler, S. The Pseudomonas aeruginosa quinolone signal (PQS) has an iron-chelating activity. Environ. Microbiol. 2006, 8, 1318–1329. [Google Scholar] [CrossRef]
  51. Tettmann, B.; Niewerth, C.; Kirschhöfer, F.; Neidig, A.; Dötsch, A.; Brenner-Weiss, G.; Fetzner, S.; Overhage, J. En-zyme-Mediated Quenching of the Pseudomonas Quinolone Signal (PQS) Promotes Biofilm Formation of Pseudomonas Aeruginosa by Increasing Iron Availability. Front. Microbiol. 2016, 7, 1978. [Google Scholar] [CrossRef]
  52. Kragh, K.N.; Hutchison, J.B.; Melaugh, G.; Rodesney, C.; Roberts, A.E.L.; Irie, Y.; Jensen, P.; Diggle, S.P.; Allen, R.J.; Gordon, V.; et al. Role of Multicellular Aggregates in Biofilm Formation. mBio 2016, 7, e00237. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Siryaporn, A.; Kuchma, S.L.; O’Toole, G.A.; Gitai, Z. Surface attachment induces Pseudomonas aeruginosa virulence. Proc. Natl. Acad. Sci. USA 2014, 111, 16860–16865. [Google Scholar] [CrossRef] [Green Version]
  54. Perinbam, K.; Chacko, J.V.; Kannan, A.; Digman, M.A.; Siryaporn, A. A Shift in Central Metabolism Accompanies Virulence Activation in Pseudomonas aeruginosa. mBio 2020, 11, e02730-18. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Chuang, S.K.; Vrla, G.D.; Fröhlich, K.; Gitai, Z. Surface association sensitizes Pseudomonas aeruginosa to quorum sensing. Nat. Commun. 2019, 10, 4118. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Vrla, G.D.; Esposito, M.; Zhang, C.; Kang, Y.; Seyedsayamdost, M.R.; Gitai, Z. Cytotoxic alkyl-quinolones mediate surface-induced virulence in Pseudomonas aeruginosa. PLOS Pathog. 2020, 16, e1008867. [Google Scholar] [CrossRef] [PubMed]
  57. Laventie, B.-J.; Sangermani, M.; Estermann, F.; Manfredi, P.; Planes, R.; Hug, I.; Jaeger, T.; Meunier, E.; Broz, P.; Jenal, U. A Surface-Induced Asymmetric Program Promotes Tissue Colonization by Pseudomonas aeruginosa. Cell Host Microbe 2019, 25, 140–152. [Google Scholar] [CrossRef] [Green Version]
  58. Nguyen, Y.; Sugiman-Marangos, S.; Harvey, H.; Bell, S.D.; Charlton, C.L.; Junop, M.S.; Burrows, L.L. Pseudomonas aeruginosa Minor Pilins Prime Type IVa Pilus Assembly and Promote Surface Display of the PilY1 Adhesin. J. Biol. Chem. 2015, 290, 601–611. [Google Scholar] [CrossRef] [Green Version]
  59. Persat, A.; Inclan, Y.F.; Engel, J.N.; Stone, H.A.; Gitai, Z. Type IV pili mechanochemically regulate virulence factors in Pseudomonas aeruginosa. Proc. Natl. Acad. Sci. USA 2015, 112, 7563–7568. [Google Scholar] [CrossRef] [Green Version]
  60. Valentini, M.; Gonzalez, D.; Mavridou, D.A.; Filloux, A. Lifestyle transitions and adaptive pathogenesis of Pseudomonas aeruginosa. Curr. Opin. Microbiol. 2018, 41, 15–20. [Google Scholar] [CrossRef]
  61. Häussler, S.; Becker, T. The Pseudomonas Quinolone Signal (PQS) Balances Life and Death in Pseudomonas aeruginosa Populations. PLOS Pathog. 2008, 4, e1000166. [Google Scholar] [CrossRef]
  62. Abdalla, M.Y.; Hoke, T.; Seravalli, J.; Switzer, B.L.; Bavitz, M.; Fliege, J.D.; Murphy, P.J.; Britigan, B.E. Pseudomonas Quinolone Signal Induces Oxidative Stress and Inhibits Heme Oxygenase-1 Expression in Lung Epithelial Cells. Infect. Immun. 2017, 85, e00176-17. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  63. Pezzoni, M.; Meichtry, M.; Pizarro, R.A.; Costa, C.S. Role of the Pseudomonas quinolone signal (PQS) in sensitising Pseudomonas aeruginosa to UVA radiation. J. Photochem. Photobiol. B Biol. 2015, 142, 129–140. [Google Scholar] [CrossRef] [PubMed]
  64. Bru, J.-L.; Rawson, B.; Trinh, C.; Whiteson, K.; Høyland-Kroghsbo, N.M.; Siryaporn, A. PQS Produced by the Pseudomonas aeruginosa Stress Response Repels Swarms Away from Bacteriophage and Antibiotics. J. Bacteriol. 2019, 201, e00383-19. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  65. Wright, G.D.; Hung, D.T.; Helmann, J.D. How antibiotics kill bacteria: New models needed? Nat. Med. 2013, 19, 544–545. [Google Scholar] [CrossRef] [PubMed]
Life 12 01953 g001 550

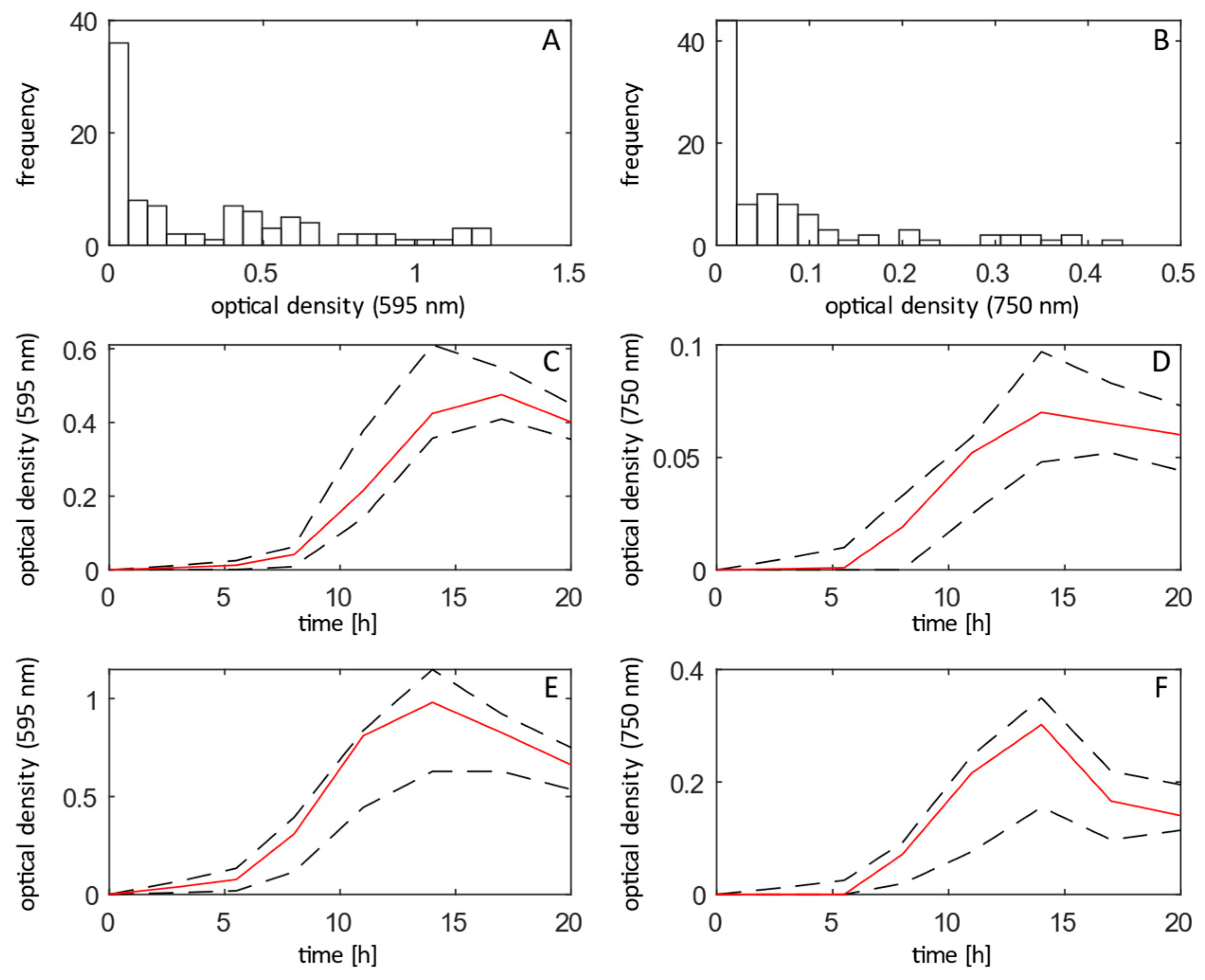

Figure 1. Optical density across growth conditions on a BIOLOG GenIII plate: (A) histogram of absorbance values recorded at 595 nm; (B) histogram of absorbance values recorded at 750 nm; (C) median (red line) and interquartile range (dashed black lines) of absorbance recorded at 595 nm for substrates supporting growth in wells A1–H9 (single carbon sources); (D) median (red line) and interquartile range (dashed black lines) of absorbance recorded at 750 nm for substrates supporting growth in wells A1–H9 (single carbon sources); (E) median (red line) and interquartile range (dashed black lines) of absorbance recorded at 595 nm for substrates supporting growth in wells A10–H12 (sensitivity assays); (F) median (red line) and interquartile range (dashed black lines) of absorbance recorded at 750 nm for substrates supporting growth in wells A10–H12 (single carbon sources).
Figure 1. Optical density across growth conditions on a BIOLOG GenIII plate: (A) histogram of absorbance values recorded at 595 nm; (B) histogram of absorbance values recorded at 750 nm; (C) median (red line) and interquartile range (dashed black lines) of absorbance recorded at 595 nm for substrates supporting growth in wells A1–H9 (single carbon sources); (D) median (red line) and interquartile range (dashed black lines) of absorbance recorded at 750 nm for substrates supporting growth in wells A1–H9 (single carbon sources); (E) median (red line) and interquartile range (dashed black lines) of absorbance recorded at 595 nm for substrates supporting growth in wells A10–H12 (sensitivity assays); (F) median (red line) and interquartile range (dashed black lines) of absorbance recorded at 750 nm for substrates supporting growth in wells A10–H12 (single carbon sources).
Life 12 01953 g001
Life 12 01953 g002 550

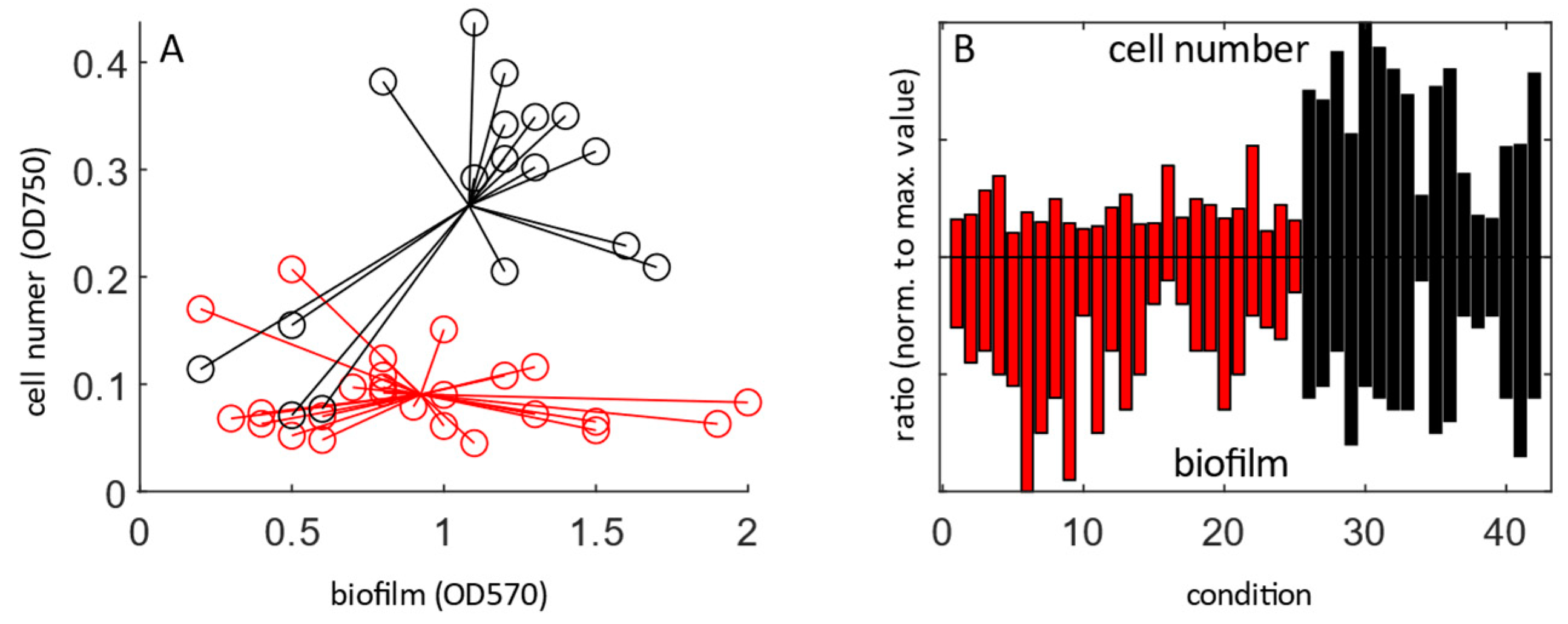

Figure 2. Context-dependent relationship between surface-attached biofilm and planktonic cell growth across conditions in the BIOLOG Gen III plate: (A) scatter graph of growth-supporting condition, red: single carbon sources, black: sensitivity assays; (B) bar chart displaying the ratio of planktonic and biofilm growth. Values were normalized to highest value across growth-supporting conditions, colors as (A).
Figure 2. Context-dependent relationship between surface-attached biofilm and planktonic cell growth across conditions in the BIOLOG Gen III plate: (A) scatter graph of growth-supporting condition, red: single carbon sources, black: sensitivity assays; (B) bar chart displaying the ratio of planktonic and biofilm growth. Values were normalized to highest value across growth-supporting conditions, colors as (A).
Life 12 01953 g002
Life 12 01953 g003 550

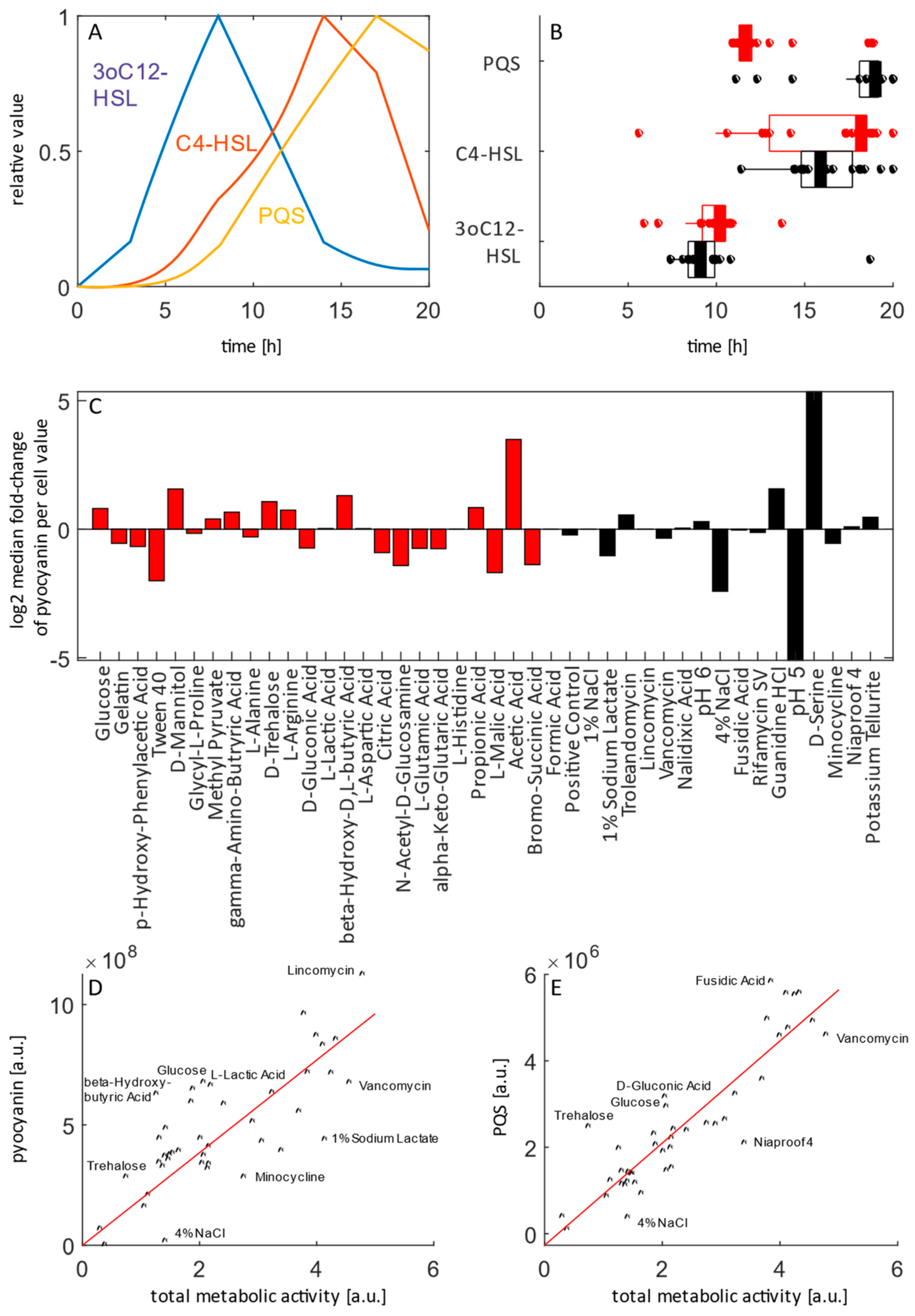

Figure 3. Temporal and cell-density dependence of QS and virulence factor production: (A) temporal hierarchy of QS system in rich media (positive control, well A10), normalized to highest value; (B) representation of temporal hierarchy of the three major QS systems across all growth-supporting conditions; red: single carbon sources; black: sensitivity assays; box and whisker plots represent median, interquartile range and extent of data range; (C) median fold change of pyocyanin-cell number ratio; single carbon sources and sensitivity assays were divided to their own median; red: single carbon sources; black: sensitivity assays; (D) scatter plot of total metabolic activity and pyocyanin produced over the course of growth; (E) scatter plot of total metabolic activity and PQS produced over the course of growth.
Figure 3. Temporal and cell-density dependence of QS and virulence factor production: (A) temporal hierarchy of QS system in rich media (positive control, well A10), normalized to highest value; (B) representation of temporal hierarchy of the three major QS systems across all growth-supporting conditions; red: single carbon sources; black: sensitivity assays; box and whisker plots represent median, interquartile range and extent of data range; (C) median fold change of pyocyanin-cell number ratio; single carbon sources and sensitivity assays were divided to their own median; red: single carbon sources; black: sensitivity assays; (D) scatter plot of total metabolic activity and pyocyanin produced over the course of growth; (E) scatter plot of total metabolic activity and PQS produced over the course of growth.
Life 12 01953 g003
Table
Table 1. Impact of sub-inhibitory exposure to tobramycin (0.8 µg/mL) on metabolic activity, cellular growth the three QS systems and pyocyanin production. Values are expressed as log2 fold change of the treated vs. the control samples.
Table 1. Impact of sub-inhibitory exposure to tobramycin (0.8 µg/mL) on metabolic activity, cellular growth the three QS systems and pyocyanin production. Values are expressed as log2 fold change of the treated vs. the control samples.
ActivityCell Number3oC12-HSLC4-HSLPQSPyocyanin
GlucoseC10.080.010.50−0.73−0.58−2.69
GelatinE12.170.720.10−0.55−0.13-1.67
p-Hydroxy-Phenylacetic AcidG1−1.271.08−0.42−1.43−1.36−3.74
Tween 40H1−0.780.030.61−0.73−0.83−4.11
D-MannitolD20.13−0.02−1.01−2.03−1.83−2.36
Glycyl-L-ProlineE20.331.530.14−1.29−0.79−2.25
Methyl PyruvateG20.150.00−0.14−1.00−0.63−1.61
gamma-Amino-Butryric AcidH2−0.84−0.270.42−0.88−1.22−2.33
L-AlanineE3−0.080.821.62−0.79−1.26−2.58
D-TrehaloseA4−0.14−0.02−0.74−1.74−1.80−2.97
L-ArginineE40.131.880.88−1.82−1.97−4.88
D-Gluconic AcidF40.063.760.30−1.55−0.88−3.27
L-Lactic AcidG40.261.711.54−1.01−0.60−3.44
beta-Hydroxy-D,L-Butyric AcidH4−0.710.700.86−1.31−1.46−4.17
L-Aspartic AcidE50.261.600.17−0.81−1.46−2.16
Citric AcidG5−0.13−0.324.33−0.60−1.29−3.31
N-Acetyl-D-GlucosamineB60.38−0.030.56−1.41−1.00−3.36
L-Glutamic AcidE60.190.160.42−2.14−1.66−4.23
alpha-Keto-Glutaric AcidG6−0.022.870.71−1.73−1.68−4.03
L-HistidineE70.341.12−0.28−1.67−1.37−2.75
Propionic AcidH70.000.00−1.98−2.81−2.27−9.17
L-Malic AcidG80.120.240.28−0.07−1.51−4.70
Acetic AcidH80.000.002.90−1.42−2.55−7.23
Bromo-Succinic AcidG93.990.000.21−0.22−0.38−1.33
Formic AcidH9−2.160.00−0.63−1.44−0.65−4.73
Positive ControlA10−0.190.180.34−1.23−1.71−4.12
1% NaClB10−0.170.15−0.15−0.13−1.35−2.17
1% Sodium LactateC100.130.430.66−0.77−1.27−3.52
TroleandomycinD100.421.64−1.75−1.40−1.05−1.81
LincomycinE100.000.000.55−0.85−1.30−1.90
VancomycinF10−0.040.040.29−1.02−1.48−2.79
Nalidixic AcidG100.150.560.50−0.74−1.36−2.11
pH 6A110.241.49−0.56−1.50−1.53−2.70
4% NaClB110.571.48−0.28−0.10−0.56−1.21
Fusidic AcidC11−0.100.44−0.21−1.71−2.18−4.03
Rifamycin SVD110.030.58−0.81−1.92−2.31−3.92
Guanidine HClE110.322.58−0.59−0.90−1.18−2.27
pH 5A12−0.781.89−0.88−0.72−0.88−1.10
D-SerineC12−0.620.001.07−0.51−1.55−2.67
MinocyclineD12−0.200.481.38−2.10−1.75−4.11
Niaproof 4E12−0.29−0.11−0.22−1.29−1.58−3.88
Potassium TelluriteG12−0.41−1.002.82−1.66−3.39−5.51
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Katzarov, S.; Behrends, V. Temporal Hierarchy and Context-Dependence of Quorum Sensing Signal in Pseudomonas aeruginosa. Life 2022, 12, 1953. https://doi.org/10.3390/life12121953

AMA Style

Katzarov S, Behrends V. Temporal Hierarchy and Context-Dependence of Quorum Sensing Signal in Pseudomonas aeruginosa. Life. 2022; 12(12):1953. https://doi.org/10.3390/life12121953

Chicago/Turabian Style

Katzarov, Stoyko, and Volker Behrends. 2022. "Temporal Hierarchy and Context-Dependence of Quorum Sensing Signal in Pseudomonas aeruginosa" Life 12, no. 12: 1953. https://doi.org/10.3390/life12121953

APA Style

Katzarov, S., & Behrends, V. (2022). Temporal Hierarchy and Context-Dependence of Quorum Sensing Signal in Pseudomonas aeruginosa. Life, 12(12), 1953. https://doi.org/10.3390/life12121953

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
