# Vibration and Stability Analysis of a Bearing–Rotor System with Transverse Breathing Crack and Initial Bending

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Stability and Improved Breathing Function

_{c}is the area of closed portion. Assuming that stress concentration is not considered, the stress balance equation can be transformed by Hooke’s law as $\sigma =Ey/\rho $, where $y$ is the distance to neutral axis, E is Young’s modulus and ρ is bending radius. Since $E/\rho \ne 0$, the balance formula changes as $\int {}_{A}y\mathrm{d}A}=0$. As we all know, static moment is usually used to calculate the centroid of areas, i.e., ${x}_{A}={S}_{A}/A$. Thus, many researchers adopted the centroid formula to calculate the position of neutral axis. Hence, the distance from the neutral axis to point ${o}^{\prime}$ can be obtained as

_{2}, P

_{1}, P

_{0}are constant matrix calculated by

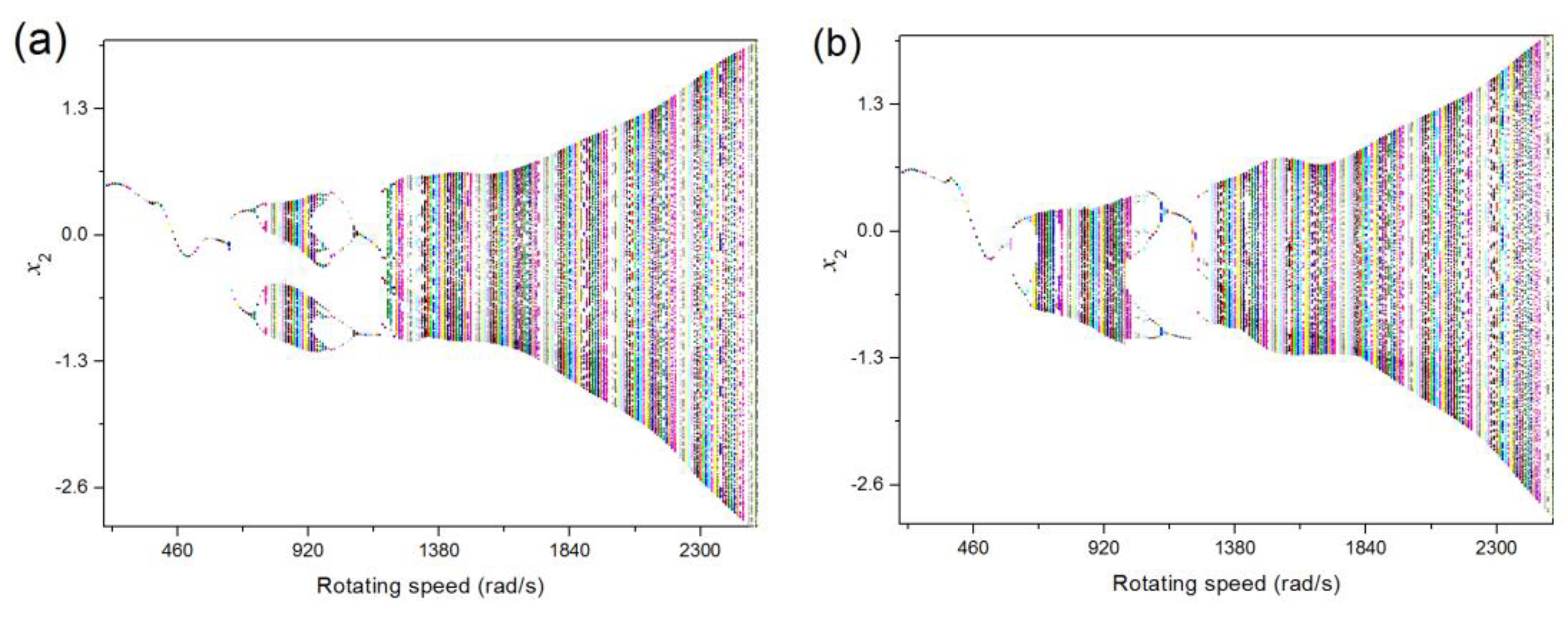

## 3. Simulation and Discussion

## 4. Conclusions

- The intervals of crack state are delayed by the initial bending, but the changes of interval size of each crack state are different. The size of fully open state is increased, the size of the fully closed one remains unchanged, and the two other interval sizes are reduced.
- The growth of crack reduces the natural frequency of the rotor system and increases the vibration amplitude, while the growth of the initial bending increases the amplitude and the range of resonance area.

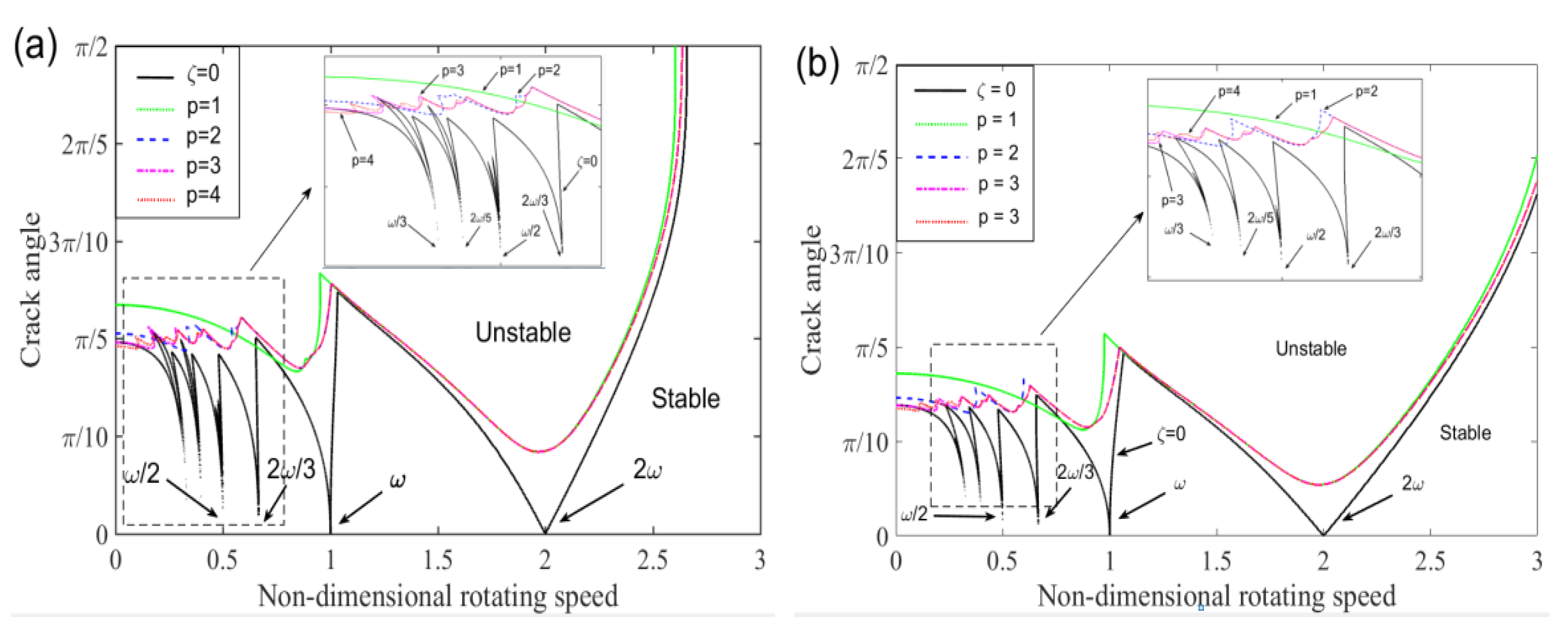

- Many frequency components gradually appear as the crack grows, such as the natural frequency, combined frequency and multiple frequencies. On the contrary, initial bending gradually reduces these frequency components and makes them disappear. Stable regions are reduced, smoothed and extended laterally when rotating speed exceeds twice the natural frequency.

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Wen, L.; Yang, Z.C.; Cao, Y.Y. The nonlinear dynamic characteristics of a cracked rotor-bearing system with initial bend deformation. In International Conference on Intelligent Human-Machine Systems & Cybernetics; IEEE: Hangzhou, China, 2015; pp. 341–344. [Google Scholar]
- Hu, L.; Liu, Y.B.; Teng, W.; Zhou, C. Nonlinear coupled dynamics of a rod fastening rotor under rub-impact and initial permanent deflection. Energies
**2016**, 9, 883. [Google Scholar] [CrossRef] [Green Version] - Jia, J.H.; Hang, T.Q. Effect of the initial deflection on vibration characteristics of the rub-impact rotor system. Math. Comput. Appl.
**2010**, 15, 768–775. [Google Scholar] [CrossRef] [Green Version] - Spagnol, J.; Wu, H.; Yang, C. Application of non-symmetric bending principles on modelling fatigue crack behaviour and vibration of a cracked rotor. Appl. Sci.
**2020**, 10, 717. [Google Scholar] [CrossRef] [Green Version] - Lacalle, L.N.L.D.; Viadero, F.; Hernandez, J.M. Applications of dynamic measurements to structural reliability updating. Probabilistic Eng. Mech.
**1996**, 11, 97–105. [Google Scholar] [CrossRef] - Coro, A.; Abasolo, M.; Aguirrebeitia, J.; López de Lacalle, L.N. Inspection scheduling based on reliability updating of gas turbine welded structures. Adv. Mech. Eng.
**2019**, 11, 168781401881928. [Google Scholar] [CrossRef] [Green Version] - Mobarak, H.M.; Wu, H.; Spagnol, J.P.; Xiao, K. New crack breathing mechanism under the influence of unbalance force. Arch. Appl. Mech.
**2017**, 88, 341–372. [Google Scholar] [CrossRef] - Liong, R.T.; Proppe, C. Application of the cohesive zone model for the evaluation of stiffness losses in a rotor with a transverse breathing crack. J. Sound Vib.
**2013**, 332, 2098–2110. [Google Scholar] [CrossRef] - Roy, D.K.; Tiwari, R. Estimation of the internal and external damping from the forward and backward spectrum of a rotor with a fatigue crack. Propuls. Power Res.
**2020**, 9, 62–74. [Google Scholar] [CrossRef] - Yang, Y.; Yang, Y.R.; Cao, D.Q.; Chen, G.; Jin, Y.L. Response evaluation of imbalance- rub–pedestal looseness coupling fault on a geometrically nonlinear rotor system. Mech. Syst. Signal Process.
**2019**, 118, 423–442. [Google Scholar] [CrossRef] - Mayes, I.J.; Davis, W.G.R. Analysis of the response of a multi-rotor-bearing system containing a transverse crack in a rotor. J. Vib. Acoust.
**1984**, 160, 139–145. [Google Scholar] [CrossRef] - Al-Shudeifat, M.A.; Butcher, E.A. New breathing functions for the transverse breathing crack of the cracked rotor system: Approach for critical and subcritical harmonic analysis. J. Sound Vib.
**2011**, 330, 526–544. [Google Scholar] [CrossRef] - Al-Shudeifat, M.A. Stability analysis and backward whirl investigation of cracked rotors with time-varying stiffness. J. Sound Vib.
**2015**, 348, 365–380. [Google Scholar] [CrossRef] - Urbikain, G.; Olvera, D.; de Lacalle, L.N.L.; Elías-Zúñiga, A. Stability and vibrational behaviour in turning processes with low rotational speeds. Int. J. Adv. Manuf. Technol.
**2015**, 80, 871–885. [Google Scholar] [CrossRef] - Urbikain, G.; Campa, F.-J.; Zulaikab, J.-J.; de Lacallea, L.-N.; Alonsoa, M.-A.; Colladob, V. Preventing chatter vibrations in heavy-duty turning operations in large horizontal lathes. J. Sound Vib.
**2015**, 340, 317–330. [Google Scholar] [CrossRef] - He, Q.; Peng, H.C.; Zhai, P.C.; Zhen, Y.X. The effects of unbalance orientation angle on the stability of the lateral torsion coupling vibration of an accelerated rotor with a transverse breathing crack. Mech. Syst. Signal Process.
**2016**, 75, 330–344. [Google Scholar] [CrossRef] - Sekhar, A.S. Identification of unbalance and crack acting simultaneously in a rotor system: Modal expansion versus reduced basis dynamic expansion. J. Vib. Control
**2005**, 11, 1125–1145. [Google Scholar] [CrossRef] - Sinou, J.J. Detection of cracks in rotor based on the 2× and 3× super-harmonic frequency components and the crack–unbalance interactions. Commun. Nonlinear Sci. Numer. Simul.
**2008**, 13, 2024–2040. [Google Scholar] [CrossRef] [Green Version] - Singh, S.; Tiwari, R. Model based identification of crack and bearing dynamic parameters in flexible rotor systems supported with an auxiliary active magnetic bearing. Mech. Mach. Theory
**2018**, 122, 292–307. [Google Scholar] [CrossRef] - Spagnol, J.P.; Wu, H. Breathing mechanism of a cracked rotor subject to non-trivial mass unbalance. In Proceedings of the Internoise 2014: 43rd International Congress on Noise Control Engineering: Improving the World through Noise Control, Melbourne, Australia, 16–19 November 2014; pp. 6404–6410. [Google Scholar]
- Rubio, P.; Rubio, L.; Muñoz-Abella, B.; Montero, L. Determination of the Stress Intensity Factor of an elliptical breathing crack in a rotating shaft. Int. J. Fatigue
**2015**, 77, 216–231. [Google Scholar] [CrossRef] - Gayen, D.; Tiwari, R.; Chakraborty, D. Finite element based stability analysis of a rotor–bearing system having a functionally graded shaft with transverse breathing cracks. Int. J. Mech. Sci.
**2019**, 157, 403–414. [Google Scholar] [CrossRef] - Rubio, P.; Sanz, Y.; Rubio, L.; Muñoz-Abella, B. Stress Intensity Factor and propagation of an open sickle shaped crack in a shaft under bending. Theor. Appl. Fract. Mech.
**2018**, 96, 688–698. [Google Scholar] [CrossRef] - Rubio, P.; Rubio, L.; Muñoz-abella, B. Propagation of surface breathing cracks in shafts under quasi-static rotary bending. Nonlinear Dyn.
**2017**, 90, 1987–2000. [Google Scholar] [CrossRef] - Zhao, B.X.; Yuan, Q.; Li, P. Improvement of the vibration performance of rod-fastened rotor by multioptimization on the distribution of original bending and unbalance. J. Mech. Sci. Technol.
**2020**, 34, 83–95. [Google Scholar] [CrossRef] - Mokhtar, M.A.; Darpe, A.K.; Gupta, K. Investigations on bending-torsional vibrations of rotor during rotor-stator rub using lagrange multiplier method. J. Sound Vib.
**2017**, 401, 94–113. [Google Scholar] [CrossRef] - Yang, Y.; Yang, Y.R.; Ouyang, H.J.; Li, X.; Cao, D.Q. Dynamic performance of a rotor system with an initial bow and coupling faults of imbalance-rub during whirling motion. J. Mech. Sci. Technol.
**2019**, 33, 4645–4657. [Google Scholar] [CrossRef] - Xia, Y.L.; Zhang, W.T.; Lu, Y.B.; Yang, J.G. Rotor Vibration analysis under the coupled effect of shaft bend and unbalance. Dongli Gongcheng Xuebao/J. Chin. Soc. Power Eng.
**2018**, 38, 815–819. [Google Scholar] - Yang, D.; Gan, C.B.; Yang, S.X.; Wang, Y.H. Analysis on response of a rotor with initial bend deformation under coupling fault of crack and rub-impact. J. Zhejiang Univ. (Eng. Sci.)
**2014**, 48, 1496–1501. [Google Scholar] - Guo, C.; Al-Shudeifat, M.A.; Yan, J.; Bergman, L.A.; Mcfarland, D.M.; Butcher, E.A. Stability analysis for transverse breathing cracks in rotor systems. Eur. J. Mech.
**2013**, 42, 27–34. [Google Scholar] [CrossRef] - Wang, Z.Y.; Lin, W.; Wen, B.C. Analysis of the rotor system with a switching crack. J. Vib. Shock.
**2010**, 29, 69–72. [Google Scholar]

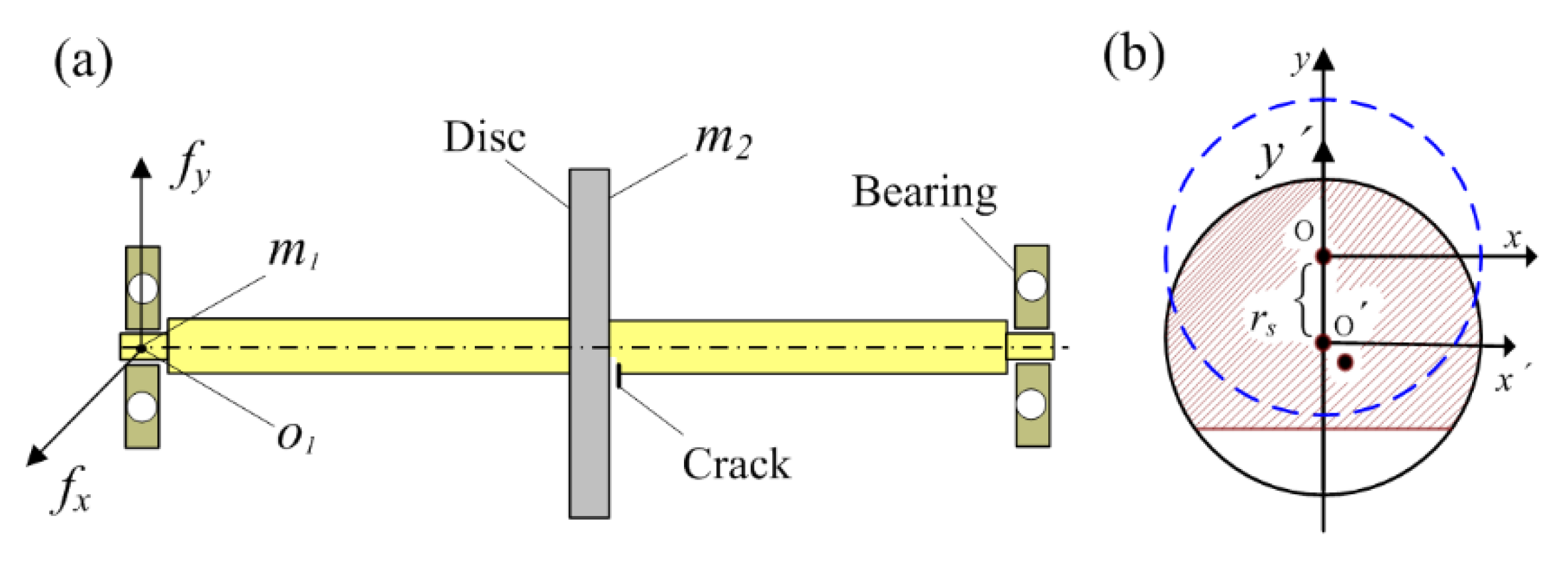

**Figure 1.**A cracked bearing-rotor system. (

**a**) structure schematic, (

**b**) cracked cross-section geometry.

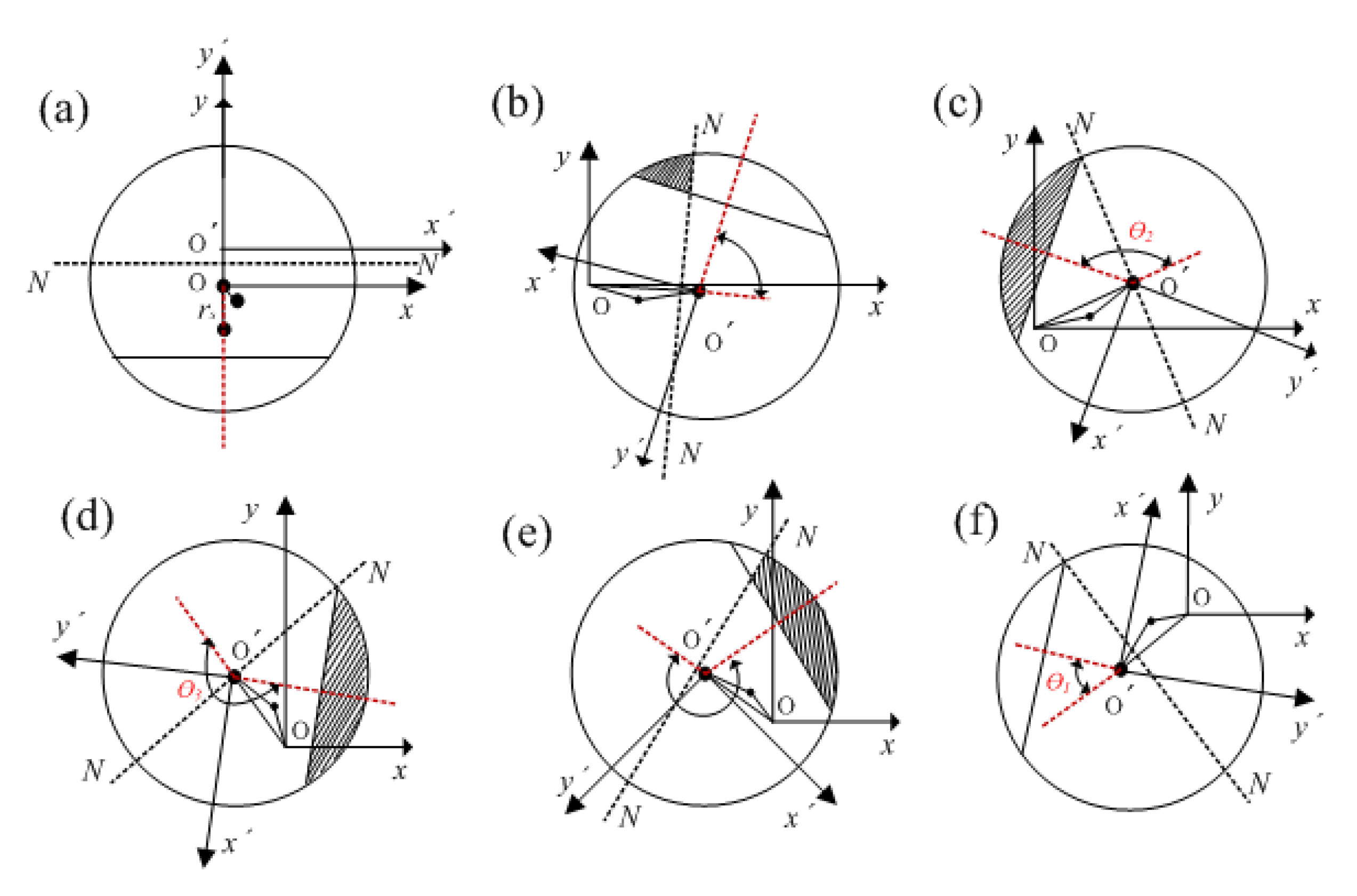

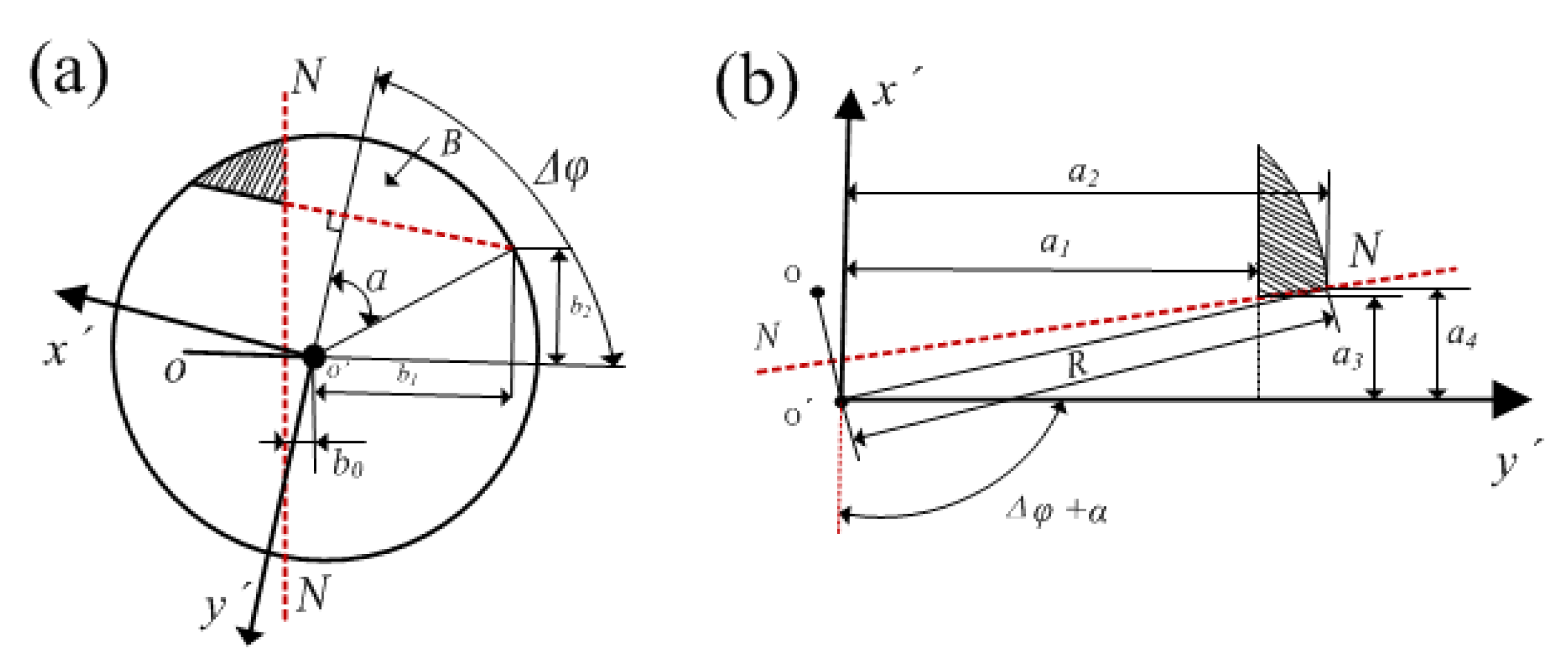

**Figure 3.**Schematic diagrams of the cross-section. (

**a**) normal rotation position figure, (

**b**) adjusted position figure for the convenience of calculation.

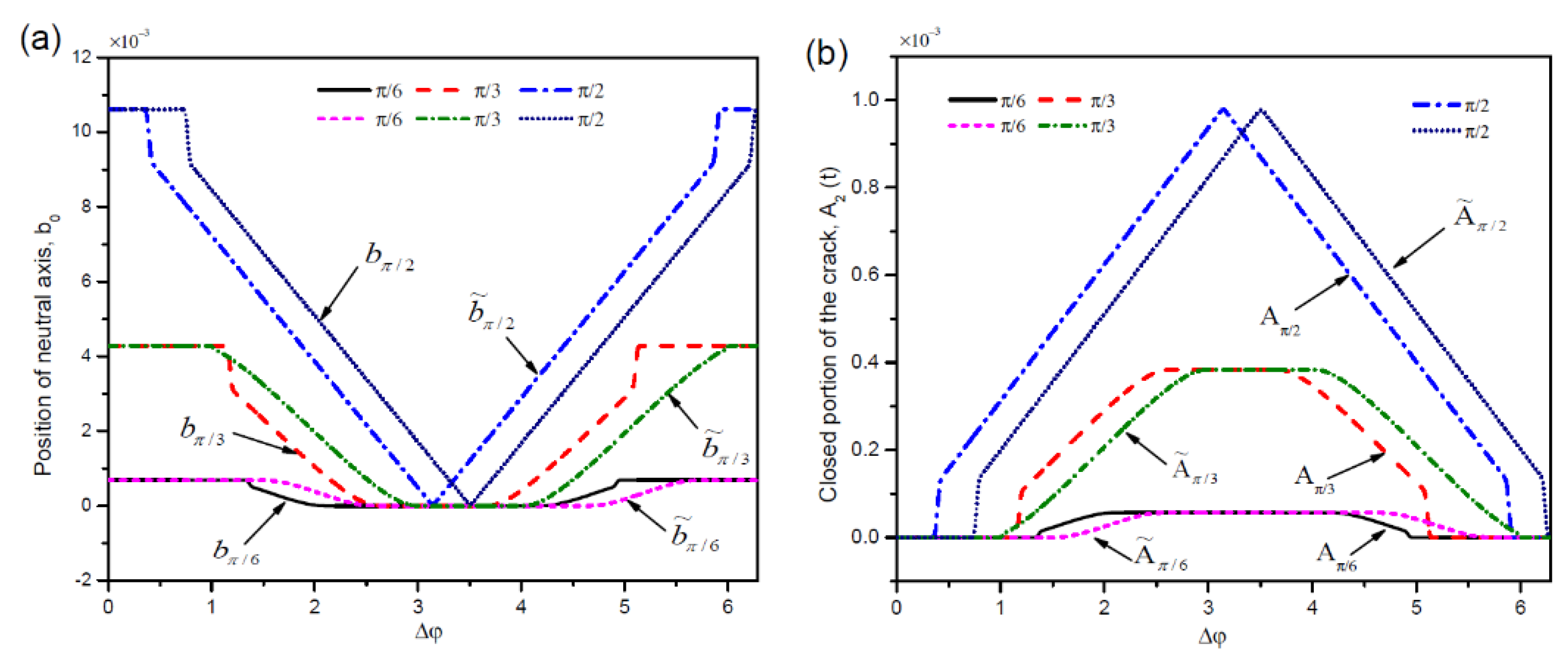

**Figure 4.**Displacement of neutral axis and area of closed portion of the crack. (

**a**) neural axis, (

**b**) closed portion of the crack.

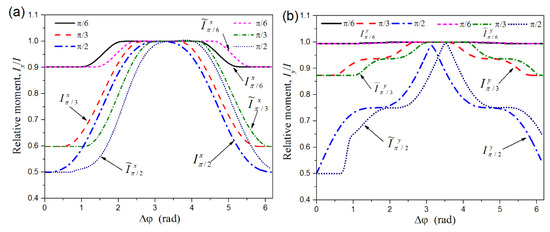

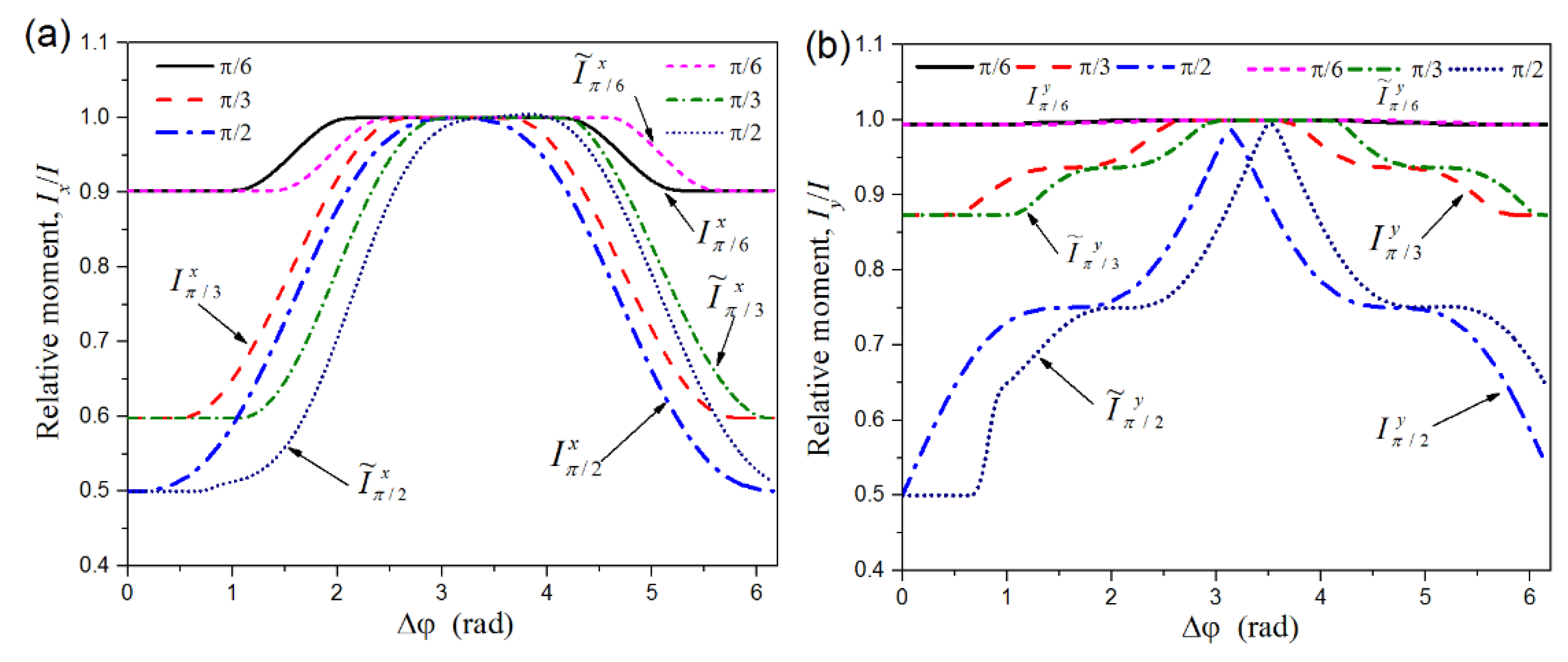

**Figure 5.**The moments of inertia about the rotating and fixed axes. (

**a**) about X axis, (

**b**) about Y axis.

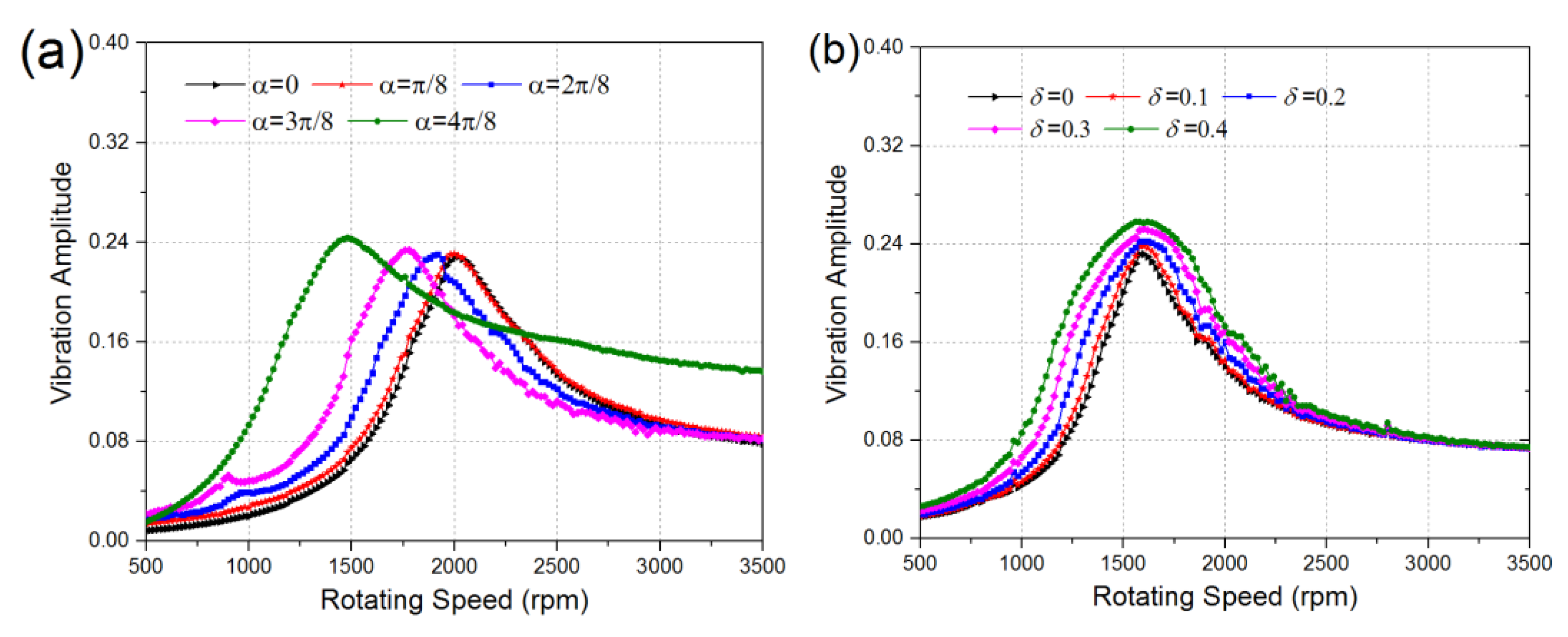

**Figure 6.**Amplitude–speed diagram along with the growth of crack angle and initial bending. (

**a**) crack angle, (

**b**) initial bending as α = π/6.

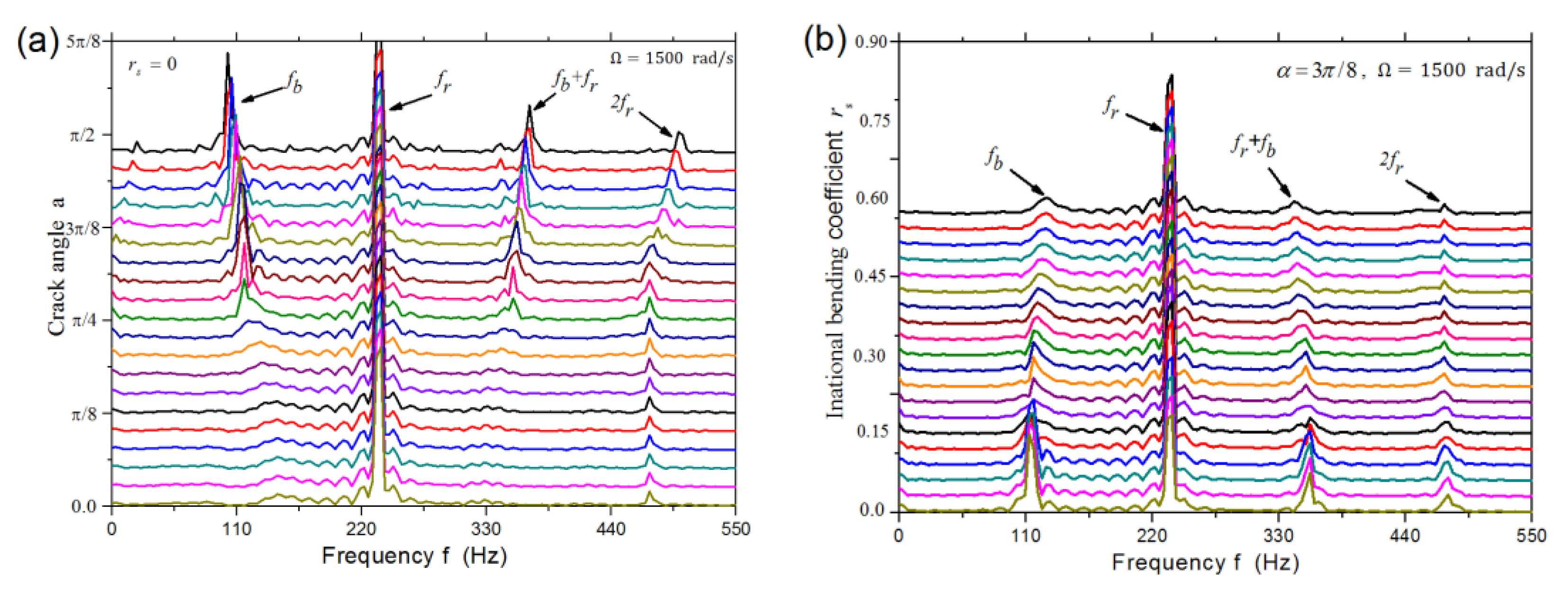

**Figure 7.**Spectrogram of dynamic response affected by crack angle and initial bending. (

**a**) spectrogram with growth of crack, (

**b**) spectrogram with growth of initial bending.

Description | Value | Description | Value |
---|---|---|---|

Mass of bearing, ${m}_{1}$ | 1.0 kg | Mass of disk, ${m}_{2}$ | 32.1 kg |

Bearing radius, ${R}_{c}$ | 10 mm | Disk damping, ${c}_{2}$ | 2100 N·s/m |

Bearing Length, ${L}_{c}$ | 12 mm | Disk stiffness, $k$ | 2.5 × 10^{7} N/m |

Bearing damping, ${c}_{1}$ Friction coefficient, f | 1050 N·s/m 0.1 | Bearing stiffness, ${k}_{c}$ Radial clearance, c | 3.6 × 10^{6} N/m0.11 mm |

Shaft Length, L | 1 m | Shaft radius, R | 0.025 m |

$\mathit{\alpha}=\mathit{\pi}/6$ | Without Initial Bending | With Initial Bending | ||
---|---|---|---|---|

Ω = 200 (rad/s) | Ω = 500 (rad/s) | Ω = 800 (rad/s) | ||

Fully open | [−1.048, 1.048] | [−1.043, 1.078] | [−0.998, 1.122] | [−0.698, 1.423] |

From open to closed | [1.048, 2.094] | [1.078, 2.112] | [1.122, 2.156] | [1.423, 2.457] |

Fully closed | [2.094, 4.189] | [2.112, 4.206] | [2.156, 4.252] | [2.457, 4.552] |

From closed to open | [4.189, 5.236] | [4.206, 5.240] | [4.251, 5.285] | [4.552, 5.586] |
