Straw/Spring Teeth Interaction Analysis of Baler Picker in Smart Agriculture via an ADAMS-DEM Coupled Simulation Method

by
Qingqing Wang
1,2,
Ziwen Bai
1,
Zhiqiang Li
1,
Dongbo Xie
1,
Liqing Chen
1,2,* and
Hai Wang
1,3,*
1
College of Engineering, Anhui Agricultural University, Hefei 230036, China
2
Anhui Province Engineering Laboratory of Intelligent Agricultural Machinery and Equipment, Hefei 230036, China
3
Discipline of Engineering and Energy, Murdoch University, Perth, WA 6150, Australia
*
Authors to whom correspondence should be addressed.
Machines 2021, 9(11), 296; https://doi.org/10.3390/machines9110296
Submission received: 8 October 2021 / Revised: 17 November 2021 / Accepted: 17 November 2021 / Published: 19 November 2021
(This article belongs to the Section Machine Design and Theory)
Browse Figures
Review Reports Versions Notes

Abstract

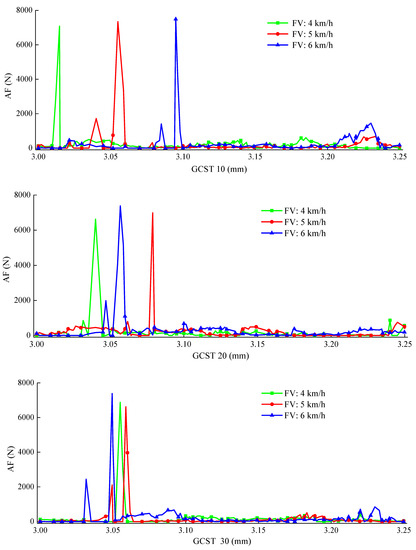

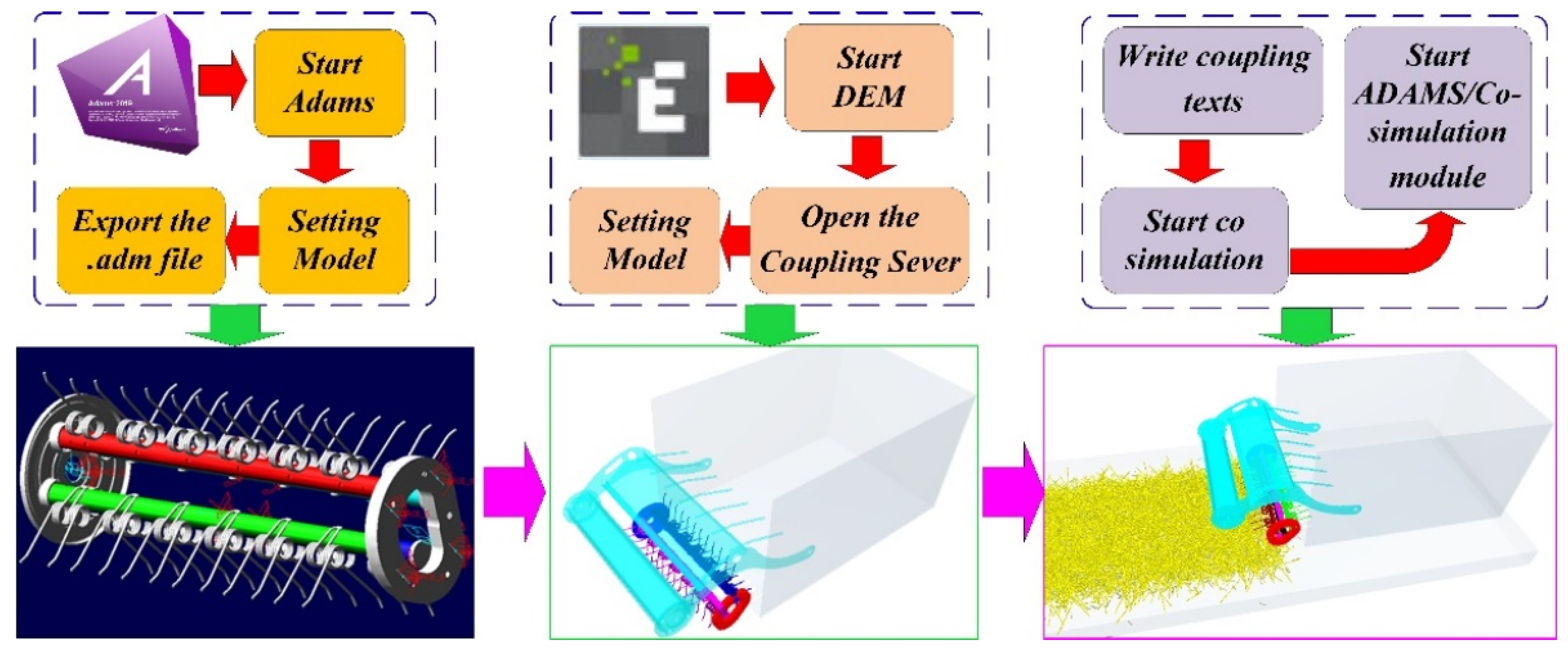

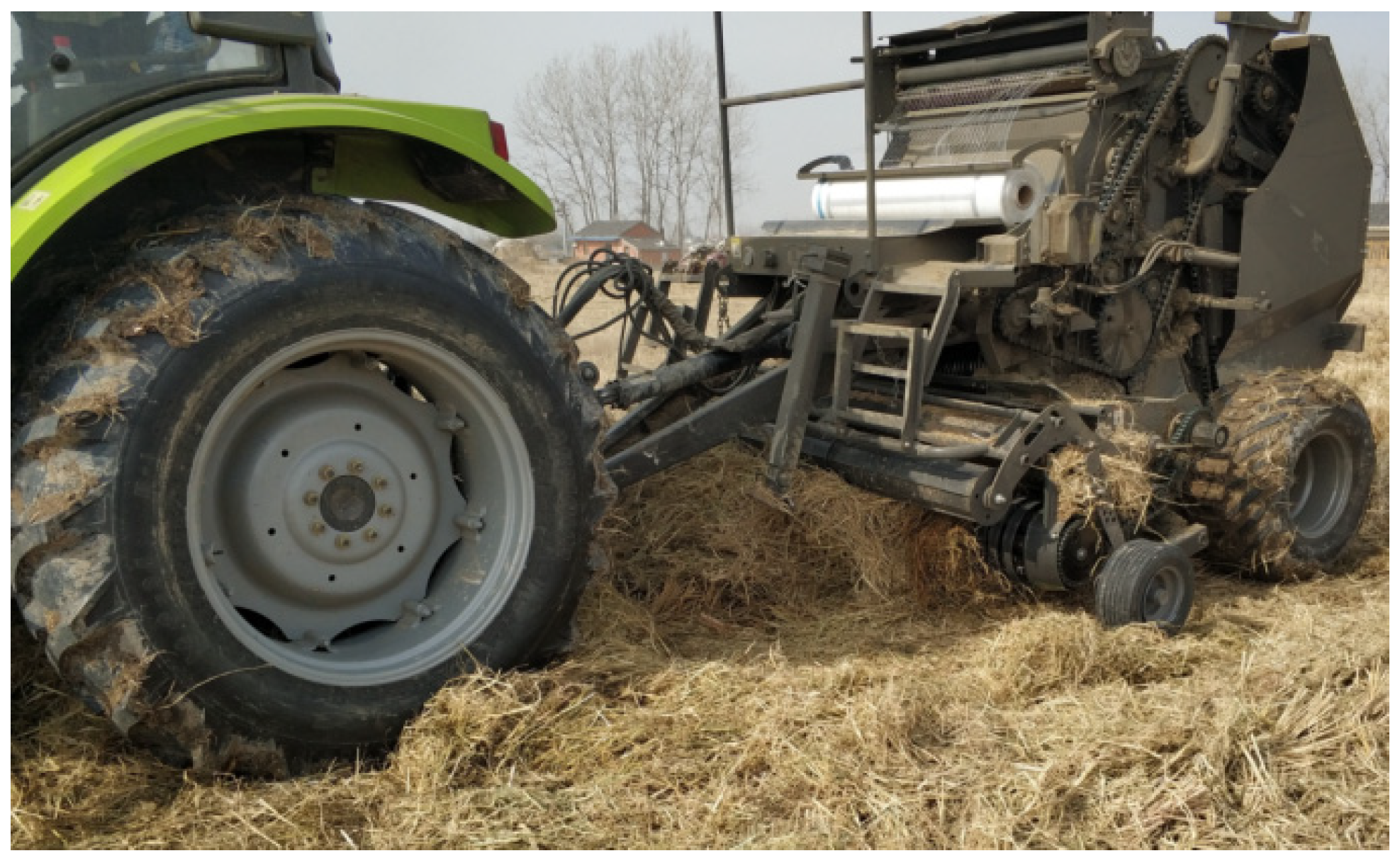

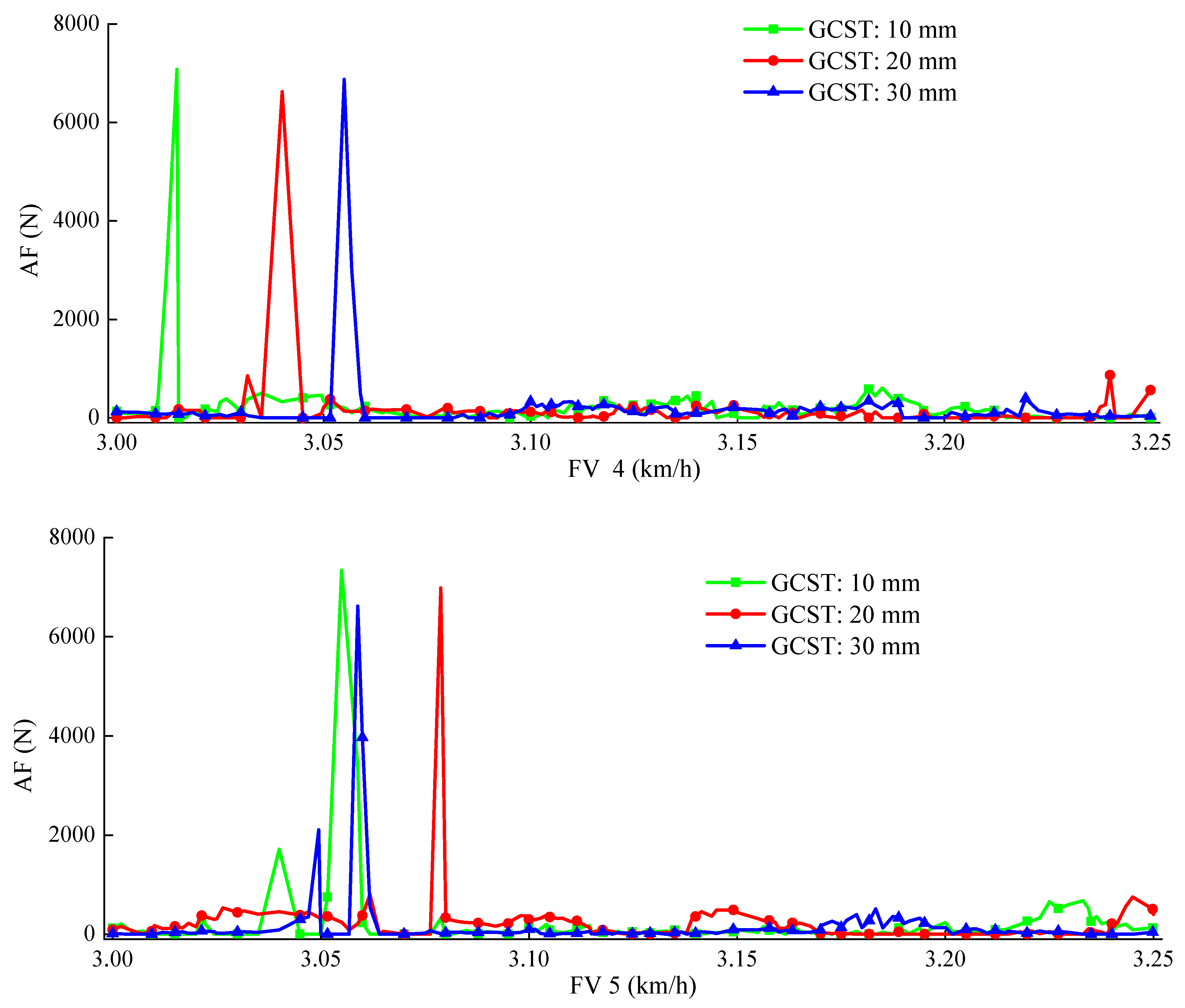

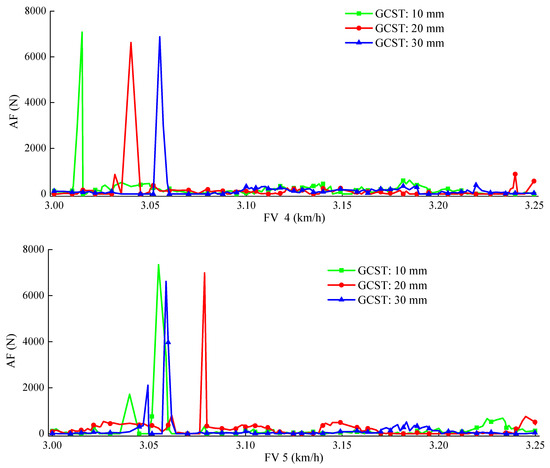

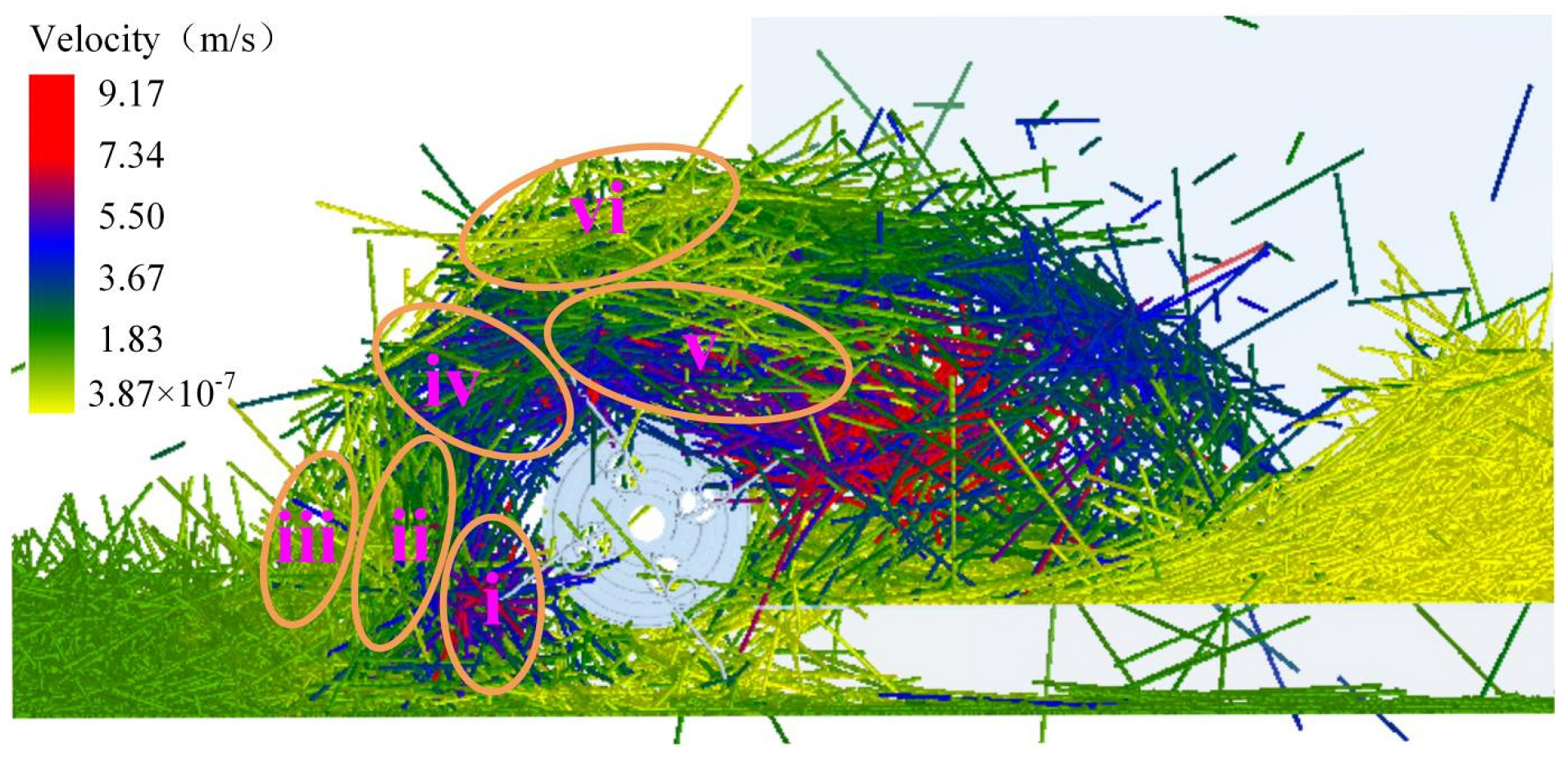

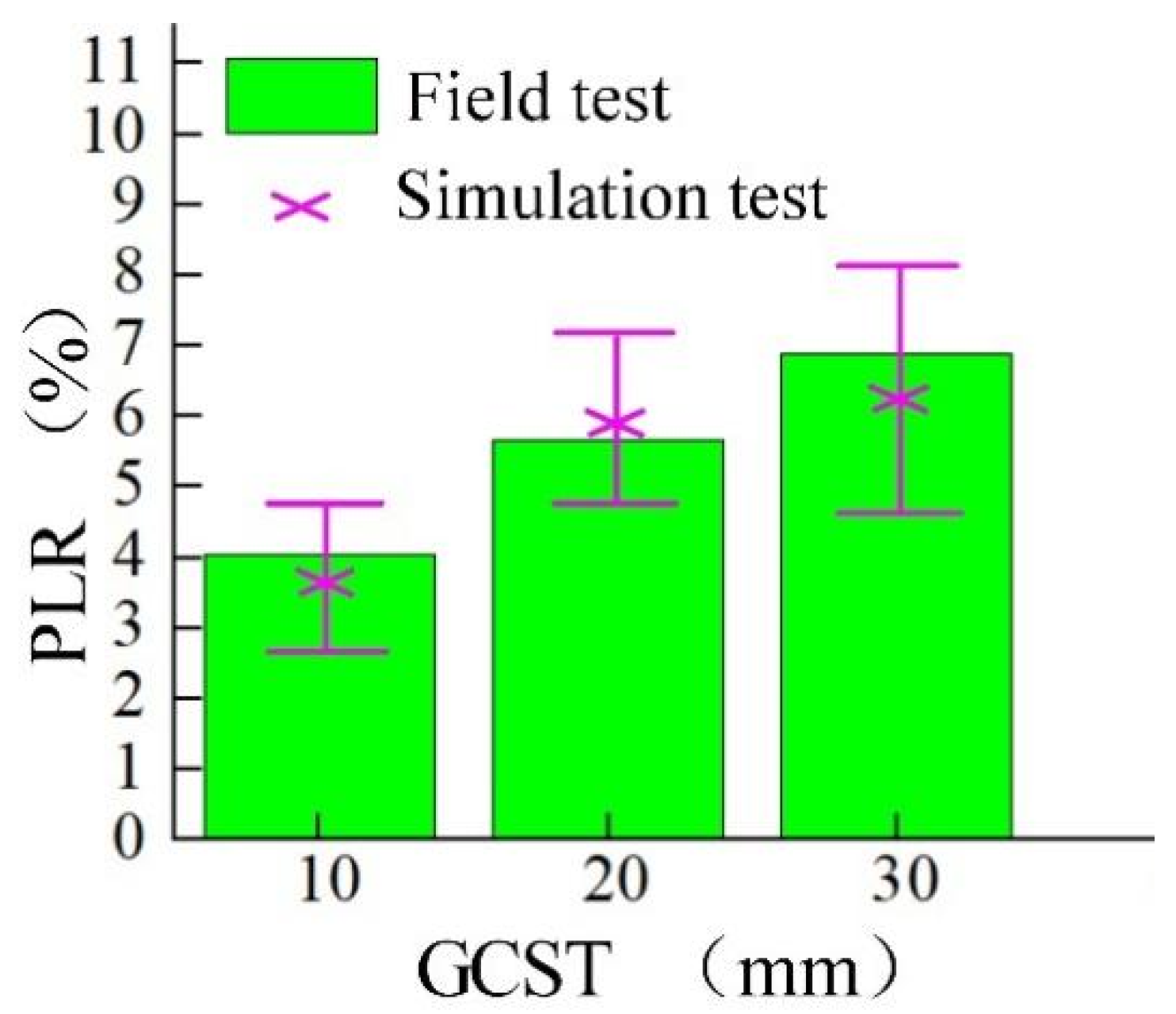

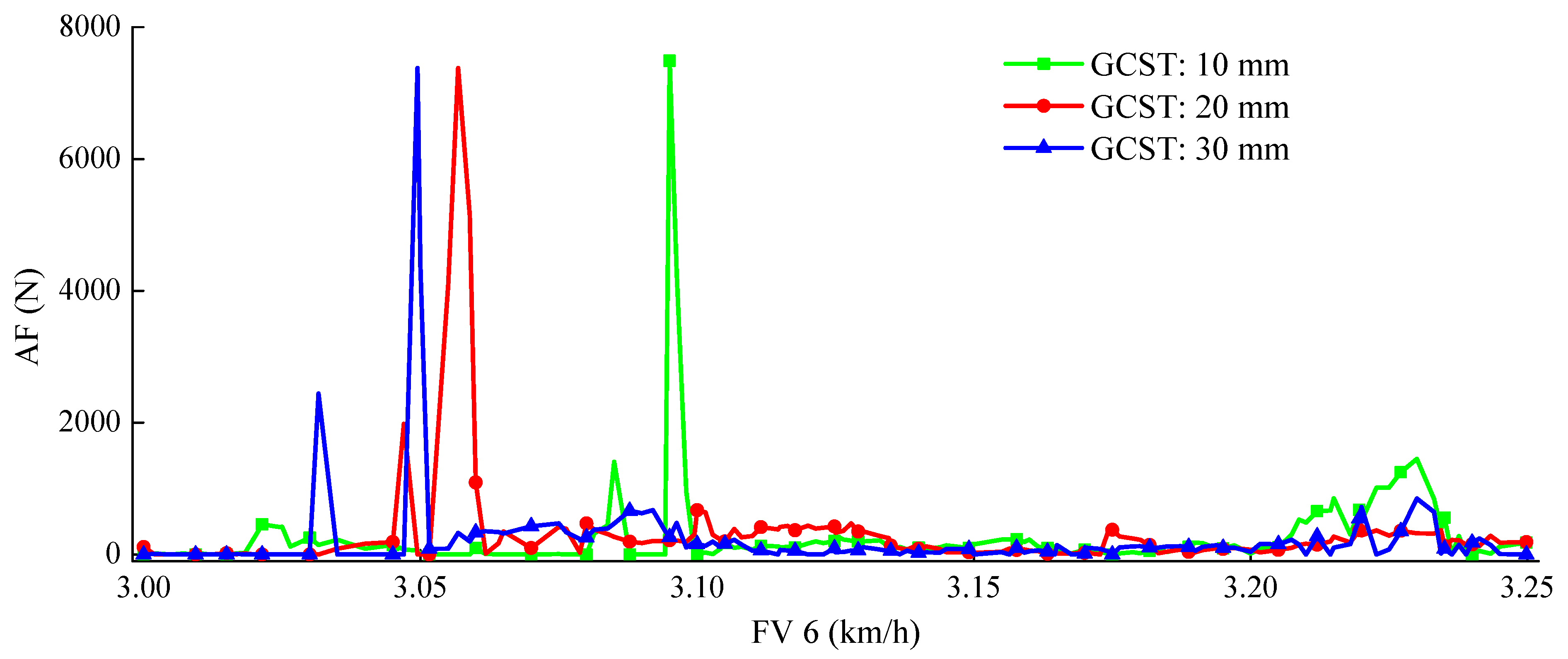

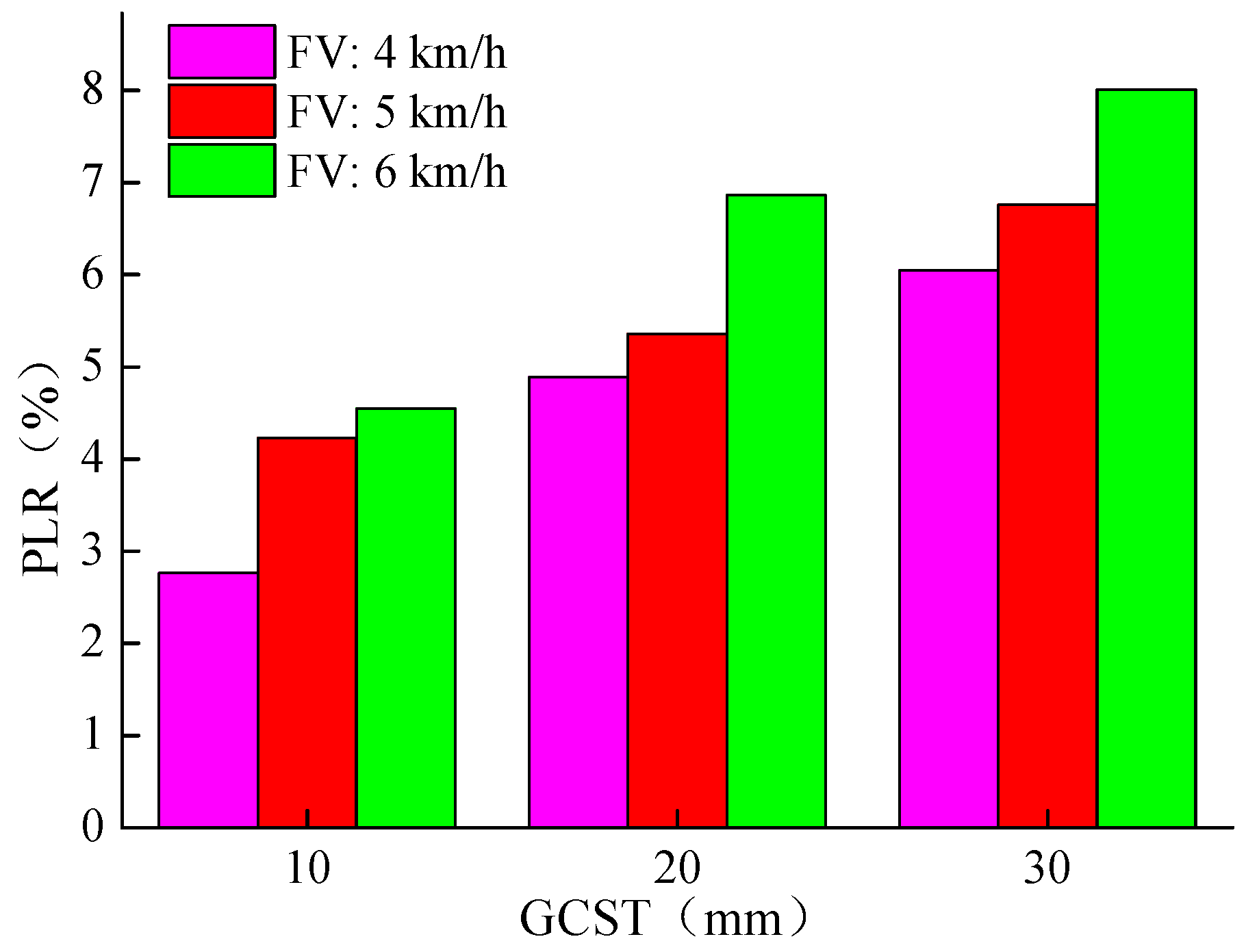

In this paper, a new coupling simulation method is proposed for baler picker using automatic dynamic analysis of mechanical systems (ADAMS) and discrete element method (DEM). Field tests are carried out to verify the accuracy of the simulation model. By using the coupling method, not only was it obtained that the forward velocity (FV) and the ground clearance of spring teeth (GCST) are positively correlated with the pick-up loss rate (PLR), but also that the blockage of the picker mainly occurs in the straw pushing area, and an optimization plan is proposed. Through the analysis of the acting force (AF) between the roller and the track groove, we speculate that the structure of the track groove in a certain area is defective. The coupling method and optimization scheme proposed in this paper can provide a reference for the optimal design of the picker.
Keywords: automatic dynamic analysis of mechanical systems (ADAMS); discrete element method (DEM); coupling method; blockage; defective automatic dynamic analysis of mechanical systems (ADAMS); discrete element method (DEM); coupling method; blockage; defective
