NDF Controller-Based Stability Analysis and Vibration Mitigation of a Nonlinear Electromechanical Oscillator Under Primary Resonance

Abstract

This work examines how well a Negative Derivative Feedback (NDF) controller suppresses vibration in a nonlinear electromechanical oscillator that is subjected to mixed excitations. Coupled nonlinear ordinary differential equations are used to model the system and show how mechanical and electrical components interact. The method of multiple scales (MMS) is used to develop analytical approximate solutions up to the second order, specifically for the primary resonance scenario. This study’s main contribution is a thorough bifurcation analysis and proof of the NDF controller’s high efficacy, which effectively lowers the first and second mode resonance amplitudes by roughly $99.8\%$ and $98\%$., respectively, with impressive reported effectiveness values of roughly 590 and 51.5. Additionally, the quantitative error analysis between the numerical simulation and the analytical approximation solution demonstrates a high degree of agreement, with a maximum error of less than ${10}^{-5}\%$ for the second mode and just $0.01\%$ for the first mode. Furthermore, we present the impact of parameters on FRCs. Frequency response curves (FRCs) are used in a thorough comparison analysis to assess the behavior of the system both before and after the controller is activated. A strong degree of connection between the analytical conclusions and numerical simulations carried out using the “fourth-order Runge–Kutta method” rigorously validates the accuracy of the perturbation analysis. Additionally, a performance benchmark between different control techniques, such as the NDF controller, Positive Position Feedback (PPF), and Linear Negative Position Feedback (LNPF), is shown in the paper. When compared to alternative approaches, the NDF controller shows the greatest reduction in oscillation amplitudes and higher robustness, as shown by transient response analysis (time history) at various time intervals. The outcomes validate the NDF approach’s dependability and efficiency in stabilizing intricate nonlinear electromechanical systems. The chaotic response and system periodicity were demonstrated through bifurcation diagrams and Poincaré maps.

1. Introduction

In order to develop the future of micro- and nano-electromechanical systems (MEMS/NEMS), it is essential to be able to control the nonlinear coupling between vibrational modes. These linked oscillators provide essential frameworks for deciphering intricate dynamics in a variety of biological, engineering, and physical schemes. In general, high precision applications, including thickness measurement, rotational speed computation, and flow identification in materials ranging from steel to sophisticated alloys, are carried out using electromagnetic transducers. The mechanical part serves as the main sensor in these system, while the electrical subsystem uses magnetic interaction to send vibration signals through the air gap of a permanent magnet; this creates a special synergy [1]. Several important works have thoroughly examined the area of nonlinear electromechanical system. Yamapi et al. [2] investigated the chaotic management mechanism and stability feature of these system. Ge and Lin [3] used adaptive and delayed feedback control approaches to study the dynamic behavior of electromechanical gyrostat systems exposed to external disturbance. Yamapi and Bowong [4] used sliding mode controllers to a control self-sustaining electrostatic transducer system while taking discontinuous and continuous states into account. In terms of geophysical applications, Siewe et al. [5] created an electromechanical oscillator to capture the earth’s vertical motion, proving that the accuracy of the damping coefficient estimation is a crucial factor in the efficacy of chaos suppression. Subsequent research [6,7] used the averaging and harmonic balance methods to evaluate the synchronization between coupled systems, such as Rayliegh–Duffing oscillators, in order to calculate oscillatory amplitudes. Furthermore, a thorough examination of global bifurcations and the complex dynamics of self-sustained nonlinear electromechanical system was conducted by Kwuimy and Woafo [8,9].

Hegazy [10] examined nonlinear vibrations and chaotic motions in an electromechanical seismograph system with time-varying stiffness. He employed various active controller types to lessen system oscillations and discovered that the most effective active control on system behavior is negative velocity feedback. Recently, the behavior of electromechanical schemes and how they affect the energy harvesting problem have drawn the attention of researchers. Martens et al. [11] examined the efficiency of vibration energy harvesting systems affected by sporadic environmental excitations using the solution of applicable Fokker–Planck formulas. Borowiec et al. [12] examined the effects of random excitation on energy harvester performance and showed that the noise component of the force impacts the stability of the system. In order to assess a nonlinear energy harvesting system’s mean square electric voltage, a stochastic averaging technique was presented in [13]. Li et al. [14] investigated a piezoelectric energy harvester with external magnetic fields driving tri-stable potential wells. They asserted that if the system is properly constructed, the frequency bandwidth can be increased for this high harvesting efficiency at coherence resonance with a certain deterministic or stochastic input. Additionally, Pallay et al. [15] looked into the basic processes of control phase deviations in semi-active systems and suggested a structure-based compensation strategy that uses inertial suspensions to remove phase delays across the whole frequency range.

Averaging techniques and the multiple scales method (MSM) [16,17,18] are two perturbation methods frequently used to evaluate the effectiveness of parametrically stimulated models. The behavior of such systems can still be predicted using these techniques, particularly in the frequency region near the important parametric resonance [19]. In relatively simple circumstances, such as constrained frequency ranges around the core parametric resonance, modest excitations, and minimum system properties, it has been demonstrated that traditional MSM can accurately estimate responses [20,21,22,23]. Furthermore, it has been demonstrated that a number of control mechanism techniques can lessen the harmful vibrations that various nonlinear systems create [24,25,26,27,28,29,30,31].

Elsayed et al. [32] examined how well a Negative Derivative Feedback (NDF) controller suppressed vibrations in a nonlinear system with two degrees of freedom and geometric damping. They thoroughly examined the system’s behavior under simultaneous resonance conditions by using the averaging method in conjunction with Runge–Kutta numerical simulations. Their findings emphasize the controller’s strong ability to improve vibration. A cubic–quintic hybrid oscillator under simultaneous internal and exterior resonances was examined in [33]. The Positive Position Feedback (PPF) controller was found to be the most successful for vibration reduction after a variety of control schemes were assessed. Numerical simulations were used to verify the system’s stability after it was further examined utilizing the multiple scale perturbation technique. Hamed et al. [34] investigated the nonlinear dynamics and vibration suppression of a coupled electromechanical oscillator under harmonic and parametric excitations. In [35], to reduce vibrations and stabilize bifurcations in electromechanical systems, this research suggests a unique Nonlinear Proportional-Derivative Cubic Velocity Feedback (NPDVF) controller.

The structural stability and active vibration management of coupled multiphysics setups have drawn a lot of interest in recent research. In particular, Kevorkian and Cole [36] gave a thorough, high-level overview of the most recent developments in nonlinear dynamics as they relate to intricate electromechanical systems. Their study examined the internal energy transfers between mechanical modes and electrical components in detail, highlighting the difficulties caused by undesired large-amplitude resonance in sophisticated energy harvesters, high-precision automobile sensors, and MEMS. Concurrently, Xu et al. [37] carried out a thorough parametric study on the Negative Derivative Feedback (NDF) controller structure in order to lessen these severe dynamic instabilities. They demonstrated the superior effectiveness of the NDF loop in suppressing nonlinear self-excited oscillations without disturbing secondary frequencies by putting forth strong tuning criteria and optimization strategies to maximize its active damping capabilities. While the NDF control system has been studied for structural applications, as see in [38], its application in this work is very different. Here, a two-degree-of-freedom nonlinear electromechanical oscillator is coupled to the NDF controller concurrently. This goes beyond the previously published single-domain models by introducing extremely intricate internal energy interactions between the electrical circuit and mechanical modes under primary resonance.

In this study, two coupled second-order ordinary differential equations with quadratic and cubic nonlinearities are used to describe a nonlinear electromechanical system. Second-order approximate solutions are obtained under the primary resonance condition using the method of multiple scales. Three alternative control systems were compared in order to improve system stability, and the Negative Derivative Feedback (NDF) controller was found to be the most successful. The findings show that the NDF controller greatly reduces vibrations; for the first and second modes, the response amplitude is reduced by 99.8% and 98%, respectively. Additionally, a detailed analysis of the frequency response and the impact of different system factors was conducted. The quantitative error analysis between the numerical simulation and the analytical approximation solution demonstrates a high degree of agreement, with a maximum error of less than ${10}^{-5}\%$ for the second mode and just $0.01\%$ for the first mode, demonstrating the robustness and dependability of the suggested control strategy. The chaotic response and system periodicity were demonstrated through bifurcation diagrams and Poincaré maps and the optimum parameter selection was made through the system parameter effect graphs and the stability mapping diagrams.

2. Governing Equations and Approximate Solutions

2.1. System Without Control

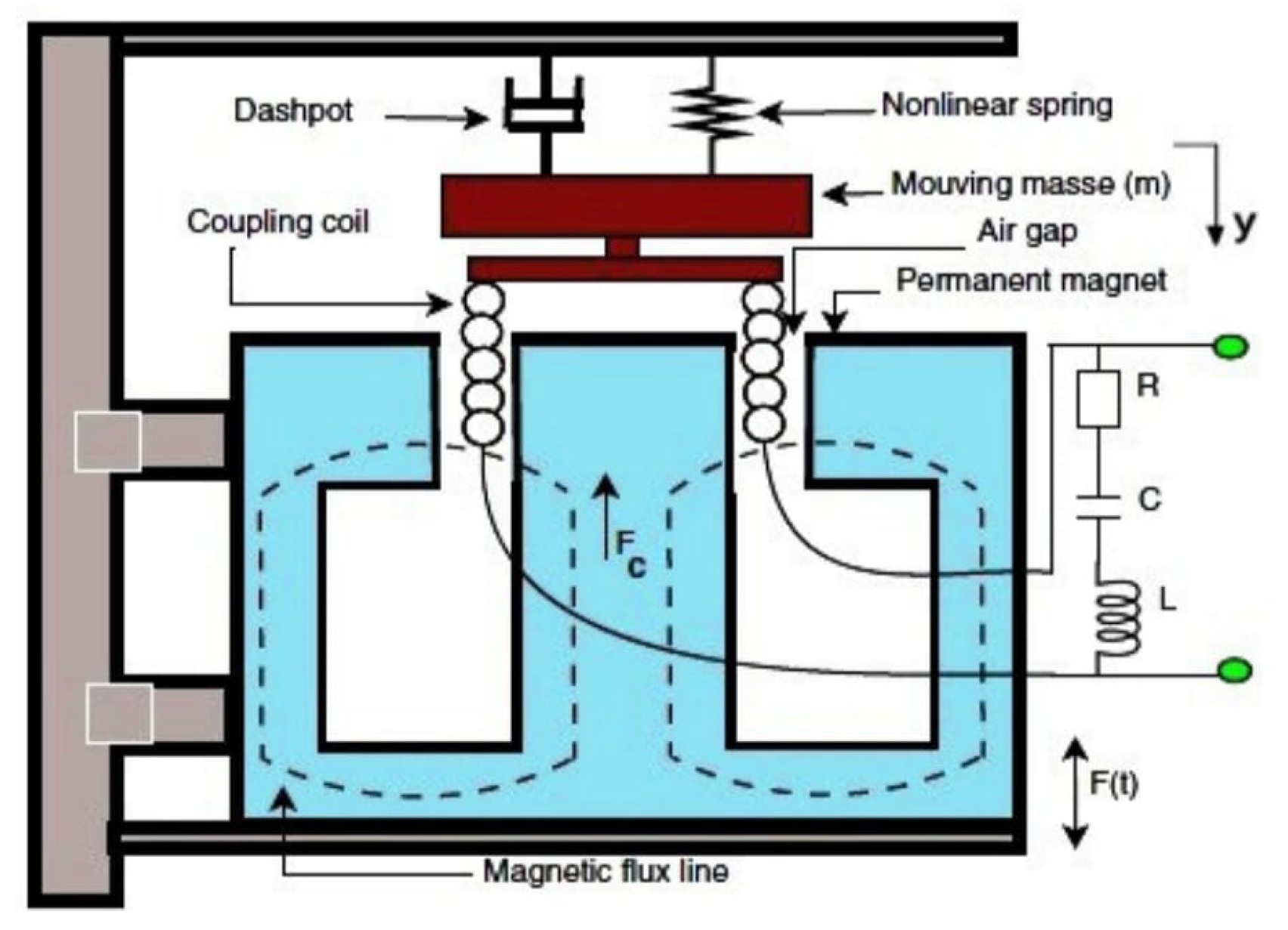

The scheme of the electromechanical oscillator system under investigation is displayed in Figure 1. The two components of electromechanical device modeling are mechanical and electrical. The electrical component is made up of voltage-charge q, linear inductor L, linear capacitor c, and linear resistor R. The mechanical component is made up of a big suspended object. A radial magnetic field is produced when the mechanical and electrical components interact via a permanent magnet’s air gap.

The equation of motion of a 2-DOF electromechanical system and its schematic configuration (Figure 1) are adopted from [34,35] as follows:

$$\begin{array}{c}\hfill \ddot{x}+\epsilon {\mu }_1\dot{x}+{\omega }_1^{2}x+\epsilon {\lambda }_1{x}^2+\epsilon {\lambda }_2{x}^3+\epsilon ({\gamma }_0+{\gamma }_{1}x+{\gamma }_2{x}^2)\dot{y}=\epsilon (f_0+f_{1}cos\left({\mathsf{\Omega }}_{1}t\right)+f_{2}xcos\left({\mathsf{\Omega }}_{2}t\right))\end{array}$$

(1)

$$\begin{array}{cc}\hfill \ddot{y}+\epsilon {\mu }_2\dot{y}+{\omega }_2^{2}y+\epsilon ({\beta }_0+{\beta }_{1}x+{\beta }_2{x}^2)\dot{x}& =\epsilon (f_{3}cos\left({\mathsf{\Omega }}_{3}t\right)+f_{4}ycos\left({\mathsf{\Omega }}_{4}t\right))\hfill \end{array}$$

(2)

Two coupled components make up the system: an electrical part represented by a linear damped oscillator with nonlinear coupling terms (y) and a mechanical part described as a forced Duffing oscillator with nonlinear coupling (x). In this case, the first- and second-order time derivatives with respect to t are denoted by $\dot{x},\dot{y}$ and $\ddot{x},\ddot{y}$. The linear damping coefficients and nonlinear parameters are represented by the parameters ${\mu }_1,{\mu }_2$ and ${\lambda }_1,{\lambda }_2$, respectively, whereas $ϵ$ is a minor perturbation parameter ($0<ϵ\ll 1$). The excitation force amplitudes are represented by $f_i$, where mixed mechanical excitations are represented by $f_1,f_2$, and $f_3$ and mixed electrical excitations by $f_4,f_5$. The coupling coefficients are ${\gamma }_j$ and ${\beta }_j$ ($j=0,1,2$), while ${\omega }_1,{\omega }_2$ are the natural frequencies and ${\mathsf{\Omega }}_j$ are the excitation frequencies. It is worth noting that a number of real-world physical elements that are frequently utilized in engineering applications are directly represented by the coupled electromechanical model examined in this study. In particular, it simulates the dynamic behavior of vibration-based energy harvesting devices, electromagnetic transducers, and micro-electromechanical system (MEMS) resonators, where mechanical structures are intrinsically linked with electrical circuits.

2.2. System with NDF Controller

The governing equations of motion describing the system under the influence of an NDF controller is expressed as follows:

$$\begin{array}{c}\ddot{x}+\epsilon {\mu }_1\dot{x}+{\omega }_1^{2}x+\epsilon {\lambda }_1{x}^2+\epsilon {\lambda }_2{x}^3+\epsilon ({\gamma }_0+{\gamma }_{1}x+{\gamma }_2{x}^2)\dot{y}=\hfill \\ \hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\epsilon (f_0+f_{1}cos\left({\mathsf{\Omega }}_{1}t\right)+f_{2}xcos\left({\mathsf{\Omega }}_{2}t\right))+\epsilon k_1\dot{u}\hfill \end{array}$$

(3)

$$\begin{array}{cc}\hfill \ddot{y}+\epsilon {\mu }_2\dot{y}+{\omega }_2^{2}y+\epsilon ({\beta }_0+{\beta }_{1}x+{\beta }_2{x}^2)\dot{x}& =\epsilon (f_{3}cos\left({\mathsf{\Omega }}_{3}t\right)+f_{4}ycos\left({\mathsf{\Omega }}_{4}t\right))+\epsilon k_2\dot{v}\hfill \end{array}$$

(4)

$$\begin{array}{cc}\hfill \ddot{u}+\epsilon {\mu }_3\dot{u}+{\omega }_3^{2}u& =-\epsilon k_3\dot{x}\hfill \end{array}$$

(5)

$$\begin{array}{cc}\hfill \ddot{v}+\epsilon {\mu }_4\dot{v}+{\omega }_4^{2}v& =-\epsilon k_4\dot{y}\hfill \end{array}$$

(6)

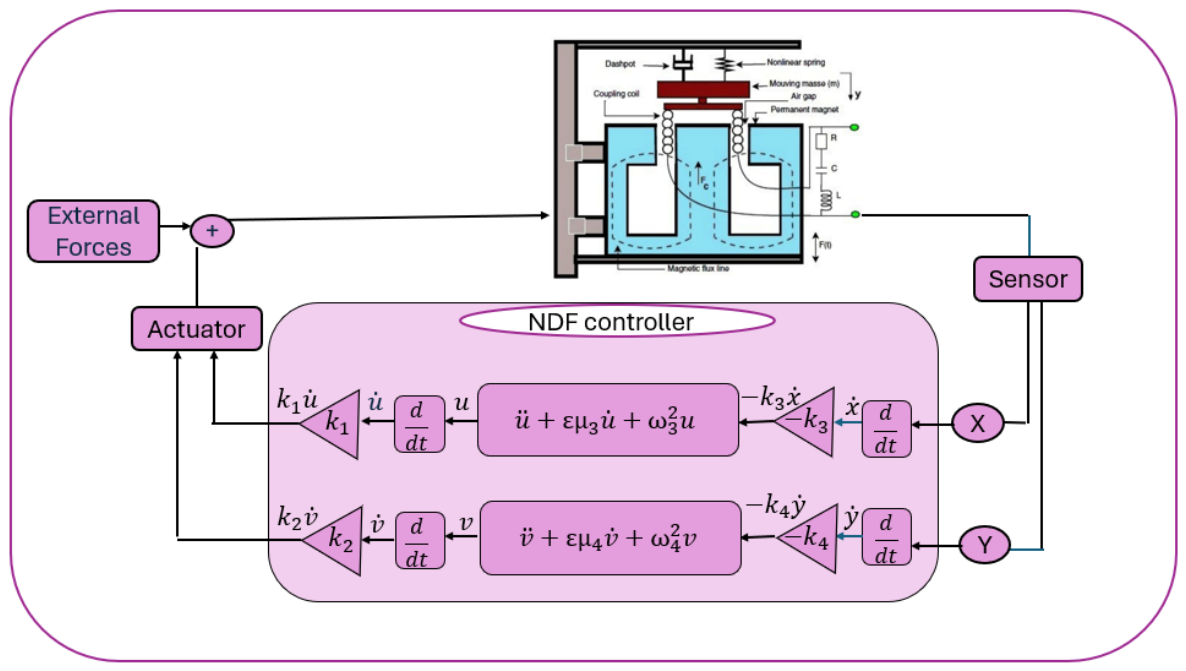

The dynamic governing framework of the proposed Negative Derivative Feedback (NDF) controller coupled to the main system is explicitly defined by Equations (5) and (6). In this case, the internal controller signals are represented by the state variables u and v, which are dynamically connected to the primary electromechanical system in Equations (3) and (4) through the control gains $k_1$, $k_2$, $k_3$, and $k_4$ in order to attain the intended vibration suppression. A Negative Derivative Feedback (NDF) controller is incorporated into this model to improve vibration suppression. To lessen oscillations and enhance overall stability, the NDF controller implements an active dampening mechanism depending on the rate of change in the system’s reaction, as shown in Figure 2.

2.3. Perturbation Study

Applying the method of multiple scales by introducing the time scales $T_n={\epsilon }^{n}t$, the derivatives are transformed as follows [23,35]:

$${\displaystyle \frac{d}{dt}}=D_0+\epsilon D_1+\dots ,{\displaystyle \frac{d^2}{d{t}^2}}=D_0^2+2\epsilon D_0{D}_1+\dots$$

(7)

We will restrict the study to the first-order approximation

$$\begin{array}{cc}\hfill x(T_0,T_1,ϵ)& ={\displaystyle \sum _{n=0}^1}{ϵ}^n{x}_n(T_0,T_1)+O\left({ϵ}^2\right)\hfill \end{array}$$

(8a)

$$\begin{array}{cc}\hfill y(T_0,T_1,ϵ)& ={\displaystyle \sum _{n=0}^1}{ϵ}^n{y}_n(T_0,T_1)+O\left({ϵ}^2\right)\hfill \end{array}$$

(8b)

$$\begin{array}{cc}\hfill u(T_0,T_1,ϵ)& ={\displaystyle \sum _{n=0}^1}{ϵ}^n{u}_n(T_0,T_1)+O\left({ϵ}^2\right)\hfill \end{array}$$

(8c)

$$\begin{array}{cc}\hfill v(T_0,T_1,ϵ)& ={\displaystyle \sum _{n=0}^1}{ϵ}^n{v}_n(T_0,T_1)+O\left({ϵ}^2\right)\hfill \end{array}$$

(8d)

Insert Equations (7) and (8) into Equations (3)–(6) such that:

$$\begin{array}{cc}\hfill (D_0^2+{\omega }_1^2)x_0+(D_0^2+{\omega }_1^2)x_1& =\epsilon [-2D_0{D}_1{x}_0-{\mu }_1{D}_0{x}_0-{\lambda }_1{x}_0^2-{\lambda }_2{x}_0^3\hfill \\ \hfill & -{\gamma }_0{D}_0{y}_0-{\gamma }_1{x}_0{D}_0{y}_0-{\gamma }_2{x}_0^2{D}_0{y}_0+f_0+f_{1}cos\left({\mathsf{\Omega }}_{1}t\right)\hfill \\ \hfill & +f_2{x}_{0}cos\left({\mathsf{\Omega }}_{2}t\right)+k_1{D}_0{u}_0]+O\left({\epsilon }^2\right)\hfill \end{array}$$

(9)

$$\begin{array}{cc}\hfill (D_0^2+{\omega }_2^2)y_0+(D_0^2+{\omega }_2^2)y_1& =\epsilon [-2D_0{D}_1{y}_0-2\mu D_0{y}_0-{\beta }_0{y}_0-{\beta }_1{x}_0{y}_0\hfill \\ \hfill & -{\beta }_2{x}_0^2{y}_0+f_{3}cos\left({\mathsf{\Omega }}_{3}t\right)+f_4{y}_{0}cos\left({\mathsf{\Omega }}_{4}t\right)+k_2{D}_0{v}_0]+O\left({\epsilon }^2\right)\hfill \end{array}$$

(10)

$$\begin{array}{cc}\hfill (D_0^2+{\omega }_3^2)u_0+(D_0^2+{\omega }_3^2)u_1& =\epsilon \left[-2D_0{D}_1{u}_0-{\mu }_3{D}_0{u}_0-k_3{D}_0{x}_0\right]+O\left({\epsilon }^2\right)\hfill \end{array}$$

(11)

$$\begin{array}{cc}\hfill (D_0^2+{\omega }_4^2)v_0+(D_0^2+{\omega }_3^2)v_1& =\epsilon \left[-2D_0{D}_1{v}_0-{\mu }_4{D}_0{v}_0-k_4{D}_0{y}_0\right]+O\left({\epsilon }^2\right)\hfill \end{array}$$

(12)

Collecting the coefficients of order ${\epsilon }^0$ and then solving the homogeneous equations yields:

• $O\left({\epsilon }^0\right)$:

$$\begin{array}{cc}\hfill (D_0^2+{\omega }_1^2)x_0& =0\Rightarrow x_0=A{e}^{i{\omega }_1{T}_0}+\overline{A}{e}^{-i{\omega }_1{T}_0}\hfill \end{array}$$

(13a)

$$\begin{array}{cc}\hfill (D_0^2+{\omega }_2^2)y_0& =0\Rightarrow y_0=B{e}^{i{\omega }_2{T}_0}+\overline{B}{e}^{-i{\omega }_2{T}_0}\hfill \end{array}$$

(13b)

$$\begin{array}{cc}\hfill (D_0^2+{\omega }_3^2)u_0& =0\Rightarrow u_0=C{e}^{i{\omega }_3{T}_0}+\overline{C}{e}^{-i{\omega }_3{T}_0}\hfill \end{array}$$

(13c)

$$\begin{array}{cc}\hfill (D_0^2+{\omega }_4^2)v_0& =0\Rightarrow v_0=E{e}^{i{\omega }_4{T}_0}+\overline{E}{e}^{-i{\omega }_4{T}_0}\hfill \end{array}$$

(13d)

where A, B, C, and E are complex functions in $T_1$

• $O\left({\epsilon }^1\right)$:

$$\begin{array}{cc}\hfill (D_0^2+{\omega }_1^2)x_1& =-2D_0{D}_1{x}_0-{\mu }_1{D}_0{x}_0-{\lambda }_1{x}_0^2-{\lambda }_2{x}_0^3\hfill \\ \hfill & -{\gamma }_0{D}_0{y}_0-{\gamma }_1{x}_0{D}_0{y}_0-{\gamma }_2{x}_0^2{D}_0{y}_0+f_0+f_{1}cos\left({\mathsf{\Omega }}_{1}t\right)\hfill \\ \hfill & +f_2{x}_{0}cos\left({\mathsf{\Omega }}_{2}t\right)+k_1{D}_0{u}_0\hfill \end{array}$$

(14a)

$$\begin{array}{cc}\hfill (D_0^2+{\omega }_2^2)y_1& =-2D_0{D}_1{y}_0-2\mu D_0{y}_0-({\beta }_0+{\beta }_1{x}_0+{\beta }_2{x}_0^2)y_0\hfill \\ \hfill & +f_{3}cos\left({\mathsf{\Omega }}_{3}t\right)+f_4{y}_{0}cos\left({\mathsf{\Omega }}_{4}t\right)+k_2{D}_0{v}_0\hfill \end{array}$$

(14b)

$$\begin{array}{cc}\hfill (D_0^2+{\omega }_3^2)u_1& =-2D_0{D}_1{u}_0-{\mu }_3{D}_0{u}_0-k_3{D}_0{x}_0\hfill \end{array}$$

(14c)

$$\begin{array}{cc}\hfill (D_0^2+{\omega }_4^2)v_1& =-2D_0{D}_1{v}_0-{\mu }_4{D}_0{v}_0-k_4{D}_0{y}_0\hfill \end{array}$$

(14d)

Substituting Equation (13) into Equation (14) yields:

$$\begin{array}{cc}\hfill (D_0^2+{\omega }_1^2)x_1& =\left(-2i{\omega }_1{D}_{1}A-i{\mu }_1{\omega }_{1}A-3A^2\overline{A}\right)e^{i{\omega }_1{T}_0}-\left(i{\gamma }_0{\omega }_{2}B+2{\gamma }_{2}A\overline{A}B{\omega }_2\right)e^{i{\omega }_2{T}_0}\hfill \\ \hfill & -{\lambda }_2{A}^3{e}^{3i{\omega }_1{T}_0}-{\lambda }_1{A}^2{e}^{2i{\omega }_1{T}_0}-i{\gamma }_{1}AB{\omega }_2{e}^{i({\omega }_1+{\omega }_2)T_0}-i{\gamma }_{1}A\overline{B}{\omega }_2{e}^{i({\omega }_1-{\omega }_2)T_0}\hfill \\ \hfill & -i{\gamma }_2{A}^{2}B{\omega }_2{e}^{i(2{\omega }_1+{\omega }_2)T_0}+i{\gamma }_2\overline{B}{A}^2{e}^{i(2{\omega }_1-{\omega }_2)T_0}-2{\lambda }_{1}A\overline{A}+f_0\hfill \\ \hfill & +{\displaystyle \frac{f_1}{2}}{e}^{i{\mathsf{\Omega }}_{1}t}+{\displaystyle \frac{f_2}{2}}A{e}^{i\left({\mathsf{\Omega }}_2+{\omega }_1\right)T_0}+{\displaystyle \frac{f_2}{2}}A{e}^{-i\left({\mathsf{\Omega }}_2-{\omega }_1\right)T_0}+i{k}_{1}c{\omega }_3{e}^{i{\omega }_3{T}_0}+\mathrm{cc}.\hfill \end{array}$$

(15a)

$$\begin{array}{cc}\hfill (D_0^2+{\omega }_2^2)y_1& =\left(-2i{\omega }_2{D}_{1}B-i{\mu }_2{\omega }_{2}B\right)e^{i{\omega }_2{T}_0}+{\displaystyle \frac{f_3}{2}}{e}^{i{\mathsf{\Omega }}_{3}t}+\left(-i{\beta }_{0}A{\omega }_1-i{\beta }_2\overline{A}{\omega }_1\overline{A}+2i{\omega }_1{A}^2\overline{A}\right)e^{i{\omega }_1{T}_0}\hfill \\ \hfill & +i{\beta }_2{\omega }_1{A}^3{e}^{3i{\omega }_1{T}_0}-i{\beta }_1{A}^2{\omega }_1{e}^{2i{\omega }_1{T}_0}+i{\omega }_1{\beta }_{1}A\overline{A}+{\displaystyle \frac{f_4}{2}}B{e}^{i\left({\mathsf{\Omega }}_4+{\omega }_2\right)T_0}\hfill \\ \hfill & +{\displaystyle \frac{f_4}{2}}B{e}^{-i\left({\mathsf{\Omega }}_4-{\omega }_2\right)T_0}+i{k}_{2}E{\omega }_4{e}^{i{\omega }_4{T}_0}+\mathrm{cc}.\hfill \end{array}$$

(15b)

$$\begin{array}{cc}\hfill (D_0^2+{\omega }_3^2)u_1& =\left(2i{\omega }_3{D}_{1}C-i{\mu }_3{\omega }_{3}C\right)e^{i{\omega }_3{T}_0}-i{k}_{3}A{\omega }_1{e}^{i{\omega }_1{T}_0}+\mathrm{cc}.\hfill \end{array}$$

(15c)

$$\begin{array}{cc}\hfill (D_0^2+{\omega }_4^2)v_1& =\left(-2i{\omega }_4{D}_{1}E-i{\mu }_4{\omega }_{4}C\right)e^{i{\omega }_4{T}_0}-i{k}_{4}B{\omega }_2{e}^{i{\omega }_2{T}_0}+\mathrm{cc}.\hfill \end{array}$$

(15d)

According to

Table 1. Outcome of different types of resonance cases on the system.

Resonance Cases	First Mode of the System (x) Without	Second Mode of the System (y) Without
${\mathsf{\Omega }}_2={\omega }_1,{\mathsf{\Omega }}_4={\omega }_2$	1.3	0.08
${\mathsf{\Omega }}_2={\omega }_1,{\mathsf{\Omega }}_3={\omega }_2$	1.3	0.9
${\mathsf{\Omega }}_2=2{\omega }_1,{\mathsf{\Omega }}_4={\omega }_2$	11	0.2
${\mathsf{\Omega }}_1={\omega }_1,{\mathsf{\Omega }}_3={\omega }_2$	5.9	1.01
${\mathsf{\Omega }}_2=2{\omega }_1,{\mathsf{\Omega }}_4=2{\omega }_2$	11	0.5
${\mathsf{\Omega }}_1={\omega }_1,{\mathsf{\Omega }}_4={\omega }_2$	5.8	0.1

, we thought that the primary resonance case $({\mathsf{\Omega }}_1\cong {\omega }_1,$ ${\mathsf{\Omega }}_3\cong {\omega }_2,$ ${\omega }_1\cong {\omega }_3\mathrm{and}{\omega }_2\cong {\omega }_4)$ was among the worst resonance situations; cc are the complex conjugates. Using the criteria of resonance

$${\mathsf{\Omega }}_1={\omega }_1+ϵ{\sigma }_1,{\mathsf{\Omega }}_3={\omega }_2+ϵ{\sigma }_2,{\omega }_3={\omega }_1+ϵ{\sigma }_3,{\omega }_4={\omega }_2+ϵ{\sigma }_4$$

(16)

in which ${\sigma }_1$, ${\sigma }_2$, ${\sigma }_3$, and ${\sigma }_4$ are collectively referred to as the detuning parameters, the solvability requirements that arise when secular terms are terminated using Equation (16). When the secular terms in Equation (15) are eliminated, keeping in mind Equation (16), we obtain:

$$\begin{array}{cc}\hfill -2i{\omega }_1\left(D_{1}A\right)-i{\mu }_1{\omega }_{1}A-3{\lambda }_2{A}^2\overline{A}+{\displaystyle \frac{1}{2}}{f}_1{e}^{i{\sigma }_1{T}_1}+iC{\omega }_3{k}_1{e}^{i{\sigma }_3{T}_1}& =0\hfill \end{array}$$

(17a)

$$\begin{array}{cc}\hfill -2i{\omega }_2\left(D_{1}B\right)-i{\mu }_2{\omega }_{2}B+{\displaystyle \frac{f_3}{2}}{e}^{i{\sigma }_3{T}_1}+iE{k}_2{\omega }_4{e}^{i{\sigma }_4{T}_1}& =0\hfill \end{array}$$

(17b)

$$\begin{array}{cc}\hfill -2i{\omega }_3\left(D_{1}c\right)-i{\mu }_3{\omega }_{3}c-i{k}_3{\omega }_{1}A{e}^{-i{\sigma }_3{T}_1}& =0\hfill \end{array}$$

(17c)

$$\begin{array}{cc}\hfill -2i{\omega }_4\left(D_{1}E\right)-i{\mu }_4{\omega }_{4}E-i{k}_4{\omega }_{2}B{e}^{-i{\sigma }_4{T}_1}& =0\hfill \end{array}$$

(17d)

To obtain the modulation equations, we substitute the following polar forms into the secular terms:

$$A={\displaystyle \frac{1}{2}}{a}_1{e}^{i{\theta }_1},B={\displaystyle \frac{1}{2}}{a}_2{e}^{i{\theta }_2},C={\displaystyle \frac{1}{2}}{a}_3{e}^{i{\theta }_3},E={\displaystyle \frac{1}{2}}{a}_4{e}^{i{\theta }_4}$$

(18)

$$D_{1}A\left(T_1\right)={\displaystyle \frac{1}{2}}[{\dot{a}}_1+i{a}_1{\dot{\theta }}_1]e^{i{\theta }_1{T}_1},D_{1}B\left(T_1\right)={\displaystyle \frac{1}{2}}[{\dot{a}}_2+i{a}_2{\dot{\theta }}_2]e^{i{\theta }_2{T}_1}$$

(19)

$$D_{1}C\left(T_1\right)={\displaystyle \frac{1}{2}}[{\dot{a}}_3+i{a}_3{\dot{\theta }}_3]e^{i{\theta }_3{T}_1},D_{1}E\left(T_1\right)={\displaystyle \frac{1}{2}}[{\dot{a}}_4+i{a}_4{\dot{\theta }}_4]e^{i{\theta }_4{T}_1}$$

(20)

where $a_n$ and ${\theta }_n$ are functions of the slow time scale $T_1$, and $a_n$, ${\theta }_n$ are the steady-state amplitude and phases of motion, respectively (n = 1, 2, 3, 4).

Equating the real and imaginary parts, the following equations are obtained:

$$\begin{array}{cc}\hfill a_1^{\prime }& =-{\displaystyle \frac{{\mu }_1{a}_1}{2}}+{\displaystyle \frac{f_1}{2{\omega }_1}}sin{\theta }_1+{\displaystyle \frac{a_3{\omega }_3{k}_1}{2{\omega }_1}}cos{\theta }_3\hfill \end{array}$$

(21a)

$$\begin{array}{cc}\hfill a_1{\theta }_1^{\prime }& ={\displaystyle \frac{3{\lambda }_2{a}_1^3}{8{\omega }_1}}-{\displaystyle \frac{f_1}{2{\omega }_1}}cos{\theta }_1+{\displaystyle \frac{a_3{\omega }_3{k}_1}{2{\omega }_1}}sin{\theta }_3\hfill \end{array}$$

(21b)

$$\begin{array}{cc}\hfill a_2^{\prime }& =-{\displaystyle \frac{{\mu }_2{a}_2}{2}}+{\displaystyle \frac{f_3}{2{\omega }_2}}sin{\theta }_2+{\displaystyle \frac{k_2{\omega }_4{a}_4}{2{\omega }_2}}cos{\theta }_4\hfill \end{array}$$

(22a)

$$\begin{array}{cc}\hfill a_2{\theta }_2^{\prime }& =-{\displaystyle \frac{f_3}{2{\omega }_2}}cos{\theta }_2+{\displaystyle \frac{k_2{\omega }_4{a}_4}{2{\omega }_2}}sin{\theta }_4\hfill \end{array}$$

(22b)

$$\begin{array}{cc}\hfill a_3^{\prime }& =-{\displaystyle \frac{{\mu }_3{a}_3}{2}}-{\displaystyle \frac{k_3{\omega }_1{a}_1}{2{\omega }_3}}cos{\theta }_3\hfill \end{array}$$

(23a)

$$\begin{array}{cc}\hfill a_3{\theta }_3^{\prime }& ={\displaystyle \frac{k_3{\omega }_1{a}_1}{2{\omega }_3}}sin{\theta }_3\hfill \end{array}$$

(23b)

$$\begin{array}{cc}\hfill a_4^{\prime }& =-{\displaystyle \frac{{\mu }_4{a}_4}{2}}-{\displaystyle \frac{k_4{\omega }_2{a}_2}{2{\omega }_4}}cos{\theta }_4\hfill \end{array}$$

(24a)

$$\begin{array}{cc}\hfill a_4{\theta }_4^{\prime }& ={\displaystyle \frac{k_3{\omega }_1{a}_1}{2{\omega }_3}}sin{\theta }_4\hfill \end{array}$$

(24b)

where ${\varphi }_1={\sigma }_1{T}_1-{\theta }_1$, ${\varphi }_2={\sigma }_2{T}_1-{\theta }_2$, ${\varphi }_3={\sigma }_3{T}_1+{\theta }_3-{\theta }_1$, and ${\varphi }_4={\sigma }_4{T}_1+{\theta }_4-{\theta }_2$.

We may obtain the frequency response equations (FREs) for the practical situation $(a_1\ne 0,a_2\ne 0,a_3\ne 0,a_4\ne 0)$ as follows: when (${\dot{a}}_m=0$ and ${\dot{\theta }}_m=0$), the steady-state solution of the system with NDF controllers corresponding to the fixed point of (21)–(24) is obtained.

$$\begin{array}{cc}\hfill 0& =-{\displaystyle \frac{{\mu }_1{a}_1}{2}}+{\displaystyle \frac{f_1}{2{\omega }_1}}sin{\theta }_1+{\displaystyle \frac{a_3{\omega }_3{k}_1}{2{\omega }_1}}cos{\theta }_3\hfill \end{array}$$

(25a)

$$\begin{array}{cc}\hfill a_1{\sigma }_1& ={\displaystyle \frac{3{\lambda }_2{a}_1^3}{8{\omega }_1}}-{\displaystyle \frac{f_1}{2{\omega }_1}}cos{\theta }_1+{\displaystyle \frac{a_3{\omega }_3{k}_1}{2{\omega }_1}}sin{\theta }_3\hfill \end{array}$$

(25b)

$$\begin{array}{cc}\hfill 0& =-{\displaystyle \frac{{\mu }_2{a}_2}{2}}+{\displaystyle \frac{f_3}{2{\omega }_2}}sin{\theta }_2+{\displaystyle \frac{k_2{\omega }_4{a}_4}{2{\omega }_2}}cos{\theta }_4\hfill \end{array}$$

(26a)

$$\begin{array}{cc}\hfill a_2{\sigma }_2& =-{\displaystyle \frac{f_3}{2{\omega }_2}}cos{\theta }_2+{\displaystyle \frac{k_2{\omega }_4{a}_4}{2{\omega }_2}}sin{\theta }_4\hfill \end{array}$$

(26b)

$$\begin{array}{cc}\hfill 0& =-{\displaystyle \frac{{\mu }_3{a}_3}{2}}-{\displaystyle \frac{k_3{\omega }_1{a}_1}{2{\omega }_3}}cos{\theta }_3\hfill \end{array}$$

(27a)

$$\begin{array}{cc}\hfill a_3({\sigma }_1-{\sigma }_3)& ={\displaystyle \frac{k_3{\omega }_1{a}_1}{2{\omega }_3}}sin{\theta }_3\hfill \end{array}$$

(27b)

$$\begin{array}{cc}\hfill 0& =-{\displaystyle \frac{{\mu }_4{a}_4}{2}}-{\displaystyle \frac{k_4{\omega }_2{a}_2}{2{\omega }_4}}cos{\theta }_4\hfill \end{array}$$

(28a)

$$\begin{array}{cc}\hfill a_4({\sigma }_2-{\sigma }_4)& ={\displaystyle \frac{k_3{\omega }_1{a}_1}{2{\omega }_3}}sin{\theta }_4\hfill \end{array}$$

(28b)

When we square and add (27a)–(27b) and (28a)–(28b), we obtain

$$a_3^2=\left(k_3^2{\omega }_1^2{a}_1^2\right)/\left\{4{\omega }_3^2[{\mu }_3^2/4+{({\omega }_1-{\omega }_3)}^2]\right\}$$

(29)

$$a_4^2=\left(k_4^2{\omega }_2^2{a}_2^2\right)/\left\{4{\omega }_4^2[{\mu }_4^2/4+{({\omega }_2-{\omega }_4)}^2]\right\}$$

(30)

$$\begin{array}{cc}\hfill cos{\varphi }_3& =-{\displaystyle \frac{{\mu }_3{\omega }_3{a}_2}{k_3{\omega }_1{a}_1}}\hfill \end{array}$$

(31a)

$$\begin{array}{cc}\hfill sin{\varphi }_3& ={\displaystyle \frac{2{\omega }_3({\sigma }_1-{\sigma }_3)a_3}{k_3{\omega }_1{a}_1}}\hfill \end{array}$$

(31b)

$$\begin{array}{cc}\hfill cos{\varphi }_4& =-{\displaystyle \frac{{\mu }_4{\omega }_4{a}_4}{k_4{\omega }_2{a}_2}}\hfill \end{array}$$

(32a)

$$\begin{array}{cc}\hfill sin{\varphi }_4& ={\displaystyle \frac{2{\omega }_4({\sigma }_2-{\sigma }_4)a_4}{k_4{\omega }_2{a}_2}}\hfill \end{array}$$

(32b)

When (31) and (32) are inserted into (25) and (26), the squared results are added together to yield

$${\left({\displaystyle \frac{{\mu }_1{a}_1}{2}}+{\displaystyle \frac{{\mu }_3{\omega }_3^2{k}_1{a}_3^2}{4{\omega }_3^2{a}_1{k}_3}}\right)}^2+{\left(-a_1{\sigma }_1+{\displaystyle \frac{3{\lambda }_2{a}_1^3}{8{\omega }_1}}+{\displaystyle \frac{a_3^2{\omega }_3^2{k}_1({\sigma }_1-{\sigma }_3)}{k_3{a}_1{\omega }_1^2}}\right)}^2={\displaystyle \frac{f_1^2}{4{\omega }_1^2}}$$

(33)

$${\left({\displaystyle \frac{{\mu }_2{a}_2}{2}}+{\displaystyle \frac{{\mu }_4{\omega }_4{k}_2{a}_4}{2k_4{\omega }_2^2}}\right)}^2+{\left(-a_2{\sigma }_2+{\displaystyle \frac{k_2{\omega }_4^2({\sigma }_2-{\sigma }_4)a_4}{k_4{\omega }_2^2{a}_2}}\right)}^2={\displaystyle \frac{f_3^2}{4{\omega }_2^2}}$$

(34)

The following forms are introduced in order to ascertain the steady-state solution’s stability:

$$a_m=a_{m0}+a_{m1},{\varphi }_m={\varphi }_{m0}+{\varphi }_{m1}$$

(35)

where $a_{m0}$ and ${\varphi }_{m0}$ represent the solutions of Equations (21)–(24) and $a_{m0}$ and ${\varphi }_{m0}$ represent perturbations that are thought to be minimal in relation to $a_{m0}$ and ${\varphi }_{m0}$. By replacing (35) with (21)–(24) and retaining only the linear terms in $a_{m0}$ and ${\varphi }_{m0}$, we obtain:

$${\dot{a}}_{11}=\left[-{\displaystyle \frac{{\mu }_1}{2}}\right]a_{11}+\left[{\displaystyle \frac{f_1}{2{\omega }_1}}cos{\varphi }_1\right]{\varphi }_{11}+\left[{\displaystyle \frac{{\omega }_3{k}_{1}cos{\varphi }_3}{2{\omega }_1}}\right]a_{31}-\left[{\displaystyle \frac{a_3{\omega }_3{k}_{1}sin{\varphi }_3}{2{\omega }_1}}\right]{\varphi }_{31}$$

(36)

$${\dot{\varphi }}_{11}=\left[{\displaystyle \frac{{\sigma }_1}{a_1}}-{\displaystyle \frac{9{\lambda }_2{a}_1}{8{\omega }_1}}\right]a_{11}-\left[{\displaystyle \frac{f_1}{2{\omega }_1{a}_1}}sin{\varphi }_1\right]{\varphi }_{11}-\left[{\displaystyle \frac{{\omega }_3{k}_{1}sin{\varphi }_3}{2{\omega }_1{a}_1}}\right]a_{31}-\left[{\displaystyle \frac{a_3{\omega }_3{k}_{1}cos{\varphi }_3}{2{\omega }_1{a}_1}}\right]{\varphi }_{31}$$

(37)

$${\dot{a}}_{21}=\left[-{\displaystyle \frac{{\mu }_2}{2}}\right]a_{21}+\left[{\displaystyle \frac{f_3}{2{\omega }_2}}cos{\varphi }_2\right]{\varphi }_{21}+\left[{\displaystyle \frac{k_2{\omega }_{4}cos{\varphi }_4}{2{\omega }_2}}\right]a_{41}+\left[{\displaystyle \frac{k_2{\omega }_4{a}_{4}sin{\varphi }_4}{2{\omega }_2}}\right]{\varphi }_{41}$$

(38)

$${\dot{\varphi }}_{21}=\left[{\displaystyle \frac{{\sigma }_2}{a_2}}\right]a_{21}-\left[{\displaystyle \frac{f_3}{2{\omega }_2{a}_2}}sin{\varphi }_2\right]{\varphi }_{21}-\left[{\displaystyle \frac{k_2{\omega }_{4}sin{\varphi }_4}{2{\omega }_2{a}_2}}\right]a_{41}-\left[{\displaystyle \frac{k_2{\omega }_4{a}_{4}cos{\varphi }_4}{2{\omega }_2{a}_2}}\right]{\varphi }_{41}$$

(39)

$${\dot{a}}_{31}=\left[{\displaystyle \frac{-k_3{\omega }_{1}cos{\varphi }_3}{2{\omega }_3}}\right]a_{11}-\left[{\displaystyle \frac{{\mu }_3}{2}}\right]a_{31}+\left[{\displaystyle \frac{k_3{a}_1{\omega }_{1}sin{\varphi }_3}{2{\omega }_3}}\right]{\varphi }_{31}$$

(40)

$$\begin{array}{cc}\hfill {\dot{\varphi }}_{31}=& \left[-{\displaystyle \frac{6{\lambda }_2{a}_1}{8{\omega }_1}}-{\displaystyle \frac{f_1}{2{\omega }_1{a}_1^2}}cos{\varphi }_1+{\displaystyle \frac{{\omega }_3{k}_1{a}_3}{2{\omega }_1{a}_1^2}}sin{\varphi }_3+{\displaystyle \frac{{\omega }_1{k}_{3}sin{\varphi }_3}{2{\omega }_3{a}_3}}\right]a_{11}\hfill \\ \hfill & -\left[{\displaystyle \frac{f_{1}sin{\varphi }_1}{2{\omega }_1{a}_1}}\right]{\varphi }_{11}+\left[{\displaystyle \frac{{\sigma }_3}{a_3}}-{\displaystyle \frac{3{\lambda }_2{a}_1^2}{8{\omega }_1{a}_3}}+{\displaystyle \frac{f_1}{2{\omega }_1{a}_1}}cos{\varphi }_1-{\displaystyle \frac{2{\omega }_3{k}_{1}sin{\varphi }_3}{2{\omega }_1{a}_1}}\right]a_{31}\hfill \\ \hfill & +\left[{\displaystyle \frac{k_3{a}_1{\omega }_{1}cos{\varphi }_3}{2{\omega }_3{a}_3}}-{\displaystyle \frac{{\omega }_3{k}_1{a}_{3}cos{\varphi }_3}{2{\omega }_1{a}_1}}\right]{\varphi }_{31}\hfill \end{array}$$

(41)

$${\dot{a}}_{41}=\left[{\displaystyle \frac{-k_4{\omega }_{2}cos{\varphi }_4}{2{\omega }_4}}\right]a_{21}+\left[{\displaystyle \frac{-{\mu }_4}{2}}\right]a_{41}+\left[{\displaystyle \frac{k_4{\omega }_2{a}_{2}sin{\varphi }_4}{2{\omega }_4}}\right]{\varphi }_{41}$$

(42)

$$\begin{array}{cc}\hfill {\dot{\varphi }}_{41}=& \left[{\displaystyle \frac{k_2{\omega }_4{a}_{4}sin{\varphi }_4}{2{\omega }_2{a}_2^2}}-{\displaystyle \frac{f_3}{2{\omega }_2{a}_2^2}}cos{\varphi }_2+{\displaystyle \frac{k_4{\omega }_{2}sin{\varphi }_4}{2{\omega }_4{a}_4}}\right]a_{21}\hfill \\ \hfill & -\left[{\displaystyle \frac{f_3}{2{\omega }_2{a}_2}}sin{\varphi }_2\right]{\varphi }_{21}+\left[{\displaystyle \frac{{\sigma }_4}{a_4}}+{\displaystyle \frac{f_3}{2{\omega }_2{a}_2{a}_4}}cos{\varphi }_2-{\displaystyle \frac{k_2{\omega }_{4}sin{\varphi }_4}{2{\omega }_2{a}_2}}\right]a_{41}\hfill \\ \hfill & +\left[{\displaystyle \frac{k_4{\omega }_2{a}_{2}cos{\varphi }_4}{2{\omega }_4{a}_4}}-{\displaystyle \frac{k_2{\omega }_4{a}_{4}cos{\varphi }_4}{2{\omega }_2{a}_2}}\right]{\varphi }_{41}\hfill \end{array}$$

(43)

The matrix can represent the previous system:

$$\left[\begin{array}{c}{\dot{a}}_{11}\\ {\dot{\varphi }}_{11}\\ {\dot{a}}_{21}\\ {\dot{\varphi }}_{21}\\ {\dot{a}}_{31}\\ {\dot{\varphi }}_{31}\\ {\dot{a}}_{41}\\ {\dot{\varphi }}_{41}\end{array}\right]=\left[J\right]\left[\begin{array}{c}{a}_{11}\\ {\varphi }_{11}\\ a_{21}\\ {\varphi }_{21}\\ a_{31}\\ {\varphi }_{31}\\ a_{41}\\ {\varphi }_{41}\end{array}\right]$$

(44)

where [J] stands for the Jacobian matrix associated with Equations (34)–(42). The eigenvalues of [J] can be written as follows:

$${\lambda }^8+R_1{\lambda }^7+R_2{\lambda }^6+R_3{\lambda }^5+R_4{\lambda }^4+R_5{\lambda }^3+R_6{\lambda }^2+R_7\lambda +R_8=0$$

(45)

where $R_1,R_2,R_3,R_4,R_5,R_6,R_7$, and $R_8$ are coefficients of (45). All eigenvalues must have negative real portions in order for the solution to be stable; otherwise, instability results. This condition is satisfied if and only if the determinant (D) and all of its primary minors are rigorously positive, according to the Routh–Hurwitz criterion, guaranteeing that all roots of Equation (45) are located in the left side of the complex plane.

$$D=\left|\begin{array}{cccccccc}{R}_1& 1& 0& 0& 0& 0& 0& 0\\ R_3& R_2& R_1& 1& 0& 0& 0& 0\\ R_5& R_4& R_3& R_2& R_1& 1& 0& 0\\ R_7& R_6& R_5& R_4& R_3& R_2& R_1& 1\\ 0& R_8& R_7& R_6& R_5& R_4& R_3& R_2\\ 0& 0& 0& R_8& R_7& R_6& R_5& R_4\\ 0& 0& 0& 0& 0& R_8& R_7& R_6\\ 0& 0& 0& 0& 0& 0& 0& R_8\end{array}\right|$$

(46)

In this case, the characteristic coefficients $R_i$ ($i=1,2,\dots ,8$) from Equation (45) directly make up the elements of the Routh–Hurwitz matrix D. Owing to the system’s high dimensionality, MATLAB is used to numerically estimate these coefficients and the major minors of the determinant D at each parameter point. After that, the parameter space is scanned to create the stability maps. Regions with strictly positive determinants and minors are mapped as stable, and any violation indicates the unstable borders.

3. Results and Discussion

The steady-state amplitudes ($a_1$,$a_2$) against detuning parameters (${\sigma }_1$,${\sigma }_2$) and the temporal response for both an electromechanical system and controller are graphically displayed in this section. The ODE45 MATLAB [39] solver was used to numerically solve the system’s initial Equations (1) and (2). Here, the FR function solutions pertaining to the stability of the electromechanical system and the controller are analyzed, as well as the numerical solution of the mathematical modeling and its stability. In addition to reporting and discussing several resonance examples, the impacts of different parameters on the steady-state solution are obtained and examined, and a comparison between different controllers is made.

3.1. System Behavior with and Without NDF Control

The “fourth-order Runge–Kutta (RK-4)” method is used to find numerical solutions for the primary resonance case of the main system, combined with NDF controllers $({\mathsf{\Omega }}_1\cong {\omega }_1,$${\mathsf{\Omega }}_3\cong {\omega }_2,{\omega }_1\cong {\omega }_3\mathrm{and}{\omega }_2\cong {\omega }_4)$. The ode45 solver in MATLAB (R2025b) is used to do this study using the particular system parameters mentioned below:

$$\begin{array}{c}({\mu }_1=0.031;{\mu }_2=0.4;f_1=3.5;{\omega }_1=5.05;{\lambda }_1=0.00315;{\lambda }_2=0.025;{\omega }_2=3.75;{\mu }_2=0.4;{\omega }_2=4.05;\\ {\beta }_0=0.0072;{\beta }_1=0.005;{\beta }_2=0.0015;f_3=1.6;f_4=3.1;{\omega }_3=4.05;{\omega }_4=2.45;ϵ=0.5;\\ k_1=5;k_2=5;k_3=2;k_4=2;{\omega }_3=5.05;{\omega }_4=4.05;{\mu }_3=0.01;{\mu }_4=0.02)\end{array}$$

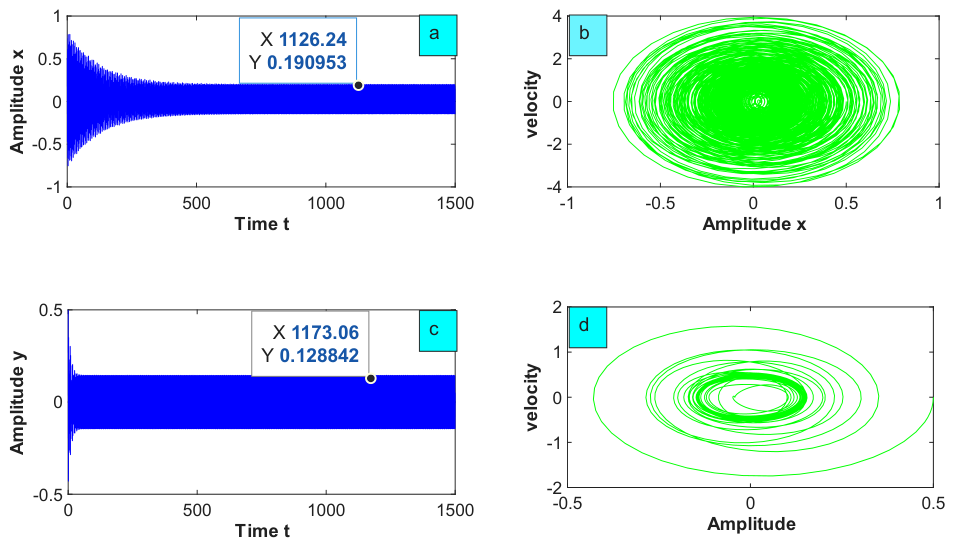

Figure 3 shows the resulting phase plane and response for the non-resonant case.

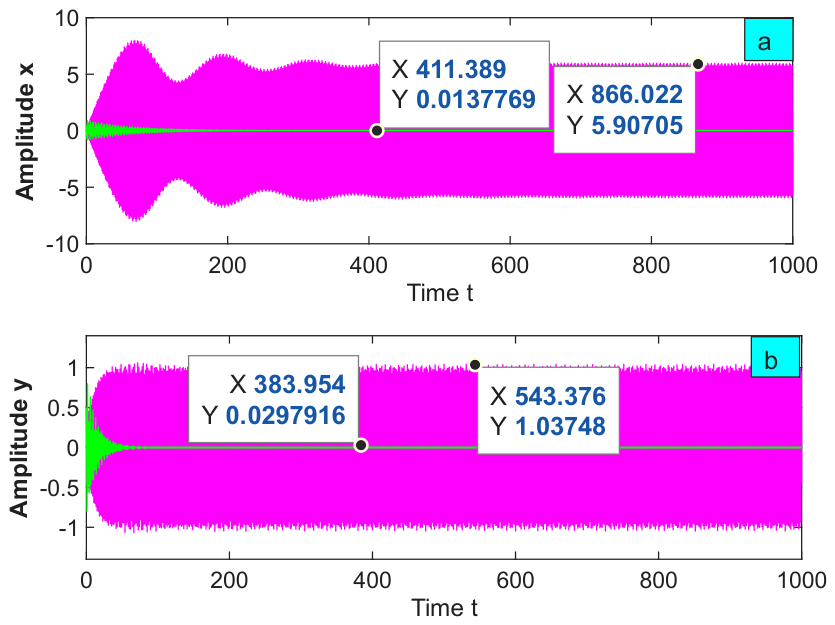

Figure 4 shows the system’s steady-state amplitudes at the worst resonance condition (about 5.9 and 1, respectively) prior to the implementation of NDF controllers. The system amplitudes are then greatly reduced to 0.01 and 0.02, respectively, with the inclusion of NDF controllers. With $E_a=590$, $E_a=51.5$, and a decrease in vibrations of almost 99.8% and 98%, respectively, relative to their uncontrolled value, this demonstrates the efficacy of the NDF controllers.

3.2. Frequency Response Curves

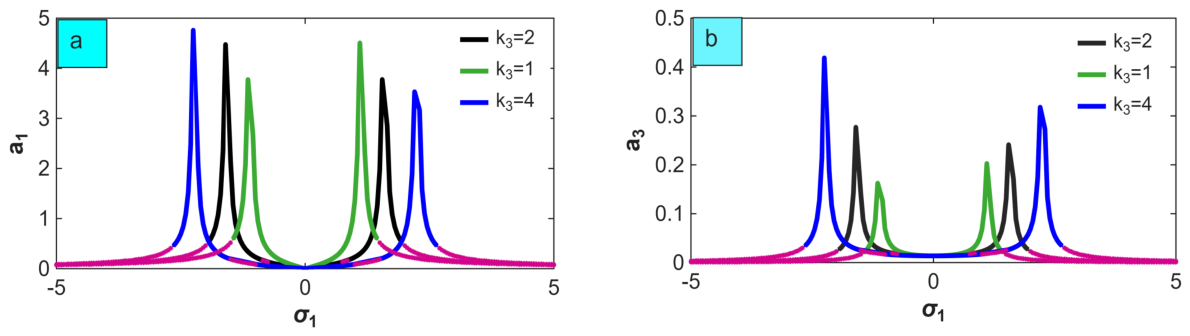

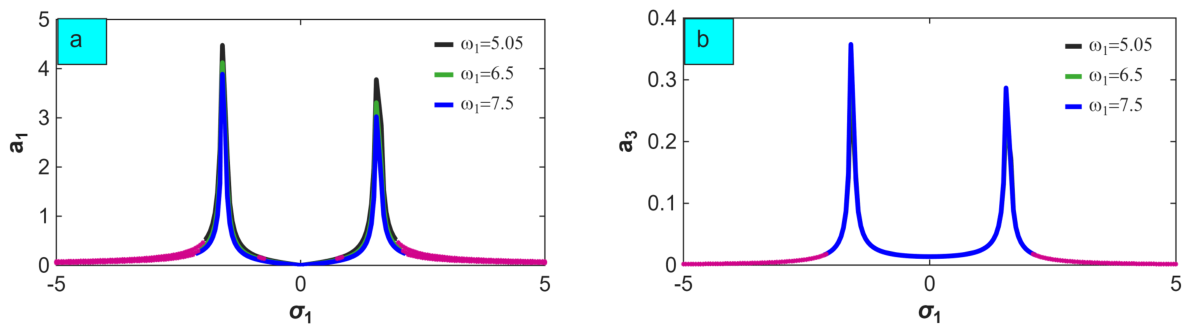

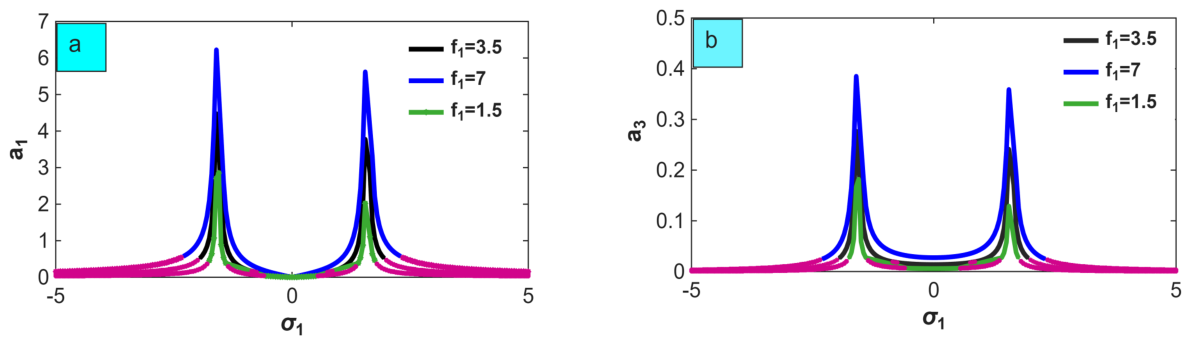

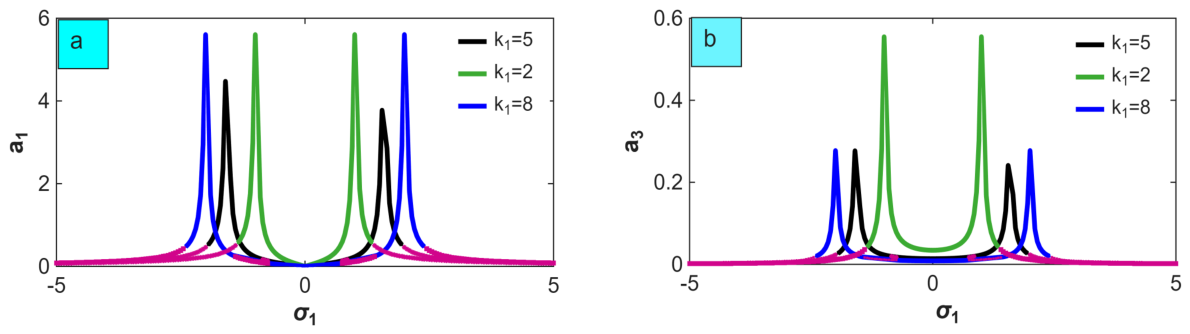

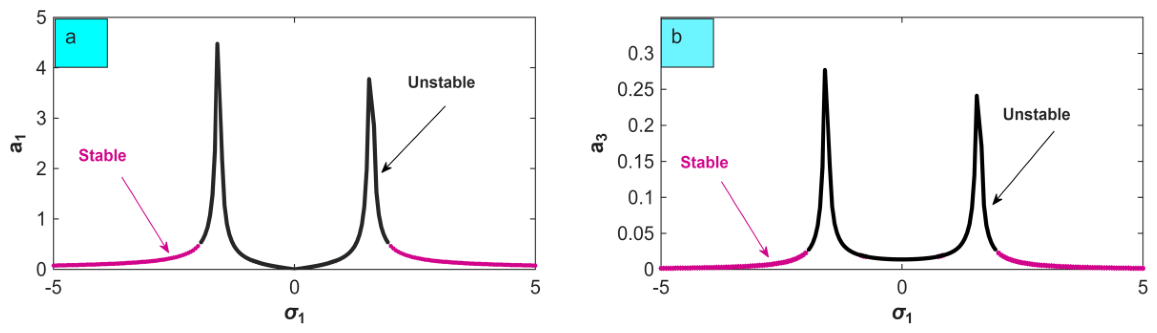

The excitation force (f) and the detuning parameters ${\sigma }_1$, ${\sigma }_2$ are the main factors influencing the response amplitudes of the system and the NDF controller. We may monitor the evolution of these amplitudes by numerically calculating the frequency response equations (FREs) and graphing the results. The presence of two peaks in the plots is a clear indication of the coupling effect between the system and the NDF controller. The frequency response of the system before and after control is shown in Figure 5. The system showed extreme instability at resonance in the uncontrolled condition, with the amplitude reaching roughly 6 for the first mode and 1 for the second mode. Both responses had a notable decrease to almost zero at (${\sigma }_1$ = ${\sigma }_2$ = 0) after the NDF controller was applied, along with a peak-splitting phenomena. The initial unstable peak split into two stable lateral peaks for the $(a_1-{\sigma }_1)$, with an unstable center region between them. The $(a_2-{\sigma }_2)$ response, on the other hand, changed to a non-symmetrical stability pattern; the system recovered stability in the positive frequency branch, while the negative frequency branch continued to be unstable. These findings demonstrate how well the controller suppresses resonance and modifies the stability map to create previously nonexistent safe operating windows. The FR behavior of the primary system combined with an NDF controller is shown in Figure 6, where solid lines (burgundy) represent stable solutions and any other color in the first mode indicates instability. The response curves for the primary system are shown in Figure 6a, while the frequency response of the controller is the subject of Figure 6b.

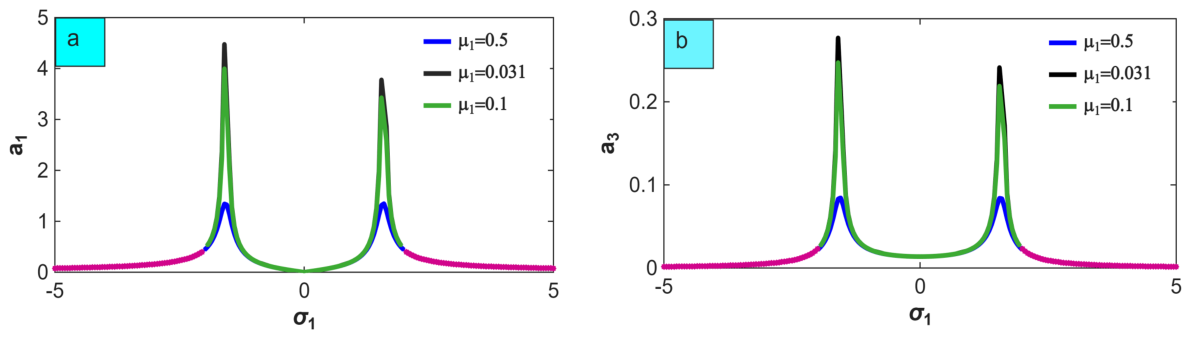

Figure 7 and Figure 8 show that the vibration frequency decreases as the damping coefficient increases. With a focus on the stable regions, these graphs provide a visual evaluation of the system’s performance over a range of frequencies. The findings show that when ${\sigma }_1=0$, the primary system obtains its minimal vibration amplitude. This demonstrates how well the NDF controller reduces oscillations during PR resonance. The amplitudes of the primary system and the NDF controller rise proportionately to an increase in the harmonic excitation force, as shown in Figure 9a,b. Interestingly, near the resonance point (${\sigma }_1=0$), the fundamental system reaches its lowest vibration amplitude. Figure 10a,b shows the impact of the control signal gain, $K_1$. These findings show how the parameters of the NDF controller determine the dynamic behavior of the system. In particular, Figure 10a displays a shift in the controller’s amplitude to the right, signifying an increase in the bandwidth of the control signal. Additionally, Figure 10b verifies that the NDF controller’s amplitude diminishes monotonically, which is in line with the main goal of the control gain. Figure 11a shows that increasing the feedback signal $K_3$ causes the vibration reduction frequency to shift toward higher values. Higher feedback rates therefore cause the controller’s reaction amplitudes to increase, as illustrated in Figure 11b. The initial coupled pair ($k_1,k_3$) is resilient and has strong parametric sensitivity, which is explicitly confirmed by this widening of the resonance bandwidth. Additionally, limiting these gain values avoids actuator saturation by guaranteeing that the generated control force stays within a reasonable range. The impact of the nonlinear coefficient on the dynamic response of the system is seen in Figure 12. It is found that the vibration amplitudes consistently decrease as this coefficient is increased. In particular, the peak amplitudes for both the main system and the NDF controller considerably reduce as these values rise, indicating the controller’s greater capacity to suppress oscillations. Additionally, Figure 13 examines how the system is affected by the natural frequency ${\omega }_1$. The findings show that while the NDF controller is largely unaffected by these modifications, raising ${\omega }_1$ causes the main system’s vibration amplitude to decrease.

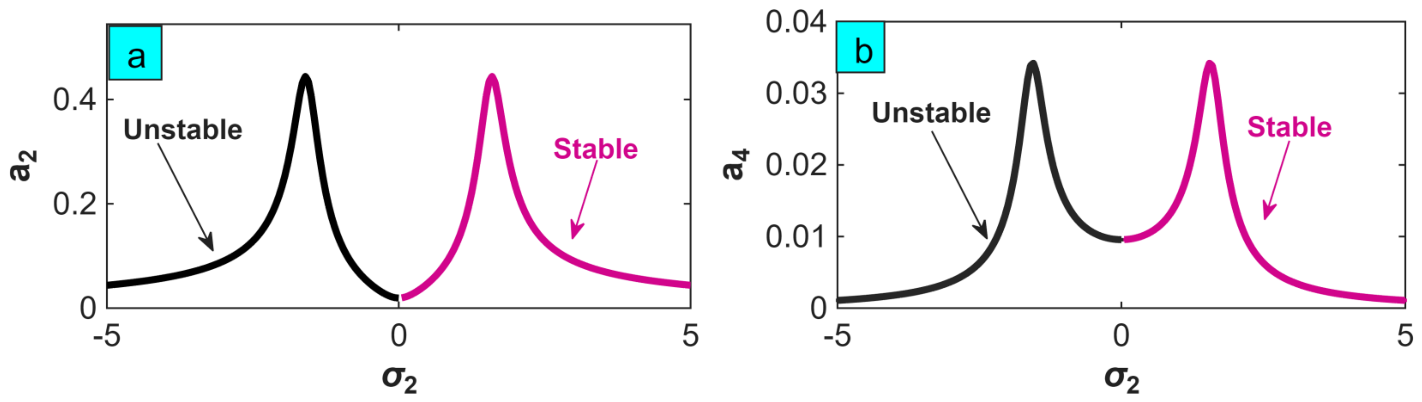

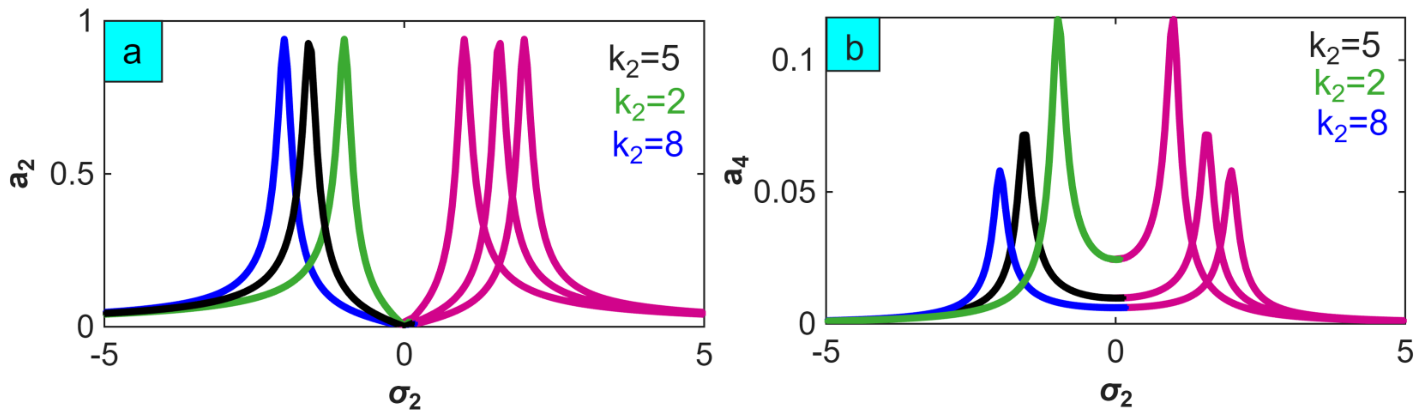

Figure 14 shows the FR of the system on the second mode Figure 14a and NDF controller Figure 14b as functions of the detuning parameter ${\sigma }_2$. The response begins with an unstable phase on the left, whereas the burgundy line on the right indicates the stable region, where the amplitude shows a dramatic peak close to the resonance point and great sensitivity. The solid line on the right represents the system’s transition toward a stable state as ${\sigma }_2$ rises, signifying the restoration of equilibrium. Figure 15, Figure 16, Figure 17, Figure 18 and Figure 19 indicate the effect of changing the parameter on the frequency response of system in the first mode and controller. As shown in Figure 15a,b, when the values of the force increase, the amplitude of the system and controller are increased. Figure 16 and Figure 18 show that the steady-state amplitudes for the controller and the main system on the second mode increase as the damping coefficients ${\mu }_3$ and ${\mu }_4$ increase. The FR of the amplitudes $a_2$ and $a_4$ as functions of the detuning parameter ${\sigma }_2$ for different values of the coefficient $k_2$ is shown in Figure 18a,b. The resonance peaks are found to shift significantly laterally away from the center (${\sigma }_2=0$) toward higher frequency values when $k_2$ is increased from 2 to 8. The controller’s amplitude $a_4$ exhibits a noticeable drop in its highest values as $k_2$ increases, whereas the peak magnitudes of $a_2$ stay mostly constant throughout these variations. This result suggests that $k_2$ improves the system’s operational stability over a wider frequency range by efficiently adjusting the resonance positions and lowering the oscillation burden on the controller. As the NDF gain increases, Figure 19a demonstrates that the vibration reduction frequency bandwidth of the NDF control for the main system’s amplitude widens. The controller peak amplitudes rise with high NDF gain settings, as seen in Figure 19b. The initial coupled pair ($k_2,k_4$) is resilient and has strong parametric sensitivity, which is explicitly confirmed by this widening of the resonance bandwidth. Additionally, limiting these gain values avoids actuator saturation by guaranteeing that the generated control force stays within a reasonable range.

4. Effects of Different Parameter

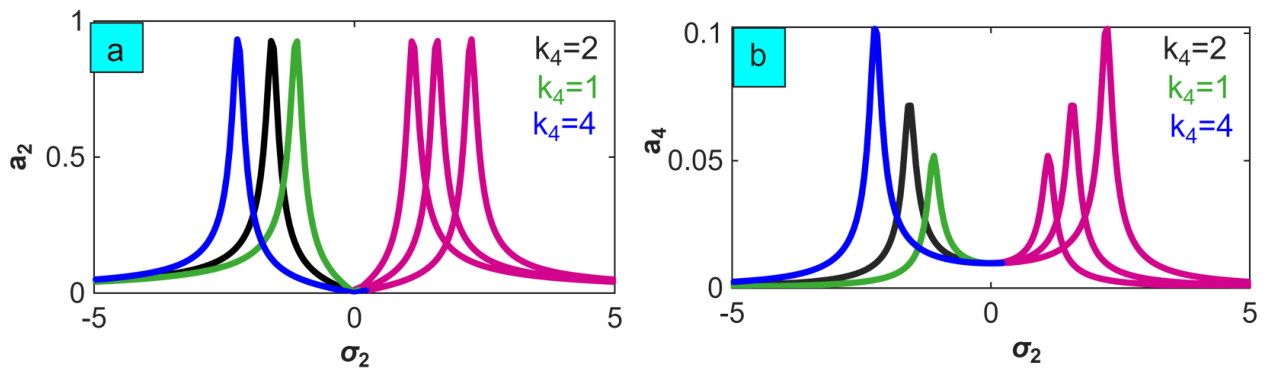

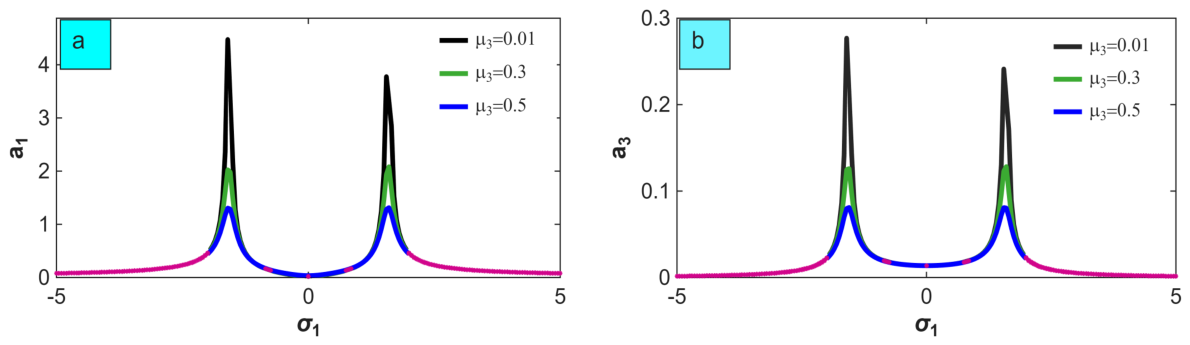

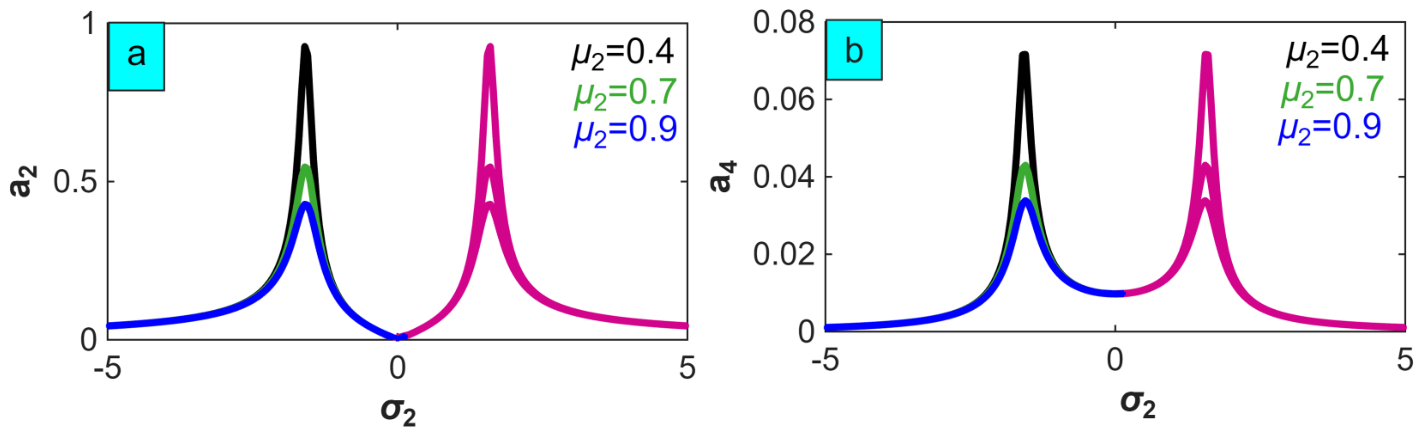

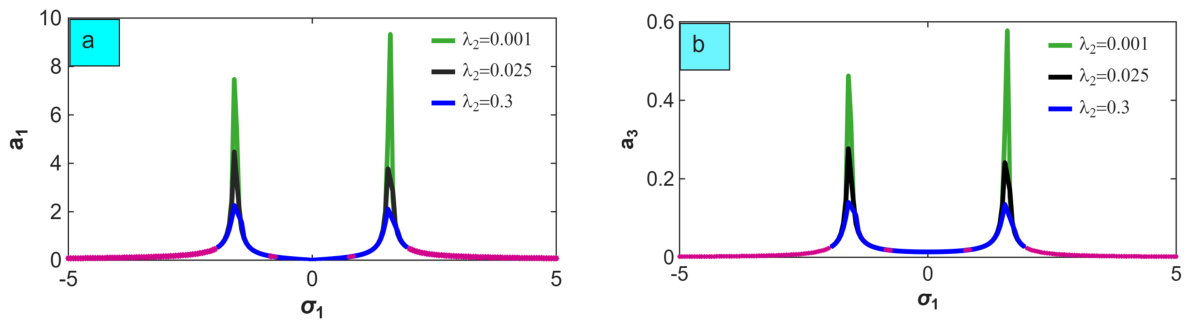

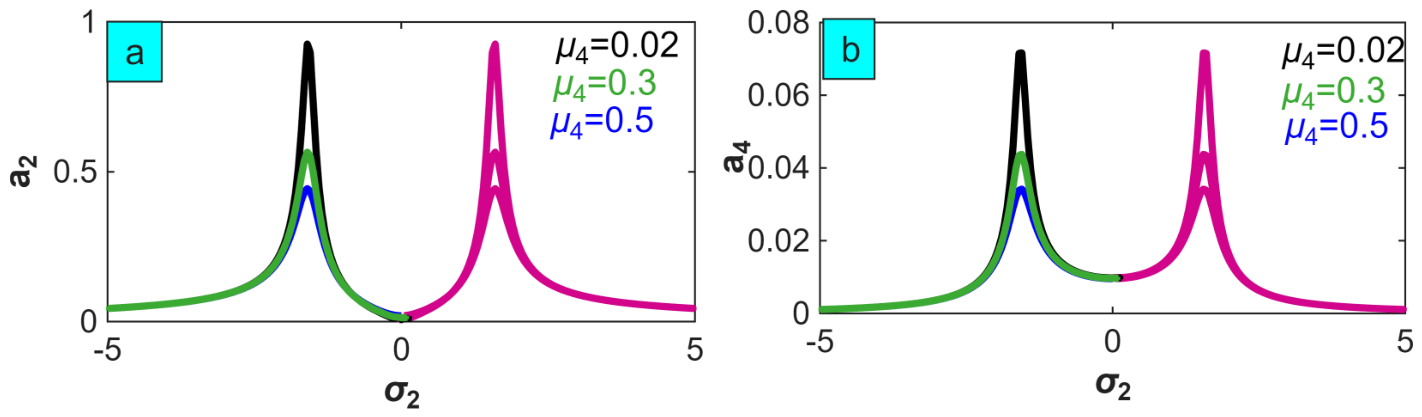

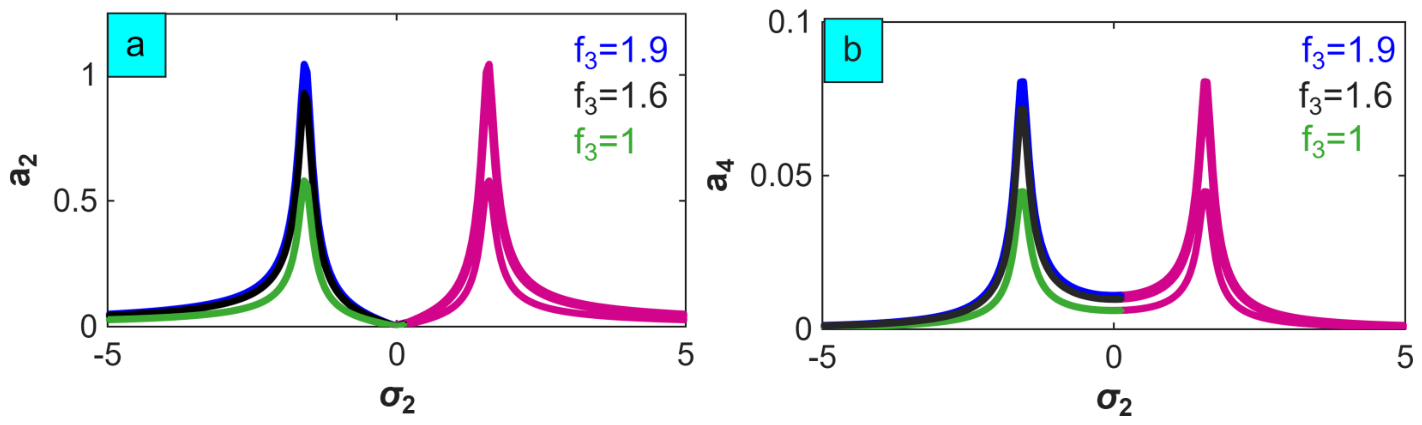

The impacts of various parameters on the system response are displayed in this section. Figure 20 demonstrates that the amplitude of the system in steady-state is a monotonically increasing function to the external forces $f_1,f_3$, respectively. The influence of the parameter ${\mu }_1$ on the vibration amplitude $x\left(t\right)$ is shown in Figure 20c. The amplitude is found to rise slightly at first, peaking at very low values of ${\mu }_1$, and then drop monotonically as ${\mu }_1$ rises. This suggests that raising ${\mu }_1$ improves the stability of the system and successfully reduces vibrations. Figure 20d shows a plot of the response amplitude $y\left(t\right)$ against the parameter ${\mu }_2$. As ${\mu }_2$ grows, the amplitude of the curve exhibits a nonlinear decline. In the range $[0.5,1.5]$, the rate of decline is faster, and as ${\mu }_2$ increases, it becomes more gradual. The effect of the frequency (or parameter) $w_1$ on $x\left(t\right)$ is shown in Figure 20e. As $w_1$ increases from 5 to 6, a notable linear decrease in the amplitude is seen. The vibration amplitude disappears ($x\left(t\right)\approx 0$) beyond $w_1=6$, signifying a full vibration suppression zone. As seen in Figure 20, it is preferable to use suitable materials that are cost efficient and to incorporate a particular controller capable of reducing the amplitude when resonance occurs.

5. Comparison

5.1. Comparison of Time History Performance for Various Controllers

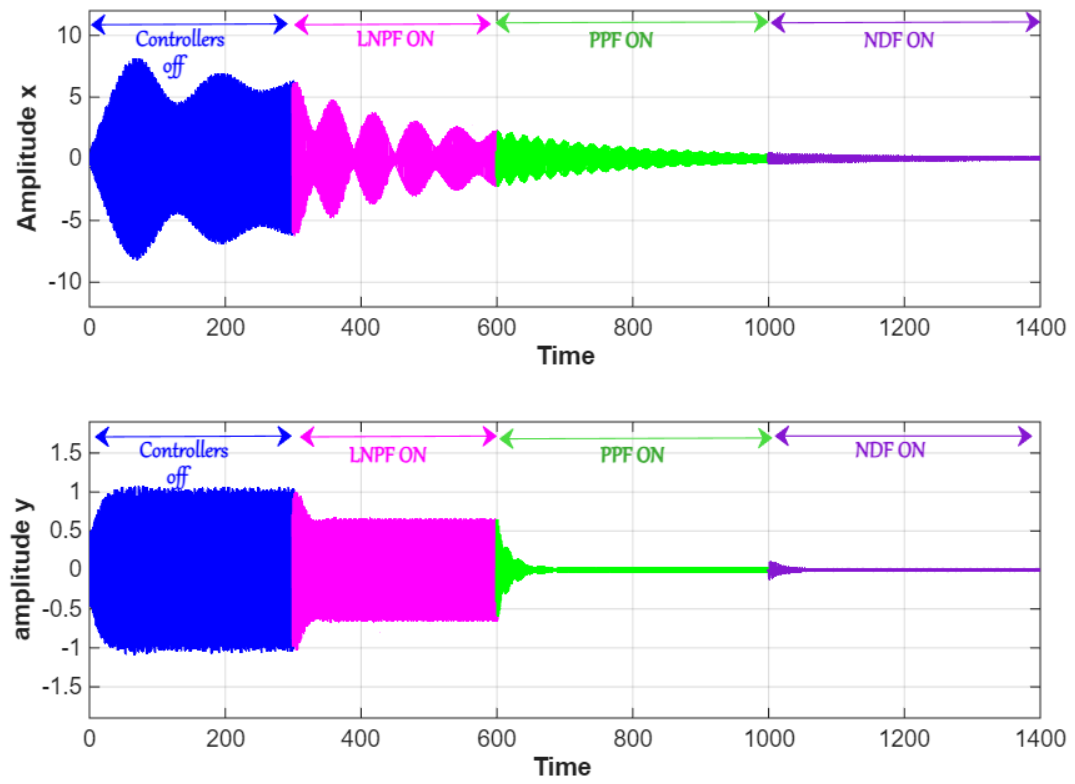

The system’s response with and without control is shown in Figure 21 using low-gain settings. The system first displays uncontrollable nonlinear oscillations across the time span $t\in [0,300]$. Linear Negative Position Feedback (LNPF) is implemented at $t=300$ and stays in effect until $t=600$. The PPF controller then takes over at $t=1000$ when the LNPF controller is deactivated at $t=600$. Afterwards, the PPF controller is replaced with the NDF controller. The PPF controller causes a decrease in vibration amplitude during the interval $t\in [600,1000]$, as seen in the image. Nevertheless, the system’s vibrations are more effectively suppressed when the NDF controller is switched on at $t=1000$.

5.2. Comparison of (FRCs + Time History) Before and After Control

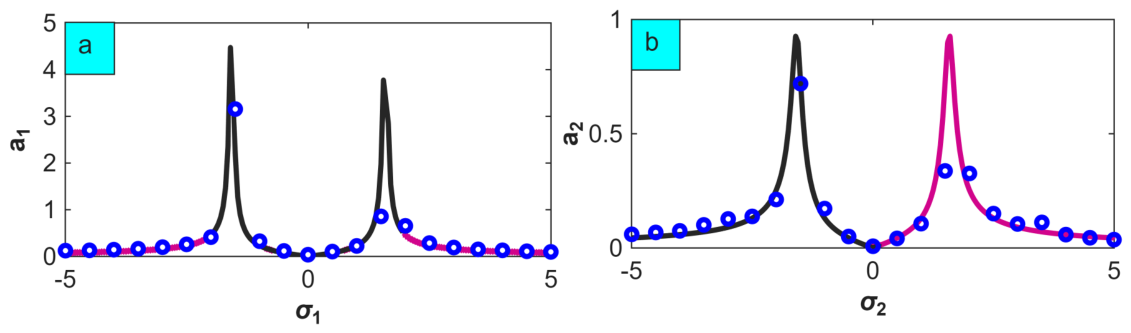

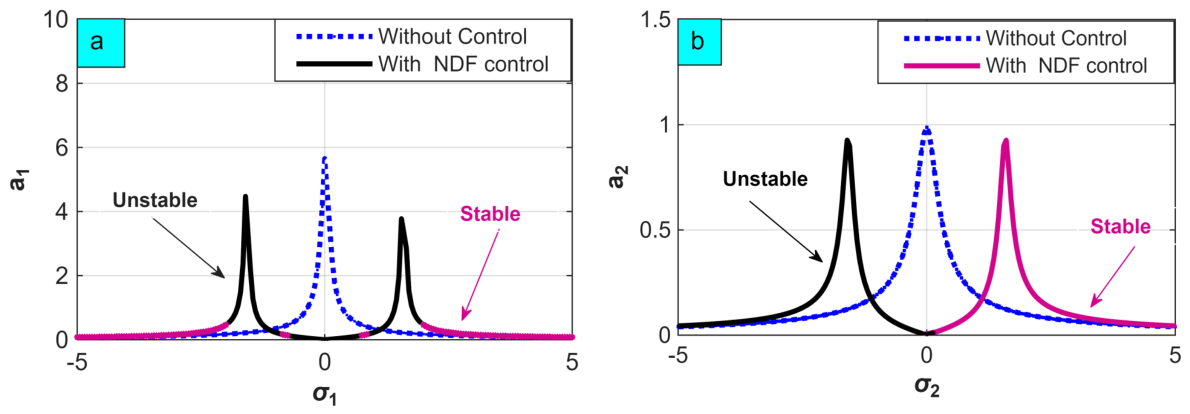

The FRCs for the electromechanical system before and after regulation against ${\sigma }_1$ and ${\sigma }_2$, respectively, are compared using the numerical simulation of equations in Figure 22 and Figure 23. It shows that the analytical and numerical answers accord quite well, highlighting the strong consistency and agreement between approximate solutions (dashed line) and numerical simulations (solid line) for both the uncontrolled system and the system with the NDF controller.

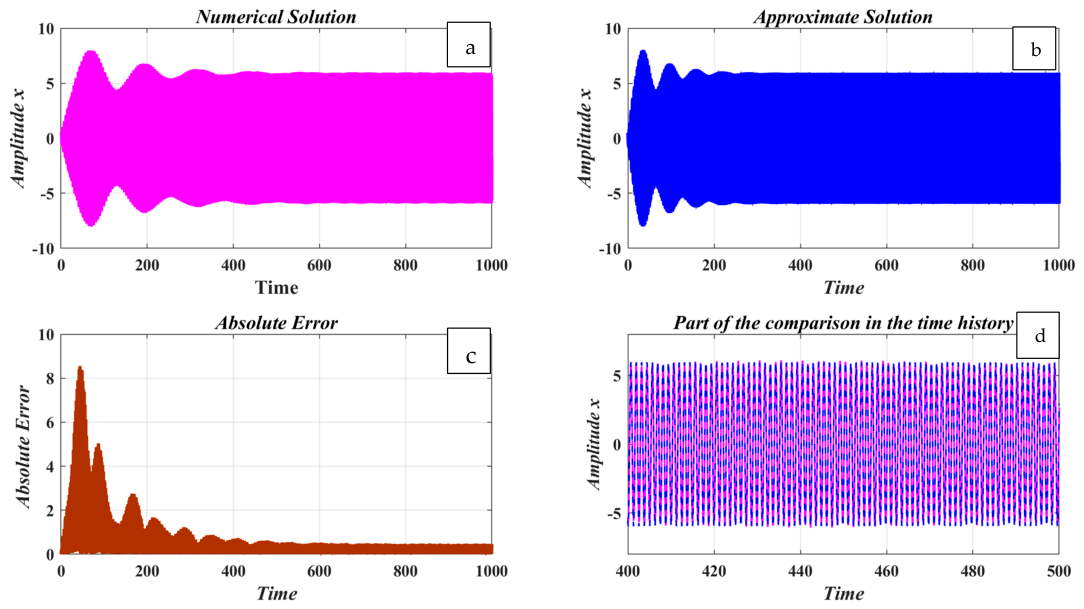

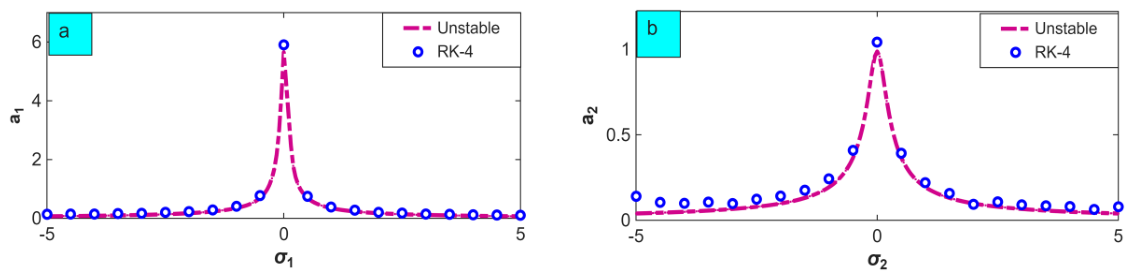

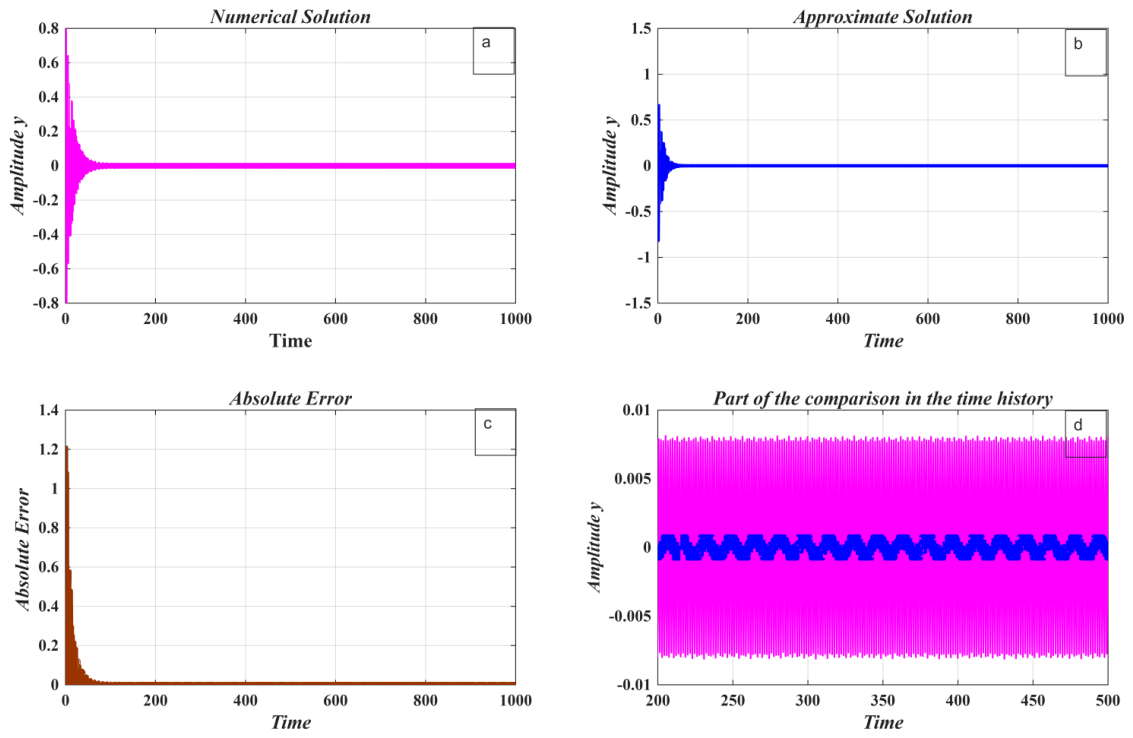

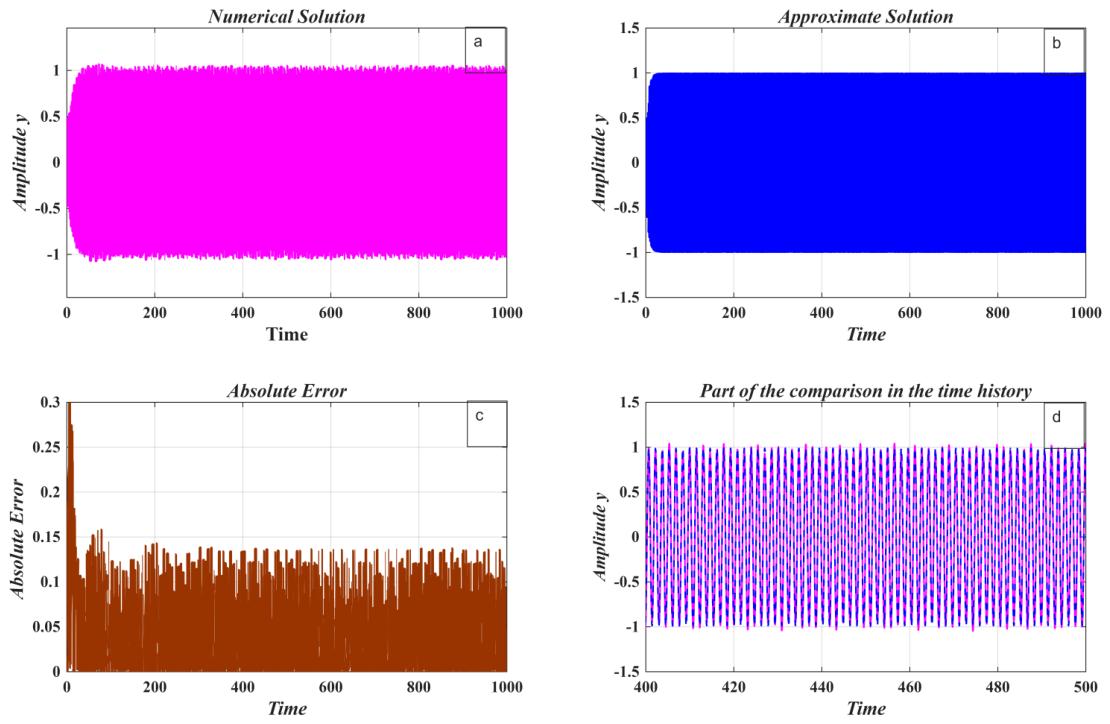

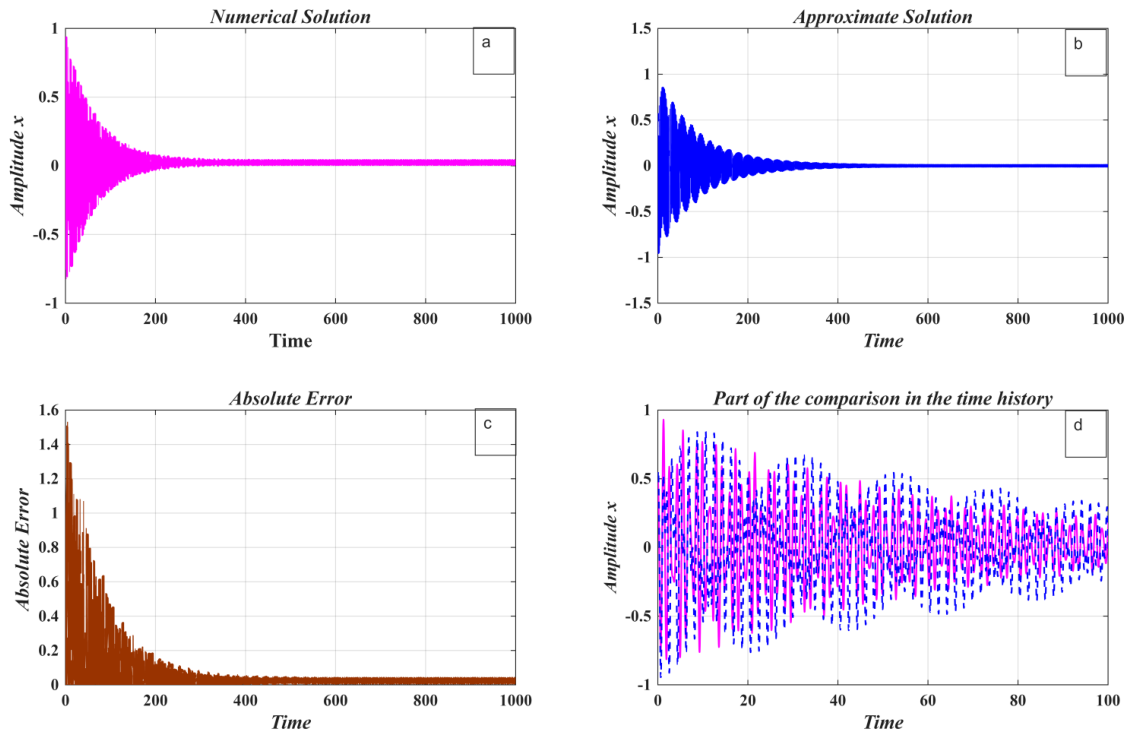

Figure 24 and Figure 25 present a comparison between the numerical and approximate analytical solutions of the uncontrolled system. In addition, Figure 26 and Figure 27 provide the same type of comparison when the NDF controller is incorporated into the system. Overall, Figure 24, Figure 25, Figure 26 and Figure 27 clearly illustrate the agreement between the numerical and approximate analytical responses over time. In all cases, the system exhibits an initial transient oscillatory response, which gradually decays and eventually settles into steady-state behavior.

The numerical results shown in Figure 24a, Figure 25a, Figure 26a, and Figure 27a capture the complete nonlinear dynamics of the system, including the large initial oscillations that diminish due to damping effects. On the other hand, the approximate solutions in Figure 24b, Figure 25b, Figure 26b, and Figure 27b closely track the same response trends, demonstrating that the analytical approximation effectively represents the dominant system behavior.

The absolute error plots in Figure 24c, Figure 25c, Figure 26c, and Figure 27c further validate this agreement quantitatively. The error is relatively large during the early transient stage, where the oscillations are strongest, then gradually decreases as time progresses, eventually approaching values close to zero. This confirms the high long-term accuracy of the approximation. Moreover, the zoomed time history comparisons in Figure 24d, Figure 25d, Figure 26d, and Figure 27d reveal an excellent match between both solutions in the steady-state region, where the two curves become nearly indistinguishable. In addition to the graphical comparisons, quantitative validation is carried out to evaluate the tracking efficiency of the suggested NDF controller incorporated into the first equation (x-mode). The time history charts of Figure 26 and Figure 27 amply demonstrate how well the analytical MTSM solution aligns with the numerical RK-4 simulation in the controlled state. The discrete values of both solutions and the corresponding absolute error are extracted at certain time intervals and compiled in

Table 2. Quantitative verification and comparison of absolute errors between RK-4 and MTSM solutions for the controlled system (after the first mode implementation of the NDF controller).

Time	RK-4	MSM	Absolute Error
192	0.068160	0.068174	0.000014
233	0.046146	0.046171	0.000026
305	0.012004	0.012011	0.000007
398	0.011008	0.011047	0.000039
441	0.009833	0.006863	0.002970
514	0.010207	0.002507	0.007700
601	0.010609	0.001008	0.009600
644	0.010716	0.000481	0.010236
765	0.010259	−0.000364	0.010623
808	0.010275	−0.000384	0.010660
901	0.010639	−0.000063	0.010702
973	0.010108	−0.000503	0.010611

and

Table 3. Quantitative verification and comparison of absolute errors between RK-4 and MTSM solutions for the controlled system (after the second mode implementation of the NDF controller).

Time	RK-4	MSM	Absolute Error
155	0.000011478	0.000011309	0.00000016867
197	−0.000065269	−0.000064720	0.00000120330
286	0.000050741	0.000049648	0.00000109280
399	0.000091589	0.000078809	0.00001278100
435	0.000073227	0.000070828	0.00000239920
521	0.000073218	0.000075251	0.00000203270
636	0.000016452	0.000018661	0.00000220860
693	−0.000052191	−0.000060261	0.00000806960
762	0.000023991	0.000019454	0.00000453700
790	−0.000078541	−0.000078767	0.00000022598
887	0.000017452	0.000018762	0.00000130970
971	−0.000073294	−0.000073529	0.00000023424

in order to assess this agreement with high numerical rigor. The mathematical precision and consistency of the perturbation analysis for the controlled system are rigorously confirmed by the tabulated results, which show that the absolute error is astonishingly minimal. In summary, the results confirm that the approximate analytical model provides a dependable representation of the full numerical solution, particularly after the transient dynamics have decayed.

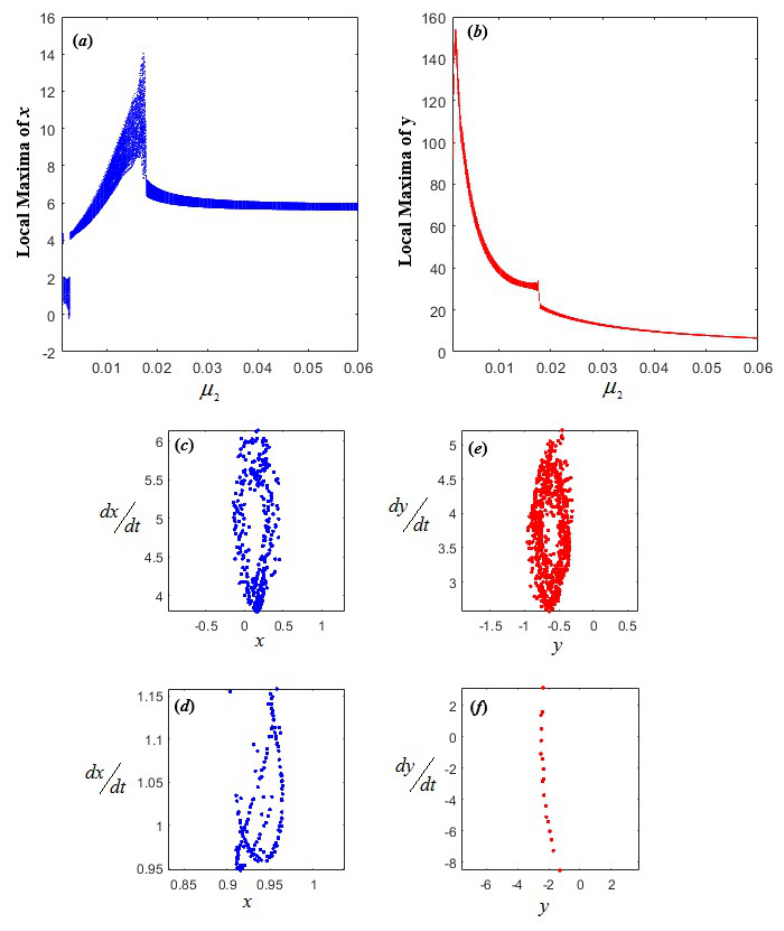

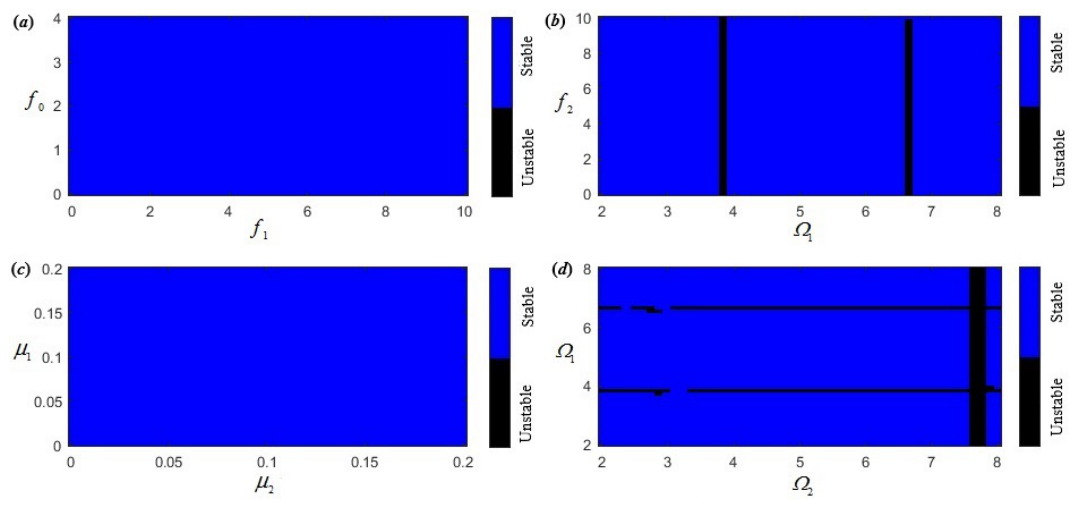

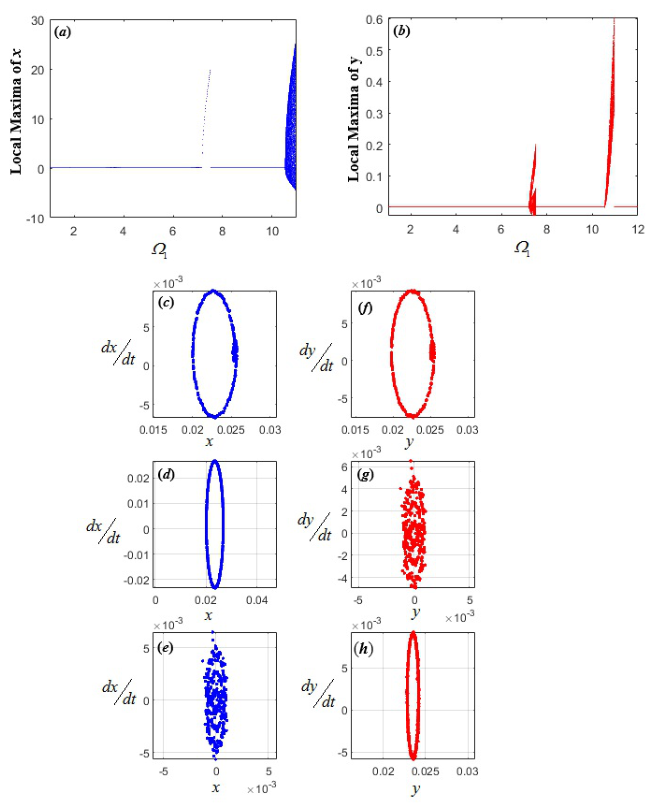

6. Bifurcation Investigation

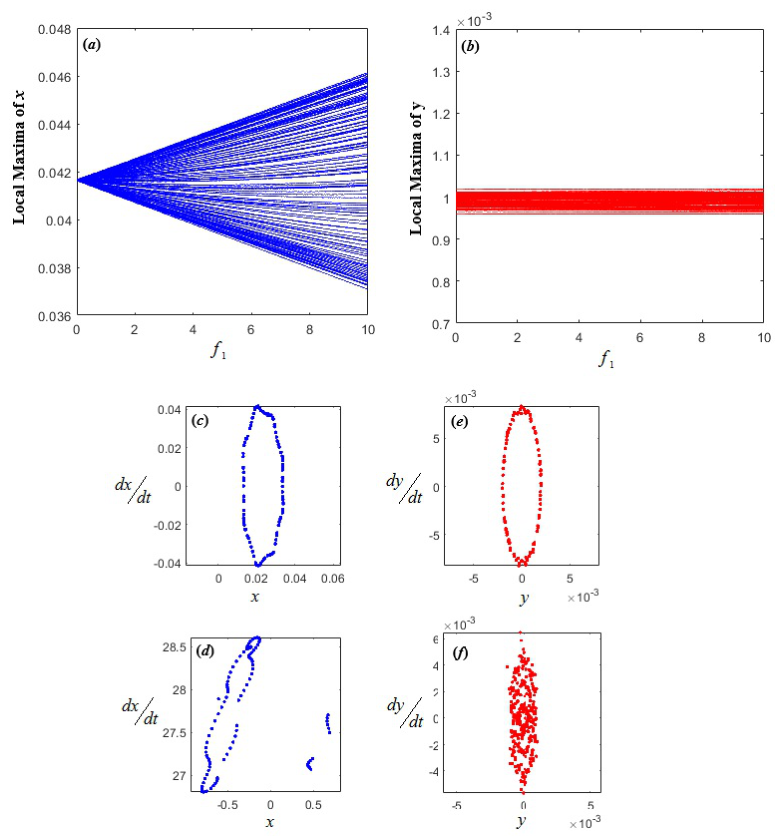

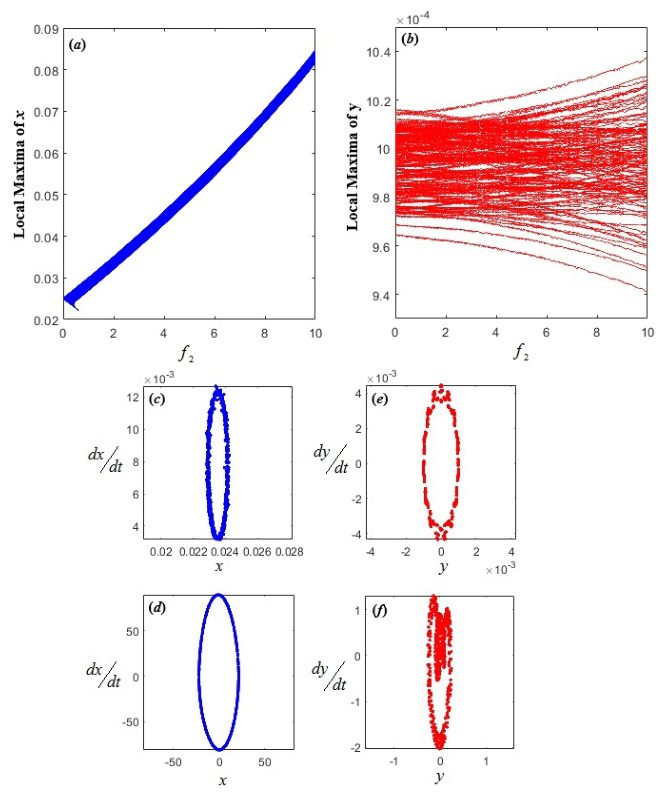

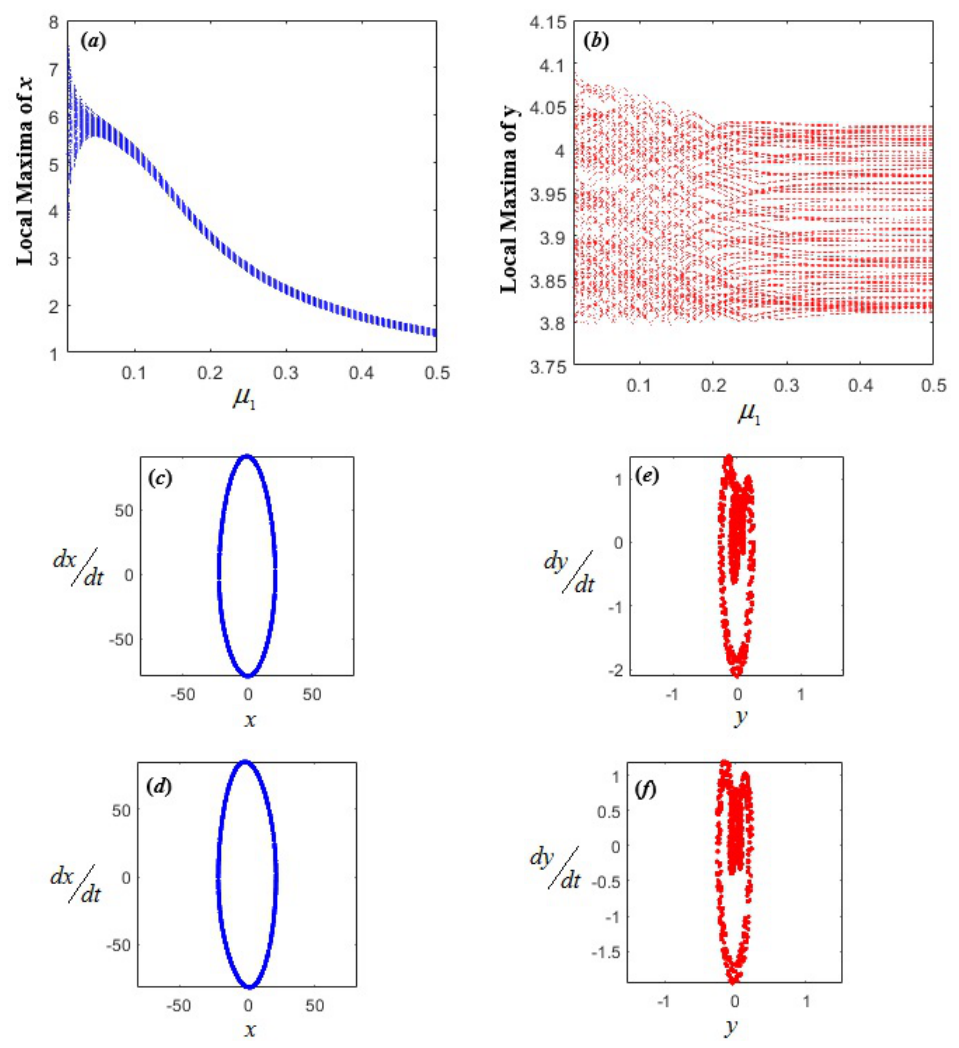

A useful mathematical technique for examining how a dynamical system’s topological or qualitative nature varies as an attribute is changed is bifurcation characterization [40]. It makes it possible to identify bifurcation locations, which are crucial places when a system’s behavior drastically shifts, such as from a stable state to periodic motion or from periodic to chaotic dynamics. This kind of analysis is essential to comprehending the emergence of complicated behaviors in nonlinear systems.

On the other hand, feedback active control is essential for maintaining stability and predictable operation in nonlinear dynamical systems, as it actively counteracts bifurcations, instability, and chaos. By continuously monitoring system outputs and adjusting inputs in real time, a well-designed controller can shift critical bifurcation thresholds, suppress period-doubling routes to chaos, and prevent the system from entering unsafe parameter regions. Specifically, feedback introduces dissipation or damping that confines trajectories to a stable fixed point or limit cycle, thereby avoiding erratic, unpredictable behavior such as strange attractors. Without such control, small parametric variations or external disturbances can drive the system through bifurcation points, leading to degraded performance, mechanical fatigue, or complete loss of operational integrity. Thus, feedback control not only stabilizes the system but also ensures robust functionality under realistic, uncertain conditions. In this study, we used Poincaré maps and bifurcation diagrams for bifurcation analysis. On the other side, control tactics are used to manage and lessen chaos. By changing the system’s characteristics or adding input to direct its evolution toward a desired state, these techniques stabilize the system. Predictive control, adaptive control, and NDF control—which we employed in our study—are examples of common control techniques. These methods can be used to prevent system failure, reduce chaotic oscillations, and enhance overall performance. Consequently, we talked about the presence of the controller in the dynamical model under study and how it affected the chaotic behavior of the model. To carry out our analysis, we employed a wide range of bifurcation parameters, excitation amplitudes $f_1,f_2$, damping coefficients ${\mu }_1,{\mu }_2$, and external excitation frequency ${\mathsf{\Omega }}_1$.

Here, we considered the damping coefficient ${\mu }_1$ as a bifurcation parameter to simulate the bifurcation diagram as in Figure 28. We can observe that the system initially exhibits a dense collection of points, indicating chaotic behavior, as illustrated by the Poincaré map in Figure 28e at ${\mu }_1=0.01$, or complex periodic motion with sensitivity to initial conditions, as illustrated by the Poincaré map in Figure 28c. By increasing the value of ${\mu }_1$ near 0.2, the plot shows a dense, scattered cluster of branches, indicating a quasi-periodic behavior or a chaotic motion, as indicated in Figure 28d,f. Figure 29 presents the bifurcation diagram and the Poincaré map for ${\mu }_2$ as a bifurcation parameter. By increasing ${\mu }_2$ up to 0.016, the system behaves as a chaotic motion, as shown in Figure 29c,e. Furthermore, by increasing the value of ${\mu }_2$, the system behavior reached periodic doubling or quasi-periodic motion, as illustrated in Figure 29d,f, which was computed at ${\mu }_2=0.06$. On the other hand, the increase in the parameter $f_1$ reaches the system from periodic to a quasi-periodic to a chaotic behavior, as described by Figure 30. The presented Poincaré map in Figure 30c,e, plotted at $f_1=0.5,$ indicates a quasi-periodic solution for $x\left(t\right),$ and $y\left(t\right),$ where chaotic motion is described in Figure 30d,f, plotted at $f_1=10.$ The same results were obtained for $f_2$ as a bifurcation parameter, which are illustrated in Figure 31. That the Poincaré map shown in Figure 31c,e is obtained at $f_2=0.5,$ and that described in Figure 31d,f is plotted at $f_2=10.$ In Figure 32, as the excitation frequency ${\mathsf{\Omega }}_1$ is a bifurcation parameter, the bifurcation diagram of $x\left(t\right)$ and $y\left(t\right)$ shows periodic or quasi-periodic motion unless, as the case of resonance, it reached to chaotic behavior, as shown in Figure 32a,b. Periodic or quasi-periodic motion are presented as a Poincaré map in Figure 32c,f at ${\mathsf{\Omega }}_1=2.$ Chaotic motion occurred to the second mode $y\left(t\right)$ due to the first resonance case at ${\mathsf{\Omega }}_1=7.47,$ as presented in Figure 32d,g. At ${\mathsf{\Omega }}_1=10.77,$ the first mode $x\left(t\right)$ behaved as chaotic response due to the second resonance scenario, as indicated at Figure 32e,h.

7. Stability Map

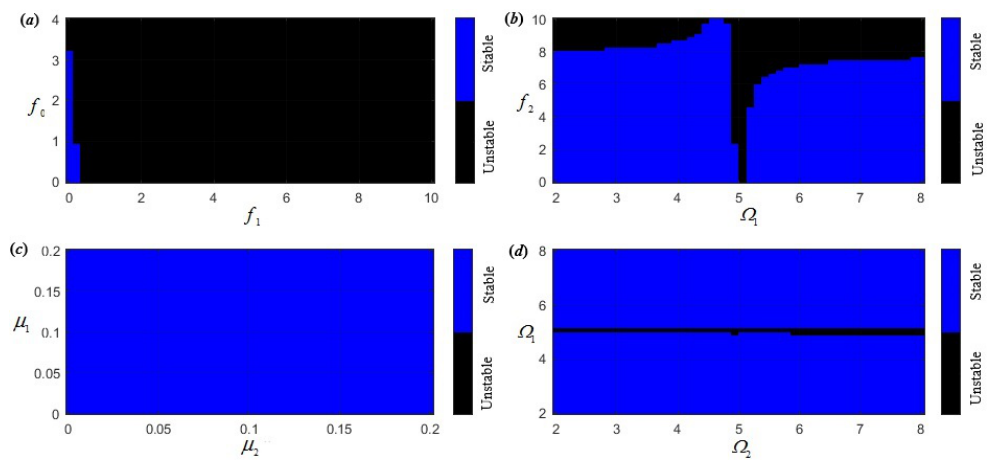

The regions of parameter space where a dynamical system displays stable behavior, as identified by the eigenvalues of its linearized dynamics or by direct Lyapunov’s second technique, can be seen graphically and analytically using a Lyapunov-based stability map. The hue or contour in these maps represents the sign of the biggest real part of the Lyapunov exponents or the margin to instability, and each point represents a particular collection of system parameters (such as gains, time delays, and physical coefficients). Lyapunov-based maps, in contrast to classical bifurcation diagrams, include information about the rate of convergence or divergence, enabling scientists and engineers to differentiate between various degrees of stability (e.g., asymptotically stable vs. marginally stable) as well as between stable and unstable regions. One of the important benefits for researching dynamical systems is the parameter space design, which allows safe operating regions to be quickly identified without the need for repeated time-domain simulations. In addition, the sensitivity analysis indicates the proximity of a nominal design to instability bounds. Another benefit for researching dynamical systems is nonlinear insight, which can provide sufficient conditions for both local and global stability, not only local linear stability, when paired with Lyapunov’s direct technique. Furthermore, robustness evaluation assists in measuring the permissible parameter tolerances prior to stability loss (e.g., the thickness of the stable region along each axis). Finally, the control synthesis demonstrates how Lyapunov function derivatives vary with parameters and directs adaptive control or gain scheduling. The Lyapunov-based stability map presented in Figure 33 offers a compact and insightful visualization of the system’s stability landscape across the most critical parameters of the system like $f_1,f_0,{\mathsf{\Omega }}_1,{\mathsf{\Omega }}_2,{\mu }_1,$ and ${\mu }_2,$ without applying control. Figure 33a presents a systematic stability map over the parameter plane spanned by $f_1$ and $f_0$. The color-coded ‘Maximum Value’ serves as a proxy for the system’s dynamical regime. For low $f_1$ values (approximately 0–0.15), with the range $0\le f_0\le 3.2$ indicating a periodic behavior, this region corresponds to stable operation (blue color). Furthermore, $f_1$ increasing beyond 0.15–10 suggests chaotic motion or an unstable (unsafe) region (black color). As depicted in Figure 33b, distinct unstable domains are observed for ${\mathsf{\Omega }}_1\approx 2–4.7$ with $f_2=8–10,$ from ${\mathsf{\Omega }}_1\approx 4.9–5.2$ with $f_2=0–10,$ and from ${\mathsf{\Omega }}_1\approx 5.4–8$ with $f_2=6.9–10$, which are represented in black. The map’s ability to encode both the sign and magnitude of the Lyapunov exponent provides a quantitative margin of stability, making it superior to stable/unstable classifications. From a control engineering perspective, such maps enable the direct selection of parameter pairs that maximize the decay rate, as well as the computation of robustness radii to uncertainty in ${\mathsf{\Omega }}_1$ and $f_2$. The contour $({\mu }_1,{\mu }_2)$, and $({\mathsf{\Omega }}_1,{\mathsf{\Omega }}_2)$ present quasi-periodic and periodic motion at most spaces, as indicated in Figure 34c,d, except for ${\mathsf{\Omega }}_2\approx 2–8$ with ${\mathsf{\Omega }}_1=5.05–5.2,$ which gives chaotic behavior. Moreover, Figure 31 presents the stability map for the system parameters under resonance and NDF control, $k_1=5,k_2=5,k_2=5,$ and $k_4=2;$ this figure elucidates that the stability regions (periodic motion state) are increased by using the NDF control, which indicates the importance of the used feedback control.

Comparison with Previous Work

Ref. [34] examines the nonlinear dynamics and stability of a coupled electromechanical oscillator under harmonic and parametric excitations. In order to validate the analytical results without using active control procedures, the study focuses on describing the system’s response and parametric effects at critical resonance circumstances. In order to reduce nonlinear bifurcations and suppress vibrations in intricate electromechanical systems, this study [35] suggests a unique NPDVF controller. The suggested method shows strong stability and great energy efficiency under simultaneous resonance conditions by second-order perturbation analysis.

This work examines how well a Negative Derivative Feedback (NDF) controller suppresses vibration in a nonlinear electromechanical oscillator that is subjected to mixed excitations. The method of multiple scales (MMS) is used to develop analytical approximate solutions up to the second order, specifically for the primary resonance scenario. The system’s vibration is greatly decreased after controller feedback addition, with the controller’s effectiveness ($E_a$ = amplitude without controller/amplitude with controller) approaching 590 and 51.5 for the first and second modes, respectively, according to an analysis of the time history and various parameters before and after the controller’s integration. In comparison to its value without control, the vibrating system’s amplitude is reduced by almost 99.8% for the first mode and 98% for the second mode. Additionally, there is a high level of agreement of analytic and approximate solutions with the maximum calculated error metric being $0.01\%$ for the first mode and less than ${10}^{-5}\%$ for the second mode across the verified parameter ranges. The bifurcation diagram, Poincaré map, and Lyapunov map are illustrated confirmed that the NDF controller maintains the required stable progression of the evolving system while reducing a chaotic state. These results demonstrate how well the controller works to enhance the dynamic functionality of the system throughout various circumstances. Additionally, the stability mapping for the system parameters was obtained and discussed to asses the optimum parameter values that ensure the system periodicity and confirming stability.

8. Conclusions

A nonlinear electromechanical system’s vibrations under harmonic and parametric excitations are suppressed and eliminated using an active vibration control. The model is represented by coupled nonlinear ordinary differential equations and consists of an electrical component coupled to a mechanical component. Using the method of multiple scales, analytical approximation solutions up to the second order are sought. The response and stability of the solutions at the worst resonance instances were examined using the time-series. The effects of various system factors were documented, and we verified the perturbation solution results using numerical simulations. Analytical and numerical simulations were compared. Furthermore, bifurcation analyses conducted for five distinct parameters (excitation amplitudes ($f_1,f_2$), damping coefficients $({\mu }_1,{\mu }_2)$, and external excitation frequency ${\mathsf{\Omega }}_1$)—using Poincaré maps and bifurcation diagrams—confirmed that the NDF controller maintains the required stable progression of the evolving system while reducing a chaotic state. These results demonstrate how well the controller works to enhance the dynamic functionality of the system throughout various circumstances. Additionally, the stability mapping for the system parameters was obtained and discussed to asses the optimum parameters values that ensure the system periodicity and confirming stability. The results and discussion above allow us to draw the following conclusions:

1

In nonlinear systems, the Negative Derivative Feedback (NDF) controller shows remarkable efficacy in reducing high-amplitude vibrations.

2

The controller’s effectiveness ($E_a$ = amplitude without controller/amplitude with controller) approaches 590 and 51.5 for the first and second modes, respectively.

3

Using a Negative Derivative Feedback controller reduced the vibrating system’s amplitude by 99.8% and 98 % for the first and second modes compared to being deprived of control.

4

The amplitude of the primary system was monotonically decreased by the natural frequency and damping coefficients.

5

The controlled system behaved better when the external excitation force was increased.

6

The first indirect Liapunov approach was used for stability analysis in order to categorize the stable and unstable regions.

7

The numerical simulations and the analytical solutions agree quite well with the maximum calculated error metric being $0.01\%$ for the first mode and less than ${10}^{-5}\%$ for the second mode across the verified parameter ranges.

8

Optimum parameter selection was made through the system parameter effect graphs and stability mapping diagrams.

9

The chaotic response and system periodicity were demonstrated through bifurcation diagrams and Poincaré maps.
