Optimization Design of Blade Profile Parameters of Low-Speed and High-Torque Turbodrill Based on GA-LSSVM-MOPSO-TOPSIS Method

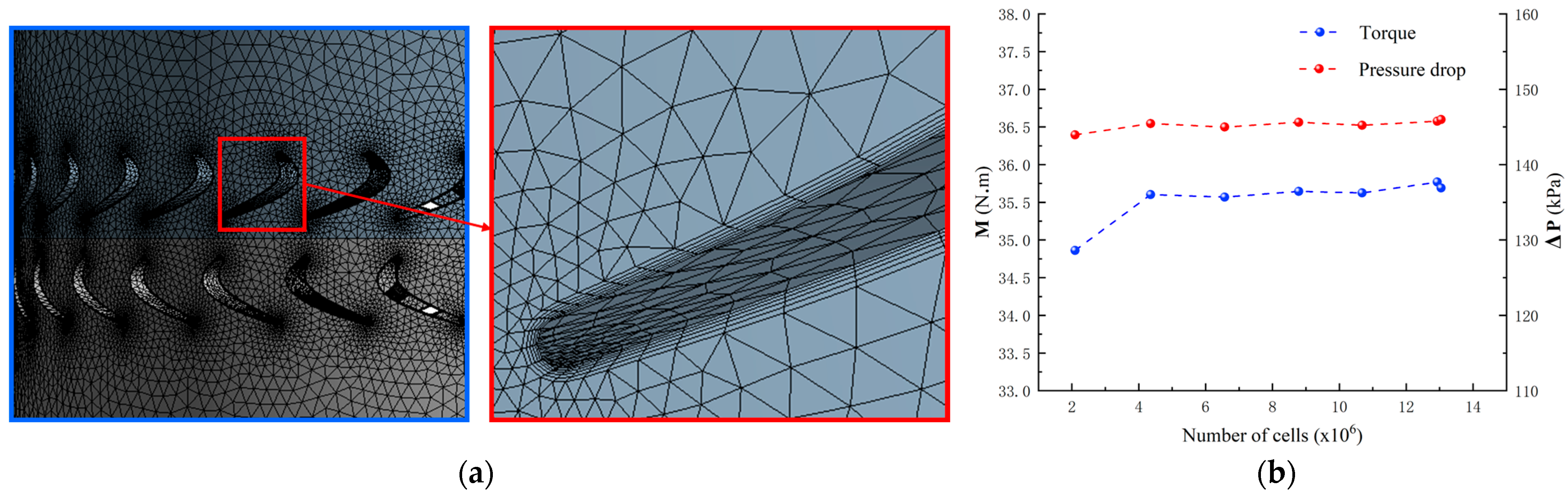

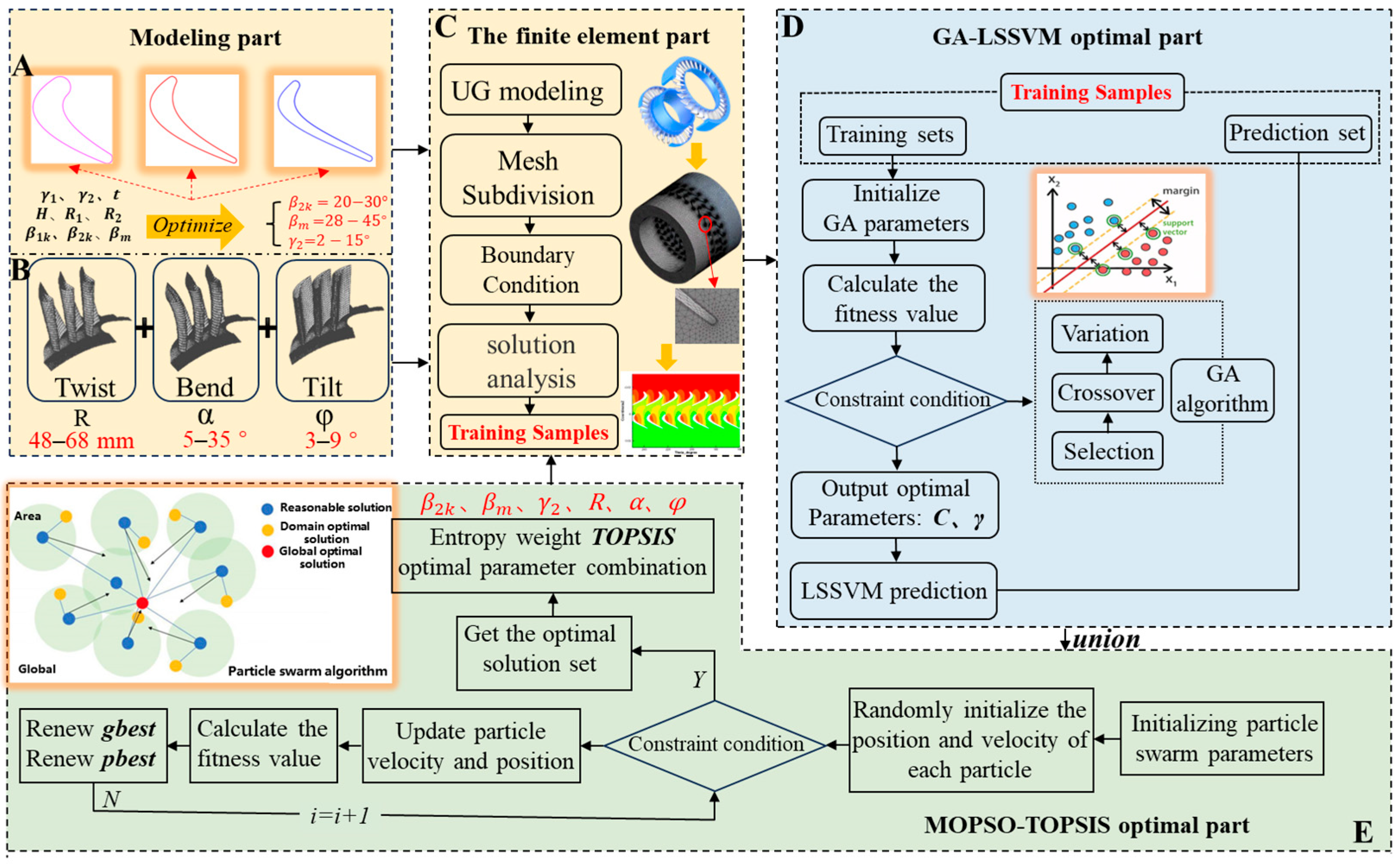

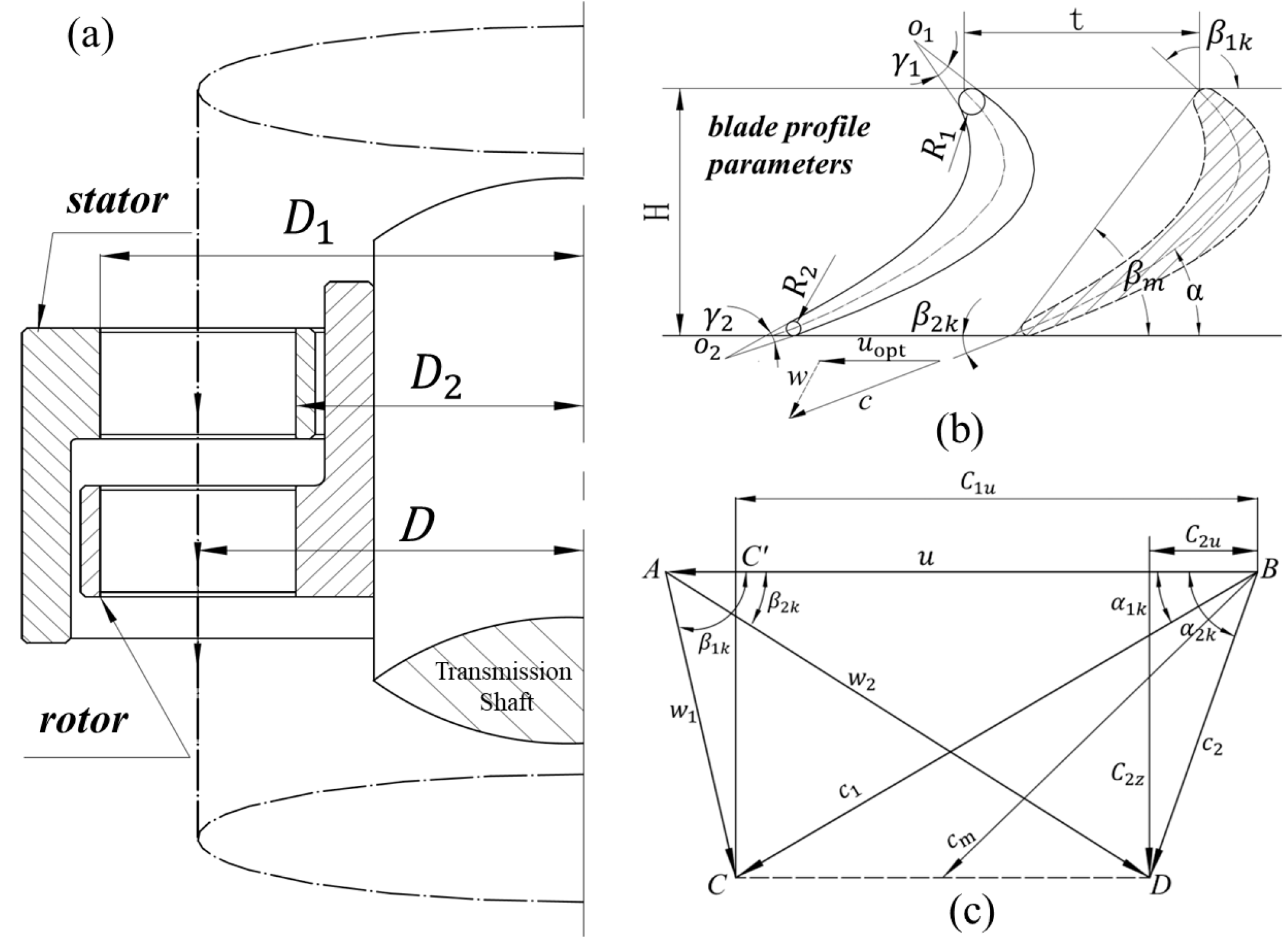

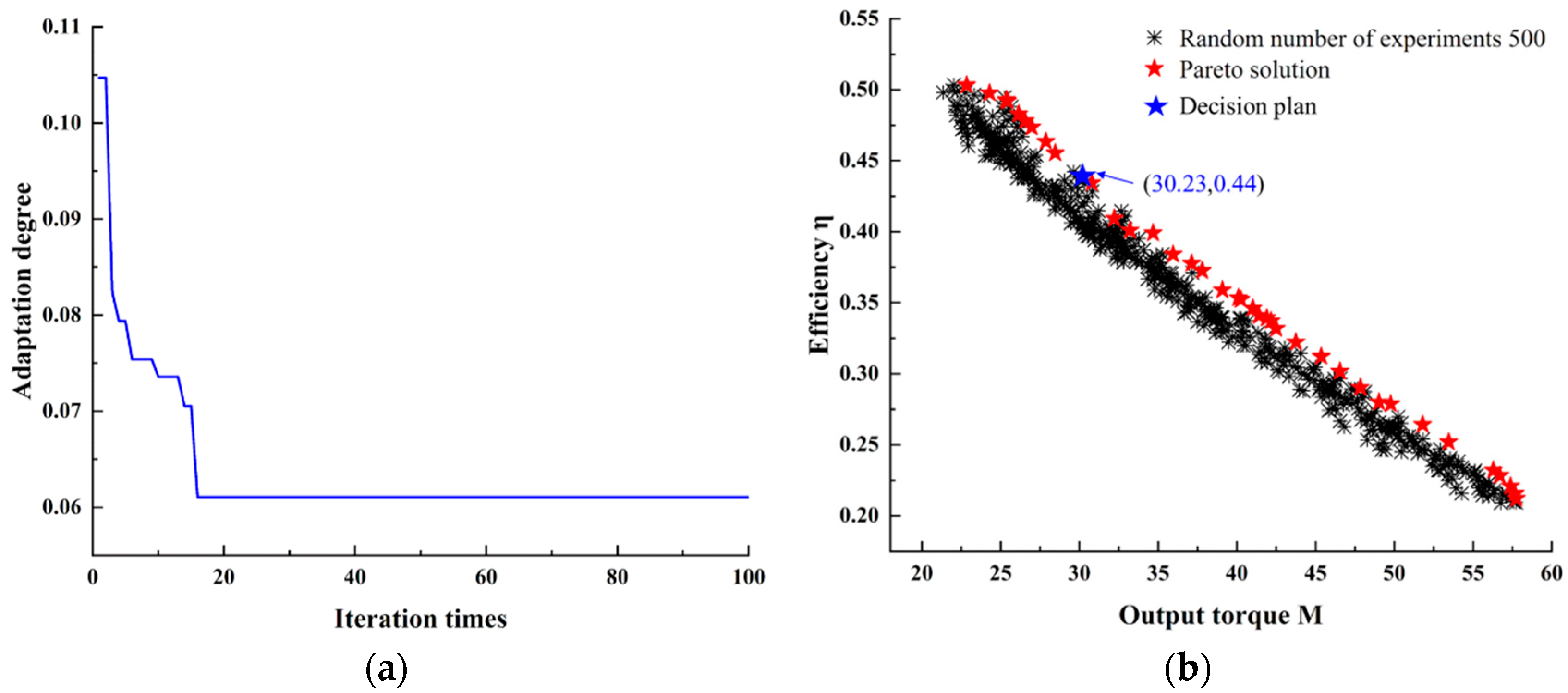

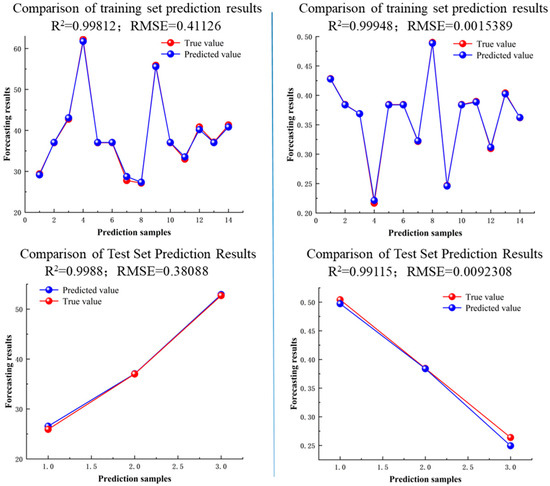

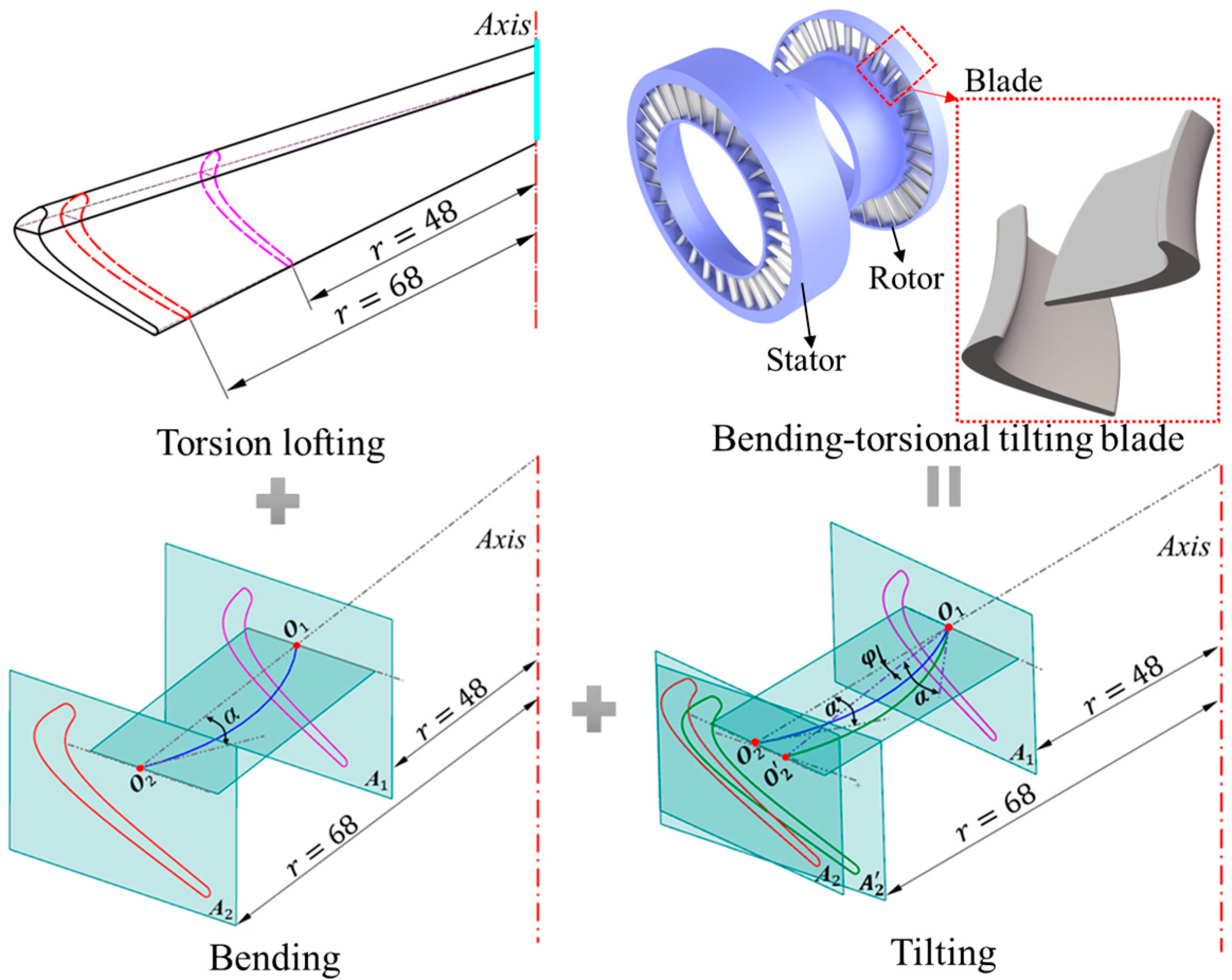

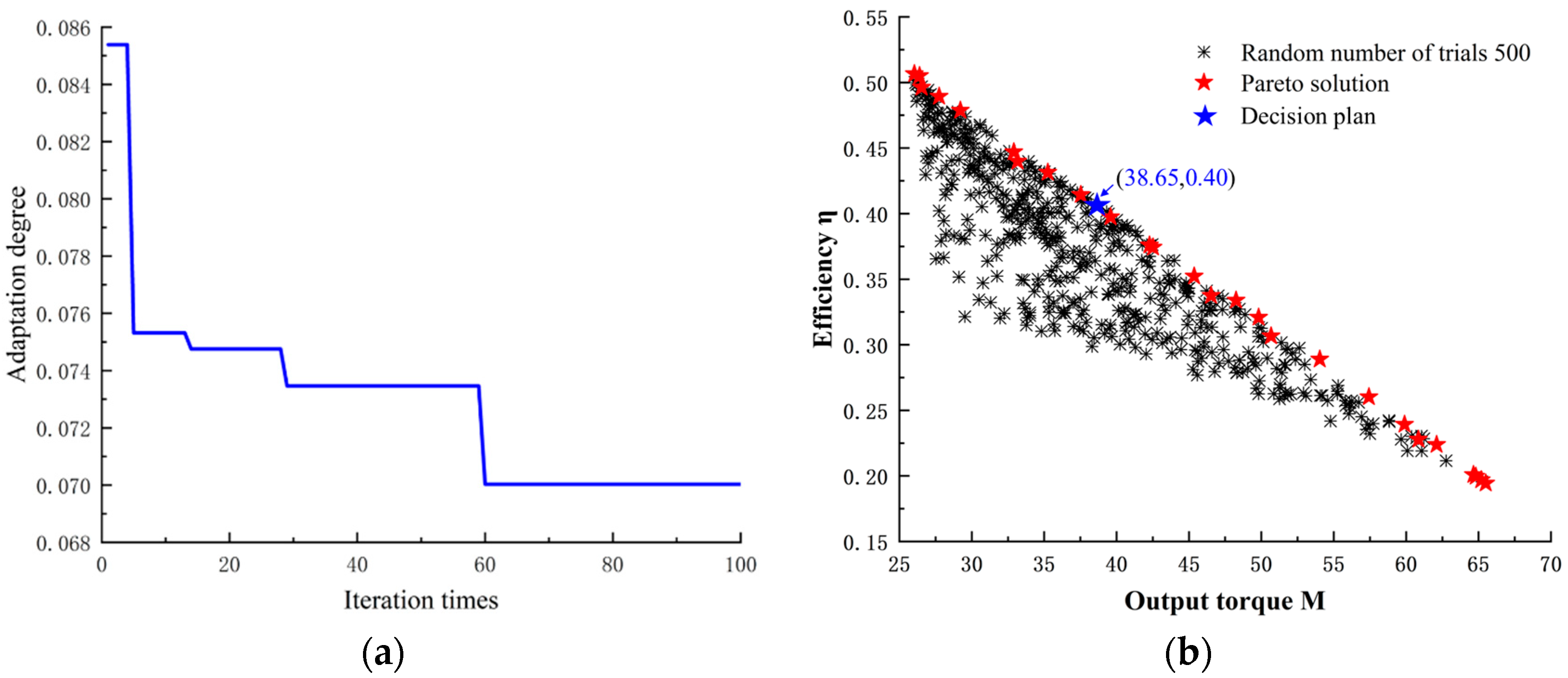

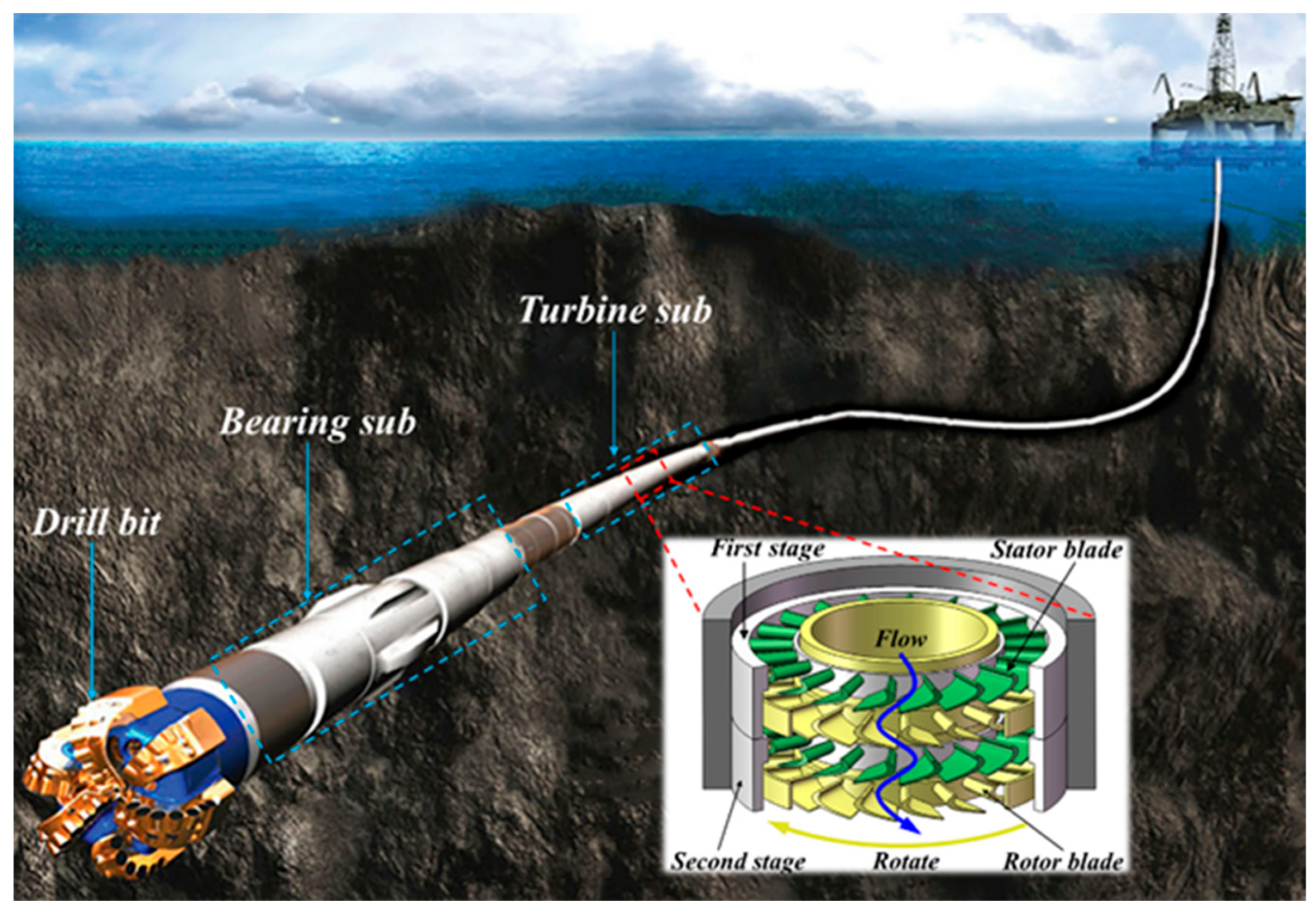

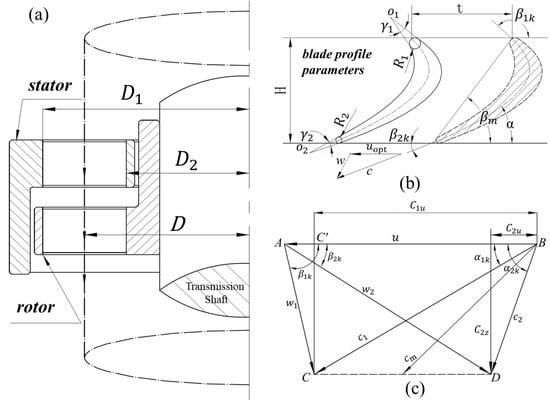

The exploration and development of deep marine resources are faced with the problems of poor drill ability and serious wellbore instability in high temperature and high-pressure formations. The bottom hole dynamic drilling tool with low vibration characteristics is the best choice for deep well drilling. The output torque of the turbodrill is relatively small, which limits its application potential. In this study, intelligent optimization algorithms are used to improve the blade shape design to improve its output torque. Firstly, based on the moment of momentum theorem, the key blade profile parameters and range affecting the output characteristics of the turbodrill are analyzed and summarized. Subsequently, the five-order polynomial method and UG software (version 10.0) are used to complete the three-dimensional configuration of the bent-twisted blade. Then, based on the GA-LSSVM-MOPSO-TOPSIS intelligent optimization algorithm, the two-dimensional and three-dimensional modeling design parameters under the optimal hydraulic performance are optimized, and the accuracy of the intelligent optimization algorithm and parameters is verified by CFD simulation analysis. The results show that the hydraulic efficiency of only 4.9% is sacrificed, and the output torque is increased by 36.61%, which significantly improves the hydraulic performance of the turbodrill and provides guidance for the design of low-speed and high-torque turbodrills.
