Time-Frequency Conditional Enhanced Transformer-TimeGAN for Motor Fault Data Augmentation

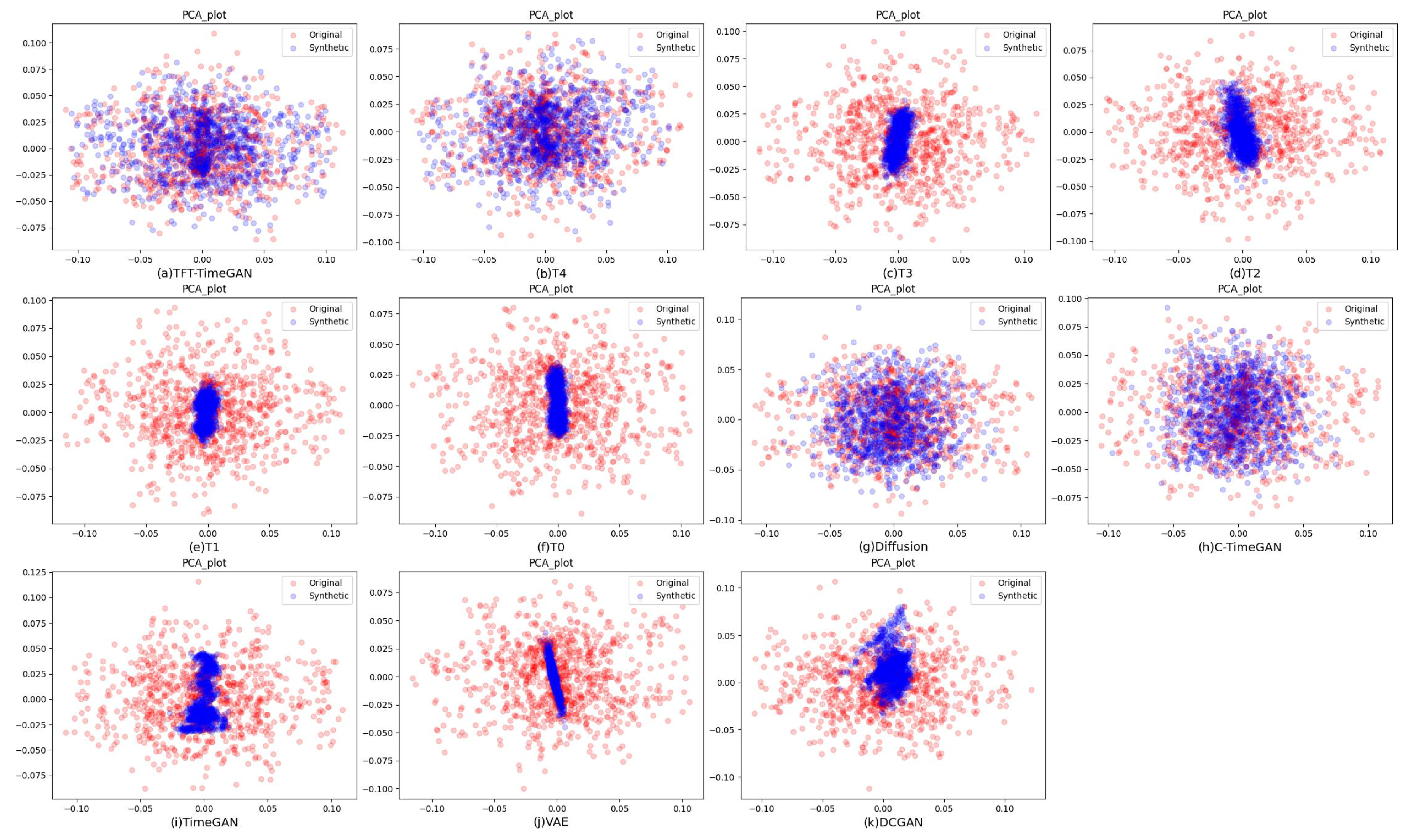

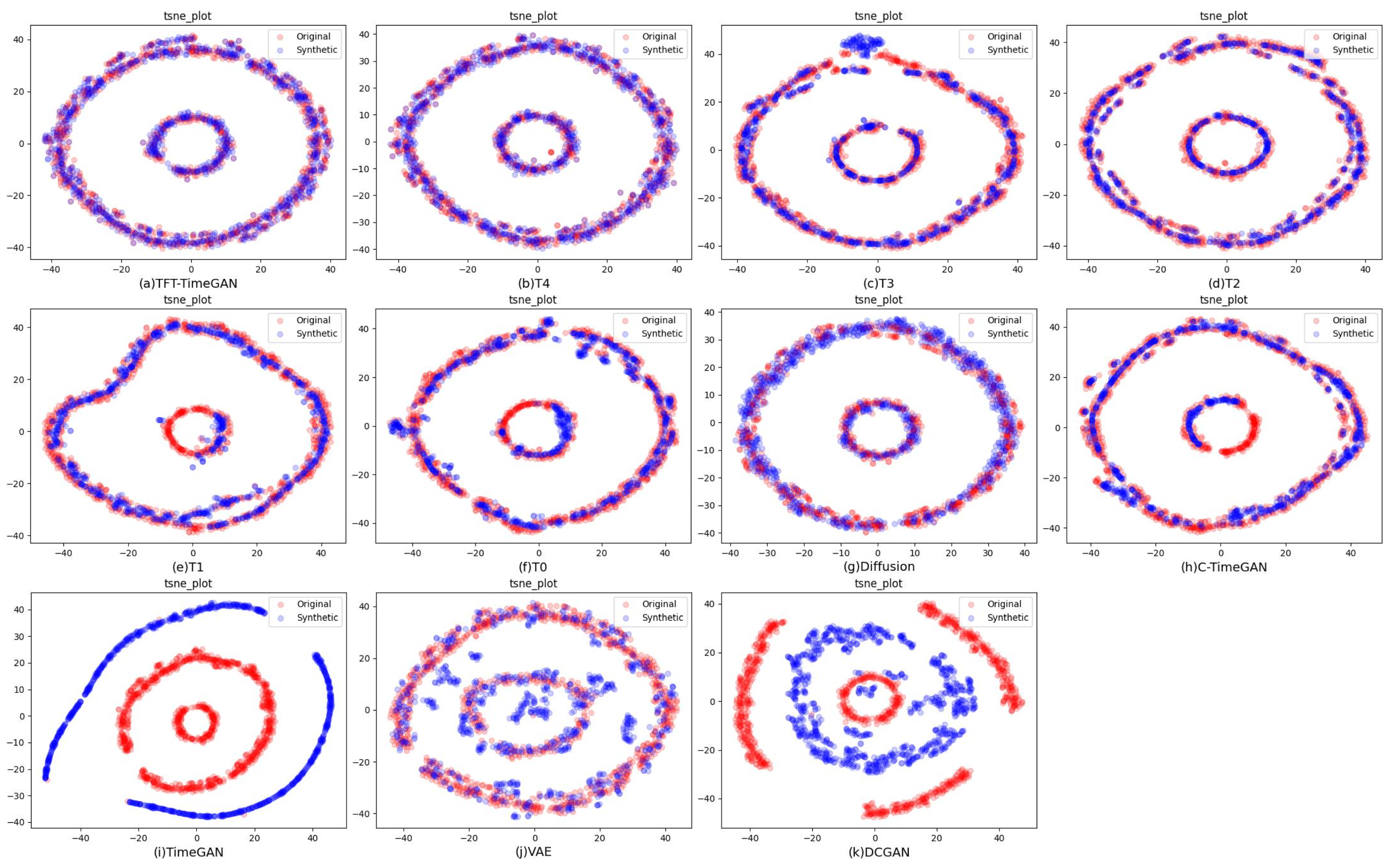

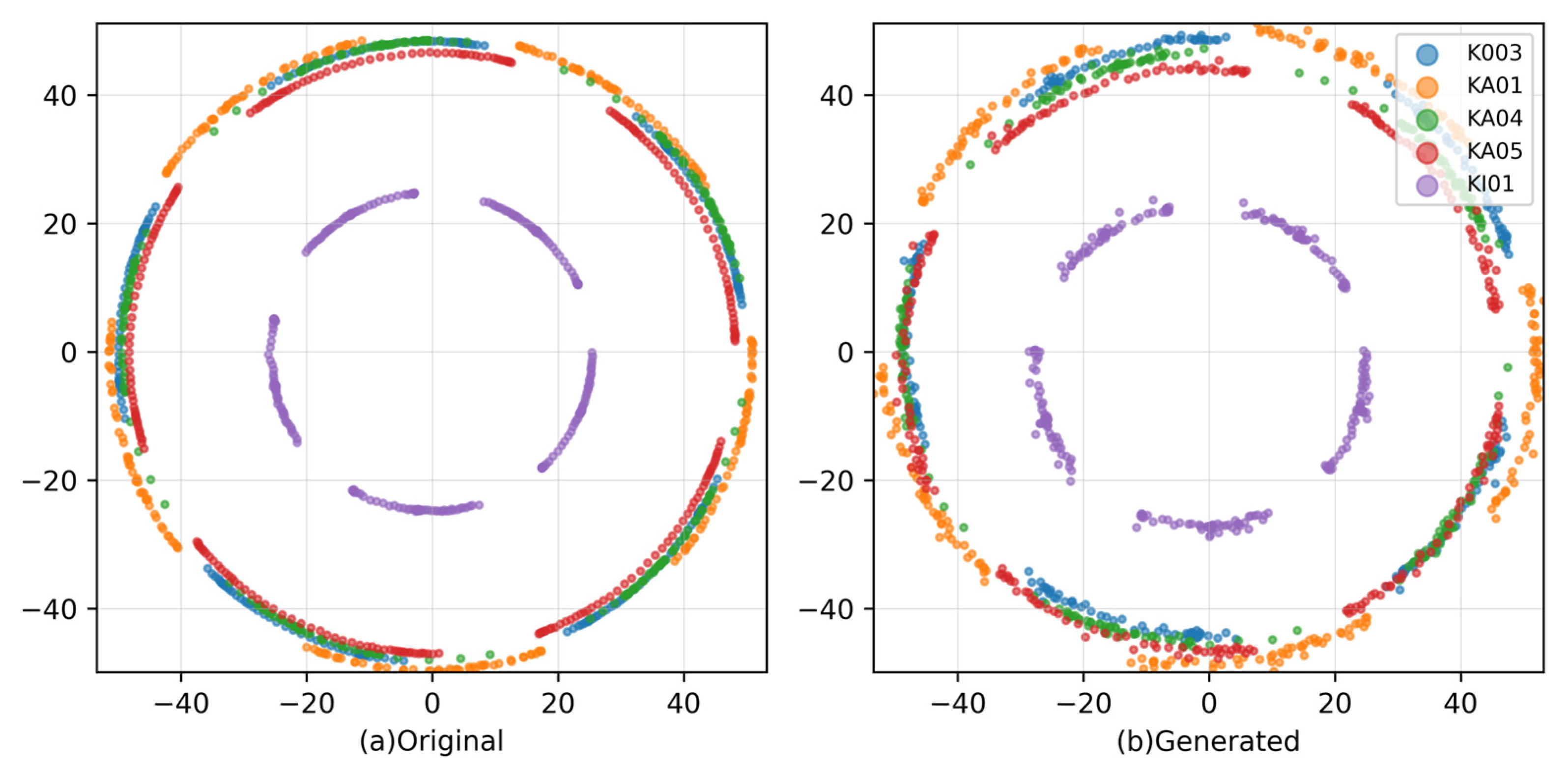

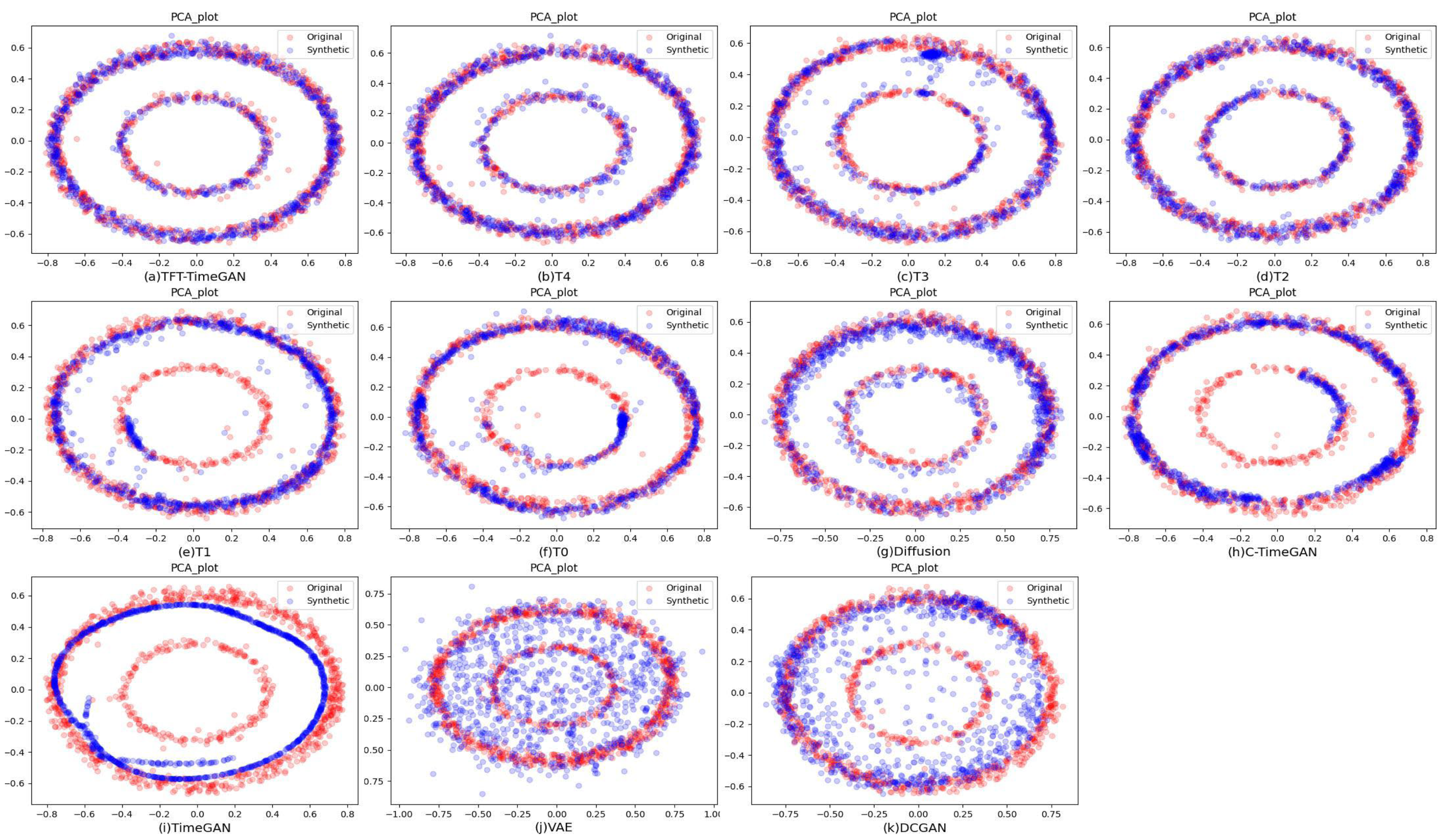

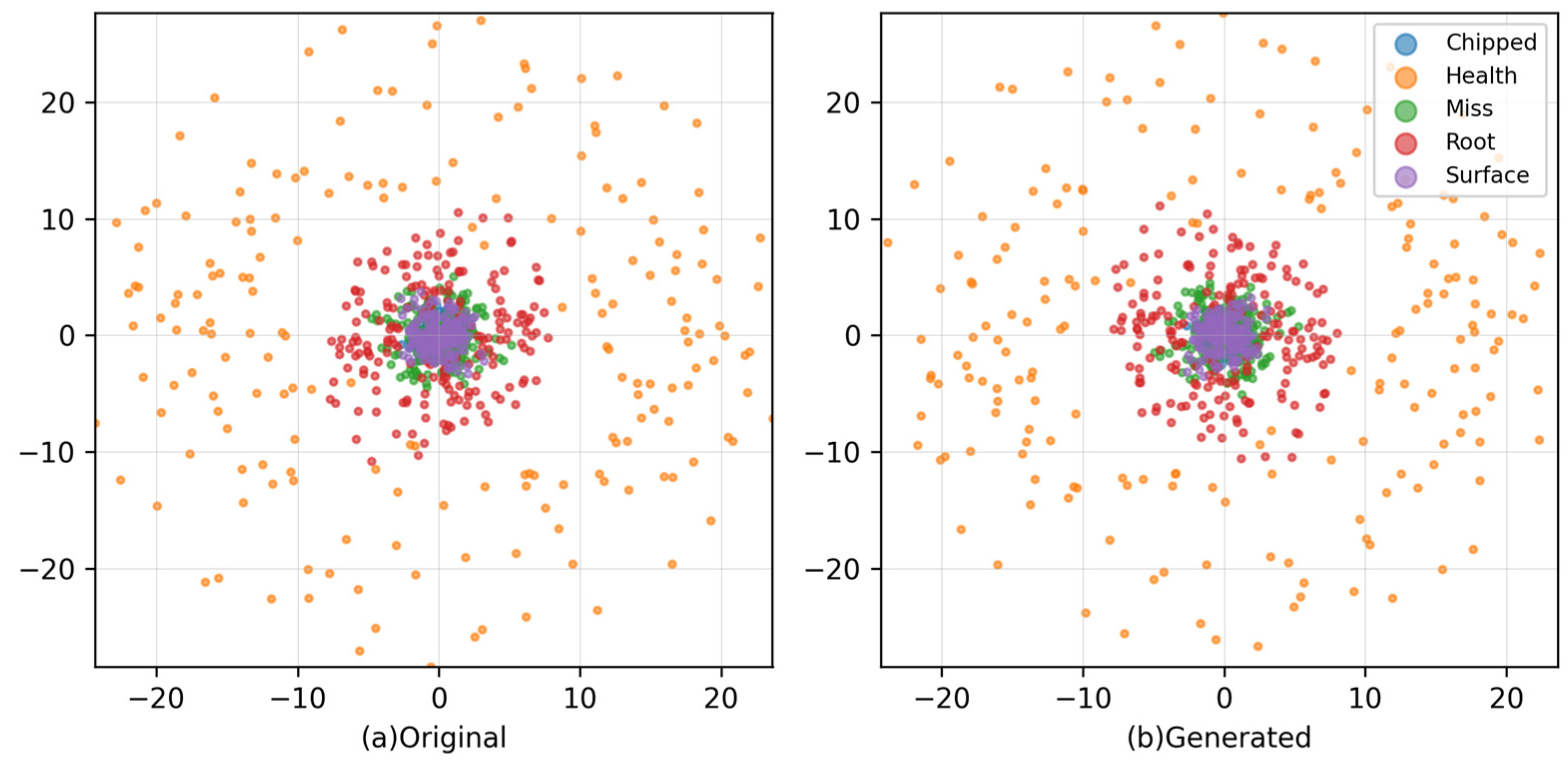

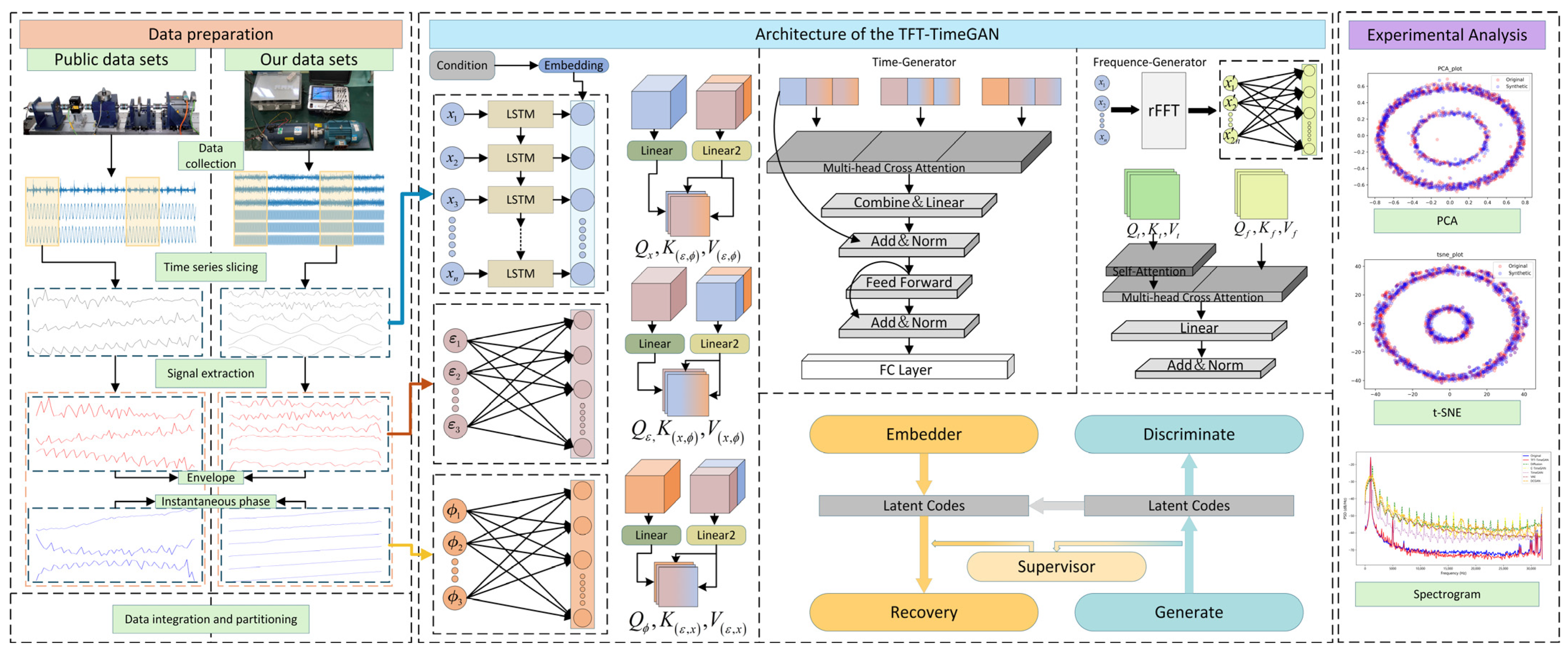

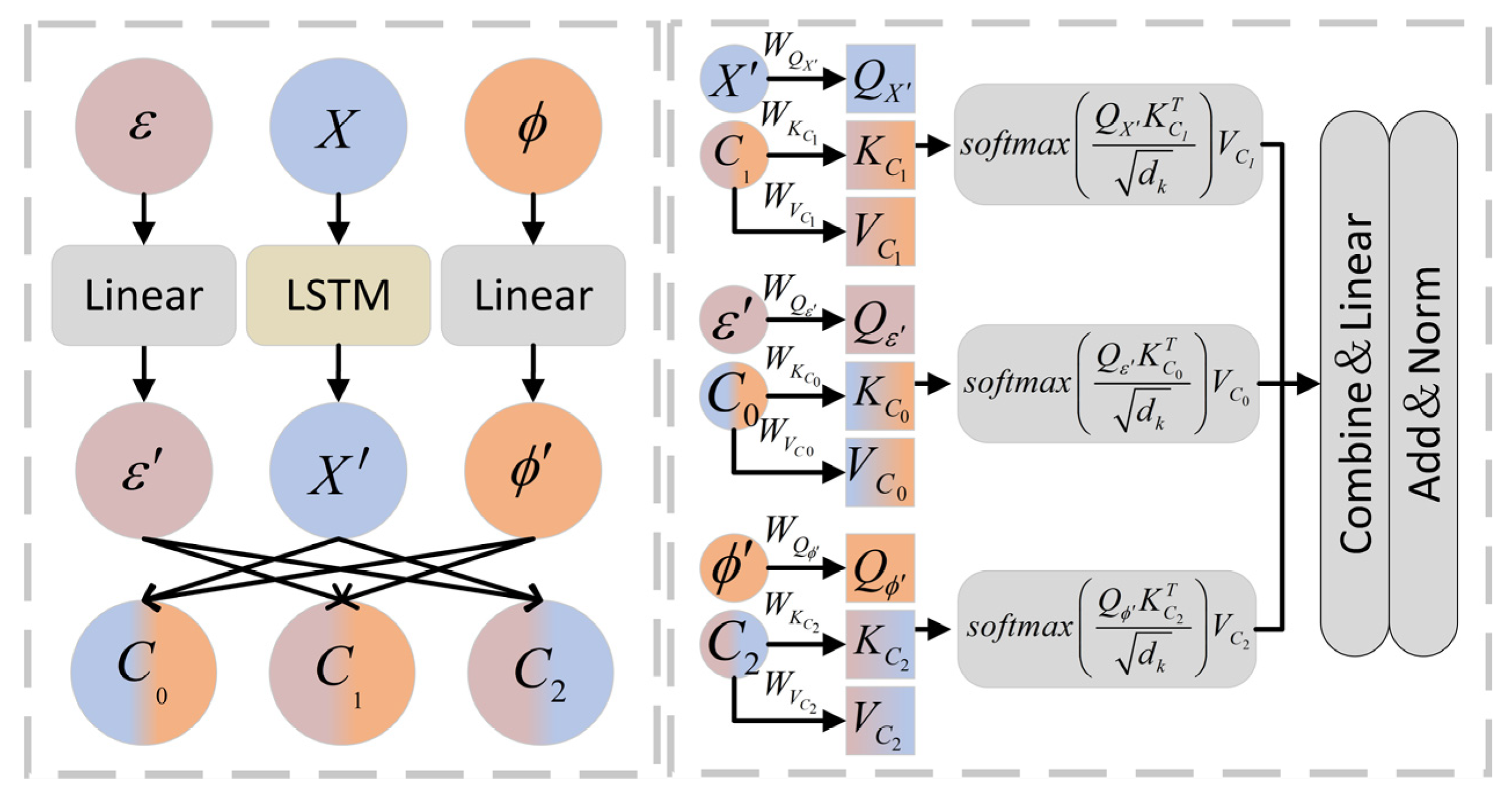

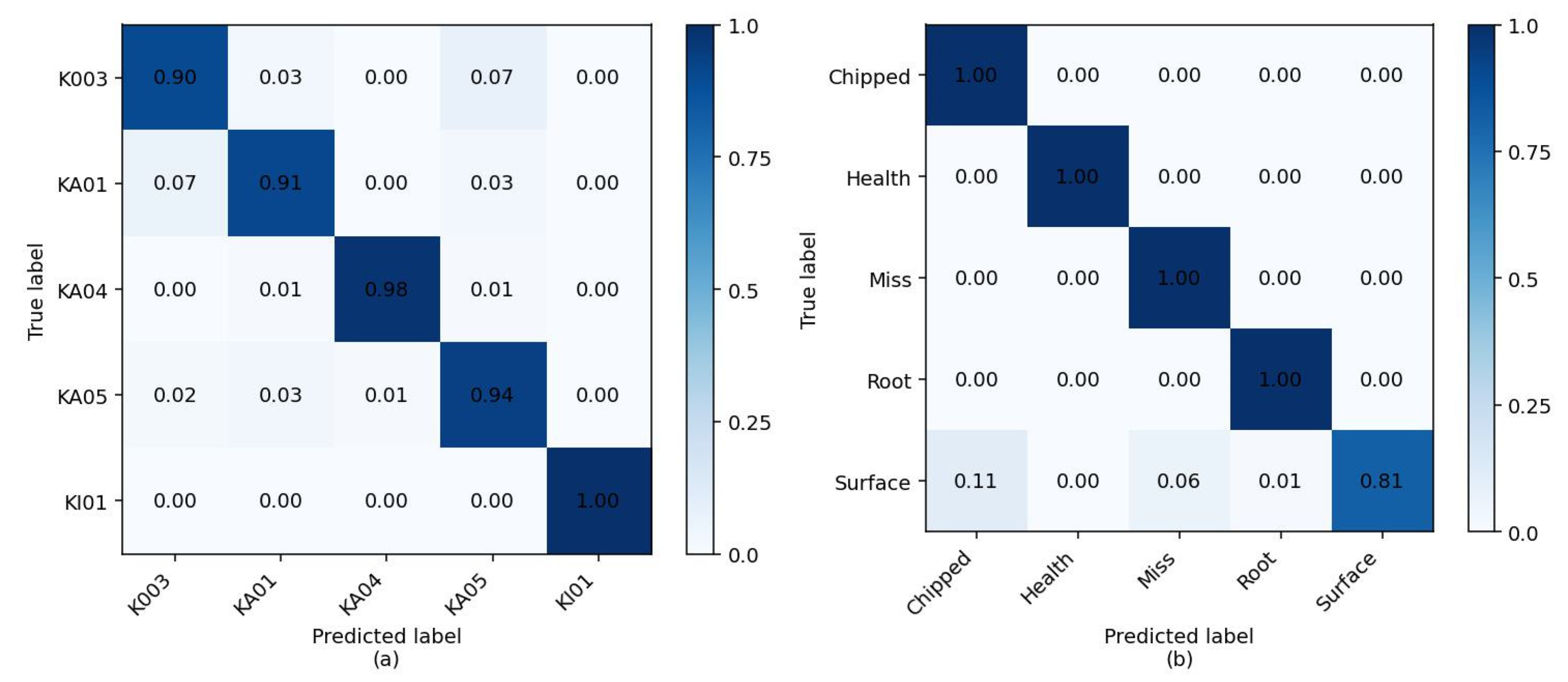

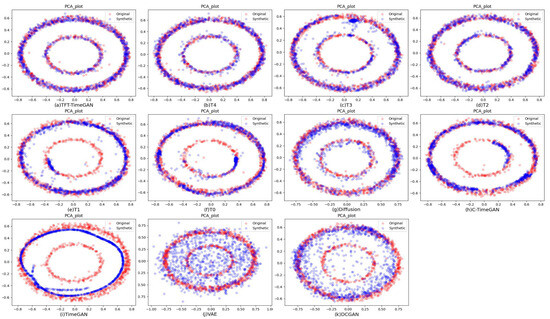

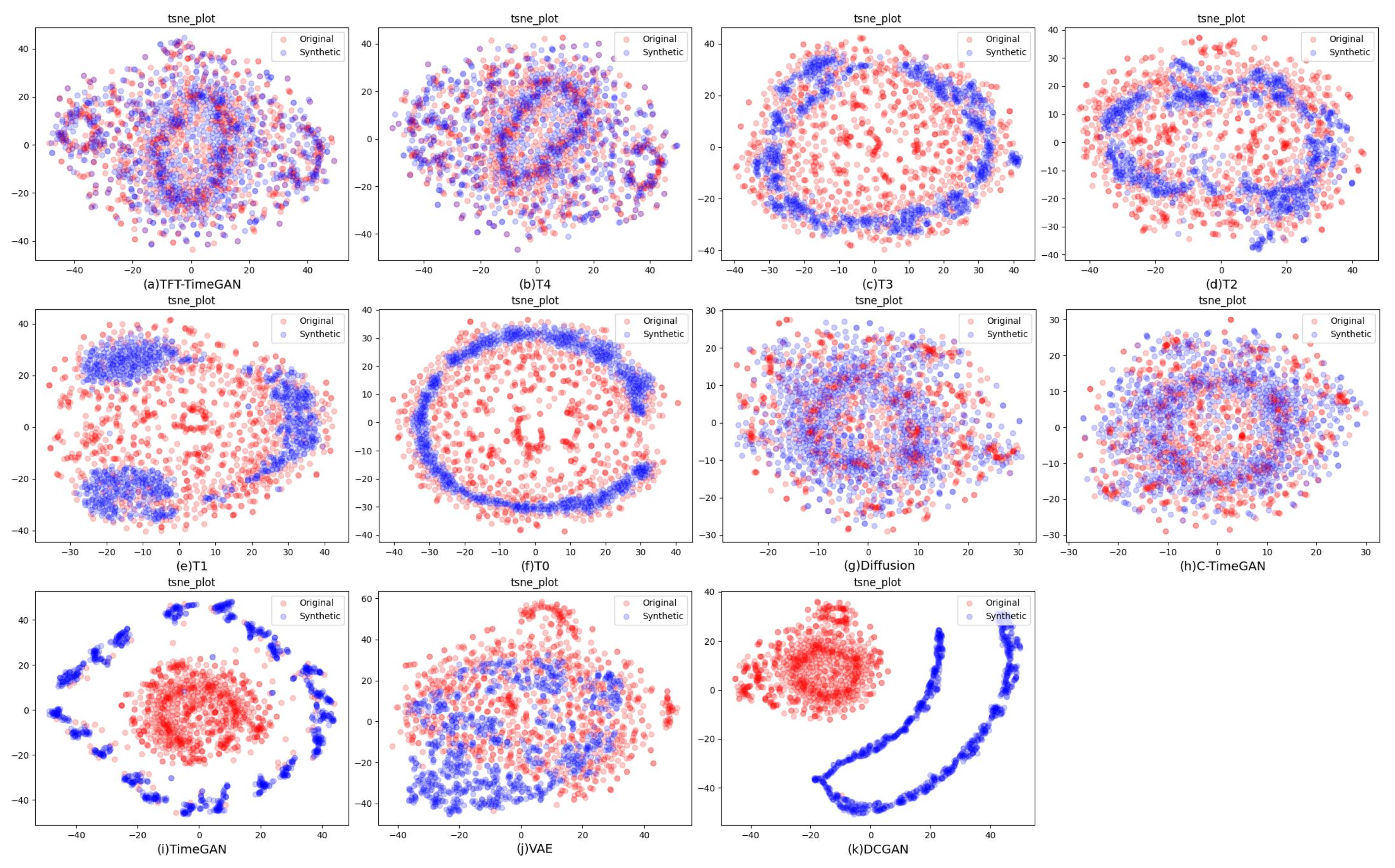

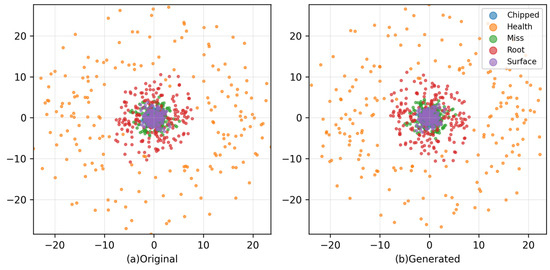

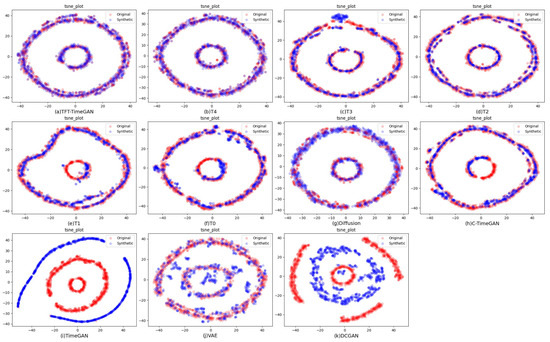

Data augmentation is crucial for electric motor fault diagnosis and lifetime prediction. However, the diversity of operating conditions and the challenge of augmenting small datasets often limit existing models. To address this, we propose an enhanced TimeGAN framework that couples the original architecture with transformer modules to jointly exploit time- and frequency-domain information to improve the fidelity of synthetic motor signals. The method fuses raw waveforms, envelope features, and instantaneous phase-change cues to strengthen temporal representation learning. The generator further incorporates frequency-domain descriptors and adaptively balances time–frequency contributions through learnable weighting, thereby improving generative performance. In addition, a state-conditioning mechanism (via explicit state annotations) enables controlled synthesis across distinct operating states. Comprehensive evaluations—including PCA and t-SNE visualizations, distance metrics such as DTW and FID, and downstream classifier tests—demonstrate strong adaptability and robustness on both public and in-house datasets, substantially enhancing the quality of generated time series.
