# Optimal Design of Lower Limb Rehabilitation System Based on Parallel and Serial Mechanisms

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

- The location of the drive guides of the active manipulator, because of the intersection of their axes at one point in the upper right side of a patient user;
- Not a convenient shape for the moving platform, as in the form of an equilateral triangle;
- Limited location of fastenings of mechanisms to the platform center;
- The used optimization algorithms for the generation of random parameters and search by climbing to the top;
- Consideration of intersections of only active manipulator links;
- The use of the average size of a human limb with no customizing capability.

- A novel hybrid modular structure of a robotic system for the rehabilitation of the lower limbs is designed as based on two modules identical in structure, including an active 3-PRRR manipulator for moving the patient’s foot and a passive orthosis based on the RRR mechanism for supporting the lower limbs;
- A method for parametric synthesis of a hybrid robotic system with a modular structure is formulated, taking into account the generated levels of parametric constraints depending on the ergonomics and manufacturability of the proposed design.

## 2. Motion Requirements from Lower Limb Biomechanics

- The limbs are not abducted (leg abduction angle ${\gamma}_{i}=0$) while performing one cycle ($t\in \left[0;360\right]$) of gait simulation;
- Abduction of the left leg to ${\gamma}_{1}=-30\xb0$;
- Performing one cycle of gait simulation;
- Simultaneous adduction of the left leg to the angle ${\gamma}_{1}=0\xb0$ and abduction of the right leg to ${\gamma}_{2}=30\xb0$;
- Performing one cycle of gait simulation;
- Abduction of the right leg ${\gamma}_{2}=0\xb0$.

## 3. Mathematical Model

## 4. Optimization Design Problem

- Selection of optimization parameters, which includes both continuous and discrete.
- 1.1.
- We use the link lengths as continuous optimization parameters ${L}_{BCij}$, ${L}_{CDij}$, guide positions ${x}_{Bi1}$,${z}_{Bi1}$,${y}_{Bi1}$,${z}_{Bi1}$,${x}_{Bi3}$,${y}_{Bi3}$ (Figure 5), and horizontal dimensions of the platforms.
- 1.2.

- Selection of optimization criterion. Due to the fact that as a result of optimization it is necessary to determine the geometric parameters at which the compactness of the structure is ensured, we write the criterion function in the following form:$$F={\sum}_{i=1}^{2}{\sum}_{j=1}^{3}\left({L}_{BCij}+{L}_{CDij}\right)\to min$$

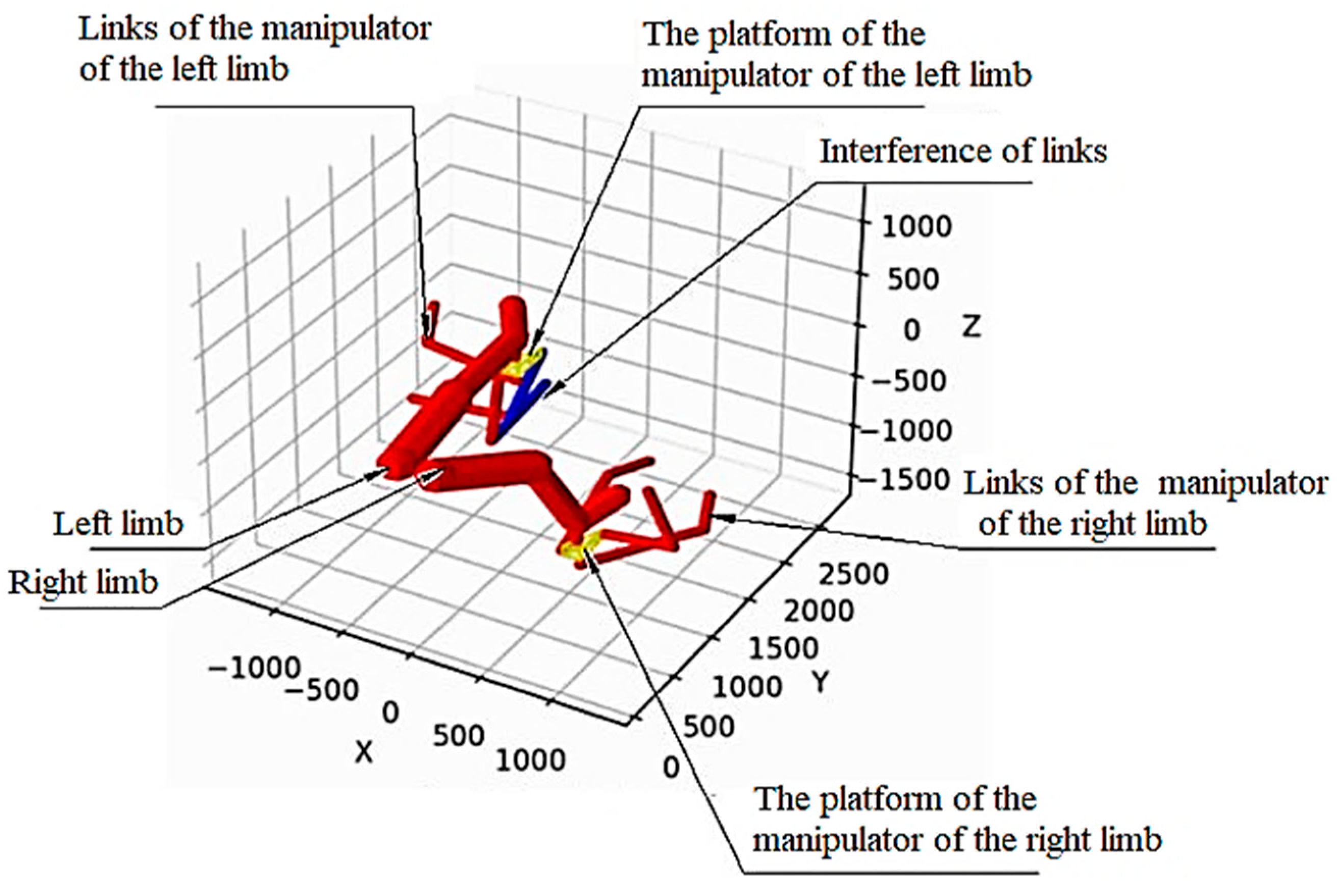

- The optimization constraint is the reachability of all points of the trajectory described earlier in Section 2 and the absence of intersections for each of these points, that is as follows:$${N}^{-}=0$$

## 5. Numerical Simulation

- Continuous:
- Link sizes: ${L}_{BCij}\in \left[200;900\right]$, ${L}_{CDij}\in \left[200;900\right]$;
- Coordinates of the guides:$${x}_{B11}\in \left[-2000;-50\right],{z}_{B11}\in \left[-1500;1500\right],{y}_{B12}\in \left[0;2000\right],$$$${z}_{B12}\in \left[-1500;1500\right],{x}_{B13}\in \left[-50;2000\right],{y}_{B13}\in \left[0;2000\right],$$$${x}_{B21}\in \left[50;2000\right],{z}_{B21}\in \left[-1500;1500\right],{y}_{B22}\in \left[0;2000\right],$$$${z}_{B22}\in \left[-1500;1500\right],{x}_{B23}\in \left[50;2000\right],{y}_{B23}\in \left[0;2000\right],$$
- Platform sizes: ${d}_{x}\in \left[100;300\right]$, ${d}_{y}\in \left[100;300\right]$.

- Discrete:

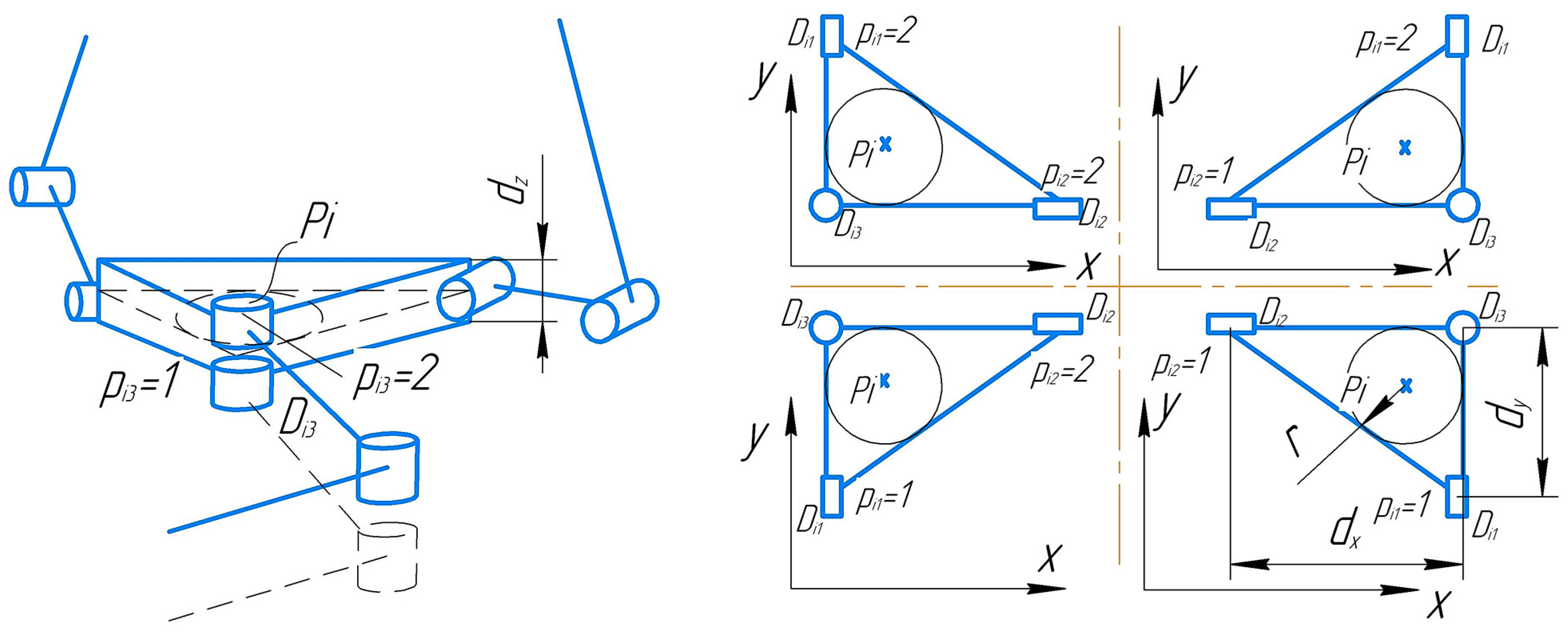

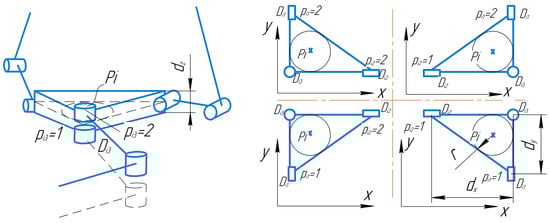

- Options for attaching kinematic chains to moving platforms ${p}_{ij}\in \mathrm{1,2}$;
- Variants of configurations of kinematic chains ${l}_{ij}\in 1,2.$

#### 5.1. Constraint Level 1

#### 5.2. Constraint Level 2

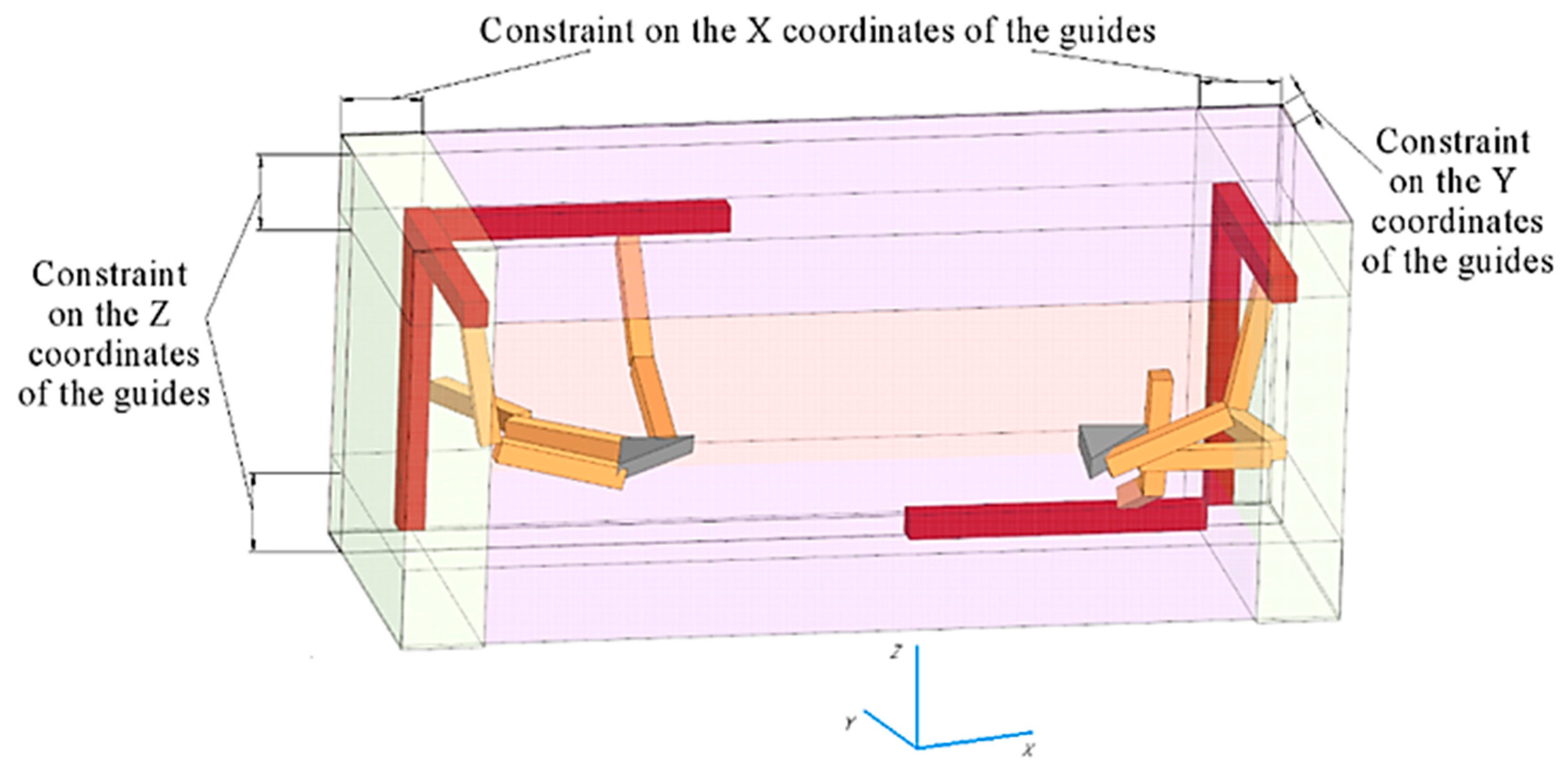

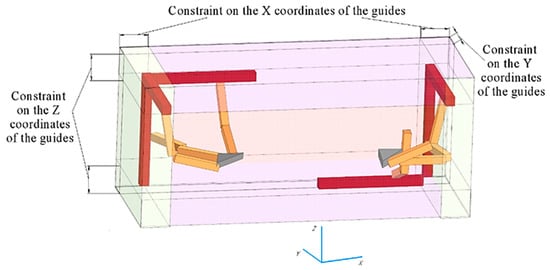

#### 5.3. Constraint Level 3

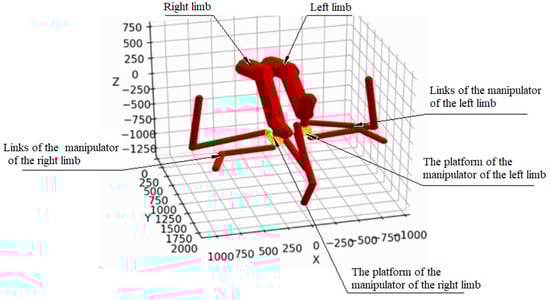

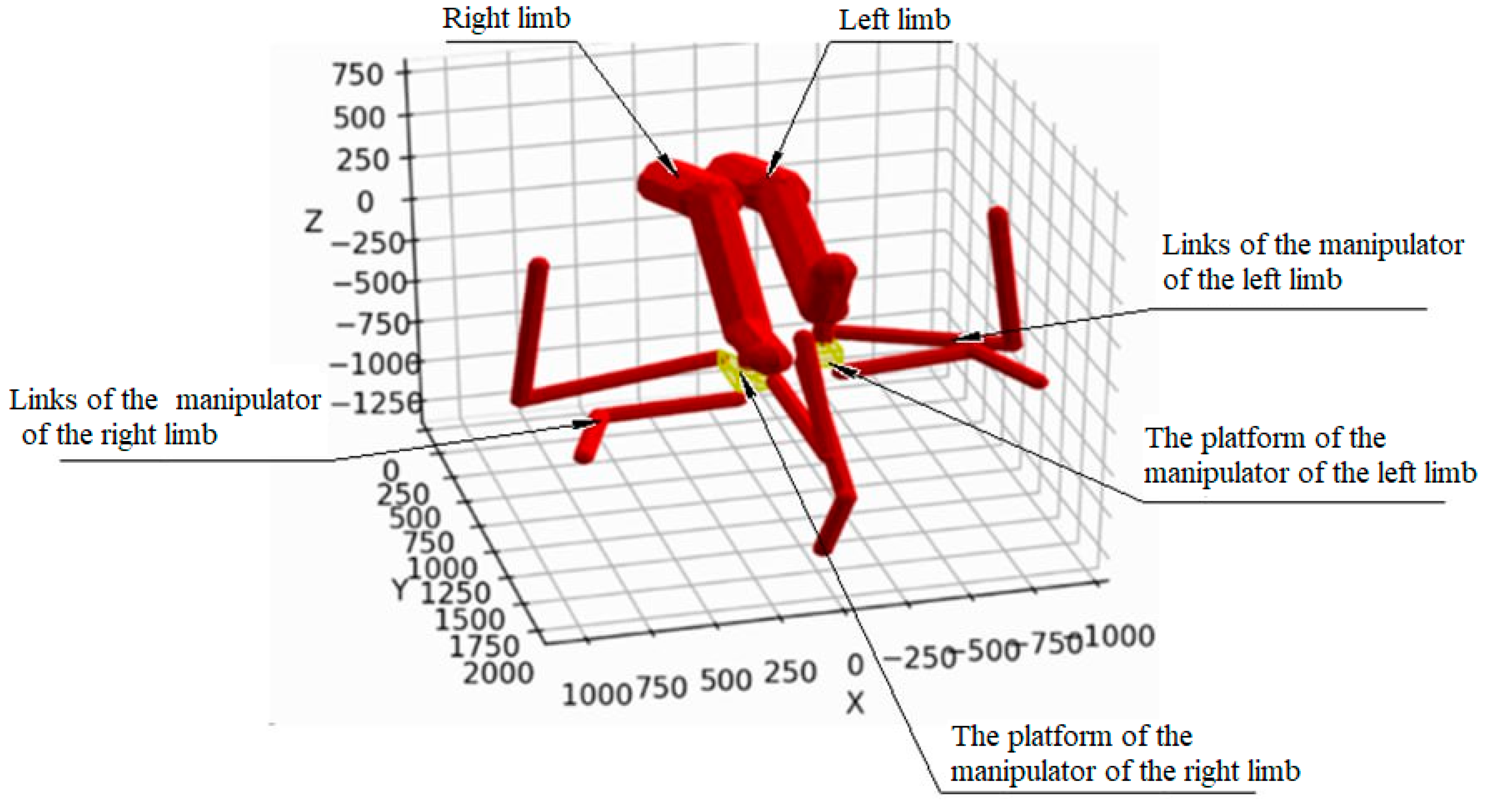

#### 5.4. Constraint Level 4

Level | Target Function | Platform Connection | Chain Configuration | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|

Left (I) Module Chains | Right (II) Module Chains | Left (I) Module Chains | Right (II) Module Chains | ||||||||||

1 | 2 | 3 | 1 | 2 | 3 | 1 | 2 | 3 | 1 | 2 | 3 | ||

1 | 7040.7 | 1 | 2 | 2 | 1 | 2 | 2 | 2 | 2 | 1 | 1 | 2 | 1 |

2 | 7265.1 | 1 | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |

3 | 7739.7 | 2 | 2 | 2 | 2 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | 1 |

4 | 7784.1 | 1 | 1 | 1 | 2 | 2 | 2 | 1 | 2 | 1 | 1 | 1 | 1 |

Level | Guide Positions (mm) | Platforms | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

Left (I) Module | Right (II) Module | d_x (mm) | d_y (mm) | |||||||||||

x_B11 | z_B11 | y_B12 | z_B12 | x_B13 | y_B13 | x_B21 | z_B21 | y_B22 | z_B22 | x_B23 | y_B23 | |||

1 | −1028.0 | −629 | 2000 | −957 | −1114 | 1227 | 419 | −1162 | 1844 | −355 | 682 | 2000 | ||

2 | −1042.6 | −1031.0 | 1588.2 | −1092.6 | −1042.6 | 1588.2 | 1165.1 | −861.4 | 1588.2 | −1096.6 | 1165.1 | 1588.2 | 140.8 | 272.7 |

3 | −1066.5 | −1239.2 | 1567.9 | −1208.0 | −1066.5 | 1567.9 | 1043.0 | −1280.4 | 1567.9 | −1283.0 | 1043.0 | 1567.9 | 152.5 | 300.0 |

4 | −884.6 | 247.1 | 1677.1 | −1300.6 | −884.6 | 1677.1 | 891.6 | 148.7 | 1677.1 | −25.0 | 891.6 | 1677.1 | 148.9 | 281.7 |

Level | Link Sizes (mm) | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|

Left (I) Module | Right (II) Module | |||||||||||

L_ BC11 | L_ CD11 | L_ BC12 | L_ CD12 | L_ BC13 | L_ CD13 | L_ BC21 | L_ CD21 | L_ BC22 | L_ CD22 | L_ BC23 | L_ CD23 | |

1 | 519.3 | 573.8 | 900.0 | 443.4 | 408.5 | 569.0 | 656.7 | 631.8 | 685.9 | 544.6 | 285.2 | 822.5 |

2 | 603.1 | 777.0 | 467.4 | 726.6 | 674.2 | 397.4 | 675.7 | 661.9 | 450.7 | 704.3 | 382.7 | 744.1 |

3 | 780.6 | 725.0 | 568.8 | 783.5 | 559.8 | 465.5 | 725.0 | 814.9 | 628.0 | 682.1 | 494.2 | 512.3 |

4 | 790.9 | 799.0 | 599.1 | 757.0 | 393.8 | 552.2 | 790.9 | 799.0 | 599.1 | 757.0 | 393.8 | 552.2 |

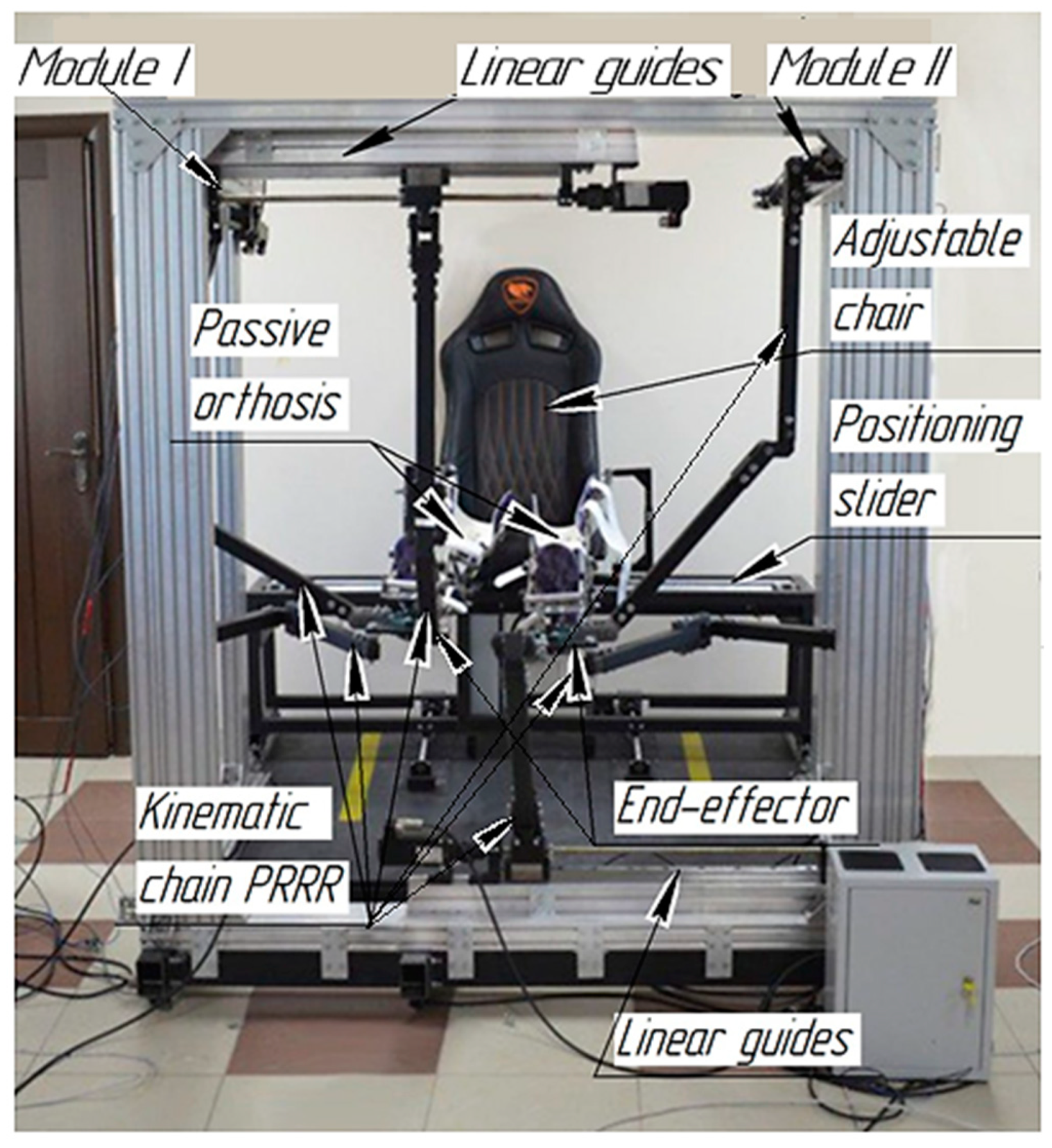

## 6. Experimental Investigations

- Operation of the mechanical safety device to ensure patient safety.
- Practicing the movement of limbs in the sagittal plane.

## 7. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Samorodskaya, I.V.; Zayratyants, O.V.; Perkhov, V.I.; Andreev, E.M.; Vaisman, D.S. Trends in stroke mortality rates in Russia and the USA over a 15-year period. Arch. Pathol.
**2018**, 80, 30–37. [Google Scholar] [CrossRef] - Temirova, A.R.; Syzdykov, M.B.; Kaparov, S.F.; Kairbekova, T.E.; Sarsenova, R.E.; Bekenova, L.T. Early rehabilitation of patients after acute ischemic stroke. Sci. Healthc.
**2014**, 2, 103–105. (In Russian) [Google Scholar] - Vashisht, N.; Puliyel, J. Polio programme: Let us declare victory and move on. Indian J. Med. Ethics
**2012**, 9, 114–117. [Google Scholar] [CrossRef] - Truelsen, T.; Bonita, R. The worldwide burden of stroke: Current status and future projections. Handb. Clin. Neurol.
**2009**, 92, 327–336. [Google Scholar] [CrossRef] [PubMed] - Loeb, G.E. Neural control of locomotion. BioSciences
**1989**, 39, 800–804. [Google Scholar] [CrossRef] - Stein, P.S.G.; Stuart, D.G.; Grillner, S.; Selverston, A.I. Neurons, Networks, and Motor Behavior Cambridge; MIT Press: Cambridge, MA, USA, 1999; ISBN 9780262692274. [Google Scholar]
- Hesse, S.; Uhlenbrock, D. A mechanized gait trainer for restoration of gait. J. Rehabil. Res. Dev.
**2000**, 37, 701–708. [Google Scholar] [PubMed] - Huang, G.; Ceccarelli, M.; Zhang, W.; Huang, Q. Modular Design Solutions of BIT Wheelchair for Motion Assistance. In Proceedings of the IEEE International Conference on Advanced Robotics and its Social Impacts (ARSO), Beijing, China, 31 October–2 November 2019; pp. 90–96. [Google Scholar] [CrossRef]
- Bouri, M.; Stauffer, Y.; Schmitt, C.; Allemand, Y.; Gnemmi, S.; Clavel, R. The WalkTrainerTM: A Robotic System for Walking Rehabilitation. In Proceedings of the International Conference on Robotics and Biomimetics, Kunming, China, 17–20 December 2006. [Google Scholar] [CrossRef]
- Colombo, G.; Joerg, M.; Schreier, R.; Dietz, V. Treadmill training of paraplegic patients using a robotic orthosis. J. Rehabil. Res. Dev.
**2000**, 37, 693–700. [Google Scholar] - Wang, Y.-L.; Wang, K.-Y.; Zhang, Z.-X.; Chen, L.-L.; Mo, Z.-J. Mechanical Characteristics Analysis of a Bionic Muscle Cable-Driven Lower Limb Rehabilitation Robot. J. Mech. Med. Biol.
**2020**, 20, 2040037. [Google Scholar] [CrossRef] - Freivogel, S.; Mehrholz, J.; Husak-Sotomayor, T.; Schmalohr, D. Gait training with the newly developed ‘LokoHelp’-system is feasible for non-ambulatory patients after stroke, spinal cord and brain injury. A Feasibility Study. Brain Inj.
**2008**, 22, 625–632. [Google Scholar] [CrossRef] [PubMed] - Rios, A.; Hernandez, E.; Moreno, J.A.; Keshtkar, S.; De la Garza, R. Kinematics Analysis of a New 3DOF Parallel Manipulator as Walking Rehabilitation Device. In Proceedings of the 15th International Conference on Electrical Engineering, Computing Science and Automatic Control (CCE), Mexico City, Mexico, 5–7 September 2018; pp. 1–6. [Google Scholar] [CrossRef]
- Almaghout, K.; Tarvirdizadeh, B.; Alipour, K.; Hadi, A. Design and control of a lower limb rehabilitation robot considering undesirable torques of the patient’s limb. Proc. Inst. Mech. Eng. Part H J. Eng. Med.
**2020**, 234, 1457–1471. [Google Scholar] [CrossRef] - Bouri, M.; Le Gall, B.; Clavel, R. A new concept of parallel ro-bot for rehabilitation and tness: The Lambda. In Proceedings of the 2009 IEEE International Conference on Robotics and Biomimetics (ROBIO), Guangxi, China, 19–23 December 2009; pp. 2503–2508. [Google Scholar] [CrossRef]
- Erigo Pro Homepage. Available online: https://www.hocoma.com/solutions/erigo/ (accessed on 30 December 2023).
- Cafolla, D.; Russo, M.; Carbone, G. CUBE, a cable-driven device for limb rehabilitation. J. Bionic. Eng.
**2019**, 16, 492–502. [Google Scholar] [CrossRef] - Kong, X.; Gosselin, C.M. Type Synthesis of Parallel Mechanisms; Springer: Berlin/Heidelberg, Germany, 2007. [Google Scholar] [CrossRef]
- Gosselin, C. Compact dynamic models for the Tripteron and Quadrupteron parallel manipulators. Proc. Inst. Mech. Eng. Part I J. Syst. Control. Eng.
**2009**, 223, 1–11. [Google Scholar] [CrossRef] - Sunilkumar, P.; Mohan, S.; Mohanta, J.K.; Wenger, P.; Rybak, L. Design and motion control scheme of a new stationary trainer to perform lower limb rehabilitation therapies on hip and knee joints. Int. J. Adv. Robot. Syst.
**2022**, 19, 1–20. [Google Scholar] [CrossRef] - Sunilkumar, P.; Choudhury, R.; Mohan, S.; Rybak, L. Dynamics and Motion Control of a Three Degree of Freedom 3-PRRR Parallel Manipulator. Mech. Mach. Sci.
**2020**, 89, 103–111. [Google Scholar] [CrossRef] - Malyshev, D.; Mohan, S.; Rybak, L.; Rashoyan, G.; Nozdracheva, A. Determination of the Geometric Parameters of a Parallel-Serial Rehabilitation Robot Based on Clinical Data. Mech. Mach. Sci.
**2021**, 601, 556–566. [Google Scholar] [CrossRef] - Malyshev, D.; Rybak, L.; Mohan, S.; Cherkasov, V.; Pisarenko, A. The Method of Optimal Geometric Parameters Synthesis of Two Mechanisms in the Rehabilitation System on Account of Relative Position. Commun. Comput. Inf. Sci.
**2021**, 1514, 230–245. [Google Scholar] [CrossRef] - Lenssen, T.A.F.; van Steyn, M.J.A.; Crijns, Y.H.F.; Waltjé, E.M.H.; Roox, G.M.; Geesink, R.J.T.; van den Brandt, P.A.; De Bie, R.A. Effectiveness of prolonged use of continuous passive motion (CPM), as an adjunct to physiotherapy, after total knee arthroplasty. BMC Musculoskelet. Disord.
**2008**, 9, 60. [Google Scholar] [CrossRef] - Bilich, G.L.; Nikolenko, V.N. Atlas of Human Anatomy; Phoenix: Rostov-on-Don, Russia, 2014. (In Russian) [Google Scholar]
- ISO/TR 7250-2:2010; Basic Human Body Measurements for Technological Design. Part 2: Statistical Summaries of Body Measurements from National Populations. ISO: Geneva, Switzerland, 2010.
- Behera, L.; Rybak, L.; Malyshev, D.; Gaponenko, E. Determination of Workspaces and Intersections of Robot Links in a Multi-Robotic System for Trajectory Planning. Appl. Sci.
**2021**, 11, 4961. [Google Scholar] [CrossRef] - Bilel, N.; Mohamed, N.; Zouhaier, A.; Lotfi, R. Multi-objective robust design optimization of a mechatronic system with uncertain parameters, using a polynomial chaos expansion method. Proc. Inst. Mech. Eng. Part I J. Syst. Control. Eng.
**2017**, 231, 729–739. [Google Scholar] [CrossRef] - Pisla, D.; Pop, N.; Gherman, B.; Ulinici, I.; Luchian, I.; Carbone, G. Efficient FEM Based Optimization of a Parallel Robotic System for Upper Limb Rehabilitation. Mech. Mach. Sci.
**2021**, 88, 517–532. [Google Scholar] [CrossRef] - Scalera, L.; Boscariol, P.; Carabin, G.; Vidoni, R.; Gasparetto, A. Optimal Task Placement for Energy Minimization in a Parallel Manipulator. Mech. Mach. Sci.
**2021**, 88, 12–22. [Google Scholar] [CrossRef] - Llopis-Albert, C.; Valero, F.; Mata, V.; Pulloquinga, J.L.; Zamora-Ortiz, P.; Escarabajal, R.J. Optimal Reconfiguration of a Parallel Robot for Forward Singularities Avoidance in Rehabilitation Therapies. A Comparison via Different Optimization Methods. Sustainability
**2020**, 12, 5803. [Google Scholar] [CrossRef] - Malyshev, D.; Cherkasov, V.; Rybak, L.; Diveev, A. Synthesis of Trajectory Planning Algorithms Using Evolutionary Optimization Algorithms. Commun. Comput. Inf. Sci.
**2023**, 1739, 153–167. [Google Scholar] [CrossRef]

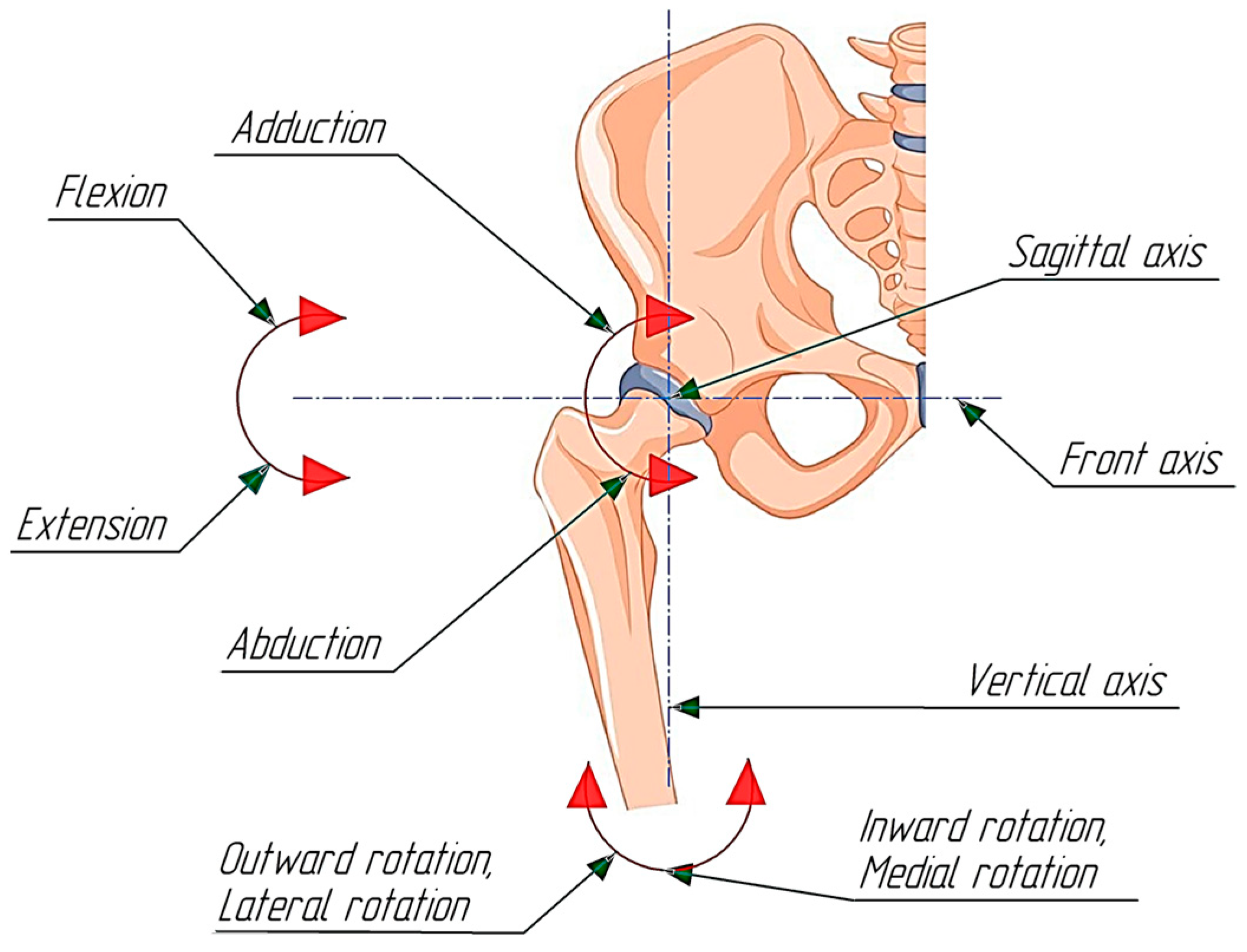

**Figure 1.**Axes of rotations of the hip joint [25].

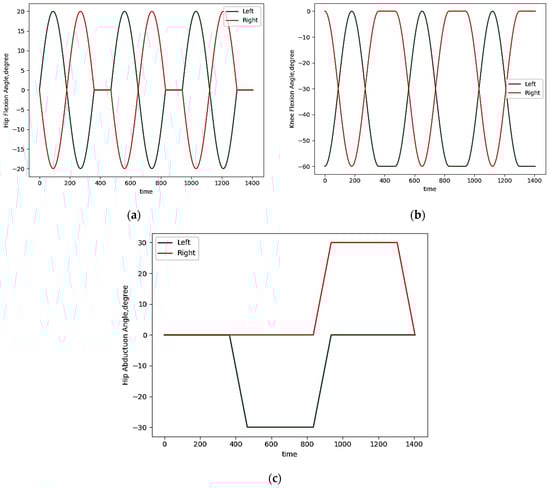

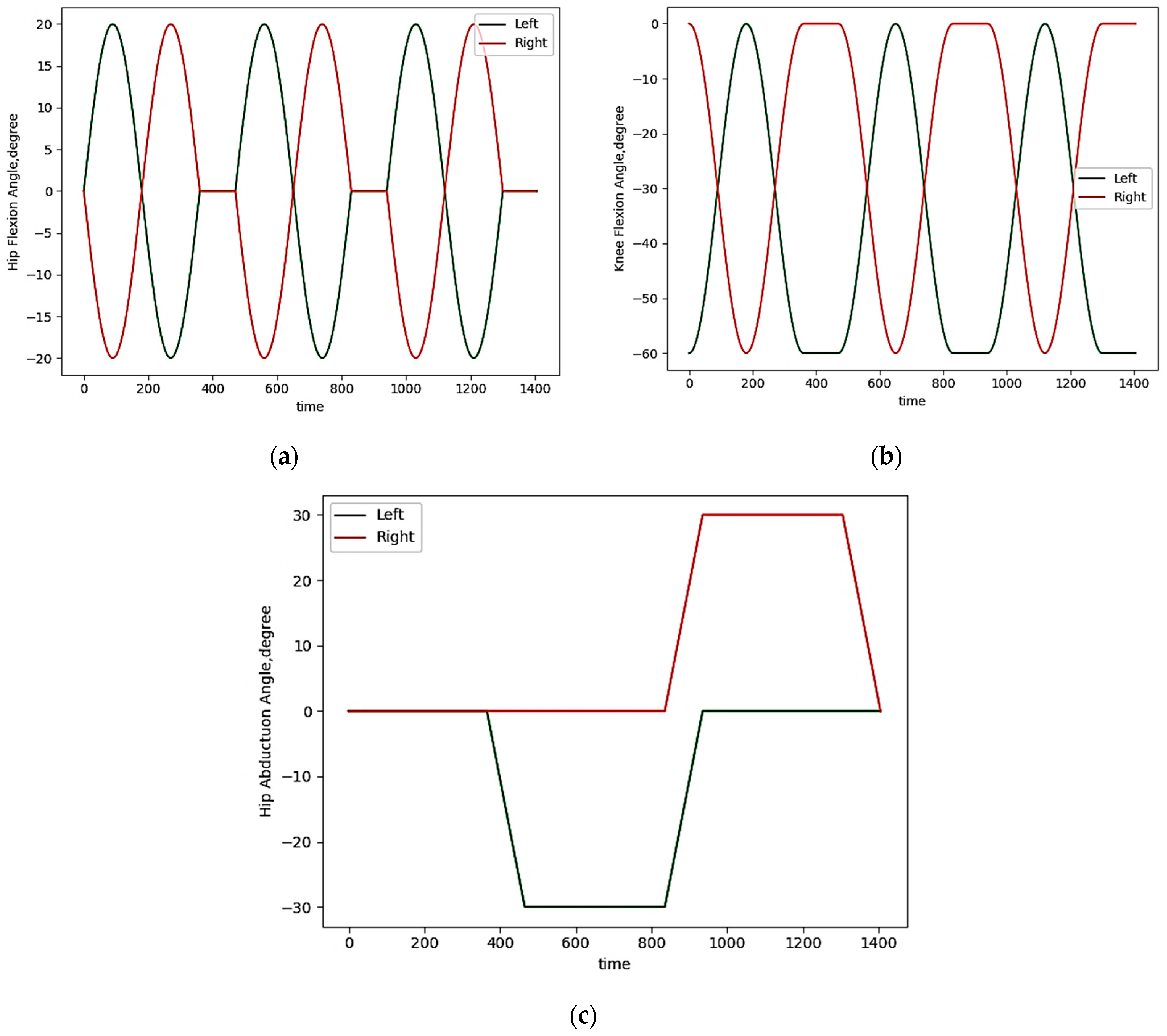

**Figure 2.**The planned sequence of movements as reference joint trajectories: (

**a**) Hip joint flexion ${\alpha}_{i}$; (

**b**) Knee joint flexion ${\beta}_{i}$; (

**c**) Hip joint abduction ${\gamma}_{i}$.

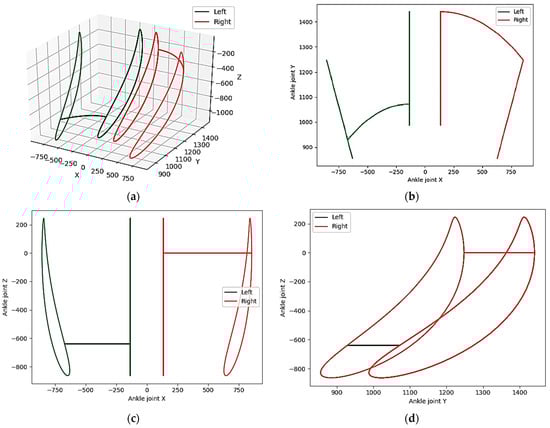

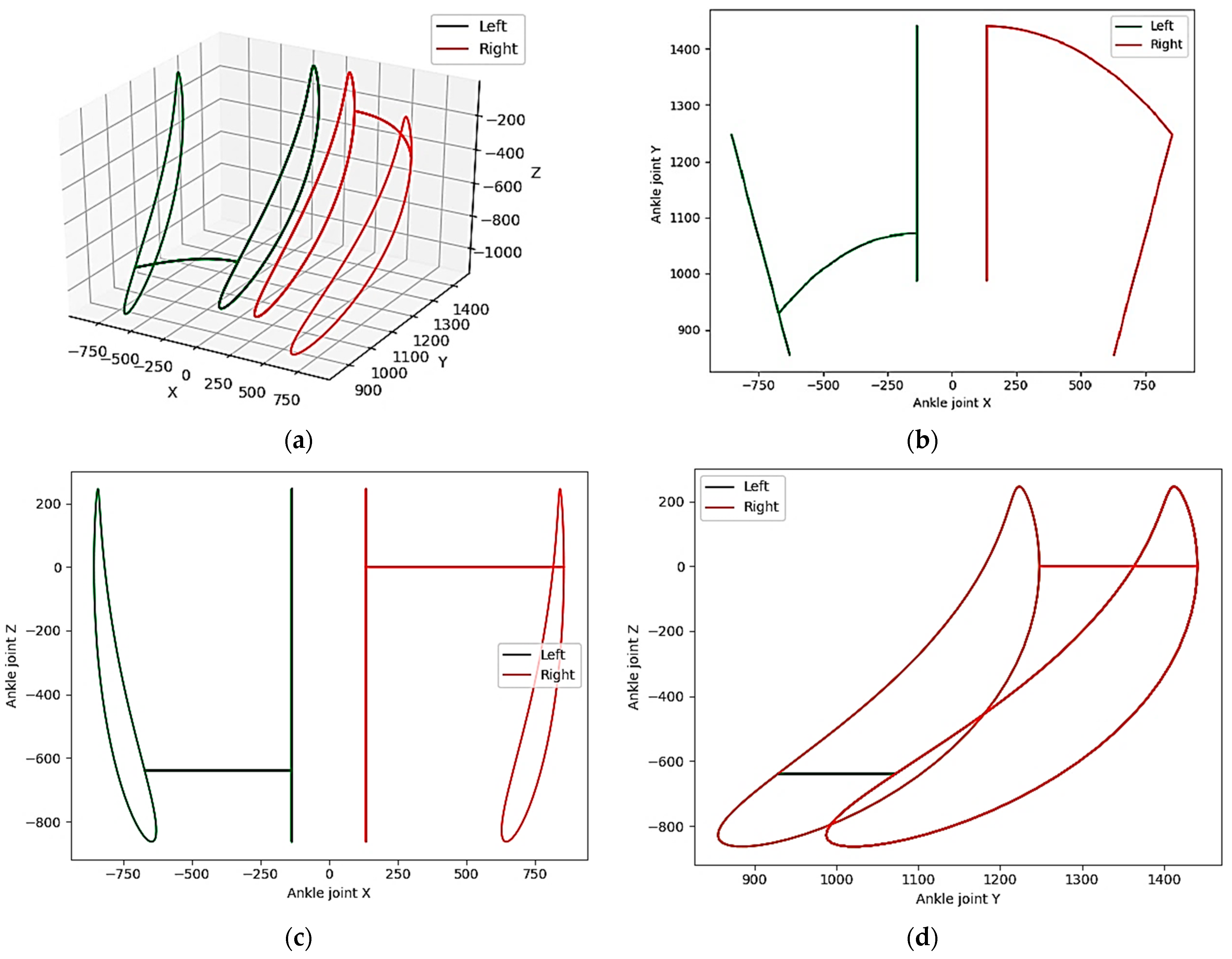

**Figure 3.**Reference movement of the center of the ankle joint: (

**a**) three-dimensional view; (

**b**) in projection on the XY plane; (

**c**) in projection on the XZ plane; (

**d**) in projection on the YZ plane.

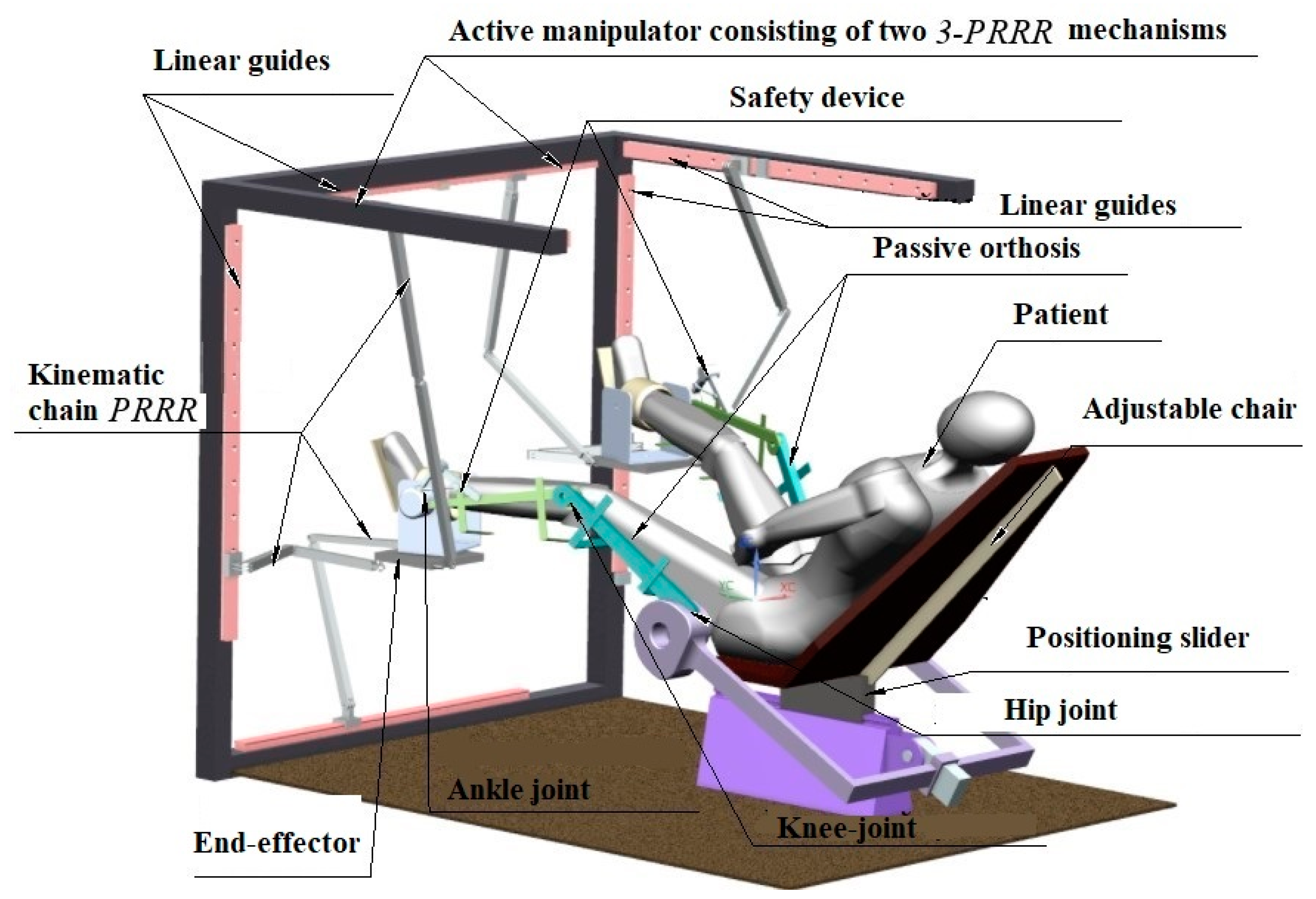

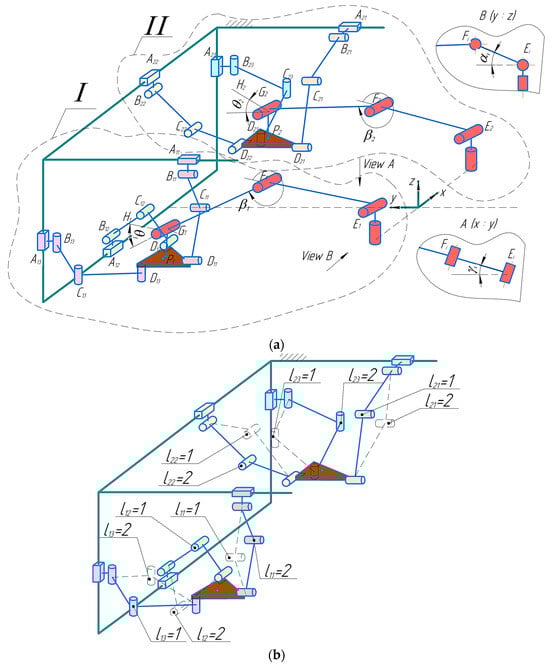

**Figure 5.**Kinematic scheme of rehabilitation system: (

**a**) the kinematic design (I is the left module for the left limb; II is the right module for the right limb), (

**b**) an alternative design for the kinematic design.

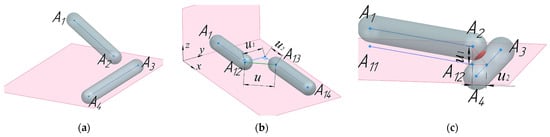

**Figure 7.**Checking the links intersection: (

**a**) model for links; (

**b**) first case type; (

**c**) second type case.

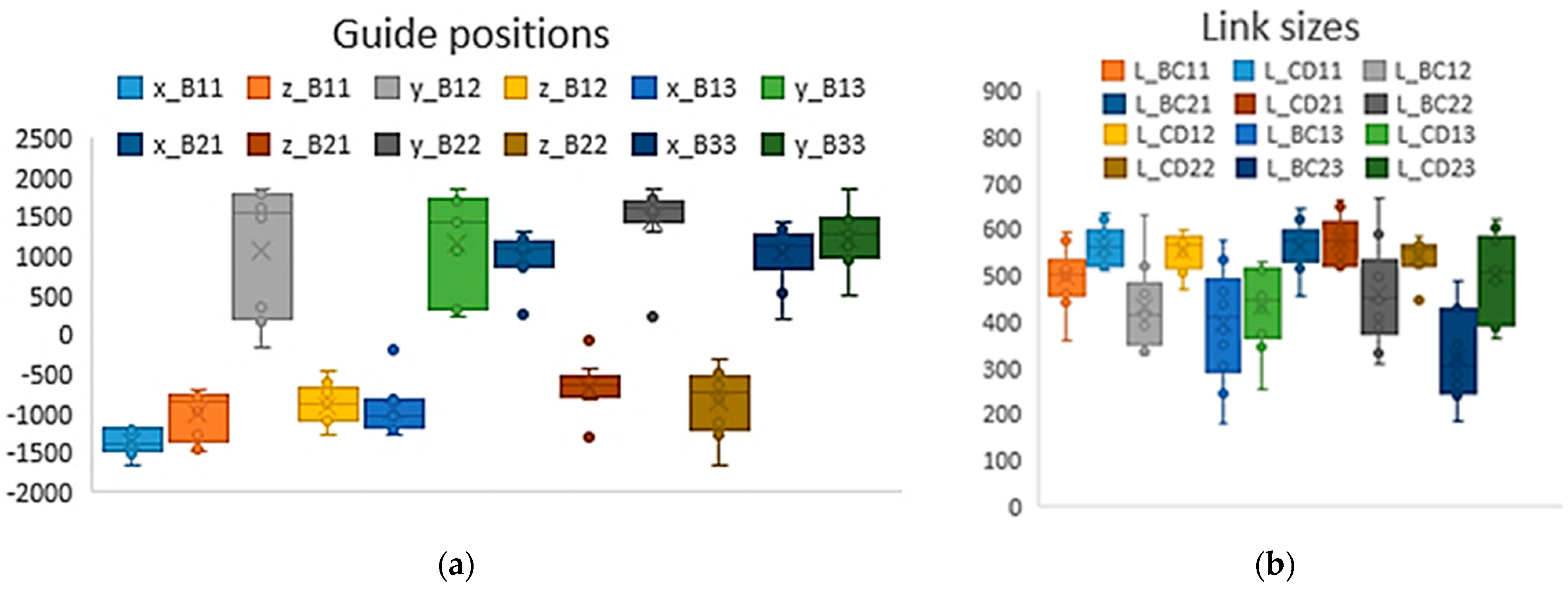

**Figure 9.**Distribution of continuous parameters for constraint level 1: (

**a**) guide positions; (

**b)**link sizes.

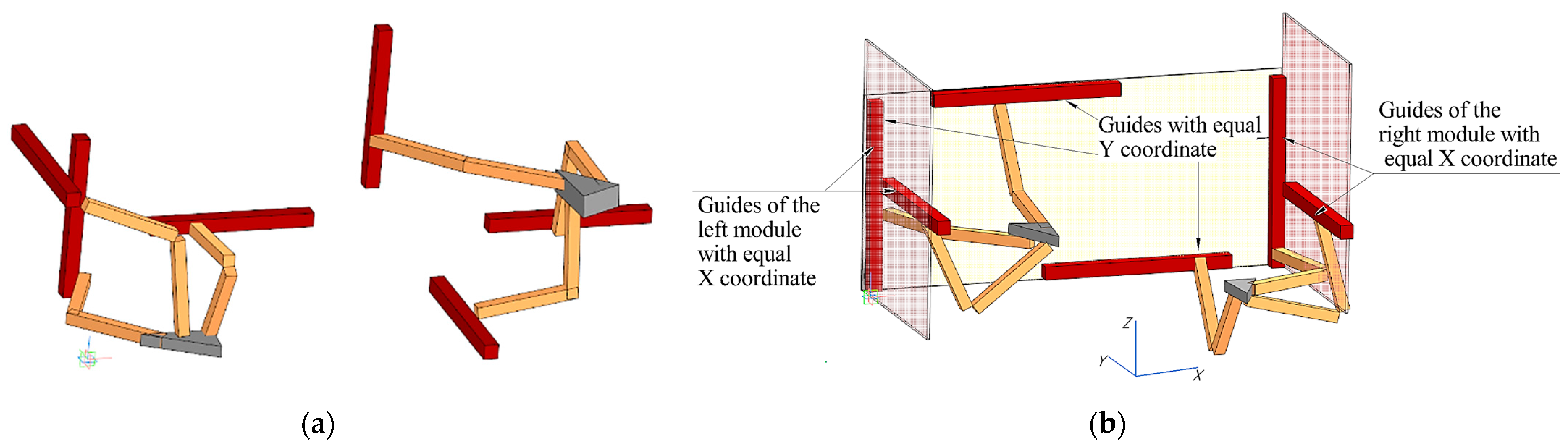

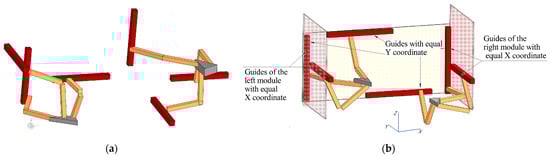

**Figure 10.**An example of the relative position of guides at different levels of constraints: (

**a**) Level 1; (

**b**) Level 2.

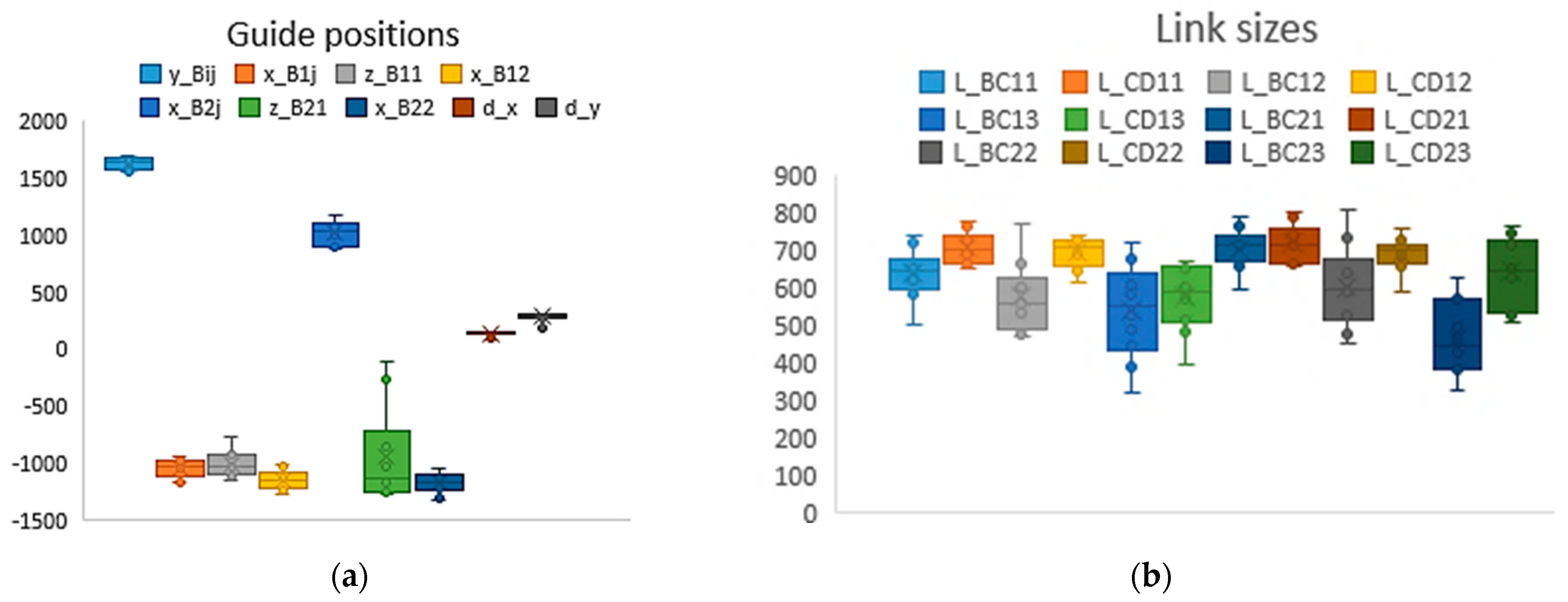

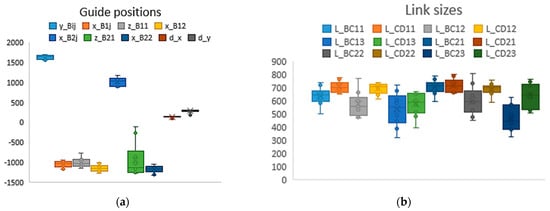

**Figure 11.**Distribution of continuous parameters for constraint level 2: (

**a**) guide positions; (

**b**) link sizes.

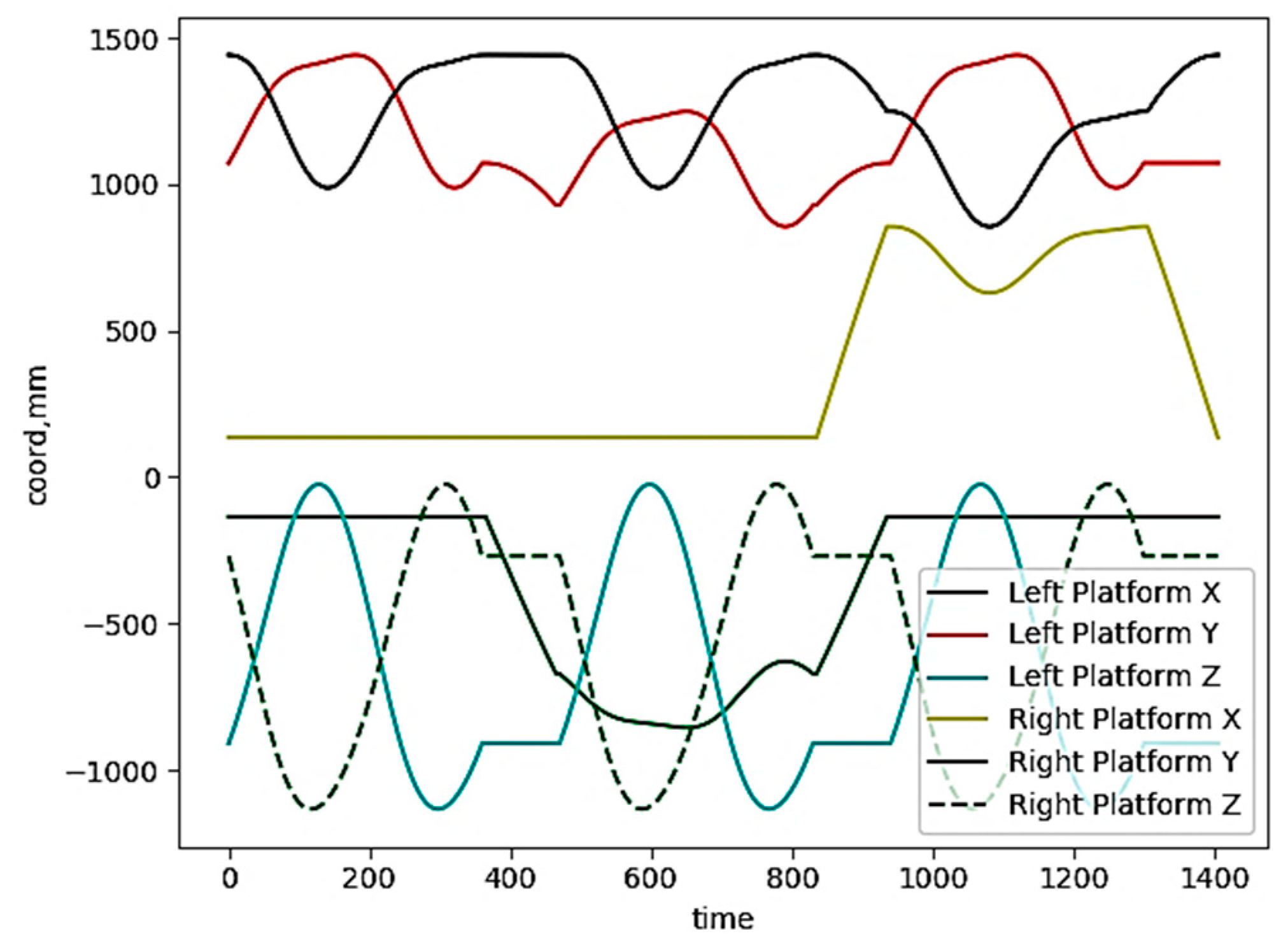

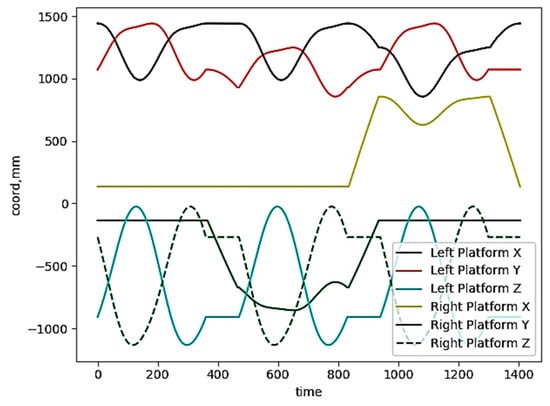

**Figure 13.**Changing the coordinates of the center ${P}_{i}$ of the platforms during the trajectory development process.

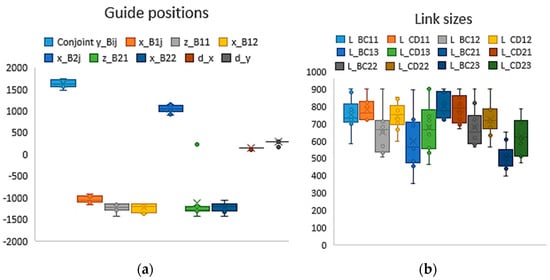

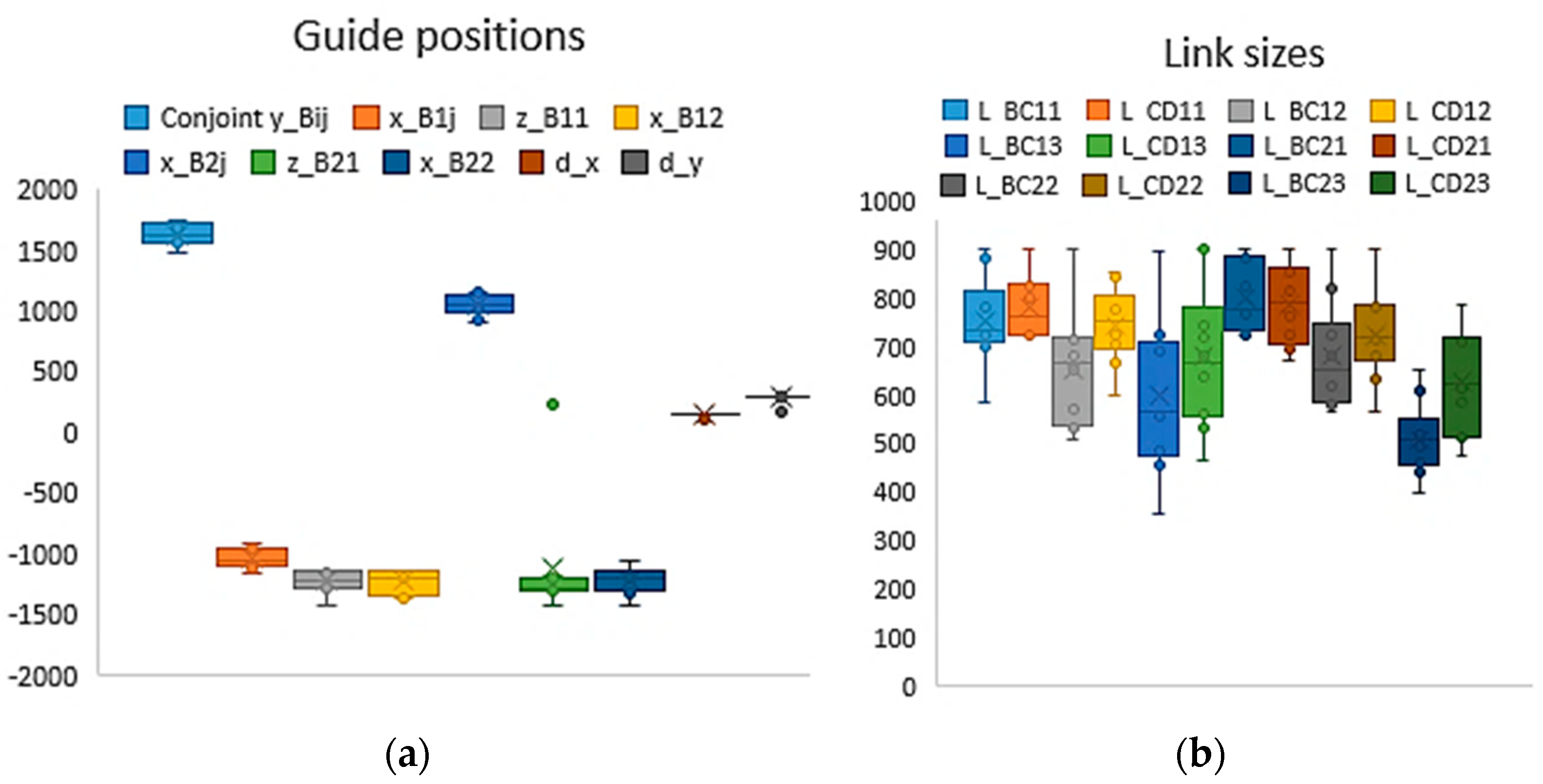

**Figure 14.**Distribution of continuous parameters for constraint level 3: (

**a**) guide positions; (

**b**) link sizes.

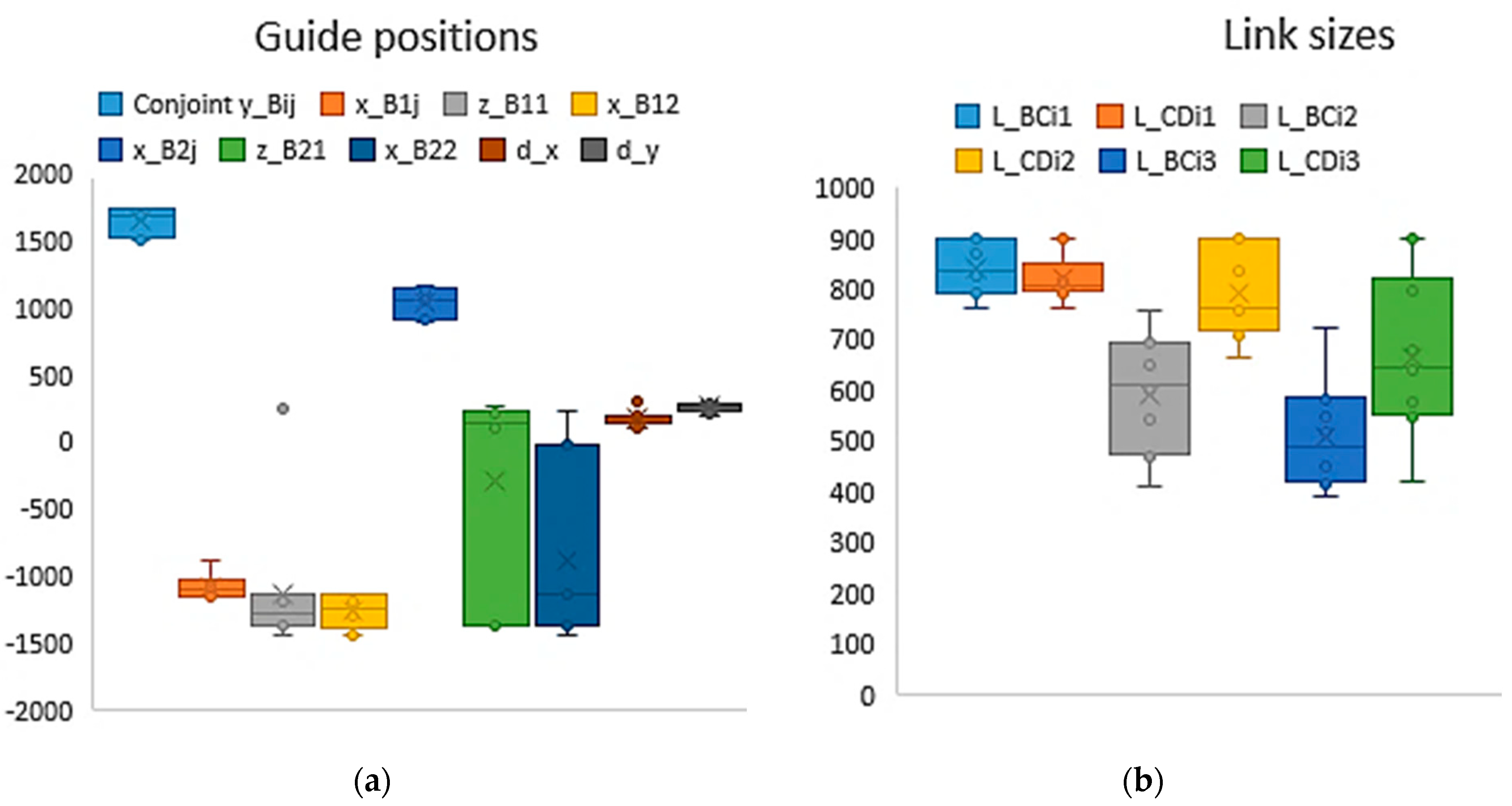

**Figure 15.**Distribution of continuous parameters for constraint level 4: (

**a**) guide positions; (

**b**) link sizes.

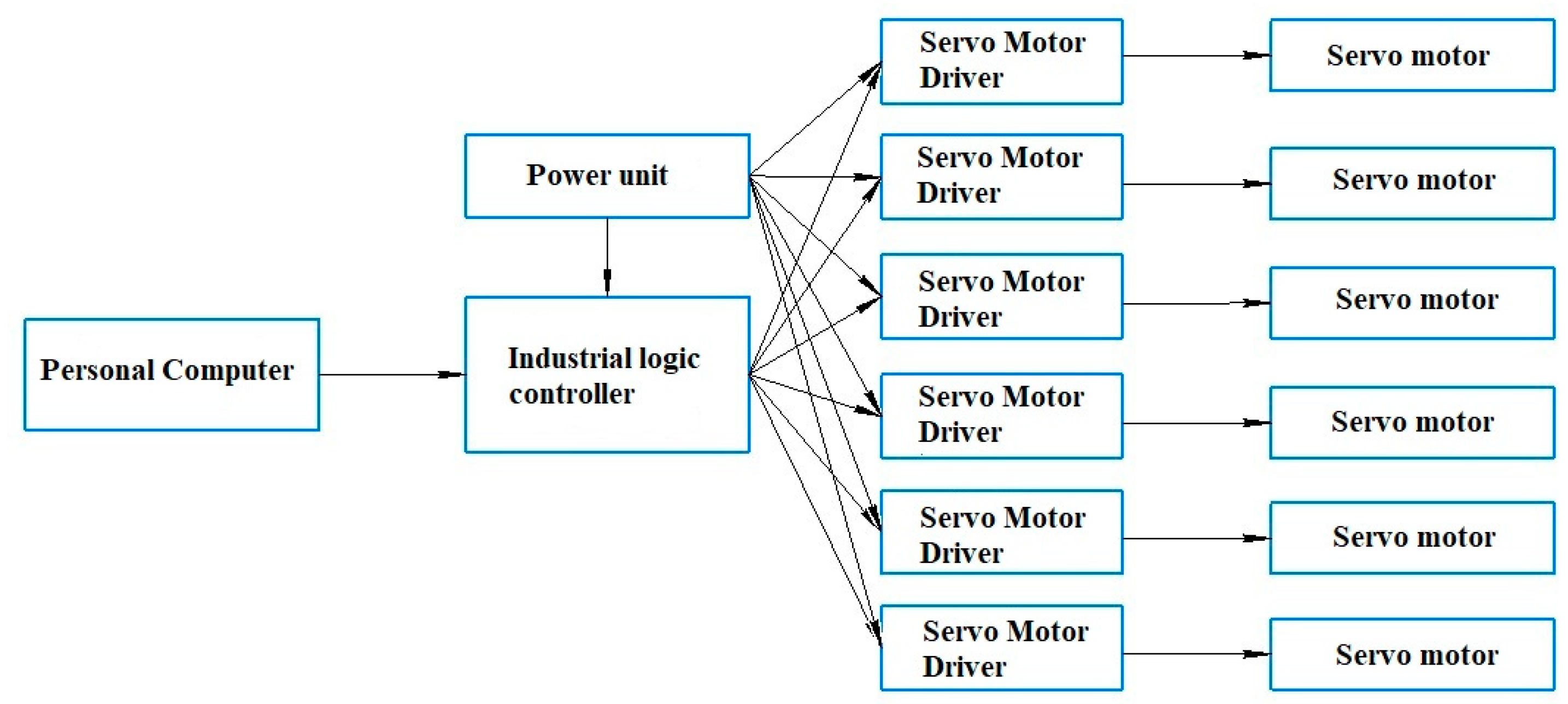

**Figure 18.**Control system block diagram for the prototype in Figure 17.

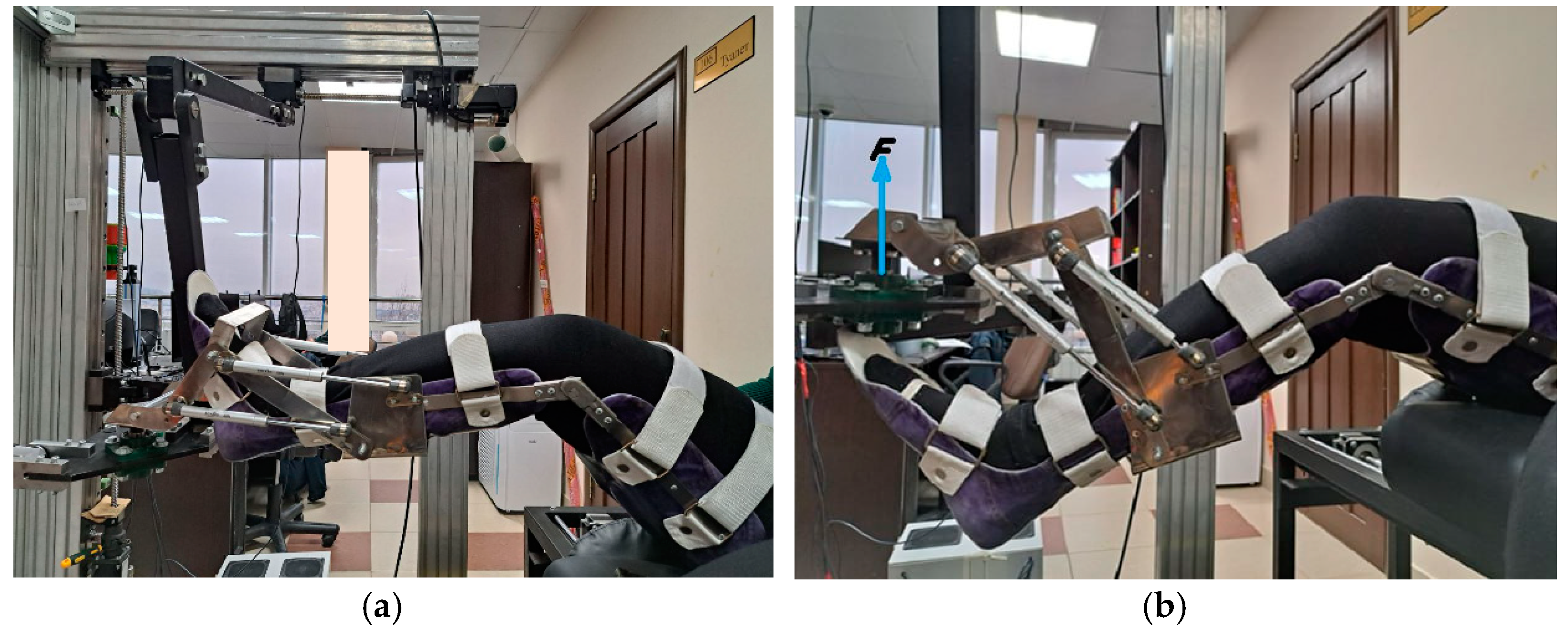

**Figure 19.**Test position of the safety device: (

**a**) without applying load, (

**b**) compression of the upper pair of elastic elements and movement of the orthosis when the load directed along the Y–axis is exceeded.

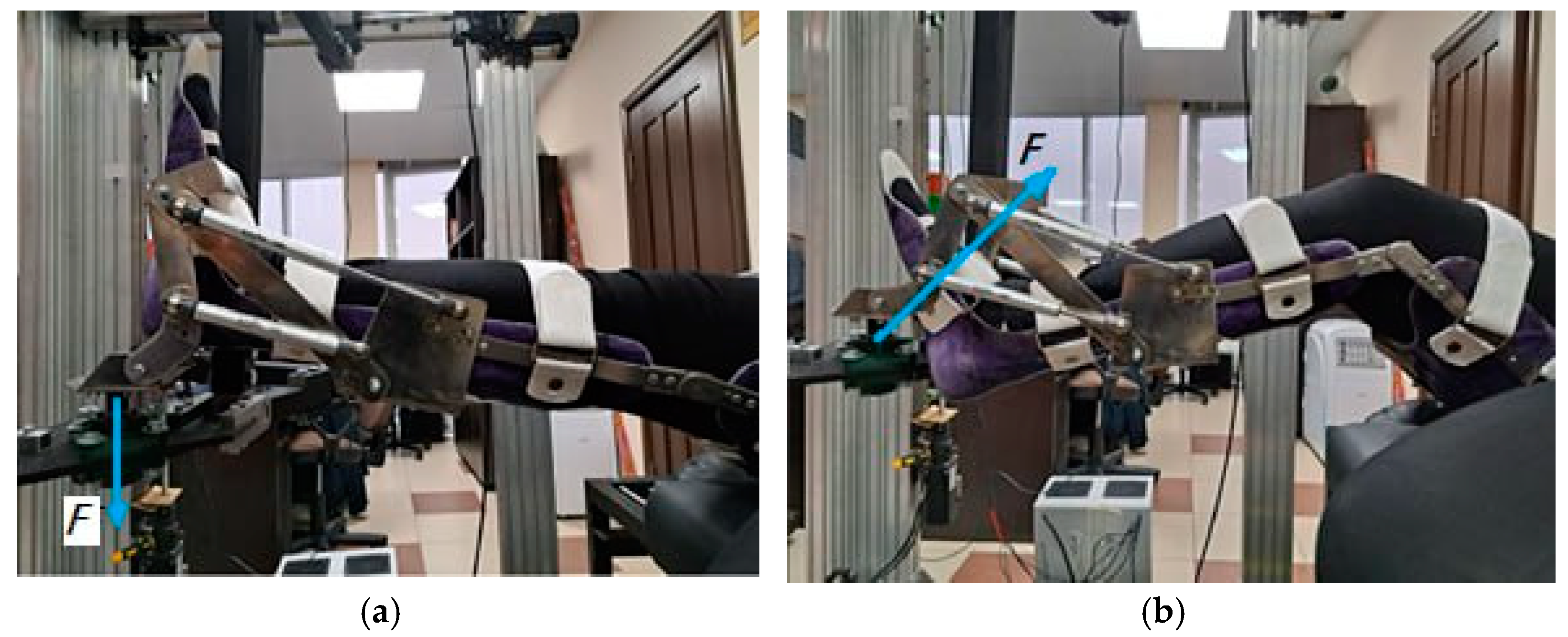

**Figure 20.**Test compression of elastic elements with simultaneous excess load along: (

**a**) X–axis, simultaneously along the X and Y, (

**b**) when a movement causes a simultaneous excess of load on both axes, compression of all pairs of elastic elements occurs.

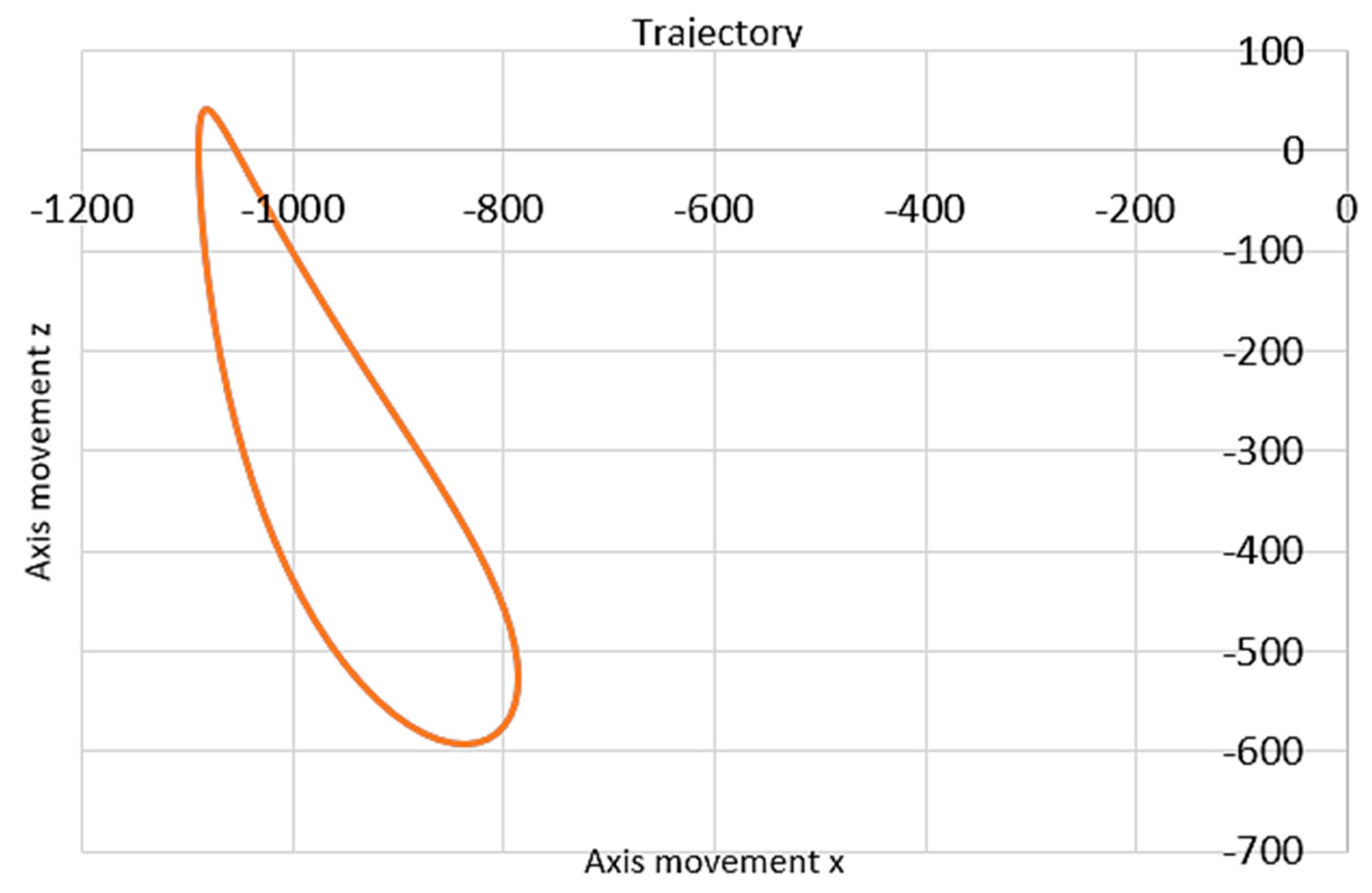

**Figure 21.**Acquired trajectory of test movement of the end-effector of the active manipulator during the rehabilitation process.

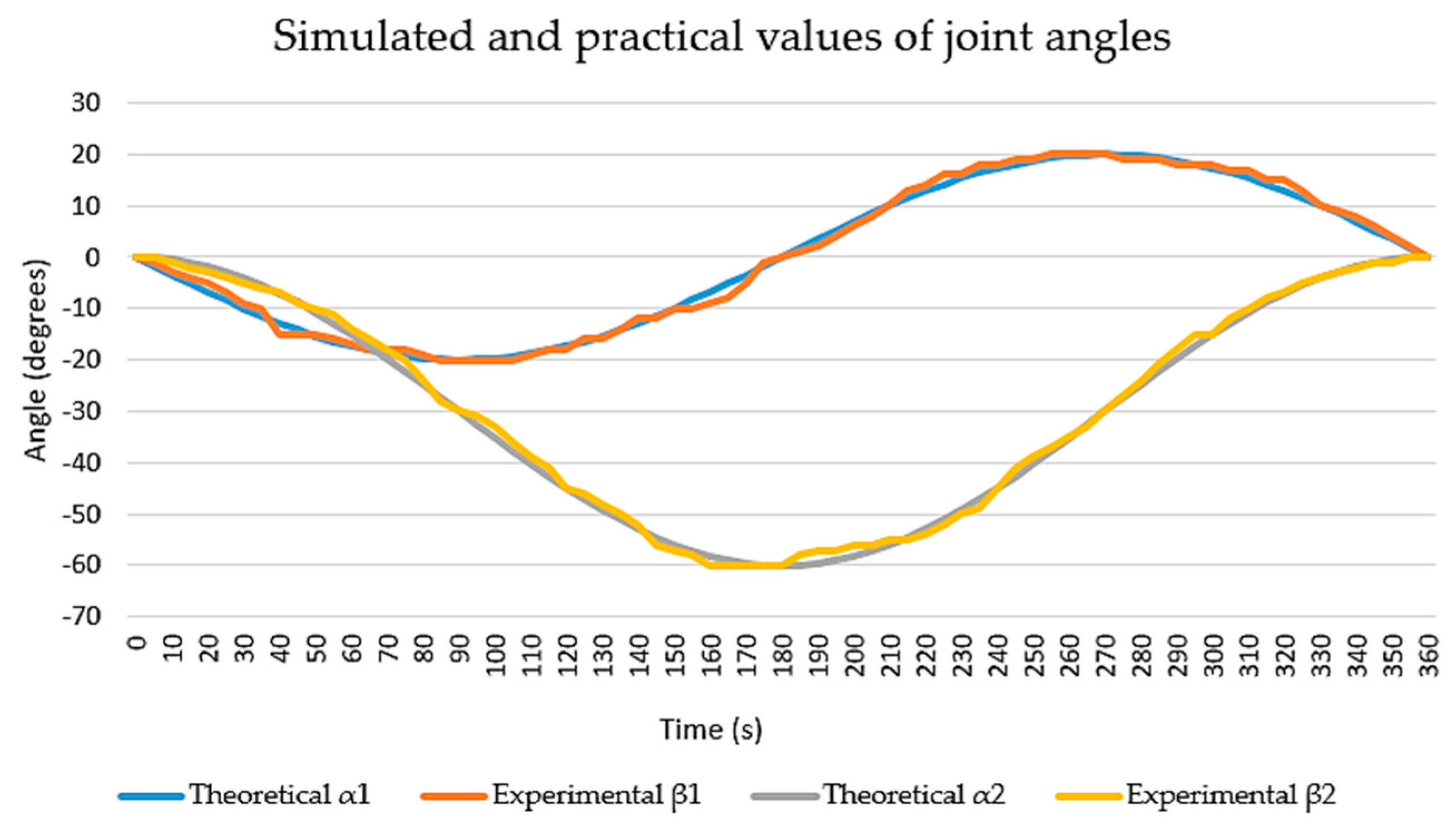

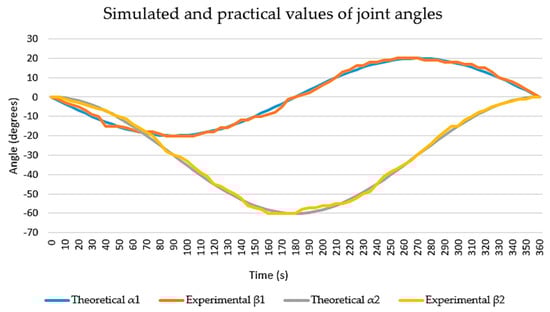

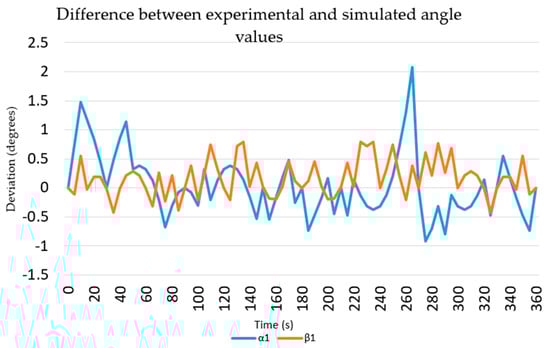

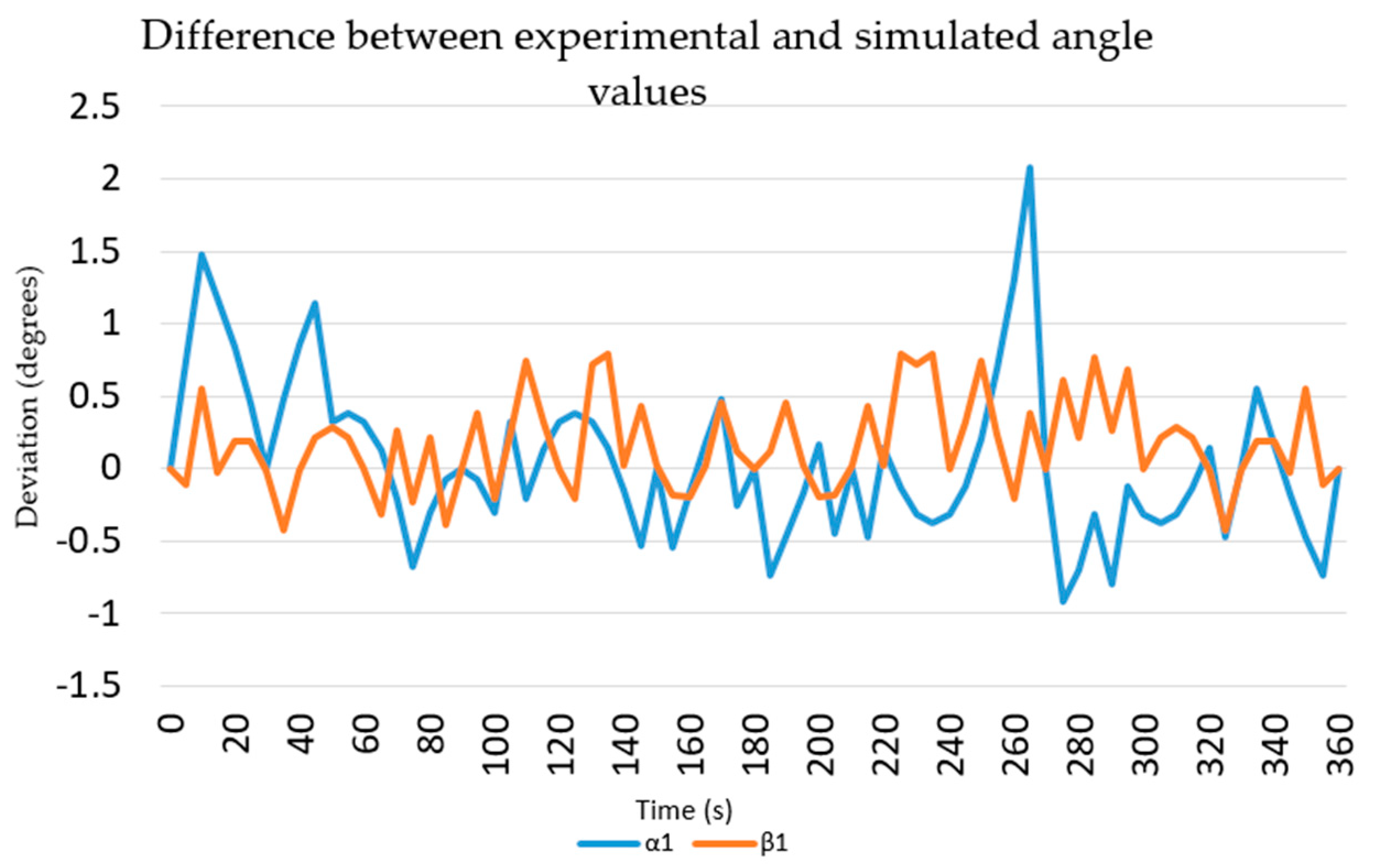

**Figure 23.**Discrepancy between experimental and simulated values of angles when practicing rehabilitation movements.

**Table 1.**Anthropometric measurements of the lower limbs, [26].

Measurement | Country with Max Value for Women | Value, mm | Country with Max Value for Men | Value, mm |
---|---|---|---|---|

Thigh circumference | Kenya | 720 | Thailand | 660 |

Calf muscle circumference | Kenya | 416 | Japan | 422 |

Length buttock-knee | The Netherlands | 664 | The Netherlands | 703 |

Foot length | Kenya | 270 | The Netherlands | 296 |

Foot width | The Netherlands | 107 | The Netherlands | 116 |

Calf length | The Netherlands | 483 | The Netherlands | 538 |

Thigh width in sitting position | USA | 501 | The Netherlands | 438 |

Without Orthosis | Taking into Account the Orthosis | |
---|---|---|

Thigh circumference | 720 | 815 |

Calf muscle circumference | 422 | 610 |

Length buttock-knee | 703 | 703 |

Foot length | 296 | 326 |

Foot width | 116 | 176 |

Calf length | 538 | 738 |

Thigh width in sitting position | 501 | 531 |

№ Level | Constraints Level | Number of Optimization Parameters |
---|---|---|

1 | No assumptions | 38 |

2 | Constraint on equality of $Y$ coordinates of all guides, equality of $X$ coordinates of guides for the left and right legs | 33 |

3 | Level 2 + constraint on the coordinate ranges of guides based on the ranges of their variable coordinates | 33 |

4 | Level 3 + constraint on equal lengths of module links ${L}_{BC1j}={L}_{BC2j}$, ${L}_{CD1j}={L}_{CD2j}$ | 27 |

${\mathit{\theta}}_{\mathit{i}}\xb0$ | ${\mathit{L}}_{\mathit{O}\mathit{E}},$ $\mathbf{m}\mathbf{m}$ | ${\mathit{L}}_{\mathit{E}\mathit{F}},$ $\mathbf{m}\mathbf{m}$ | ${\mathit{L}}_{\mathit{F}\mathit{G}},$ $\mathbf{m}\mathbf{m}$ | ${\mathit{L}}_{\mathit{G}\mathit{H}},$ $\mathbf{m}\mathbf{m}$ | ${\mathit{d}}_{\mathit{E}\mathit{F}},$ $\mathbf{m}\mathbf{m}$ | ${\mathit{d}}_{\mathit{F}\mathit{G}},$ $\mathbf{m}\mathbf{m}$ | ${\mathit{d}}_{\mathit{G}\mathit{H}},$ $\mathbf{m}\mathbf{m}$ | ${\mathit{d}}_{\mathit{Z}},$ $\mathbf{m}\mathbf{m}$ | ${\mathit{d}}_{\mathit{l}\mathit{i}\mathit{n}\mathit{k}},$ $\mathbf{m}\mathbf{m}$ |
---|---|---|---|---|---|---|---|---|---|

90 | 135.5 | 703 | 738 | 326 | 259 | 194 | 176 | 170 | 80 |
