The Influence of Diamond Burnishing Process Parameters on Surface Roughness of Low-Alloyed Aluminium Workpieces

Institute of Manufacturing Science, University of Miskolc, H-3515 Miskolc, Hungary
*
Author to whom correspondence should be addressed.
Machines 2022, 10(7), 564; https://doi.org/10.3390/machines10070564
Submission received: 24 June 2022 / Revised: 12 July 2022 / Accepted: 13 July 2022 / Published: 14 July 2022
(This article belongs to the Section Friction and Tribology)

Abstract

:
This study describes the determination and optimization of burnishing process parameters and their effects on surface roughness of EN AW-2011 aluminium alloy workpieces. The process has a low environmental load and the chip-free burnishing process improves the integrity of the machined surface, but to achieve this, the different burnishing parameters, for example, burnishing force, feed rate, speed and number of passes, must be properly defined according to the material of the workpiece. In our research, a full factorial experimental design method is used to plan and carry out the experiments and to determine the most appropriate parameter range for this material quality.

1. Introduction

The appearance of new material qualities has led to the rise of new sectors and processes, and nowadays, during the fourth industrial revolution, a prominent role has been given to guaranteeing the best possible surface quality of manufactured parts [1]. Finishing operations have been developed that can productively provide ever-improving macro- and micro-geometric accuracy since different engineering industries have realized that the final dimensions, corrosion resistance and, in fact, proper operation of a machining part depends on the surface roughness [2,3,4], among other factors. In recent decades, more emphasis has been placed on non-chip removal technologies such as the cold plastic surface hardening processes. Surface burnishing technology is used as an effective method for reducing surface roughness, increasing the micro-hardness of the sub-surface layer, and improving the shape correctness, while not requiring large amounts of coolant, so that overall low environmental impact and economical machining can be realized [5,6,7]. This process eliminates the disadvantages (tool marks, scratches) that are associated with the application of conventional chip removal techniques like turning or grinding, thereby preventing dissipation and surface damage [8].
Many researchers have experimentally shown that mechanical surface treatment increases surface wear resistance and surface integrity [9,10,11] and it also has been shown that these procedures increase the corrosion resistance of the treated surfaces [12]. Dzionk et al. [13] demonstrated that burnishing greatly improves the quality of the hardened turned surface by examining various 2D and 3D roughness parameters. Special care was taken to ensure that the values of the feed rates of hard turning and burnishing did not coincide; this is important so that the flattening of the peaks can take place sufficiently. They observed that the deformation process of surface irregularities occurs primarily in the zone of peaks.
Sharma and Kapor [14] developed a new type of burnishing tool and experiments were carried out according to the Taguchi L9 orthogonal array. They found that burnishing speed and number of passes have major influence on determining the surface roughness and hardness, but interestingly, the feed rate proved to be an insignificant parameter. Ghodake et al. [15] also came to this conclusion according to their analytical and experimental investigations, which were based on full factorial experimental design and statistical analysis using ANOVA and the regression method. They established that the percentage contribution of different burnishing parameters which show depth of penetration is greatest (95.8623%) for the change of surface roughness, while feed rate affects it only 2.522%.
In contrast, for example Basak et al. [7] identified a specific range within which the feed rate is the most advantageous for improving roughness. Multiple regression and ANOVA were applied also for examining different parameters. According to the compared results, the influence of the number of revolutions (so burnishing speed) and the ball diameter were not as great as the burnishing force and feed rate. However, the combined effect of these two factors was not examined.
Randjelovic et al. [16] focused on examining a single parameter: the depth of penetration. Kinematically compatible FEM simulations, then experimental investigations, were performed and, according to both results, they determined that the minimal surface roughness can be achieved by setting ball penetration depth close to the maximum peak height. The explanation is most likely that this condition is the optimum for material flow [16]. Ferencsik and Gál [17] also highlighted one parameter from the finite element examination, the burnishing force. According to their DEFORM 2D simulation model, the degree of average surface roughness decreases in direct proportion to the increase of the force during burnishing of low-alloyed aluminium. In this work, the surface points of the workpiece were determined with the physical measurement points that were imported to the DEFORM FE code [17]. Banh et al. [18] also dealt with the numerical simulation of the effect of burnishing force on surface roughness, but they described the pre-burnishing surface roughness with parabolic approximation. This made the study more complicated, but the measured and simulated values still show a good approximation, so their model can be applied correctly.
Dzierwa and Markopoulos [19] investigated the effect of burnishing input parameters on surface topography, residual stress and tribological properties of 42CrMo4-hardened steel, when the pre-treatment process was grinding. Based on the results of the comprehensive experiment, burnishing pressure force was found to be the most influential parameter, while burnishing speed and stepover had negligible effects. Kovács et al. examined the effect of magnetic-assisted ball burnishing on C45 steel [20]. They investigated the change of corrosion resistance when changing the burnishing parameters. The corrosion rate and the related technological parameters were optimized by the Taguchi method. The burnishing forms an invisible so-called “light coating” on the surface of the workpiece. In this respect, it can be related to the study by Řehoř et al. [21], which deals with the evaluation of the surface quality of a wear-resistant hard coating. Surface-roughness testing is essential to determine the predictability of both light and hard coatings.
In this investigation, we deal with the effect of burnishing force (F), feed rate (f), speed (v) and number of passes (i) on average surface roughness examining the correlation between the parameters on EN AW-2011 external cylindrical workpieces. The diamond-burnishing process was performed on an OPTIMUM type OPTIturn S600 CNC lathe after the turning pre-treatment operation.

2. Materials and Methods

In the mechanical engineering industry, mainly grinding is used to improve the surface quality of metals and their alloys [22], but more and more industrial sectors (automotive, aerospace, chemical, food, etc.) use non-ferrous materials due to their low density and favourable mechanical properties [7,23,24,25]. However, abrasive machining of these materials is difficult due to the high heat generation; in this case, surface burnishing can be used as an efficient and advantageous solution, as it can be performed below the recrystallization temperature.
The chemical composition of the EN AW-2011-type aluminium workpiece material can be seen in Table 1.
Burnishing can be performed without the use of coolants. Only the use of lubricant is necessary, as in other environmentally friendly manufacturing systems [27,28]. Burnishing is a distinguished process to improve surface properties, in which the profile irregularities will be formed under the effect of burnishing force by tool based on the principle of sliding friction. No chips, sparks or dust are generated during machining; in addition, the need for coolant is minimal and can sometimes be omitted, so we can implement environmentally friendly and cost-effective machining [29,30,31,32]. This is preferred for finishing of hydraulic and other cylinders, pistons, bearing housings, bushings and pins [9,22]. Its field of application generally includes the automotive, aeronautics and aerospace industries [33,34].
Burnishing of external cylindrical surfaces can be done on universal or CNC lathes, and Figure 1 (on the basis of [35,36]) shows how the required compressive force, which must exceed the flow limit of the workpiece material, is generated by a spring integrated in the tool, and then the tool is pulled along the surface of the rotating workpiece at a feed rate (f).
Our burnishing experiments were executed with an OPTIMUM type OPTIturn S600 CNC lathe with a PCD spherical burnishing tool (r = 3.5 mm) and the kinematic viscosity of the applied manual dosing oil was ν = 70 mm2/s. Burnishing operations were preceded by a finishing turning set at f1t = 0.2 and then f2t = 0.15 mm/rev feed rate.
The determination of the burnishing conditions is based on approximate calculations, the existing experimental results of different burnished materials with identical or similar properties, and available universal nomograms and special standards. However, the large number of parameters and their interactions with each other make this process complicated, which can only be solved by performing a large number of lengthy experiments. To avoid this, a full factorial experimental design method is used, which allows several factors to be examined simultaneously. To reduce the number of experiments, the number of settings tested is usually maximized to two per factor. This value is sufficient to detect the significance of the factors and, in some cases, to determine the optimal setting range. Factorial designs are simple and logical to handle, which is why they can be easily used in industrial practice [37,38,39].
Table 2 summarizes all the examined burnishing parameters as factors in two levels for two experiments.
In order to make the change in surface roughness caused by burnishing even more illustrative, a dimensionless ratio was created based on this equation according to E-Taweel and El-Axir [40]:
ρ R x % = R x turned R x burnished R x turned × 100 % ,
where
Rx turned  Surface-roughness parameter remaining after turning,
Rx burnished  Surface-roughness parameter remaining after burnishing,
∆ρRx%  Percentage value of the improvement ratio.
The higher the value of ∆ρRx%, the greater the improvement due to burnishing.
Due to the macroscopic and microscopic surface defects, a real surface—the machined part of the material that is often affected by a variety of processes—is different from the ideal or quasi-ideal surface. Surface roughness means the microscopic geometric features of peaks and valleys on a machined part, and it has a great effect on corrosion resistance, wear resistance, sealing, contact stiffness and fatigue strength [41,42,43,44]. This is one of the reasons the analysis of surface roughness has been developed for more than 100 years and measurement methods have been widely used in industrial practice.
In our investigations, the different roughness parameters were investigated on an Altisurf © 520 (Altimet SAS, Sainte-Helene-du-Lac, France) measuring device with CL2 confocal chromatic sensor (Figure 2) before and after burnishing in three different positions rotated by 120°. For the evaluation of the data, a cut-off of λc = 0.8 mm and Gauss filter were applied. The advantage of using this machine is that the software can not only perform a particular measurement, but it can also be done in one setting in succession, so a pre-programmed measurement process can be carried out. This means that multiple measurements can be defined one after the other or axis movements can be set.
From the many parameters that characterize the surface roughness, we tried to select those that best reflect the changes caused by the burnishing process and that are also widely used in engineering practice. The names, definitions and calculation formulas are summarized in Table 3 [45]. The valid standard of geometrical product specifications (GPS) is ISO 22081:2021 [46].

3. Results

The measured and calculated values of the different roughness parameters for both experimental variations are summarized in Table 4, Table 5, Table 6 and Table 7.
The calculated ratios were ranked in order to make it clearer which parameter settings are most advantageous for the improvement of surface roughness. The greatest improvement is marked by number 1, the worst is marked by number 8. Next, these ranks were summarized (R1 + R2 + R3 = Σ); thus, an overall ranking can be established (Table 8 and Table 9).
It was found that applying F1 = 10 N burnishing force with f2 = 0.005 mm/rev feed rate and i2 = 3 number of passes (case of No. 7) produces the most preferred surface-roughness values for Experiment I.
In the second experiment, the burnishing speed was also examined, and its lower value v1 = 15 m/min proved to be more advantageous with F2 = 20 N force and f1 = 0.001 mm/rev feed rate (case of No. 2).
The full factorial experimental design method was applied to create experimental formulas (2)–(9) and calculations and axonometric figures (Figure 3, Figure 4, Figure 5 and Figure 6) were prepared using MathCAD 15 software.
Δ ρ Ra 1 = 362.513 19.261 F 6.525 10 4 f   156.563 i + + 4.307 10 3 F f + 6.045 F i + 4.059 f i 2.041 10 3 F f i
Δ ρ Ra 2 = 61.585 0.094 F 6.165 10 3 f 1.54 v + + 1.323 10 3 F f + 0.122 F v + 821.667 f v 113.583 F f v
Δ ρ Rq 1 = 323.246 16.972 F 5.679 10 4 f   150.814 i + + 3.788 10 3 F f + 5.549 F i + 3.93 f i 1.93 10 3 F f i
Δ ρ Rq 2 = 67.093 0.42 F 7.593 10 3 f 1.779 v + + 1.417 10 3 F f + 0.135 F v + 865.833 f v 116.15 F f v
Δ ρ Rz 1 = 250.396 12.746 F 4.04 10 4 f   111.101 i + + 2.644 F f + 4.266 F i + 2.931 f i 1.471 10 3 F f i
Δ ρ Rz 2 = 56.12 0.283 F 7.45 10 3 f 1.006 v + + 1.459 10 3 F f + 0.103 F v + 712.333 f v 106.317 F f v
Δ ρ Rt 1 = 355.298 18.146 F 6.364 10 4 f   188.855 i + + 3.804 10 3 F f + 7.042 F i + 4.662 10 4 f i 2.219 10 3 F f i
Δ ρ Rt 2 = 24.728 + 1.88 F 5.938 10 3 f 0.118 v + + 1.358 10 3 F f + 0.028 F v + 777.0 f v 106.55 F f v

4. Discussion

This paper presents our experimental investigations on burnishing of low-alloyed aluminium shafts, in which the examined parameters were the burnishing force, feed rate, speed and number of passes. The purpose of the studies was to examine the influence of these burnishing setting parameters on different surface-roughness parameters, such as Ra, Rq, Rz and Rt. The full factorial experimental design method was applied to examine the changes caused by burnishing and to make it even more vivid, dimensionless ratios were used when creating empirical formulas and 3D diagrams were created for each roughness parameter.
According to the measured and calculated results of the two experiments performed, the following statements can be made:
  • On the base of main and cross-effect analysis, the following can be stated: In Experiment I, for both i1 = 1 and i2 = 3 number of passes, increasing the burnishing force from F1 = 10 N to F2 = 20 N had a negative effect on the numerical value of the surface-roughness-improvement ratio for all four characteristics (ΔσRa, ΔσRq, ΔσRz and ΔσRt).
  • Increasing the feed from f1 = 0.001 mm/rev to f2 = 0.005 mm/rev for the number of passes i2 = 3 had a clear positive effect on the value of the surface-roughness-improvement ratio both when applying the burnishing force F1 = 10 N and F2 = 20 N. In contrast to this, in the case of the realization of the number of burnishing passes i1 = 1, a decrease in the value of the surface-roughness-improvement ratio can be discovered.
  • In the case of Experiment II, increasing the burnishing force from F1 = 10 N to F2 = 20 N at v1 = 15 m/min burnishing speed showed a positive trend in the values of all the four (ΔσRa, ΔσRq, ΔσRz and ΔσRt) surface-roughness-improvement ratios for the low feed (f1 = 0.001 mm/rev).
  • At the higher speed (v2 = 30 m/min), increasing the feed from f1 = 0.001 mm/rev to f2 = 0.005 mm/rev, when F2 = 20 N was used, had a negative effect on the tested surface-roughness-improvement ratios. Therefore, the application of a higher burnishing speed (v2 = 30 m/min) and a lower burnishing force (F1 = 10 N) is more beneficial in terms of surface-roughness improvement.
  • Following Table 8 and Table 9, the beneficial burnishing parameter settings are summarized in in Table 10.
  • In the future, we intend to examine the effect of the increased number of passes, and we intend to study the 3D roughness parameters to better understand the processes taking place during machining.

Author Contributions

Conceptualization: V.F. and G.V.; methodology: V.F. and G.V.; investigation: V.F. and G.V.; writing—original draft preparation: V.F. and G.V.; writing—review and editing: V.F. and G.V. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by National Research, Development, and Innovation Fund of Hungary, financed under the K_17 funding scheme, grant number NKFI-125117.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

Project no. NKFI-125117 has been implemented with the support provided from the National Research, Development and Innovation Fund of Hungary, financed under the K_17 funding scheme.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kovács, G. Combination of Lean value-oriented conception and facility layout design for even more significant efficiency improvement and cost reduction. Int. J. Product. Res. 2020, 58, 2916–2936. [Google Scholar] [CrossRef]
  2. Molnár, V. Minimization Method for 3D Surface Roughness Evaluation Area. Machines 2021, 9, 192. [Google Scholar] [CrossRef]
  3. Sztankovics, I.; Kundrák, J. The Characteristics Parameters of the Twist Structure on Cylindrical Surfaces Machined by Turning Procedures. Appl. Mech. Mater. 2014, 693, 418–423. [Google Scholar] [CrossRef]
  4. Nagy, A.; Varga, G. Effect of the Abandonment of Cooling and Lubrication on Surface Roughness and Cylindricity in Turning of Steel. Multidiscip. Sci. 2021, 11, 395–407. [Google Scholar] [CrossRef]
  5. Jerez-Mesa, R.; Plana-Garcia, V.; Lluma, J.; Travieso-Rodriguez, J.A. Enhancing Surface Topology of Udimet®720 Superalloy through Ultrasonic Vibration-Assisted Ball Burnishing. Metals 2020, 10, 915. [Google Scholar] [CrossRef]
  6. Lluma, J.; Gomez-Gras, G.; Jerez-Mesa, R.; Rue-Mascarell, J.; Travieso-Rodriguez, J.A. Mechanical Strengthening in S235JR Steel Sheets through Vibration-Assisted Ball Burnishing. Metals 2020, 10, 1010. [Google Scholar] [CrossRef]
  7. Basak, H.; Ozkan, M.T.; Toktas, I. Experimental Research and ANN Modelling on the Impact of the Ball Burnishing Process on the Mechanical Properties of 5083 Al-Mg Material. Kov. Mater. 2019, 57, 61–74. [Google Scholar] [CrossRef]
  8. Abo El-Nasr, A.A. Thermomechanical Fatigue Behavior of Burnished 7075-T6 Aluminium Alloy. In Proceedings of the 15th International Conference on Applied Mechanics and Mechanical Engineering (AMME), Cairo, Egypt, 29–31 May 2012; pp. 40–50. [Google Scholar] [CrossRef]
  9. Revankar, G.D.; Shetty, R.; Rao, S.S.; Gaitonde, V.N. Wear resistance enhancement of titanium alloy (Ti-6Al-4V) by ball burnishing process. J. Mater. Resear. Technol. 2017, 6, 13–32. [Google Scholar] [CrossRef] [Green Version]
  10. Kato, H.; Ueki, H.; Yamamoto, K.; Uasunaga, K. Wear resistance improvement by nanostructured surface layer produced by burnishing. Mater. Sci. Forum 2018, 917, 231–235. [Google Scholar] [CrossRef]
  11. Krishna, R.M.; Koorapati, E.P. A study of wear resistance of non-ferrous roller burnished components. Int. J. Appl. Manag. Sci. 2012, 3, 11–24. [Google Scholar]
  12. Rao, D.S.; Hebbar, H.S.; Komaraiah, M.; Kempaiah, U.N. Investigation on the effect of ball burnishing parameters on surface roughness and corrosion resistance of HSLA dual-phase steels. East Afric. J. Sci. 2008, 2, 164–169. [Google Scholar] [CrossRef]
  13. Dzionk, S.; Scibiorski, B.; Pryzybylski, W. Surface Texture Analysis of Hardened Shafts after Ceramic Ball Burnishing. Materials 2019, 12, 204. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Sharma, J.; Kapoor, J. To Investigate the Effect of Burnishing Parameters on the Surface Finish and Surface Hardness of Aluminium 7075 Cylinder Liners. IJAMR 2017, 9, 43–47. [Google Scholar]
  15. Ghodake, A.; Bhamre, V.G.; Londhe, B.C. Analytical and Experimental Investigation of Contribution of Burnihsed Parameters on Roughness and Micro Hardness of AA6351. Int. J. Appl. Innov. Eng. Manag. 2015, 4, 42–48. [Google Scholar] [CrossRef]
  16. Randjelovic, S.; Tadic, B.; Todorovic, P.M.; Vukelic, D.; Miloradovic, D.; Radenkovic, M.; Tsiafic, C. Modelling of the Ball Burnishing Process with a High Stiffness Tool. Int. J. Adv. Manuf. Technol. 2015, 81, 1509–1518. [Google Scholar] [CrossRef]
  17. Ferencsik, V.; Gál, V. Investigation of the effect of burnishing force on average surface roughness. Multidiscip. Sci. 2021, 11, 139–143. (In Hungarian) [Google Scholar] [CrossRef]
  18. Banh, Q.-N.; Nguyen, H.-D.; Tran, A.S. Numerical Simulation and Exprimental Validation of Surface Roughness by the Smoothing Small Ball-Burnishing Process. Machines 2021, 9, 48. [Google Scholar] [CrossRef]
  19. Dzierwa, A.; Markopoulos, A.P. Influence of Ball-Burnishing Process on Surface Topography Parameters and Tribological Properties of Hardened Steel. Machines 2019, 7, 11. [Google Scholar] [CrossRef] [Green Version]
  20. Kovács, Z.F.; Viharos, Z.J.; Kodácsy, J. The effect of magnetic assisted ball burnishing on the corrosion resistance of C45 steel. In Advances in Manufacturing Engineering and Materials II, Proceedings of the International Conference on Manufacturing Engineering and Materials (ICMEM 2021), Nový Smokovec, Slovakia, 21–25 June 2021; Lecture Notes in Mechanical, Engineering; Hloch, S., Klichová, D., Pude, F., Krolczyk, G.M., Chattopadhyaya, S., Eds.; Springer: Cham, Switzerland, 2021. [Google Scholar] [CrossRef]
  21. Řehoř, J.; Fulemová, J.; Monková, K.; Monka, P. Morphology of the Chip Formation at Orthogonal High Speed Milling of AISI H13. Key Eng. Mater. 2016, 686, 45–50. [Google Scholar] [CrossRef]
  22. Abodena, A. Optimization of Surface Roughness of Brass by Burnishing. Int. J. Eng. Inf. Technol. 2019, 5, 90–96. [Google Scholar]
  23. Luo, H.; Liu, J.; Wang, L.; Zhong, Q. The effect of burnishing parameters on burnishing force and surface microhardness. Int. J. Adv. Manuf. Technol. 2005, 28, 707–713. [Google Scholar] [CrossRef]
  24. Luo, H.; Liu, J.; Wang, L.; Zhong, Q. Investigation of the Burnishing Process with PCD Tool on Non-Ferrous Metals. Int. J. Adv. Manuf. Technol. 2005, 25, 454–459. [Google Scholar] [CrossRef]
  25. Rodriguez, A.; Calleja, A.; Lopez de Lacalle, L.N.; Pereira, O.; Gonzalez, H.; Urbikain, G.; Laye, J. Burnishing of SFW Aluminium Al-Cu-Li Components. Metals 2019, 9, 260. [Google Scholar] [CrossRef] [Green Version]
  26. Available online: https://www.alumeco.com/aluminium/bars/square-bars/en-aw-2011/10-mm/p/472/8999 (accessed on 1 July 2021).
  27. Vereschaka, A.A.; Vereschaka, A.S.; Grigoriev, S.N.; Kirillov, A.K.; Khaustova, O.U. Development and research of environmentally friendly dry technological machining system with compensation of physical function of cutting fluids. Procedia CIRP 2013, 7, 311–316. [Google Scholar] [CrossRef] [Green Version]
  28. Vereshchaka, A.S.; Vereshchaka, A.A.; Kirillov, A. Ecologically friendly dry machining by cutting tool from layered composition ceramic with nano-scale multilayered coatings. Key Eng. Mater. 2011, 496, 67–74. [Google Scholar] [CrossRef]
  29. Nguyen, T.-T.; Mia, M. Modelling and Evaluation of Energy Efficiency of New Hybrid Turning-Burnishing Process in Terms of Surface Properties. Energies 2020, 13, 4929. [Google Scholar] [CrossRef]
  30. Skoczylas, A.; Zaleski, K. Selected Properties of the Surface Layer of C45 Steel Parts Subjected to Laser Cutting and Ball Burnishing. Materials 2020, 13, 3429. [Google Scholar] [CrossRef] [PubMed]
  31. Saldana-Robles, A.; Plascencia-Mora, H.; Aguilera-Gomez, E.; Saldana-Robles, A.; Marquez-Herrera, A.; Diosdado-De la Pena, J.A. Influence of Ball Burnishing on Roughness, Hardness and Corrosion-Resistance of AISI 1045 Steel. Surf. Coat. Technol. 2018, 339, 191–198. [Google Scholar] [CrossRef]
  32. Balland, P.; Tabourot, L.; Degre, F.; Moreau, V. An Investigation of the Mechanics of Roller Burnishing Through Finite Element Simulation and Experiments. Int. J. Mach. Tools Manuf. 2013, 65, 29–36. [Google Scholar] [CrossRef]
  33. Dyl, T.C. The Burnishing Process of the Stainless Steel in Aspect of the Reduction Roughness and Surface Hardening. J. KONES Powertrain Transp. 2017, 24, 63–69. [Google Scholar] [CrossRef]
  34. Wang, X.; Zhu, L.; Zhou, Z.; Liu, G.; Liu, E.; Zeng, Z.; Wu, X. Tribological properrties of WC-reinforced Ni-based coatings under different lubricating conditions. J. Therm. Spray Technol. 2015, 24, 1323–1332. [Google Scholar] [CrossRef]
  35. Travieso-Rodriguez, A.J.; Gomez-Gras, G.; Dessein, G.; Carillo, F.; Alexis, J.; Jorba-Peiro, J.; Aubazac, N. Effects of ball-bursnihing process assisted by vibrations in G10380 steel specimens. Int. J. Adv. Manuf. Technol. 2015, 81, 1757–1765. [Google Scholar] [CrossRef] [Green Version]
  36. Tobola, D.; Rusek, P.; Czechowski, K.; Miller, T.; Duda, K. New Indicators of Burnished Surface Evaluation—Reasons of Application. Metrol. Meas. Syst. 2015, 22, 263–274. [Google Scholar] [CrossRef]
  37. Amdouni, H.; Bouzaiene, H.; Montagne, A.; van Gorp, A.; Coorevits, T.; Nasri, M.; Iost, A. Experimental Study of a Six New Ball-Burnishing Strategies Effects on the Al-Alloy Flat Surfaces Integrity Enhancement. Int. J. Adv. Manuf. Technol. 2017, 90, 2271–2282. [Google Scholar] [CrossRef] [Green Version]
  38. Johanyak, Z.C. Introduction to the Experimental Methodology; Lecture Notes; John Von Neumann University: Kecskemét, Hungary, 2002; pp. 8–21. (In Hungarian) [Google Scholar]
  39. Sipkas, V.; Vadasz Bognar, G. Failure Analysis of Structural Elements. Multidiscip. Sci. 2020, 10, 3–12. [Google Scholar] [CrossRef]
  40. E-Taweel, T.A.; El-Axir, M.H. Analysis and Optimization of the Ball Burnishing Process Through the Taguchi Technique. Int. J. Adv. Manuf. Technol. 2009, 41, 301–310. [Google Scholar] [CrossRef]
  41. Bagyinszki, G.; Bitay, E. Surface Treatment; Technical Scientific Booklets; Transylvanian Museum Association: Gundelsheim, Germany, 2009; pp. 59–85. (In Hungarian) [Google Scholar]
  42. He, B.; Ding, S.; Shi, Z. A Comparison between Profile and Areal Surface Roughness Parameters. Metrol. Meas. Syst. 2021, 28, 413–438. [Google Scholar] [CrossRef]
  43. Sanchez Egea, A.J.; Rodriguez, A.; Celentano, D.; Calleja, A.; Lopez de Lacalle, L.N. Joining Metrics Enhancement when Combining FSW and Ball-Burnishing in a 2050 Aluminium Alloy. Surf. Coat. Technol. 2019, 367, 327–335. [Google Scholar] [CrossRef] [Green Version]
  44. Huuki, J.; Hornborg, M.; Juntunen, J. Influence of Ultrasonic Burnishing Technique on Surface Quality and Change in the Dimensions of Metal Shafts. J. Eng. 2014, 2014, 124247. [Google Scholar] [CrossRef] [Green Version]
  45. Leach, R. Chapter 6—Surface Topography Measurement Instrumentation. In Fundamental Principles of Engineering Nanometrology, 2nd ed.; Micro and Nano Technologies; William Andrew: Norwich, NY, USA, 2014; pp. 133–204. [Google Scholar] [CrossRef]
  46. ISO 22081:2021; Geometrical Product Specifications (GPS)—Geometrical Tolerancing—General Geometrical Specifications and General Size Specifications. ISO: Geneva, Switzerland, 2021. Available online: https://www.iso.org/standard/72514.html (accessed on 1 June 2022).

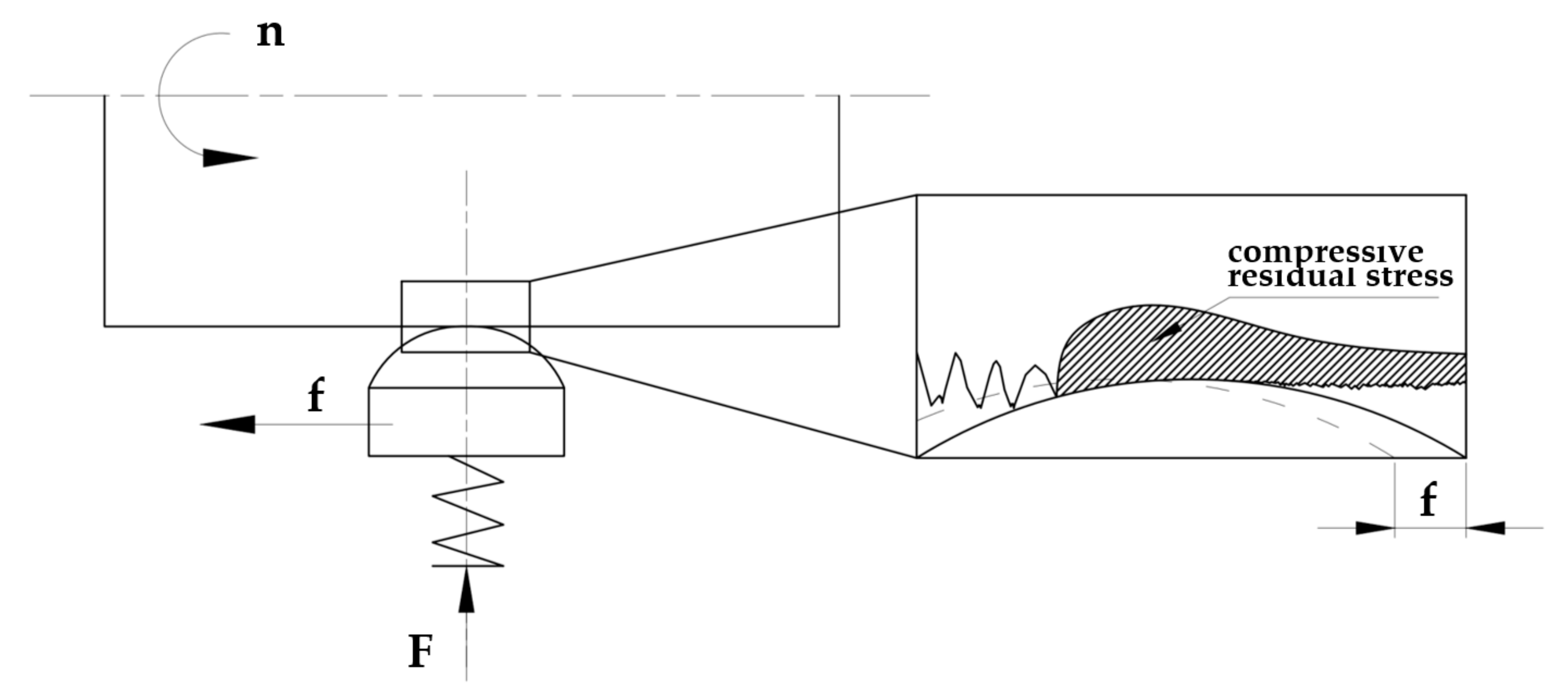

Figure 1. Schematic diagram of sliding friction burnishing (F—burnishing force; n—revolution; f—feed rate).
Figure 1. Schematic diagram of sliding friction burnishing (F—burnishing force; n—revolution; f—feed rate).
Machines 10 00564 g001

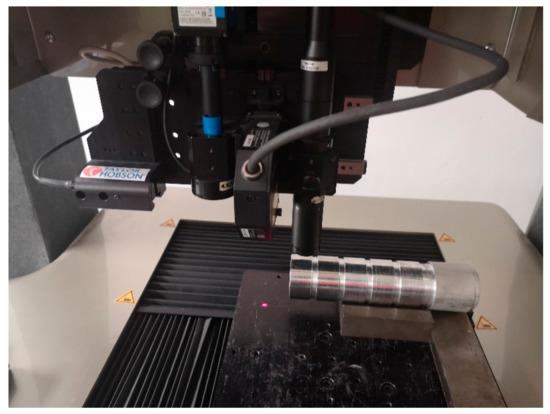

Figure 2. Working area of the Altisurf 520 measuring machine with CL2 confocal chromatic sensor.
Figure 2. Working area of the Altisurf 520 measuring machine with CL2 confocal chromatic sensor.
Machines 10 00564 g002

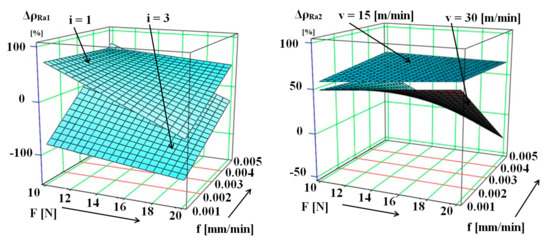

Figure 3. Changes in Ra for Experiment I (left) and Experiment II (right).
Figure 3. Changes in Ra for Experiment I (left) and Experiment II (right).
Machines 10 00564 g003

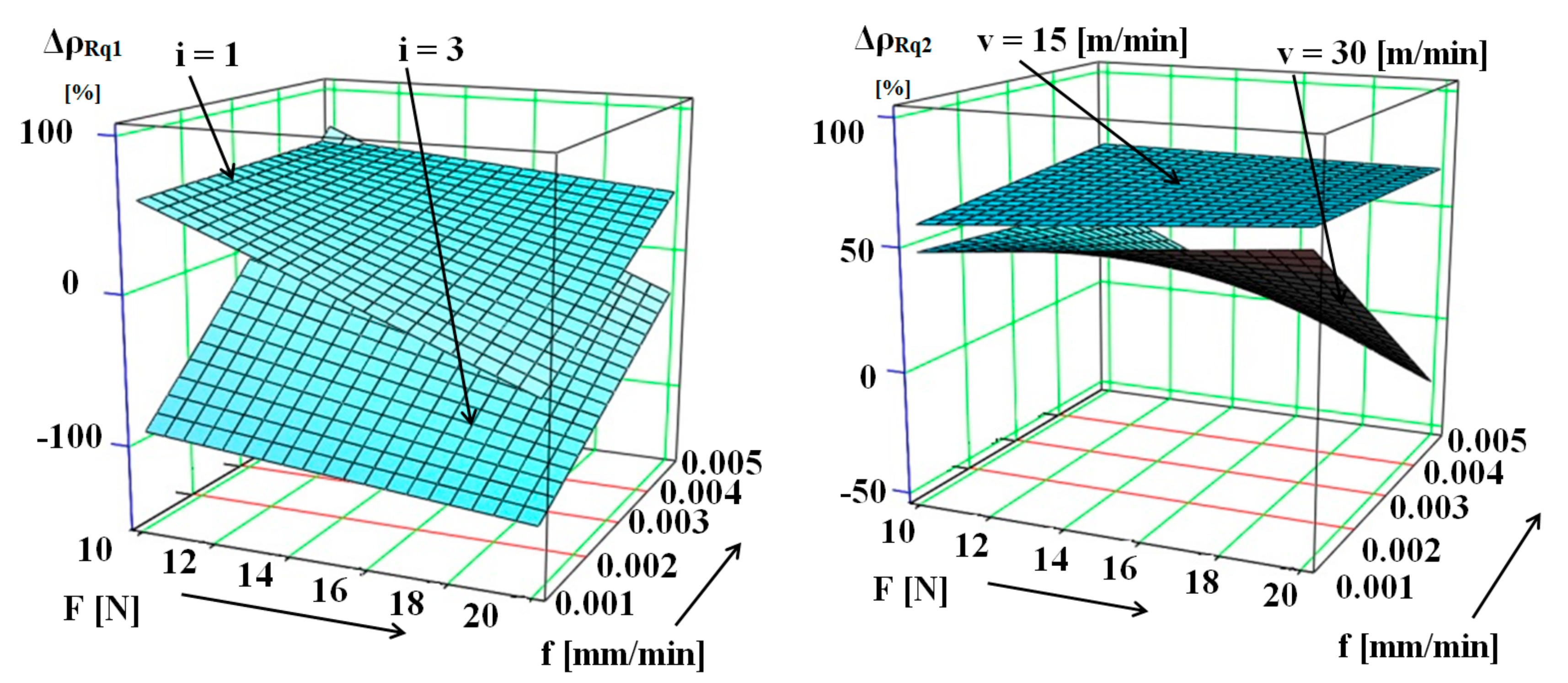

Figure 4. Changes in Rq for Experiment I (left) and Experiment II (right).
Figure 4. Changes in Rq for Experiment I (left) and Experiment II (right).
Machines 10 00564 g004

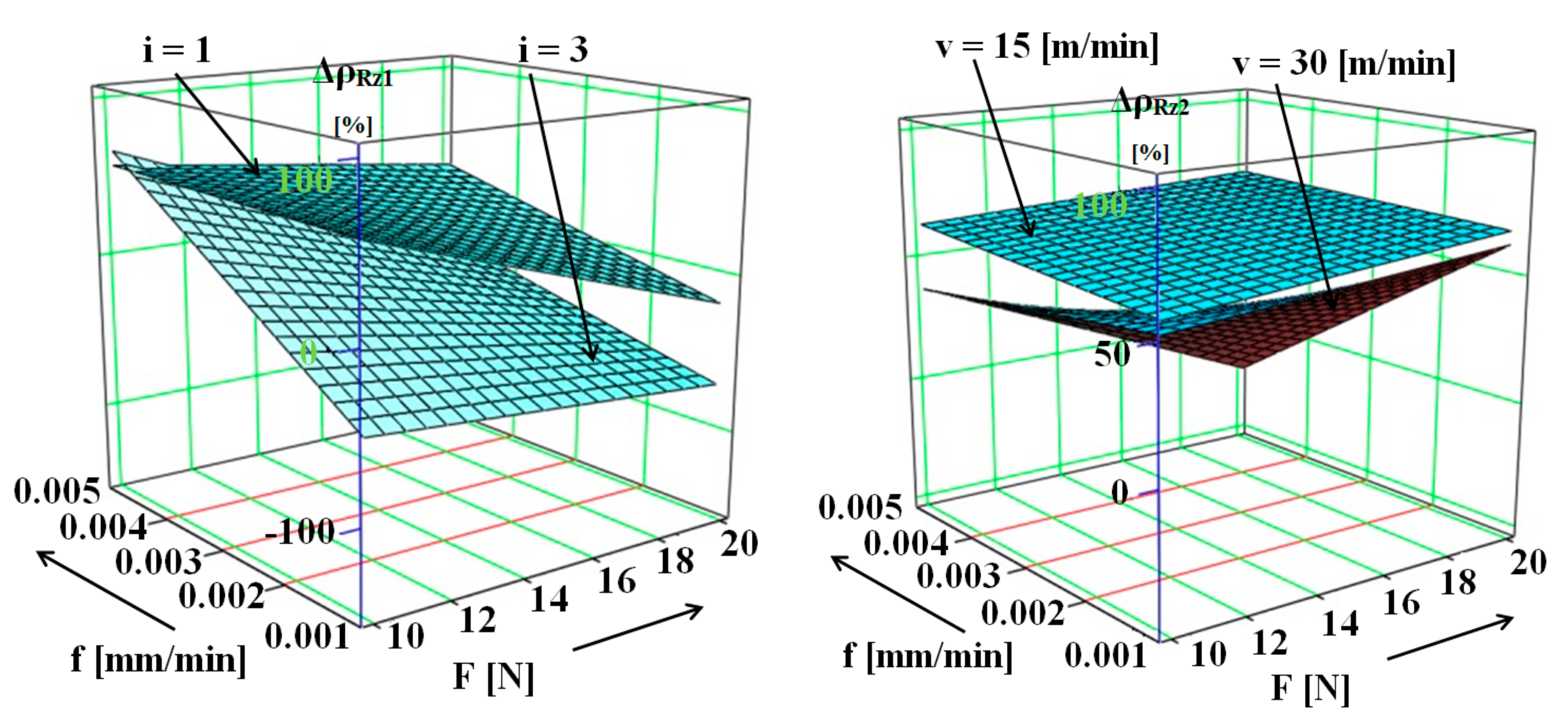

Figure 5. Changes in Rz for Experiment I (left) and Experiment II (right).
Figure 5. Changes in Rz for Experiment I (left) and Experiment II (right).
Machines 10 00564 g005

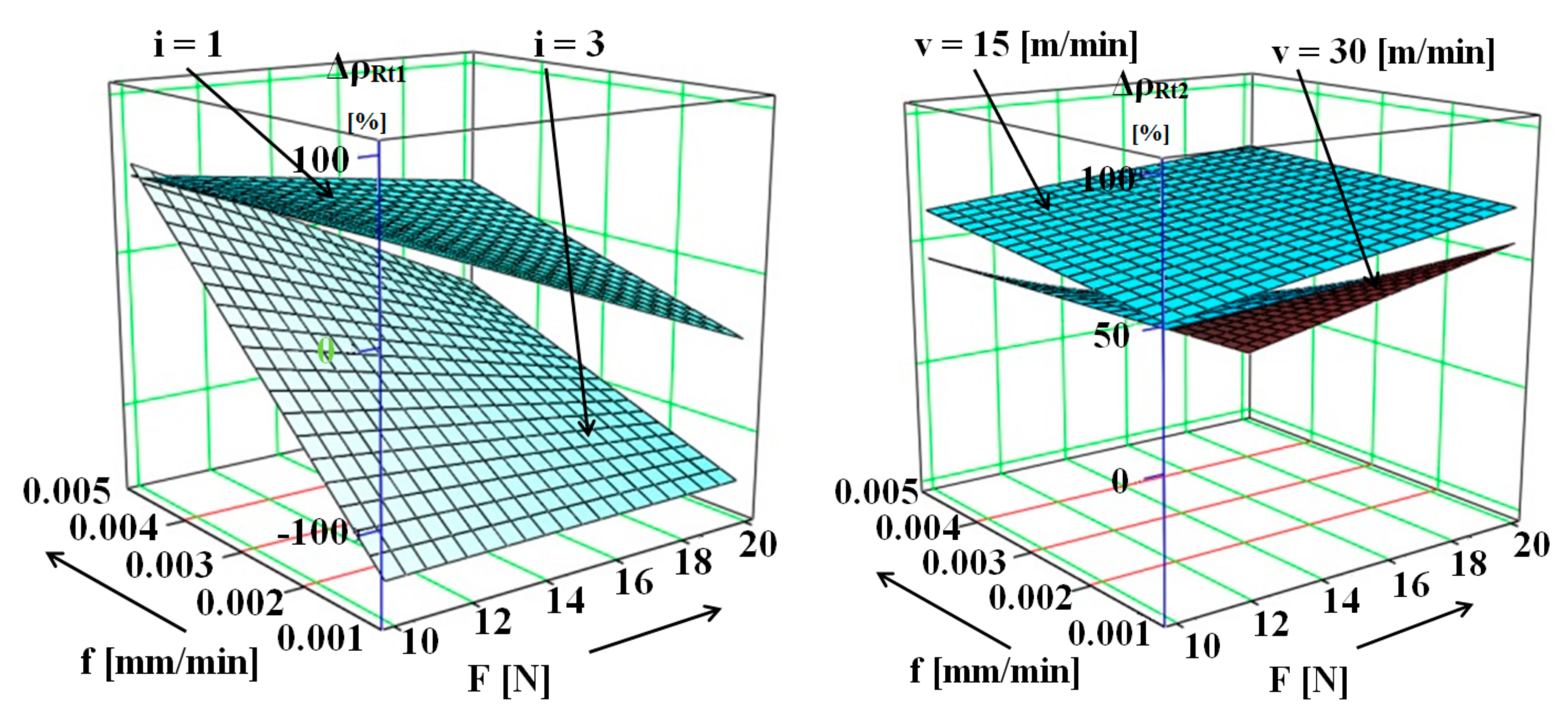

Figure 6. Changes in Rt for Experiment I (left) and Experiment II (right).

Figure 6. Changes in Rt for Experiment I (left) and Experiment II (right).
Machines 10 00564 g006
Table 1. Chemical composition of the tested aluminium alloy (% by volume) [26].
Table 1. Chemical composition of the tested aluminium alloy (% by volume) [26].
SiFeCuMnMgCrZnBiPbAl
Min 3.30.50.4 0.30.289.3
Max0.40.84.611.80.10.20.60.695.1
Table 2. Burnishing parameters.
Table 2. Burnishing parameters.
No.Burnishing Parameters IBurnishing Parameters IITransformed Parameters
F (N)f (mm/rev)i (ø)F (N)f (mm/rev)v (m/min)x1x2x3
1100.0011100.00115−1−1−1
2200.0011200.00115+1−1−1
3100.0051100.00515−1+1−1
4200.0051200.00515+1+1−1
5100.0013100.00130−1−1+1
6200.0013200.00130+1−1+1
7100.0053100.00530−1+1+1
8200.0053200.00530+1+1+1
Table 3. The examined surface-roughness parameters.
Table 3. The examined surface-roughness parameters.
MarkNameDefinitionFormula
RaAverage roughnessArithmetic means of the absolute height of the profile 1 L 0 L y dx
RqRoot mean square
roughness
Root mean square of the height
of the profile
1 L 0 L y 2 dx
RzAverage roughness
height
Average absolute value of the five highest peaks and the five lowest valleys y p i + y v i 5
RtMaximum height of
the profile
Total height of the assessed
profile
max i y i min i y i
Table 4. The measured values and the calculated improvement ratios for Ra.
Table 4. The measured values and the calculated improvement ratios for Ra.
No.Ra (µm) I.ΔσRa (%)Ra (µm) II.ΔσRa (%)
TurnedBurnishedTurnedBurnished
11.22600.345771.801.01170.423158.18
20.92131.2686−37.690.92990.263171.71
30.99470.359963.820.93740.304067.57
41.06790.587544.990.88340.301765.85
51.01181.8215−80.060.95240.489148.65
61.06222.2249−109.461.13190.414163.42
70.94500.251673.381.05590.642139.19
81.07411.3817−28.640.98141.2703−29.44
Table 5. The measured values and the calculated improvement ratios for Rq.
Table 5. The measured values and the calculated improvement ratios for Rq.
No.Rq (µm) I.ΔσRq (%)Rq (µm) II.ΔσRq (%)
TurnedBurnishedTurnedBurnished
11.41810.577259.291.25350.519058.59
21.14231.5577−36.371.14320.327271.38
31.23610.449163.671.16540.382667.17
41.30500.752742.321.11900.369766.96
51.21842.3315−91.361.17990.617047.71
61.29342.7763−114.651.36820.501963.32
71.16590.314273.051.28730.791038.55
81.30021.6946−30.331.19681.5383−28.53
Table 6. The measured values and the calculated improvement ratios for Rz.
Table 6. The measured values and the calculated improvement ratios for Rz.
No.Rz (µm) I.ΔσRz (%)Rz (µm) II.ΔσRz (%)
TurnedBurnishedTurnedBurnished
16.06512.720755.146.11352.714655.59
25.68896.7087−17.935.73991.899566.91
36.01002.542257.706.31372.329363.11
45.94494.070431.536.54072.027269.01
55.84708.9717−52.545.97862.944350.75
66.123010.3915−69.716.48032.486561.63
75.96391.979966.806.50354.082637.22
85.61666.8064−21.185.84927.0841−21.11
Table 7. The measured values and the calculated improvement ratios for Rt.
Table 7. The measured values and the calculated improvement ratios for Rt.
No.Rt (µm) I.ΔσRt (%)Rt (µm) II.ΔσRt (%)
TurnedBurnishedTurnedBurnished
17.44293.405954.247.60523.857649.28
26.66079.3875−40.947.87372.371369.88
37.17703.619549.578.55433.204562.54
46.72815.529917.819.52482.520873.53
56.930816.2023−133.777.13523.753847.39
66.788115.7811−132.487.93793.476156.21
77.11383.061056.978.52084.828043.34
86.23759.7202−55.837.59609.2197−21.38
Table 8. Ranking of results for Experiment I.
Table 8. Ranking of results for Experiment I.
No.ΔσRa (%)R1ΔσRq (%)R2ΔσRz (%)R3ΔσRt (%)R4ΣR
171.80259.29355.14354.242102
2−37.696−36.376−17.935−40.945224
363.82363.67257.70249.573102
444.99442.32431.53417.814163
5−80.067−91.367−52.547−133.778295
6−109.468−114.658−69.718−132.487316
773.38173.05166.80156.97141
8−28.645−30.335−21.186−55.836224
Table 9. Ranking of results for Experiment II.
Table 9. Ranking of results for Experiment II.
No.ΔσRa (%)R1ΔσRq (%)R2ΔσRz (%)R3ΔσRt (%)R4ΣR
158.18558.59555.59549.285205
271.71171.38166.91269.88261
367.57267.17263.11362.543103
465.85366.96369.01173.53182
548.65647.71650.75647.396246
663.42463.32461.63456.214164
739.19738.55737.22743.347287
8−29.448−28.538−21.118−21.388328
Table 10. The most appropriate settings.
Table 10. The most appropriate settings.
Experiment IExperiment II
F1 = 10 NF2 = 20 N
f2 = 0.005 mm/revf1 = 0.001 mm/rev
v2 = 30 m/minv1 = 15 m/min
i2 = 3i1 = 1
