Visual-Servoing Based Global Path Planning Using Interval Type-2 Fuzzy Logic Control

Abstract

Mobile robot motion planning in an unstructured, static, and dynamic environment is faced with a large amount of uncertainties. In an uncertain working area, a method should be selected to address the existing uncertainties in order to plan a collision-free path between the desired two points. In this paper, we propose a mobile robot path planning method in the visualize plane using an overhead camera based on interval type-2 fuzzy logic (IT2FIS). We deal with a visual-servoing based technique for obstacle-free path planning. It is necessary to determine the location of a mobile robot in an environment surrounding the robot. To reach the target and for avoiding obstacles efficiently under different shapes of obstacle in an environment, an IT2FIS is designed to generate a path. A simulation of the path planning technique compared with other methods is performed. We tested the algorithm within various scenarios. Experiment results showed the efficiency of the generated path using an overhead camera for a mobile robot.

1. Introduction

Over the last two decades, the use of mobile robots has increased in many areas, from industrial work to research and home use. Computer vision has become a major research topic in robot control. Autonomous mobile robots use vision systems to perform a given mission. Path planning is critically important for a mobile robot to be able to carry out its assigned task. Essentially, path planning algorithms determine how the robot should orient itself with accuracy, safety, and efficiency. Path planning and path following are two important problems which need to be solved in order for the mobile robot to perform a task. To solve these problems, one needs to find answers to the following questions: Where am I? Where am I going? How do I get there? What is the best way to get there? These are complex issues in the robotic field if they occur in dynamic and unknown environments. To answer these fundamental questions one needs to know their philosophy and use them together [1]. There are various issues and uncertainties which need to be considered for an efficient, robust, and safe path. Type-2 FIS is a well-established powerful hybrid technology that can be implemented within the visual system. Interval type-2 [2,3,4,5,6,7,8,9,10,11,12] FIS was chosen to overcome these uncertainties and develop robust, flexible control, mainly due to its efficiency in avoiding local obstacles. Path planning control inputs parameters including robot position information, target position, and description of environment [13]. Visual servoing is an important concept which can be useful in providing the capability to employ visual information to control the mobile robot motion control in this field. Here we are interested in the overhead camera, which can provide information to generate the mobile robot path. The overhead cameras can be used to sense the position of the robot and coordinate their motions toward their destination without collision obstacles. Two important factors are relevant to solving the path planning problem. The first is environment type (static or dynamic), and the second is the path planning algorithm (global off-line or local on-line). In these experiments, global path planning has been emphasized in a static environment. Global path planning algorithms are executed in static environments.

In this paper, we propose an effective visual-servoing based global path planning technique using interval Type-2 FIS and comparison with various path planning algorithms. Our contributions are as follows:

• A robust vision-based obstacle-free path planning algorithm has been developed and implemented to enable safer global navigation.
• A new framework for the evolutionary algorithm is given.
• A fuzzy inference system has been proposed and integrated into the proposed intelligent navigation framework to adjust the wheel velocity.
• A novel distance estimation method using overhead camera systems is given which employs scale parameters from the IT2FIS algorithm.
• Finally, we combine the advantages of the traditional path planning algorithm with the proposed technique to improve computational efficiency.

In real-world experiments in particular, there are significant changes due to environmental factors like constant illumination and lighting condition factors. These changes are factors that can be encountered when creating an effective planning algorithm. However, a key aim should be to increase the proposed architecture as mentioned previously to reach an acceptable level of performance under real conditions. This study aims to minimize both systematic and non-systematic errors and to develop a high-performance path planning algorithm.

2. Literature Review

Navigation and obstacle avoidance are one of the fundamental problems in mobile robotic systems. Many algorithms related to this subject have been developed [14]. Neuro-Fuzzy architecture [15,16,17,18,19], A* [20,21], D* [22] (the dynamic version of the A*), Genetic Algorithm [23,24], Dijksta’s Algorithm [25], BFS [26], and DFS [27] are the methods used for path planning which consider the cost efficiency. Another method for generating a path plan using potential field functions is the APF [28,29] method. Each method has the purpose of finding a reliable and cost-effective technique. RRT [30] is a path planning method which is widely used in robotic studies. It aims to achieve an unobstructed path between the start and destination positions in an unknown environment. A more advanced version of RRT is the bidirectional-RRT (bi-RRT) [31] path planning algorithm. This algorithm is completed using two trees that start to separate from both the starting and the target positions. Visual-servoing (VS) methods have been widely used in various path planning applications [32,33,34,35,36,37] and use an image sensor in a feedback loop for trajectory control. Global path planning provides a global map in which the robot initial position, goal point, and obstacle positions are determined. A fixed overhead camera is used to generate a 2D image model of the environment and the proposed method is advanced to plan the robot path. For this purpose, vision-based path planning has been integrated with IT2FIS in this way and robust and reliable methods for avoiding obstacles have been developed [4,38,39]. The proposed algorithm is assured of a reliable and feasible path that is visible to the camera. Traditional sensing techniques such as infrared detectors, laser scanners, and ultrasonic sensors are used to detect obstacles [35]. Due to systematic and non-systematic errors, these sensors do not always give the correct result. Systematic errors can be caused by the physical structure of the robot hardware parts, including the encoder and sensor, but non-systematic errors are usually caused by sliding, pounding, or falling. Measurement resolutions can be affected by external situations such as light conditions, detection range, and expensive and often bulky systems. On the other hand, vision sensors are a low-cost motion control and are effective in decreasing errors as mentioned; they are also useful robotic sensors. The vision system provides necessary information about obstacles, as well as, simultaneously, the position and orientation of the mobile robot in the initial and goal position. Parameter ranges and system uncertainties in the position control environments are required to deal with the controller [40]. Soft computing methods like fuzzy logic [41,42,43,44,45,46] are one of these controllers. These controllers have powerful advantages such as being low cost, being easy to control and being designable without knowing the exact mathematical model of the process. Because of their simple design, which decreases the mathematical model’s complexity, fuzzy logic can be used in decentralized form, which is preferable to a mobile robot over centralized control. In mobile robot applications and path planning, many uncertainties may be encountered. These are uncertainties of inputs, uncertainties of control action, and linguistic uncertainties. These all become uncertainties about fuzzy logic membership functions [4]. Uncertainties associated with changing unstructured environments cause problems in the determination of membership functions. An IT2FIS technique is suitable for dealing with these uncertainties [47,48]. This ability is supported by the fact that the third type-2 fuzzy logic [49,50,51] sets dimensions, and its footprint of uncertainty is sufficient in comparison with what type-1 fuzzy logic [52] sets in modeling on uncertainty. IT2FIS is suitable for real world applications regarding the control of mobile robots [53,54].

3. Concepts of the Proposed Method

To cope with uncertainties, we used advances recently made on type-2 FIS to enable the development of an intelligence vision system based on IT2FIS for global path generation. In this paper we focused on VS-based mobile robot global path planning using an overhead camera. The particular concept of the proposed methods is to use virtual inputs that are completely generated from image information. The extracted visual information from interested objects which are visible to the camera enables the generation of the desired path. The overall technique of the proposed algorithm is demonstrated in Figure 1.

The IT2FIS algorithm is used as an effective intelligence technique that deals with parameter variation and system uncertainties. It also offers a simple and cost-effective design advantage without the complexity of its mathematical model. The main contribution of this experimental study is its combining VS and IT2FIS to generate a mobile robot path in static and unstructured environments. The proposed methods have been tested in various cases to validate the system. The simulation results show the validity of the proposed techniques.

This paper is organized as follows. In Section 2, the problem definition is explained. Section 3 describes the structure and functionality of the vision algorithm. Section 4 handles the type-2 fuzzy inference system. The experimental and simulation results and system implementation are presented in Section 5. Finally, concluding remarks are given in Section 6.

4. Problem Definition

Path planning, localization, and motion control are common problems in mobile robot control. To overcome such problems, a visual-servoing-based technique that extracts visual information from a fixed overhead camera in order to use IT2FIS to generate global path planning is proposed. In order to reach the desired goal configuration, image processing morphological operation has been used to detect the mobile robot initial position pose, orientation, target coordinates, and obstacle positions via an overhead camera (see Figure 1). In the VS control loop, the vision sensors can always track the obstacles surrounding the robot using left diagonal (LD), front (F), and right diagonal (RD) obstacle detection sensors. These are virtual sensors which are tracked by the image processing system. These sensors and the robot position and orientation information, denoted by (XR, YR, θR), have been served as the inputs to the IT2FIS controller to enable the generation of the desired obstacle-free path. The relationship between the generated path in 2D image space and its identical path in the real robot work field defines visual servoing.

5. Visual Servoing Algorithm

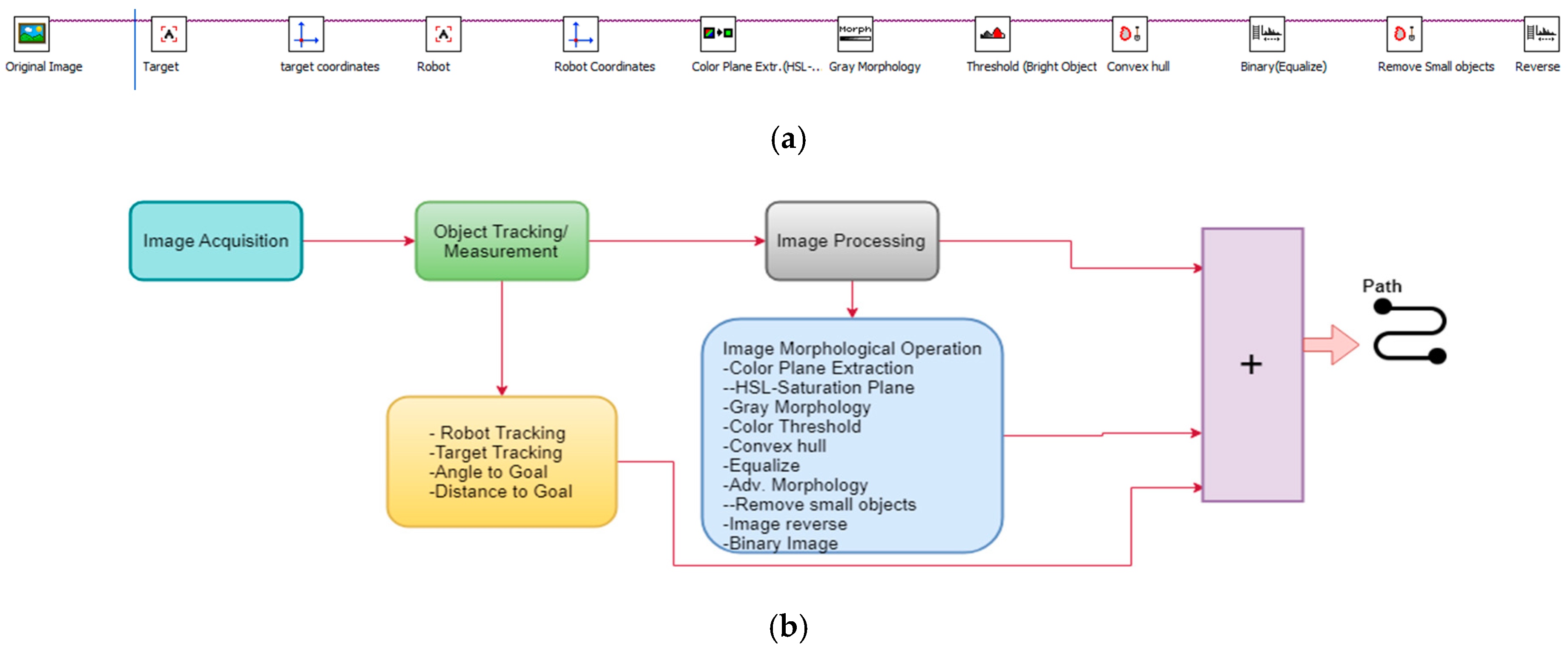

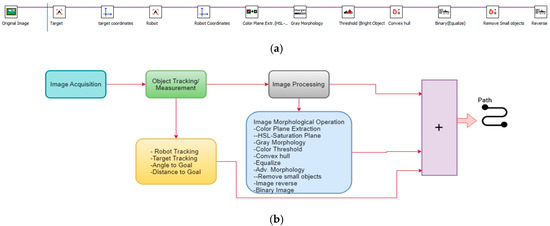

In this section the overall procedure (see Figure 2) of the algorithm that we have developed for solving the problem of robotic path planning is described. The algorithm starts by capturing the experimental environment’s image from the overhead camera. In order to generate the robot motion environment, the robot world, or the robot map (robot, obstacles, and target position), a number of morphological processes are performed. Robot path planning algorithms use a map to obtain information about the obstacles and accessible paths. To generate the shortest path, robot initial position, target position, and distance map information are required as inputs.

The process of the visual tracking algorithm is given in Figure 2. The aim was to generate an obstacle-free robot path by using an overhead camera. We have proposed an effective method for object tracking. The phases of application of sub-systems of morphological processes with object tracking and image processing with image processing are highlighted in Figure 2. The RGB image from the camera is converted to HSL color space-based thresholding. During experimental simulation, a number of morphological processes were applied to prevent friction and collision. The boundaries of the obstacles were dilated so more reliable path planning was achievable. The Convex-hull algorithm was used to prevent the robot from falling to the local minimum. The target and robot coordinates were determined in pixels using a shape adapted mean shift algorithm. This algorithm [40] uses asymmetric and anisotropic kernels for object tracking. The algorithms were implemented using NI Vision Builder programming tools. A shape-adapted mean shift algorithm was implemented which provided angular as well as a linear offset in object shapes. This algorithm allows for the tracking of object templates with changing shapes and size using a built-in function from NI Vision Assistant. The tracking template position is considered as the reference and its coordinates are regarded. In the final image analysis, the object’s coordinate system is obtained. There are a number of steps which need to be considered to generate the path. The formulation of the input parameters that are obtained from the visual system are explained and formulated by using Figure 3. The pose of the mobile robot (Xr, Yr, θr) in the global frame can be defined by the center of the mobile robot position. Here, the visual information (location and orientation) is extracted from the visual odometry. In order to eliminate the effects of slipping and mechanical shock, the control loop of visual servoing processes works with the current information.

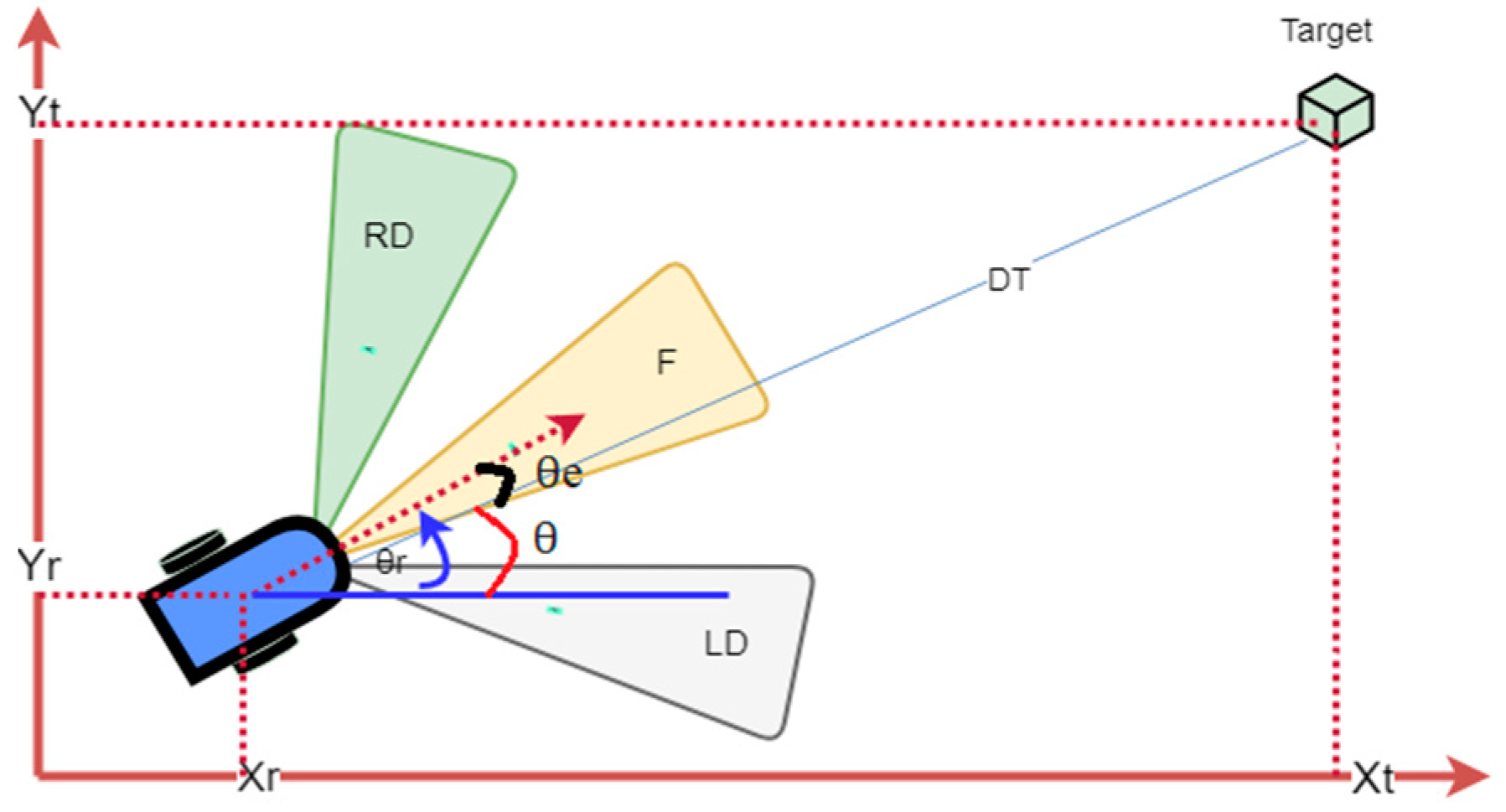

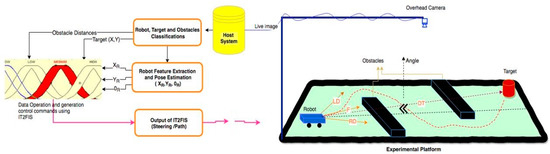

Assuming that the mobile robot’s initial position information and target position are known, as shown in Figure 3, we calculate the position errors as

$$e_x=X_t-X_r=DT\ast \cos \left(\theta r\right)$$

(1)

$$e_y=Y_t-Y_r=DT\ast \sin \left(\theta r\right)$$

(2)

where DT corresponds to the current distance between the mobile robot ($X_r,Y_r$) and the target ($X_t,Y_t$), which is expressed as Equation (3):

$$DT=\sqrt{{(e_x)}^2+{(e_y)}^2}$$

(3)

The robot current angle ($\theta r$) according to the target is computed in Equation (4):

$$\theta r=ta{n}^{-1}\frac{e_y}{e_x}$$

(4)

The error of angle is given in Equation (5):

$$\theta e=\theta r-\theta$$

(5)

The control objective is to design a fuzzy logic controller to generate the desired robot path configuration.

6. Interval Type-2 Fuzzy Logic System

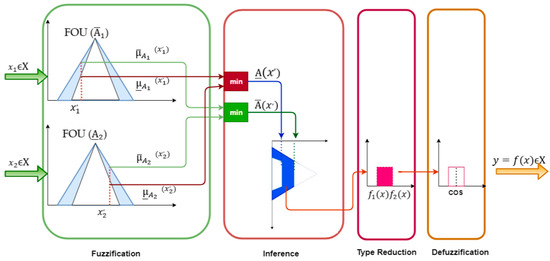

The design and theoretical basis of the type-2 fuzzy model for mobile robot path planning has been presented. This is intended to provide the basic concepts needed to understand the algorithm using input variables that were obtained in Section 3 and rules on which to base the value of output system determination. In its robustness for controlling nonlinear systems with variation and uncertainties, the fuzzy type-2 method has proven to be a strong tool for controlling complex systems [55,56,57,58,59]. The concept of the type-2 fuzzy set was introduced by Zadeh [60,61]. The presence of uncertainties in nonlinear system control uses the highest and lowest values of the parameters, extending the type-1 fuzzy method (Figure 4a) to type-2 (Figure 4b). Uncertainty is a characteristic of information, which may be incomplete, inaccurate, undefined, inconsistent, and so on. The uncertainty is represented by a region called the footprint of uncertainty (FOU). This is a bounded region that uses an upper and lower type-1 membership function.

An interval type-2 fuzzy set denoted by $\tilde{A}$ is expressed in Equation (6) or (7).

$$\tilde{A}=\{\left(x,y\right),{\mathsf{\mu }}_{\tilde{A}}\left(x,y\right)|{\forall }_x\in X,{\forall }_u\in J_x\subseteq \left[0 1\right]\}$$

(6)

Hence, ${\mathsf{\mu }}_{\tilde{A}}\left(x,u\right)=1$, ${\forall }_u\in J_x\subseteq \left[0 1\right]$ is considered as an interval type-2 membership function, as shown in Figure 5.

$$\tilde{A}={\int }_{x\in \mathrm{X}}{\int }_{u\in {\mathrm{J}}_x}1/\left(x,u\right) J_x\subseteq \left[0 1\right]$$

(7)

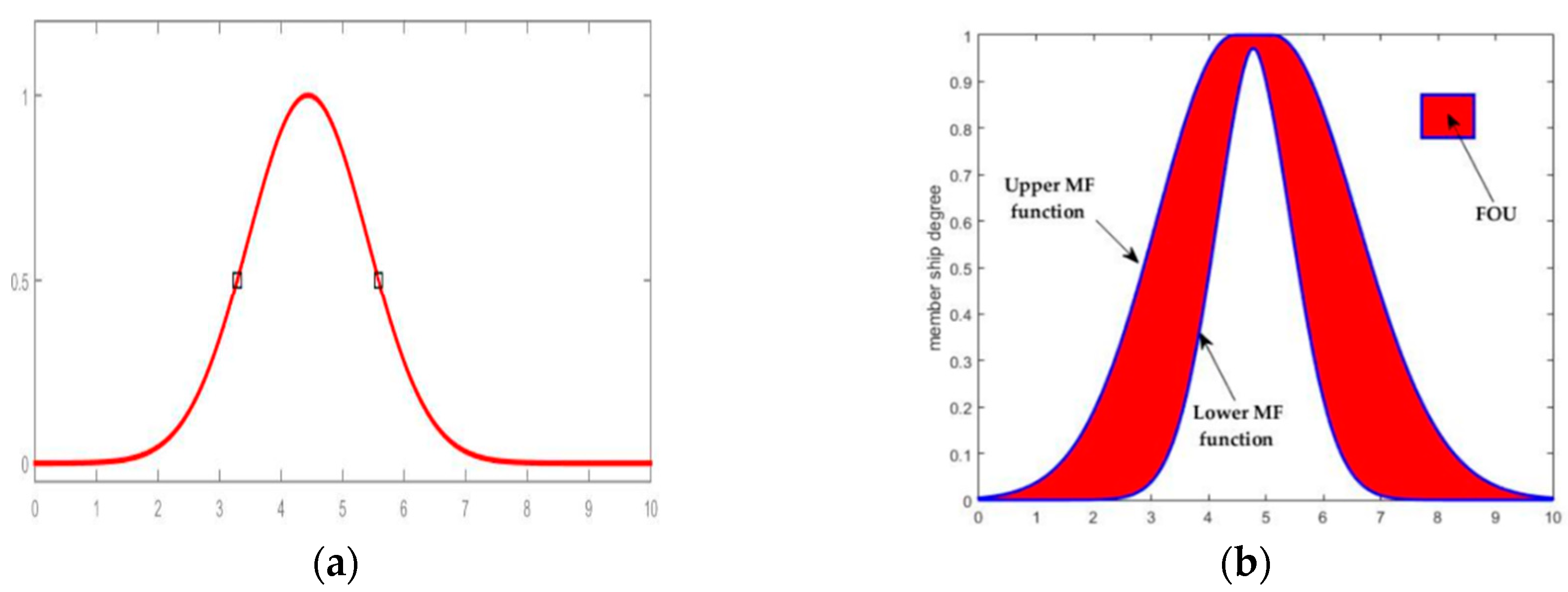

where $\int \int$ donate the union of all acceptable $x$ and $u$. An IT2FIS is defined in terms of an upper membership function with ${\overline{\mathsf{\mu }}}_{\tilde{A}}\left(x\right)$ and a lower membership function with ${\underset{¯}{\mathsf{\mu }}}_{\tilde{A}}\left(x\right)$. $J_x$ is just the interval of $[{\overline{\mathsf{\mu }}}_{\tilde{A}}\left(x\right)$, ${\underset{¯}{\mathsf{\mu }}}_{\tilde{A}}\left(x\right)]$. A type-2 FIS is characterized by IF-THEN rules, where the antecedent and consequent sets are type-2. To design a type-2 fuzzy controller, it is necessary to know the block structure used with type-1, because the basic blocks used are the same as those used with type-1. As seen in Figure 5, a type-2 FLS includes a fuzzifier, a rule base, a fuzzy inference engine, and an output processor. The output processor includes a type-reducer and defuzzifier. The type-reducer is the main distinctive point between type-1 and type-2 fuzzy systems. A type-1 fuzzy set output is generated (from the type-reducer) or a crisp number is generated (from the defuzzifier) [59]. The type reducer is added because of its association with the nature of the membership grades of the elements [62].

6.1. Fuzzifier

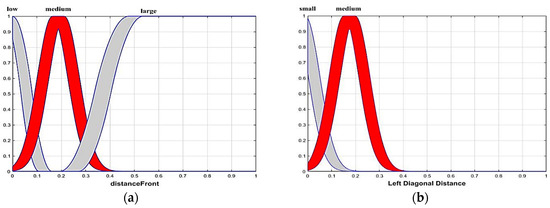

In this case, the inputs of the fuzzy set convert into suitable linguistic variables. The membership functions consist of one or several types-2 fuzzy sets. A numerical vector $\mathrm{x}$ of the fuzzifier maps converts into a type-2 set $\tilde{A}$. The outputs of the type-2 fuzzy sets are considered a singleton. In a singleton fuzzification, the inputs are crisp values on nonzero membership.

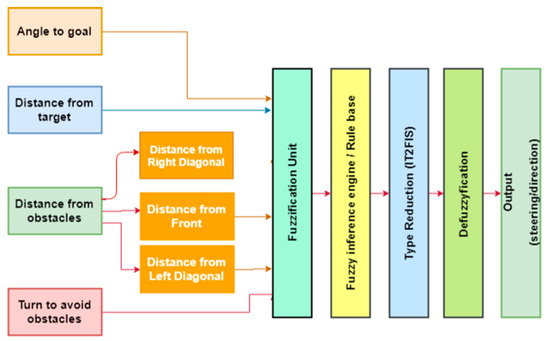

In these experiments we consider four inputs. These are angle to goal ($\mathsf{\theta }\mathrm{e}$), distance from target (DT), distances from obstacles (DL, F, DR) and turn to avoid obstacle (TO). Figure 6 illustrates the block diagram of these parameters.

The angle to the target is the angle at which the robot is required to rotate to reach the target. The angle changes range from −180 to +180. The distance from the goal is normalized to lie between 0 and 1 and is multiplied by a constant that is between the robot and goal position. Similarly, the distance between the nearest obstacles in the direction in which the robot moves is the distance from the obstacle. This distance is also normalized between 0 and 1 [20]. The movement angle of the robot on the obstacle-free path is taken as the angle of robot direction rotation. This is the measure between robot and obstacle. There is a single output that measures the turning angle along with the direction. These values are important when creating the functions of the physical. The bounded region that uses an upper and lower type-1 membership function (MF) is the FOU. Uncertainty is a characteristic of information, which may be incomplete, inaccurate, undefined, inconsistent and so on. Primary MFs with uncertain standard deviation and uncertain mean are popular FOUs for a Gaussian because of their parsimony and differentiability. A Gaussian is important when a derivative-based optimization algorithm is used to optimize MF parameters during the design of an interval type-2 fuzzy system. Gaussian MFs are arguably favorable for this situation. The geometry of the membership functions is arbitrarily selectable and the aforementioned features of the Gaussian function are preferred. The membership functions of the different inputs and outputs are given in Figure 7.

6.2. Fuzzy Inference Engine

The inference engine is an interface that processes input values according to certain rules and produces output type-2 fuzzy sets. That is, it combines or arranges a center between the input and the output. Figure 5 shows a graphical representation of the relationship between input and output. It is necessary to compute the intersection and union of type-2 sets and implement compositions of type-2 relations. The desired behavior is defined by a set of linguistic rules. It is necessary to set the rules adequately to achieve the desired result. For instance, a type-2 fuzzy logic with p inputs ($x_1\in X_1,\dots x_p\in X_p$) and one output $\left(y\in Y\right)$ with $M$ rules has the following form.

$$R^{\ell }:\mathrm{IF}{x}_1\mathrm{is}{\tilde{F}}_1^{\ell }\dots \mathrm{and}{x}_p\mathrm{is}{\tilde{F}}_p^{\ell }\mathrm{THEN}y\mathrm{is}{\mathrm{G}˜}^{\ell },\ell =1\dots M$$

The knowledge bases for each controller consist of 25 rules related to the robot direction which are presented in

Table 1. Rule base for robot wheel speed fuzzy controller. Legend: LD, distance front left diagonal; F, distance front; RD, distance front right diagonal; AG, angle to goal; DT, distance to target.

Inputs							Output
	LD	F	RD	AG	Turn	DT	Direction
1		low			left		moreLeft
2		medium			left		left
3		large			left		left
4		low			right		moreRight
5		medium			right		right
6		large			right		right
7	small						moreRight
8	medium						right
9			small				moreLeft
10			medium				left
11				negative		low	moreLeft
12				moreNegative		low	moreLeft
13				no		low	no
14				positive		low	moreRight
15				morePositive		low	moreRight
16				negative		medium	left
17				no		medium	no
18				positive		medium	right
19				morePositive		medium	moreRight
20				moreNegative		high	left
21				negative		high	left
22				no		high	no
23				positive		high	right
24				morePositive		high	right
25				moreNegative		medium	moreLeft

. The position of the rules created in the knowledge base in the coordinate plane will be shown graphically.

In these experiments, we used type-2 fuzzy sets and a minimum t-norm operation. The rule firing strength $F^i\left(x\right)$ for crisp input vector is given by the type-1 fuzzy set

$$F^l\left(x^{\prime }\right)=\left[\underset{\_}{f}{}^l\left(x^{\prime }\right),{\overline{f}}^l\left(x^{\prime }\right)\right]\equiv \left[\underset{\_}{f}{}^l,{\overline{f}}^l\right]$$

(8)

where $\underset{\_}{f}{}^l\mathrm{and}{\overline{f}}^l$ are the lower and upper firing degrees of the $l\mathrm{th}$ rule, computed using Equations (9) and (10)

$$\underset{\_}{f}{}^l\left(x^{\prime }\right)={\underset{¯}{\mathsf{\mu }}}_{{\tilde{F}}_1^l}\left(x_1^{\prime }\right)\ast \dots {\ast \underset{¯}{\mathsf{\mu }}}_{{\tilde{F}}_p^l}\left(x_p^{\prime }\right)$$

(9)

$${\overline{f}}^l\left(x^{\prime }\right)={\overline{\mathsf{\mu }}}_{{\tilde{F}}_1^l}\left(x_1^{\prime }\right)\ast \dots \ast {\overline{\mathsf{\mu }}}_{{\tilde{F}}_1^l}\left(x_p^{\prime }\right)$$

(10)

in which $\ast$ represents the t-norm, which is the $prod$ operator in these equations.

6.3. Type Reducer

All fuzzy logic systems have to produce a crisp output in order to have a practical application. The single combined type-2 fuzzy set has to be processed with the type reducer and the defuzzifier. Type-1 fuzzy set output is generated with the type reducer method. These outputs are converted into the crisp output through the defuzzifier. The defuzzifier combines the output sets to obtain a single output using one of the existing type reduction methods. The type reducer was proposed by Karnik and Mendel [58,63,64,65]. Many methods can be used for type reduction. Centroid type reduction, height type reduction, and center of set are the most commonly used. In these experiments a center of sets (cos) type reduction method was used. The expression of this method can be written as Equation (11).

$$Y_{cos}\left(x\right)=\left[y_l,y_r\right]={\int }_{y^1\in \left[y_l{}^1,y_r{}^1\right]}\dots {\int }_{y^1\in \left[y_l{}^M,y_r{}^M\right]}{\int }_{f^1\in \left[\underset{\_}{f}{}^1,{\overline{f}}^1\right]}\dots {\int }_{f^M\in \left[\underset{\_}{f}{}^M,{\overline{f}}^M\right]}/\frac{{\sum }_{i=1}^M{f}^i{y}^i}{{\sum }_{i=1}^M{f}^i}$$

(11)

This center of sets is completely characterized by its left and right end points. The consequent set of the interval type-2 determined those two endpoints ($y_l,y_r$). If the values of $f_i$ and $y_i$ which are associated with $y_l$ are donated to $f_l{}^i$ and $y_l{}^i$, respectively, and the values of $f_i$ and $y_i$ which are associated with $y_r$ are donated to $f_r{}^i$ and $y_r{}^i$ respectively, $\underset{\_}{f}{}^i\mathrm{and}{\overline{f}}^i$ are the lower and upper firing degrees of the $i\mathrm{th}$ rule and and $M$ is the number of fired rules. These points are given in Equations (12) and (13).

$$y_l=\frac{{\sum }_{i=1}^M{f}_l{}^i{y}_l{}^i}{{\sum }_{i=1}^M{f}_l{}^i}$$

(12)

$$y_r=\frac{{\sum }_{i=1}^M{f}_r{}^i{y}_r{}^i}{{\sum }_{i=1}^M{f}_r{}^i}$$

(13)

The interval type-2 fuzzy system’s outputs are represented with $y_l$ and $y_r$.

6.4. Defuzzifier

The interval fuzzy set $Y_{\cos }\left(x\right)$ variables obtained from the type reducer are defuzzified and the average of $y_l$ and $y_r$ are used to defuzzify the output of an interval singleton type-2 fuzzy logic system. The equation is written as

$$y\left(x\right)=\frac{y_l+y_r}{2}$$

(14)

7. Experimental Result

The main contribution of this work is its developing a visual-servoing-based control system for mobile robot path planning using IT2FIS and comparing the proposed method with other path planning algorithms. Many experiments have been done to verify the algorithm and to ensure that the simulation is really applicable based on the experimental results. The robot location, orientation, and target location were detected by using a shape-adapted mean shift algorithm. The object coordinate system was chosen as the center point of the geometric center. We have shown that this algorithm can be easily deployed on a real robot for path planning based on the results of the experimental study. The overall algorithms were implemented and tested on a 2.40 GHz dual-core system with 16GB of RAM using a combination of LabVIEW and MATLAB. To fully test the behavior of the algorithm, we performed a large number of experiments on the different maps. The results of the two experimental maps are given in Figure 8 and Figure 9. As shown in the figures, the image processing steps of the map for the robot path plan are shown. The obstacles in the map are depicted as black regions and the obstacle-free path is depicted as the white region. The obstacle placed between the robot and target is of a difficult shape and includes the possibility of local minimum problems. To overcome this problem a convex hull technique was applied. With this technique, we observed that the robot’s path leads easily to the target. IT2FIS methods could smoothly manage the path generation process and avoid obstacle on the way. The results of the two scenarios are shown below.

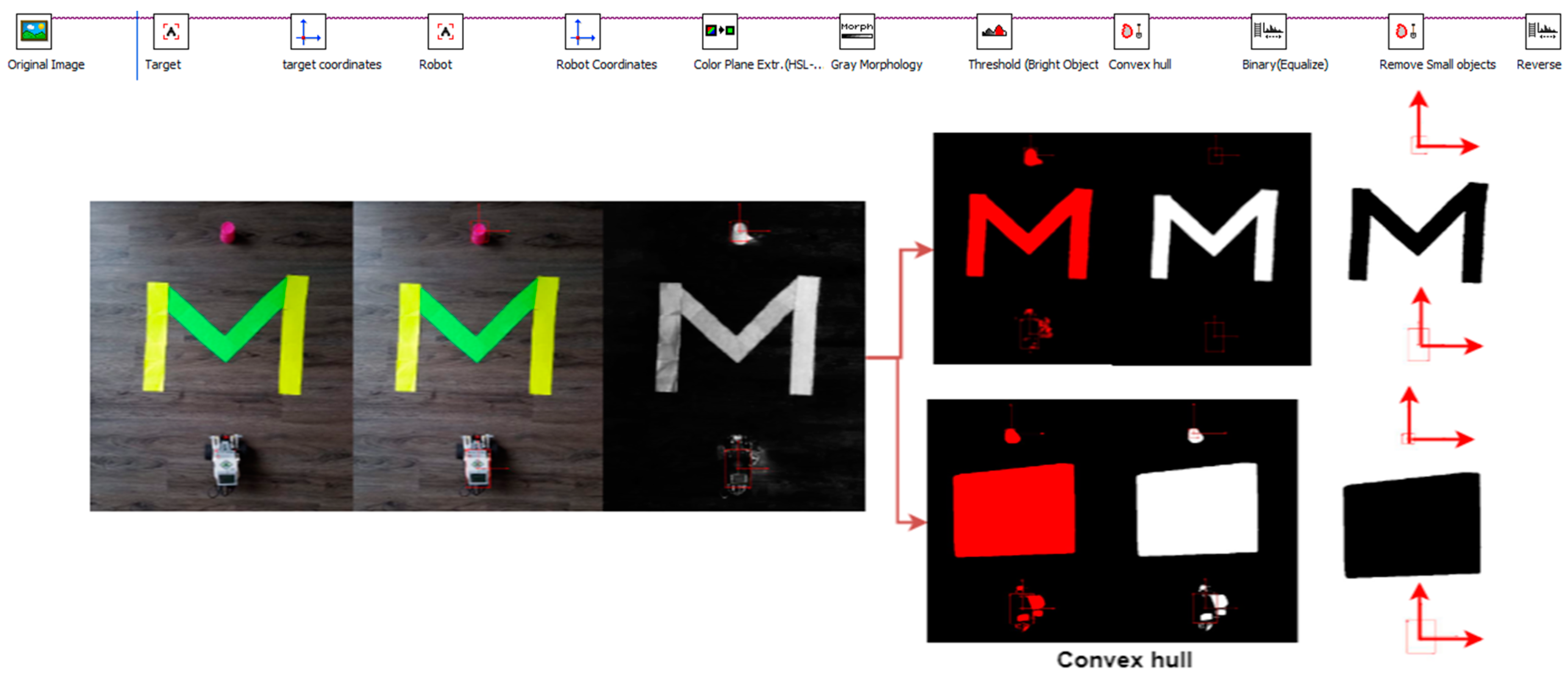

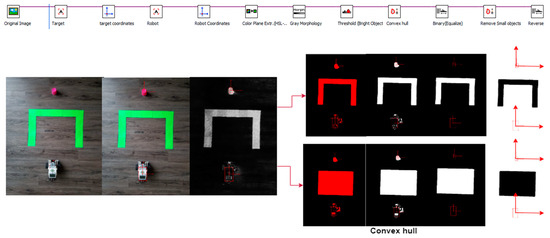

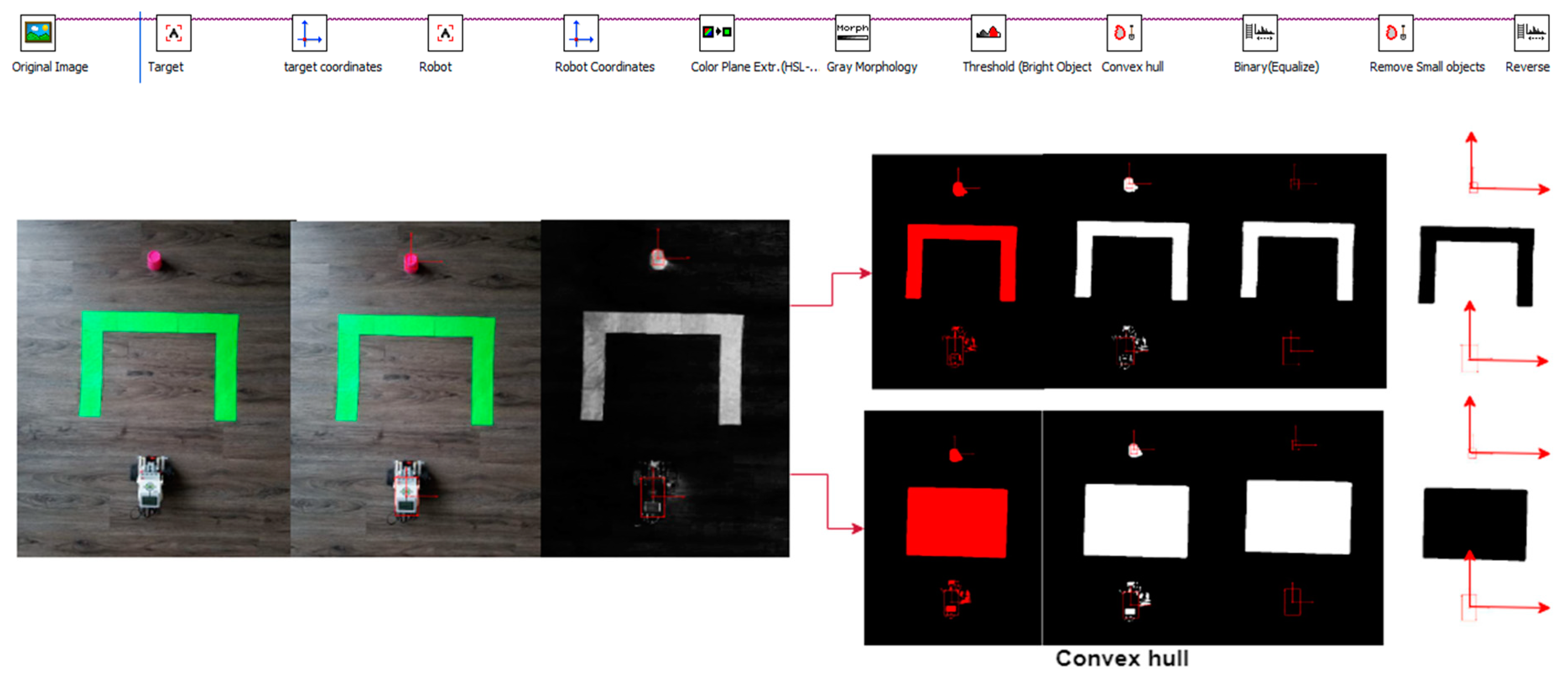

The first scenario (Figure 8) shows how the robot map is derived from the image algorithm for the purpose of calculating the unimpeded path for a real map. The objects on the map are the robot (white object), target (red object), and an obstacle (green object). The algorithm displays the map in the binary image. The first image contains all objects (robot, target, and obstacle) and only the obstacle is present in the last image. There are also some morphological processes in the intermediate processes. The bounding box around the robot and robot location information is determined from the first image. In order to obtain the final image, morphological processes and a convex hull technique were applied to the obstacle to resize it (see Figure 8 and Figure 9).

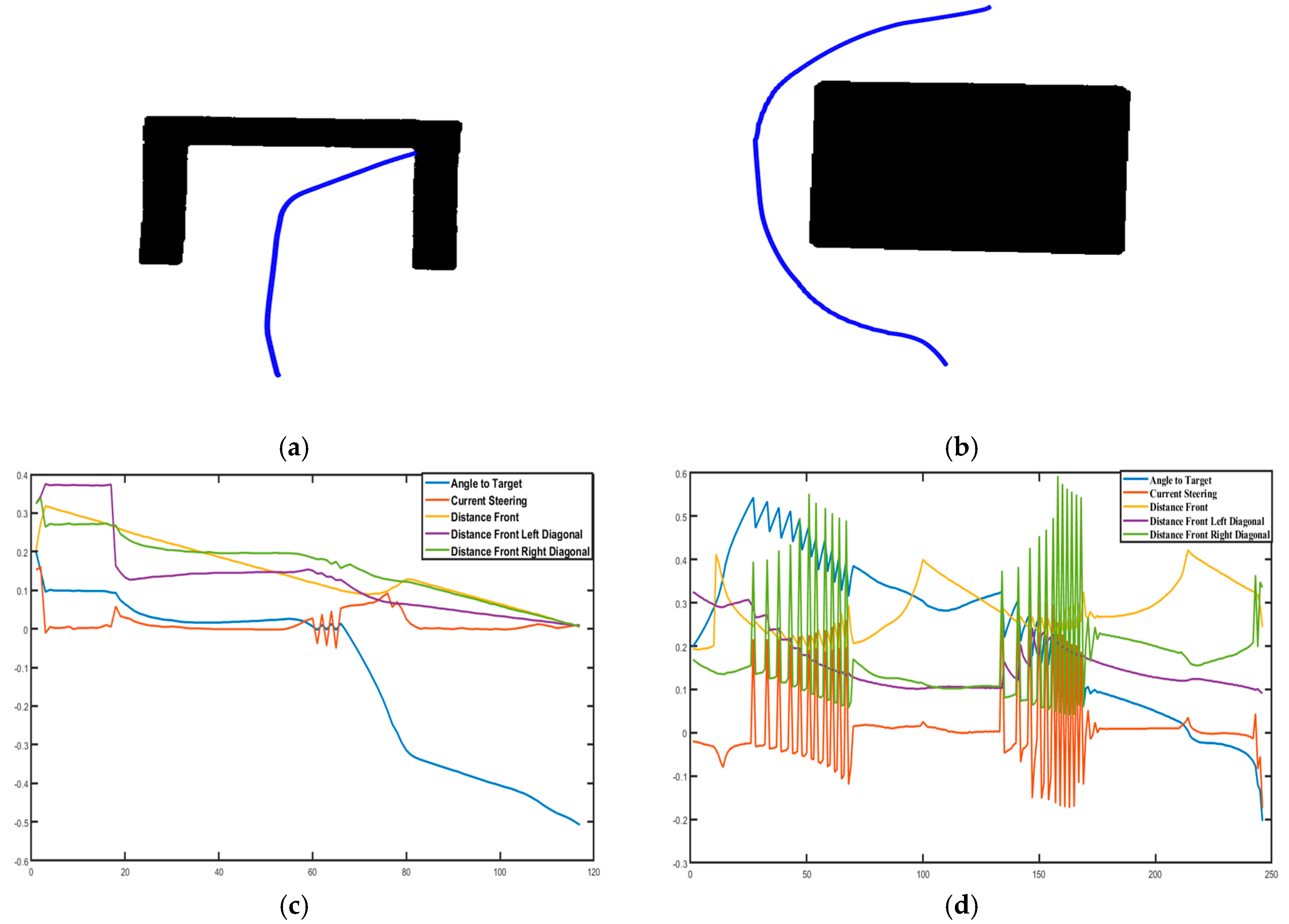

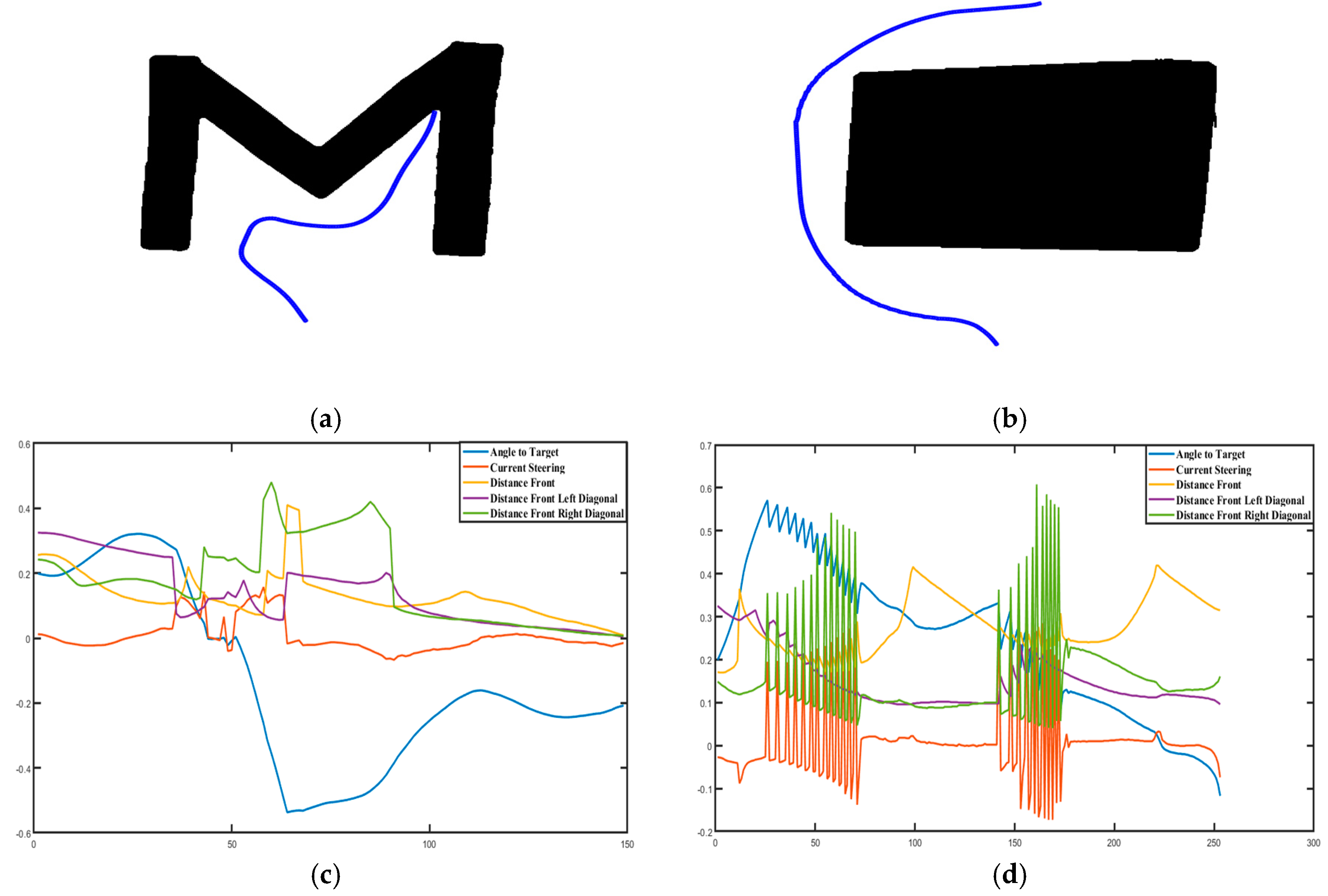

The system was tested under two different variable maps. First, it was tested under normal conditions (Figure 10a and Figure 11a). The system was tested to ensure that the robot monitors sharp angles in case of disabilities with irregular lines and distortions. The main purpose of this test was to control robot behavior on the map where the visual servo controller contains obstacles of variable lengths and sharp angles (Figure 10a and Figure 11a). As shown in these figures, the generated robot path is shown from its initial position to its endpoint (collision point). The calculated data at each point on the path that is obtained during the path generation is shown graphically in Figure 10c and Figure 11c. Secondly, in the dynamic map which formed under the changed conditions, it is shown that the robot goes to the target without colliding with obstacles by softening the boundary lines of obstacles in the working area and by filling the spaces with the convex hull method. This experiment tests the algorithm’s ability to establish a safe path without containing collisions with obstacles in the map shown in Figure 10b and Figure 11b. Here, the shortest path generation is not the priority; it is actually the safest path which is desired. It can be observed that the robot’s path is easily oriented towards the target. It manages to overcome obstacles of all dimensions and shapes that were in its way. The path generated is quite convenient and the algorithmic result is given in Figure 10b and Figure 11b. The data obtained during the path generation is shown graphically in Figure 10d and Figure 11d.

In

Table 2. Comparison values between mobile robot path planning algorithms used in our experiments.

Path Planning Algoriths.	Initial Position	Target Position	Path Length	Proces. Time (s)
Type-2 FIS (IT2FIS)	[Xr,Yr] = [470, 900]	[Tx,Ty] = [550, 120]	1245	1.8070
Type-1 FIS	[Xr,Yr] = [470, 900]	[Tx,Ty] = [550, 120]	1415	1.5781
APF	[Xr,Yr] = [470, 900]	[Tx,Ty] = [550, 120]	1437	1.6201
RRT	[Xr,Yr] = [470, 900]	[Tx,Ty] = [550, 120]	1387	1.3700
GA	[Xr,Yr] = [470, 900]	[Tx,Ty] = [550, 120]	1676	1.5399
PRM	[Xr,Yr] = [470, 900]	[Tx,Ty] = [550, 120]	1246	2.3793
BRRT	[Xr,Yr] = [470, 900]	[Tx,Ty] = [550, 120]	1448	2.6620
A Star	[Xr,Yr] = [470, 900]	[Tx,Ty] = [550, 120]	1212	1.832

, we aimed to compare the proposed method with other algorithms which are used for navigation and obstacle avoidance. Each algorithm was executed in two scenarios and their performance illustrated in Table 2 for the first scenario. Each method was executed under the same conditions (environmental, directional, and initial and target positions). The comparison table includes the path length and algorithm processing time. In this study, the processing time was taken into consideration. It is obvious from the results reported in Table 2 that the IT2FIS method performed better than the others.

8. Conclusions

The computational complexity of vision algorithms and the cost of sensors are the most critical aspects for real time applications. Vision sensors are a good cost-effective solution for vision-based navigation. The system is realized by the integration of vision-based obstacle detection methods and soft-computing-based path planning systems. In this paper, we propose an effective visual-servoing-based global path planning system using interval type-2 FIS and comparisons with various path planning algorithms. The limitations in conventional methods in terms of accuracy and efficiency were the main motivations behind this study. A novel distance estimation method using overhead camera systems was used which employed scale parameters from an IT2FIS algorithm. We tested new frameworks for the evolutionary algorithm for various scenarios. In our experiments, we observed that the algorithm failed when it encountered obstacles with complicated dimensions and sharp edge. To overcome these problems, we proposed a new algorithm. The algorithm merged image processing morphological operation with a convex-hull method to generate the desired collision-free path. The aim was to design an intelligent controller based on visual servoing using IT2FIS techniques. It is important to design a robust controller for mobile robot path planning with good performance in spite of the lack of information about the robot’s surrounding environment models. There were significant changes due to appearance-based environmental factors like constant illumination and lighting condition factors. To overcome these problems the proposed system was adopted, which combined IT2FIS and an overhead camera-based structure. The proposed system presented good performance and robustness through various applied scenarios. Comparisons with other algorithms have also been examined and the results have been shown. The provided simulation results demonstrated that our proposed approach acts successfully and is able to generate paths easily with good performances using IT2FIS. Thus the controllers’ outputs are much smoother and considerably safer paths are generated.
