Article

The Zitterbewegung in the Bivector Standard Model

by
Bryan Sanctuary
Department of Chemistry, McGill University, Montreal, QC H3A 0B8, Canada
Retired Professor.
Axioms 2026, 15(2), 116; https://doi.org/10.3390/axioms15020116
Submission received: 5 December 2025 / Revised: 10 January 2026 / Accepted: 2 February 2026 / Published: 4 February 2026
(This article belongs to the Special Issue Mathematical Aspects of Quantum Field Theory and Quantization)

Abstract

We show that the Zitterbewegung of the electron arises as a real internal motion when spin is treated as a classical bivector rather than as a point fermion of the Dirac equation. In the Bivector Standard Model, physically meaningful dynamics reside in the body-fixed frame where two orthogonal internal angular momentum vectors counter-precess about a torque axis. Their rigid rotation generates a time-dependent chord whose magnitude oscillates at twice the Compton frequency,  2 ω C , and whose orientation precesses at  ω C . When projected into a laboratory-fixed frame, this internal rotor produces the characteristic trembling motion of the Zitterbewegung and traces a horn torus envelope without additional assumptions. The internal clock defined by this cyclic bivector motion unifies the origin of spin properties and the de Broglie modulation. It distinguishes complementary parity domains that cannot be related by Lorentz transformations. The Zitterbewegung is therefore not an interference between positive- and negative-energy spinors, but rather the visible shadow of a real, energy-conserving internal rotation inherent to the bivector structure.

1. Introduction

In the standard formulation of relativistic quantum mechanics, the Zitterbewegung (ZBW) of the electron is interpreted as a rapid trembling motion arising from interference between the positive- and negative-energy components of the Dirac equation [1]. Because the Dirac velocity operator has eigenvalues  ± c , the position operator exhibits an oscillation at twice the Compton frequency,  2 ω C = 2 m e / ħ , with an amplitude on the order of the reduced Compton wavelength  λ ¯ C / 2 . In this conventional picture, the ZBW does not indicate internal geometry; it reflects algebraic mixing between the two energy components of the Dirac spinor in the laboratory-fixed frame (LFF).
In this paper, we adopt a geometrical interpretation. We show that the ZBW arises naturally from internal dynamics when the electron is treated not as a point fermion but as a bivector, as can be seen in Figure 1, refs. [2,3,4]. In the Bivector Standard Model (BiSM), the physical degrees of freedom reside in the body-fixed frame (BFF). The ZBW is the projection into the LFF of this internal motion. The BFF construction introduces internal bivector algebra, as described by Clifford Algebra  Cl ( 2 , 2 ) , refs. [5,6] associated with the spin degrees of freedom with basis  ( β s , e 1 , e 2 , e 3 ) . Here,  β s  labels the internal time coordinate of the BFF and subscript s describes spin spacetime; it does not replace physical Minkowski spacetime in the LFF  Cl ( 1 , 3 )  with basis  ( β , X , Y , Z ) , and all observable quantities inherit their Lorentz-covariant transformation properties from standard Dirac theory.

Motivation

The BiSM originates from the observation that the Klein–Gordon equation admits a second, equally valid linearization [3]. Dirac’s familiar linearization [7,8] leads to a matter–antimatter pair of spinors interpreted as an electron and positron. The alternative linearization, not considered by Dirac or others, produces a bivector representation in which a single electron carries two orthogonal internal spin axes within the same geometrical object [2,3]. These constructions are contrasted in Figure 2. Both contain a mirror plane dividing left- and right-handed components, but their meanings differ: in Dirac’s model, the halves represent a particle and antiparticle, whereas in the bivector model, they represent two internal blades of one electron. The second time-like direction represents the internal periodicity of the spin bivector.
Although too small to observe directly, the ZBW term plays a central role in Dirac theory where it is attributed to destructive and constructive interference of energy components within the Dirac equation,  E ± = ± m 2 + P k 2 . The physical interpretation of the negative-energy states has long been problematic, and this tension remains after reformulation in quantum field theory, QFT. In the BiSM, the same ZBW frequency arises instead from the internal bivector rotation. The positive and negative contributions are not separate physical states but the two counter-precessing blades of a single conservative system whose internal motions balance without invoking infinite negative-energy states. Thus, the ZBW appears in both the SM and the BiSM, but for entirely different reasons: in Dirac theory, it is an interference property of the spinor algebra, while in the BiSM, it is the projection of a real internal rotation into the LFF.

2. Zitterbewegung Formulation

In conventional Dirac theory [5,7,8], the electron is treated as a structureless point particle in Minkowski space. Its mass, spin, and magnetic moment are introduced algebraically from the behaviour of a four-component Dirac spinor [5]. The ZBW is derived directly from this operator structure; standard references include [9,10,11,12]. For completeness, we reproduce the conventional derivation in Appendix A.
Schrödinger first observed that the position operator in Dirac theory contains an oscillatory term [1,13]. This arises because the velocity operator does not commute with the free Hamiltonian,  H ^ , generating both the expected center-of-mass drift and an interference term oscillating at the frequency  2 H / ħ , as shown in Equation (A10). The Foldy–Wouthuysen transformation, ref. [14], reorganizes the operator content into mean and rapidly oscillatory contributions; it does not remove the underlying internal dynamics responsible for ZBW, which persist as a real oscillatory degree of freedom in the Dirac equation.
Several classical interpretations of Dirac’s theory have been proposed. Works by Barut and Zanghi [15], Rodrigues et al. [16], and Hestenes [17,18] have formulated the ZBW using classical trajectories or geometric algebra, but they retain the same underlying point particle ontology. None introduces genuine internal geometrical degrees of freedom analogous to the bivector structure developed in the BiSM.
Recent synthetic realizations reproduce ZBW-like interference patterns by implementing effective Dirac Hamiltonians such as trapped-ion analogues [19,20,21]; photonic lattices [22,23]; graphene [24]; metamaterials [25,26]; and ultracold atomic systems [27]. These experiments validate the algebraic structure of the Dirac operator but do not reveal the physical origin of the ZBW or probe internal electron geometry.
The bivector approach departs from these approaches by introducing real internal dynamics in the BFF. The remainder of this paper develops this geometrical mechanism and its projection into the laboratory frame.

3. Bivector Dynamics

3.1. Classical Bivector Geometry

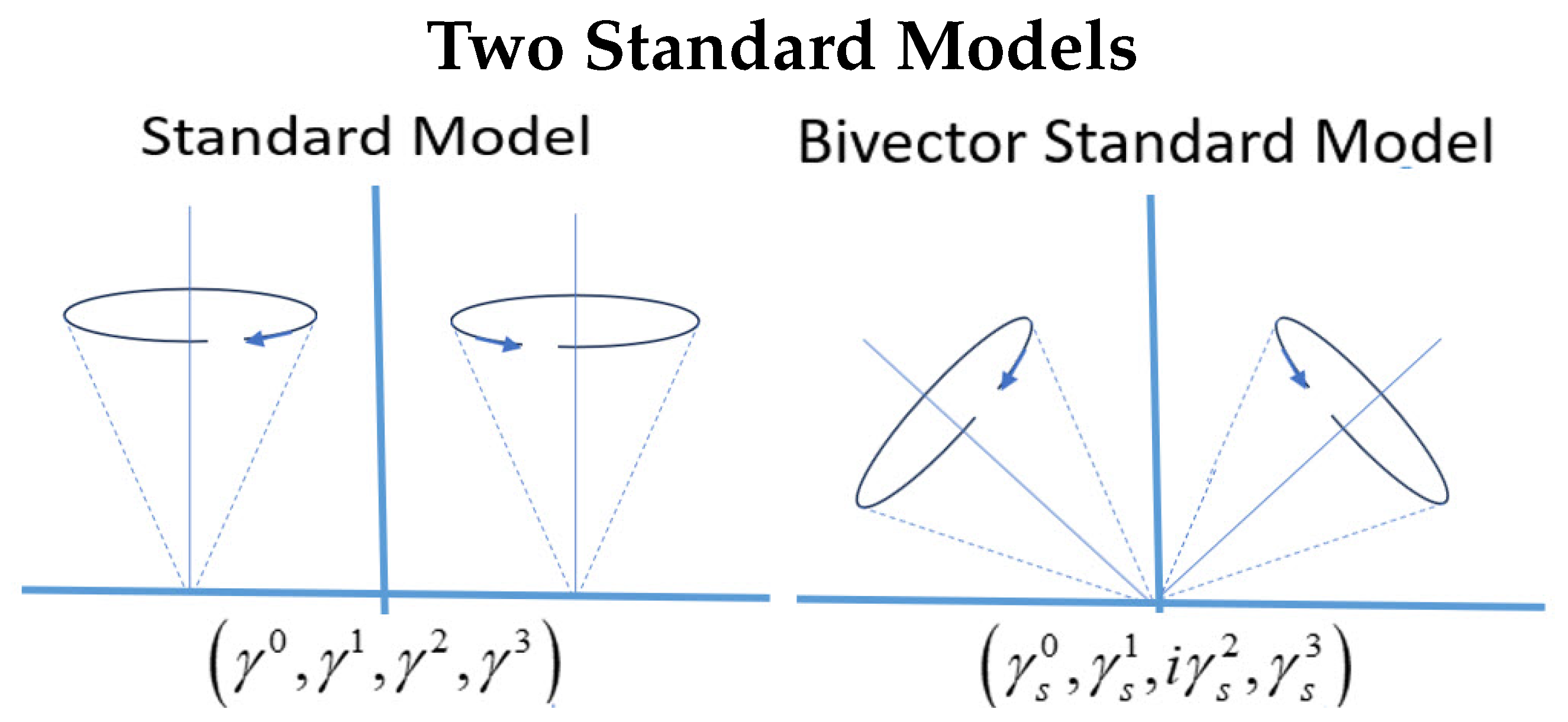

The sole difference between the BiSM and the SM lies in the treatment of spin. In the BiSM, spin is a bivector, not a point. It is a real geometrical object whose dynamics are those of a classical spin-1 boson [3]. At a critical rotation rate, this classical object undergoes a parity bifurcation that defines the quantum domain. In contrast, the SM assigns spin to a two-component chiral vector in a Hilbert space, with no classical correspondence. Additionally, the abstract mathematical, and largely physically obscure, QFT of the SM is replaced by geometric algebra (GA) [6], which is simple, local, and physically transparent.

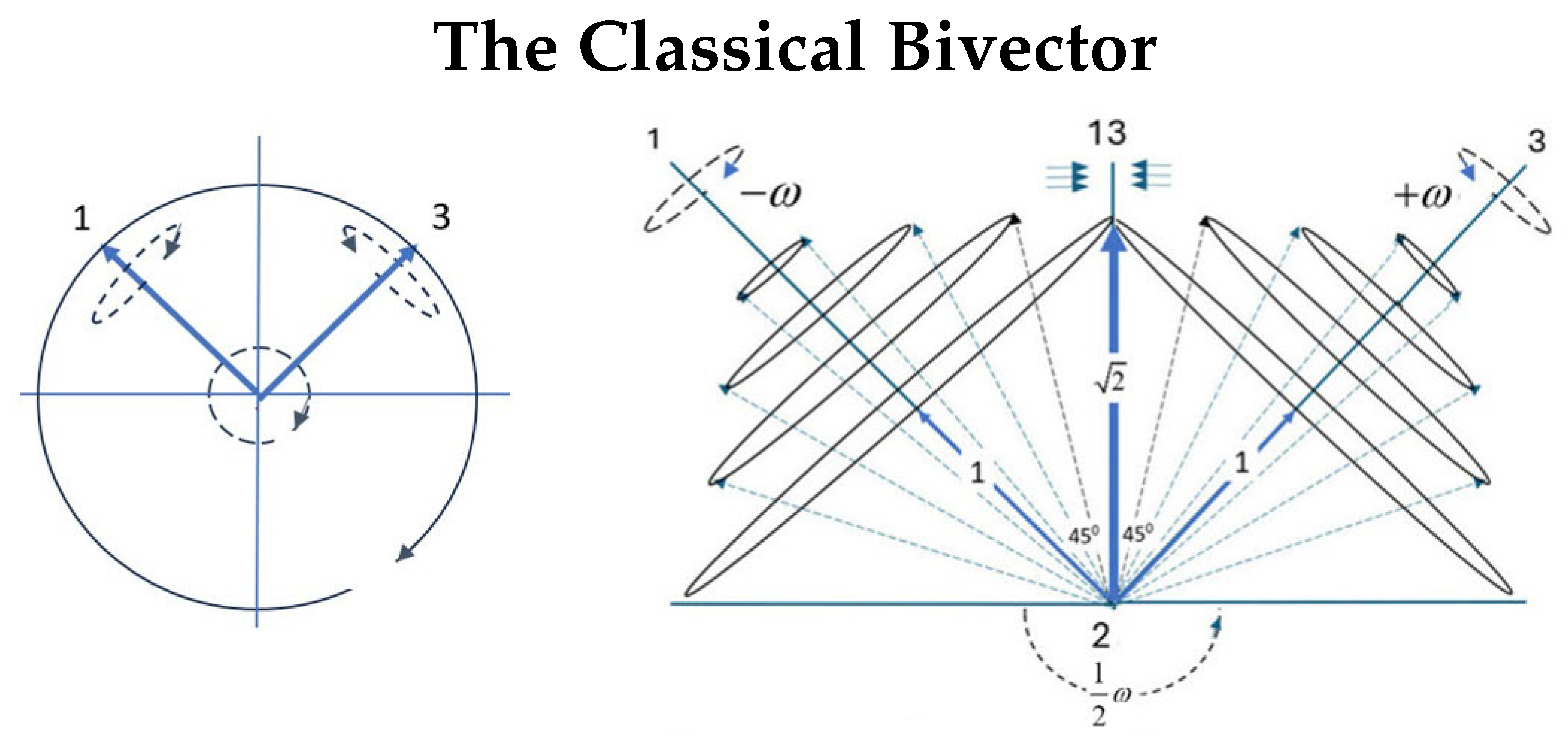

A bivector consists of two internal angular momentum vectors  S 1  and  S 3 , associated with orthogonal axes  e 1  and  e 3 , respectively. These vectors counter-precess about the torque axis  e 2  with equal and opposite frequencies, forming two mirror-image cones. In GA, the classical spin bivector is defined as the wedge product of the two blades [3], as follows:
B = S 1 S 3 .
For a rigid rotor with symmetry in the 13-plane, Euler’s equations [28] give the internal angular momenta as follows [3]:
S 3 = e 3 cos Θ + e 1 sin Θ , S 1 = e 1 cos Θ + e 3 sin Θ ,
where  Θ  is the cone half-angle determined by the torque magnitude about  e 2 . As  Θ  increases, the blades approach one another; when they meet, the system enters its even-parity quantum state. Define the separation angle  Φ  between the two blades at closest approach,
Φ = π 2 2 Θ ,
so that the blades can be expressed in the bisector basis,
S 3 = e + 31 cos Φ 2 + e 31 sin Φ 2 , S 1 = e + 31 cos Φ 2 e 31 sin Φ 2 ,
with
e 31 ± = 1 2 ( e 3 ± e 1 ) .
The scalar and bivector parts follow:
S 1 · S 3 = sin 2 Θ = cos Φ , S 1 S 3 = e 2 cos 2 Θ = e 2 sin Φ .
Thus, the blades oscillate continuously between alignment along the even bisector  e 31 +  and cancellation along the odd bisector  e 31 , repeatedly entering and leaving coherence. Normalizing  S i  yields a unit quaternion composed of a scalar and a bivector. The geometric product [6] gives
R B ( Φ ) = S 1 S 3 = S 1 · S 3 + S 1 S 3 = cos Φ + e 2 sin Φ = e e 2 Φ .
This internal rotor advances the internal phase in the 13-plane and determines the precession of both blades. As  Θ  increases from  0 π 4  i.e.,  Φ  decreases from  π 2 0 , the wedge term vanishes. Only the scalar part then remains, which represents the mass term in Equation (7). When  Φ 0 , the cones meet and the blades intertwine in their reflection plane, forming a double helix of even parity [3]. This is the quantum limit with magnetic number  m = 0 , where the system becomes electromagnetically inert. The polarized states, ( m = ± 1 ), arise when an external field perturbs this equilibrium, separating the blades and activating the two chiral components of the spin-1 boson. These axes are the two possible measured spin states of  1 2  showing that fermions are not fundamental particles, as inferred from the SM, but rather the polarized blades of bosons.

3.2. Parity

As independent fermions in the SM, each particle carries a state with opposite reflection. The electron is represented by the state as  ψ , and the positron as  ψ + . In the BiSM, the same states, also denoted by  ψ ± , represent instead the two internal blades of a single bivector. Since  e 1  lies in a left-handed frame (LHF) and  e 3  in a right-handed frame (RHF), the two blades are identical except for their chirality. A frame change interchanges these states by permuting the 1 and 3 labels, as shown in Equation (7). Using a permutation operator, which is also the parity operator, changes frames as required, as follows:
P 13 ψ ± = ψ .
Thus, the parity eigenstates are superpositions of reflection,
Ψ ± = 1 2 ( ψ + ± ψ ) ,
P 13 Ψ ± = ± Ψ ± .
In the BiSM,  P 13  is an internal BFF parity operator that acts on the bivector  ( 1 , 3 )  plane, that is, a reflection/permutation within that plane. We reserve P for the usual spacetime parity in Minkowski space.
The BFF contains only even-parity combinations. The external torque axis  e 2  is odd under parity and exists entirely in the LFF. Hence, the LFF and BFF correspond to complementary parity domains of spin, not to two coordinate frames in the same Minkowski space. Isotropy refers to the internal rotation within the BFF where all vector components are averaged while bivector components survive. Therefore, isotropic averaging eliminates all anisotropies while retaining the even-grade bivector structure.

3.3. Internal Isotropy

We formulate the ZBW directly within the internal BFF. The LFF and BFF have different symmetry. In the classical domain, the LFF allows for both symmetric and antisymmetric components. Matter and torque are together in our domain. In contrast, a spinning bivector attains the quantum domain when it reaches a state of even parity,  Ψ + . Even parity is symmetric, whereas the antisymmetric parts are moved to the odd parity domain in the LFF,  Ψ . This separates matter from force on the same particle. Owing to its rapid internal rotation, the BFF is governed only by even parity, as expressed in Equation (9).
This motion renders the classical bivector a boson [3]. Since the rapid counter-precession of the internal blades averages out all anisotropic components, any linear-momentum contributions, such as the  P k  appearing in Equation (A7), vanish when subjected to the dynamics of the rotating BFF. Thus, the BFF cannot support plane wave momentum eigenstates; only parity-even, isotropic components remain. This simplification makes the internal formulation of ZBW far more transparent than the LFF treatment. In this subsection, we adapt the usual ZBW derivation from Appendix A to the internal conditions of the BFF. The resulting motion is then transformed to the LFF, where the trembling motion is present at twice the Compton frequency.
To emphasize the distinction from the LFF, we replace the velocity operator  α  of Equation (A3) with its BFF analogue, as follows:
Γ s k γ s 0 γ s k ,
where  { γ s μ }  is the internal Clifford basis of the BFF. Although  γ s 0 γ s k  appears as the velocity operator in the LFF, in the BFF where translational degrees of freedom are absent, the same bivector generates internal rotations. Because the BFF has no translational degrees of freedom, the Hamiltonian reduces to
H ^ 0 = γ 0 m e c 2
This, however, does not describe internal dynamics. It merely restricts motion to the time-like direction in the LFF. To obtain the internal ZBW, the Hamiltonian must generate rotation of the internal 13-plane. We denote this internal Hamiltonian by  H ^ 2 .
Then, starting from the standard Heisenberg solution for the ZBW, as shown in Equation (A9), we replace the usual position operator by the internal chord operator  c ^  and apply the following substitutions:
X ^ ( t ) c ^ ( t ) , α k Γ s k , H ^ 0 H ^ 2 , P ^ k 0 .
All momentum terms drop out of Equation (A10), as required by BFF isotropy. Substituting the Heisenberg solution gives
c ^ ( t ) = i ħ 2 H ^ 2 Γ s e 2 i H ^ 2 t / ħ .
Time evolution in the BFF is generated differently than in the LFF. The bivector rotates rigidly about the torque axis  e 2 , causing the internal 13-plane to rotate at the Compton frequency. Thus, the generator of internal evolution is not  i γ 0  but the Clifford element that rotates the 13-plane, as follows:
i γ 0 i γ s 2 , H ^ 0 = γ 0 m e c 2 H ^ 2 = γ s 2 m e c 2 .
The parameter t remains the same coordinate time in both frames, but the generator differs: the LFF uses  i γ 0  while the BFF uses  i γ s 2 . With these replacements, and identifying the reduced Compton wavelength,  λ ¯ C = λ C / ( 2 π ) , the internal chord becomes
c ^ ( t ) = i λ ¯ C 2 γ s e 2 i γ s 2 ω C t .
The operator  c ^ ( t )  is Hermitian, with eigenvalues  ± λ ¯ C / 2  and fixed magnitude  | c ^ ( t ) | = λ ¯ C / 2 . The exponential factor is a quaternionic rotor that spins the internal 13-plane. Equation (16) is therefore the BiSM expression for the internal ZBW from the Dirac equation. In Section 5, we show that this internal motion generates the full trembling trajectory.

4. The ZBW Chord

Like the standard expressions in Appendix A, Equation (16) provides the form of the ZBW motion but not its geometrical mechanism. In the BiSM, this mechanism is explicit. The ZBW arises from the time-dependent separation of the two internal blades,  S 1  and  S 3 , whose counter-precession generates an oscillating internal chord. Because the two internal blades carry equal and opposite magnetic moments arranged so that the external multipoles are stationary in the LFF, the ZBW motion does not radiate and an electron does not lose energy. The internal motion can only be probed indirectly, through observables such as the magnetic moment, the de Broglie modulation, the Lamb shift, the quadrupole structure of spin correlations, etc. We now derive this, first in the BFF.

4.1. The ZBW Origin

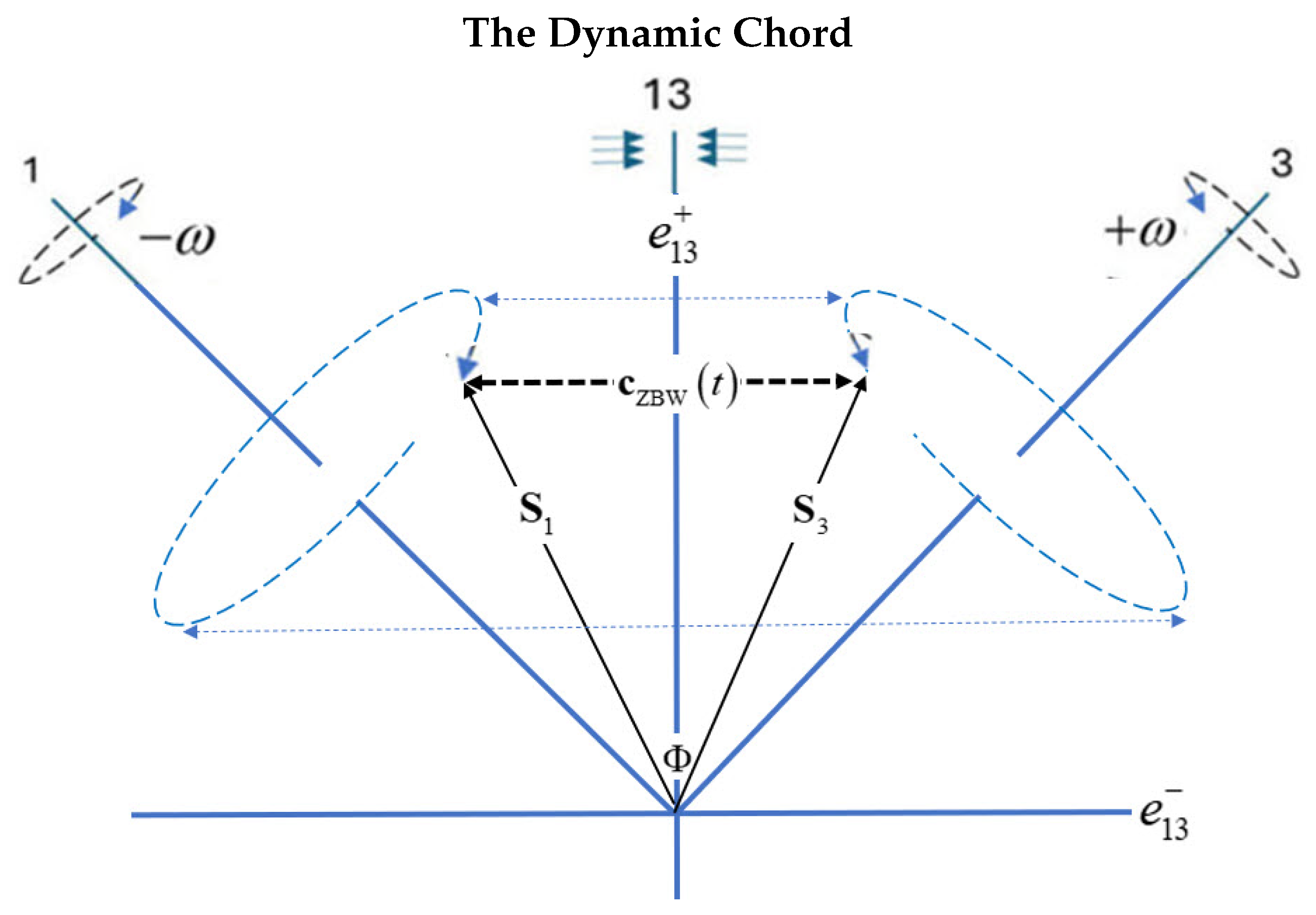

The two internal blades  S 1  and  S 3  precess in the BFF with equal and opposite angular frequencies  ± ω C  about the torque axis  e 2 , as illustrated in Figure 3. Their instantaneous separation defines the internal ZBW chord
c Z B W ( t ) = S 1 ( t ) S 3 ( t ) .
Let the azimuthal angles of the blades be  ϕ 1 ( t )  and  ϕ 3 ( t ) . The BFF dynamics give
ϕ ˙ 1 = + ω , ϕ ˙ 3 = ω .
The relative phase therefore advances as
Δ ϕ ( t ) = ϕ 1 ( t ) ϕ 3 ( t ) = Δ ϕ ( 0 ) + 2 ω t ,
so any geometrical quantity, depending on this separation, oscillates at the doubled frequency  2 ω .
In the limit  Φ 0  (equivalently  Θ π / 4 ), the two cones touch and the chord collapses to zero, as follows:
| c Z B W ( t ) | 0 .
This corresponds to the even-parity quantum limit, where only mass survives and no ZBW is possible. This limit is not envisioned in Equation (A10). For any nonzero  Φ , however, the blades remain separated and the chord acquires a finite amplitude, producing the ZBW. In the regime of interest,  Φ 0 , we choose  ω ω C .

4.2. Double Cover and Projection to the LFF

The BFF itself precesses in the LFF at the Compton frequency  ω C  about  e 2 . The associated rotor is
R B ϕ 2 , ϕ = ω C t .
Because this rotor acts within the 13-plane, its physical period is  4 π  because after a  2 π  rotation, the bivector configuration is unchanged but the rotor changes sign,  R B ( 2 π ) = R B ( 0 ) . Only a  4 π  rotation returns both the configuration and the rotor to their initial values. This double cover is essential. The internal motion advances at  2 ω C , while the BFF precesses at  ω C , maintaining a fixed  2 : 1  phase ratio. The LFF therefore receives a stroboscopic projection of the doubled internal frequency, rather than an averaged-out motion.
Using the bisector basis of Equation (5), consider the touching configuration  Φ = 0 . In this case, the blades oscillate between alignment along the even bisector  e 13 +  and cancellation along the odd bisector  e 13 . Thus, the chord moves symmetrically from zero length to alignment along opposite directions of  ± e 13  with equal magnitude and opposite signs. Since it oscillates at  2 ω C , the spatial wavelength is  λ ¯ C / 2 , which is the reduced Compton wavelength. The maximum displacement of each blade along  e 13  is therefore  ± λ ¯ C / 4 , giving a chord amplitude of
| c Z B W | max = λ ¯ C 4 λ ¯ C 4 = λ ¯ C 2 .
Thus, the internal ZBW amplitude is identical to the result obtained from the Dirac analysis, as shown in Equation (16). The spin bivector  γ s  lies along  e 13 , so the orientation and amplitude of the Compton-scale chord follows from the bivector geometry as follows:
c ZBW ( t ) = λ ¯ C 2 cos ( 2 ω C t ) e 13 .

4.3. Projection to the Laboratory Frame

Projection to the LFF requires rotating  e 13  from the BFF basis to the laboratory basis using the rotor  R B ( ϕ / 2 ) . Applying Equation (7) gives
R B ϕ 2 e 13 R B ϕ 2 = cos ϕ e 13 + sin ϕ e 13 + = cos ( ϕ π 4 ) e 1 + sin ( ϕ π 4 ) e 3 .
Since the axis of linear momentum is  e 2 = Y , both  X Z  and  e 1 e 3  are coplanar, and we identify the LFF axes by rotating the  e 1 e 3  plane by an angle  χ , as follows:
e 3 = cos χ Z + sin χ X , e 1 = sin χ Z + cos χ X .
Substituting into Equation (24) yields the LFF form
C Z B W ( t ) = R B ϕ 2 c Z B W ( t ) R B ϕ 2 = λ ¯ C 2 cos ( 2 ω C t ) cos ω C t π 4 χ X + sin ω C t π 4 χ Z .
The result is the characteristic trembling trajectory of the electron.

5. Toroidal Structure

The unit vector in Equation (26) is re-written as
u ^ ( ϕ , χ ) = cos ( ϕ π 4 χ ) X ^ + sin ( ϕ π 4 χ ) Z ^ ,
which gives the instantaneous direction in the  X Z  plane of the bisector  e 13 . In other words,  u ^ ( ϕ , χ )  is the LFF image of this internal bisector axis. Thus, in the LFF, the ZBW chord appears as a vector,  u ^ ( ϕ , χ ) , rotating in the  X Z  plane at the carrier frequency  ω C . Simultaneously, its magnitude is modulated by  2 ω C . These combined rotations describe motion on a torus [29]. A toroidal angle  ϕ  and a poloidal angle  θ  are introduced as follows:
ϕ = ω C t , θ = 2 ω C t ,

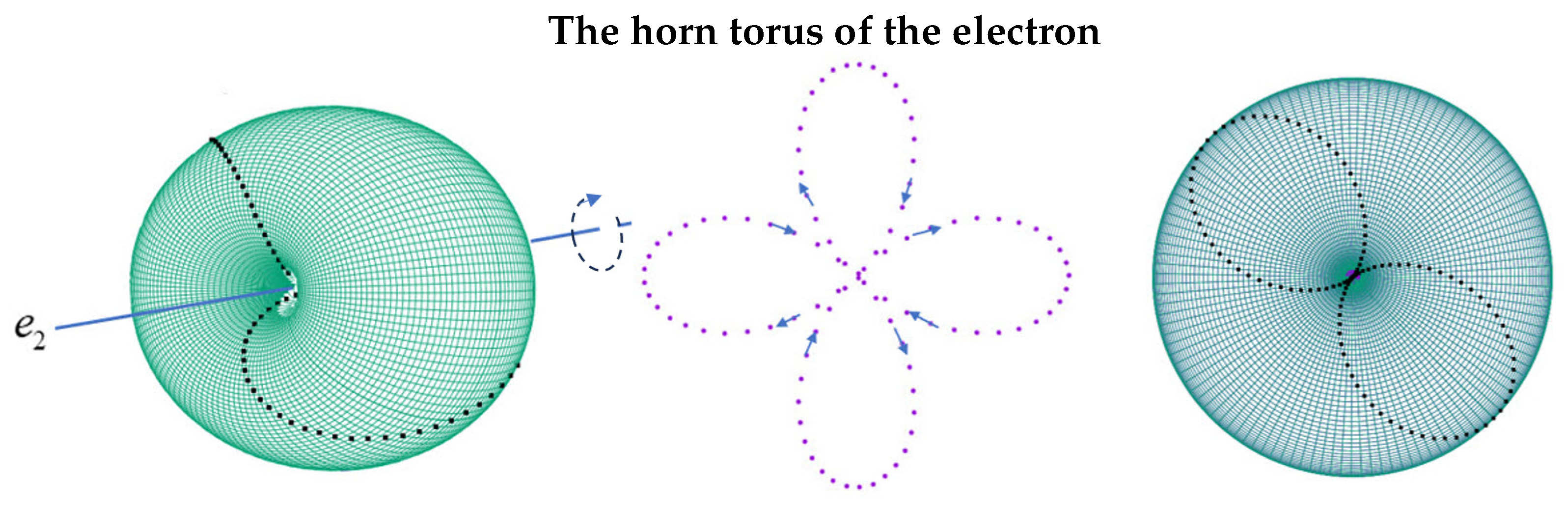

Using this, the ZBW trajectory can be written in a standard torus parameterization as
C ZBW ( ϕ , θ ) = R 0 + r 0 cos θ u ^ ( ϕ , χ ) + r 0 sin θ e 2 .
Here,  R 0  is the major radius set by the carrier rotation of the chord center about the torque axis  e 2 , and  r 0  is the minor radius describing the radial excursion of the chord tip. In the equatorial slice  e 2 = 0 , one has
C ZBW ( ϕ , θ ) e 2 0 R 0 + r 0 cos θ u ^ ( ϕ , χ )
so the radial breathing amplitude around the major circle is exactly  r 0 . Comparing with Equation (26), we identify the amplitude as
r 0 = λ ¯ C 2 .
The major radius,  R 0 , is the distance from the center of the torus to the equatorial circle at  e 2 = 0 , while the minor radius,  r 0 , is the radius of the tube. Since the chord can shrink to zero length, we choose  R 0 = r 0 . This gives a horn torus where the inner hole closes and the surface pinches on the  e 2  axis. Here, the chord has zero length. This geometry is illustrated in Figure 4. The torus represents all values of  ϕ  and  θ , but the ZBW coordinate moves on the surface with a definite trajectory required by  θ = 2 ϕ , also shown in Figure 4. It circles around  e 2  at  ω C , while its radial distance from the axis oscillates at twice that rate. In particular, viewed down the  e 2  axis, the chord lies in the  X Z  plane that rotates, while its length oscillates between 0 and  λ ¯ C / 2  with frequency  2 ω C . It reaches its maximum and breathes four times during each full  2 π  rotation, returning to zero in between, as shown in Figure 4. Smoothly following the arrows of the center panel shows that for, say, left precession about the 2-axis, the petals move in and out sequentially in the opposite, right, direction.
From a multipole perspective, the four-petal rose is the natural symmetry once the rapid internal precession has averaged away all vector components. This leaves the lowest non-vanishing moment as a quadrupole. The four petals of the rose therefore represent the quadrupole projection of the dynamic bivector: four successive phases in which the internal chord expands and contracts in a state of even parity.

Toroidal Models

The geometrical picture that emerges from this analysis connects naturally with the long history of toroidal electron models. The earliest proposals began in 1915 with Parson’s ring-electron model [30], showing that circulating internal motion could account for its magnetic moment and angular momentum. Later ZBW-based approaches, especially the GA formulation of Hestenes [18], extended this idea by identifying an intrinsic circular motion as the origin of spin. Other constructions, such as Consa’s helical solenoid models [31] and the EM-confined toroidal electrons proposed by Santos and Fleury [32], have shown success.
A toroidal electron was proposed by Williamson and van der Mark [33], who modeled the electron as a single photon confined on a double-loop torus of radius  r 0 = λ ¯ C / 2 , the same as we find here. Their internal photon wavelength was equal to the Compton wavelength. They anticipated many features of the BiSM, including the real ZBW. What they lacked was the geometric algebra framework needed to express their ideas consistently. The GA of the BiSM provides that missing structure. The torus becomes a bivector rotor; the double-loop topology becomes parity-splitting; the circulating photon becomes the internal clock; and mass, spin, and interference emerge from a single confined bivector entity. The BiSM is not just close to the toroidal model, it provides the complete mathematical and physical basis for it.
A review by Fleury [34] emphasizes both the appeal and the limitations of these approaches. Across these areas, one sees the same underlying geometry: a two-dimensional internal plane supporting counter-rotating components whose projection into spacetime allows it to acquire a toroidal envelope. In the BiSM, this structure is not introduced by assumption, but rather naturally falls out of the geometry. The torus observed in the LFF does not require an extra hypothesis. The torus electron is not the starting point of a model but rather the consequence of spin being a bivector. This suggests why many disparate toroidal models have appeared over the past century and why the bivector offers the fundamental mechanism on which those models implicitly rely.

6. The Internal Clock

A clock is a physical system whose state evolves through a stable periodic cycle, allowing elapsed time to be measured by counting its cycles or fractions. The ZBW is the LFF manifestation of the periodic internal dynamics of the electron [1].
In the BiSM, this clock arises from the real cyclic motion of the bivector blades. Their counter-precession fixes a definite instantaneous orientation in the 13-plane, just as the hands of a clock specify a moment of time. The oscillating chord provides the projection of this internal phase evolution into the LFF.
The clock does not arise from a quantization rule or from a superposition of energy eigenstates, but rather directly from the intrinsic bivector dynamics, which introduces an internal time structure associated with the  i γ s 2 , refs. [6,17]. It is complementary to the laboratory time  i γ 0  and a consequence of the algebra  Cl ( 2 , 2 ) .

De Broglie Wavelength

When the electron translates through space, the internal oscillation is carried forward with its motion. The internal phase that advances at the Compton rate in the BFF now accumulates along the electron’s trajectory in the LFF, giving the usual plane wave form of the free electron [35] in the isotropic  m = 0  state,
Ψ ( x , t ) = A exp i ħ ( p x E t ) = A e i α ( x , t ) .
Define the phase  α ( x , t ) = k x ω t  with  k = p / ħ  and  ω = E / ħ . At a fixed time, t, the phase advances by  2 π  when x increases by one de Broglie wavelength:
Δ α = α ( x + λ dB , t ) α ( x , t ) = k λ dB = 2 π ,
so that
λ dB = 2 π k = h p = h γ m e v = λ C c γ v .
Thus, the de Broglie wave is a modulation of the internal Compton periodicity associated with the bivector clock when the electron is transported through space.
In this view, the de Broglie wavelength arises from the geometric modulation of the internal bivector clock by translational motion. The bivector clock is, therefore, the origin of matter waves.
For reference, the de Broglie wavelength spans many orders of magnitude across common electron energies. A thermal electron at room temperature has  λ dB 7 nm , large enough to diffract from nanostructures [36]. At  100 eV , typical of low-energy electron diffraction, the wavelength shortens to about  0.12 nm , comparable to atomic spacings [37]. In electron microscopy, a  10 keV  beam has  λ dB 0.012 nm , well below the size of an atom [38]. At relativistic energies, such as  100 keV  in transmission electron microscopes, the wavelength reaches the picometer scale,  λ dB 1.1 pm , far smaller than a Bohr radius [39]. This rapid contraction of  λ dB  with increasing momentum reflects the geometrical modulation of the internal Compton clock that underlies matter wave phenomena in the BiSM framework.
Although the modulation produces a standard plane wave form in the LFF, there is no independent wave–particle duality in the BiSM. The internal rotor provides the localized structure in the BFF, while the spatial accumulation of the same internal phase appears as the de Broglie wave in the LFF.
The wave and particle descriptions are therefore complementary projections of a single bivector object rather than distinct physical modes. The observed coherence and interference of matter waves arise directly from this geometrical structure and do not require superposition of multiple internal states.
In summary, the internal clock is an intrinsic periodic phase evolution inherent in the bivector structure of the free electron [40,41]. It requires no external fields or adjustable parameters. It is the central physical ingredient of the bivector model. It supplies the ZBW, the toroidal laboratory-frame trajectory, and the de Broglie modulation in the isotropic free-electron state. The clock emerges from the bivector and unifies the internal and external dynamics of the electron.

7. Discussion

In the BiSM, the LFF and the BFF are not two coordinate choices on a single spacetime manifold; they correspond to complementary parity domains of the bivector. The LFF carries the odd-parity observable projection: an external rotating vector that couples to electromagnetic fields and enables measurement [4]. The BFF carries the even-parity internal rotor formed by the counter-precessing blades; its dynamics result from the conservative internal geometry of the electron.
A Lorentz transformation [5] acts entirely within Minkowski space. It preserves the metric, maps four vectors to four vectors, and preserves intrinsic parity. It cannot transport degrees of freedom into a different parity domain. Therefore, no Lorentz boost or rotation can convert internal BFF variables (even parity) into LFF observables (odd parity). The relation between the two frames is not a coordinate transformation but a projection generated by the bivector rotor and its double cover. The BFF LFF correspondence is a geometrical transformation, not a map between relativistic inertial frames. This separation is not optional. The two frames possess distinct time generators:  i γ 0  in the LFF and  i γ s 2  in the BFF. A Lorentz boost extended to the BFF would distort the internal clock and the electron, thereby violating the invariance of its Compton period. Maintaining separate time generators is therefore essential for consistency of the bivector structure.
Additional consequences follow from this complementarity. EPR correlations [42,43] arise naturally when both the vector and bivector dynamics are taken into account. Bell’s inequalities [44] are violated not through non-locality but through the presence of two distinct parity domains, each of which provides correlation. The double cover is preserved, chirality of the blades is maintained, and spin acquires a dual structure consistent with the bivector geometry.
Within the BiSM, the ZBW is not an interference artifact but a real internal motion. Expressed in the BFF, the separation of the blades generates the internal ZBW chord. When projected to the LFF, this appears as a “twinkling” star. The resulting toroidal envelope follows directly from the geometry of the bivector motion and requires no additional assumptions. The torus is therefore not a model input but an unavoidable geometric consequence of the bivector dynamics. The ZBW emerges as the visible projection of a real, energy-conserving internal rotation. This demonstrates the classical correspondence between internal and external motion once the bivector structure is recognized.
We conclude that the point particle electron of the SM must give way to a two dimensional bivector with internal dynamics. The bivector is the simplest structure beyond a point, and the BiSM provides a coherent replacement in which the internal and external dynamics of the electron are not imposed but arise naturally from classical geometry. This viewpoint offers a unified basis for reinterpreting spin, chirality, and charge within the bivector structure [3].

Funding

This research received no external funding.

Data Availability Statement

The original contributions presented in this study are included in the article. Further inquiries can be directed to the corresponding author.

Conflicts of Interest

The authors declare no conflicts of interest.

Appendix A. Derivation of the Zitterbewegung

This appendix summarizes the standard textbook derivation of the ZBW for a free Dirac particle in the LFF. No assumptions from the BiSM are used. The presentation follows Thaller [10] and Greiner [11].

Appendix A.1. Dirac Equation and Hamiltonian Form

We begin with the free Dirac equation
( i γ μ μ m e ) Ψ = 0 ,
with metric signature  ( + , , , )  and coordinates  ( t , X 1 , X 2 , X 3 ) . Multiplying on the left by  γ 0  and using  { γ 0 , γ k } = 0  gives the Schrödinger form
i ħ t Ψ = H ^ Ψ , H ^ = γ 0 γ k P ^ k + m e ,
where  P ^ k = i ħ X k . Define the standard velocity matrices
α ^ k γ 0 γ k
so that  α ^ = ( α ^ 1 , α ^ 2 , α ^ 3 ) .

Appendix A.2. Velocity Operator

In the Heisenberg picture,  A ^ ˙ = i ħ [ H ^ , A ^ ] . Using  [ X ^ k , P ^ ] = i ħ δ k , we obtain
X ^ ˙ k = i ħ [ H ^ , X ^ k ] = i ħ γ 0 γ j [ P ^ j , X ^ k ] = γ 0 γ k = α ^ k ,
and therefore
V ^ = X ^ ˙ = α ^ .
The operator  α ^ k  has eigenvalues  ± 1  (i.e.,  ± c ), which is a consequence of the anti-commutation  { α ^ i , α ^ j } = 2 δ i j . These eigenvalues characterize the internal spinor structure of the Dirac field rather than the classical velocity of a point particle.

Appendix A.3. Evolution of the Velocity Operator

We now compute  α ^ ˙ k  as follows:
α ^ ˙ k = i ħ [ H ^ , α ^ k ] = i ħ γ 0 ( γ j P ^ j + m e ) , γ 0 γ k = 2 i ħ P ^ k H ^ α ^ k ,
giving the standard Heisenberg equation for the Dirac velocity. Solve Equation (A5) as follows:
α ^ k ( t ) = H ^ 1 P ^ k + ( α ^ k ( 0 ) H ^ 1 P ^ k ) e 2 i H ^ t / ħ ,
or in vector form
α ^ ( t ) = H ^ 1 P ^ + ( α ^ ( 0 ) H ^ 1 P ^ ) e 2 i H ^ t / ħ .
The second term in Equation (A7) oscillates at frequency  2 H / ħ  and is the origin of the ZBW.

Appendix A.4. Position Operator and the ZBW

Since  X ^ ˙ ( t ) = α ^ ( t ) , integration gives
X ^ ( t ) = X ^ ( 0 ) + 0 t α ^ ( t ) d t = X ^ ( 0 ) + H ^ 1 P ^ t + i ħ 2 H ^ ( α ^ ( 0 ) H ^ 1 P ^ ) ( e 2 i H ^ t / ħ 1 ) .
The last term is time-independent and absorbed into the constant,  X ^ ( 0 ) , as follows:
X ^ ( 0 ) X ^ ( 0 ) i ħ 2 H ^ ( α ^ ( 0 ) H ^ 1 P ^ )
yielding the standard form
X ^ ( t ) = X ^ ( 0 ) + H ^ 1 P ^ t + i ħ 2 H ^ ( α ^ H ^ 1 P ^ ) e 2 i H ^ t / ħ = X ^ ( 0 ) + X ^ drift ( t ) + X ^ ZBW ( t )
The first term is the initial position; the second gives the uniform drift of the center of mass; and the third is the conventional expression for the ZBW term, as follows:
X ^ ZBW ( t ) = i ħ 2 H ^ ( α ^ H ^ 1 P ^ ) e 2 i H ^ t / ħ

References

  1. Schrödinger, E. Über die kräftefreie Bewegung in der relativistischen Quantenmechanik. Sitzungsber. Preuss. Akad. Wiss. 1930, 24, 418–428. [Google Scholar]
  2. Sanctuary, B. Quaternion Spin. Mathematics 2024, 12, 1962. [Google Scholar] [CrossRef]
  3. Sanctuary, B. The Classical Origin of Spin: Vectors Versus Bivectors. Axioms 2025, 14, 668. [Google Scholar] [CrossRef]
  4. Sanctuary, B. The Fine-Structure Constant in the Bivector Standard Model. Axioms 2025, 14, 841. [Google Scholar] [CrossRef]
  5. Peskin, M.; Schroeder, D.V. An Introduction to Quantum Field Theory; Frontiers in Physics: Boulder, CO, USA, 1995. [Google Scholar]
  6. Doran, C.; Lasenby, J. Geometric Algebra for Physicists; Cambridge University Press: Cambridge, UK, 2003. [Google Scholar]
  7. Dirac, P.A.M. The quantum theory of the electron. Proc. R. Soc. Lond. Ser. A 1928, 117, 610–624. [Google Scholar] [CrossRef]
  8. Dirac, P.A.M. A Theory of Electrons and Protons. Proc. R. Soc. Lond. A 1930, 126, 360–365. [Google Scholar] [CrossRef]
  9. David, G.; Cserti, J. General theory of ZBW. Phys. Rev. B—Condens. Matter Mater. Phys. 2010, 81, 121417. [Google Scholar] [CrossRef]
  10. Thaller, B. The Dirac Equation; Springer Science & Business Media: Berlin/Heidelberg, Germany, 2013. [Google Scholar]
  11. Greiner, W. Relativistic Quantum Mechanics; Springer: Berlin/Heidelberg, Germany, 1990; Volume 3. [Google Scholar]
  12. Bjorken, J.D.; Drell, S.D.; Mansfield, J.E. Relativistic Quantum Mechanics; McGraw-Hill, Inc.: Columbus, OH, USA, 1965. [Google Scholar]
  13. Schrödinger, E. Collected Papers on Wave Mechanics; Blackie & Son: London, UK, 1928. [Google Scholar]
  14. Foldy, L.L.; Wouthuysen, S.A. On the Dirac theory of spin 1/2 particles and its non-relativistic limit. Phys. Rev. 1950, 78, 29. [Google Scholar] [CrossRef]
  15. Barut, A.O.; Zanghi, N. Classical model of the Dirac electron. Phys. Rev. Lett. 1984, 52, 2009. [Google Scholar] [CrossRef]
  16. Rodrigues, W.A., Jr.; Vaz, J., Jr.; Recami, E.; Salesi, G. About zitterbewegung and electron structure. Phys. Lett. B 1993, 318, 623–628. [Google Scholar] [CrossRef][Green Version]
  17. Hestenes, D. Spacetime physics with geometric algebra. Am. J. Phys. 2003, 71, 691–714. [Google Scholar] [CrossRef]
  18. Hestenes, D. The zitterbewegung interpretation of quantum mechanics. Found. Phys. 1990, 20, 1213–1232. [Google Scholar] [CrossRef]
  19. Gerritsma, R.; Kirchmair, G.; Zähringer, F.; Solano, E.; Blatt, R.; Roos, C.F. Quantum simulation of the Dirac equation. Nature 2010, 463, 68–71. [Google Scholar] [CrossRef]
  20. Blatt, R.; Roos, C.F. Quantum simulations with trapped ions. Nat. Phys. 2012, 8, 277–284. [Google Scholar] [CrossRef]
  21. Arrazola, I.; Pedernales, J.S.; Lamata, L.; Solano, E. Digital-analog quantum simulation of spin models in trapped ions. Sci. Rep. 2016, 6, 30534. [Google Scholar] [CrossRef]
  22. Dreisow, F.; Heinrich, M.; Keil, R.; Tünnermann, A.; Nolte, S.; Longhi, S.; Szameit, A. Classical simulation of relativistic Zitterbewegung in photonic lattices. Phys. Rev. Lett. 2010, 105, 143902. [Google Scholar] [CrossRef]
  23. Dreisow, F.; Rechtsman, M.C.; Zeuner, J.M.; Plotnik, Y.; Keil, R.; Nolte, S.; Segev, M.; Szameit, A. Dirac Dynamics in Waveguide Arrays: From Zitterbewegung to Photonic Topological Insulators. In Quantum Simulations with Photons and Polaritons: Merging Quantum Optics with Condensed Matter Physics; Springer: Cham, Switzerland, 2017; pp. 181–214. [Google Scholar]
  24. Rusin, T.M.; Zawadzki, W. Zitterbewegung (Trembling Motion) of Electrons in Graphene. In Graphene Simulation; IntechOpen: London, UK, 2011. [Google Scholar][Green Version]
  25. Ahrens, S.; Zhu, S.Y.; Jiang, J.; Sun, Y. Simulation of Zitterbewegung by modelling the Dirac equation in metamaterials. New J. Phys. 2015, 17, 113021. [Google Scholar] [CrossRef]
  26. Chen, R.L.; Chou, Y.J.; Hwang, R.R. Photonic surface Dirac cones in reciprocal magnetoelectric metamaterials. J. Appl. Phys. 2025, 138, 203105. [Google Scholar] [CrossRef]
  27. LeBlanc, L.J.; Beeler, M.C.; Jimenez-Garcia, K.; Perry, A.R.; Sugawa, S.; Williams, R.A.; Spielman, I.B. Direct observation of zitterbewegung in a Bose–Einstein condensate. New J. Phys. 2013, 15, 073011. [Google Scholar] [CrossRef]
  28. Goldstein, H. Classical Mechanics; Addison-Wesley Publishing Compangy, Inc.: Reading, MA, USA, 1950; ISBN 0-201-02510-8. [Google Scholar]
  29. Do Carmo, M.P. Differential Geometry of Curves and Surfaces: Revised and Updated Second Edition; Courier Dover Publications: Garden City, NY, USA, 2016. [Google Scholar]
  30. Parson, A.L. A Magneton Theory of the Structure of the Atom; Smithsonian Miscellaneous Collections; Smithsonian Institution: Washington, DC, USA, 1915; Volume 65. [Google Scholar]
  31. Consa, O. Helical solenoid model of the electron. Prog. Phys. 2018, 14, 80–89. [Google Scholar]
  32. dos Santos, C.A.; Fleury, M.J. A simple electromagnetic model of the electron. arXiv 2025, arXiv:2510.22384. [Google Scholar] [CrossRef]
  33. Williamson, J.G.; Van der Mark, M.B. Is the electron a photon with toroidal topology. In Annales de la Fondation Louis de Broglie; Fondation Louis de Broglie: Paris, France, 1997; Volume 22, p. 133. [Google Scholar]
  34. Fleury, M.J.; Rousselle, O. Critical Review of Zitterbewegung Electron Models. Symmetry 2025, 17, 360. [Google Scholar] [CrossRef]
  35. de Broglie, L. Research on the Theory of Quanta. Doctoral Dissertation, Migration-University, Göttingen, Germany, 1924. [Google Scholar]
  36. Prasad, R.D.; Prasad, N.R.; Prasad, N.; Prasad, S.R.; Prasad, R.S.; Prasad, R.B.; Shaikh, A.D. A Review on Scattering Techniques for Analysis of Nanomaterials and Biomaterials. Eng. Sci. 2024, 33, 1332. [Google Scholar] [CrossRef]
  37. Held, G. Structure determination by low-energy electron diffraction—A roadmap to the future. Surf. Sci. 2025, 754, 122696. [Google Scholar] [CrossRef]
  38. Ke, X.; Bittencourt, C.; Van Tendeloo, G. Possibilities and limitations of advanced transmission electron microscopy for carbon-based nanomaterials. Beilstein J. Nanotechnol. 2015, 6, 1541–1557. [Google Scholar] [CrossRef]
  39. Egerton, R.F.; Watanabe, M. Spatial resolution in transmission electron microscopy. Micron 2022, 160, 103304. [Google Scholar] [CrossRef] [PubMed]
  40. Bordé, C.J. Base units of the SI, fundamental constants and modern quantum physics. Philos. Trans. R. Soc. A 2005, 363, 2177–2201. [Google Scholar] [CrossRef]
  41. Müller, H.; Chiow, S.W.; Long, Q.; Herrmann, S.; Chu, S. Atom interferometry with up to 24-photon-momentum-transfer beam splitters. Phys. Rev. Lett. 2008, 100, 180405. [Google Scholar] [CrossRef] [PubMed]
  42. Sanctuary, B. Spin Helicity and the Disproof of Bell’s Theorem. Quantum Rep. 2024, 6, 436–441. [Google Scholar] [CrossRef]
  43. Sanctuary, B. EPR Correlations Using Quaternion Spin. Quantum Rep. 2024, 6, 409–425. [Google Scholar] [CrossRef]
  44. Bell, J.S. On the Einstein Podolsky Rosen paradox. Phys. Phys. Fiz. 1964, 1, 195. [Google Scholar] [CrossRef]
Figure 1. (Left): A bivector in the BFF. The rotating frame relative to the LFF freezes the bivector motion. Helicity rotates the bivector about the 2-axis, perpendicular to the page. Shown is cw (clockwise) helicity on the (left) and ccw (counter clockwise) on the (right). The 1- and 3-axes counter-precess at twice the frequency of the external vector motion. (Right): As the 2-axis spins faster, cones develop about the 1- and 3-axes, which are mirror images and counter-precess in tandem. These two axes of opposite chirality form the left and right “hands” of the electron.
Figure 1. (Left): A bivector in the BFF. The rotating frame relative to the LFF freezes the bivector motion. Helicity rotates the bivector about the 2-axis, perpendicular to the page. Shown is cw (clockwise) helicity on the (left) and ccw (counter clockwise) on the (right). The 1- and 3-axes counter-precess at twice the frequency of the external vector motion. (Right): As the 2-axis spins faster, cones develop about the 1- and 3-axes, which are mirror images and counter-precess in tandem. These two axes of opposite chirality form the left and right “hands” of the electron.
Axioms 15 00116 g001
Figure 2. (Left): Dirac’s matter–antimatter pair of the SM. (Right): The BiSM, showing two counter-precessing angular momentum cones on a single particle forming a bivector.
Figure 2. (Left): Dirac’s matter–antimatter pair of the SM. (Right): The BiSM, showing two counter-precessing angular momentum cones on a single particle forming a bivector.
Axioms 15 00116 g002
Figure 3. The bivector as viewed down the torque axis,  e 2 , showing the projection of the two precessing cones in the BFF. The angular momentums of  S 1  and  S 3  reflect each other. At closest approach, the angle between them is  Φ . As they precess, their oscillation is expressed by a time-dependent chord,  c Z B W ( t ) .
Figure 3. The bivector as viewed down the torque axis,  e 2 , showing the projection of the two precessing cones in the BFF. The angular momentums of  S 1  and  S 3  reflect each other. At closest approach, the angle between them is  Φ . As they precess, their oscillation is expressed by a time-dependent chord,  c Z B W ( t ) .
Axioms 15 00116 g003
Figure 4. The projection of the bivector dynamics into the LFF, giving a horn torus. (Left): The torus is centered on the  e 2  axis, and the dashed curve on the torus shows how the length of the internal chord varies as it loops around the torus. (Right): The view is the same along the  e 2  axis. (Centre): The sequence of points represents the instantaneous chord length. As the internal phase advances, the chord expands to the tip of a petal and then contracts back to the origin before the next petal begins. Following the arrows shows that the four petals correspond to four successive breathing cycles of the torus in one period.
Figure 4. The projection of the bivector dynamics into the LFF, giving a horn torus. (Left): The torus is centered on the  e 2  axis, and the dashed curve on the torus shows how the length of the internal chord varies as it loops around the torus. (Right): The view is the same along the  e 2  axis. (Centre): The sequence of points represents the instantaneous chord length. As the internal phase advances, the chord expands to the tip of a petal and then contracts back to the origin before the next petal begins. Following the arrows shows that the four petals correspond to four successive breathing cycles of the torus in one period.
Axioms 15 00116 g004
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Sanctuary, B. The Zitterbewegung in the Bivector Standard Model. Axioms 2026, 15, 116. https://doi.org/10.3390/axioms15020116

AMA Style

Sanctuary B. The Zitterbewegung in the Bivector Standard Model. Axioms. 2026; 15(2):116. https://doi.org/10.3390/axioms15020116

Chicago/Turabian Style

Sanctuary, Bryan. 2026. "The Zitterbewegung in the Bivector Standard Model" Axioms 15, no. 2: 116. https://doi.org/10.3390/axioms15020116

APA Style

Sanctuary, B. (2026). The Zitterbewegung in the Bivector Standard Model. Axioms, 15(2), 116. https://doi.org/10.3390/axioms15020116

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
