Next Article in Journal
Gas Transfer of Metals during the Destruction of Efflorescent Sulfates from the Belovo Plant Sulfide Slag, Russia
Next Article in Special Issue
Crystal Chemistry of Birefringent Uvarovite Solid Solutions
Previous Article in Journal
The Orson Anderson Era of Mineral Physics at Lamont in the 1960s
Open AccessFeature PaperArticle

Structural Trends and Solid-Solutions Based on the Crystal Chemistry of Two Hausmannite (Mn3O4) Samples from the Kalahari Manganese Field

Department of Geoscience, University of Calgary, Calgary, AB T2N 1N4, Canada
*
Author to whom correspondence should be addressed.
Minerals 2019, 9(6), 343; https://doi.org/10.3390/min9060343
Received: 5 May 2019 / Revised: 22 May 2019 / Accepted: 3 June 2019 / Published: 5 June 2019

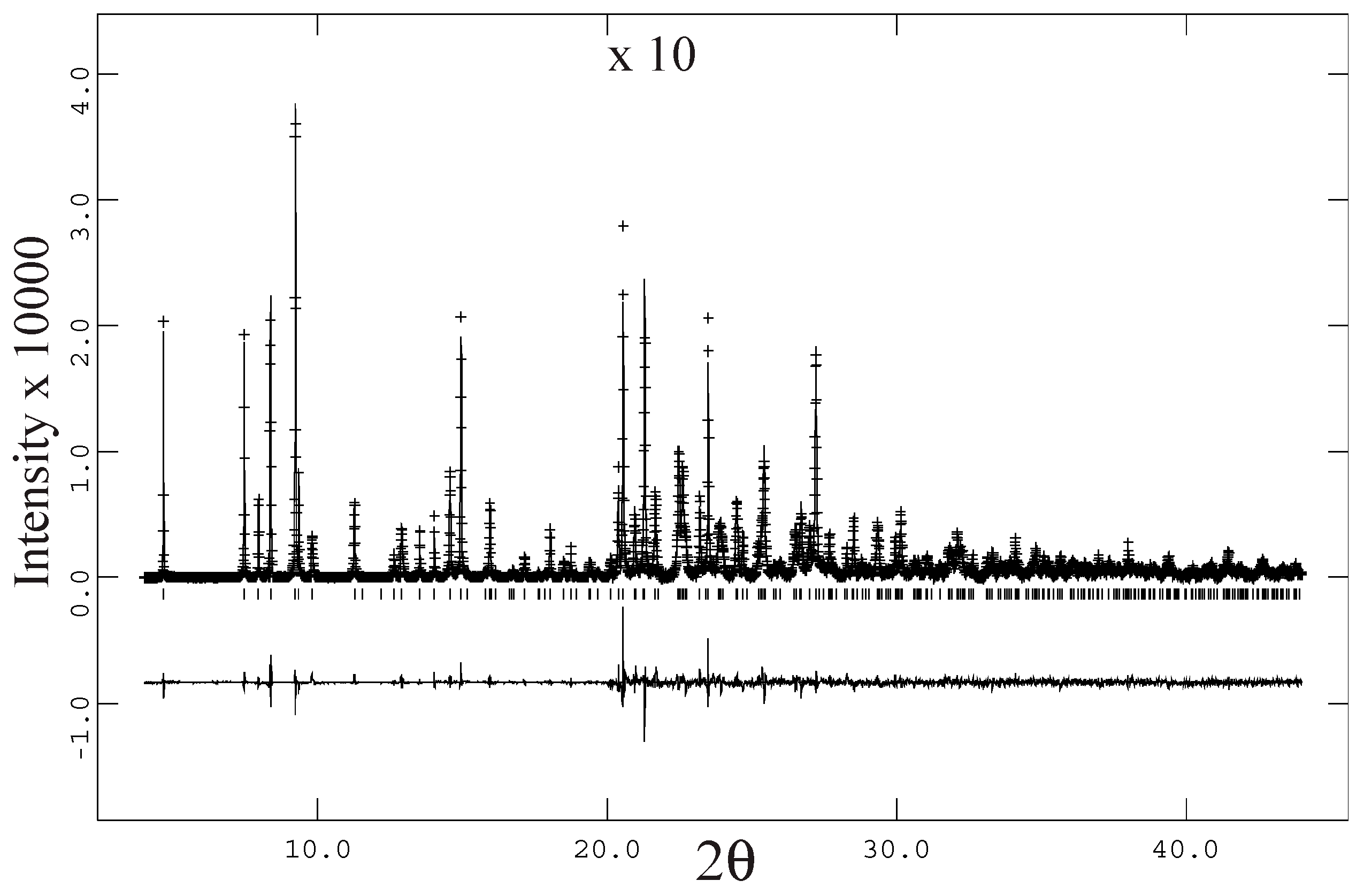

The crystal chemistry of two hausmannite samples from the Kalahari manganese field (KMF), South Africa, was studied using electron-probe microanalysis (EPMA), single-crystal X-ray diffraction (SCXRD) for sample-a, and high-resolution powder X-ray diffraction (HRPXRD) for sample-b, and a synthetic Mn3O4 (97% purity) sample-c as a reference point. Hausmannite samples from the KMF were reported to be either magnetic or non-magnetic with a general formula AB2O4. The EPMA composition for sample-a is [Mn2+0.88Mg2+0.11Fe2+0.01]Σ1.00Mn3+2.00O4 compared to Mn2+Mn3+2O4 obtained by refinement. The single-crystal structure refinement in the tetragonal space group I41/amd gave R1 = 0.0215 for 669 independently observed reflections. The unit-cell parameters are a = b = 5.7556(6), c = 9.443(1) Å, and V = 312.80(7) Å3. The Jahn–Teller elongated Mn3+O6 octahedron of the M site consists of M–O × 4 = 1.9272(5), M–O × 2 = 2.2843(7), and an average <M–O>[6] = 2.0462(2) Å, whereas the Mn2+O4 tetrahedron of the T site has T–O × 4 = 2.0367(8) Å. The site occupancy factors (sof) are M(sof) = 1.0 Mn (fixed, thereafter) and T(sof) = 1.0008(2) Mn. The EPMA composition for sample-b is [Mn0.99Mg0.01](Mn1.52Fe0.48)O4. The Rietveld refinement gave R (F2) = 0.0368. The unit-cell parameters are a = b = 5.78144(1), c = 9.38346(3) Å, and V = 313.642(1) Å3. The octahedron has M–O × 4 = 1.9364(3), M–O × 2 = 2.2595(6), and average <M–O>[6] = 2.0441(2) Å, whereas T–O × 4 = 2.0438(5) Å. The refinement gave T(sof) = 0.820(9) Mn2+ + 0.180(9) Fe2+ and M(sof) = 0.940(5) Mn3+ + 0.060(5) Fe3+. Samples-a and -b are normal spinels with different amounts of substitutions at the M and T sites. The Jahn–Teller elongation, Δ(M–O), is smaller in sample-b because atom substitutions relieve strain compared to pure Mn3O4. View Full-Text
Keywords: hausmannite; chemical analysis; crystal structure; structural variations hausmannite; chemical analysis; crystal structure; structural variations
Show Figures

Figure 1

MDPI and ACS Style

Antao, S.M.; Cruickshank, L.A.; Hazrah, K.S. Structural Trends and Solid-Solutions Based on the Crystal Chemistry of Two Hausmannite (Mn3O4) Samples from the Kalahari Manganese Field. Minerals 2019, 9, 343.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
