Minerals 2019, 9(5), 266; https://doi.org/10.3390/min9050266

Article
Archaeometric Approach for Studying Architectural Earthenwares from the Archaeological Site of S. Omobono (Rome-Italy)
1
Department of Biology, Ecology and Earth Science (DiBEST), Università della Calabria, Via P. Bucci, 87036 Arcavacata di Rende (CS), Italy
2
Laboratory for the Analysis of Ancient Materials (LAMA), University Iuav of Venice, San Polo 2468, 30125 Venice (VE), Italy
3
Sovrintendenza Capitolina ai Beni Culturali, Roma Capitale, Piazza Lovatelli, 35, 00186 Roma (RM), Italy
4
Department of Chemical and Geological Sciences, University of Cagliari, Cittadella universitaria, 09042 Monserrato (CA), Italy
5
Department of Earth Sciences, University of Pisa, Via S. Maria 53, 56126 Pisa (PI), Italy
6
ERAAUB, Department of History and Archaeology, University of Barcelona, c/Montalegre 4, 6, 08001 Barcelona, Spain
7
Department of Humanistic Studies, University of Calabria, Via P. Bucci, 87036 Arcavacata di Rende (CS), Italy
*
Authors to whom correspondence should be addressed.
Received: 27 February 2019 / Accepted: 29 April 2019 / Published: 30 April 2019

Abstract

:
This paper reports the findings of an archaeometric study performed on 14 architectural earthenwares from the archaeological site of S. Omobono, located in the historic center of Rome (Italy). The archaeological site, accidentally discovered in 1937, includes the remains of a sacred area previously occupied by two temples, one of which was converted into the church of S. Omobono, in 1575. The samples, dated between the 7th and the 6th century BC, belong to different sectors of the site. Their petrographic, mineralogical and geochemical characterization was performed by optical microscopy (OM), X-ray powder diffraction (XRPD), X-ray fluorescence (XRF), electron probe micro-analysis (EPMA), and Raman spectroscopy (RS). The compositional data obtained were also subjected to the principal component analysis (PCA) in order to highlight similarities and differences among the samples. By combining geochemical and petrographic data, we were able to identify several different fabrics. Furthermore, the study provided valuable information on the firing temperatures of some samples and the provenance of the raw materials, by analyzing the chemical composition of clinopyroxenes present as non-plastic inclusions.
Keywords:
archaeometry; fabric; firing temperature; clinopyroxene; provenance; constructive phases

1. Introduction

The archaeological site of S. Omobono is located between the Capitoline Hill and the Tiber River in the historic center of Rome (Italy). Over the centuries, the area has been subjected to several transformations. The site was originally occupied by the archaic temple, whose first construction phase dates back to the period of King Servius Tullius (570-560 BC ) and its second phase to the period between 540–530 BC ca. At the beginning of the 5th century BC the archaic temple was destroyed and replaced by a large podium on which twin temples, dedicated to the goddesses Fortuna and Mater Matuta. These two temples were then destroyed and rebuilt several times until the 6th century AD, when the Temple of Mater Matuta was converted into a Christian church. Over the centuries, the church underwent major restoration interventions and in 1575 it was dedicated to S. Omobono [1], from whom the archaeological site takes its name. This area was accidentally discovered in 1937 during the construction of a new building. Subsequently, a large number of studies was carried out on the site [2,3,4] and numerous excavations were performed, providing a valuable insight into the activities conducted in the area from the archaic period to the Republican and Imperial age and after that the pagan temple had been converted into a Christian church. Over the years, nine trenches (I, II, III, IV, V, VI, VII, now called D10, IX, X) were opened, while sector III has yet to be excavated [5,6].
Earthenwares and ceramic materials in general, are usually found in great abundance in most archaeological sites. As demonstrated by numerous scientific studies [7,8,9,10,11,12,13,14,15,16,17], these materials bear the potter’s mark and enhance our understanding of trade and everyday life in the area in which they were found. For this reason, their archaeometric study, together with the study of natural and artificial stone materials [18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34], is essential not only for identifying the raw materials and the production technology adopted, but also to obtain information about the history and the evolution of the monument or of the archaeological site analyzed.
In this study, 14 samples of architectural earthenwares, belonging to the archaic temple and collected from different sectors of the archaeological site (Table 1) were studied. The samples, which belong to the earliest period of ancient Rome and cover a period between the end of the 7th century and the 6th century BC, were analyzed using an archaeometric approach based on the application of various analytical techniques.
The study, carried out in this work, is not casual; in fact the archaeological site of S. Omobono has an important scientific relevance: It represents a fundamental piece relative to the origin of the city. Indeed, the site consists of a sacred area strictly connected to the Porto Tiberino which represented the connection between the city of Rome and the Mediterranean [35]. In addition, at the present state of research, the archaic temple represents the first religious building, in archaic Rome, made of stone [36].
The only study about earthenwares from the site of S. Omobono was performed by Ammerman et al [37], who identified the presence of a main fabric in the site. However, a greater complexity than that highlighted by Ammerman et al. [37], has been revealed in this study, as reported by the following results.
The principal aim of our work is to determine the mineralogical, petrographic and chemical composition of the architectural earthenwares in order to identify the raw materials used and, consequently, to formulate hypothesis on their possible provenance and to obtain information about their production technology. Indeed, all the data obtained may represent a useful term of comparison for other studies dealing on other ceramic materials coming from the same archaeological site or from other contexts of ancient Rome.

2. Materials and Methods

The samples were collected in various sectors of the archaeological site of S. Omobono, including the archaic temple and the cell located in the West Temple (Figure 1 and Table 1). More specifically, eleven tile samples (samples S3–S18), one fragment of pediment slab (S21), and two samples of architectural elements and decorations (S22 and S23), dated between the 7th and the 6th century BC, were collected (Table 1).
All of the samples were studied in thin sections under polarized light microscopy (OM), using a Zeiss Axioskop 40 petrographic microscope (Zeiss, Jena, Germany), equipped with a Canon PowerShot A640 photo camera (Canon, Tokyo, Japan). The roundness and the sorting of the non-plastic inclusions were defined using qualitative visual estimation charts [38,39,40]; the semi-quantitative estimate of the percentages of non-plastic inclusions, matrix and macroporosity (d > 1/16 mm) as volume fractions were obtained by comparing the thin sections observed under optical microscopy with visual charts [41,42].
The mineralogical analysis was performed by X-ray powder diffraction (XRPD), through a Bruker D8 Advance X-ray powder diffractometer (Bruker, Karlsruhe, Germany), with Cu-Kα radiation, operating at 40 kV and 20 mA. The scans were collected with a step scan of 0.02°2θ and 2 s/step, in the range 3–60° 2θ. The width of the divergence, anti-scattering and receiving slits were of 0.6, 0.2, and 0.1 mm, respectively [43]. To identify the mineralogical phases in each X-ray powder spectrum, DIFFRACplus EVA V. 11.3 software program (Bruker, Karlsruhe, Germany) was used, by comparing experimental peaks with PDF2 reference patterns. An estimate of the mineralogical phases present in the samples was obtained by Rietveld refinements [44,45] carried out using TOPAS software V.4.2 (Bruker, Karlsruhe, Germany).
The chemical composition of major, minor (SiO2, TiO2, Al2O3, Fe2O3, MnO, MgO, CaO, Na2O, K2O, and P2O5) and trace (Ni, Cr, V, La, Ce, Co, Nb, Ba, Y, Sr, Zr, Zn, Rb, and Pb) elements was determined by X-ray fluorescence (XRF), using a Bruker S8 Tiger WD X-ray fluorescence spectrometer (Bruker, Karlsruhe, Germany), with a rhodium tube (intensity 4 kW and XRF beam of 34 mm). The analysis was carried out on pressed powder pellets placed over boric acid, using 6 g of specimen (maximum working pressure 25 bar). The chemical data were processed by Aitchison’s model [46,47,48], in order to calculate the centred log ratio transformations (CRL), and the coefficients obtained were processed with the principal component analysis (PCA).
Detailed analyses were also performed using Raman spectroscopy with a Thermo Fisher DXR Raman Microscope and OMNICxi Raman Imaging software 1.0 (Waltham, MA, USA). The 532.0-nm line was used at an incident power output variable ranging between 3 and 7mW. The spectra obtained were compared with the spectra available in the database of the Department of Biology, Ecology and Earth Sciences (DiBEST) at the University of Calabria and the RRUFF Project database.
An Electron Probe Micro Analysis (EPMA) was carried out on the clinopyroxenes with an Electron Probe Micro Analyser JEOL-JXA 8230 and a W/LaB6 source (Jeol, Tokyo, Japan) equipped with 5 Spectrometers WDS with LDE, TAP, PETJ and LiF crystals.

3. Results and Discussion

3.1. Mineralogical, Petrographic and Chemical Characterization

By observing the minero-petrographic features of the architectural earthenwares through microscopy (Table 2 and Table 3) and XRPD (Table 4), a significant variability is visible among the samples. They are characterized by a light brown to reddish groundmass, which is generally optically isotropic and only in few cases optically active with a medium to low birefringent fabric (Table 2). In samples S7, S13 and S18 the sandwich effect is also visible. The non-plastic inclusions show a size class [49] between fine sand (samples S10 and S17) and coarse sand (samples S3, S4 and S7) and a sorting [39,40] variable from moderately well sorted (samples S17 and S9) to poorly sorted (samples S3, S4 and S7). They are generally composed of under-satured volcanic rocks’ fragments (Figure 2a), where leucite and analcime crystals are clearly visible. The presence of analcime, inside the volcanic rocks’ fragments, was also confirmed by Raman spectroscopy (Figure 3), and most probably, it is related to the alteration of the leucite crystals.
In addition to the under-satured volcanic rocks’ fragments, principally visible in samples S3, S4 and S7 (Figure 2a), quartzites (Figure 2b), phyllites, flints (Figure 2c), carbonatic rock fragments are also present in sample S12 (Figure 2c), traces of bioclasts (in particular Foraminifera) are present in samples S12, S13 (Figure 2d), S17, and S18 and argillaceous rock fragments (ARFs) [50] were found in samples S3 (Figure 2e), S4, and S7.
The main mineralogical phases are quartz, clinopyroxene, micas and plagioclases, which are present in all of the samples in varying amounts (Table 4), while orthoclase, leucite, analcime, kaolinite, calcite, garnet and hematite were only found in some samples (Table 2 and Table 4). The presence of calcite is principally due to alteration phenomena; it is a secondary recrystallized calcite mostly precipitated inside the porosity (Figure 2f) during the burial and, only for samples S12, S13, S17, and S18, it is also linked to the presence of carbonatic rock fragments or bioclasts among the non-plastic inclusions (Table 3).
From a technological point of view, the mineralogical composition of the samples can be useful to obtain information about their firing temperature. For example, the presence of gehlenite, detected by XRPD analysis in samples S9, S10, S11, S13, and S15, led to hypothesize a firing temperature ranging from 900 °C to 1050 °C [51,52]. However, the presence of gehlenite in association with small amounts of illite, suggests a firing temperature slightly lower than 1050 °C (about 900–1000 °C).
Kaolinite is present only in sample S4 (Table 4); considering that this clay mineral is generally thermically stable up to 450–500 °C (even if strongly dehydroxylated) and it collapses at 750–800 °C, it is likely that the sample reached a low firing temperature of less than 700 °C. Another probable interpretation explaining the presence of kaolinite regards an exposure to maximum temperature, which was too short for kaolinite to be destroyed [53,54,55,56,57,58].
The presence of calcite, for most samples, is not significant in order to estimate their firing temperature because it is principally present as a secondary mineral, except for samples S12, S13, S17 and S18 where calcite is linked to the presence of carbonatic rock fragments or bioclasts (Table 3). Only for these samples is it possible to estimate a firing temperature lower than 700 °C [52].
With respect to the chemical composition of the major elements (Table 5), some differences can be observed among the samples. Al2O3, SiO2, TiO2, MgO and CaO show significant variability, which allow distinguishing of samples S3, S4, and S7 from all the others. These samples contain the highest values of Al2O3 (between 20.11 and 21.93 wt %), SiO2 (between 54.10 and 57.65 wt %) and TiO2 (between 1.11 and 1.26 wt %) and the lowest contents of CaO (between 2.66 and 3.62 wt %) and MgO (between 1.68 and 2.07 wt %). The higher or lower amount of these elements is linked to the mineralogical and petrographic composition of the samples, which contain a high percentage of volcanic rock fragments and ARFs. On observing the trace elements reported in Table 6, several similarities can also be found between samples S3, S4, and S7, which have the highest amounts of Zr, Y, Rb, Ba, and Co.
The chemical data of the major and trace elements were processed by principal component analyses (PCA), thus obtaining the graph in Figure 4, which also shows the different fabrics of the earthenwares, identified by combining the PCA analysis with the minero-petrographic features observed by optical microscopy (OM) and XRPD. When identifying fabrics, it is important to use various analytical methods rather than the geochemistry alone, as chemically similar samples may show deceiving overlaps when, in fact, they differ from a petrographic point of view (e.g. fabrics 3, 8 and fabrics 2, 4, 9, in Figure 4). For this reason, the petrographic analysis by polarized optical microscopy proves to be a valuable tool for measuring compositional and textural differences. The petrographic features of the fabrics identified are listed below:
1st fabric: Includes samples S3, S4 and S7 (Figure 4), characterized by a reddish matrix optically active. The non-plastic inclusions are poorly sorted [39,40] with a coarse-sized sand [49] and a high sphericity [38,39]. Additionally, from a chemical point of view, these samples differ totally from the others, due to their high content of volcanic rock fragments (Figure 2a and Figure 4) and ARFs (Figure 2e).
2nd fabric: Includes samples S21, S22, and S23 (Figure 4), characterized by a brownish matrix optically active. The non-plastic inclusions are moderately sorted [39,40], with a medium sand size [49] and they are principally composed of clinopyroxene crystals (Figure 4), traces of volcanic rock fragments and quartzites.
3rd fabric: Includes samples S13 and S18 (Figure 4), characterized by the sandwich effect. The non-plastic inclusions are moderately sorted [39,40] and composed of clinopyroxenes, volcanic rock fragments, flint, and traces of bioclasts (Figure 4).
4th fabric: includes only sample S15 characterized by a brown-reddish matrix optically inactive with non-plastic inclusions moderately sorted [39,40], angular and with a high sphericity [38,39]. By observing the graph in Figure 4, the sample (red circle) seems to be linked to the 2nd fabric (cluster which includes blue squares); however, sample S15 differs from the samples belonging to the 2nd fabric because of its greater percentage of volcanic rock fragments and the presence of flints (Figure 4).
5th fabric: Includes only sample S9 (Figure 4), which is characterized by a light brown matrix optically inactive. The non-plastic inclusions, moderately well sorted [39,40], have a medium sand size [49] and are sub-angular with high sphericity [38,39]. This sample is mainly composed of quartz and clinopyroxene crystals, volcanic rock fragments and quartzites.
6th fabric: Includes sample S10, which is the only sample characterized by an oriented porosity (Figure 4), created during pottery production. The sample is composed of a brownish matrix, optically inactive, which embeds well-sorted non-plastic inclusions [39,40], with a fine sand size [49]. The sample contains quartz and clinopyroxene crystals, flints, volcanic rocks’ fragments, and traces of phyllites.
7th fabric: Includes only sample S11 (Figure 4), which is characterized by an optically inactive brownish matrix. The non-plastic inclusions have a medium sand size [49] and are moderately sorted [39,40]. This sample contains the highest percentage of clinopyroxene crystals (Figure 4 and Table 4), as well as fragments of volcanic rocks and quartzites. Calcite recrystallization rims are sometimes present inside porosity (Figure 2f).
8th fabric: Is represented by sample S12, which has a light brown matrix optically inactive. The non-plastic inclusions have a medium sand size [49] and are moderately sorted [39,40], angular with high sphericity [38,39]. By observing the graph in Figure 4, the sample (black cross) seems to be linked to the 3rd fabric (purple rhombuses); however, it differs from it because it is characterized by the presence of rounded carbonate rock fragments, in addition to fragments of flint, quartzites, volcanic rocks, and bioclasts (Table 3 and Figure 4).
9th fabric: Includes sample S17. It is characterized by a brownish matrix optically active. The non-plastic inclusions have a fine sand size [49] and are moderately well sorted [39,40], sub angular, with high sphericity [38,39]. By observing the graph in Figure 4, the sample (blue hexagon) seems to match with the 2nd and the 4th fabrics (blue squares and red circle); however, this sample differs from the samples included in those fabrics because it is principally composed of quartz and plagioclases, which represent the main mineralogical associations (Figure 4 and Table 4), and it also contains fragments of quartzites, flints, volcanic rocks, and bioclasts (as traces).

3.2. Provenance Hypothesis of the Raw Materials

The previous study performed by Ammerman et al. [37] already made hypotheses about the provenance of the clays used in some ceramic materials coming from the S. Omobono archaeological area. On the other hand, our work aims to provide information on the provenance of the degreasing used in the architectural earthenwares sampled.
The approach adopted, in this work, to formulate preliminary hypotheses about the provenance of the raw materials was to analyze the chemical composition of the primary clinopyroxenes. Firstly, the clinopyroxenes were identified by optical microscopy and Raman spectroscopy, and subsequently, they were studied with the electron probe micro analyzer (EPMA). In particular, three crystals of clinopyroxenes for each sample were analyzed by calculating the mean value of each one. The classification of clinopyroxenes (Figure 5a) was carried out according to the International Mineralogical Association scheme [59], based on the content of enstatite (MgSiO3), ferrosilite (FeSiO3), and wollastonite (CaSiO3). As shown in Figure 5a, all the clinopyroxenes analyzed fall into the diopside field.
In order to establish a local or alloctonous provenance of the raw materials, the chemical compositions of clinopyroxenes from Roman (Figure 5a) and Campanian (Figure 5b) volcanic provinces were taken into account using data present in literature [60,61,62,63,64,65,66,67]. By observing the diagrams in Figure 5b, it is likely that the clinopyroxenes compositions of the samples from S. Omobono overlap those of the clinopyroxenes belonging to the Roman volcanic province. Consequently, further comparisons were also made with several volcanic complexes and districts outcropping not far from Rome, using binary diagrams (Figure 6) with the variation of the major oxides [66]. Observing the CaO vs. SiO2 (Figure 6a) and CaO vs. FeO (Figure 6b) diagrams, a good affinity between the analyzed clinopyroxenes and those of the Bolsena Complex can be highlighted.
However, the number of clinopyroxenes studied is too low to provide definitive results on their provenance; in fact, there are several literature data of Campanian pyroxenes that may overlap with Roman clinopyroxenes [68,69,70,71]. In the future, to have more detailed information on the origin of clinopyroxenes it could be useful to perform LA-ICP-MS analysis for determining their trace elements composition.

4. Conclusions

Fourteen samples of architectural earthenwares coming from the archaeological area of S. Omobono were analyzed through a multi-analytical approach based on mineralogical, petrographic, chemical and statistical analyses. The combination of all the data collected enabled us to identify nine different fabrics, characterized by several typologies of non-plastic inclusions, which are present in the samples in different ratios with the matrix. The hypothesis of a local production of the architectural earthenware can be proposed. In particular, by comparing the clinopyroxenes compositions of the archaeological items with those of clinopyroxenes related to the Roman Magmatic Province [60,61,62,63,64,65,66,67], it appears that the non-plastic inclusion used in the earthenwares analyzed, probably came from the Bolsena Complex. However, these are only preliminary results and further in-depth studies are required on the clay quarries and the temper present in the surrounding area to clarify the exact provenance of the raw materials, as well as a chemical elaboration based on ancient mixing techniques of raw materials [9,16].
The great variability of the fabrics in the archaeological site led us to hypothesize that the raw materials came from four different quarries: the first quarry probably only contains volcanic rocks (fabric 1), the second quarry is mainly composed of clinopyroxenes (fabric 2), the third contains volcanic rocks and microfossils (fabrics 3, 9), while the forth is composed of carbonatic rock fragments and bioclasts (fabric 8). For the other fabrics it is possible to hypothesize a raw material mixture resulting from natural geological processes or intentional human activity, obtained from the above-mentioned quarries. These results show that to understand the compositional variability of ceramic materials in an archaeological site, it is not sufficient to study only the archaeological materials, but an in depth study of all the probable quarries of clay and degreasings should be performed.
As regards the firing temperature of the samples, it is important to note that the materials found in the Roman Magmatic Province commonly contain diopside, therefore it is not possible to use it as a geo-thermometer. The presence of gehlenite, which was detected in samples S9, S10, S11, S13 and S15 allow us to hypothesize that these samples were fired at a temperature lower than 1050 °C (about 900–1000 °C) [51,52]. Sample S4, containing kaolinite, probably reached a low firing temperature of less than 700 °C or, it may have been exposed to a maximum temperature for a period of time that was too short to allow the destruction of the kaolinite [53,54,55,56,57,58]. Indeed, for samples S12, S13, S17, and S18, where primary calcite is present, it is possible to estimate a firing temperature lower than 700 °C [52].
From an archaeometric point of view the following conclusions can be drawn:
The fired roof tiles (impasto rosso pan-tile: samples S3, S4, S7; Table 1), belonging to the late Orientalizing phase (end of 7th-beginning of the 6th century BC), differ markedly from all of the later roof tiles. These data could be used in the future to extend the analysis to other archaeological sites and to investigate the compositional similarities or differences between the roof tiles (red-brown impasto pan-tile).
It is well known that in the Archaic phase (580–510 BC) red tile roofs (impasto rosso pan-tile) were replaced by roofs made with a light sand mixture (impasto chiaro sabbioso pan-tile). On observing the analytical data, we can see significant compositional variability in the impasto chiaro sabbioso pan-tiles; moreover, six different fabrics belong to this typology: fabric 3 (S13, S18), fabric 4 (S15), fabric 6 (S10), fabric 7 (S 11), fabric 8 (S12), and fabric 9 (S17).
Fabric 2 (S21, S22, S23) includes architectural decorative elements, which, based on the archaeological analysis of scientific literature [72], have been divided into two distinct chronological phases: the first phase (580–560 BC), which includes samples S21 and S22, and the second one (540–530 BC), which includes sample S23. However, the compositional analyses show significant compositional homogeneity, which is noteworthy because it suggests that further archaeological and archaeometric studies should be carried out on a larger cohort of samples. It is important to note how from a compositional point of view the three samples are clearly distinguished by the samples of pan-tile and cover-tile, thus indicating that there are differences between the roofs and their decorations, which is an aspect that requires further research in order to determine the cause.
The study showed that the archaeometric analyses of the architectural earthenwares not only contribute to define the evolution of these architectural manufacturing techniques, but also provide valuable insights on how to determine the construction phases of ancient buildings in the absence of joint mortars [73,74,75,76,77].

Author Contributions

P.B. and M.C. contributed in the archaeological part; D.M., F.A., A.B., S.C., R.D.L., M.L., A.P. and B.S.M. performed the analyses and analysed the data; D.M., P.B., M.C., F.A., A.B., S.C., R.D.L., M.L., A.P. and B.S.M. wrote the paper.

Funding

This research received no external funding.

Acknowledgments

Research on the archaeological site has been conducted since 2009 as part of an international collaboration between Sovrintendenza Capitolina, Department of Humanistic Studies of the University of Calabria and University of Michigan. The analyses were carried out in the Laboratories of the Department of Biology, Ecology and Earth Science (DiBEST) of the University of Calabria. The authors would like to thank Mariano Davoli and Giancarlo Niceforo for their valuable assistance as well as the Sovrintendenza Capitolina ai Beni Culturali di Roma Capitale.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Pisani Sartorio, G.; Virgili, P.; Ioppolo, G. La scoperta dei Templi della Fortuna e della Mater Matuta. In Il Viver Quotidiano in Roma Arcaica: Materiali dagli scavi del tempio arcaico nell’area sacra di S. Omobono; Pisani Sartorio, G., Virgili, P., Ioppolo, G., Eds.; Edizioni Procom: Roma, Italy, 1989; pp. 13–15. [Google Scholar]
  2. Mura, A.S. La decorazione architettonica del tempio arcaico. La Parol. del Passato 1977, 32, 62–71. [Google Scholar]
  3. Colonna, G. Le due fasi del tempio arcaico di S. Omobono. In Stips Votiva: Papers presented to C.M. Stibbe; Gnade, M., Ed.; University of Amsterdam: Amsterdam, The Netherlands, 1991; pp. 51–59. [Google Scholar]
  4. Brocato, P.; Ceci, M.; Terrenato, N. Ricerche nell’area dei templi di Fortuna e Mater Matuta; Dipartimento di Studi Umanistici dell’Università della Calabria: Rende, Italy, 2016. [Google Scholar]
  5. Brocato, P.; Terrenato, N. Nuove ricerche nell’area archeologica di S. Omobono; Dipartimento di Studi Umanistici dell’Università della Calabria: Rende, Italy, 2012. [Google Scholar]
  6. Terrenato, N.; Brocato, P.; Caruso, G.; Ramieri, A.M.; Becker, H.W.; Cangemi, I.; Mantiloni, G.; Regoli, C. The S. Omobono Sanctuary in Rome: Assessing eighty years of fieldwork and exploring perspectives for the future. Internet Archaeol. 2012, 31. [Google Scholar] [CrossRef]
  7. Maggetti, M. Mineralogical and Petrographical Methods for the Study of Ancient Pottery; Università La Sapienza: Roma, Italy, 1994. [Google Scholar]
  8. Belfiore, C.M.; Day, P.M.; Hein, A.; Kilikoglou, V.; La Rosa, V.; Mazzoleni, P.; Pezzino, A. Petrographic and chemical characterization of pottery production of the Late Minoan I kiln at Haghia Triada, Crete. Archaeometry 2007, 49, 621–653. [Google Scholar] [CrossRef]
  9. Miriello, D.; Crisci, G.M. Mixing and provenance of raw materials in the bricks from the Svevian castle of Rocca Imperiale (North Calabria, Italy). Eur. J. Mineral. 2007, 19, 137–144. [Google Scholar] [CrossRef]
  10. Lindsay, I.; Minc, L.; Descantes, C.; Speakman, R.J.; Glascock, M.D. Exchange patterns, boundary formation, and sociopolitical change in Late Bronze Age Southern Caucasia: Preliminary results from a pottery provenance study in northwestern Armenia. J. Archaeol. Sci. 2008, 35, 1673–1682. [Google Scholar] [CrossRef]
  11. Barone, G.; Belfiore, C.M.; Mazzoleni, P.; Pezzino, A.; Viccaro, M. A volcanic inclusions based approach for provenance studies of archaeological ceramics: Application to pottery from southern Italy. J. Archaeol. Sci 2010, 37, 713–726. [Google Scholar] [CrossRef]
  12. Scarpelli, R.; De Francesco, A.M.; Perri, F.; Osanna, M.; Colangelo, L.; Miriello, D.; La Russa, M.F.; Barca, D.; Crisci, G.M. Archaeometric study of sub-geometric pottery found in Potenza, Italy: Relationship and trade between near indigenous centers. Period. Mineral. 2010, 79, 81–94. [Google Scholar]
  13. Montana, G.; Cau Ontiveros, M.Á.; Polito, A.M.; Azzaro, E. Characterisation of clayey raw materials for ceramic manufacture in ancient Sicily. Appl. Clay Sci. 2011, 53, 476–488. [Google Scholar] [CrossRef]
  14. Cau Ontiveros, M.Á.; Montana, G.; Tsantini, E.; Randazzo, L. Ceramic Ethnoarchaeometry in Western Sardinia: Production of Cooking Ware at Pabillonis. Archaeometry 2015, 57, 453–475. [Google Scholar] [CrossRef]
  15. Cano, N.F.; Ribeiro, R.B.; Munita, C.S.; Watanabe, S.; Neves, E.G.; Tamanaha, E.K. Dating and determination of firing temperature of ancient potteries from São Paulo II archaeological site, Brazil by TL and EPR techniques. J. Cult. Herit. 2015, 16, 361–364. [Google Scholar] [CrossRef]
  16. Miriello, D.; Bloise, A.; De Luca, R.; Apollaro, C.; Crisci, G.M.; Medaglia, S.; Grasso, A.T. First compositional evidences on the local production of Dressel 2–4 amphorae in Calabria (Southern Italy): Characterization and mixing simulations. Appl. Phys. A Mater. Sci. Process. 2015, 119, 1595–1608. [Google Scholar] [CrossRef]
  17. Taranto, M.; Barba, L.; Blancas, J.; Bloise, A.; Cappa, M.; Chiaravalloti, F.; Crisci, G.M.; Cura, M.; De Angelis, D.; De Luca, R.; Lezzerini, M.; Pecci, A.; Miriello, D. The bricks of Hagia Sophia (Istanbul, Turkey): A new hypothesis to explain their compositional difference. J. Cult. Herit. 2019. [Google Scholar] [CrossRef]
  18. Columbu, S.; Sitzia, F.; Verdiani, G. Contribution of petrophysical analysis and 3D digital survey in the archaeometric investigations of the Emperor Hadrian’s Baths (Tivoli, Italy). Rend. Lincei 2015, 26, 455–474. [Google Scholar] [CrossRef]
  19. Columbu, S.; Sitzia, F.; Ennas, G. The ancient pozzolanic mortars and concretes of Heliocaminus baths in Hadrian’s Villa (Tivoli, Italy). Archaeol. Anthr. Sci. 2017, 9, 523–553. [Google Scholar] [CrossRef]
  20. Columbu, S.; Palomba, M.; Sitzia, F.; Murgia, M. Geochemical and mineral-petrographic studies of stones and mortars from the Romanesque Saccargia Basilica (Sardinia, Italy) to define their origin and alteration. Ital. J. Geosci. 2018, 137, 369–395. [Google Scholar] [CrossRef]
  21. Ramacciotti, M.; Rubio, S.; Gallello, G.; Lezzerini, M.; Columbu, S.; Hernandez, E.; Morales-Rubio, A.; Pastor, A.; De La Guardia, M. Chronological classification of ancient mortars employing spectroscopy and spectrometry techniques: Sagunto (Valencia, Spain) Case. J. Spectrosc. 2018. [Google Scholar] [CrossRef]
  22. Columbu, S.; Lisci, C.; Sitzia, F.; Lorenzetti, G.; Lezzerini, M.; Pagnotta, S.; Raneri, S.; Legnaioli, S.; Palleschi, V.; Gallello, G.; et al. Mineralogical, petrographic and physical-mechanical study of Roman construction materials from the Maritime Theatre of Hadrian’s Villa (Rome, Italy). Measurement 2018, 127, 264–276. [Google Scholar]
  23. Columbu, S.; Garau, A.M.; Lugliè, C. Geochemical characterisation of pozzolanic obsidian glasses used in the ancient mortars of Nora Roman theatre (Sardinia, Italy): Provenance of raw materials and historical–archaeological implications. Archaeol. Anthrop. Sci. 2018, 1–30. [Google Scholar] [CrossRef]
  24. Columbu, S.; Garau, A.M. Mineralogical, petrographic and chemical analysis of geomaterials used in the mortars of Roman Nora theatre (south Sardinia, Italy). Ital. J. Geosci. 2017, 136, 238–262. [Google Scholar] [CrossRef]
  25. Raneri, S.; Pagnotta, S.; Lezzerini, M.; Legnaioli, S.; Palleschi, V.; Columbu, S.; Neri, N.F.; Mazzoleni, P. Examining the reactivity of volcanic ash in ancient mortars by using a micro-chemical approach. Mediter. Archaeol. Archaeom. 2018, 18, 147–157. [Google Scholar]
  26. Columbu, S.; Gioncada, A.; Lezzerini, M.; Marchi, M. Hydric dilatation of ignimbritic stones used in the Church of Santa Maria di Otti (Oschiri, northern Sardinia, Italy). Ital. J. Geosci. 2014, 133, 149–160. [Google Scholar] [CrossRef]
  27. Antonelli, F.; Columbu, S.; De Vos Raaijmakers, M.; Andreoli, M. An archaeometric contribution to the study of ancient millstones from the Mulargia area (Sardinia, Italy) through new analytical data on volcanic raw material and archaeological items from Hellenistic and Roman North Africa. J. Archaeol. Sci. 2014, 50, 243–261. [Google Scholar] [CrossRef]
  28. Columbu, S.; Lisci, C.; Sitzia, F.; Buccellato, G. Physical-mechanical consolidation and protection of Miocenic limestone used on Mediterranean historical monuments: The case study of Pietra Cantone (southern Sardinia, Italy). Environ. Earth Sci. 2017, 76, 148. [Google Scholar] [CrossRef]
  29. Verdiani, G.; Columbu, S. E.Stone, an Archive for the Sardinia Monumental Witnesses. Lect. Notes Comput. Sci. 2010, 6436, 356–372. [Google Scholar][Green Version]
  30. Columbu, S. Petrographic and geochemical investigations on the volcanic rocks used in the Punic-Roman archaeological site of Nora (Sardinia, Italy). Environ. Earth Sci. 2018, 77, 577. [Google Scholar] [CrossRef]
  31. Antonelli, F.; Columbu, S.; Lezzerini, M.; Miriello, D. Petrographic characterization and provenance determination of the white marbles used in the Roman sculptures of Forum Sempronii (Fossombrone, Marche, Italy). Appl. Phys. A Mater. Sci. Process. 2014, 115, 1033–1040. [Google Scholar] [CrossRef]
  32. Columbu, S. Provenance and alteration of pyroclastic rocks from the Romanesque Churches of Logudoro (north Sardinia, Italy) using a petrographic and geochemical statistical approach. Appl. Phys. A Mater. Sci. Process. 2017, 123, 1–28. [Google Scholar] [CrossRef]
  33. Columbu, S.; Antonelli, F.; Sitzia, F. Origin of Roman worked stones from St. Saturno Christian Basilica (south Sardinia, Italy). Mediterr. Archaeol. Archaeom. 2018, 18, 17–36. [Google Scholar]
  34. Columbu, S.; Piras, G.; Sitzia, F.; Pagnotta, S.; Raneri, S.; Legnaioli, S.; Palleschi, V.; Lezzerini, M.; Giamello, M. Petrographic and mineralogical characterization of volcanic rocks and surface-depositions on Romanesque monuments. Mediterr. Archaeol. Archaeom. 2018, 18, 37–63. [Google Scholar]
  35. Coarelli, F. Il Foro Boario: Dalle origini alla fine della Repubblica; Quasa: Roma, Italy, 1988. [Google Scholar]
  36. Brocato, P.; Diffendale, D.; Di Giuliomaria, D.; Gaeta, M.; Marra, F.; Terrenato, N. Identification of a previously unknown tuff for the construction of the archaic Temple Podium at Sant’Omobono, Rome. J. Mediterr. Archaeol. 2019, in press. [Google Scholar]
  37. Ammerman, A.J.; Iliopoulos, I.; Bondioli, F.; Filippi, D.; Hilditch, J.; Manfredini, A.; Pennisi, L.; Winter, N. The clay beds in the Velabrum and the earliest tiles in Rome. J. Rom. Archaeol. 2008, 21, 7–30. [Google Scholar] [CrossRef]
  38. Powers, M.C. A new roundness scale for sedimentary particles. J. Sediment. Res. 1953, 23, 117–119. [Google Scholar] [CrossRef]
  39. Boggs, S. Petrology of Sedimentary Rocks; Cambridge University Press: Cambridge, UK, 2010. [Google Scholar]
  40. Jerram, D.A. Visual comparators for degree of grain-size sorting in two and three-dimensions. Comput. Geosci. 2001, 27, 485–492. [Google Scholar] [CrossRef]
  41. Ricci Lucchi, F. Sedimentologia Parte I: Materiali e Tessiture dei Sedimenti; Cooperativa Libraria Universitaria: Bologna, Italy, 1980. [Google Scholar]
  42. Best, M.G. Igneous and Metamorphic Petrology, 2nd ed.; Blackwell Publishing: Hoboken, NJ, USA, 2013. [Google Scholar]
  43. Bloise, A.; Abd El Salam, S.; De Luca, R.; Crisci, G.M.; Miriello, D. Flux growth and characterization of cuprorivaite: The influence of temperature, flux and silica source. Appl. Phys. A Mater. Sci. Process. 2016, 122, 1–8. [Google Scholar] [CrossRef]
  44. Rietveld, H. A profile refinement method for nuclear and magnetic structures. J. Appl. Cryst. 1969, 2, 65–71. [Google Scholar] [CrossRef][Green Version]
  45. Young, R.A. Introduction to the Rietveld method. In The Rietveld Method; Young, R.A., Ed.; Oxford University Press: Oxford, UK, 1993; pp. 1–38. [Google Scholar]
  46. Aitchison, J. The statistical analysis of compositional data (with discussion). J. R. Stat. Soc. Series B Stat. Methodol. 1982, 44, 139–177. [Google Scholar]
  47. Aitchison, J. The Principal component analysis of compositional data. Biometrika 1983, 70, 57–65. [Google Scholar] [CrossRef]
  48. Aitchison, J. The Statistical Analysis of Compositional Data; Monographs on Statistics and Applied Probability; Chapman & Hall Ltd, London Reprinted (2003) with Additional Material by The Blackburn Press: Caldwell, NJ, USA, 1986. [Google Scholar]
  49. Wentworth, C.K. A scale of grade and class terms for clastic sediments. J. Geol. 1922, 30, 377–392. [Google Scholar] [CrossRef]
  50. Whitbread, I.K. The characterisation of argillaceous inclusions in ceramic thin sections. Archaeometry 1986, 28, 79–88. [Google Scholar] [CrossRef]
  51. Peters, T.J.E.R.K.; Iberg, R. Mineralogical changes during firing of calcium-rich brick clays. Ceram. Bull. 1978, 57, 503–509. [Google Scholar]
  52. Riccardi, M.P.; Messiga, B.; Duminuco, P. An approach to the dynamics of clay firing. Appl. Clay Sci. 1999, 15, 393–409. [Google Scholar] [CrossRef]
  53. Dondi, M.; Ercolani, G.; Guarini, G.; Marsigli, M.; Venturi, I. Evoluzione della microstruttura durante la cottura rapida di impasti per piastrelle porose. Ceramurgia 1995, 25, 301–314. [Google Scholar]
  54. Rice, P.M. Pottery Analysis: A Sourcebook; University of Chicago Press: Chicago, IL, USA, 2015. [Google Scholar]
  55. De Bonis, A.; Cultrone, G.; Grifa, C.; Langella, A.; Morra, V. Clays from the Bay of Naples (Italy): New insight on ancient and traditional ceramics. J. Eur. Ceram. Soc. 2014, 34, 3229–3244. [Google Scholar] [CrossRef]
  56. Grifa, C.; Germinario, C.; De Bonis, A.; Mercurio, M.; Izzo, F.; Pepe, F.; Bareschino, P.; Cucciniello, C.; Monetti, V.; Morra, V.; et al. Traditional brick productions in Madagascar: From raw material processing to firing technology. Appl. Clay Sci. 2017, 150, 252–266. [Google Scholar] [CrossRef]
  57. Maggetti, M.; Neururer, C.; Ramseyer, D. Temperature evolution inside a pot during experimental surface (bonfire) firing. Appl. Clay Sci. 2011, 53, 500–508. [Google Scholar] [CrossRef][Green Version]
  58. De Bonis, A.; D’Angelo, M.; Guarino, V.; Massa, S.; Anaraki, F.S.; Genito, B.; Morra, V. Unglazed pottery from the masjed-i jom’e of Isfahan (Iran): Technology and provenance. Archaeol. Anthr. Sci. 2017, 9, 617–635. [Google Scholar] [CrossRef]
  59. Peccerillo, A.; Perugini, D. Introduzione Alla Petrografia Ottica; Morlacchi Editore: Perugia, Italy, 2003. [Google Scholar]
  60. Negro, A.D.; Carbonin, S.; Salviulo, G.; Piccirillo, E.M.; Cundari, A. Crystal Chemistry and Site Configuration of the Clinopyroxene from Leucite-bearing Rocks and Related Genetic Significance: The Sabatini Lavas, Roman Region, Italy. J. Petrol. 1985, 26, 1027–1040. [Google Scholar] [CrossRef]
  61. Aurisicchio, C.; Federico, M.; Gianfagna, A. Clinopyroxene chemistry of the high-potassium suite from the Alban Hills, Italy. Mineral. Petrol. 1988, 39, 1–19. [Google Scholar]
  62. Querci, D. Studio di alcuni litotipi messi in opera nel Duomo di Orvieto (Terni): Caratteristiche chimico-fisiche e confronto con i materiali prelevati in cava. Ph.D. Thesis, University of Perugia, Perugia, Italy, 1995. [Google Scholar]
  63. Di Battistini, G.; Montanini, A.; Bargossi, G.M.; Vernia, L.; Castorina, F. Petrology and geochemistry of ultrapotassic rocks from the Montefiascone Volcanic Complex (Central Italy): Magmatic evolution and petrogenesis. Lithos 1998, 43, 169–195. [Google Scholar] [CrossRef]
  64. Perini, G.; Conticelli, S.; Francalanci, L.; Davidson, J.P. The relationship between potassic and calc-alkaline post-orogenic magmatism at Vico volcano, central Italy. J. Volcanol. Geotherm. Res. 2000, 95, 247–272. [Google Scholar] [CrossRef]
  65. Scarpelli, R.; De Francesco, A.M.; Gaeta, M.; Cottica, D.; Toniolo, L. The provenance of the Pompeii cooking wares: Insights from LA–ICP-MS trace element analyses. Microchem. J. 2015, 119, 93–110. [Google Scholar] [CrossRef]
  66. Comodi, P.; Nazzareni, S.; Perugini, D.; Bergamini, M. Technology and Provenance of roman ceramics from Scoppieto, Italy: A mineralogical and petrological study. Period. Mineral. 2006, 75, 95–112. [Google Scholar]
  67. Nappi, G.; Antonelli, F.; Coltorti, M.; Milani, L.; Renzulli, A.; Siena, F. Volcanological and petrological evolution of the Eastern Vulsini District, Central Italy. J. Volcanol. Geotherm. Res. 1998, 87, 211–232. [Google Scholar] [CrossRef]
  68. Antonelli, F.; Nappi, G.; Lazzarini, L. Roman millstones from Orvieto (Italy): Petrographic and geochemical data for a new archaeometric contribution. Archaeometry 2001, 43, 167–189. [Google Scholar] [CrossRef]
  69. Santi, P.; Antonelli, F.; Renzulli, A.; Pensabene, P. Leucite phonolite millstones from the Orvieto production centre: New data and insights into the Roman trade. Period. Mineral. 2003, 73, 57–69. [Google Scholar]
  70. Antonelli, F.; Lazzarini, L. Mediterranean trade of the most widespread Roman volcanic millstones from Italy and petrochemical markers of their raw materials. J. Archaeol. Sci. 2010, 37, 2081–2092. [Google Scholar] [CrossRef]
  71. Morra, V.; Calcaterra, D.; Cappelletti, P.; Colella, A.; Fedele, L.; De’Gennaro, R.; Langella, A.; Mercurio, M. Urban geology: Relationships between geological setting and architectural heritage of the Neapolitan area. J. Virtual Explor. 2010, 36. [Google Scholar] [CrossRef]
  72. Cristofani, M. Osservazioni sulle decorazioni fittili arcaiche dal santuario di Sant’Omobono. Archeol. Laz. 1989, 10, 31–37. [Google Scholar]
  73. Barca, D.; Miriello, D.; Pecci, A.; Barba, L.; Ortiz, A.; Manzanilla, L.R.; Blancas, J.; Crisci, G.M. Provenance of glass shards in archaeological lime plasters by LA-ICP-MS: Implications for the ancient routes from the Gulf of Mexico to Teotihuacan in Central Mexico. J. Archeol. Sci. 2013, 40, 3999–4008. [Google Scholar] [CrossRef]
  74. De Luca, R.; Gigliotti, V.; Panarello, M.; Bloise, A.; Crisci, G.M.; Miriello, D. Spectroscopic, microchemical and petrographic analyses of plasters from ancient buildings in Lamezia Terme (Calabria, Southern Italy). Spectrochim. Acta Part A. 2016, 153, 184–193. [Google Scholar] [CrossRef]
  75. Miriello, D.; Barba, L.; Blancas, J.; Bloise, A.; Cappa, M.; Cura, M.; De Angelis, D.; De Luca, R.; Pecci, A.; Taranto, M.; et al. New compositional data on ancient mortars from Hagia Sophia (Istanbul, Turkey). Archaeol. Anthrop. Sci. 2017, 9, 499–514. [Google Scholar] [CrossRef]
  76. Miriello, D.; De Luca, R.; Bloise, A.; Dattola, L.; Mantella, G.; Gazineo, F.; De Natale, A.; Iannelli, M.T.; Cuteri, F.A.; Crisci, G.M. Compositional study of mortars and pigments from the “Mosaico della Sala dei Draghi e dei Delfini” in the archaeological site of Kaulonía (Southern Calabria, Magna Graecia, Italy). Archaeol. Anthrop. Sci. 2017, 9, 317–336. [Google Scholar] [CrossRef]
  77. Miriello, D.; Bloise, A.; Crisci, G.M.; De Luca, R.; De Nigris, B.; Martellone, A.; Osanna, M.; Pace, R.; Pecci, A.; Ruggieri, N. New compositional data on ancient mortars and plasters from Pompeii (Campania – Southern Italy): Archaeometric results and considerations about their time evolution. Mater. Charact. 2018, 146, 189–203. [Google Scholar] [CrossRef]
Figure 1. Map of the archaeological site of S. Omobono showing sample collection locations and the areas excavated from 1937 to 2014.
Figure 1. Map of the archaeological site of S. Omobono showing sample collection locations and the areas excavated from 1937 to 2014.
Minerals 09 00266 g001
Figure 2. Microphotographs in thin section. All images are under crossed nicols, except for (a) and (d) which are under parallel nicols. (a) Volcanic rock fragment in sample S7. (b) Quartzite in sample S21. (c) Flint and carbonatic rock fragment in sample S12. (d) Bioclast in sample S13. (e) Argillaceous rock fragment (ARFs) in samples S3. (f) Secondary calcite inside porosity in sample S11.
Figure 2. Microphotographs in thin section. All images are under crossed nicols, except for (a) and (d) which are under parallel nicols. (a) Volcanic rock fragment in sample S7. (b) Quartzite in sample S21. (c) Flint and carbonatic rock fragment in sample S12. (d) Bioclast in sample S13. (e) Argillaceous rock fragment (ARFs) in samples S3. (f) Secondary calcite inside porosity in sample S11.
Minerals 09 00266 g002

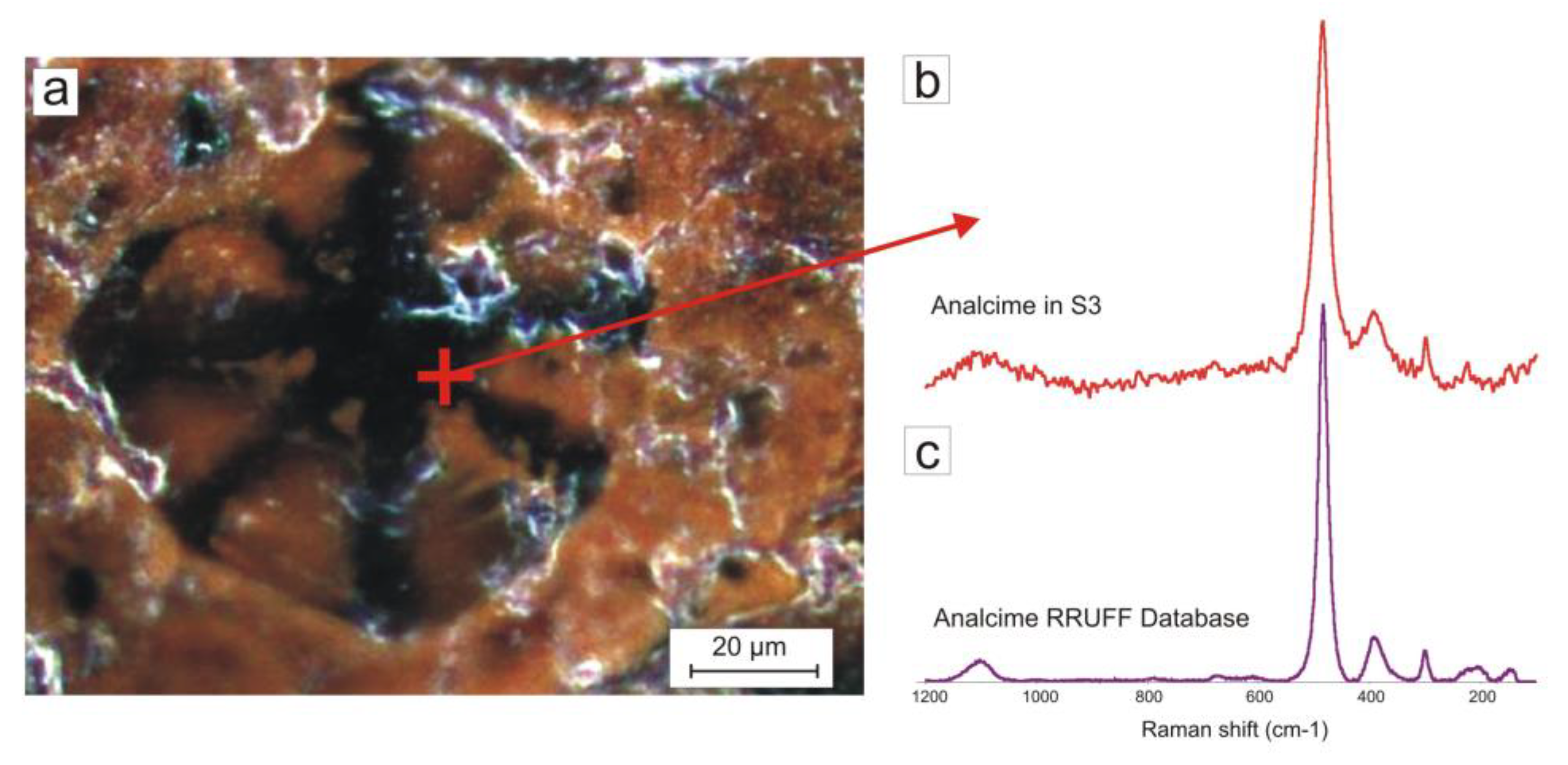

Figure 3. (a) OM image under reflected light of a dendritic-skeletal crystal of analcime inside a volcanic rock fragment in sample S3, showing the area analyzed by Raman spectroscopy. (b) Raman spectrum of the area analyzed. (c) Raman spectrum of the analcime from the RRUFF project database.
Figure 3. (a) OM image under reflected light of a dendritic-skeletal crystal of analcime inside a volcanic rock fragment in sample S3, showing the area analyzed by Raman spectroscopy. (b) Raman spectrum of the area analyzed. (c) Raman spectrum of the analcime from the RRUFF project database.
Minerals 09 00266 g003
Figure 4. PCA component analysis, obtained by major and trace elements and microphotographs in thin section of the nine fabrics of the architectural earthenwares, identified by combining geochemical and petrographical data.
Figure 4. PCA component analysis, obtained by major and trace elements and microphotographs in thin section of the nine fabrics of the architectural earthenwares, identified by combining geochemical and petrographical data.
Minerals 09 00266 g004
Figure 5. Classification of clinopyroxenes [59] using data obtained by EPMA and comparison between the composition of the clinopyroxenes analyzed in the archaeological samples of S. Omobono with those from the Campanian volcanic province (a) and the Roman volcanic complexes and districts (b).
Figure 5. Classification of clinopyroxenes [59] using data obtained by EPMA and comparison between the composition of the clinopyroxenes analyzed in the archaeological samples of S. Omobono with those from the Campanian volcanic province (a) and the Roman volcanic complexes and districts (b).
Minerals 09 00266 g005

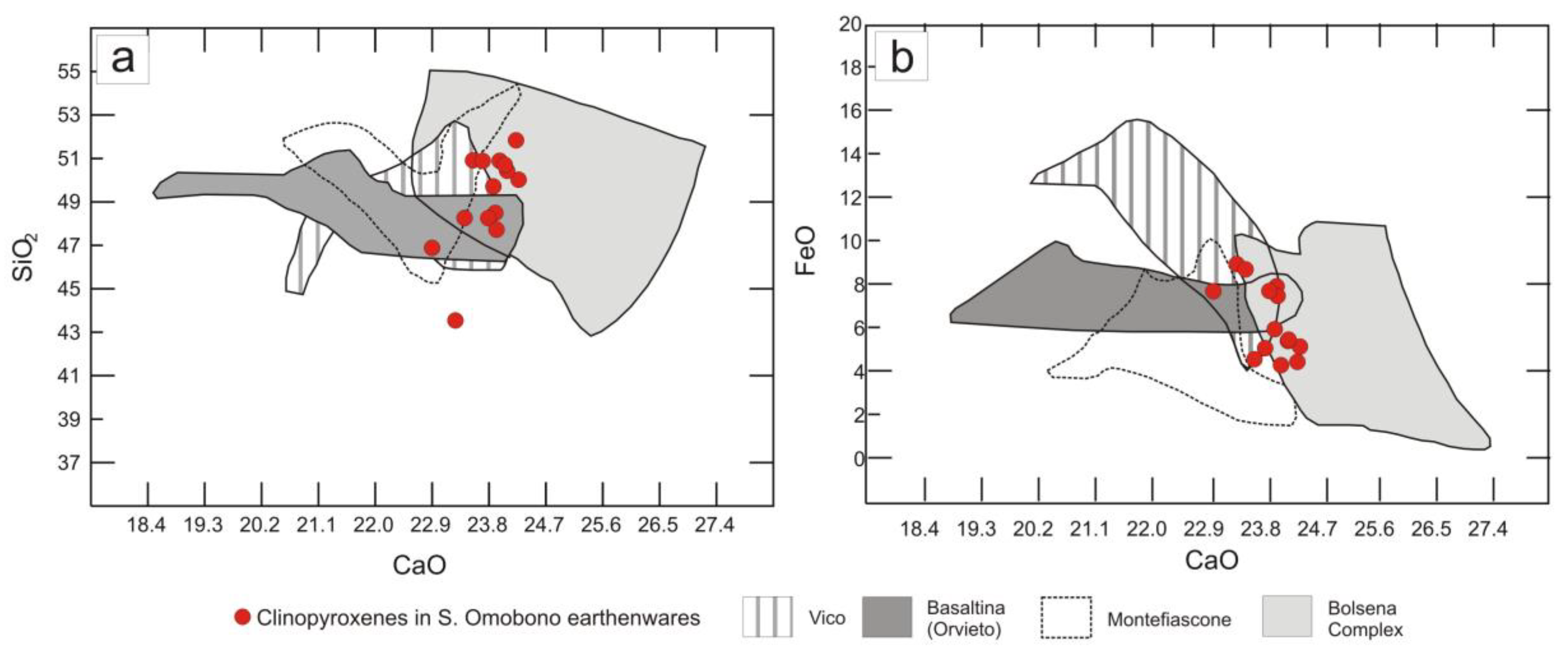

Figure 6. CaO vs SiO2 (a) and CaO vs FeO (b) diagrams showing the comparisons between the clinopyroxenes analyzed in the archaeological samples of S. Omobono and those found in some Roman volcanic districts [66].
Figure 6. CaO vs SiO2 (a) and CaO vs FeO (b) diagrams showing the comparisons between the clinopyroxenes analyzed in the archaeological samples of S. Omobono and those found in some Roman volcanic districts [66].
Minerals 09 00266 g006
Table 1. Architectural earthenwares coming from the archaeological site of S. Omobono, with typology, layer, provenance area and historical period, based on archaeological data.
Table 1. Architectural earthenwares coming from the archaeological site of S. Omobono, with typology, layer, provenance area and historical period, based on archaeological data.
SampleTypologyLayer and Inventory NumberSectorHistorical Period Based on Archaeological Data
S3Impasto rosso pan-tileLayer 877 (n. MA11081)D 10End of 7th–begin of 6th century BC
S4Impasto rosso pan-tile Layer 5 (n. 925)VII-IXEnd of 7th–begin of 6th century BC
S7Impasto rosso pan-tileLayer 1244 (n. 1102)A7End of 7th–begin of 6th century BC
S9Impasto chiaro sabbioso pan-tileLayer 883 (n. 1080)D 106th century BC (probably 580–520)
S10Impasto chiaro sabbioso pan-tileLayer 1208 (n. MA1 1054)D 106th century BC (probably 580–520)
S11Impasto chiaro sabbioso pan-tileLayer 1214 (n. MA3 1044)D 106th century BC (probably second half)
S12Impasto chiaro sabbioso pan-tileLayer 23 (n. 956)I6th century BC (probably 580–520)
S13Impasto chiaro sabbioso pan-tileLayer 10 (n. 1026)Gjerstad excavation6th century BC (probably 580–520)
S15Impasto chiaro sabbioso cover-tileLayer 1207 (n. 1207)D 106th century BC (probably 580–520)
S17Impasto chiaro sabbioso cover-tileLayer 1213 (n. 1067)D 106th century BC (probably 580–520)
S18Impasto chiaro sabbioso cover-tileLayer 1221 (n. 1075)D 106th century BC (probably 580–520)
S21Fragment of pediment slab Layer 7 (n. 966)II 6th century BC (about 580)
S22Architectural decoration (fragment of panther)Layer 1214D 106th century BC (about 580)
S23Architectural decoration (fragment of voluta)Layer 1214D 106th century BC (about 540)
Table 2. Petrographic features of the architectural earthenwares by optical microscopy. (Roundnsess = HS: high sphericity, LS: low sphericity, A: angular, SA: sub-angular, SR: sub-rounded. Sorting = MS: moderately sorted, MWS: moderately well sorted, PS: poorly sorted, WS: well sorted. Optical aspect of the matrix = OA: optically active; OI: optically inactive.
Table 2. Petrographic features of the architectural earthenwares by optical microscopy. (Roundnsess = HS: high sphericity, LS: low sphericity, A: angular, SA: sub-angular, SR: sub-rounded. Sorting = MS: moderately sorted, MWS: moderately well sorted, PS: poorly sorted, WS: well sorted. Optical aspect of the matrix = OA: optically active; OI: optically inactive.
By Polarized Microscopy
FabricSampleMean Non-Plastic Inclusions Size (µm)Max. Non-Plastic Inclusions Size (µm)Mean Macro Porosity (µm)Max. Macro Porosity (µm)Size Class Roundness of Non-Plastic InclusionsSorting of Non Plastic-InclusionsMatrix ColourOptical Aspect of the Matrix
Fab. 1S38443252140380Coarse SandHS-SRPSReddishOA
S46672408127271Coarse SandHS-SAPSReddishOA
S78653876142275Coarse SandHS-SAPSReddishOA (sandwich effect)
Fab. 2S21340158276256Medium SandHS-AMSBrownishOA
S22319159259255Medium SandLS-SR/HS-AMSBrownishOA
S23344104866190Medium SandLS-SAMSBrownishOA
Fab. 3S13338208651130Medium SandLS-SR/HS-SAMSBrown-reddishOA (sandwich effect)
S185392230106373Coarse SandLS-SAMSBrown-reddishOA (sandwich effect)
Fab. 4S15590266080210Coarse SandHS-AMSBrown-reddishOI
Fab. 5S9268107488183Medium SandHS-SAMWSLight brown OI
Fab. 6S1023811655392Fine SandHS/LS-SRWSBrownishOI
Fab. 7S113212822180304Medium SandHS/LS-SAMSBrownishOI
Fab. 8S124232686150215Medium SandHS-AMSLight brown OI
Fab. 9S17166188288375Fine SandHS-SAMWSBrownishOA
Table 3. Mineralogical and petrographic features of the architectural earthenwares by optical microscopy and Semiquantitative visual estimation of non-plastic inclusions, matrix and macroporosity. Mineralogical phases = Anl: analcime, Bt: biotite, Cal: calcite, Cpx: clinopyroxene; Gh: gehlenite, Grt: garnet, Hem: hematite, Ill: illite, Kln: kaolinite, Lct: leucite, Ms: muscovite, Om: opaque minerals, Or: orthoclase, Pl: plagioclase, Qtz: quartz. tr: traces.
Table 3. Mineralogical and petrographic features of the architectural earthenwares by optical microscopy and Semiquantitative visual estimation of non-plastic inclusions, matrix and macroporosity. Mineralogical phases = Anl: analcime, Bt: biotite, Cal: calcite, Cpx: clinopyroxene; Gh: gehlenite, Grt: garnet, Hem: hematite, Ill: illite, Kln: kaolinite, Lct: leucite, Ms: muscovite, Om: opaque minerals, Or: orthoclase, Pl: plagioclase, Qtz: quartz. tr: traces.
Semiquantitative Visual Estimation by Polarized Microscopy By Polarized Microscopy and XRPD
FabricSample% Non-Plastic Inclusions (size > 1/16 mm)% Matrix (size < 1/16 mm) Matrix/Non-Plastic Inclusions Ratio% Macro Porosity (size > 1/16 mm) Mineralogical Phases of the Non-Plastic InclusionsRock FragmentsOther
Fab. 1S315755.010Qtz, Cpx, Pl, Or, Anl, Ms, Bt, Om, Ill, Grt(tr)Volcanic rocks, flints (tr)ARFs
S415755.010Qtz, Pl, Or, Cpx, Ms, Bt, Om, Grt(tr), Kln(tr)Volcanic rocksARFs
S720653.315Qtz, Pl, Or, Cpx, Anl, Bt, Om, Ill(tr), Grt(tr), Cal(tr)Volcanic rocksARFs, secondary calcite inside porosity
Fab. 2S2120653.315Qtz, Cpx, Cal, Pl, Or, Ms, Bt, Anl, Om(tr), Grt(tr), Lct(tr)Quartzites, volcanic rocks (tr)Secondary calcite inside porosity
S2215704.715Qtz, Cal, Cpx, Pl, Lct, Ill, Bt, Om, Anl(tr), Grt(tr), Or(tr)Quartzites, volcanic rocks (tr)Secondary calcite inside porosity
S2320653.315Qtz, Cal, Cpx, Pl, Hem, Lct, Bt(tr), Grt(tr), Anl(tr)Volcanic rocks (tr)Secondary calcite inside porosity
Fab. 3S1325622.513Qtz, Cal, Pl, Cpx, Lct, Or, Gh, Om, Bt, Grt(tr), Anl(tr)Volcanic rocks, flints Secondary calcite inside porosity, bioclasts (tr)
S1818693.813Qtz, Cal, Cpx, Pl, Anl, Hem, Bt(tr), Grt(tr), Or (tr)Volcanic rocks, flints Secondary calcite inside porosity, bioclasts (tr)
Fab. 4S1520653.315Qtz, Cpx, Cal, Gh, Pl, Or, Hem, Lct, Bt(tr), Grt(tr)Volcanic rocks, flints (tr), quartzites (tr) Secondary calcite inside porosity
Fab. 5S920673.413Qtz, Cpx, Pl, Cal, Or, Anl, Om, Bt, Grt(tr), Gh(tr), Hem(tr)Volcanic rocks, quartzitesSecondary calcite inside porosity
Fab. 6S1040401.020Qtz, Cpx, Pl, Cal, Gh, Hem, Om, Ill, Grt, Bt(tr), Anl(tr)Flints, quartzites, volcanic rocks, phyllites (tr) Secondary calcite inside porosity
Fab. 7S1130521.718Qtz, Cpx, Cal, Gh, Pl, Or, Hem, Anl, Bt, Grt(tr)Volcanic rocks, quartzitesSecondary calcite inside porosity
Fab. 8S1235471.318Qtz, Cal, Pl, Cpx, Or, Om, Ill(tr), Anl(tr), Bt(tr)Flints, volcanic rocks, quartzites, carbonatic rocksSecondary calcite inside porosity, bioclasts (tr)
Fab. 9S1730501.720Qtz, Cal, Pl, Cpx, Or, Om, Ms, Bt, Grt(tr)Quartzites, filnts, volcanic rocksSecondary calcite inside porosity, bioclasts (tr)
Table 4. Quantitative mineralogical composition of the architectural earthenwares by XRPD analysis and Rietveld refinements. nd: not detected.
Table 4. Quantitative mineralogical composition of the architectural earthenwares by XRPD analysis and Rietveld refinements. nd: not detected.
wt. %QuartzOrthoclaseClinopyroxeneAnalcimeLeuciteKaoliniteCalciteHematiteGehleniteMicaPlagioclaseTotal
S329.0914.289.875.25ndndndndnd26.8314.69100
S432.0718.4511.45ndnd5.4ndndnd8.7923.84100
S717.358.4329.484.22ndnd5.76ndnd5.6629.09100
S918.93nd40.775.08ndnd7.350.691.561.2524.37100
S1018.95nd40.825.07ndnd7.360.691.571.2624.28100
S1112.973.7534.753.45ndnd10.770.529.911.2722.59100
S1224.46nd25.857.04ndnd18.52ndnd3.8820.24100
S1320.0818.4617.720.064.15nd23.26nd0.494.3411.43100
S1519.3710.8523.92nd2.54nd10.811.295.481.6524.1100
S1723.056.2413.45ndndnd9.45ndnd12.1535.66100
S1818.335.717.985.10ndnd22.510.37nd5.7624.26100
S2122.474.8922.733.762.71nd10.34ndnd6.2726.83100
S2220.175.1724.052.902.57nd15.89ndnd9.0520.22100
S2324.69nd16.980.772.75nd11.68ndnd3.9939.15100
Table 5. Chemical composition of major elements of the architectural earthenwares by XRF analysis, expressed in wt. %. LOI: loss on ignition at 950 °C.
Table 5. Chemical composition of major elements of the architectural earthenwares by XRF analysis, expressed in wt. %. LOI: loss on ignition at 950 °C.
wt. %SiO2TiO2Al2O3Fe2O3 MnOMgOCaONa2OK2OP2O5LOI
S355.001.1120.119.520.151.983.621.502.720.244.05
S454.101.2620.339.660.111.683.220.962.670.365.65
S757.651.1921.929.720.152.072.661.332.270.130.91
S952.730.6613.927.660.103.8215.121.081.640.173.10
S1053.420.7111.358.630.134.1515.251.091.540.163.57
S1148.430.6411.308.680.163.9418.360.971.710.275.54
S1247.590.6312.397.540.204.0215.040.841.980.289.49
S1346.130.6811.708.540.213.4817.020.572.600.248.83
S1549.280.6511.868.240.183.2416.771.212.120.296.16
S1750.110.7112.447.820.153.2714.530.702.340.277.66
S1845.720.7411.719.600.183.6316.910.562.400.278.28
S2149.520.7312.068.340.164.1415.870.722.150.226.09
S2249.200.7111.698.200.174.1516.710.652.070.206.25
S2349.520.7312.168.380.183.2815.580.672.270.246.99
Table 6. Chemical composition of trace elements of the architectural earthenwares by XRF analysis, expressed in ppm.
Table 6. Chemical composition of trace elements of the architectural earthenwares by XRF analysis, expressed in ppm.
ppmNbZrYSrRbCeBaLaNiCrVCo
S379468414673641331377316814017425
S4103530413743411171370<207915614231
S7494065432931522919921689815615428
S93458355011552625641048714914422
S102312731452111170325777224319622
S113010529614124180297535617416217
S12479623434124116331<204117412411
S135016028561141157400<203914916219
S154013631558156168410405313912719
S174416129422118143382275425115723
S184418027489116127204<204415319519
S213613132454123142260296515915925
S223111429449117158235546516016021
S233914129385127117247245917213320

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Minerals EISSN 2075-163X Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
