# A Geostatistical Simulation of a Mineral Deposit using Uncertain Experimental Data

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Methodology

- Experimental local probability distribution functions: the local probability distribution functions were built from 15 soft data samples that were the nearest to the location of the uncertain measurement; and
- Parametric local probability distribution functions: the local probability distribution functions were built using Gaussian distributions with the means and standard deviations inferred from the 15 samples closest to the uncertain location.

- Direct sequential simulation only using the hard data to simulate the mineral deposit;
- Direct sequential collocated co-simulation using the accurate and precise experimental data as the hard data and the uncertain experimental data as the secondary data to simulate the mineral deposit;
- Direct sequential simulation with local probability distribution functions using the accurate and precise experimental data as the hard data and the uncertain experimental data to build experimental local probability distribution functions; and
- Direct sequential simulation with local probability distribution functions using the accurate and precise experimental data as the hard data and the uncertain experimental data to build parametric local probability distribution functions.

## 3. Application

#### 3.1. Dataset Description

#### 3.2. Results

_{Ref_Blocks}represents the true block values.

## 4. Conclusions and Recommendations

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Emery, X.; Bertini, J.P.; Ortiz, J.M. Resource and reserve evaluation in the presence of imprecise data. CIM Bull.
**2005**, 90, 366–377. [Google Scholar] - Babak, O.; Deutsch, C.V. Collocated cokriging based on merged secondary attributes. Math. Geosci.
**2009**, 41, 921–926. [Google Scholar] [CrossRef] - Ribeiro, D.; Monteiro, C.; Cunha, E.; Catarino, M.; Augusto, V.; Gomes, M. Correlation study between reverse circulation and diamond drilling in iron ore deposits. In Proceedings of the 5th World Conference on Sampling and Blending, Santiago, Chile, 25–28 October 2011; pp. 277–285. [Google Scholar]
- Reuwsaat, J. Estudo de Alternativas de Estimativa Para Jazidas de Ferro Utilizando Dados Heterotópicos; Programa de Pós-Graduação em Engenharia de Minas, Metalúrgica e Materiais, Universidade Federal do Rio Grande do Sul: Porto Alegre, Brazil, 2011. (In Portuguese) [Google Scholar]
- Minnitt, R.C.A.; Deutsch, C.V. Cokriging for optimal mineral resource estimates in mining operations. J. S. Afr. Inst. Min. Metal.
**2014**, 114, 189–203. [Google Scholar] - Cornah, A.; Machaka, E. Integration of imprecise and biased data into mineral resource estimates. J. S. Afr. Inst. Min. Metal.
**2015**, 115, 523–530. [Google Scholar] - Donovan, P.N. Resource Estimation with Multiple Data Types. Master Thesis, University of Alberta, Edmonton, AB, Canada, 2015. [Google Scholar]
- Leuangthong, O.; Deutsch, C.V. Stepwise conditional transformation for simulation of multiple variables. Math. Geol.
**2003**, 35, 155–173. [Google Scholar] [CrossRef] - Gómez-Hernández, J.J.; Journel, A.G. Joint Sequential Simulation of MultiGaussian Fields. In Quantitative Geology and Geostatistics, Geostatistics Tróia ’92, Tróia, Portugal, 1992; Soares, A., Ed.; Springer: Dordrecht, The Netherlands, 1993; Volume 5, pp. 85–94. [Google Scholar]
- Journel, A.G. Modeling uncertainty: Some conceptual thoughts. In Quantitative Geology and Geostatistics, Geostatistics for Next Century; Dimitrakopoulos, R., Ed.; Springer: Dordrecht, The Netherlands, 1994; Volume 6. [Google Scholar]
- Isaaks, E.H. The Application of Monte Carlo Methods to the Analysis of Spatially Correlated Data. Ph.D. Thesis, Stanford University, Stanford, CA, USA, 1990. [Google Scholar]
- Soares, A. Direct sequential simulation and cosimulation. Math. Geol.
**2001**, 33, 911–926. [Google Scholar] [CrossRef] - Verly, G.W. Sequential Gaussian Cosimulation: A simulation method integrating several types of information. In Quantitative Geology and Geostatistics, Geostatistics Tróia ’92, Tróia, Portugal, 1992; Soares, A., Ed.; Springer: Dordrecht, The Netherlands, 1993; Volume 5, pp. 543–554. [Google Scholar]
- Almeida, A.S.; Journel, A.G. Joint simulation of multiple variables with a Markov-type coregionalization model. Math. Geol.
**1994**, 26, 565–588. [Google Scholar] [CrossRef] - Soares, A.; Nunes, R.; Azevedo, L. Integration of Uncertain Data in Geostatistical Modeling. Math. Geosci.
**2017**, 49, 253–273. [Google Scholar] [CrossRef] - Horta, A.; Soares, A. Direct sequential co-simulation with joint probability distributions. Math. Geosci.
**2010**, 42, 269–292. [Google Scholar] [CrossRef] - Isaaks, E.H.; Srivastava, R.M. An Introduction to Applied Geostatistics; Oxford University Press: New York, NY, USA, 1989; p. 561. [Google Scholar]
- Araújo, C.; Costa, J. Integration of different-quality data in short-term mining planning. Rem: Revista Escola de Minas.
**2015**, 68, 221–227. [Google Scholar] [CrossRef][Green Version] - Araújo, C.; Costa, J.; Koppe, V.; Soares, A. Reducing error in short term grade prediction including imprecise and inaccurate data. In Proceedings of the 24th World Mining Congress, Rio de Janeiro, Brazil, 18–21 October 2016; pp. 80–89. [Google Scholar]

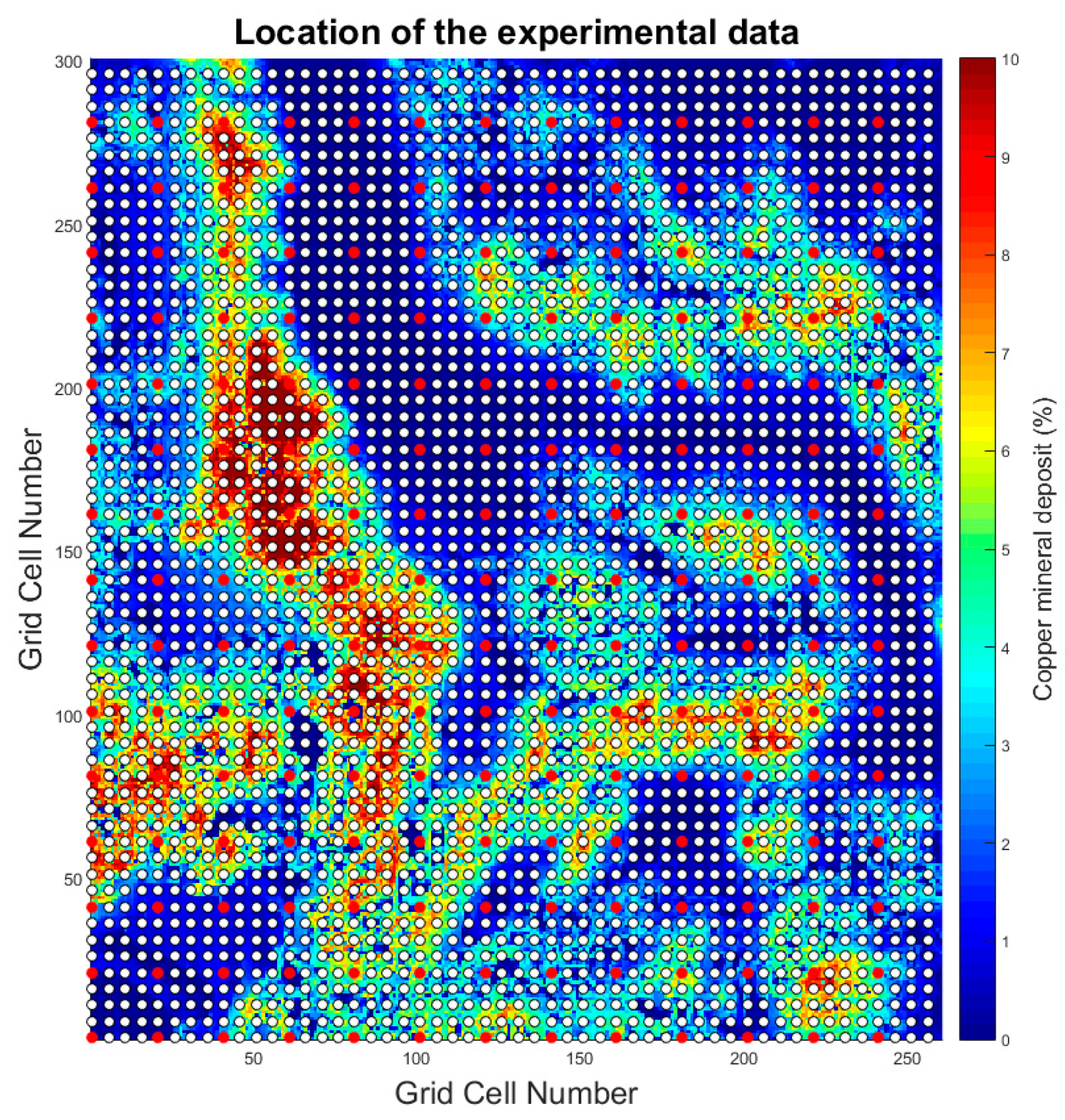

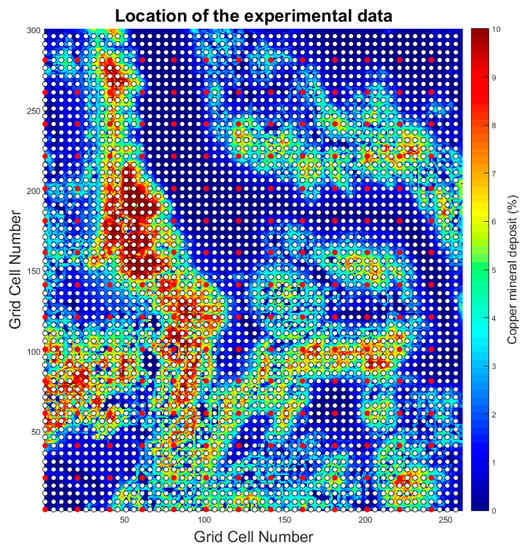

**Figure 1.**Exhaustive Walker Lake dataset [17] and the experimental data locations used in this work (red filled circles: samples without measurement errors; white filled circles: samples with measurement errors).

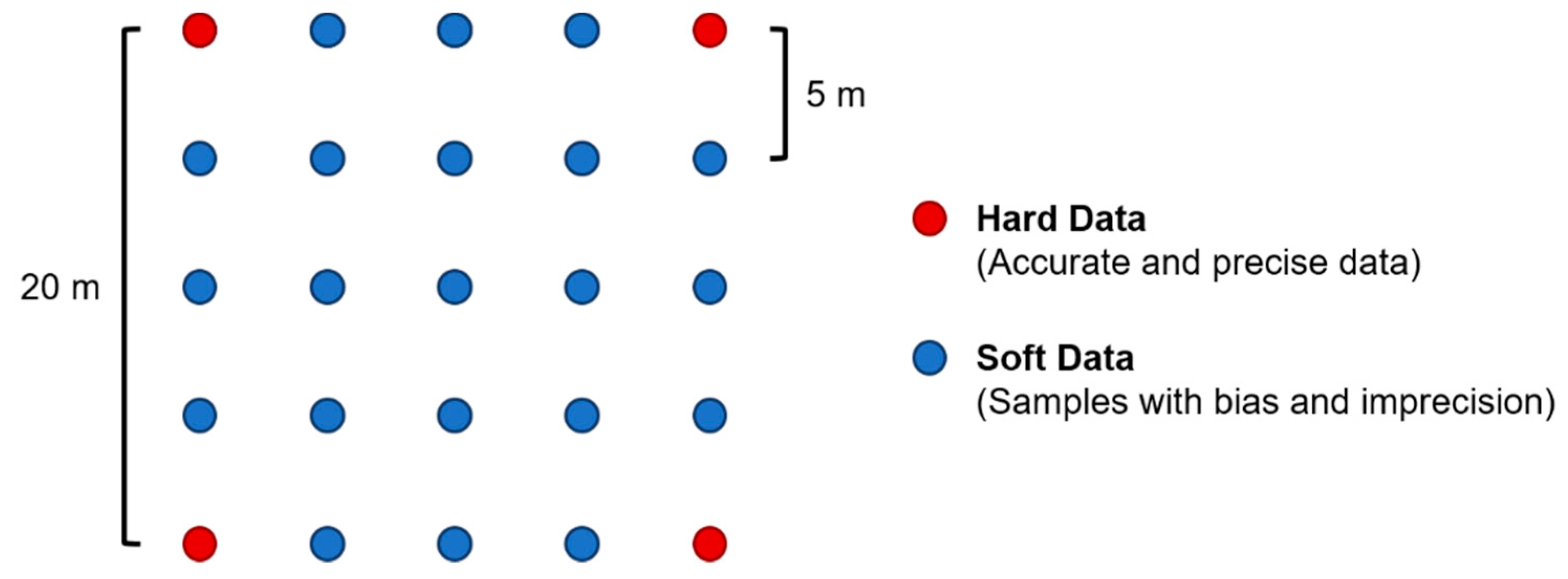

**Figure 2.**Schematic representation of the modifications performed to the original exhaustive dataset. Two types of data were considered: samples without and with measurement errors.

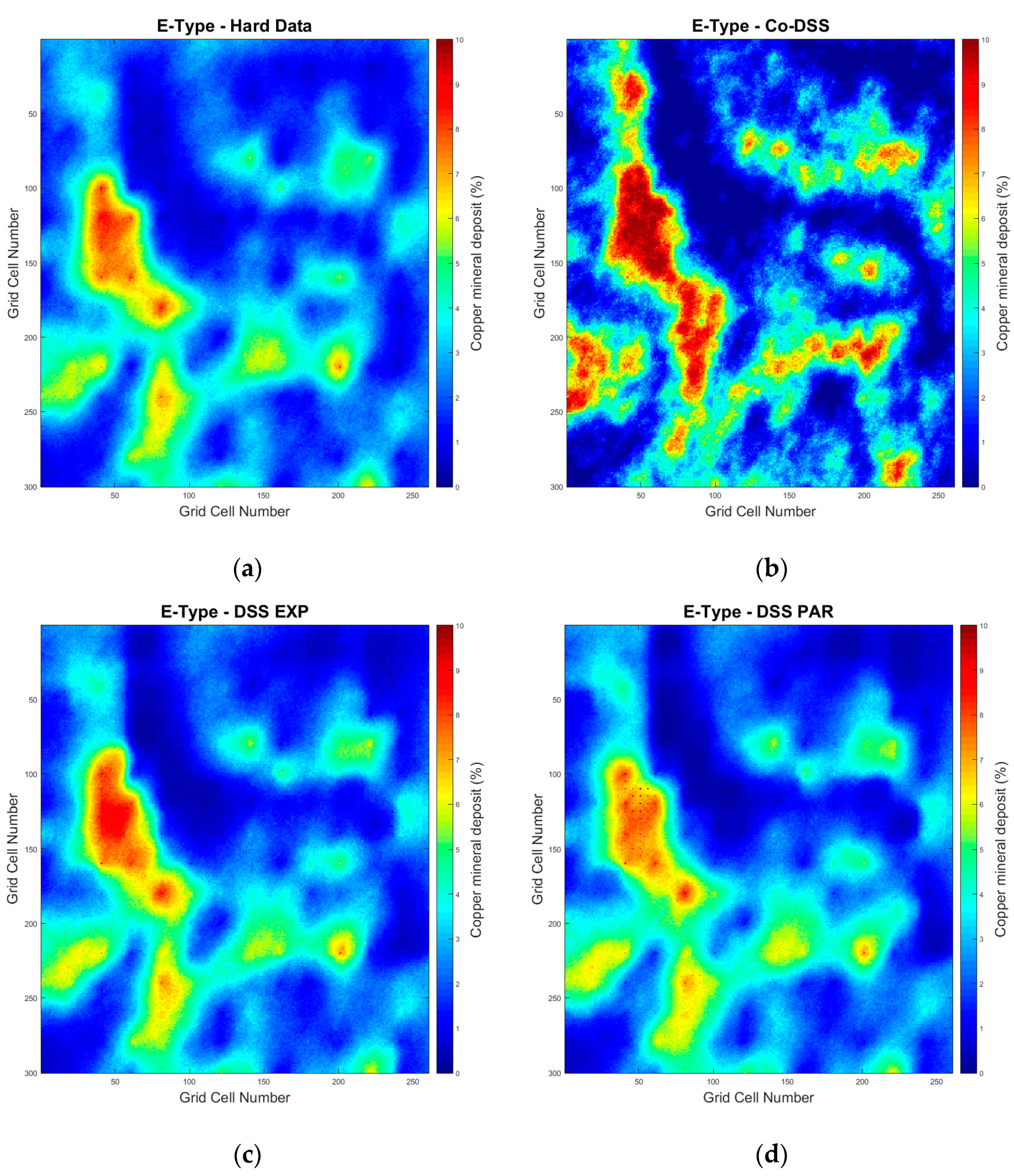

**Figure 4.**E-type of the 100 simulations generated for each simulation strategy used: (

**a**) direct sequential simulation with only hard data, (

**b**) direct sequential collocated co-simulation, (

**c**) direct sequential simulation with experimental point distributions, and (

**d**) direct sequential simulation with parameterized point distributions.

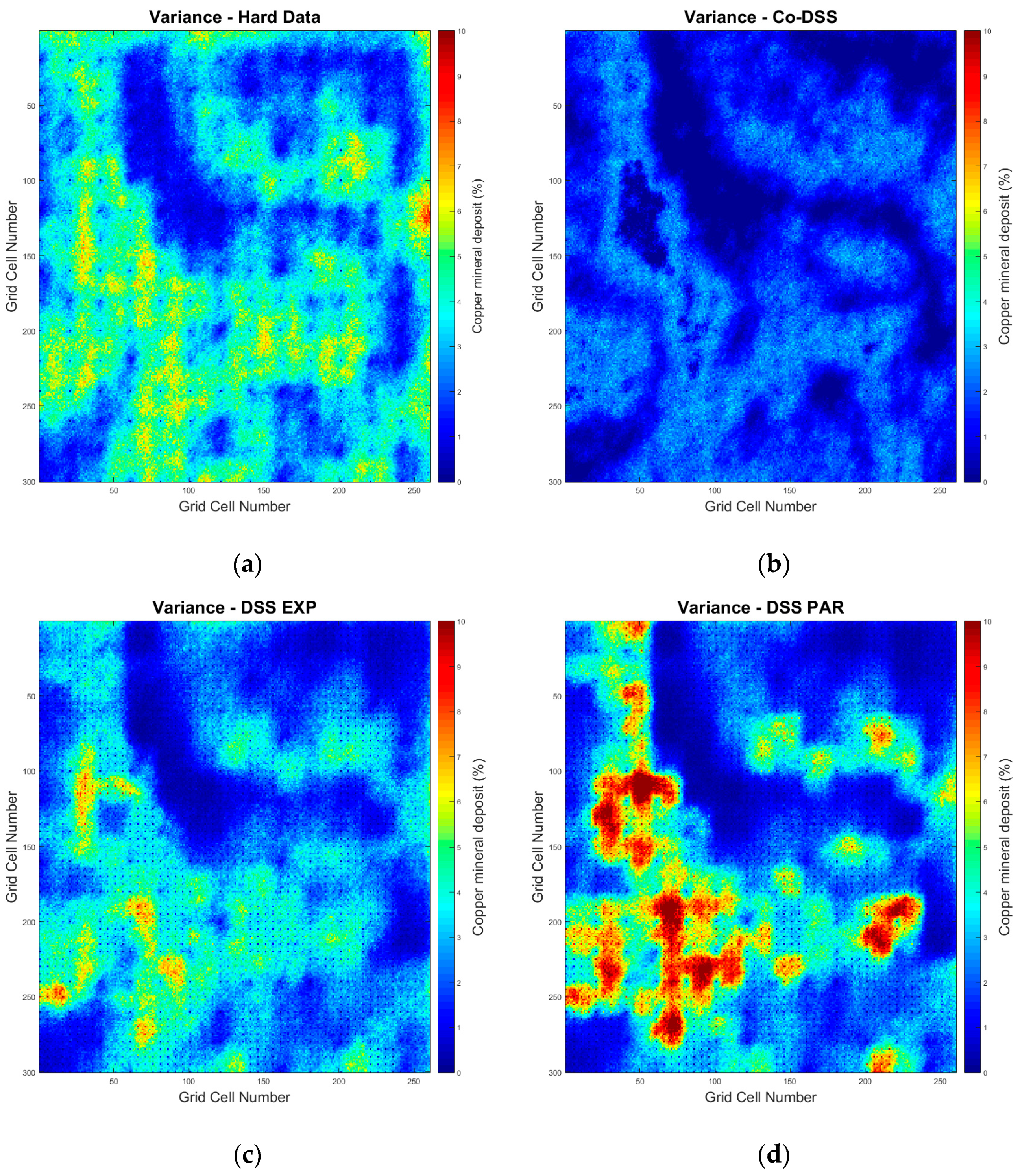

**Figure 5.**Variance of the 100 simulations for each simulation strategy used: (

**a**) direct sequential simulation with only hard data, (

**b**) direct sequential collocated co-simulation, (

**c**) direct sequential simulation with experimental point distributions, and (

**d**) direct sequential simulation with parameterized point distributions.

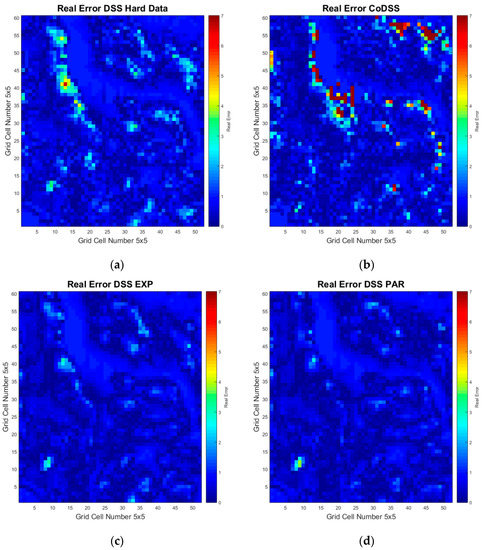

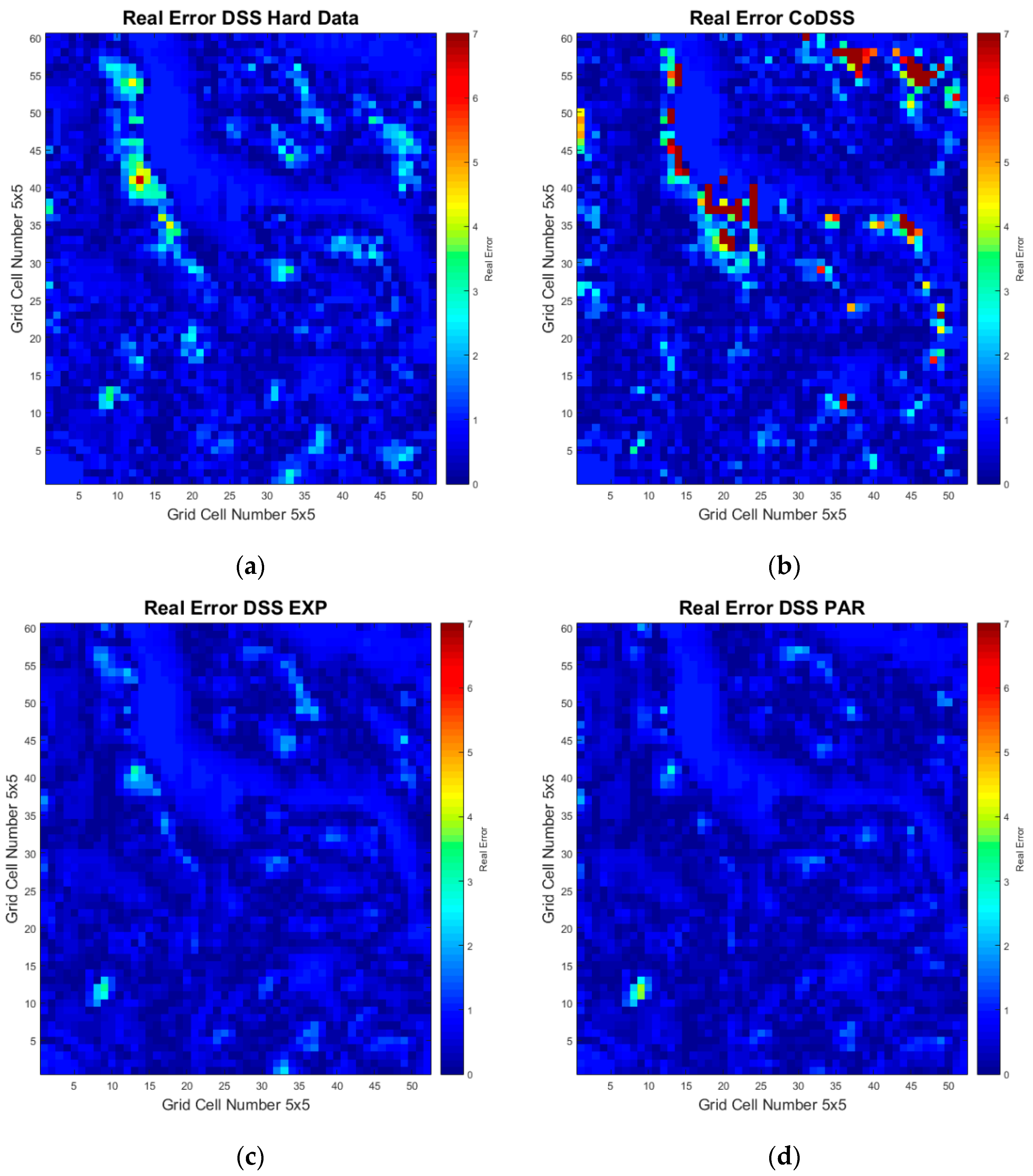

**Figure 6.**Map of the absolute relative errors for each simulation strategy used: (

**a**) direct sequential simulation with only hard data, (

**b**) direct sequential collocated co-simulation, (

**c**) direct sequential simulation with experimental point distributions, and (

**d**) Direct sequential simulation with local distribution functions.

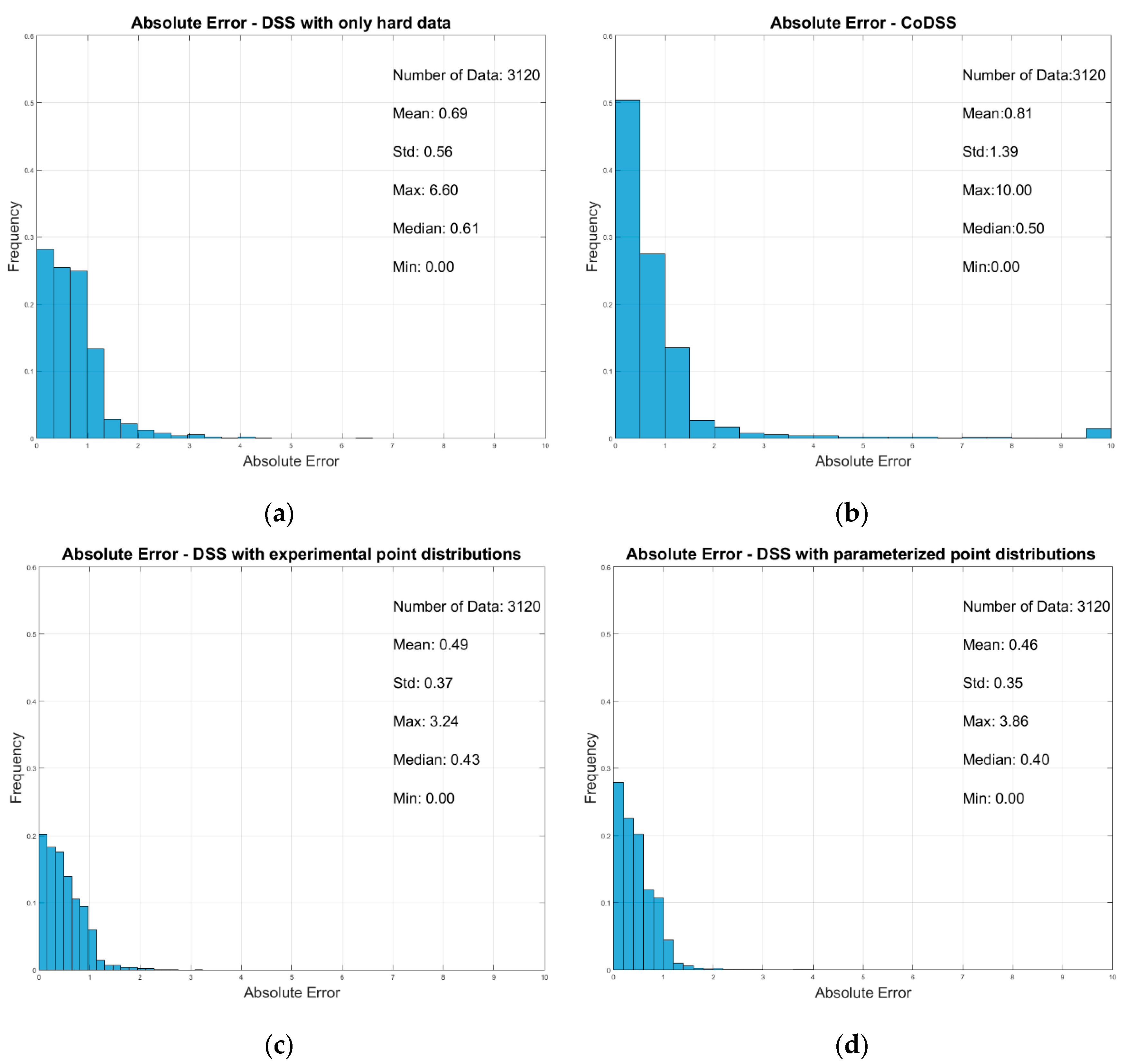

**Figure 7.**Histogram of the absolute error for each simulation strategy used: (

**a**) direct sequential simulation with only hard data, (

**b**) direct sequential collocated co-simulation, (

**c**) direct sequential simulation with experimental point distributions, and (

**d**) direct sequential simulation with parameterized point distributions.

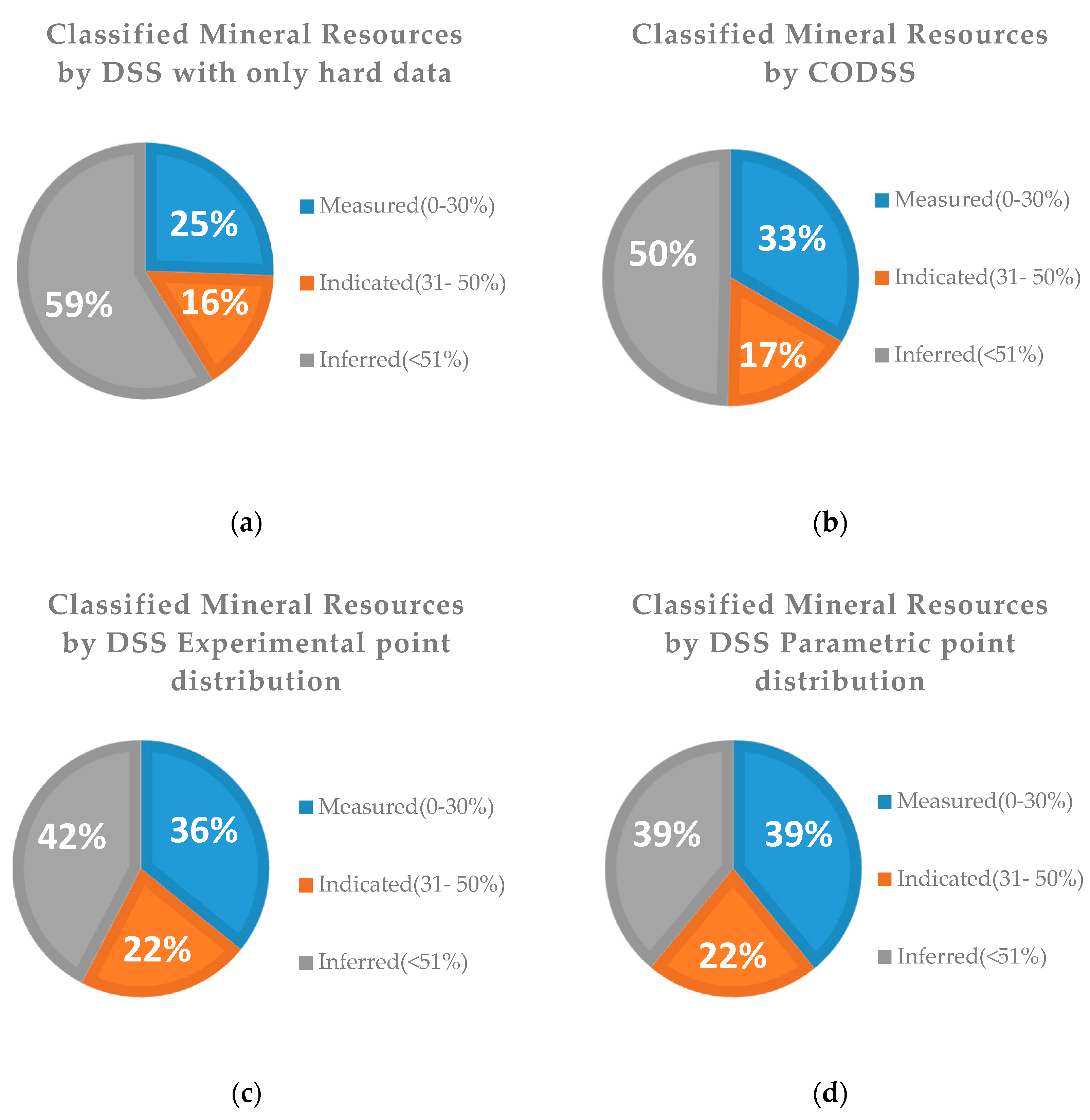

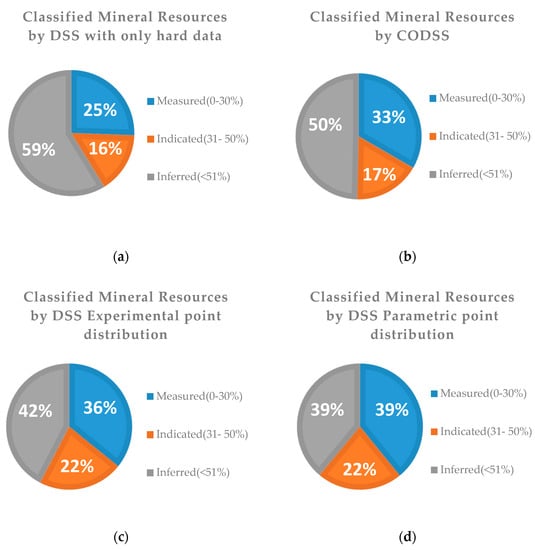

**Figure 8.**Proportions of the classified mineral resources as a function of the calculated error by using different strategies: (

**a**) direct sequential simulation with only hard data, (

**b**) direct sequential collocated co-simulation, (

**c**) direct sequential simulation with experimental point distributions, and (

**d**) direct sequential simulation with parameterized point distributions.

**Table 1.**Main statistics of the original reference dataset and the uncertainty dataset used in this work.

Data | No. of Samples | Mean | Standard Deviation | CV | Minimum | Maximum |
---|---|---|---|---|---|---|

V_Ref_points | 78,000 | 2.78 | 2.50 | 0.90 | 0.00 | 16.31 |

V_Ref_blocks | 3120 | 2.78 | 2.49 | 0.89 | 0.00 | 15.68 |

V_20 × 20 | 195 | 2.73 | 2.43 | 0.89 | 0.00 | 10.13 |

V_5 × 5_+25% | 2925 | 3.44 | 3.12 | 0.90 | 0.00 | 18.30 |

**Table 2.**Proportions of the accurately classified mineral resources as a function of calculated relative error.

Classification of Resource | Blocks with Accuracy Error less than |
---|---|

Measured | 0–30% |

Indicated | 31–50% |

Inferred | >51% |
