Origin of the Shangfang Tungsten Deposit in the Fujian Province of Southeast China: Evidence from Scheelite Sm–Nd Geochronology, H–O Isotopes and Fluid Inclusions Studies

1
State Key Laboratory of Geological Processes and Mineral Resources, School of Earth Resource, Collaborative Innovation Center for Exploration of Strategic Mineral Resources, China University of Geosciences, Wuhan 430074, China
2
Fujian Institute of Geological Survey and Research, Fuzhou 350013, China
*
Authors to whom correspondence should be addressed.
Minerals 2019, 9(11), 713; https://doi.org/10.3390/min9110713
Received: 29 September 2019 / Revised: 28 October 2019 / Accepted: 16 November 2019 / Published: 19 November 2019

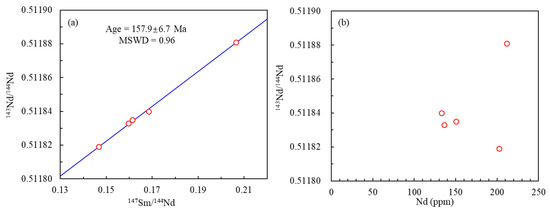

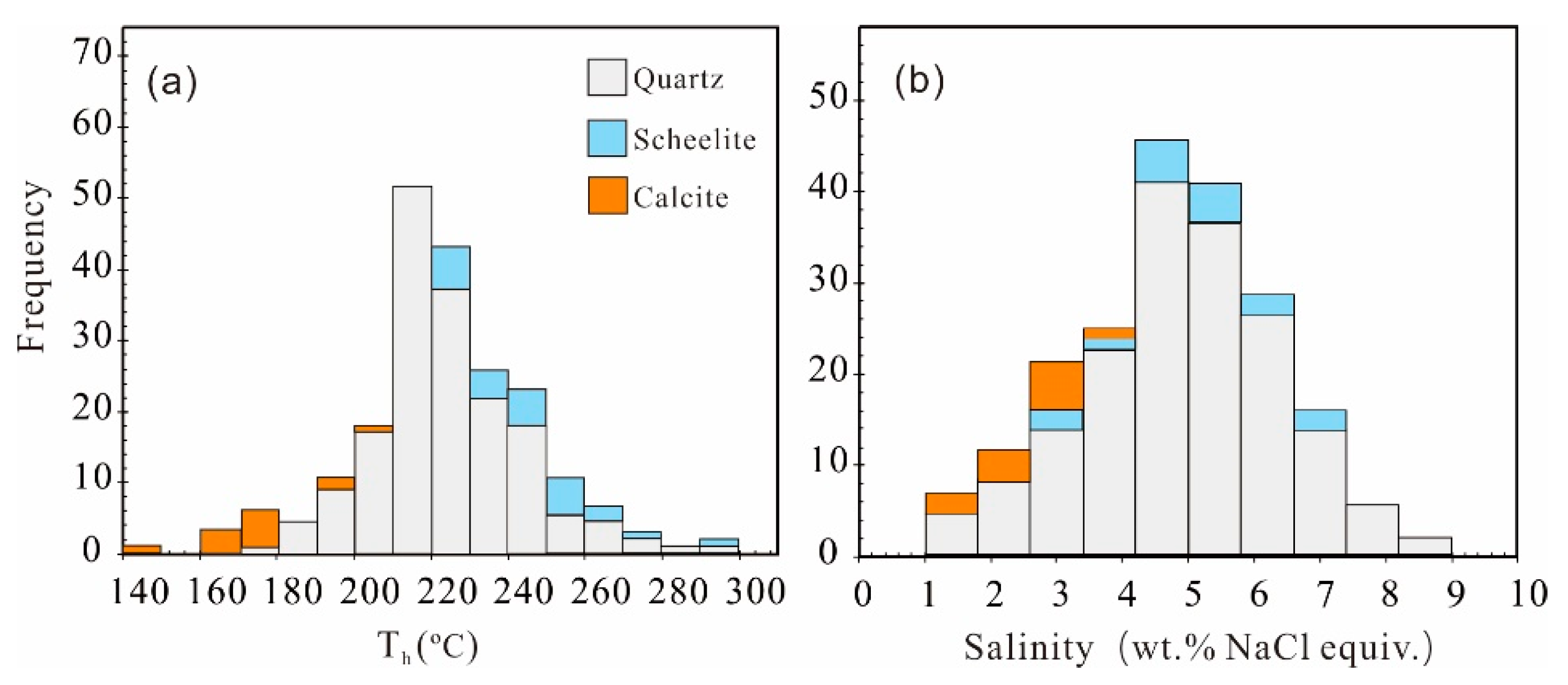

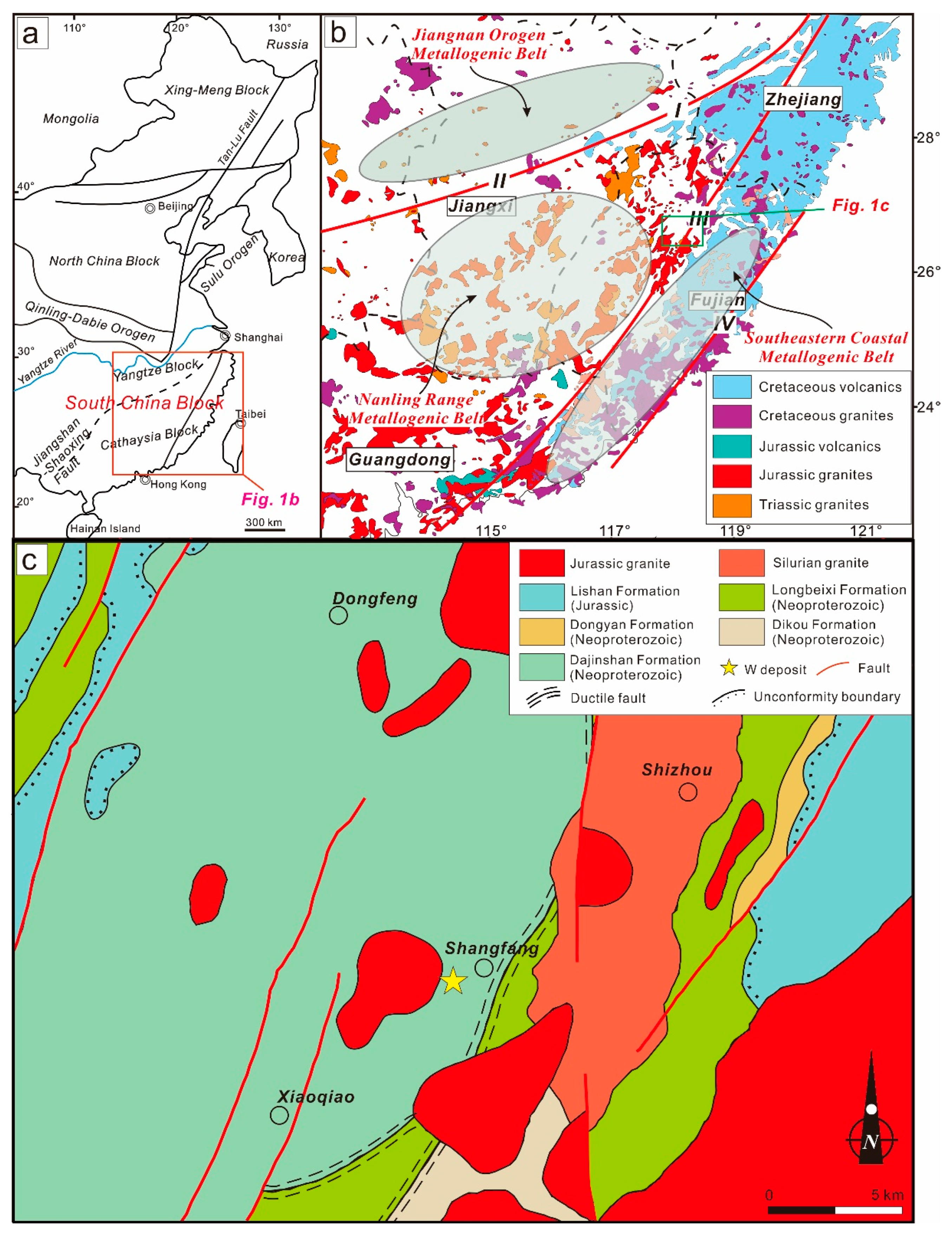

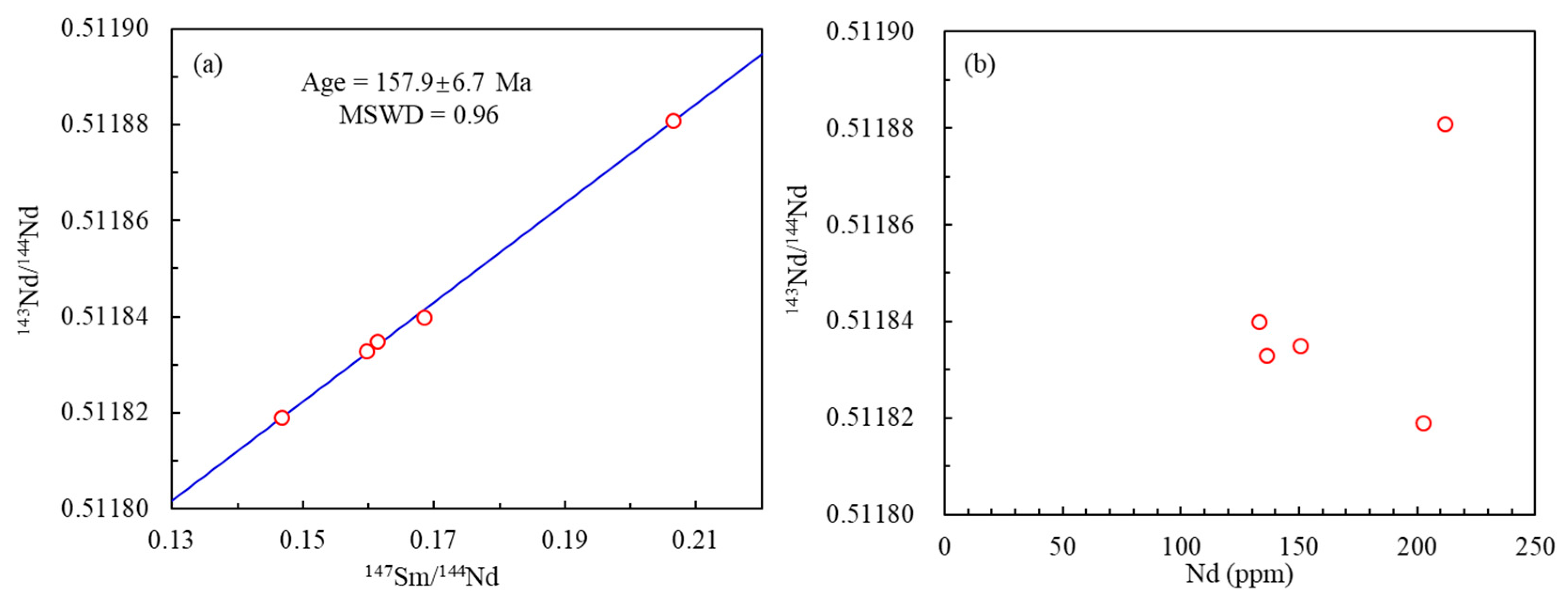

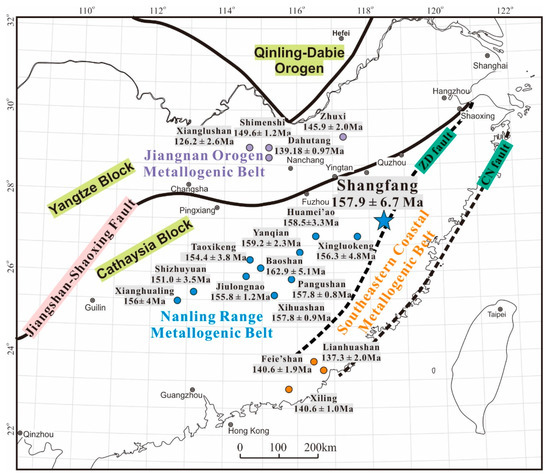

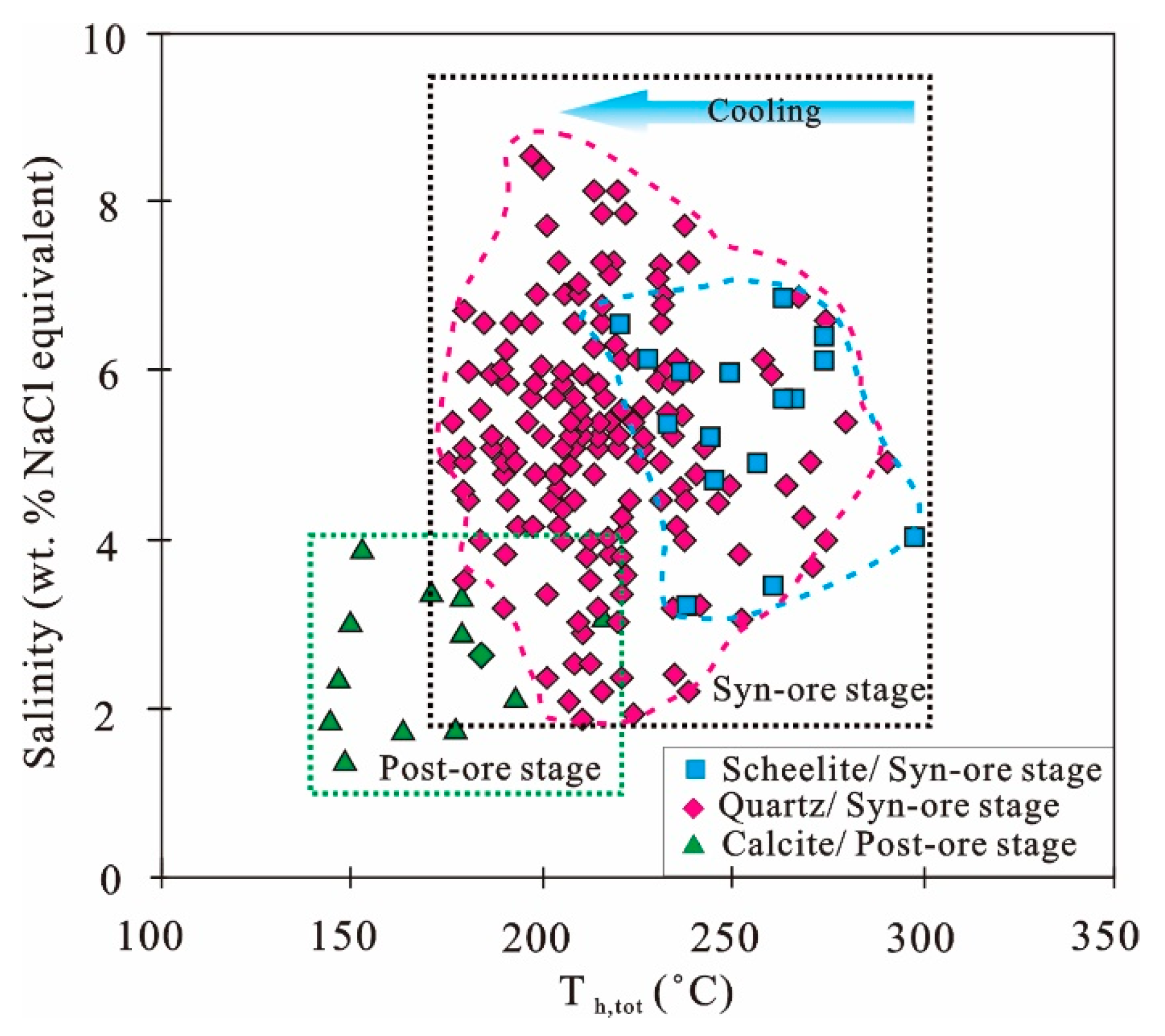

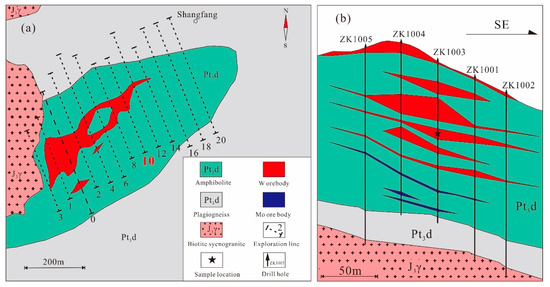

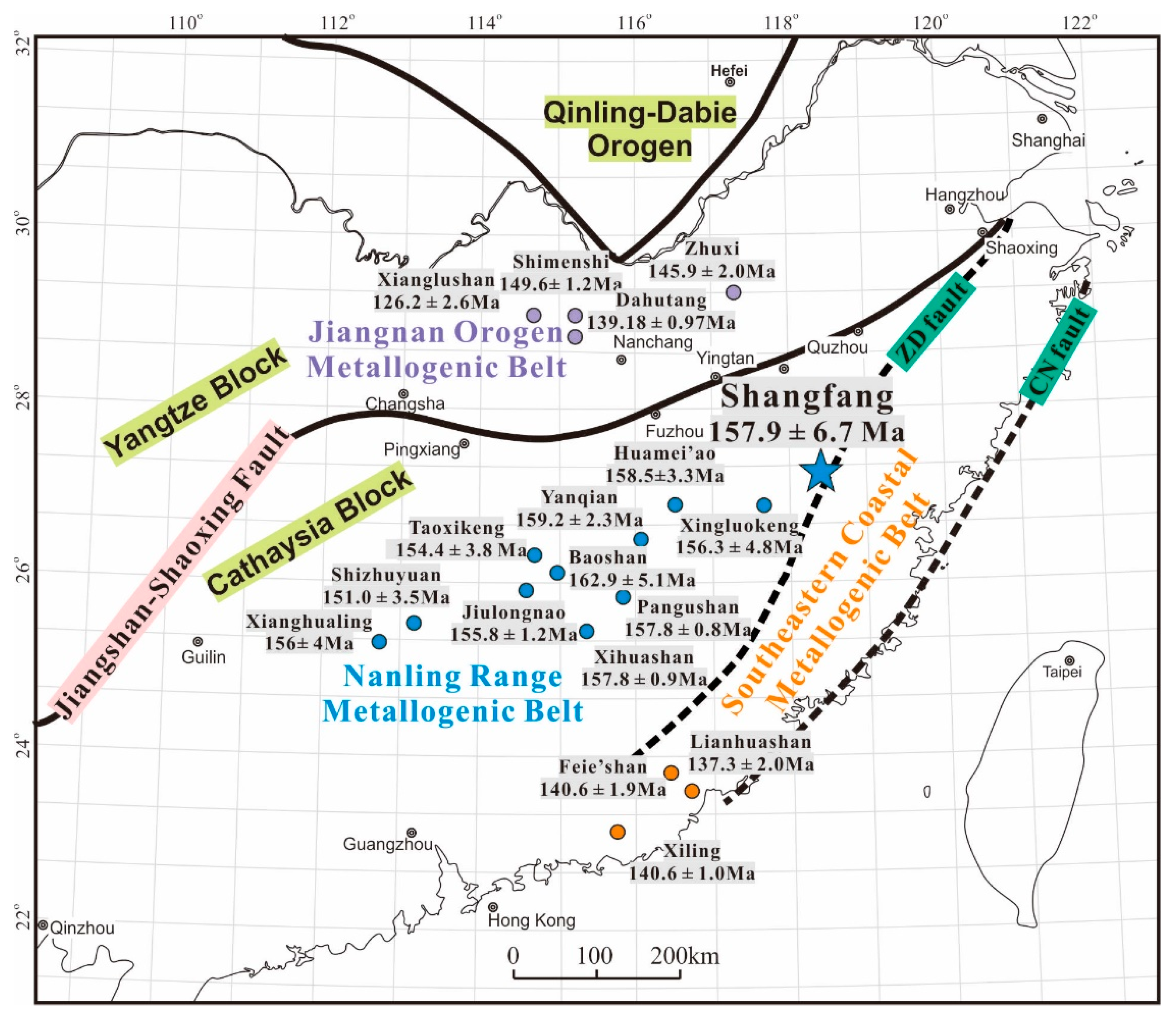

The Shangfang deposit is a recently discovered large-scale tungsten deposit (66,500 t at 0.23% WO3), which is located near the western boundary of the Southeastern Coastal Metallogenic Belt (i.e., Zhenghe–Dafu fault), and adjacent to the northeast of the Nanling Range Metallogenic Belt. Unlike many other W–Sn deposits in this region that occur within or near the granites, the orebodies in the Sangfang deposit all occur within the amphibolite of Palaeoproterozoic Dajinshan Formation and have no direct contact to the granite. In this study, we carry out a thermal ionization mass spectrometer (TIMS) Sm-Nd isotope analysis for the scheelites from the orebody, which yields a Sm–Nd isochron age of 157.9 ± 6.7 Ma (MSWD = 0.96). This age is in good agreement with the previously published zircon U–Pb age (158.8 ± 1.6 Ma) for the granite and the molybdenite Re–Os age (158.1 ± 5.4 Ma) in the deposit. Previous studies demonstrated that the W–Sn deposits occurring between Southeastern Nanling Range and Coastal Metallogenic Belt mainly formed in the two periods of 160–150 Ma and 140–135 Ma, respectively. The microthermometry results of fluid inclusions in scheelite and quartz are suggestive of a near-isothermal (possibly poly-baric) mixing between two fluids of differing salinities. The H–O isotope results illustrate that the ore-forming fluids are derived from magma and might be equilibrated with metamorphic rocks at high temperature. The Jurassic granite pluton should play a critical role for the large hydrothermal system producing the Shangfang W deposit. Furthermore, the negative εNd(t) of −14.6 obtained in the Shanfang scheelite suggests for the involvement of the deep crustal materials. In general, subduction of the paleo-Pacific plate caused an extensional tectonic setting with formation of the Shangfang granites and related W mineralization, the geological background of which is similar to other W deposits in the Nanling Range Metallogenic Belt. View Full-Text
Keywords: Sm–Nd age of scheelite; fluid inclusion; H–O isotope; Shangfang tungsten deposit Sm–Nd age of scheelite; fluid inclusion; H–O isotope; Shangfang tungsten deposit
Show Figures

Figure 1

MDPI and ACS Style

Zhu, L.-Y.; Jiang, S.-Y.; Chen, R.-S.; Ma, Y. Origin of the Shangfang Tungsten Deposit in the Fujian Province of Southeast China: Evidence from Scheelite Sm–Nd Geochronology, H–O Isotopes and Fluid Inclusions Studies. Minerals 2019, 9, 713.
