Open AccessArticle
Minerals 2018, 8(8), 320; https://doi.org/10.3390/min8080320

The Influence of Spectral Interferences on Critical Element Determination with Portable X-Ray Fluorescence (pXRF)

Institute of Mineral Resources Engineering, RWTH Aachen University, Wüllnerstrasse 2, 52062 Aachen, Germany
*
Author to whom correspondence should be addressed.
Received: 27 June 2018 / Revised: 23 July 2018 / Accepted: 25 July 2018 / Published: 27 July 2018
Full-Text   |   PDF [3707 KB, uploaded 27 July 2018]   |

Abstract

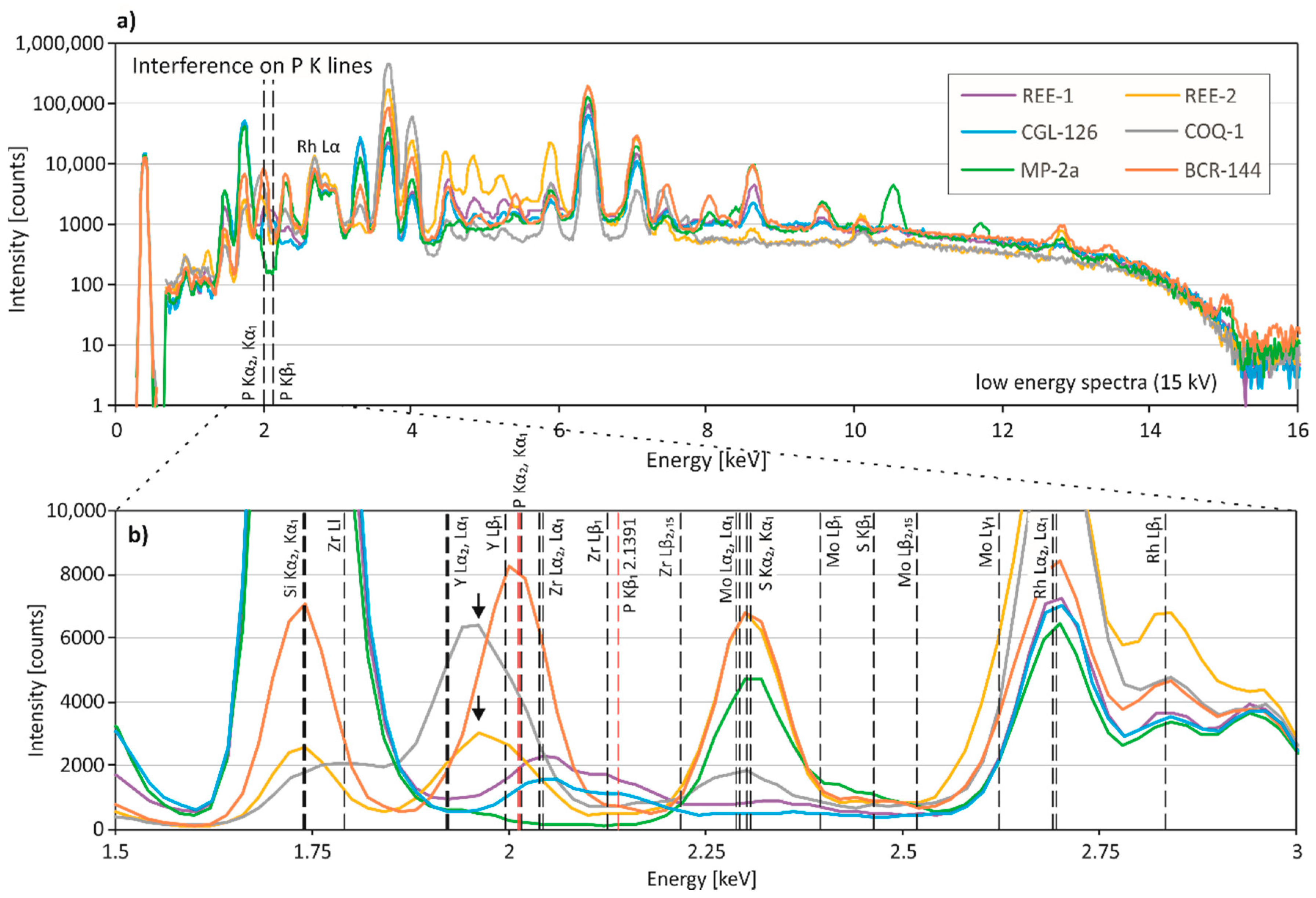

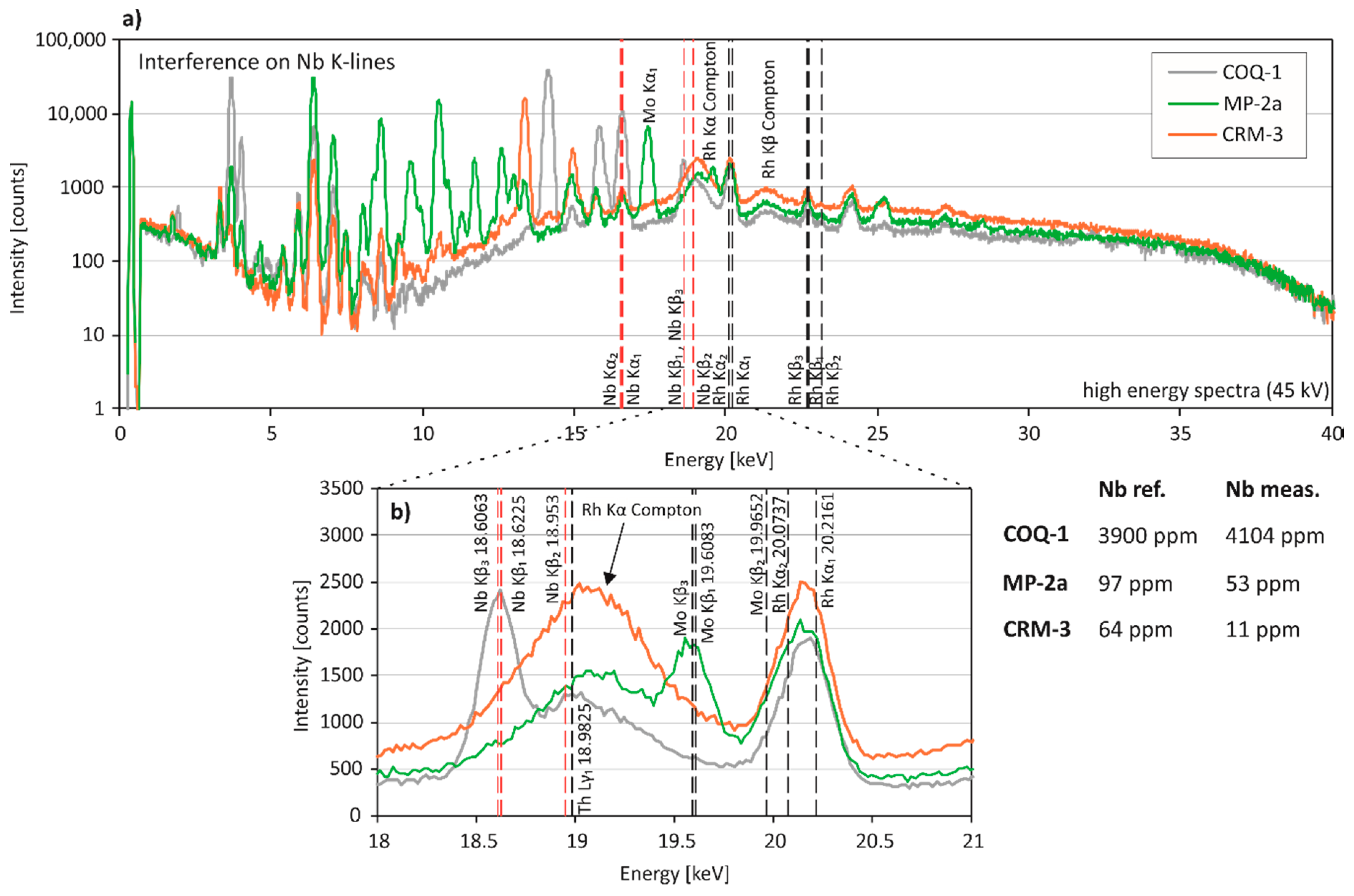

Field portable X-ray fluorescence (pXRF) spectrometers are routinely used in mineral resources studies. To date, mineral resources studies have largely focussed on the application of pXRF to the exploration for deposits of base and precious metals. By contrast, studies using pXRF for the quantification of critical elements in geological materials are scarce since these elements are difficult to determine with energy-dispersive pXRF technology. This study explores the capability of pXRF spectrometers to detect and quantify critical elements (Ba, P, Nb, V, Co, REE, W, Bi, Hf, and Ta) in certified reference materials (CRMs). While precision of many critical elements is acceptable (<20% RSD), accuracy can be poor (>50% difference) when using pre-installed factory calibration software. Spectra collected during the pXRF measurements show that poor accuracy and false positives tend to be associated with spectral interferences. Distinct combinations of spectral interferences (line overlaps, Compton scattered peaks, and Si escape peaks) were observed in the different matrix types. Our results show that critical elements may be determined in common geological materials when pronounced peaks occur in the spectra and that matrix-match of standards and samples is essential. Hence, XRF spectra should be routinely reviewed to identify erroneous quantification due to spectral interferences. View Full-Text
Keywords: CRM powders; certified reference materials; energy-dispersive XRF; peak overlaps; precision and accuracy CRM powders; certified reference materials; energy-dispersive XRF; peak overlaps; precision and accuracy
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Supplementary material

SciFeed

Share & Cite This Article

MDPI and ACS Style

Gallhofer, D.; Lottermoser, B.G. The Influence of Spectral Interferences on Critical Element Determination with Portable X-Ray Fluorescence (pXRF). Minerals 2018, 8, 320.
