Open AccessArticle
Minerals 2018, 8(5), 190; https://doi.org/10.3390/min8050190

Cathodoluminescence (CL) Characteristics of Quartz from Different Metamorphic Rocks within the Kaoko Belt (Namibia)

Institute of Mineralogy, TU Bergakademie Freiberg, Brennhausgasse 14, 09599 Freiberg, Germany
*
Author to whom correspondence should be addressed.
Received: 11 November 2017 / Revised: 24 March 2018 / Accepted: 28 March 2018 / Published: 1 May 2018
(This article belongs to the Special Issue Mineralogy of Quartz and Silica Minerals)
Full-Text   |   PDF [7372 KB, uploaded 3 May 2018]   |

Abstract

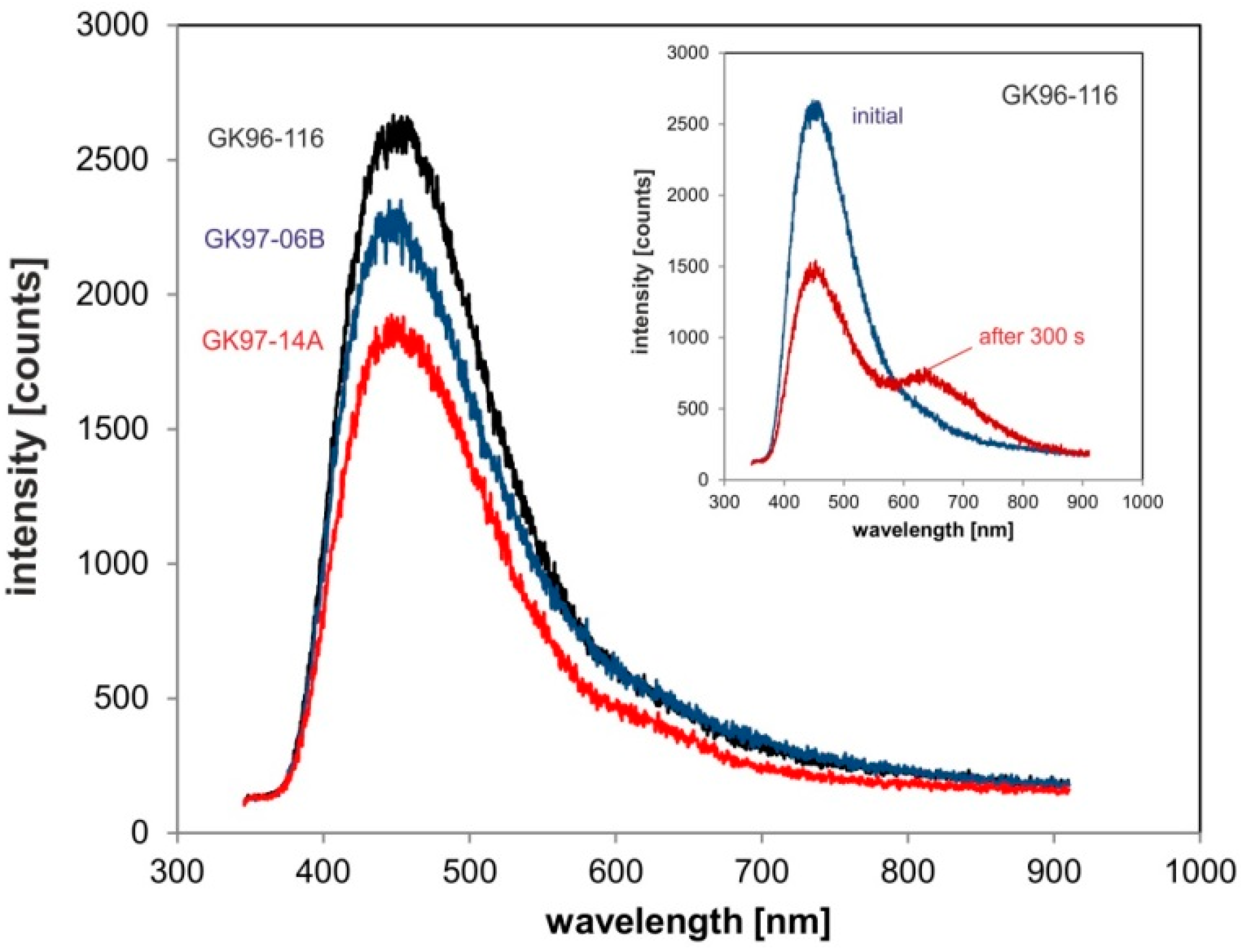

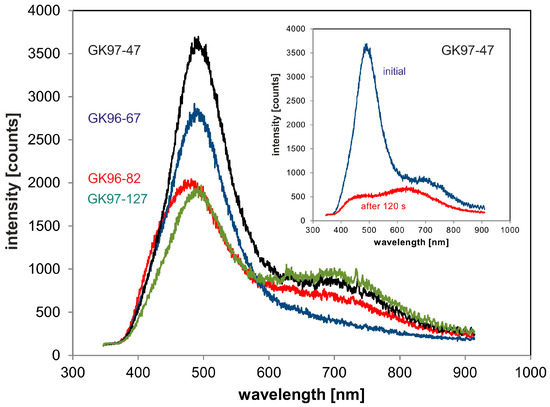

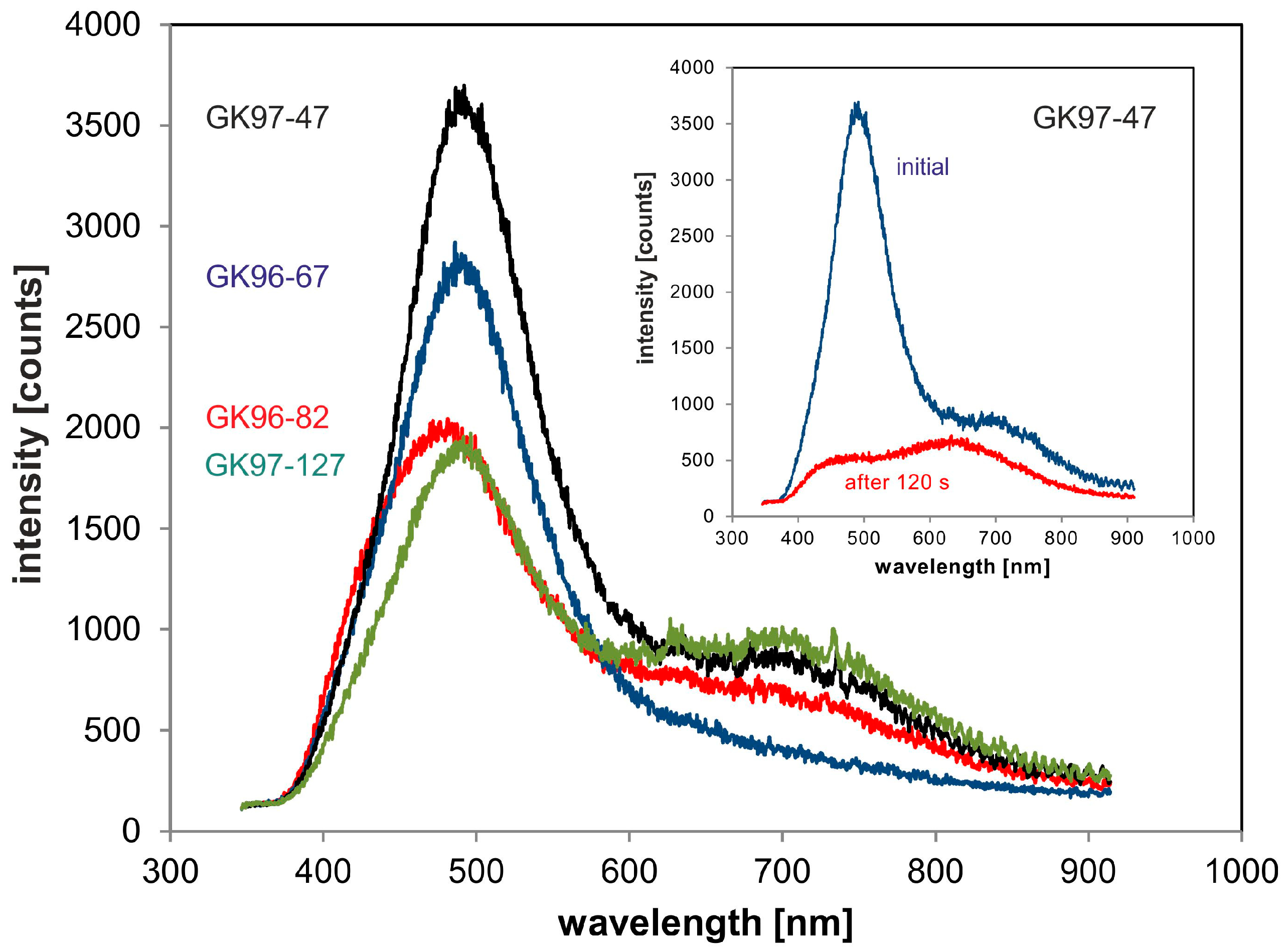

Quartz of metamorphic rocks from the Kaoko belt (Namibia) representing metamorphic zones from greenshist to granulite facies were investigated by cathodoluminescence (CL) microscopy and spectroscopy to characterize their CL properties. The samples cover P-T conditions from the garnet zone (500 ± 30 °C, 9 ± 1 kbar) up to the garnet-cordierite-sillimanite-K-feldspar zone (750 ± 30 °C, 4.0–5.5 kbar). Quartz from 10 different localities and metamorphic environments exclusively exhibits blue CL. The observed CL colors and spectra seem to be more or less independent of the metamorphic grade of the host rocks, but are determined by the regional geological conditions. Quartz from different localities of the garnet-cordierite-sillimanite-K-feldspar zone shows a dominant 450 nm emission band similar to quartz from igneous rocks, which might be related to recrystallization processes. In contrast, quartz from different metamorphic zones in the western part of the central Kaoko zone (garnet, staurolite, kyanite, and kyanite-sillimanite-muscovite zone) is characterized by a heterogeneous blue-green CL and a dominant 500 nm emission band that strongly decreases in intensity under electron irradiation. Such CL characteristics are typical for quartz of pegmatitic and/or hydrothermal origin and indicate the participation of fluids during neoformation of quartz during metamorphism. View Full-Text
Keywords: quartz; metamorphic rocks; cathodoluminescence; Kaoko belt quartz; metamorphic rocks; cathodoluminescence; Kaoko belt
Figures

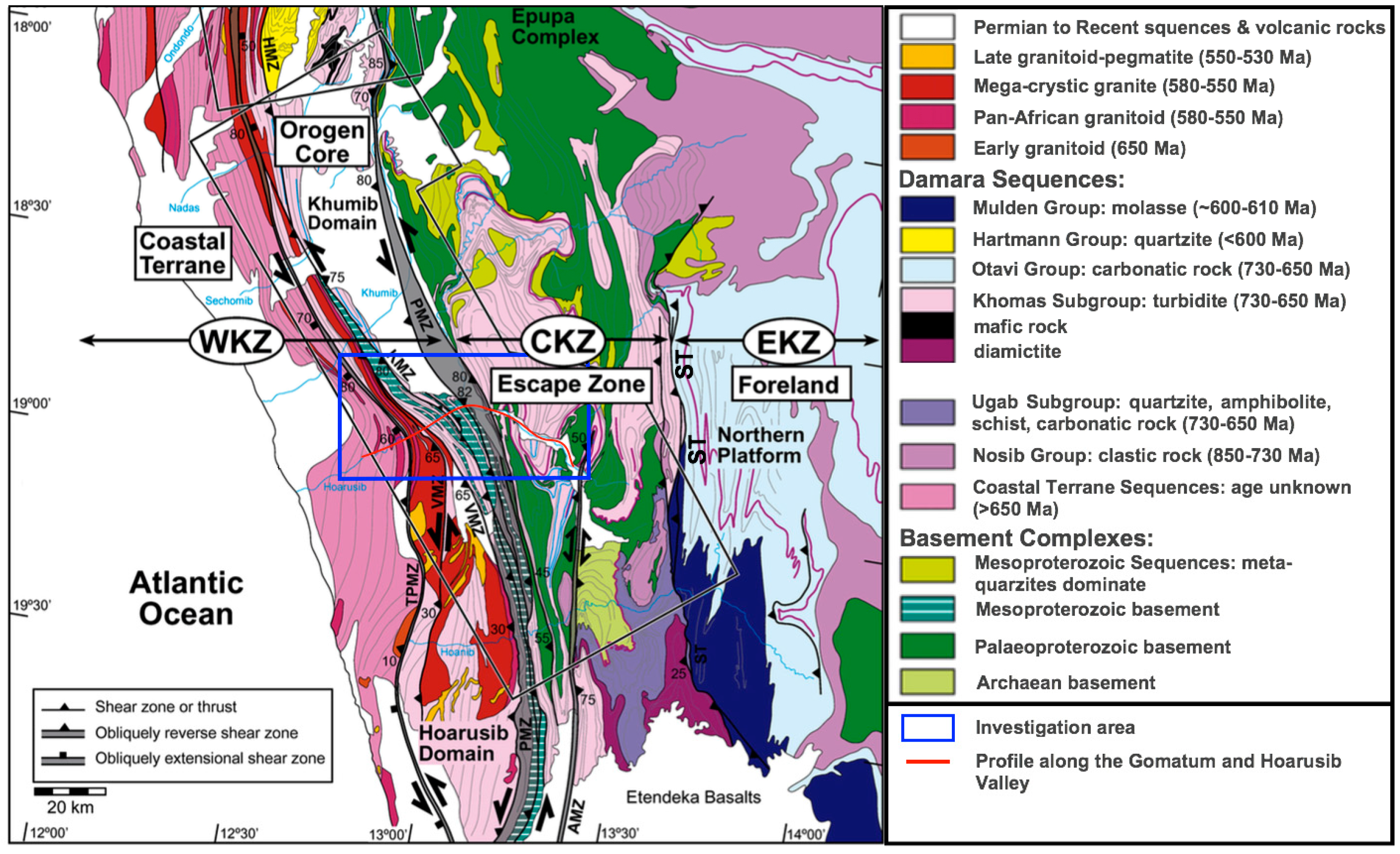

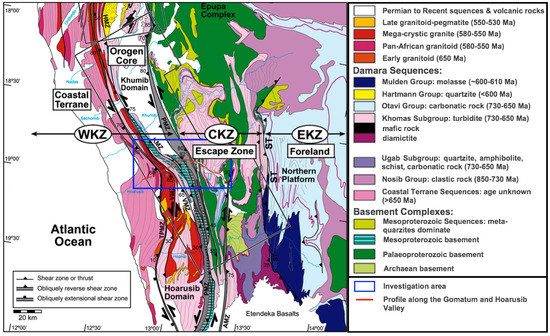

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Sittner, J.; Götze, J. Cathodoluminescence (CL) Characteristics of Quartz from Different Metamorphic Rocks within the Kaoko Belt (Namibia). Minerals 2018, 8, 190.
