Minerals 2018, 8(4), 139;

Shock-Induced Olivine-Ringwoodite Transformation in the Shock Vein of Chondrite GRV053584

Hunan Provincial Key Laboratory of Shale Gas Resource Utilization, Hunan University of Science and Technology, Xiangtan 411201, China
Department of Geology, Hunan University of Science and Technology, Xiangtan 411201, China
College of Resources and Environmental Science, Chongqing University, Chongqing 400044, China
State Key Laboratory of Coal Mine Disaster Dynamics and Control, Chongqing University, Chongqing 400044, China
School of Science and Sport, University of the West of Scotland, Paisley PA1 2BE, UK
Author to whom correspondence should be addressed.
Received: 2 February 2018 / Revised: 9 March 2018 / Accepted: 30 March 2018 / Published: 1 April 2018
Full-Text   |   PDF [16351 KB, uploaded 3 May 2018]   |


Shock metamorphism of minerals in meteorites could help to understand the shock history of its parent body and also provide a window into the interior of the Earth. Although shock features in olivine have been well known within and adjacent to shock melt veins and shock melt pockets in meteorites, there are processes that are not yet completely understood. Ringwoodite is formed by crystallization from olivine melts or solid-state phase transformation of olivine. Typically, olivine clasts with a ringwoodite rim around an olivine core have been documented from only a handful of meteorites. Here we report results from GRV053684, a highly shocked L6 chondrite that was collected by Chinese Antarctic Research Expedition in 2006 to Antarctica. The investigations of the shock pressure history and the transformation mechanism of olivine to ringwoodite use optical microscope, electron probe microanalyzer (backscattered electron images, major element quantitative analyses, and quantitative wavelength-dispersive spectrometry elemental X-ray maps), and Raman spectrograph. Ringwoodite in the shock melt vein generally displays as Fe-rich (Fa37-43) polycrystalline rims around Fe-poor (Fa11-20) olivine core and as small individual clasts embedded in shock melt vein matrix. The difference in FeO between ringwoodite rim and olivine core implies that Fe was preferentially partitioned to ringwoodite. The occurrence of maskelynite (An17) indicates a shock pressure ~30 GPa. The FeO and MgO diffusion indicates the transformation process of olivine to ringwoodite is a diffusion-controlled incoherent nucleation and growth. The spatial association between ringwoodite and the shock melt vein matrix suggests that high temperature plays a key role in prompting phase transformation. View Full-Text
Keywords: shock metamorphism; olivine; ringwoodite; phase transformation shock metamorphism; olivine; ringwoodite; phase transformation

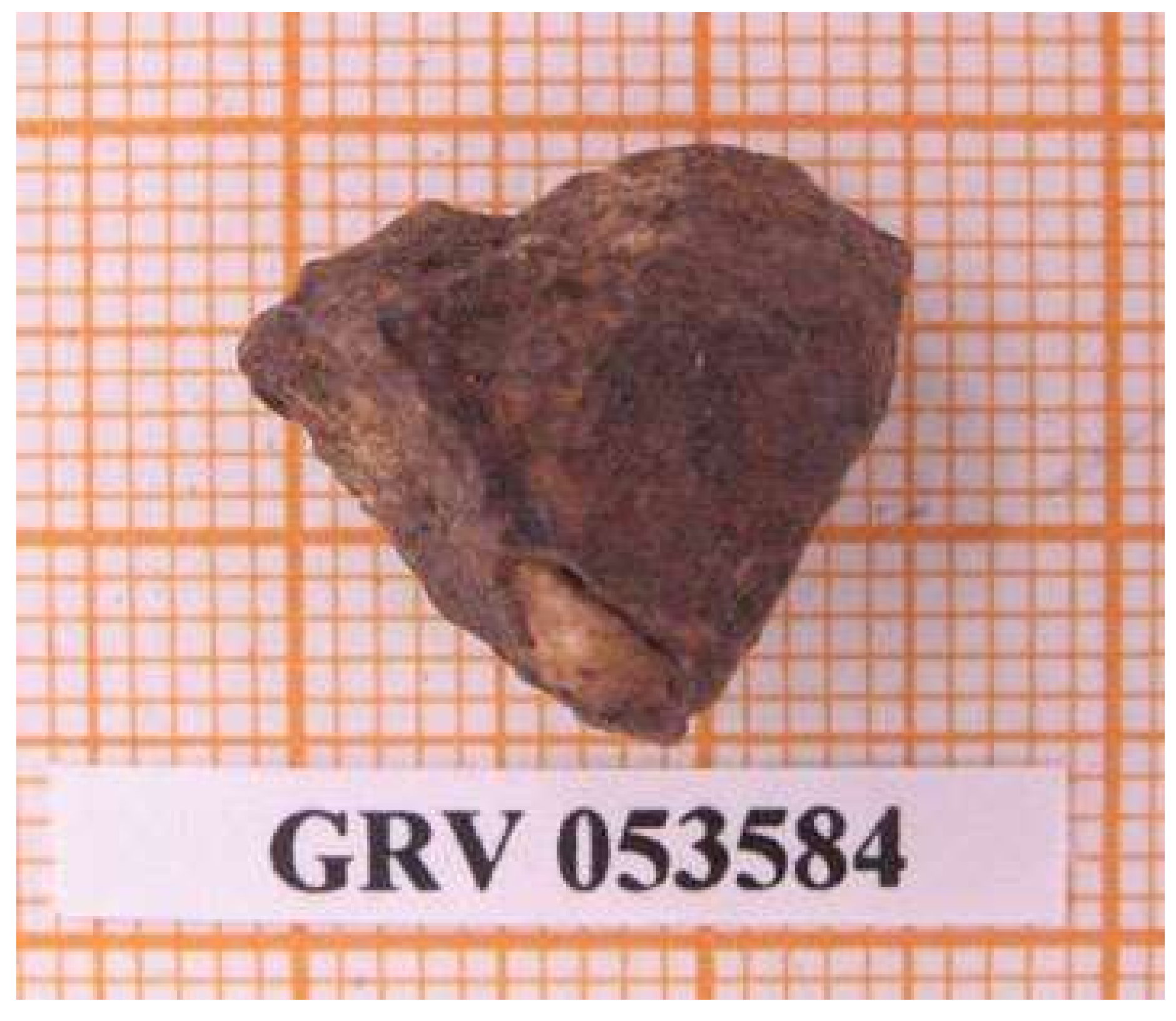

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
