Hemimorphite Flotation with 1-hydroxydodecylidene-1,1-diphosphonic acid and Its Mechanism

College of Chemistry and Chemical Engineering, Central South University, Changsha 410083, China
Author to whom correspondence should be addressed.
Minerals 2018, 8(2), 38;
Received: 8 December 2017 / Revised: 12 January 2018 / Accepted: 15 January 2018 / Published: 24 January 2018
(This article belongs to the Special Issue Flotation Chemistry)
PDF [2459 KB, uploaded 24 January 2018]

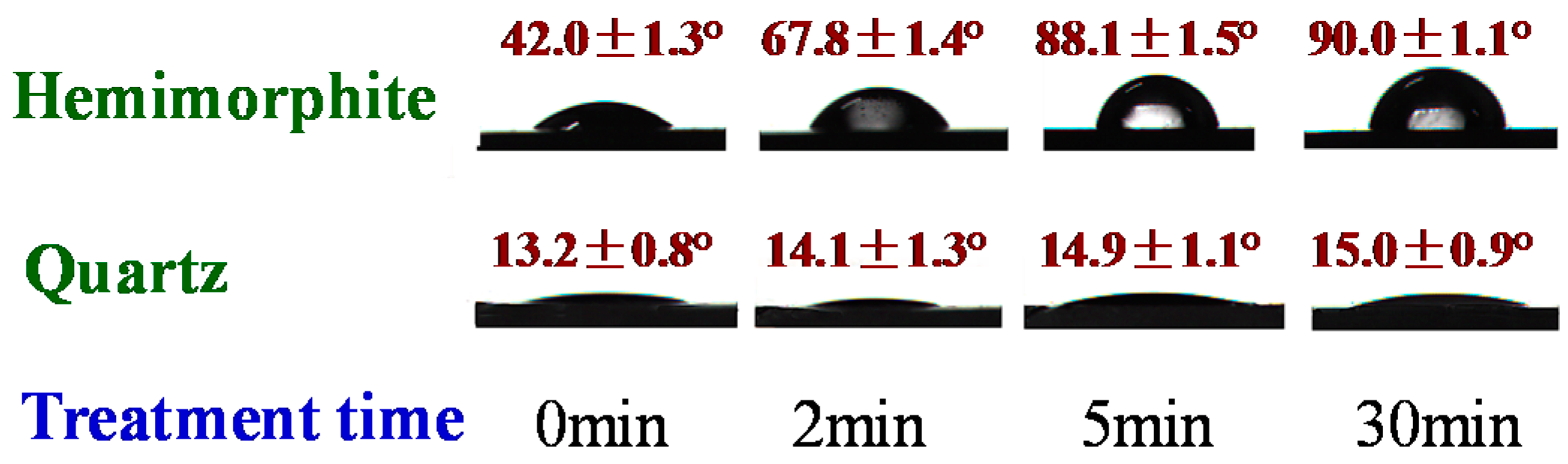

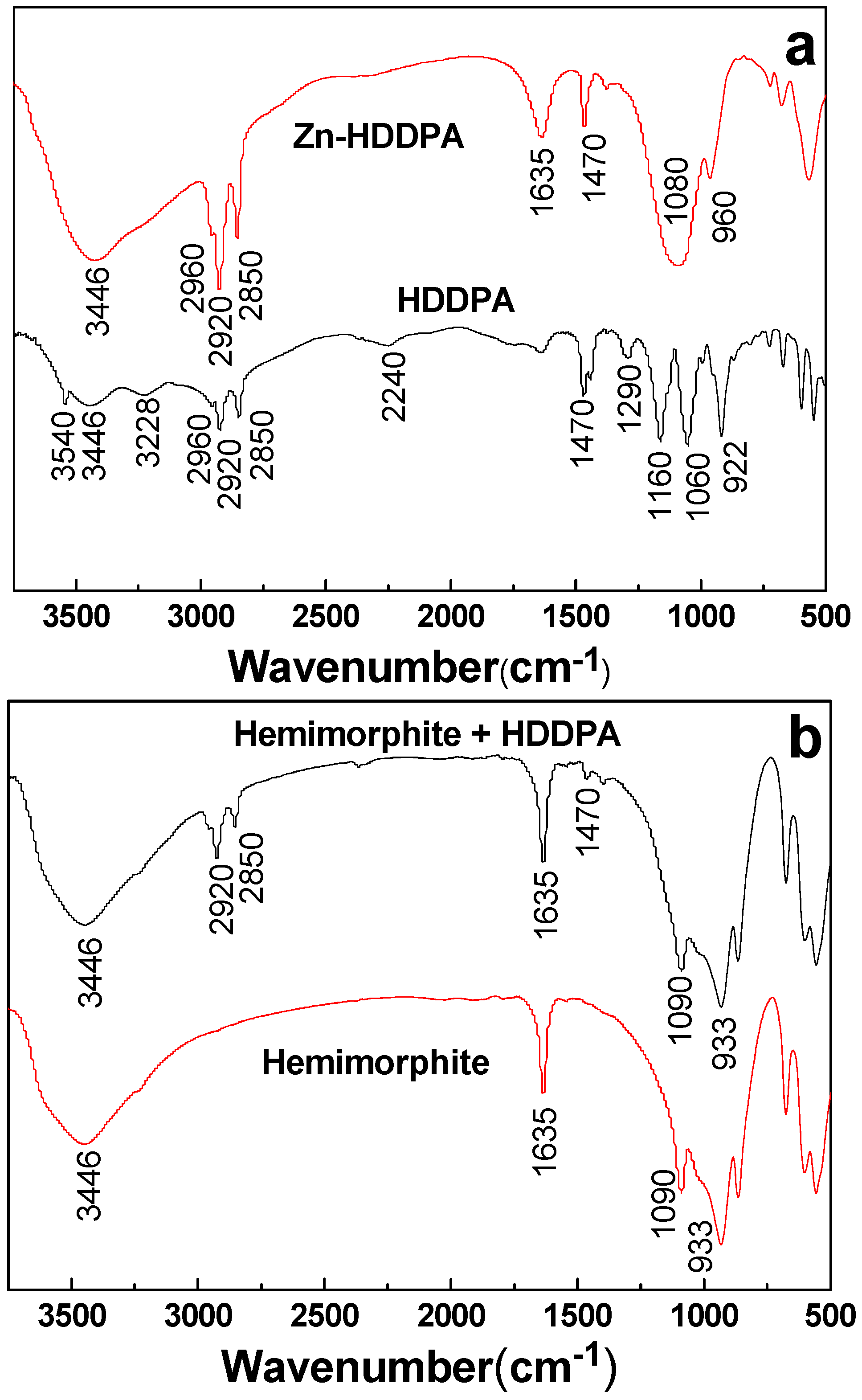

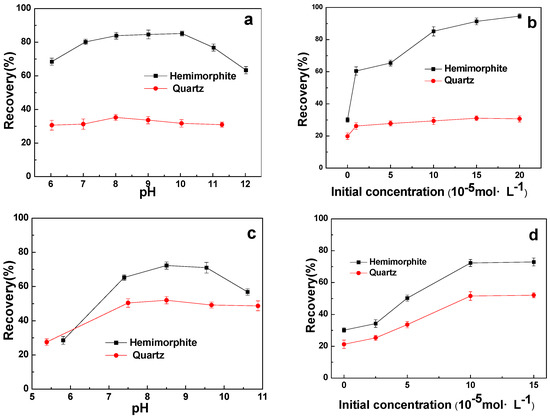

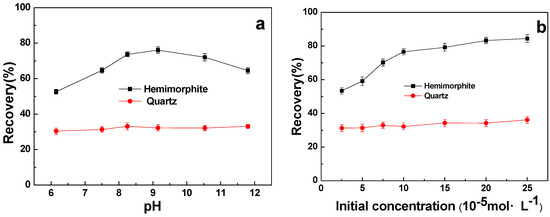

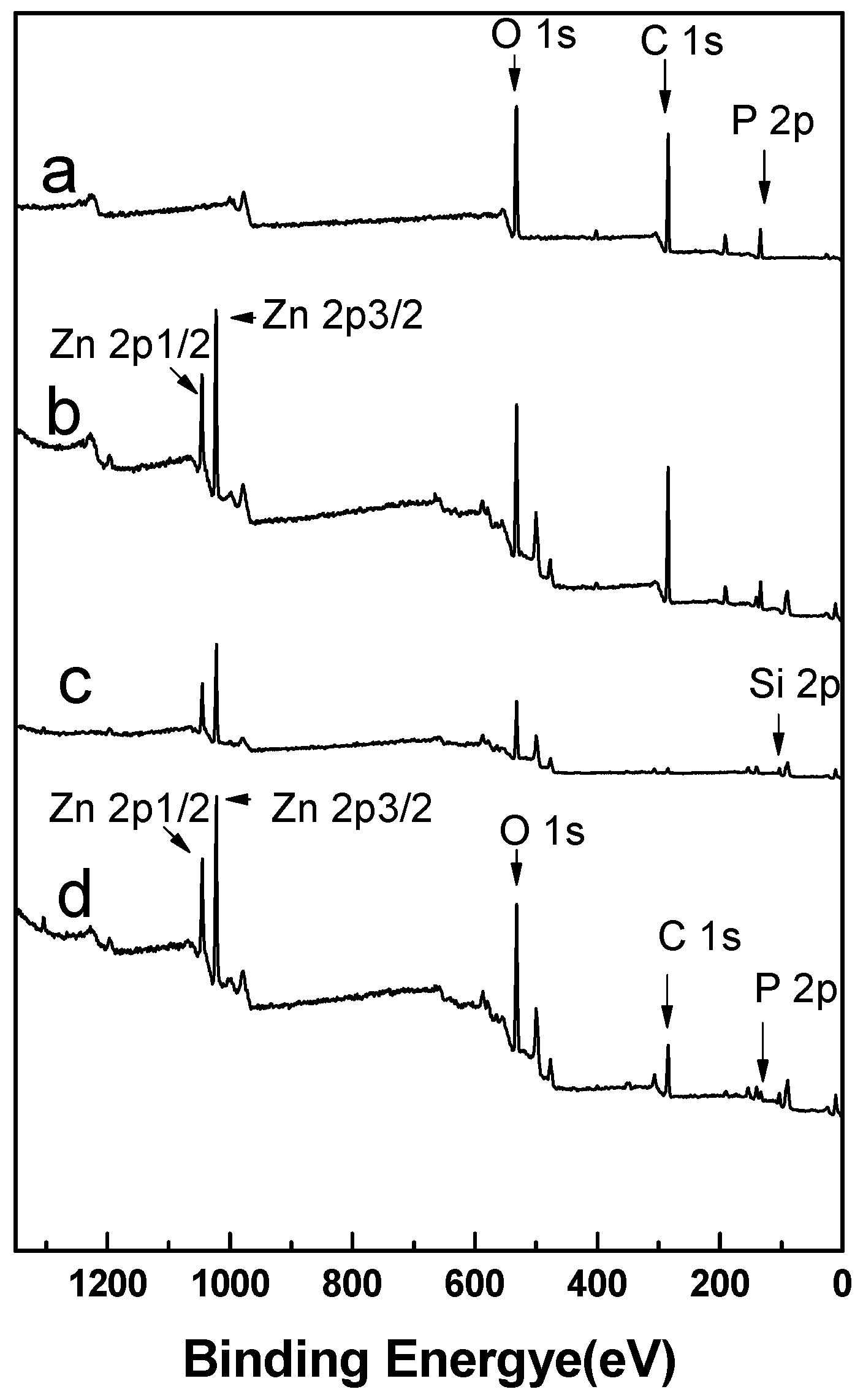

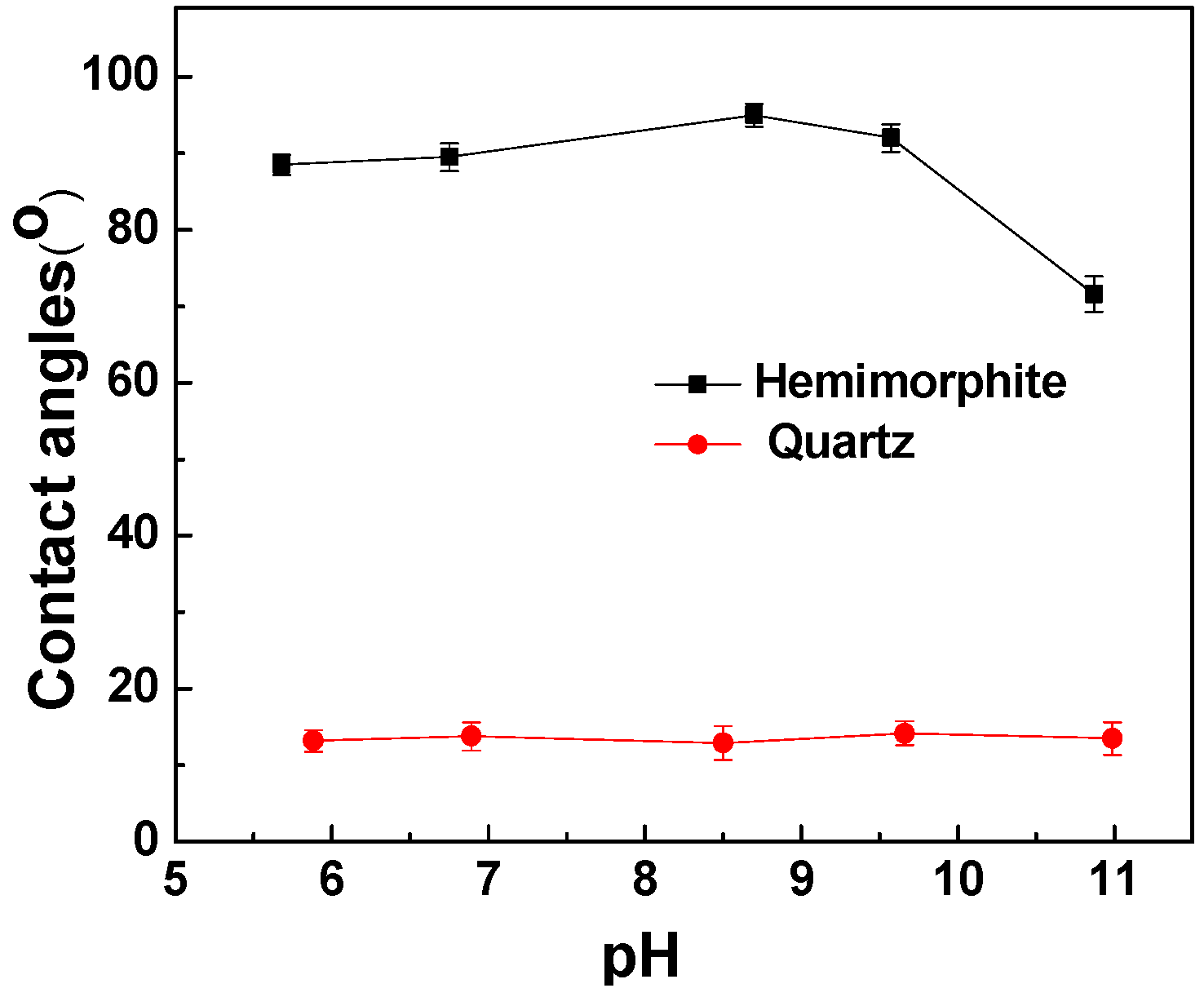

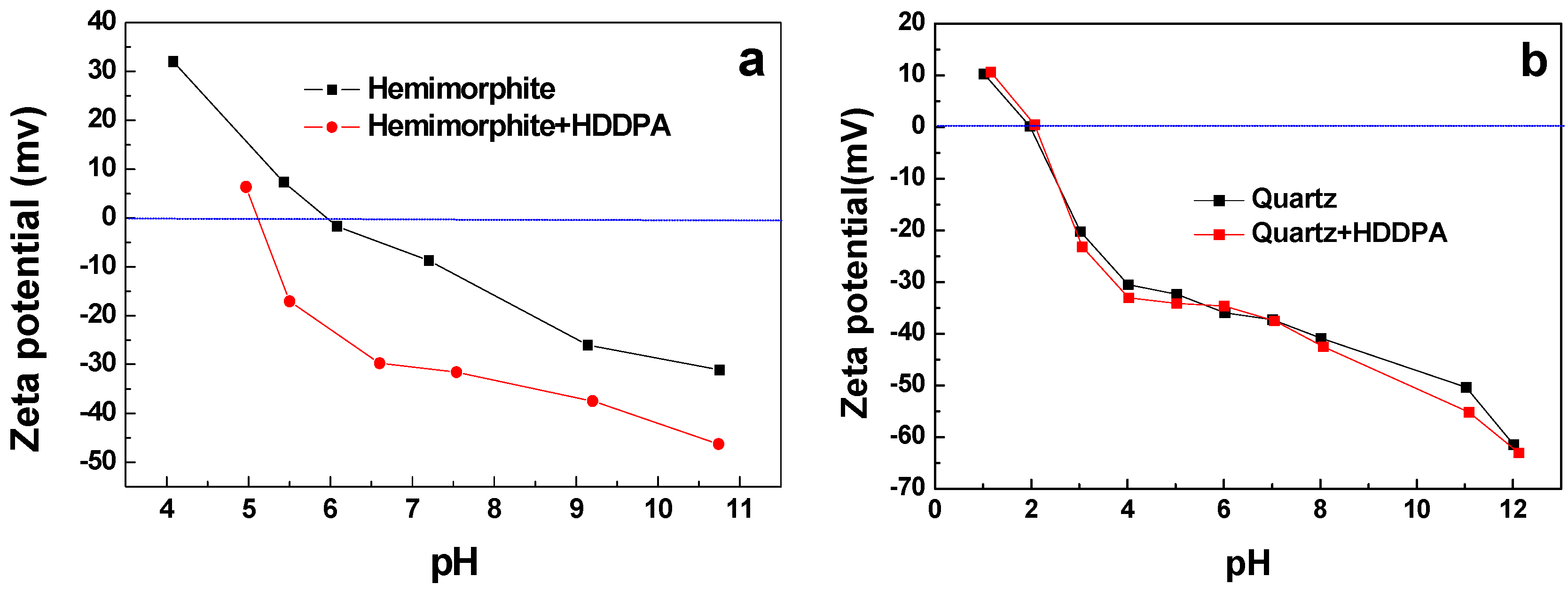

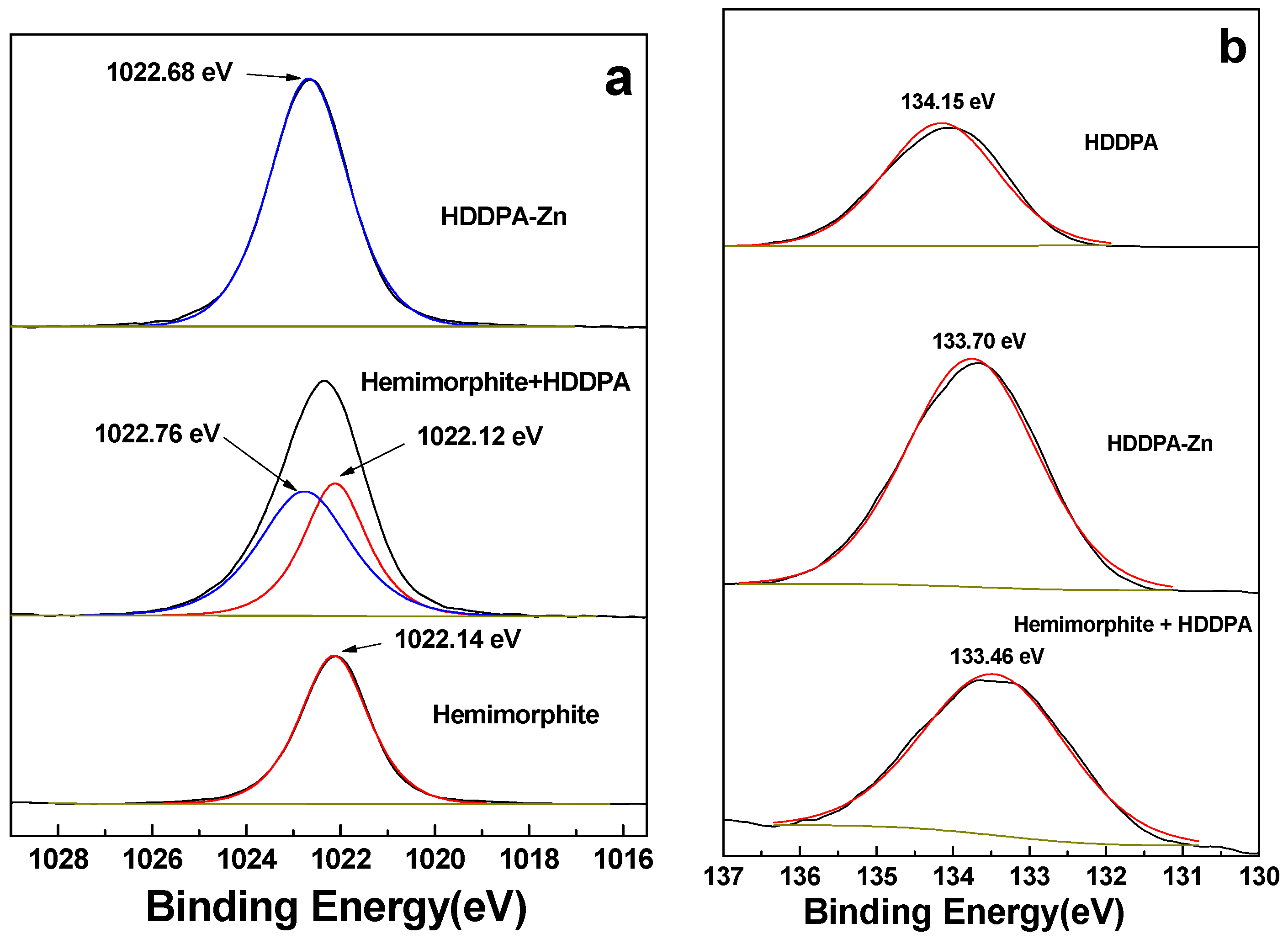

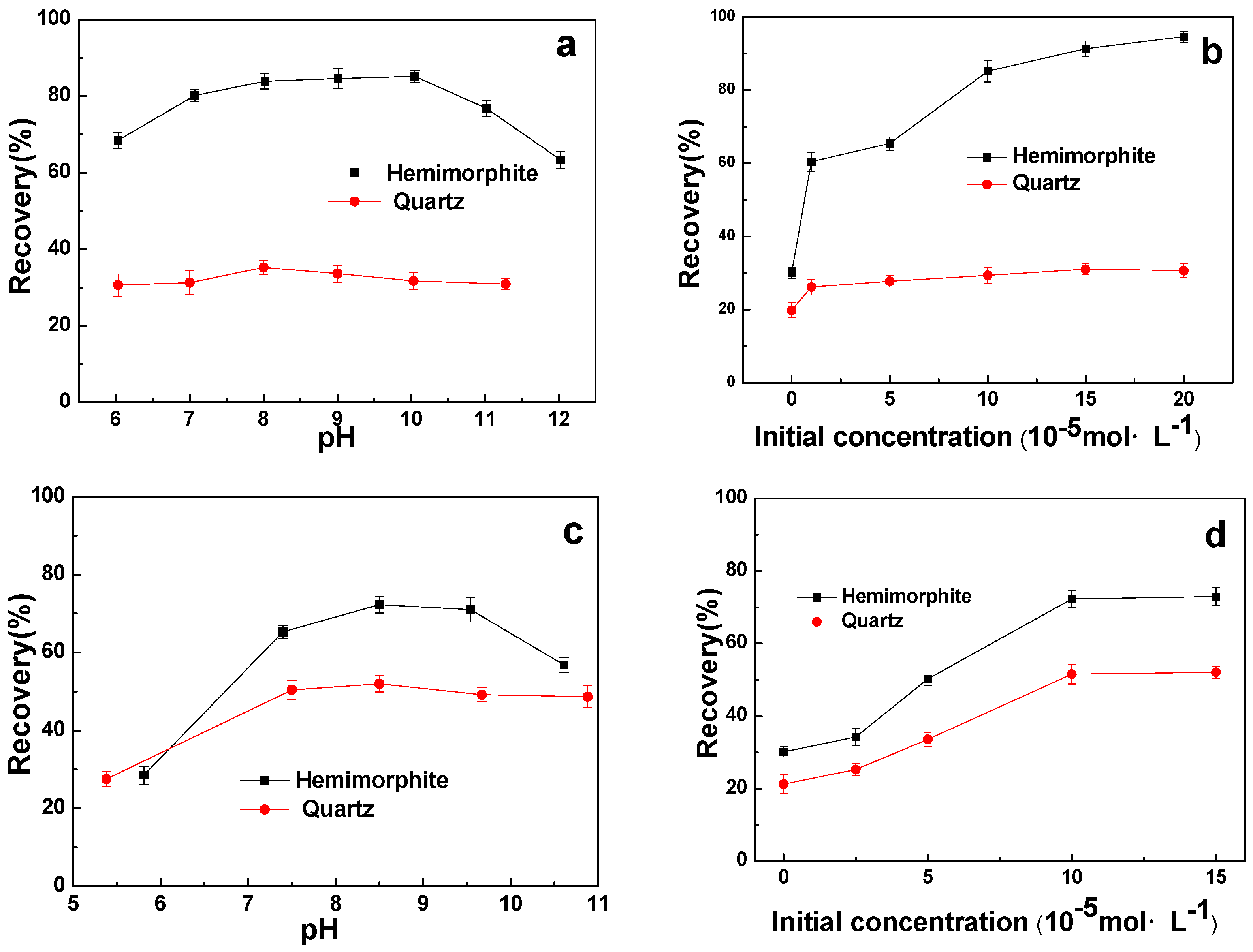

1-hydroxydodecylidene-1,1-diphosphonic acid (HDDPA) was prepared and first applied in flotation of hemimorphite. HDDPA exhibited superior flotation performances for recovery of hemimorphite in comparison with lauric acid, and it also possessed good selectivity against quartz flotation under pH 7.0–11.0. Contact angle results revealed that HDDPA preferred to attach on hemimorphite rather than quartz and promoted the hydrophobicity of hemimorphite surfaces. In the presence of HDDPA anions, the zeta potential of hemimorphite particles shifted to more negative value even if hemimorphite was negatively charged, inferring a strong chemisorption of hemimorphite to HDDPA. The Fourier transform infrared (FTIR) recommended that HDDPA might anchor on hemimorphite surfaces through bonding the oxygen atoms of its P(=O)–O groups with surface Zn(II) atoms. X-ray photoelectron spectroscopy (XPS) gave additional evidence that the Zn(II)-HDDPA surface complexes were formed on hemimorphite. View Full-Text
Keywords: 1-hydroxydodecylidene-1,1-diphosphonic acid; hemimorphite; flotation; hydrophobic mechanism 1-hydroxydodecylidene-1,1-diphosphonic acid; hemimorphite; flotation; hydrophobic mechanism

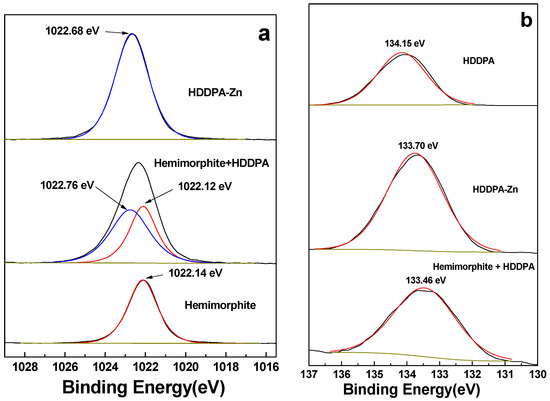

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Tan, W.; Liu, G.; Qin, J.; Fan, H. Hemimorphite Flotation with 1-hydroxydodecylidene-1,1-diphosphonic acid and Its Mechanism. Minerals 2018, 8, 38.
