Selenium-Rich Ag–Au Mineralization at the Kremnica Au–Ag Epithermal Deposit, Slovak Republic

Abstract

Selenium-rich Au–Ag mineralization has been discovered in the Kremnica ore district, central Slovakia. The mineralization is hosted by a single quartz–dolomite vein hosted by Neogene propyllitized andesites of the Kremnica stratovolcano. Ore mineralogy and crystal chemistry of individual ore minerals have been studied here. The early base-metal ore mineralization composed of pyrite, sphalerite, and chalcopyrite lacks selenium, whereas the superimposed Au–Ag paragenesis is Se-enriched. The Au–Ag alloys, uytenbogaardtite, minerals of the galena–clausthalite series, acanthite–naumannite series, diaphorite, miargyrite, pyrargyrite–proustite, polybasite group, minerals of the tetrahedrite group and andorite branch (andorite IV, andorite VI, Ag-excess fizélyite), freieslebenite, and rare Pb–Sb sulphosalts (scaiinite, robinsonite, plagionite) have been identified here. Besides selenides, the most Se-enriched phases are miargyrite, proustite–pyrargyrite, and polybasite–pearceite, whose Se contents are among the highest reported worldwide. In addition, one new phase has been found, corresponding to a Se-analogue of pearceite containing 2.08–3.54 apfu Se. The style of mineralization, paragenetic situation, and chemical trends observed in individual minerals are comparable to those of Au–Ag low-sulphidation epithermal Au–Ag mineralizations of the Kremnica and neighboring Štiavnica and Hodruša-Hámre ore districts. However, the pronounced enrichment in selenium is a specific feature of the studied vein only.

1. Introduction

The ore mineralizations containing selenides or Se-enriched minerals are rather rare in the territory of the Slovak part of the Western Carpathians. A Bi–Se–Te mineralization represented mainly by telluronevskite and vihorlatite is relatively abundant in bodies of metasomatites and secondary quartzites near Poruba pod Vihorlatom, Vihorlat Mountains. [1,2,3]. Minor amounts of selenides (clausthalite, bohdanowitzite, naumannite, laitakarite, and ikunolite) as well as Se-bearing bournonite, hedleyite, jamesonite, tetradymite, and tintinaite were described from the quartz-siderite–sulphidic veins near Dobšiná and Uhorná in the Gemeric Superunit [4,5,6]. Clausthalite has also been identified at the stratiform U–Mo deposit at Novoveská Huta [7]. Laitakarite together with Se-bearing galena and sulphosalts were described from the sulphidic mineralization at the Mútnik magnesite deposit near Hnúšťa [8,9].

The Central Slovakia Volcanic Field hosts several famous Ag–Au epithermal vein-type deposits including Banská Štiavnica, Kremnica, Hodruša-Hámre, and Nová Baňa, which were important sources of precious as well as base metals in the past. The only known and very limited occurrence of selenides from the epithermal veins in this area was described by Jeleň [10], who identified microscopic aggregates of naumannite associated with Se-bearing galena and Se-bearing matildite from the deeper parts of the Špitaler vein in the Banská Štiavnica ore district. Maťo and Háber [11], Maťo [12], and Maťo and Ragan [9] reported the presence of elevated amounts of selenium in galena, acanthite, and minerals of the polybasite group from the 1st vein system of the Kremnica Au–Ag deposit. This paper deals with a unique occurrence of selenides and Se-enriched Ag sulphosalts, which was recently discovered in the Václav-south adit, 1st vein system of the Kremnica Au–Ag epithermal deposit.

2. Geological Setting

The Kremnica Au–Ag epithermal deposit is located in the vicinity of the Kremnica town, in the northern part of the Central Slovakian Volcanic Field, which is represented by the remnants of a large andesite stratovolcano. This deposit was the most important gold producer in Slovakia, with overall production of 35 tons of gold.

The system of low-sulphidation epithermal veins with Au–Ag–Sb mineralization was developed on marginal faults in the eastern part of the Kremnica resurgent horst (Figure 1). The horst is built of Miocene pre-graben propylitised andesites accompanied at the depth by sub-volcanic intrusions of gabbrodiorite, diorite, diorite porphyry, and minor quartz-diorite porphyry [13]. The structure of the horst is dominated by N–S and NE–SW trending normal faults [14]. The two principal vein systems were distinguished at the Kremnica deposit [15,16,17]. The 1st vein system, which is located NW of the Kremnica town, is dominated by a first-order listric fault, intruded by rhyolite dikes. The mineralized fault dipping 50° to 60° gradually opens towards the surface to its maximum width of 80 m in the central part of the Šturec area. The total length of the 1st vein system is close to 6.5 km and the vertical extent of veins exceeds 1.2 km in the northern part of the system [18]. The 2nd vein system extends underneath the town of Kremnica and it is represented by a large-scale complementary vein system with 40 veins in the hanging wall of the listric fault. In contrast to the 1st vein system, the veins are much shorter (less than 1.5 km) and no more than 2 m wide [15]. The dominant gangue minerals at both vein systems are represented by banded and cavernous quartz with carbonates, mainly dolomite and calcite. According to Böhmer [15] and Maťo [19] the vein filling was formed during the two main mineralization stages (Au–Ag stage and Au–Hg–Sb–As stage) with six mineral associations. Pyrite, arsenopyrite, and gold (electrum) are the most frequent ore minerals of the Au–Ag stage, accompanied by minor galena, sphalerite, chalcopyrite, acanthite, proustite, pyrargyrite, polybasite, stephanite, miargyrite, and tetrahedrite. In the deeper parts of the 1st vein system, the base-metal sulphides are more common and are accompanied by tellurides like altaite, goldfieldite, hessite, petzite, and stützite. Macroscopic gold (electrum) is much more common at the 2nd vein system. The Au–Hg–Sb–As stage includes quartz–carbonate and stibnite substage, with stibnite, pyrite, marcasite, and minor cinnabar as principal ore minerals [11,12,15,17,19,20,21]. Extensive wallrock alteration includes orthoclase var. adularia, quartz, illite/smectite, kaolinite, passing outwards into chlorite, smectite with disseminated pyrite and carbonates [22]. A recent fluid inclusion study and oxygen isotope data from the vein quartz showed that the northern part of the 1st vein system has the highest homogenization temperatures (Th) of fluid inclusions (250 to 270 °C) and the average Th values decrease gradually towards the south. Fluids are predominantly of meteoric origin with low salinity (0.5 to 1.6 wt % NaCl eq.). Two episodes of boiling of fluids at ~240 °C and 205 °C were documented at the central part of the 1st vein system (area of Šturec), indicating a long-living hydrothermal system with a syngenetic uplift of the Kremnica resurgent horst [17,23].

The samples studied were collected from the quartz–dolomite vein, situated at the hanging of the 1st stibnite vein in the crosscut P-102, Václav-south adit, in the central part of the 1st vein system (area of Šturec). The GPS coordinates of Václav-south adit are: 48°42′42.16”N and 18°54′6.93”E. This thin (from 3 to 20 cm wide) NE–SW trending vein was explored in 1958 by short drive and exhibits brecciated to drusy structure, with white to grey cavernous or drusy quartz and yellow crystalline dolomite as principal minerals. Macroscopic aggregates of older common sulphides (sphalerite and pyrite) up to 5 mm as well as younger Ag-sulphosalts (mainly miargyrite, pyrargyrite, and proustite) up to 2 mm are locally scattered in both quartz and dolomite.

3. Sampling and Analytical Methods

The studied ore samples were collected in situ in the adit Václav-south from an unnamed quartz–dolomite vein located at the hanging of the 1st stibnite vein in the central part of the 1st vein system of the Kremnica Au–Ag deposit.

Samples for microscopy and following laboratory study were prepared as polished sections 2.54 cm in diameter, mounted in resin, and polished with diamond suspensions in the Diatech s.r.o. company, Prague, Czech Republic. The ore minerals and textures were studied in reflected light using a Nikon Eclipse ME600 polarizing microscope in the National Museum, Prague, Czech Republic.

The chemical analyses of individual minerals were performed using a Cameca SX100 electron microprobe (National Museum, Prague) operating in the wave-dispersive (WDS) mode (25 kV, 10 nA, and 1–5 μm wide beam). The following standards and X-ray lines were used to minimize line overlaps: Ag (AgLα), Au (AuMα), Bi₂Se₃ (BiMβ), CdTe (CdLα), chalcopyrite (CuKα, SKα), FeS₂ (FeKα), Ge (GeLα), halite (ClKα), HgTe (HgLα), Mn (MnKα), NiAs (AsLβ), PbS (PbMα), PbSe (SeLβ), PbTe (TeLα), Sb₂S₃ (SbLα), and ZnS (ZnKα). Peak counting times were 20–30 s, and one-half of the peak time was used for each background. Contents of the above-listed elements, which are not included in the tables, were analyzed quantitatively, but their contents were below the detection limit (ca. 0.01–0.04 wt % for individual elements). Raw intensities were converted to the concentrations of elements using automatic “PAP” matrix-correction software [24]. Tables containing the full data-set of collected WDS analyses (more than 1500 analytical points) are included as supplementary files for this paper.

4. Mineralogy and Mineral Chemistry

4.1. Selenides

Minerals of the clausthalite–galena series, PbSe–PbS, are frequent. They form irregular anhedral grains and aggregates up to 200 µm in size (Figure 2a,b), which are often closely associated together with diaphorite, miargyrite, pyrargyrite–proustite, andorite, minerals of the polybasite and tetrahedrite group, and minor amounts of gold–silver alloy and acanthite.

During the study of chemical composition of minerals of the clausthalite–galena series (Table S1) we have observed only minor traces of Cu, Hg, Fe, Cd, Sb, and Bi not exceeding 0.04 apfu. Somewhat higher are Ag contents, reaching up to 0.08 apfu and also interesting contents of Cl up to 0.01 apfu (0.13 wt %) were determined. The range of SeS_-1 substitution is limited (Figure 3), the highest Se content in clausthalite does not exceed 0.76 apfu. With regard to unlimited miscibility between clausthalite and galena observed in experimental studies [25,26,27] and also natural samples [28,29,30,31,32], the absence of next members to pure clausthalite in the studied samples is probably a result of lower value of fSe₂ in the fluids with fSe₂/fS₂ ratio close to unity [33,34].

Naumannite, Ag₂Se, and aguilarite, Ag₄SeS, are rare and they occur as irregular elongated grains up to 30 µm in size (Figure 2c,d) in association with acanthite, galena-clausthalite, and pearceite. Acanthite, Ag₂S, is a bit more frequent as anhedral grains up to 120 µm in size (Figure 2e,f) accompanied predominantly with miargyrite, galena-clausthalite, pyrargyrite-proustite, andorite, and minerals of the polybasite and tetrahedrite group and minerals of the gold–silver solid solution.

Nomenclature of mineral phases along the Ag₂S–Ag₂Se join was published by Bindi and Pingitore [35]. They suggest that two distinct solid solution series could exist: monoclinic “acanthite-type” series including aguilarite in the range Ag₂S–Ag₂S_0.4Se_0.6, and an orthorhombic “naumannite-type” series between Ag₂S_0.3Se_0.7–Ag₂Se. The question is the status of members with Se contents in the range 0.60–0.70, which correspond to the two-phase (monoclinic and orthorhombic) field, which was described by Pingitore et al. [36] and Pal’yanova et al. [37]. There are two possible explanations: either presence of a metastable cubic high-temperature phase or mixture of two sub-microscopic phases formed during cooling of a homogenous cubic phase below 80 °C [38]. Natural minerals with compositions corresponding to this two-phase field were also reported [38,39].

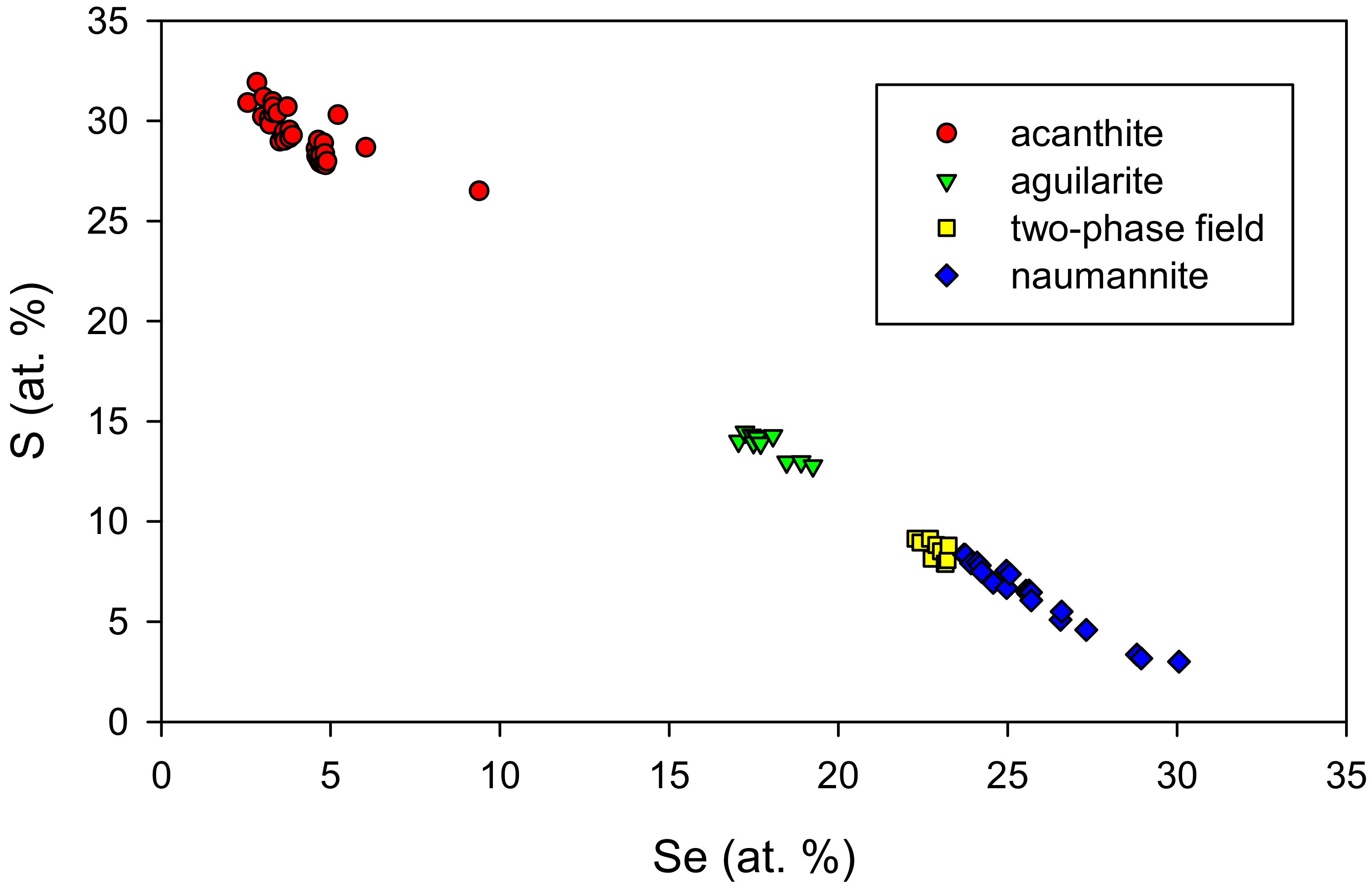

During our study of chemical composition of mineral phases along the Ag₂S–Ag₂Se join (Table S2), the compositions related to acanthite and aguilarite, phases from the so-called two-phase field, as well as naumannite were observed (Figure 4). Acanthite contains selenium up to 0.28 apfu and aguilarite in the range 0.51–0.58 apfu (on the base of three atoms). Compositions of mineral phases of the two-phase field (0.67–0.70 apfu) are close to naumannite which has 0.71–0.90 apfu Se (Figure 4). In all studied phases, irregular traces of Hg, Cl, and Te (up to 0.02 apfu) were also found. The observed minor contents of Fe, Pb, Zn, and Cu in some analyzed points were probably influenced by surrounding phases.

4.2. Au–Ag Minerals

Minerals from the Au–Ag solid solution are infrequent and form anhedral grains up to 100 µm in size (Figure 5), which often show strong irregular chemical zoning in back-scattered electron (BSE) images (Figure 5b). They are associated with acanthite, andorite, galena–clausthalite, diaphorite, pyrargyrite–proustite, and minerals of the polybasite and tetrahedrite group.

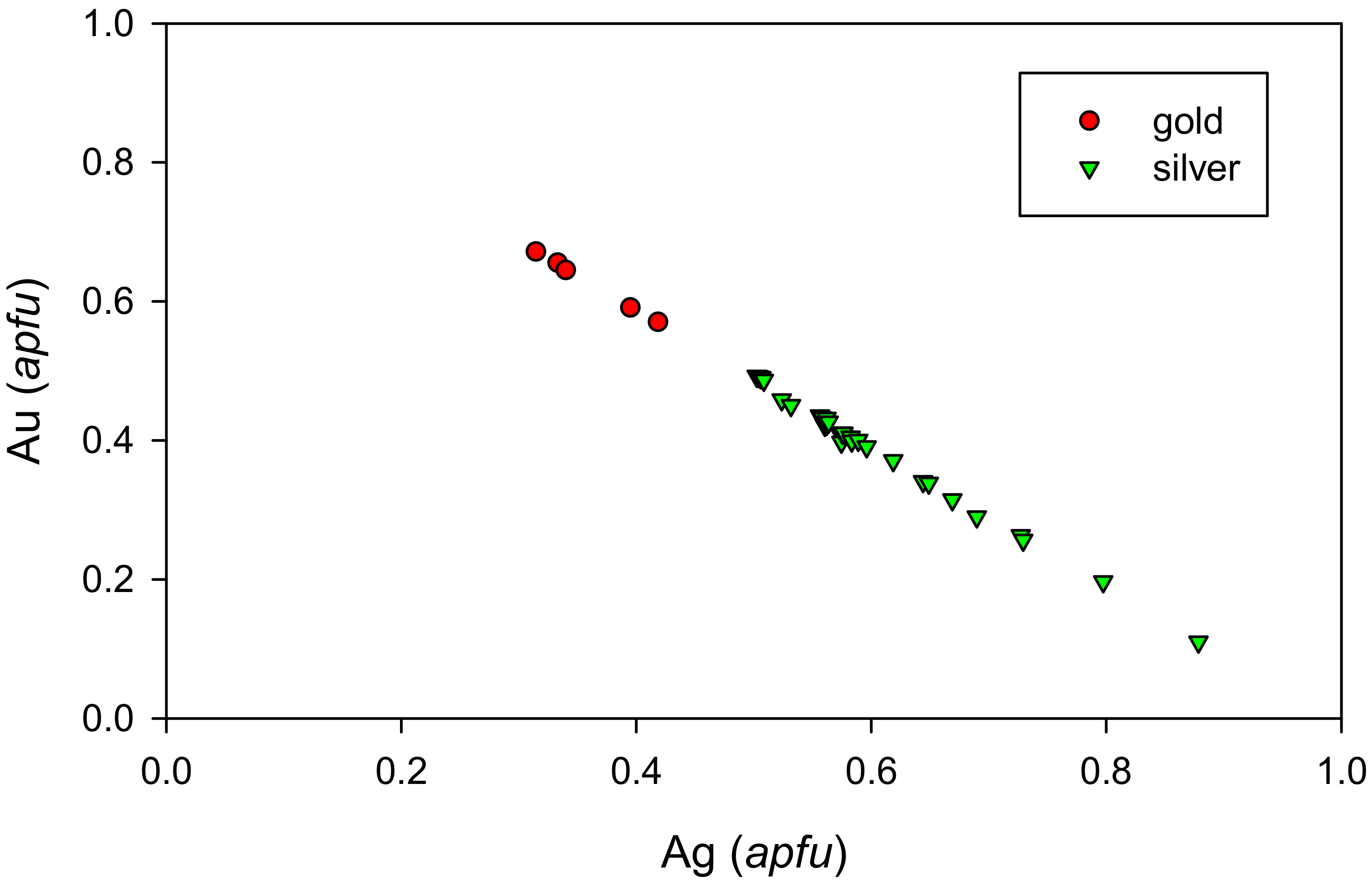

Highly variable chemical composition is typical (Table S3, Figure 6) ranging from silver with Au contents in the range 0.11–0.49 apfu, up to gold with Ag contents between 0.31 and 0.42 apfu. Both minerals are Hg free, and only insignificant traces of Fe, Cu, and Cl were identified.

Uytenbogaardtite, Ag₃AuS₂, is found very rarely as single irregular grains only 13 µm in size, which are closely associated with gold–silver alloy, miargyrite, and minerals of the tetrahedrite group. Its chemical composition (Table S4) is slightly different with regards to the ideal formula Ag₃AuS₂, especially by lower contents of Au. This is most probably caused by some inhomogeneity of the studied grain, by its non-stoichiometry, or by its instability under the electron beam [40,41]. The determined selenium contents reached only up to 0.08 apfu, the observed minor contents of Fe, Pb, Cu, and Sb are probably influenced by surrounding phases.

4.3. Ag–Sb(–As) Sulphosalts

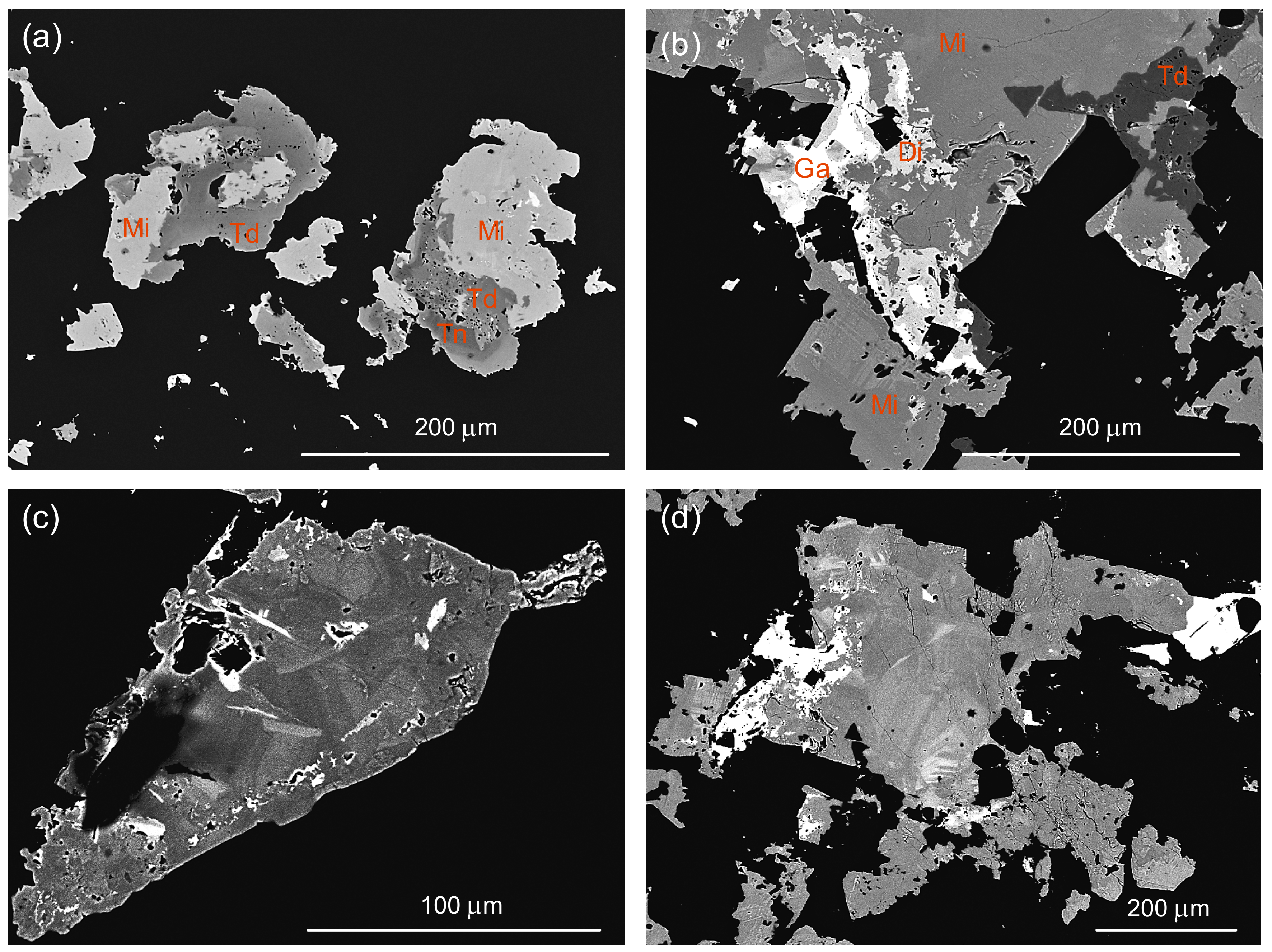

Miargyrite, AgSbS_2, is very common and occur as euhedral and anhedral grains and aggregate up to 2 mm in size (Figure 7), which are closely associated predominantly together with pyrargyrite–proustite, andorite, diaphorite, galena–clausthalite, and minerals of the tetrahedrite group. It often shows strong irregular chemical zoning in BSE images (Figure 7c,d).

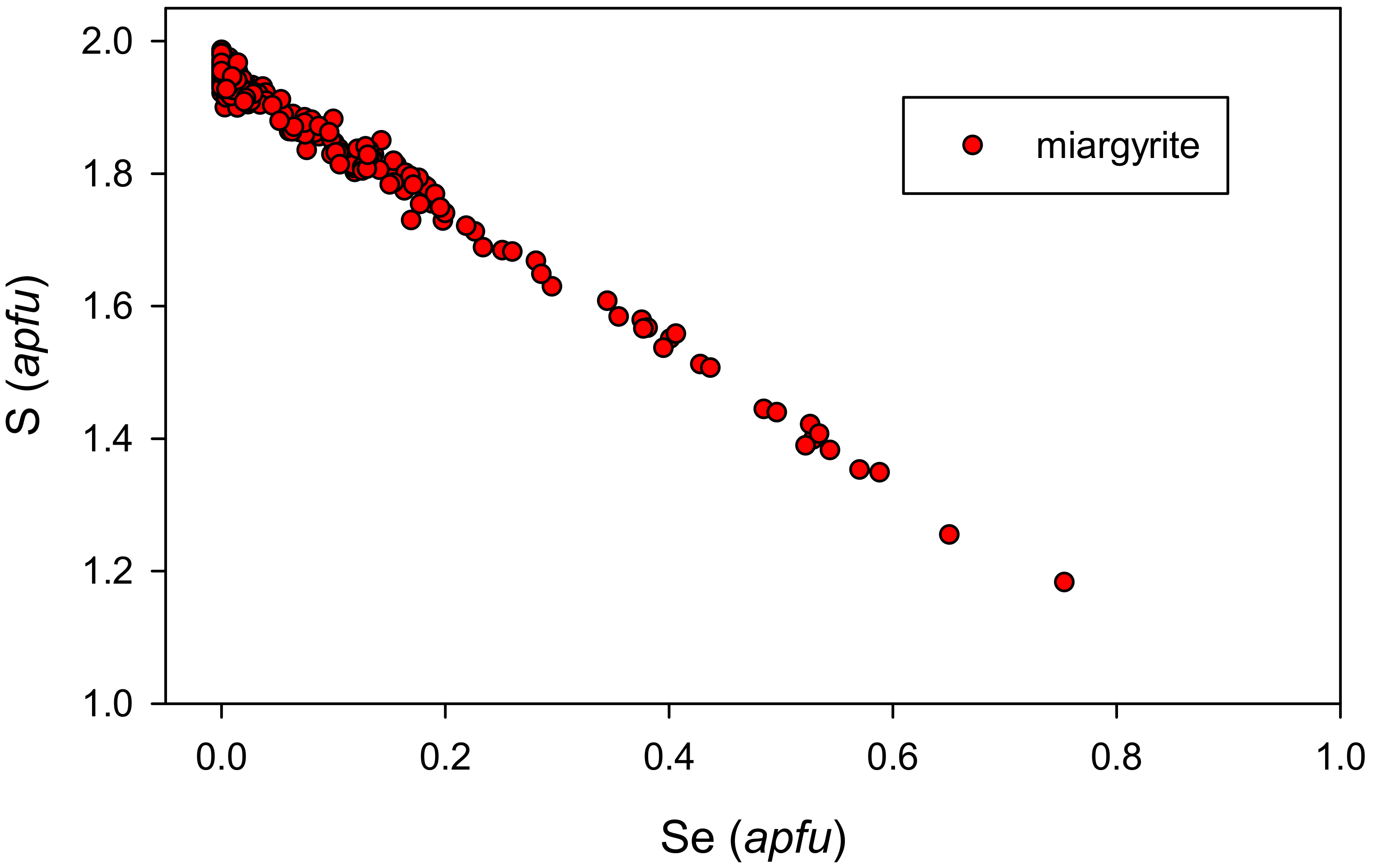

For the chemical composition of miargyrite the significant range of SeS_-1 substitution up to 0.75 apfu is characteristic (Figure 8). Similar high selenium contents are reported for miargyrite from only two sites: Kutná Hora, Czech Republic (up to 0.62 apfu) [42] and Ailaoshan, China (up to 0.60 apfu) [43]. A natural sample from an unspecified locality in the USSR with contents of Se up to 1.34 apfu [44] was in fact a selenium analogue of miargyrite. Besides identified traces of Pb, Fe, Zn, Cu, and Hg, contents of As in range up to 0.23 apfu were determined. The negative correlation of As with Sb (Figure 9) indicates the large extent of AsSb_-1 substitution. According to experiments made by Ghosal and Sack [45], similar As contents in miargyrite occur only in the temperature range 200–350 °C. The chemical analyses of miargyrite and corresponding empirical formulae are given in Table S5.

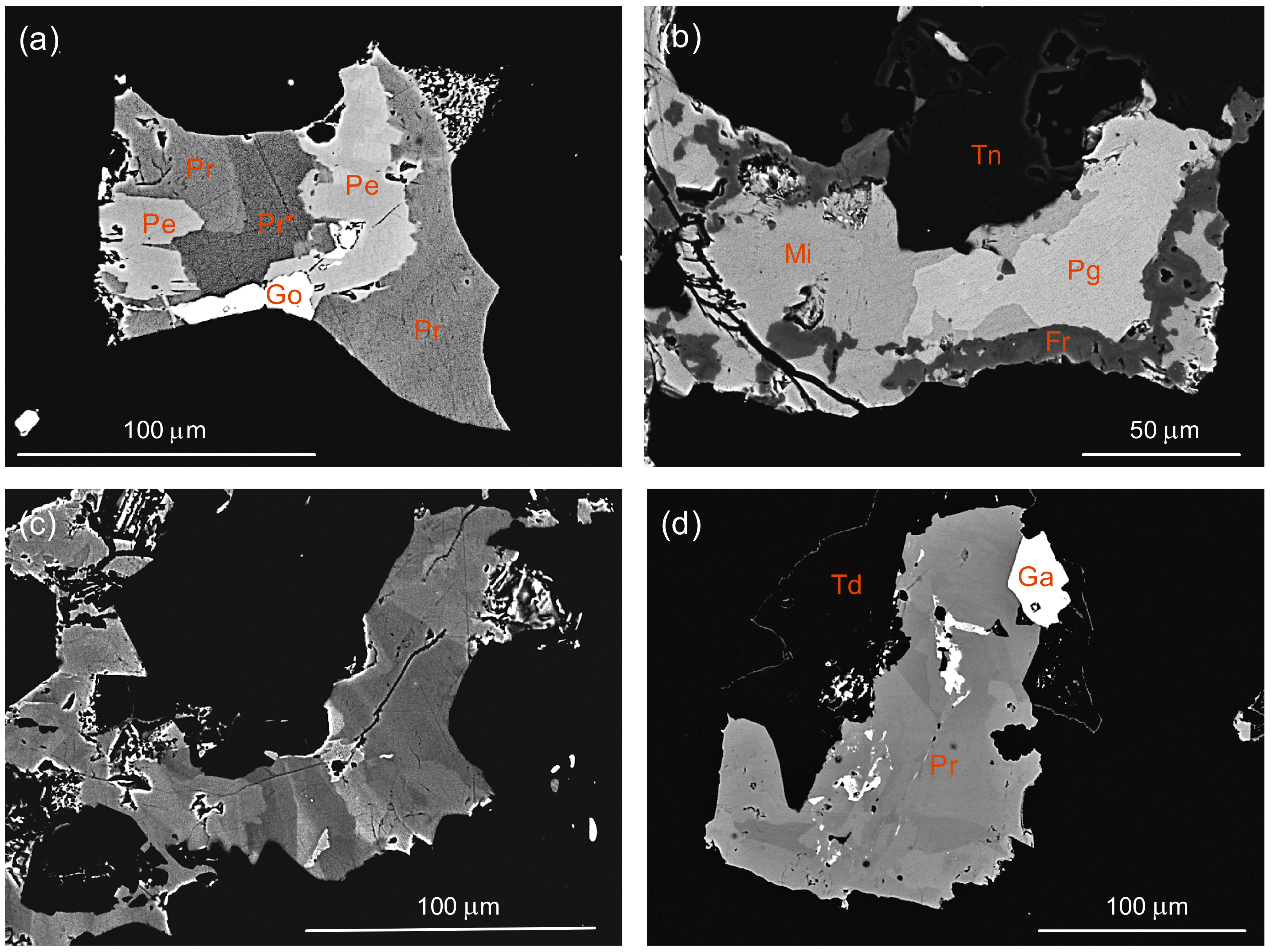

Minerals of the pyrargyrite-proustite series, Ag₃SbS₃–Ag₃AsS₃, are frequent. They form euhedral and anhedral grains and aggregates up to 2 mm in size, often with irregular chemical zoning in BSE photos (Figure 10). They are predominantly accompanied by miargyrite, andorite, diaphorite, galena–clausthalite, and minerals of the polybasite and tetrahedrite group.

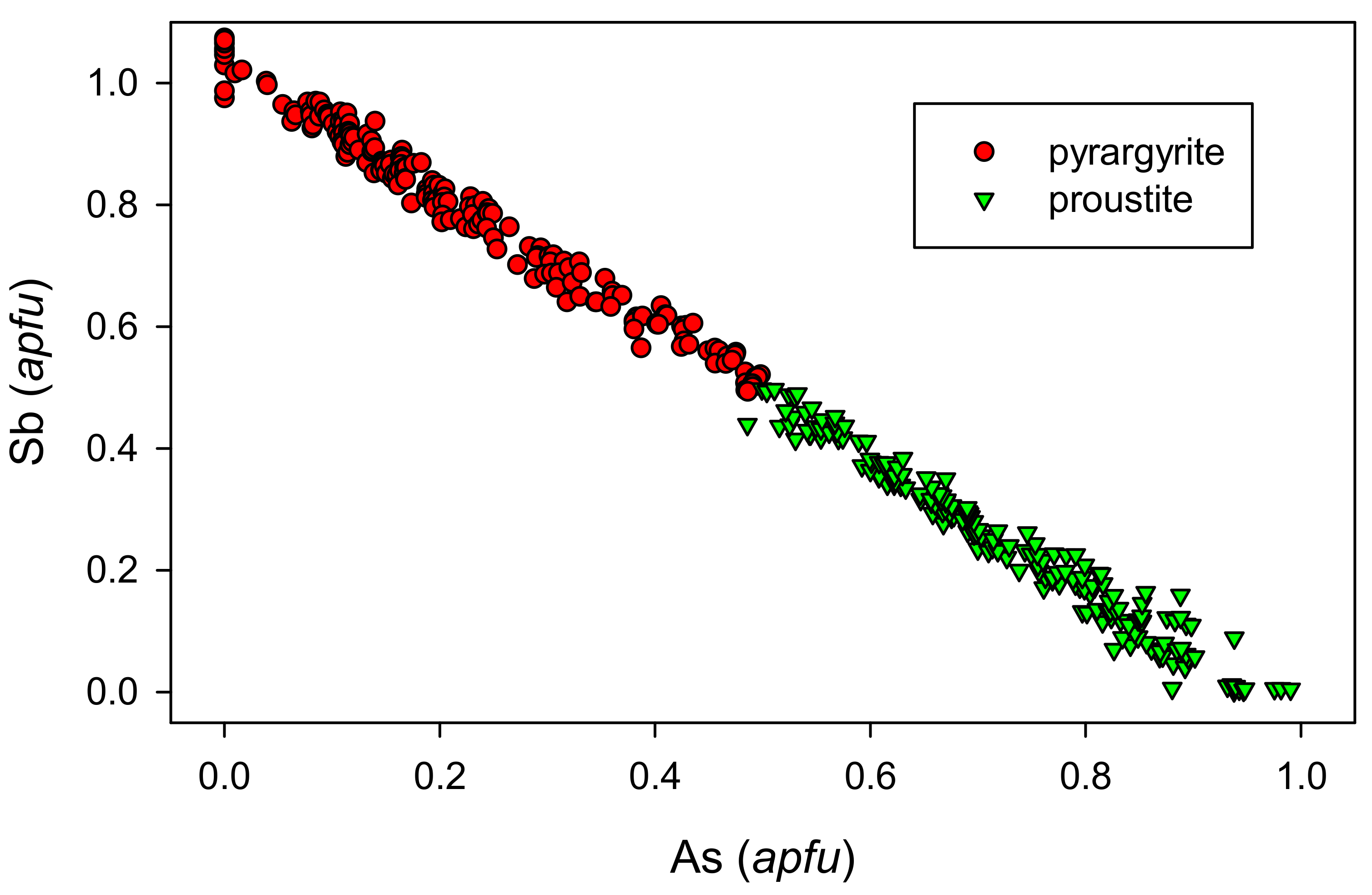

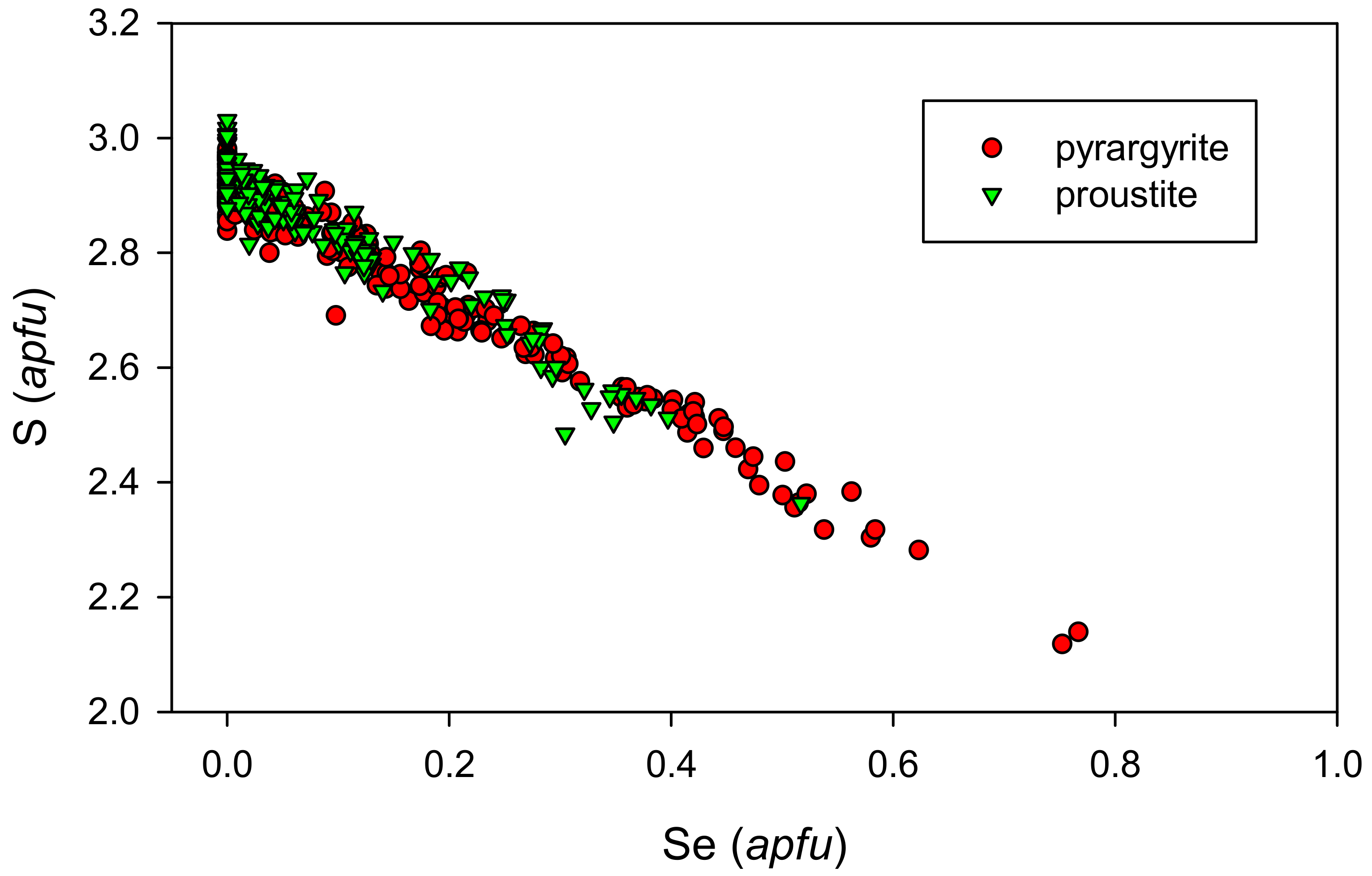

The chemical composition of the studied samples (Figure 11) is covering the complete solid solution range between pyragyrite and proustite. The presence of the complete solid solution at the studied locality indicates the origin of these phases at temperatures above 200–300 °C [45,46]; only limited miscibility was described for the lower temperatures by Ondruš et al. [47]. The determined Se contents do not correlate directly with As/Sb ratio, but range of SeS_-1 substitution is larger in pyrargyrite (up to 0.76 apfu) than in the case of proustite with contents up to 0.52 apfu Se (Figure 12). Besides main elements, traces of Fe, Pb, Hg, Cu, and Cl were also observed. The chemical analyses of members of the pyrargyrite–proustite series and corresponding empirical formulae are given in Table S6.

4.4. Ag–Cu Sulphosalts

Minerals of the tetrahedrite group are common. They form subhedral to anhedral grains and aggregates up to 250 µm in size, which often show relatively strong irregular chemical zoning in BSE images (Figure 13). They are always closely associated together with miargyrite, pyrargyrite–proustite, galena–clausthalite, minerals of the polybasite group, diaphorite, and to a lesser extent also with acanthite, naumannite, and gold–silver alloy.

The tetrahedrite group is the most complex isotypic series among the sulphosalts in nature. This is caused by the multiplicity of iso- and heterovalent substitutions [48]. A simplified general formula for minerals of the tetrahedrite group can be expressed according to Moëlo et al. [48] as ^[III]A₆^[IV](B,C)₆^[III]X₄^[IV]Y₁₂^[VI]Z₁, where A is Cu or Ag in triangular coordination; B is Cu¹⁺ or Ag in tetrahedral coordination, C is generally a divalent metal (typically Fe or Zn, but also Hg, Mn, Cd, Cu²⁺, etc.) in the same coordination as B; X is Sb, As, Bi or Te in trigonal pyramidal coordination; Y is S or Se in tetrahedral coordination, and Z is S or Se in special octahedral coordination. Structural studies confirmed the presence of vacancies or interstitial atoms (e.g., Cu), or heterovalent substitutions due to the incorporation of Fe³⁺ or Te⁴⁺ [48]. The status of Ag-rich members of tetrahedrite group (freibergite, argentotennantite) and especially their boundaries with tetrahedrite and tennantite is still discussed [48]. Part of authors proposed for freibergite minimum content of 4 apfu Ag [48,49] and for argentotennantite Ag > Cu (about 5 apfu Ag) [50]. On the base of the results of crystal structure studies [49,51] and analyses of natural samples [52,53], Ag preferably occupies the triangular A position with a total content 6 apfu, and according to the present rules of mineralogical nomenclature [54], the boundary would be three apfu Ag [53].

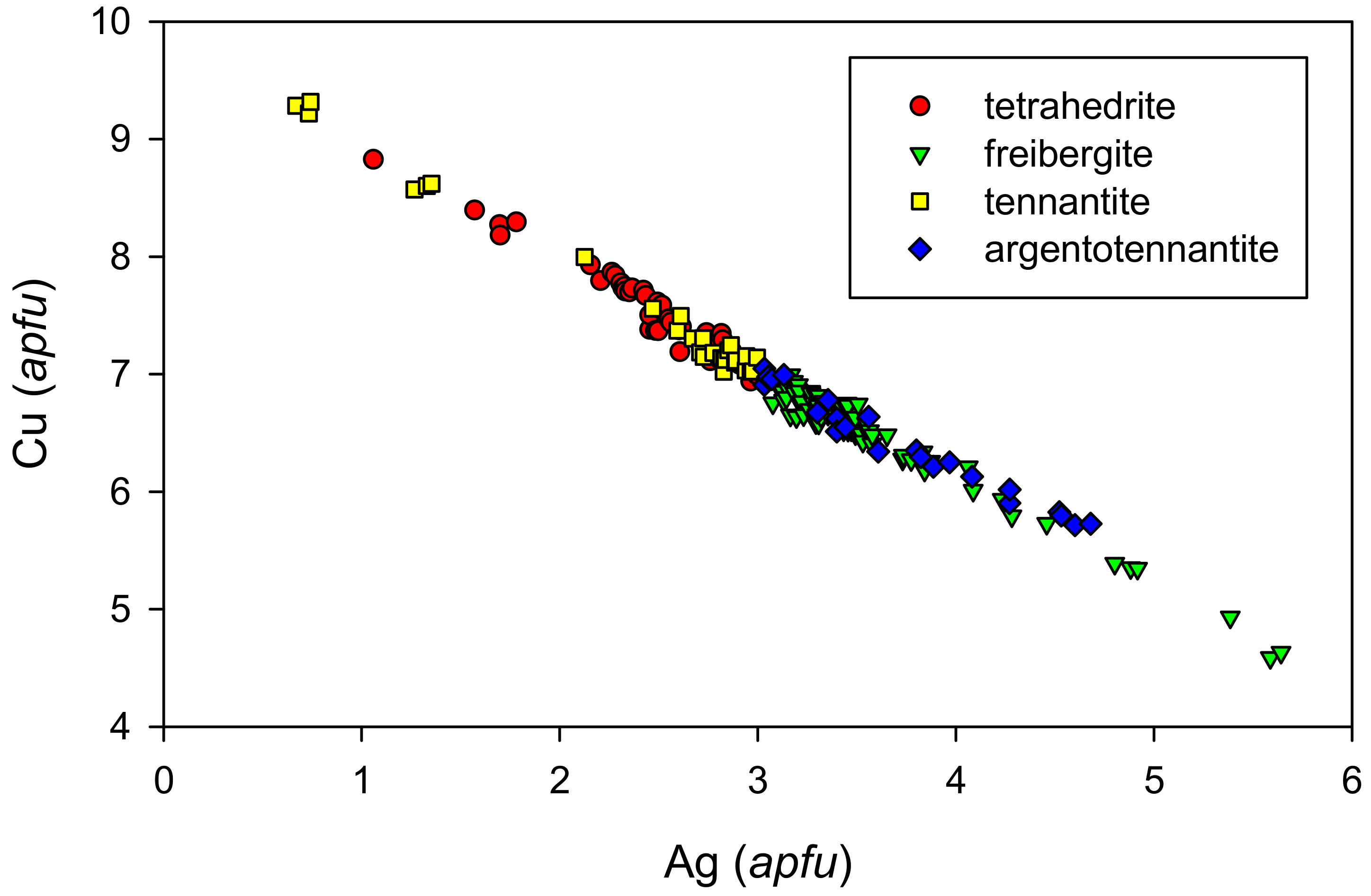

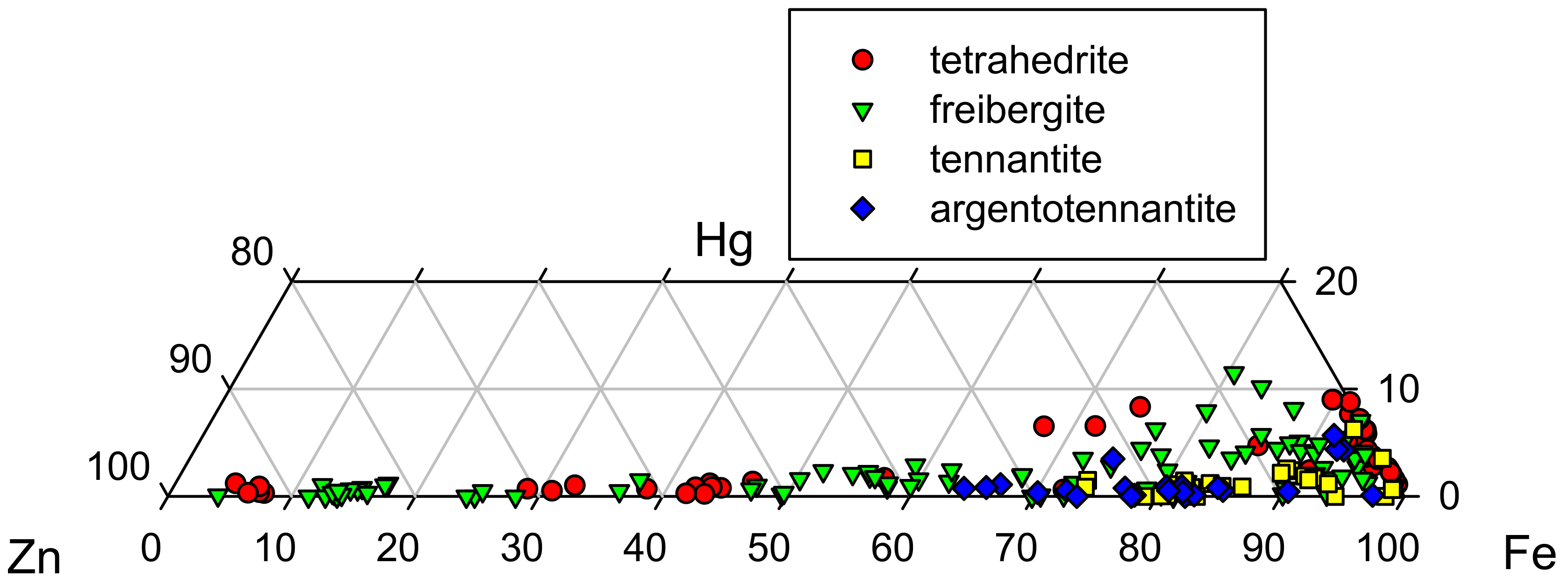

Four members from the tetrahedrite group were encountered in samples from Kremnica under this study: tetrahedrite, freibergite, tennantite, and argentotennantite. The tetrahedrite-group minerals form zonal aggregates with a high extent of substitution are in A (Figure 14), C (Figure 15), and X sites (Figure 16). The contents of Se are low in tetrahedrite reaching up to 0.36 apfu, in freibergite up to 0.28 apfu, respectively; As dominant members are virtually Se-free. The A position of tetrahedrite from the Kremnica deposit is dominantly occupied by Cu; however, with regular Ag contents in the range 1.06–2.99 apfu (Table S7). According to occupancy of the C site, there are present both Fe- and Zn-dominant members (Figure 15); minor contents of Hg (up to 0.18 apfu) were also determined in Fe-rich tetrahedrite. Antimony is the dominant element in the X position and it is partly replaced by As in the range of 0.18–1.99 apfu (Figure 16). The A site in freibergite is dominantly occupied by Ag with contents of 3.02–5.64 apfu (Table S8). In the C position besides Fe-dominant freibergite (some with Hg contents up to 0.22 apfu), there is also an unusual Zn-dominant one observed with Zn in the range of 1.00–1.87 apfu (Figure 15). Antimony in the X position is substituted by As reaching up to 2.01 apfu (Figure 16). In the chemical composition of tennantite (Table S9), the predominant Cu in the A position is accompanied by Ag (0.67–3.00 apfu), in the C position Fe with 1.41–2.16 apfu always prevails (Figure 15). In the X position, the As is replaced by Sb in the range 0.26–1.99 apfu (Figure 16). According to obtained WDS analyses (Table S10), the A-site in argentotennantite is occupied, besides minor Cu, by Ag in the range 3.03–4.68 apfu (Figure 14). In the C position, Fe in the range of 1.33–1.99 apfu prevails over Zn (up to 0.77 apfu). As a dominating element in the X position, it is replaced by Sb in the range of 0.73–1.95 apfu (Figure 16).

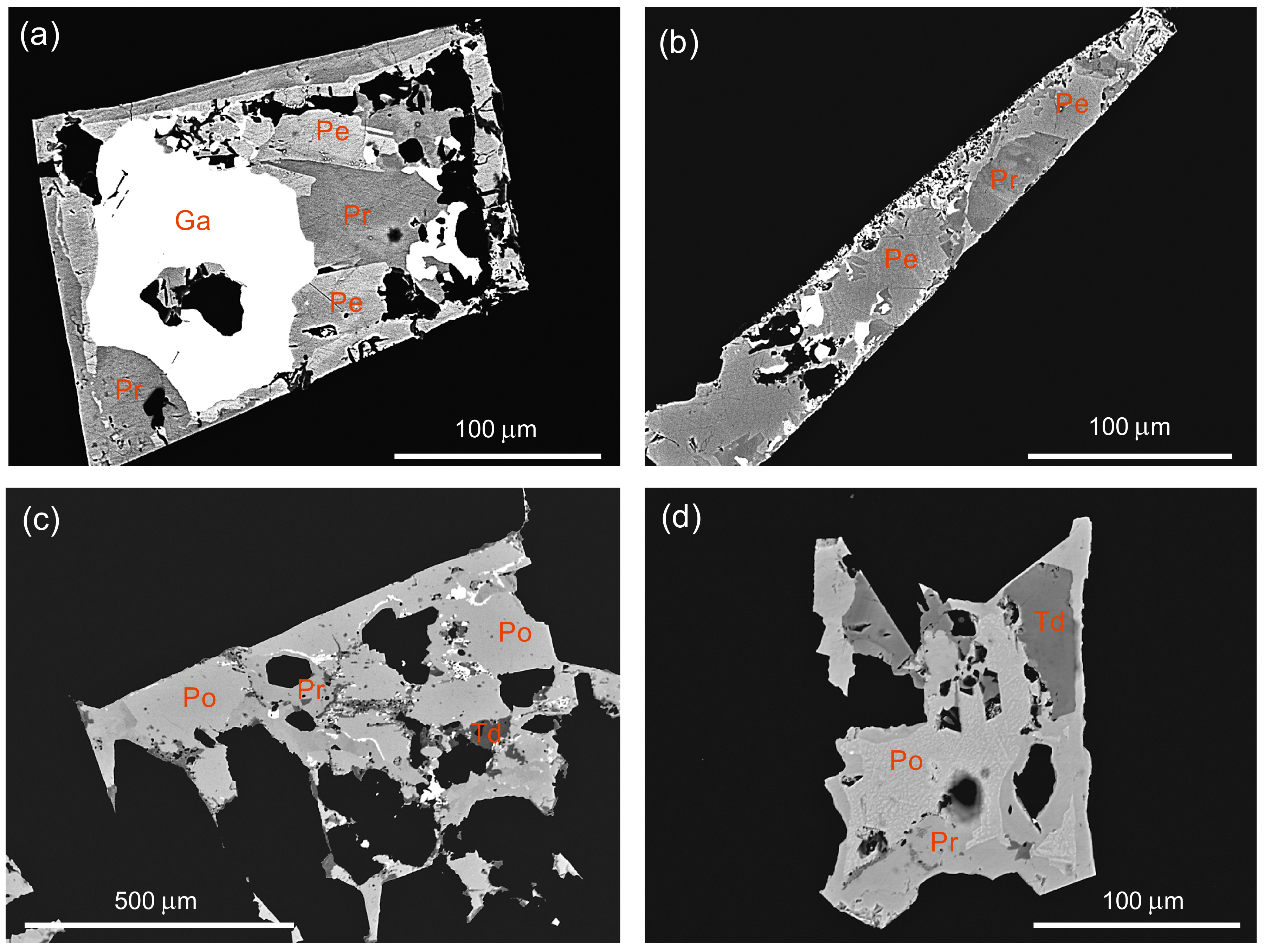

Minerals of the polybasite group, [Ag₉CuS₄][(Ag,Cu)₆(As,Sb)₂S₇], are fairly common as subhedral and anhedral grains up to 300 µm in size (Figure 17), which are mostly associated with pyrargyrite–proustite, minerals of the tetrahedrite group, and galena–clausthalite. They often show weak irregular chemical zoning in BSE images (Figure 17a,b).

The nomenclature of the polybasite group has recently been clarified through the resolution of the crystal structures of various polytypes of this group by Bindi et al. [55], and a general formula [Ag₉CuS₄][(Ag,Cu)₆(As,Sb)₂S₇] was proposed. As the first selenium-dominant member, selenopolybasite with a formula of [Ag₉Cu(S,Se)₂Se₂][(Ag,Cu)₆(As,Sb)₂(S,Se)₇] was described by Bindi et al. [56].

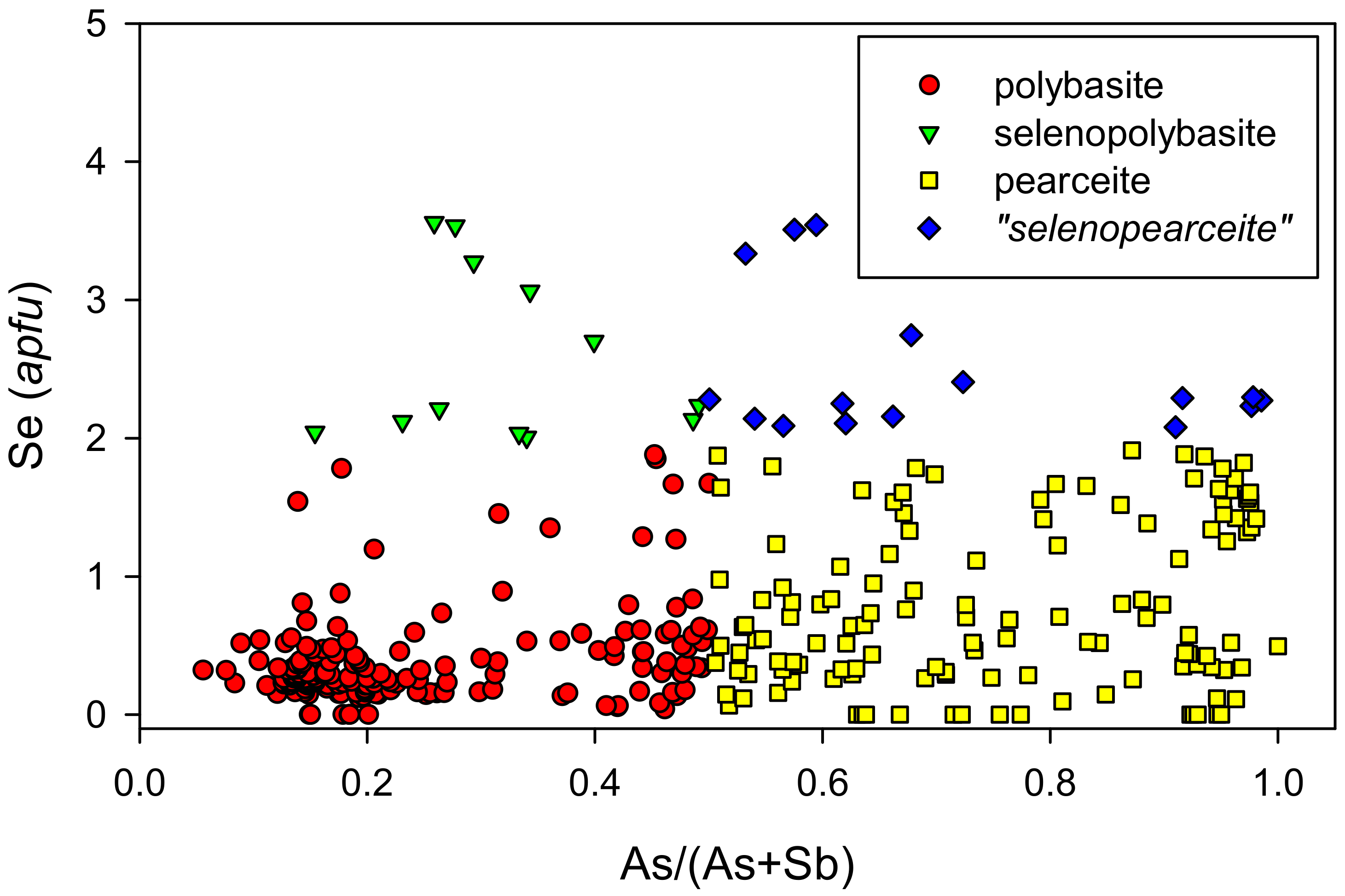

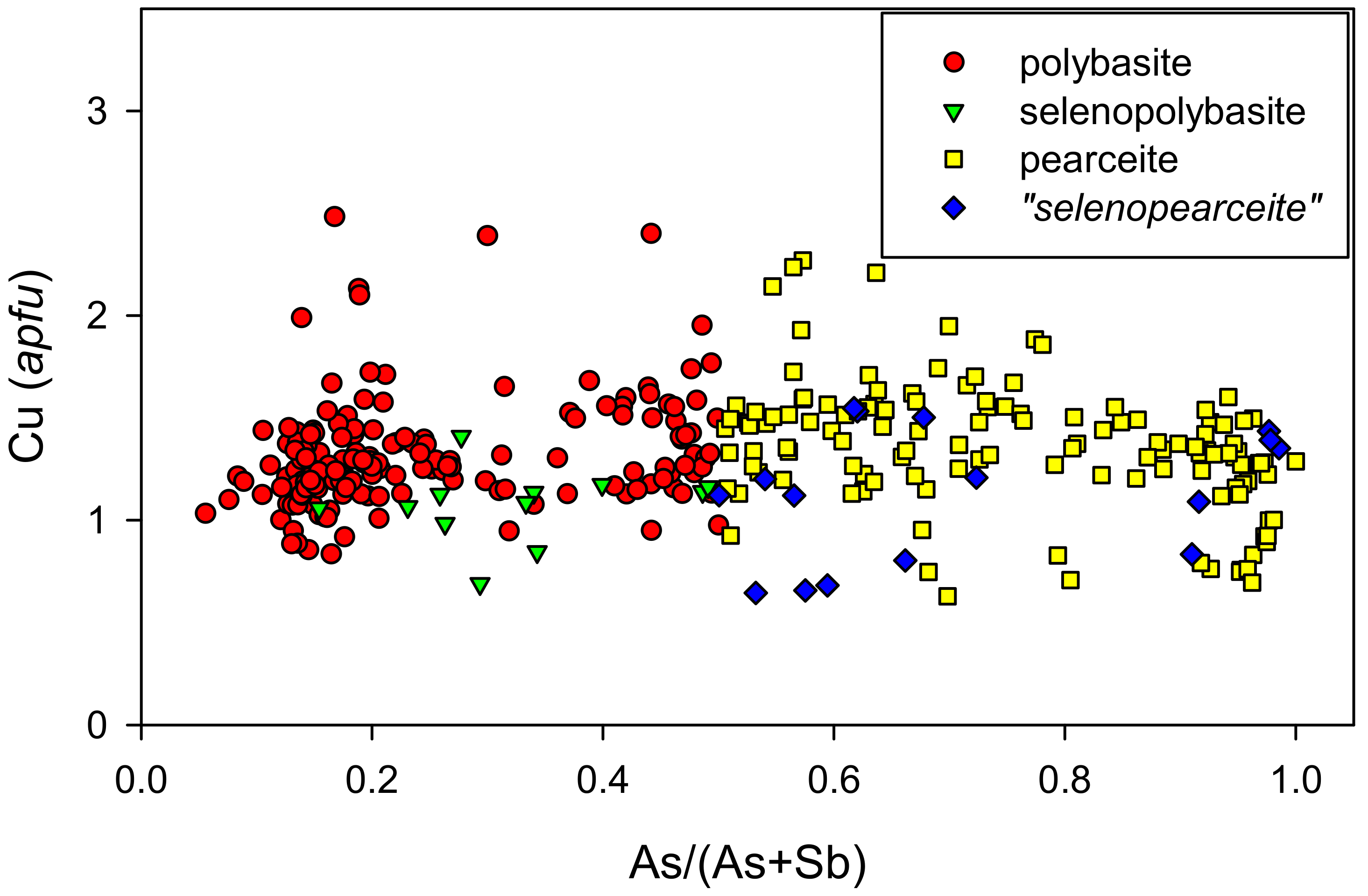

Four members of the polybasite group were determined in the studied material from the Kremnica deposit: polybasite, selenopolybasite, pearceite, and a new unnamed Se-analogue of pearceite referred to as “selenopearceite” in the following text. The members of the polybasite group form zonal aggregates with high extent of substitutions As–Sb, Ag–Cu (Figure 18), and Se–S (Figure 19). Polybasite is characterized by contents of Cu in the range 0.83–2.48 apfu and As 0.11–1.13 apfu, respectively (Table S11). In the anion sites, S is partly substituted by Se (up to 1.88 apfu). Selenopolybasite has Cu contents around 1 apfu (0.69–1.40) and the range of AsSb_-1 substitution is 0.30–0.98 apfu (Table S12). The minimum content of 2 apfu Se in anion positions was determined as a boundary between polybasite and selenopolybasite; selenopolybasite from type locality De Lamar mine, Idaho, USA, contains up to 2.55 apfu Se [56], but significant is that selenium fully occupies one specific site with general content of 2 apfu [57]. Polybasites with about 1 apfu Se were also found, but in the case of this reduced content, selenium is disordered in the anion positions of the A layer of the crystal structure [58]. In the selenopolybasite from the Kremnica deposit, the Se contents in the range 2.01–3.56 apfu were determined (Figure 19). In chemical composition of As-dominant member, pearceite, As is partly replaced by Sb up to 1.09 apfu (Figure 18) and Cu content varies in the range 0.63–2.27 apfu (Table S13). The observed Se contents reach up to 1.91 apfu. For the last member of this group, the new unnamed “selenopearceite”, the contents of Cu around 1 apfu (0.64–1.55) and Sb up to 1.04 apfu were determined (Table S14). The observed range of SeS_-1 substitution is 2.08–3.54 apfu (Figure 19); similar high contents of selenium in pearceite (as an As-dominant member) have not been described yet.

4.5. Ag-Pb Sulphosalts

Diaphorite, Ag₃Pb₂Sb₃S₈, is a relatively common mineral in the studied mineral association. It occurs as anhedral grains and aggregates up to 150 µm in size (Figure 20), which replace galena and are predominantly associated with miargyrite, pyrargyrite–proustite, and minerals of the tetrahedrite group.

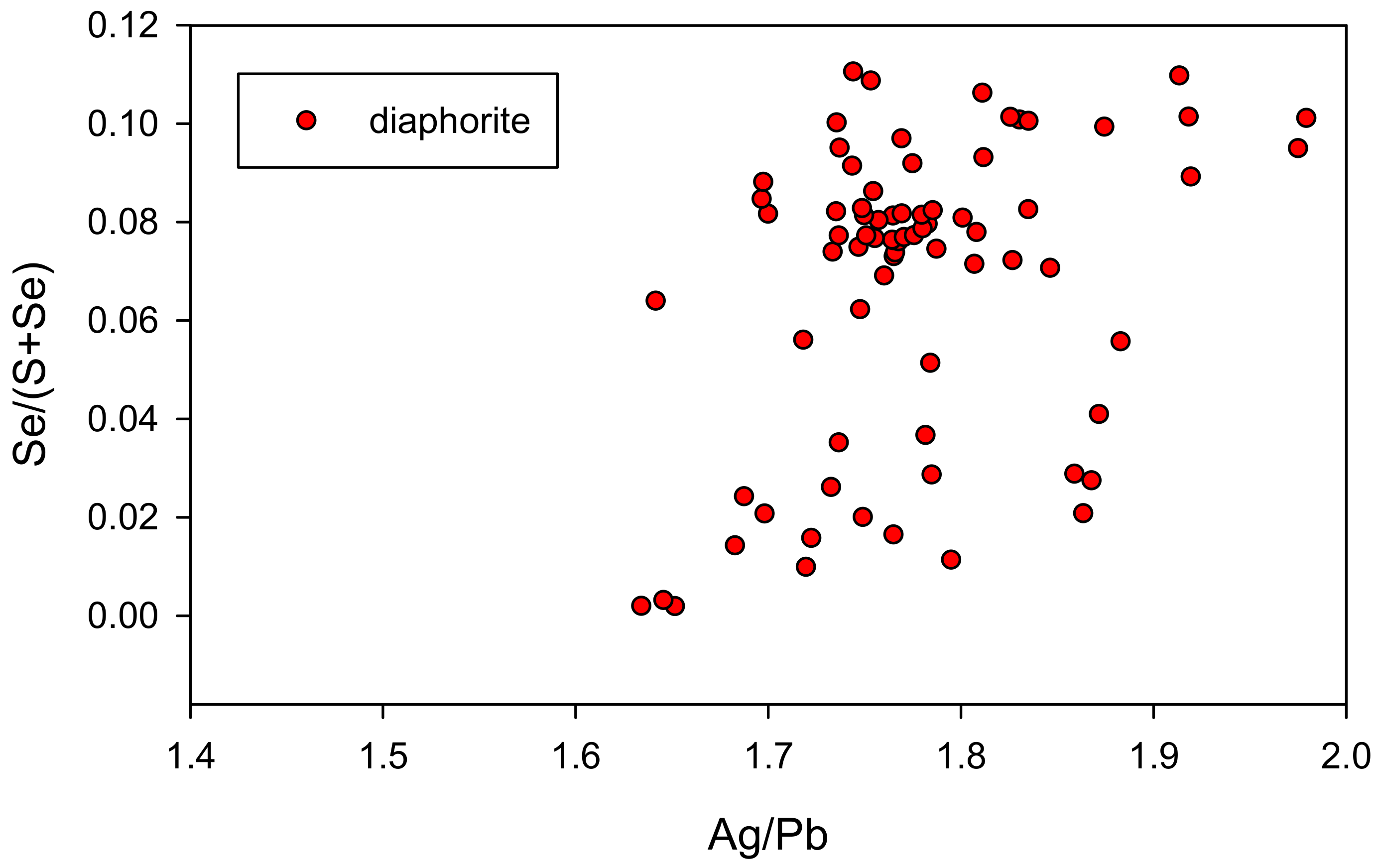

The chemical composition of diaphorite from the Kremnica deposit (Table S15) slightly differs from the ideal formula, Ag₃Pb₂Sb₃S₈, especially in the Ag/Pb ratio, which ranges from 1.63 to 1.98 (Figure 21). The similar variations were described by Mozgova et al. [59] on the basis of microanalytical and crystallographic data from various occurrences of diaphorite. Mozgova et al. (1989) [59] speculated about the existence of a continuous solid solution series between diaphorite and a phase with the formula Ag₂PbSb₂S₅ (old non-valid name “brongniardite”) and concluded that this phase with Ag/Pb ratios between 1.75 and 2.00 may be called as Ag-rich diaphorite. This hypothesis is supported by results of a study of diaphorite from Herja, Romania (Ag/Pb = 1.53–1.69) [60], Apuan Alps, Italy (Ag/Pb = 1.67) [61], and Poličany, Czech Republic (Ag/Pb = 1.47–1.80) [42]. Diaphorite samples with a composition close to the ideal stoichiometry (Ag/Pb = 1.44–1.54) were found at other localities, such as Kutná Hora, Czech Republic [62,63] and Příbram, Czech Republic [64]. The determined minor contents of As (up to 0.34 apfu) in diaphorite from Kremnica negatively correlates with Sb, indicating the existence of the AsSb_-1 substitution. The observed range of SSe_-1 substitution in the anion part of the formula (up to 0.86 apfu) are significantly higher than those published for Se-bearing diaphorite from Kutná Hora, Czech Republic (up to 0.29 apfu Se) [42].

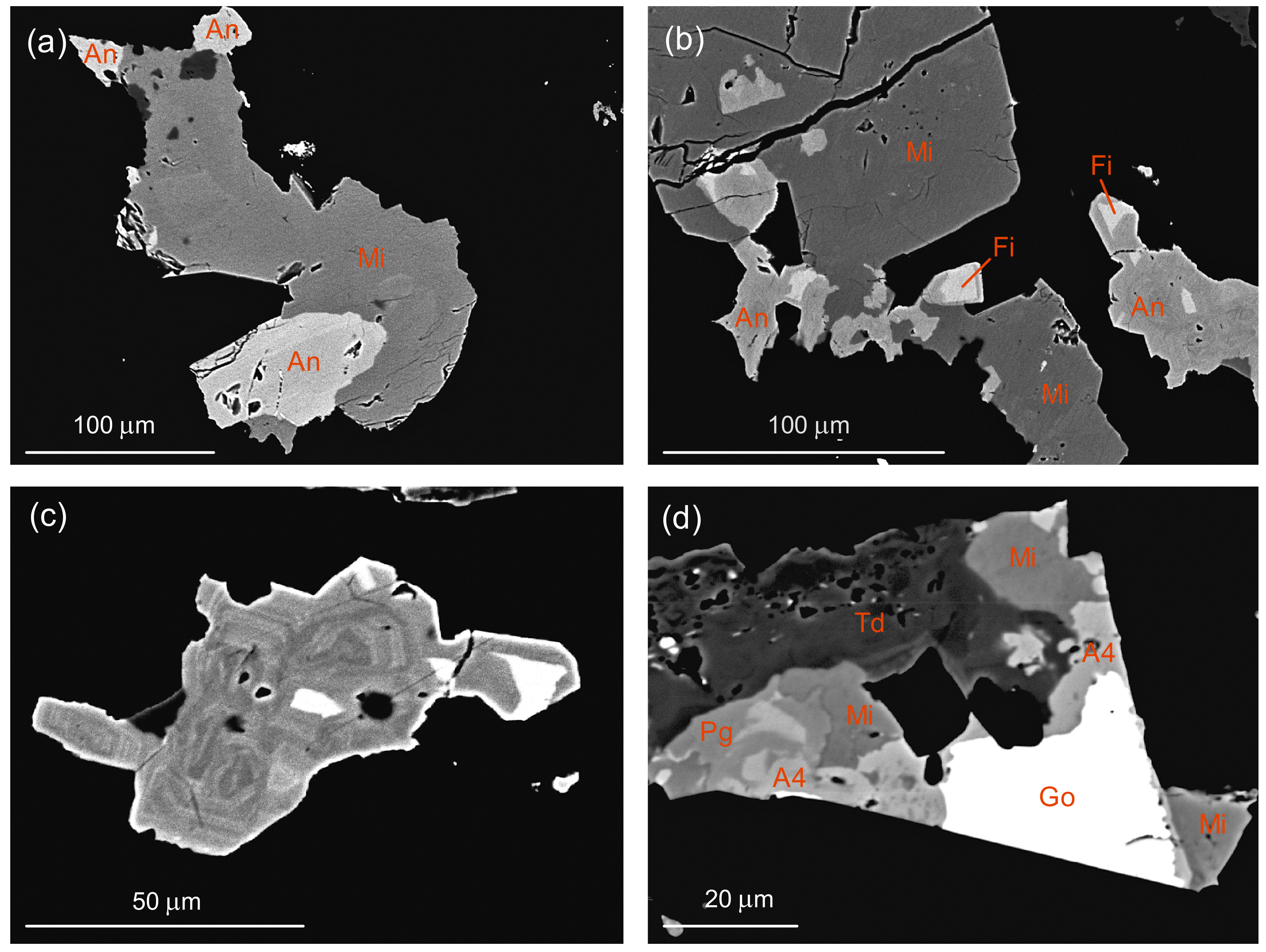

Minerals of the andorite branch are relatively rare. They occur as subhedral and anhedral grains and aggregate up to 100 µm in size, which show slight irregular to oscillatory chemical zoning in BSE images (Figure 22). The most common associated minerals are miargyrite, pyrargyrite–proustite, galena–clausthalite, and minerals of the tetrahedrite group. Minor amounts of freieslebenite, scainiite, plagionite, and robinsonite were also observed together with andorites.

The results of chemical analyses of andorite VI, Pb₁₈Ag₁₅Sb₄₇S₉₆ shows for the majority of analytical points its over-substituted character with % of and substitution reaching up to 112 (Figure 23). This chemical composition corresponds to the so-called nakaséite defined by Ito and Muraoka [65] with 106%And, which was later confirmed by Moëlo et al. [66] to be an oversubstituted, Cu-rich (about 1 wt %) variety of andorite VI; the contents of Cu in the studied material from Kremnica reaches up to 1.1 wt % (Table S16). The presence of very thin zones with different chemical compositions observed in BSE images (Figure 22b,c) suggests also a possibility of exsolution of structures of andorite VI and a mineral phase close to roshchinite [67,68].

During the study of chemical composition of andorite IV, AgPbSb₃S₆, (Table S17, Figure 23) the N_chem values between 3.99–4.14 (mean 4.05) and % and substitution 91–96 (mean 94) were found, which is in good agreement with published data [66].

A mineral phase with N_chem value in the range 4.39–4.72 and % and substitution 67–70 (Figure 23, Table S18) corresponds very well with so-called Ag-excess fizélyite. It was described for the first time on the basis of chemical composition as “minéral F” from Les Farges in France by Moëlo et al. [66] and later from the Lill mine in Příbram, Czech Republic, by Plášil et al. [69]. Structurally, it was defined by Yang et al. [70] in samples from Van Silver mine, Canada. It significantly differs from fizélyite by higher Ag contents; the excess silver is situated at the Ag2 site in the crystal structure [70], which remains unoccupied in “standard” fizélyite. Higher Ag contents results in a shift of calculated N_chem (the width of the blocks of octahedra separated by Pb atoms in trigonal prismatic coordination) to higher values than four. The mineral from the Van Silver mine shows calculated values of N_chem in the range of 4.31–4.59 with a mean of 4.42 [70], whereas those described recently from Poličany, Czech Republic, shows a wider range of N_chem values of 4.27–4.91 with mean of 4.54 [42].

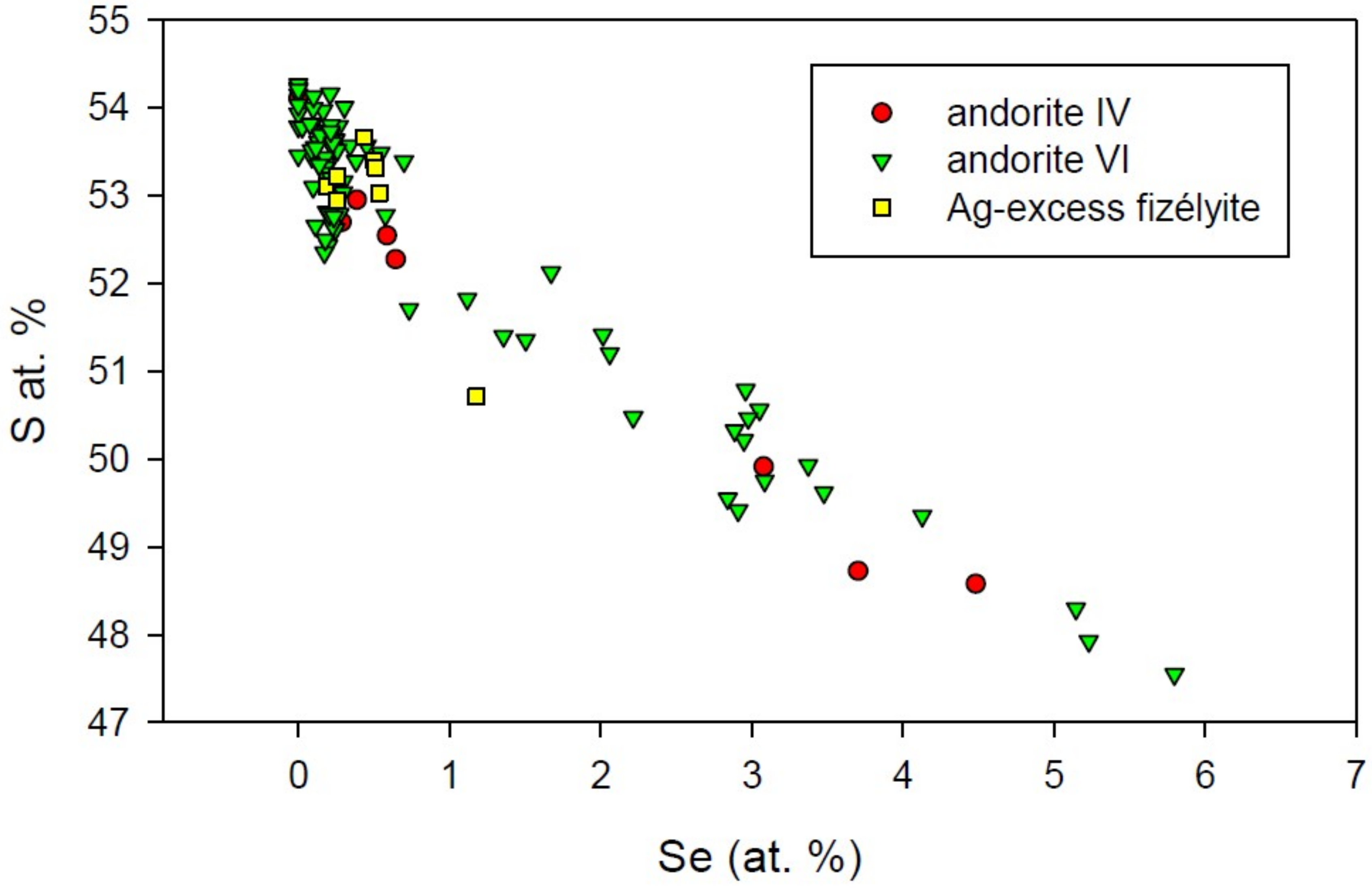

The selenium contents in minerals of the andorite branch are relatively low (Figure 24). The higher range of SeS_-1 substitution (up to 5.71 wt % Se) was determined for some aggregates of andorite IV and VI only.

Freieslebenite, AgPbSbS₃, is very rare. It forms irregular anhedral grains and inclusions up to 20 µm in size enclosed in andorite, which are associated with Se-rich miargyrite. Its chemical composition is close to the ideal formula (Table S19); only minor contents of As (up to 0.08 apfu) were determined. Selenium contents are also low (up to 0.01 apfu).

4.6. Pb–Sb sulphosalts

Scainiite, Pb₁₄Sb₃₀S₅₄O₅, is very rare. It occurs as anhedral grains up to 10 µm in size associated with robinsonite, plagionite, andorite, Se-poor galena, and miargyrite (Figure 25). Its chemical composition (Table S20) is close to published data for scainiite from the type occurrence in Buca della Vena mine, Italy [71]; moreover, minor contents of Ag, Fe, Cu, and Hg were identified. In anionic site, only irregular contents of Se up to 3.68 apfu (3.49 wt %) were observed.

Plagionite, Pb₅Sb₈S₁₇, is also very rare. It forms single elongated grains 15 µm in size, which are associated with andorite, Se-poor galena, and scainiite (Figure 25b). Its chemical composition (Table S21) corresponds to the ideal formula Pb₅Sb₈S₁₇ [48]. The determined minor contents of Ag, Fe, Hg, and Cu may be caused by surrounding phases. Apart from sulphur, the anionic site contains minor amounts of selenium reaching up to 1.24 apfu (3.81 wt %).

Robinsonite, Pb₄Sb₆S₁₃, was found only in one polished section, which also contained scainiite and plagionite. It forms single irregular grains 15 µm in size (Figure 25a), which are accompanied with scainiite, Se-poor galena, andorite, and minor miargyrite. Its chemical analyses (Table S22) are close to the ideal composition Pb₄Sb₆S₁₃ [48], the observed minor amounts of Ag, Fe, and Cu may be caused by surrounding mineral phases. In anionic site, contents of Se up to 0.71 apfu (2.80 wt %) were determined.

5. Discussion

5.1. Paragenetic Evolution of Ore Mineralization

The ore minerals form usually small (mm to tenths of mm big) mutually isolated aggregates enclosed in quartz or fillings of comparatively small cavities in gangue minerals (both quartz and dolomite). No crosscutting phenomena have been observed among individual ore minerals in the studied polished sections indicating virtual absence of tectonic movements during crystallization of the vein filling. Although the studied mineralization is very rich in number of mineral species, much more limited amounts of ore phases (i.e., up to six) are present in individual ore aggregates. Moreover, tiny grains of many phases occur very sporadically. All these features make difficult the construction of a unified general paragenetic sequence involving all above described ore species.

The paragenetic evolution of ore mineralization can be divided into three portions based on their relative ages: early, middle, and late. This notation is mainly due to reader’s comfort, it does not represent individual substages separated by tectonic events.

The early portion of the studied ore paragenesis includes base-metal sulphides, Au–Ag alloys, and minerals of the galena–clausthalite series. The base-metal sulphides (sphalerite, pyrite, chalcopyrite) represent the oldest part of ore mineralization. These minerals form aggregates, which are typically not spatially associated with younger Au–Ag mineralization. In addition, overall absence of selenium in base-metal sulphides also suggests their pertinence to a mineralizing event not related to the Se-bearing Au–Ag mineralization. The early phases of the younger Au–Ag mineralization are represented by Au–Ag alloys and minerals of the galena–clausthalite series. These phases typically form relatively small individual isolated grains, surrounded (or replaced) by mineral phases belonging to the middle and late associations. Both phases are almost never in mutual contact; only one observation indicated that native gold is older than galena. We have not observed some systematic differences in mineral parageneses associated with compositionally different members of the galena–clausthalite series as well as gold–silver series. The plausible component of the early portion of the studied mineral assemblage is probably also uytenbogaardtite, which was observed only in the form of an overgrowth on a gold particle, enclosed in miargyrite.

The middle portion of the studied ore assemblage seems to be mineralogically very different in various samples and/or individual ore aggregates within a single sample. Common features characterizing this part of the studied paragenesis are: (i) spatial relationship to grains of minerals of the galena–clausthalite series; and (ii) a clear replacement relation of at least the early portion of newly formed mineral phases to the minerals of the galena–clausthalite series. Three principal mineral assemblages were observed in the middle paragenetic position:

2a: Pb–Sb sulphosalts (robinsonite, scainiite, plagionite) followed by Pb–Ag sulphosalts (Ag-excess fizélyite, andorites);

2b: diaphorite;

2c: minerals of the acanthite–naumannite compositional series.

In most cases, these mineralogically distinct assemblages seem to occur separately. In one case, small isolated inclusions of diaphorite occurred together with inclusions of andorite (both enclosed in miargyrite), but the mutual relationship of both phases is not clear. The reasons that led to the formation of such three paragenetically different assemblages remains unclear. The observed generally antipathetic relationships among these three parageneses can be the result of continuous temporal evolution of chemical composition of ore fluids (i.e., from a Pb–Sb-rich via Pb–Ag–Sb to an Ag-rich one) in combination with missing textural evidence for continuous evolution of mineral paragenesis. Alternatively, mixing of two ore fluids with contrasting chemical compositions (i.e., one Pb–Sb-rich and another Ag-rich) may be another possibility, which can explain the precipitation of virtually coeval very different mineral assemblages occurring at different places.

The youngest portion of the studied ore assemblage includes minerals of the pyrargyrite–proustite series, miargyrite, minerals of the polybasite group, and minerals of the tetrahedrite group. Therefore, parent fluids were rich in Ag, Cu, Sb, and As. The following three paragenetic sequences were observed:

3a: Pyrargyrite → miargyrite → tetrahedrite group minerals;

3b: Polybasite/pearceite → proustite → tetrahedrite group minerals;

3c: Proustite/pyrargyrite → pearceite.

Paragenesis 3a is generally Sb-rich, whereas assemblages 3b and 3c show much greater involvement of As. This can indicate participation of two fluids with contrasting compositions. An opposite temporal relationship between proustite and pearceite in assemblages 3b and 3c can reflect the presence of multiple generations of these phases (but not indicated by systematic differences in chemical composition of these phases), or essentially coeval crystallization of both phases. The latter possibility can be supported by situation in one ore aggregate, where subordinate pearceite/polybasite forms graphic-like intergrowths with pyrargyrite/proustite host. In minerals of the polybasite group, pyrargyrite–proustite series as well as silver-rich tetrahedrites, there the As/(As + Sb) ratio tends to increase during crystallization.

5.2. Comparison with Similar Epithermal Mineralizations

The ore association of the studied vein mineralization is characterized by the presence of abundant base-metal sulphides (galena and sphalerite besides pyrite), Pb–Sb(–Ag) sulphosalts, native silver to Ag-rich gold (electrum), selenides and Se-enriched sulphides. By contrast, tellurides and Mo-minerals are missing. The mineralization is thus characterized by high Ag/Au and Se/Te ratios. Gangue contains abundant dolomite in addition to quartz. Wall-rock alterations gave rise to abundant adularia and illite/smectite, whereas alunite is missing. These mineralogical and geochemical features suggest the pertinence of the studied vein to the low-sulphidation epithermal mineralizations [72].

In the area of the neighbouring Štiavnica Ore Districts, similar Au–Ag low-sulphidation vein mineralization hosted by propyllitized andesites of the Štiavnica stratovolcano was described from Hodruša-Hámre and Nová Baňa sites [73,74,75]. The paragenetic situation is very similar to those observed in this study, mostly including the wide variability in As/Sb ratios of the tetrahedrite group minerals, proustite–pyrargyrite series, and polybasite–pearceite series. However, the observed Se contents are generally low in ore minerals (up to 0.42 wt % in proustite, 0.22 wt % in tennantite, and 1.9 at. % in acanthite; data from Nová Baňa only). The origin of uytenbogaardtite and acanthite, occurring in similar textural position to our samples, is however interpreted in terms of late superimposed (namely supergene) enrichment at both sites [73,75]. In our material, this interpretation is not probable at least in case of acanthite, which is usually Se-rich and often even alternated in the same paragenetic position by aguilarite or naumannite which are invariably characterized as hypogene hydrothermal phases [76].

5.3. Origin of the Studied Mineralization

Koděra et al. [23,74] and Majzlan et al. [75,76] characterized the formation conditions of paragenetically similar but Se-poor low-sulphidation Ag–Au mineralization occurring at the Kremnica, Hodruša-Hámre, and Nová Baňa sites on the basis of fluid inclusion and stable isotope studies. Authors interpreted the source of fluids in a mixture of meteoric and magmatic waters. Most of the present fluid inclusions show low salinities of aqueous fluids (0.5 to 5 wt % NaCl eq.), which could be increased locally up to the 24 wt % NaCl eq. due to the boiling of fluids. The ore mineralization was deposited mostly at temperatures between ca. ~270 to 190 °C, locally at lower temperatures down to ~160 °C.

The abovementioned formation temperatures can be adopted also in case of the Se-rich mineralization under this study, as is indicated from the chemical composition of some ore minerals. The observed As content in miargyrite (up to 0.23 apfu) requires formation temperatures between 200 and 350 °C [45]. Similarly, the observed complete miscibility between pyrargyrite and proustite indicates temperatures above 200–300 °C [45,46].

The crystallization of native silver followed by acanthite/aguilarite/naumannite requires an increase in the fugacity of sulphur, selenium, or both, as is indicated from fS₂–fSe₂ diagram (Figure 26). The diagonal evolutionary trend is characteristic for epithermal ore deposits [34]. The close position of the boundaries of stability of the pairs acanthite–naumannite and galena–clausthalite in the same plot (Figure 26) well explains the observed common spatial association of minerals from both compositional series. The character of the discovered selenium mineralization indicates the formation from hydrothermal fluids with fO₂ slightly above or close to the hematite-magnetite buffer and a fSe₂/fS₂ ratio close to unity. The presence of minerals of galena–clausthalite solid solution show that the upper values of the fSe₂/fS₂ ratio were more likely controlled by the galena–clausthalite buffer, which is still close to unity [33,34]. The occurrence of naumannite and acanthite which was deposited together with silver and Ag-sulphosalts requires conditions close to the native Ag–naumannite + acanthite invariant points [34,77]. Together with observed minerals of the galena–clausthalite series, it is possible to define a range of logf_Se2 of the parent fluids between −18 and −25 and logfS₂ between −15 and −20, respectively [34,77]. These values correspond very well with conditions published for selenide-bearing Au–Ag epithermal deposits [34].

6. Conclusions

(1) The previously unknown selenium minerals (clausthalite, naumannite, aguilarite, selenopolybasite, and “selenopearceite”) and increased selenium contents in Ag–Sb(–As), Ag–Cu, Ag–Pb, and Pb–Sb sulphosalts were determined in a hydrothermal quartz-dolomite vein from the Václav-south adit. This vein belongs to veins of the central part of the 1st vein system of the historical gold deposit in Kremnica. The observed contents of Se in suphosalts belong to the highest ever found worldwide.

(2) A suite of more than twenty Ag-bearing minerals were determined in samples from the studied vein: minerals of the Au–Ag solid solution, acanthite, aguilarite, naumannite, uytenbogaardtite, Ag–Sb(–As) sulphosalts (miargyrite, pyrargyrite, proustite), Ag–Cu sulphosalts (Ag-rich tetrahedrite, freibergite, Ag-rich tennantite, argentotennantite, polybasite, pearceite, selenopolybasite, “selenopearceite”), and Ag–Pb sulphosalts (diaphorite, andorite VI, andorite IV, Ag-excess fizélyite, freieslebenite). The rare Pb–Sb sulphosalts (scainiite, plagionite, robinsonite) were also identified at the studied occurrence.

(3) Besides observed SeS_-1 substitution, a wide range of AsSb_-1 substitutions was characteristic for the studied mineral association: complete solid solutions between proustite–pyrargyrite, polybasite–pearceite, tetrahedrite–tennantite, and freibergite–argentotennantite were confirmed.

(4) Similarly, to the whole Kremnica deposit, the studied hydrothermal vein is a typical example of low-sulphidation epithermal Ag–Au mineralization. The mineralization of the Kremnica deposit was formed from low-salinity fluids composed of a mixture of meteoric and magmatic waters at temperatures mostly between ca. ~270 to 190 °C. These temperatures are in agreement with observed high contents of As in miargyrite and complete miscibility between pyrargyrite and proustite.

(5) The described association of selenides and other Se-bearing mineral phases indicates hydrothermal fluids with f_O2 slightly above or close to the hematite–magnetite buffer. The logf_Se2 of parent hydrothermal fluid probably ranged between −18 and −25 and logf_S2 varied between −15 and −20. These values correspond very well with conditions published for selenide-bearing Au–Ag epithermal deposits.
