Lead–Antimony Sulfosalts from Tuscany (Italy). XXIV. Crystal Structure of Thallium-Bearing Chovanite, TlPb26(Sb,As)31S72O, from the Monte Arsiccio Mine, Apuan Alps

Biagioni, Cristian; Moëlo, Yves; Perchiazzi, Natale; Demitri, Nicola; Lepore, Giovanni Orazio

doi:10.3390/min8110535

Open AccessArticle

Lead–Antimony Sulfosalts from Tuscany (Italy). XXIV. Crystal Structure of Thallium-Bearing Chovanite, TlPb₂₆(Sb,As)₃₁S₇₂O, from the Monte Arsiccio Mine, Apuan Alps

¹

Dipartimento di Scienze della Terra, Università di Pisa, Via Santa Maria 53, I-56126 Pisa, Italy

²

Institut des Matériaux Jean Rouxel, UMR 6502, CNRS, Université de Nantes, 2, rue de la Houssinière, F-44322 Nantes CEDEX 3, France

³

Elettra–Sincrotrone Trieste S.C.p.A., S.S. 14 km 163,5 in Area Science Park, Basovizza, I-34149 Trieste, Italy

⁴

CNR-IOM-OGG, 71 Avenue des Martyrs, F-38043 Grenoble, France

^*

Author to whom correspondence should be addressed.

Minerals 2018, 8(11), 535; https://doi.org/10.3390/min8110535

Submission received: 22 October 2018 / Revised: 14 November 2018 / Accepted: 16 November 2018 / Published: 18 November 2018

(This article belongs to the Special Issue Thallium: Mineralogy, Geochemistry and Ore Processes)

Download

Browse Figures

Versions Notes

Abstract

:

A thallium-bearing variety of the lead–antimony oxysulfosalt chovanite from the Monte Arsiccio mine (Apuan Alps, Tuscany, Italy) has been reexamined. It occurs as thin, ribbon-like crystals, black in color, up to 5 mm in length in vugs of dolomite ± baryte ± quartz veins embedded in the metadolostone of the Sant’Olga level. Associated minerals are rouxelite, robinsonite, sphalerite, valentinite, baryte, dolomite, quartz, and Ba-rich K-feldspar. Chemical analysis pointed to contents of Tl up to 0.86 apfu, corresponding to the ideal chemical formula TlPb₂₆(Sb,As)₃₁S₇₂O. The structural role of thallium has been investigated using single-crystal X-ray diffraction using synchrotron radiation (λ = 0.59040 Å). Thallium-rich chovanite is monoclinic, space group P2₁/c, with unit-cell parameters a = 34.280(3), b = 8.2430(7), c = 48.457(4) Å, β = 106.290(4)°, and V = 13143(2) Å³. The crystal structure was refined to a final R₁ = 0.083 for 12,052 reflections with F_o > 4σ(F_o) and 1210 refined parameters. The general features of thallium-rich chovanite agree with those of chovanite. Thallium is present as Tl⁺; it is disordered among two mixed (Pb/Tl) positions, with a Tl/Pb atomic ratio below 1, that precludes this compound to be a new species.

Keywords:

chovanite; sulfosalt; thallium; lead; antimony; oxygen; crystal structure; Monte Arsiccio mine; Apuan Alps; Italy

1. Introduction

Chovanite is one of the few lead–antimony oxysulfosalts found in nature and it has been reported from very few localities worldwide. Chovanite was first described from three Sb deposits in the Low Tatra Mountains, Slovakia [1] and, later, was found in two small neighboring pyrite ± baryte ± iron oxide ore deposits from the Southern Apuan Alps, i.e., the Pollone and Monte Arsiccio mines [2]. These latter findings allowed a better description of the crystal-chemistry of chovanite, whose ideal formula can be written as Pb₂₈Sb₃₀S₇₂O. In addition, the Italian occurrences showed interesting chemical features, such as the high As content (up to 5.20 atoms per formula unit, apfu) in the sample from the Pollone mine or the significant Tl content (up to 0.86 apfu) in the specimen from the Monte Arsiccio mine. Whereas the crystal structure of the former specimen was solved and refined, owing to the relatively high quality of the available material, the sample from Monte Arsiccio was represented by ribbon-like fibers, sometimes bent, that gave poor diffraction patterns, allowing the refinement of the 4 Å structure converging to an R₁ value of 0.235% [2]. However, the high thallium content prompted the search for crystals suitable for single-crystal X-ray diffraction studies, in order to describe the thallium distribution in this complex sulfosalt. This could correspond either to a new mineral species (if thallium is preferentially partitioned at one site) or to a thallium-bearing variety (if this element is disordered among several positions, without being dominant in at least one of them). Finally, a very small individual was found having a relatively better diffraction pattern and allowing a single-crystal X-ray diffraction investigation. Owing to the small size of this crystal, synchrotron radiation was used for the intensity data collection.

The crystal structure of this thallium-bearing chovanite is described in this paper.

2. Sample Description

Thallium-bearing chovanite occurs as thin ribbon-like crystals, up to 5 mm in length but only a few μm in thickness, sometimes bent to form curls and rings (Figure 1). Ribbon-like crystals are formed by the parallel association of several individuals. Thallium-bearing chovanite is associated with (Tl,Ag)-bearing rouxelite, robinsonite, sphalerite, valentinite, baryte, dolomite, quartz, and “hyalophane” (Ba-rich K-feldspar), in vugs of dolomite ± baryte ± quartz veins embedded in the metadolostone of the Sant’Olga level, Monte Arsiccio mine, Apuan Alps.

Chemical data, reported in [2], corresponded to the following chemical formulae, recalculated on the basis of ΣMe = 58 apfu: Ag_0.30Tl_0.72Pb_25.75Sb_29.42As_1.84S_71.18Cl_0.06 and Ag_0.30Tl_0.86Pb_25.56Sb_29.59As_1.69S_71.52Se_0.07Cl_0.05. Subtracting Ag, Se, and Cl, according to the substitution rules Ag⁺ + Sb³⁺ = 2Pb²⁺, Se²⁻ = S²⁻, and Pb²⁺ + Cl⁻ = Sb³⁺ + S²⁻, the two formulae become Tl_0.72Pb_26.29(Sb_29.18As_1.84)_Σ=31.02S_71.24 and Tl_0.86Pb_25.81(Sb_29.34As_1.69)_Σ=31.03S_71.64, respectively. Assuming the occurrence of 1 O apfu, as suggested by the crystal structure study [2], they correspond to the ideal formula TlPb₂₆(Sb,As)₃₁S₇₂O.

3. Crystallography

For the X-ray single-crystal diffraction study, the intensity data were collected at the XRD1 beamline, ELETTRA synchrotron facility [3]. A monochromatic wavelength of 0.59040 Å (21.00 keV) has been used on a 50 × 50 μm² beam size, using a Dectris Pilatus 2M hybrid pixel area detector, at a sample-detector distance of 85 mm. The diffraction data, collected at room temperature, were indexed, integrated, and scaled using the XDS software package [4]. The data were corrected for the Lorentz and polarization factors using XDS [4] built-in algorithms.

Tests on the distribution of |E| values agree with the occurrence of an inversion center (|E² − 1| = 0.879). This information, together with systematic absences, agrees with the space group, P2₁/c. The refined unit-cell parameters are a = 34.280(3), b = 8.2430(7), c = 48.457(4) Å, β = 106.290(4)°, V = 13143(2) Å³, and Z = 4.

The crystal structure was refined with Shelxl-2018 [5] starting from the atomic coordinates of chovanite [2]. The site occupancy factors (s.o.f.) were refined using the scattering curves for neutral atoms given in the International Tables for Crystallography [6]. Several mixed Pb/Sb and Sb/As positions were found, whereas Me13 and Me14 sites (labeled Pb13 and Pb14 in [2]) were found to be split. Their s.o.f. were refined using the scattering curves of Pb and Tl at the Me13a/Me14a and Me13b/Me14b positions, respectively. After several cycles of anisotropic refinement, a final R₁ = 0.0826 for 12,052 reflections with F_o > 4σ(F_o) and 1210 refined parameters was obtained. Crystal data and details of the intensity data collection and refinement are reported in Table 1.

Atomic coordinates, site occupancies, and displacement parameters are available in the Crystallographic Information File, available as a Supplementary Material. Table 2 gives site occupation factors (s.o.f.), average <Me–Φ> distances (Φ = S, O), and bond-valence sums for cation positions only. Bond-valence sums (BVS) for anions are given in Table 3. Bond parameters for Pb–S, Sb–S, and As–S bonds are taken from [7], whereas the value of 2.55 Å proposed by [8] for the pair Tl–S was used. Finally, the bond-valence sum for oxygen was calculated using the bond parameters given by Brese and O’Keeffe [7], Mills et al. [9], and Krivovichev [10] for As³⁺–O, Sb³⁺–O, and Pb²⁺–O, respectively.

4. X-ray Absorption Spectroscopy

X-ray Absorption Spectroscopy (XAS) measurements at the Tl-L₃ edge (12,658 eV) were performed at ~20 K on beamline ID26 at the European Synchrotron Radiation Facility (ESRF). The spectrum was measured in high-energy resolution fluorescence-detected (HERFD). The Tl Lα₁ emission line (10,269 eV) was selected using the 555 reflection of five spherically bent (radius = 0.5 m) Si analyzer crystals (diameter = 100 mm) in a vertical Rowland geometry [11]. Diffracted intensity was collected using a Silicon Drift Detector (SDD); the effective energy resolution was ~3.0 eV. The incoming beam was monochromatized using the 111 reflection of a Si double crystal monochromator, focused on the sample via two Pd-coated Si mirrors in the Kirkpatrick–Baez configuration.

The X-ray Absorption Near Edge Structure (XANES) spectrum (normalized and first derivative) of chovanite is reported in Figure 2. The peak in the derivative indicates the position of the main inflection point, which, by convention, is considered to be the absorption edge energy. The XANES region shows the typical characteristics of monovalent Tl, having a single absorption peak with an absorption edge at ~12,663 eV ([12] and references therein).

5. Results and Discussion

5.1. Crystal Structure Description

The crystal structure of thallium-rich chovanite, shown in Figure 3, agrees with [2]. Among the 58 cation positions occurring in its crystal structure, there are 21 pure Pb sites, two mixed and split Pb/Tl positions, 11 mixed Pb/Sb sites, 17 pure Sb positions, and 7 mixed Sb/As sites. The geometrical features of these sites agree with those described in [2]. Similarly, among the seventy-two S positions, S12 is split into two sub-sites, with a ratio between S12a and S12b of 0.65/0.35.

The crystal structure of chovanite has been detailed on the basis of a sample from the Pollone mine, according to the general approach developed by [13] for sulfosalts with rod-based structures related to SnS or PbS archetypes. Chovanite belongs to the group of sulfosalts having a boxwork architecture [14]. Its crystal structure can be obtained by combining three distinct kinds of modules, i.e., walls, partitions, and fill elements, labeled as C (i.e., C1 + C2), A, and B in Figure 4. Table 4 compares the chemical composition of these modules between the Monte Arsiccio and Pollone samples.

The simplified formula of the Monte Arsiccio crystal structure is Tl_0.55Pb_25.50(Sb_30.46As_1.49)_Σ=31.95S₇₂O, which has a positive valence balance Ev% = +1.0 [Ev(%) = [Σval(+) − Σval(−)] × 100/Σval(−)], related to an overestimation of Sb with respect to Pb. This may be due to the occurrence of minor Ag. Owing to the similar scattering factors of Ag (Z = 47) and Sb (Z = 51), minor Ag (0.30 apfu) is difficult to locate in the crystal structure of chovanite. On the basis of BVS values, Ag could be placed at some undersaturated Sb or mixed (Sb/Pb) positions. For instance, Sb52 has a BVS value significantly lower than that expected on the basis of the s.o.f., i.e., 2.18 v.u. vs. 2.70 v.u. This could be related to the occurrence of Ag, with an s.o.f. (Ag_0.35Sb_0.35Pb_0.30), resulting in an expected BVS of 2 v.u. Moreover, Tl is underestimated with respect to chemical analyses (Tl ranging between 0.72 and 0.86 apfu). However, its actual content could be estimated only on the basis of the bond-valence approach (see below).

Arsenic is virtually absent in rods A and B (only 0.06 and 0.08 apfu, respectively), whereas it is concentrated in rod-layers C, see Table 4. Arsenic occurs in six mixed (Sb/As) sites and it is dominant over Sb only in one of them (As16). In every module, see Table 4, the As/(Sb + As) atomic ratio of chovanite from the Pollone mine is over that of the sample from Monte Arsiccio. The As partitioning is not related to the Pb/ΣMe ratio.

The solution of the crystal structure agrees with the occurrence of one O atom per formula unit, with oxygen alternating with a vacancy along the b-axis, as shown in Figure 5. Oxygen is bonded to a pure Sb site (Sb46) and a mixed (Sb,As) site (Sb45), with (Sb/As)–O distances of 2.01(2) and 1.97(2) Å, respectively. The Sb45–O–Sb46 angle is 138(1)°. These distances are slightly longer than those observed in chovanite from the Pollone mine [2], where As was the dominant cation at the Sb45 position. This kind of configuration is topologically identical to those observed for the O3 isolated oxygen in scainiite [15], in a synthetic (Pb,Mn,Sb) oxy-chloro-sulfide [16], in pillaite [17], pellouxite [18], and meerschautite [19].

In chovanite from Pollone [2], the selection of the shortest (=strongest) (Sb,As)–S bonds (≤2.70 Å), together with short (Sb,As)–O distances distinguish finite (Sb,As)_mS_n chain fragments within the four constitutive modules A, B, C1, and C2. These chain fragments also contain mixed (Sb,Pb) positions. When Pb is present on these positions, it breaks the chains into shorter (Sb,As)_mS_n groups.

In chovanite from Monte Arsiccio, the chain topology is identical to that described in chovanite from Pollone in rods A and C1, as well as in the lateral ribbon of rod B. In the central ribbon of rod B, the variety of mixed (Sb,Pb) sites excludes a simple chain description. In rod C2, there are only two finite groups, compared to three at Pollone, see Figure 5:

Monte Arsiccio: [Sb(Sb_0.94Pb_0.06)SbS₇]·[Sb(Sb_0.94Pb_0.06)(Sb_0.57As_0.43)S₇].

Pollone: [(Sb_0.75As_0.25)(Sb_0.80Pb_0.20)SbS₇]·[Sb(Sb_0.78Pb_0.22)S₄]·[AsS₃].

This is due to the higher Sb content on (Sb,Pb) positions (Sb47 and Sb56) as well as on mixed (Sb,As) (Sb55).

5.2. Thallium in the Crystal Structure of Chovanite

Chovanite from the Slovak locality is Tl-free [1], whereas the chovanite from the Pollone mine has 0.30 Tl apfu [2]. According to [2], in the 8 Å crystal structure of chovanite, the sites Pb13 and Pb14 have the highest coordination number (IX) and were considered as the most favorable to host the large cation Tl⁺. In the crystal structure of chovanite from the Pollone mine, thallium was likely hosted at the split Pb13b position (labeled Me13b in the sample from Monte Arsiccio), although minor amounts of this element should also be disordered at the Pb13a and Pb14 sites (i.e., Me13a and Me14).

The higher Tl content of chovanite from the Monte Arsiccio Mine allows a better understanding of the partitioning of this element. Owing to the similar scattering factors of Tl (Z = 81) and Pb (Z = 82), the only way to propose a distribution of these two elements, using conventional X-ray diffraction, is taking into account the bond-valence sums. In agreement with [8], we used a value of R_Tl,S = 2.55 Å, instead of the value of 2.63 Å given by [7].

In Tl-bearing chovanite, both Me13 and Me14 sites were found to be split. Assuming the full-occupancy of these positions, the following BVS can be calculated (in v.u.): 1.57 (Me13a), 1.27 (Me13b), 1.68 (Me14a), and 1.51 (Me14b). The average <Me–S> distances range between 3.229 (Me14b) and 3.285 Å (Me13b). Taking into account BVS values and the refined site scatterings (refined assuming Pb at the Me13a and Me14a sites and Tl at the Me13b and Me14b sites—see Table 2), the following site populations at the four sub-sites could be proposed: Pb_0.42Tl_0.23 at Me13a, Tl_0.26Pb_0.09 at Me13b, Pb_0.55Tl_0.25 at Me14a, and Pb_0.10Tl_0.10 at Me14b. Consequently, the site populations at Me13 and Me14 are Pb_0.51Tl_0.49 and Pb_0.65Tl_0.35, respectively, with a total Tl content of 0.84 apfu, in agreement with the chemical data. Taking into account such a population, the structural formula of Tl-bearing chovanite could be written as Tl_0.84Pb_25.21(Sb_30.46As_1.49)_Σ=31.95S₇₂O (Ev% = +0.8).

Monovalent Tl substituting divalent Pb induces a deficit of positive charges. Relatively to Pollone chovanite, this is partly compensated by a Sb increase in two neighbouring sites: (Sb_0.96Pb_0.04) against (Sb_0.78Pb_0.22) at Sb56 and (Pb_0.90Sb_0.10) against pure Pb at Pb44.

6. Conclusions

The crystal-chemical characterization of Tl-bearing chovanite from Monte Arsiccio allowed the distribution of monovalent Tl between two positions, with a preferential partitioning at the Me13 site, to be described. However, Pb is still dominant in both sites, and the studied samples should be considered as a Tl-rich variety of chovanite. Likely, the crystallization of chovanite in hydrothermal environments richer in Tl than that responsible for the formation of the Monte Arsiccio ore assemblage could favor the existence of the Tl-analogue of chovanite, with Tl dominant over Pb at the Me13 position.

Thallium-bearing chovanite is the third Pb-Sb sulfosalt from the Monte Arsiccio mine showing the presence of a minor amount of Tl in its crystal structure, after rouxelite [20] and andreadiniite [21], thus reflecting the complex ore geochemistry of this ore deposit, where minor components (Ag, Cu, Hg, Tl), peculiar f(O₂)/f(S₂) conditions, and subtle variations in the Pb/(Sb,As) atomic ratios promoted the crystallization of a wide variety of sulfosalt species.

Supplementary Materials

The following are available online at https://www.mdpi.com/2075-163X/8/11/535/s1, CIF: Tl-bearing chovanite.

Author Contributions

C.B. conceived and designed the experiments; N.P., N.D., and G.O.L. performed the experiments; C.B. and Y.M. analyzed the chemical and crystallographic data; G.O.L. analyzed the XAS data; C.B. and Y.M. wrote the paper with input from N.P., N.D., and G.O.L.

Acknowledgments

This research was supported by MIUR through the project SIR 2014 “THALMIGEN–Thallium: Mineralogy, Geochemistry, and Environmental Hazards” granted to CB (Grant No. RBSI14A1CV) and by the University of Pisa through the project P.R.A. 2018-2019 “Georisorse e Ambiente” (Grant No. PRA_2018_41). Alain Manceau is thanked for the use of the 0.5 m Si analyzer crystals [financial support from the ANR grant ANR-10-EQPX-27-01 (EcoX Equipex) to Alain Manceau and Pieter Glatzel]. Blanka Detlefs and Tim Bohdan are thanked for the assistance during measurements on ID26 beamline.

Conflicts of Interest

The authors declare no conflict of interest.

References

Topa, D.; Sejkora, J.; Makovicky, E.; Pršek, J.; Ozdín, D.; Putz, H.; Dittrich, H.; Karup-Møller, S. Chovanite, Pb_15−2xSb_14+2xS₃₆O_x (x~0.2), a new sulphosalt species from the Low Tatra Mountains, Western Carpathians, Slovakia. Eur. J. Mineral. 2012, 24, 727–740. [Google Scholar] [CrossRef]
Biagioni, C.; Moëlo, Y. Lead-antimony sulfosalts from Tuscany (Italy). XIX. Crystal chemistry of chovanite from two new occurrences in the Apuan Alps and its 8 Å crystal structure. Mineral. Mag. 2017, 81, 811–831. [Google Scholar] [CrossRef]
Lausi, A.; Polentarutti, M.; Onesti, S.; Plaisier, J.R.; Busetto, E.; Bais, G.; Barba, L.; Cassetta, A.; Campi, G.; Lamba, D.; et al. Status of the crystallography beamlines at Elettra. Eur. Phys. J. Plus 2015, 130, 43–51. [Google Scholar] [CrossRef]
Kabsch, W. Integration, scaling, space-group assignment and post-refinement. Acta Crystallogr. 2010, D66, 125–132. [Google Scholar] [CrossRef] [PubMed]
Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8. [Google Scholar]
Wilson, A.J.C. (Ed.) International Tables for Crystallography. Volume C: Mathematical, Physical and Chemical Tables; Kluwer Academic: Dordrecth, The Netherlands, 1992. [Google Scholar]
Brese, N.E.; O’Keeffe, M. Bond-valence parameters for solids. Acta Crystallogr. 1991, B47, 192–197. [Google Scholar] [CrossRef]
Biagioni, C.; Bonaccorsi, E.; Moëlo, Y.; Orlandi, P.; Bindi, L.; D’Orazio, M.; Vezzoni, S. Mercury-arsenic sulfosalts from the Apuan Alps (Tuscany, Italy). II. Arsiccioite, AgHg₂TlAs₂S₆, a new mineral from the Monte Arsiccio mine: Occurrence, crystal structure and crystal chemistry of the routhierite isotypic series. Mineral. Mag. 2014, 78, 101–117. [Google Scholar] [CrossRef]
Mills, S.J.; Christy, A.G.; Chen, E.C.-C.; Raudsepp, M. Revised values of the bond valence parameters for ^[6]Sb(V)–O and ^[3–11]Sb(III)–O. Z. Krist. 2009, 224, 423–431. [Google Scholar] [CrossRef]
Krivovichev, S.V. Derivation of bond-valence parameters for some cation-oxygen pairs on the basis of empirical relationships between r₀ and b. Z. Krist. 2012, 227, 575–579. [Google Scholar]
Rovezzi, M.; Lapras, C.; Manceau, A.; Glatzel, P.; Verbeni, R. High energy-resolution X-ray spectroscopy at ultra-high dilution with spherically bent crystal analyzers of 0.5 m radius. Rev. Sci. Instrum. 2017, 88, 013108. [Google Scholar] [CrossRef] [PubMed]
Biagioni, C.; D’Orazio, M.; Lepore, G.O.; d’Acapito, F.; Vezzoni, S. Thallium-rich rust scales in drinkable water distribution systems: A case study from northern Tuscany, Italy. Sci. Total Environ. 2017, 587, 491–501. [Google Scholar] [CrossRef] [PubMed]
Makovicky, E. Rod-based sulphosalt structures derived from the SnS and PbS archetype. Eur. J. Mineral. 1993, 5, 545–591. [Google Scholar] [CrossRef]
Makovicky, E.; Topa, D. The crystal structure of sulfosalts with the boxwork architecture and their new representative, Pb_15−2xSb_14+2xS₃₆O_x. Can. Mineral. 2009, 47, 3–24. [Google Scholar] [CrossRef]
Moëlo, Y.; Meerschaut, A.; Orlandi, P.; Palvadeau, P. Lead-antimony sulfosalts from Tuscany (Italy). II. Crystal structure of scainiite, Pb₁₄Sb₃₀S₅₄O₅, an expanded monoclinic derivative of Ba₁₂Bi₂₄S₄₈ hexagonal sub-type (zinkenite group). Eur. J. Mineral. 2000, 12, 835–846. [Google Scholar] [CrossRef]
Doussier, C.; Moëlo, Y.; Léone, P.; Meerschaut, A. (Mn_1−xPb_x)Pb_10+ySb_12−yS_26−yCl_4+yO, a new oxy-chloro-sulfide with ~2 nm-spaced (Mn,Pb)Cl₄ single chains within a waffle-type crystal-structure. J. Solid State Chem. 2007, 180, 2323–2334. [Google Scholar] [CrossRef]
Meerschaut, A.; Palvadeau, P.; Moëlo, Y.; Orlandi, P. Lead-antimony sulfosalts from Tuscany (Italy). IV. Crystal structure of pillaite, Pb₉Sb₁₀S₂₃ClO_0.5, an expanded monoclinic derivative of hexagonal Bi(Bi₂S₃)₉I₃, from the zinkenite group. Eur. J. Mineral. 2001, 13, 779–790. [Google Scholar] [CrossRef]
Palvadeau, P.; Meerschaut, A.; Orlandi, P.; Moëlo, Y. Lead-antimony sulfosalts from Tuscany (Italy). VII. Crystal structure of pellouxite, ~(Cu,Ag)₂Pb₂₁Sb₂₃S₅₅ClO, an expanded monoclinic derivative of Ba₁₂Bi₂₄S₄₈ hexagonal sub-type (zinkenite group). Eur. J. Mineral. 2004, 16, 845–855. [Google Scholar] [CrossRef]
Biagioni, C.; Moëlo, Y.; Orlandi, P.; Stanley, C.J. Lead-antimony sulfosalts from Tuscany (Italy). XVII. Meerschautite, (Ag,Cu)_5.5Pb_42.4(Sb,As)_45.1S₁₁₂O_0.8, a new expanded derivative of owyheeite from the Pollone mine, Valdicastello Carducci: occurrence and crystal structure. Mineral. Mag. 2016, 80, 675–690. [Google Scholar] [CrossRef]
Biagioni, C.; Moëlo, Y.; Orlandi, P. Lead-antimony sulfosalts from Tuscany (Italy). XV. (Tl-Ag)-bearing rouxelite from Monte Arsiccio mine: Occurrence and crystal chemistry. Mineral. Mag. 2014, 78, 651–661. [Google Scholar] [CrossRef]
Biagioni, C.; Moëlo, Y.; Orlandi, P.; Paar, W.H. Lead-antimony sulfosalts from Tuscany (Italy). XXIII. Andreadiniite, CuAg₇HgPb₇Sb₂₄S₄₈, a new oversubstituted (Cu,Hg)-rich member of the andorite homeotypic series from the Monte Arsiccio mine, Apuan Alps. Eur. J. Mineral. 2018, 30, 1021–1035. [Google Scholar] [CrossRef]

Figure 1. Chovanite, ribbon-like crystals and curls. Sant’Olga level, Monte Arsiccio mine, Apuan Alps, Tuscany, Italy.

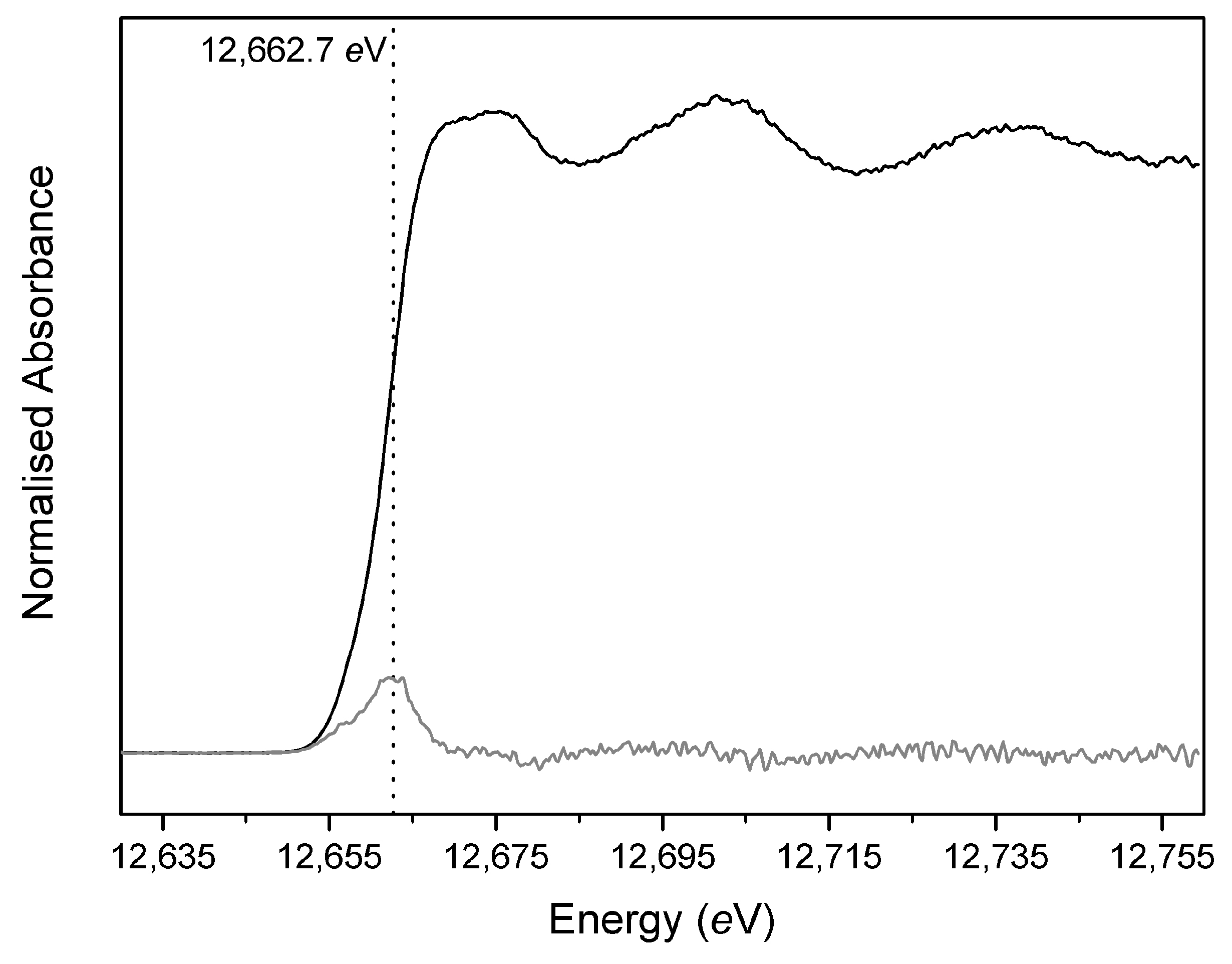

Figure 2. Normalized (black) and first derivative (grey) Tl L₃-edge X-ray Absorption Near Edge Structure (XANES) spectrum.

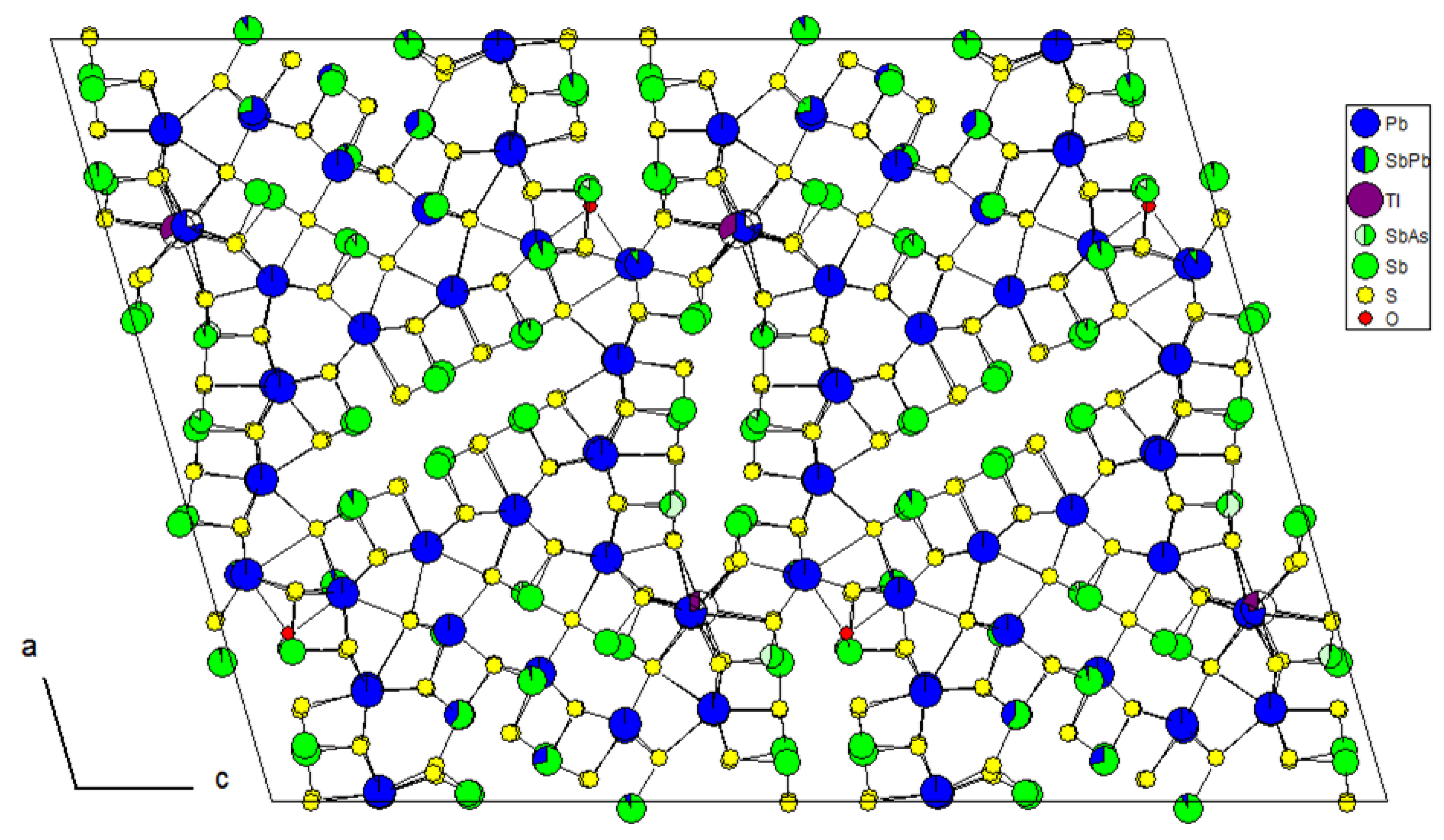

Figure 3. Unit-cell content of Tl-bearing chovanite as viewed down the b-axis.

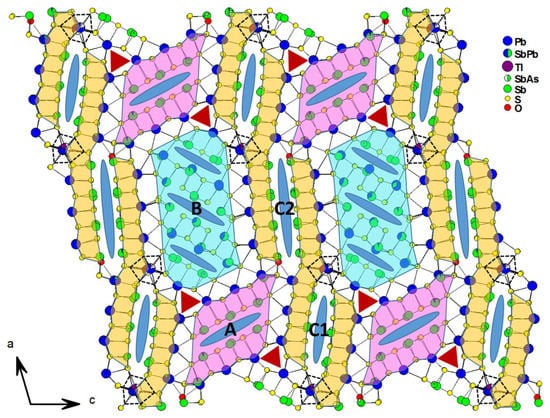

Figure 4. Projection along the b-axis of the crystal structure of Tl-bearing chovanite. The different kinds of modules are shown: A = pink; B = light blue; and C (i.e., C1 + C2) = yellow.

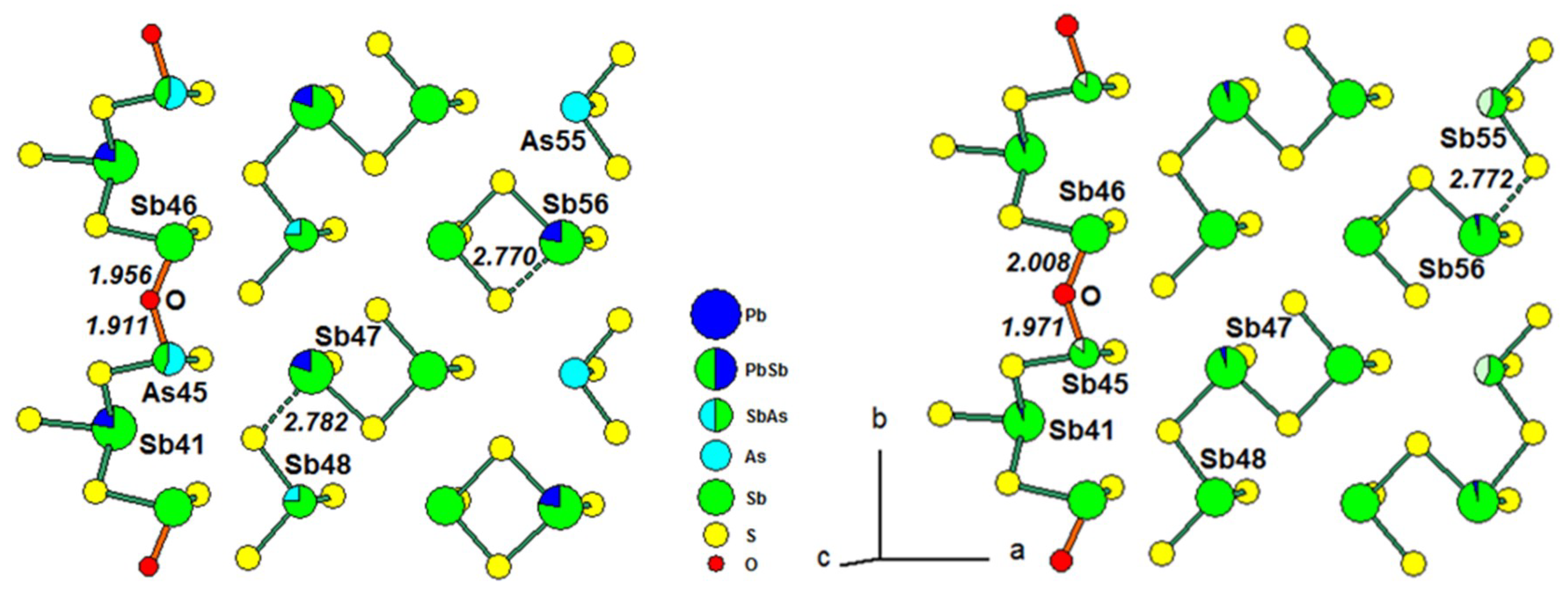

Figure 5. (Sb,As)–S polymerization in C2 rods from Pollone (left) and Monte Arsiccio (right).

Table 1. Crystal and experimental details for thallium-bearing chovanite.

Crystal Data
Crystal size (mm³)	0.080 × 0.010 × 0.010
Cell setting, space group	Monoclinic, P2₁/c
a (Å)	34.280(3)
b (Å)	8.2430(7)
c (Å)	48.457(4)
β (°)	106.290(4)
V (Å³)	13143(2)
Z	4
Data Collection and Refinement
Radiation, wavelength (Å)	synchrotron, λ = 0.59040
Temperature (K)	293
2θ_max (°)	45.71
Measured reflections	96,021
Unique reflections	31,011
Reflections with F_o > 4σ(F_o)	12,052
R_int	0.1732
Rσ	0.1696
Range of h, k, l	−45 ≤ h ≤ 44, −10 ≤ k ≤ 10, −63 ≤ l ≤ 63
R₁ [F_o > 4σ(F_o)]	0.0826
R₁ (all data)	0.2065
wR₂ (on F_o²)	0.2408
GooF	0.946
Number of least-squares parameters	1210
Maximum and minimum residual peak (e Å⁻³)	3.15 (at 0.75 Å from Pb9) −3.77 (at 0.58 Å from Pb40)

Table 2. Site occupancy factors (s.o.f.), average <Me–Φ> (Φ = S, O) distances (in Å), and bond-valence sums (BVS) in valence units (v.u.) for cation positions.

Site	s.o.f.	<Me–Φ>	BVS	Site	s.o.f.	<Me–Φ>	BVS
Pb1	Pb_1.00	3.098	1.87	Sb29	Sb_0.92(3)As_0.08(3)	2.439	3.17
Pb2	Pb_1.00	3.106	1.82	Sb30	Sb_1.00	2.740	2.61
Pb3	Pb_1.00	3.106	1.81	Sb31	Sb_1.00	2.529	2.79
Pb4	Pb_1.00	3.103	1.84	Sb32	Sb_1.00	2.461	3.08
Pb5	Pb_1.00	3.090	1.88	Pb33	Pb_1.00	3.052	1.91
Pb6	Pb_1.00	3.090	1.87	Pb34	Pb_1.00	3.039	1.95
Pb7	Pb_1.00	3.136	1.89	Pb35	Pb_0.72(1)Sb_0.28(1)	3.069	2.10
Pb8	Pb_1.00	3.130	1.97	Pb36	Pb_1.00	3.110	1.87
Pb9	Pb_1.00	3.142	1.84	Pb37	Pb_1.00	3.135	1.75
Pb10	Pb_1.00	3.130	1.86	Sb38	Sb_0.95(1)Pb_0.05(1)	3.017	2.69
Sb11	Sb_0.63(2)Pb_0.37(2)	3.042	2.31	Sb39	Sb_1.00	2.490	2.89
Sb12	Sb_0.61(2)Pb_0.39(2)	3.050	2.13	Pb40	Pb_1.00	3.126	2.12
Me13a	Pb_0.65(1)	3.237	1.02	Sb41	Sb_0.94(1)Pb_0.06(1)	3.032	2.89
Me13b	Tl_0.35(1)	3.284	0.44	Pb42	Pb_1.00	3.073	2.03
Me14a	Pb_0.80(3)	3.248	1.33	Pb43	Pb_1.00	3.097	2.19
Me14b	Tl_0.20(3)	3.229	0.30	Pb44	Pb_0.90(1)Sb_0.10(1)	3.028	2.09
Sb15	Sb_0.93(3)As_0.07(3)	2.554	2.81	Sb45	Sb_0.86(3)As_0.14(3)	2.287	2.99
As16	As_0.59(3)Sb_0.41(3)	2.341	3.28	Sb46	Sb_1.00	2.376	2.89
Sb17	Sb_0.87(3)As_0.13(3)	2.471	2.99	Sb47	Sb_0.94(1)Pb_0.06(1)	2.961	2.65
Sb18	Sb_1.00	2.529	2.91	Sb48	Sb_1.00	2.472	3.05
Pb19	Pb_1.00	3.027	2.00	Sb49	Sb_0.92(2)Pb_0.08(2)	2.958	2.59
Pb20	Pb_1.00	3.024	2.12	Sb50	Sb_1.00	2.540	2.81
Sb21	Sb_1.00	2.516	2.90	Sb51	Sb_1.00	2.920	2.66
Sb22	Sb_1.00	2.474	3.04	Sb52	Sb_0.70(2)Pb_0.30(2)	3.062	2.18
Sb23	Sb_1.00	2.500	2.92	Sb53	Sb_1.00	2.514	2.89
Sb24	Sb_1.00	2.559	2.79	Sb54	Sb_1.00	2.509	2.85
Sb25	Sb_0.94(3)As_0.06(3)	2.502	2.88	Sb55	Sb_0.57(3)As_0.43(3)	2.386	3.23
Sb26	Sb_0.92(2)Pb_0.08(2)	2.926	2.57	Sb56	Sb_0.96(1)Pb_0.04(1)	2.762	2.60
Pb27	Pb_1.00	3.024	2.00	Sb57	Sb_1.00	2.528	2.94
Pb28	Pb_1.00	3.023	2.06	Sb58	Sb_1.00	2.569	2.75

Table 3. Bond-valence sums (BVS) in valence units (v.u.) for anion positions.

Site	BVS	Site	BVS	Site	BVS	Site	BVS
S1	1.97	S19	1.86	S37	1.72	S55	1.81
S2	1.94	S20	1.94	S38	1.74	S56	1.86
S3	1.90	S21	2.14	S39	1.74	S57	1.78
S4	1.98	S22	2.13	S40	1.76	S58	1.85
S5	1.96	S23	1.80	S41	2.04	S59	1.96
S6	1.94	S24	1.85	S42	2.04	S60	1.89
S7	2.06	S25	1.76	S43	2.06	S61	1.81
S8	2.00	S26	1.88	S44	2.09	S62	1.88
S9	1.99	S27	1.85	S45	2.03	S63	2.15
S10	2.03	S28	1.77	S46	1.77	S64	2.02
S11	1.98	S29	1.82	S47	1.80	S65	1.91
S12a/S12b *	0.81/0.81	S30	1.81	S48	1.98	S66	1.74
S13	2.02	S31	2.21	S49	1.72	S67	1.59
S14	1.97	S32	2.05	S50	1.73	S68	1.74
S15	2.03	S33	2.14	S51	2.16	S69	2.00
S16	2.12	S34	2.12	S52	2.04	S70	2.26
S17	1.89	S35	1.82	S53	2.15	S71	1.78
S18	1.81	S36	1.79	S54	2.13	S72	1.97
O	1.99

* Weighted according to refined s.o.f.

Table 4. Comparison of module compositions between crystal structures of chovanite from Monte Arsiccio (MA—this study) and Pollone (P—[2]).

Module		Formula	As/(Sb + As)	Pb/ΣMe
Rod A (partition) (=Me₁₂S₁₆)	MA	Pb₅(Sb_1.86Pb_0.14)_Σ=2Sb₄(Sb_0.94As_0.06)_Σ=1S₁₆	0.009	0.428
Rod A (partition) (=Me₁₂S₁₆)	P	Pb₅(Sb_1.55Pb_0.45)_Σ=2Sb₄(Sb_0.91As_0.09)_Σ=1S₁₆	0.014	0.454
Rod B (fill element) (=Me₁₈S₂₆)	MA	Pb₅(Sb_4.09Pb_1.91)_Σ=6Sb₆(Sb_0.92As_0.08)_Σ=1S₂₆	0.007	0.384
Rod B (fill element) (=Me₁₈S₂₆)	P	Pb₅(Sb_2.58Pb_2.42)_Σ=5Sb₃(Sb_3.94As_1.06)_Σ=5S₂₆	0.100	0.412
Rod-layer C (wall)
C1 Rod (=Me₁₂S₁₄)	MA	Pb₅(Sb_0.10Pb_0.90)_Σ=1Sb₃(Sb_2.21As_0.79)_Σ=3S₁₄	0.130	0.492
C1 Rod (=Me₁₂S₁₄)	P	Pb₆Sb₃(Sb_1.49As_0.51)_Σ=2AsS₁₄	0.252	0.500
C2 Rod (=Me₁₆S₁₆O)	MA	(Pb_1.45Tl_0.55)_Σ=2Pb₆(Sb_1.90Pb_0.10)_Σ=2Sb₄(Sb_1.44As_0.56)_Σ=2S₁₆O	0.071	0.472
C2 Rod (=Me₁₆S₁₆O)	P	Pb₈(Sb_1.58Pb_0.42)_Σ=2Sb₃(Sb_1.19As_0.81)_Σ=2AsS₁₆O	0.239	0.526
Sum (=Me₅₈S₇₂O)	MA	(Pb_1.45Tl_0.55)_Σ=2Pb₂₁(Sb_7.95Pb_3.05)_Σ=11Sb₁₇(Sb_5.51As_1.49)_Σ=7S₇₂O	0.047	0.440
Sum (=Me₅₈S₇₂O)	P	Pb₂₄(Sb_5.71Pb_3.29)_Σ=9Sb₁₃(Sb_7.53As_2.47)_Σ=10As₂S₇₂O	0.146	0.471
