Minerals 2018, 8(1), 21;

Liquid Cell Transmission Electron Microscopy and the Impact of Confinement on the Precipitation from Supersaturated Solutions

Department of Physics, University of York, York, YO10 5DD, UK
Author to whom correspondence should be addressed.
Received: 4 September 2017 / Revised: 28 December 2017 / Accepted: 12 January 2018 / Published: 15 January 2018
Full-Text   |   PDF [2859 KB, uploaded 16 January 2018]   |

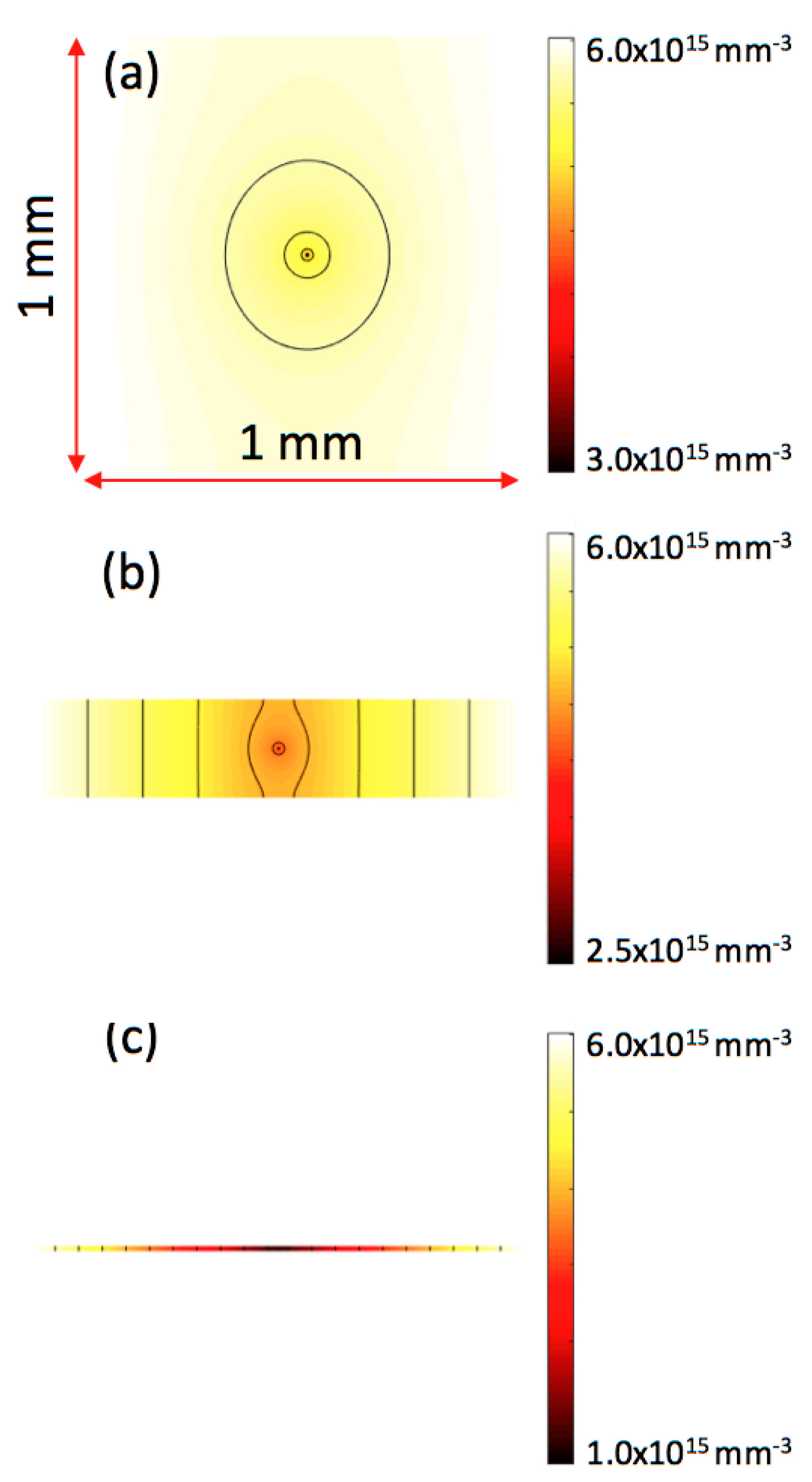

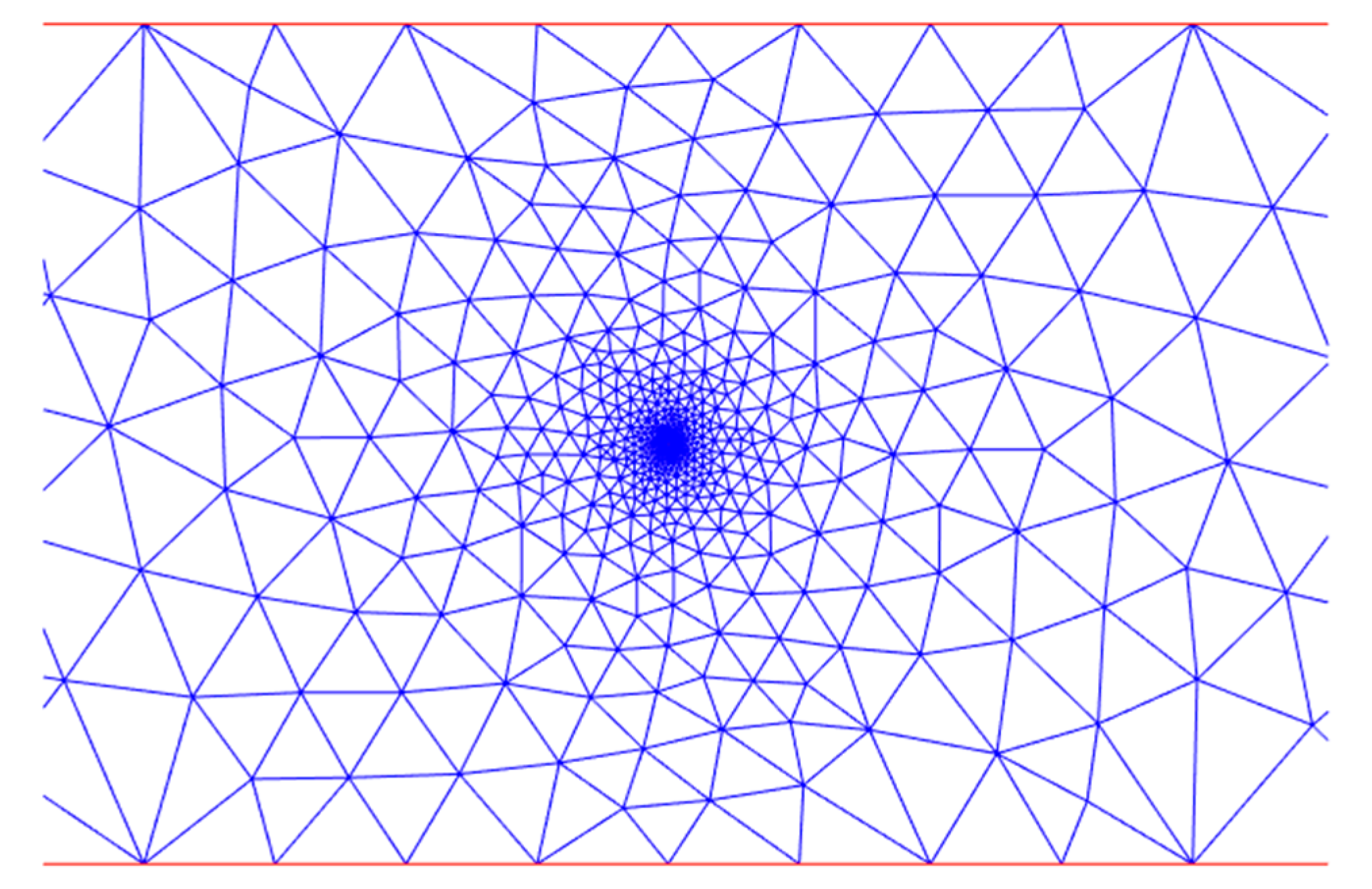

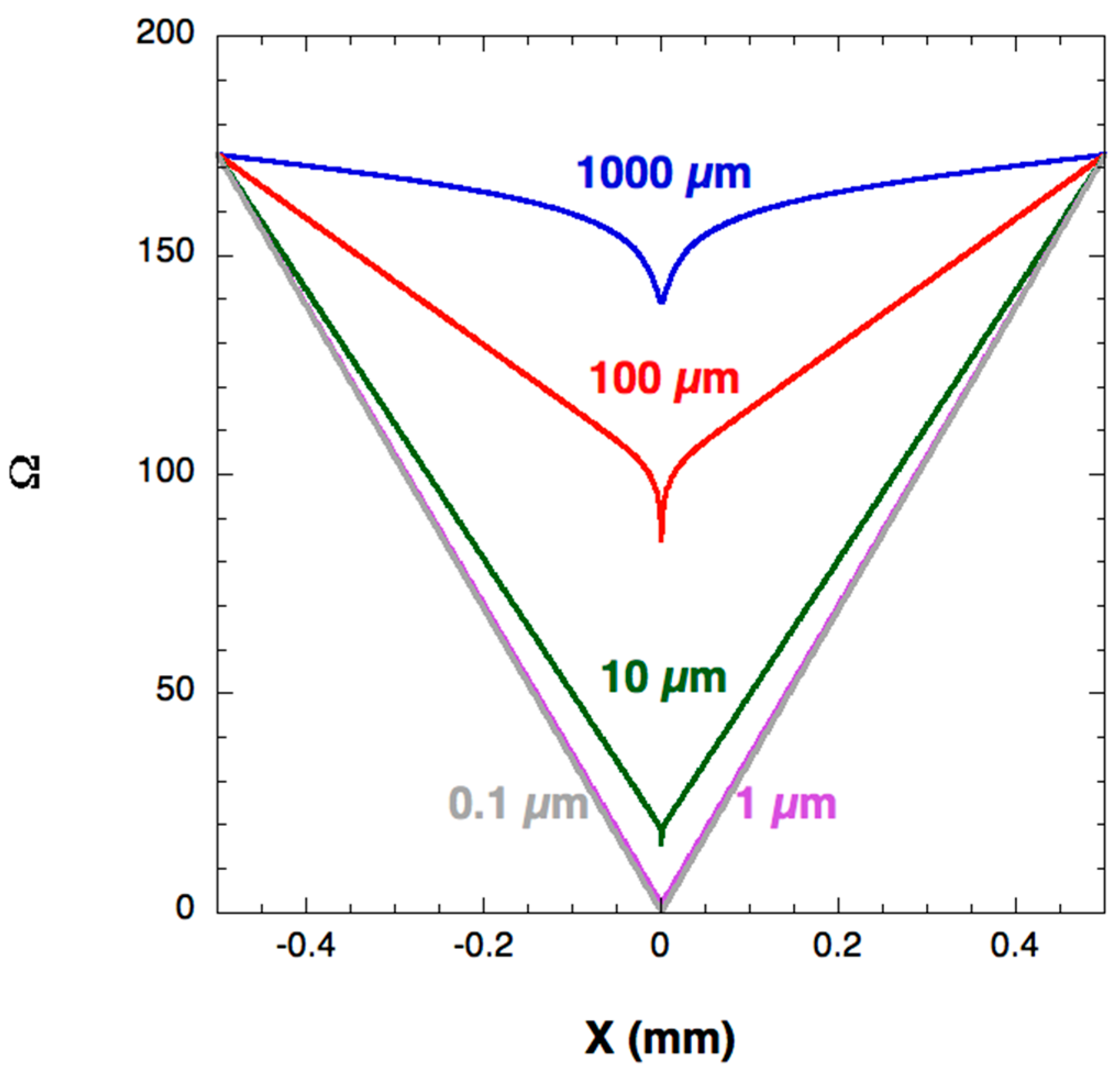

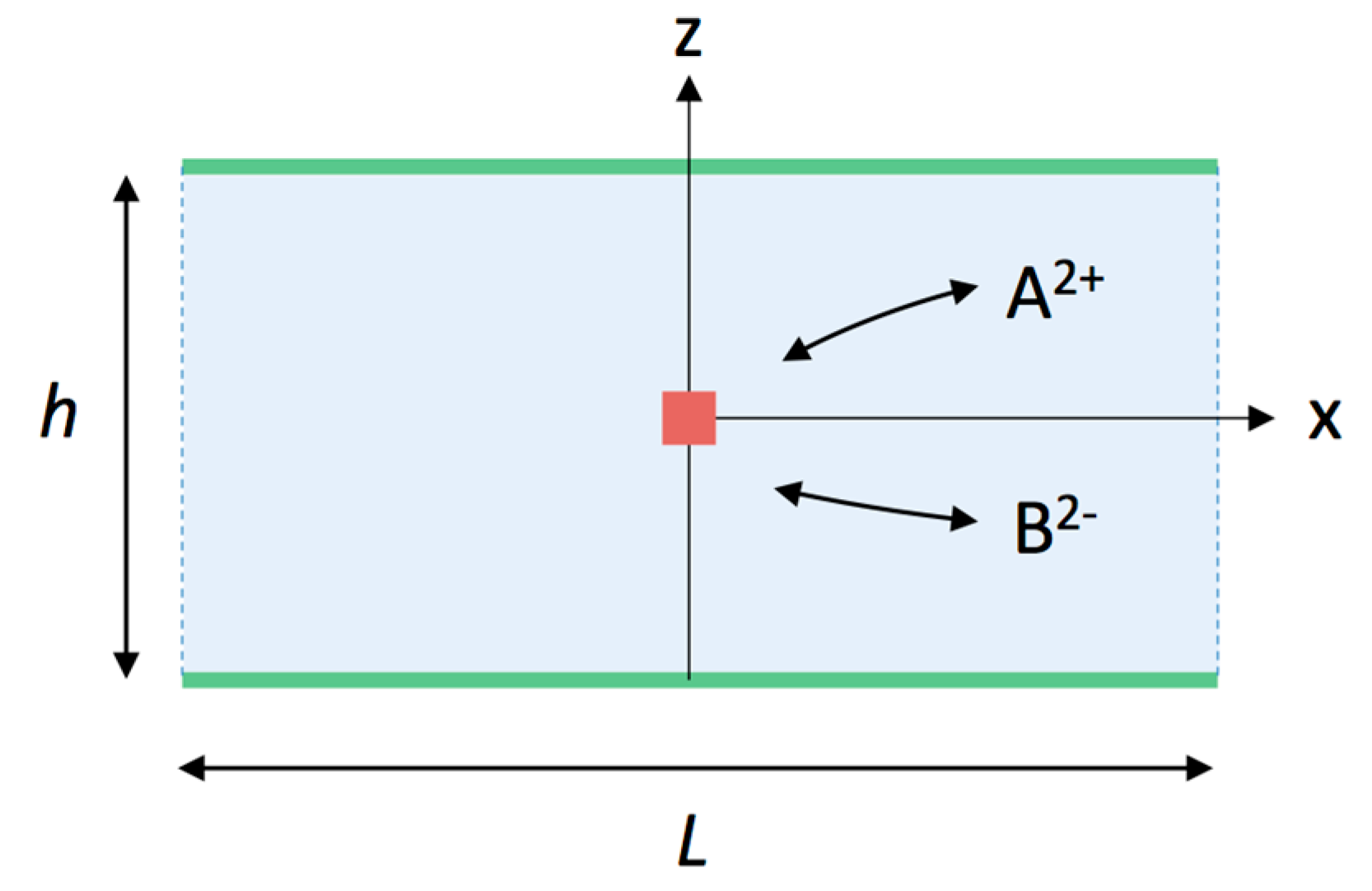

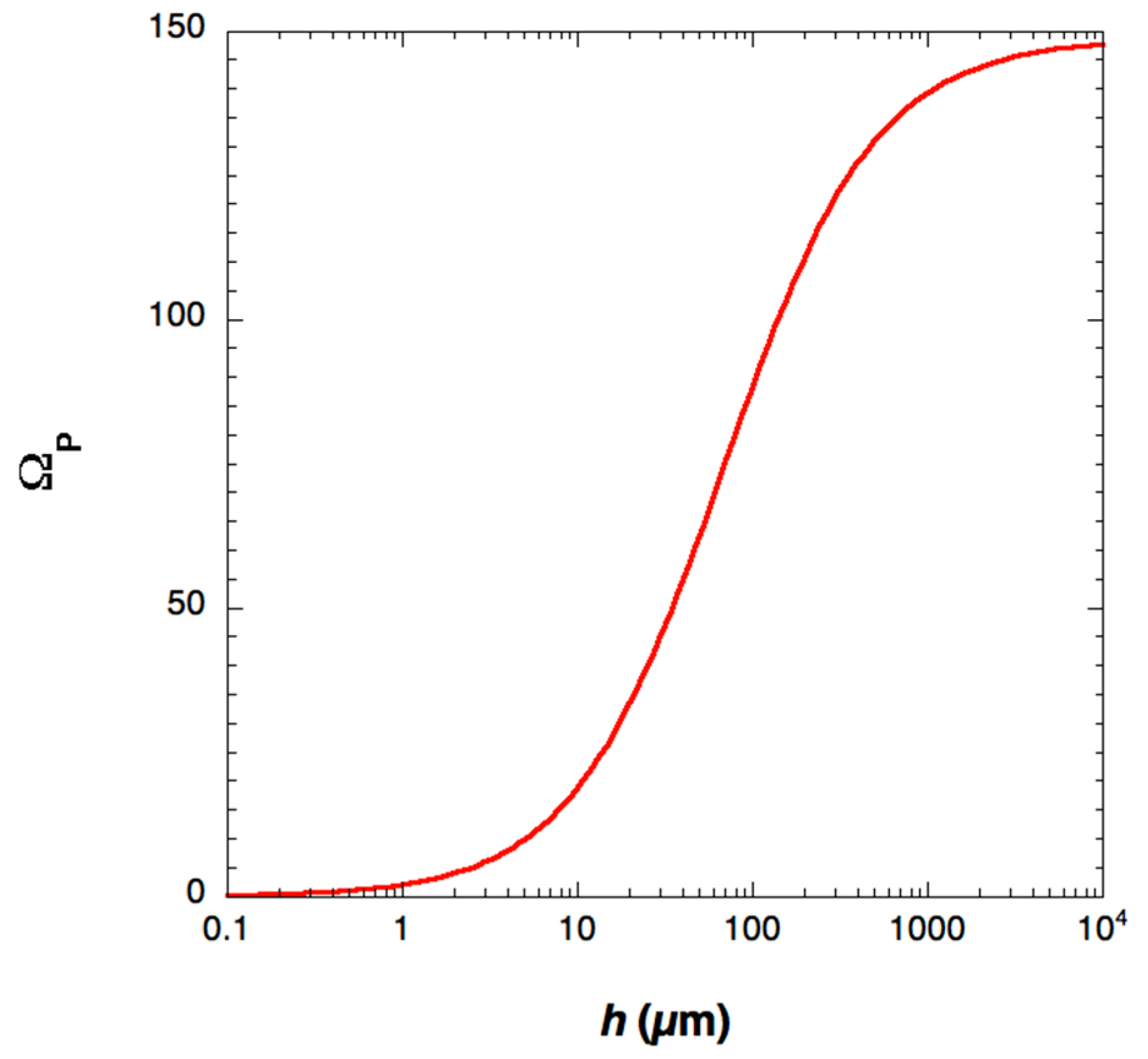

The study of nucleation and growth from supersaturated ion solutions is a key area of interest in biomineralization research and beyond with high-resolution in situ imaging techniques such as liquid cell transmission electron microscopy (LCTEM) attracting substantial attention. However, there is increasing experimental evidence that experiments performed with this technique differ from those performed in bulk solutions due to the spatial restriction, which is a prerequisite for LCTEM to provide electron transparent samples. We have performed 2D Finite Elements (FE) simulations to study the impact of confinement on the steady state concentration profiles around a nanoparticle in a supersaturated solution of the constituent ions. We find that confinement below a critical value significantly reduces the concentration of available ions in solutions and hence the stability of the precipitates. These findings could explain the necessity to substantially increase ion activities of Ca2+ and CO32− to induce precipitation in LCTEM. View Full-Text
Keywords: liquid cell TEM; precipitation; confinement; crystallization liquid cell TEM; precipitation; confinement; crystallization

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Kröger, R.; Verch, A. Liquid Cell Transmission Electron Microscopy and the Impact of Confinement on the Precipitation from Supersaturated Solutions. Minerals 2018, 8, 21.
