Study on the Selection of Comminution Circuits for a Magnetite Ore in Eastern Hebei, China

Abstract

Standard drop weight, SMC, and Bond ball work index tests have been conducted to investigate the comminution circuit of a magnetite ore located in Eastern Hebei, China. In addition, simulations based on JKSimMet and Morrell models have been performed to compare the specific energy consumption of various comminution circuits. According to the desired capacity and the ore communition characteristics observed, a simulation was conducted to determine the size and driving power of the grinding mills. The SMC and Bond ball work index experiments as well as the Morrell model indicated that the order of the specific energy consumption of comminution was “Jaw crusher + HPGR mill + ball mill” < “Jaw crusher + ball mill”< “SAG mill + ball mill”.

1. Introduction

Grinding, as aimed at generating fine particles to achieve libration or specific surface area, is a critical unit and the highest energy consumption process in a typical mineral processing plant, accounting for 50%~60% of the total electrical energy expenditure. Many attempts have been conducted to improve grinding efficiency both in the development of related machines and designation of the grinding systems to reduce energy consumption, with the later being readily achieved by the simulation pathway which is an extremly useful tool and has been widely applied in the mineral industry [1]. The development of mathematical modelling and computer simulation commenced several decades ago and Bond [2] initially introduced the work index concept (Equation (1)) for an energy-based model for grinding mills. To date, simulation strategy is still an active research field in mineral processing and a few commercial steady-state simulators such as USIM PAC 2 [3], BMCS [4], COMSIM [5], and JKSimMet^TM [6,7] have been applied by the industrial users.

$$W=10 \times W_i[\frac{1}{\sqrt{P_{80}}}-\frac{1}{\sqrt{F_{80}}}]$$

(1)

where W (kWh/t) is the specific energy for grinding while W_i is the work index in kWh/t, P₈₀ and F₈₀ are the d₈₀ size of circuit product and feed, respectively.

Australian research groups such as the Julius Kruttschnitt Mineral Research Centre (JKMRC) have, for more than 50 years, been leaders in the development of comminution models and their application in simulation. JKSimMet [7,8,9,10,11], as one of the most widespread simulation softwares used over the world, has been normally used for cost-effective design prior to the construction of mineral processing plants or modification of the existing circuits to improve performance or adapt to the changed feeding conditions [9]. The specific energy of tumbling mills such as autogenous (AG), semi-autogenous (SAG), and ball mills have been successfully predicted by the Morrell model [12,13,14,15]. In addition, the high pressure grinding rolls (HPGR) has also been developed recently due to its high energy efficiency in comminuting minerals and is regarded as an alternative to less efficient processes such as SAG and ball mills that presently dominate the mineral industry [15]. Therefore, it is necessary to predict the energy consumption of these circuits prior to the implementation of planned plants.

In order to select a suitable circuit for a magnetite ore plant in Hebei province, China, three different comminution circuits (i.e., jaw crusher + HPGR mill + ball mill, jaw crusher + ball mill, and SAG mill + ball mill) and their overall specific energies were compared based on simulations from JKSimMet and Morrell models. In addition, the modelling work presented herein will also assist in optimizing the comminution flowsheet before designing the scaled up plant, saving a huge amount of investment.

2. Methodology

2.1. Standard Drop Weight Test

The JK standard drop weight device comprises a steel drop weight that can be raised by a winch to a known height. A pneumatic switch releases the drop weight which then falls under gravity and impacts on a rock particle that is positioned on a steel anvil. The device is enclosed in Perspex shielding and incorporates a variety of features to ensure operator safety. By varying the mass of the drop weight and the height where the drop weight is released, a very wide range of energy inputs can be generated. After release, the drop weight falls freely and impacts the target rock particle. The particle is then comminuted and the drop weight is brought to rest at a distance above the anvil approximately equal to the largest product particle. The difference in distance between the initial starting point and the final resting place of the drop weight is used to calculate the energy that is consumed in breaking the rock particle [16].

Five size fractions of particles, i.e., 63–53, 45–37.5, 31.5–26.5, 22.4–19, and 16–13.2 mm, were tested under three specific comminution energies ranging from 0.1 to 2.5 kWh/t [17]. To represent the impact breakage mechanism in the model, 15 pairs of t₁₀/Ecs data from the JK standard drop weight test are subjected to non-linear least squares techniques to fit Equation (2) that describes the relationship between breakage and impact energy:

t₁₀ = A(1 − e^−b·Ecs)

(2)

where t₁₀ represents the percentage of the comminuted particles with a size less than 1/10 of the initial mean particle size, while A and b are the ore impact breakage parameters determined by the drop weight test [16]. The t₁₀ can be thought of as a “fineness index” with larger values of t₁₀ indicating a finer product size distribution. As A and b are independent and cannot be used individually for comparison purpose among ores, JKTech recommends the values of A × b and t₁₀ when specific energy consumption is set at 1 kWh/t for comparison. A lower A × b value indicates a higher strength of the rock.

In addition, 30 grains of ore particles ranging from 31.5 to 26.5 mm are randomly selected for further density analysis, i.e., weighing the particles in air and water, respectively and then calculating their densities. This process is considered as a very important step during the standard drop weight experiment. It should be noted that the density herein is the grain density, not the density of the solid phase. This means that the internal voids of the particle are also considered in the calculation of grain density. Therefore, the grain density is more significant in evaluating the AG/SAG characterization of ores. Generally, the grain density varies, even for large size ore in the drop weight test, due mainly to the different ore composition from particle to particle. Thus, particles with high grain density and impact comminution resistance should be given considerable attention in the AG/SAG process as these particles accumulate in the SAG/AG mill and can result in increased energy consumption.

2.2. Abrasion Test

Abrasion tests were conducted in a tumbling mill (Φ305 mm × 305 mm) using 3 kg samples (53–38 mm) with four lifter bars (6 mm). In the absence of grinding media, the mill was operated with a rotation speed of 53 rpm (70% of the desired speed) for 10 min. Then t′₁₀ can be calculated based on the sieved products. The grinding resistant characteristic t_a can then be expressed as one tenth of t′₁₀, i.e., as given in Equation (3):

t_a = t′₁₀/10

(3)

2.3. SMC Test

The investigation of the impact comminution of particles in the SMC test was similar to the drop weight experiment. However, SMC tests were carried out at five different specific energy consumptions and only t₁₀ values were required for sieving analysis. In this study, 100 particles ranging from −22.4 to 19 mm were selected from the crushed products, which were divided into five groups (i.e., 20 particles per group) for SMC tests. Subsequently, impact comminution tests were conducted for single particles in each group and t₁₀ values were collected.

The drop weight index (DW_i, unit: kWh/m³), as an indicator of impact comminution resistance for ores, can be used to estimate A, b, and t_a. A greater DW_i indicates a greater comminution resistance capacity of the mineral. In addition, three parameters such as M_ia (coarse ore work index), M_ic (crushing ore work index) and M_ih (HPGR ore work index) can be obtained from the SMC tests [15]. These parameters can be further used to evaluate specific energy consumption in the Morrell model.

2.4. Bond Ball Work Index Test

A grinding mill (Φ305 mm × 305 mm) was used for the Bond ball mill work index test [18,19,20,21]. This ball mill was filled with 285 steel balls (total weight of 20.125 kg) at an operation speed of 70 rpm. The feed sample was prepared via crushing and sieving, giving rise to a size smaller than 3.35 mm. A particle size of P₁₀₀ = 150 µm in closed circuit was applied. In addition, F₈₀, P₈₀ and G_bp (g/r) were obtained during this test, while W_ib and M_ib can be calculated according to Morrell [15]. It should be noted that the mean cycling charge should be within 250% ± 5% and (G_bp(max) − G_bp(min))/G_bp(mean) ≤ 3%.

2.5. Specific Energy Determination

The total specific energy (W_T) to reduce ore size from the crusher product to the final grinding product is given by Equation (4) [15]:

$$W_T=W_a+W_b+W_c+W_h+W_s$$

(4)

where:

• W_a = specific energy to grind coarser particles in the tumbling mill;
• W_b = specific energy to grind finer particles in the tumbling mill;
• W_c = specific energy for conventional crushing;
• W_h = specific energy for HPGR;
• W_s = specific energy correctioin for size distribution.

The related definition of the above specific energy is referred byMorrell [15] and comparison of the comminution circuits is based on the W_T calculation (Equation (4)).

2.6. Simulators and Data Analysis

The data obtained from the standard drop weight and the SMC tests were further processed using the JKSimMet and Morrell models mentioned in Section 1. The non-linear fitting of the data was conducted using Matlab.

3 Results and Discussion

3.1. Standard Drop Weight Test

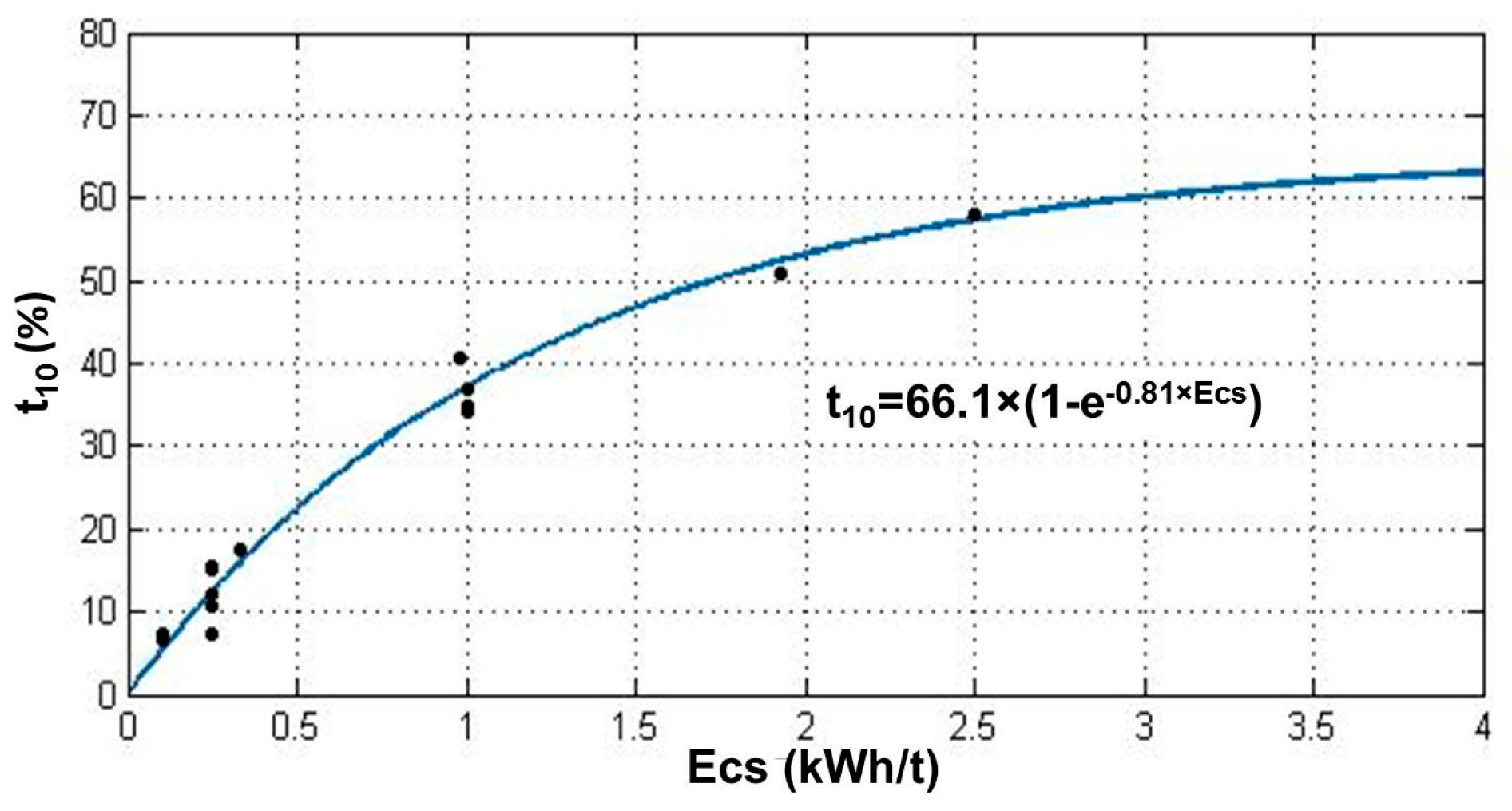

Figure 1 shows the t₁₀ values at various specific energy consumptions. The regression results indicate that the values of A and b are 66.1 and 0.81, respectively, so A × b is 53.5. From this fitting, it can be seen that the t₁₀ value is 36.7% when E_cs is 1 kWh/t.

Further comparative comminution tests between the real ore and the JKTech modelling are shown in

Table 1. Comparison between the Eastern Hebei magnetite ore and JKTech ore characteristic database.

Parameter	A × b			t10 When Ecs = 1 kWh/t			ta
	Value	Rank	%	Value	Rank	%	Value	Rank	%
Database minimum	12.9	1	0	7.9	1	0	0	1	0
Database median	45.8	2308	50	32.1	2308	50	0.5	2337	50
Database average	63.6	3293	71.3	34.6	2719	58.9	0.6	3228	69.5
Database maximum	809.6	4616	100	93.6	4616	100	6.9	4644	100
Magnetite test	53.5	2806	60.8	36.7	3053	66.1	0.28	834	18

. Generally, an A × b value smaller than 20 indicates a hard ore while a value greater than 250 suggests a soft ore. When the specific energy consumption is set at 1 kWh/t, a t₁₀ value less than 15% or greater than 75% indicates hard or soft ores, respectively [17]. Therefore, an A × b value of 53.3 obtained for this magnetite ore indicates that the impact comminution resistance is greater than 60.8% (i.e., 2806) of tested ores (i.e., 4616) in the database, while a t₁₀ value of 36.7% is greater than 3053 (66.1%) the ores tested.

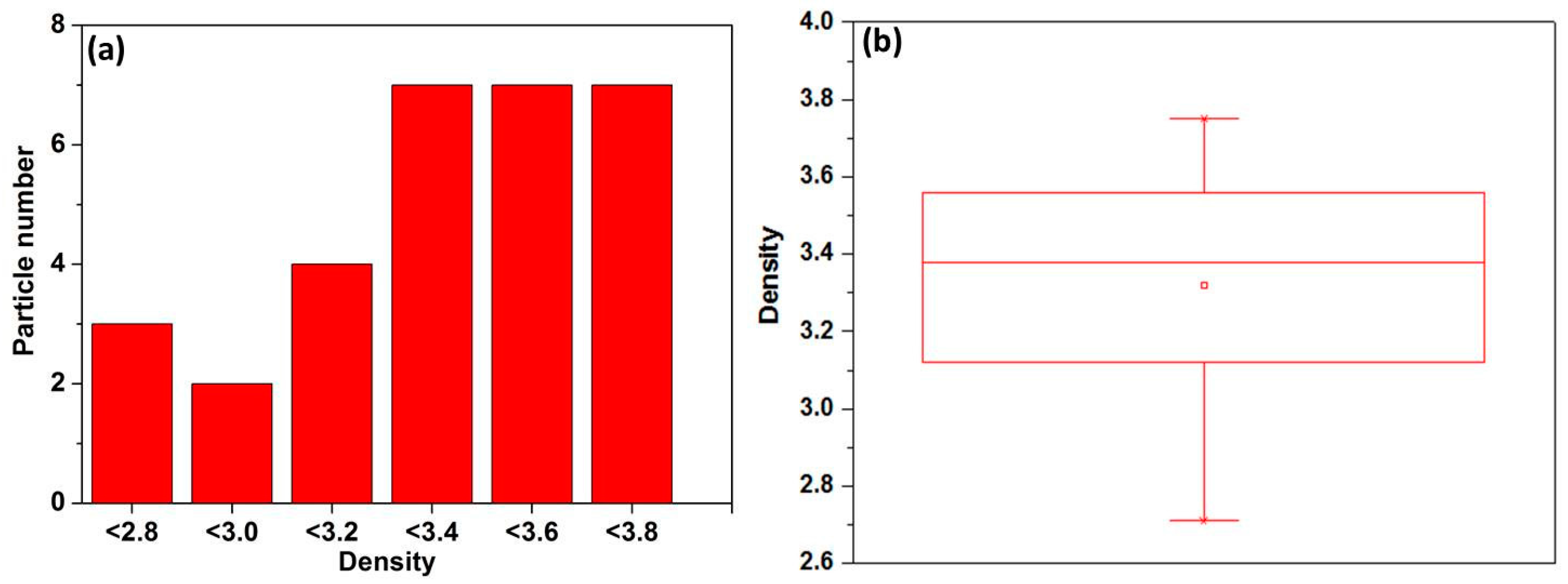

Figure 2 shows the density tests of the 30 grains ranging from 31.5 to 26.5 mm. The particle number of each density range is shown in Figure 2a where no dual-peak was observed, indicating that no aggregation of particles in the grinding mill was expected. Figure 2b shows that the maximum and minimum densities of these 30 particles were 3.75 and 2.71 t/m³, respectively, with average and median values of 3.32 and 3.38 t/m³, respectively.

3.2. Abrasion Test

Table 1 indicates a t_a value of 0.28 which is located at number 834 out of 4644, indicating that only 18.0% of the tested ores in the JKTech database are relatively readily ground than the Eastern Hebei magnetite ore, further suggesting that this ore is difficult to comminute. Therefore, it can be used in the SAG mill circuit.

3.3. SMC Test

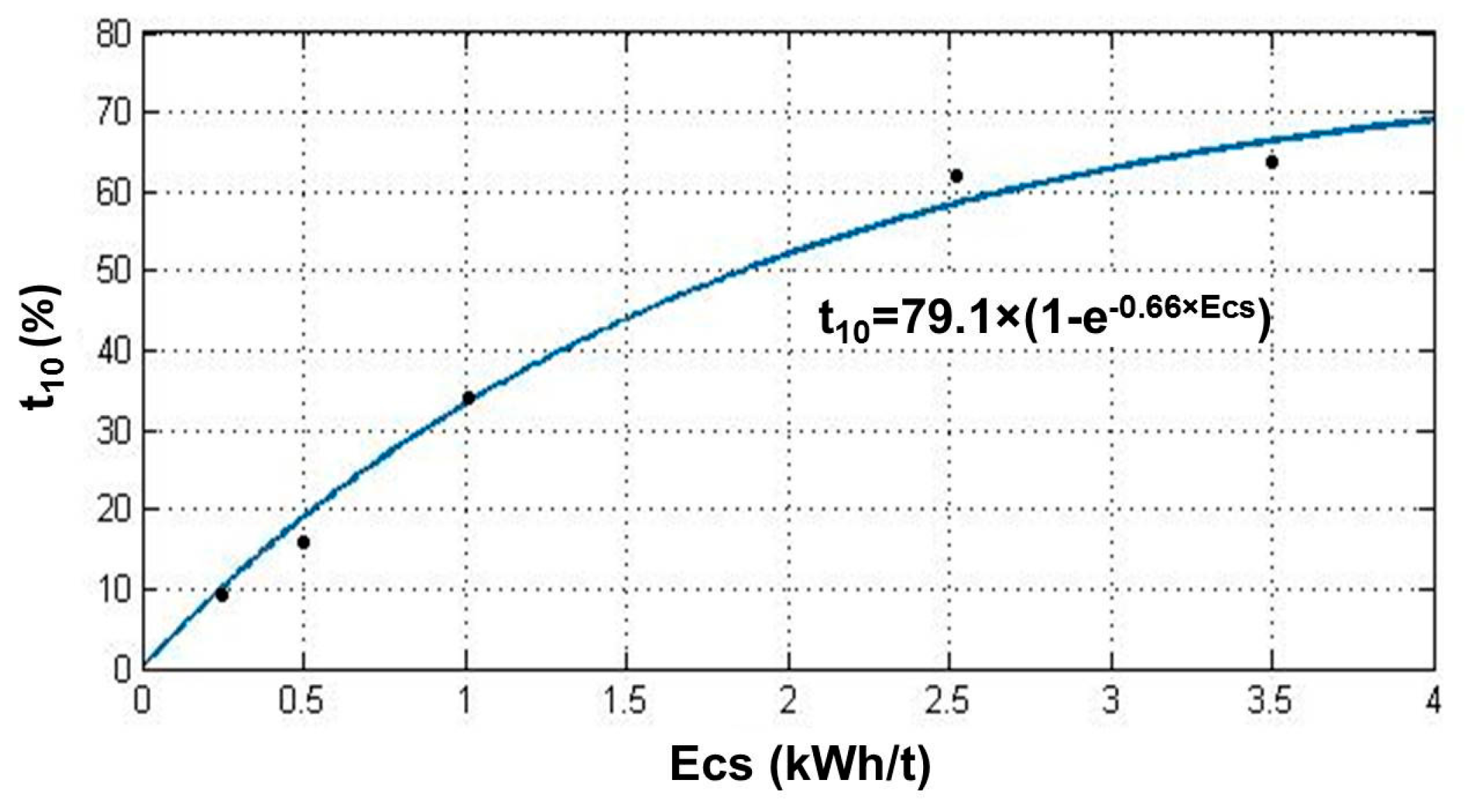

Figure 3 shows the fitted SMC test results and the A and b values were fitted as 79.1 and 0.66 (A × b = 52.2), with a t₁₀ value of 38.2% when E_cs was 1 kWh/t. t_a was calculated as 0.40% for the ore size located in this range. Within the SMC database including 4616 minerals, the A × b value of 52.2 ranks at 59% while the t₁₀ value of 38.2% ranks at 70.6%. Compared to the drop weight test, there is no significant difference in the A × b values but the t_a obtained from the SMC test is apparently greater.

Table 2. Material parameters of the SMC tests.

Parameter	DWi (kWh/m3)	DWi (%)	Mia (kWh/t)	Mih (kWh/t)	Mic (kWh/t)
Value	6.49	61	15.1	11.1	5.7

shows further results derived from the SMC tests. The DW_i value of 6.49 kWh/m³ obtained for the Eastern Hebei magnetite ore indicates that 61% of the ores tested in the SMCT database are easier to comminute than this ore. In addition, the M_ia, M_ih, and M_ic values of this ore were calculated as 15.1, 11.1, and 5.7 kWh/t, respectively, greater than approximately 40%, 45%, and 42% of the ores tested in the database.

3.4. Bond Ball Work Index Test

Table 3. Bond ball work index test.

Cycle	New Feed (g)	Speed (rpm)	Particle Size < 150 µm (g)			Gbp (g/r)
			Total	From Feed	New Formed
1	1365.0	100	583.9	414.8	169.1	1.6910
2	583.9	126	464.5	177.4	287.1	2.2786
3	464.5	109	379.6	141.1	238.5	2.1881
4	379.6	106	406.8	115.3	291.5	2.3135
5	406.8	115	409.0	123.6	285.4	2.4817
6	409.0	107	383.2	124.3	258.9	2.4196
7	383.2	113	397.9	116.4	281.5	2.4912
8	397.9	108	398.1	120.9	277.2	2.5667
9	398.1	105	394.2	121.0	273.2	2.6019
10	394.2	104	390.8	119.8	271.0	2.6058
11	390.8	104	382.5	118.8	263.7	2.5356

shows the experimental parameters for the Bond ball work index test of the Eastern Hebei magnetite ore. An average cycling charge of 246.14% and a G_bp of 2.72% during the last three cycles were observed, which were within the required error ranges of 250% ± 5% and 3%, respectively, indicating termination of the test.

Table 4. The results of Bond ball work index test.

Parameter	Gbp (g/r)	F80 (μm)	P80 (μm)	Wib (kWh/t)	Mib (kWh/t)
Value	2.5811	1450	119.6	10.93	12.54

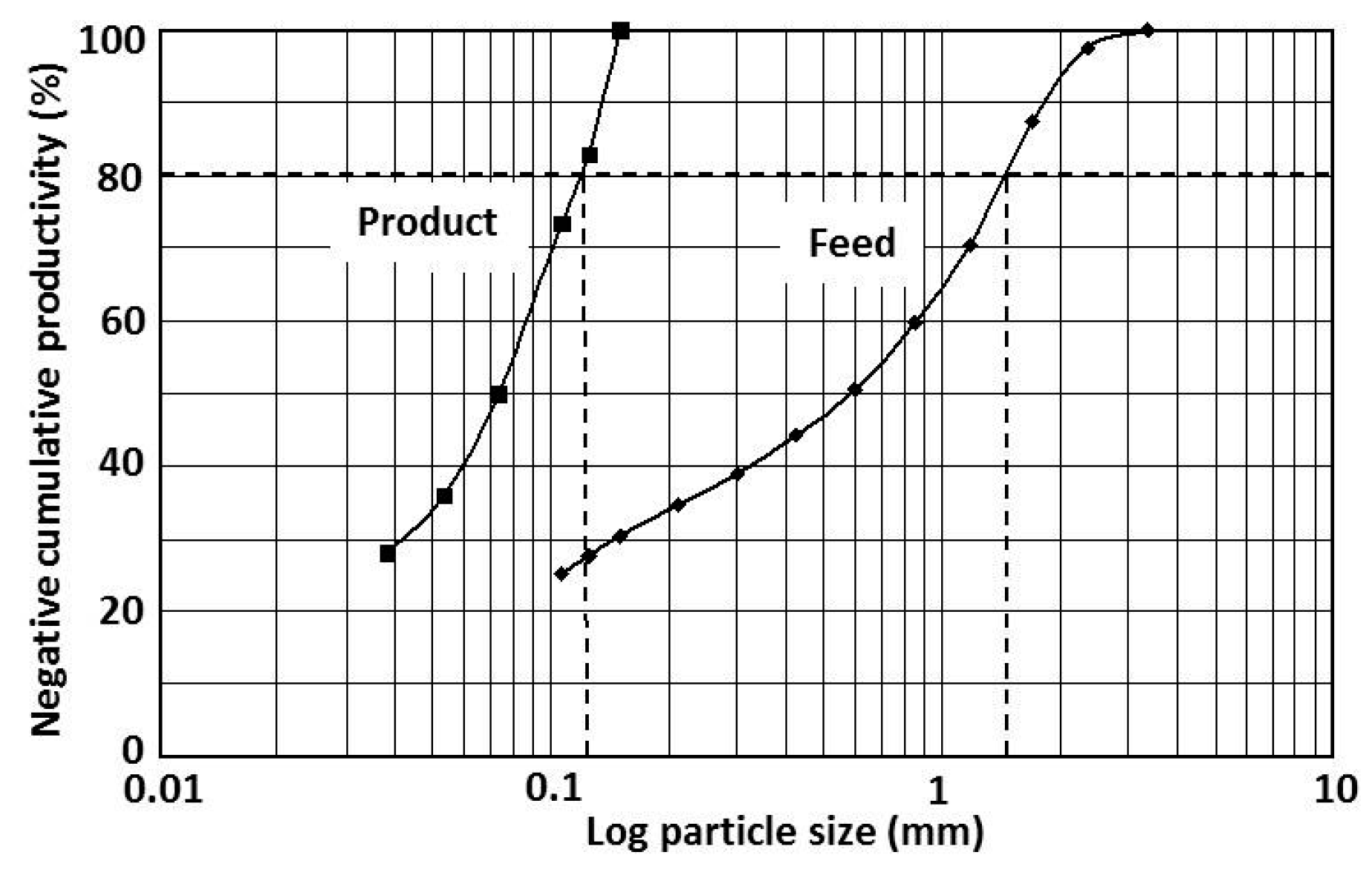

shows the results of Bond ball work index test where the F₈₀ and P₈₀ were calculated as 1450 and 119.6 μm, respectively, with the detailed size distribution being shown in Figure 4. In addition, the W_ib and M_ib values were calculated to be 10.93 and 12.54 kWt/t, respectively.

3.5. Selection of Comminution Circuit Based on Modelling

3.5.1. Establishment of SAG-Ball Mill Circuit

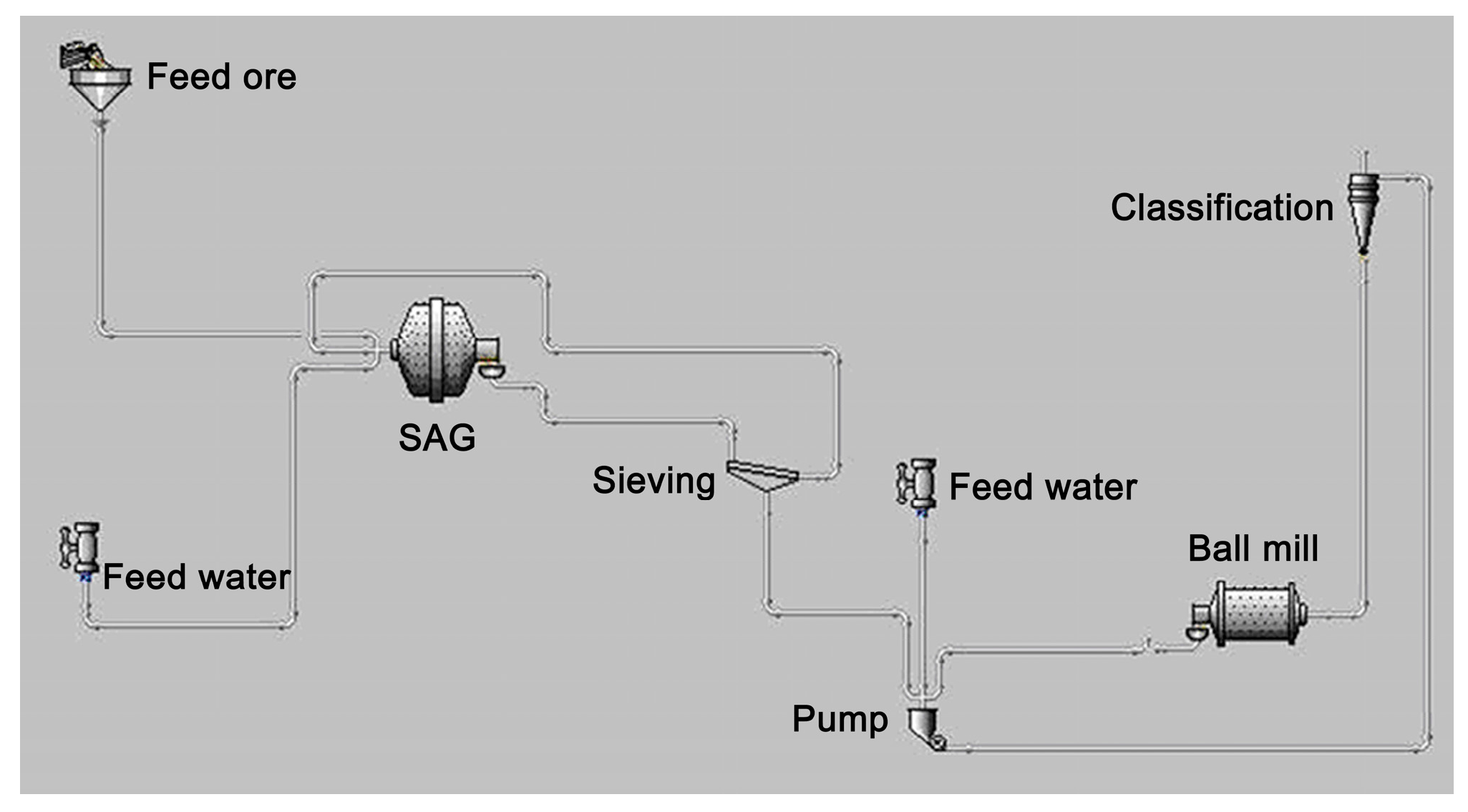

Figure 5 shows the well-established model for a closed-circuit SAG-ball mill using JKSimMet. Apart from the primary parts of the circuit, such as the SAG mill, sieving, ball mill, and hydrocyclone, two water supply modules have been included to adjust the grinding concentration in the SAG mill, i.e., the percentage solids in the feed, and the feed solids for the hydrocyclone, respectively.

A SAG mill module with a variable speed and a fully mixed ball mill module were selected in the modelling process, with these two modules being able to be enlarged. Standard efficiency curve models were chosen for sieving and cyclone classification. Considering the grinding procedure, the annual handling capacity and the total working time in the grinding and separation sections, the production capacity was calculated as 631.3 t/h. Hence, a feed rate of 635 t/h was selected.

The ore that was directly obtained from underground was coarsely crushed to < 250 mm, which was then transported to the grinding mill. If the size of the output of the coarse crusher (S) was 150 mm, the F₈₀ was calculated to be approximately 111.1 mm (0.2·S·(DW_i)^0.7) and 107.5 mm (S-78.7-28.4·ln(t_a)), respectively, according to the JKSimMet model. Therefore, a F₈₀ value of 110 mm was chosen for closed circuit testing, with the size distribution from this circuit being shown in Figure 6.

A SAG mill with a diameter of 10.67 m and a length of 5.33 m was initially selected for the grinding circuit. It should be noted that the diameter and length chosen are the inner dimensions of the SAG mill. Other parameters such as 74% of the desired speed, 8% ball charge, maximum diameter of steel balls of 120 mm, grinding concentration of 75%, grid size of 20 mm, and sieve size of 12 mm (d_50c = 11 mm) were selected as well. These parameters were initially applied to simulate the steady state process for the SAG circuit. The modelling was conducted based on progressively adjusting parameters until satisfactory results were obtained, e.g., a SAG mill with a mill charge of 25% solids and a cycling charge less than 25%.

Table 5. Simulation progress for SAG mill modelling.

Simulation Time	Parameters (m)		Simulation
	Diameter	Length	Mill Charge (%)	Circulating Load (t/h)	Cycling Charge (%)	Mill Power (kw)
1	10.67	5.33	21.81	36.18	5.70	8495
2	10.36	5.18	23.42	37.60	5.92	7889
3	10.06	5.03	25.25	39.17	6.17	7321
4	10.06	5.03	24.47	38.67	6.09	7360

shows the progress of adjusting parameters and the results derived from modelling. It was found that the initially selected SAG mills (Φ10.67 m × 5.33 m and Φ10.36 m × 5.18 m) were too big as the mill charges were 21.81% and 23.42%, respectively, in the first two modellings. The third SAG mill option with a size of Φ10.06 m × 5.03 m was quite suitable as the mill charging was 25.25% with a cycling charge of 6.17%. It should be noted that optimizing the mill charge can be further improved by adjusting other parameters such as increasing the ball charge to 8.5% to obtain a mill charge of less than 25% (the fourth simulation shown in Table 5). Therefore, a SAG mill (Φ10.06 m × 5.03 m) with a driving power of 7321 kW was finally selected, while the related specific energy consumption was calculated as 11.53 kWh/t.

Table 6. Parameters for SAG mill simulation.

Flux	Circulate Load	Mill Charge	Mill Discharge	Retained	Passing
Solid flow rate (t/h)	635.0	674.2	674.2	39.2	635.0
Solid density (t/m3)	3.30	3.30	3.30	3.30	3.30
Liquid flow rate (t/h)	0.0	224.7	224.7	4.5	220.2
Solid concentration (%)	100.0	75.0	75.0	89.71	74.25
Pulp density (t/m3)	3.30	2.10	2.10	2.67	2.07
Pulp volume flow rate (m3/h)	192.4	429.0	429.0	16.4	412.7
−0.074 mm (%)	2.51	3.03	32.8	11.40	34.12
P80 (mm)	110	107	0.83	14.70	0.651

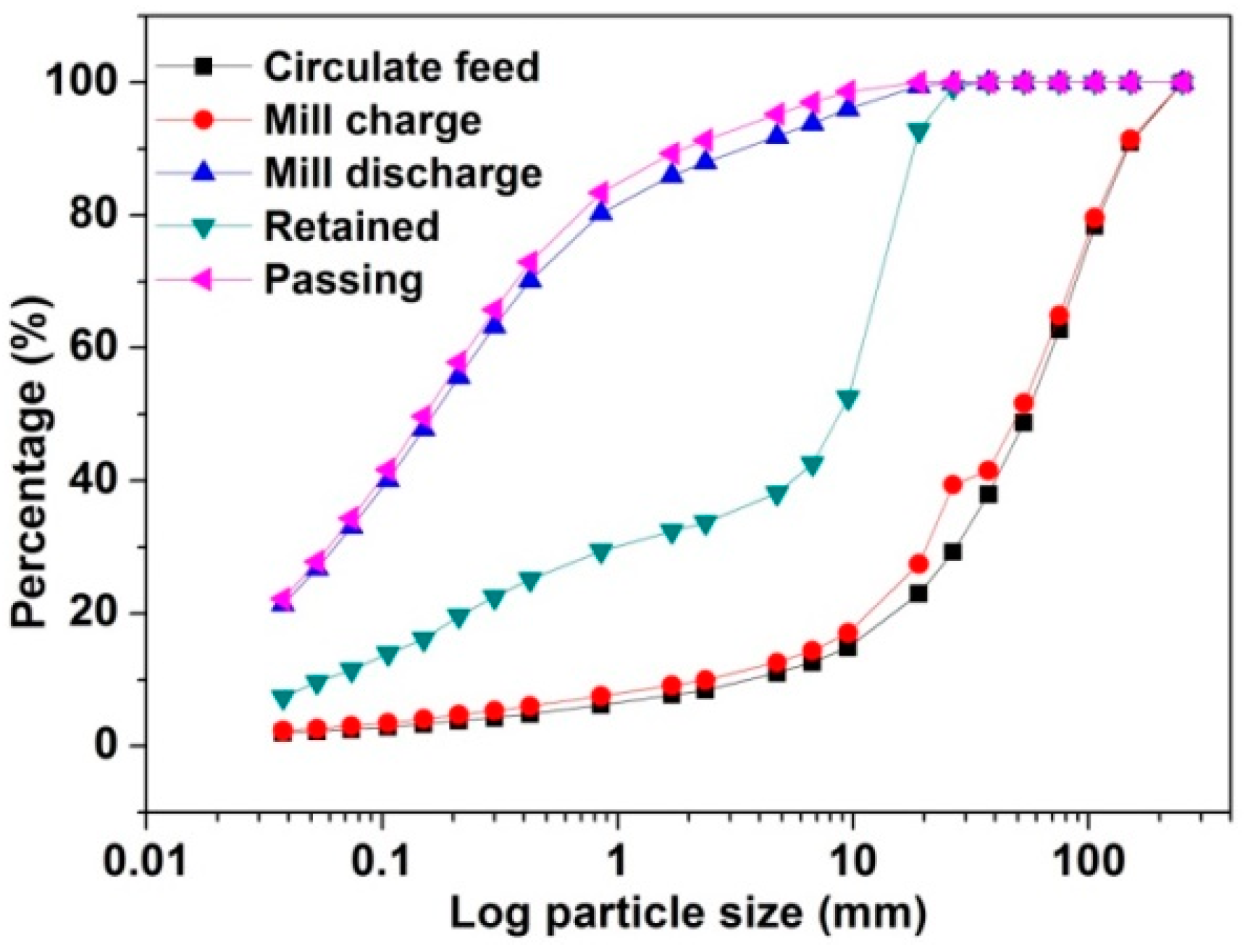

shows the modelling results for SAG circuit based on the selected parameters described above, giving a product with a P₈₀ value of 0.651 mm and 34.12% of final particles smaller than 0.074 mm.

3.5.2. Selection of Ball Mill

The product from the SAG circuit (Section 3.5.1) was used as the feed to the ball mill circuit. An overflow ball mill with a diameter of 5.03 m and a length of 8.84 m was initially selected for the modelling. The operation parameters were set as follows: 73% of the desired speed, 38% ball charge, a maximum diameter of 80 mm for the steel balls, and a solids concentration of 60% for the hydrocyclone, d_50c = 0.150 mm. Similar to the SAG circuit simulation, a steady state process was simulated for the ball mill circuit with the requirements of a cycling charge of around 250% and less than 60% of the final product with a size of −0.074 mm, etc. The simulation process and results are shown in

Table 7. The simulation process for ball mill modelling.

Simulation Time	Parameters				Simulation
	Diameter (m)	Length (m)	Hydrocyclone Solids Concentration (%)	d50c (mm)	−0.074 mm (%)	Cycling Charge (%)	Product Concentration (%)	Mill Power (kW)
1	5.03	8.84	60	0.150	61.62	240.9	38.59	4045
2	5.03	8.53	60	0.150	61.12	247.4	38.15	3905
3	5.03	8.23	60	0.150	60.62	254.3	37.68	3769
4	5.03	8.23	58	0.150	60.05	264.2	35.23	3768
5	5.03	8.23	58	0.155	59.71	252.4	35.89	3767

. It is evident that the initial selection of a ball mill size of Φ5.03 m × 8.84 m produced 61.62% −0.074 mm materials, but the cycling charge was only 240.9%, indicating this size was too big. A slight improvement was observed for the second ball mill (Φ5.03 m × 8.53 m), while the third option (Φ5.03 m × 8.23 m) seemed to meet the requirements. With slight adjustments in hydrocyclone solids concentration and d_50c in the fourth and fifth simulations, respectively, a mill power of 3767 kW and a cycling charge of 252.4% were obtained. The P₈₀ of the final product was observed to be 0.137 mm, while the specific energy consumption was calculated as 5.93 kWh/t.

3.5.3. Comparison of Comminution Circuits

The basic data used in the Morrell model were obtained from the SMC and Bond ball work index tests and the specific energy consumptions of the jaw crusher and ball mill circuits were calculated using Equations (5)–(8):

$$W_a=K_1{M}_{ia}4\left(x_2{}^{f\left(x_2\right)}-x_1{}^{f\left(x_1\right)}\right)=1.00\times 15.10\times 4\times \left({750}^{-\left(0.295+\frac{750}{1000000}\right)}-{6500}^{-\left(0.295+\frac{6500}{1000000}\right)}\right)=4.25\text{ kWh}/\text{t}$$

(5)

where K₁ is 1.0 for all circuits that do not contain a recycle pebble crusher and 0.95 where circuits do have a pebble crusher, x₁ is the P₈₀ (µm) of the product of the last stage of crushing before grinding, x₂ is 750 µm, and M_ia is the coarse ore work index and provided directly by the SMC Test.

$$W_b=M_{ib}4\left(x_3{}^{f\left(x_3\right)}-x_2{}^{f\left(x_2\right)}\right)=12.54\times 4\times \left({137}^{-\left(0.295+\frac{137}{1000000}\right)}-{750}^{-\left(0.295+\frac{750}{1000000}\right)}\right)=4.66\text{ kWh}/\text{t}$$

(6)

where x₂ is 750 µm, x₃ is the P₈₀ (µm) of final grind, and M_ib is provided by data from the standard Bond ball mill work index test.

$$W_c=K_2{M}_{ic}4\left(x_2{}^{f\left(x_2\right)}-x_1{}^{f\left(x_1\right)}\right)=1.00\times 5.70\times 4\times \left({6500}^{-\left(0.295+\frac{6500}{1000000}\right)}-{110000}^{-\left(0.295+\frac{110000}{1000000}\right)}\right)=1.41\text{ kWh}/\text{t}$$

(7)

where K₂ is 1.0 for all crushers operating in a closed circuit with a classifying screen. If the crusher is in an open circuit, e.g., a pebble crusher in a AG/SAG circuit, K₂ takes the value of 1.19, x₁ is the P₈₀ (µm) of the circuit feed, x₂ is the P₈₀ (µm) of the circuit product, and M_ic is the coarse ore work index and provided directly by the SMC Test.

$$W_s=K_3{M}_{ia}4\left(x_2{}^{f\left(x_2\right)}-x_1{}^{f\left(x_1\right)}\right)=0.19\times 15.10\times 4\times \left({6500}^{-\left(0.295+\frac{6500}{1000000}\right)}-{110000}^{-\left(0.295+\frac{110000}{1000000}\right)}\right)=0.71\text{ kWh}/\text{t}$$

(8)

where K₃ is 0.19, x₁ is the P₈₀ (µm) of the circuit feed, x₂ is the P₈₀ (µm) of the circuit product, and M_ia is the coarse ore work index and provided directly by the SMC Test.

The specific energy consumptions of the jaw crusher, HPGR and ball mill circuits were calculated using Equations (9)–(12).

$$W_a=1.00\times 15.10\times 4\times \left({750}^{-\left(0.295+\frac{750}{1000000}\right)}-{1600}^{-\left(0.295+\frac{1600}{1000000}\right)}\right)=1.75\text{ kWh}/\text{t}$$

(9)

$$W_b=12.54\times 4\times \left({137}^{-\left(0.295+\frac{137}{1000000}\right)}-{750}^{-\left(0.295+\frac{750}{1000000}\right)}\right)=4.66\text{ kWh}/\text{t}$$

(10)

$$W_c=1.00\times 5.70\times 4\times \left({12000}^{-\left(0.295+\frac{12000}{1000000}\right)}-{110000}^{-\left(0.295+\frac{110000}{1000000}\right)}\right)=1.07\text{ kWh}/\text{t}$$

(11)

$$W_h=K_4{M}_{ih}4\left(x_2{}^{f\left(x_2\right)}-x_1{}^{f\left(x_1\right)}\right)=1.00\times 11.10\times 4\times \left({1600}^{-\left(0.295+\frac{1600}{1000000}\right)}-{12000}^{-\left(0.295+\frac{12000}{1000000}\right)}\right)=2.49\text{ kWh}/\text{t}$$

(12)

K₄ is 1.0 for all HPGRs operating in closed circuit with a classifying screen. If the HPGR is in open circuit, K₄ takes the value of 1.19, x₁ is the P₈₀ (µm) of the circuit feed, x₂ is the P₈₀ (µm) of the circuit product, and M_ih is the HPGR ore work index and provided directly by the SMC Test.

The specific energy consumptions of the SAG and ball mill circuits were calculated using Equations (13) and (14).

$$W_a=1.00\times 15.10\times 4\times \left({750}^{-\left(0.295+\frac{750}{1000000}\right)}-{110000}^{-\left(0.295+\frac{110000}{1000000}\right)}\right)=7.98\text{ kWh}/\text{t}$$

(13)

$$W_b=12.54\times 4\times \left({137}^{-\left(0.295+\frac{137}{1000000}\right)}-{750}^{-\left(0.295+\frac{750}{1000000}\right)}\right)=4.66\text{ kWh}/\text{t}$$

(14)

All these specific energy consumptions of the three combined circuits are shown in

Table 8. Specific energy consumptions of the three combined circuits.

W (kWh/t)	Crusher + Ball Mill	Crusher +HPGR + Ball Mill	SAG + Ball Mill
Wa	4.25	1.75	7.98
Wb	4.66	4.66	4.66
Wc	1.41	1.07	-
Wh	-	2.49	-
Ws	0.71	-	-
WT	11.03	9.97	12.64

.

According to the calculation shown above, the specific energy consumption of the second pathway, i.e., jaw crusher + HPGR mill + ball mill, was 1 kWh/t lower than that of the jaw crusher + ball mill option, with the SAG mill + ball mill option being the highest in specific energy consumption.

It should be noted that the specific energy consumption of comminution is the “net energy consumed” in comminuting ores. Some other energies consumed were not considered, e.g., the driving force for the trunnion when using a tumbling mill, the shaft power for the HPGR mill, and the balance between the motor power and no-load power for the jaw crusher. Assuming that the energy loss between the motor and the transmitted power is 6.5% for the tumbling mill, it is estimated that the “gross energy consumption” related to the motor input power was 13.52 kWh/t, which is relatively lower than the 17.46 kWh/t estimated by the JKSimMet model.

The specific energy consumption estimated by the Morrell model was only based on several material characteristics, however, the variation in parameters and technical processes were not considered. In addition, the energy saved in the discarding of coarse particles was not taken into account. These factors will be further investigated in future studies.

4. Conclusions

• Parameters characterizing impact comminution resistance, such as A = 66.1, b = 0.81 (thus A × b = 53.5) and t_a = 0.28, were obtained from the standard drop weight tests;
• The SMC tests indicated that A = 79.1, b = 0.66 (thus A × b = 53.5) and t_a = 0.40. In addition, the values of DW_i, M_ia, M_ih, and M_ic were 6.49 kWh/m³, 15.10, 11.10 and 5.70 kWh/t, respectively;
• The Bond ball work index tests indicated a W_ib value of 10.93 kWh/t, while the Morrell model indicated a M_ib value of 12.54 kWh/t;
• Based on the ore characteristic parameters derived from the standard drop weight and Bond work index tests as well as the size requirements for the final products, the SAG + ball mill process was simulated on the JKSimMet platform to determine the required sizes of the mills and the driving power, e.g., Φ10.06 m × 5.03 m for the SAG mill, Φ5.03 m × 8.23 m for the ball mill, and the power dissipation of the SAG—ball mill process was 11,088 (7321 + 3767) kW, while the total specific energy consumption was 17.46 (11.53 + 5.93) kWh/t;
• Estimates based on the SMC and Bond ball work indices as well as the Morrell model indicated that the specific energy consumption of “jaw crusher + HPGR mill + ball mill” option was lower than the “jaw crusher + ball mill” option, with the “SAG mill + ball mill” option having the highest energy consumption.
