Thermal Behavior of Ceramic Bodies Based on Fly Ash and Smectites

Abstract

Clay minerals have a great influence on the resulting properties of ceramic bodies. Fly ash as a waste material from burning black coal in power plants is a potentially valuable source of oxides (Al₂O₃, SiO₂ or Fe₂O₃) for this production. Considering the process of ceramic firing, it is important to understand the thermal behavior of individual ingredients. The thermal behavior of natural smectite minerals (montmorillonite, beidellite, hectorite and nontronite) and their mixtures with added fly ash at different ratios (10%, 30% and 50%) was investigated. The phase analysis was obtained using X-ray diffraction and FT-IR spectroscopy. Under heating to 1200 °C, the structural changes of smectites were divided into four steps including dehydration, dehydroxylation, decomposition and crystallization of new phases. The addition of fly ash caused a shift in the reaction temperatures for all the mentioned phases. These changes were most noticeable for mixtures with hectorite; on the contrary, they were least noticeable for beidellite mixtures. Total mixture mass loss continually decreased with increasing fly ash amount. The obtained experimental thermal data can be applicable not only in the production of ceramic bodies or energy waste processing but also in construction and ensuring the safety of municipal waste landfills.

1. Introduction

Clay minerals are the most widespread minerals forming the earth’s crust rock system. Smectites are a diverse group of clay minerals including, in addition to the well-known montmorillonite, beidellite, nontronite, hectorite, saponite and other less industrially useful minerals. Undoubtedly, the main reasons that evoke interest in these clay minerals are their easy availability, environmentally friendly nature, low cost and extraordinary properties such as considerable sorption capacity, internal swelling in contact with water, high plasticity and cohesion [1,2]. These unique physico-chemical properties are the result of variability of internal chemical composition, variations in types of exchangeable ions, high cation exchange capacity and large surface area [3,4]. Smectites belong to the group of 2:1 expansible phyllosilicates, the basic structural unit of which consists of an octahedral sheet sandwiched between two tetrahedral sheets [5,6]. The tetrahedral sheet is composed of silicon–oxygen tetrahedra linked to neighboring tetrahedra by sharing three corners, resulting in a hexagonal network. The remaining fourth corner of each tetrahedron forms a part connecting to an adjacent octahedral sheet. The octahedral sheet is usually composed of aluminium in six-fold coordination with oxygen from the tetrahedral sheet and with hydroxyl [7,8]. Located in the interlayer are the hydrated exchangeable cations Ca²⁺, Na⁺, Mg²⁺, and K⁺, respectively. Smectites have permanent layer charge between 0.2 and 0.6 per half unit cell, which arises due to isomorphic substitutions in the octahedral and tetrahedral sheets [9,10]. All smectite minerals are identical in their basic structure but differ in chemical composition and the number of vacancies in tetrahedral and/or octahedral sheets. This group is represented by montmorillonite, beidellite, nontronite (dioctahedral), saponite, hectorite (trioctahedral) and laponite (synthetic form) [11,12,13,14].

Clay minerals are an essential component of fired bricks, giving adequate plasticity, porosity and strength to the final products [2,15]. Ceramics based on clays with a predominant amount of clay raw materials are in demand mainly for their capacity for sintering and shaping [16,17]. Recently, clay minerals have been partially replaced by solid wastes, thereby reducing production costs and the amount of industrial waste from a global perspective. Moreover, adding solid wastes (fly ash, sewage sludge, construction waste, etc.) can save clay mineral resources and also stabilize heavy metals [18,19]. Fly ash is a product of burning powdered anthracite or black or brown coal. It is captured in thermal power plant flue electrostatic gas separators. Due to its similar mineralogical composition to traditional ceramic raw materials, it can be widely used as a ceramic additive [20,21]. Generally, fly ash contains aluminum oxides, quartz and various salts. This inorganic solid waste containing silicates and aluminates, fusible at high temperatures, can be the source of the formation of complex aluminosilicates in bricks [22,23,24,25]. The brick production process with waste materials is similar to traditional brick-making procedures. The powdered waste material is blended with other raw materials, such as clay and sand. The mixture is molded into the desired shape, then dried and fired at a high temperature into hard bricks. Firing conditions such as final temperature and heating rates should be adjusted based on the input materials used [26,27]. Although smectite minerals are not used in large volumes due to their higher plasticity and swellability, in smaller amounts they give strength and contribute to the desired vitrification or color properties [17,28]. The determining the relationship of ceramic properties to structure and sintering temperature is facilitated by methods of thermal analysis. Information on the dehydration of brick clays connected to the weight loss during drying and firing provide insight into the behavior of raw materials when heated [29]. Thanks to the combination of thermal methods, it was then possible to design a suitable mode of firing brick clays in a tunnel kiln [30].

The relationship between water absorption and resistance to the inflection as a function of the firing temperature was examined in order to enhance the quality of the final products and optimize the production process. During sintering, a number of phase transformations occur, controlled by different mechanisms according to temperature changes, which play an important role in densification [31].

A full understanding of interaction of fly ash, smectite and their thermal behavior for brick production (including thermal mass loss and thermal phase transition) is essential for accurate quality control and mitigation of waste streams [32,33].

This paper is focused on the thermal behavior of mixtures of smectites and fly ash additive in the production of clay ceramics. The original smectites as well as their fly ash mixtures were characterized by X-ray fluorescence analysis, X-ray powder diffraction and infrared spectroscopy to obtain information about their composition and phase analysis. Simultaneous thermogravimetry and differential thermal analysis was used to describe the clay material changes during heating process. Dehydration, dehydroxylation and possibly recrystallization temperatures of the used smectite material were determined in order to assess the complex thermal behavior. It has to be emphasized that very careful study and experience are required to interpret thermal curves of smectites because thermal inflections cannot be easily interpreted in some cases. Therefore, the aim of this work was to obtain precise thermal data in order assess the thermal behavior of smectite/fly ash mixtures and to explore the possibilities of usage of such mixtures for the preparation of ceramic bodies.

2. Materials and Methods

2.1. Materials

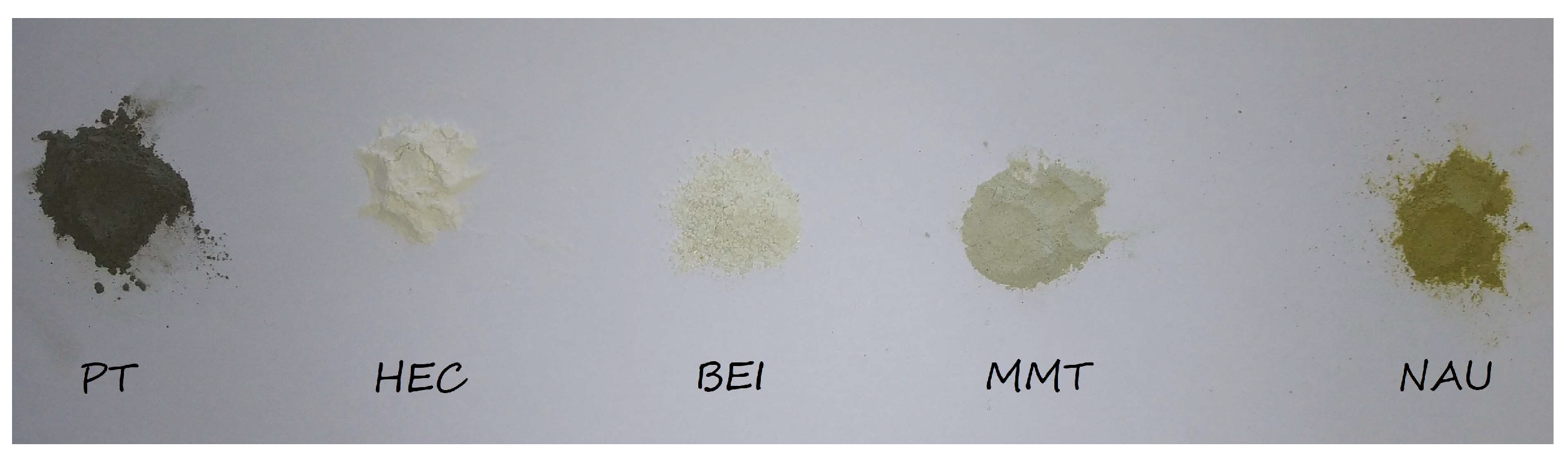

The fly ash (PT) used in this study originated from the burning of black coal collected on an electrostatic precipitator in a power station (Czech Republic). Clay minerals were obtained from The Clay Minerals Society: montmorillonite (MMT), nontronite (NAU), beidellite (BEI) and hectorite (HEC). Localities and origin of tested smectite samples are described in

Table 1. Locality and origin of tested smectite samples.

Sample	Mineral	Locality	Origin	Description
MMT	Montmorillonite	Crook County, Wyoming, USA	Newcastle formation (Cretaceous)	Na-rich montmorillonite
BEI	Beidelite	Idaho, USA	USA, stratigraphy uncertain	Beidelite with crystalline silica
HEC	Hectorite	San Bernardino County, California, USA	Red Mountain Andesite formation (Pliocene)	Li-bearing trioctahedral hectorite
NAU	Nontronite	Uley Mine—South Australia	Graphite mine, South Australia	Green color, Al-enriched

. Full description and information of geological occurrences and clay deposits is summarized by Moll [34]. Fly ash mixtures were prepared by mixing weighed quantities (PT solid-weight percentage 10, 30 and 50%). Each mixture was homogenized in a planetary ball mill (Fritch-Pulverisette 6, Idar-Oberstein, Germany) for 30 min at a rotation speed of 200 r·min⁻¹. Obtained samples were named MMT-PT10, BEI-PT10, HEC-PT10, NAU-PT10, MMT-PT30, BEI-PT30, HEC-PT30, NAU-PT30, MMT-PT50, BEI-PT50, HEC-PT50 and NAU-PT50. The powder PT/clay mixtures were sintered in a programmable laboratory electric furnace LH 30/15 Nabertherm (air atmosphere) with a delay of 2 h at a final temperature 1200 °C into the crystalline and poorly crystalline phases in ceramic samples. Obtained samples were named MMT-PT10-H, BEI-PT10-H, HEC-PT10-H, NAU-PT10-H, MMT-PT30-H, BEI-PT30-H, HEC-PT30-H, NAU-PT30-H, MMT-PT50-H, BEI-PT50-H, HEC-PT50-H and NAU-PT50-H.

2.2. Methods

The chemical composition of untreated clay minerals and fly ash samples was determined by X-ray fluorescence using an X-ray fluorescence spectrometer ARL PERFORM’X 4200 W (Thermo Scientific, Waltham, MA, USA). The fusion bead method was preferred for the preparation of pressed pellets in order to eliminate heterogeneity due to grain size and a mineralogical effect and to reduce inter-element effects by dilution of the sample. Fused beads (40 mm) were prepared by fusion of the samples with lithium tetraborate on a VULCAN 4M fusion machine in Pt/Au crucibles.

X-ray powder diffraction (XRPD) analysis of mineral phases was performed using diffractometer Ultima IV (RIGAKU, Tokyo, Japan) with CuKα radiation, scintillation detector and NiKβ filter, operated at 40 kV and 40 mA, Bragg–Brentano arrangement. Samples in a standard holder were measured in ambient atmosphere, with a scanning rate of 2.0° min⁻¹, a measuring range of 2°–70° 2θ and a step of 0.02° 2θ.

The infrared spectra of clay minerals, recorded in the mid-range 4000–400 cm⁻¹ on a Nicolet 6700 FT-IR spectrometer (Thermo Scientific, USA), equipped with a DTGS/KBr detector, were measured using the KBr pressed-disc technique. Approximately 1 mg of the powdered sample homogenized in 200 mg of dried KBr was compressed into a transparent pellet of 13 mm diameter using a hydraulic press at a pressure of 10 tons for one minute. The spectral resolution was 4 cm⁻¹ and 64 scans were co-added for each sample.

Thermogravimetry and differential thermal curves (TG/DTA) were obtained using a thermal analyzer Setsys 24 Evolution (Setaram, Caluire-et-Cuire, France), equipped with the thermocouple Pt-Pt90/Rh10. Samples with a mass of about 30 mg in an alumina crucible were heated to the final temperature of 1200 °C at a heating rate 10 °C.min⁻¹ under an inert atmosphere (Ar).

3. Results and Discussion

3.1. Chemical and Mineralogical Composition of Smectites and PT/Smectite Mixtures

3.1.1. X-ray Fluorescence

The content of major elements in raw materials, expressed in oxides form, obtained from X-ray fluorescence analysis is presented in

Table 2. Content of major elements of the smectite samples and fly ash (PT).

Sample	Mass %
	SiO2	Al2O3	MgO	Na2O	CaO	Fe2O3	TiO2	K2O
MMT	61.2	17.8	2.5	1.4	1.5	3.7	0.1	0.6
BEI	60.0	21.4	0.5	<0.05	0.7	1.5	0.8	0.9
HEC	34.9	0.8	14.2	0.9	23.5	0.3	0.1	0.5
NAU	42.2	13.2	0.6	<0.05	1.3	24.2	0.8	0.4
PT	44.5	23.2	1.6	0.6	2.3	7.5	1.1	3.2

. BEI and MMT show an amount of SiO₂ of about 60%, BEI also has the highest amount of Al₂O₃, about 21%, in contrast to HEC with only less than 1%. The largest amounts of Mg and Ca were found in BEI. Calcium can exist in exchange sites. Because the cation exchange capacity of hectorite is low, very large amounts of Ca indicate the presence of other minerals in this sample [35]. According to Guggenheim et al. [36], the presence of dolomite and calcite in this sample was determined. As the Mg content is greater than the Ca content, considerable amounts of Mg are likely to be present in the silicate clay structure. According to their composition, HEC, BEI and MMT have typical white-beige-gray color; only NAU is greenish-brown in color due to higher amounts of Fe₂O₃ (Figure 1).

3.1.2. X-ray Powder Diffraction

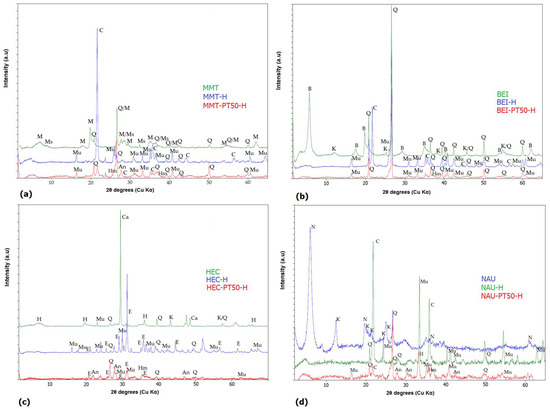

The PT samples come from the high-temperature process of burning coal; therefore, the majority of the organic matter has been burned off or converted during this burning process. The XRD pattern of the PT samples proved the presence of quartz, mullite, anorthite and hematite, and a non-crystalline amorphous halo was observed. The XRD pattern of the MMT sample showed the presence of montmorillonite, muscovite and quartz. The BEI sample was composed of beidellite, quartz and kaolinite. The HEC sample contained, in addition to hectorite, kaolinite and quartz, a calcite impurity. The presence of calcite and/or dolomite is due to hectorite’s geological forming in magnesium-, calcium- or carbonate-rich environments [37]. In the XRD pattern of the NAU sample, nontronite, kaolinite and quartz were identified. Similar results were reported in the works of other authors [38,39]. In case of heat-treated clay mineral samples, the XRD pattern showed the presence of quartz, mullite and cristobalite for the BEI-H sample. The presence of quartz, cristobalite and mullite was also proven for the MMT-H sample. The HEC-H sample contained enstatite, quartz and mullite, and the sample of NAU-H contained cristobalite, mullite and quartz. The phase analysis of heat-treated mixtures of smectites with PT corresponded to the combination of phase analyses of individual heat-treated smectite and PT samples. The XRD patterns of the original smectites, heat-treated smectites and heat-treated mixtures are shown in Figure 2.

3.1.3. FT-IR Spectroscopy

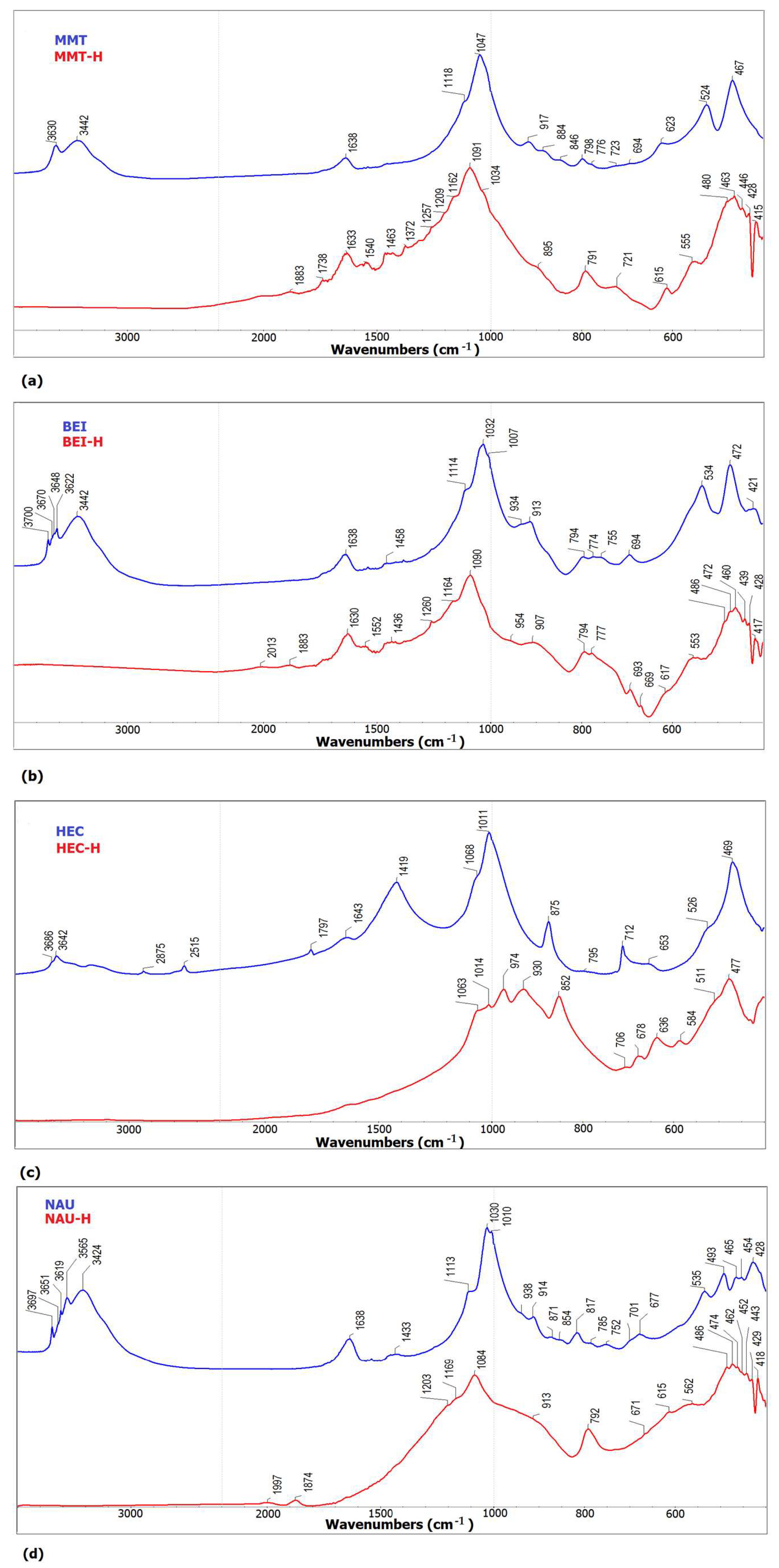

IR spectroscopy was used to detect mineral impurities and characterize structural changes caused by heating on selected clay minerals. For illustration, selected FT-IR spectra are shown in Figure 3. The admixture of carbonate in the hectorite sample HEC confirms the presence of a moderately intense absorption band at 1419 cm⁻¹ together with bands located at 875 cm⁻¹ and 712 cm⁻¹ and weak absorption at 2875 cm⁻¹, 2515 cm⁻¹ and 1719 cm⁻¹ [40,41]. Traces of carbonates (1433 cm⁻¹) are also evident in the spectrum of the NAU sample [42]. The presence of kaolinite was confirmed in the BEI, NAU and HEC samples. For the BEI sample, there are absorption bands at 3700 cm⁻¹, 3670 cm⁻¹, 3648 cm⁻¹ and 3622 cm⁻¹, which correspond to the stretching vibrations of the structural OH groups, and bands appear in the region of lattice vibration Si-O and Al-O at 1114 cm⁻¹, 1007 cm⁻¹, 913 cm⁻¹, 694 cm⁻¹, 534 cm⁻¹ and 472 cm⁻¹, similar to the NAU spectrum [43]. In the HEC sample, kaolinite was detected only by a band at 3686 cm⁻¹.

The IR spectra of samples exposed to a temperature of 1200 °C show the destruction of the phyllosilicate structure associated with the formation of new high-temperature phases [44]. Absorption bands at 1063 cm⁻¹, 1014 cm⁻¹, 974 cm⁻¹, 930 cm⁻¹, 852 cm⁻¹ and 511 cm⁻¹ observed in HEC-H are identical to the enstatite mineral phase [37], while the bands at 1209 cm⁻¹, 1091 cm⁻¹, 792 cm⁻¹, 615 cm⁻¹ and 480 cm⁻¹ occurring in MMT-H and similarly at 1091 cm⁻¹, 794 cm⁻¹, 617 cm⁻¹ and 485 cm⁻¹ in BEI-H correspond to cristobalite [45]. In the case of the NAU-H sample, the transformation to cristobalite also took place, but it is not so unambiguous. Other spectral bands found in the spectra MMT-H and BEI-H at about 1164, 907, 721, 554 cm⁻¹ and 460 cm⁻¹ were assigned to the high-temperature mullite phase based on literature sources [46,47,48].

3.2. Thermal Analysis and Transformation of Smectites and PT/Smectite Mixtures

Thermal treatment of clay matter leads to structural changes, divided into steps of dehydration, dehydroxylation, decomposition and crystallization/transformation of new mineral phases. The principal thermal reactions of clay minerals and the approximate temperature ranges are generally considered in the following categories: low-temperature interval below 400 °C (loss of adsorbed water and molecular water between layers), intermediate-temperature interval of 400–750 °C (dehydroxylation and the formation of quasi-stable dehydroxylated phases) and high-temperature interval above 750 °C (recrystallization and formation of new phases) [49,50]. The temperature, shape and intensity of the endotherm peaks on DTA curves, especially for montmorillonite, are closely connected to the presence of cations such as Mg²⁺, Ca²⁺, Sr²⁺, Ba²⁺, Be²⁺, Na⁺ and Li⁺ [51]. In the interval of OH groups removal, the position of the endo effect depends mainly on the presence of Fe³⁺, which isomorphically replaces Al³⁺. As the iron content increases, the temperature of endo effects in this region decreases, especially in nontronite samples. Subsequent exo reactions lead to the formation of variable products such as cristobalite, mullite, cordierite, spinel, enstatite, etc. [11,52].

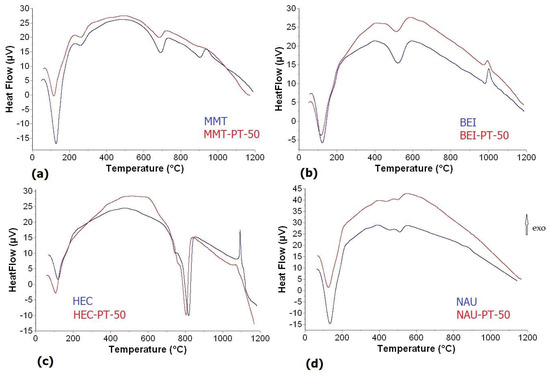

The results from DTA curves of MMT samples showed that the addition of PT caused a decrease in both dehydration temperatures. Recrystallization temperatures of dehydrated substances to cristobalite and mullite also decreased with the amount of PT. In contrast, this addition did not affect the temperatures of the dehydroxylation process at all. For BEI samples, the first peak temperature of dehydration increased while the second peak decreased with the amount of PT. The temperatures of removal of OH groups decreased with PT amount, but transformation temperatures to cristobalite and mullite were not influenced. In the case of HEC samples, the addition of PT influenced all decomposition steps, with the dehydration, dehydroxylation and recrystallization to enstatite and mullite decreasing with increasing PT amount. Only the temperature of decomposition of carbonate increased with the amount of PT. The dehydroxylation step was accompanied by the decomposition step of calcite with the simultaneous release of CO₂. For NAU sample, two endotherm peaks related to dehydroxylation were found; these peaks pointed out that the dehydroxylation of the NAU sample occurs as a continuous process. The same facts were also observed by the authors of [53]. The lower values of dehydroxylation temperatures compared to other measured smectites were connected to the higher amount of iron. In general, with a higher Fe content, dehydroxylation takes place at lower temperature intervals [51,54]. The temperatures of dehydration and dehydroxylation processes decreased with increasing PT amount. A very small and weak peak of transformation to cristobalite was found for the NAU and NAU-PT10 samples, but for NAU-PT30 and NAU-PT50, this transformation was not detectable on DTA curves (Figure 4), although it was proven according to X-ray and FT-IR analyses. The presence of kaolinite detected by X-ray and FT-IR analyses in the BEI, NAU and HEC samples was not confirmed by the thermal analysis due to the small amount of kaolinite in the sample. Also, kaolinite dehydroxylates are in the same interval as smectite minerals and therefore are not detectable on DTA curve in mixtures with a small quantity [55]. The temperatures of endotherm and exotherm peaks obtained from DTA curves are summarized in

Table 3. Temperatures of endo and exo peaks maxima for measured samples.

Sample	Tm1 (°C)	Tm2 (°C)	Tm3 (°C)	Tm4 (°C)	Tm5 (°C)
MMT	127	265	–	693	941
MMT-PT10	119	249	–	691	936
MMT-PT30	116	239	–	691	934
MMT-PT50	111	238	–	694	929
BEI	112	177	–	523	999
BEI-PT10	115	175		514	998
BEI-PT30	117	175		514	996
BEI-PT50	117	170	–	501	998
HEC	122	150	751	817	1092
HEC-PT10	106	149	757	803	1072
HEC-PT30	106	144	759	801	1069
HEC-PT50	102	143	762	799	1063
NAU	135	196	448	512	881
NAU-PT10	127	187	445	511	881
NAU-PT30	124	187	439	509	–
NAU-PT50	120	183	434	500	–

.

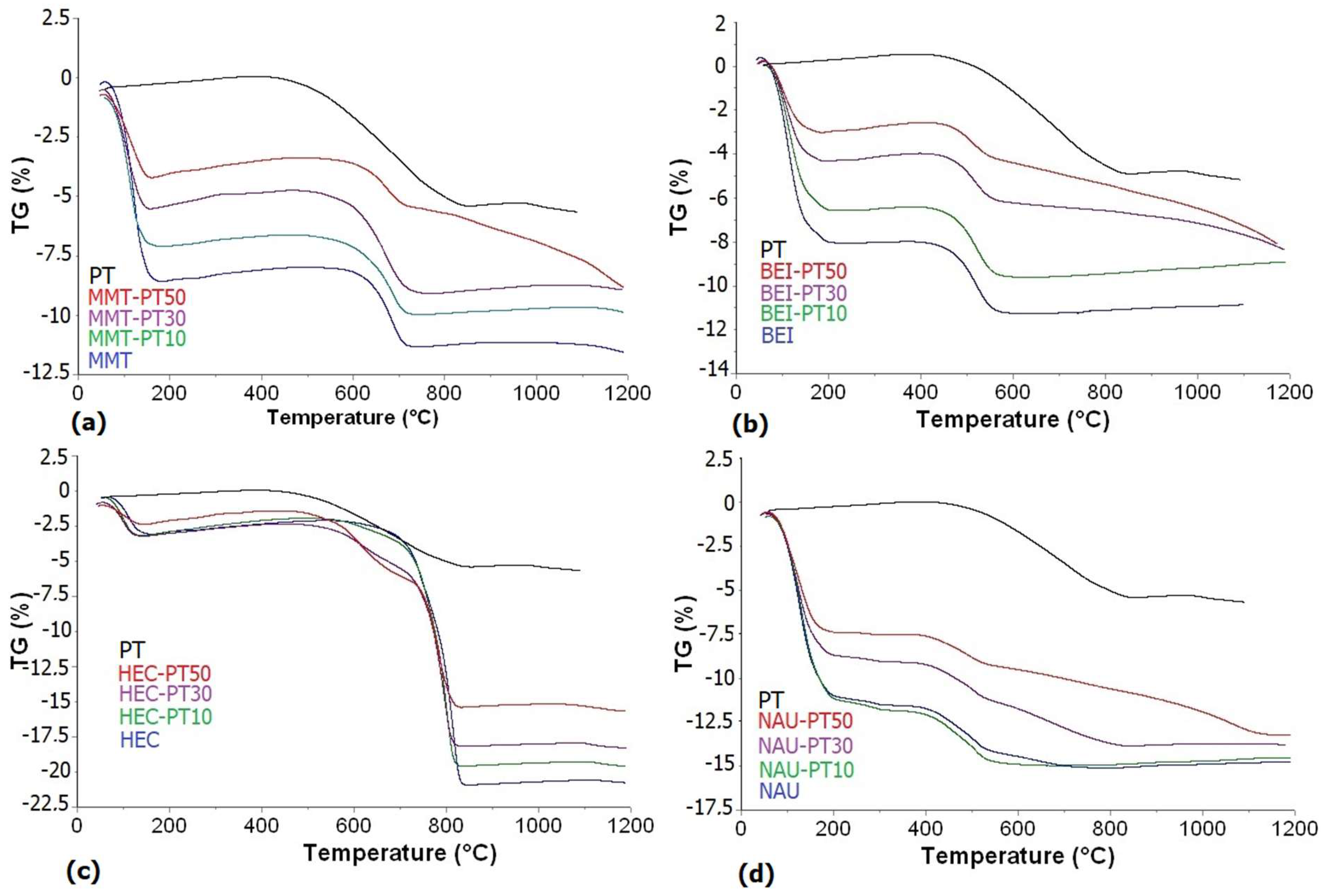

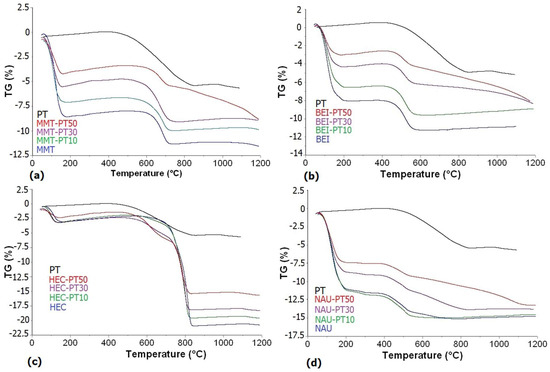

Figure 5 presents the TG curves of the measured samples. The mass loss percentages obtained from TG curves which characterize the thermal decomposition steps of the measured samples are, for illustrative purposes, presented in

Table 4. Mass loss percentages obtained from TG curves in different intervals.

Sample	∆ mtot (%)	∆ m1 20–500 °C (%)	∆ m2 500–850 °C (%)
PT	–5.1	0.1	−4.7
MMT	–11.2	−7.7	−3.2
MMT-PT10	−9.1	−5.7	−3.1
MMT-PT30	−8.4	−4.1	−3.7
MMT-PT50	−8.0	−2.6	−4.2
BEI	−11.4	−9.3	−2.0
BEI-PT10	−8.9	−7.7	−1.9
BEI-PT30	−8.4	−4.8	−2.5
BEI-PT50	−8.1	−3.4	−2.9
HEC	−20.2	−1.6	−18.2
HEC-PT10	−19.1	−1.5	−17.3
HEC-PT30	−17.3	−1.5	−15.7
HEC-PT50	−14.2	−0.6	−13.3
NAU	−14.6	−13.5	−0.6
NAU-PT10	−13.7	−12.6	−1.0
NAU-PT30	−12.9	−9.8	−2.7
NAU-PT50	−12.1	−8.6	−1.9

. For the MMT sample, a greater mass loss was recorded for the lower temperature interval (25–500 °C) due to a large amount of adsorbed water in the smectite interlayer. The residue of mass loss in the higher temperature interval (500–850 °C) corresponded to the removal of OH residues. Similarly, for the BEI sample, which is analogous to the montmorillonite structure, a significant weight loss due to the release of interlayer water was observed. The HEC sample showed the highest total mass loss from all measured smectites, which was mainly due to its structure, its composition and its content of calcite admixture. The amount of interlayer water is minimal, with only 2% mass loss. In the higher temperature interval, not only the removal of OH groups but also the decomposition of carbonates occurred, which corresponds well to the studies of other authors [29,36,56]. For the NAU sample, there was a higher mass loss in the initial temperature interval thanks to the two-stage dehydroxylation, after which the complete collapse of the original structure occurred. This collapse was accompanied by only a negligible mass loss.

For the PT sample, in the lower temperature interval, mass loss was not detected, while in the higher interval, a mass loss of about 5% was observed. The crucial PT reactions including two endotherm maxima, both around 1300 °C, which are assigned to melting and mullite crystallization [57]. Since temperatures above 1200 °C are rarely used in the brick industry, these reactions are thus irrelevant from this point of view [32,58]. For PT/smectite mixtures, the total mass loss decreased with increasing PT amount, which is a consequence of the addition of PT material with a relatively low weight loss in different ratios. This finding is consistent with the results of other authors [59,60].

4. Conclusions

The fly ash, original smectite samples and smectites heat-treated to 1200 °C were subjected to composition and phase analysis by XRD and FTIR analytical methods. The high-temperature major phase developed during the heating of montmorillonite, beidellite and nontronite was observed as cristobalite; only hectorite has transformed to an enstatite phase. The addition of fly ash influenced the endotherm and exotherm reactions obtained from DTA curves. With increasing PT amount, the temperature of dehydration steps decreased for all tested smectite samples, with the exception of HEC, where only the first step of dehydration decreased, and BEI, where the first step even increased. The dehydroxylation temperatures decreased with PT amount for BEI, HEC and NAU; the addition of PT did not affect the removal of OH groups only for the MMT sample. The temperatures of transformation and recrystallization decreased with PT amount for the MMT and HEC samples; for BEI, no effect was observed, and for NAU, the temperatures was detectable only for NAU and NAU-PT10. The MMT and HEC samples appeared to be more suitable for the production of ceramic bodies due to their composition and being less vulnerable to changes during heating, especially those connected to recrystallization temperatures. In the HEC sample, a more pronounced effect of ash on the formation of new phases was found, which may be related to a higher volume of carbonates. Also, the higher iron content in the NAU sample together with fly ash had an effect on the deterioration of nontronite recrystallization. These facts can lead to a limitation of the applicability of these smectites for the production of traditional ceramic bodies.

The obtained thermal data, together with XRD and FT-IR analyses, can provide valuable monitoring data offering a better understanding of the preparation of ceramic materials and the prediction of the effect of smectite minerals on the key properties of ceramic bodies, in addition to the advantage of ecological utilization of waste material such as fly ash.
