An Overview of Soil Pollution and Remediation Strategies in Coal Mining Regions

Abstract

Coal remains a very important source of energy for the global economy. Surface and underground coal mining are the two major methods of coal extraction, and both have benefits and drawbacks. Surface coal mining can have a variety of environmental impacts including ecosystem losses, landscape alteration, soil destruction, and changes to surface and groundwater quality and quantity. In addition, toxic compounds such as heavy metals, radioactive elements, polycyclic aromatic hydrocarbons (PAHs), and other organic contaminants are released in the environment, ultimately affecting the health of ecosystems and the general population. Underground mining has large impacts on underground water supplies and water quality, but generally has less visual surface impacts such as leaving waste and tailings on the surface and subsidence problems. In response to the concern about these environmental issues, many strategies have been developed by scientists and practitioners to minimize land degradation and soil pollution due to mining. Reclamation laws passed in numerous countries during the past 50 years have instituted practices to reduce the impacts of soil pollution including burying toxic materials, saving and replacing topsoil, and vegetating the land surface. While modern mining practices have decreased the environmental impacts, many sites are inadequately reclaimed and present long-lasting soil pollution problems. The current review summarizes progress in comprehending (1) coal mining impacts on soil pollution, (2) the potential risks of soil pollution associated with coal mining, and (3) different types of strategies for remediating these contaminated soils. Research and prospective directions of soil pollution in coal mining regions include refinements in assessing pollutant levels, the use of biochars and other amendments, phytoremediation of contaminated soils, and the release of toxic elements such as mercury and thallium.

1. Introduction

Coal is the second-most-significant global energy source, contributing 27.1% to the main energy generation [1]. At the beginning of the 18th Century, coal became the main energy source, eventually leading to the Industrial Revolution. From the late Eighteenth Century onwards, the techniques of underground mining were developed, mainly in Britain [2]. Despite its positive impact on human development, coal mining has had adverse effects on the environment. Its activities have resulted in significant waste generation (tailings) and long-term environmental destruction, such as polluting the water systems, soil erosion, mine subsidence, ecosystem and biodiversity destruction, and land surface disruption [3]. Furthermore, mining has resulted in significant societal costs, including fatal accidents, health risks, and community displacement [4].

Historic mining practices have caused various hazards to the environment and humans. Some of those traditional practices are continued today in many parts of the world. In industrialized cultures, mining and reclamation laws have mitigated the degradation by stronger environmental requirements and requiring reclamation once mining has ended. Current mining and reclamation standards regulate site preparation, blasting, road building, overburden removal and placement, water control and maintenance, topsoil replacement, and vegetation establishment. Together, these practices greatly reduce the potential for land and water degradation during and after mining [5]. The largest problem in many countries is reclaiming sites that were abandoned and thus remain exposed to continued erosion and degradation of the surrounding environment. This problem often occurs where funding is unavailable for reclaiming abandoned lands or where laws have not been passed to deal with these abandoned sites. This paper deals with pollution in areas caused by wastes and tailings from surface and underground mining that have been left on the surface.

Coal mining can be classified into two types: surface and underground mining. Large quantities of waste are generated in either case due to the coalification process and other impacts associated with mining and processing technologies [6]. Based on the geological and mining circumstances, a total of 0.4–0.7 t of waste is produced for every tonne of coal that is mined [7]. Compared to underground mines, opencast (surface) coal mines have higher environmental impacts on the soil, water, and air, whereas underground mining entails the risk of land subsidence and groundwater impacts below the land [8]. Heavy metals from dumps of spoil or refuse can be mobilized by surface runoff, which can leach into the subsurface soil or into nearby water resources [9]. The disturbed areas in coal mining regions can, therefore, be environmentally compromised, exposing organisms in the food chain to pollutants by direct contact, along with the inhalation of toxic metals, which can translate into human health effects [10].

Soil contamination studies conducted in coal mining areas have shown that mining and the associated operations release toxic elements into the soil, which then affect nearby riparian environments, surface water, and farmland [11,12]. The elevated levels of heavy metals in materials left on the surface pose a potential risk to the environment and human health, because of their bioaccumulation, toxicity, and release to organisms in the environment [13,14]. This elevated metal pollution may be absorbed by plants and crops, which leads to inferior growth and plant tissue contamination [15]. Polycyclic aromatic hydrocarbons (PAHs) are the primary organic toxic components found in coal mining areas [16]. The emissions from the combustion of small coal particles and coal gangue (also called coal refuse or coal waste) are the primary sources of PAHs in coal mine districts. Depositional environments and coal rank are two primary factors that determine the PAH content in coal gangues [17]. Excessive deposition of coal gangue on the surface can lead to spontaneous combustion under the right conditions, resulting in atmospheric pollution. At the same time, leaching due to precipitation events will result in heavy metals and PAHs contained in the gauge being released into the soil and surface water [18].

Coal has been used for millennia as a fuel source. Archaeologists discovered in 2005 what appeared to be a 120,000-year-old Stone Age opencast coal mine in Germany. According to the China Coal Information Institute, coal in China was utilized as a fuel source during the Neolithic Era, approximately 10,000 years ago. In the Americas, the Aztecs were the first people to use coal. For Aztecs, coal was employed not just as a heating source, but also as a decorative element. In the 18th Century, colonists in eastern North America discovered coal reserves. Worldwide coal reserves are estimated at over 1.1 trillion t. Coal deposits can be found in more than 70 countries across all continents, with the largest reserves located in the United States, Russia, China, and India [19]. In the modern world, the global demand for low-cost energy, iron, steel, and cement has resulted in the continued growth of coal extraction. Coal reserves are projected to last longer than conventional oil and gas reserves by 115 years, given current extraction rates. Ninety percent of the world’s coal production originates from ten countries [20].

Studies regarding soil pollution around coal mining areas have significantly increased in recent decades. The source, distribution, and content of organic and inorganic pollutants in soils around abandoned or active coal mine areas have been the subject of many investigations so far. Currently, the only existing reviews are limited to the broad evaluation of worldwide metal pollution in soils near coal mines and their health risk assessment [21,22] and also changes in soil characteristics caused by surface coal mining and subsequent reclamation [23,24]. The objectives of the study were: (1) to evaluate the contamination levels of organic and inorganic pollutants in soils around both surface and underground coal mining areas and (2) to identify the most-common remediation strategies used for the removal of pollutants from coal mining areas.

2. Methodology

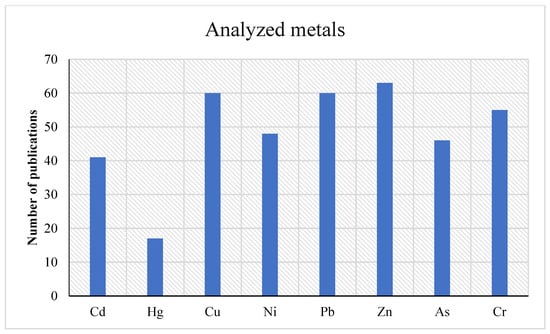

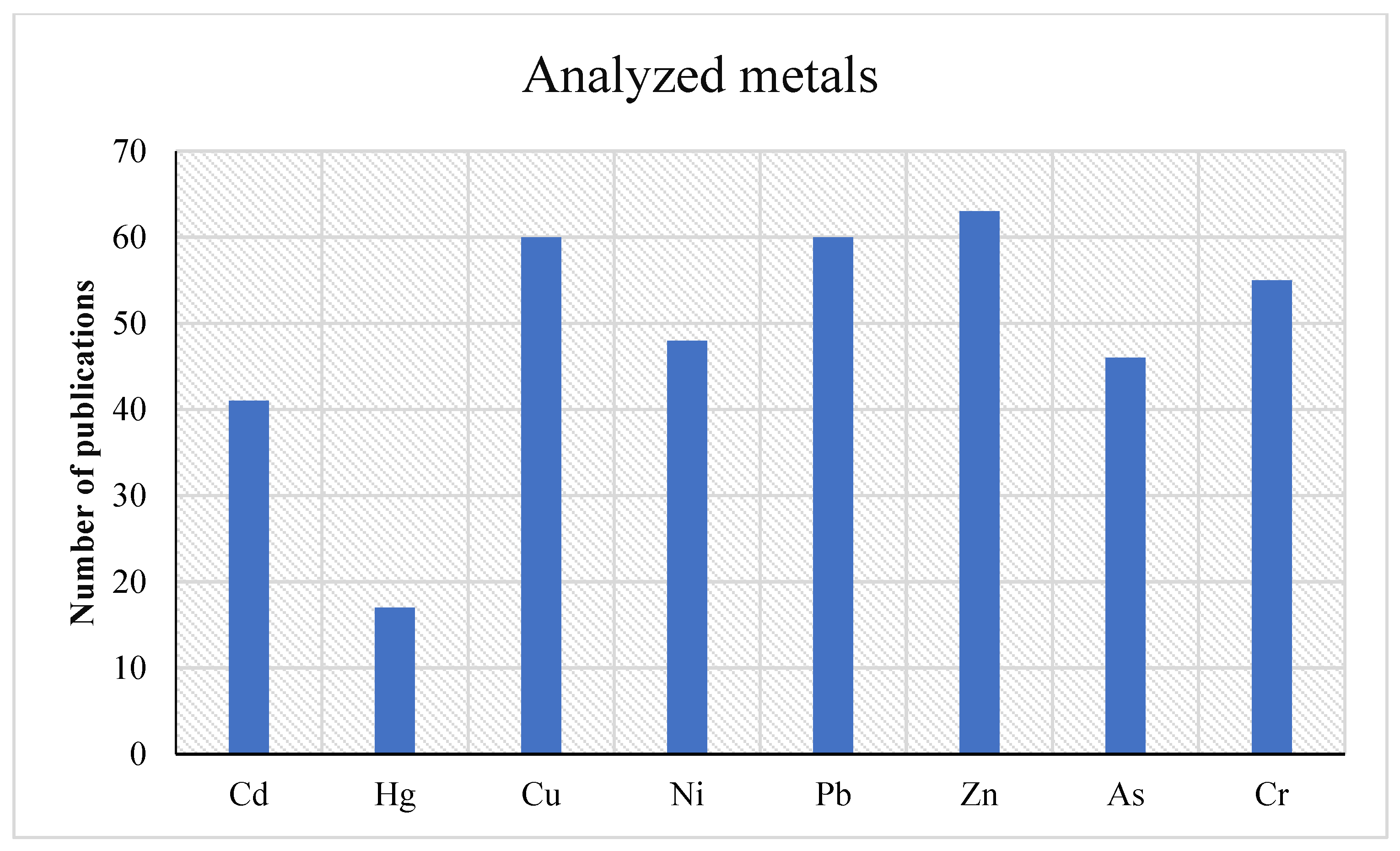

We searched for articles from around the world that described soil pollution in mining areas and tried to sort them into categories and summarize them. Based on the aim of this study, we performed a search on the Scopus and Web of Science databases with the terms (coal mining) AND (soil) AND (PAHs) AND (heavy metal) AND (Remediation Strategies). Finally, in accordance with studies published from 2000 to 2023, a global analysis was undertaken in this study.

3. Contents and Chemical Forms of Trace Metals and Metalloids in Coal

Coal is a highly complex geological material that contains over 200 minerals and nearly all naturally occurring elements. It also has an intricate chemical structure [25]. According to Finkelman [26], the modes of occurrence of metals in coal refer to their chemical bonding and distribution within the coal. Ultimately, this knowledge is extremely important in foreseeing their potential impact on human health and the environment [25]. Many scientific publications have addressed the detrimental environmental effects of the metals contained in coal [27,28,29]. The majority of these studies were concerned with the volume of elements released into the environment due to coal mining, disposal, and combustion [25]. In the following sections, the occurrence and chemical forms of selected trace elements in coal are briefly detailed.

3.1. Cr

According to Ketris and Yudovich [30], common low-rank coals typically have 15 mg/kg and hard coals contain 17 mg/kg of Cr on average. Considering the toxicity and carcinogenicity of, in particular, the Cr(VI) form, the chemical form of occurrence is very important. Goodarzi et al. [31] found that Cr is associated with illite and occurs in coal primarily as Cr(III) rather than the hazardous Cr(VI) in the corresponding fly ashes. Several studies have indicated that Cr in coal is predominantly linked to organic matter, especially in low-rank coals [32], clay minerals, spinel-group minerals [26,33], and other mineral phases including carbonates [34]. In summary, the main association of Cr in coal is with organic matter and aluminosilicates [25].

3.2. Ni

The common low-rank coals have a mean Ni concentration of 9 mg/kg, which is approximately half of the worldwide concentration in hard coals at 17 mg/kg [30]. Dai et al. [35] revealed that the mean content of Ni in Chinese coals is 13.7 mg/kg, while Orem and Finkelman [33] discovered that the mean content of Ni in U.S. coals is 14 mg/kg. In coal, Ni is linked to clays, sulfides (mostly pyrite and other minor sulfides), and organic matter [26,32,36]. During a density fraction study, Kolker et al. [37] discovered that Ni is enriched in both the heaviest- and lightest-density fractions, suggesting that Ni in coal is bound with both organic and pyritic components. In conclusion, Ni in coal is mostly connected to clays, organic matter, and sulfides [25].

3.3. Cu

The mean contents of Cu in low-rank and hard coals around the world are similar, at 15 mg/kg and 16 mg/kg, respectively [30]. These values were comparable to those reported for U.S. and Chinese coals, which were 16 mg/kg and 17.5 mg/kg, respectively [33,35]. In most coals, Cu is often found as chalcopyrite and pyrite and can be organically bound, particularly in low-rank coals [26,32]. Finkelman et al. [38] found that Cu can be found in low-rank coals mainly in organic fractions (20%), clays (20%), chalcopyrite (30%), and pyrite (30%). Similar forms of occurrence can be found in bituminous coals, but in different percentages, with 5% organic, 20% clays, 30% chalcopyrite, and 45% pyrite. In conclusion, Cu in coal is mainly found in pyrite and chalcopyrite. In some low-rank coals, it could be found in the organic fractions [25].

3.4. Zn and Cd

Zinc and Cd have a similar chemical behavior. They are both commonly associated with sphalerite and usually behave in the same way in coal [39]. Zinc in coal was found at 28 mg/kg in hard coal and 18 mg/kg in common low-rank coal across the world [30]. According to Orem and Finkelman [33] and Dai et al. [35], the mean Zn concentration in U.S. and China coals is 53 mg/kg and 41.4 mg/kg, respectively. These values are significantly higher than the mean values in coals from other parts of the world. However, the concentrations of Cd are much lower in common low-rank coal with 0.24 mg/kg and hard coal with 0.20 mg/kg globally [30]. Mean Cd contents in U.S. and Chinese common coals are 0.47 mg/kg and 0.25 mg/kg, respectively [33,35].

Many studies have shown that sphalerite is the primary host for Zn in coal [40,41]. Although sphalerite is the most-common mineral containing Cd [42], other minerals including silicate and pyrite may also be associated with Cd [43]. Zinc in coal is often bound with sulfide and aluminosilicate, as well as organic matter [44,45]. In conclusion, sphalerite is the primary host of Zn and Cd in coal. Zn in low-rank coal is bound with the organic fraction [25].

3.5. As

Ketris and Yudovich [30] reported that the contents of As in low-rank and hard coals worldwide are 7.6 mg/kg and 9.0 mg/kg, respectively. However, Dai et al. [35] found that a lower mean concentration in Chinese coals of 3.8 mg/kg. According to Swaine [42], As is most commonly associated with pyrite; however, it can also be bound with phosphates, clay minerals, and organic matter. By employing numerous approaches, some researchers demonstrated that As has an organic association in some sub-bituminous and lignite coals [43,46]. In summary, As in coal is mainly found in pyrite and has an association with organic matter. Some As-bearing minerals, such as Ti-As sulfide, zeunerite, orpiment, realgar, getchellite, and arsenopyrite, have been found in coal; however, these minerals are neither common, nor unique hosts for As in coal [25].

3.6. Pb

On a worldwide basis, the mean Pb contents in hard and low-rank coals are 9.0 mg/kg and 6.6 mg/kg, respectively [30]. The mean Pb contents in U.S. and Chinese coals are higher than those found in common coals across the world, at 11 mg/kg and 15.1 mg/kg, respectively [33,35]. In general, Pb in low-rank coals is bound with organic matter [32,42]. Using selective leaching, Finkelman et al. [43] found that Pb in bituminous and low-rank coals is associated with various phases, including silicate, pyrite, monosulfides (galena), and other unknown phases. In conclusion, pyrite is the most-common mineral form of Pb in coal, while it can also be found in organic matter and trace minerals (including, clausthalite and galena) [25].

4. Levels of Soil Pollution in Coal Mining Areas

4.1. Heavy Metals and Metalloids

Around the mine area, a significant quantity of heavy metal dust and polluted wastewater may be produced during the many phases of the coal mining process, including transportation, wastewater treatment, tailings’ placement and slurry pumping, topsoil removal, mineral extraction, and ore concentration [47]. These heavy metals potentially can migrate to ground water and aquatic environments via surface runoff. The local natural ecosystem can be severely disrupted by the long-term effects of mining disturbances, which include groundwater quality impacts, soil erosion, and land subsidence [48]. Coal gangue and fly ash are sources of toxic heavy metals, which can be emitted into the environment during coal transport, smoke and dust emissions from coal-fired power plants, stormwater discharges from mining areas, and other operations associated with the coal industry [49].

The primary source of pollution in coal mines is attributed to the process of leaching acidic mine tailings or the creation and release of acid mine drainage (AMD) [50]. AMD is formed because of the presence of pyrite and sulfide minerals within the coal seam and associated rocks. Exposure to water and air causes these sulfide minerals to be oxidized. Free sulfuric acid is one of the oxidation products [51,52]. Metal elements from sulfide oxidation, including Zn, Al, and Ni, as well as toxic materials containing Cr, Pb, and Cu, are released after the pH is decreased [53]. Metal pollutants resulting from mining activities can be transported over long distances by water and wind erosion or remain in tailings for later release with continued weathering [54]. In mining areas, these pollutants in soil may have adverse impacts on nutrient availability and microbial activity [55].

Currently, research on heavy metals in soil has primarily been concentrated on analyzing the distribution pattern, total content, and ecological and human health risks [56]. The source of heavy metals in the soil from the mining area, however, is more complicated given that it may have arisen from not only emissions during coal extraction, but also from atmospheric deposition from coal-fired power plants and the dispersion during the process of transporting coal as well [57]. Studies regarding the concentration of trace metals and metalloids in coal mining areas worldwide are provided in Table 1, and some of those studies are shown below.

According to the literature reviews, during the last ten years, China has conducted numerous studies on soil heavy metal pollution caused by coal mining activities. For example, Yan et al. [58] conducted a study in a coal mining district in Tai’an City and found that Hg and Cd were the primary pollutants in the area. Additionally, Cd exhibited the highest rate of contamination. This result was associated with roads that were employed for transporting coal from the mines. Sun et al. [59] reported similar results in the Tangshan Coal Industrial City, where a majority of soil samples exhibited slight to moderate contamination by Hg and Cd, mainly due to coal-related industrial activities, vehicle emissions, agrochemical application, and sewage irrigation. Zhang et al. [60] discovered that the primary sources of As and Hg in soils from major coal mining regions of Xinjiang were atmospheric dust emissions resulting from coal combustion. Additionally, the high volume of traffic and frequent transportation associated with coal delivery in the study area were the main source of soil Pb pollution. According to Li et al. [61], the increased concentrations of Cu and Cd in paddy soils in the vicinity of the Zhangji coal mine in Huainan City were associated with mining activities, i.e., from rainfall leaching. According to Dong et al. [62], the main cause of soil pollution in the Liuxin mining area of Xuzhou was attributed to coal mining activities. However, there were also other contributing factors such as industrial pollution, sludge addition, and untreated water irrigation.

Kou et al. [63] revealed that the soils in Shengli and Baorixile coal mines located in Inner Mongolia showed elevated levels of pH and heavy metals such as Hg, As, Ni, Mn, Zn, Pb, and Cu, surpassing the mean soil background values, as a result of high coal mining and burning volume. In Mongolia’s main coal mining town (Sharyn Gol), Pecina et al. [64] found high levels of Zn, Pb, Cu, and Cd in the soil, resulting from the deposition of mining waste heaps. Due to AMD, moderate soil pollution by Ni, Zn, and Cu was found by Hossen et al. [65] in the area surrounding the Barapukuria coal mine in Bangladesh. Siddiqui et al. [11] provided a comprehensive analysis of the effect of elements in soils from the aforementioned mining area. Zinc exceeded the world normal limit [66] among the evaluated elements. The study revealed that Ag showed the highest degree of enrichment, followed by As. In this study, Zn and As were potentially derived from minerals such as mispickel, melnikovite, and sphalerite, which are commonly found in association with coal deposits.

A study conducted In Neturia, West Bengal, showed that opencast mining has led to an elevated level of toxic heavy metals in the soil, leading to heavy metal contamination and associated non-carcinogenic health risks to humans. Moreover, this study found that topsoil was exposed at the surface, which made it more susceptible to heavy metal pollution [10]. According to a study conducted by Siddiqui et al. [67], soils collected from the Jharia coalfield in India exhibited a moderate level of pollution risk in terms of trace elements such as Cu, Pb, Zn, Cr, Ni, Co, and Cd, released from mining spoils. Raj et al. [68] in their investigation of soils near an opencast coal mine in Eastern India found that coal mining activities including coal dust deposition and transport activities were the predominant source of metal pollution in the area. Reza et al. [69] indicated that agricultural soils in the Ledo coal mining area of India were significantly contaminated with Cd and Pb due to mine drainage. Ahmad et al. [70] found that the levels of Zn, Cu, Ni, and Cr in the soil of the Dukki and Sharigh coal mines in Pakistan exceeded the acceptable limits.

Marove et al. [71] found that the type of leaching solution strongly impacted the hazardous elements from soils around open-pit coal mines in Mozambique. They also discovered that some of these elements were highly bio-accessible, which could lead to health and ecological risks in the area. Zerizghi et al. [72] conducted a study on the soil in the surrounding area of the Greenside coal mine in South Africa. They found that the levels of heavy metals examined in the soil surpassed the local background value. Moreover, the predominant health and ecological hazards associated with Cr were discovered. Ameh and Aina [73] found that the Cr, Cd, and As concentrations in soil samples obtained from the polluted coal mine in Okaba, Nigeria, were within the standard limits for unpolluted soils. However, the Cu concentration in the soil samples exceeded the permissible limits. Galunin et al. [74] reported findings from a coal mining region in Brazil showing that the contents of Mn, Ca, Al, Mg, and pH separately had a considerable impact on the Cd sorption behavior, and similarly, these factors also impacted the desorption behavior.

Alekseenko et al. [75] found that coal mining waste disposal sites in Rostov Oblast, Russia, had a direct impact on the soil, which resulted in increased levels of Ba, Mo, Pb, Zn, Cr, V, Cu, and Mn. In Poland, Pietrzykowski et al. [76] found that areas impacted by the Smolnica hard coal mine that had been reclaimed and reforested did not pose any risk of hazardous levels or the bioavailability of metals. The study conducted by Fiket et al. [77] in Croatia demonstrated that the soils in the Labin City area exhibited distinct metal fingerprints as a result of coal mining activities, particularly coal combustion or transport infrastructure. Consequently, soils showed varying degrees of enrichment in Zn, Sr, Sb, Pb, Mo, Cu, and Co, ranging from moderate to extremely high. Boahen et al. [78] found that the levels of Zn, Cd, Be, and As in the soil samples collected from the North Bohemian Brown Coal Basin (Czech Republic) surpassed the recommended thresholds. The agricultural soils from the Northern Czech Republic were found to be contaminated by anthropogenic material associated with past mining activities, such as lignite mining in North Bohemia and hard coal mining and heavy industry in North Moravia [79]. Potential environmental implications from AMD and associated dissolved metals discharging in Portugal’s Douro coalfield have been reported by Ribeiro et al. [80]. In Spain, Boente et al. [81] revealed that coal mining and processing history in the municipality of Langreo had a strong association with the increased levels of Cu in the soil.

Table 1. Concentration of trace metals and metalloids in coal mining areas worldwide (mg/kg).

Country		Mine Type	Status	HMs (mg/kg)								References
				Cd	Hg	Cu	Ni	Pb	Zn	As	Cr
South Korea: Gangreung coalfield		unknown	abandoned	1.10	n.a.	41.0	42.6	32.9	87.3	n.a.	35.8	[82]
China: Linhuan coal mining area		underground	active	0.17	n.a.	n.a.	n.a.	n.a.	n.a.	n.a.	n.a.	[12]
China: Coal mining region of Tai’an		underground	active	0.20	0.03	26.5	29.61	27.6	66.7	9	56.4	[58]
China: Zhundong mining		surface	active	n.a.	0.01	n.a.	n.a.	16.3	0.0067	9.0	53.0	[60]
China: Kaili City		unknown	abandoned	0.52	0.11	13.3	n.a.	30.7	56.2	28.2	75.6	[83]
China: Yulin		underground	active	n.a.	n.a.	15.0	17.9	21.5	57.6	5.3	45.1	[84]
China: Xilinguole League		surface	active	0.11	n.a.	15.0	n.a.	20.0	49.3	9.1	52.9	[85]
China: Xuzhou coal mining region		unknown	active	0.88	n.a.	22.9	n.a.	19.0	128.3	17.1	58.1	[86]
China: Tangshan City		underground	active	0.15	0.06	22.4	16.8	22.9	70.3	5.9	37	[59]
China: Weibei coalfield		underground	active	0.28	n.a.	58.1	88.1	11.49	1139.8	n.a.	143.1	[87]
China: Zhangji coal mine		underground	active	0.54	n.a.	64.4	27.7	20.3	118.0	23.4	85.3	[61]
China: Yanzhou		underground	active	0.14	n.a.	23.1	29.5	23.7	66.3	n.a.	72.1	[88]
China: Eastern Junggar coal mine		surface	active	n.a.	n.a.	19.3	n.a.	16.7	47.8	33.5	68.5	[89]
China: Xinzhuangzi		unknown	unknown	0.09	n.a.	36.8	28.4	25.4	62.0	3.7	n.a.	[48]
China: Datong coal mine		underground	abandoned	n.a.	n.a.	26.4	34.3	50.2	76.1	n.a.	188.6	[90]
China: Xingren coal mine		unknown	active	1.09	0.71	134.1	64. 9	240.6	n.a.	477.5	173.6	[91]
China: Liuxin mining area		unknown	abandoned	0.40	0.03	31.8	n.a.	12.9	91.3	24.3	44.5	[62]
Mongolia: Sharyn Gol		surface	active	1.46	n.a.	22.1	n.a.	69.0	87.6	n.a.	n.a.	[64]
Mongolia	Shengli	surface	active	n.a.	0.03	19.6	25.0	16.8	60.7	9.0	n.a.	[63]
	Baorixile	surface	active	n.a.	0.08	19.7	20.8	26.3	64.2	8.6	n.a.
Bangladesh: Barapukuria coal mine		underground	active	n.a.	n.a.	31.6	56.5	n.a.	101.9	n.a.	82.3	[65]
				0.25	n.a.	27.4	48.0	11.2	128.0	5.1	17.5	[11]
				n.a.	n.a.	n.a.	n.a.	433.0	296.0	17.5	n.a.	[66]
				n.a.	n.a.	29.9	98.5	188.6	160.0	22.4	107.3	[92]
Bangladesh: Farmland around Barapukuria coal mine		underground	active	0.09	n.a.	2.1	n.a.	0.9	8.2	n.a.	n.a.	[93]
India: Neturia block		surface	active	n.a.	n.a.	677.0	811.5	265.2	893.7	33.7	851.7	[10]
India: Jharia coalfield		underground and surface	active	0.80	n.a.	11.3	11.3	11.4	19.9	n.a.	23.4	[67]
				0.40	n.a.	66.3	64.1	27.8	127.0	n.a.	43.0	[94]
India: Rohini		surface	active	1.11	0.58	n.a.	n.a.	16.9	n.a.	3.1	17.5	[68]
India: Korba coalfield		surface	active	n.a.	n.a.	218.0	n.a.	311.0	426.0	n.a.	567.0	[95]
India: Raniganj coalfield		underground and surface	active	n.a.	n.a.	256.6	347.3	88.2	369.1	15.4	306.3	[96]
India: Eastern part of Jharia coalfield		underground and surface	active	2.49	1.19	26.0	n.a.	15.7	55	2.7	55.0	[97]
India: Ledo coal mining area		surface	active	2.60	n.a.	n.a.	87.5	183.1	n.a.	n.a.	112.3	[69]
India: Surat district		unknown	active	0.77	n.a.	57.0	16.0	9.0	60.0	n.a.	8.0	[98]
Pakistan	Dukki coal mines	underground	active	n.a.	n.a.	421.6	125.1	n.a.	131.2	n.a.	149.1	[70]
	Sharigh coal mines	underground	active	n.a.	n.a.	53.7	115.4	n.a.	68.5	n.a.	95.7
Iran: Aghdarband coal mine		underground	active	n.a.	n.a.	33.0	14.0	52.0	89.0	33.3	39.0	[99]
Iran: Tazareh coal mine area		underground	active	0.31	n.a.	27.1	43.1	19.2	78.8	0.2	91.5	[100]
Turkey: Oltu coal mine district		underground	active	0.05	1.15	28.0	97.0	49.4	36.8	n.a.	180.2	[101]
Turkey: Ovacik–Yaprakli		underground and surface	abandoned	n.a.	n.a.	58.0	296.8	n.a.	101.1	n.a.	348.0	[102]
Australia	Glenbawn	surface	active	n.a.	n.a.	59.0	n.a.	12.8	137.0	14.2	n.a.	[103]
	Traralgon	surface	active	n.a.	n.a.	22.6	n.a.	22.1	132.8	5.6	n.a.
Mozambique: Moatize district		surface	active	n.a.	n.a.	34.0	31.0	26.0	78.0	3.0	95.0	[71]
South Africa: Witbank coalfield		underground	active	0.40	n.a.	33.1	98.3	30.7	110.6	19.4	653.3	[72]
South Africa: Emalahleni		underground	active	n.a.	n.a.	22.0	20.0	19.0	36.0	0.5	419.0	[104]
Nigeria: Okaba		surface	active	1.05	n.a.	5.9	n.a.	n.a.	n.a.	1.4	5.2	[73]
Morocco: Jerada coal mine		underground	abandoned	n.a.	n.a.	32.6	n.a.	60.6	144.3	24.2	n.a.	[105]
Botswana: Morupule coal mine area		underground	active	n.a.	n.a.	40.3	60.5	36.6	304.5	13.2	155.6	[106]
Russia: Kizel Coal Basin		unknown	abandoned	n.a.	n.a.	n.a.	69.0	n.a.	80.0	10.0	178.0	[107]
				0.93	2.59	33.0	41.9	36.5	61.4	2.9	1653.0	[108]
Russia: Lipovtsy coalfield mine		surface	abandoned	0.03	n.a.	20.7	34.2	12. 8	187.8	n.a.	8.2	[109]
Russia: Rostov Oblast		underground	active	n.a.	n.a.	57.0	41.0	29.0	65.0	n.a.	90.0	[75]
Russia: Vorkuta coal mining area		underground	active	1.0	n.a.	27.0	31.0	38.0	380.0	5.6	27.0	[110]
Russia: Tula coal mining region		unknown	abandoned	n.a.	n.a.	n.a.	n.a.	n.a.	164.5	17.4	n.a.	[111]
Greece: Ptolemais lignite basin		surface	abandoned	n.a.	n.a.	n.a.	10.1	n.a.	n.a.	12.3	17.5	[112]
				0.4	n.a.	44.4	65	62.1	110.0	11.7	876.0	[113]
Poland: Upper Silesian Coal Basin		underground	active	2.55	n.a.	16.5	7.1	106.0	273.9	n.a.	67.1	[114]
				0.80	0.07	8.5	6.3	39.8	62.5	8.8	34.4	[115]
Poland: Smolnica hard coal mine		underground	abandoned	n.a.	n.a.	39.5	n.a.	61.5	80.0	n.a.	n.a.	[76]
Czechia: Litvínov City area		surface and	active	0.46	n.a.	31.1	26.0	48.9	175.0	41.7	45.6	[116]
		underground	abandoned
Czechia: Sokolov Coal Basin		surface	active	0.98	n.a.	36.1	19.1	40.7	118.0	33.7	40.0	[117]
Czechia: Ostrava City		underground	active	0.21	0.19	21.1	n.a.	37.7	204.5	n.a.	17.4	[118]
Czechia: North Bohemian Region		surface	active	0.33	0.17	35.7	32.6	51.5	107.9	33.8	n.a.	[79]
Croatia: Raša coal mine		underground	abandoned	1.00	0.09	55.0	74.0	45.0	169.0	17.0	123.0	[119]
Croatia: Labin City area		underground	abandoned	2.01	n.a.	2226.0	176.0	484.4	2778.0	21.9	684.6	[77]
Spain: Langreo		underground	abandoned	0.60	0.40	39.0	18.3	91.6	136.2	21.8	18.9	[81]
Portugal: São Pedro da Cova		underground	abandoned	0.11	n.a.	50.2	24.3	50.2	97.0	22.6	74.1	[120]
Portugal: Douro coalfield		underground	abandoned	0.20	n.a.	36.5	21.4	30.8	57.0	38.3	92.3	[80]
Norway: Svalbard		underground	abandoned	n.a.	n.a.	n.a.	5.1	2.0	29.3	0.3	5.6	[52]
Wales (U.K.): Varteg mine		surface	abandoned	1.16	n.a.	63.9	n.a.	224.0	192.8	n.a.	n.a.	[121]

Note: n.a. = not analyzed.
