Uranium-Bearing Layers of Sandstone Type Uranium Deposits Identification and Three-Dimensional Reconstruction in the Northern Ordos Basin, North-Central China

Abstract

Sandstone type uranium is the most valuable and has the most potential for mining among the known uranium deposits. In the process of forming, the hydrolytic migration and enrichment of uranium require special basin sedimentary environment and tectonic background. Therefore, the mineralization process of sandstone type uranium deposits has certain layering characteristics and distribution rules in the underground vertical depth space. It is important to mine the spatial distribution characteristics of vertical uranium-bearing layers, and thus, reconstruct the three-dimensions of uranium orebodies. In this paper, according to the metallogenic law and distribution characteristics of sandstone type uranium in the underground vertical space, a nonlinear uranium-bearing layers identification (NULI) method of sandstone type uranium is proposed by using different types, resolutions and scales of borehole data. Then, the depth of uranium mineralization for the Daying uranium deposit within northern Ordos Basin is identified accurately and the spatial distribution characteristics of the uranium-bearing layer on the exploration line are obtained. Finally, the occurrence mode of the underground uranium orebodies are presented by using three-dimensional reconstruction analysis. It provides a basis for the prediction, exploration and mining of sandstone type uranium deposits within the Ordos Basin.

1. Introduction

Uranium is a strategic resource closely related to national security and economic development. Uranium resources are an important guarantee for the sustainable development of nuclear energy and national defense construction in China. As a clean and stable base load energy, uranium resources are an important choice to achieve carbon neutrality, which can ensure sustainable economic development and ecological civilization construction in China. Sandstone type uranium deposit is the most promising and valuable type of uranium deposit. It may have been discovered in the Ordos Basin, Erlian Basin, Ili Basin, and in the Songliao Basin, in China, and some have already reached the scale of large/ultra-large mineral deposits [1]. Sandstone type uranium deposit play an important role in the supply of uranium resources in China. They are characterized by shallow depth, large-scale reserves and low cost of mining [2,3]. At present, there are a series of studies on the geological conditions, mechanisms, and basin characteristics of sandstone type uranium deposits [4,5]. However, the deep prediction on its mineralization model and ore body size are in the exploratory stage [6]. Therefore, further research is needed for the exploration and prediction of sandstone type uranium deposits.

Ordos Basin, as an important treasure trove of uranium resources in China, is located in the northern part of the North China Craton [7,8,9]. Large or supersized sandstone type uranium deposits, such as Zaohuahao, Nalinggou, Hantai Temple, Daying, Bayinqinggeli and Dongsheng, have already been discovered in the northern part of the basin [10]. It is the milestone transformation in uranium exploration and mining research, and provided a foundation and driving force for sustainable development in China [11,12]. The Daying uranium deposit is one of the important areas for uranium exploration. Industrialized uranium ore bodies have been discovered in the Zhiluo Formation in Daying [13]. Previous references in this area have mainly focused on geological structure, sedimentary characteristics [14], uranium reservoirs [15,16], fluid characteristics [17], provenance tectonic [18,19] and ore-controlling factors [20,21] of sandstone type uranium deposits. The research on the uranium bearing layer identification and prediction is relatively lacking [22,23].

Sandstone type uranium deposits are formed within sedimentary sandstone formations and located at a depth of several hundred meters in vertically underground [24]. Compared with ordinary metal minerals and other types of uranium deposits, the transport and migration of uranium elements with fluid requires a special tectonic setting and metallogenic environment of the sedimentary basin [25,26]. The enrichment and mineralization of uranium elements require a special sedimentary stratigraphic combination [6,27]. It enables sedimentary mineralization in the interlayer oxidation zone and its vicinity through oxidation and reduction [28,29]. Therefore, uranium enrichment and mineralization have a certain spatial tendency towards the selection of sedimentary stratigraphic combinations within sedimentary facies, resulting in layered characteristics of sandstone type uranium deposits within the vertical depth range underground. It makes the identification and three-dimensional reconstruction analysis as the core of uranium-bearing layers studies in sandstone type uranium deposit.

In this paper, we selected the Daying uranium deposit within northern Ordos Basin as the research object, and proposed a NULI method of sandstone type uranium deposits. By calculating the depth and location of uranium anomalies in each borehole, the distribution characteristics of uranium bearing layers on exploration lines are analyzed, which can lay a foundation for the study of the spatial tendency of sandstone type uranium enrichment and mineralization for the selection of sedimentary stratigraphic combinations. Then, we use triangular mesh segmentation theory to identify and analyze the uranium bearing layers. The occurrence mode and three-dimensional reconstruction characteristics of uranium ore bodies are obtained. It provides the technical methods for describing the underground vertical spatial occurrence characteristics, resource prediction, exploring and mining of sandstone type uranium deposits.

2. Geological Setting

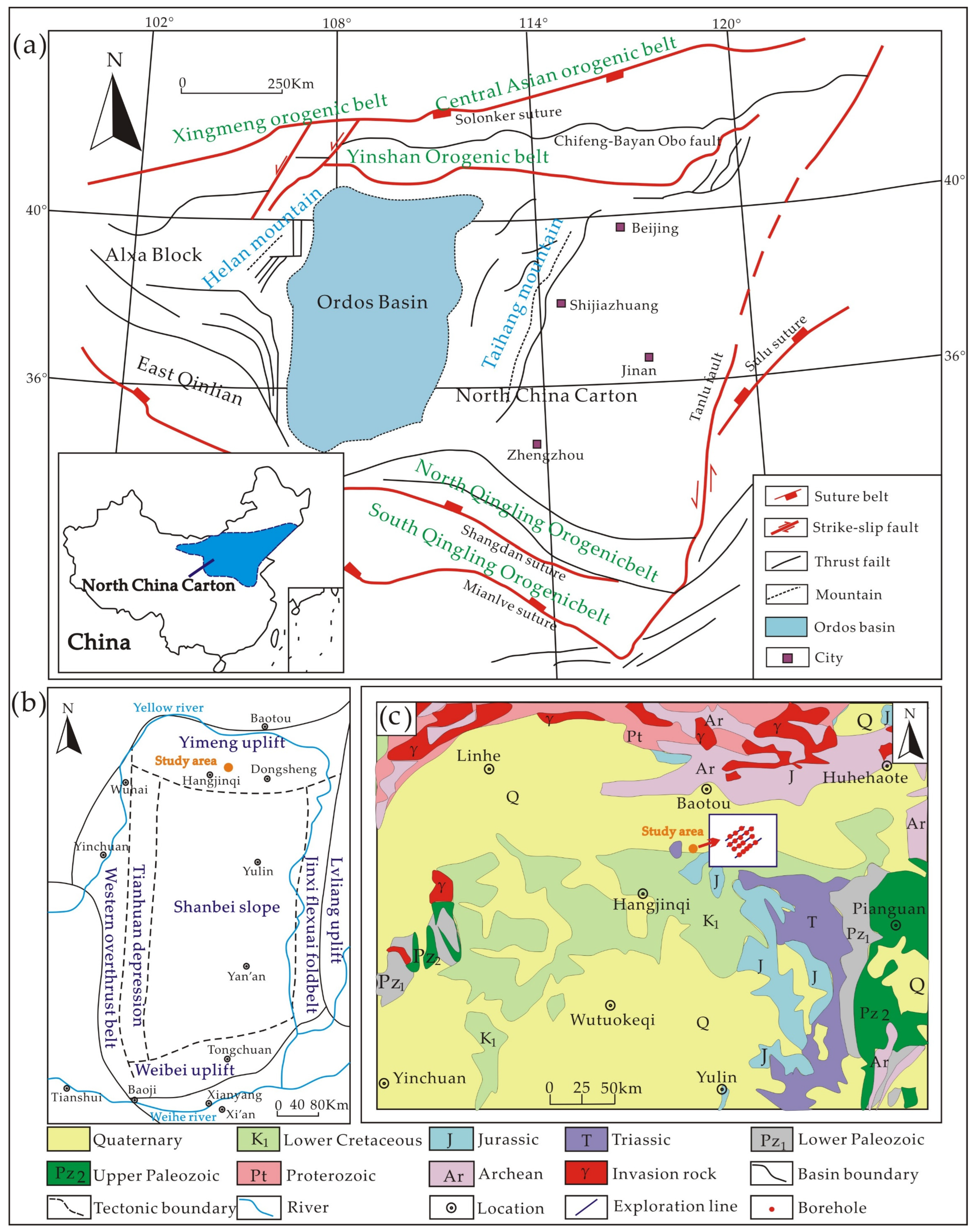

Ordos Basin is a part of the North China Craton, which formed on the basis of the North China Craton with an extension of 2.5105 km² [30] and contains abundant energy resources, such as oil, gas, coal and uranium-bearing deposits [31]. Ordos Basin is a Mesozoic and Cenozoic superimposed basin and has the most stable blocks of North China Craton [32], with the characteristics of overall uplift, wide and slow slope, continuous subsidence and uniform contact. The Ordos Basin is surrounded by orogenic belts [33,34] which include the Taihang Mountain to the east, the Qinling orogenic belt to the south, Helan Mountain to the west and Yinshan orogenic belt to the north (Figure 1a). Ordos Basin looks like a rectangular shape that extends from north to south [35], some fault depressions have developed between the basin and the orogenic system [36], which can be divided into six tectonic units that include the Yimeng uplift, western overthrust belt, Tianhuan depression, Jinxi flexural fold belt, Lvliang uplift and Weibei uplift [32,37] (Figure 1b).

In the Middle–Late Triassic, the Ordos Basin was compressed and uplifted among the Paleotethys oceanic crust to the southwest, the Alashan block to the northwest and the Yangtze plate to the southeast [38,39]; it then developed into an independent large sedimentary basin. The overall tectonic pattern of the basin is tectonic belts with different characteristics developed along the basin margin, while the internal tectonic of the basin is relatively undeveloped [40]. Ordos Basin began to deposit stably in the Mesoproterozoic, which contains two basement units, direct basement and indirect basement, with the characteristics of “double” basement [41]. The indirect basement of the basin consists of Archean Palaeoproterozoic metamorphic rock series, including Archean granulite facies, amphibolite facies metamorphic rocks and migmatite granite, amphibolite and greenschist of Proterozoic. The direct basement is from Mesozoic Triassic to Quaternary [42,43] with Lower Carboniferous; moreover, Devonian and Silurian strata are absent [44], and the Triassic, Jurassic and Lower Cretaceous are the main sedimentary bodies of the basin [45].

In northern Ordos Basin, fluvial and lacustrine facies developed on an alluvial diluvial plain in the inland depression basin within early Cretaceous [46], which provided the unique geological conditions for the migration of uranium elements [47]. Cap rocks include Invasion rock, metamorphic rock of Archean and Proterozoic, Upper and Lower Paleozoic, Triassic, Jurassic, lower Cretaceous and Quaternary (Figure 1c). The Jurassic strata are the location for uranium enrichment and mineralization [48], as well as the main layer for energy enrichment such as coal, oil and natural gas [2,49]. In this paper, we selected the Daying uranium deposit within northern Ordos Basin as the research object; the geographic coordinates are 108°54′24″–109°03′20″ E, 39°55′55″–40°06′15″ N (Figure 1c), and the altitude are from 1000 to 1500 m [50]. Under the control of basement structure, the develop structural features of basement fractures, folds, faults, etc., have certain control and influence on magmatism, sedimentary diagenesis and metamorphism in the study area [51], providing unique geological conditions for the enrichment of uranium deposits [25,52].

3. Proposed NULI Method

In this section, the NULI method is proposed for uranium bearing layers of sandstone type uranium deposits identification and three-dimensional reconstruction. The proposed NULI method consists of two main parts: (1) borehole data mining and (2) identification of vertical uranium bearing layers. A detailed presentation and description of these parts is given in the following subsections.

3.1. Borehole Data Mining

Borehole data are the core for the study of sandstone type uranium deposits [41,53]. In this paper, we divide borehole data into borehole quantitative data and borehole qualitative data. The borehole quantitative data includes natural gamma irradiation rate, aperture, natural potential, apparent resistivity and density. The borehole qualitative data includes strata, stratigraphic age, aquifer, permeability and rock lithology. For one borehole, the borehole quantitative data can be expressed as a matrix, and all boreholes on an exploration line can be represented by the following matrices.

$$x^1=\left[\begin{array}{cccc}{x}_{11}^1& x_{12}^1& \cdots & x_{1M}^1\\ x_{21}^1& x_{22}^1& \cdots & x_{2M}^1\\ ⋮& ⋮& \ddots & ⋮\\ x_{N_{1}1}^1& x_{N_{1}2}^1& \cdots & x_{N_{1}M}^1\end{array}\right]x^2=\left[\begin{array}{cccc}{x}_{11}^2& x_{12}^2& \cdots & x_{1M}^2\\ x_{21}^2& x_{22}^2& \cdots & x_{2M}^2\\ ⋮& ⋮& \ddots & ⋮\\ x_{N_{2}1}^2& x_{N_{2}2}^2& \cdots & x_{N_{2}M}^2\end{array}\right]\cdots x^k=\left[\begin{array}{cccc}{x}_{11}^k& x_{12}^k& \cdots & x_{1M}^k\\ x_{21}^k& x_{22}^k& \cdots & x_{2M}^k\\ ⋮& ⋮& \ddots & ⋮\\ x_{N_{k}1}^k& x_{N_{k}2}^k& \cdots & x_{N_{k}M}^k\end{array}\right]$$

(1)

where $k$ is the sequence number of borehole, $x^k$ represents the k-th borehole on the exploration line, $M$ is the number of the borehole quantitative data, $N_1-N_k$ are the number of sampling points for borehole quantitative data of the k-th borehole, $x_{N_{k}M}^k$ represents the data value of the sampling point on the M-th variable in the k-th borehole. Therefore, the k-th borehole $x^k$ can be expressed as follows:

$$x^k={\left\{x_{ij}^k\right\}}_{i=1}^{N_k},$$

(2)

where $j$ is the j-th variable in the k-th borehole and $j\in \left(1,M\right)$, $i$ shows the i-th data point on the j-th variable for the k-th borehole and $i\in \left(1,N_k\right)$, $N_k$ is the sampling number of the k-th borehole, $x_{ij}^k$ represents the data value of the i-th sampling point on the j-th variable for the k-th borehole.

Borehole quantitative data have different data units and showing heterogeneous with different scales and resolutions. Therefore, we preprocess it into dimensionless data that can be used for metric fusion analysis; the preprocessing method is as follows:

$$x_{ij}^k=\frac{{\displaystyle \sum _{i=1}^{N_k-t}{x}_{ij}^k{x}_{(i+t)j}^k}}{\sqrt{{\displaystyle \sum _{i=1}^{N_k-t}{\left(x_{{}_{ij}}^k\right)}^2}}\times \sqrt{{\displaystyle \sum _{i=1}^{N_k-t}{\left(x_{(i+t)j}^k\right)}^2}}}$$

(3)

where $t$ is the coordinate of the sampling point on the j-th variable and $t=1,2,3,\cdots n$, $n\le N_k$, $x_{(i+t)j}^k$ represents the data value of the j-th variable with (i + t)-th sampling point in the k-th borehole.

In this paper, we construct borehole qualitative data based on the concept of relevant component analysis [54,55]. First, we collect stratigraphic age data at different depths of each borehole, then construct a stratigraphic age constraint matrix $C^k$ that matches the borehole quantitative data, and the calculation formula is as follows:

$$C^k={\left\{x_{pl}^k\right\}}_{l=1}^{n_p},$$

(4)

where $p$ is the p-th stratigraphic age for the k-th borehole and $p\in \left(1,5\right)$ in this paper, $l$ represents the data point within the p-th stratigraphic age, and the total number for this stratigraphic age is $n_p$, $x_{pl}^k$ shows the data value of the l-th data point on the p-th stratigraphic age for the k-th borehole.

According to the $C^k$, the borehole quantitative data can be divided into different vertical layers, and the borehole data within each vertical layer belongs to the same stratigraphic age. The total variance ${\widehat{C}}^k$ of borehole quantitative data for each vertical layer is calculated using the following formula:

$${\widehat{C}}^k=\frac{1}{N_k}{\displaystyle \sum _{p=1}^{c_k}{\displaystyle \sum _{l=1}^{n_p}(x_{{}_{pl}}^k-m_p^k){(x_{{}_{pl}}^k-m_p^k)}^T}},$$

(5)

where $m_p^k$ represents the average of borehole quantitative data in the p-th vertical layer for the k-th borehole, $c_k$ are the number of vertical layers divided in the k-th borehole.

In actual uranium mineralization process, uranium enrichment layers typically exhibit similar geological evolution characteristics, i.e., minimize the total variance within the vertical layer as much as possible. Therefore, the optimal vertical layer transformation matrix $W^k$ is constructed based on the above calculation results. Through the above calculation, the impact of different variables on uranium mineralization can be measured, and the transformation matrix is expressed as follows:

$$W^k={({\widehat{C}}^k)}^{-\frac{1}{2}},$$

(6)

Based on the measurements, we assign larger weights to variables with a high degree of impact on the mineralization of sandstone type uranium deposits and assign lower weights to variables with lower impact. Then, the new borehole data measurements can be obtained, and the calculation formula is as follows:

$$x_{ij}^k=\left|x_{ij}^k\right|\times \left|W^k\right|,$$

(7)

3.2. Identification of Vertical Uranium Bearing Layers

In this section, we organize and analyze the above measurements to obtain the vertical layer features $R^k\left(t\right)$ of each borehole, and express the vertical layer features as follows:

$$R^k\left(t\right)=\frac{1}{M}{\displaystyle \sum _{j=1}^M{x}_{ij}^k},$$

(8)

where $t$ is the depth position of the sampling points in the vertical layer, $M$ is the number of the borehole quantitative data.

Sandstone type uranium deposits typically exhibit a discontinuous “oscillation” state underground, which means they have discrete characteristics. Therefore, we conduct in-depth analysis based on Fourier thought [56,57] and power spectral density method [58,59]. Performing time/airspace analysis on $R^k\left(t\right)$, then the time/spatial function $S^k\left({\omega }_m\right)$ of the k-th borehole can be expressed as:

$$S^k\left({\omega }_m\right)={\displaystyle \sum _{n=0}^{N_k-1}{R}^k\left(t\right)e^{-{\omega }_{m}it}}=2{\displaystyle \sum _{n=0}^{N_k-1}{R}^k\left(t\right)e^{-\frac{2\pi m}{N{T}_n}i(n{T}_n)}},$$

(9)

where $T_n$ are the average interval between sampling points of borehole data,$m$ is the parameter of $S^k\left({\omega }_m\right)$ and $m=1,2,3,\cdots ,N_k-1$.

According to the Fourier transform, we perform an inverse Fourier transform on the time/space function and transform it into the underground vertical band range. Then, we perform the following transformation to obtain the vertical layer variation value ${\stackrel{⌢}{R}}^k\left(t\right)$, and the ${\stackrel{⌢}{R}}^k\left(t\right)$ of the k-th borehole can be transformed using the following formula:

$${\stackrel{⌢}{R}}^k\left(t\right)=\frac{1}{N_k}{\displaystyle \sum _{n=0}^{N_k-1}{S}^k\left({\omega }_m\right)e^{(\frac{2\pi }{N_k{T}_n}m)i(n{T}_n)}}=\frac{1}{N_k}{\displaystyle \sum _{n=0}^{N_k-1}{S}^k\left({\omega }_m\right)e^{imn(\frac{2\pi }{N_k})}},$$

(10)

The vertical layer variation value ${\stackrel{⌢}{R}}^k\left(t\right)$ reflects the possibility of uranium mineralization at depth t of the sampling point. Therefore, the following conditions should be met:

$$\{\begin{array}{c}{T}_n=\frac{1}{n}t\\ {\omega }_m=\frac{f}{N_k{T}_n}\\ {\omega }_m=\frac{2\pi }{N_k{T}_n}m\end{array}$$

(11)

where $N_k$ are the number of sampling points in the k-th borehole and $n=1,2,3,\cdots ,N_k-1$, $f\in R$.

4. Borehole Data

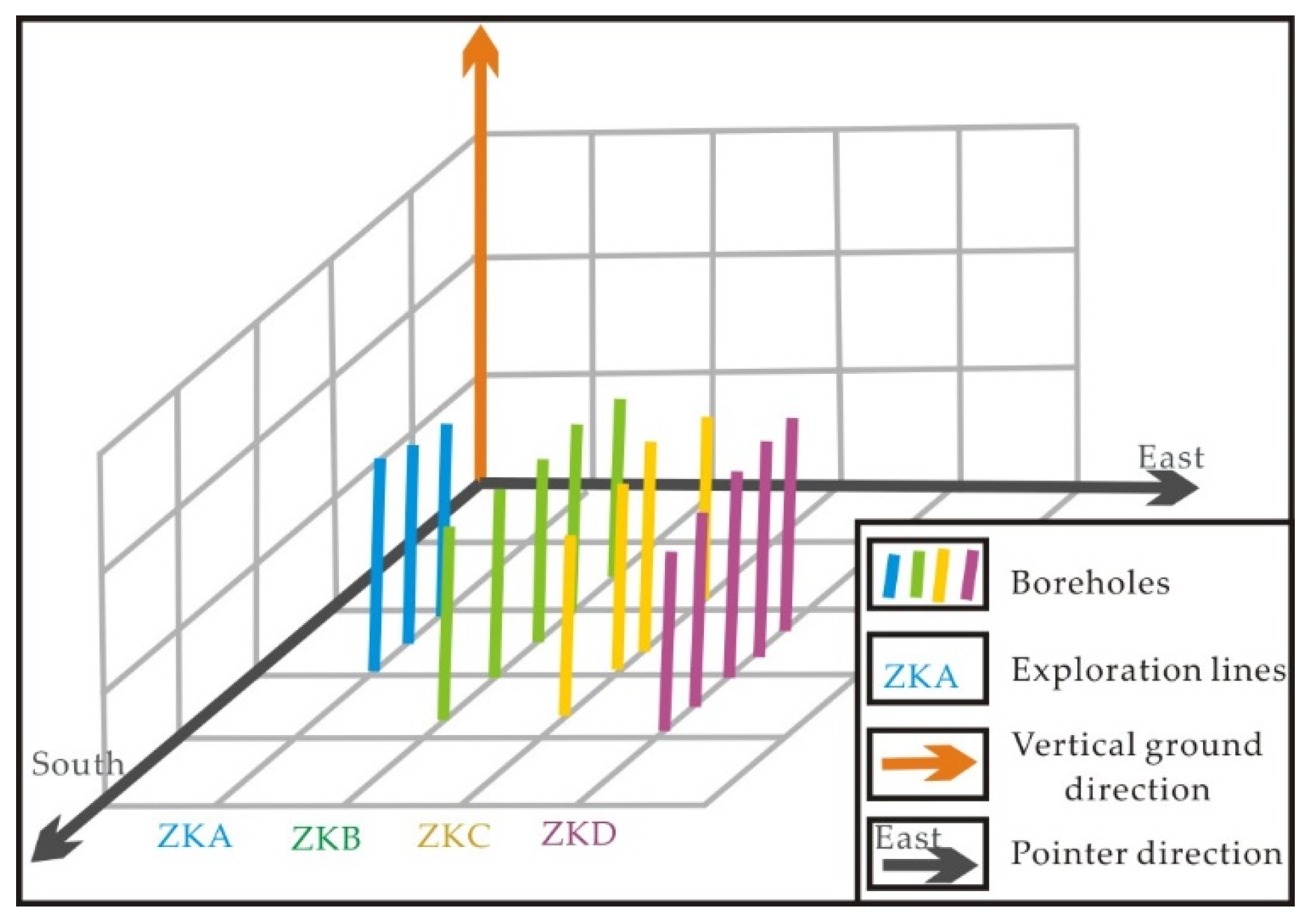

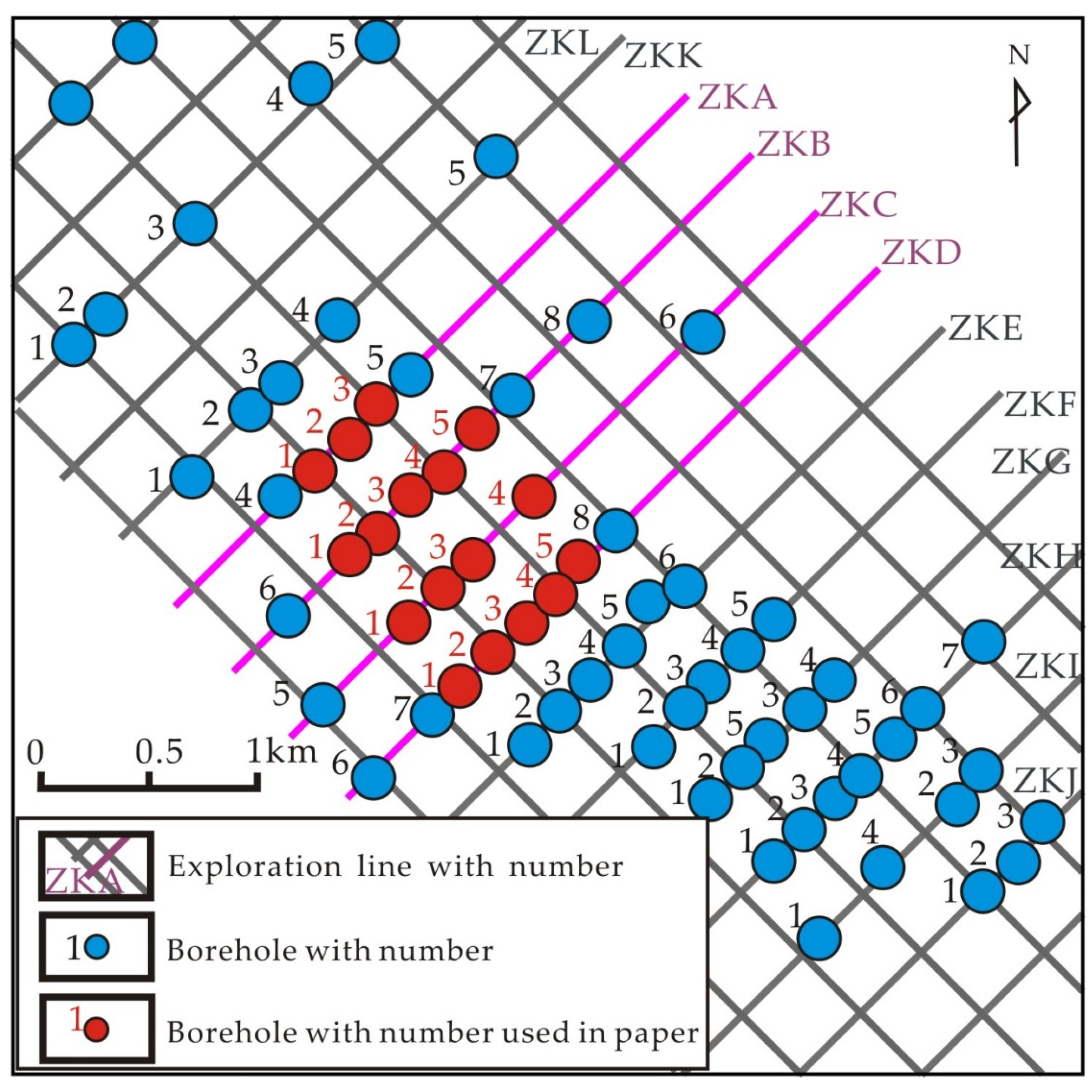

In the experiments, we selected 18 boreholes on 4 exploration lines in Daying uranium deposit within northern Ordos Basin; the 4 exploration lines are distributed in a grid shape (Figure 2 and Figure 3) and the names of the 18 boreholes are listed in

Table 1. List of borehole names in the study area.

Serial Number	Exploration Line	Borehole Number	Borehole Name
1	ZKA	3	ZKA-1, ZKA-2, ZKA-3
2	ZKB	6	ZKB-1, ZKB-2, ZKB-3, ZKB-4, ZKB-5
3	ZKC	4	ZKC-1, ZKC-2, ZKC-3, ZKC-4
4	ZKD	5	ZKD-1, ZKD-2, ZKD-3, ZKD-4, ZKD-5

. The strata involved in the 18 boreholes include the Middle Jurassic Yan’an Formation (J₂y), Zhiluo Formation (J₂z) and Lower Cretaceous (K₁); the Zhiluo Formation can be further divided into the upper Zhiluo Formation (J₂z²) and the lower Zhiluo Formation (J₂z¹), while the lower section of the Zhiluo Formation can be further divided into the upper sub section J₂z^1-2 and the lower sub section J₂z^1-1 (

Table 2. The vertical depth position of borehole exposed strata in the study area.

Borehole Name	Lower Cretaceous (K1)		Middle Jurassic (J2)
			Upper Zhiluo Formation (J2z2)		Lower Zhiluo Formation (J2z1)				Yan’an Formation (J2y)
					Upper Sub Section (J2z1-2)		Lower Sub Section (J2z1-1)
	Top (m)	Bottom (m)	Top (m)	Bottom (m)	Top (m)	Bottom (m)	Top (m)	Bottom (m)	Top (m)	Bottom (m)
ZKA-1	19.98	282.60	282.60	548.80	548.80	623.40	623.40	634.20	634.20	639.47
ZKA-2	19.99	282.40	282.40	550.40	550.40	622.40	622.4	635.34	---	---
ZKA-3	20.00	287.60	287.60	556.80	556.80	610.80	610.80	635.70	---	---
ZKB-1	20.00	289.00	289.00	545.90	545.90	643.70	643.70	651.64	---	---
ZKB-2	20.00	291.00	291.00	544.90	544.90	610.30	610.30	702.80	702.80	710.38
ZKB-3	20.00	300.00	300.00	562.40	562.40	629.40	629.40	648.55	---	---
ZKB-4	20.00	299.40	299.40	549.50	549.50	628.60	628.60	636.15	---	---
ZKB-5	20.00	294.70	294.70	553.00	553.00	657.40	657.40	701.60	701.60	715.31
ZKC-1	19.99	301.60	301.60	558.40	558.40	616.20	616.20	625.64	---	---
ZKC-2	20.00	301.00	301.00	562.40	562.40	614.40	614.40	630.00	---	---
ZKC-3	20.00	292.50	292.50	553.40	553.40	634.90	634.90	652.24	---	---
ZKC-4	20.00	307.20	307.20	570.60	570.60	657.00	657.00	720.00	720.00	735.47
ZKD-1	19.99	284.00	284.00	562.00	562.00	626.00	626.00	639.00	---	---
ZKD-2	19.99	300.20	300.20	550.10	550.10	629.60	629.60	727.10	727.10	733.03
ZKD-3	20.00	298.20	298.20	570.00	570.00	628.90	628.90	650.58	---	---
ZKD-4	20.02	305.00	305.00	579.60	579.60	637.80	637.80	726.30	726.30	740.95
ZKD-5	19.99	304.40	304.40	565.80	565.80	655.40	655.40	726.10	726.10	746.26

).

5. Results and Discussion

5.1. Identification Results of Vertical Uranium Bearing Layers

In the experiments, the vertical layer sampling thickness is set to 10 m. The vertical layer variation value is set to 0.8 for extracting the vertical uranium bearing layers, i.e., if the vertical layer variation value of the vertical uranium bearing layers are higher than 0.8, we determine there were the uranium bearing layers, otherwise it was the non-uranium bearing layer. After trial calculation, 90 vertical uranium layers were identified. According to the degree of uranium mineralization, the study area can be divided into two types, i.e., ordinary uranium mineralization layer and industrial uranium mineralization layer. These two types represent the possibility of uranium mineralization, in which industrial uranium mineralization are better than ordinary uranium mineralization. In the comparative analysis, the ordinary uranium mineralization layer and industrial uranium mineralization layer are contained within the identified 90 vertical uranium bearing layers from all the boreholes.

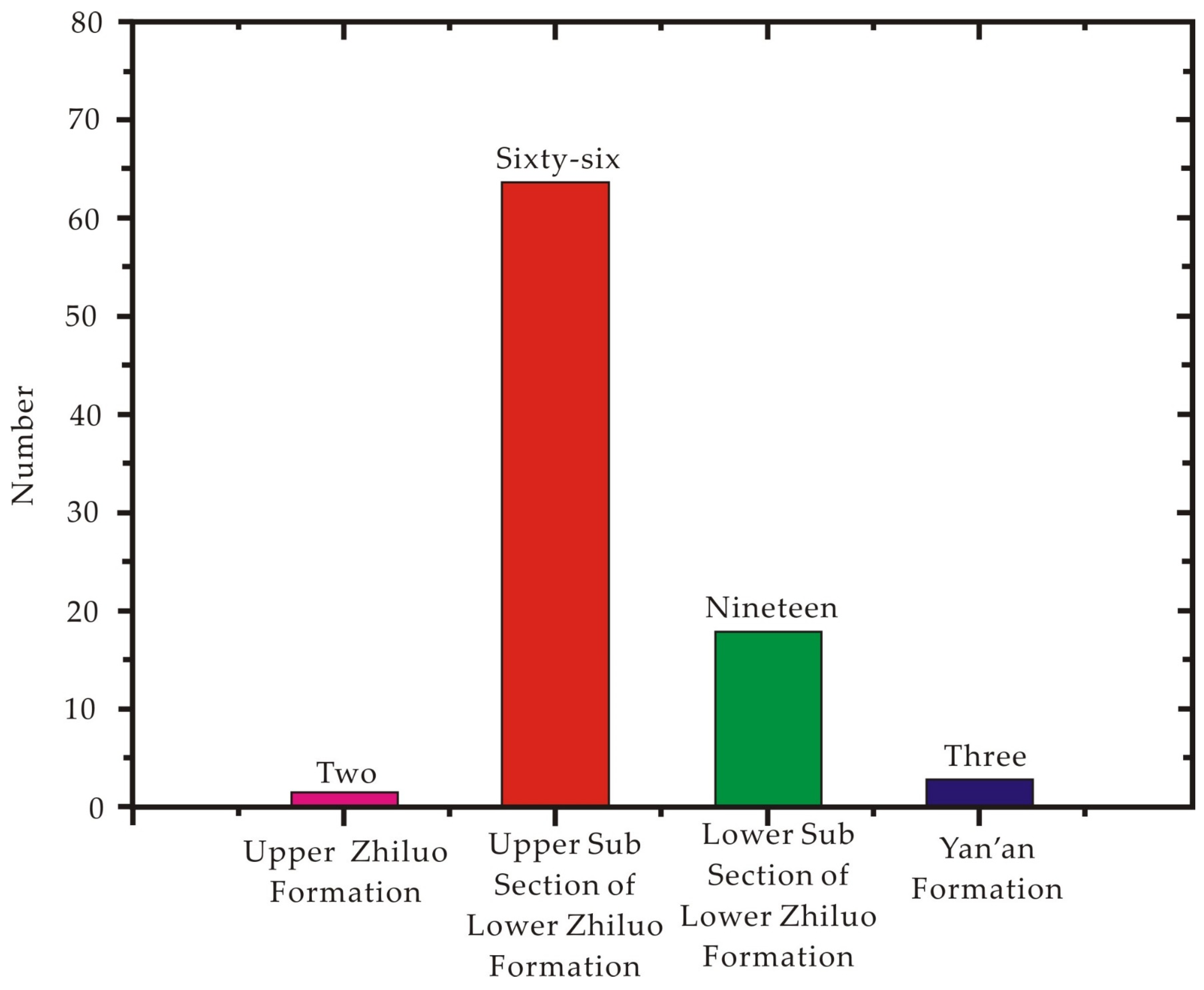

In the exposed strata, no vertical uranium bearing layers were identified in the Lower Cretaceous (K₁) strata, whereas in the Yan’an Formation (J₂y) and the Upper Zhiluo Formation (J₂z²) of the Middle Jurassic, only three and two vertical uranium bearing layers were identified, respectively. The remaining vertical uranium bearing layers are all located within the Lower Zhiluo Formation (J₂z¹) of the Middle Jurassic, which include Upper Sub Section (J₂z^1-2) and Lower Sub Section (J₂z^1-1), accounting for 73.33% and 21.11% of the total number of vertical uranium layers, respectively (Figure 4). The Lower Zhiluo Formation in the study area is located within a depth range from 550 m to 740 m underground, indicating that most of the vertical uranium bearing layers are within this depth range, while a small portion are within the depth range from 650 m to 740 m of Lower Sub Section in Zhiluo Formation for the Middle Jurassic, indicating that a small portion of the vertical uranium bearing layers are within this depth range.

On the exploration lines, 11 vertical uranium bearing layers were identified in the 3 boreholes of ZKA exploration line, in which 1 layer belongs to the Lower Sub Section and the rest are all in the Upper Sun Section of Lower Zhiluo Formation, located within a depth range from 560 m to 610 m underground. For the ZKB exploration line, 27 vertical uranium bearing layers were identified from 5 boreholes, where 5 layers are located in the Lower Sub Section and the rest are located in the Upper Sub Section of the Zhiluo Formation; most of the vertical uranium bearing layers are located within a depth range from 560 m to 640 m, and only 2 layers are located within a depth range from 680 m to 700 m underground. The ZKC exploration line includes 4 boreholes and we identify 24 vertical uranium bearing layers, with only 4 layers belonging to the Lower Sub Section and the rest are all in the Upper Sub Section of Lower Zhiluo Formation, where 2 layers located within a depth range from 710 m to 730 m and the rest are all in the depth range from 560 m to 650 m underground. The ZKD exploration line includes 5 boreholes and the number of vertical uranium bearing layers are the most in 4 exploration lines; the total number are 28, 3 vertical uranium bearing layers have been identified in the Yan’an Formation of the Middle Jurassic and no vertical uranium bearing layers have been observed in the Yan’an Formation on other exploration lines. Rhe number of vertical uranium bearing layers identified in the Lower Sub Section and Upper Sub Sections of the Zhiluo Formation are 10 and 15, respectively. The depth range of the vertical uranium bearing layer is from 570 m to 740 m, which is the largest depth span and the deepest position of vertical uranium bearing layer among the 4 exploration lines (

Table 3. Comparison between vertical uranium-bearing layers and mineralization information from ZKA to ZKD exploration line.

Exploration Line	Borehole	Vertical Uranium-Bearing Layer		Strata	Known Uranium Mineralization
		Start (m)	End (m)		Start (m)	End (m)	Degree
ZKA	ZKA-1	589.98	599.98	J2z1-2	595.00	597.00	Industrial
		599.98	609.88	J2z1-2	601.00	608.00	Ordinary
	ZKA-2	580.00	589.89	J2z1-2	582.25	585.45	Ordinary
		589.89	599.99	J2z1-2	591.45	592.75	Ordinary
		599.99	609.89	J2z1-2
	ZKA-3	550.00	556.80	J2z2
		556.80	560.00	J2z1-2
		560.00	569.90	J2z1-2	567.25	573.25	Ordinary
		569.90	579.90	J2z1-2	573.25	576.65	Ordinary
		590.00	600.00	J2z1-2
		600.00	609.90	J2z1-1
ZKB	ZKB-1	550.00	559.95	J2z1-2	551.00	552.00	Ordinary
		559.95	569.95	J2z1-2	568.30	571.00	Ordinary
		580.00	589.95	J2z1-2	586.15	589.45	Industrial
		589.95	600.00	J2z1-2	592.75	593.95	Industrial
				J2z1-2	597.10	600.00	Ordinary
		600.00	609.95	J2z1-2	600.80	601.90	Ordinary
	ZKB-2	580.00	589.95	J2z1-2	587.00	589.00	Ordinary
		589.95	600.00	J2z1-2	590.30	591.30	Ordinary
		600.00	610.30	J2z1-2	598.35	602.15	Industrial
				J2z1-2	609.05	610.25	Industrial
		610.30	619.95	J2z1-1
	ZKB-3	550.00	559.95	J2z2
		570.00	600.00	J2z1-2	573.15	573.95	Ordinary
					575.95	576.15	Ordinary
		600.00	609.95	J2z1-2	606.65	611.05	Industrial
		609.95	619.95	J2z1-2	615.45	616.85	Ordinary
					618.15	618.45	Ordinary
		619.95	630.00	J2z1-2
		630.00	639.90	J2z1-1
	ZKB-4	550.00	559.90	J2z1-2
		559.90	570.00	J2z1-2	562.45	564.75	Industrial
					568.75	569.75	Ordinary
		570.00	579.95	J2z1-2	572.65	573.15	Industrial
		610.00	620.00	J2z1-2	613.55	617.65	Industrial
		620.00	628.60	J2z1-2	620.75	622.45	Industrial
	ZKB-5	570.00	579.95	J2z1-2	572.15	579.95	Industrial
		579.95	589.95	J2z1-2	579.95	590.15	Industrial
		600.00	609.95	J2z1-2	606.00	608.00	Ordinary
		620.00	630.00	J2z1-2	623.00	626.00	Ordinary
		630.00	639.95	J2z1-2	631.00	633.00	Ordinary
		680.00	690.00	J2z1-1	687.00	689.00	Ordinary
		690.00	699.95	J2z1-1	691.00	692.00	Ordinary
ZKC	ZKC-1	560.00	569.90	J2z1-2	561.85	562.85	Ordinary
		580.00	589.89	J2z1-2
		589.89	599.98	J2z1-2	590.25	592.25	Ordinary
		599.98	609.89	J2z1-2	606.25	606.85	Industrial
					607.25	610.95	Ordinary
		609.89	616.20	J2z1-2	613.95	615.65	Ordinary
		616.20	619.79	J2z1-1
	ZKC-2	570.00	579.90	J2z1-2
		579.90	589.90	J2z1-2
		589.90	599.90	J2z1-2	589.75	593.15	Industrial
		599.90	610.00	J2z1-2	607.45	609.90	Industrial
		610.00	614.40	J2z1-2	610.00	614.25	Industrial
		614.40	619.90	J2z1-1
	ZKC-3	560.00	569.90	J2z1-2
		580.00	589.90	J2z1-2	585.25	589.35	Industrial
		589.90	600.00	J2z1-2	594.15	599.85	Industrial
		600.00	609.90	J2z1-2	604.55	609.90	Industrial
		609.90	619.90	J2z1-2	610.00	614.85	Industrial
		619.90	629.90	J2z1-2
	ZKC-4	580.00	589.90	J2z1-2	587.85	590.55	Industrial
		620.00	629.90	J2z1-2
		629.90	640.00	J2z1-2	637.95	639.05	Industrial
		640.00	649.90	J2z1-2	641.45	646.85	Industrial
		710.00	720.00	J2z1-1
		720.00	729.90	J2z1-1
ZKD	ZKD-1	570.00	579.90	J2z1-2	573.75	576.35	Industrial
		609.99	619.89	J2z1-2	610.45	618.35	Industrial
		619.99	626.00	J2z1-2
		626.00	629.88	J2z1-1
	ZKD-2	590.00	600.00	J2z1-2	594.95	599.90	Industrial
		600.00	609.90	J2z1-2	600.00	602.45	Industrial
		609.90	619.90	J2z1-2	609.25	616.15	Industrial
		619.90	629.60	J2z1-2	619.35	626.35	Industrial
	ZKD-3	630.01	639.91	J2z1-1	631.15	632.05	Ordinary
	ZKD-4	580.00	589.89	J2z1-2
		599.99	609.89	J2z1-2
		609.89	619.99	J2z1-2	609.75	610.65	Industrial
					613.05	618.55	Industrial
		619.99	629.98	J2z1-2	620.95	621.95	Industrial
		629.98	637.80	J2z1-2	628.55	636.85	Industrial
		637.80	649.88	J2z1-1	639.15	639.85	Industrial
					646.35	649.15	Industrial
		649.98	659.88	J2z1-1
		659.88	669.88	J2z1-1
		669.97	679.87	J2z1-1	670.85	677.75	Industrial
		726.30	729.88	J2y
	ZKD-5	599.99	609.89	J2z1-2
		629.98	639.88	J2z1-2
		639.88	649.88	J2z1-2
		659.98	669.87	J2z1-1
		669.87	679.97	J2z1-1
		679.97	689.87	J2z1-1	686.05	687.45	Industrial
		689.87	699.87	J2z1-1	693.85	695.45	Industrial
		726.10	729.96	J2y
		729.96	739.86	J2y	731.55	732.45	Industrial
					735.75	737.45	Industrial

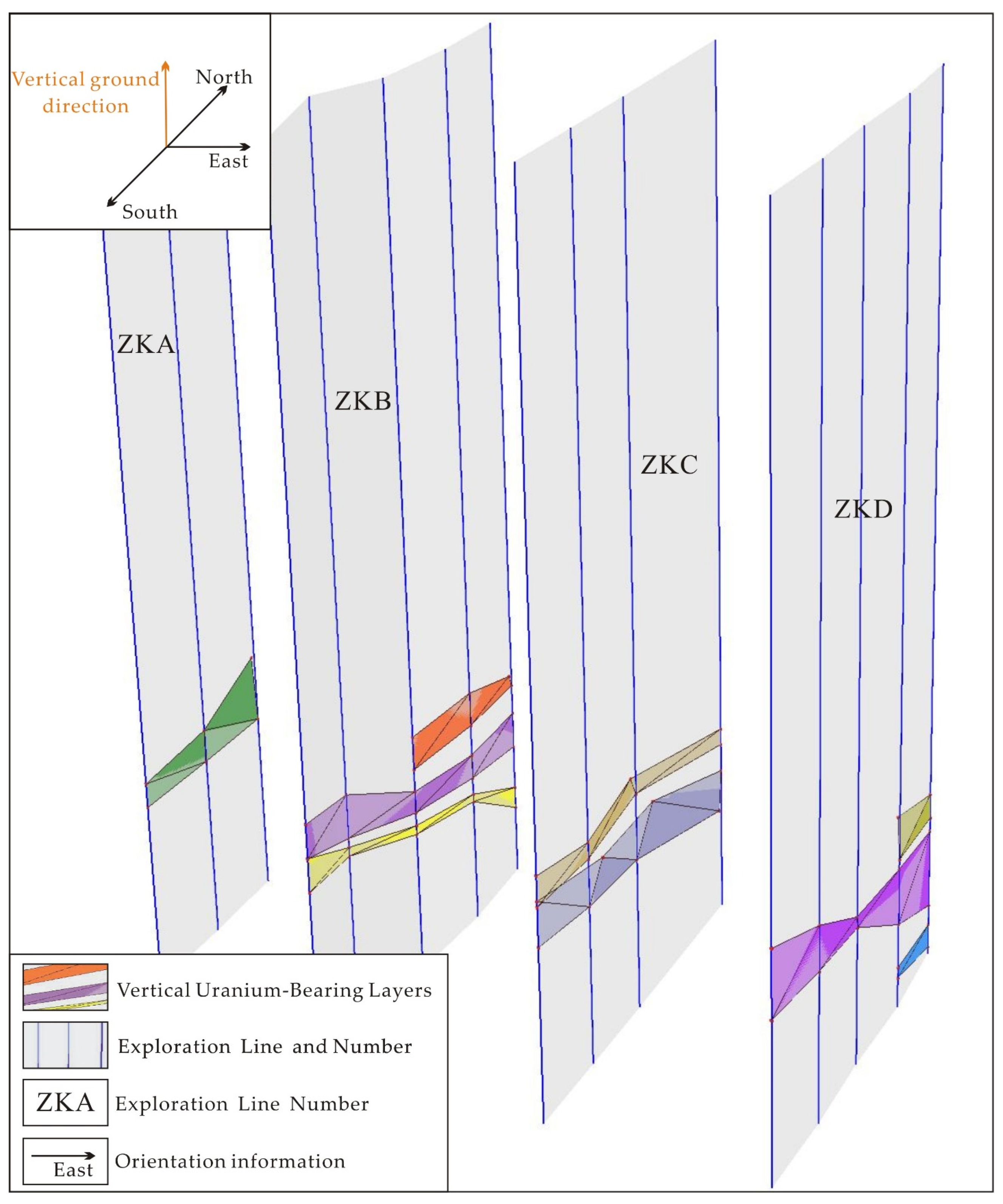

). Meanwhile, we plotted a two-dimensional vertical distribution of uranium bearing layers based on the depth position of each borehole’s vertical uranium bearing layer in the study area (Figure 5).

5.2. Vertical Three-Dimensional Reconstruction Analysis

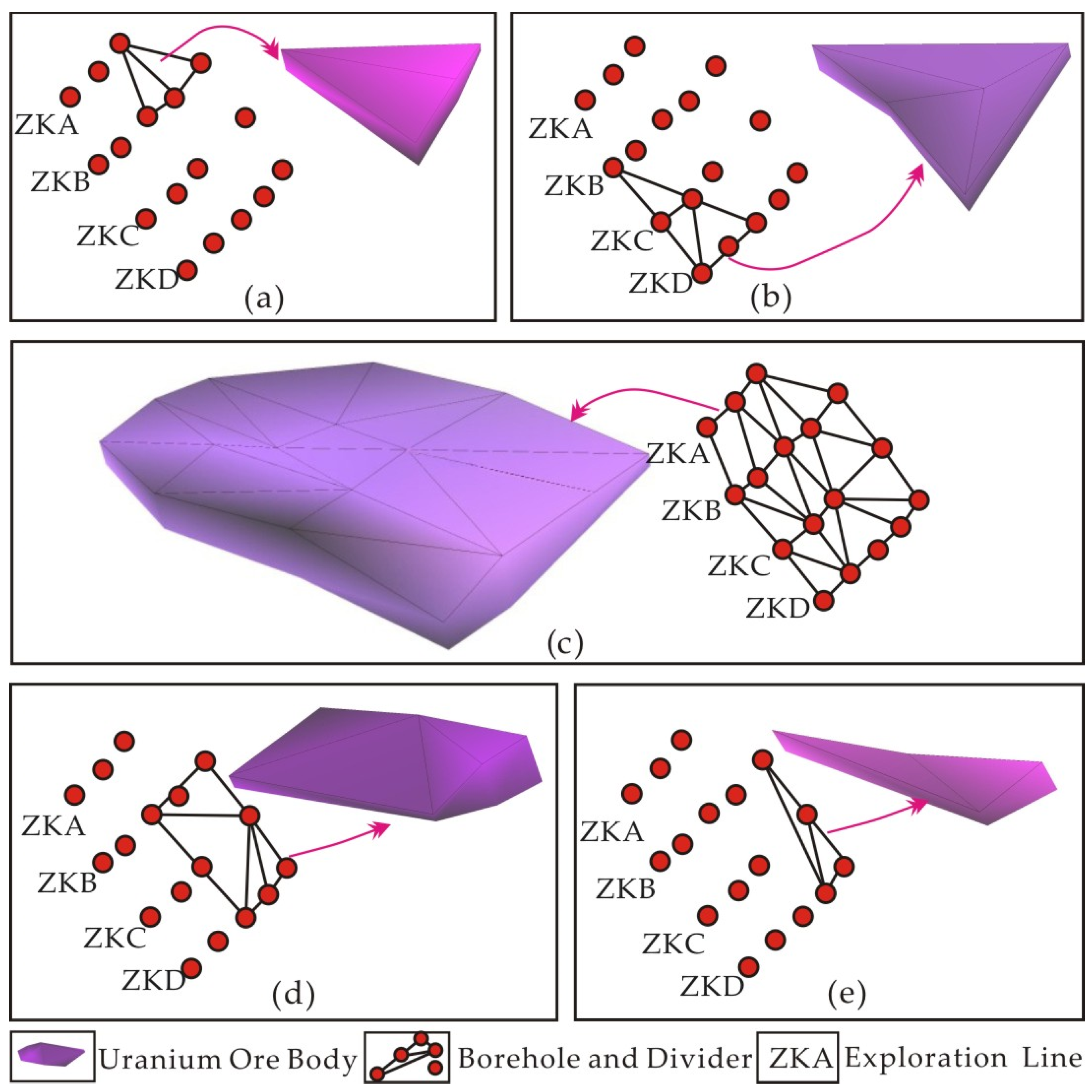

In this paper, we use triangular mesh segmentation method [60,61] to perform three-dimensional reconstruction analysis on vertical uranium bearing layers of the exploration line for the Daying uranium deposit within northern Ordos Basin. Five uranium ore bodies based on the vertical uranium-bearing layers and stratigraphic age were obtained. The borehole number and depth location of the uranium ore bodies are shown in

Table 4. The boreholes and depth positions for uranium ore bodies.

Uranium Ore Bodies	Borehole	Start (m)	End (m)	Ore Bodies Thickness
one	ZKA-3	550.00	579.90	29.90
	ZKB-3	550.00	559.95	9.95
	ZKB-4	550.00	579.95	29.95
	ZKB-5	570.00	579.95	9.95
two	ZKB-1	550.00	569.95	19.95
	ZKC-1	560.00	569.90	9.90
	ZKC-2	570.00	579.90	9.90
	ZKC-3	560.00	569.90	9.90
	ZKD-1	570.00	579.90	9.90
three	ZKA-1	589.98	609.88	19.90
	ZKA-2	580.00	609.89	29.89
	ZKA-3	590.00	609.90	19.90
	ZKB-1	580.00	609.95	29.95
	ZKB-2	580.00	619.95	39.95
	ZKB-3	600.00	619.95	19.95
	ZKB-4	610.00	628.60	18.60
	ZKB-5	579.95	609.95	30.00
	ZKC-1	580.00	619.79	39.79
	ZKC-2	579.90	619.90	40.00
	ZKC-3	580.00	629.90	49.90
	ZKC-4	580.00	589.90	9.90
	ZKD-1	609.99	629.88	19.89
	ZKD-2	590.00	629.60	39.60
	ZKD-4	580.00	619.99	39.99
	ZKD-5	599.99	609.89	9.90
four	ZKB-3	619.95	639.90	19.95
	ZKB-5	620.00	639.95	19.95
	ZKC-4	620.00	649.90	29.90
	ZKD-3	630.01	639.91	9.90
	ZKD-4	619.99	679.87	59.88
	ZKD-5	629.98	699.87	69.89
five	ZKB-5	680.00	699.95	19.95
	ZKC-4	710.00	729.90	19.90
	ZKD-4	726.30	729.90	3.60
	ZKD-5	726.10	739.86	12.86

.

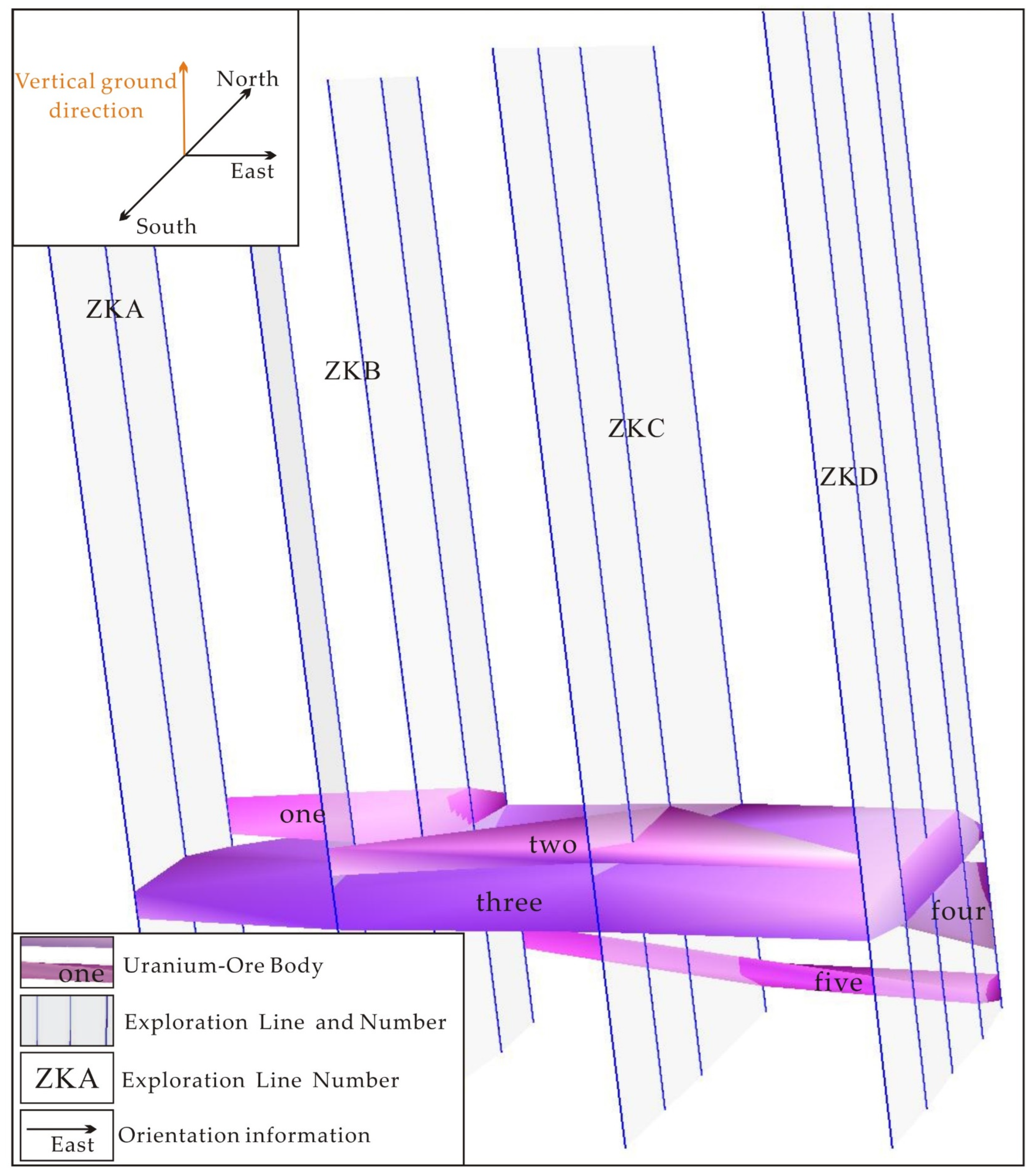

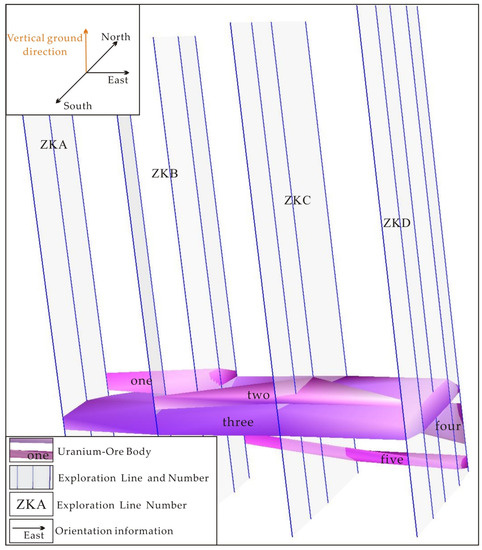

Uranium ore body one was reconstructed and analyzed through four boreholes on the ZKA and ZKB exploration lines. The thinnest thickness is 9.95 m and the thickest thickness is 29.95 m, which is located at the intersection of Upper Sub Section for Lower Zhiluo Formation and Upper Zhiluo Formation in Middle Jurassic. Most of the ore bodies are located in the Upper Sub Section of Lower Zhiluo Formation. Only the ZKB-3 borehole has a 9.95 m deep ore body located in the Upper Zhiluo Formation (Figure 6a). Uranium ore body two was reconstructed and analyzed through five boreholes on the ZKB, ZKC and ZKD exploration lines. The thinnest thickness is 9.90 m and the thickest thickness is 19.95 m. The uranium ore bodies are all located in the Upper Sub Section of Lower Zhiluo Formation (Figure 6b). Uranium ore body three was reconstructed and analyzed with all boreholes except ZKD-3 from four exploration lines, which is the largest uranium ore body in the study area. The thinnest thickness is 9.90 m and the thickest thickness can reach 49.90 m. The ore body is mainly located in the Upper Sub Section of Lower Zhiluo Formation, and only the ZKA-3, ZKB-2 and ZKC-1 boreholes have exposed in the Lower Sub Section of Lower Zhiluo Formation (Figure 6c). Uranium ore body four and five are all reconstructed and analyzed on ZKB, ZKC and ZKD exploration lines. Uranium ore body four has including six boreholes. The thinnest thickness is 9.90 m and the thickest thickness can reach 69.89 m, which is located at the intersection of the Upper Sub Section and Lower Sub Section of Lower Zhiluo Formation (Figure 6d). Uranium ore body five has including four boreholes. The thinnest thickness is 3.60 m and the thickest thickness can reach 19.95 m, and it is located at the intersection of the Lower Sub Section of Lower Zhiluo Formation and Yan’an Formation for Middle Jurassic, which is the smallest uranium ore body in the study area (Figure 6e). By mapping the five uranium ore bodies into underground vertical three-dimensional space, we can obtain the three-dimensional reconstruction features of the uranium ore bodies for the study area (Figure 7).

6. Conclusions

In this paper, we selected the Daying uranium deposit within northern Ordos Basin as the research object. According to the mineralization patterns and distribution characteristics of sandstone type uranium deposits in the underground vertical space, a nonlinear uranium-bearing layers identification (NULI) method of sandstone type uranium is established by utilizing borehole data with different types, resolutions and scales. First, borehole data were divided into the borehole quantitative data and borehole qualitative data. In the proposed NULI method, the depth and location of uranium mineralization in the vertical underground space were accurately identified by constraining the borehole quantitative data. The description of spatial distribution characteristics of vertical uranium bearing layers and three-dimensional reconstruction analysis of uranium ore bodies were achieved. In the experimental results, we found that the number of vertical uranium bearing layers are 66, located within the depth range from 550 m to 650 m in the Upper Sub Section of Lower Zhiluo Formation for the Middle Jurassic; 19 vertical uranium bearing layers are located within the depth range from 650 m to 730 m in the Lower Sub Section of Zhiluo Formation and only two and three vertical uranium bearing layers are located within the depth range from 550 m to 560 m in Upper Zhiluo Formation of Middle Jurassic and the Yan’an Formation with depth range from 720 m to 740 m.

The occurrence status of uranium ore bodies in the Daying uranium deposit within northern Ordos Basin has been intuitively depicted with the distribution characteristics of vertical uranium bearing layers. We obtained 5 uranium ore bodies, and the thinnest thickness is 9.90 m and the thickest thickness can reach 69.91 m. Uranium ore body three has the largest volume and the widest spatial distribution range, and is mainly located in the Upper Sub Section of Lower Zhiluo Formation for Middle Jurassic. The remaining four uranium ore bodies are all small in volume and distributed at the edge of the study area: uranium ore body two is located in the Upper Sub Section of the Lower Zhiluo Formation, uranium ore bodies one, four and five are located in the strata where the Upper Sub Section of Lower Zhiluo Formation intersects with the Upper Zhiluo Formation, the Lower Sub Section of Lower Zhiluo Formation and the Yan’an Formation for the Middle Jurassic.

7. Patents

The “3. Proposed NULI Method” in this manuscript has already applied for a patent, the patent number is ZL 202110686796.0.
