Stable Carbon and Oxygen Isotopic Features of Banded Travertines from the Xiagei Fissure Ridge System (Shangri-La, China)

by
Yaxian You
1,2,
Huaguo Wen
1,2,3,4,*,
Lianchao Luo
5,
Zhipeng Lu
1,2 and
Liang Li
6
1
State Key Laboratory of Oil and Gas Reservoir Geology, Chengdu University of Technology, Chengdu 610059, China
2
Institute of Sedimentary Geology, Chengdu University of Technology, Chengdu 610059, China
3
CNPC Key Laboratory of Carbonate Reservoir, Chengdu University of Technology, Chengdu 610059, China
4
Key Laboratory of Deep-Time Geographical Environment Reconstruction and Application, Ministry of Natural Resources, Chengdu 610059, China
5
Department of Earth Sciences, University of Florence, 50121 Florence, Italy
6
College of Earth Science, Chengdu University of Technology, Chengdu 610059, China
*
Author to whom correspondence should be addressed.
Minerals 2023, 13(1), 76; https://doi.org/10.3390/min13010076
Submission received: 19 November 2022 / Revised: 27 December 2022 / Accepted: 28 December 2022 / Published: 3 January 2023
(This article belongs to the Special Issue Geochemistry of Travertines and Calcareous Tufas)
Browse Figures
Versions Notes

Abstract

:
Banded travertines are important parts of fissure ridge systems, but studies on geochemical characterization of banded travertines are limited. This study investigated the lithofacies and stable carbon and oxygen isotopic features of banded travertines from Xiagei (southwestern China) to examine their formation mechanisms. Petrographic analyses of the banded travertines revealed two lithotypes: thick-laminated palisade crystalline crust and thin-laminated composite crystalline crust. δ13C and δ18O of the Xiagei banded travertines range from 2.82‰ to 4.50‰ V-PDB, and from −25.86‰ to −20.90‰ V-PDB. Parent CO2 evaluation shows that the Xiagei banded travertines mainly received CO2 from the decarbonation of marine carbonates, but the contributions of magmatic CO2 and the dissolution of marine carbonates are also unneglectable. Significantly, the magmatic-derived CO2 might indicate that the delamination of the lithosphere along with the asthenosphere upwelling could be taking place in the eastern Tibetan plateau. Paleotemperature calculation shows that the Xiagei travertines were precipitated from moderate- to high-temperature hot springs (44.3 to 86.8 °C). Interestingly, the thick-laminated palisade crystalline crust and thin-laminated composite crystalline crust display calculated paleotemperature between 66.6 and 86.8 °C and between 56.6 and 77.7 °C, respectively, reflecting the great role of water temperature in controlling the lithofacies of banded travertines. A comparison between the banded travertines at Xiagei and other areas also shows temperature is a non-negligible factor controlling banded travertine precipitation. However, this does not mean that water temperature is the decisive controlling factor and more studies on banded travertines are still indispensable to disclose the potential factors controlling the factors/processes affecting banded travertine lithofacies. This study provides a good example for understanding the relationship between lithofacies and stable isotopic geochemical characteristics of travertine deposits.

1. Introduction

Fissure ridges are common elongated travertine build-ups with open or (partly) sealed central fissures and inclined flanks dipping away from the central fissures in geothermal areas [1,2,3,4,5,6,7,8,9,10]. Travertine fissure ridges are closely related with tectonic activity, such as faulting and earthquakes [2,3,4,5,6,7,10,11,12,13,14,15,16]; and, as one of carbonate sediments, their geochemistry bears abundant tectonic-environment information [17]. Travertine deposits in fissure ridge systems can be divided into two types: bedded travertines and banded travertines (also named banded veins, carbonate/calcite veins, etc.) [3,4,5,6,11,16]. The former are epigean/surface carbonate deposits after the emergence of thermal water from orifices/vents and are deposits dipping gently away from nearly vertical, irregular central fissures, while the latter are less porous hypogean/underground subvertical to vertical carbonate deposits (i.e., formed during the upwelling of thermal fluid along the conduit) and are often small in scale (commonly millimeter-scale to decimeter-scale in width although meter-scale or even more large banded travertines were also reported) [1,4,5,6,11,12,18,19,20].
Previous studies on banded travertines in fissure ridge systems mainly focus on their distribution, geometry, mineralogy, texture, and tectonic implications [1,3,4,6,9,11,12,15,16,20,21,22]. There were also some studies on the geochemical and lithofacies characteristics of banded travertines [18,23,24,25,26], but rare studies focused on the relationship between geochemical signatures and lithofacies of banded travertines. Theoretically, the chemical composition of fluids in hypogean conduits might change during the formation of banded travertines and such variation might change both the geochemical signatures and lithofacies of banded travertines.
In this study, careful lithofacies and stable carbon and oxygen isotope analyses of banded travertines at Xiagei were performed to determine their genesis and the relationship between their lithofacies and stable isotope carbon and oxygen isotope compositions. Hydrochemical analyses of modern hot springs at Xiagei and mineralogical and petrological investigations of the Xiagei travertines were also conducted to aid in the interpretation of the Xiagei banded travertines. The findings may help us better understand the formation mechanism of banded travertines.

2. Geological Background

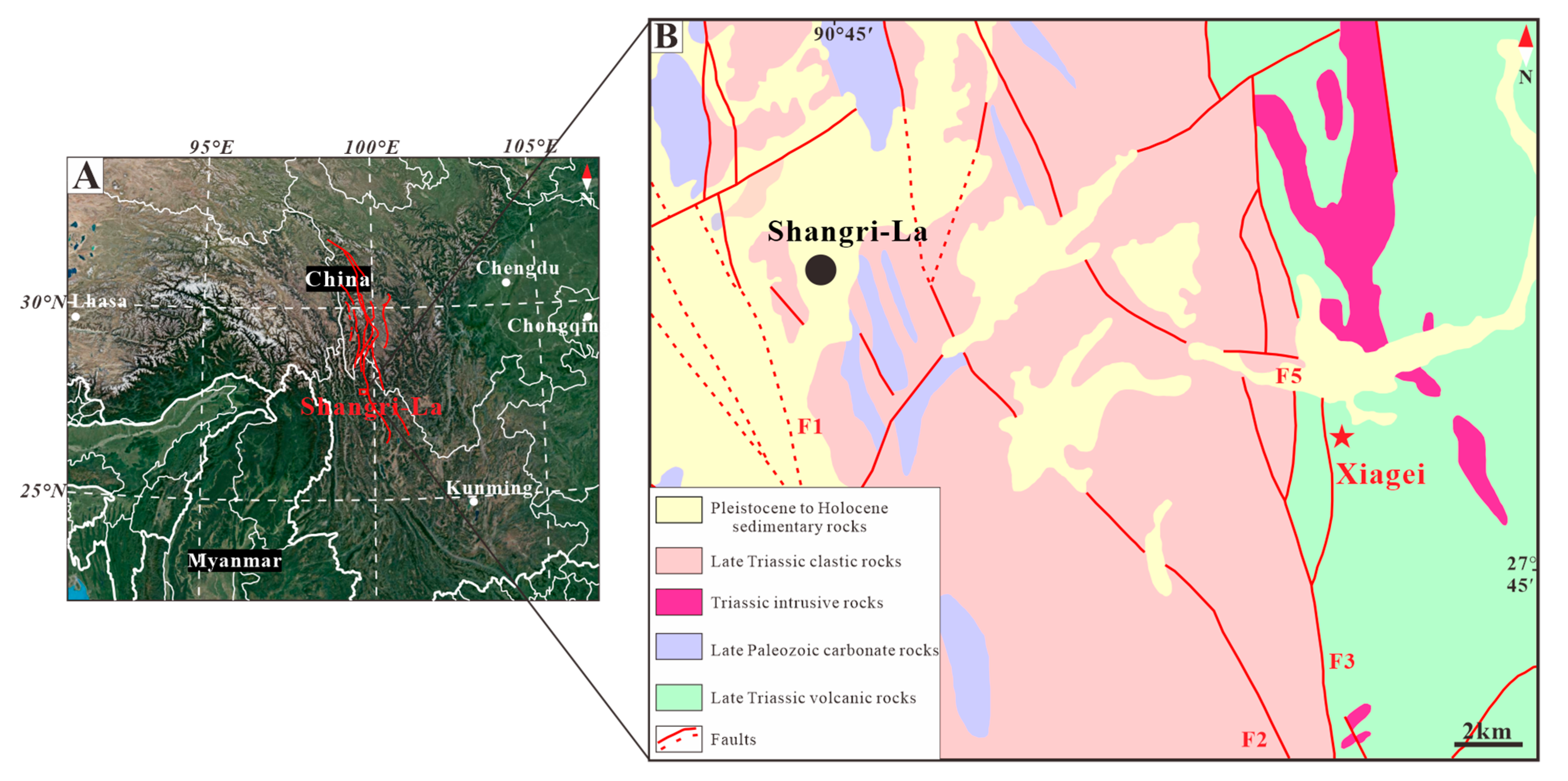

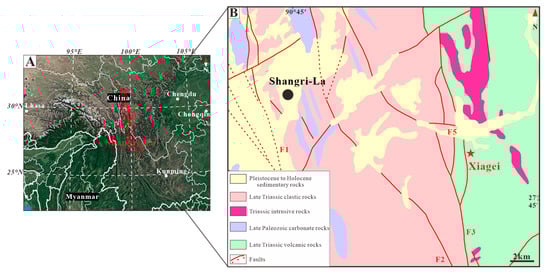

The Shangri-La area, Yunnan Province, China is located near the Jinshajiang fault zone, one of the most active tectonic zones in the Tibetan plateau (Figure 1A). Deposits exposed near the Shangri-La city are mainly composed of Pleistocene to Holocene lacustrine and alluvial-pluvial sediments (e.g., sandy conglomerate, gravel and clay) and Late Triassic sedimentary rocks (including both siliciclastic and carbonate rocks), but Late Paleozoic carbonate rocks and Triassic intrusive igneous rocks are also partly exposed in Shangri-La (Figure 1B) [27,28,29,30,31,32]. This area was continuously impacted by the subduction of the Paleo- and Meso-Tethyan oceans and continental collisions following their closures during the Mesozoic and the India-Asian collision during the Cenozoic [33,34,35]. There are lots of N-S trending faults and associated secondary faults [30]. These large-scale faults and fractures provided favorable conduits for the circulation and upwelling of geothermal fluids in Shangri-La and generated a large number of hot springs and associated spring deposits [29,30,31]. Five key fault zones controlling the hydrothermal activities have been reported in the Shangri La area: N-W striking Zhongdian reverse fault zone (F1), NWW-SEE-striking Yanggu fault zone (F2), N-S striking Gezanhe-Are reverse fault zone (F3), N-NE-striking Kangshi normal fault zone (F4), near E-W trending Tianshengqiao reverse fault zone (F5) (Figure 1B) [30].
The Xiagei area (99°51′20″ E, 27°47′00″ N), is situated to the northeast of the Shangri-La city and lies on the Tianshengqiao fault zone (Figure 1B). Some NW-SE trending and NE-SW trending travertine fissure ridges were developed at Xiagei (Figure 2A,B) and ranged from 25 to 140 m long and up to 120 m wide. The longest fissure ridge at Xiagei (i.e., Fr1 in Figure 2) is a NW-SE trending system and laterally extends around 140 m long (Figure 2A–C). In addition to travertine fissure ridges, some meter-scale travertine mounds/cones, waterfalls, and terraced slopes were also observed near the fissure ridges. Furthermore, a few hot springs occurred in the Xiagei fissure ridge system although their volumetric flow rates were often very low. Active hot springs at Xiagei discharged mid-temperature (41.4 to 63.1 °C) HCO3-Ca and HCO3-Ca-Na type waters with slightly acidic to near neutral pH (5.57 to 7.67) and high TDS (1249 to 1468 mg/L) [32]. Isotopic values of the Xiagei hot spring waters were reported to be between −15‰ and −16.2‰ V-SMOW for δ18Owater and between −128.3‰ and −133.4‰ V-SMOW for δDwater, which are close to the meteoric water line and are indicative of a meteoric origin [32].

3. Methods

Banded travertine samples were collected from the top area of Fr1 fissure ridge at Xiagei, where banded travertines were well exposed (Figure 2D). Some fossil bedded travertine samples and modern travertine samples were also collected at Xiagei. To analyze their petrological, mineralogical, and textural characteristics, nineteen thin sections were made from eighteen fossil travertine samples and were examined under an Eclipse LV100POL optical polarizing microscope (Nikon, Tokyo, Japan) at Chengdu University of Technology.
Stable carbon and oxygen isotope analyses were performed on 80 banded travertine samples, 12 bedded travertine samples, and three modern travertine samples at Yangtze University. Samples for δ13C and δ18O analyses were first dried and ground into powder. A Delta V Advantage isotope ratio mass spectrometer (Thermo Fisher Scientific, Waltham, MA, USA) was employed to measure the δ13C and δ18O values and the final results were calibrated to V-PDB (Vienna Pee Dee Belemnite) scale. Analytical errors of δ13C and δ18O are ≤0.2‰ and ≤0.3‰, respectively.
Water samples of three hot springs were also collected and analyzed to aid in the interpretation of banded travertines. Main physicochemical parameters of the water samples, including water temperature (Twater), pH, and total dissolved solids (TDS), were measured in the field using a portable water quality meter (Eutech CyberScan COND 610 meter, Eutech Instruments, San Francisco, CA, USA) and a portable pH meter (Lichen, Shanghai, China). Water samples for lab analyses were filtered using a 0.45 μm filtration membrane and were stored in 50 ml polyethylene plastic bottles. Concentrations of CO32− and HCO3− of water samples were determined by titration [36] soon after the sampling. Concentrations of other anions (F−, Br−, Cl− and SO42−) and common cations (Na+, K+, Ca2+ and Mg2+), and dissolved SiO2 were measured with an ion chromatography system (Dionex ICS-1100, Thermo Fisher Scientific, Waltham, MA, USA; 883 Basic IC plus, Metrohm, Herisau, Switzerland) at Analytical Laboratory of Beijing Research Institute of Uranium Geology (China). PHREEQC (ver. 3) with the WATEQ4F database [37] was utilized to calculate the saturation index of calcite (SIcalcite) and partial pressure of (dissolved) CO2 (log PCO2). Stable hydrogen (δDwater) and oxygen (δ18Owater) isotopes of the three collected water samples were also measured using an isotope ratio mass spectrometer (Delta V Advantage, Thermo Fisher Scientific, Waltham, MA, USA) at Analytical Laboratory of Beijing Research Institute of Uranium Geology (China). δ18Owater and δDwater values were calibrated based on the Vienna Standard Mean Ocean Water(V-SMOW) scale.

4. Results

4.1. Fissure Ridge Travertines at Xiagei

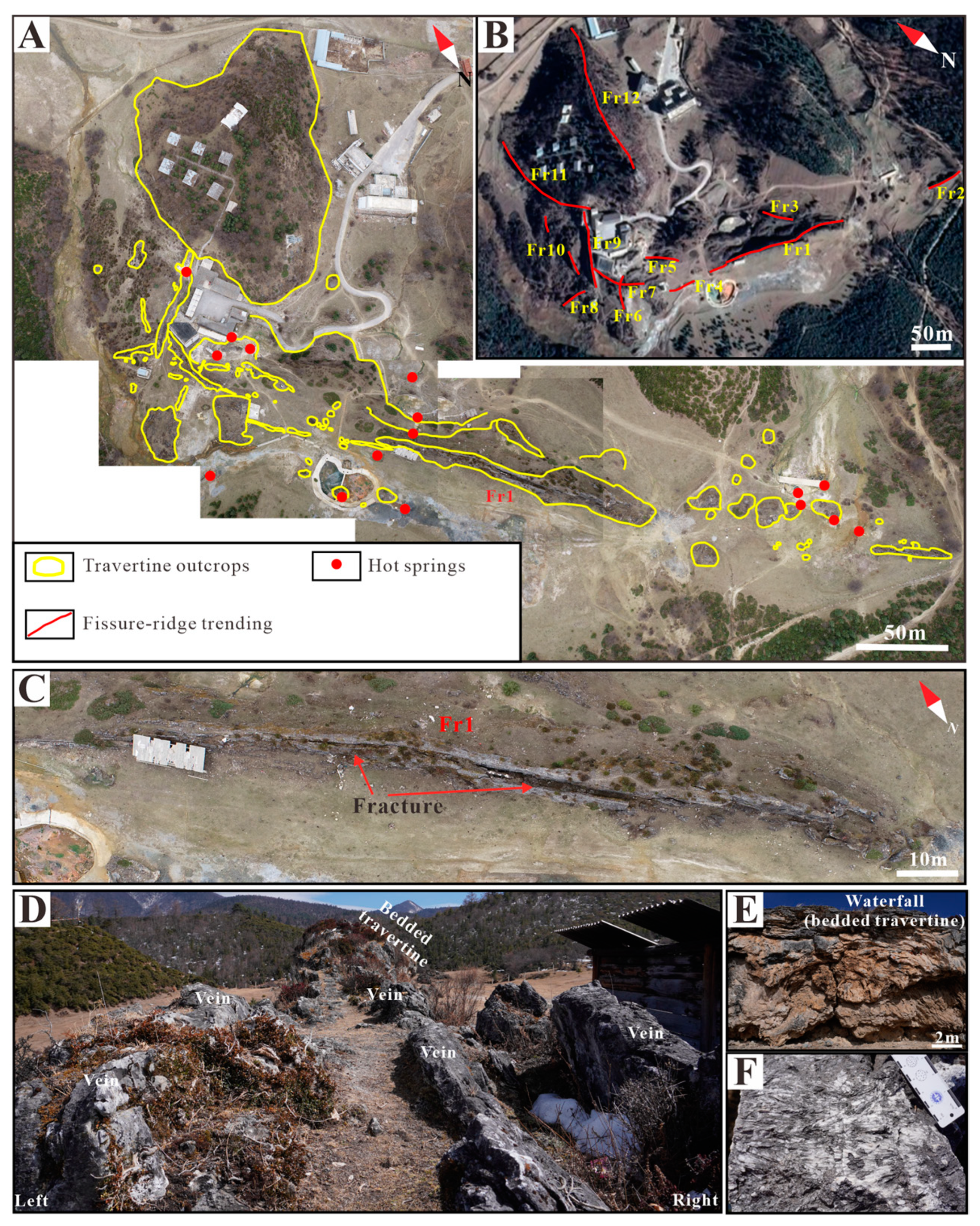

The Xiagei hydrothermal system is characterized by the occurrence of multiple active springs and widespread (modern and fossil) travertines (Figure 2). Travertines cropping out in the study area are ca. 0.08 km2 and contain twelve fissure ridges. The spatial distribution of the Xiagei fissure ridges is mapped in Figure 2A,B. It is striking that the Xiagei fissure ridges developed with two entirely different trends (NE-trending and NW-trending) and displayed varying lengths (25 to 140 m) and widths (1 to 120 m). Interestingly, some NE-trending fissure ridges were found to cut through some NW-trending fissure ridges, implying that there were at least two periods of fault activity at Xiagei.
A common characteristic of the Xiagei fissure ridges is that their central fissures are more or less filled with banded travertines. However, not all the banded travertines were well exposed and easily accessible, and only the longest fissure ridge (i.e., Fr1 in Figure 2A–C) cropped out thick and relatively complete banded travertines. Fr1 fissure ridge is a NW-trending system with a length of around 140 m, a maximum width of near 20 m, and a maximum height of about 20 m (Figure 2A–C). Several small travertine mounds and a 35-meter-long fissure ridge developed to the northwestern of the Fr1 fissure ridge and exhibited the same trend to the Fr1 fissure ridge (Figure 2A). The central fissure of Fr1 fissure ridge was not fully sealed by banded travertines. Soils, vegetation, and open fissures were also observed within the central fissure of Fr1 (Figure 2C).

4.2. Spring Water

Chemical composition and δ18Owater and δDwater of hot spring waters at Xiagei were reported in Table 1. The results show that the studied hot springs are characterized by slightly acidic to near neutral pH values and water temperatures between 31.7 °C and 58 °C. HCO3− (953 to 998 mg/L), Na+ (231 to 249 mg/L), and Ca2+ (120 to 151 mg/L) are the main components of the spring waters, while some SO42− (36.9 to 133 mg/L), Cl− (26.5 to 31.3 mg/L), K+ (16.4 to 20.5 mg/L), SiO2 (20.4 to 83.2 mg/L), and minor F− (2.95 to 9.84 mg/L) and Mg2+ (8.82 to 9.89 mg/L) are also present. δ18Owater and δDwater values of the three studied springs are between −15.3‰ and −14.5‰ V-SMOW (average = −14.9‰ V-SMOW), and between −133.9‰ and −128.7‰ (average = −133.3‰ V-SMOW), respectively (Table 1). The here obtained ion concentrations, δ18Owater, and δDwater are very close to the data reported earlier by Zheng [32]. Calculated SIcalcite and log PCO2 in hot spring waters from Xiagei range from 0.14 to 0.69 and from −0.54 to −0.96, respectively (Table 1).

4.3. Lithofacies of Banded Travertines

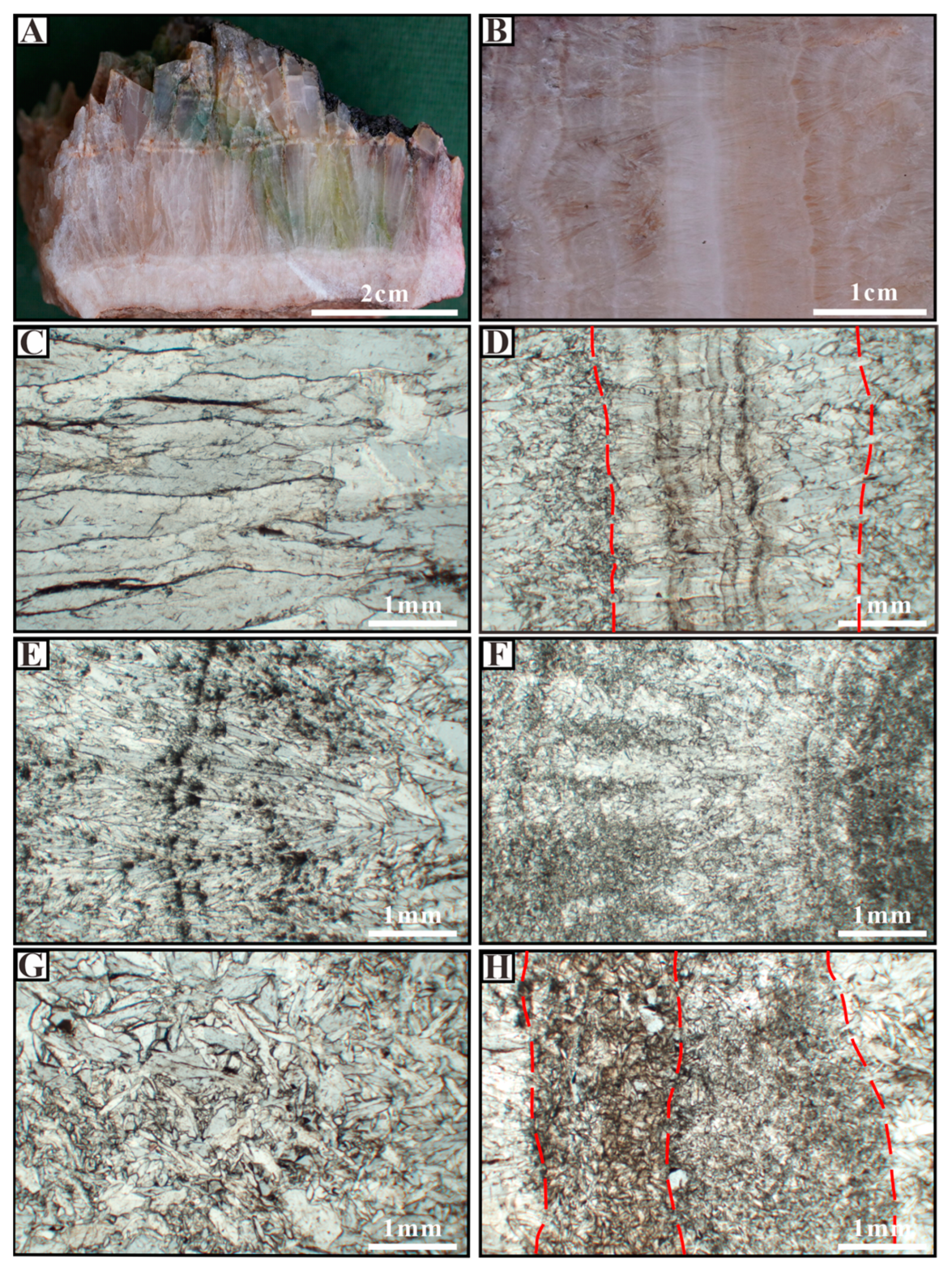

According to the travertine lithofacies classification of Gandin and Capezzuoli [38], the Xiagei banded travertines belong to abiotic crystalline crust. The Xiagei banded travertines is characteristic by striking lamination, but laminae of the Xiagei banded travertines show varying thickness from tens of micrometers to several centimeters. Additionally, the main components of the Xiagei banded travertines are diverse and include dendritic crystals, fan crystals, platy crystals, banded palisade crystals and granular crystals. Thus, the Xiagei banded travertines were here further divided into thick-laminated palisade crystalline crust and thin-laminated composite crystalline crust.
The thick-laminated palisade crystalline crust is not very common in the Xiagei banded travertines and stands out by the alternation of thick layers over one centimeter in thickness (Figure 3). Each thick layer is composed of abundant large palisade crystals often ranging from 1 to 3 cm long and over 0.4 mm wide and may contain several growth lines (Figure 3A,C). The growth lines were visible in both hand specimens and thin sections, but they were not laterally continuous. Palisade crystal growth was not terminated at most of the growth lines (e.g., Figure 3A).
Compared with the thick-laminated crystalline crust, the thin-laminated composite crystalline crust is characterized by the alternation of thin layers (less than 1 cm in thickness). Composition of the thin layers is very complex. Short-columnar crystals, dendritic crystals, platy crystals, fan crystals, granular crystals and calcite micrite were all found as possible main components of the thin layers. In many cases, the thin layers in the thick-laminated crystalline crust only consist of one component, such as the short palisade crystal layer in Figure 3D and the dendritic crystal layer in Figure 3E. However, in some cases, thin layers of the thick-laminated crystalline crust may contain several different components, such as the co-occurrence of dendritic crystals and micrite in Figure 3F.
Short-columnar crystals are the most common components in the thin-laminated composite crystalline crust from Xiagei and is dominantly composed of columnar-like calcite crystal often ranging from 3 to 8 mm in length, significantly shorter than the palisade crystals forming the thick-laminated palisade crystalline crust. Calcite micrite was observed among the short-palisade crystals but was not common in all samples. Dendrite crystals were found in many samples and were characterized by elongated trunks with plentiful branches. In terms of crystal morphologies, the dendrite crystals from Xiagei can be divided into two types: dendritic crystals (3 to 5 mm in length) coexist with micrites (Figure 3F) and typical feather-like calcite crystals (up to 4mm in length; Figure 3E). Platy crystals (Figure 3G) were present in some calcite veins at Xiagei and consisted of willow leaf bladed-like calcite with lengths commonly lower than 1 mm and thicknesses below 0.3 mm. The platy crystals co-appeared with some micrite (Figure 3G) and/or fan crystals. A few samples from the thin-laminated composite crystalline crust contained fan crystals and granular crystals. The fan crystals generally have high length-width ratio (≈1.5) and have varying sizes (up to 3.5 mm long and 2 mm wide). Granular crystals (Figure 3H) here refer to subhedral to anhedral calcite crystals. The granular crystals in the Xiagei thin-laminated composite crystalline crust display varying sizes from 0.15 mm to tens of microns in diameter.

4.4. Stable Isotopes

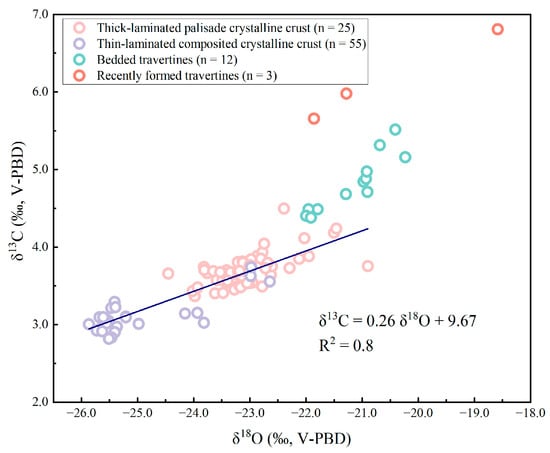

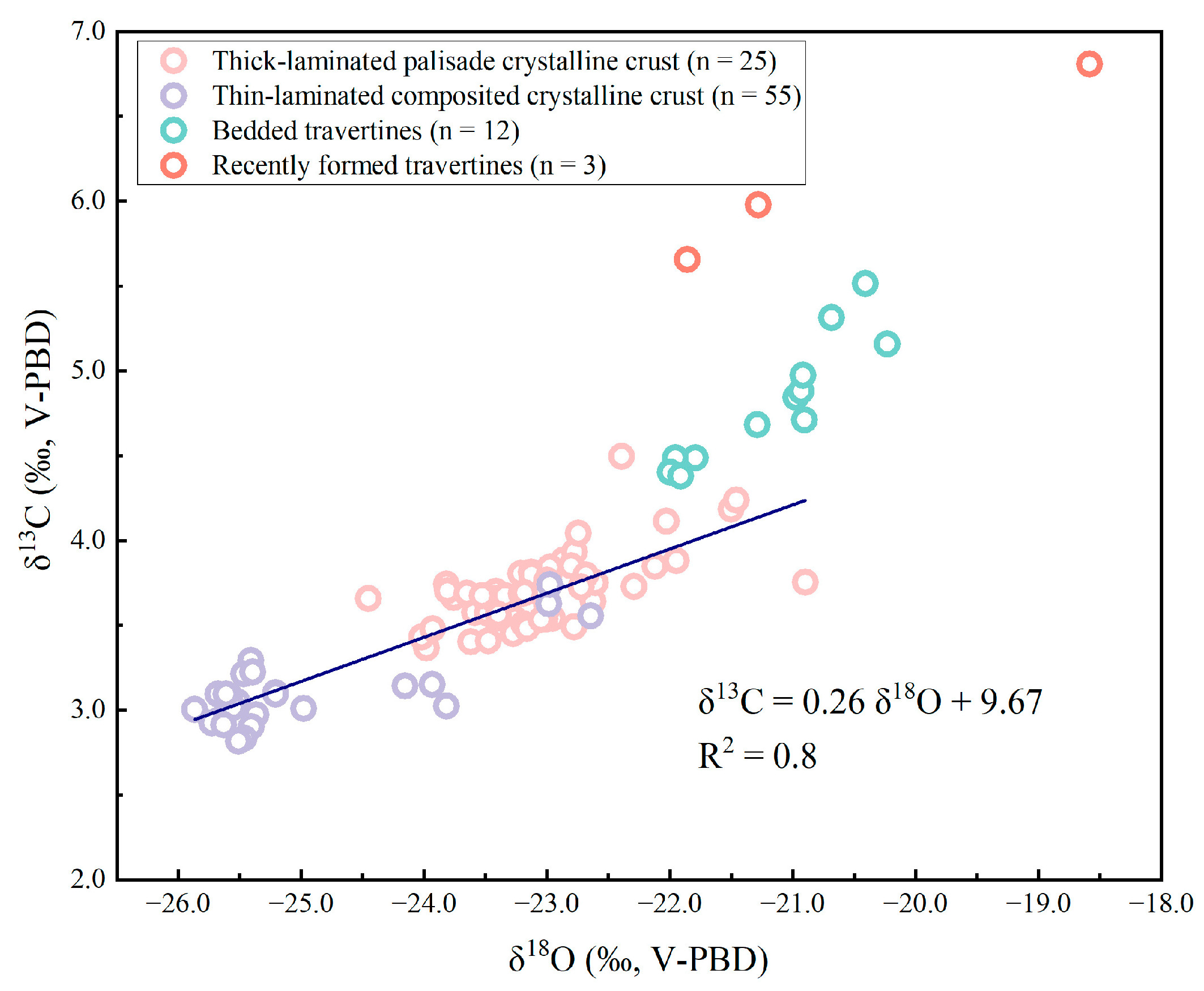

Stable oxygen and carbon isotope compositions of the Xiagei travertines were listed in Table 2 and illustrated in Figure 4 and Figure 5. The studied banded travertines show narrow variations of δ13C from 2.82‰ to 4.50‰ V-PDB (average = 3.52‰ V-PDB) and δ18O from −25.86‰ to −20.90‰ V-PDB (average = −23.66‰ V-PDB). The thick-laminated palisade banded travertines display different δ13C and δ18O ranges from the thin-laminated composite banded travertines. The former show δ13C between 2.82‰ and 3.74‰ V-PDB and δ18O between −25.86‰ and −22.64‰ V-PDB, while the later display more positive δ13C (3.37‰ and 4.50‰ V-PDB) and δ18O (−24.45‰ and −20.90‰ V-PDB). A good positive correlation (R2 = 0.8, n= 80) was also found between δ13C and δ18O of the banded travertines.
Bedded travertines from Xiagei show narrower δ13C and δ18O ranges compared to the fossil banded travertines (Table 2, Figure 5). They have δ13C values from 4.40‰ to 5.51‰ V-PDB (average = 4.82‰ V-PDB) and δ18O values from −22.00‰ to −20.23‰ V-PDB (average = −21.17‰ V-PDB). δ13C values of recently formed travertines from Xiagei are from 5.66‰ to 6.81‰ V-PDB (average = 6.15‰ V-PDB), slightly higher that δ13C of the banded travertines. Comparatively, δ13O of the recently formed travertines from Xiagei is more negative than that of the banded travertines and varies from −21.86‰ to −18.58‰ V-PDB (average = −20.57‰ V-PDB).

5. Interpretation and Discussion

5.1. Paleo-Temperatures for Banded Calcite Precipitation

Paleotemperature evaluation is of great importance in studies on fossil travertine systems because it can disclose the depositional conditions of travertines. The CaCO3-H2O oxygen isotopic geothermometer is considered to be a powerful tool for assessing the temperature of carbonate precipitation since the oxygen isotope fractionation will take place between the calcite/aragonite and water during naturally precipitated carbonates [5,6,39,41,42,43]. The calcite–water oxygen isotope fractionation equation developed by Kele et al. [39] (i.e., Equation (1)) is commonly utilized to predict the water temperature of fossil travertines because this equation decreases the influences of degassing and evaporation on the calculated results:
1000 lnα(travertine-water) = 20,000/Tcal − 36
where Tcal = calculated paleotemperature in Kelvin and α(travertine-water) is expressed as:
α(travertine-water) = (δ18Otravertine + 1)/(δ18Owater + 1)
where δ18Otravertine and δ18Owater refer to the δ18O values of travertines and spring waters, respectively.
In this study, the average δ18Owater value of active hot springs at Xiagei (δ18Owater = −15.2‰ V-SMOW, Table 1) was used in the paleotemperature calculation.

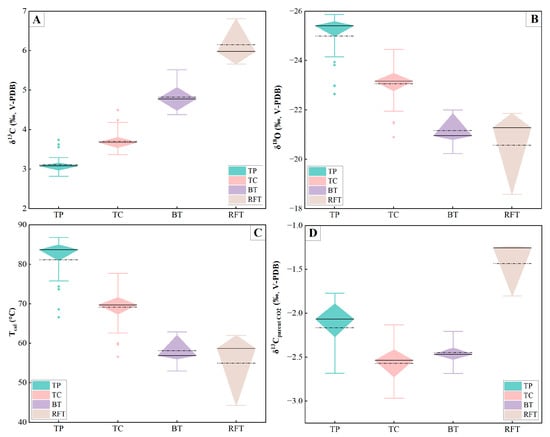

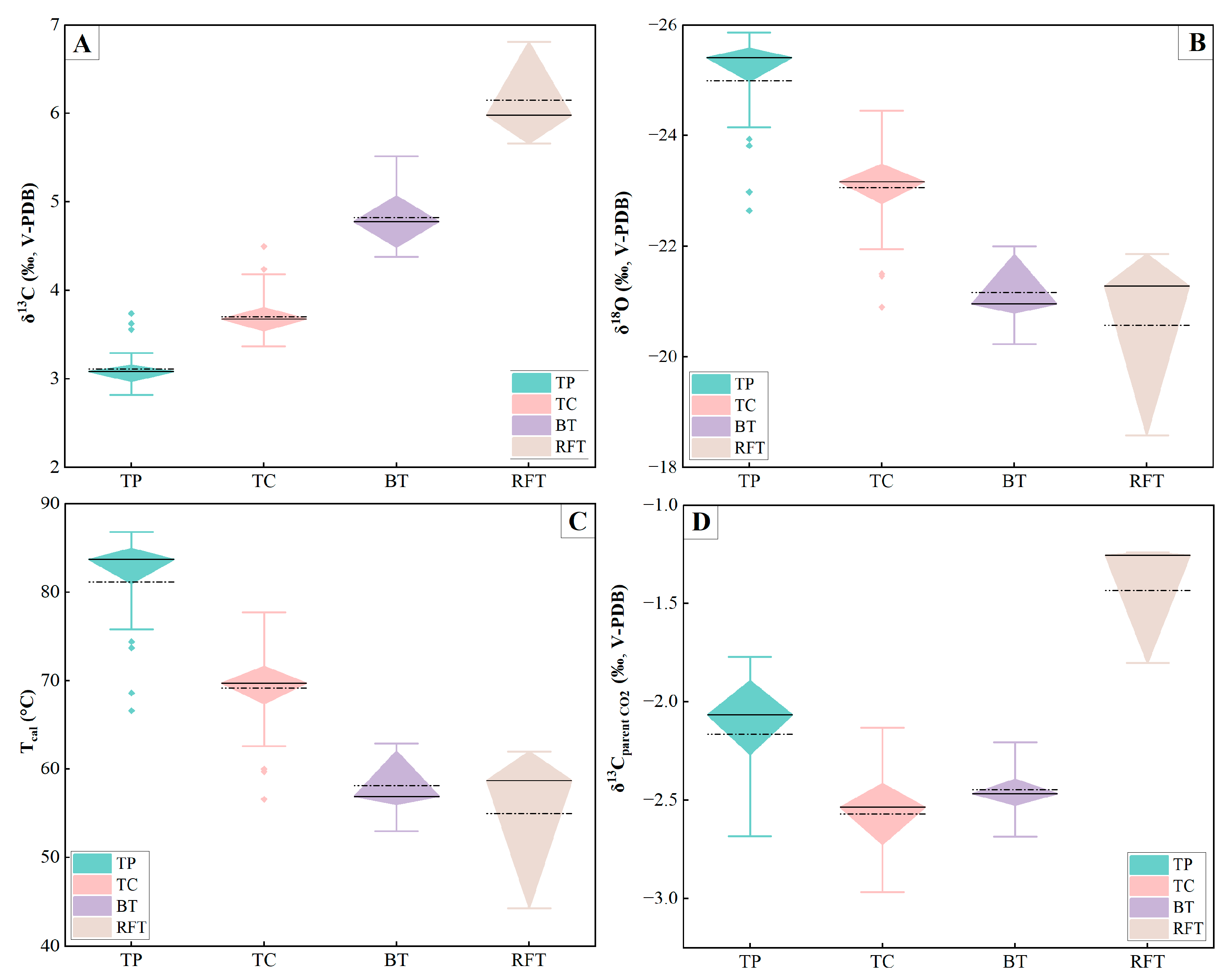

The calculated results (Table 2, Figure 5) show that banded travertines, bedded travertines, recently formed travertines from Xiagei exhibit Tcal from 56.6 to 86.8 °C, from 53.0 to 62.9 °C, and from 44.3 to 62.0 °C, respectively. This indicates that the studied travertines were formed in moderate- to high-temperature hot spring environments. Water temperatures of active hot springs at Xiagei vary from 32.0 to 63.1 °C (Table 1). However, according to our field observations, hot springs with high volumetric flow rates at Xiagei (e.g., S2; Table 1) often have vent temperatures of near 60.0 °C, slightly higher than Tcal of the recently formed travertines and close to Tcal of the bedded travertines (Table 2, Figure 5). This reflects that there were no significant vent temperature changes after the deposition of the studied bedded travertines.
The calculated paleotemperatures of the studied banded travertines generally range from 68 °C to 85 °C, higher than the vent temperatures of main active hot springs at Xiagei (ca. 60 °C; Table 2, Figure 5). This may indicate an unneglectable water temperature decrease between the places forming banded travertines and spring vents (i.e., vent temperature was lower than water temperature in the conduit). However, it must be noted that the vent temperatures in this study were measured in the margin areas of meter-scale vent pools. Thus, our measured temperatures might be slightly lower than the temperatures of spring waters outflowing from orifices just now, because the pool waters may have experienced important heat exchange with cool air (i.e., cooling). Such sample location-related temperature difference is common and unavoidable, especially for the large vent pools. Peng and Jones [44], for example, found that the spring water in the marginal areas of Eryuan pool (China) is 20 °C lower than the spring water near the Eryuan pool central vent. Therefore, simply extrapolating that there was a significant temperature decline between the places forming banded travertines and spring vents at Xiagei is still questionable. However, it is clear that fluid temperature changed a lot during the formation of the studied banded travertines, as shown by their great Tcal variation (56.6 °C to 86.8 °C).

5.2. Parent CO2 Origin of Travertines

Parent CO2 origins of spring-related carbonate deposits decide whether the deposits are tufas (also named meteogene travertines) or travertines (also called thermogene travertines) [45,46,47]. In this study, the equation (Equation (3)) from Chacko et al. [40] and the evaluated paleotemperatures (Tcal) were utilized to calculate the stable carbon isotope composition of parent CO2 of the Xiagei Travertines (δ13Cparent CO2).
1000 lnα(parent CO2-travertine) = –0.10028 + 5.4173x − 2.5076x2 + 0.47193x3 − 0.0027046x5 − 0.000059409x6
where x = 106/Tcal2 and α(parent CO2-travertine) is:
α(parent CO2-CaCO3) = (δ13Cparent CO2 +1)/(δ13Ctravertine + 1)
The calculated results were listed in Table 2 and illustrated in Figure 5D and Figure 6. Banded travertines at Xiagei have δ13Cparent CO2 from −3.65‰ to −1.77‰ V-PDB (average = −2.44‰ V-PDB). In more detail, thick-laminated palisade banded travertines from Xiagei show δ13Cparent CO2 between −2.93‰ to −1.77‰ V-PDB (average = −2.16‰ V-PDB), whereas thin-laminated composite banded travertines from Xiagei show a wider δ13Cparent CO2 range (−3.65‰ to −1.88‰ V-PDB, average = −2.57‰ V-PDB). δ13Cparent CO2 of bedded travertines from Xiagei falls into the banded travertine range and varies from −2.69‰ to −2.16‰ V-PDB (average = −2.45‰ V-PDB). In contrast, δ13Cparent CO2 of recently formed travertines at Xiagei is very different from δ13Cparent CO2 of the Xiagei banded travertines and bedded travertines and is between −1.80‰ and −1.24‰ V-PDB (average = −1.43‰ V-PDB).
Parent CO2 sources of travertines are complex, but they mainly include magmatic CO2, soil-derived CO2, and CO2 related to (marine) carbonate decarbonation [45]. It is reported that soil-derived CO2 has δ13CCO2 values lower than −10‰ V-PDB (C3 plant soils = −30‰ to −16‰ V-PDB, C4 plant soils = −18‰ to −10‰ V-PDB; [48,49]. Magmatic CO2 has δ13C values from −7‰ to −5‰ V-PDB [50], while CO2 related to (marine) carbonates decarbonation often has more positive δ13C values (>1‰ V-PDB) [43,51]. The calculated δ13Cparent CO2 ranges of the Xiagei fossil banded travertines, bedded travertines, and recently formed travertines are all between the (marine) carbonate-related CO2 zone and the magmatic CO2 zone (Figure 6), instead of falling into any of the three typical CO2 source areas. This largely suggests a possible mixing from (marine) carbonate decarbonation-related CO2 and magmatic CO2 and confirms that the Xiagei travertines are ‘real’ (thermogene) travertines, instead of tufas. Such inference (i.e., combined contribution of (marine) carbonate decarbonation-related CO2 and magmatic CO2) is consistent with early studies on hot spring gases at Xiagei and surrounding areas [52,53].
Minerals 13 00076 g006 550

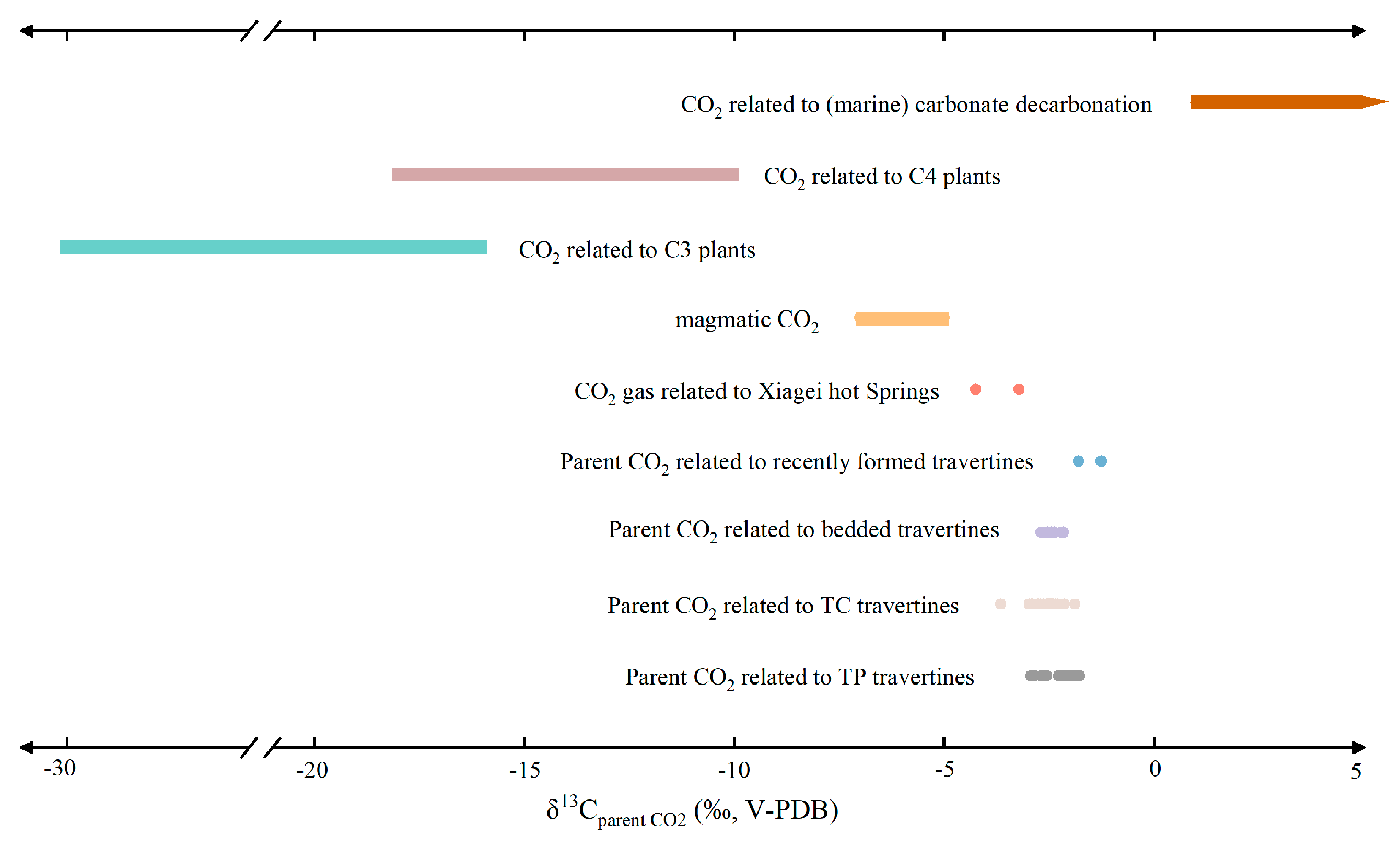

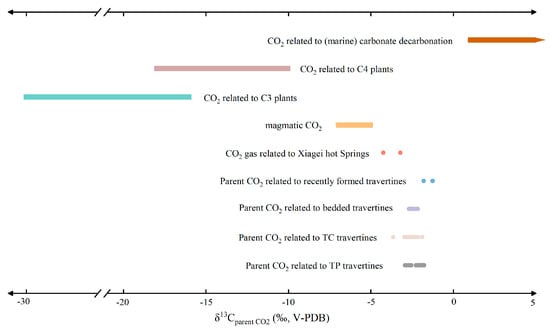

Figure 6. δ13Cparent CO2 of the travertines from Xiagei, Shangri-La, China, according to the equation established by Chacko et al. [40]. In comparison with the δ13C values from CO2 gas related to Xiagei hot springs [53], magmatic CO2 [50], CO2 related to C3 and C4 plants [48,49], and marine carbonate decarbonation [43,51]. TP: thick-laminated crystalline crust; TC: thin-laminated composite crystalline crust.
Figure 6. δ13Cparent CO2 of the travertines from Xiagei, Shangri-La, China, according to the equation established by Chacko et al. [40]. In comparison with the δ13C values from CO2 gas related to Xiagei hot springs [53], magmatic CO2 [50], CO2 related to C3 and C4 plants [48,49], and marine carbonate decarbonation [43,51]. TP: thick-laminated crystalline crust; TC: thin-laminated composite crystalline crust.
Minerals 13 00076 g006
Notably, the magmatism is lacking now in the Xiagei hydrothermal system (near the Jinshajiang fault zone) in the eastern Tibetan plateau. Thus, the detected magmatic source CO2 for travertine samples might indicate a hypogene origin. As shown in Figure 1A, the Jinshajiang fault zone is important for the formation of Xiagei travertines as active large-scale strike-slipping, apart-pull basins and metamorphic core complexes are present [54,55], which provides ideal tectonic-environments for Paleogene mantle-derived high-K magmatism [54]. In addition, the Tibetan plateau has been a site for lithospheric delamination since about 40 Ma and is marked by intense and intensive intraplate, mantle-derived high-K magmatism [33,54]. Therefore, the magmatic-derived CO2 for the Xiagei travertines probably indicates that the lithospheric mantle beneath the Jinshajiang fault zone is/was sinking, which led to the asthenosphere upwelling and subsurface accumulation of magmatic-derived CO2 that was transported through the lithosphere via these large-scale faults.
Both (marine) carbonate decarbonation-related CO2 and magmatic CO2 are ‘external’ carbon sources. The Xiagei travertines were here also considered to receive some ‘internal’ carbon from marine carbonate rocks. As shown in Figure 1 and Table 1, marine carbonate rocks (mainly Late Paleozoic) are distributed in the study area and active hot springs have high Ca2+ concentrations (e.g., Springs S1 to S3 show Ca2+ concentrations from 120 to 151 mg/L) and low SO42− concentrations (average = 50.5 mg/L). This largely reflects that marine carbonate dissolution also play a role in supplying carbon to the Xiagei travertines. Assuming that (1) HCO3− in spring waters at Xiagei was the mixing product of external carbon (i.e., magmatic CO2 and carbonate decarbonation-related CO2: CO2 + 2H2O → HCO3− + H+) and internal carbon (i.e., dissolution of Ca-carbonate rocks: CaCO3 + CO2 → 2HCO3− + Ca2+) and (2) Ca2+ in spring waters from Xiagei originated mainly from Ca-carbonate rock dissolution, the following equation can be obtained:
Ctotal = Cexternal + Cinternal = Cexternal + CCa
where Ctotal, Cexternal, Cinternal, and CCa represent the molar concentrations of HCO3−, external carbon, internal carbon, and Ca2+, respectively.
Using the water data in Table 1, Ctotal and CCa in hot spring waters from Xiagei can be calculated. The calculated Ctotal and CCa are between 12.4 and 16.4 mM and between 0.90 and 3.78 mM, respectively, and the calculated CCa/Ctotal ratios vary from 10.2% to 24.2%, indicating the unneglectable role of Ca-carbonate dissolution in supplying carbon to the Xiagei travertines. However, it must be emphasized that the above calculations are not exact, because other processes (such as passive CO2 degassing and carbonate precipitation) which are common in travertine systems [56,57,58,59] and can change HCO3− and Ca2+ concentrations in spring waters were not taken into consideration in our calculations.

5.3. Lithofacies of Banded Travertines Controlled by Water Temperature

There were two lithofacies of banded travertines at Xiagei: thick-laminated crystalline crust and thin-laminated composite crystalline crust. These two lithofacies display different features, especially in crystal sizes and morphologies. Calcite crystals in the thick-laminated crystalline crust are large and palisade-like, whereas calcite crystals in the thin-laminated composite crystalline crust are diverse but small in size. Recent studies have shown that the fluctuations of hydrodynamic conditions and hydrochemical composition of thermal fluids and microbial mediation can lead to the formation of calcite crystals of various sizes at thermal springs [28,60,61]. Jones and Renaut [62] and Jones [60] adopted a general term, ‘driving force’, to describe the growth condition of CaCO3 precipitation in hot springs: the larger driving force, the more irregular CaCO3 crystals. However, directly measuring ‘driving force’ is impossible for researchers, because it may be affected by many parameters, such as CO2 degassing, water temperature, saturation index of CaCO3, flow velocity, pH, and microbial effect [10,63,64,65]. These indicate that banded travertine precipitation is a complex process controlled by multiple factors/processes.
With respect to the two lithofacies of banded travertines at Xiagei, one possible factor controlling their crystal shapes and sizes might be water temperature. As shown in Table 2 and Figure 5D, the thick-laminated crystalline crust at Xiagei mainly displays Tcal over 80 °C, which is significantly higher than most of the Tcal values of the thin-laminated composite crust (generally below 72 °C). Theoretically, temperature increase would lower CaCO3 and CO2 solubility (when water temperature is below 155 °C) [66,67], promoting CaCO3 precipitation. As a result, the thick-laminated crystalline crust was interpreted to be formed with a precipitation rate faster than the thin-laminated composite crystalline crust. Such inference agrees with the crystal size and morphology of these two lithofacies: rapid CaCO3 precipitation formed large palisade crystals of the thick-laminated palisade crystalline crust, while relatively slow CaCO3 precipitation generated small crystals of the thin-laminated composite crystalline crust.
However, some of the thick-laminated palisade crystalline crust samples (e.g., Samples 1, 2 and 3; Figure 4 and Figure 5B,C; Table 2) show similar δ18O and Tcal to the thin-laminated composite crystalline crust. Therefore, water temperature is an important but not decisive factor controlling the calcite crystal size and shape in the Xiagei banded travertines. Indeed, recently, Luo et al. [68] argued that CaCO3 precipitation at the hypogean solid-water interface (i.e., banded travertine precipitation environments) was (at least) controlled by original fluid chemical composition, temperature, pressure, and fluid pathways. Thus, any change in fluid chemical composition (e.g., Ca2+ and HCO3− concentrations), CO2 partial pressure in surrounding environments, and conduit morphology may significantly alter the precipitation rate of CaCO3 at the hypogean solid–water interface. Unfortunately, these changes were difficult to evaluate only based on carbon and oxygen isotope compositions of banded travertines.
The thin-laminated composite crystalline crust is characterized by the appearance of diverse calcite crystals with different shapes and sizes (dendritic crystals, fan crystals, platy crystals, granular crystals, and micrite), whereas the thick-laminated palisade crystalline crust is compositionally simple. This may indicate a steady formation environment of the thick-laminated palisade crystalline crust and reflect that the formation condition of the thin-laminated composite crystalline crust underwent striking and rapid changes. Indeed, dendritic crystals, fan crystals, platy crystals, granular crystals, and micrite are often interpreted to be formed in different environments [38,60,69]. For example, fan crystals tend to be generated in turbulent water conditions [38,70,71,72], while platy crystals are often produced at near boiling conditions (>80 °C) [62,73,74].

5.4. Comparison with Banded Travertines from Other Areas

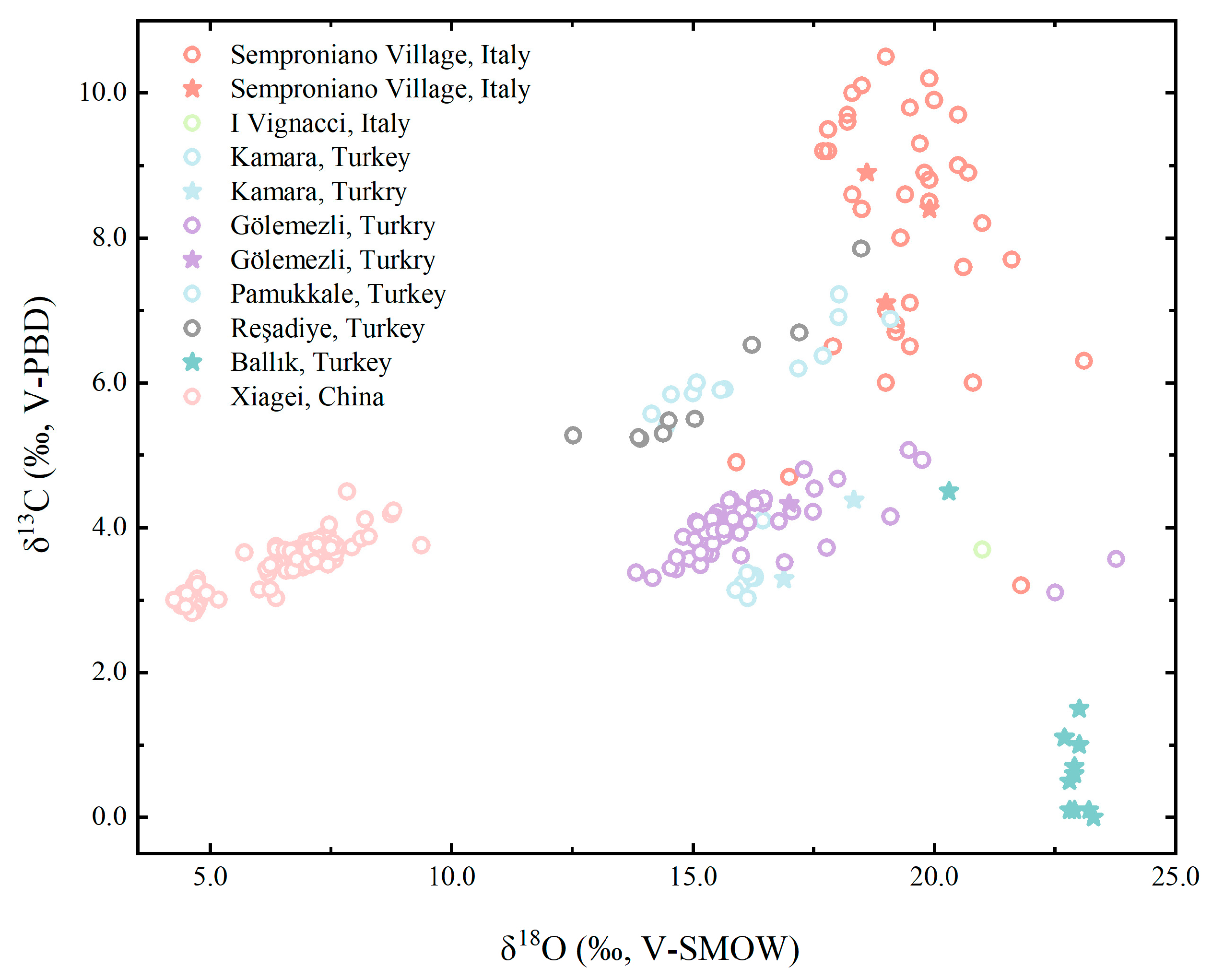

In Table 3 and Figure 7, the Xiagei banded travertines were compare with banded travertines (also sometimes named travertine veins) from other areas around the word [13,18,24,75,76] to examine their microscopic and stable carbon and oxygen isotopic differences. All banded travertines are found to be mainly composed of calcite and /or aragonite crystalline crusts (Table 3), but their microscopic features, such as crystal sizes and types are diverse, indicating the complex precipitation conditions/processes of banded travertines. For example, diverse calcite crystals have been described in the thin-laminated crystalline crust at Xiagei, probably representing changeable travertine formation environments. Note that elongated palisade calcite and/or aragonite crystals are commonly described in banded veins and are hardly seen in non-vein sediments of travertines. It may indicate that this texture can represent a typical lithofacies related to banded travertines. In addition, the banded travertines with diverse crystal morphologies, such as those from Semproniano (Italy), Kamara (Turkey), Gölemezli (Turkey), and Xiagei (China), are usually characterized by wide paleo-temperature ranges (Table 3). This might indicate that temperature plays an important role in controlling the microscopic features of banded travertines.
All the summarized banded travertines, excluding the Semproniano village giant veins [75], are characterized by good positive correlations between δ13C and δ18O values (Figure 7), probably indicating these banded travertines precipitated under non-equilibrium conditions (in more detail, fast CO2 degassing). Using δ13C values to gain the fluid CO2 origins of spring related carbonate deposits is commonly used in earlier studies [13,18,39,75]. The parent CO2 from all banded travertine was found to be largely derived from mixing sources (Table 3). However, the result shows that the δ13C ranges of the banded travertine in different places are diverse. Especially, δ13C of the Semproniano giant vein falls into a wider range, whereas δ13C of travertines from Xiagei and other locations (Figure 7) exhibits relatively narrow isotopic variation. Berardi et al. [75] proposed that the long-lived giant vein underwent multiple tectonic events, spanning at least 650 and 85 ka. Thus, tectonic activities may play a non-negligible role in changing the δ13C composition of the travertine vein. For instance, frequent tectonic activities may cause rapid δ13C variations, while strong tectonic activities, like big earthquakes, may even modify thermal fluid circulation pathways and lead to significant δ13C changes of banded travertines. According to Kele et al. [43], δ18O values of travertines can be easily affected by fluid origins, evaporation rates and fluid temperature changes. In most travertine systems, the δ18O values of travertines can be used to reflect the water temperature and δ18O of the parent water. Taking into account the calculated paleo-temperatures, all the banded travertines in Table 3 are precipitated from moderate- to high-temperature hot springs, which further indicates that the fissure ridge is related to hot springs rather than cold springs. Overall, the comparison shows that δ13C and δ18O records in banded travertines might be useful for the assessment of tectonic activities and paleo-fluids.

6. Conclusions

This study investigated the lithofacies and stable carbon and oxygen isotope geochemistry of banded travertines from fissure ridge-type travertine (Xiagei, China). Two lithofacies were recognized in the Xiagei banded travertines: thick-laminated palisade crystalline crust and thin-laminated composite crystalline crust. Parent CO2 of the Xiagei banded travertines mainly originated from limestone decarbonation of marine carbonates, but they also received the contribution from magmatic CO2. The magmatic-derived CO2 may also demonstrate the sinking of the lithospheric mantle beneath the Jinshajiang fault zone. Additionally, dissolution of marine carbonate rock is considered to be important in providing carbon and calcium to the paleo-spring waters. Paleotemperatures precipitating the Xiagei banded travertines are from 56.6 °C to 86.8 °C, indicating moderate- to high-temperature spring environments. However, different lithofacies of banded travertines from Xiagei show distinct calculated paleotemperatures, suggesting temperature is a non-negligible control factor on the lithofacies of banded travertines. This study highlights the importance of depositional conditions (especially water temperature) on banded travertine lithofacies and reflects the significance of careful stable carbon and oxygen isotope analyses in the determination of paleo-fluid evaluation. The comparison between the banded travertines at Xiagei and other areas shows that microscopic features of banded travertines in different places is diverse, and banded travertines formed by calcite/aragonite with diverse morphologies are usually characterized by large paleo-temperature variations, further indicating that temperature plays a crucial role in controlling the microscopic characteristic of banded travertines. The comparison also implies that the stable carbon and oxygen isotopic characterization of banded travertines is likely an effective tool for assessing tectonic activities and paleo-fluids.

Author Contributions

Y.Y., L.L. (Lianchao Luo) and H.W. conceived this contribution. Y.Y., Z.L. and L.L. (Liang Li) conducted the field investigation. Y.Y., Z.L. and L.L. (Liang Li) performed the sample handling and data analysis. Y.Y. wrote the original draft of the paper. L.L. (Lianchao Luo) reviewed the original draft of the paper. All authors have read and agreed to the published version of the manuscript.

Funding

This research was financially supported by the National Natural Science Foundation of China (grant Nos. 41972116 and 41572097).

Data Availability Statement

The data that support the findings of this study are available in the text, figures and tables of this manuscript.

Acknowledgments

We are grateful to Lei Du for his help in field works. We also thank four anonymous reviewers for their detailed and constructive comments.

Conflicts of Interest

The authors declare no conflict of interest from their affiliation or funding.
