Meteoric ¹⁰Be, ¹³⁷Cs and ^239+240Pu as Tracers of Long- and Medium-Term Soil Erosion—A Review

Abstract

Isotopes of meteoric ¹⁰Be, ¹³⁷Cs, ^239+240Pu have been proposed as a soil redistribution tracer and applied worldwide as an alternative method to classical field-related techniques (e.g., sediment traps). Meteoric ¹⁰Be provides information about long-term soil redistribution rates (millennia), while ¹³⁷Cs and ^239+240Pu give medium-term rates (decades). A significant progress in developing new models and approaches for the calculation of erosion rates has been made; thus, we provide a global review (n = 59) of research articles to present these three isotopes (meteoric ¹⁰Be, ^239+240Pu and ¹³⁷Cs) as soil erosion markers in different environments and under different land-use types. Understanding the dynamics and behaviours of isotopes in the soil environment is crucial to determine their usefulness as soil erosion tracers; thus, we discuss the chemical–physical behaviour of meteoric ¹⁰Be, ¹³⁷Cs and ^239+240Pu in soils. The application of these isotopes sometimes has strong limitations, and we give suggestions on how to overcome them or how to adapt them to a given situation. This review also shows where these isotopic methods can potentially be applied in the future. A lack in knowledge about soil redistribution rates exists particularly in loess-dominated areas where the tillage system has changed or in areas with strong wind erosion.

1. Introduction

The geochemical composition of soils reflects the chemical weathering of the parent material, atmospheric deposition, dust input and biological processes [1,2]. As a result, certain elements accumulate and are preserved over time in soils in stable landforms, such as plains and low-inclination slopes [2]. However, on slopes that experience mass wasting processes, including physical mixing, erosion and downslope sediment transport, the primary distribution of elements in the soil profile is disrupted, potentially resulting in selective elemental loss or accumulation over time [2,3].

Isotopes of beryllium (meteoric ¹⁰Be), plutonium (^239+240Pu) and caesium (¹³⁷Cs) are widely used in Earth sciences to reconstruct, for example, Earth’s palaeomagnetic field [4,5,6], snow palaeoaccumulation rates [7], seafloor sedimentation rates [8] and denudation rates [9] and to determine the age of fluvial terraces [10,11,12], evaluate seawater exchange cycles [13] and long-distance Asian dust transport [14], among several other processes. More recently, these isotopic tools have been used to investigate soil erosion processes in various environments, such as grasslands and forests of the European Alps or the Rocky Mountains [15,16,17,18,19,20,21], in arable lands, forests and grasslands of tropical and subtropical areas and the wet–dry tropics [22,23,24,25,26], in forested mountainous regions [21,27], forests and arable lands under continental Mediterranean climates [28,29,30,31], in moraine landscapes used as farmlands and forests [2,32,33,34,35], in loess regions that are dominated by agriculture [36,37,38,39,40] or in post-fire forests and deserts areas [41,42].

The isotopes ¹⁰Be, ^239+240Pu and ¹³⁷Cs allow the tracing of sediment transport and erosion and deposition processes. Thus, they are essential for understanding the evolution of hillslopes and landscapes [2,43,44,45,46,47]. However, although they have a wide range of applications in environmental research, a comprehensive overview of meteoric ¹⁰Be, ^239+240Pu and ¹³⁷Cs, as soil erosion tracers, is lacking, which would facilitate identifying the most appropriate tools to study soil processes. Thus, the main aims of this review were: (1) to characterise ¹⁰Be, ^239+240Pu and ¹³⁷Cs as soil redistribution tracers and their chemical and physical behaviours in the soil environment; (2) to compile published worldwide articles from various environments with different types of land use where these isotopes were applied; (3) to compare erosion rates determined with isotopes with values obtained from the generally used RUSLE approach and (4) to show potential future applications.

2. Chemical Mechanisms and Behaviour Isotopes of ¹⁰Be, ^239+240Pu and ¹³⁷Cs

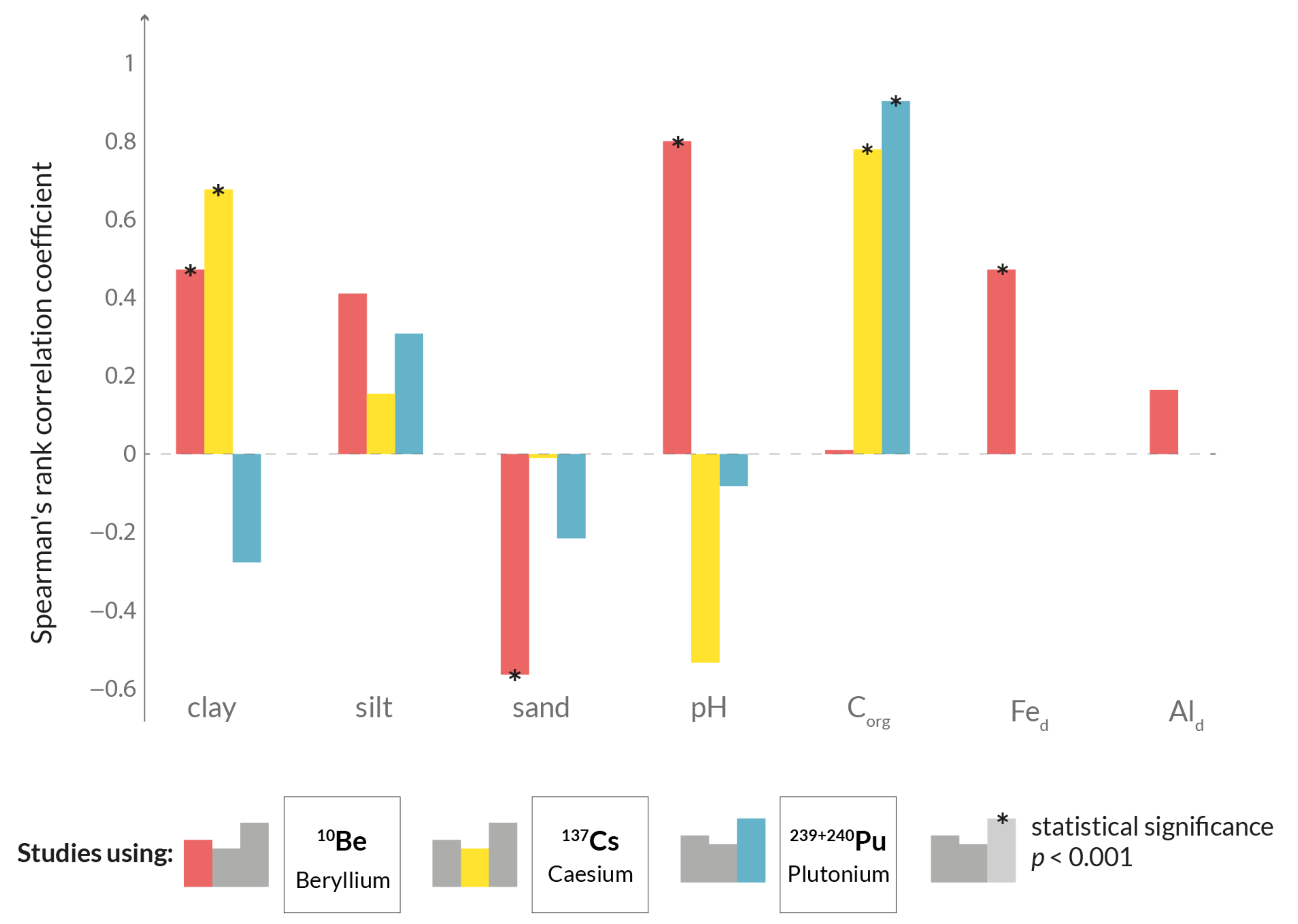

Understanding the dynamics and behaviours of isotopes in the soil environment is crucial to determining their usefulness as soil erosion tracers [48,49]. Therefore, in this section, we present the origin of meteoric ¹⁰Be, ¹³⁷Cs and ^239+240Pu and their chemistry and distribution in soils.

2.1. Formation of Meteoric ¹⁰Be

Meteoric ¹⁰Be is a cosmogenic radionuclide, produced constantly in the upper atmosphere and at the Earth’s surface as a result of the spallation of ¹⁴N and ¹⁶O by high-energy cosmic rays to form ¹⁰BeO or ¹⁰Be(OH)₂ [50,51,52] (Figure 1 and

Table 1. Comparison of ¹⁰Be, ¹³⁷Cs and ^239+240Pu characteristics.

	Meteoric 10Be	239+240Pu	137Cs
Element category	alkaline earth metal	actinide metal	alkali metal
Oxidation state	II	III, IV, V and VI	I
Origin	cosmogenic radionuclide that is constantly produced by the spallation of oxygen and nitrogen by cosmic rays in the upper atmosphere and at the Earth’s surface	distributed globally due to nuclear weapon fabrication and testing and nuclear power plants accidents, as well as nuclear fuel reprocessing	distributed globally due to nuclear weapon fabrication and testing, nuclear power plants accidents, as well as nuclear fuel reprocessing
Adsorption	on clay and fine particles, organic matter	associated with organic matter, sesquioxides and clay particles	mostly bound to the fine mineral (clay) fraction
Half-life	1.387 Myr	239Pu 24 110 y and 240Pu 6561 y	30.17 y
Time range in erosion studies	long-term erosion rates (millennia)	medium-term erosion rates (50–60 years)	medium-term erosion rates (50–60 years)
Measurement	AMS	ICP-MS and AMS	gamma-ray spectrometry (counting the 662 keV gamma line), ICP MS
Remarks	The depth distribution of meteoric 10Be might be used to assess the occurrence of soil-mixing processes.	New tool which has been applied since more than one decade in a few countries. Proposed as an alternative to 137Cs.	Difficulties in application in large part of Europe due to heterogeneous fallout caused by the Chernobyl accident. Moreover, due to short half-life over 70% of 137Cs decayed.
		The depth distribution might be used to assess the occurrence of soil-mixing processes.	The depth distribution might be used to assess the occurrence of soil-mixing processes.

). ¹⁰Be formed in the atmosphere is adsorbed onto aerosols and is primarily delivered to the Earth’s surface by wet and dry deposition [48,52,53]. The fluxes of ¹⁰Be mainly depend on the precipitation rates and/or latitude [54,55]. At high latitudes, the precipitation rates are very low, which limit the meteoric ¹⁰Be flux, whereas, at mid-latitudes, the precipitation tends to be higher; thus, ¹⁰Be deposition is also higher [53,54]. Dry deposition is less important, because it represents <10% of the total ¹⁰Be flux, except in areas with very low precipitation rates, such as deserts or the inner part of Antarctica [52,53,54,56].

2.2. Meteoric ¹⁰Be in Soils

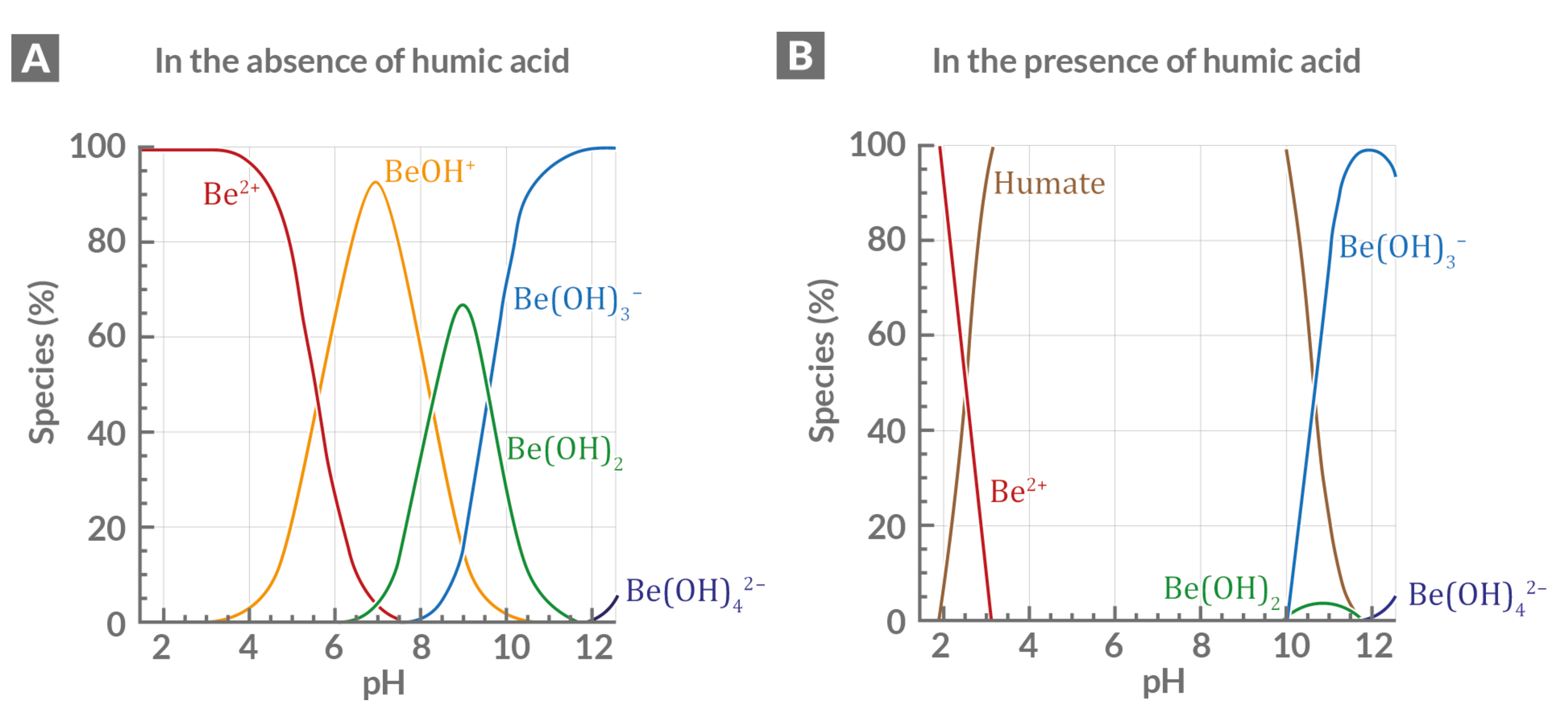

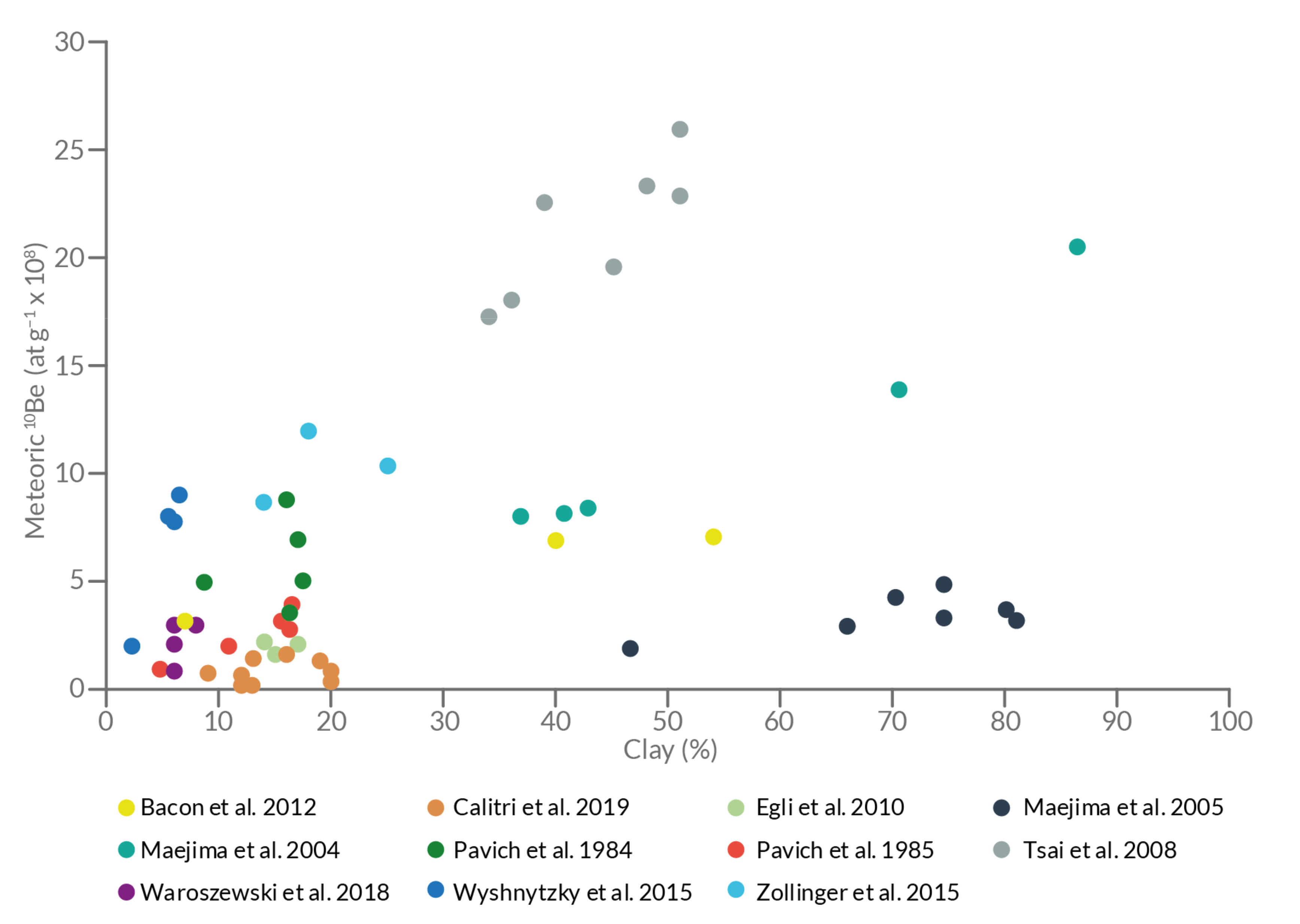

After deposition, meteoric ¹⁰Be is steadily adsorbed on clay and fine-particle surfaces having a diameter 0–2 μm (Figure 2 and Figure 3) [37,52,57,58]. The Spearman’s rank correlation coefficient based on data from various environments (n = 59) also confirms the strong correlation between ¹⁰Be and the clay fraction (Figure 3). The magnitude of the adsorbed amount of beryllium is ultimately driven by the sorption capacity system [58]. The adsorption potential and, thus, the fixation of meteoric ¹⁰Be in soils depends on pH, soil texture, organic matter, the oxyhydroxide content and its cation exchange capacity [2,48,59,60]. An increase in pH caused a net increase in the negative surface charge and related enhanced affinity for metal ions; thus, the cation exchange capacity also increased [61]. At a soil pH over 4, and in the absence of organic acids, ¹⁰Be mostly occurs as hydrolysed species: BeOH⁺, Be(OH)₂ and Be(OH)₃⁻ (Figure 4) that are reactive and, thus, are readily adsorbed onto clay minerals.

Accumulation of meteoric ¹⁰Be begins in the upper part of soil (because it reaches the surface with rainwater), from where it penetrates to greater depths until the whole soil column is saturated [53]. Willenbring and von Blackenburg [52], however, stated that concentrations of ⁹Be and ¹⁰Be in soils are too low to saturate the adsorption site; thus, a rather partial release of ¹⁰Be occurs when pH < 4 and Be²⁺ competes with dissolved Al³⁺ for the exchange sites. In such acidic soils, ¹⁰Be may be translocated to a greater soil or saprolite depth or lost through leaching [25]. Nevertheless, meteoric ¹⁰Be still can be used for soil denudation research in acidic environments when its loss can be estimated [25,62]. Although some of the factors that influence the behaviour of meteoric ¹⁰Be are described above, some of the mechanisms still need a better explanation.

2.3. Origin of Anthropogenic Radionuclides—¹³⁷Cs and ^239+240Pu

Fallout radionuclides (FRNs), such as ¹³⁷Cs and ^239+240Pu, are also called anthropogenic radionuclides. They have been distributed across the globe by nuclear weapons fabrication and testing, nuclear power plant accidents and nuclear fuel reprocessing (Figure 1 and Table 1) [17]. The Southern Hemisphere is characterised by a lower total fallout of radionuclides than the Northern Hemisphere, because more atmospheric nuclear testing occurred in the latter one [65]. ¹³⁷Cs is characterised by a short half-life of 30.17 y. About 70% of its global fallout has already disappeared through radioactive decay [66]. The plutonium isotopes, however, have a much longer half-life, namely 24,110 y for ²³⁹Pu and 6561 y for ²⁴⁰Pu. Therefore, they are becoming more popular as a replacement for ¹³⁷Cs [66].

2.4. Anthropogenic Nuclides in Soils

In soils, plutonium exists in four oxidation states: Pu(III), Pu(IV), Pu(V) and Pu(VI) [49,67]. ^239+240Pu sorption depends on pH and redox conditions. In strongly acidic or anoxic soil conditions, organic compounds reduce Pu(VI) and Pu(V) to immobile Pu(III), which often occurs as an organic complex [49,67,68,69]. Therefore, ^239+240Pu has a high affinity towards organic matter. Additionally, ^239+240Pu is strongly bound to clay particles, which retain it in the soil [49,70,71,72]. Our data compilation from 25 soil profiles (Figure 3 and Table S1) showed a strongly positive correlation between ^239+240Pu and organic carbon; however, a strong association with clay was not obvious. ^239+240Pu is a relatively “new” soil erosion tracer. Thus, its sorption–desorption mechanisms in soil are not yet fully understood.

¹³⁷Cs shows a strong affinity towards clay minerals, whereas its affinity towards organic matter is rather low [71,73,74,75]. Based on data from various environments (n = 38 soil profiles), a significant positive correlation between the ¹³⁷Cs activity and clay content was found (Figure 3). Additionally, a positive correlation between the ¹³⁷Cs activity and organic carbon (n = 28) was calculated, but it might be caused by the relatively high SOC content in the samples considered. In general, ¹³⁷Cs components are readily soluble in water, although strong adsorption by the clay fraction in soils is highly likely [76]. Thus, the sorption of ¹³⁷Cs in the soil system mainly depends on the clay content but also on the pH or the redox conditions. In acidic environments, Cs⁺ competes with H⁺ for selective sorption sites, and due to the stronger dissolution of clay minerals in such environments, the sorption of ¹³⁷Cs is lower, whilst under redox conditions, Cs⁺ competes with NH₄⁺ [74,77,78]. The binding of ¹³⁷Cs increases with the increasing pH (Figure 5), because under such conditions, a greater electrostatic attraction of the cation surface occurs; thus, more Cs⁺ is sorbed onto the negatively charged clay minerals [74]. When the soil organic content is higher than 5%, it starts to outmatch the fixation of Cs⁺ on clay minerals and becomes available for plant uptake or leaching into deeper soil layers [79,80]. Thus, in peaty or podzolic soils, ¹³⁷Cs is considerably more mobile than in other soils [81,82].

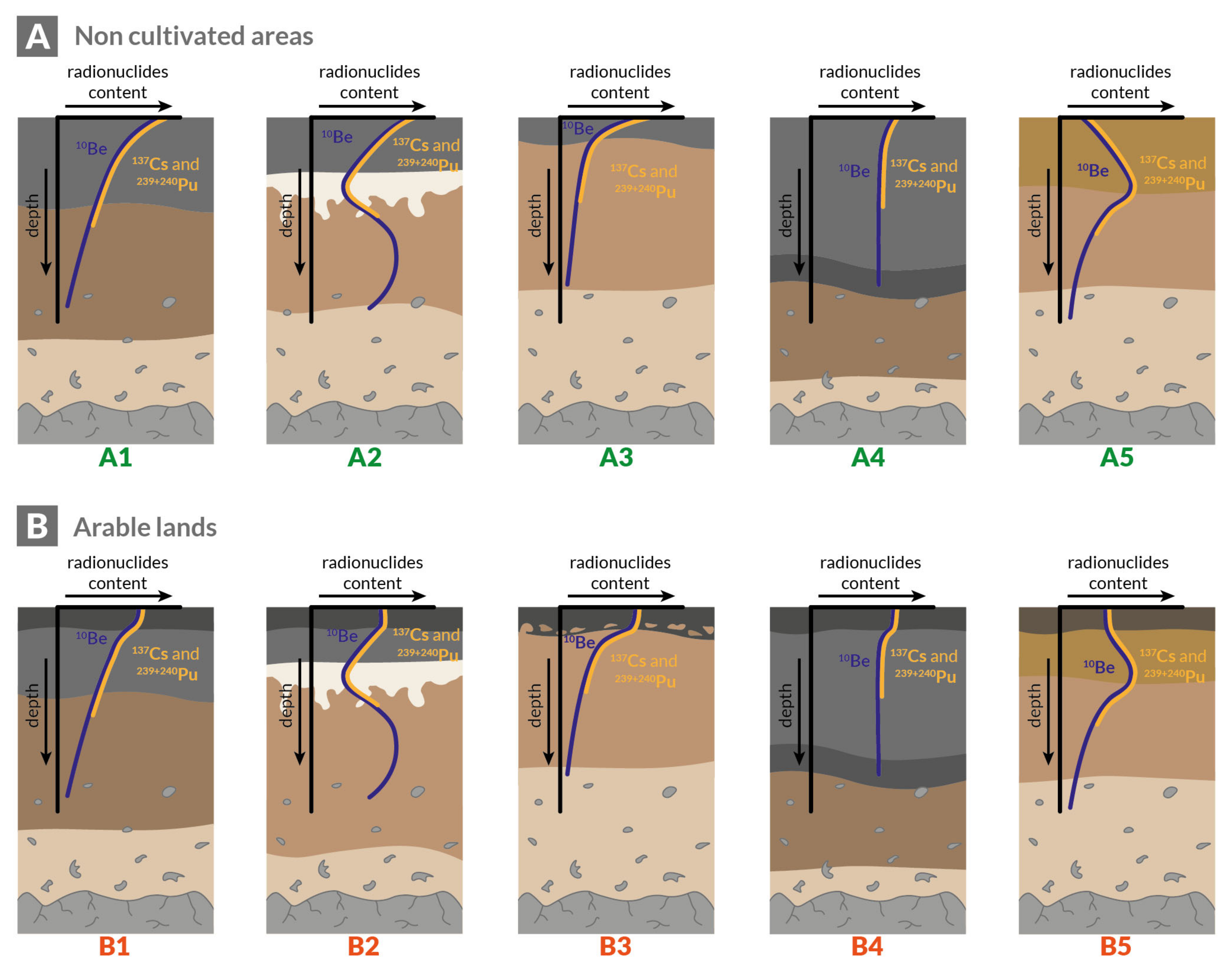

2.5. Profile Depth Distribution of Meteoric ¹⁰Be, ¹³⁷Cs and ^239+240Pu

¹⁰Be is a useful geochronometer and long-term erosion tracer due to its long half-life (1.387 ± 0.012 Myr), worldwide occurrence and strong binding by fine soil particles [2,33,86]. Adsorbed meteoric ¹⁰Be can be moved along the soil profile because of fine particles translocation via soil water and physical mixing and the percolation of water that may desorb ¹⁰Be and transporting it [2]. In general, the highest content of meteoric ¹⁰Be is measured in horizons having the highest clay contents (Figure 2) [2,10,11,27,37,52,57]. Thus, the distribution of ¹⁰Be within a soil profile in nonacidic conditions as a declining, humped or uniform trend reflects soil evolutionary processes, the degree of surface erosion and soil mass movements [2,18,48,52]. Undisturbed soil profiles are characterised by a declining ¹⁰Be content, with the highest value occurring in the topmost horizons (Figure 6(A1,B1)). Soils on actively eroding hillslopes are also characterised by declining ¹⁰Be contents [48]. However, their highest content is up to one order of magnitude lower compared to noneroded soils (Figure 6(A3,B3)) [48,87]. The highest ¹⁰Be content in subsurface horizons (Figure 6(A2,B2)) is typically found in soils where clay illuviation or intense podzolisation has occurred [11,15,37,57]. Soils that have undergone deep mixing by physical and paedogenic processes or colluvial soils where eroded material from the upper parts of a slope has been deposited (Figure 6 (A4,B4)) are, however, characterised by a uniform ¹⁰Be content [38,48,88]. In cases where the topsoil has a different origin (e.g., due to the addition of aeolian silt) to the underlying horizons, significantly lower ¹⁰Be concentrations occur in the upper part of the soil profile in contrast to the deeper horizons (Figure 6(A5,B5)) [27].

Additionally, the FRNs from global fallout are strongly adsorbed onto the fine earth fraction in the topsoil [65,89], and their distribution occurs as a result of soil particle movements [65]. Consequently, the profile depth distributions of ¹³⁷Cs and ^239+240Pu (Figure 6) are similar to meteoric ¹⁰Be and provide information about soil erosion and accumulation, since they were introduced into the environment [49,90].

3. Calculation of Soil Erosion Rates Using Meteoric ¹⁰Be

Most erosion calculations are based on the approaches defined by Lal [91], Egli et al. [15] and Zollinger et al. [19]. However, recently, a few advanced models were proposed to study the distribution of meteoric ¹⁰Be. One of them is the soil–hillslope model (Be2D) that simulates vertical and lateral redistribution of soil and ¹⁰Be along a hillslope and enables insight into processes that influence its transport [92]. The Be2D model considers soil formation, clay translocation, bioturbation and the chemical mobility of ¹⁰Be [92]. Additionally, this model considers soil creep, tillage and water erosion reflecting lateral transport and is fully described in Campforts et al. [92].

Another one is the relatively new LODO (Loss Only, Diffusion Only) model presented by Jeliński et al. [32]. This model simulates ¹⁰Be concentration profiles in soils over time. It considers vertical diffusion and the net soil flux. In the LODO model, the downward migration of ¹⁰Be from the topsoil is modelled as a diffusive process with the depth dependent on diffusivity. It considers that, prior to diffusion, all ¹⁰Be enter the surficial depth increment equally [32].

4. Reference Sites and Conversion Models for Anthropogenic Radionuclides

4.1. The Importance of Reference Sites

FRN techniques are used to calculate soil erosion or accumulation rates by comparing the total radionuclide inventory per unit area of a reference site with the FRN activity of a study site or by comparing the temporal evolution of the FRN stocks over time (i.e., by revisiting the sites) [49,93]. When the inventory of the study site is lower than that of reference site, this indicates erosion, whereas a higher stock indicates the deposition of soil material [49]. Thus, the choice of reference site plays a crucial role, because inaccurate values ascribed to the reference inventory will lead to underestimation or overestimation of erosion rates [93]. The undisturbed reference site where soil denudation is absent or negligible should be located, e.g., on a flat, well-vegetated, unploughed site [49]. According to Sutherland [94], the isotope content at a reference site can be used to calculate soil erosion if the variance coefficient is <30%. Recently, especially in the case of ^239+240Pu, attention is paid to measure from five up to ten replicate cores per study site or to take a large amount of sample material (around 1–2 kg per sample) and homogenised them to overcome the large sampling number and measurements.

4.2. Soil Redistribution Rates

One usually assumes that the source of isotopes is just one, and if not, the percentage deposition from each source has to be known to use the calculation models properly [20,49,95]. This is especially the case with ¹³⁷Cs (see Section 4.3). Therefore, the separation of global and Chernobyl fallout may be done by estimating the initial inventory of ¹³⁷Cs related to atmospheric nuclear weapon tests. This estimation is based on the approach of Sarmiento and Gwinn [96] and precipitation data [95].

For the estimation of soil erosion and/or deposition rates using ¹³⁷Cs and ^239+240Pu, various models like the Proportional Model (PM), Mass Balance Model (MBM), Profile Distribution Model (PDM) and Diffusion and Migration model (DDM) were widely applied [97,98,99,100,101,102,103]. Furthermore, a two-dimensional spatial integration of the MBM for ¹³⁷Cs was developed [104]. Van Oost et al. [104] described the crucial processes for ¹³⁷Cs redistribution that may be independently simulated in this complex approach. Soil mixing and tillage redistribution are modelled by the combination of the spatial distribution of ¹³⁷Cs with a displacement distribution, and water erosion is simulated using topographic equations [104]. Additionally, an approach exists that combines the MBM with models estimating the spatial soil redistribution, like WATEM/SEDEM (Water and Tillage Erosion Model/Sediment Delivery Model). Such a combination enables calibrating the parameters of spatial models and a detailed determination of the soil redistribution [31].

In 2016, a new algorithm was proposed—modelling deposition and erosion rates using radio nuclides (MODERN) [49,89]. MODERN is a new concept characterised by several noticeable advantages; it more accurately describes the measured FRN inventory in a soil profile. It does not make any distinct assumptions for the reference site and allows the conversion of isotope inventories into soil gain/loss rates, independent of the type of land use [49].

4.3. Radionuclide Ratios

The main assumption of using atmospheric isotopes is that their spatial distributions should be homogeneous [20,95]. However, in Western and Central Europe, the deposition of ¹³⁷Cs was rather heterogeneous [49]. Most of the fallout ¹³⁷Cs originates from the 1986 Chernobyl incident and not nuclear weapons tests. Additionally, on the East Coast of Honshu Island (Japan), the spatial distribution of ¹³⁷Cs fallout is heterogenous due to the Fukushima Daiichi Nuclear Power Plant (FDNPP) accident in 2011 [66]. Thus, the proportion of ¹³⁷Cs Chernobyl or FDNPP fallout at reference sites should be known [20]. ^239+240Pu is not present in the volatile fraction of fuel debris from nuclear reactor accidents. Therefore, the Chernobyl ^239+240Pu fallout is more limited to Russia, Ukraine, Belarus, Poland and the Baltic countries [105,106], and the FDNPP ^239+240Pu fallout is mainly centred around Fukushima Prefecture [107]. Other countries, however, have a homogeneous deposition of ^239+240Pu that originated mainly from the atmospheric nuclear weapons tests conducted in the 1950s and 1960s [17,20]. Therefore, to determine the origin of radionuclides, their ratios are used, because the values of the ratio vary significantly depending on the source [66]. In the Northern Hemisphere, the ratio of ²⁴⁰Pu/²³⁹Pu for global fallout ranges from 0.14 to 0.24, with an average of 0.18; for the Chernobyl fallout, the ratios are between 0.37 and 0.41, and for FDNPP, the range is between 0.30 and 0.33 [66,108,109].

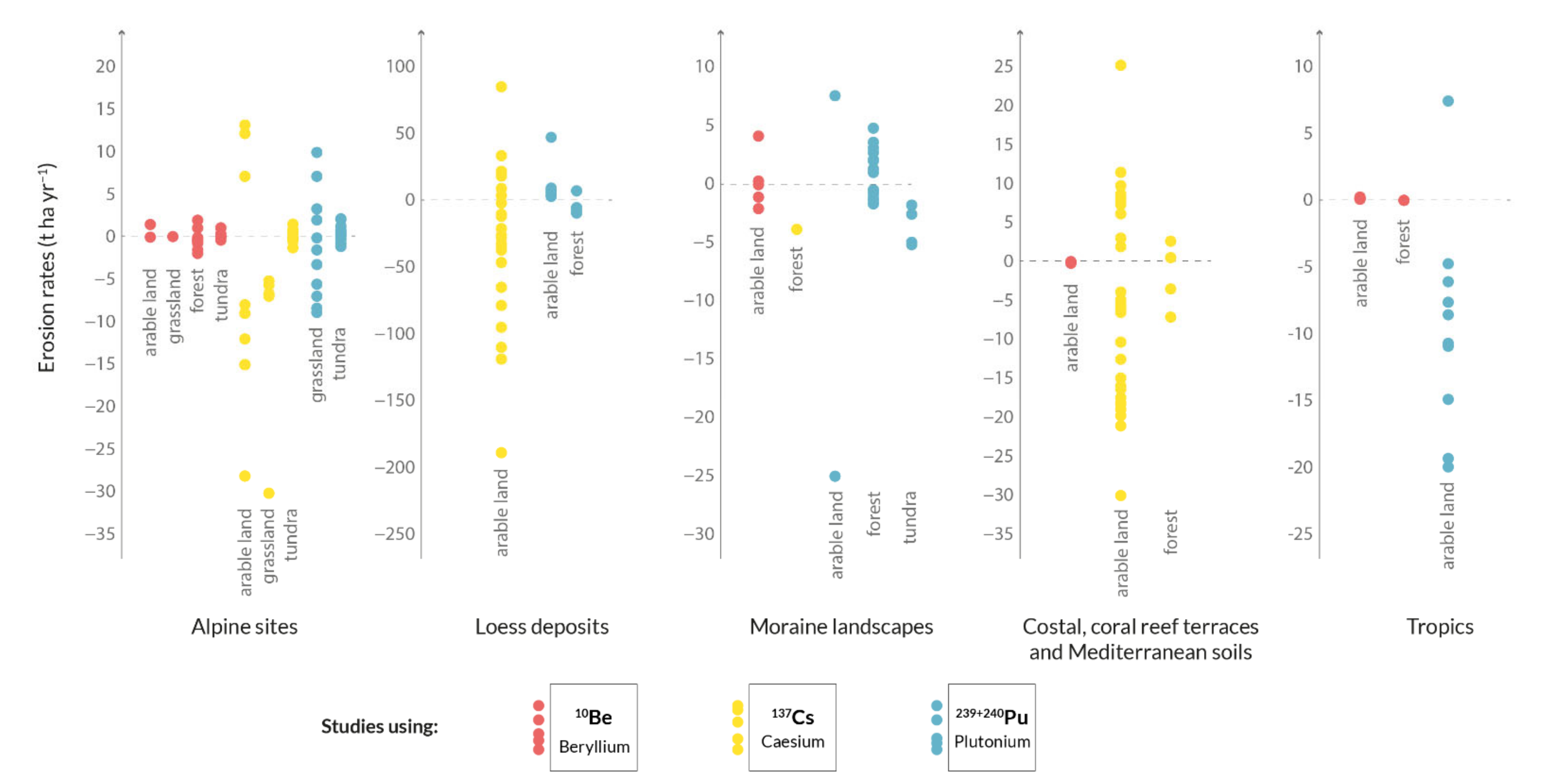

5. Application in Different Environments in Agricultural and Natural Landscapes

The use of isotopes for the study of soil erosion began in the late 1950s [110]. Since then, ¹⁰Be, ¹³⁷Cs and ^239+240Pu isotopes have been used for the estimation of erosion rates at the temporal and spatial scale. However, the rates can drastically differ as a response to land-use changes and modifications in land management. Thus, in this section, we briefly discuss the use of isotopes in different environments (Figure 7 and Figure 8 and

Table 2. Published soil erosion rates based on various isotopes and conversion models (only publications considered where both were available: isotope content and calculation of the soil redistribution rates).

No	Author	Location	Soil Texture	Number of Profiles	Land Use	Soil Erosion Rates (t ha−1 y1)
						Meteoric 10Be	137Cs	239+240Pu	(R)USLE ***
1	Maejima et al. [11]	Coral reef terraces, Southwest Japan	C, SiC, CL	9	Arable land	−0.098 to −0.31 a,*	-	-	n.d. **
2	Tsai et al. [12]	Fluvial terraces, Taiwan	C, SiC, CL	3	n.d. **	−0.125 to −0.263 a	-	-	n.d. **
3	Egli et al. [15]	Swiss and Italian Alps	LS, SL	6	Mixed forest/alpine grassland	−0.6 to −2.50 a−0.03 to −0.6 b	-	-	−0.1 to −0.5 [131]
4	Fifield et al. [127]	Fingerpost Hill, Burra Creek, NW and SE Australia	n.d. **	13	Forest and Pasture	−0.03 to −0.19 a			−0.1 to −5.0 [132]
5	Campforts et al. [92]	Susquehanna Shale Hills Observatory, USA	n.d.	n.d. **	Arable land	−0.10 to 1.37 c			n.d.
6	Zollinger et al. [19]	Swiss Alps	LS, SL	18	Alpine grassland	−0.34 to −1.29 a−0.08 to 1.8 b	-	-	−1.0 to −0.3 [131]
7	Schoonejans et al. [25]	Critical Zone Observatory, Southern Brazil	n.d. **	3	Subtropical forest	−0.33 to −0.42 d−0.05 to −0.06 e	-	-	n.d.
8	Waroszewski et al. [27]	Karkonosze Mountains, Poland	SL, SiL	5	Mountain forest	−1.3 to −6.4 f−0.8 to −2.0 g	-	-	−2.0 to −5.0 [133]
9	Jelinski et al. [32]	West-Central Minnesota, USA	L	5	Arable land	−0.06 to 4.13 h	n.d.		n.d.
10	Zhang et al. [39]	Ansai, China	SiL	9	Arable land		−65.0 to 110.0 i	-	−50 to −80 [134]
11	Van Oost et al. [104]	Huldenberg, central Belgium	SiL	n.d. **	Arable land		−10.3 to 9.0 j	-	−0.5 to −1.0 [133]
12	Schuller et al. [115]	Coastal Mountain range of the 9th Region of Chile	n.d. **	6	Arable land		−28.0 to 12.0 i	-	n.d.
13	Fang et al. [125]	Jilin Province, China	CL	5	Arable land		−26.43 to 27.28 k−37.63 to 34.33 i	-	−45.0 to −4.0 [135]
14	Yang et al. [126]	Shaanxi Province, China	SiL	197	Forest and arable land		−25.0 to 150.0 i,m	-	−23.1 [135]
15	Mabit et al. [28]	Boyer River watershed, Canada	SL, SCL	412	Arable land	-	−9 to 6.4 i	-	−3.0 [28]
16	Mabit et al. [29]	Montefrio, Spain	CL	8	Arable land		−19.0 to 25.0 i	-	−10 to −20 [133]
17	Benmansour et al. [118]	Marchouch, Morocco	C	45	Arable land		−4.0 to −30.0 i	-	−4.0 to −56.0 [118]
18	Murat Sac and Ichedef [120]	Salihi Region, Western Turkey	n.d. **	4	Arable land	-	−21.1 to 11.3 i−9.6 to 19.4 k	-	n.d.
19	Poręba et al. [38]	Świerklany, South Poland	SiL	4	Arable land	-	−26.7 to 85.1 i	-	−10.0 to −20.0 [133]
20	Quijano et al. [117]	Ebro Basin, Spain	n.d.	156	Arable land		−19.8 to 7.4 i	-	−10.0 to −20.0 [133]
21	Velasco et al. [24]	Forêts des Pins, Haiti	C	12	Arable land	-	−23 to 71 l	-	−20 to −50 [136]
22	Tuo et al. [36]	Chinese Loess Plateau	SL	7	Arable land	-	−21.39 to −37.31 i	-	−23.1 [137]
23	Poręba et al. [95]	Biedrzykowice, South Poland	SiL	4	Arable land	-	−4.9 to 39.9 i, k	-	−10.0 to −20.0 [133]
24	Meliho et al. [30]	Ourika Watershed, High Atlas of Morocco	SL, L	33	Arable land and forest	-	−32.23 to −0.06 i−11.42 to 2.27 m	-	up to −45.0 [138]
25	Gharibreza et al. [124]	Golestan Province, Iran	SiL, SiC	93	Arable land and forest	-	−10 to −35.9 i	-	up to −70.0 [139]
26	Xu et al. [140]	Liaodong Bay, Northeast China	n.d.	6	Arable land and uncultivated land with low vegetation cover	-	−14.0 to −42.5 i	−20.3 to −72.0 j	n.d.
27	Meusburger et al. [89]	headwater catchment of Lake Soyang, South Korea	SL	25	Forest and arable land	-	−23.8 to 2.9 m	−17.5 to 3.6 l	−30.6 to −54.8 [141]
28	Meusburger et al. [20]	Swiss Central Alps	LS, SL	14	Alpine grassland	-	−5.2 to −6.7 l	−3.3 to −7.0 o	−2.0 to −12.0 [142]
29	Lal et al. [22]	Daly river basin, Northern Australia	n.d.	6	Arable land	-	-	−7.5 to −19.5 k−8.5 to −19.7 i	−10.0 to −50.0 [132]
30	Alewell et al. [17]	Swiss Central Alps	LS, SL	44	Alpine grassland	-	-	−8.9 to 8.3 m−1.9 to 7.0 k−0.2 to −16.4 n	−2.0 to −12.0 [142]
31	Arata et al. [129]	Swiss Central Alps	LS, SL	5	Mountain grassland	-	-	−8.4 to 9.8 o	−2.0 to −12.0 [142]
32	Portes et al. [21]	Central Rocky Mountains, USA	LS, SL	3	Alpine tundra/forest	-	-	−2.60 to −5.20 k,m	n.d.
33	Zhang et al. [121]	Gansu Province, China	SiL	6	Forest (before agriculture)		-	−9.4 to 7.2 i	−23.1 [137]
34	Lal et al. [23]	The Daily River Catchment, Northern Australia	L	3	Pasture, mahogany and peanut plantations	-	-	−8.4 to 7.2 i	−10 to −50 [132]
35	Loba et al. [40]	Trzebnica Hills, Southwest Poland	SiL, L		Arable land			−1.17 to 10.93 o	−5.0 to −10.0 [133]
36	Zollinger et al. [18]	Eastern Swiss Alps	LS, SL	19	Alpine tundra/natural forest	−0.40 to 0.04 b	−1.35 to 1.41 m	−1.20 to 2.04 m	−1.0 to −2.0 [131]
37	Calitri et al. [33]	Uckermark Region, Northeast Germany	SL, L	3	Arable land	−2.11 to 0.26 b	-	−0.25 to 7.6 m	up to −0.5 [133]

* Negative values mean erosion, positive deposition. ** No data. *** Authors are given in the brackets. Soil texture: SL—sandy loam, LS—loamy sand, L—loam, SiL—silt loam, SCL—sandy clay loam, SiC—silty clay, CL—clay loam and C—clay. Models: ^a Steady-state approach, ^b non-steady-state approach, ^c Be2D model, ^d not-corrected values, ^e corrected values, ^f assuming that the uppermost horizon has the same origin as the underlying soil, ^g the uppermost horizon is not considered due to its different origin, ^h integration of Be2D and LODO, ⁱ mass balance model, ^j integration of mass balance and spatial models, ^k proportional model, ^l diffusion and migration model, ^m profile distribution model, ⁿ inventory method and ^o MODERN.

). Erosion rates determined with isotopes are compared with values from RUSLE. Potential problems in their application and how to avoid methodological problems are addressed (

Table 3. Summary of some main potential problems in applying isotopes as a soil tracer and possibilities for overcoming them.

Environment	Land Use	Difficulties	Solutions
Alpine sites, Loess areas	Grasslands, Forests, Arable lands	Heterogenous fallout of 137Cs (Nuclear weapons tests and nuclear power plants fallout), which affects the calculation of soil erosion rates.	To overcome this limitation, both sources of 137Cs have to be taken into account in the calculation model. The separation of global fallout from e.g., the Chernobyl fallout may be done by estimating the initial inventory of 137Cs (described in Poręba et al. [95]) or by the determination of 239+240Pu/137Cs activity ratios at reference sites (described in Meusburger et al. [20,143]).
Coral reef and fluvial terraces, Alpine sites	Grasslands, Forests, Arable lands	When meteoric 10Be is used, the erosion/deposition rates obtained with the model of Lal [91], sometimes may raise doubts. Especially in soils exhibiting clay illuviation or podzolisation.	Application of different models, e.g., proposed by Egli et al. [15], Be2D model [92] and LODO [32]
Tropics	Arable lands	When soil is cultivated with traditional manual tillage practices, features of significant tillage mixing does not occur. Thus, conversion models for cultivated sites cannot be used.	A conversion model developed for undisturbed soils has to be applied [24].
Alpine sites	Forests	Cover beds or different overlaying parent materials for soil development exist. The topsoil, for example, may have aeolian silt admixture, whereas this is not the case for the subsoil. The interpretation of long-term erosion rates may be hampered.	Calculation of erosion rates with and without considering the topsoil may give indications about the range of results [27].
Acidic soils	Forests	In acidic soils, the considered isotopes may in part be solubilised and, thus, be leached.	Determination of a potential loss of meteoric 10Be from the parent material, using chemical mass losses of stable 9Be in a regolith profile [25,62]. The concepts and models for 137Cs and 239+240Pu under acidic conditions still need to be improved.

). Additionally, Mabit et al. [111] pointed out that FRNs should be used for studying soil redistribution within watersheds, the conversion models used should be improved and a conjunctive use of isotopes that cover different timescales provide more information about a study site. Below, we present whether these points are met in the current studies by analysing 83 soils from alpine sites, 35 from loess deposits, 28 from moraine landscapes, 35 from coral reef terraces and Mediterranean areas and 17 soils from the tropics (Figure 7).

5.1. Alpine Sites

Although, there are certain limitations in the application of the discussed isotopes at Alpine sites, they have been widely used to determine soil redistribution rates [15,16,17,18,19,27,92,129,130,144,145]. For example, Alewell et al. [17] employed ^239+240Pu and ¹³⁷Cs as tools in measuring soil erosion in mountainous grasslands in the Swiss Alps. At such sites, the distribution of ¹³⁷Cs was chiefly due to the fallout from the Chernobyl accident. This incident occurred at a time when the mountains were still snow-covered. Following snowmelt, the spatial distribution of ¹³⁷Cs became very patchy, because part of it was lost due to the overland surface flow, whereas, at sites that had been snow-free, the ¹³⁷Cs remained and accumulated in the soil. The spatial distribution of ^239+240Pu, however, was not affected by the nuclear accident. Therefore, the erosion rates were determined using ^239+240Pu (Table 2). The application of ¹³⁷Cs at such Chernobyl-affected sites is, however, still possible. To overcome this limitation, Meusburger et al. [20] determined the ^239+240Pu/¹³⁷Cs activity ratios at the reference sites. The calculation of this ratio provided information about the relative influence of the global versus Chernobyl deposition and allowed the consideration of two ¹³⁷Cs sources by a using conversion model. The values of the ^239+240Pu/¹³⁷Cs activity ratios increased with the soil depth, indicating the predominant origin of the ¹³⁷Cs in the topsoil being Chernobyl, while the deeper layers were characterised by a higher proportion of the ¹³⁷Cs from global fallout. Therefore, the average Chernobyl contribution was estimated to be 75%, which was used to convert the ¹³⁷Cs inventories (Table 2), and the obtained results were in the range of those determined with RUSLE [131] (Table 2).

The soil erosion rates using ¹³⁷Cs and ^239+240Pu were also determined in the Lake Soyang catchment, which has a total area of 65 km² [89]. The rates agree well with data from RUSLE [141]. The calculation model is crucial for the interpretation of long-term erosion rates based on meteoric ¹⁰Be at Alpine sites. As discussed by Zollinger et al. [19] and Egli et al. [15], an approach using steady-state conditions gives unreliable results and does not detect deposition processes. In addition, the interpretation of meteoric ¹⁰Be data becomes difficult in soils developed from heterogenous parent materials. This problem was addressed by Waroszewski et al. [27], where a thin aeolian silt drape overlayed periglacial mica schist deposits; thus, two calculations were used and compared to estimate the erosion rates in mountainous forests. The first based on the assumption that the uppermost horizon had the same origin as the underlying layers, and the second did not consider the uppermost horizon due to its different origin. Version 1 overestimated the erosion rates, while version 2 produced erosion values (Table 2) that seemed more plausible for this mountainous region. The better suitability of the second version was also supported by RUSLE data (Table 2).

Recently, using a combination of isotopes that cover different intervals of time (e.g., ^239+240Pu and ¹⁰Be) has been applied. This can help in deciphering processes over different timescales. It may shed light onto changes of soil redistribution caused by evolving environmental settings or anthropogenic forcing and allow for the comparison of different time ranges. For instance, Zollinger et al. [19] showed that the short- to mid-term soil redistribution rates in the alpine tundra are dramatically higher than the long-term rates (covering a period of ~15 kyr). This has been mainly caused by climate warming and melting of the permafrost, which has distinctly increased soil redistribution over the last few decades.

5.2. Loess Deposits

Loess deposits are very susceptible to erosion processes [124,139,146,147,148,149]. Thus, isotopic techniques were widely applied in such landscapes [36,38,39,95,104,121,126,150]. Poręba et al. [38,95] applied ¹³⁷Cs measurements to a loess colluvium to interpret soil erosion in a Polish loess area under agriculture use (arable lands). In this case, about 45–90% of ¹³⁷Cs derived from the Chernobyl accident. When taking this into account, the erosion rates were in a typical range for loess environments, as shown by RUSLE (Table 2). Other results showed, by using ^239+240Pu, that the soil erosion rates of loess landscapes of Southwestern Poland are often much higher than tolerable rates but still in the range of values from RUSLE [40]. For the Chinese Loess Plateau, Zhang et al. [39] showed that soil erosion determined using ¹³⁷Cs is considerably lower than the modelled rates using the RUSLE model or sediment yields. This issue was explained by the simulation errors and the effect of the topography. Additionally, in arable areas of the Chinese Loess Plateau, ¹³⁷Cs was involved to determine wind erosion by subtracting the water erosion from the total erosion calculated using ¹³⁷Cs [36,123,151]. However, such an approach can cause some uncertainty. The RUSLE model, which is used to calculate water erosion, may underestimate or overestimate erosion rates [36,151]. Thus, the issue of determining wind erosion with isotopes definitely requires more research. In loess landscapes, the methodological combination of soil redistribution rates based on ¹³⁷Cs measurements with spatial soil erosion models was applied in forests and arable lands [104,126]. Recently, ^239+240Pu and ¹³⁷Cs were used for the assessment of rehabilitation effectiveness at sites that were used in the past for agriculture and now are afforested or are grasslands [121,124,127,134]. Examples showing the effect of changes in a tillage system on erosion rates in loess landscapes are still scarce.

5.3. Moraine Landscapes

In moraine landscapes, radioisotopes may help to decipher the evolution of soil erosion rates with soil development. Portes et al. [21], by using ^239+240Pu, showed that soil erosion rates in forests and the tundra on moraine hillslopes have strongly decreased over time. Both applied models—the profile distribution model [98,100] and the inventory model [22]—detected the same trend. The application of ^239+240Pu in forests of such landscapes may provide information if the erosion in a studied area is recent or ancient, as presented by Calitri et al. [34]. The combination of ^239+240Pu (last few decades) and meteoric ¹⁰Be (integration over millennia) in arable lands often confirms that the intensification of agriculture in recent decades has strongly influenced soil redistribution rates [33]. Moreover, recent investigations of Jelinski et al. [32] exhibited that natural and anthropogenic soil redistribution rates can be discerned when meteoric ¹⁰Be is combined with the LODO, Be2D and WaTEM models.

Some investigations, however, did not focus on the calculation of soil erosion and considered only isotope inventories [2,35]. Ouimet et al. [35] presented the spatial and temporal variations of meteoric ¹⁰Be inventories in moraines and fluvial terraces, which allowed to identify specific slope processes. Soil erosion seemed to have occurred even at the older sites (>90 ka), whereas the younger sites (15–21 ka) exhibited higher ¹⁰Be inventories, indicating the dynamic aspects of ¹⁰Be deposition, like snow drift that caused spatial variations in measured inventories at individual sites.

5.4. Coastal and Coral Reef Terraces and Mediterranean Soils

Isotopes were also applied in soils on coral reef, coastal and fluvial terraces [11,12,35,60,113,120] and Mediterranean landscapes [29,30,31,118]. Maejima et al. [11] and Tsai et al. [12] applied (meteoric) ¹⁰Be to the soils of uplifted coral reef terraces in Southwestern Japan and in fluvial terraces in Taiwan, respectively. These cases showed the importance of the calculation model for the determination of soil erosion rates. In both publications, the mathematical model of Lal [91] was used. Therefore, processes such as eluviation/illuviation or vertical mixing were not considered in the model, which resulted in an overestimation of the soil erosion rates.

Radioisotopes are suitable tracers of soil erosion rates in such environments [35,60]. For instance, Meliho et al. [30] applied ¹³⁷Cs to determine the erosion on terraces with different land uses (forestry and agriculture) in the High Atlas (Ourika watershed) of Morocco, whereas Mabit et al. [29] and Quijano et al. [31] applied radioisotopes to study soil erosion alone or in combination with spatial models in Mediterranean landscapes. The obtained results were reliable, because they lie in the range of data provided by RUSLE (Table 2; Panagos et al. [133,138]).

5.5. Tropics

Radioisotopes have been widely used in the tropics [22,23,79,127,128] and comparable with results from USLE model [132,136]. Lal et al. [23] applied ^239+240Pu to analyse soil losses and gains in the wet–dry tropics of Northern Australia on three major land-use types (grazing fields, mahogany and peanut plantation). Wilken et al. [26] demonstrated that pristine forests show no indication of soil redistribution based on ^239+240Pu along topographical gradients. They, however, have measured tremendously high soil erosion and sedimentation rates up 87 t ha⁻¹ y⁻¹ during the last 55 years. Hoo et al. [128] also used ²³⁹Pu to determine the recent soil erosion rates at the scale of a Canberra water supply catchment of a few hundred km² in a fire-ravaged area. Here, erosion and water quality are tightly interconnected. Fifield et al. [127] combined meteoric ¹⁰Be and ¹³⁷Cs to compare the long- and medium-term soil erosion and production rates. The authors showed that modern soil loss is considerably higher than soil production. ¹³⁷Cs also traced erosion processes on hillslopes in Haiti, where tillage is performed with traditional manual tools. Thus, cultivated sites did not exhibit any evidence of significant tillage mixing, and it was not possible to apply a standard conversion model for cultivated soils. Consequently, a conversion model developed for undisturbed sites had to be used to calculate the soil erosion rates, which seemingly provided reliable results [24].

5.6. Acidic Soils

Under acidic conditions, the discussed isotopes may occur in mobile forms, and they may be transported to the saprolite and/or lost through leaching [52,59,62,74,152]. To overcome this limitation for meteoric ¹⁰Be, Bacon et al. [62] proposed to use the stable isotope ⁹Be that is mobilised from the parent material through weathering to determine the potential loss of meteoric ¹⁰Be [25]. This approach is based on the chemical mass losses of ⁹Be in a regolith profile being used to constrain the chemical depletion of ¹⁰Be. Adding chemical losses of ⁹Be to the measured ⁹Be inventory and assuming that ⁹Be and meteoric ¹⁰Be behave similarly in the regolith, the reactive ⁹Be fractions are positively related to the ¹⁰Be concentrations. Therefore, the ratio between the corrected and measured ⁹Be concentrations enables a correction of the ¹⁰Be concentrations, so that erosion rates can be calculated. Additionally, in acidic environments such as forests, the Be2D model, which considers meteoric ¹⁰Be translocation within a soil profile, was applied, and the results seemed reasonable [92].

6. Conclusions and Outlook

Meteoric ¹⁰Be, ¹³⁷Cs and ^239+240Pu are useful tracers of soil redistribution. They have been applied in different environments, such as moraines, loess landscapes, alpine sites, coastal and coral reef terraces, Mediterranean soils, tropics, acidic soils and forest soils and used as forests, grasslands and arable lands. The results determined with isotopes were in a good agreement with the values from RUSLE, which proves their usefulness as soil erosion tracers. Meteoric ¹⁰Be allows the calculation of long-term redistribution rates (often since the start of soil formation), while ¹³⁷Cs and ^239+240Pu give possibility to calculating the medium-term (decades) rates. The application of ¹³⁷Cs, however, has increasing limitations caused by its short half-life and its heterogeneous distribution in European soils owing to the Chernobyl nuclear accident. Thus, ^239+240Pu has been suggested as a promising alternative. Its high precision and increasing application have indicated its success.

When using these isotopes, a crucial issue is selecting the most suitable conversion model for calculating the soil redistribution rates. For meteoric ¹⁰Be, the most popular models are those proposed by Lal [91] and Egli et al. [15]; however, the latter appears to work better, because it assumes that soils are an open system. New models such as LODO with Be2D provide insights into the natural and anthropogenic soil redistribution rates. For ¹³⁷Cs and ^239+240Pu, the mass balance, diffusion and migration, profile distribution models and inventory method are often used, whereas MODERN is a recently developed model that stimulates the stock and the FRN profile distribution.

When using ^239+240Pu and ¹³⁷Cs, the choice of a reference profile is crucial, as the results of sites exhibiting soil redistribution are referenced. Choosing an unrepresentative (disturbed and eroded) reference profile will lead to under- or overestimation of these rates.

Many examples have proved the usefulness of these isotopes in estimating the soil redistribution rates. There are, however, also several limitations with these isotopic methods, although solutions exist for some of them. For example, the distribution of ¹³⁷Cs may not be homogeneous. In such cases, ^239+240Pu may be helpful in correcting any bias. Likewise, in deeply weathered and acidic soils, losses of the inventory of ¹⁰Be may be corrected by using ⁹Be.

Moreover, the simultaneous application of ¹⁰Be and ¹³⁷Cs and/or ^239+240Pu enables tracing back changes in the soil erosion rates over time. It has been shown that global warming has accelerated the soil redistribution rates in Alpine regions and on agriculture land. Using a combination of several isotopes at the same study sites enables cross-checking whether the obtained results are comparable and, therefore, reliable. This kind of approach was presented by Mabit et al. [111] as a challenge and necessity in the use of isotopes.

Isotopic tools are still underexplored in soils, but they could be increasingly applied under different agroecological conditions, with soil redistribution rates being quantified over decades to millennia. Still, several gaps in the knowledge about soil redistribution exists, e.g., in loess areas under different tillage systems or applying isotopes in larger scales like watersheds. The determination of wind erosion and the application of new calculation models are additional challenges.
