One-Step Synthesis of Iron and Titanium-Based Compounds Using Black Mineral Sands and Oxalic Acid under Subcritical Water Conditions

Abstract

Black mineral sands are widely used to obtain titanium dioxide, titanium, and, more recently, a variety of iron–titanium oxide nanostructures. Highly corrosive mineral acids or alkalis are commonly employed for this purpose. Hence, it is desirable to find eco-friendly ways to process these minerals, deriving high-added value materials. In this study, an Ecuadorian mineral sand precursor (0.6FeTiO₃∙0.4Fe₂O₃ solid solution) was treated with oxalic acid aqueous solutions under subcritical water conditions. The synthesis was conducted in a batch reactor operating at 155 °C, 50 bar, and 700 rpm for 12 h, varying the oxalic acid concentration (0.1, 0.5 to 1.0 M). The as-obtained compounds were physically separated, dried, and analyzed by X-ray powder diffraction, scanning electron microscopy, and Raman spectroscopy. The characterization showed that the precursor was completely converted into two main products, ferrous oxalate, and titanium dioxide polymorphs. Rutile was always found in the as-synthesized products, while anatase only crystallized with high oxalic acid concentrations (0.5 and 1.0 M). These results open the possibility to develop more sustainable routes to synthesize iron and titanium-based materials with promising applications.

1. Introduction

Ilmenite (FeTiO₃) black mineral sands have been traditionally used worldwide to generate concentrated titania slag or synthetic rutile as feedstock for further production of titanium dioxide (TiO₂) and titanium metal (Ti) [1,2,3,4]. Nevertheless, either the generation of such feedstocks or the downstream processes that lead to the commercialized titanium-based products involve energy-intensive processes (T > 1200 °C) [5], the use of corrosive mineral acids (i.e., sulfuric, nitric, and hydrochloric acids) as leaching agents, as well as the generation of toxic tails and large volumes of industrial sewage that must be treated before disposal [6,7]. During the last few years, these sands have also been used to synthesize different types of iron–titanium oxide nanostructures, whose promising applications have motivated continuous research around the world [8,9,10]. The alkaline hydrothermal treatment, for example, is a common route to obtain such nanostructures (i.e., ferrititanate nanosheets, iron-doped titanate nanofibers, ilmenite nanoflowers, iron–titanium oxide flower-like micronic particles, and nanobelts) [8,9,11,12,13]. However, it involves the usage of strongly alkaline aqueous solutions, commonly with molarities as high as 10 M. Although this process is straightforward, it is prone to result in an environmental burden. Recognizing the potentially negative impacts on human health and the natural ecosystems associated with the described processing approaches for ilmenite black sands, it is highly desirable to find sustainable alternatives, through environmentally friendly methods.

The dissolution of ilmenite black sands is crucial prior to titanium extraction, concentration, and recovery with the ore upgrade. This stage is even more important if we consider that some of these ferrotitaniferous black sands are naturally occurring ilmenite–hematite solid solutions (IH SSs), which are more difficult to dissolve, in comparison with the ones composed only of ilmenite [13]. For this reason, efforts have been devoted to the improvement of the throughput of the dissolution stage [14], and to the development of cleaner processing that minimizes the usage of toxic chemicals [4,15]. Organic acids, for example, represent an effective alternative to strong mineral acids in acid leaching. In this regard, oxalic, citric, and ascorbic acids have been demonstrated to be very effective in the dissolution of iron oxides, including goethite, magnetite, and hematite [16,17,18]. The dissolution of these iron oxides in organic acids has been reported via three processes: (1) adsorption of organic ligands on the particle surface, (2) nonreductive dissolution, which is relevant only at high temperatures, and (3) reductive dissolution, which is the main mechanism and consists of two stages: induction and autocatalysis [19]. Similarly, oxalic and citric acids have been used to dissolve more complex iron-bearing minerals such as pure ilmenite; nonetheless, the phenomena and the precise dissolution mechanisms are not yet well understood [20]. In addition, the chemistry associated with the organic acid dissolution of iron oxides can be further explored as an alternative for the synthesis of high-value products from complex, iron-bearing minerals. As such, ferrous oxalate is a product of iron oxide dissolution, and it can be expected when iron-bearing minerals are also treated with aqueous oxalic acid solutions [20]. On the other hand, organic acids at high temperatures (up to 150 °C) have been used to increase the dissolution rate of iron oxides [19] and shorten the reaction times [21], suggesting the potential of hydrothermal technologies for value addition of iron-bearing minerals.

Subcritical water (sCW) technology is an eco-friendly hydrothermal process that uses liquid water within a specific temperature and pressure range (100 °C < T < 374 °C; 1 bar < P < 221 bar) as a reaction medium to induce the dissolution and extraction of various compounds in short reaction times [22]. This is possible due to the modified physicochemical properties of water under subcritical conditions (i.e., increased ionic product and decreased dielectric constant, density, and pH), which facilitate solvation of compounds of a wide range of polarities, as well as the transport phenomena in aqueous solutions [23]. Additionally, sCW technology is versatile and can be applied to large-scale production, as the required equipment setup resembles the autoclaves setup used for high-pressure metallurgy [24]. Therefore, sCW, as a hot, pressurized, and slightly acidic aqueous reaction medium, can be used as a greener approach to process ilmenite black sands. Additionally, the combination of water with dicarboxylic acids at mild sCW conditions (135 °C and 100 bar) has shown to be a feasible and effective alternative to conventional mineral acid-catalyzed hydrolysis of agroindustrial residues [25,26]. Nonetheless, the use of these sCW systems has been limited to biomass conversion [22], and no studies focusing on the simultaneous synthesis of iron and titanium-based compounds from naturally occurring ilmenite black mineral sands have been yet reported in just one step.

Treatment of ilmenite–hematite mineral black sands with aqueous oxalic acid solutions under sCW conditions may allow producing TiO₂ and ferrous oxalate (FeC₂O₄), materials with a wide variety of applications. Titanium dioxide is typically used as an adsorbent and photocatalyst in water and air treatments, a pigment in paints and coatings, an antimicrobial agent or reinforcement in composites, etc. [27,28,29]. Although ferrous oxalate is less common, it is considered an effective heterogeneous catalyst in advanced oxidation processes for eliminating a series of persistent organic pollutants from wastewaters [30,31,32,33]. It can also be a precursor for the synthesis of other materials such as ferrate (VI), whose ion has a strong oxidizing potential, beneficial for water treatment [34]. Furthermore, the thermal decomposition of ferrous oxalate allows for the synthesis of different magnetic nanoparticles, which can be used as adsorbents, catalysts, reinforcements in composites, sensors, etc. [35,36].

Therefore, the aim of this research was to evaluate the use of the binary oxalic acid/H₂O system at sCW conditions (155 °C and 50 bar) as an eco-friendly process to obtain, in one step, titanium dioxide and ferrous oxalate from the Ecuadorian ilmenite–hematite solid solution (naturally occurring ilmenite black mineral sands) without the previously mentioned shortcomings associated with mineral acid leaching. The input synthesis variable was the concentration of the oxalic acid solution. The as-synthetized product streams were characterized by X-ray powder diffraction (XRPD), Raman spectroscopy, and scanning electron microscopy (SEM).

2. Materials and Methods

2.1. Materials

The black mineral sand used in this study was of Ecuadorian origin, with a reported chemical composition of 0.6 FeTiO₃·0.4 Fe₂O₃ [37] and milled under the conditions described elsewhere [13]. For the sCW synthesis, oxalic acid (>99.5%, ACS grade) from Sigma Aldrich (St. Louis, MO, USA), water from the Milli-Q system (18.2 MΩ·cm, Millipore, Billerica, MA, USA) and N₂ gas (99.9% purity) from Linde (Quito, Ecuador) were used.

2.2. Synthesis of Iron and Titanium-Based Compounds under sCW Conditions

The synthesis was performed in a batch stirred high-pressure reactor system (Berghof BR-500, Eningen unter Achalm, Germany), equipped with a 500 mL PTFE lined vessel. Ilmenite sand (0.9 g) and aqueous oxalic acid solutions of determined molarity (300 g) were loaded into the reaction vessel and the system was assembled. N₂ was used to purge the solution inside the reactor and to pressurize the system up to 18 bar. Next, the system was heated up to 155 °C. Once the system reached the set temperature and pressure of 50 bar, the reaction time was accounted for 12 h under constant stirring of 700 rpm. Afterward, the system was cooled down, depressurized and the contents of the reactor vessel collected. The as-synthetized product streams were washed out with Milli-Q water until neutral pH, redispersed in Milli-Q water, and decanted for 2 h. As a result, two fractions were recovered—a whitish suspension containing finer particles (WA) and a yellowish precipitate containing larger particles (WB). Redispersion and decanting were carried out mainly to facilitate the upcoming Le Bail refinement of the as-synthesized products. Finally, these fractions were dried at 37 °C for 24 h prior to storage and characterization. The synthesis scheme is depicted in Figure 1, while the sample codification is shown in

Table 1. Identification of the as-synthesized products.

Oxalic Acid Concentration (M)	Control Sample	Whitish Fraction (WA)	Yellowish Fraction (WB)
0 (H2O)	sCW
0.1		0.1 M-WA	0.1 M-WB
0.5		0.5 M-WA	0.5 M-WB
1.0		1.0 M-WA	1.0 M-WB

.

It is worthy to note that the reaction temperature was selected based on the thermal stability of oxalic acid as the thermal degradation of aqueous oxalic acid solutions has been reported between 160 and 230 °C [38]. Additionally, relatively low pressure of 50 bar within the sCW region (1 < P < 221 bar) was chosen to keep the aqueous oxalic acid/precursor system at sCW conditions at the operating temperature (155 °C) and to favor the ionization of aqueous oxalic acid and self-ionization of water, as these chemical reactions have been reported to be enhanced by pressure [39,40,41,42]. Although short reaction times have been associated with dicarboxylic acid-catalyzed sCW systems, due to the nature of the precursor used in this study, a longer reaction time (12 h) was defined to ensure that the dissolution and precipitation reactions would occur. A solvent-to-ferrotitaniferous sand ratio of 333:1 was employed, considering the reported ilmenite sand stability in alkaline conditions [13]. In addition, to determine whether the concentration of oxalic acid influences the synthesis reaction, aqueous oxalic acid solutions of 0.1, 0.5, and 1 M were used as solvent media, as well as pure water, which was used as the control solvent.

2.3. Characterization

XRPD of the as-synthesized products was carried out in a D8 Advance diffractometer at room temperature (CuKα radiation, from 15 to 60° 2θ, with 2 s per 0.02° step). The phase identification was performed using a PDF-2 database. The CIF files of the identified phases are presented in Supplementary Materials. The acquired diffraction patterns were refined via the Le Bail method, using Topas 4.2 software (Bruker, Karlsruhe, Germany). The morphology and size of the as-prepared products, previously carbon-coated, were studied through SEM analysis, in a Hitachi TM3000 equipment (Hitachi High-Technologies, Tokyo, Japan), operating in secondary electron mode. X-ray energy dispersive microscopy (EDS) mapping was also performed to verify the purity of the as-synthesized powders. These products were also analyzed in a Horiba LabRAM HR evolution Raman spectrometer (Horiba, Kyoto, Japan). The spectra were recorded in the 200–2000 cm⁻¹ region with a grating of 1800 gr/mm and an acquisition time of 15 s. The spectra collection was at room temperature, using a 633 nm laser set at 12.5 mW of power.

3. Results

3.1. Synthesis of Iron and Titanium-Based Compounds under sCW Conditions

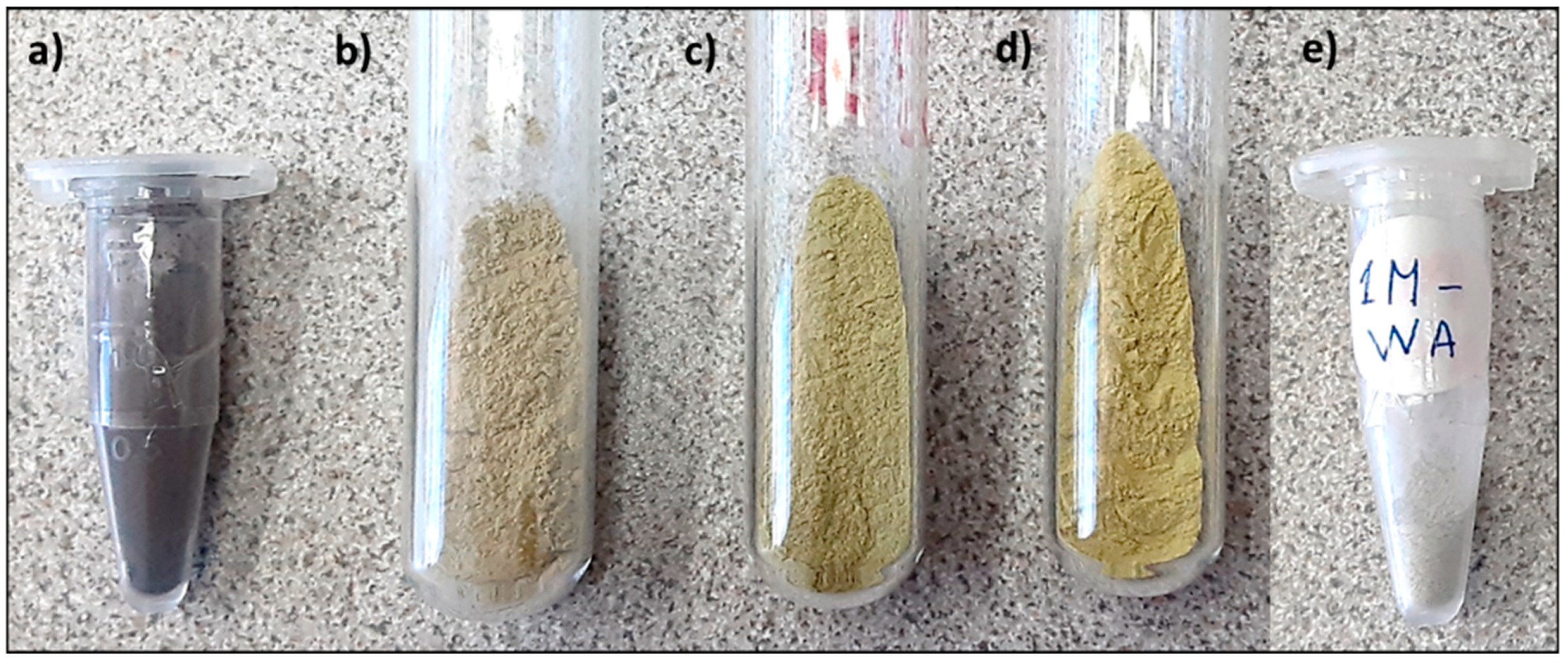

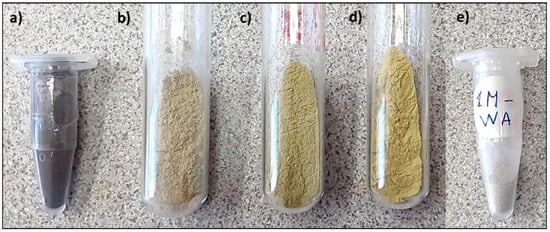

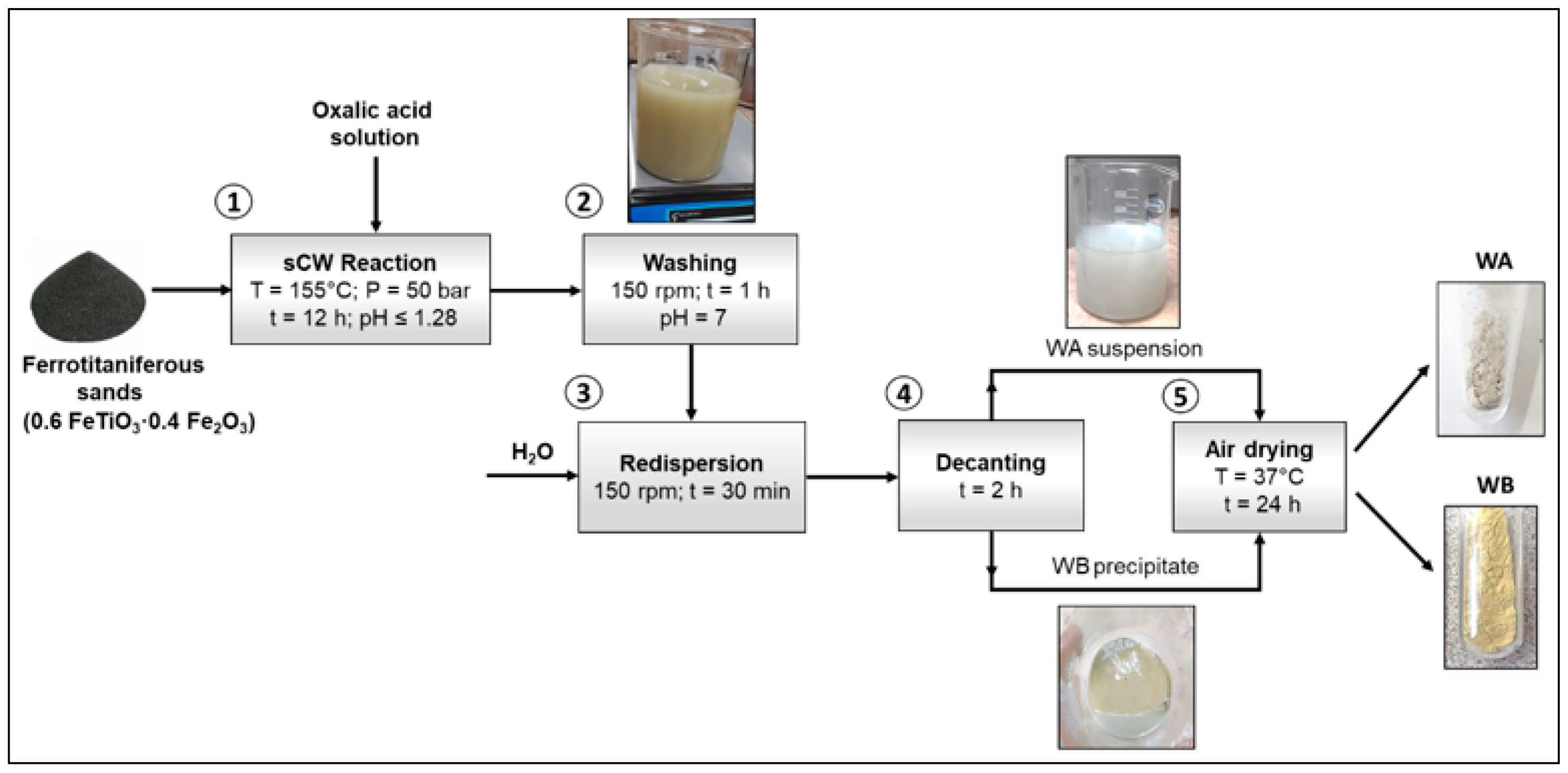

Figure 2 shows the synthesis reaction products (WA and WB) obtained from the ferrotitaniferous mineral sand precursor after 12 h at 155 °C and 50 bar using either water or oxalic acid solution of different molarity as reaction medium.

According to Figure 2, it can be inferred that the reaction medium indeed influenced the dissolution of the ferrotitaniferous sand precursor, and subsequently, on the synthesis reaction, as indicated by the color variation in the as-synthesized products. For example, a dark brown powder (Figure 2a) that resembled that of the precursor was obtained with sCW medium whereas yellow, and white powders were obtained with the aqueous oxalic acid medium. In general, ferrous oxalate FeC₂O₄ (pale yellow powder) and titanium dioxide TiO₂ (white powder) were expected as the primary products formed under the set chemical system with aqueous oxalic acid. Then, the variation in shades of yellow color among the WB fractions (Figure 2b–d) could be attributed to a possible influence of oxalic acid molarity on the selectivity in reactions. Conversely, Figure 2e shows a sample of the whitish powders (WA fraction) obtained with an aqueous oxalic acid medium, suggesting the formation of titanium dioxide. In addition, an average mass ratio of the as-synthesized products WB: WA of 6 was obtained when oxalic acid/H₂O was used as the solvent system. However, as expected, there was no formation of fractions WA or WB due to the sCW medium alone.

To gain insights into the effect of the concentration of the oxalic acid solution or water on the dissolution of the precursor, the as-synthetized products were further analyzed by XRPD, SEM, and Raman spectroscopy.

3.2. Characterization of the Obtained Iron and Titanium-Based Compounds

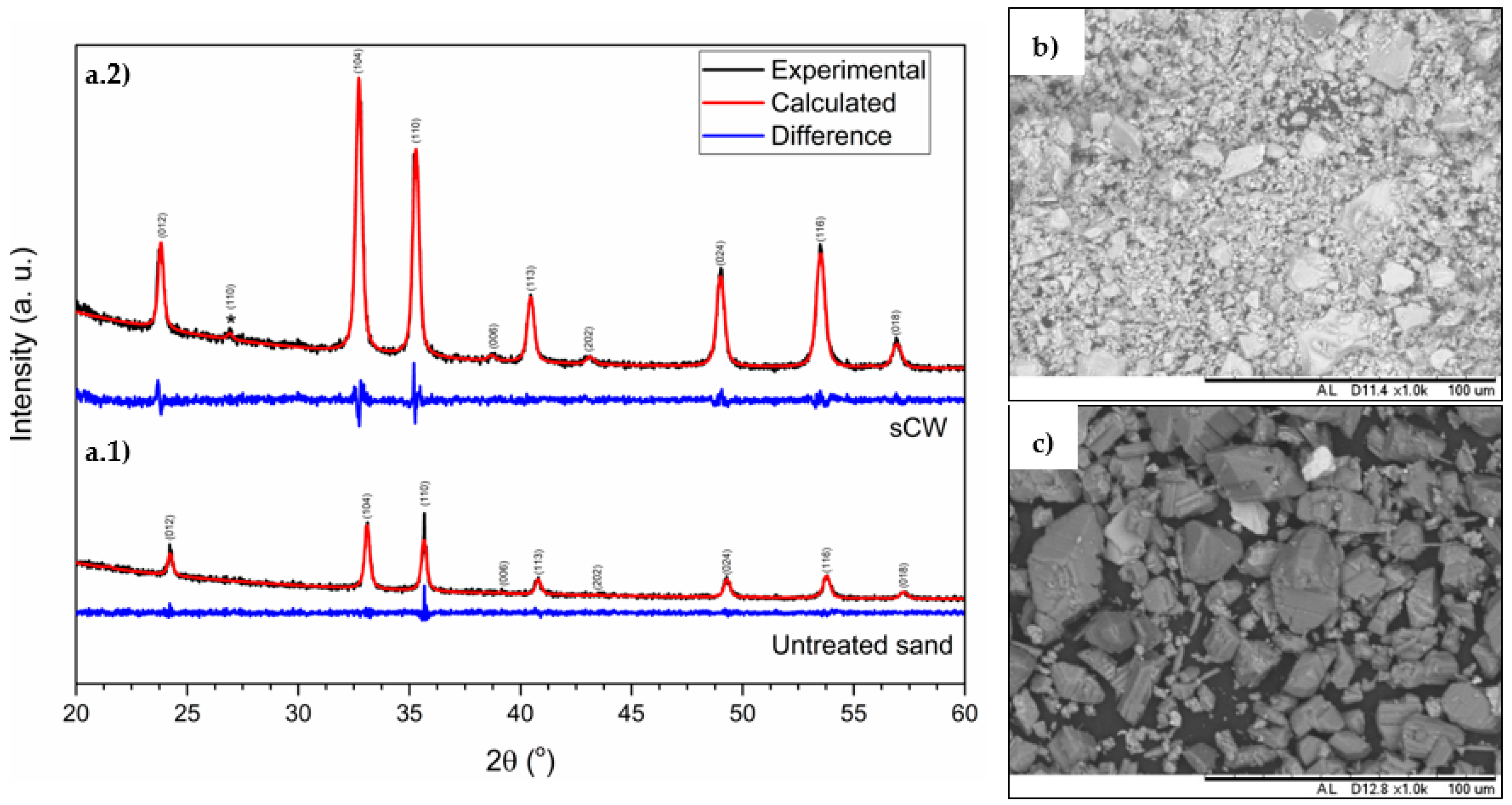

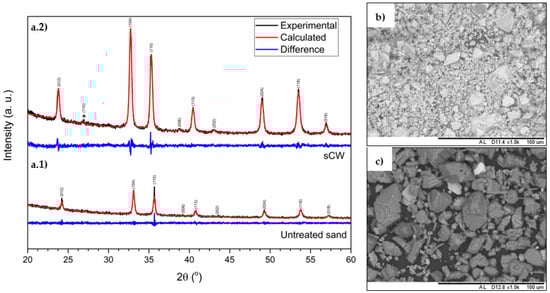

Figure 3 shows the XRPD patterns and the SEM images of the ferrotitaniferous sand precursor and the products synthesized with sCW (control medium). The diffraction pattern for the untreated sand precursor exhibited peaks at 2θ angles that correspond to an IH SS, as previously observed for this type of mineral sand [13,37]. Le Bail adjustment of the diffraction patterns of untreated sand precursor and sCW treated product indicated a reduction in IH SS unit-cell volume, from 310.4 ų for untreated sand to 307.6 ų for sCW product (Figure 3). In accordance with Brown et al., the reduction in unit cells in IH SS indicates hematite enrichment of IH SS [43]. Considering the appearance of the rutile phase in the diffraction pattern of the sCW-treated sample (Figure 3), it is suggested that ilmenite, Ti-rich, part of the solid solution was partially dissolved during sCW treatment, resulting in the increase in the hematite fraction within IH SS. Therefore, the presence of a weak diffraction line of rutile in the sCW sample, revealed by the Le Bail refinement, can be associated with chemical changes in the ferrotitaniferous sand, possibly due to some partial dissolution of the ilmenite–hematite solid solution under sCW conditions. The Le Bail refinement of the experimental XRPD patterns for the sCW sample is displayed in Figure S1 (Supplementary Materials). Although at 155 °C and 50 bar, water produced an acid-like catalytic effect on the ferrotitaniferous sand, further research is needed to better understand the dissolution behavior in sCW.

An SEM image of the untreated ferrotitaniferous sand precursor is presented in Figure 3b, revealing that this sample is composed of a mixture of irregular-shaped submicronic particles and micronic particles (10–40 μm). After synthesis at sCW conditions, the morphology and shape of the sCW-treated product (control sample) differ from those of the precursor, exhibiting irregular prismatic faceted shapes with various channels on the particle surface, as well as a lower amount of submicronic particles (Figure 3c). The particle size of the sCW sample ranges between 10 and 50 μm. However, few submicronic particles were also found in this sample (irregular and rod-like shapes). Additionally, no trace elements were found in the synthesized products, as demonstrated by EDS mapping (Supplementary Materials; Figures S8 and S9).

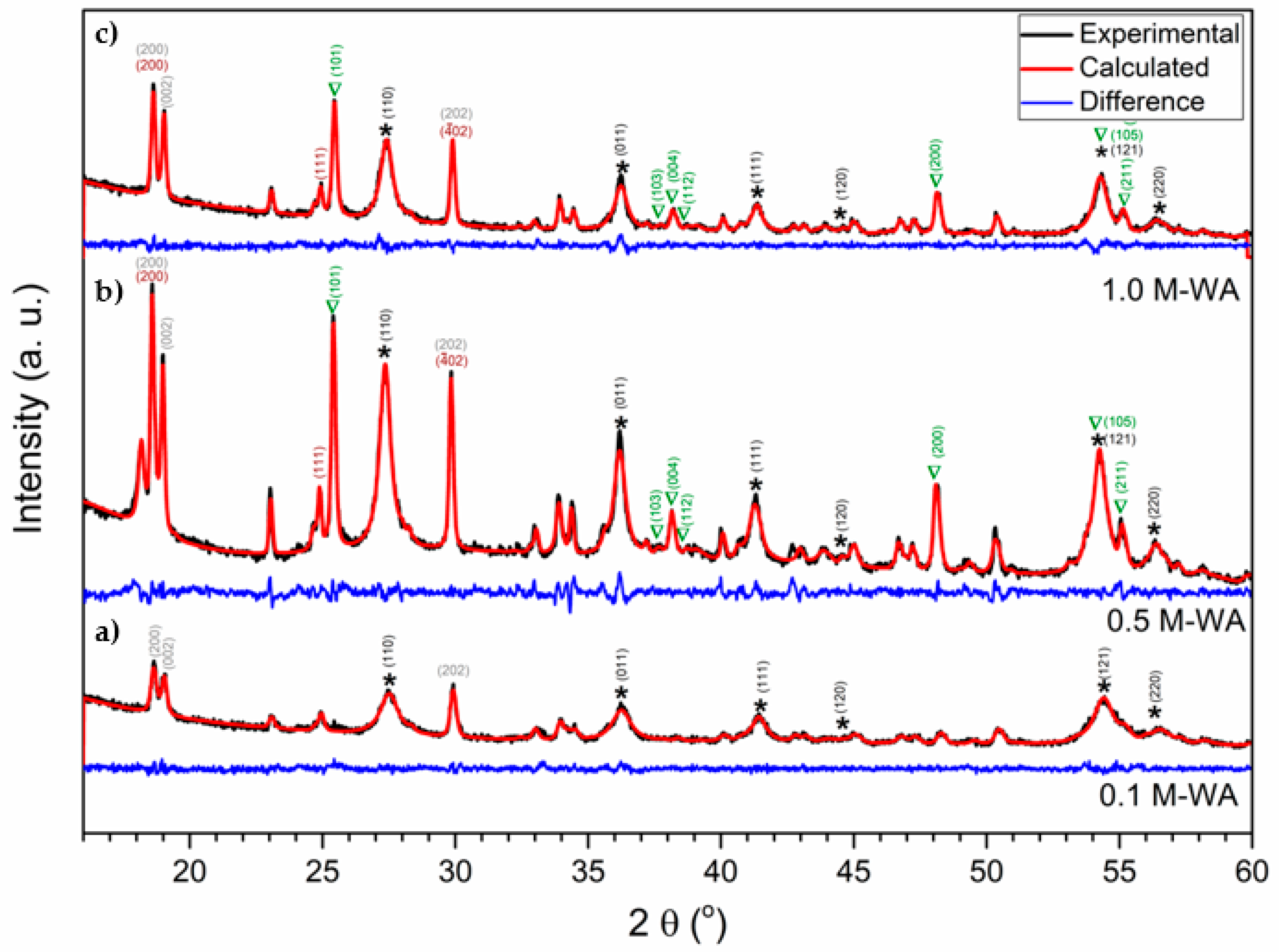

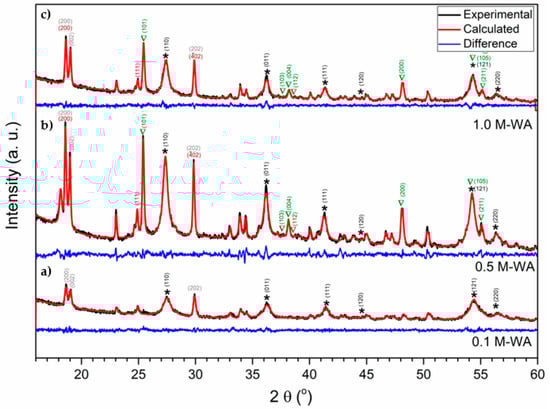

Figure 4 indicates the XRPD patterns of the WA fractions obtained using oxalic acid solutions of different molarity at 155 °C, 50 bar, and 12 h of reaction. Notably, all the molarities used resulted in the complete dissolution of the black sand. On the other hand, strong peaks of TiO₂, in the rutile phase, were identified in all WA samples. Nonetheless, in WA samples obtained with 0.5 and 1.0 M oxalic acid, TiO₂ in the anatase form was also present. The unmarked diffraction lines in all WA samples are ascribed to ferrous oxalate hydrate (FeC₂O₄∙2H₂O), matching PDF 23-0293 and PDF 72-1305 (both PDFs correspond to the monoclinic phase but exhibit a different value of a lattice parameter). Overall, WA fractions were rich in TiO₂ polymorphs but also contained a significant amount of ferrous oxalate hydrate, suggesting that a sequential redispersion-decanting process can be performed to obtain concentrated TiO₂ and FeC₂O₄∙2H₂O streams when required. Le Bail refinements of the experimental XRPD patterns of 0.1 M-WA, 0.5 M-WA, and 1.0 M-WA samples, detailing the fitting of each crystalline phase, are shown in Figures S2–S4, respectively (Supplementary Materials).

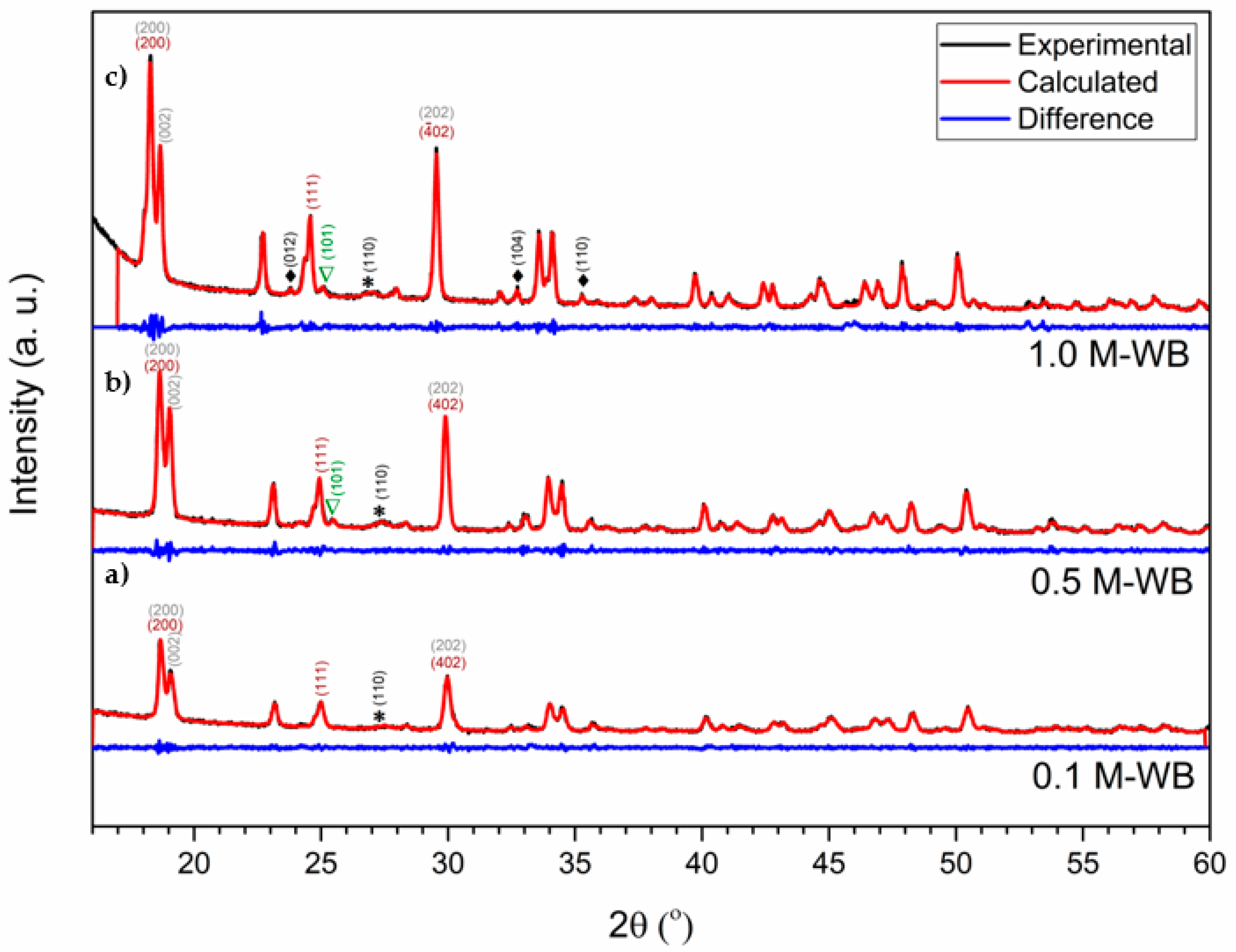

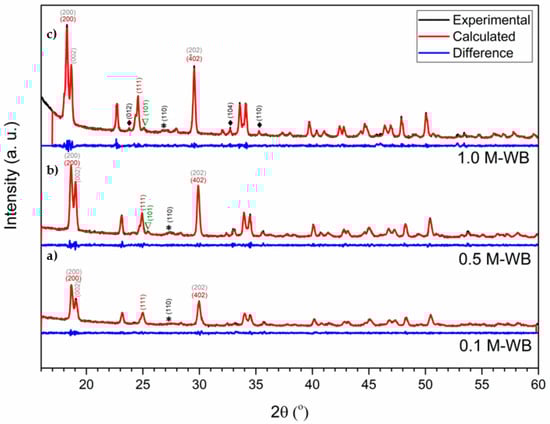

Figure 5 shows the XRPD patterns of WB products obtained with oxalic acid solutions of different molarity at 155 °C, 50 bar, and 12 h of reaction. The main crystalline phase corresponds to ferrous oxalate hydrate (FeC₂O₄∙2H₂O), which is the same compound identified in the WA fractions. Weak diffraction lines of rutile and anatase were recognized, illustrating that the recovered WB fraction almost completely consisted of FeC₂O₄∙2H₂O. When the oxalic acid concentration was 1.0 M, hematite also emerged as a low content secondary phase. Le Bail refinements of 0.1 M-WB, 0.5 M-WB, and 1.0 M-WB samples, illustrating the fitting of each crystalline phase, are presented in Figures S5–S7, respectively (Supplementary Materials). Some trace of maghemite was detected in the three WB products, but its diffraction lines are overlapped with those of other phases.

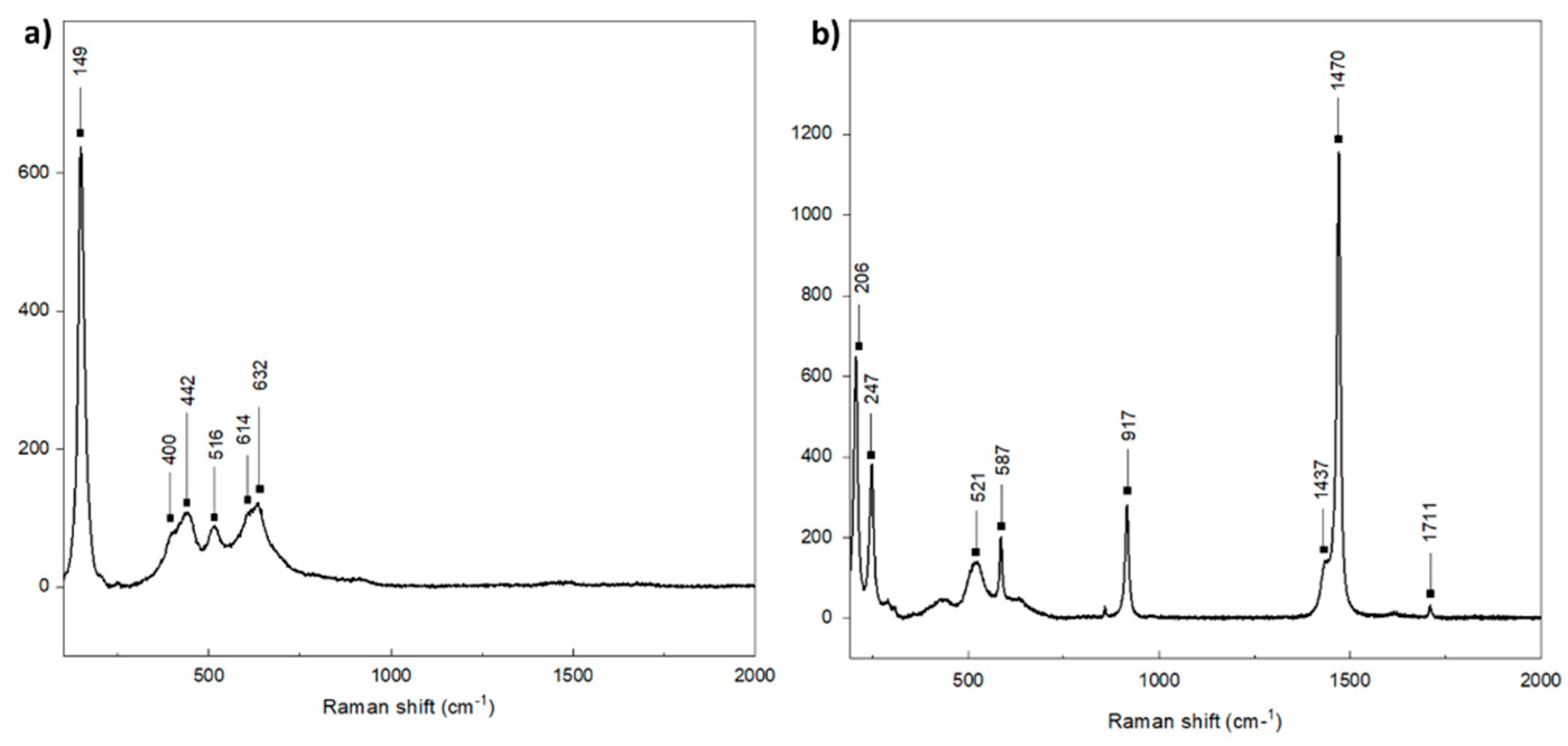

Consistent with the XRPD analyses, the Raman spectroscopic studies of the as-synthesized WA and WB products confirmed that titanium dioxide and ferrous oxalate appeared as the main crystalline phases, respectively. Figure 6 shows the Raman spectra of both fractions, WA and WB, obtained using 1 M oxalic acid solution. In Figure 6a, bands corresponding to a mixture of anatase (149, 400, 516, and 632 cm⁻¹) and rutile (442 and 614 cm⁻¹) were identified [44]. The spectrum presented in Figure 6b contains a series of characteristic bands of ferrous oxalate (206, 247, 521, 587, 917, 1437, 1470, and 1711 cm⁻¹), similar to the ones observed in humboldtine [45] and ferrous oxalate obtained in previous comparable studies [34].

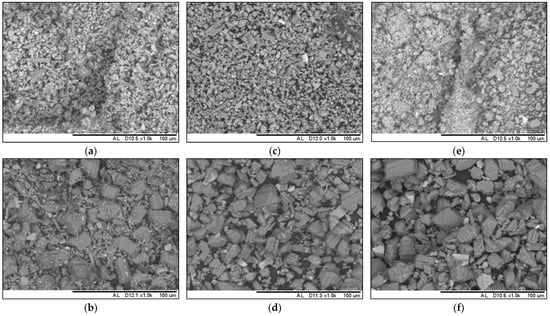

Figure 7 displays SEM images of the WA and WB powders. Since all WA fractions (Figure 7a,c,e) are composed of finer particles (micronic particles < 10 μm and submicronic particles), these products remained suspended in the reaction medium, despite containing TiO₂ phases, denser than ferrous oxalate. On the other hand, WB fractions (Figure 7b,d,f), rich in ferrous oxalate, comprise larger particles, the majority of them larger than 10 μm, which decanted. The submicronic particles observed in WB fractions can be related to the TiO₂ WA counterparts. As the oxalic acid molarity increases, the quantity of such submicronic particles decreases, as can be seen in Figure 7f. Regarding morphological features, WA powders have irregular-shaped particles, while WB powders exhibit irregular prismatic faceted shapes like slender prisms, similar to those of the sCW sample.

4. Discussion

Iron and titanium-based compounds were synthesized from ferrotitaniferous mineral sand under sCW conditions (at 155 °C and 50 bar) using an oxalic acid/H₂O solvent system, avoiding the use of conventional high molarity mineral acids and alkaline solutions. The selected solvent system at 155 °C and 50 bar favored the dissolution of the ferrotitaniferous mineral sand precursor, compared with that of the control sCW medium at 155 °C and 50 bar, and led to the formation of ferrous oxalate and titanium dioxide (rutile and anatase) in just one processing step (Figure 4, Figure 5 and Figure 6). Although this complex iron-rich ferrotitaniferous sand has been shown to withstand temperatures as high as 180 °C, autogenous pressures, long processing times, and concentrated alkaline solutions [13], in this study, its susceptibility to dissolution in an acidic medium was proven. As such, the dissolution of the precursor can resemble acid catalysis, where the dissolution reactions are driven by proton transfer, followed by a nucleophilic attack so that protic strong acids (i.e., sulfuric, nitric, and hydrochloric acids) act as a source of protons (H⁺) to facilitate the catalysis [46]. In the reaction system used herein, the carboxylic groups of oxalic acid (weak diprotic acid) can also act as proton donors in an aqueous medium [47]. Thus, proton transfer and nucleophilic attack mechanisms could be expected during the dissolution of ferrotitaniferous mineral sand precursors. Likewise, sCW can serve as a protic solvent due to its increased ionic product (Kw _{(155 °C)} = 1 × 10⁻¹² vs. Kw _{(25 °C)} = 1 × 10⁻¹⁴) and ionic strength, and consequently reduced pH, facilitating acid-catalyzed reactions [23,48,49]. According to Figure 3a.2, sCW medium at 155 °C and 50 bar indeed had a mild acid catalytic effect on the dissolution of the sand precursor as rutile phase was identified by the XRPD analysis, besides IH SS precursor. However, the addition of oxalic acid to reach 0.1 M, for example, favored much more the dissolution of the black sand precursor, as the IH SS phase was no longer identified by the XRPD analysis; rather, ferrous oxalate and rutile phases were (Figure 4a and Figure 5a). Based on the abovementioned facts, it can be inferred that the dissolution of the ferrotitaniferous black sand was favored as the proton concentration in the reaction medium increased. In addition, Pourbaix diagrams for Fe–H₂O [50] and FeTiO₃–H₂O [15] systems also report that up to pH 4 (high proton concentration), the soluble iron Fe⁺² is the predominant species, while titanium still remains as the insoluble oxide TiO_{2 (s)} [15]. To discuss further the influence of oxalic acid concentration on the synthesis reaction, the oxalic acid dissociation constants (Ka₁ and Ka₂), pH, and ionic strength were considered (

Table 2. Chemical properties of oxalic acid solutions of different molarity and main crystalline phases identified in the as-synthesized product streams obtained with oxalic acid solutions at 155 °C and 50 bar.

Oxalic Acid (M)	pH	Ka1 5.6 × 10−2	Ka2 5.4 × 10−5	Ionic Strength (M)	Main Crystalline Phases * (WA + WB)
		C2HO4−1 (M)	C2O4−2 (M)
0.1	1.28	5.2 × 10−2	5.39 × 10−5	0.052	Ferrous oxalate, rutile
0.5	0.85	14.2 × 10−2	5.41 × 10−5	0.142	Ferrous oxalate, rutile, anatase
1.0	0.68	21.0 × 10−2	5.41 × 10−5	0.210	Ferrous oxalate, rutile, anatase, hematite

* Maghemite traces were found in all the reaction products.

). Values in Table 2 corresponding to pH and ion concentration were calculated based on the concentration of H⁺, C₂HO₄⁻¹, and C₂O₄⁻² ions at equilibrium and the acid dissociation constant expressions for oxalic acid (Equations (1) and (2)). The ionic strength of the solution was determined considering the Debye–Hückel equation [51] at equilibrium.

As the first dissociation constant of oxalic acid to hydrogen oxalate C₂HO₄⁻¹ is significantly higher than that of the second one to oxalate ion C₂O₄⁻² (Table 2), the C₂HO₄⁻¹ is probably the one to play a role in the dissolution reactions. Then, increasing the molarity of the oxalic acid solution will increase the concentration of C₂HO₄⁻¹ as well. According to Table 2, for example, as the molarity of oxalic acid solution increases from 0.1 to 1.0 M, the concentration of C₂HO₄⁻¹ increases 2.7 and 4 times, respectively. Interestingly, such C₂HO₄⁻¹ increment was not linear but fitted to a power model regression curve (0.2127x^0.6105; R² = 0.9993), where x is the molarity of the oxalic acid solution. Therefore, highly concentrated solutions of oxalic acid at the given operating conditions will not dramatically enhance reactions where C₂HO₄⁻¹ ion is required. Factors such as temperature, pressure, and time, or its combination, can be further considered to speed up the dissociation of oxalic acid and the generation of C₂HO₄⁻¹ ions. In addition, oxalic acid dissociation also generates hydrogen ions (H⁺) (Equation (1)), which concentration determines the pH value. Increasing the molarity of the oxalic acid solution will also increase the concentration of H⁺ but lower the pH value, as both amounts are inversely proportional. Therefore, the 1.0 M oxalic acid solution exhibits the lowest pH value of 0.68, as well as the highest molar ionic strength, which is a measure of the concentration of the electrically charged species in the solution [51], in this case, due to both H⁺ and C₂HO₄⁻¹. Consequently, 1.0 M oxalic acid solution as a reaction medium can favor ionic reactions such as acid-catalyzed reactions, compared with those of low molarity. Upon the sCW synthesis at 155 °C and 50 bar under a N₂ atmosphere, reaction products comprising various mineral phases were obtained when oxalic acid solutions with high molarity and ionic strength were used as reaction media (Figure 4 and Figure 5, Table 2), suggesting that oxalic acid solutions with increased molarity and ionic strength can induce the dissolution of ferrotitaniferous sand as well as the crystallization of other iron and titanium oxides.

Chemical reactions possibly associated with the dissolution of ferrotitaniferous black sand and the synthesis of ferrous oxalate and titanium dioxide at 155 °C, 50 bar, and 12 h with aqueous oxalic acid are presented as Equations (1) to (6). According to Equation (1), hydrogen oxalate and hydrogen ions that result from the first ionization stage of oxalic acid are prone to react with the iron-bearing minerals either hematite (Equation (3), [52]) or ilmenite (Equations (5) and (6)), leading to the formation of ferrous oxalate as a precipitate. However, due to differences in chemical composition and valency of iron in the iron-bearing minerals, the dissolution rate of either hematite [53] or ilmenite could be favored [54], reducing the amount of the available hydrogen oxalate ion to further react and form more ferrous oxalate (Equation (6)). Then, the rate-limiting step can be associated with the dissociation of oxalic acid. Interestingly, weak acids such as oxalic acid are known for their relatively low dissociation constants, and it is this feature that makes them good candidates for selective catalysis. As such, the oxalic acid medium allows the interaction of the released TiO⁺² cation with water to precipitate as titanium dioxide (Equation (5)). Although Equations (1) to (6) provide insights on the expected chemical reactions involved during the synthesis of iron oxalate and titanium dioxide, further studies are needed to confirm the precise mechanistic pathway of the IH SS dissolution in aqueous oxalic acid under pressure and moderate stirring. In addition, the analysis of IH SS by reflected-light microscopy can build up on the understanding of the dissolution of this particular IH SS as segregated hematite lamellae within the ilmenite host, and hematite exsolution segregated at the ilmenite grain borders have been reported in naturally occurring ilmenite ores [55], features that could lead to a specific dissolution mechanism. Conversely, the dissolution mechanism of pure iron oxides, such as hematite, in hot oxalic acid solutions at ambient pressure has been well studied [53,56].

$${\mathrm{C}}_2{\mathrm{H}}_2{\mathrm{O}}_{4\left(\mathrm{s}\right)}+{\mathrm{H}}_2\mathrm{O}\to {\mathrm{H}}_3{\mathrm{O}}^{+}+{\left({\mathrm{C}}_2{\mathrm{HO}}_4\right)}^{-1};{\mathrm{K}}_{\mathrm{a}1\left(25°\mathrm{C}\right)}=5.6\times {10}^{-2}$$

(1)

$${({\mathrm{C}}_2{\mathrm{HO}}_4)}^{-1}+{\mathrm{H}}_2\mathrm{O}\to {\mathrm{H}}_3{\mathrm{O}}^{+}+{\left({\mathrm{C}}_2{\mathrm{O}}_4\right)}^{-2};{\mathrm{K}}_{\mathrm{a}2\left(25°\mathrm{C}\right)}=5.4\times {10}^{-5}$$

(2)

$${\mathrm{Fe}}_2{\mathrm{O}}_3+{\mathrm{H}}^{+}+5{\left({\mathrm{C}}_2{\mathrm{HO}}_4\right)}^{-1}\to 2{\mathrm{FeC}}_2{\mathrm{O}}_{4\left(\mathrm{s}\right)}+3{\mathrm{H}}_2\mathrm{O}+2{\mathrm{CO}}_2$$

(3)

$${\mathrm{FeTiO}}_3+4{\mathrm{H}}_3{\mathrm{O}}^{+}\to {\mathrm{TiO}}^{+2}+{\mathrm{Fe}}^{+2}+6{\mathrm{H}}_2\mathrm{O}$$

(4)

$${\mathrm{TiO}}^{+2}+{\mathrm{H}}_2\mathrm{O}\to {\mathrm{TiO}}_{2\left(\mathrm{s}\right)}+2{\mathrm{H}}^{+}$$

(5)

$${\mathrm{Fe}}^{+2}+{\left({\mathrm{C}}_2{\mathrm{HO}}_4\right)}^{-1}+{\mathrm{H}}^{+}\to {\mathrm{FeC}}_2{\mathrm{O}}_{4\left(\mathrm{s}\right)}+2{\mathrm{H}}^{+}$$

(6)

Multistage processes that embrace the utilization of strong mineral acids have been reported for the dissolution of complex iron-bearing minerals such as ilmenite. As such, a mixture of hydrochloric and oxalic acids at 160 °C for 3 h has been used to facilitate TiO₂ leaching as TiOCl₂ by hydrochloric prior to iron dissolution with oxalic acid [57]. Additionally, the use of an oxalic acid ammonium salt to produce titanium dioxide from ilmenite has been patented [58]. Nonetheless, ammonium oxalate, as a leaching agent in ilmenite, leads to a titanium-rich solution (titanium oxalate) that requires further hydrothermal treatment (250 to 374 °C) or calcination (700–1100 °C) to obtain rutile [58]. Conversely, studies on hydrothermal synthesis (200 °C and 24 h) of different TiO₂ polymorphs from pure metallic titanium have revealed that in the presence of oxalic acid, the pH (1–10) can significantly influence the TiO₂ crystalline structure [59]. Thus, anatase formation was reported to prevail at pH 2, while rutile was predominant at pH 4 to 6 [59]. Although the operating sCW conditions (155 °C, 50 bar, and 12 h), the type of precursor, the pH, and oxalic acid concentration used in this study differed from those reported for the hydrothermal treatments, variation in the crystalline structure of the as-synthesized products was also observed due to both pH difference and oxalic acid concentration.

According to the above-discussed findings, the oxalic acid–H₂O system at mild sCW conditions (at 155 °C and 50 bar) exhibited a promising potential as a reaction medium to induce the dissolution of a naturally occurring IH SS black sand but the synthesis of titanium dioxide (rutile and anatase) and ferrous oxalate in a one-step process, without shortcomings associated with the use of conventional toxic leaching agents. In addition, the evaluated synthesis method considers the green chemistry principles, among them waste prevention, atom economy, less hazardous chemical synthesis, safer solvents and auxiliaries, design for degradation, and inherently safer chemistry for accident prevention [60]. Waste prevention, for example, is an advantage of the proposed method since aqueous oxalic acid can be used in low concentrations (i.e., 0.1 M or 0.9 %, w/w) as a reactant to speed up the reaction, and at the end of the reaction time, the remaining nonionized acid can be recycled back and utilized as a solvent for the next synthesis. Additionally, if required, the residual aqueous oxalic acid can be used in other industrial applications [61] such as rust removal [61], chemical pretreatment prior to mechanical pulping [62], as a mordant in dyeing textiles [63], as a chelating agent for heavy metals removal [64,65,66,67,68], etc., allowing to maintain its value as long as possible, which fits also the alignments of a circular economy. It is also worth mentioning that oxalic acid is naturally found in the ecosystem and that oxalic acid cycling by bacterial–fungal interactions has been reported in soils, plants, and animals [69]. Thus, the usage, handling, and potential disposal of aqueous oxalic acid will be a minimal threat to the natural ecosystem.

This study was carried out as proof of concept to investigate whether subcritical water and oxalic acid at 155 °C and 50 bar could be used as an alternative method for value addition to Ecuadorian black mineral sands. The obtained results showed that, indeed, the evaluated one-step sCW synthesis allows complete transformation of the naturally occurring black mineral sand precursor into products with anticipated photocatalytic effect, preventing further complicated downstream procedures such as hydrolysis, calcination, or addition of crystallization aids. However, more research is needed to better elucidate the dissolution–precipitation reaction mechanisms under sCW conditions for further optimization of the process.

5. Conclusions

Ferrous oxalate and titanium dioxide were synthesized from ferrotitaniferous black sand under sCW conditions at 155 °C and 50 bar using an oxalic acid–H₂O solvent system. This selected solvent system favored the dissolution of the black sand precursor, compared with that of the control sCW medium at 155 °C and 50 bar. The complete conversion of the black sand precursor was achieved even with the lowest concentration of 0.1 M oxalic acid. Interestingly, the rutile phase was identified in all as-synthesized products, probably due to its thermodynamical stability. Anatase phase, however, only started to crystallize when the oxalic acid concentration increased to either 0.5 or 1.0 M. In addition, based on the dissociation constant, pH, and ionic strength of the aqueous oxalic acid solutions used in this research, a set of chemical reactions associated with the dissolution of ferrotitaniferous black sand and the synthesis of ferrous oxalate and titanium dioxide at 155 °C and 50 bar was proposed, in which the rate-limiting step corresponded to the dissociation of oxalic acid. Finally, the relative simplicity and eco-friendly nature of the one-step processing route followed and the wide variety of applications of the as-synthesized products open opportunities for value addition of low-cost natural precursors such as the Ecuadorian black sand used in this study.
