Orthogonal Test Design for the Optimization of Preparation of Steel Slag-Based Carbonated Building Materials with Ultramafic Tailings as Fine Aggregates

1
Key Laboratory of Ministry of Education for Efficient Mining and Safety of Metal Mines, School of Civil and Resource Engineering, University of Science and Technology Beijing, No. 30 Xueyuan Road, Haidian District, Beijing 100083, China
2
State Key Laboratory of Coal Resources and Safe Mining, China University of Mining and Technology, No. 1 University Road, Xuzhou 221116, China
3
Shandong Iron and Steel Group Co., Ltd., No. 2000 Shunhua Road, Gaoxi District, Jinan 250101, China
4
Shandong Energy Group Co., Ltd., No. 10777 Jingshi Road, Jinan 250014, China
5
Western Australian School of Mines: Minerals, Energy and Chemical Engineering, Curtin University, P.O. Box U1987, Perth, WA 6845, Australia
*
Authors to whom correspondence should be addressed.
Minerals 2022, 12(2), 246; https://doi.org/10.3390/min12020246
Submission received: 12 January 2022 / Revised: 11 February 2022 / Accepted: 13 February 2022 / Published: 15 February 2022

Abstract

:
The high carbonation potential makes ultramafic tailings ideal aggregates for carbonated building materials. This paper investigates the preparation condition of ultramafic tailings and steel slag through orthogonal experiments. The results show that compressive strength has a positive exponential correlation with the CO2 uptake of the carbonated compacts. The optimized conditions include a slag-tailings ratio of 5:5, a carbonation time of 12 h, a grinding time of 0 min, and a water-solid ratio of 2.5:10, when the compressive strength of the carbonated compacts reaches 29 MPa and the CO2 uptake reaches 66.5 mg CO2/g. The effects on the compressive strength ordered from high to low impact are the slag/tailings ratio, carbonation time, grinding time of steel slag, and water–solid ratio. The effects on the CO2 uptake ordered from high to low impact are the slag–tailings ratio, water–solid ratio, carbonation time, and grinding time of steel slag. A high water–solid ratio hinders the early carbonation reactions, but promotes the long-term carbonation reaction. Steel slag is the main material being carbonated and contributes to the hardening of the compacts through carbonation curing at room temperature. Ultramafic tailings assist steel slag in hardening through minor carbonation and provide fibrous contents. The obtained results lay a solid foundation for the development of tailings-steel slag carbonated materials.

1. Introduction

Human activities release a large amount of CO2 and cause serious climate problems, such as global warming [1]. The whole-atmosphere CO2 concentration has reached 414.5 ppm as of November 2021 at an increasing rate of 2.2 ppm per year [2]. At the same time, the global temperature increased 0.84 °C above the 20th century average in 2021 [3]. The Paris Agreement has set the goal of ‘keeping a global temperature rise this century well below 2 °C above preindustrial levels’ [4]. All parties must work together to find efficient methods for reducing CO2 production and adopting CO2 capture, utilization, and sequestration (CCUS) technologies.
The construction industry is a carbon-intense industry responsible for 8% of global man-made CO2 emissions [5]. Nearly 50% of the emissions are from Portland cement production [6]. Currently, researchers are looking for suitable industrial wastes to partially or totally replace Portland cement to reduce emissions from sources and solve waste management issues from pilling and landfilling [7]. At the same time, many studies have focused on CCUS by mineral carbonation as a means to produce construction materials, which could reintegrate those emissions into the final products [8]. During the process, the solid wastes were mixed with water, molded by compression, and cured in the presence of CO2, which resulted in a rapid strength gain in the carbonate cementitious system [9]. The carbonated building materials are environmentally benign (i.e., pH neutral and heavy metal fixation) with good durability (i.e., wear resistance, corrosion resistant, and frost-thaw resistant) [10,11]. Carbonated materials have already been commercialized in non-load bearing structures, such as roads, square blocks, flower beds, artificial reefs, and walls in prefabricated buildings [12,13,14,15]. The worldwide application of carbonation curing technology could potentially reach annual revenues of $1 trillion and storage of 3–6 Gt of CO2 [16].
Steel slag, produced from the steel-making process, is one of the most suitable candidates for CCUS, considering its availability and mineralogy. Each ton of manufactured steel generates approximately 150–200 kg of steel slag [17]. In 2019, the world crude steel production was 1869.9 Mt [18]. The annual production rate of steel slag was approximately 280–374 Mt. Steel slag has a mineral composition that is similar to Portland cement; however, its low hydration activity and existence of unstable phases (such as free lime and MgO) limit its application as a replacement for Portland cement or aggregates [19]. Carbonation curing could neutralize free lime and harden steel slag compacts in a short time, which overcomes all the disadvantages of steel slag under traditional standard curing [20].
Recently, many researchers have studied the mechanism of carbonation curing on steel slag [21,22]. Steel slag contains C2S and C3S, which have both carbonation and hydration characteristics. Scholars generally believe that water could help to dissolve CO2 and Ca2+ in steel slag, which accelerates the carbonation process (reaction 1). Additionally, water reacts with the steel slag and forms a C-S-H gel. The carbonation rate of C-S-H gel (reaction 2) is faster than that of non-hydrated calcium silicates. The carbonation products encapsulate and cement the steel slag particles and fill the gap between the particles, which improves the compactness of the test block and hardens the steel slag carbonated material [15]. The cementitious activity is higher when a low Ca/Si ratio C-S-H gel and CaCO3 collaborate.
Ca2+ + CO32− → CaCO3
C-S-H + CO2 → CaCO3 + C-S-H (low C/S)
To improve the performance of carbonated steel slag building materials, studies have optimized various factors, including the physical and chemical properties of raw materials (i.e., the type of steel slag [23,24,25], particle size [26,27], and chemical additives [28,29,30]), molding conditions (i.e., water content [31] and compacting pressure [32]), and carbonation curing conditions (i.e., CO2 partial pressure [33], curing time [34], temperature [32], and humidity [35]). All these factors affect the carbonation reaction kinetics of steel slag, control the micromorphology of carbonated products, and affect the compressive strength of carbonated products [22].
The only drawback of carbonated steel slag as a building material is its high density. A density of 3.1–3.6 g/cm3 is too high to use as a common building material. Additionally, a high density increases transportation costs and shortens its application distance. The addition of light tailings as fine aggregates has been an effective strategy to reduce the density and cost of building materials. Proper tailings would contribute to the hardening of concrete. For example, iron ore tailings, with an abundance of SiO2, have been successfully used as siliceous materials in autoclaved aerated concrete [36].
Ultramafic tailings may be suitable for carbonated steel slag materials. Ultramafic tailings from chrysotile, nickel, chromium, diamond, and platinum group element (PGE) mines contain a large amount of magnesium silicates (i.e., olivine, serpentine), which are favored for CCUS as well [37,38,39]. The annual production of ultramafic tailings could potentially store approximately 1.5% of annual global CO2 emissions [40]. Unluer and Al-Tabbaa found that serpentine could replace MgO under carbonation curing without compromising performance [41]. The application of ultramafic tailings as fine aggregates in carbonated steel slag material would have a positive effect on CO2 uptake, as well as strength development. However, how ultramafic tailings aggregates affect the carbonate cementitious system has not been studied.
This paper optimizes the preparation conditions of carbonated tailings-steel slag material by orthogonal testing. Range analysis and direct analysis of the orthogonal tests were carried out to study the effects of the slag–tailings ratio, water–solid ratio, carbonation time and steel slag grinding time on the CO2 uptake, and compressive strength of carbonated compacts. The chemical, microstructural, and morphological properties of optimized carbonated compacts were characterized to reveal the mechanism of carbonation curing on tailings and steel slag mixture compacts. The results from this study provide a reference for the development of carbonated building materials with ultramafic tailings as fine aggregates.

2. Materials and Methods

2.1. Materials

The ultramafic raw ore came from the Shuangjingzi Nickel deposit, Aluke’rqin Banner in Inner Mongolia, China. The mineral composition of the ultramafic tailings is similar to that of raw ore because the grade of Ni is 0.26%. The raw ore was crushed by a two-stage jaw crusher and one-stage roller crusher and screened by a 150 mesh (106 μm) Taylor sieve. The undersized sample is the ultramafic tailings for the experiments. The chemical composition is determined by X-ray fluorescence, and the results are shown in Table 1. The ultramafic tailings contain 92.3% lizardite and 7.7% magnetite as tested by quantitative X-ray diffraction. The ultramafic tailings has an 80% passing size of 86 μm a density of 2.56 g/cm3, a Blaine’s number of 207.92 cm2/kg, and a water absorption of 0%, as it was prepared under dry condition.
The coarse basic oxygen furnace (BOF) slag was provided by the Wuhan Iron and Steel Group. The coarse BOF slag was dry grounded in an experimental ball mill (SMΦ500 × 500 mm) for 30 min. The ground BOF slag is the steel slag used in the experiment. The main components of steel slag are shown in Table 1. CaO accounts for 37% of the total weight and is the main component in steel slag. Alkalinity is the value of the mass fraction of CaO over the mass fraction of P2O5 and SiO2 [17], which represents the activity of the steel slag. The alkalinity of the steel slag is 2.87, which falls in the range of high alkalinity [17]. The main minerals in steel slag in use are larnite (C2S) 36.7%, hatrurite (C3S) 11.9%, portlandite (Ca(OH)2) 12.5%, mayenite (C12A7) 4.8%, srebrodolskite (C2F) 17.6%, and wustite (FeO)15.9%, and calcite (CaCO3) 0.6%. The steel slag has a density of 3.3 g/cm3, a Blaine’s number of 275 cm2/kg.

2.2. Experiments

Figure 1 is the flowchart of the experiments. First, the steel slag was mechanically activated. Then, the tailings, steel slag and water were evenly mixed and stirred. Afterwards, the mixture was put into a mold and compacted. The compacts were then demolded and placed in a carbonation chamber for curing. Finally, the compressive strength and carbon content of each carbonated compact were tested and analyzed. The microstructure of the carbonated material prepared under the optimum conditions was characterized by X-ray diffraction (XRD), thermal gravity analysis (TGA) and scanning electron microscopy (SEM).

2.2.1. Mechanical Activation

Mechanical activation of steel slag is performed to study the effect of ultrafine grinding on the carbonation curing of steel slag. The mechanical activation test was conducted using a planetary ball mill (Omnidirectional Planetary Ball Mill ND8-4, Nanda Tianzun Electronic Co., Ltd., Nanjing, China) in the School of Metallurgical Engineering, University of Science and Technology Beijing. Four bowls of ND8-4 have planet-like movement, and the whole set rotates around a horizontal central axis along its bottom centreline with a rotational speed that is 1/2 of the bowls’ rotational speed. The omnidirectional movement could effectively prevent material sedimentation and grinding. The mill bowls’ rotational speed was fixed at 500 rpm. In each test, steel slag was loaded with a standard number of stainless-steel balls in a 500 mL stainless steel mill bowl. The ball to solid weight ratio was 7:1. The steel slag was ground in dry conditions for 30, 60, and 120 min and collected for the next tests. The Blaine’s number of the steel slag after mechanical activation for 30, 60, and 120 min are 386, 370, and 357 m2/kg, respectively. The reduction of Blaine’s number with the increase of grinding time after 60 min is due to the aggregate of fine particles subject to prolonged grinding [42,43]. The Blaine’s number of the mechanically active steel slags has been labeled as coarse steel slag by Wang et al. [44].

2.2.2. Mixing and Molding

In order to make sure of a uniform distribution of tailings and steel slag in the mixture, the ultramafic tailings, steel slag, and water were mechanically mixed for 2 min using a paste mixer at 20 ± 5 °C, and 50–70% of relative humility.
In each test, 8 g of moistened powder was put into a 20-mm diameter cylindrical compression stainless steel mold and compacted into individual specimens at a uniaxial load of 9 MPa for 1 min. The compacts were then demolded ready for carbonation cuing.

2.2.3. Carbonation Curing

Immediately after demolding, the specimens were placed inside the carbonation chamber (CABR-HTX12, China Academy of Building Research, Beijing, China), in which the temperature was 20 ± 3 °C, the relative humidity was kept at 70 ± 3%, and the CO2 concentration was 20 ± 3 vol%. The curing condition is chosen due according to the optimum condition for carbonation curing [12]. After a carbonation curing for 1, 3, 6, 12 h, the carbonated compacts were collected for material characterization tests. The carbonated compacts have a diameter of 20 mm and height of 12 ± 1 mm.

2.2.4. CO2 Uptake Capacity Calculation

The carbon contents of the samples before and after carbonation curing were tested to calculate the CO2 uptake capacity. The carbon contents of the samples were measured using a carbon/sulphur combustion analyzer (EMIA-820 V, Horiba, Kyoto, Japan). For each test, a 0.25 ± 0.05 g sample was put into a combustion crucible and covered with 1 g flux (90% tungsten, 10% tin, C < 0.0008%). The carbon content of the sample was determined after combustion up to 1050 °C. Assuming that the carbon content in the carbonated products ( m C 1 ) contains the carbon content in the raw materials ( m C 0 ) and the carbon content obtained by carbonation curing ( m C ), Equation (3) is obtained based on the mass balance concept.
1 m C 0 1 m C 1 = m C 0 m C 1 m C
Therefore, m C can be calculated using Equation (4) [45].
m C = m C 1 m C 0 1 m C 0
The carbon contents in the original steel slag and tailings were 0.41 and 0.16%, respectively. m C can be converted into the CO2 uptake capacity ( m CO 2 ) using Equation (5).
m CO 2 = m C M W C × M W CO 2
where M W C is the molar mass of C, at 12 kg/mol, and M W CO 2 is the molar mass of CO2, at 44 kg/mol.

2.2.5. Compressive Strength

The compressive strength of the compact specimen before and after carbonation curing was measured in a digital pressure testing machine (YES-300, Jinan Chenda Test Machine Manufacturing Co., Ltd., Jinan, China).

2.2.6. Quantitative X-ray Diffraction

The mineralogy of the carbonated compacts was characterized using the Quantitative X-ray diffraction (QXRD) method. The X-ray diffraction patterns of the samples were measured using an X-ray diffractometer (D/Max-RB, Rigaku, Tokyo, Japan) equipped with a Cu-Kα radiation (20 kV, 10 mA) source, working in 2θ geometry with a recorded range from 3 to 80° with a step size of 0.02° in the step-scanning mode (FT 0.7 s). A pattern of standard sample Si (SRM 640c) was collected using the same procedure, and was used to obtain the instrumentally broadened profile, as suggested by the US National Institute of Standards and Technology (NIST). The X-ray diffractograms were analyzed using the International Centre for Diffraction Data-base (ICDD) PDF-4 and Search-Match software X’Pert HighScore Plus (PANalytical). The X-ray powder diffraction data of the samples were refined using the Rietveld method for quantitative analysis. All the QXRD results were obtained when the weighted-profile R value was below 10%.

2.2.7. Thermal Gravity Analysis

The quantitative analysis of the amount of carbonation products and hydration products in the carbonated species was tested using a TG-DTA (thermogravimetry and differential thermal analysis) analyzer (STA 449F3, Netsch, Selb, Germany). The tests were performed under an argon atmosphere with a flow rate of 20 mL/min. The heating rate was 10 °C/min, and the temperature range was 50 to 1000 °C.

2.2.8. Scanning Electron Microscopy

The surface morphology of the carbonated species prepared under the optimum conditions was examined by a Zeiss Supra-55 field emission scanning electron microscope (SEM) (Zeiss, Oberkochen, Germany) with a secondary electron detector operating at an accelerating voltage of 15 kV. The semiquantitative chemical analysis was performed by a Zeiss Supra-55 SEM equipped with a light element energy-dispersive X-ray spectroscope (EDS). A thin Au-Pd coating was applied to the top surface of the specimen to promote the surface conductivity prior to SEM analysis.
All calculated data are the average value from 3 tests with standard error.

2.3. Orthogonal Experiment Method

2.3.1. Orthogonal Experimental Design

An orthogonal experiment was designed to optimize the preparation conditions of carbonated tailings-steel slag building materials involving multivariate and multilevel factors. The studied results of the carbonated tailings-steel slag building materials consisted of the compressive strength and CO2 uptake capacity. Therefore, the grinding time for steel slag (A), water–solid ratio (B), slag–tailings ratio (C), and carbonation time (D) were set as the four factors in the orthogonal experiment. The levels of each parameter were determined by selecting some typical values of the parameters according to literature [13]. The four levels of the mechanical activation time for steel slag were 0, 30, 60, and 120 min, with corresponding blain fineness of 275, 386, 370, and 357 m2/kg, respectively. The four water/solid ratios were 1:10, 1.5:10, 2:10, and 2.5:10. The four slag/tailings ratios were 0:10, 1:9, 3:7, and 5:5. The four levels of carbonation time were 1, 3, 6, and 12 h. The variables of each level were determined by selecting some typical values of the parameters according to the literature. Table 2 shows the orthogonal table with four factors and four levels. According to the orthogonal experimental design table of L16 (44), a total of 16 themes were tested.

2.3.2. Range Analysis Method

Range analysis was used to determine the factors’ sensitivity to the experimental results according to the orthogonal experiment. Range (R) is the distance between the maximum and minimum values of the data. A high R value means that the factor is sensitive to the results, and the influence degree of the factor is high. The calculation process of the range analysis is shown in Equations (6)–(8) [46].
k X m = K X m / 4
R 0 X = max ( k X 1 , k X 2 , k X 3 ) ; R 1 X = min ( k X 1 , k X 2 , k X 3 )
R = R 0 X R 1 X
where, KXm and kXm are the sum and average value of the testing results, respectively, which contain the factor X with m level. R stands for the influence degree of factor X.

3. Results and Discussions

3.1. CO2 Uptake Capacity and Compressive Strength

In the method, 16 schemes were performed, with three repetitions for each test. Table 3 lists the compressive strength and CO2 uptake capacity of the carbonated compacts. The highest compressive strength and CO2 uptake capacity of the carbonated compacts is 29.5 MPa, and 66.5 mg CO2/g solid, respectively. Figure 2 shows the relationship between the compressive strength and CO2 uptake capacity of the carbonated compacts. The scatter points are basically distributed near Equation (9), with a fitting residue of 97.4%. The compressive strength has a positive exponential relationship with the CO2 uptake capacity. This indicates that the compressive strength development is mainly due to the carbonation reaction. This result is in line with the results of Wang et al. [15], who found a positive linear relationship between the CO2 uptake capacity and compressive strength.
y = 1.84e0.04x − 0.84

3.2. Range Analysis

Range analysis was performed on the orthogonal test results. Table 4 lists the range analysis results of the compressive strength and CO2 uptake capacity of carbonated tailings-steel slag compacts. As shown in Table 4, the optimum scheme with the highest compressive strength is A1B4C4D4 according to the K value. The corresponding reaction conditions are the grinding time of the steel slag at 0 min, the water/solid ratio at 2.5:10, the slag—tailings ratio at 5:5, and the carbonation time at 12 h. The value of the range shows that the degree of the effects of the factors on the compressive strength from high to low is C > D > A > B. The effect of the cement–sand ratio (factor C) on the compressive strength is the largest, while the water–cement ratio (factor B) has little impact on the compressive strength.
Figure 3a shows the effect curves of the four factors on the uniaxial compressive strength of carbonated compacts. As shown in Figure 3a, the influence of the slag–tailings ratio (factor C) on the compressive strength is the greatest. With the increase in the slag–tailings ratio, the compressive strength of the carbonated compacts shows an increasing trend. However, when the grinding time of the steel slag (factor A) and the water–solid ratio (Factor B) increase, the compressive strength of the carbonated compacts initially decrease and then increase. In addition, the effect of the carbonation time (factor D) on the compressive strength of the carbonated compacts fluctuates.
The range analysis results of the CO2 uptake capacity of the orthogonal experiment are presented in Table 4. Based on the K value, the optimum scheme of the CO2 uptake capacity is A1B3C4D4. The corresponding reaction conditions include steel slag grinding for 0 min, a water/solid ratio of 2:10, a slag/tailings ratio of 5:5, and carbonation for 12 h. From Table 4, the value of the range shows that the degree of the effect of the factors on the CO2 uptake capacity is C > B > D > A. The slag/tailings ratio (factor C) plays a substantial role in improving the CO2 uptake capacity, while the grinding time for steel slag (factor A) has less influence on the CO2 uptake capacity. The order of the K value for factor A is A1, A4, A3, and A2.
Figure 3b shows the effect curve of four factors on the CO2 uptake capacity of the carbonated compacts. The effects curve of the factors on the CO2 uptake capacity shows a similar trend as that on the compressive strength, except for the water–solid ratio (factor B). With the increase in factor B from 2:10 to 2.5:10, the CO2 uptake capacity decreases, while the compressive strength increases continuously. This indicates that CO2 uptake is not the only reason for material hardening under carbonation curing at 20 °C. The result is in line with Wei et al. [31], who found that hydration also plays an important role during the carbonation curing on steel slag.

3.3. Direct Analysis

3.3.1. The Effect of the Slag/Tailings Ratio on Carbonated Compacts

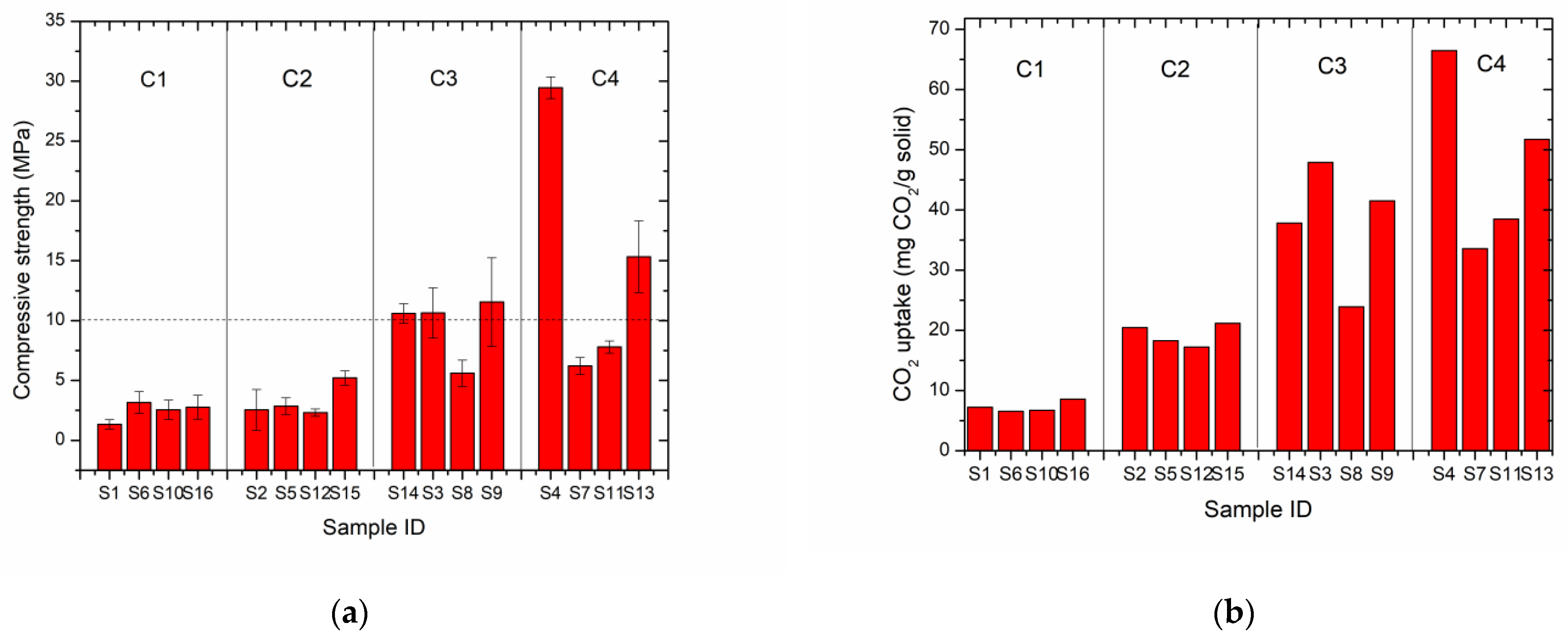

Figure 4 shows the CO2 uptake capacity (Figure 4a) and compressive strength (Figure 4b) of each sample grouped by the slag/tailings ratio. The slag/tailings ratio of group C1 is 0, which means that only ultramafic tailings, without steel slag, were molded and carbonated. In group C1, the CO2 uptake capacity is in the range of 6.6–8.6 mg CO2/g solid, and the compressive strength is in the range of 1.33–3.16 MPa. This indicates that ultramafic tailings play a certain role in consolidation during carbonation curing at room temperature. GB50771-2012 (code for design of nonferrous metal mining) stipulates that the compressive strength of filling materials should be no less than 3 MPa. The compressive strength of S6 in group C1 is 3.16 MPa, which meets the requirements for filling materials. Both the CO2 uptake capacity and compressive strength of compacts in group C1 are generally smaller than those in groups containing steel slag. The carbonation cementation characteristics of ultramafic tailings are worse than those of steel slag under the experimental conditions. This is mainly because the carbonation rate of ultramafic tailings is slower than that of steel slag at room temperature. Thus, steel slag is the main component being carbonated and contributes to the strength development in the steel slag/tailings mixture for carbonation curing at room temperature.
The slag–tailings ratio of group C2 is 1:9. Figure 4 shows that the CO2 uptake capacity of group C2 is in the range of 18.3–21.2 mg CO2/g solid, and the compressive strength of group C2 is in the range of 2.31–5.21 MPa. The CO2 uptake capacity of group C2 is two to three times that of group C1. However, the compressive strength of group C2 is only 1–1.5 times that of group C1. It can be seen that 10% steel slag in the mixture is far from enough to improve the mechanical properties of carbonated compacts, and effective carbonation cementation has not yet been achieved.
The slag–tailings ratio of group C3 is 3:7. Figure 4 shows that the CO2 uptake capacity of group C3 is in the range of 23.9–47.9 mg CO2/g solid, and the compressive strength of group C3 is in the range of 5.6–11.85 MPa. Except for S8, the compressive strengths of the samples in group C3 are all over 10 MPa, which are higher than the molding pressure (9 MPa). This indicates that to achieve effective cementation in a carbonation curing process at room temperature, at least 30% steel slag is required in the mixture prepared for carbonated building material. The slag/tailings ratio of 3:7 is similar to the adoptable binder/aggregates ratio of concrete [47].
The slag/tailings ratio of group C4 is 5:5. Figure 4 shows that the CO2 uptake capacity of group C4 is in the range of 30.5–66.5 mg CO2/g solid, and the compressive strength of group C4 is in the range of 6.21–29.46 MPa. The compressive strength of S4 meets the requirements of MU25 brick according to JC/T422-2007 (non-fired rubbish gangue brick). The mixture containing 50% steel slag is supposed to have higher cementation effects than mixtures containing 30% steel slag after carbonation. However, the compressive strengths of S7 and S11 are even lower than 10 MPa. It is necessary to adopt an appropriate grinding time for steel slag, water solid ratio, and carbonation time to produce a carbonated steel slag/tailings material with a high compressive strength.

3.3.2. The Effect of the Water–Solid Ratio on Carbonated Compacts

Water plays an important role during the carbonation curing of steel slag. It is the raw material in steel slag hydration, as well as the catalysis of steel slag carbonation. According to Table 4, the degree of the effect of the water–solid ratio on the CO2 uptake capacity ranks second, while the degree of the effect of the water–solid ratio on the compressive strength is the last among the four selected factors. This indicates that the strength of carbonated compacts is not only determined by the carbonation reaction. The results are consistent with those of Wang et al. [15], who believes that carbonation and hydration of steel slag compete and promote each other during the carbonation curing process.
As shown in Figure 3, with the increase in the water–solid ratio, the CO2 uptake capacity and compressive strength of carbonated compacts changed in different ways. When the water–solid ratio increased from 2:10 to 2.5:10, the CO2 uptake capacity decreased, while the compressive strength continuously increased. During the molding process, a small amount of water was pressed out in the samples with a water–solid ratio of 2.5:10. Excessive water may hinder the carbonation rate of steel slag. The results are consistent with Humbert et al. [32], who found that excessive water aggregated and accumulated to wrap the steel slag surface, which is not preferred to the carbonation reaction.

3.3.3. The Effect of the Carbonation Time on Carbonated Compacts

S12 (A3B4C2D1), S8 (A2B4C3D2), and S4 (A1B4C4D4) were prepared with a water–solid ratio of 2.5:10, which is the highest value used in the experiments. As shown in Figure 4, the CO2 uptake capacity and compressive strength of S12 and S8 are the lowest in groups C2 and C3, respectively, while the counterparts of S4 are the highest in group C4. The differences among S12, S8, and S4 are the carbonation curing times, which are 1, 3, and 12 h, respectively. The result is in line with Wang et al. [44], who found that the enhances in CO2 uptake and compressive strength of steel slag compacts with the increase of carbonation time.
It seems that a high water–solid ratio inhibits early carbonation, but promotes long-term carbonation. On the one hand, excessive water is continuously consumed due to hydration or evaporation during carbonation curing and is no longer capable of hindering carbonation with increasing carbonation curing time. On the other hand, steel slag needs a long duration to react with water due to its slow hydration rate. The result is consistent with Wei et al. [31], who found that long-term carbonation could benefit from the hydration of steel slag by producing a large amount of C-S-H gel as a carbonation precursor (reaction 2).

3.3.4. The Effect of the Grinding Time for Steel Slag on Carbonated Compacts

As seen from Table 4, among the four factors, steel slag grinding time has the least degree of effect on the CO2 uptake capacity and compressive strength of the carbonated compacts. As shown in Figure 3, with the increase in grinding time, the CO2 uptake capacity and compressive strength of carbonated compacts first decreased and then increased. This is inconsistent with the results of Wang et al. [48], who found that with increasing fines, the hydration activity of steel slag increased, and the strength of steel slag concrete also increased. The differences are mainly due to the variation of consolidation mechanism of hydration and carbonation. Carbonation curing on the steel slag compact experiences the diffusion of CO2 from the surface to the core [15]. Thus, the high compressive strength and CO2 uptake of non-ground steel slag compacts after carbonation curing may be due to the high permeability, which promote CO2 migration into the core of the compacts.

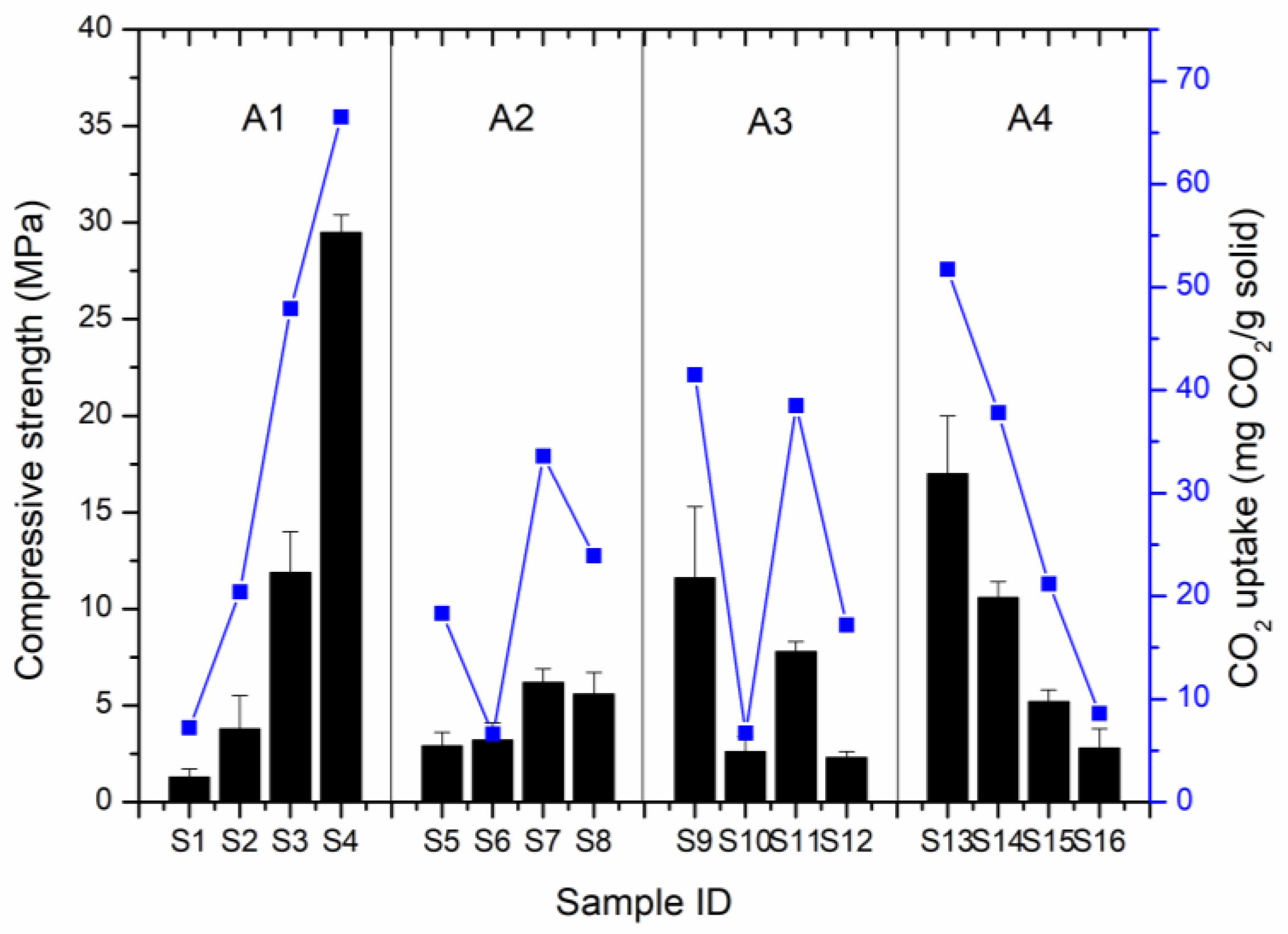

Figure 5 shows the CO2 uptake capacity and compressive strength of carbonated compacts grouped by grinding time for steel slag. As shown in Figure 5, the large value of group A1 in the experimental group may be due to the design of the orthogonal experiment. S3 (A1B3C3D3) and S4 (A1B4C4D4) in group A1 not only have a long grinding time for steel slag, but also have a large slag–tailings ratio, which leads to the average CO2 uptake capacity and average compressive strength of group A1 being the highest among all groups. Also, the optimum mix may not have been one of the ones prepared, for example A4B4C4D4. It seems that the optimum condition is selected as one of those prepared in this work, and not the absolute optimum that should be validated. Orthogonal tests can effectively and quickly identify priority control factors; however, they have some inherent limitations in analyzing the effect of each factor on the objective results. Advanced techniques (i.e., single factor test analysis, response surface analysis, and nonlinear regression model) are needed to accurately analyze the mechanism of each factor on the CO2 uptake capacity and compressive strength.

3.4. Microstructure Analysis on the Optimal Samples

3.4.1. X-ray Diffraction Analysis

The results in Table 4 indicate that the compressive strength and CO2 uptake capacity of S4 are the best, and the combination is A1B4C4D4. The optimized levels of the comprehensive strength and CO2 uptake capacity in the results of the analysis are A1B4C4D4 and A1B3C4D4, respectively. Since the compressive strength is more important than the CO2 uptake for a carbonated building material, A1B4C4D4 (S4) was chosen as the optimal sample.

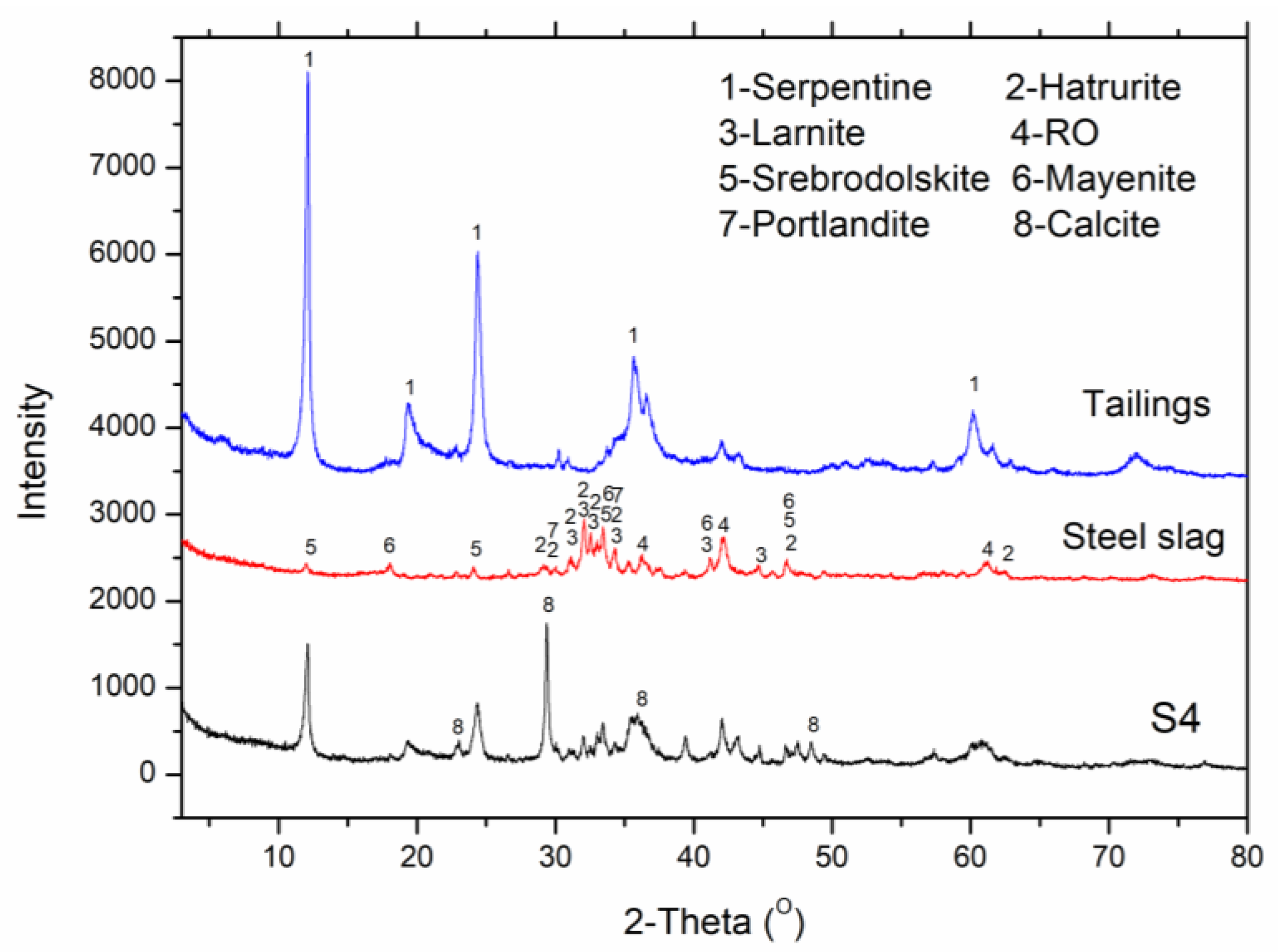

The line profile analysis of the XRD patterns qualitatively and semi-quantitatively characterizes the crystalline part of a sample. Figure 6 shows the XRD patterns of ultramafic tailings, steel slag, and S4. The main mineral in ultramafic tailings is serpentine (Mg3(Si2O5)(OH)4). The main minerals in steel slag are larnite (C2S), hatrurite (C3S), srebrodolskite (C2F), mayenite (C12A7), portlandite (Ca(OH)2), and RO phase (FeO, MgO, MnO). S4 contains nearly all phases that appear in both the steel slag and tailings and a new calcite (CaCO3) phase. This indicates that calcite is formed during carbonation curing on the mixture of steel slag and tailings.
Table 5 lists the mineral composition of the steel slag, ultramafic tailings, mixture with slag/tailings ratio of 5:5, and S4. The mineral composition of the mixture is calculated according to that of steel slag and ultramafic tailings, with the assumption that both steel slag and tailings are not altered during the compact preparation processes. Table 5 shows that C2S, C3S, Ca(OH)2 and C12A7 dramatically consumed. The carbonation conversion of each phase ranged from 83 to 100% after 12 h carbonation. The result is in consist with Wang et al. [15] who found that the carbonation and hydration of those minerals contributes the strength development of the whole system.
The weight percentage of iron containing phases (C2F and RO) in the mixture and S4 are 20.1 and 19.8%, respectively. The changes in the weight percentage of C2F and RO are less than 5% after carbonation curing, which could recognize as unchanged since the calculation error of XRD is 5%. It indicates that Fe containing minerals are very resistant to CO2 when curing at room temperature. The RO phase in steel slag was also found inert in the hydration system, Wang et al. [48]. Magnetite separation prior to carbonation curing could potentially improve the cremations behavior of steel slag. Increasing the carbonation curing temperature would be another strategy to enhance the carbonation rate of RO [49].
Table 5 shows an increase in lizardite after carbonation curing. It may be due to the formation of amorphous phases (i.e., C-S-H gel, silica gel), which were assumed to be the lizardite structure. An overestimation of lizardite by XRD analysis was also found in the carbonated ultramafic tailings [50].
No magnesium carbonates phases were found in the D4, which indicates that the carbonation of ultramafic tailings is too slow under room temperature. The result is not in line with Harrison et al. [51], who observed MgCO3 3H2O in the carbonated ultramafic tailings. This is due to absence of Mg(OH)2 in the ultramafic tailings of this study. Pretreatment (i.e., heat treatment and chemical treatment) of ultramafic tailings is necessary to enhance its carbonation activity, which may promote the carbonation consolidation behavior of ultramafic tailings.

3.4.2. Thermal Analysis

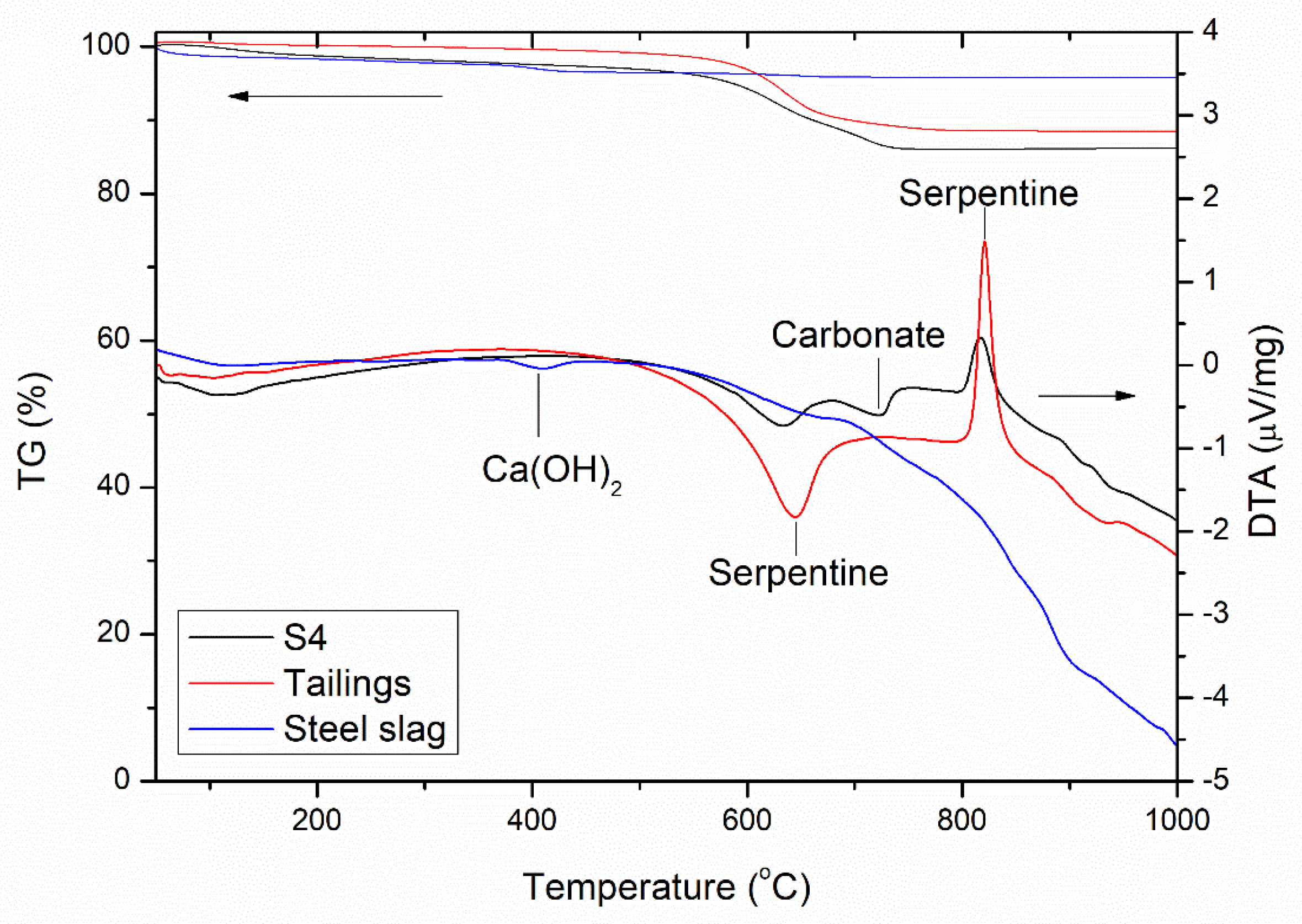

Figure 7 shows the results of TG-DTA analysis on the steel slag, ultramafic tailings, and S4. Table 6 lists the weight loss of the samples at different temperature intervals. The evaporation of interlayer water occurred below 145 °C, the dihydroxylation of C-S-H gel occurred between 145 and 330 °C, and the loss of Ca(OH)2 occurred between 330 and 500 °C [28].
Table 6 shows that ultramafic tailings have very limited weight loss below 500 °C. Figure 7 shows that there is a remarkable weight loss and a sharp exothermic DTA signal in ultramafic tailings, corresponding to serpentine dihydroxylation (642 °C) [52] and forsterite formation (819 °C) [53], respectively. The total weight loss up to 1000 °C is 11.5% for ultramafic tailings, which is in agreement with the result for the theoretical chemical-bonded water of serpentine [52]. The TG-DTA results of ultramafic tailings are in line with their XRD results.
Table 6 shows that the weight loss of steel slag below 500 °C is 3.5%, which takes up to 83.3% of the total weight loss up to 1000 °C. Figure 7 shows that there is a mass loss step in the steel slag, which is Ca(OH)2 (approximately 400 °C) [28]. The existing of Ca(OH)2 in steel slag make the building materials containing steel slag have a poor soundness [54]. Although the weight loss of S4 between 330–500 °C is similar to that of steel slag (Table 6), no dihydroxylation of Ca(OH)2 appears in the DTA curve of S4 (Figure 5). It indicates that CO2 could neutralize Ca(OH)2 and stabilize the volume of building materials containing steel slag. The result is in line with Wang et al. [34], who found that the durability of carbonated steel slag compacts was higher than hydrated ones, when they were placed in a hydration environment for a year.
The weight losses of S4 in the range of 145–330 °C and 500–800 °C are nearly twice the value of the mixture. This indicates the formation of C-S-H gel and CaCO3 during carbonation curing. A similar result was found by Wang et al. [15], who addressed that both carbonation and hydration took place when carbonation curing of steel slag at room temperature.
There is a double weight loss step between 500 and 800 °C (Figure 7), corresponding to the decomposition of serpentine (approximately 633 °C) and calcite (approximately 722 °C) [28]. This indicates that serpentine still exist and calcite was formed after carbonation curing at room temperature, which is in line with the XRD results.

3.4.3. Morphology and Chemical Analysis

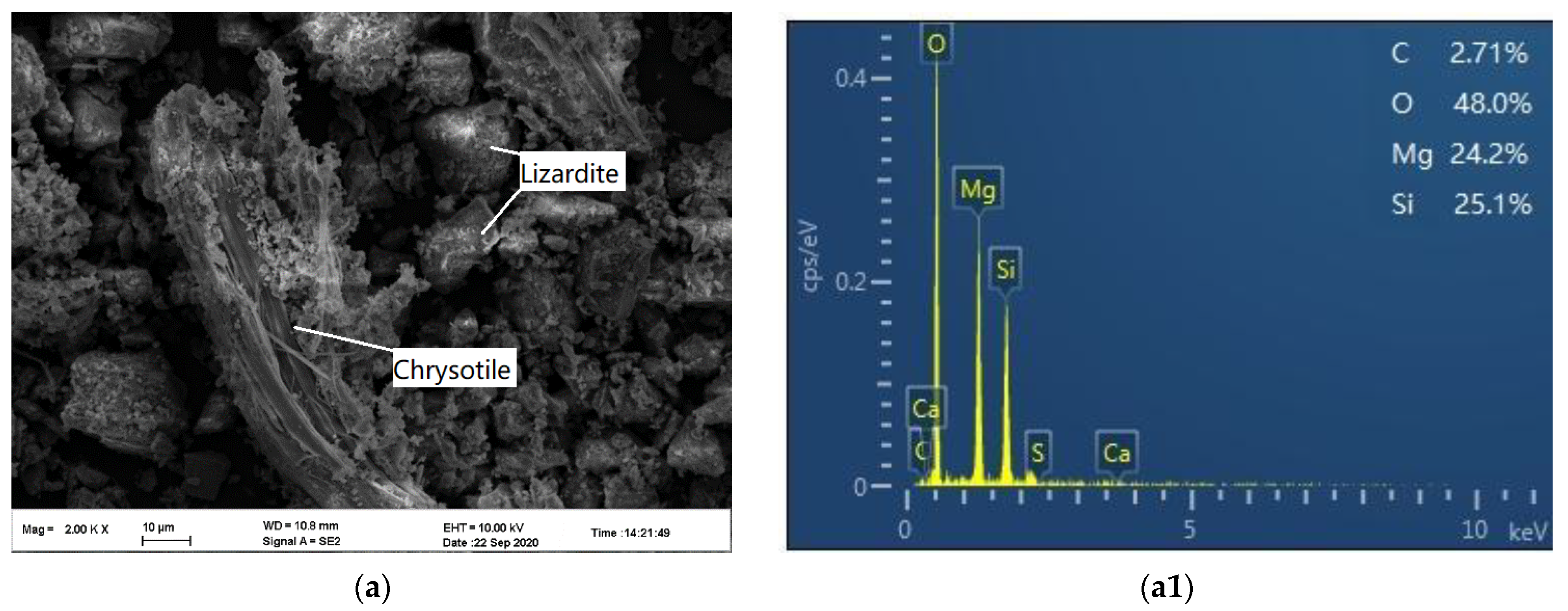

SEM-EDS tests were carried out to characterize the morphology and chemical composition of the samples. Figure 8 shows the morphology of steel slag before mechanical activation, ultramafic tailings, and S4. As shown in Figure 8a, ultramafic tailings contain lizardite fragments of various sizes and long chrysotile fibers. It is in line with XRD and TG-DTA results. Figure 8b shows that the steel slag contains some large particles (~10 µm) with sharp angles, many nanosized particles, and some aggregates of nanosized particles. The steel slag was ground for 30 min for sample preparation. The large particles indicate that some minerals (i.e., C2S) in steel slag are very resistant to grinding.

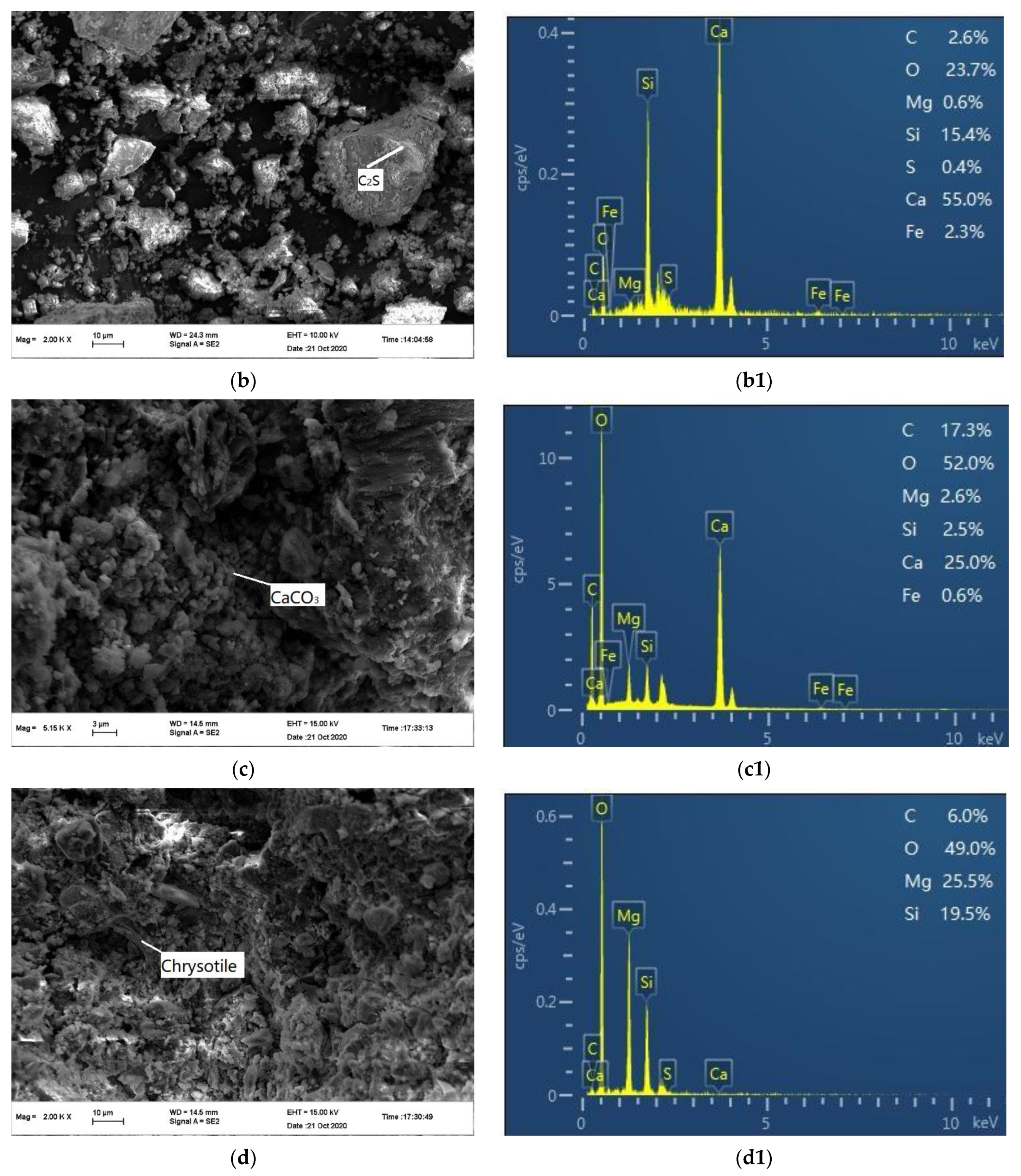

Figure 8c,d show that various particles bond together in S4. As shown in Figure 8c, the gap of the sample is filled with many 1-µm hexagonal particles. The EDS results indicate that most of the elements of the hexagonal particles are C, O, and Ca. The SEM-EDS results are in line with the XRD and TGA results, which found that the newly generated phase of carbonated materials is CaCO3. The hexagonal shape of CaCO3 indicates that the main carbonation product is calcite. It can be concluded that the hardening of tailings and steel slag mixtures after carbonation curing is due to the formation of micrometer-sized calcite, which is compactly arranged in the gap among the particles and binds the particles together. The findings are consistent with the results of Wang et al. [34], who studied the carbonation curing of steel slag compacts.
As shown in Figure 8d, fibrous chrysotile also appears in the compact and physically links the particles. The addition of mineral fibers into concrete is a poriferous strategy to enhance the flexural strength, flexural toughness, and fracture energy of high-performance concrete [55]. Even though the carbonation cementitious activity of serpentine is much lower than that of steel slag at 20 °C, serpentine could contribute to the mechanical properties of the mixture compact through other ways, such as by its fibrous structure.
Although the potential usage of the carbonated compacts were suggested according to their compressive strength, their environmental feasibility and durability cannot be omitted. Further studies will focus on the environmental properties (i.e., leachability, pH, and heavy metals leaching) of carbonated compacts, as well as their strength development when subject to special conditions (i.e., freezing and thawing, ion corrosion).

4. Conclusions

This study examines the effect of carbonation curing on steel slag with ultramafic tailings as fine aggregates through orthogonal tests. This provides guidance for the development of carbonated concrete for CCUS. The key findings are summarized as follows:
(1)
The compressive strength is positively exponentially related to the CO2 uptake capacity in the carbonated tailings-steel slag compacts. The optimal reaction conditions are steel slag grinding for 0 min, a water/solid ratio of 2.5:10, a slag/tailings ratio of 5:5, and carbonation curing for 12 h. The compressive strength of the carbonated compact reaches 29 MPa under the optimal reaction conditions.
(2)
The range analysis results of the orthogonal test show that the degree of the effects on the compressive strength of carbonated tailings-steel slag compacts ordered from large to small is slag–tailings ratio > carbonation time > grinding time for steel slag > water–solid ratio. The degree of the effects on the CO2 uptake capacity of carbonated tailings-steel slag compacts ordered from large to small is slag–tailings ratio > water–solid ratio > carbonation time > grinding time for steel slag.
(3)
A high water–solid ratio hinders the early carbonation reaction (1–3 h) and early strength development, but promotes the long-term (12 h) carbonation reaction and long-term strength development of carbonated tailings-steel slag compacts.
(4)
Steel slag are the main component for the hardening of carbonated tailings-steel slag compacts, while the fibrous minerals in the ultramafic tailings enforces the strength of the compacts.

Author Contributions

Conceptualization, J.L. and C.W.; Methodology, J.L.; Validation, W.N., S.Z. and F.J.; Formal analysis, J.L. and C.W.; Investigation, J.L. and C.W.; Resources, W.N.; Data curation, B.H. and S.M.; Writing—original draft preparation, J.L. and C.W.; Writing—review and editing, S.M. and M.H.; Supervision, W.N., F.J., H.Z. and X.S.; Project administration, J.L.; Funding acquisition, J.L., S.Z. and W.N. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by National Key R&D Program of China, grant number 2018YFC1900603; National Natural Science Foundation of China, grant number 52004021 and 51904017; Fundamental Research Funds for the Central Universities and the Youth Teacher International Exchange & Growth Program, grant number QNXM20210006; The State Key Laboratory of Coal Resources and Safe Mining, CUMT, grant number SKLCRSM19KF007; Major Project of Scientific and Technological Innovation of Shandong, grant number 2019SDZY02; and 111 Project, grant number B20041.

Acknowledgments

We thank Mei Zhang and Shouliang Ni for the analytical assistance.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. IPCC. IPCC Special REPORT on Climate Change, Desertification, Land Degradation, Sustainable Land Management, Food Security, and Greenhouse Gas Fluxes in Terrestrial Ecosystems; Shukla, P.R., Skea, J., Calvo Buendia, E., Masson-Delmotte, V., Pörtner, H.-O., Roberts, D.C., Zhai, P., Slade, R., Connors, S., van Diemen, R., et al., Eds.; 2019; in press; Available online: https://www.ipcc.ch/site/assets/uploads/sites/4/2021/07/210714-IPCCJ7230-SRCCL-Complete-BOOK-HRES.pdf (accessed on 10 February 2022).
  2. GOSAT. The Whole-Atmosphere Monthly Mean CO2 Concentration Based on GOSTA Observation. Available online: http://www.gosat.nies.go.jp/en/recent-global-co2.html (accessed on 15 February 2020).
  3. NOAA National Centers for Environmental Information. State of the Climate: Global Climate Report for 2021. Available online: https://www.ncdc.noaa.gov/sotc/global/202113/supplemental/page-1 (accessed on 15 February 2020).
  4. UNFCCC. Paris Agreement. Unitted Nations. 2015. Available online: https://unfccc.int/sites/default/files/english_paris_agreement.pdf (accessed on 15 February 2020).
  5. Tu, Z.; Guo, M.Z.; Poon, C.S.; Shi, C. Effects of limestone powder on CaCO3 precipitation in CO2 cured cement pastes. Cem. Concr. Compos. 2016, 72, 9–16. [Google Scholar] [CrossRef]
  6. Lord, M. Rethinking Cement; Beyound Zero Emissions Inc.: Victoria, Austrilia, 2017; Available online: https://bze.org.au/wp-content/uploads/2020/12/rethinking-cement-bze-report-2017.pdf (accessed on 15 February 2020).
  7. Huang, X.; Wang, Z.; Liu, Y.; Hu, W.; Ni, W. On the use of blast furnace slag and steel slag in the preparation of green artificial reef concrete. Costr. Build. Mater. 2016, 112, 241–246. [Google Scholar] [CrossRef]
  8. Lippiatt, N.; Ling, T.C.; Pan, S.Y. Towards carbon-neutral construction materials: Carbonation of cement-based materials and the future perspective. J. Build. Eng. 2020, 28, 101062. [Google Scholar] [CrossRef]
  9. Ashraf, W. Carbonation of cement-based materials: Challenges and opportunities. Constr. Build. Mater. 2016, 120, 558–570. [Google Scholar] [CrossRef]
  10. Younsi, A.; Turcry, P.; Rozire, E.; Aït-Mokhtar, A.; Loukili, A. Performance-based design and carbonation of concrete with high fly ash content. Cem. Concr. Compos. 2011, 33, 993–1000. [Google Scholar] [CrossRef] [Green Version]
  11. Liang, C.; Pan, B.; Ma, Z.; He, Z.; Duan, Z. Utilization of CO2 curing to enhance the properties of recycled aggregate and prepared concrete: A review. Cem. Concr. Compos. 2020, 105, 103446. [Google Scholar] [CrossRef]
  12. Qiu, Q. A state-of-the-art review on the carbonation process in cementitious materials: Fundamentals and characterization techniques. Constr. Build. Mater. 2020, 247, 118503. [Google Scholar] [CrossRef]
  13. Zhang, D.; Ghouleh, Z.; Shao, Y. Review on carbonation curing of cement-based materials. J. CO2 Util. 2017, 21, 119–131. [Google Scholar] [CrossRef]
  14. Liu, Z.; Meng, W. Fundamental understanding of carbonation curing and durability of carbonation-cured cement-based composites: A review. J. CO2 Util. 2021, 44, 101428. [Google Scholar] [CrossRef]
  15. Wang, X.; Ni, W.; Li, J.; Zhang, S.; Hitch, M.; Pascual, R. Carbonation of steel slag and gypsum for building materials and associated reaction mechanisms. Cem. Concr. Res. 2019, 125, 105893. [Google Scholar] [CrossRef]
  16. Librandi, P.; Nielsen, P.; Costa, G.; Snellings, R.; Quaghebeur, M.; Baciocchi, R. Mechanical and environmental properties of carbonated steel slag compacts as a function of mineralogy and CO2 uptake. J. CO2 Util. 2019, 33, 201–214. [Google Scholar] [CrossRef]
  17. Das, B.; Prakash, S.; Reddy, P.S.R.; Misra, V.N. An overview of utilization of slag and sludge from steel industries. Resour. Conserv. Recycl. 2007, 50, 40–57. [Google Scholar] [CrossRef]
  18. World Steel Association. Global Crude Steel Output Increases by 3.4% in 2019. Available online: https://worldsteel.org/media-centre/press-releases/2020/global-crude-steel-output-increases-by-3-4-in-2019/ (accessed on 10 February 2022).
  19. Yildirim, I.Z.; Prezzi, M. Chemical, mineralogical, and morphological properties of steel slag. Adv. Civ. Eng. 2011, 2011, 463633. [Google Scholar] [CrossRef] [Green Version]
  20. Mo, L.; Zhang, F.; Deng, M. Mechanical performance and microstructure of the calcium carbonate binders produced by carbonating steel slag paste under CO2 curing. Cem. Concr. Res. 2016, 88, 217–226. [Google Scholar] [CrossRef]
  21. Wang, X.; Ni, W.; Li, J.; Zhang, S.; Li, K.; Hu, W. Use of CO2 to cure steel slag and gypsum-based material. Energies 2021, 14, 5174. [Google Scholar] [CrossRef]
  22. Humbert, P.S.; Castro-Gomes, J. CO2 activated steel slag-based materials: A review. J. Clean. Prod. 2019, 208, 448–457. [Google Scholar] [CrossRef]
  23. Mo, L.; Hao, Y.; Liu, Y.; Wang, F.; Deng, M. Preparation of calcium carbonate binders via CO2 activation of magnesium slag. Cem. Concr. Res. 2019, 121, 81–90. [Google Scholar] [CrossRef]
  24. Mahoutian, M.; Ghouleh, Z.; Shao, Y. Carbon dioxide activated ladle slag binder. Constr. Build. Mater. 2014, 66, 214–221. [Google Scholar] [CrossRef]
  25. Mahoutian, M.; Shao, Y.; Mucci, A.; Fournier, B. Carbonation and hydration behavior of EAF and BOF steel slag binders. Mater. Struct. 2014, 3075–3085. [Google Scholar] [CrossRef]
  26. Polettini, A.; Pomi, R.; Stramazzo, A. Carbon sequestration through accelerated carbonation of BOF slag: Influence of particle size characteristics. Chem. Eng. J. 2016, 298, 26–35. [Google Scholar] [CrossRef]
  27. Li, J.; Ni, W.; Wang, X.; Zhu, S.; Wei, X.; Jiang, F.; Zeng, H.; Hitch, M. Mechanical activation of medium basicity steel slag under dry condition for carbonation curing. J. Build. Eng. 2022, 50, 104123. [Google Scholar] [CrossRef]
  28. Chang, J.; Xiong, C.; Zhang, Y.; Wang, D. Foaming characteristics and microstructure of aerated steel slag block prepared by accelerated carbonation. Constr. Build. Mater. 2019, 209, 222–233. [Google Scholar] [CrossRef]
  29. Cadore, D.E.; Angulski da Luz, C.; Farias de Medeiros, M.H. An investigation of the carbonation of alkaline activated cement made from blast furnace slag generated by charcoal. Constr. Build. Mater. 2019, 226, 117–125. [Google Scholar] [CrossRef]
  30. Wang, X.; Ni, W.; Li, J.; Zhang, S.; Li, K. Study on Mineral Compositions of Direct Carbonated Steel Slag by QXRD, TG, FTIR, and XPS. Energies 2021, 14, 4489. [Google Scholar] [CrossRef]
  31. Wei, X.; Ni, W.; Zhang, S.; Wang, X.; Li, J.; Du, H. Influence of the key factors on the performance of steel slag-desulphurisation gypsum-based hydration-carbonation materials. J. Build. Eng. 2022, 45, 103591. [Google Scholar] [CrossRef]
  32. Humbert, P.S.; Castro-Gomes, J.P.; Savastano, H. Clinker-free CO2 cured steel slag based binder: Optimal conditions and potential applications. Constr. Build. Mater. 2019, 210, 413–421. [Google Scholar] [CrossRef]
  33. Nielsen, P.; Boone, M.A.; Horckmans, L.; Snellings, R.; Quaghebeur, Q. Accelerated carbonation of steel slag monoliths at low CO2 pressure-microstructure and strength development. J. CO2 Util. 2020, 36, 124–134. [Google Scholar] [CrossRef]
  34. Wang, D.; Chang, J.; Ansari, W.S. The effects of carbonation and hydration on the mineralogy and microstructure of basic oxygen furnace slag products. J. CO2 Util. 2019, 34, 87–98. [Google Scholar] [CrossRef]
  35. He, Z.; Wang, S.; Mahoutian, M.; Shao, Y. Flue gas carbonation of cement-based building products. J. CO2 Util. 2020, 37, 309–319. [Google Scholar] [CrossRef]
  36. Wang, C.; Liang, Q.; Wang, Y.; Ni, W.; Qiao, C. Experimental study on perparation of autoclaved aerated concrete with iron ore tailings in Dashihe Iron Ming of Shougang. Met. Mine 2013, 2, 4–8. [Google Scholar]
  37. Li, J.; Hitch, M.; Power, I.M.; Pan, Y. Integrated mineral carbonation of ultramafic mine, A review. Minerals 2018, 8, 147. [Google Scholar] [CrossRef] [Green Version]
  38. Li, J.; Hitch, M. Mechanical activation of magnesium silicates for mineral carbonation, a review. Miner. Eng. 2018, 128, 69–83. [Google Scholar] [CrossRef]
  39. Li, J.; Hitch, M. Carbon dioxide adsorption isotherm study on mine waste for integrated CO2 capture and sequestration processes. Powder Technol. 2016, 291, 408–413. [Google Scholar] [CrossRef]
  40. Power, I.M.; Harrison, A.L.; Dipple, G.M.; Wilson, S.A.; Kelemen, P.B.; Hitch, M.; Southam, G. Carbon mineralization: From natural analogues to engineered systems. Rev. Mineral. Geochem. 2013, 77, 305–360. [Google Scholar] [CrossRef]
  41. Unluer, C.; Al-Tabbaa, A. The role of brucite, ground granulated blastfurnace slag, and magnesium silicates in the carbonation and performance of MgO cements. Constr. Build. Mater. 2015, 94, 629–643. [Google Scholar] [CrossRef] [Green Version]
  42. Li, J.; Hitch, M. Characterization of the microstructure of mechanically-activated olivine using X-ray diffraction pattern analysis. Miner. Eng. 2016, 86, 24–33. [Google Scholar] [CrossRef]
  43. Li, J.; Hitch, M. Ultra-fine grinding and mechanical activation of mine waste rock using a planetary mill for mineral carbonation. Int. J. Miner. Process. 2017, 158, 18–26. [Google Scholar] [CrossRef] [Green Version]
  44. Wang, Q.; Yang, J.; Yan, P. Cementitious properties of super-fine steel slag. Powder Technol. 2013, 245, 35–39. [Google Scholar] [CrossRef]
  45. Li, J.; Hitch, M. Structural and chemical changes in mine waste mechanically-activated invarious milling environments. Powder Technol. 2017, 308, 13–19. [Google Scholar] [CrossRef] [Green Version]
  46. Li, X.; Hao, J. Orthogonal test design for optimization of synthesis of super early strength anchoring material. Constr. Build. Mater. 2018, 181, 42–48. [Google Scholar] [CrossRef]
  47. Li, Z.; He, Z.; Chen, X. The Performance of Carbonation-Cured Concrete. Materials 2019, 12, 3729. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Wang, Q.; Yan, P. Hydration properties of basic oxygen furnace steel slag. Constr. Build. Mater. 2010, 24, 1134–1140. [Google Scholar] [CrossRef]
  49. Chen, Z.; Li, R.; Zheng, X.; Liu, J. Carbon sequestration of steel slag and carbonation for activating RO phase. Cem. Concr. Res. 2021, 139, 106271. [Google Scholar] [CrossRef]
  50. Wilson, S.A.; Raudsepp, M.; Dipple, G.M. Verifying and quantifying carbon fixation in minerals from serpentine-rich mine tailings using the Rietveld method with X-ray powder diffraction data. Am. Mineral. 2006, 91, 1331–1341. [Google Scholar] [CrossRef]
  51. Harrison, A.L.; Dipple, G.M.; Power, I.M.; Ulrich Mayer, K. Influence of surface passivation and water content on mineral reactions in unsaturated porous media: Implications for brucite carbonation and CO2 sequestration. Geochim. Cosmochim. Acta 2015, 148, 477–495. [Google Scholar] [CrossRef]
  52. Viti, C. Serpentine minerals discrimination by thermal analysis. Am. Mineral. 2010, 95, 631–638. [Google Scholar] [CrossRef]
  53. Hrsak, D.; Sucik, G.; Lazic, L. The thermophysical properties of serpentinite. Metalurgija 2008, 47, 29–31. [Google Scholar]
  54. Wang, Q.; Wang, D.; Zhuang, S. The soundness of steel slag with different free CaO and MgO contents. Constr. Build. Mater. 2017, 151, 138–146. [Google Scholar] [CrossRef]
  55. Smarzewski, P. Influence of basalt-polypropylene fibres on fracture properties of high performance concrete. Compos. Struct. 2019, 209, 23–33. [Google Scholar] [CrossRef]

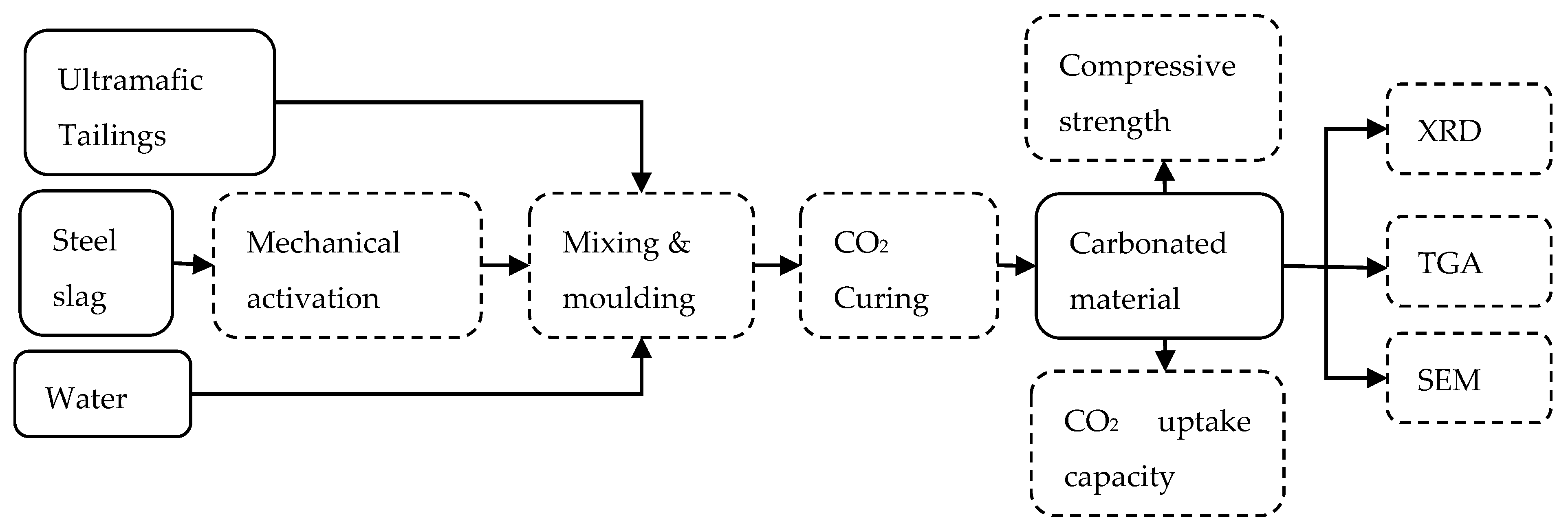

Figure 1. The experiment flowchart.
Figure 1. The experiment flowchart.
Minerals 12 00246 g001

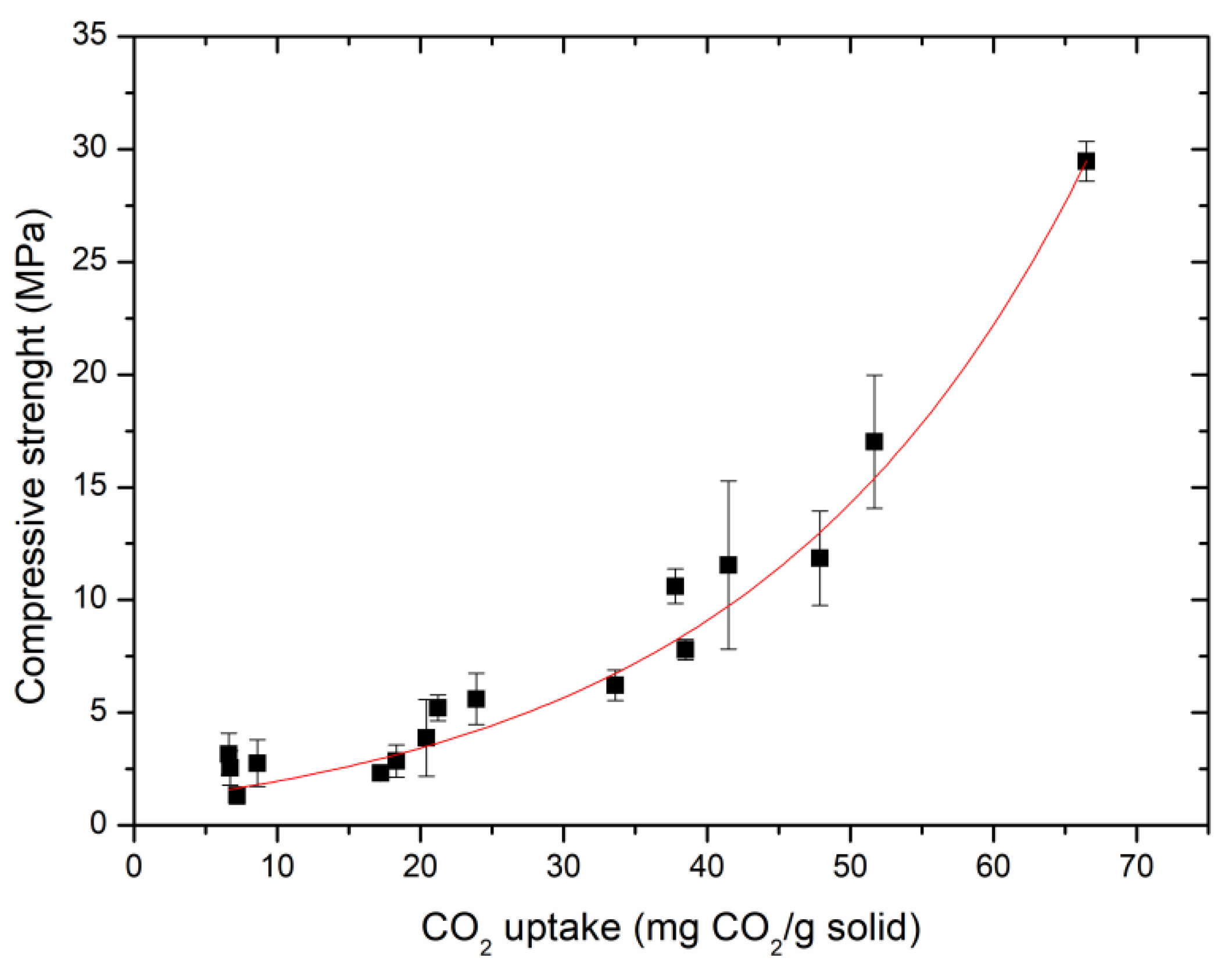

Figure 2. The relationship between compressive strength and CO2 uptake of carbonated tailings-steel slag compacts.
Figure 2. The relationship between compressive strength and CO2 uptake of carbonated tailings-steel slag compacts.
Minerals 12 00246 g002

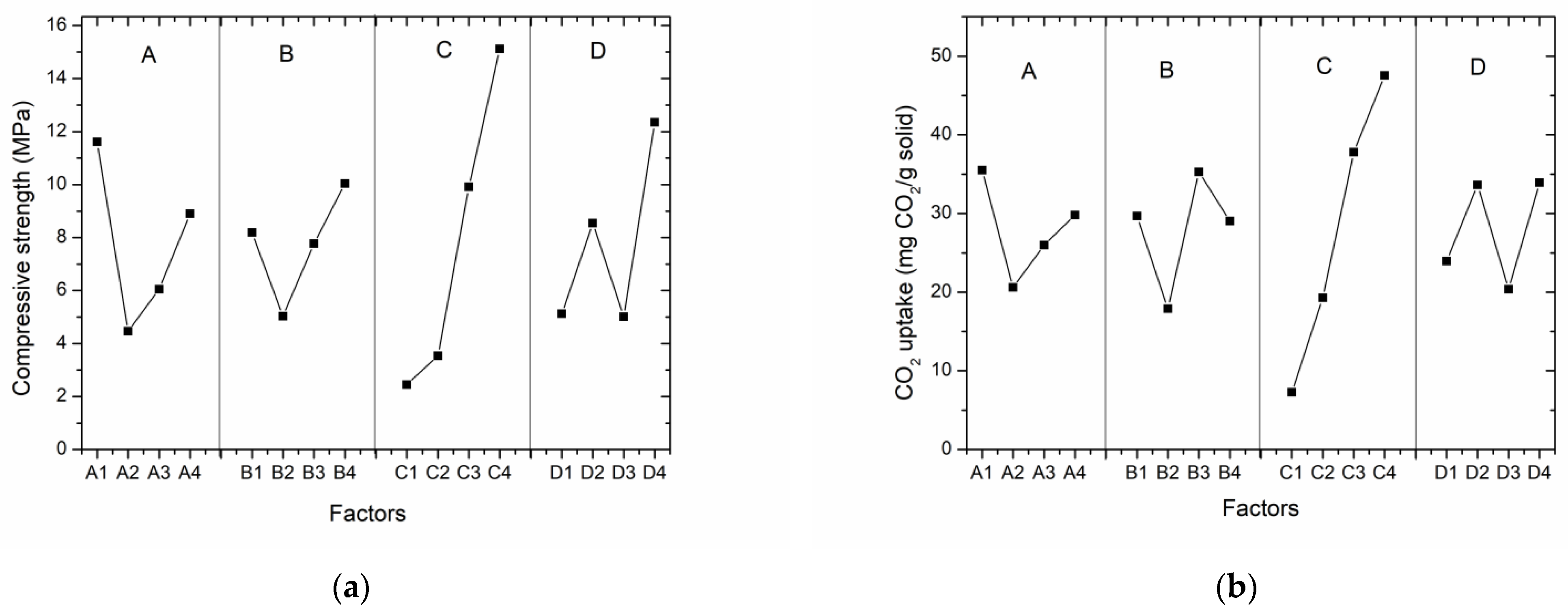

Figure 3. The effect curve of four factors on (a) compressive strength; (b) CO2 uptake capacity. A is the grinding time for steel slag, B is the water/solid ratio, C is the slag/tailings ratio, D is the carbonation time.
Figure 3. The effect curve of four factors on (a) compressive strength; (b) CO2 uptake capacity. A is the grinding time for steel slag, B is the water/solid ratio, C is the slag/tailings ratio, D is the carbonation time.
Minerals 12 00246 g003
Figure 4. (a) The compressive strength of compacts grouped by the slag/tailings ratio; (b) The CO2 uptake capacity of compacts grouped by the slag–tailings ratio. The slag/tailings ratios of C1, C2, C3, C4 are 0, 1:9, 3:7 and 5:5, respectively.
Figure 4. (a) The compressive strength of compacts grouped by the slag/tailings ratio; (b) The CO2 uptake capacity of compacts grouped by the slag–tailings ratio. The slag/tailings ratios of C1, C2, C3, C4 are 0, 1:9, 3:7 and 5:5, respectively.
Minerals 12 00246 g004
Figure 5. CO2 uptake and compressive strength of samples grouped by the grinding time of steel slag. The black bars show the values of compressive strength. The blue lines display the values of CO2 uptake. The grinding time for steel slag of A1, A2, A3, A4 are 0, 30, 60 and 120 min, respectively.
Figure 5. CO2 uptake and compressive strength of samples grouped by the grinding time of steel slag. The black bars show the values of compressive strength. The blue lines display the values of CO2 uptake. The grinding time for steel slag of A1, A2, A3, A4 are 0, 30, 60 and 120 min, respectively.
Minerals 12 00246 g005
Figure 6. X-ray diffraction pattern of ultramafic tailings, steel slag, and S4.
Figure 6. X-ray diffraction pattern of ultramafic tailings, steel slag, and S4.
Minerals 12 00246 g006
Figure 7. TG-DTA curve of ultramafic tailings, steel slag, and S4.
Figure 7. TG-DTA curve of ultramafic tailings, steel slag, and S4.
Minerals 12 00246 g007
Figure 8. The micrograph and EDS spectra of samples. (a) The micrograph of ultramafic tailings; (b) The micrograph of steel slag; (c,d)The micrograph of S4; (a1) The EDS spectra of chrysotile on (a); (b1) The EDS spectra of C2S on (b); (c1) The EDS spectra of CaCO3 on (c); (d1) The EDS spectra on Chrysotile on (d). The scale bar in (a,b,d) are 10 µm and in (c) is 3 µm.
Figure 8. The micrograph and EDS spectra of samples. (a) The micrograph of ultramafic tailings; (b) The micrograph of steel slag; (c,d)The micrograph of S4; (a1) The EDS spectra of chrysotile on (a); (b1) The EDS spectra of C2S on (b); (c1) The EDS spectra of CaCO3 on (c); (d1) The EDS spectra on Chrysotile on (d). The scale bar in (a,b,d) are 10 µm and in (c) is 3 µm.
Minerals 12 00246 g008aMinerals 12 00246 g008b
Table 1. The chemical composition of materials (wt%).
Table 1. The chemical composition of materials (wt%).
Fe2O3Al2O3SiO2CaO MgO P2O5CSLOIOthers
Tailings5.130.5838.001.5236.080.030.160.0311.506.79
Steel slag27.65.211.6337.137.51.290.410.104.244.9
Note: LOI is the loss on ignition which presents the volatile content, such as water, TOT/C is the total C tested by LECO method, and TOT/S is the total S tested by LECO method.
Table 2. Experimental schemes of orthogonal test.
Table 2. Experimental schemes of orthogonal test.
Sample IDLevelsFactors
A
(Grinding Time for Steel Slag)
B
(Water–Solid Ratio)
C
(Slag–Tailings Ratio)
D
(Carbonation Time)
A
(min)
BCD
(h)
S1111101:100:11
S2122201.5:101:93
S3133302:103:76
S4144402.5:105:512
S52123301:101:96
S62214301.5:100:112
S72341302:105:51
S82432302.5:103:73
S93134601:103:712
S103213601.5:100:16
S113342602:105:53
S123421602.5:101:91
S1341421201:105:53
S1442311201.5:103:71
S1543241202:101:912
S1644131202.5:100:16
Table 3. The result of compressive strength and CO2 uptake capacity of carbonated material.
Table 3. The result of compressive strength and CO2 uptake capacity of carbonated material.
Sample IDCompressive Strength (MPa)CO2 Uptake (mg CO2/g Solid)
S11.37.2
S23.820.4
S311.947.9
S429.566.5
S52.918.3
S63.26.6
S76.233.6
S85.623.9
S911.641.5
S102.66.7
S117.838.5
S122.317.2
S1317.051.7
S1410.637.8
S155.221.2
S162.88.6
Table 4. Analysis on the range of compressive strength for carbonated tailings-steel slag compacts.
Table 4. Analysis on the range of compressive strength for carbonated tailings-steel slag compacts.
FactorsCompressive Strength (MPa)CO2 Uptake (mg CO2/g Solid)
ABCDABCD
K146.4232.769.8020.46142.03118.7429.0995.84
K217.8420.1014.1634.2082.3371.5977.11134.54
K324.2031.0639.6220.02103.95141.13151.1981.49
K435.6040.1460.4849.38119.30116.16190.22135.74
k111.618.192.455.1235.5129.697.2723.96
k24.465.033.548.5520.5817.9019.2833.64
k36.057.779.915.0125.9935.2837.8020.37
k48.9010.0415.1212.3529.8329.0447.5633.94
Range7.155.0112.677.239.5217.3940.2813.56
RankingC > D > A > BC > B > D > A
Optimum themeA1B4C4D4A1B3C4D4
Table 5. The mineral composition of ultramafic tailings, steel slag, and S4.
Table 5. The mineral composition of ultramafic tailings, steel slag, and S4.
PhasesSteel SlagUltramafic TailingsMixture (S:T = 1:1) aS4
larnite (C2S)36.7% 18.4%2.8%
hatrurite (C3S)11.9% 6.0%0.1%
portlandite (Ca(OH)2)12.5% 6.3%0.0%
mayenite (C12A7)4.8% 2.4%0.5%
srebrodolskite (C2F)17.6% 8.8%9.8%
RO(FeO, MgO, MnO) 15.0%7.7%11.4%10%
calcite (CaCO3)0.6% 0.3%23.6%
lizardite 92.3%46.2%53.3%
Note: a. is calculated according to the mineral composition of steel slag and ultramafic tailings.
Table 6. The weight loss of samples at different temperature intervals (wt%).
Table 6. The weight loss of samples at different temperature intervals (wt%).
50–145 °C145–330 °C330–500 °C500–800 °C800–1000 °CLOI
Tailings-0.10.810.50.111.5
Steel slag1.40.91.20.70.14.3
Mixture (S:T = 1:1) a0.70.51.05.60.17.9
S40.71.31.110.9−0.113.9
Note: a. is calculated according to the weight loss of steel slag and ultramafic tailings.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Li, J.; Wang, C.; Ni, W.; Zhu, S.; Mao, S.; Jiang, F.; Zeng, H.; Sun, X.; Huang, B.; Hitch, M. Orthogonal Test Design for the Optimization of Preparation of Steel Slag-Based Carbonated Building Materials with Ultramafic Tailings as Fine Aggregates. Minerals 2022, 12, 246. https://doi.org/10.3390/min12020246

AMA Style

Li J, Wang C, Ni W, Zhu S, Mao S, Jiang F, Zeng H, Sun X, Huang B, Hitch M. Orthogonal Test Design for the Optimization of Preparation of Steel Slag-Based Carbonated Building Materials with Ultramafic Tailings as Fine Aggregates. Minerals. 2022; 12(2):246. https://doi.org/10.3390/min12020246

Chicago/Turabian Style

Li, Jiajie, Chengzhou Wang, Wen Ni, Sitao Zhu, Shilong Mao, Fuxing Jiang, Hui Zeng, Xikui Sun, Bingxiang Huang, and Michel Hitch. 2022. "Orthogonal Test Design for the Optimization of Preparation of Steel Slag-Based Carbonated Building Materials with Ultramafic Tailings as Fine Aggregates" Minerals 12, no. 2: 246. https://doi.org/10.3390/min12020246

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
