Precipitation of Calcium Phosphates and Calcium Carbonates in the Presence of Differently Charged Liposomes

by
Ina Erceg
1,
Jasminka Kontrec
2,
Vida Strasser
1,
Atiđa Selmani
1,
Darija Domazet Jurašin
1,
Marija Ćurlin
3,
Branka Njegić Džakula
2,
Nives Matijaković Mlinarić
2,
Suzana Šegota
1,
Daniel M. Lyons
4,
Damir Kralj
2,* and
Maja Dutour Sikirić
1,*
1
Laboratory for Biocolloids and Surface Chemistry, Division of Physical Chemistry, Ruđer Bošković Institute, Bijenička cesta 54, 10000 Zagreb, Croatia
2
Laboratory for Precipitation Processes, Division of Materials Chemistry, Ruđer Bošković Institute, Bijenička cesta 54, 10000 Zagreb, Croatia
3
School of Medicine, Catholic University of Croatia, 10000 Zagreb, Croatia
4
Center for Marine Research, Ruđer Bošković Institute, Giordano Pagliaga 5, 52210 Rovinj, Croatia
*
Authors to whom correspondence should be addressed.
Minerals 2022, 12(2), 208; https://doi.org/10.3390/min12020208
Submission received: 7 December 2021 / Revised: 26 January 2022 / Accepted: 4 February 2022 / Published: 6 February 2022
(This article belongs to the Special Issue Biomineralization of Calcium Carbonates and Calcium Phosphates in Inorganic Environment)
Browse Figures
Versions Notes

Abstract

:
Liposomes (lipid vesicles) are often considered to be a versatile tool for the synthesis of advanced materials, as they allow various control mechanisms to tune the materials’ properties. Among diverse materials, the synthesis of calcium phosphates (CaPs) and calcium carbonates (CaCO3) using liposomes has attracted particular attention in the development of novel (bio)materials and biomineralization research. However, the preparation of materials using liposomes has not yet been fully exploited. Most of the liposomes used have been anionic and/or zwitterionic, while data on the influence of cationic liposomes are limited. Therefore, the aim of this study was to investigate and compare the influence of differently charged liposomes on CaPs and CaCO3 formation. Zwitterionic 1,2-dimyristoyl-sn-glycero-3-phosphocholine (DMPC), negatively charged 1,2-dimyristoyl-sn-glycero-3-phospho-L-serine (DMPS), and positively charged 1,2-dioleoyl-sn-glycero-3-ethylphosphocholine (EPC) lipids were used to prepare the respective liposomes. The presence of liposomes during the spontaneous precipitation of CaPs and CaCO3 affected both the precipitation and transformation kinetics, as well as the morphology of the precipitates formed. The most prominent effect was noted for both materials in the presence of DMPS liposomes, as (nano) shell structures were formed in both cases. The obtained results indicate possible strategies to fine-tune the precipitation process of CaPs and CaCO3, which may be of interest for the production of novel materials.

Graphical Abstract

1. Introduction

The ever-increasing need for novel and advanced materials is creating a stimulus for the development of new economically acceptable and environmentally friendly synthetic routes. Accordingly, biomimetic processes inspired by the formation of hard tissues in organisms are receiving special attention [1]. Biological hard tissues are essentially organic–inorganic composites in which the organic matrix strictly controls the composition, structure, morphology, and orientation of biominerals [2]. In addition to the protein matrix, the self-assembled structures of lipids (i.e., vesicles) also play an important role in the formation of hard tissues in both vertebrates and invertebrates [3,4,5,6,7]. Mineralization in or at a compartmentalized reaction environment, such as that in lipid vesicles, allows the precise control of physicochemical conditions, which in turn allows the control of the mineralization process [3]. Typical examples of such a biomineralization strategy are coccoliths formed in the alga Emiliania huxleyi [8], matrix vesicles in vertebrates [4,9], or magnetosomes [10].
For this reason, self-assembled lipid vesicles, so-called liposomes, are attracting much attention both as model systems for a thorough understanding of biomineralization processes and as a versatile route in the synthesis of materials [11,12,13,14]. The ability of lipids to self-assemble is a consequence of their amphiphilic nature. Lipid molecules contain a polar head group, one or more hydrophobic tails, and a backbone group that binds them together [3,11]. Each structural element of the lipid molecule can occur in a variety of different moieties, so the size, surface charge, permeability, fluidity, and charge density of the liposome [15] can be tailored to the intended application. Moreover, they can be used in various biomedical applications due to their biocompatibility and low toxicity [3,11,14,16,17].
Two classes of biominerals, calcium phosphates (CaPs) and calcium carbonates (CaCO3), are of particular interest, both as major mineral constituents of biological hard tissues [2,18,19] and because of their various technological and biomedical applications [20,21,22].
CaPs are sparingly soluble salts of phosphoric acid that occur in the form of various compounds [19]. The main phases relevant to biomineralization are amorphous calcium phosphate (ACP), octacalcium phosphate (OCP, Ca8(HPO4)2(PO4)4·5H2O), calcium hydrogen phosphate dihydrate (DCPD, CaHPO4∙2H2O), calcium-deficient apatite (CaDHA, Ca10−x(HPO4)x(PO4)6−x(OH)2−x, 0 < x < 1), and hydroxyapatite (HAP, Ca10(PO4)6(OH)2) [19,23]. They are found in various organisms, such as bacteria and vertebrates [24]. In addition to their role as a major constituent of normal and pathological hard tissues of vertebrates, CaPs are important in primitive organisms for the storage and regulation of essential elements [19,25].
Calcium carbonates occur in the form of various polymorphs (calcite, aragonite, and vaterite) and hydrates (monohydrate, hexahydrate, and amorphous (ACC)). Of these, calcite and aragonite are regularly deposited as biominerals. They are the most abundant biominerals in invertebrates such as mollusks, sponges, corals, and crustaceans [26]. The ability of both CaP and CaCO3 to crystallize via an amorphous precursor phase is important for their function as biominerals because different ions and macromolecules can regulate this process and thus the properties of the final material [2,5,27,28,29].
In vitro studies have shown that liposomes provide two main sites for the formation of CaP and CaCO3: the inner and the outer surface [30,31,32,33,34,35,36]. The permeability of liposomes to constituent ions can be influenced by liposome composition, temperature, and the inclusion of ionophores [11,37]. The negatively charged head groups of phospholipids attract calcium ions, leading to the formation of a locally supersaturated zone that can increase the nucleation rate [38]. When precipitation is initiated inside liposomes, different CaP phases can form depending on the experimental conditions (e.g., reactant concentration and pH) [37,39,40,41,42]. Although ACP is somewhat stabilized in the presence of liposomes compared to systems without liposomes, it continues to transform into an apatitic phase [37,42]. In contrast, the transformation of ACC within liposomes is inhibited by liposomal encapsulation and the exclusion of impurities that can act as nucleators [43,44]. However, this is not the only observed difference in the behavior of CaP and CaCO3 in the presence of liposomes. While the incorporation of phosphatidic acid (PA) or phosphatidylserine (PS) into the lipid membrane promotes CaP formation [35], acidic phospholipids that can bind calcium (PA, PS, or phosphatidylinositol (PI)) do not increase the interaction between the membrane and calcium or affect the nucleation and growth of CaCO3 [11,43].
In addition to the lipid composition, the properties of the outer surfaces of liposomes can be tailored by changing their size and, consequently, their curvature. This may influence the physical/chemical properties of the precipitate formed under respective conditions [31]. Indeed, many researchers have reported the preparation of porous [45] or void micro- and nanoshells [14,31], which can then be used as drug carriers [46] using liposomes as templates. Zwitterionic or anionic phospholipids such as phosphatidylcholine [30,47], dipalmitoylphosphatidylcholine (DPPC) [33], dioleayl-sn-glycero-3-phosphate and dipalmitoyl-sn-glycero-3-phosphate (DOPA and DPPA) [31,32], enzymatically modified DPPC [35], polysaccharide-coated dimyristoylphosphatidylcholine (DMPC) and dilauroyl phosphatidic acid (DLPA) [48], lecithin [36], and 3D chitosan [34] have been used to study the role of the organic template in modulating calcium phosphate or calcium carbonate formation. However, it was shown that positively charged liposomes exhibited significantly higher adsorption on HAP [49]. The selection of specific lipid molecules enables the tuning of the liposome melting temperature, i.e., liposome permeability, and thus the control of the precipitation initiated at the particular temperature of interest [40]. The mineralization of liposomes can typically be achieved by the titration method [31,32] or by the suspension of liposomes in simulated body fluid (SBF) [30,47]. No mineralization was observed when liposomes were suspended in a metastable external solution [50], so coating the liposomes with polysaccharides was proposed as a way to facilitate this process [48]. Research in which the gas diffusion method was applied showed the influence of the spatial arrangement of lecithin molecules, controlled by the lecithin concentration in calcium chloride solution, on the templating texture, polymorphism, size, and shape of calcium carbonate crystals [51].
Investigations of the influence of liposomes on the spontaneous precipitation of either CaP or CaCO3 are scarce. In addition, to the best of our knowledge, there has been no attempt to compare the influence of liposomes containing different head groups, i.e., different charges, on the precipitation of different CaP and CaCO3 phases.
To fill this gap in data, we investigated the influence of liposomes prepared from three differently charged lipids on CaP and CaCO3 precipitation. In particular, zwitterionic 1,2-dimyristoyl-sn-glycero-3-phosphocholine (DMPC), negatively charged 1,2-dimyristoyl-sn-glycero-3-phospho-L-serine (DMPS), and positively charged 1,2-dioleoyl-sn-glycero-3-ethylphosphocholine (EPC) (Figure S1) were used, and the effects could be compared because the melting points of all lipids are below 37 °C. In this way, it was possible to determine both the influence of different sizes and charges of liposomes on the CaP and CaCO3 precipitation/transformation process and the properties of the thus-formed solids. This work is a continuation of our previous research, in which the properties of metastable and stable CaP and CaCO3 phases, formed under similar experimental conditions, were compared [52,53]. The obtained results could contribute to the understanding of the additional details of general principles of biomineralization and to the development of new green synthesis routes.

2. Materials and Methods

2.1. Materials

The phospholipids 1,2-dimyristoyl-sn-glycero-3-phosphocholine (DMPC), 1,2-dimyristoyl-sn-glycero-3-phospho-L-serine (DMPS), and 1,2-dioleoyl-sn-glycero-3-ethylphosphocholine (EPC) were purchased from Avanti Polar Lipids (Birmingham, AL). Calcium chloride dihydrate (CaCl2·2H2O), disodium hydrogen phosphate (Na2HPO4), sodium hydrogen carbonate (NaHCO3), sodium carbonate (Na2CO3), and sodium chloride (NaCl) were obtained from Sigma Aldrich. CaCl2, Na2HPO4, NaHCO3, and Na2CO3 stock solutions were prepared from analytical grade chemicals that were dried overnight in a desiccator over silica gel. The exact concentrations of CaCl2 stock solution were determined by ion chromatography. The pH of the solutions was adjusted with hydrochloric acid (HCl) or sodium hydroxide (NaOH) if necessary. Milli-Q water was used in all experiments.

2.2. Liposome Preparation

Liposomes were prepared by hydration of a thin phospholipid film. In short, the lipid films were prepared as follows: 3 mg of lipid (Figure S1) was added to 2 mL of chloroform, and the thin lipid film was obtained by evaporation of the solvent using a rotary evaporator. Suspensions of the liposomes were prepared by hydrating the films with Milli-Q water. The milky-white multilamellar liposome dispersions were prepared by repetition of heating and freezing cycles, followed by gentle vortexing.

2.3. Precipitation Systems

The experiments were performed in a thermostated, double-walled glass vessel with a 50 cm3 capacity at 25 °C. In the CaCO3 precipitation experiments, the vessel was tightly closed with a Teflon cover, thus minimizing the exchange of carbon dioxide between the ambient air and the reaction system.
In the control precipitation systems, equal volumes (20 cm3) of equimolar CaCl2 and Na2HPO4 or NaHCO3/Na2CO3 reactant solutions were used. In the case of CaP systems, anionic and cationic solutions were simultaneously added to the reaction vessel, while in the case of CaCO3, the CaCl2 solution was rapidly added to the NaHCO3/Na2CO3 solution. The total initial concentrations of reactants (calcium, phosphate, and carbonate) in the precipitation system were: ci(Ca) = ci(PO4) = 3.5 mmol dm−3 at pHi = 7.40 for CaP systems and ci(Ca) = ci(CO3) = 20 mmol dm−3 (ci(HCO3) = 19.2 mmol dm−3 and ci(CO3) = 0.8 mmol dm−3) at pHi = 8.15 for CaCO3 systems [52,53].
Precipitation systems containing liposomes (2.5 ppm < γ (lipid) < 25.0 ppm) were prepared by adding the respective liposome suspensions to the anionic reactant solution before mixing the reactant solutions and readjusting the pH if necessary.
The progress of the reaction was followed by measuring the pH of the solution using a combined glass-calomel electrode connected to a digital pH meter (Metrohm 701 or Radiometer PHM 290 pH/ion meter).

2.4. Characterization

2.4.1. Characterization of Liposomes

Infrared spectra (Figures S2–S4, Tables S1–S3) of the lipids were obtained by using attenuated total reflection FTIR (ATR-FTIR Tensor II spectrometer, Bruker, Ettlingen, Germany).
The size distribution and zeta potential of the liposomes were determined by dynamic (DLS) and electrophoretic light scattering (ELS) using a Zetasizer Nano ZS (Malvern Instruments, Malvern, UK) equipped with a 532 nm “green” laser. The intensity of scattered light was detected at a backscattering angle of 173° to reduce multiple scattering, as well as the effects of dust. To avoid overestimation arising from the scattering of larger particles, the hydrodynamic diameter (dh) was obtained as the value at the peak maximum of the volume size distribution. Each sample was measured 10 times. The zeta potentials (ζ) of the particles were calculated from the measured electrophoretic mobility with the Henry equation using the Smoluchowski approximation (f (κa) = 1.5). Results are reported as an average value of 3 measurements. For the data processing, Zetasizer software v6.32 (Malvern Instruments) was used. Both DLS and ELS measurements were performed at ϑ = 25 °C. The measured hydrodynamic diameter and zeta potential of the prepared liposomes are presented in Table S4.

2.4.2. Characterization of Precipitates

Precipitates were filtered through a 0.45 μm Millipore filter at predetermined time intervals, washed 3 times with Milli-Q water and once with ethanol, and dried in a stream of nitrogen (CaP) or at 100 °C (CaCO3). Samples were kept in a desiccator until further analysis.
Powder X-ray diffraction (PXRD) patterns were collected by Rigaku Ultima IV diffractometer (Rigaku, Tokyo, Japan) in Bragg–Brentano parafocusing geometry using CuKα radiation and 5° Soller slits. Scans were performed in 0.02° 2θ steps in the range from 3.25 to 60° 2θ with a scan speed of 1° per min. The baselines of PXRD patterns were corrected, and when needed, the data were smoothed using a 5-point adjacent-averaging algorithm.
Infrared spectra were recorded on an FTIR spectrometer equipped with an attenuated total reflection module (Tensor II, Bruker, Ettlingen, Germany) with diamond ATR crystal from 4000–400 cm−1, with a resolution of 2 cm−1. The spectra are the average of 32 scans.
Thermogravimetric measurements (TG) of the dried CaCO3 samples were carried out on a Mettler TG 50 thermobalance (Mettler Toledo Corp., Zürich, Switzerland) equipped with a TC 10 TA processor (heating rate 10 K min−1).
The morphology of the obtained precipitates was analyzed by scanning electron microscopy (JEOL JSM-7000F FE-SEM microscope, Jeol, Tokyo, Japan) and transmission electron microscopy (Zeiss TEM 902A, Zeiss, Oberkochen, Germany and JEOL JEM-1010, 80 kV, Jeol, Tokyo, Japan). The sizes of ACP and ACC particles were estimated from TEM micrographs using the ImageJ (v.1.46r) freeware program.

3. Results and Discussion

Despite the continuous interest that calcium phosphates and calcium carbonates attract due to their role in biomineralization and importance in materials science [29,54,55], the mechanisms of their formation are not yet fully elucidated. Although these two biominerals do occur in different organisms, similarities in their formation mechanisms and physiological roles exist [29]. There are several indications that during the early stages of mineralization at physiological conditions, in systems in which both anions are present, interactions between these two solid phases occur, as well as the possible incorporation of phosphate into the CaCO3 structure [56]. However, there is also some strong evidence that the phosphate stabilizes the transient amorphous CaCO3 phase [57,58]. From a materials science point of view, the relationship between the CaP and CaCO3 phases is important as well, since CaP can be prepared from CaCO3, which serves as a source of Ca2+ ions and a nucleation center [59,60]. Therefore, it was proposed that comparing their formation mechanisms under various conditions could be a suitable approach to contribute to revealing certain biomineralization mechanisms [61]. This approach has not yet been fully exploited due to the considerably different experimental conditions required for the precipitation of these two types of biominerals.
The CaP and CaCO3 precipitation systems investigated in this study comprised reactant concentrations and pH relevant to the corresponding physiological conditions. In both systems, precipitation occurred rapidly and commenced immediately upon mixing the reactant solutions. Both precipitation systems were supersaturated with respect to the relevant solid phases, including the corresponding metastable phases [53], to be able to assess the influence of liposomes on polymorphic selection and the mechanism of their formation (transformation).

3.1. Influence of the Liposomes on Precipitation of Calcium Phosphates

In neutral and basic solutions, CaPs usually precipitate in two steps. The first step is the formation of an amorphous precursor, ACP, which subsequently transforms into a more stable, crystalline phase(s) [23,62,63,64]. Precipitation of CaP was followed by monitoring changes in the suspension pH, as shown previously [62,65,66,67,68,69]. In Figure 1, the representative pH curves obtained in the control system (i.e., without liposomes) and systems containing different concentrations of liposomes (expressed as lipid concentration) are shown. All curves have a typical sigmoidal shape, which indicates three stages of the precipitation process. The initial slight decrease in pH can be associated with the formation of ACP, while a subsequent abrupt pH decrease is a consequence of the formation and crystal growth of a specific phase on preformed ACP. The final slight change in pH is associated with solution-mediated transformation and ripening of the crystalline phase [23,62,65,66,67,68,69]. The similar shapes of the obtained pH curves could indicate that there is no significant difference in the mechanism of CaP formation in the presence of different liposomes.
However, differences could be observed in the induction times of crystalline phase formation (ti, Table 1), which represent the time elapsed between the commencement of the precipitation reaction (mixing of the reactants) and the first appearance of the crystalline phase upon the previously formed ACP. The induction time can be determined from the intersection of the tangents on the first and second parts of the pH vs. time curve [23,62]. Frequently, induction time is used as an indicator of ACP stability, and it is accepted that a longer induction time corresponds to a more stable ACP [62,70]. The obtained results indicated different tendencies of the ti changes with the liposome concentration (Figure 1b). In the presence of zwitterionic DMPC liposomes, the induction time increased, while in the presence of negatively charged DMPS, it decreased with the concentration of the lipid. However, the influence of EPC on induction time was negligible. The effect of DMPS could be ascribed to the high affinity of PS groups for Ca2+ ions, which adsorbed on the outer liposomal membrane and could serve as a template for the formation of CaP, thus promoting the ACP transformation. This finding is opposite to that in a previous study by Wuthier and Eans [71], in which the authors showed that PS liposomes enhanced the stability of prepared ACP proportionally to the applied concentration (200–1000 ppm PS). The stabilization was less pronounced when PS was present during spontaneous ACP precipitation. The PS concentrations used by Wuthier and Eans [71] were much higher than those used in the spontaneous precipitation experiment described in this work, which could explain the observed differences. A recent computational study showed that Ca2+-HPO42− and phosphatidylserine complexes facilitate nucleation [72]. It was also shown that prepared ACP was more stable in the presence of PC, diacetyl phosphate, and cholesterol liposomes [37].
Precipitates were initially characterized by TEM after 30 min of reaction due to the small amount of formed precipitate (Figure 2). In all investigated systems, selected area electron diffraction (SAED) patterns showed the presence of an amorphous phase. In the control system, as well as in the presence of DMPC and DMPS liposomes, typical chain-like aggregates of spherical ACP particles were observed [52,62,65,73]. However, the sizes of small spherical particles obtained in the presence of specific liposomes were different. Particles with the smallest average diameter (79.1 ± 10.9 nm) and with a narrow size distribution (Figure S5) were obtained in the control system, while those formed in the presence of DMPC liposomes were larger (127.0 ± 17.5 nm) and somewhat elongated. Similarly, in the presence of DMPS, the particles were elongated, but their size distribution was wider, ranging from 60 to 180 nm with an average size of 110.8 ± 21.2 nm. However, completely different ACP morphology was noted in the EPC liposomal systems, in which a gel-like precipitate was obtained [74].
A likely explanation for the observed differences in the morphology of ACP obtained in different liposomal systems can be related, apart from their chemical differences, to differences in the size and zeta potential (Table S4). However, in the applied anionic phosphate reactant solution, different liposomes did differ in both size and zeta potential. In particular, zwitterionic DMPC formed large liposomes with bimodal size distributions that peaked at 1610.6 and 4877.8 nm and with a zeta potential of −0.6 mV. DMPS formed much smaller liposomes (231 nm) but with a more negative zeta potential (−100.6 mV). The size distribution of EPC liposomes was also bimodal, but the liposomes were also smaller than DMPC liposomes. Liposomes with average sizes of 44.8 and 308.1 nm and with a zeta potential of 56.6 mV were observed. As the effects of size and zeta potential could not be decoupled under the applied experimental condition, the explanation of the observed differences is rather complex.
PXRD patterns, FTIR spectra, and SEM micrographs of the CaP precipitate obtained after 60 min are presented in Figure 3 and Figure 4, respectively. Similar to polyelectrolytes [62] and surfactants [65] under similar experimental conditions, liposomes did not influence the composition of the precipitates. FTIR spectra (Figure 3a,c,e, Tables S5–S8) of all samples show typical phosphate and water bands. The asymmetric stretching mode of PO 4 3 − was found at around 1114 cm−1 and 1020 cm−1, and symmetric stretching was observed at 960 cm−1, with bending modes of PO 4 3 − at around 600 cm−1, 555 cm−1, and 470 cm−1. The band at around 860 cm−1 corresponds to HPO 4 2 − vibration. A broad band at 3700–2600 cm−1, as well as a band at 1650 cm−1, corresponds to the vibration of water molecules [75,76]. No bands characteristic of lipids were observed. In PXRD patterns, peaks at around 25.91° and 32.12° 2θ, characteristic of CaDHA, were observed [77,78]. In the case of DMPS and EPC, the intensity of these peaks decreased with the increase in concentration, although at the highest applied concentrations, the intensity was the highest. However, the intensity of the peaks continuously increased with the DMPC concentration.
The morphologies of the precipitates were correlated with different liposomes present during their formation (Figure 4). Typical spherical aggregates of leaf-like CaDHA crystals were obtained in the control system (Figure 4a), as well as in the presence of DMPC (Figure 4b) and EPC (Figure 4c). However, in the presence of DMPC, spherical aggregates were somewhat larger and denser than those in the control system, while the single leaf-like crystals were less developed and smaller. In the presence of EPC, smaller spherical aggregates were observed. SEM micrographs of precipitate formed in the presence of DMPS (Figure 4d,e) reveal that some of the spherical aggregates are hollow, which indicates nanoshell formation.
It seems that the ability of anionic lipids, in this specific case, DMPS, to concentrate and bind calcium ions [79,80] could enable the formation of shell structures. Recent molecular dynamics simulations have shown that Ca 2 + ,   HPO 4 2 − and PS complexes facilitate early nucleation [72]. It was also shown that zwitterionic PC liposomes could template CaP growth from SBF and that CaP hybrid nanostructured forms, differing in structure and morphology from CaDHA, appeared in the control system [47]. The morphology of CaP in the nanoshells prepared by the titration method depended on the type of anionic liposomes used for the template; i.e., the different sizes and zeta potentials of liposomes resulted in the formation of precipitates with different morphologies [31].

3.2. Influence of the Liposomes on Precipitation of Calcium Carbonates

The process of calcium carbonate precipitation in the presence of liposomes was investigated and compared to control systems containing no liposomes. In carbonate reactant solution, the sizes of DMPC and EPC liposomes were comparable to the sizes obtained in phosphate reactant solution, while the zeta potential of EPC liposomes was less positive. In contrast, the size of DMPS liposomes was larger in carbonate reactant solution, and the zeta potential was less positive (Table S4).
The progress of precipitation in the control system (ci(Ca) = ci(CO3) = 20 mmol dm−3; pHi = 8.15; ϑ/°C = (25 ± 0.1) was followed by measuring the pH of the solution (Figure 5).
The solid phase appeared in the control system immediately after mixing the reactants, and pH decreased from about 8.15 to about 6.80 in less than 10 min. Similar behavior of the precipitation system was noted when liposomes were added, thus indicating no significant influence on the induction time and progress of the precipitation process in the case of all EPC and DMPC concentrations and the case of lower DMPS concentrations (Figure S6). Representative pH vs. time curves obtained during CaCO3 precipitation in the presence of the highest applied lipid concentration, γ (lipid) = 25.0 ppm, are shown in Figure 5. For comparison, the progress curve of the control experiments, without the addition of liposomes, is also shown. It is obvious that the addition of EPC and DMPC did not significantly affect CaCO3 precipitation, while the addition of 25 ppm DMPS caused the termination of the process at a somewhat higher pH value compared to the control system (Figure 5). The likely explanation for the observed retardation of crystal growth is liposomes’ adsorption on the crystal surface.
The mineral samples isolated from the control precipitation system, as well as those from the liposomal systems, 10 min after mixing the reactants, consisted of the unstable CaCO3 polymorph, vaterite, as determined from PXRD and FTIR analyses (band assignments in Tables S9–S12). A representative PXRD diffractogram and FTIR spectrum of the samples isolated from the control system are shown in Figure 6. The presence of vaterite was confirmed by the characteristic 020, 021, 022, 130, 114, and 222 reflections at 24.9°, 27.1°, 32.7°, 43.8°, 50.0°, and 55.8° 2θ (JCPDS: 33-0268), respectively. In comparison to the control system, the PXRD patterns of precipitates prepared in the presence of liposomes exhibit a somewhat higher peak intensity; the effect is more pronounced in DMPC and DMPS calcium carbonate systems (Figure S7). The FTIR spectrum (Figure 6b, band assignments in Table S9) was recorded in the region from 400 to 4000 cm−1, in which the characteristic absorbance band of vaterite, ν4 = 746 cm−1, appeared [81,82]. For comparison, FTIR spectra (band assignments in Tables S9–S12) of samples isolated from the system with the highest lipid concentration are shown in Figure 7. The major differences can be observed in the region of 2700–3700 cm−1. Indeed, the EPC system (Figure 7a) shows no significant changes in comparison to the control system, while differences appear in the spectra of the samples precipitated in the presence of DMPC and DMPS liposomes. Representative FTIR spectra of precipitates isolated from systems with the addition of 25.0 ppm DMPC and DMPS liposomes are presented in Figure 7b,c. The principal bands (Figures S2–S4 and Tables S1–S3) between 2800 and 3000 cm−1 represent CH2 stretching modes, with the maxima of peaks at around 2851 cm−1 and around 2912 cm−1 corresponding to symmetric and asymmetric stretching in the CH2 groups of alkyl chains, with a minor contribution from symmetric and asymmetric stretching vibration in CH3 groups at around 2873 cm−1 and around 2955 cm−1, respectively [83]. Characteristic CH2 scissoring and CH2 bending (1420 and 1468 cm−1, respectively) overlap with strong carbonate ion normal vibrations (1500–1400 cm−1) [81]. In a CaCO3 crystallization study conducted by Beato et al. [51], vaterite became the only polymorph when zwitterionic DPPC was used in higher concentrations and at high supersaturations. The more hydrophobic environment obtained under these conditions corresponds to the formation of a complex, highly viscous sol network (i.e., micelles and reversed micelles) and vaterite formation inside aqueous confined spaces.
The content of organic material in vaterite samples was estimated by conducting thermogravimetric analysis. It was found that the decomposition of samples prepared in the presence of liposomes occurred in two steps, while for the sample prepared in the absence of liposomes, only one decomposition step was observed. Thus, Figure 8 shows TGA curves of samples prepared in the presence of the highest concentration of different liposomes: the weight loss in the temperature range between 200 and 500 °C corresponds to the decomposition of liposomes, while the decomposition of CaCO3 to CaO and CO2 occurs at about 800 °C. It was found that the TG curve of the sample isolated from the system with the addition of EPC shows no significant changes compared to the TG curve of the control system. However, a mass loss at about 350 °C was observed in the case of samples prepared in the presence of DMPC and DMPS liposomes. The estimated maximum value of organic content in those samples was 7.2% for the DMPC sample and 9.7% for the DMPS sample. The results are consistent with the respective FTIR analysis and confirm the presence of DMPC or DMPS in the vaterite crystals. Previous studies reported the incorporation of organic species in biomimetic calcite and vaterite [84,85,86], while a much higher lipid content, about 30%, was detected in amorphous calcium carbonate particles [87]. Gopal and co-workers reported the synthesis of calcium carbonate microparticles with phospholipids entrapped (2.5–5.0%) in the porous vaterite structure, resulting in an organic/inorganic complex matrix [45]. Their TG analysis revealed that calcium carbonate and phospholipids in these microparticles exhibit strong interactions.
SEM micrographs of the sample precipitated in the control system (Figure 9a) showed predominantly 2.0–2.5 μm spherical and some plate-like particles with a rough surface. These particles are the aggregates of primary particles, with an average size of ≤50 nm, which is characteristic of vaterite [88]. The samples obtained in the presence of liposomes contained spherical or plate-like particles that were larger (2–5 μm) with different aggregation and surface structures (Figure 9b–d). The literature reports vaterite particles with a mean size of 5 ± 2 μm prepared in the presence of negatively charged phospholipid mixtures of negative and zwitterionic phospholipids [45]. The strongest influence on the vaterite morphology was found after the addition of negatively charged DMPS. The SEM image in Figure 9d shows that vaterite particles are superstructures of crossed disc-shaped forms, having a uniform thickness of about 10 nm. The observed effect on morphology can be correlated with FTIR and TG results (Figure 7 and Figure 8), which show that liposomes interact with the calcium carbonate surface. The interactions probably occurred between calcium ions on the surfaces and carbonyl, phosphate, and carboxylate groups of the phospholipids [48]. DMPS, in comparison to DMPC and EPC, has more potent calcium-binding sites, which may cause crystal growth suppression in a specific direction, which in turn leads to anisotropic growth of the crystal and the formation of novel superstructures. SEM micrographs of precipitate formed in the presence of DMPS also revealed some vaterite spheres with void structures (hollow aggregates) (Figure 9e). The occurrence of differently textured vaterite crystals obtained in lecithin-templated calcium carbonate crystallization under a continuous CO2 diffusion atmosphere [51] reflects the geometry and spatial distribution of aqueous constrained spaces due to lecithin assembly, controlled by lecithin concentration, in calcium chloride solution.

3.3. Comparison of the Liposomes’ Influence on CaP and CaCO3 Precipitation

The majority of the studies of CaP and CaCO3 precipitation in the presence of liposomes were conducted using liposomes containing one or both reactant solutions [38,89,90] or by preparing liposomes coated with an inorganic phase by titration [14,31,45]. Surprisingly, investigations of spontaneous precipitation in the presence of liposomes are scarce [33,36,50,91]. However, spontaneous precipitation, in addition to its role in investigating biomineralization, can be used as a fast and versatile method of preparation of materials with specific properties that are tailored by experimental conditions, including the presence of additives [92].
Despite the intrinsic difference in the investigated precipitation systems, including differences in the size and charge of the liposomes, the obtained results indicate that their effects on the precipitation of CaP and CaCO3 share some common features.
In both control precipitation systems, the precipitation started immediately upon the mixing of the reactants. In the CaP system, the first formed solid phase was ACP, which transformed into CaDHA. In the CaCO3 system, vaterite was the initially formed solid, which did not transform during the investigated aging period. Liposomes did not influence the composition of the formed precipitates. However, in the case of CaP, they did influence the rate of ACP transformation to CaDHA. Thus, in the presence of zwitterionic DMPC liposomes, the ACP transformation was retarded, while in the presence of negatively charged DMPS liposomes, it was promoted. On the other hand, in the CaCO3 system, in the presence of the highest investigated concentration of DMPS liposomes, retardation of crystal growth was observed. Previous studies have shown that liposomes, whose composition corresponded to that of matrix vesicle membranes, are not able to induce precipitation from a metastable solution containing 2.25 mM Ca2+ and 1.50 mM inorganic phosphate [50]. However, phosphatidylcholine liposomes were able to induce the formation of ACP in SBF [47]. In the presence of lecithin [36] and dipalmitoylphosphatidylcholine [33] liposomes at concentrations higher than those used in this study, the influence of liposomes on the composition and morphology of CaCO3 precipitate was concentration-dependent. The observed effects were attributed to the ability of negatively charged head groups to concentrate Ca2+ ions, facilitating nucleation and modifying crystal growth [35,36,47], which is in accordance with our results showing that negatively charged DMPS has the most pronounced effect.
The most interesting result of this study is the formation of both CaDHA and vaterite (nano) shells/hollow spheres in the presence of the highest investigated concentration of DMPS. This could be attributed to the high affinity of negatively charged phosphatidylserine moiety towards Ca2+ ions [72]. Until now, shell structures were usually obtained by more complex and longer-lasting titration procedures [14,31,45].
The obtained results confirm the literature data on the importance of phospholipid head group arrangement and interactions with both mineral surfaces [35,38].

4. Conclusions

In this work, the influence of differently charged and sized liposomes on CaP and CaCO3 precipitation in aqueous solutions supersaturated with respect to relevant solid phases was investigated. When compared to the respective control systems, the mineralogical composition of both CaP and CaCO3 precipitates formed was not affected by the presence of liposomes. On the other hand, liposomes influenced both the precipitation and transformation kinetics and the morphology of CaP and CaCO3 precipitated phases. In both precipitation systems, it was shown that DMPS liposomes exerted the most noticeable influence on morphology; either CaDHA or vaterite (nano) shells/hollow spheres were formed, which could be explained by specific electrostatic interactions between phosphatidylserine and Ca2+ ions present on mineral surfaces.
The results also confirm that, despite differences in the chemical composition, solubility, and/or stabilities of the phospholipids used herein, similarities in the mechanisms of the formation of the biominerals calcium phosphates and calcium carbonates exist. However, both biomimetic precipitation systems need to be more thoroughly and methodically investigated and compared to systematically establish new synthetic routes for the preparation of functional materials that are applicable in different fields.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/min12020208/s1, Figure S1. Molecular structure of the lipids used in this study for the preparation of liposomes with different surface charges. Figure S2. FTIR spectra of 1,2-dimyristoyl-sn-glycero-3-phosphocholine (DMPC). Figure S3. FTIR spectra of 1,2-dimyristoyl-sn-glycero-3-phospho-L-serine (DMPS). Figure S4. FTIR spectra of 1,2-dioleoyl-sn-glycero-3-ethylphosphocholine (EPC). Figure S5. TEM micrographs and size distribution of ACP particles formed in control system and in the presence of DMPC and DMPS liposomes in spontaneous precipitation experiment. Figure S6. Representative pH vs. time curve of CaCO3 spontaneous precipitation experiments. Figure S7. PXRD patterns of the precipitate formed after 60 min reaction time in CaCO3 spontaneous precipitation experiments. Table S1. Assignment of IR bands in the FTIR spectra of 1,2-dimyristoyl-sn-glycero-3-phosphocholine (DMPC). Table S2. Assignment of IR bands in the FTIR spectra of 1,2-dimyristoyl-sn-glycero-3-phospho-L-serine (DMPS). Table S3. Assignment of IR bands in the FTIR spectra of 11,2-dioleoyl-sn-glycero-3-ethylphosphocholine (EPC). Table S4. Hydrodynamic diameter (dh) and zeta potential (ζ) of liposomes. Table S5. Assignment of IR bands in the FTIR spectra of precipitate formed after 60 min in calcium phosphate control system. Table S6. Assignment of IR bands in the FTIR spectra of precipitate formed after 60 min in calcium phosphate system containing DMPC liposomes. Table S7. Assignment of IR bands in the FTIR spectra of precipitate formed after 60 min in calcium phosphate system containing DMPS liposomes. Table S8. Assignment of IR bands in the FTIR spectra of precipitate formed after 60 min in calcium phosphate system containing EPC liposomes. Table S9. Assignment of IR bands in the FTIR spectra of precipitate formed after 60 min in calcium carbonate control system. Table S10. Assignment of IR bands in the FTIR spectra of precipitate formed in calcium carbonate system containing DMPC liposomes. Table S11. Assignment of IR bands in the FTIR spectra of precipitate formed in calcium carbonate system containing DMPS liposomes. Table S12. Assignment of IR bands in the FTIR spectra of precipitate formed in calcium carbonate system containing EPC liposomes.

Author Contributions

Conceptualization, M.D.S. and D.K.; methodology, I.E., J.K., V.S., M.D.S. and D.K.; formal analysis, I.E., J.K., V.S., M.D.S. and D.K.; investigation, I.E., J.K., V.S., A.S., D.D.J., M.Ć., B.N.D., N.M.M., S.Š. and D.M.L.; resources, M.D.S. and D.K.; writing—original draft preparation, J.K., M.D.S. and D.K.; writing—review and editing, J.K., M.D.S. and D.K.; visualization, V.S.; funding acquisition, M.D.S. and D.K. All authors have read and agreed to the published version of the manuscript.

Funding

This work has been financially supported by the Croatian Science Foundation under projects HrZZ-IP-2013-11-5055 and HRZZ-IP-2018-01-1493.

Data Availability Statement

The data are available within the article or its supplementary materials.

Conflicts of Interest

There are no conflict to declare.

References

  1. Falini, G.; Fermani, S. The Strategic Role of Adsorption Phenomena in Biomineralization: Biomineralization. Cryst. Res. Technol. 2013, 48, 864–876. [Google Scholar] [CrossRef]
  2. Lowenstam, H.A.; Weiner, S. On Biomineralization; Oxford University Press: New York, NY, USA, 1989; ISBN 978-0-19-504977-0. [Google Scholar]
  3. Collier, J.H.; Messersmith, P.B. Phospholipid Strategies in Biomineralization and Biomaterials Research. Annu. Rev. Mater. Res. 2001, 31, 237–263. [Google Scholar] [CrossRef] [Green Version]
  4. Boonrungsiman, S.; Gentleman, E.; Carzaniga, R.; Evans, N.D.; McComb, D.W.; Porter, A.E.; Stevens, M.M. The Role of Intracellular Calcium Phosphate in Osteoblast-Mediated Bone Apatite Formation. Proc. Natl. Acad. Sci. USA 2012, 109, 14170–14175. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Weiner, S.; Addadi, L. Crystallization Pathways in Biomineralization. Annu. Rev. Mater. Res. 2011, 41, 21–40. [Google Scholar] [CrossRef]
  6. Ansari, S.; de Wildt, B.W.M.; Vis, M.A.M.; de Korte, C.E.; Ito, K.; Hofmann, S.; Yuana, Y. Matrix Vesicles: Role in Bone Mineralization and Potential Use as Therapeutics. Pharmaceuticals 2021, 14, 289. [Google Scholar] [CrossRef]
  7. Guibert, C.; Landoulsi, J. Enzymatic Approach in Calcium Phosphate Biomineralization: A Contribution to Reconcile the Physicochemical with the Physiological View. Int. J. Mol. Sci. 2021, 22, 12957. [Google Scholar] [CrossRef]
  8. Young, J.R.; Didymus, J.M.; Brown, P.R.; Prins, B.; Mann, S. Crystal Assembly and Phylogenetic Evolution in Heterococcoliths. Nature 1992, 356, 516. [Google Scholar] [CrossRef]
  9. Golub, E.E. Role of Matrix Vesicles in Biomineralization. Biochim. Biophys. Acta-Gen. Subj. 2009, 1790, 1592–1598. [Google Scholar] [CrossRef] [Green Version]
  10. Komeili, A. Molecular Mechanisms of Compartmentalization and Biomineralization in Magnetotactic Bacteria. FEMS Microbiol. Rev. 2012, 36, 232–255. [Google Scholar] [CrossRef] [Green Version]
  11. Tester, C.C.; Joester, D. Precipitation in Liposomes as a Model for Intracellular Biomineralization. In Methods in Enzymology; Elsevier: Amsterdam, The Netherlands, 2013; Volume 532, pp. 257–276. ISBN 978-0-12-416617-2. [Google Scholar]
  12. Favarin, B.Z.; Bolean, M.; Ramos, A.P.; Magrini, A.; Rosato, N.; Millan, J.L.; Bottini, M.; Costa-Filho, A.J.; Ciancaglini, P. Lipid Composition Modulates ATP Hydrolysis and Calcium Phosphate Mineral Propagation by TNAP-Harboring Proteoliposomes. Arch. Biochem. Biophys. 2020, 691, 108482. [Google Scholar] [CrossRef]
  13. Qi, C.; Musetti, S.; Fu, L.-H.; Zhu, Y.-J.; Huang, L. Biomolecule-Assisted Green Synthesis of Nanostructured Calcium Phosphates and Their Biomedical Applications. Chem. Soc. Rev. 2019, 48, 2698–2737. [Google Scholar] [CrossRef] [PubMed]
  14. Bewernitz, M.A.; Lovett, A.C.; Gower, L.B. Liquid–Solid Core-Shell Microcapsules of Calcium Carbonate Coated Emulsions and Liposomes. Appl. Sci. 2020, 10, 8551. [Google Scholar] [CrossRef]
  15. Šegota, S.; Vojta, D.; Pletikapić, G.; Baranović, G. Ionic Strength and Composition Govern the Elasticity of Biological Membranes. A Study of Model DMPC Bilayers by Force- and Transmission IR Spectroscopy. Chem. Phys. Lipids 2015, 186, 17–29. [Google Scholar] [CrossRef]
  16. Guimarães, D.; Cavaco-Paulo, A.; Nogueira, E. Design of Liposomes as Drug Delivery System for Therapeutic Applications. Int. J. Pharm. 2021, 601, 120571. [Google Scholar] [CrossRef]
  17. Song, J.; Wang, R.; Liu, Z.; Zhang, H. Preparation and Characterization of Calcium Carbonate Microspheres and Their Potential Application as Drug Carriers. Mol. Med. Rep. 2018, 17, 8403–8408. [Google Scholar] [CrossRef] [PubMed]
  18. Wang, L.; Nancollas, G.H. Calcium Orthophosphates: Crystallization and Dissolution. Chem. Rev. 2008, 108, 4628–4669. [Google Scholar] [CrossRef] [Green Version]
  19. Dorozhkin, S.V. Calcium Orthophosphates: Applications in Nature, Biology, and Medicine; CRC Press: Boca Raton, FL, USA, 2012; ISBN 978-981-4364-17-1. [Google Scholar]
  20. Dorozhkin, S.V.; Epple, M. Biological and Medical Significance of Calcium Phosphates. Angew. Chem. Int. Ed. 2002, 41, 3130–3146. [Google Scholar] [CrossRef]
  21. Erdogan, N.; Eken, H.A. Precipitated Calcium Carbonate Production, Synthesis and Properties. Physicochem. Probl. Miner. Process. 2017, 57, 57–68. [Google Scholar] [CrossRef]
  22. Amjad, Z. (Ed.) Calcium Phosphates in Biological and Industrial Systems; Springer: New York, NY, USA, 1998; ISBN 978-0-7923-8046-7. [Google Scholar]
  23. Sikirić, M.D.; Füredi-Milhofer, H. The Influence of Surface Active Molecules on the Crystallization of Biominerals in Solution. Adv. Colloid Interface Sci. 2006, 128–130, 135–158. [Google Scholar] [CrossRef]
  24. Omelon, S.J.; Grynpas, M.D. Relationships between Polyphosphate Chemistry, Biochemistry and Apatite Biomineralization. Chem. Rev. 2008, 108, 4694–4715. [Google Scholar] [CrossRef]
  25. Rey, C.; Combes, C.; Drouet, C.; Sfihi, H. Chemical Diversity of Apatites. Adv. Sci. Technol. 2006, 49, 27–36. [Google Scholar] [CrossRef]
  26. Falini, G.; Albeck, S.; Weiner, S.; Addadi, L. Control of Aragonite or Calcite Polymorphism by Mollusk Shell Macromolecules. Science 1996, 271, 67–69. [Google Scholar] [CrossRef]
  27. Njegić-Džakula, B.; Brečević, L.; Falini, G.; Kralj, D. Calcite Crystal Growth Kinetics in the Presence of Charged Synthetic Polypeptides. Cryst. Growth Des. 2009, 9, 2425–2434. [Google Scholar] [CrossRef]
  28. Štajner, L.; Kontrec, J.; Njegić Džakula, B.; Maltar-Strmečki, N.; Plodinec, M.; Lyons, D.M.; Kralj, D. The Effect of Different Amino Acids on Spontaneous Precipitation of Calcium Carbonate Polymorphs. J. Cryst. Growth 2018, 486, 71–81. [Google Scholar] [CrossRef] [Green Version]
  29. Mann, S. Biomineralization: Principles and Concepts in Bioinorganic Materials Chemistry; Oxford University Press: New York, NY, USA, 2001; ISBN 978-0-19-850882-3. [Google Scholar]
  30. Chai, Y.; Yamaguchi, T.; Tagaya, M. Fabrication of Phospholipid Vesicle-Interacted Calcium Phosphate Films with Sterilization Stability. Cryst. Growth Des. 2017, 17, 4977–4983. [Google Scholar] [CrossRef]
  31. Yeo, C.-H.; Zein, S.H.S.; Ahmad, A.L.; McPhail, D.S. Comparison of DOPA and DPPA Liposome Templates for the Synthesis of Calcium Phosphate Nanoshells. Ceram. Int. 2012, 38, 561–570. [Google Scholar] [CrossRef]
  32. Schmidt, H.T.; Ostafin, A.E. Liposome Directed Growth of Calcium Phosphate Nanoshells. Adv. Mater. 2002, 14, 532–535. [Google Scholar] [CrossRef]
  33. Szcześ, A.; Sternik, D. Properties of Calcium Carbonate Precipitated in the Presence of DPPC Liposomes Modified with the Phospholipase A2. J. Therm. Anal. Calorim. 2016, 123, 2357–2365. [Google Scholar] [CrossRef]
  34. Gong, J.; Zhou, Z.; Hu, X.; Wong, M.; Wong, K.; Du, Z. Self-Assembled Chitosan Nanotemplates for Biomineralization of Controlled Calcite Nanoarchitectures. ACS Appl. Mater. Interfaces 2009, 1, 26–29. [Google Scholar] [CrossRef]
  35. Szcześ, A. Effects of DPPC/Cholesterol Liposomes on the Properties of Freshly Precipitated Calcium Carbonate. Colloids Surf. B Biointerfaces 2013, 101, 44–48. [Google Scholar] [CrossRef]
  36. Wan, P.; Zhao, Y.; Tong, H.; Yang, Z.; Zhu, Z.; Shen, X.; Hu, J. The Inducing Effect of Lecithin Liposome Organic Template on the Nucleation and Crystal Growth of Calcium Carbonate. Mater. Sci. Eng. C 2009, 29, 222–227. [Google Scholar] [CrossRef]
  37. Eanes, E.D.; Hailer, A.W.; Costa, J.L. Calcium Phosphate Formation in Aqueous Suspensions of Multilamellar Liposomes. Calcif. Tissue Int. 1984, 36, 421–430. [Google Scholar] [CrossRef]
  38. Heywood, B.R.; Eanes, E.D. An Ultrastructural Study of the Effects of Acidic Phospholipid Substitutions on Calcium Phosphate Precipitation in Anionic Liposomes. Calcif. Tissue Int. 1992, 50, 149–156. [Google Scholar] [CrossRef] [PubMed]
  39. Feng, Q.L.; Chen, Q.H.; Wang, H.; Cui, F.Z. Influence of Concentration of Calcium Ion on Controlled Precipitation of Calcium Phosphate within Unilamellar Lipid Vesicles. J. Cryst. Growth 1998, 186, 245–250. [Google Scholar] [CrossRef]
  40. Messersmith, P.B.; Vallabhaneni, S.; Nguyen, V. Preparation of Calcium-Loaded Liposomes and Their Use in Calcium Phosphate Formation. Chem. Mater. 1998, 10, 109–116. [Google Scholar] [CrossRef]
  41. Ramedani, A.; Yazdanpanah, A.; Moztarzadeh, F.; Mozafari, M. On the Use of Nanoliposomes as Soft Templates for Controlled Nucleation and Growth of Hydroxyapatite Nanocrystals under Hydrothermal Conditions. Ceram. Int. 2014, 40, 9377–9381. [Google Scholar] [CrossRef]
  42. Chen, W.-Y.; Yang, C.-I.; Lin, C.-J.; Huang, S.-J.; Chan, J.C.C. Characterization of the Crystallization Pathway of Calcium Phosphate in Liposomes. J. Phys. Chem. C 2014, 118, 12022–12027. [Google Scholar] [CrossRef]
  43. Tester, C.C.; Brock, R.E.; Wu, C.-H.; Krejci, M.R.; Weigand, S.; Joester, D. In Vitro Synthesis and Stabilization of Amorphous Calcium Carbonate (ACC) Nanoparticles within Liposomes. CrystEngComm 2011, 13, 3975. [Google Scholar] [CrossRef]
  44. Tester, C.C.; Whittaker, M.L.; Joester, D. Controlling Nucleation in Giant Liposomes. Chem. Commun. 2014, 50, 5619–5622. [Google Scholar] [CrossRef]
  45. Gopal, K.; Lu, Z.; de Villiers, M.M.; Lvov, Y. Composite Phospholipid−Calcium Carbonate Microparticles: Influence of Anionic Phospholipids on the Crystallization of Calcium Carbonate. J. Phys. Chem. B 2006, 110, 2471–2474. [Google Scholar] [CrossRef]
  46. Rivero Berti, I.; Dell’ Arciprete, M.L.; Dittler, M.L.; Miñan, A.; de Mele, M.F.L.; Gonzalez, M. Delivery of Fluorophores by Calcium Phosphate-Coated Nanoliposomes and Interaction with Staphylococcus Aureus Biofilms. Colloids Surf. B Biointerfaces 2016, 142, 214–222. [Google Scholar] [CrossRef] [PubMed]
  47. Tagaya, M.; Yamaguchi, T.; Shiba, K. Preparation of Phospholipid Vesicle-Templated Calcium Phosphate Nanostructures and Their Cytocompatibility. Cryst. Growth Des. 2016, 16, 2843–2849. [Google Scholar] [CrossRef]
  48. Fukui, Y.; Fujimoto, K. Control in Mineralization by the Polysaccharide-Coated Liposome via the Counter-Diffusion of Ions. Chem. Mater. 2011, 23, 4701–4708. [Google Scholar] [CrossRef]
  49. Nguyen, S.; Solheim, L.; Bye, R.; Rykke, M.; Hiorth, M.; Smistad, G. The Influence of Liposomal Formulation Factors on the Interactions between Liposomes and Hydroxyapatite. Colloids Surf. B Biointerfaces 2010, 76, 354–361. [Google Scholar] [CrossRef] [Green Version]
  50. Skrtic, D.; Eanes, E.D. Membrane-Mediated Precipitation of Calcium Phosphate in Model Liposomes with Matrix Vesicle-like Lipid Composition. Bone Miner. 1992, 16, 109–119. [Google Scholar] [CrossRef]
  51. Beato, C.; Fernández, M.S.; Fermani, S.; Reggi, M.; Neira-Carrillo, A.; Rao, A.; Falini, G.; Arias, J.L. Calcium Carbonate Crystallization in Tailored Constrained Environments. CrystEngComm 2015, 17, 5953–5961. [Google Scholar] [CrossRef] [Green Version]
  52. Buljan Meić, I.; Kontrec, J.; Domazet Jurašin, D.; Selmani, A.; Njegić Džakula, B.; Maltar-Strmečki, N.; Lyons, D.M.; Plodinec, M.; Čeh, M.; Gajović, A.; et al. How Similar Are Amorphous Calcium Carbonate and Calcium Phosphate? A Comparative Study of Amorphous Phase Formation Conditions. CrystEngComm 2018, 20, 35–50. [Google Scholar] [CrossRef]
  53. Buljan Meić, I.; Kontrec, J.; Domazet Jurašin, D.; Njegić Džakula, B.; Štajner, L.; Lyons, D.M.; Dutour Sikirić, M.; Kralj, D. Comparative Study of Calcium Carbonates and Calcium Phosphates Precipitation in Model Systems Mimicking the Inorganic Environment for Biomineralization. Cryst. Growth Des. 2017, 17, 1103–1117. [Google Scholar] [CrossRef]
  54. Addadi, L.; Joester, D.; Nudelman, F.; Weiner, S. Mollusk Shell Formation: A Source of New Concepts for Understanding Biomineralization Processes. Chem.-A Eur. J. 2006, 12, 980–987. [Google Scholar] [CrossRef]
  55. Dorozhkin, S.V. Calcium Orthophosphates. Application in Nature, Biology and Medicine. Materials 2012, 2, 399–498. [Google Scholar] [CrossRef] [Green Version]
  56. Kahil, K.; Weiner, S.; Addadi, L.; Gal, A. Ion Pathways in Biomineralization: Perspectives on Uptake, Transport, and Deposition of Calcium, Carbonate, and Phosphate. J. Am. Chem. Soc. 2021, 143, 21100–21112. [Google Scholar] [CrossRef] [PubMed]
  57. Bentov, S.; Weil, S.; Glazer, L.; Sagi, A.; Berman, A. Stabilization of Amorphous Calcium Carbonate by Phosphate Rich Organic Matrix Proteins and by Single Phosphoamino Acids. J. Struct. Biol. 2010, 171, 207–215. [Google Scholar] [CrossRef]
  58. Zou, Z.; Polishchuk, I.; Bertinetti, L.; Pokroy, B.; Politi, Y.; Fratzl, P.; Habraken, W.J.E.M. Additives Influence the Phase Behavior of Calcium Carbonate Solution by a Cooperative Ion-Association Process. J. Mater. Chem. B 2018, 6, 449–457. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  59. Onoda, H.; Yamazaki, S. Homogenous Hydrothermal Synthesis of Calcium Phosphate with Calcium Carbonate and Corbicula Shells. J. Asian Ceram. Soc. 2016, 4, 403–406. [Google Scholar] [CrossRef] [Green Version]
  60. Cestari, F.; Agostinacchio, F.; Galotta, A.; Chemello, G.; Motta, A.; Sglavo, V.M. Nano-Hydroxyapatite Derived from Biogenic and Bioinspired Calcium Carbonates: Synthesis and In Vitro Bioactivity. Nanomaterials 2021, 11, 264. [Google Scholar] [CrossRef] [PubMed]
  61. Bleek, K.; Taubert, A. New Developments in Polymer-Controlled, Bioinspired Calcium Phosphate Mineralization from Aqueous Solution. Acta Biomater. 2013, 9, 6283–6321. [Google Scholar] [CrossRef]
  62. Bar-Yosef Ofir, P.; Govrin-Lippman, R.; Garti, N.; Füredi-Milhofer, H. The Influence of Polyelectrolytes on the Formation and Phase Transformation of Amorphous Calcium Phosphate. Cryst. Growth Des. 2004, 4, 177–183. [Google Scholar] [CrossRef]
  63. Brečević, L.; Füredi-Milhofer, H. Precipitation of Calcium Phosphates from Electrolyte Solutions: II. The Formation and Transformation of the Precipitates. Calcif. Tissue Res. 1972, 10, 82–90. [Google Scholar] [CrossRef] [PubMed]
  64. Eans, E.D.; Gillessen, I.H.; Posner, A.S. Intermediate States in the Precipitation of Hydroxyapatite. Nature 1965, 208, 365–367. [Google Scholar] [CrossRef]
  65. Selmani, A.; Coha, I.; Magdić, K.; Čolović, B.; Jokanović, V.; Šegota, S.; Gajović, S.; Gajović, A.; Jurašin, D.; Dutour Sikirić, M. Multiscale Study of the Influence of Cationic Surfactants on Amorphous Calcium Phosphate Precipitation. CrystEngComm 2015, 17, 8529–8548. [Google Scholar] [CrossRef] [Green Version]
  66. Ding, H.; Pan, H.; Xu, X.; Tang, R. Toward a Detailed Understanding of Magnesium Ions on Hydroxyapatite Crystallization Inhibition. Cryst. Growth Des. 2014, 14, 763–769. [Google Scholar] [CrossRef]
  67. Despotović, R.; Filipović-Vinceković, N.; Füredi-Milhofer, H. Precipitation of Calcium Phosphates from Electrolyte Solutions. Calcif. Tissue Res. 1975, 18, 13–26. [Google Scholar] [CrossRef]
  68. Wang, C.-G.; Liao, J.-W.; Gou, B.-D.; Huang, J.; Tang, R.-K.; Tao, J.-H.; Zhang, T.-L.; Wang, K. Crystallization at Multiple Sites inside Particles of Amorphous Calcium Phosphate. Cryst. Growth Des. 2009, 9, 2620–2626. [Google Scholar] [CrossRef]
  69. Li, S.; Wang, L. Phosphorylated Osteopontin Peptides Inhibit Crystallization by Resisting the Aggregation of Calcium Phosphate Nanoparticles. CrystEngComm 2012, 14, 8037. [Google Scholar] [CrossRef]
  70. Chen, Y.; Gu, W.; Pan, H.; Jiang, S.; Tang, R. Stabilizing Amorphous Calcium Phosphate Phase by Citrate Adsorption. CrystEngComm 2014, 16, 1864–1867. [Google Scholar] [CrossRef]
  71. Wuthier, R.E.; Eanes, E.D. Effect of Phospholipids on the Transformation of Amorphous Calcium Phosphate to Hydroxyapatitein Vitro. Calcif. Tissue Res. 1975, 19, 197–210. [Google Scholar] [CrossRef]
  72. Pokhrel, R.; Gerstman, B.S.; Hutcheson, J.D.; Chapagain, P.P. In Silico Investigations of Calcium Phosphate Mineralization in Extracellular Vesicles. J. Phys. Chem. B 2018, 122, 3782–3789. [Google Scholar] [CrossRef]
  73. Brečević, L.; Hlady, V.; Füredi-Milhofer, H. Influence of Gelatin on the Precipitation of Amorphous Calcium Phosphate. Colloids Surf. 1987, 28, 301–313. [Google Scholar] [CrossRef]
  74. Sugiura, Y.; Onuma, K.; Kimura, Y.; Miura, H.; Tsukamoto, K. Morphological Evolution of Precipitates during Transformation of Amorphous Calcium Phosphate into Octacalcium Phosphate in Relation to Role of Intermediate Phase. J. Cryst. Growth 2011, 332, 58–67. [Google Scholar] [CrossRef]
  75. Koutsopoulos, S. Synthesis and Characterization of Hydroxyapatite Crystals: A Review Study on the Analytical Methods. J. Biomed. Mater. Res. 2002, 62, 600–612. [Google Scholar] [CrossRef]
  76. Mochales, C.; Wilson, R.M.; Dowker, S.E.P.; Ginebra, M.-P. Dry Mechanosynthesis of Nanocrystalline Calcium Deficient Hydroxyapatite: Structural Characterisation. J. Alloy. Compd. 2011, 509, 7389–7394. [Google Scholar] [CrossRef]
  77. Dorozhkin, S.V. Amorphous Calcium (Ortho)Phosphates. Acta Biomater. 2010, 6, 4457–4475. [Google Scholar] [CrossRef]
  78. Liou, S.-C.; Chen, S.-Y.; Lee, H.-Y.; Bow, J.-S. Structural Characterization of Nano-Sized Calcium Deficient Apatite Powders. Biomaterials 2004, 25, 189–196. [Google Scholar] [CrossRef]
  79. Merolli, A.; Santin, M. Role of Phosphatidyl-Serine in Bone Repair and Its Technological Exploitation. Molecules 2009, 14, 5367–5381. [Google Scholar] [CrossRef]
  80. Hendrickson, H.S.; Fullington, J.G. Stabilities of Metal Complexes of Phospholipids: Ca(II), Mg(II), and Ni(II) Complexes of Phosphatidylserine and Triphosphoinositide. Biochemistry 1965, 4, 1599–1605. [Google Scholar] [CrossRef]
  81. Andersen, F.A.; Brečević, L.; Beuter, G.; Dell’Amico, D.B.; Calderazzo, F.; Bjerrum, N.J.; Underhill, A.E. Infrared Spectra of Amorphous and Crystalline Calcium Carbonate. Acta Chem. Scand. 1991, 45, 1018–1024. [Google Scholar] [CrossRef]
  82. Andersen, F.A.; Kralj, D. Determination of the Composition of Calcite-Vaterite Mixtures by Infrared Spectrophotometry. Appl. Spectrosc. 1991, 45, 1748–1751. [Google Scholar] [CrossRef]
  83. Larkin, P. Infrared and Raman Spectroscopy: Principles and Spectral Interpretation; Elsevier: Amsterdam, The Netherlands; Boston, MA, USA, 2011; ISBN 978-0-12-386984-5. [Google Scholar]
  84. Grassmann, O.; Müller, G.; Löbmann, P. Organic−Inorganic Hybrid Structure of Calcite Crystalline Assemblies Grown in a Gelatin Hydrogel Matrix: Relevance to Biomineralization. Chem. Mater. 2002, 14, 4530–4535. [Google Scholar] [CrossRef]
  85. Wang, J.; Xu, Y.; Zhao, Y.; Huang, Y.; Wang, D.; Jiang, L.; Wu, J.; Xu, D. Morphology and Crystalline Characterization of Abalone Shell and Mimetic Mineralization. J. Cryst. Growth 2003, 252, 367–371. [Google Scholar] [CrossRef]
  86. Shen, Q.; Chen, Y.; Wei, H.; Zhao, Y.; Wang, D.; Xu, D. Suspension Effect of Poly(Styrene-Ran-Methacrylic Acid) Latex Particles on Crystal Growth of Calcium Carbonate. Cryst. Growth Des. 2005, 5, 1387–1391. [Google Scholar] [CrossRef]
  87. Ihli, J.; Wong, W.C.; Noel, E.H.; Kim, Y.-Y.; Kulak, A.N.; Christenson, H.K.; Duer, M.J.; Meldrum, F.C. Dehydration and Crystallization of Amorphous Calcium Carbonate in Solution and in Air. Nat. Commun. 2014, 5, 3169. [Google Scholar] [CrossRef] [Green Version]
  88. Brečević, L.; Nöthig-Laslo, V.; Kralj, D.; Popović, S. Effect of Divalent Cations on the Formation and Structure of Calcium Carbonate Polymorphs. J. Chem. Soc. Faraday Trans. 1996, 92, 1017–1022. [Google Scholar] [CrossRef]
  89. Picker, A.; Nuss, H.; Guenoun, P.; Chevallard, C. Polymer Vesicles as Microreactors for Bioinspired Calcium Carbonate Precipitation. Langmuir 2011, 27, 3213–3218. [Google Scholar] [CrossRef]
  90. Messersmith, P.B.; Starke, S. Thermally Triggered Calcium Phosphate Formation from Calcium-Loaded Liposomes. Chem. Mater. 1998, 10, 117–124. [Google Scholar] [CrossRef]
  91. Eanes, E.D.; Hailer, A.W. Liposome-Mediated Calcium Phosphate Formation in Metastable Solutions. Calcif. Tissue Int. 1985, 37, 390–394. [Google Scholar] [CrossRef]
  92. Erceg, I.; Selmani, A.; Gajović, A.; Radatović, B.; Šegota, S.; Ćurlin, M.; Strasser, V.; Kontrec, J.; Kralj, D.; Maltar-Strmečki, N.; et al. Precipitation at Room Temperature as a Fast and Versatile Method for Calcium Phosphate/TiO2 Nanocomposites Synthesis. Nanomaterials 2021, 11, 1523. [Google Scholar] [CrossRef]
Minerals 12 00208 g001 550

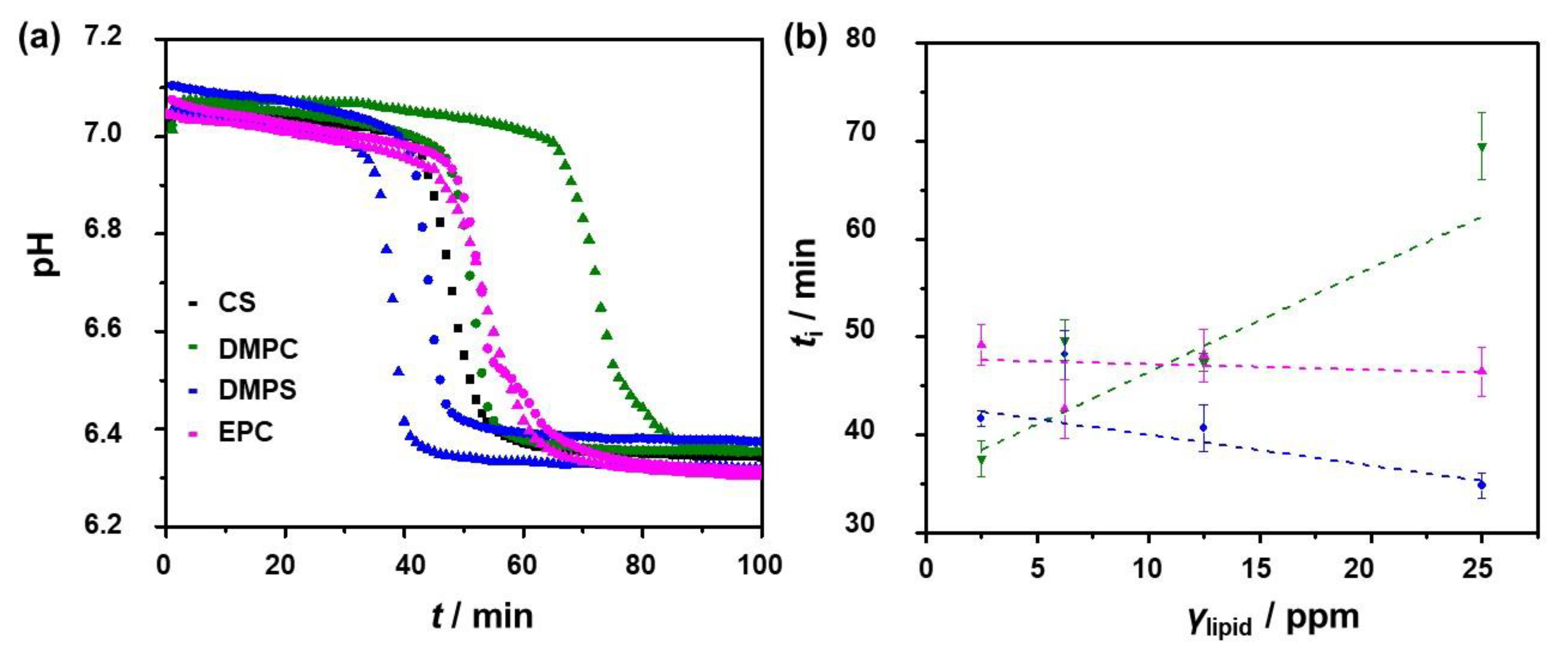

Figure 1. (a) Representative pH vs. time progress curve of formation and transformation of calcium phosphate solid phases in the absence (CS) and presence of 12.5 ppm (spheres) and 25.0 ppm (triangles) lipids. (b) The dependence of average induction time (ti, calculated from pH vs. time curves) on lipid concentration is given. ci (Ca) = ci (PO4) = 3.5 mmol dm−3; pHi = 7.4; ϑ/°C = 25 ± 0.1.
Figure 1. (a) Representative pH vs. time progress curve of formation and transformation of calcium phosphate solid phases in the absence (CS) and presence of 12.5 ppm (spheres) and 25.0 ppm (triangles) lipids. (b) The dependence of average induction time (ti, calculated from pH vs. time curves) on lipid concentration is given. ci (Ca) = ci (PO4) = 3.5 mmol dm−3; pHi = 7.4; ϑ/°C = 25 ± 0.1.
Minerals 12 00208 g001
Minerals 12 00208 g002 550

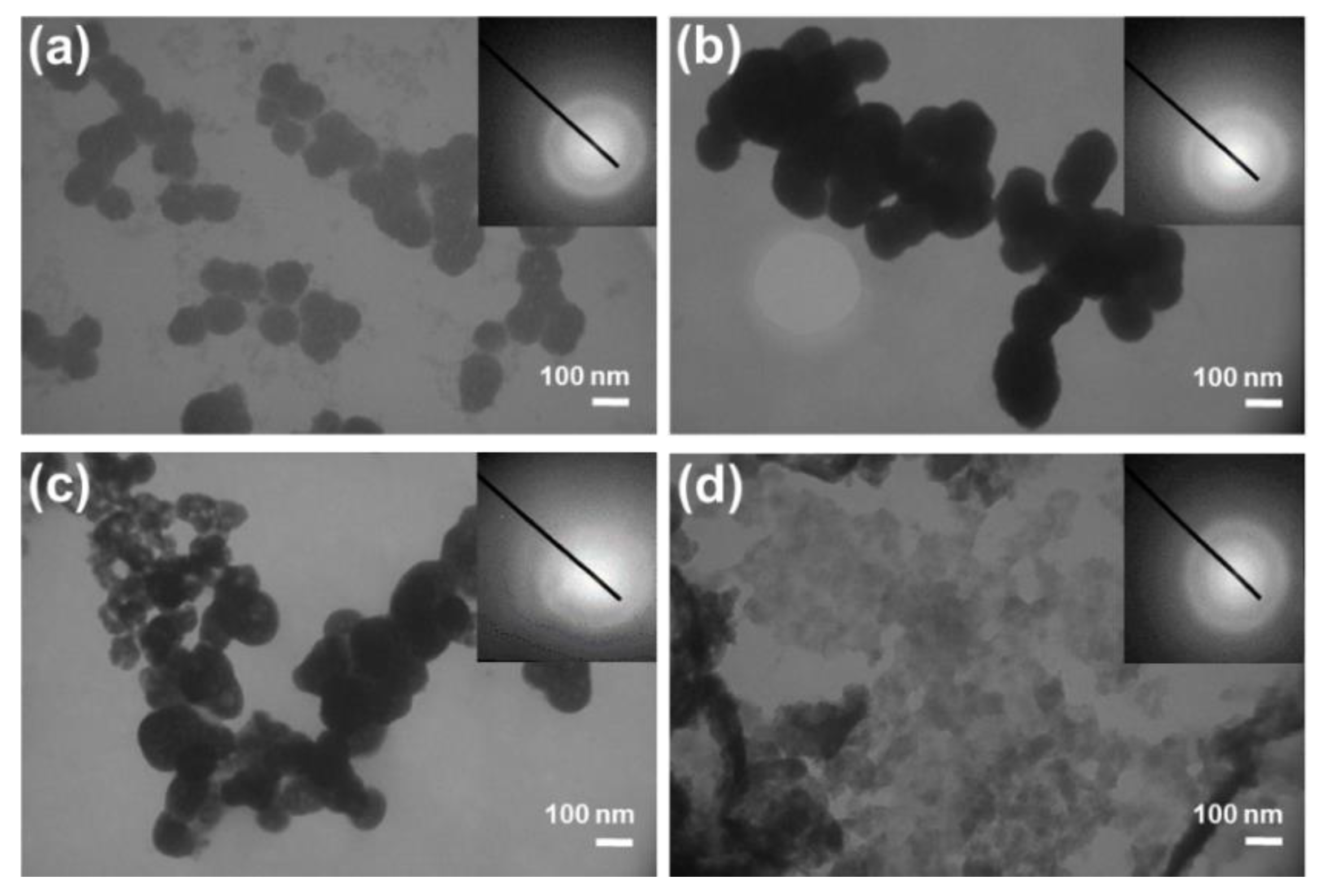

Figure 2. TEM micrographs and corresponding SAED patterns (insets in the figures) of precipitates formed in (a) control system and in the presence of (b) DMPC, (c) DMPS, and (d) EPC liposomes. ci (Ca) = ci (PO4) = 3.5 mmol dm−3; γ (lipid) = 25.0 ppm; pHi = 7.4, ϑ/°C = 25 ± 0.1; after 30 min aging time.
Figure 2. TEM micrographs and corresponding SAED patterns (insets in the figures) of precipitates formed in (a) control system and in the presence of (b) DMPC, (c) DMPS, and (d) EPC liposomes. ci (Ca) = ci (PO4) = 3.5 mmol dm−3; γ (lipid) = 25.0 ppm; pHi = 7.4, ϑ/°C = 25 ± 0.1; after 30 min aging time.
Minerals 12 00208 g002
Minerals 12 00208 g003 550

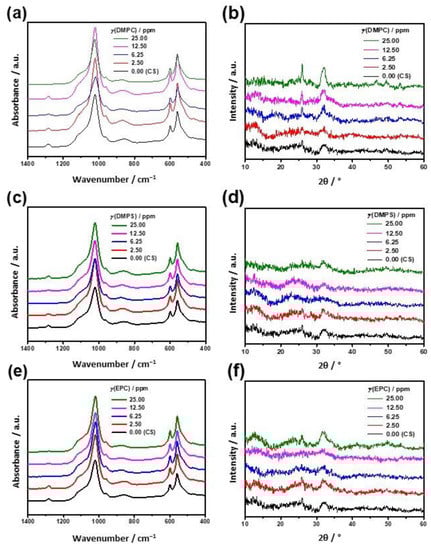

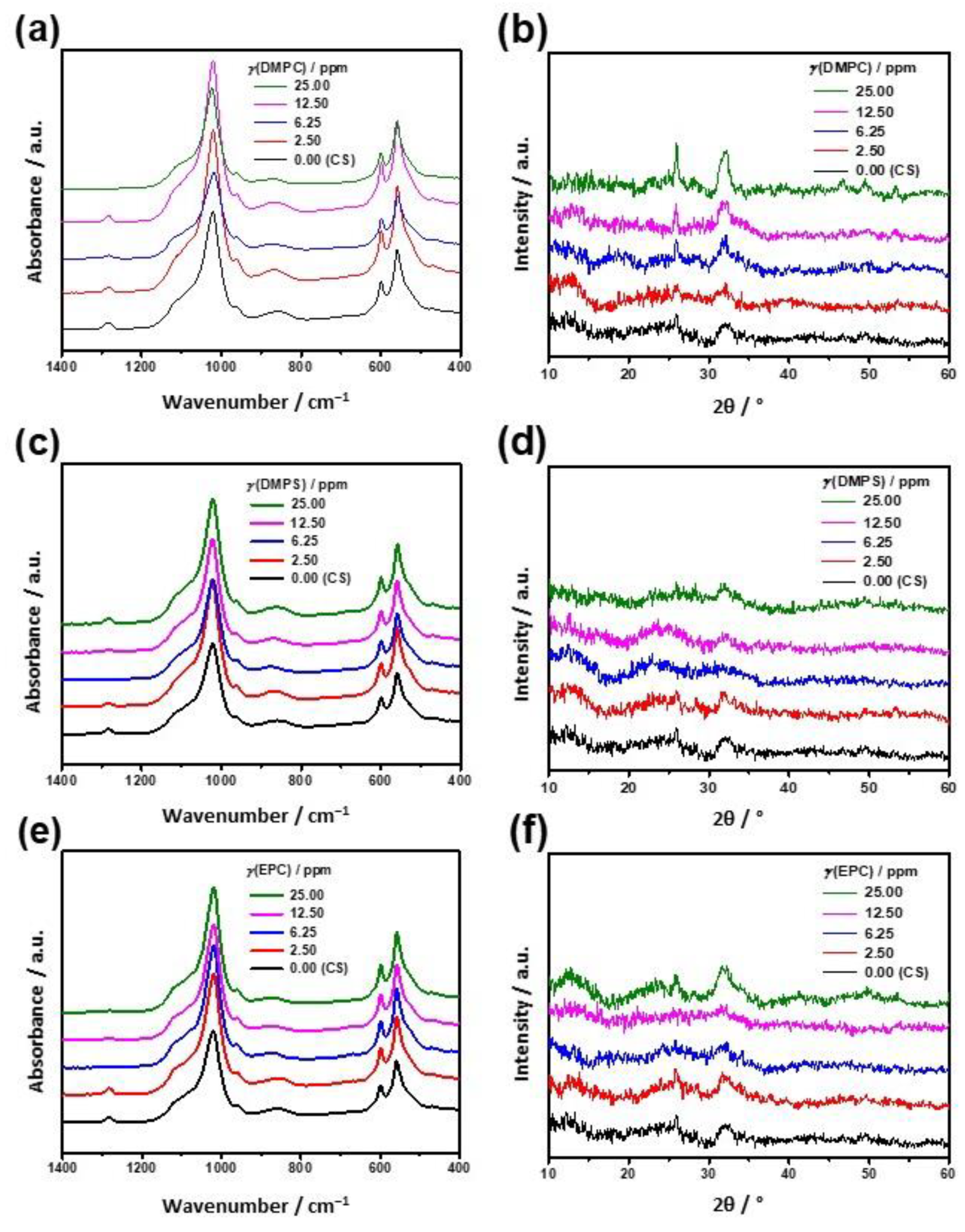

Figure 3. FTIR spectra (a,c,e) and PXRD patterns (b,d,f) of the CaP precipitate formed after 60 min of aging in the absence (CS) and presence of different concentrations of liposomes (expressed as lipid concentration): (a,b) DMPC, (c,d) DMPS, and (e,f) EPC. ci (Ca) = ci (PO4) = 3.5 mmol dm−3; pHi = 7.4; ϑ/°C = 25 ± 0.1.
Figure 3. FTIR spectra (a,c,e) and PXRD patterns (b,d,f) of the CaP precipitate formed after 60 min of aging in the absence (CS) and presence of different concentrations of liposomes (expressed as lipid concentration): (a,b) DMPC, (c,d) DMPS, and (e,f) EPC. ci (Ca) = ci (PO4) = 3.5 mmol dm−3; pHi = 7.4; ϑ/°C = 25 ± 0.1.
Minerals 12 00208 g003
Minerals 12 00208 g004 550

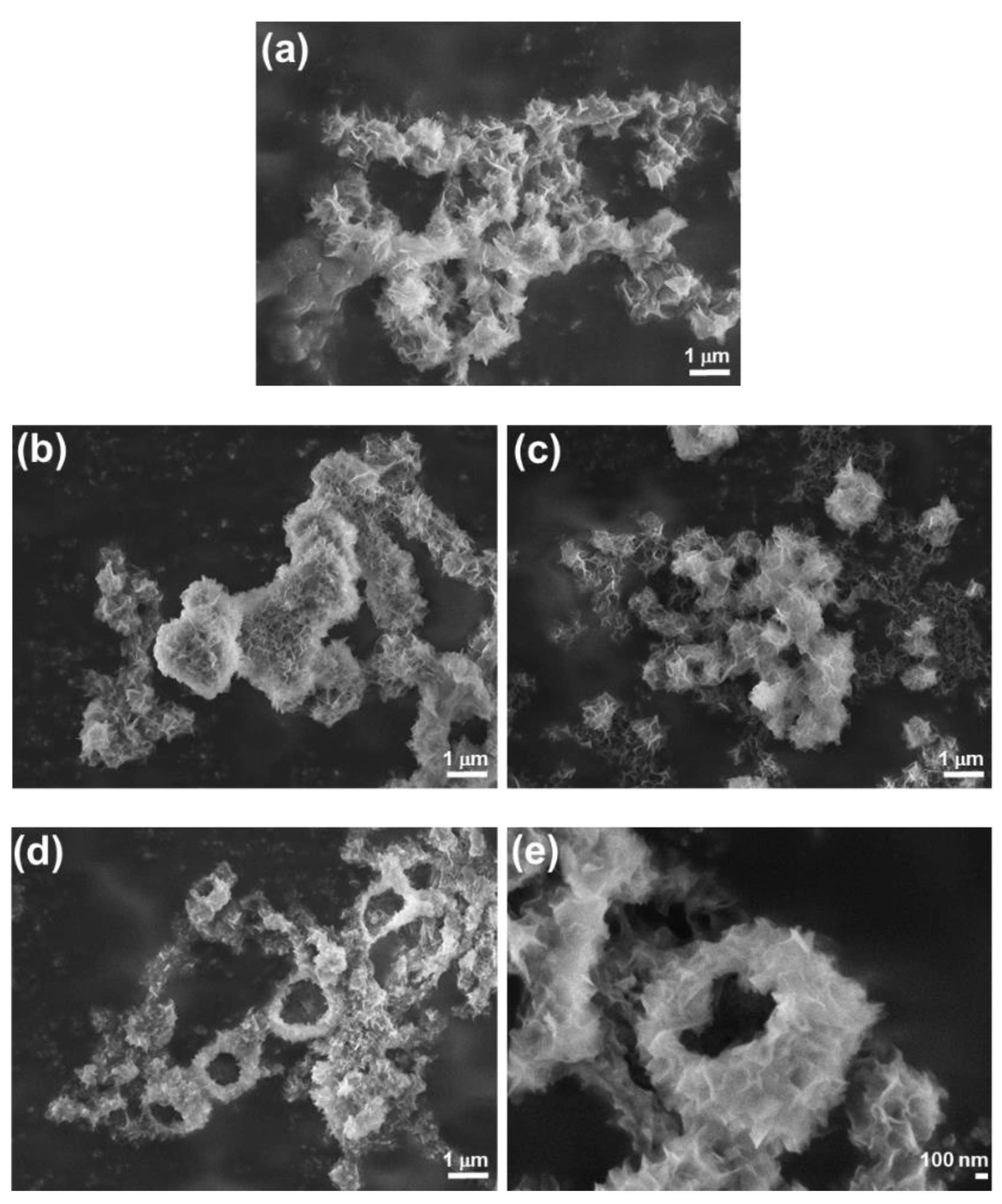

Figure 4. SEM micrographs of the precipitates formed after 60 min reaction time in the (a) absence (CS) and presence of different liposomes: (b) DMPC, (c) EPC, and (d,e) DMPS. ci (Ca) = ci (PO4) = 3.5 mmol dm−3; γ (lipid) = 25.0 ppm; pHi = 7.4; ϑ/°C = 25 ± 0.1.
Figure 4. SEM micrographs of the precipitates formed after 60 min reaction time in the (a) absence (CS) and presence of different liposomes: (b) DMPC, (c) EPC, and (d,e) DMPS. ci (Ca) = ci (PO4) = 3.5 mmol dm−3; γ (lipid) = 25.0 ppm; pHi = 7.4; ϑ/°C = 25 ± 0.1.
Minerals 12 00208 g004
Minerals 12 00208 g005 550

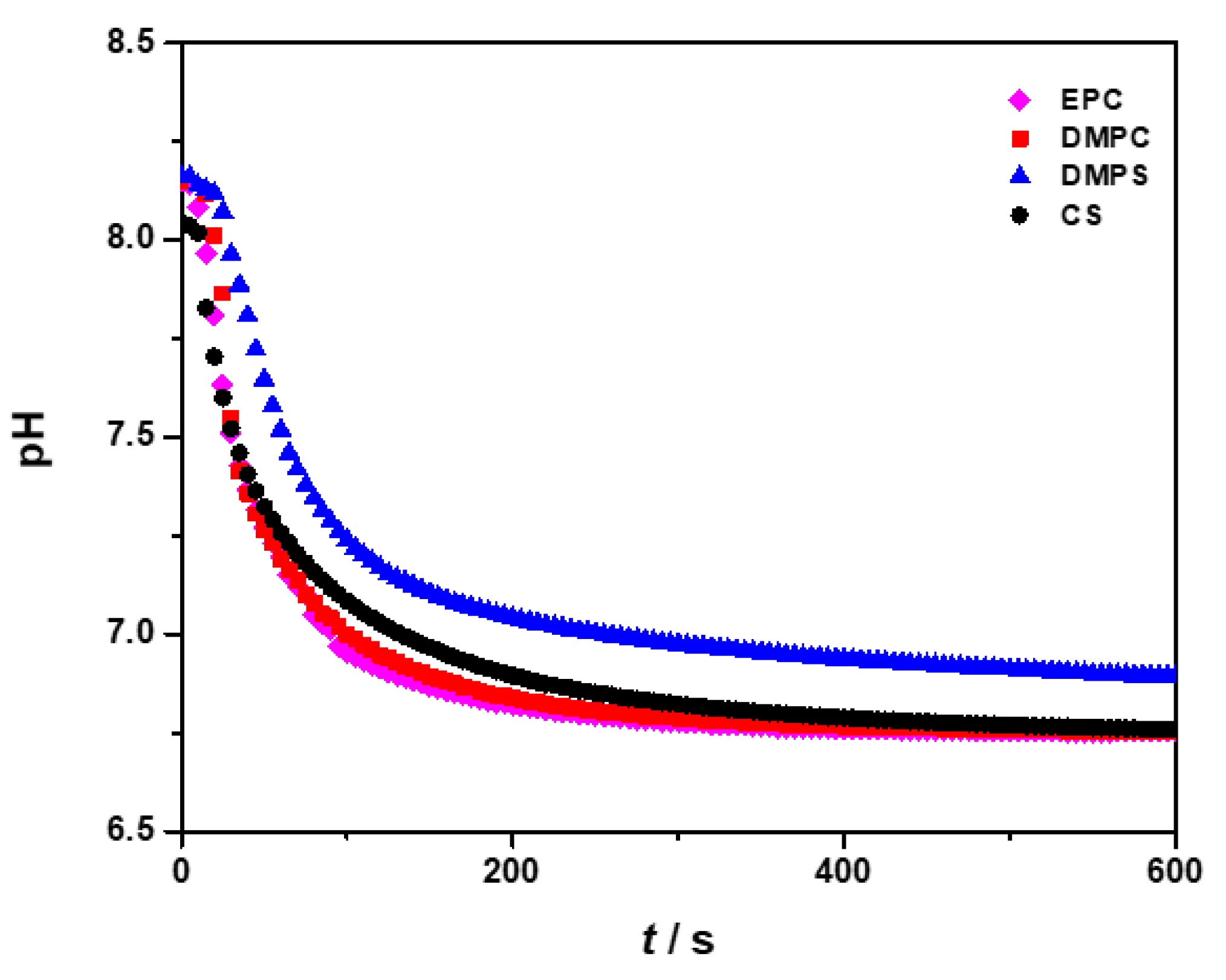

Figure 5. Representative pH vs. time curve during CaCO3 precipitation in the absence (CS) and presence of different lipids. ci (Ca) = ci (CO3) = 20 mmol dm−3. γ (lipid) = 25.0 ppm; pHi = 8.15; ϑ/°C = 25 ± 0.1.
Figure 5. Representative pH vs. time curve during CaCO3 precipitation in the absence (CS) and presence of different lipids. ci (Ca) = ci (CO3) = 20 mmol dm−3. γ (lipid) = 25.0 ppm; pHi = 8.15; ϑ/°C = 25 ± 0.1.
Minerals 12 00208 g005
Minerals 12 00208 g006 550

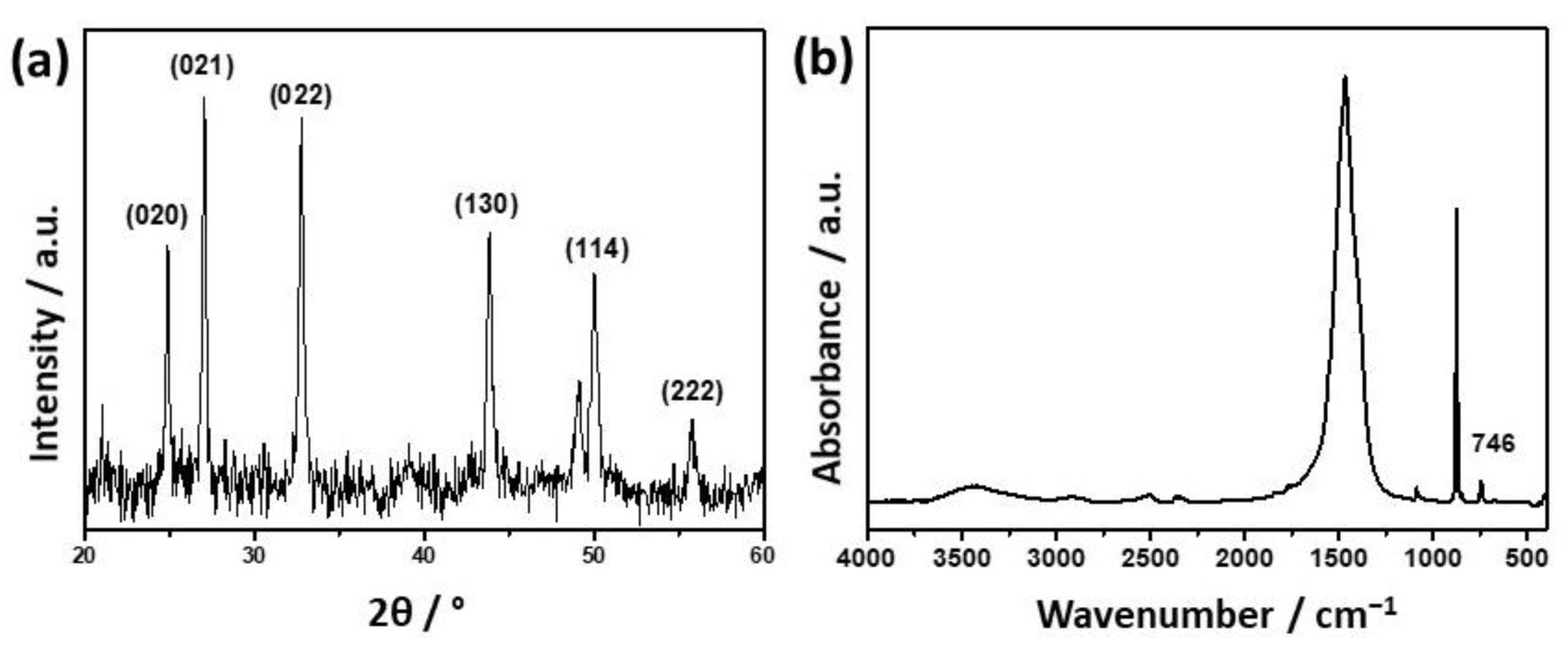

Figure 6. (a) PXRD pattern and (b) FTIR spectrum of precipitate, predominantly vaterite, isolated after 10 min of aging in the control system: ci(Ca) = ci(CO3) = 20 mmol dm−3; pHi = 8.15; ϑ/°C = 25 ± 0.1.
Figure 6. (a) PXRD pattern and (b) FTIR spectrum of precipitate, predominantly vaterite, isolated after 10 min of aging in the control system: ci(Ca) = ci(CO3) = 20 mmol dm−3; pHi = 8.15; ϑ/°C = 25 ± 0.1.
Minerals 12 00208 g006
Minerals 12 00208 g007 550

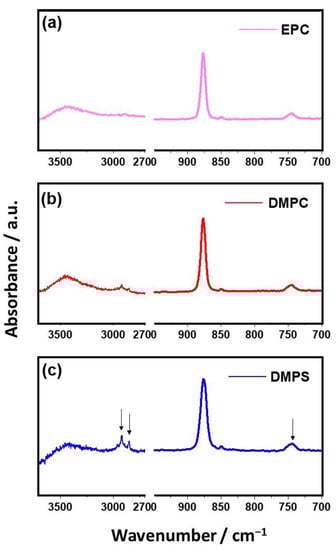

Figure 7. FTIR spectra of vaterite formed after 10 min of aging time in systems with the presence of different liposomes: (a) EPC, (b) DMPC, and (c) DMPS; ci (Ca) = ci (CO3) = 20 mmol dm−3; γ (lipid) = 25.0 ppm; pHi = 8.15; ϑ/°C = 25 ± 0.1. Arrows: characteristic absorbance band of vaterite, 746 cm−1, and characteristic CH2 stretching modes of liposome, 2851 cm−1 and 2912 cm−1.
Figure 7. FTIR spectra of vaterite formed after 10 min of aging time in systems with the presence of different liposomes: (a) EPC, (b) DMPC, and (c) DMPS; ci (Ca) = ci (CO3) = 20 mmol dm−3; γ (lipid) = 25.0 ppm; pHi = 8.15; ϑ/°C = 25 ± 0.1. Arrows: characteristic absorbance band of vaterite, 746 cm−1, and characteristic CH2 stretching modes of liposome, 2851 cm−1 and 2912 cm−1.
Minerals 12 00208 g007
Minerals 12 00208 g008 550

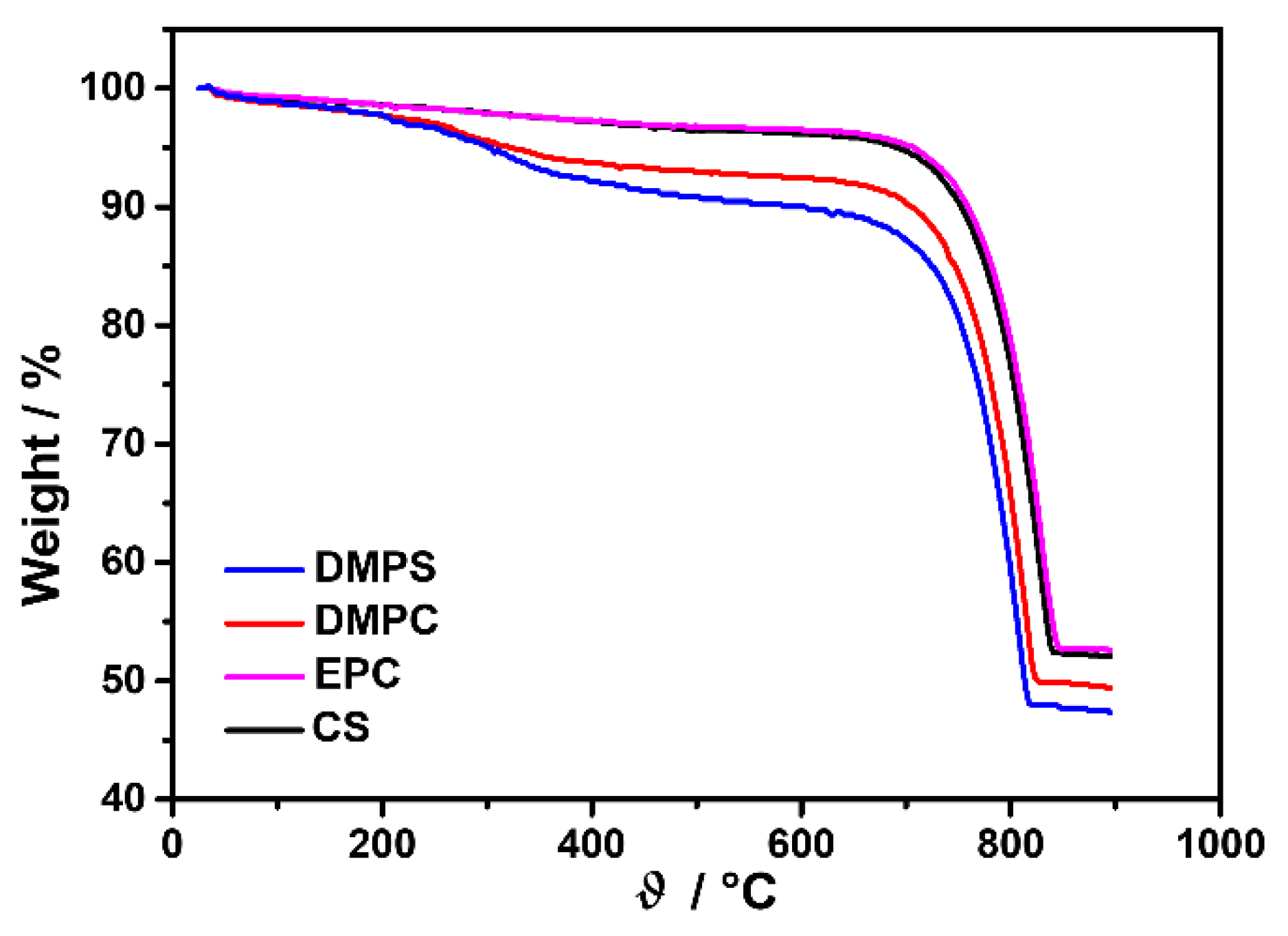

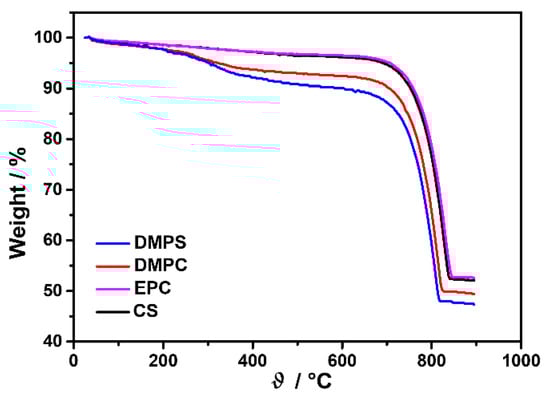

Figure 8. Thermogravimetric analysis of sample formed after 10 min of aging time in the absence (CS) and presence of different liposomes. ci (Ca) = ci (CO3), γ (lipid) = 25.0 ppm, pHi = 8.15, ϑ/°C = 25 ± 0.1.
Figure 8. Thermogravimetric analysis of sample formed after 10 min of aging time in the absence (CS) and presence of different liposomes. ci (Ca) = ci (CO3), γ (lipid) = 25.0 ppm, pHi = 8.15, ϑ/°C = 25 ± 0.1.
Minerals 12 00208 g008
Minerals 12 00208 g009 550

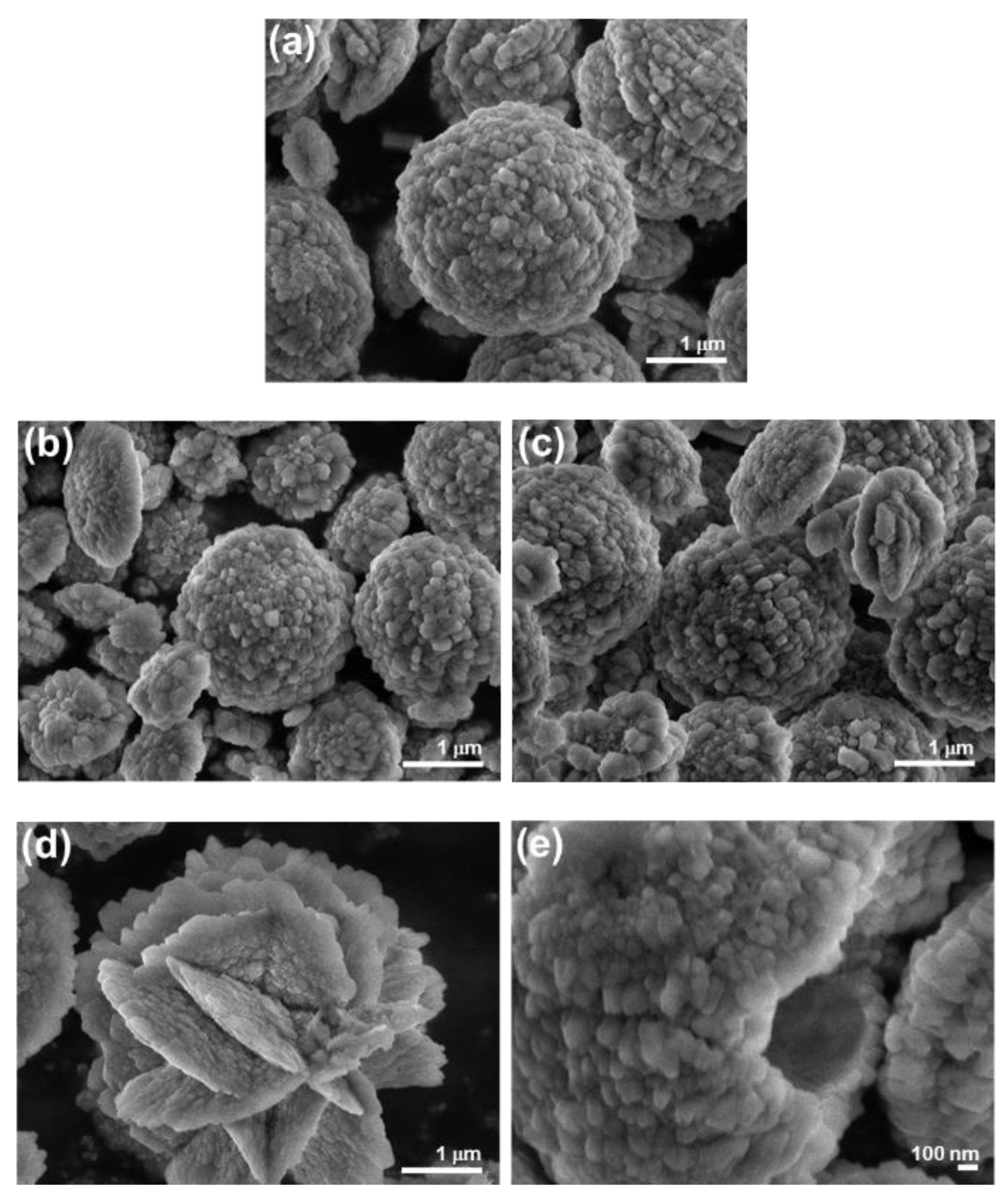

Figure 9. SEM micrographs of vaterite precipitated after 10 min of aging time in the (a) absence (CS) and presence of different liposomes: EPC (b), DMPC (c), and DMPS (d,e). ci (Ca) = ci (CO3) = 20 mmol dm−3; γ (lipid) = 25.0 ppm; pHi = 8.15; ϑ/°C = 25 ± 0.1.
Figure 9. SEM micrographs of vaterite precipitated after 10 min of aging time in the (a) absence (CS) and presence of different liposomes: EPC (b), DMPC (c), and DMPS (d,e). ci (Ca) = ci (CO3) = 20 mmol dm−3; γ (lipid) = 25.0 ppm; pHi = 8.15; ϑ/°C = 25 ± 0.1.
Minerals 12 00208 g009
Table
Table 1. Average induction times (ti) obtained from pH vs. time (t) curves from 3 measurements with standard deviations (SDs). ci (Ca) = ci (PO4) = 3.5 mmol dm−3; pHi = 7.4; ϑ/°C = 25 ± 0.1. Liposome concentrations are expressed as lipid concentration.
Table 1. Average induction times (ti) obtained from pH vs. time (t) curves from 3 measurements with standard deviations (SDs). ci (Ca) = ci (PO4) = 3.5 mmol dm−3; pHi = 7.4; ϑ/°C = 25 ± 0.1. Liposome concentrations are expressed as lipid concentration.
Precipitation Systemγ (Lipid)/ppmti/min
CS042.6 ± 2.3
DMPC2.537.6 ± 1.8
DMPC6.2549.7 ± 2.1
DMPC12.547.4 ± 0.9
DMPC25.069.5 ± 3.4
DMPS2.541.7 ± 0.8
DMPS6.2548.2 ± 2.5
DMPS12.540.7 ± 2.4
DMPS25.034.8 ± 1.3
EPC2.549.2 ± 2.1
EPC6.2542.7 ± 3.0
EPC12.548.1 ± 2.7
EPC25.046.5 ± 2.5
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Erceg, I.; Kontrec, J.; Strasser, V.; Selmani, A.; Domazet Jurašin, D.; Ćurlin, M.; Džakula, B.N.; Matijaković Mlinarić, N.; Šegota, S.; Lyons, D.M.; et al. Precipitation of Calcium Phosphates and Calcium Carbonates in the Presence of Differently Charged Liposomes. Minerals 2022, 12, 208. https://doi.org/10.3390/min12020208

AMA Style

Erceg I, Kontrec J, Strasser V, Selmani A, Domazet Jurašin D, Ćurlin M, Džakula BN, Matijaković Mlinarić N, Šegota S, Lyons DM, et al. Precipitation of Calcium Phosphates and Calcium Carbonates in the Presence of Differently Charged Liposomes. Minerals. 2022; 12(2):208. https://doi.org/10.3390/min12020208

Chicago/Turabian Style

Erceg, Ina, Jasminka Kontrec, Vida Strasser, Atiđa Selmani, Darija Domazet Jurašin, Marija Ćurlin, Branka Njegić Džakula, Nives Matijaković Mlinarić, Suzana Šegota, Daniel M. Lyons, and et al. 2022. "Precipitation of Calcium Phosphates and Calcium Carbonates in the Presence of Differently Charged Liposomes" Minerals 12, no. 2: 208. https://doi.org/10.3390/min12020208

APA Style

Erceg, I., Kontrec, J., Strasser, V., Selmani, A., Domazet Jurašin, D., Ćurlin, M., Džakula, B. N., Matijaković Mlinarić, N., Šegota, S., Lyons, D. M., Kralj, D., & Dutour Sikirić, M. (2022). Precipitation of Calcium Phosphates and Calcium Carbonates in the Presence of Differently Charged Liposomes. Minerals, 12(2), 208. https://doi.org/10.3390/min12020208

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
