Melting Process and Viscosity of Bohemian Historical Glasses Studied on Model Glasses

Abstract

Analyzing the chemical composition of archaeological glasses can provide an insight into their provenance and raw materials used in their making. However, to the authors’ knowledge, the historical production process itself and melting characteristics of the glasses have not yet been extensively investigated. The main focus of this paper is to describe the melting process of three main types of Bohemian historical glasses: Gothic (14th–1st half of 16th c.); Renaissance (16th–17th c.); and Baroque (end of 17th–18th c.). The model glasses were prepared from natural raw materials and processes that take place during melting were investigated using optical microscopy, SEM-EDS, XRD, and DTA-TG methods. Furthermore, the viscosity of model glasses and thermal dilatation was measured and used to calculate the reference viscosity points. The results illustrate the complexity of historical glass melting, as well as the technological progress between different periods.

1. Introduction

Central European glass production played an important role in Medieval and post-medieval Europe, competing with the Italian glassworks. The glass produced in Central Europe was made with wood ash and wood ash potash (leachate from wood ash rich in K₂CO₃) as fluxing agents, yielding glass that can be categorized as potassium-calcium type [1,2,3,4], as opposed to the Mediterranean sodium-calcium glass produced with natron or sodium-rich plant ashes [5,6]. In the present day, sodium-calcium glass has been extensively researched, but there is still a huge knowledge gap about their potassium-calcium counterparts and their production technology. This work aims to expand knowledge about the production process of potassium-calcium glasses by analyzing the melting process of model glasses and their properties.

Analytical research on archaeological potassium-calcium glass provides valuable information about the chemical composition, provenance, and, partly, about the raw materials used throughout history. There have been few attempts to reconstruct the historical glassmaking technology using model glasses [1,7,8,9,10] or even replicas of historical glassmaking furnaces [11,12,13,14,15]. These experiments usually aim to prove previous theories and confirm information from surviving historical texts about the materials, recipes, and glassmaking technologies in different historical eras and different areas. However, only a handful of published works discuss the actual production process and melting characteristics of historical glasses [16,17,18,19]. Sometimes, surviving production waste glass from work sites can provide an insight into the production technology too [20,21,22].

To reconstruct historical methods of glassmaking, one must start from the analytical studies of archaeological glasses and raw materials that were available to glassmakers in history in a particular area. The glass recipe (influenced by different raw materials), and therefore the chemical composition of the glass, can vary even in the context of one area, as can be seen in Central European glasses. These are often put into one category, but in fact there are clear differences between glasses from different Central European countries, e.g., Germany, France, or Bohemia [1,4].

The chemical composition of naturally derived materials, especially various types of wood ashes, depends on their area of origin and other factors such as the time of harvest [23,24].

The raw materials and their ratios directly influence the melting process and properties of the melt, and, subsequently, the temperature dependence of viscosity influence the workability options. The effect of different components in the mixture is complex but crucial to the whole glassmaking process [19,25]. The key parameters are the melting temperature, viscosity, and presence of any glass defects. The melting temperature of historical glasses must have been lower or equal to the maximal temperature that could be sustained in the glassmaking furnace. Through experiment, the highest temperature of medieval furnaces was determined to be up to 1300 °C [12,22]. Baroque furnaces were built in a slightly different way, which allowed them to achieve higher temperatures. Glass recipes were formed to respect the temperature limitations, and with the improvement in furnace construction we can also observe an increase in SiO₂ content in the archaeological glasses [26,27]. The temperature dependence of melt viscosity determines the workability interval and glass shaping options. In general, additions of SiO₂ or Al₂O₃ cause higher viscosity of the melt and higher melting temperature; alkalis or PbO have the opposite effect [25].

Generally, potassium-calcium glasses have short workability intervals and a steep viscosity curve, which did not allow long shaping of the glass. Sodium glasses with a slow viscosity curve allow a long shaping time. Thinner vessels decorated with intrigue plastic ornaments or engraving can be made from sodium glass, while potassium glass is more suitable for less decorated glass objects with thicker walls that are more suitable for cutting [25,27].

In this study we aimed to determine important melting properties of potassium-calcium glasses produced in Bohemia through Gothic (14th–1st half of 16th c.), Renaissance (16th–17th c.), and Baroque (end of 17th–18th c.) eras and characterize their melting process using model glasses. The reasoning behind the chosen glass types and the calculations that led to the model glasses can be found in the paper previously published by the authors [1]. Central European and particularly Bohemian glass production played an important role in historical glassmaking and trade, but the melting process of European potassium-calcium glasses has not been thoroughly investigated and is often extrapolated from the data of sodium-calcium glasses [19]. The findings of this experimental study provide insight into the whole production technology of historical glasses, starting from the raw materials and their changes during the melting, to the final workability characteristics of the glasses.

2. Materials and Methods

2.1. Glassmaking Materials

In order to get the most authentic insight into the melting process and properties of Bohemian historical glasses, natural raw materials were used to mix the model glass batches. These were natural quartz and sand, beech ash, and limestone. Instead of beech ash potash (leachate from beech ash), chemically pure K₂CO₃ (p.a., Penta, s.r.o.) was used. This change is justified because K₂CO₃ makes up more than 90 wt.% of beech ash potash, as proved by chemical analyses. For materials that are used in small quantities as additives (NaCl, As₂O₃), we also chose to use commercially available laboratory materials. NaCl p.a. was supplied by Penta, s.r.o. and As₂O₃ p.a. by Sigma-Aldrich.

2.2. Model Glass Melting

The melting process and properties were examined on samples that closely represented the three main types of Bohemian historical glasses: Gothic (14th c.–1st half of 16th c.),=; Renaissance (2nd half of 16th c.–3rd quarter of 17th c.); and Baroque (3rd quarter of 17th c.–18th c.). The model glass recipes were calculated from the average composition of Bohemian archaeological glasses from each period. The glasses were melted using natural raw materials that were available in the relevant historical time period. The chemical composition of model glasses, analyzed by XRF, showed a very good correlation with the archaeological finds.

The recipes used for model glasses and their final chemical composition can be found in

Table 1. Weight ratios of raw materials used to mix model glass batches [g].

	Natural Quartz	Sand	Beech Ash	K2CO3	Limestone	NaCl	As2O3
Gothic	100	-	60	40	-	-	-
Renaissance	100	-	50	30	20	2.5	-
Baroque	-	100	-	30	20	-	1

and

Table 2. Chemical composition of model and archaeological glasses [wt.%] [1].

	Gothic Arch.	Gothic Model	Renaissance Arch.	Renaissance Model	Baroque Arch.	Baroque Model
SiO2	60.8	61.1	60.7	60.7	74.8	74.1
Al2O3	0.7	0.8	1.5	0.8	0.2	0.3
Na2O	0.3	0.4	1.1	1.2	0.9	0.2
K2O	22.4	21.7	13.7	16.1	13.4	15.8
CaO	11.4	11.2	17.2	16.5	9.6	8.5
MgO	2.6	2.0	2.2	2.0	0.2	0.2
SO3	0.5	0.4	0.3	0.1	0.2	-
P2O5	0.7	0.9	1.0	0.8	0.1	-
Cl	-	0.01	0.2	0.2	0.2	-
TiO2	-	0.03	-	0.03	-	0.03
Fe2O3	0.3	0.3	0.5	0.4	0.1	0.1
MnO	0.3	0.9	1.0	0.8	0.1	0.01
As2O3	-	-	-	-	0.3	0.7

. More in-depth information about the particular glasses and their calculated recipes can be found in a previous paper published by the authors [1].

The individual samples (5 g batch each) were exposed to temperatures of 800, 900, 1000, 1100, 1200, 1300, and 1400 °C. The glasses were melted in PtRh crucibles in an electric furnace with an oxidizing atmosphere for 180 min. After that, the samples were quenched in water to conserve the phase composition.

For the viscosity and thermal expansion measurements, 300 g samples of model glasses were melted in a porcelain crucible placed inside a PtRh crucible in an electric furnace at 1400 °C for 240 min. The glass was mixed two times during the melting, after 180 and 210 min. The samples were cast into a stainless-steel mold and placed into an annealing furnace at 520 °C for 60 min, then cooled at the rate of 5 °C.

2.3. Optical Microscopy

The overall structure and degree of homogenization of samples were examined using optical microscopy. The samples were fixed into colorless epoxy resin, ground, and polished to form a cross-section. The optical microscope Olympus BX 51, equipped with the Olympus E-600 camera and software QuickPhoto Camera 2.3 was used. The cross-sections were studied in both transmitted and incident light.

2.4. X-ray Diffraction Analysis (XRD)

The XRD analysis was used to obtain the phase composition of prepared samples. Samples were measured in the form of very fine powders. The analysis was performed on the X’PertPRO MPD diffractometer (PANalytical) at the Institute of Inorganic Chemistry of the Czech Academy of Sciences. The measurement used CuKα radiation (40 kV, 30 mA), fast linear detector PIXcel, and reflexive Bragg–Brentano setting. The primary beam was focused using a 10 mm mask and 0.04 rad Soller collimator aperture, the diffracted beam was focused using an anti-scattering collimator on 0.5°, 0.04 rad Soller collimator, and Ni beta-filter. The measurement range was 7–90° 2θ and the time was 800 s per step of 0.013°. The data were evaluated by the HighScore Plus 4.6.1 software, together with the PDF-4 + [28].

2.5. Scanning Electron Microscopy (SEM-EDS)

To identify the structure and different phases better, scanning electron microscopy was used together with energy dispersive spectroscopy. The samples were prepared in the form of polished cross-sections in epoxy resin. To study the samples, the electron microscope JSM 6510 (JEOL Ltd.,Tokyo, Japan) with the EDS and SSD detector Inca (Oxford Instruments, Abingdon, UK) was used. The measurement was conducted in the backscattered electrons (BSE) mode at 20 kV and low pressure of 30 Pa. This allowed us to use the samples without any metal coating.

2.6. Thermogravimetric Analysis/Differential Thermal Analysis (TG/DTA)

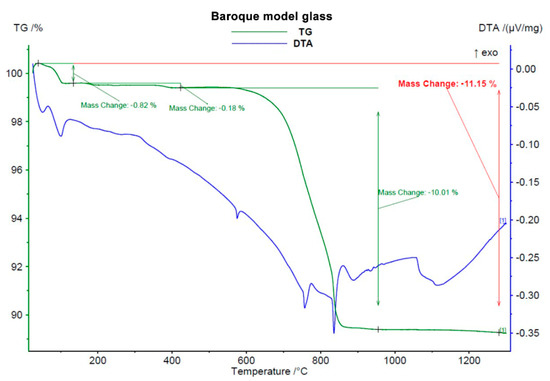

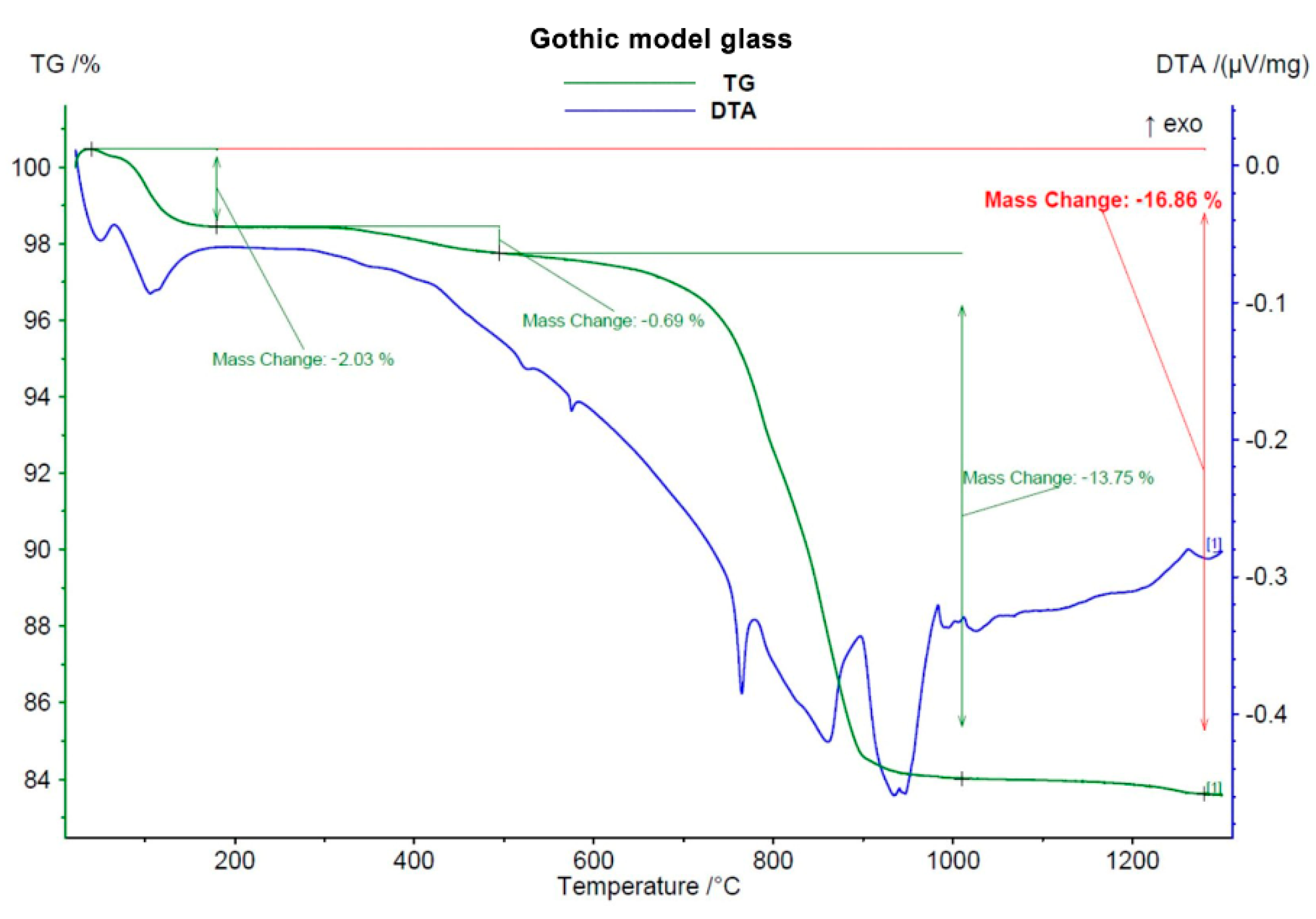

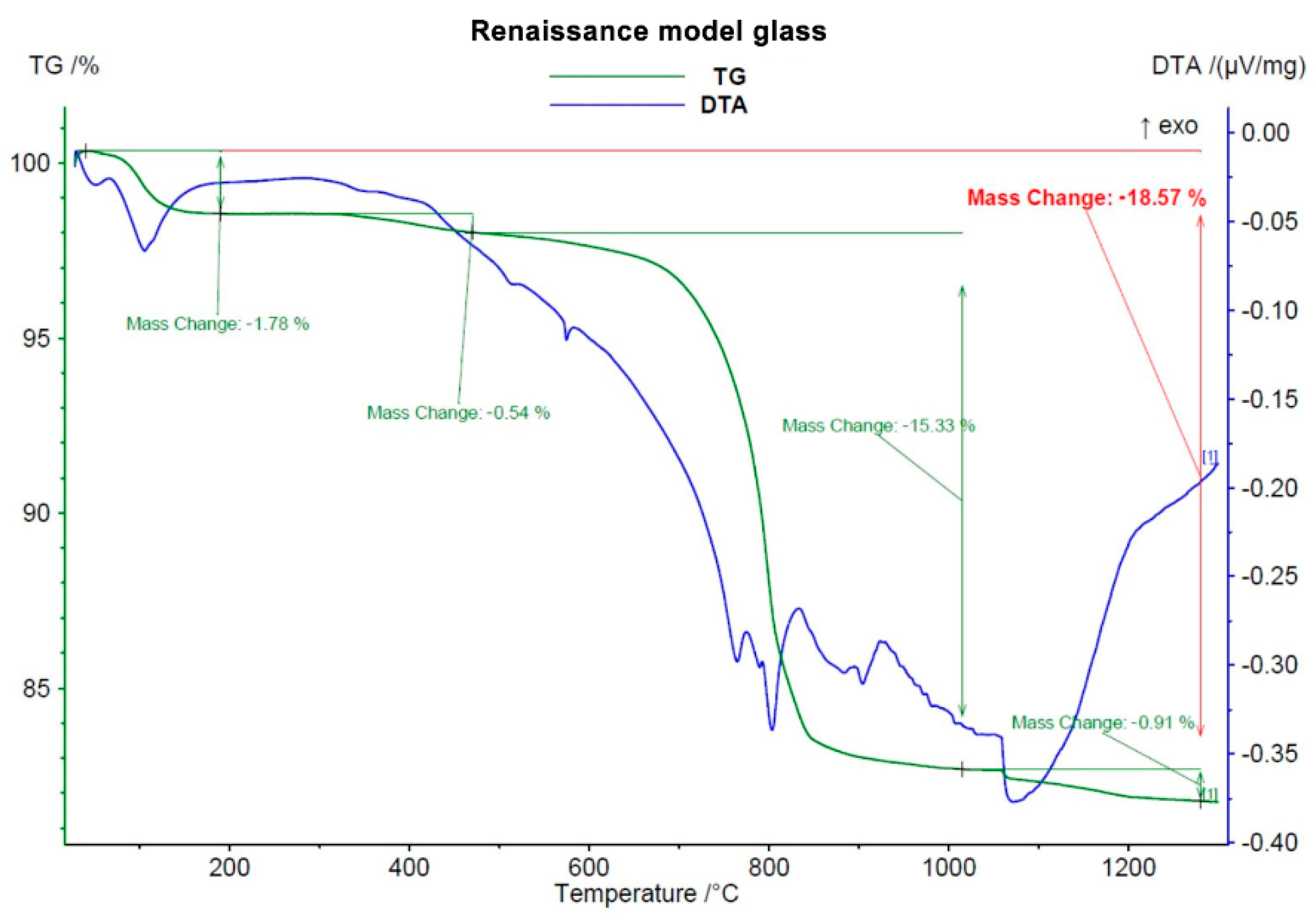

The individual model glass batches were also studied by the thermogravimetric analysis. The batch samples were used in the form of very fine powders. The analysis itself was conducted in the thermal interval of 30–1300 °C with a heating rate of 5 °C per minute. The samples were measured in the oxidating and inert (nitrogen) atmosphere using the STA 449 F1 Jupiter (Netzsch, Germany). The measured data were then evaluated in graphical form.

2.7. Viscosity Measurement

The viscosity curves of the model glass melts were measured in the interval of 10^2.5 to 10⁴ dPas. The measurement was conducted using an in-house falling ball viscosimeter that was developed at the Department of Glass and Ceramics at UCT Prague. Before the measurement, the viscosimeter was calibrated using a standard glass (Standard Reference Material 710a, Soda-Lime-Silica glass, National Institute of Standards and Technology, Gaithersburg, MD, USA).

A PtRh crucible with about 70 g of glass was placed in the viscosimeter and heated to 1440 °C. At this temperature, PtRh rod with two balls at each end was placed with a lower end 0.5 cm under the surface of the molten glass. Then, the time necessary to submerge the lower ball 2 cm under the surface of the glass was measured using an electrical stopwatch. The measurement was conducted periodically while lowering the temperature (50 °C steps) until the viscosity was too high to allow further measurement.

The data obtained were used for calculating the equation of viscosity-temperature dependence (Andrieu’s formula) using the KING software. In addition, viscosity reference points were calculated from the equation. The A and B constants of Andrieu’s Equation (1) were calculated using the least-squares method.

$$\log \left(\log \eta \right)=A+B·\log T$$

(1)

By using Andrieu’s equation, we can achieve a highly precise extrapolation of the measured values. The constant A is the viscosity limit when temperature T approaches zero, and B represents the steepness of a viscosity curve.

2.8. Thermal Expansion

The thermal expansion of model glasses was measured with the dilatometer DI 24 (Adamel Lhomargy) in the temperature range from 17 to 720 °C. Glass rods (50 mm long with radius 5 mm) were drawn from the model glass melts. The heating rate during the experiment was 3 °C per minute.

The data obtained were analyzed using the LOGIDIL 4.2 software to calculate the expansion coefficient, transformation (T_g), and deformation (T_D) temperatures.

3. Results and Discussion

3.1. Phase Composition of the Starting Batches

The raw materials used to prepare the model glass batches according to the calculated recipes were analyzed using XRD to determine their phase composition (see

Table 3. Phase composition of natural raw materials (XRD).

Material	Phase Composition
Quartz	SiO2 quartz	NaAlSi3O8 albite	(K0.92Na0.08)(AlSi3O8) orthoclase
Beech ash	K2Ca(CO3)2 fairchildite	CaCO3 calcite	Ca10(PO4)4.92(SiO4)1.08((OH)O0.664) hydroxyapatite, silicious	K2SO4 arcanite	SiO2 quartz
Limestone	CaCO3 calcite	CaMg(CO3)2 dolomite	KAl2(Si,Al)4O10(OH)2 muscovite	SiO2 quartz

).

Model Gothic starting glass batch was made up of natural quartz (with 98.9 wt.% of SiO₂) with minor impurities of feldspar minerals albite (NaAlSi₃O₈) and orthoclase ((K_0.92Na_0.08)(AlSi₃O₈)). The beech ash contained mostly potassium and calcium salts—fairchildite (K₂Ca(CO₃)₂), a small amount of arcanite (K₂SO₄), and calcite (CaCO₃); quartz and silicious hydroxyapatite were present in minor quantities (both less than 2 wt.%). The originally-used beech ash potash was fully replaced by pure K₂CO₃.

The Renaissance model glass batch was mixed with natural quartz, beech ash, K₂CO_3, and an addition of natural limestone. The limestone was mostly made up of calcite (CaCO₃) with impurities of dolomite (CaMg(CO₃)₂), quartz and muscovite (KAl₂(Si,Al)₄O₁₀(OH)₂), all less than 3 wt.%, according to XRF (see Supplementary Material Table S1 or [1]). There was also a small addition of NaCl.

The Baroque model glass was formed from different raw materials to simulate the precise process of using as pure materials as possible to obtain colorless glass. The natural quartz was replaced by glassmaking sand (pure SiO₂), K₂CO₃ to simulate highly purified beech ash potash, and the same limestone as in previous model glasses. The Baroque model glass also contained an addition of As₂O₃, acting as a refining agent as well as a decolorizer.

3.2. Melting Process and Changes in Phase Composition

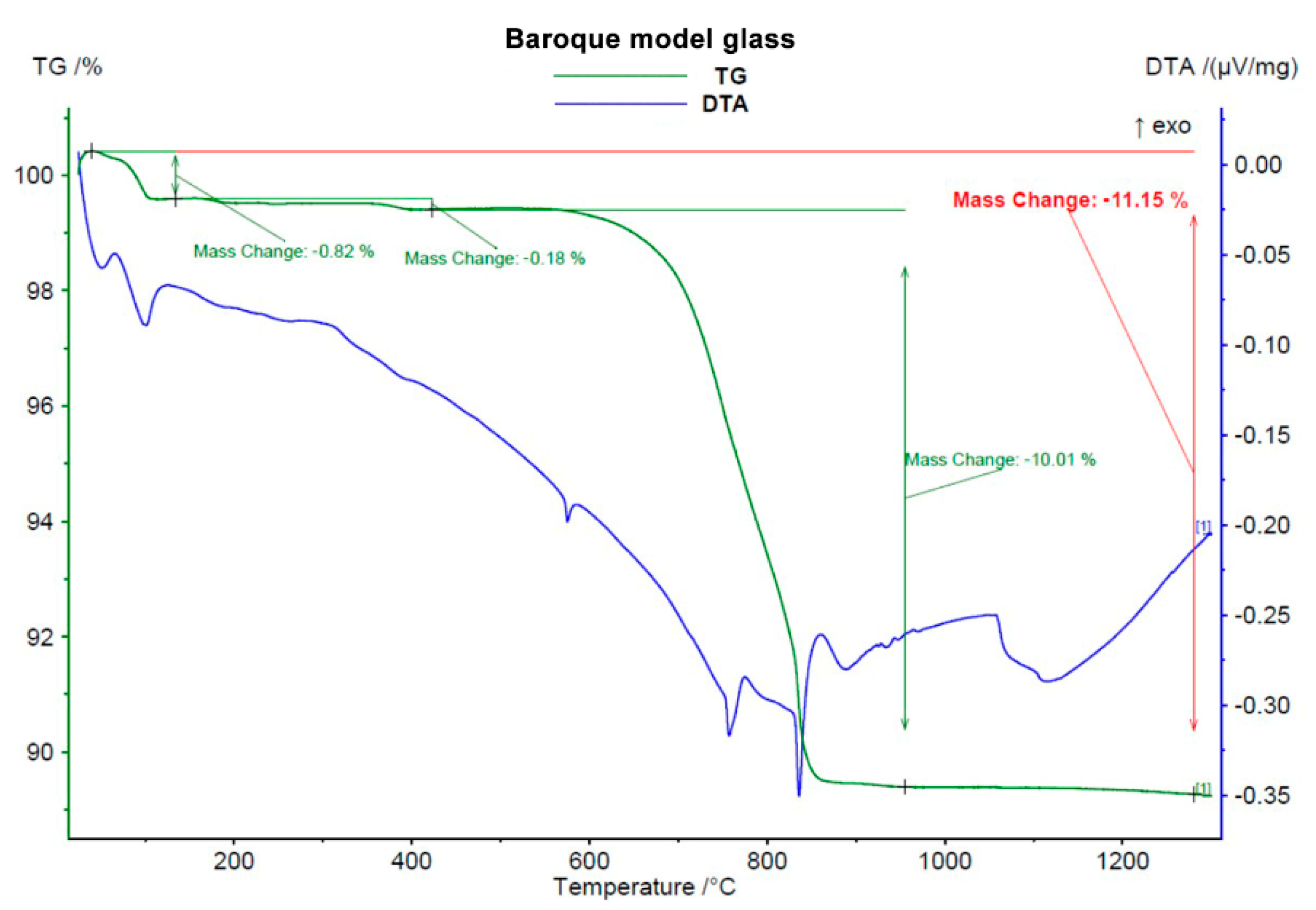

Before any solid-phase reactions and first glassy phase formation, decomposition of carbonates took place, starting at 600–650 °C. This process was accompanied by a great loss of mass (around 13 wt.%, see Figure 1, Figure 2 and Figure 3) due to CO₂ leaving the samples.

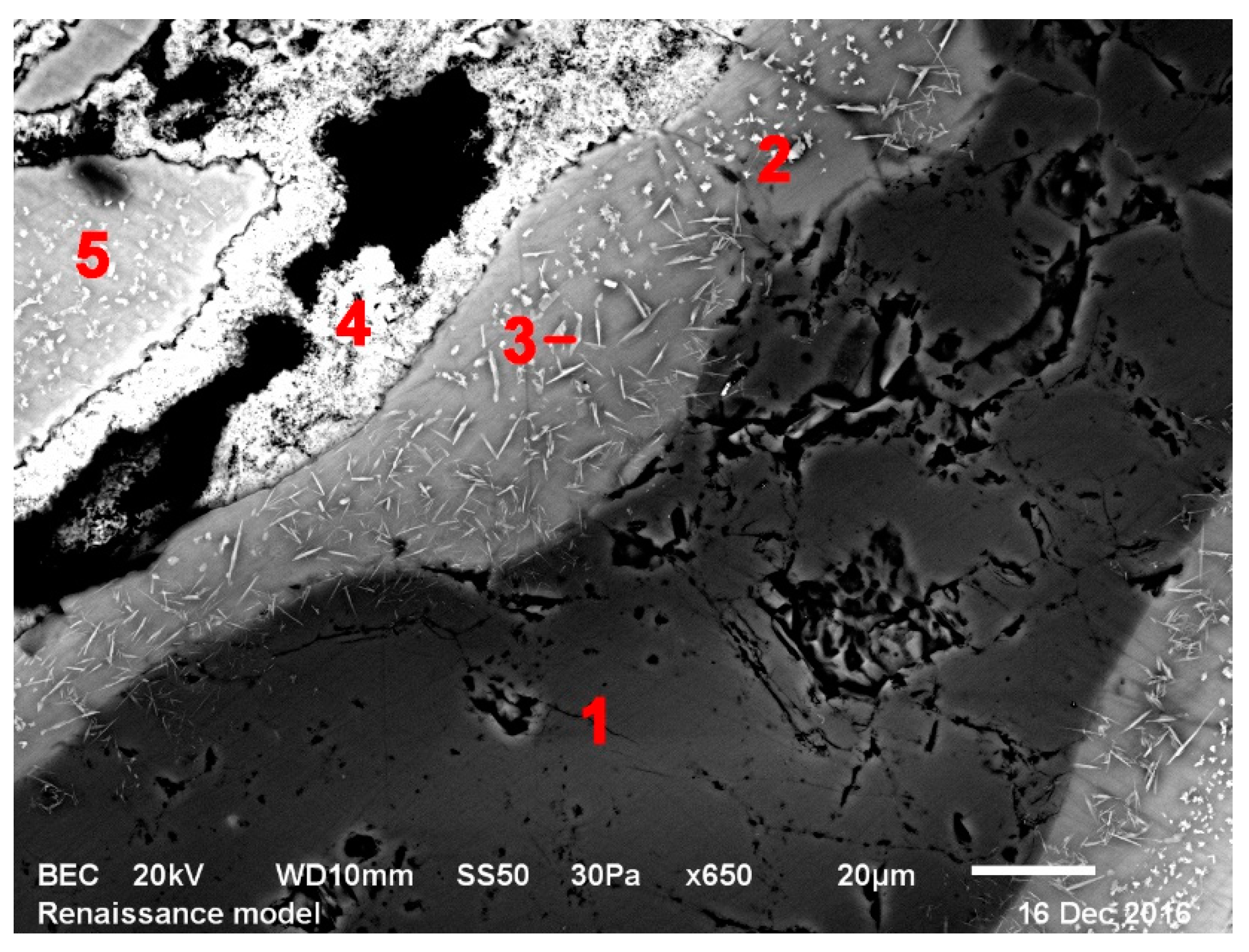

The solid-phase reactions started appearing in the glasses at around 700 °C. During this period, various silicates were forming. Mostly, these were potassium and calcium silicates, usually mixed. An interesting phenomenon occurred in Gothic glass. There wwere several layers of bi-product which formed around the quartz core (see Figure 4—SEM picture). The layer closest to the core was made up of potassium silicates, however, further away from the core, the chemical composition changed to calcium silicates. Seemingly, potassium silicates formed first and after that, calcium started incorporating itself into the new layers. A similar effect could be seen in the Renaissance model glass (see Figure 5). In the Baroque model glass, the solid phase reaction products produced only one layer, mostly from mixed potassium-calcium silicates. The solid-phase reactions were finished by 1000–1100 °C when there were no raw materials left to react.

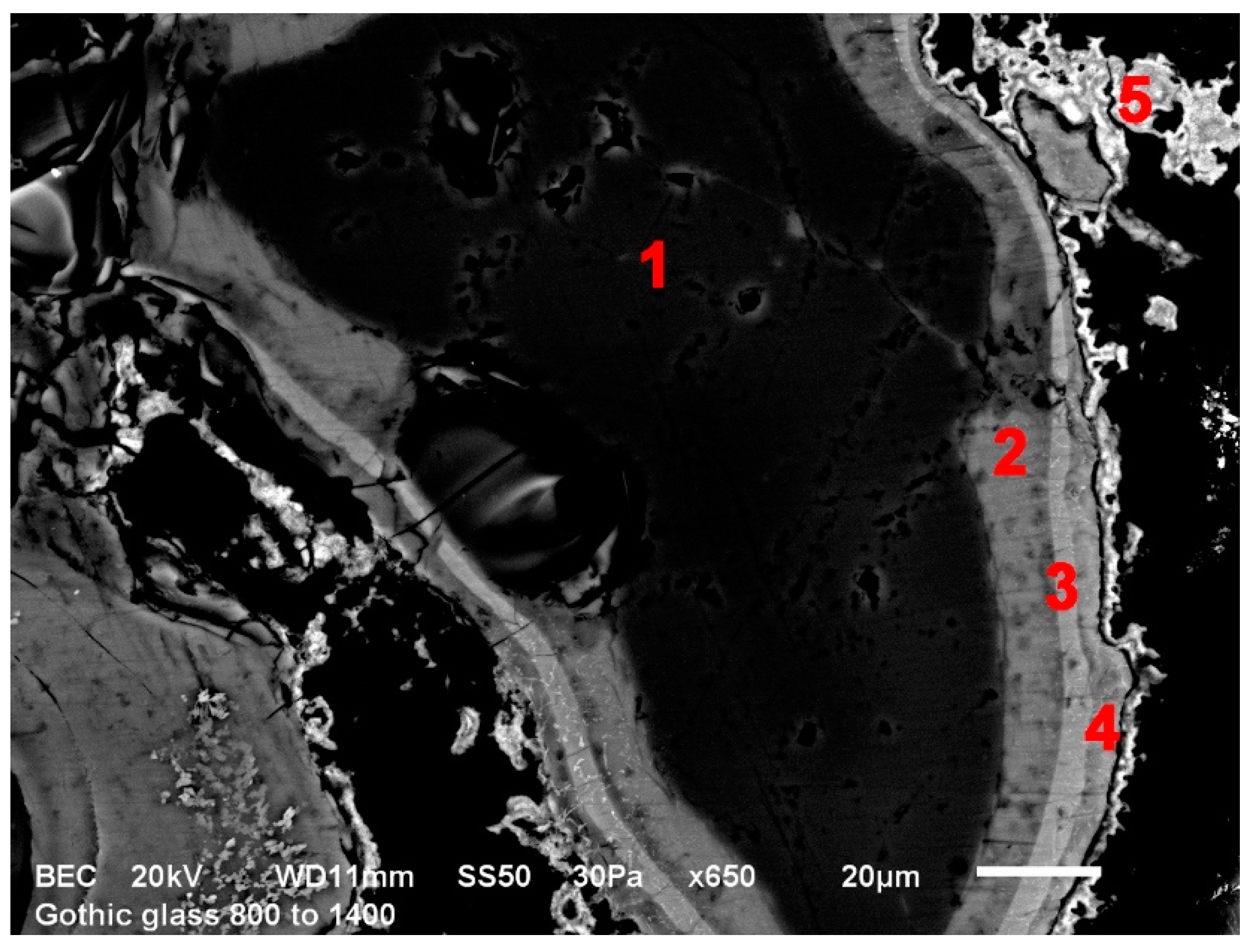

At 900 °C, the first glassy phase appeared in the Gothic model glass. The formation of mixed silicates continued and their chemical composition shifted to more calcium-based ones.

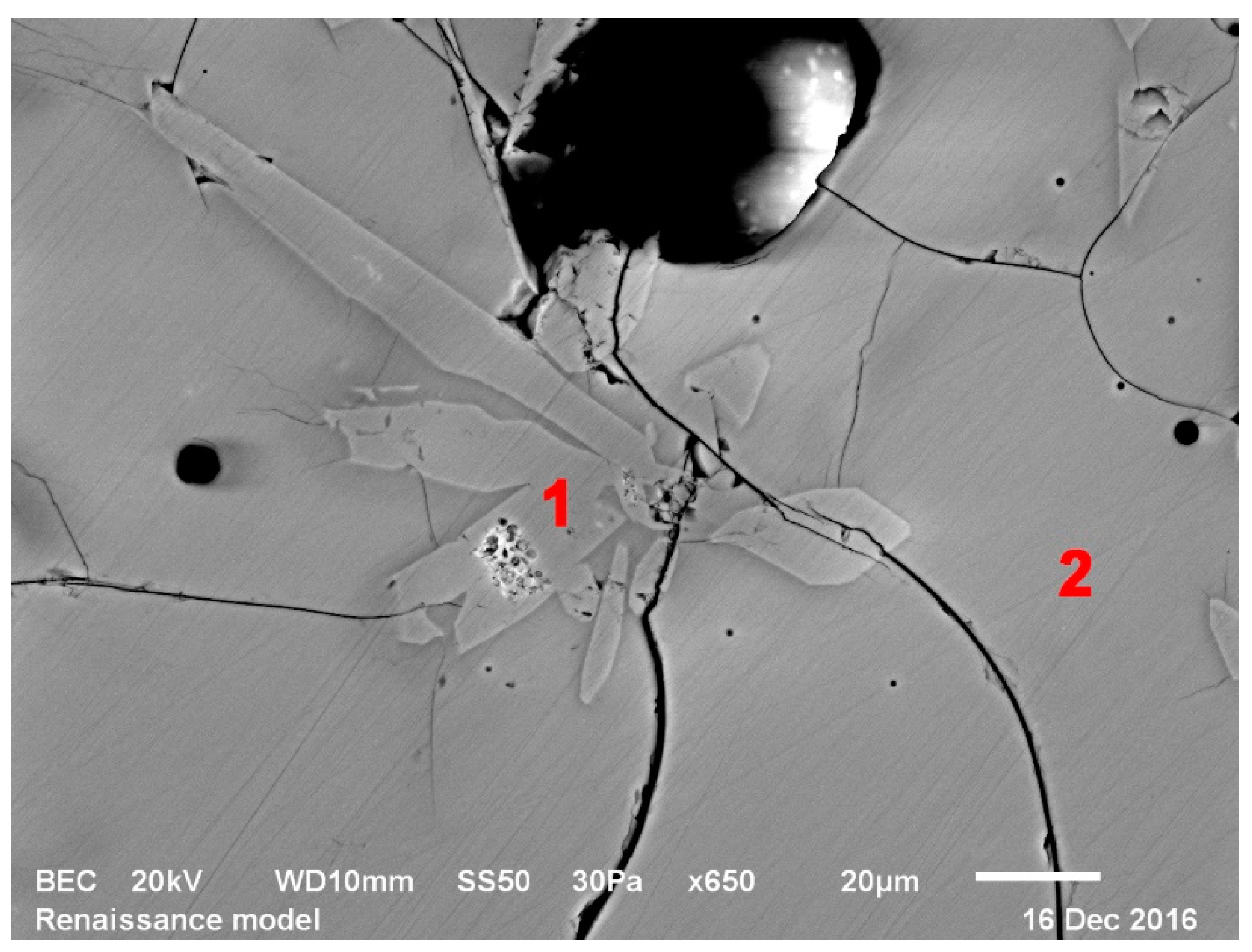

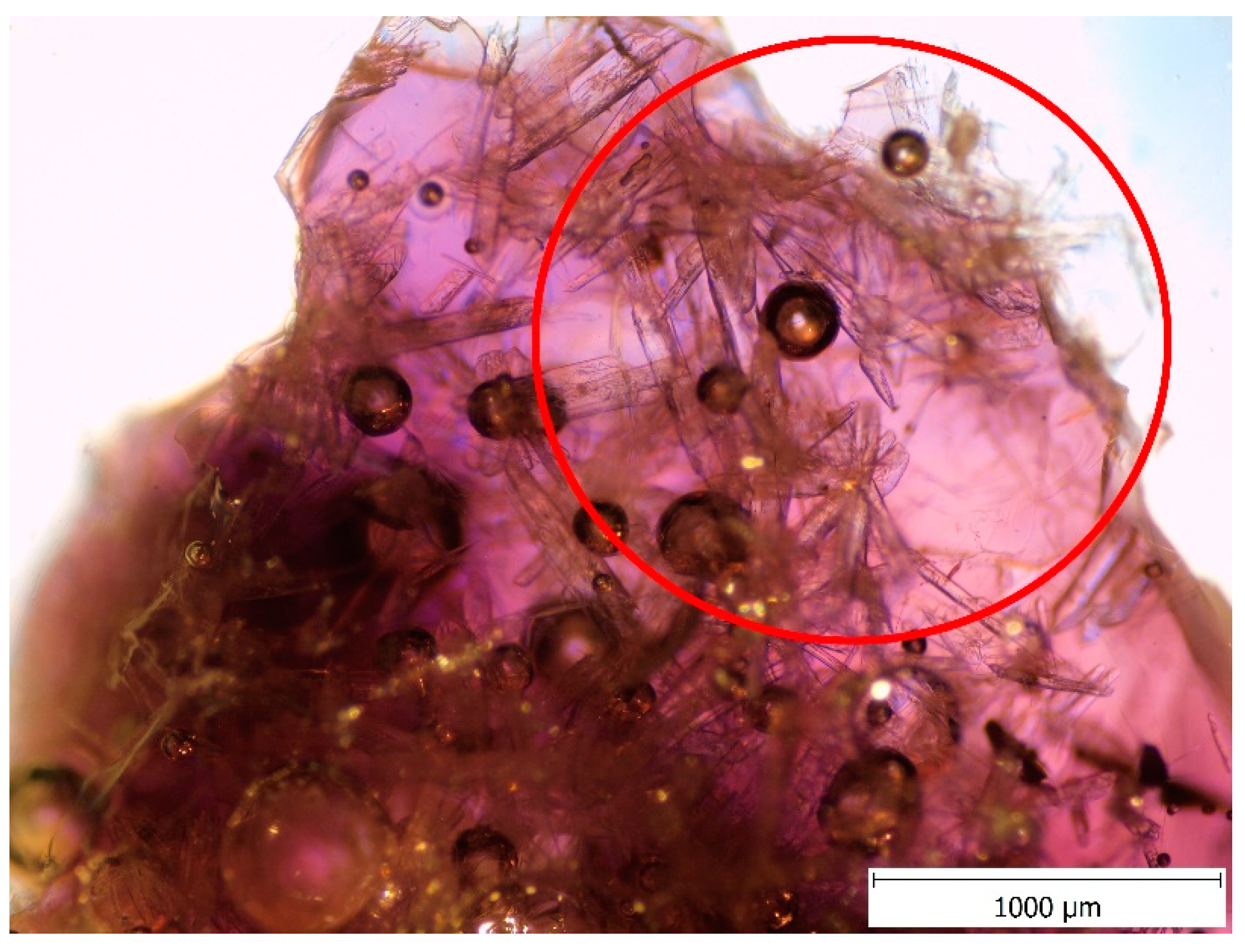

First, the glassy phase of Renaissance and Baroque model glasses formed at 1000 °C (although TG/DTA analysis of Baroque model glass puts it at 1150 °C, it was visually detected at 1000 °C). This temperature also marks the formation of wollastonite (CaSiO₃) crystals in both glasses (Figure 6). Wollastonite was observed even by the optical microscope (Figure 7) in the form of needle-shaped crystals in the glass mass. These were more prevalent in Renaissance glass, as it contains the highest amount of calcium of the three and were not detected in the Gothic glass at all, caused by the low amount of calcium in these. The presence of Wollastonite was previously observed in archaeological production waste glasses [19].

All three modifications of SiO₂—quartz, cristobalite, and tridymite—were present together in the Gothic and Baroque model glass at 1100 °C. They were still in the form of solid grains. In Renaissance and Baroque model glasses, the temperature of 1100 °C signified the first appearance of visible bubbles in the glass matrix.

At the higher temperatures of 1200 and 1300 °C, there were no new phases. The melting of the remaining SiO₂ particles continued. The last crystals of wollastonite disappear from Renaissance and Baroque glasses, but bubbles remained. At 1400 °C, all glasses were completely melted. Gothic and Renaissance glasses were homogeneous; Baroque glass still showed some bubbles that would need a longer melting time to disappear. An overview of all processes can be found in

Table 4. Overview of the most important changes in phase composition and homogeneity during melting of model glasses.

T [°C]	Gothic Model Glass	Renaissance Model Glass	Baroque Model Glass
800	Solid-phase reactions—K and K-Ca silicates	Solid-phase reactions—K and K-Ca silicates, formation of chlorapatite	Solid-phase reactions—mostly Ca silicates
900	First glassy phase; Cracking of SiO2, K-Ca and K-Ca-Mg silicates	More Ca silicates than in Gothic glass	K and Ca silicates, formation of wollastonite
1000	K-Ca silicates	First glassy phase; Formation of wollastonite	First glassy phase; Ca-silicates, wollastonite
1100	SiO2 in all modifications, glassy phase with remains of SiO2 grains	Bubbles, K-Ca silicates, wollastonite	Bubbles, SiO2 in all modifications, wollastonite
1200	Cracked glass structure around SiO2 remnants	SiO2 in all modifications, a small amount of wollastonite	A large number of bubbles
1300	Homogeneous glassy phase, last SiO2 residues	Homogeneous glassy phase, last bubbles, wollastonite, SiO2	Homogeneous glassy phase, lots of bubbles, SiO2
1400	Completely homogeneous	Completely homogeneous	Homogeneous glass with bubbles

.

3.3. Viscosity

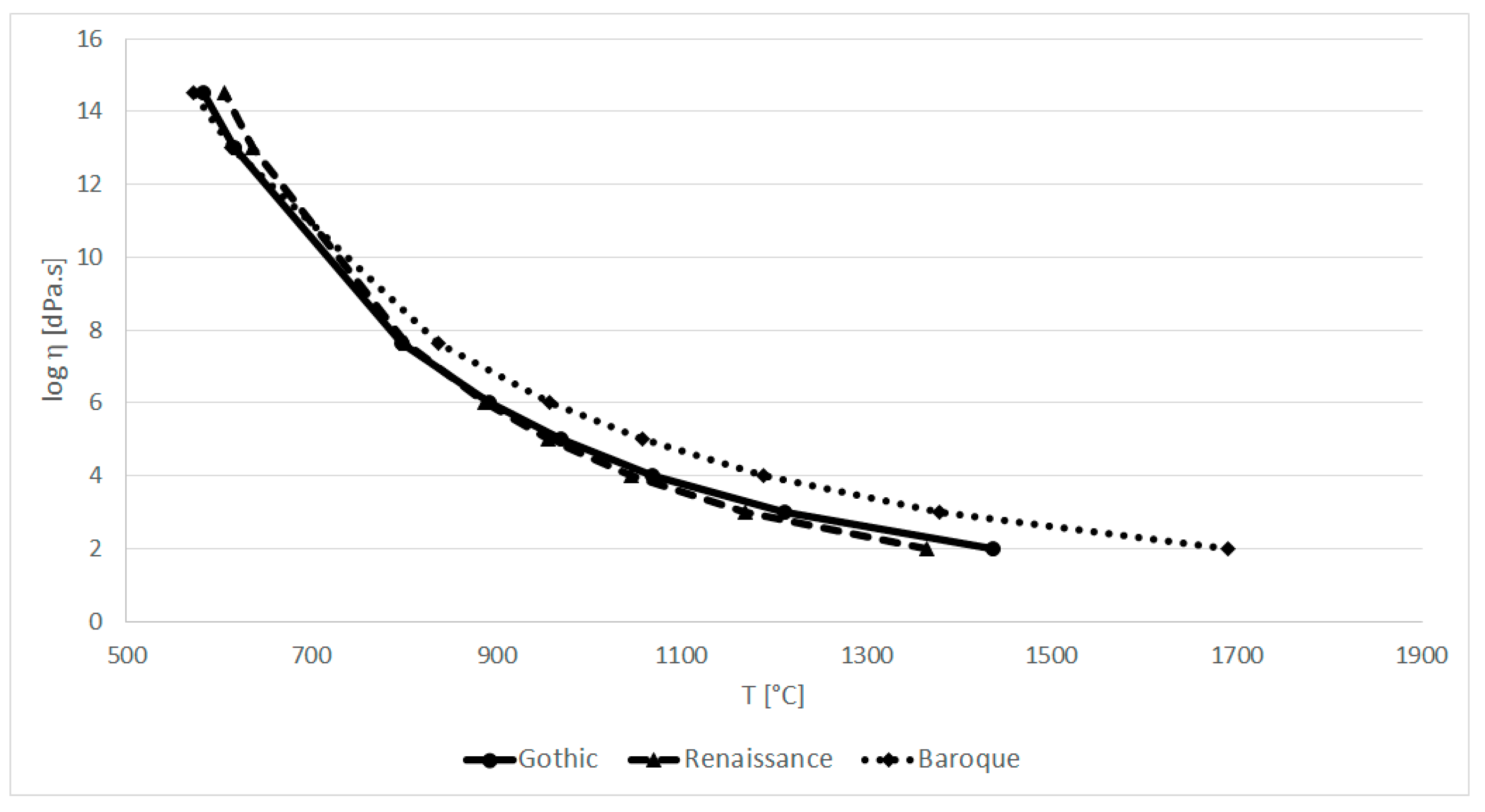

During melting, Gothic and Renaissance glassmelts behaved very similarly. They are potassium-calcium glasses, so a short workability interval and higher viscosity of melt were expected (as opposed to sodium glasses). The Baroque glass showed much higher viscosity than the previous two, therefore it was difficult to homogenize and cast this glass. The measured viscosity curves in Figure 8 illustrate this very well.

Following viscosity equations were obtained:

Gothic model glass:

$$\log \left(\log \eta \right)=9.56300-2.86485·\log T$$

(2)

Renaissance model glass:

$$\log \left(\log \eta \right)=10.52451-3.18051·\log T$$

(3)

Baroque model glass:

$$\log \left(\log \eta \right)=8.04511-2.35173·\log T$$

(4)

Reference viscosity temperatures calculated from the equations are given in

Table 5. Reference viscosity points for model glasses [°C].

log η [dPa.s]	2 Melting Point	4 Working Point	5 Flow Point	7.65 Softening Point	13 Annealing Point	14.5 Strain Point *
Gothic model glass	1437	1069	969	798	617	583
Renaissance model glass	1365	1045	955	802	637	606
Baroque model glass	1690	1189	1057	837	613	572

* The temperature of the strain point represents the lower temperature limit of the annealing temperature interval.

.

The Gothic and Renaissance model glasses displayed similar behaviors. Both viscosity curves are quite steep, which correlates with their chemical composition. For Gothic model glass, the theoretical melting temperature was calculated for 1437 °C and the workability interval at 1211–798 °C. The Renaissance model glass had a theoretical melting point at 1365 °C and a workability interval between 1169–802 °C. The lower melting temperature for Renaissance glass is caused by a different CaO/K₂O ratio. The intervals for both glasses are relatively short, which would make it difficult to form thin-walled objects. This fact can also be seen in archaeological glasses, where Bohemian glasses show medium to thick walls, especially when compared with soda-type glasses from Italy.

The steepness of the viscosity curves decreases from Renaissance glass to Baroque glass. The reason is the decrease in CaO concentration. The Baroque model glass shows a much higher theoretical melting temperature of 1690 °C. It is necessary to mention that this temperature was obtained by extrapolation. The model Baroque glass has previously been successfully melted at 1400 °C; therefore, the actual melting temperature was probably lower than the extrapolated one. The workability interval between 1379–837 °C would provide more time for glass forming. The overall high viscosity of this type of glass makes it suitable for thick-walled objects decorated with cutting, which it was mostly used for in history.

In general, the viscosity of glass melts decreases when K₂O and/or CaO increases. This is caused by decreasing the concentration of bridging and increasing the concentration of non-bridging oxygen atoms. On the other hand, SiO₂ strongly increases viscosity because it increases the concentration of bridging and decreases the concentration of non-bridging oxygen atoms. Therefore, the viscosity of Renaissance glass melts is the lowest because of the highest content of CaO and high content of K₂O, and the highest viscosity of Baroque glass is caused by the highest content of SiO₂ and the lowest content of K₂O and CaO.

3.4. Thermal Expansion

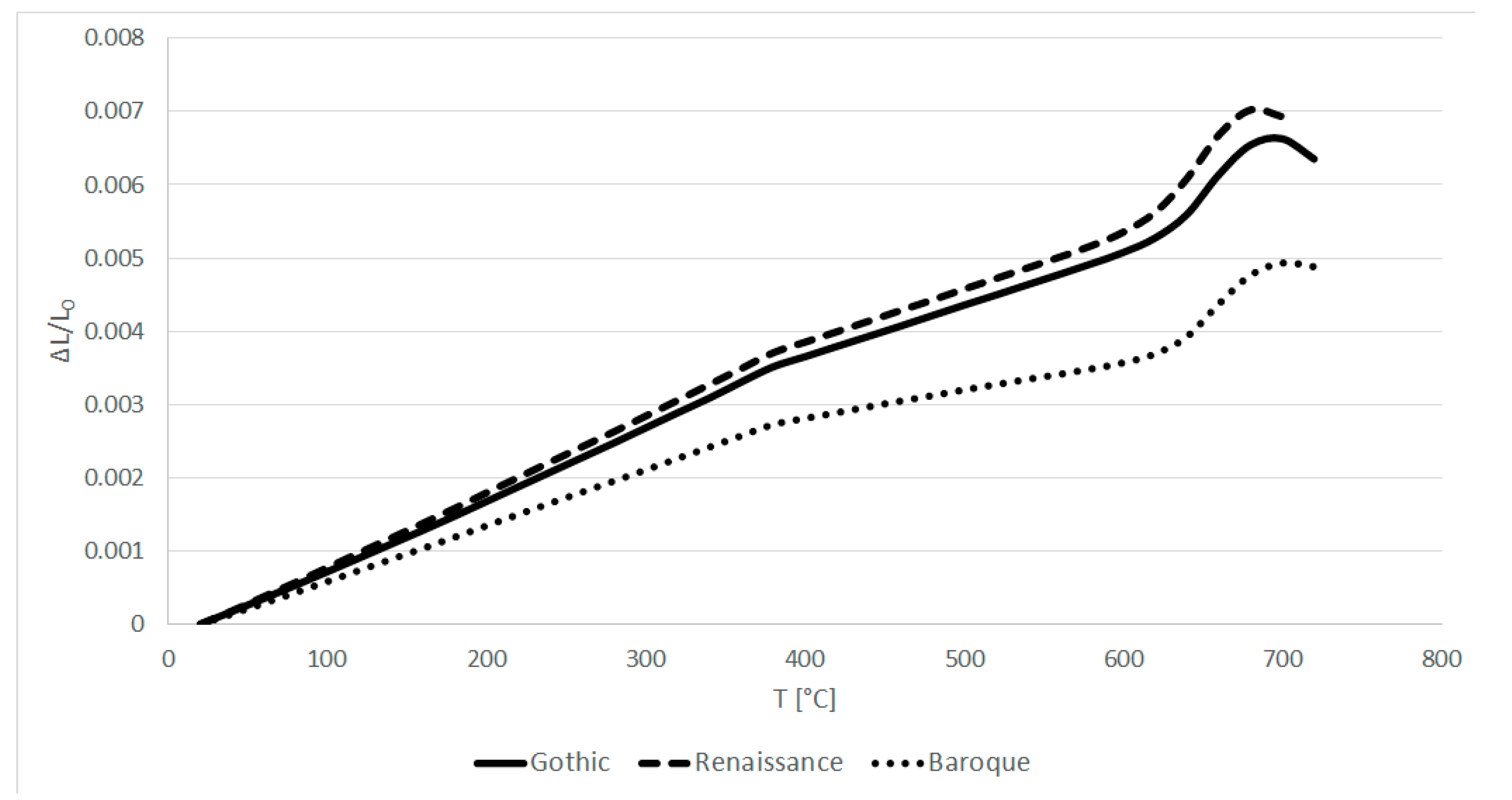

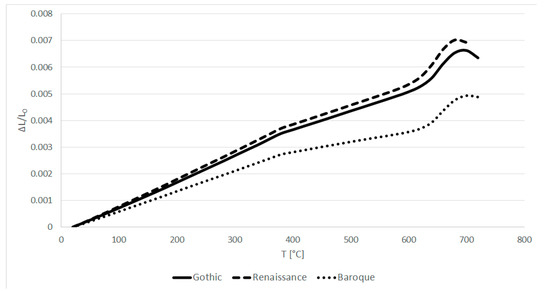

The behavior at lower temperatures is also similar for Gothic and Renaissance model glasses (see Figure 9). The Baroque model glass shows lower thermal dilatation than the other two.

The glass transformation temperature T_g and deformation temperature (T_D) of model glasses are given in

Table 6. Thermal expansion data for model glasses.

	Tg [°C]	TD [°C]	α
Gothic model glass	622	704	9.59 × 10−6
Renaissance model glass	617	690	10.18 × 10−6
Baroque model glass	627	714	7.56 × 10−6

together with the calculated dilatation coefficient α.

Similar to the viscosity, when K₂O and/or CaO increase or SiO₂ decreases the transformation temperature of glass decreases, and the thermal expansion coefficient increases. Therefore, Renaissance model glass has both the lowest transformation temperature and the highest thermal expansion coefficient. On the other hand, Baroque model glass has the highest transformation point and the lowest expansion coefficient. This correlates with the viscosity data, where Renaissance glass shows the lowest viscosity in this temperature interval, and the viscosity of Baroque glass is much higher.

4. Conclusions

This study was the first step to successfully reconstruct the historical production technology of Bohemian glasses. The experimental melting shows that the model glasses would theoretically need temperatures higher than 1400 °C to completely melt. However, the melting temperatures can be lowered by prolonging the melting times, making it possible to produce homogeneous glasses of this chemical composition in history. The addition of a glass cullet or recycled glass can also lower the temperature and is highly probable. The time-temperature dependence of melting is most important in the case of Baroque glass, with a calculated melting temperature above 1600 °C. This value is theoretical and even though we can expect better furnace constructions, and therefore higher achievable temperatures than in the Gothic or Renaissance periods, the glasses were probably melted at temperatures not higher than 1400 °C. However, the melting process in history was not always perfect, as can often be seen in archaeological glasses containing various bubbles or the residuals of solid particles.

The viscosity of Bohemian historical glass melts is influenced by their chemical composition, making them more viscous than soda-type glasses. These glasses were suitable for the production of glass objects decorated by cutting or engraving, but not very suitable for the plastic decorations known from, e.g., Venetian glasses.
