Tellurium and Selenium Mineralogy of Gold Deposits in Northern Fennoscandia

Abstract

Mineralization of Te and Se was found in gold deposits and uranium occurrences, located in the Paleoproterozoic greenstone belts in Northern Fennoscandia. These deposits are of different genesis, but all of them formed at the late stages of the Svecofennian orogeny, and they have common geochemical association of metals Au, Cu, Co, U, Bi, Te, and Se. The prevalent Te minerals are Ni and Fe tellurides melonite and frohbergite, and Pb telluride altaite. Bismuth tellurides were detected in many deposits in the region, but usually not more than in two–three grains. The main selenide in the studied deposits is clausthalite. The most diversified selenium mineralization (clausthalite, klockmannite, kawazulite, skippenite, poubaite) was discovered in the deposits, located in the Russian part of the Salla-Kuolajarvi belt. Consecutive change of sulfides by tellurides, then by selenotellurides and later by selenides, indicates increase of selenium fugacity, fSe₂, in relation to fTe₂ and to fS₂in the mineralizing fluids. Gold-, selenium-, and tellutium-rich fluids are potentially linked with the post-Svecofennian thermal event and intrusion of post-orogenic granites (1.79–1.75 Ga) in the Salla-Kuolajarvi and Perapohja belts. Study of fluid inclusions in quartz from the deposits in the Salla-Kuolajarvi belt showed that the fluids were high-temperature (240–300 °C) with high salinity (up to 26% NaCl-eq.). Composition of all studied selenotellurides, kawazulite-skippenite, and poubaite varies significantly in Se/Te ratio and in Pb content. Skippenite and kawazulite show the full range of Se-Te isomorphism. Ni-Co and Co-Fe substitution plays an important role in melonite and mattagamite: high cobalt was detected in nickel telluride in the Juomasuo and Konttiaho, and mattagamites from Ozernoe and Juomasuo contain significant Fe. In the Ozernoe uranium occurrence, the main mineral-concentrator of selenium is molybdenite, which contains up to 16 wt.% of Se in the marginal parts of the grains. The molybdenite is rich in Re (up to 1.2 wt.%), and the impurity of Re is irregularly distributed in molybdenite flakes and spherulites.

1. Introduction

Findings of selenium and tellurium minerals are not often, but are of big interest, because they may indicate precious metals’ mineralization: Se and Te often associate with gold, silver, platinum, and palladium mineralization and can form chemical compounds with these metals.

Gold deposits (including those where gold is a by-product) in the Northern part of the Fennoscandian Shield contain diverse Te (with minor Se) mineralization, which was detected in the Lapland greenstone belt (Saattopora, Pahtavaara), Kuusamo-Panajarvi belt (Juomasuo, Hangaslampi, Sivakkaharju, Konttiaho), and Peräpohja belt (Rompas) [1,2,3,4] (Figure 1). These gold deposits are of different genetic type, but all of them contain Cu, Co, Bi, Te, and U mineralization.

Data on Te and Se mineralization in the Finnish Lapland deposits, presented in this article, are taken from published papers and Internet resources with open access.

In the Russian part of the Salla-Kuolajarvi belt, gold deposits and occurrences with Te and Se mineralization are known as well. It is minor gold deposit Mayskoe, the only deposit ever mined for gold in the Kola region [6,7,8], and uranium gold-bearing occurrence Ozernoe (Figure 1) [9,10]. These deposits differ in diverse Te-Se mineralization (total more than 20 Te and Se mineral phases), and are richer in selenium mineralization than the deposits in Finland.

2. Materials and Methods

Investigations of wall-rock alteration, metasomatic zoning, and determination of pre-ore, syn-ore, and post-ore mineral assemblages in altered rocks were based on the study of rocks picked in outcrops and trenches, and considering mineral relations in thin and polished sections.

Tellurium and selenium mineralization of the Ozernoe occurrence were studied in samples (1.5–10 kg) collected by the author in the outcrops and trenches during 2011–2012.

The Mayskoe gold deposit was mined in 1998–2000 (total gold output 51 kg), then the mine was flooded and abandoned. The specimens for investigation of mineral composition were collected here in 2016 from the ore storage. The heavy minerals concentrate was panned from the tailings at the deposit, screened, and later separated with bromoform in the laboratory. Non-magnetic and electromagnetic bromoform-heavy fractions of−0.5 mm were studied in epoxy polished sections.

Mineral composition of the ores was studied in polished sections with the reflected light microscope Axioplan 2 Imaging (Karl Zeiss, Jena, Germany), and with the electron microscope LEO-1450 (Karl Zeiss, Jena, Germany) in the Geological Institute of the Kola Science Center.

Semi-quantitative estimation of composition for preliminary identification of mineral species was performed with the energy-dispersive system (EDS) Bruker XFlash-5010 (BRUKER, Ettlingen, Germany). Microprobe analysis (MS-46, CAMECA, Gennevilliers Cedex, France), accelerating voltage 22 kV, beam current 30–40 nA, standards (analytical lines; detection limit, wt.%): Fe₁₀S₁₁ (FeKα; 0.01 and SKα; 0.05), Bi₂Se₃ (BiMα; 0.1 and SeKα; 0.05), LiNd(MoO₄)₂ (MoLα; 0.1), PbS (PbMα; 0.1), pure metals Co (CoKα; 0.01), Ni (NiKα; 0.01), Cu (CuKα; 0.01), Pd (PdLα; 0.05), Ag (AgLα; 0.05), Te (TeLα; 0.05), Re (ReLα; 0.05), Au (AuLα; 0.05), was performed for grains larger than 20 µm (analysts Ye. Savchenko and A.Telezhkin). Beam size was 2–10 µm, depending on stability of the matter under the beam current. Measurement time was 10 s for major elements, 20 s for minor elements, and 10 s for background measurements. The results of 4–5 measurements for each element were averaged.

The verification of some mineral phases and identification of molybdenite polytype were performed with X-ray analysis in the Geological Institute of the Kola Science Center (analyst E. Selivanova). Visually homogenous material of 50 × 10 μm or more in size was extracted from the polished sections and examined with the X-ray powder diffraction (Debye-Scherer) on URS-1 (Burevestnik, Irkutsk, Russia) operated at 40 kV and 16 mA, with an RKU114.7 mm camera and FeKα radiation.

3. Results

The Salla-Kuolajarvi belt is a member of the Lapland-Karelian Paleoproterozoic greenschist belt system. The belt is of asymmetric structure: the eastern zone (the Russian part) has a simple cross-section with rock sequences dipping west at an angle of 70° (in the flank) to 10° (in the center of the belt). The western part of the belt (in Finland) is represented by a set of granitized tectonic blocks, with each block having its own structure [11].

Volcanic-sedimentary rocks in the Russian part formed in Jatulian (2.3–2.1 Ga) and Ludikovian (2.1–1.92 Ga), while older rocks (Sumian-Sariolian, 2.5–2.3 Ga) are known only in the neighboring Kuusamo-Panajarvi belt [11].

3.1. The Mayskoe Gold Deposit

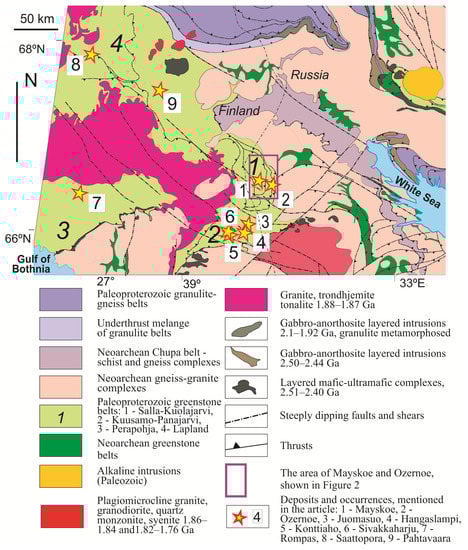

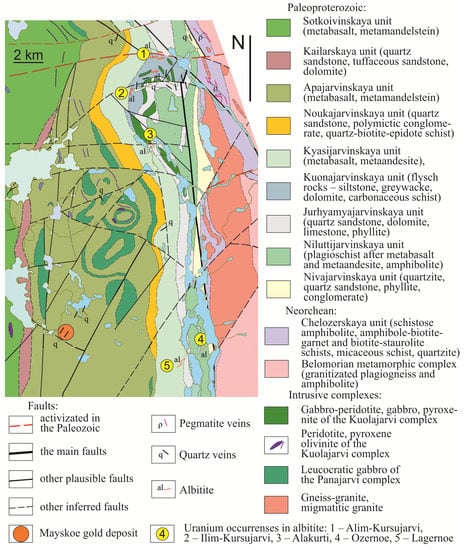

The small deposit of Mayskoe (#1 in Figure 1) is located in the central part of the Salla-Kuolajarvi belt. Quartz veins in the deposit are hosted in metavolcanics of the Apajarvi Formation (basalt, andesite, and mafic tuffs), intruded by dolerite dykes and ultramafic sills (Figure 2). The dykes are controlled by northeast trending faults and form two sub-parallel bodies, dipping northwest at an angle of 60–80° [8,12]. The faults are 5–10 m thick zones of schistosity, foliation, and jointing. The same northeast trending faults control zones of pre-vein metasomatic alteration and location of two gold-bearing quartz veins, i.e., the faults play the role of ore-hosting tectonic structures [8]. The metal association of the deposit can be described as Ag-Cu-Pb-Au (Zn-Co-Te-W) [5]. More details on the geology of the Mayskoe deposit are provided in [8,13].

Gold in the veins is distributed unevenly. Ore shoots are localized in those parts of the veins which are of complicated morphology, with xenoliths, intensely jointed, and with granular quartz. Ore shoots are 20–30 m in vertical section (80–110 m long on the surface), and pitch 15–20° northeast.

Nested and veinlet sulfide mineralization is located mainly close to the vein selvages, or at the contact with xenoliths. Sulfides and native metals make up less than 1 vol.% of the vein mass. The veinlets are less than 1 cm thick and 10–20 cm long. Sulfide aggregates may be up to a few cm in size. Ore mineral assemblage includes (in the order of quantity decrease) chalcopyrite as the main mineral, pyrrhotite, sphalerite, galena, pyrite, cobaltite, native gold, sporadic marcasite, gersdorffite, mackinawite, bornite, cubanite, cobaltian pentlandite, violarite, siegenite, altaite, tsumoite, tellurobismuthite, clausthalite, molybdenite, klockmannite, costibite, hessite, native silver, arsenopyrite, covellite, argentopentlandite, stuetzite, volynskite, and native tellurium [6,7,8,14,15]. Greenockite, tetradymite, bismuthite, vavřínite, glaucodot, unidentified Ni telluride, and Au telluride are mentioned in [14], but no microprobe or X-ray data, photo, or description of these mineral phases was published. The primary oxide minerals are rutile, ilmenite, magnetite, and scheelite.

Visible gold was detected in fractures in quartz, often in intergrowths with galena and sphalerite. Grains of gold are of irregular flattened form, rounded, and hexahedral. The gold fineness is high (900–960) [6,7,8,14,15]. Se and Te mineralization concentrates in gold-rich parts of the veins.

We see in the polished sections that tellurides associate mainly with galena (Figure 3), and multimineral rucklidgeite-altaite inclusion was found in pyrrhotite only in one case. However, Gavrilenko [7] described the occurrence of altaite along fractures in the early sulfides, chalcopyrite and pyrrhotite, as well.

Altaite forms inclusions up to 15 µm in size (Figure 3), and more often these inclusions are located in the marginal parts of galena grains, at the contact with chalcopyrite and quartz. Bismuth and silver tellurides tsumoite, stuetzite, volynskite, and native tellurium formed along the cracks at the altaite-galena boundary, and the size of tiny telluride grains is not more than a few micrometers (Figure 3).

Pb and Cu selenides clausthalite and klockmannite were first described in the deposit by Gavrilenko [6,7]. These minerals occur as prismatic or roundish inclusions up to 30 µm in size in chalcopyrite, pyrrhotite, and sphalerite. No inclusions of selenides were detected in galena due to Se-S isomorphism: content of Se in galena reaches 10 wt.%. The selenides clausthalite and klockmannite contain some Te and S, but sulfur probably originates from the surrounding sulfides.

The sulfide concentrate, panned from the tailings, contains lath-shaped monomineral grains with perfect {0001} cleavage, up to 50 µm large. These are bismuth tellurides and selenotellurides. We detected rucklidgeite with low content of Pb, poubaites with different Se/Te and Pb/Bi ratios, a mineral of kawazulite-skippenite series (49% of skippenite), and an unnamed mineral with chemical composition, corresponding to formulae Pb₂Bi₂(Se,S)₃Te₂ (

Table 1. Microprobe data for tellurides and selenides from the Mayskoe.

	1	2	3	4	5 *	6	7	8	9 *	10 **	11 **
Fe, wt.%.	0.18	0.12	0.10	0.23	bdl	0.08	0.06	0.03	bdl	1.03	0.99
Cu, wt.%.	n.a.	n.a.	n.a.	n.a.	n.a.	n.a.	n.a.	0.03	n.s.	41.63	41.31
Pb, wt.%.	34.93	18.80	27.44	4.63	12.58	8.86	69.54	71.19	81.35	0.49	0.52
Ag, wt.%.	bdl	bdl	bdl	bdl	bdl	bdl	0.45	n.a.	0.04	0.60	0.51
Bi, wt.%.	28.41	39.62	31.57	52.91	47.38	47.44	1.56	0.34	n.a.	n.a.	n.a.
Sb, wt.%.	0.33	0.34	bdl	bdl	n.a.	bdl	bdl	n.a.	n.a.	n.a.	n.a.
S, wt.%.	0.67	0.29	0.13	0.09	bdl	0.07	0.68	1.18	9.91	6.44	6.26
Se, wt.%.	15.92	13.52	7.19	15.86	1.01	1.09	25.30	23.35	8.25	45.33	46.76
Te, wt.%.	19.14	27.03	33.48	26.24	39.21	42.78	2.61	3.21	0.49	5.42	3.97
Total, wt.%.	99.58	99.71	99.90	99.95	100.18	100.32	100.18	99.33	100.04	100.94	100.32
Atoms per formula unit
Fe	0.04	0.02	0.02	0.03		0.01		0.01		0.02	0.02
Cu								0.01		0.80	0.79
Pb	2.26	0.93	1.48	0.16	0.19	0.49	0.93	0.96	0.94
Ag							0.01			0.01	0.01
Bi	1.83	1.93	1.69	1.86	0.71	2.58	0.02	0.00
Sb	0.04	0.03
S	0.28	0.09	0.05	0.02		0.02	0.06	0.10	0.74	0.25	0.24
Se	2.71	1.75	1.02	1.47	0.04	0.16	0.89	0.83	0.25	0.70	0.72
Te	2.01	2.16	2.94	1.51	0.96	3.82	0.06	0.07	0.01	0.05	0.04

Notes: bdl = below the detection limit, n.a. = not analyzed. 1—Pb₂Bi₂(Se,S)₃Te₂, formulae coefficients are calculated for S + Se + Te = 5; 2,3—poubaite, 4—kawazulite, 5—tsumoite, 6—rucklidgeite, 7, 8—clausthalite, 9—selenian galena, 10, 11—klockmannite. Formulae coefficients of poubaite and rucklidgeite are calculated for S + Se + Te = 4, of kawazulite, for S + Se + Te = 3, of selenian galena, clausthalite, and klockmannite for S + Se + Te = 1. * Data from [8], ** data from [6,7].

). All bismuth tellurides and selenotellurides contain significant impurity of Pb.

Clausthalite was detected in the sulfide concentrate as anhedral grains up to 30 µm in size, in intergrowths with chalcopyrite and with inclusions (1–5 µm) of hessite.

3.2. The Ozernoe Uranium Occurrence

A series of albitite occurrences with uranium mineralization is located at the eastern flank of the Salla-Kuolajarvi belt (Figure 2), and some of these occurrences contain Au, Se, Te, Mo, and Re mineralization. Albitite forms zonal lenses up to 10 m thick and 10–90 m long, and the albitite lenses cross general strike of the wall rocks. Albitites may be hosted by different metasedimentary, metavolcanic, or intrusive rocks (Figure 2).

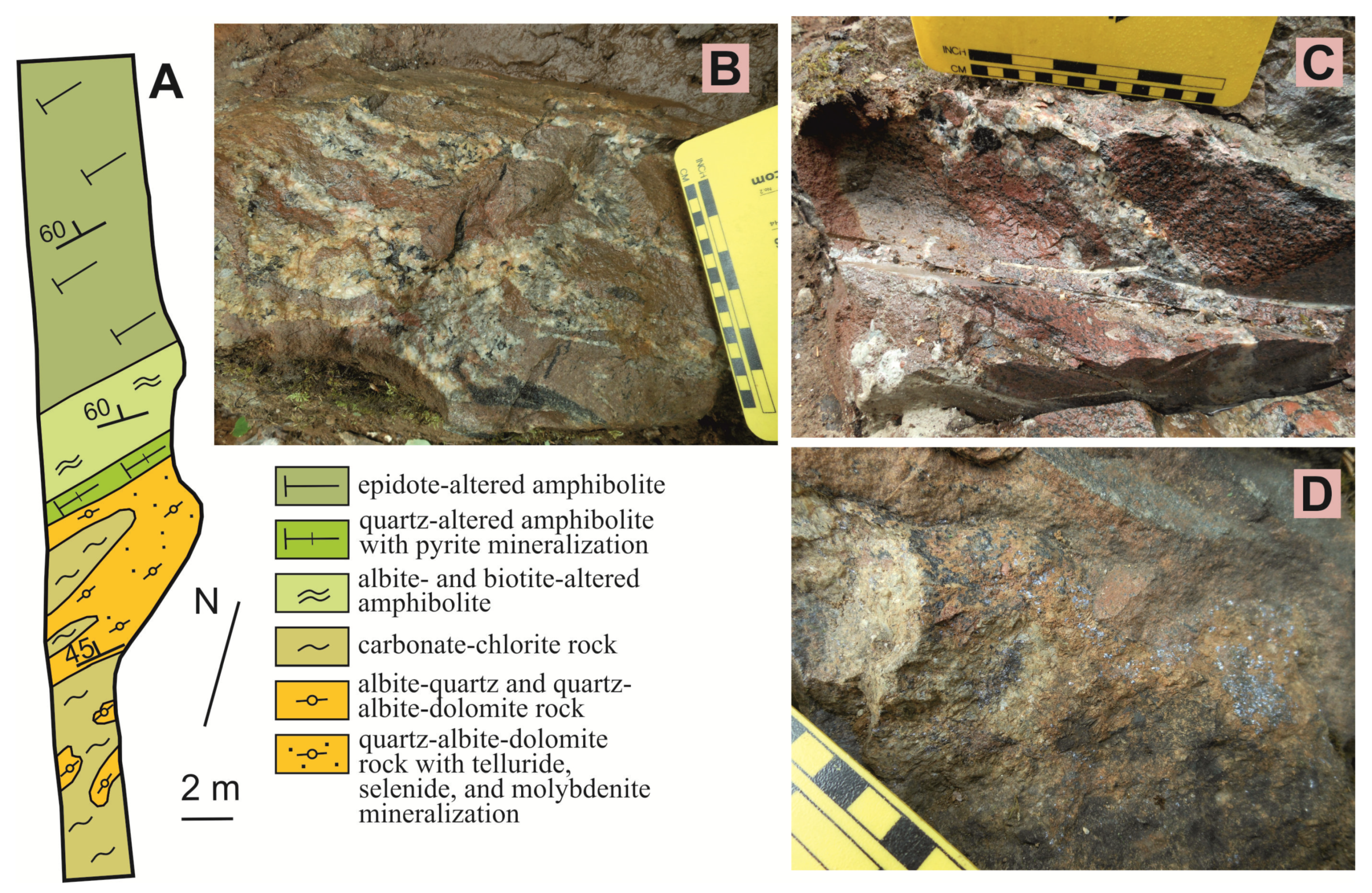

Uranium albitite Ozernoe occurrence is located in the outer part of metamorphosed gabbrodolerite intrusion and hosted by altered amphibolite. A series of albitite lenses is controlled by a shear zone, which crosses the gabbrodolerite intrusion and metavolcanic rocks at an angle of 50°. Transition from the amphibolite to albitite is gradual (Figure 4). In the outer part of the zone of alteration, the amphibolite is intensely epidote-altered. Close to the albitite lens, biotite, chlorite, and actinolite replace hornblende in the amphibolite, and the rock is schistose. Albitite makes up the main part of the lenses: albite, chlorite-albite, dolomite-albite, dolomite, dolomite-quartz, and quartz zones can be detected, from the border to the center. Dolomite-albite and dolomite rocks, which contain Te-Se mineralization, form veinlets up to 20 cm thick (Figure 4), or segregations of irregular form in albitite, and are usually separated from the albitite by a thin (1–2 mm), discontinuous, dark-colored chlorite-biotite seam, which is notably rich in uraninite and brannerite.

Albitite and altered amphibolite contain disseminated, nested-disseminated, or veinlet-disseminated sulfide mineralization. The main sulfide minerals in altered amphibolite are pyrite and chalcopyrite, while oxide minerals are ilmenite and magnetite. In albitite, rutile and hematite form instead of ilmenite and magnetite. The main sulfides are pyrite, chalcopyrite, molybdenite, and marcasite. Uraninite and brannerite are the prevalent uranium minerals.

Sulfide mineralization in dolomite-albite and dolomite rocks is much more diversified. Content of molybdenite, uraninite, and brannerite increases significantly, tellurides, selenotellurides, selenides, native gold, and tellurium appear in carbonate-albite rocks.

Melonite is the most abundant telluride. It forms lath-shaped or anhedral grains up to 2 mm large in dolomite, and fills cracks or forms chains of tiny grains along cleavage in the carbonate. Tiny irregular grains of melonite occur at the boundary of uraninite with gangue minerals. Melonite forms inclusions and develops along cleavage in molybdenite. Intergrowths of melonite with other tellurides are rare, but replacement of melonite by altaite is common. More often, we can see replacement of melonite by clausthalite (Figure 5 and Figure 6). Large melonite grains have internal domains (Figure 5), and the domains vary in orientation and differ in selenium content, from 0.2 to 2.2 wt.% Se. Other impurities in melonite are Fe, Co, Pd, and Pb (

Table 2. Microprobe data for Te and Se minerals from the Ozernoe.

	Melonite		Frohbergite		Mattagamite *			Altaite		Clausthalite
Fe, wt.%	0.04	0.06	18.03	18.19	7.32	8.43	1.29	0.07	bdl	bdl	bdl
Co, wt.%	0.45	0.43	n.a.	bdl	11.81	11.24	10.09	n.a.	bdl	bdl	bdl
Ni, wt.%	17.77	17.62	bdl	bdl	0.26	0.32	8.69	bdl	0.03	bdl	0.07
Cu, wt.%	n.a.	n.a.	bdl	n.a.	n.a.	n.a.	n.a.	bdl	n.a.	n.a.	n.a.
Pd, wt.%	0.15	0.12	n.a.	bdl	n.a.	n.a.	n.a.	n.a.	bdl	bdl	bdl
Ag, wt.%	bdl	bdl	0.09	bdl	n.a.	n.a.	n.a.	bdl	bdl	bdl	bdl
Au, wt.%	bdl	bdl	bdl	bdl	n.a.	n.a.	n.a.	bdl	bdl	bdl	bdl
Pb, wt.%	bdl	0.14	bdl	2.94	n.a.	n.a.	n.a.	62.87	60.56	69.78	70.70
Bi, wt.%	bdl	bdl	0.14	0.16	n.a.	n.a.	n.a.	bdl	0.12	0.77	0.23
S, wt.%	bdl	bdl	bdl	0.06	n.a.	n.a.	n.a.	bdl	bdl	bdl	bdl
Se, wt.%	2.17	0.30	0.47	0.18	n.a.	n.a.	n.a.	2.86	1.46	24.61	25.36
Te, wt.%	81.19	81.78	81.18	78.69	80.61	80.00	79.93	33.90	34.61	3.69	1.21
Total, wt.%	101.77	100.44	99.91	100.22	100.00	100.00	100.00	98.33	96.77	98.86	97.57
Atoms per formula unit
Fe	0.002	0.003	1.005	1.048	0.42	0.48	0.07	0.004
Co	0.023	0.023			0.63	0.61	0.55
Ni	0.912	0.931	0.00		0.01	0.02	0.47		0.001
Pd	0.004	0.003
Ag			0.028
Pb			0.00	0.046				1.006	1.009	0.989	0.993
Bi			0.00	0.002					0.002	0.011	0.013
S			0.00	0.006
Se	0.083	0.012	0.018	0.007				0.12	0.064	0.985	0.917
Te	1.917	1.988	1.982	1.984	2.00	2.00	2.00	0.88	0.936	0.015	0.083
	Kawazulite				Skippenite	Poubaite *	Tellurobismuthite	Rucklidgeite *	Sylvanite **	Bohdanowiczite
Fe, wt.%	bdl	bdl	bdl	bdl	0.10	0.20	n.a.	0.22	0.45	bdl
Co, wt.%	bdl	bdl	bdl	bdl	n.a.	n.a.	n.a.	n.a.	n.a.	bdl
Ni, wt.%	bdl	bdl	bdl	bdl	bdl	n.a.	n.a.	n.a.	n.a.	bdl
Cu, wt.%	n.a.	n.a.	n.a.	n.a.	bdl	n.a.	n.a.	n.a.	2.44	bdl
Pd, wt.%	bdl	bdl	bdl	bdl	n.a.	n.a.	n.a.	n.a.	n.a.	n.a.
Ag, wt.%	bdl	bdl	bdl	0.11	0.13	n.a.	n.a.	n.a.	8.00	20.61
Pb, wt.%	n.a.	n.a.	n.a.	n.a.	n.a.	n.a.	0.19	n.a.	n.a.	n.a.
Bi, wt.%	0.25	bdl	0.24	bdl	bdl	n.a.	n.a.	n.a.	24.27	n.a.
S, wt.%	11.90	9.53	8.09	3.29	bdl	20.11	2.44	11.16	n.a.	0.09
Se, wt.%	44.84	48.06	49.53	52.53	56.92	39.55	50.22	42.95	n.a.	45.22
Te, wt.%	bdl	bdl	bdl	bdl	bdl	n.a.	n.a.	n.a.	n.a.	0.13
Total, wt.%	11.28	14.36	14.17	10.88	18.56	11.91	2.31	2.81	0.11	31.90
Pb, wt.%	30.07	25.86	26.06	31.51	24.11	28.24	43.99	42.87	64.73	2.18
Bi, wt.%	98.08	98.19	98.10	98.32	99.82	100.00	99.15	100.00	100.00	100.13
Atoms per formula unit
Fe					0.013	0.039		0.043	0.063	0.002
Co
Ni
Cu									0.302
Pd
Ag					0.009				0.583	0.917
Sb							0.013
Au									0.968
Pb	0.455	0.359	0.305	0.124		1.042	0.095	0.580		0.002
Bi	1.700	1.794	1.853	1.960	1.927	2.034	1.927	2.213		1.038
S										0.020
Se	1.132	1.419	1.403	1.075	1.663	1.621	0.235	0.383	0.011	1.940
Te	1.868	1.581	1.597	1.925	1.337	2.379	2.765	3.617	3.989	0.082

* Estimation of composition with EDS analysis, normalized to 100 wt.%, ** data from [15]. Notes: bdl = below the detection limit, n.a. = not analyzed. Formulae coefficients are calculated for S + Se + Te = 2 in melonite, frohbergite, mattagamite, and bohdanowiczite, for S + Se + Te = 1 in altaite and clausthalite, for Te + Se + S = 3 in kawazulite and skippenite, for Te + Se = 3 in tellurobimuthite, and for Te + Se = 4 in sylvanite, rucklidgeite, and poubaite.

).

Frohbergite occurs as irregular grains up to 0.1 mm in dolomite. Frohbergite replaces chalcopyrite, and, in turn, is replaced by altaite (Figure 6) and by kawazulite. Frohbergite contains some impurities of Se, Bi, and Ag (Table 2).

Altaite forms irregular grains up to 0.5 mm, occurs in cleavage fractures in dolomite as a chain of tiny grains, and, similar to melonite, develops along cleavage in molybdenite. Altaite crystallized later than melonite and frohbergite, and replaced these minerals (Figure 6). Bigger grains of altaite contain inclusions of melonite, frohbergite (Figure 6C), and mattagamite (Figure 7). Altaite contains Se up to 2.85 wt.%, and some Bi, Ni, and Fe (Table 2).

Native gold occurs in association with altaite or with altaite and melonite: altaite overgrows gold grains (Figure 6). Size of gold grains is <30 µm, gold is of high fineness, with Ag 5.00–5.75% and impurities of Ni and Fe.

Mattagamite, together with cobaltian pentlandite, occur in the central part of large altaite grains, where it forms clusters and chains of micro-grains 1–2 µm in size (Figure 7). Estimation of chemical composition of mattagamite shows significant content of Fe (Table 2).

Finding of tellurium analogue of bambollaite was reported by Chernyavsky [16]. This mineral phase occurs as an isolated grain of 0.25 µm in a cluster of melonite and altaite grains in dolomite. Chemical composition of the mineral phase is Cu 18.06, Te 75.37, and Se 3.23, total 96.66 wt.%. Tellurium dominates in the anion group of the studied mineral, and the formulae is Cu_0.900(Te_1.871Se_0.129)_2.000 [16].

Bismuth tellurides rucklidgeite and tsumoite occur mainly in multimineral aggregates with melonite, altaite, poubaite, and clausthalite. They form irregular grains < 10 µm. Composition of the tsumoites corresponds to the formulas: 1: Bi_1.110(Te_0.948Se_0.052)_1.000, and 2: Bi_1.066(Te_0.959 Se_0.041)_1.000 [16]. The rucklidgeite contains high Pb and Se, and its composition varies within a wide range: 1: Pb_1.428Bi_2.220(Te_3.097Se_0.903)_4.000, and 2: (Pb_0.580Fe_0.043)Bi_2.213 (Te_3.617Se_0.383)_4.000.Tellurobismuthite was detected in an aggregate with altaite (Figure 8B).

Sylvanite occurs as micrometric (1–3 µm) roundish grains along the boundary of two dolomite grains [16]. The sylvanite contains 2.44 wt.% Cu, which replaces Ag.

Stuetzite was detected as a cluster of irregular grains up to 10 µm in size embedded in dolomite. One of the grains is an intergrowth with altaite.

Native tellurium forms clusters of irregular grains up to 30 µm in size, embedded in dolomite. The chemical composition of the mineral is Te 100%. Coloradoite was detected in the outer part of one tellurium grain, and it is a roundish, tiny, 2 µm grain (Figure 8C). Chemical composition of the coloradoite corresponds to (Hg_0.869Fe_0.011)_0.880Te_1.119.

Poubaite was detected in a multimineral aggregate with melonite, altaite, rucklidgeite, Se-rich galena, and clausthalite (Figure 8A,D). The poubaite grains are 10–20 µm in size, anhedral. The mineral is rich in Te (Te > Se), and with some excess of (Bi + Pb) compared to (Te + Se). Chernyavsky detected poubaite lamellae along cleavage in molybdenite, and chemical composition of this poubaite corresponds to Pb_1.238Bi_1.360(Se_2.016Te_1.847As_0.117)_4.000, while arsenic content is 0.93 wt.% [17].

Kawazulite Bi₂SeTe₂ and skippenite Bi₂Se₂Te occur as lamellar or anhedral grains up to 0.5 mm in size, isolated in dolomite or in aggregates with melonite, frohbergite, altaite, and clausthalite (Figure 9). Kawazulite and skippenite replace tellurides, but in turn are replaced by clausthalite. Large anhedral grains of the minerals have internal domains, which differ in Se/Te ratio and Pb content (up to 11.9 wt.%). Small lamellar grains are homogenous and contain some Fe, Ag, Au, and S (Table 2). Skippenite molar percentage varies from 0% to 86%, 70% of the studied grains are Te-dominant (kawazulite), and 30% are Se-dominant (skippenite).

Bohdanowiczite occurs in intergrowths with skippenite, and the grain is 0.3 mm in size (Figure 9D). The composition of the mineral shows some deficit of Ag, partial replacement of Se by Te, and impurities of Pb and S (Table 2).

Clausthalite is the main selenide in the Ozernoe occurrence. It occurs mostly in the outer parts of tellurides (melonite, altaite, frohbergite), selenotellurides (kawazulite, skippenite), and sulfides (pyrite, chalcopyrite) grains as a thin rim or a chain of numerous tiny idiomorphic grains (Figure 5 and Figure 6C), and penetrates bigger grains of tellurides along cracks. Clausthalite contains Te up to 3.7 wt.%, and some impurities of Bi and Ni (Table 2).

Molybdenite is the main mineral-concentrator of selenium in the albitite uranium occurrences. Molybdenite forms flakes and aggregates of flakes, regular hexagonal crystals, and spherulites. The size of flake aggregates reaches 7–8 mm.

Molybdenite does not associate with other sulfide minerals, but forms aggregates with melonite, and often contains inclusions of melonite, altaite, and poubaite, which may develop along cleavage as well (Figure 10C).

All studied molybdenites constitute a mixture of 3R and 2H polytypes. The spherulites consist mainly of 3R polytype, but the flaky molybdenite may be 3R- or 2H-dominant [18].

Composition of the molybdenites often shows some deficit of the metal (0.88–0.98 formulae units), and molybdenite contains impurities of Fe, Re, and Se (

Table 3. Microprobe data for molybdenite from the Ozernoe and Alakurti occurrences, wt.%.

Point #	1	2	3	4	5 *	R-1	R-2	R-3	I-1	I-2	I-3	C
Fe, wt.%	bdl	0.05	bdl	bdl	0.10	0.05	bdl	bdl	0.05	bdl	bdl	0.04
Ni, wt.%	bdl	bdl	bdl	bdl	n.a.	n.a.	bdl	bdl	bdl	bdl	bdl	n.a.
Mo, wt.%	53.49	55.60	56.17	57.01	58.69	57.38	56.44	57.39	56.47	56.99	56.21	58.29
W, wt.%	bdl	bdl	bdl	n.a.	n.a.	bdl	bdl	bdl	0.09	bdl	bdl	0.09
Re, wt.%	bdl	0.27	bdl	0.14	0.09	bdl	bdl	bdl	1.21	1.02	1.15	bdl
S, wt.%	30.73	36.09	37.77	35.91	24.53	37.18	37.89	36.98	41.14	41.55	41.48	35.69
Se, wt.%	15.71	8.13	5.84	6.82	16.58	5.24	5.38	5.75	0.33	0.38	0.86	5.82
Te, wt.%	bdl	bdl	bdl	0.08	n.a.	bdl	bdl	bdl	bdl	bdl	bdl	bdl
Total, wt.%	99.93	100.14	99.78	99.96	100.00	99.85	99.71	100.11	99.30	99.94	99.70	99.92
Atoms per formula unit (for S + Se + Te = 2)
Fe		0.002			0.004	0.001			0.001			0.001
Ni
Mo	0.963	0.944	0.935	0.985	1.255	0.976	0.941	0.976	0.914	0.914	0.898	1.024
W									0.001			0.001
Re		0.002		0.001	0.001				0.010	0.008	0.010
S	1.656	1.832	1.882	1.856	1.569	1.892	1.891	1.881	1.993	1.993	1.983	1.876
Se	0.344	0.168	0.118	0.143	0.431	0.108	0.109	0.119	0.007	0.007	0.017	0.124
Te				0.001

* Estimation of composition with EDS analysis, normalized to 100 wt.%. Notes: bdl = below the detection limit, n.a. = not analyzed, numbers correspond to points in Figure 10.

).

Content of Re is irregular and varies significantly from one part of the grain to another. In the molybdenite flakes, Re is distributed irregularly, and no correlation of Re content and molybdenite polytype was found. In the spherulite, rhenium content is below the detection limit in the center and in the outer part, but the intermediate zone of the spherulite is anomaly Re-rich: here, Re content reaches 1.2 wt.% (Table 3).

All molybdenites are Se-rich. Content of selenium varies from 5 to 16 wt.% in molybdenite flakes (i.e., up to 17% of drysdallite), and 0.3–6 wt.% in spherulites. In the flakes, high selenium (>10 wt.%) was detected mainly in the outer part of the flakes, as it is shown with light colored rims of flakes in BSE images (Figure 10A). In the spherulite, the central (marked with ‘C’ in Figure 10D) and outer parts (‘R’ in Figure 10D) are enriched with Se if compared to the intermediate (‘I’ in Figure 10D) zone (Table 3).

We showed earlier in [17] that C-parameter and volume of the crystal cell in Se-rich molybdenite increase proportionally to the increase of the selenium content.

Se- and Re-rich molybdenite was found not only in the Ozernoe, but also in dolomite-albite rock in the Alakurti occurrence (Table 3, Figure 10C).

Molybdenite is partly replaced by powellite Ca(MoO₄) and molybdomenite PbSeO₃ in the zone of hyper-genesis (Figure 10B). Powellite was detected in the Ozernoe, Alakurti, and Alim-Kursujarvi occurrences. Powellite composition is (CAMECA, wt.%): CaO 26.73, MoO₃ 69.34, SeO₃ 2.44, UO₂ 0.82, TeO₃ 0.141, SO₃ 0.132, FeO 0.107, and Re—below the detection limit, total 99.71. We see that powellite inherits partly high Se content from the mother molybdenite (6.8 wt.% Se in the molybdenite, and 2.44 wt.% in the powellite) [6]. Selenium probably occupies the position of Mo⁶⁺in powellite. Rhenium content is 0.14 wt.% in the mother molybdenite, and below the detection limit in the powellite, i.e., Re is mobilized and taken away.

3.3. Te and Se Mineralization in Gold Deposits in Finnish Lapland

Information about tellurium and selenium mineralization in the deposits of the Lapland belt is scant. Some tellurides were detected in the Saattopora deposit, but the mineral phases are not comprehensively characterized [1,19]. In the Pahtavaara deposit, merenskiite and clausthalite occur in quartz-carbonate-barite veins in the main mine [1], and findings of tellurides melonite, frohbergite, and hessite are reported in the VMS ore in the ore body Karolina [20]. Photographs and description of the tellurides are not available in open access.

More diversified tellurium mineralization was found in the Rompas deposit in the Peräpohja belt: the list of tellurides includes altaite [3], melonite, tellurantimony, montbrayite, frohbergite, and unnamed bismuth telluride BiTe₂ [4]. The main telluride is altaite, which is detected in aggregates with native gold, hunchunite, and galena in cracks in uraninite. Other tellurides are much rarer, and a few multimineral telluride grains were found in the specimens, delivered from the Rompas to the Sankt-Petersburg University for investigation (Figure 11) [4].

The following order of crystallization of tellurides was identified in Rompas [3,4]: the early minerals are montbrayite, melonite, and bismuth telluride BiTe₂, tellurantimony crystallized next, then frohbergite, and the latest was altaite. As for gold, it was repeatedly re-deposited and formed a few generations, including gold deposition at the time of crystallization of tellurides (Figure 11).

In the Kuusamo belt, according to [2,3], the Fe-Co-Au-U deposits are enriched in Te and Se, but in different ways. The Juomasuo deposit is enriched in Se, whereas the Hangaslampi deposit is anomalous in Te. The Sivakkaharju deposit is slightly enriched by Te, and at Konttiaho, the values of Te and Se are more scattered [2].

The occurrence of tellurides is frequent in the Kuusamo belt Fe-Co-Au-U deposits [2]. Tellurides detected in every Fe-Co-Au-U deposit in the belt are altaite and calaverite. The most common telluride mineral is altaite, which occurs mostly as anhedral grains in fissures of uraninite. Altaite is also frequently recognized embedded in silicates. It is rarely developed as separate independent grains, but usually forms mixed grains with gold and other tellurides. The amount of calaverite is low, only 2–3 grains were detected in every deposit. Melonite is almost as common as altaite (not found only in Konttiaho). It occurs principally as irregular-shaped intergrowths with gold and other tellurides such as altaite and Co-Ni telluride, but also in cracks of uraninite together with altaite. Frohbergite was detected at Hangaslampi and Juomasuo. The most common Bi-telluride is tellorobismuthite, identified at Sivakkaharju and Juomasuo. Tellurobismuthite occurs as microscopic inclusions in pyrite and as irregular grains and grain accumulations associated with altaite and gold. Mattagamite and rucklidgeite were identified at Juomasuo, and only 1–2 grains of these tellurides were found. Unnamed Co-Ni telluride (Co,Ni)Te₂ was detected at Konttiaho and Juomasuo; at Konttiaho, this mineral is Ni-rich compared to that at Juomasuo. Probably, these findings indicate Co-Ni isomorphic substitution in the melonite–mattagamite system. An unnamed Co-Fe-Pb telluride was identified at Konttiaho. This Co-Fe-Pb telluride formula Co_0.55Fe_1.05Pb_0.35Te_3.00 conforms to Me₂Te₃, with minor Te enrichment compared to the metals [2].

Two Se-minerals were found in the Kuusamo belt deposits [2]. Clausthalite was detected at Sivakkaharju, and kawazulite (only one grain) was identified at Juomasuo. Tiny grains (3–15 µm) of clausthalite were detected in the inclusions in galena and also embedded in silicates [2]. Molybdenite is enriched with Se, especially at Sivakkaharju [2], but not as much as in Ozernoe.

4. Discussion

Formation of senenide and telluride minerals in sulfide ores depends mainly on fugacities of Se, Te, S, and O (fSe₂, fTe₂, fS₂, fO₂). The stability fields of selenide minerals are generally more restricted than those of sulfide minerals in the fugacity-fugacity diagrams, but are larger than those of corresponding telluride minerals for similar values of fSe₂, fTe₂, and fS₂ [21,22]. However, findings of selenides in ore deposits in the world are rare compared to those of tellurides. Substantiation of this fact is in the high Se–S isomorphism as compared to Te-S due to smaller difference in ionic radius in the first pair. Consequently, selenium is often scattered in sulfides and does not form its own mineral phases.

Selenium and tellurium minerals were detected in Northern Fennoscandia in gold-only deposits (Mayskoe, Pahtavaara), gold deposit with uranium mineralization (Saattopora, Juomasuo, Konttiaho, Hangaslampi, Sivakkaharju, Rompas), and in uranium occurrences with gold (Ozernoe) (

Table 4. Te and Se minerals in the deposits of Northern Fennoscandia.

Mineral	Formulae *	Deposit
		Mayskoe	Ozernoe	Rompas	Kuusamo Group	Pahtavaara
Melonite	NiTe2	?	+	+	+	+
Frobergite	FeTe2		+	+	+	+
Mattagamite	CoTe2		+		+
Altaite	PbTe	+	+	+	+
Coloradoite	HgTe		+
Hessite	Ag2Te	+	+
Stuetzite	Ag5-xTe3	+	+
Tsumoite	BiTe	+	+
Tellurobismutite	Bi2Te3	+	+		+
Rucklidgeite	PbBi2Te4	+	+
Tellurantimony	Sb2Te3			+
Volynskite	AgBiTe2	+
Sylvanite	AgAuTe4		+
Calaverite	AuTe2				+
Montbrayite	(Au,Ag,Sb,Bi,Pb)23(Te,Sb,Bi,Pb)38			+
Merenskyite	PdTe2					+
Bambollaite-Te	Cu(Te,Se)2		+
Poubaite	PbBi2(Se,Te,S)4	+	+
Kawazulite	Bi2Te2Se	+	+		+
Skippenite	Bi2TeSe2		+
Bohdanowiczite	AgBiSe2		+
Klockmannite	CuSe	+
Clausthalite	PbSe	+	+		+	+
Unnamed-1	BiTe2			+
Unnamed-2	Pb2Bi2Te2(S,Se)3	+
Unnamed-3	(Fe,Co,Pb)1.75Te3.00				+
Te native	Te	+	+

* Mineral formulas according to [23].

). Pahtavaara, Juomasuo, Sivakkaharju, Mayskoe, and Ozernoe contain both tellurium and selenium mineralization, while other deposits contain only tellurides.

Common features of the deposits with Se and Te mineralization in Northern Fennoscandia are their geological position in Paleoproterozoic greenstone belts, formation at the time of Svecofennian orogeny, or at post-orogenic stage [5], and geochemical association of metals, which includes Au, Cu, Co, U, Bi, Te, and Se.

The deposits are of different genetic groups, and classification of some of them is controversial. Saattopora is considered as an orogenic gold deposit [1,22]. In the Pahtavaara deposit, different ore bodies may be of different genesis: the mined part of the deposit with quartz-carbonate-barite veins may be classified as orogenic [5], and the ore body Karolina is probably of VMS-type [19].

Fe-Co-Au-U deposits in the Kuusamo belt were compared with orogenic deposits (with anomaly geochemical association) [14,24], IOCG [2], and Blackbird type [23], but geological characteristics of the Kuusamo deposits do not fully correspond to the mentioned genetic classes. In [23], the Juomasuo, Konttiaho, Hangaslampi, and Sivakkaharju were defined as deposits of a specific Kuusamo genetic group.

Similar intricacy concerns the gold-uranium deposits Rompas and Pajapalot in the Peräpohja belt, and these deposits were defined as the Peräpohja deposit group [25]. History of formation of Au-U mineralization in the Rompas includes a number of stages [3,26], and uraninite and native gold were repeatedly re-deposited and formed a few generations. Gold in association with tellurides was deposited after the peak of Svecofennian regional metamorphism (~1.9 Ga), and later than the formation of the youngest generation of uraninite (~1.80 Ga) and pyrobitumen nodules [3,26]. This is supported by the ~1.75 Ga model ages for radiogenic galena and altaite associated with gold in the late fractures in uraninite [3]. The age of tellurium and gold mineralization corresponds to the time of emplacement of late- and post-orogenic pegmatitic and tourmaline-rich granites, located 4–5 km to the east and north from the Rompas, between 1.80 and 1.75 Ga [27], and these intrusions could serve as a source of both gold and tellurium. The lead for formation of altaite and hunchunite, which are localized in the fractures in uraninite, was probably mobilized from the uraninite during its recrystallization. Temperature of hydrothermal events at this stage was estimated as ~300 °C, with optical characteristics of pyrobitumen nodules in the ore [3].

Deposits and occurrences in the Russian part of the Salla-Kuolajarvi belt are not classified unequivocally. The Mayskoe deposit was considered as an orogenic deposit in [14]. However, geochronological data show that the mineralization formed ~200 million years later than regional metamorphism, and a study of fluid inclusions in quartz indicates a significant role of magmatic fluids in deposit formation [8,28]. These characteristics are in conflict with the orogenic genetic model for the Mayskoe.

The study of fluid inclusions in non-mineralized quartz showed the temperature of fluid homogenization at 300–350 °C, and the composition of the fluid belongs to the H₂O–NaCl system, where the salinity is moderate, 3–7 wt.% NaCl-eq. In granular quartz with gold mineralization, the temperature of homogenization of fluid inclusions is 190–270 °C, the fluid composition is CO₂–CH₄, the salinity of the fluid is high, 22–28 wt.% CaCl₂-eq., and is CaCl₂ -dominant. The pressure is estimated at 0.94–0.5 kbar [8].

Isotope dating showed multi-stage history of mineralization development in Mayskoe. Pre-ore propylites formed at 1770 ± 9 Ma (Rb-Sr, minerals and rock) [29]. Age of Mg-metasomatism is 1610 ± 30 Ma (Rb-Sr, minerals and rock) [12]. K-Ar age of feldspar in Si-K-Ba metasomatite was estimated at 1380 ± 40 Ma [12]. Finally, Re-Os age of gold is 397 ± 15 Ma [29]. The last figure should be carefully checked with some other geochronological methods, though, because mineralogical and petrographic study of mineralized rocks shows formation of gold and sulfide mineralization at the stages of Mg- and Si-K-Ba metasomatism [8].

A study of fluid inclusions in quartz in the Ozernoe uranium occurrence showed two groups of inclusions with temperatures of homogenization at 350–390 °C and 240–300 °C. Salinity of the fluids is high, up to 22% NaCl-eq. [28].

Dating of albitite with U-Pb (rutile—1757 ± 7 Ma), Rb-Sr (whole rock, apatite, biotite, albite—1754 ± 39 Ma), and Sm-Nd (whole rock, molybdenite, chalcopyrite, dolomite, albite—1759 ± 11 Ma) methods gave three well-corresponding ages of the metasomatic rock [30].This age corresponds to the age of granite dykes, 1748 ± 13 Ma (U-Pb, zircon),in the Salla-Kuolajarvi belt [31], and these granites could serve as a magmatic source of mineralized fluids and metals (including Se and Te) for mineralization in albitite occurrences and quartz veins in Mayskoe. Later, uraninite was re-crystallized, and chemical dating of uraninite showed 1627 ± 42 Ma [30]. The age of brannerite UTi₂O₆ (U-Pb, the lower cross of the discordia) is 385 ± 2 Ma, and this was the latest thermal event in the belt, linked with formation of ultramafic alkaline intrusions Sallanlatva and Vuorijarvi [5,32].

The mineralized albitite formed under oxidized condition, and this is supported by substitution of magnetite-pyrrhotite association in hosting amphibolites by hematite-pyrite mineral association in albitite.

U, Se, Mo, Te, Re, and V make a geochemical group of metals, mobile under oxidized and inert under reduced conditions. This geochemical association is well-known in so-called redox roll-front uranium deposits in sedimentary rocks [33]. Hydrothermal uranium deposits and occurrences with complex Te-Se-Bi mineralization are rare in the world. These type of deposits are known in the Czech Republic (Oldrichov, the deposit of the first finding of poubaite) and in Canada (Mazenod Lake, Cluff Lake, Otish Mountains) [34]. The deposit, which displays the closest resemblance to Ozernoe, is the Otish Mountains (the deposit where Se mineral skippenite was first found [34], and molybdenite is near as rich in Se as in the Ozernoe).

Both deposits, Ozernoe and Otish Mountains, are located in the marginal part of the Paleoproterozoic greenstone belts. Uranium mineralization concentrates in the zone of hydrothermal alteration of gabbro-dolerite in the near-contact part of the intrusion, which cuts metasedimentary rocks (metasandstone and dolomite) in the Otish Mountains, and metasandstone and mafic metavolcanics in the Ozernoe. Zoning of the alteration is the following in both deposits: epidote-altered gabbrodolerite in the outer zone, chlorite- and biotite-altered rockin the intermediate zone, and albite, carbonates, and sericite are the main gangue minerals in the central part. Finally, uranium mineralization (brannerite and uraninite) is connected mainly with albite, and complex Bi-Pb-Cu-Fe-Mo-Te-Se-S mineralization associates with carbonates.

The general order of ore minerals’ formation in the deposits with Se–Te mineralization in Northern Fennoscandia is as follows: the main sulfides pyrite, pyrrhotite, chalcopyrite, and galena were the first to crystallize, and deposition of uraninite took place later. Early tellurides crystallized after uraninite—first melonite, then frohbergite, and later altaite (and mattagamite). Early tellurides were followed by bismuth tellurides (tsumoite, rucklidgeite, tellurobismutite) and selenotellurides (kawazulite, skippenite, poubaite). Clausthalite was the latest mineral to crystallize.

The appearance of tellurides after initial deposition of sulfides reflects an increase in the fTe₂/fS₂ ratio, most likely due to input of H₂Te from a magmatic source [21].

Consecutive change of tellurides by selenotellurides and later by selenides indicates increase of selenium fugacity, fSe₂, in relation to fTe₂ and fS₂ [22]. Similar order of mineral formation was detected in some other deposits, e.g., in Ozernovskoe and Prasolovskoe epithermal gold deposits in Kurily islands, Russia [35].

The relatively large stability field of clausthalite in the fSe₂-fTe₂ and fSe₂-fS₂ diagrams [21] determines clausthalite abundance in the deposits in the region and association of this selenide with tellurides of other metals.

Crystallization of molybdenite in the Ozernoe was a long process: the early molybdenite associates with melonite and altaite, which form along cleavage in molybdenite, and the late Se-rich molybdenite probably formed at the time of crystallization of selenium minerals (outer parts of molybdenite flakes are enriched with Se).

Composition of all studied selenotellurides, kawazulite-skippenite, and poubaite varies within wide limits of Se/Te ratio. Skippenite and kawazulite show the full range of miscibility (Figure 12). X-ray study of minerals with intermediate composition [10] showed homogeneity of mineral phases (no thickening or doubling of peaks in the diffractograms) and intermediate parameters of the crystal cell, which are in between kawazulite and skippenite parameters. This indicates that intermediate phases formed due to isomorphic substitution of Se and Te in the minerals, and do not constitute a mixture of kawazulite and skippenite.

Except for Se-Te substitution, the minerals of kawazulite-skippenite series contain Pb up to 11 wt.%, which occupies the position of bismuth.

Substitution of Co, Ni, and Fe plays an important role in melonite and mattagamite. Many mattagamites from the Ozernoe and Juomasuo contain significant Fe (up to 10 wt.%, which corresponds to 0.48 formulae units), but high Ni (~10 wt.%, 0.48 formulae units) was detected only in one of the studied mattagamites. High cobalt was detected in nickel telluride in the Juomasuo and Konttiaho: cobalt makes 0.24–0.49 atoms per formulae unit in (Co,Ni)Te₂ [2].

Absence of sulfotellurides and sulfoselenides in the deposits indicates low fugacity of S at the time of crystallization of tellurides and selenides. Low sulfur activity and high activity of Se is confirmed by replacement of sulfides and tellurides by claushalite and by crystallization of Se-rich molybdenite at the late stages of the Ozernoe occurrence.

The established facts of irregular distribution of Re impurity in molybdenites and mobility of Re during molybdenite oxidation and replacement by powellite should be taken into account when molybdenites are used for geochronology (with the Re-Os method): removal of rhenium from molybdenite in the zone of weathering may result in obtaining a more ancient age of the mineralized rock.

5. Conclusions

Mineralization of Te and Se was found in gold deposits and uranium occurrences, located in the Paleoproterozoic greenstone belts. The deposits are of different genesis, but all of them formed at the late stages of the Svecofennian orogeny, and they have common geochemical association of metals Au, Cu, Co, U, Bi, Te, and Se.

In the Salla-Kuolajarvi and Perapohja belts, Au, Se, and Te mineralization formed in altered metamorphic rocks with high-temperature(~300 °C) fluids, potentially linked with the post-Svecofennian intrusions of post-orogenic granites (1.79–1.75 Ga). This link is supported by the data on age of Au-, Se-, andTe-mineralized rocks in the deposits. Age of mineralization in the Kuusamo belt deposits is not defined up to date, and relations of mineralization and magmatic events are not clear, which is a challenge for the future.

Findings of tellurium mineralization are much more frequent than of selenium in the region. The most diversified selenium mineralization (clausthalite, klockmannite, kawazulite, skippenite, poubaite) was discovered in the deposits located in the Russian part of the Salla-Kuolajarvi belt. Formation of telluride and/or selenide mineralization is controlled by fugacity ratios fTe₂/fS₂, fSe₂/fS₂, and fSe₂/fTe₂. Consecutive change of sulfides by tellurides, tellurides by selenotellurides, and then by selenides in the studied deposits is caused by increase of tellurium and, later, selenium fugacity in the mineralizing fluids.

In the Ozernoe uranium occurrence, the main mineral-concentrator of selenium is molybdenite, which contains up to 16 wt.% of Se in the marginal parts of the grains. This is the highest selenium content ever detected in molybdenite.
