Combined Influence of Low-Grade Metakaolins and Natural Zeolite on Compressive Strength and Heavy Metal Adsorption of Geopolymers
Abstract
:1. Introduction
2. Materials and Methods
2.1. Materials Used for Geopolymerization
2.2. Fabrication of Geopolymers
2.3. Methods
3. Results and Discussion
3.1. Characterization of Base Materials

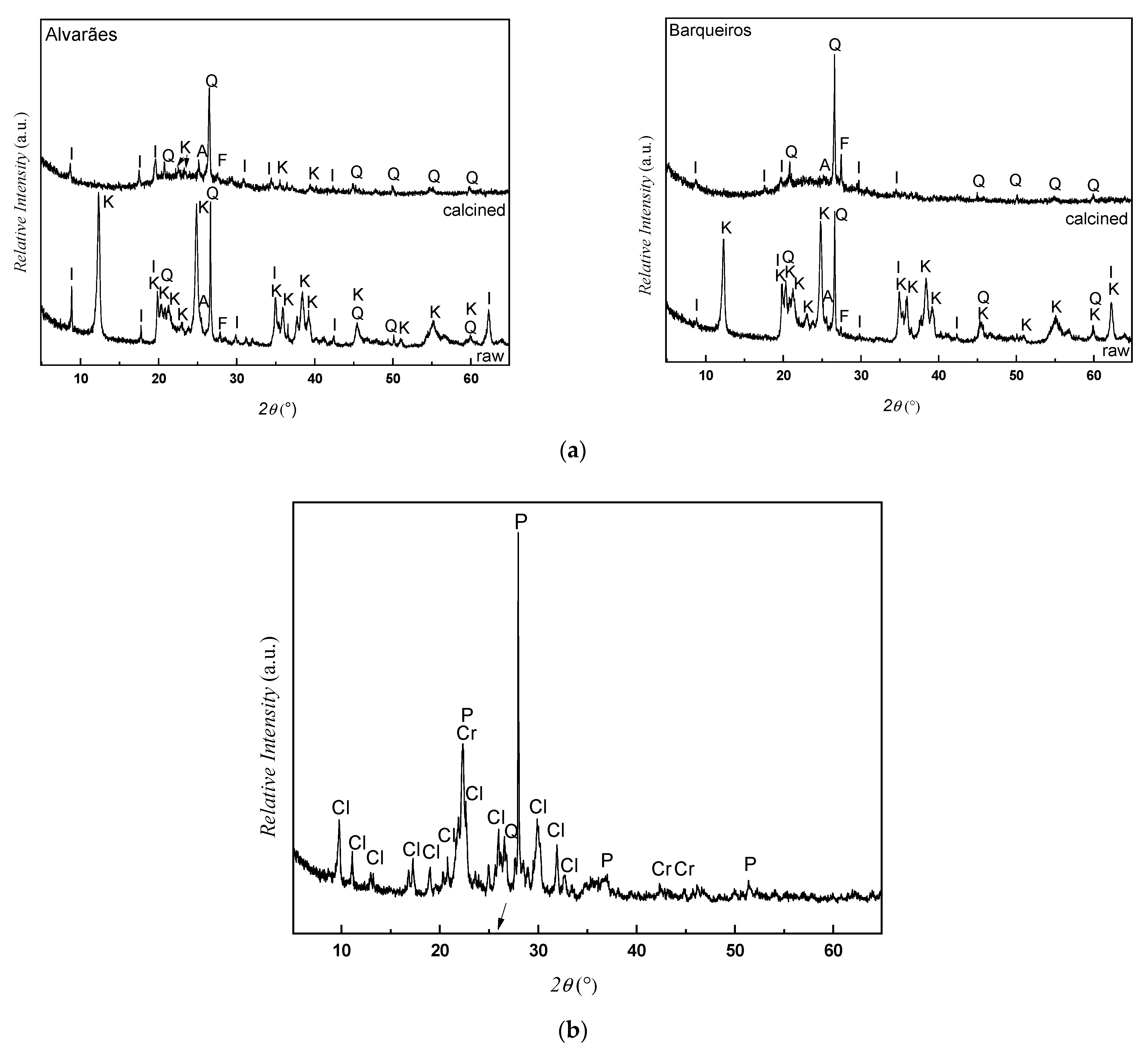

3.1.1. X-Ray Diffraction (XRD) Analysis
3.1.2. Chemical Analysis by X-ray Fluorescence (XRF)
3.1.3. Morphology Characterization Using Scanning Electron Microscopy/Energy-Dispersive X-ray Spectroscopy (SEM/EDS)
3.2. Characterization of Geopolymers

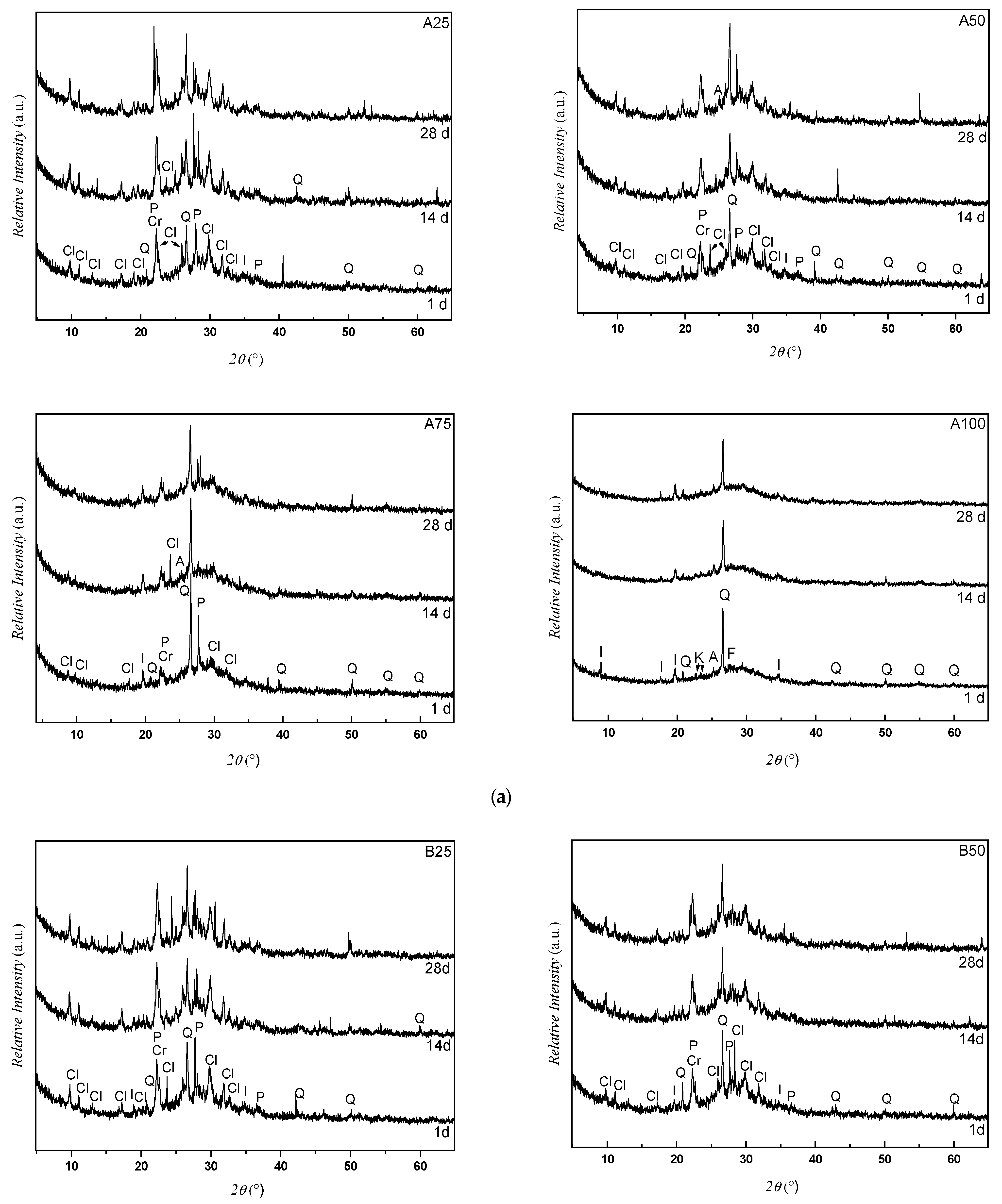

3.2.1. XRD Analysis
3.2.2. SEM/EDS Analysis

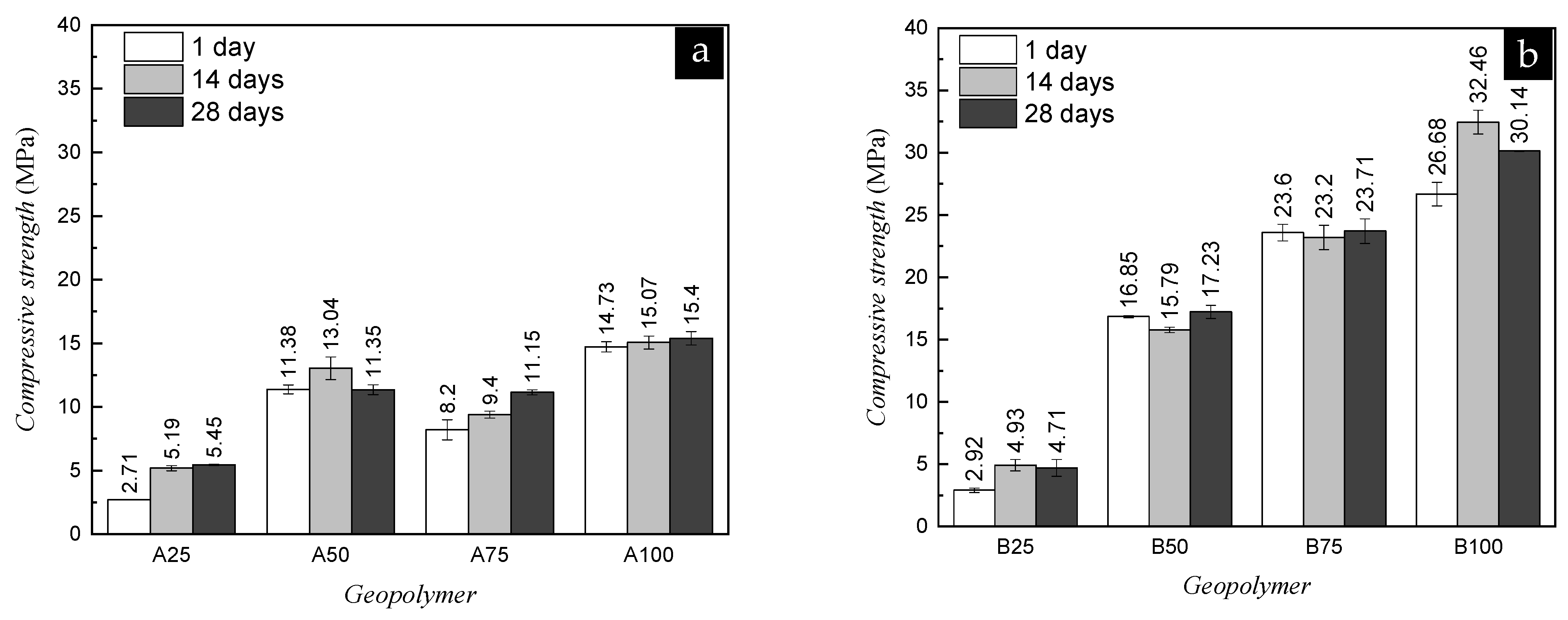

3.2.3. Compressive Strength Rc
3.2.4. Heavy Metal Adsorption
- (a)
- Adsorption of Pb2+
- (b)
- Adsorption of Cd2+
- (c)
- Adsorption of Zn2+ and Cu2+
- (d)
- Adsorption of Cr3+
3.2.5. Effect of Geopolymer Components on Heavy Metal Adsorption
4. Conclusions
- The highest compressive strength is obtained for 100% MK geopolymers (A100—15.4 MPa; B100—32.46 MPa after 28 and 14 days of curing, respectively). The Barqueiros MK imparts higher compressive strength to the geopolymer structure than Alvarães MK because of Barqueiros kaolin’s greater calcination extent. Natural zeolite lowers the compressive strength probably because of unreacted crystalline phases introduced in the geopolymer matrix.
- The B100 geopolymer surface appears compact and without unreacted thin-layered structure particles, validating the higher degree of geopolymerization in MK geopolymers due to the extremely fine nature and effective calcination of Barqueiros kaolin.
- Portuguese MK-based geopolymers show the highest adsorption capacity for Pb(II) and the adsorption trend is Pb2+ > Cd2+ > Cu2+ > Zn2+ > Cr3+. Barqueiros MK geopolymers’ adsorption capacity is higher than that of Alvarães MK geopolymers for all cations except Cd(II).
- The optimal composition for Barqueiros MK geopolymers is 25% zeolite—75% MK (B75), and for Alvarães MK geopolymer is 100% MK (A100) for the highest adsorption capacity of heavy metals.
- The effect of zeolite addition on the geopolymer strength and adsorption capacities depends on the type of MK used. Nonetheless, Portuguese MK-based geopolymers have higher compressive strengths and adsorption capacities as compared to commercial MK-based geopolymers. Therefore, low-grade kaolins can be attractive alternatives to high-grade commercial kaolins as construction materials and adsorbents.
Supplementary Materials
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- Davidovits, J. Geopolymer Chemistry and Applications, 5th ed.; Davidovits, J., Ed.; Institut Géopolymère: Saint-Quentin, France, 2020. [Google Scholar]
- Assi, L.N.; Carter, K.; Deaver, E.; Ziehl, P. Review of availability of source materials for geopolymer/sustainable concrete. J. Clean. Prod. 2020, 263, 121477. [Google Scholar] [CrossRef]
- Ma, C.-K.; Awang, A.Z.; Omar, W. Structural and material performance of geopolymer concrete: A review. Constr. Build. Mater. 2018, 186, 90–102. [Google Scholar] [CrossRef]
- Han, L.; Wang, J.; Liu, Z.; Zhang, Y.; Jin, Y.; Li, J.; Wang, D. Synthesis of fly ash-based self-supported zeolites foam geopolymer via saturated steam treatment. J. Hazard. Mater. 2020, 393, 122468. [Google Scholar] [CrossRef] [PubMed]
- Minelli, M.; Papa, E.; Medri, V.; Miccio, F.; Benito, P.; Doghieri, F.; Landi, E. Characterization of novel geopolymer—Zeolite composites as solid adsorbents for CO2 capture. Chem. Eng. J. 2018, 341, 505–515. [Google Scholar] [CrossRef]
- Chen, H.; Zhang, Y.J.; He, P.Y.; Li, C.J.; Li, H. Coupling of self-supporting geopolymer membrane with intercepted Cr(III) for dye wastewater treatment by hybrid photocatalysis and membrane separation. Appl. Surf. Sci. 2020, 515, 146024. [Google Scholar] [CrossRef]
- He, P.Y.; Zhang, Y.J.; Chen, H.; Han, Z.C.; Liu, L.C. Low-cost and facile synthesis of geopolymer-zeolite composite membrane for chromium(VI) separation from aqueous solution. J. Hazard. Mater. 2020, 392, 122359. [Google Scholar] [CrossRef] [PubMed]
- Zhang, P.; Zheng, Y.; Wang, K.; Zhang, J. A review on properties of fresh and hardened geopolymer mortar. Compos. Part B Eng. 2018, 152, 79–95. [Google Scholar] [CrossRef]
- Li, Y.; Li, L.; Yu, J. Applications of Zeolites in Sustainable Chemistry. Chem 2017, 3, 928–949. [Google Scholar] [CrossRef] [Green Version]
- Yuna, Z. Review of the Natural, Modified, and Synthetic Zeolites for Heavy Metals Removal from Wastewater. Environ. Eng. Sci. 2016, 33, 443–454. [Google Scholar] [CrossRef]
- Rożek, P.; Król, M.; Mozgawa, W. Geopolymer-zeolite composites: A review. J. Clean. Prod. 2019, 230, 557–579. [Google Scholar] [CrossRef]
- National Ready Mixed Concrete Association. Concrete in practice, in CIP 35-Testing Compressive Strength of Concrete; National Ready Mixed Concrete Association: Silver Sring, MD, USA, 2003. [Google Scholar]
- Strength of Cement. Concrete Technology 2020. Available online: https://buildingresearch.com.np/services/ct/ct2.php#:~:text=Grades%20mentioned%20in%20the%20cement,will%20be%20of%2053%20MPa (accessed on 9 June 2020).
- Mathur, R.; Misra, A.K.; Goel, P. Strength of Concrete vs. Grades of Cement; NBM Media Pvt. Ltd.: New Delhi, India, 2011; Available online: https://www.nbmcw.com/tech-articles/concrete/25796-strength-of-concrete-vs-grades-of-cement.html (accessed on 1 May 2021).
- Ji, Z.; Pei, Y. Bibliographic and visualized analysis of geopolymer research and its application in heavy metal immobilization: A review. J. Environ. Manag. 2019, 231, 256–267. [Google Scholar] [CrossRef] [PubMed]
- Zhang, Y.; Wei, S.; Qianli, C.; Lin, C. Synthesis and heavy metal immobilization behaviors of slag based geopolymer. J. Hazard. Mater. 2007, 143, 206–213. [Google Scholar] [CrossRef]
- Rasaki, S.A.; Bingxue, Z.; Guarecuco, R.; Thomas, T.; Minghui, Y. Geopolymer for use in heavy metals adsorption, and advanced oxidative processes: A critical review. J. Clean. Prod. 2019, 213, 42–58. [Google Scholar] [CrossRef]
- Luukkonen, T.; Tolonen, E.-T.; Runtti, H.; Kemppainen, K.; Perämäki, P.; Rämö, J.; Lassi, U. Optimization of the metakaolin geopolymer preparation for maximized ammonium adsorption capacity. J. Mater. Sci. 2017, 52, 9363–9376. [Google Scholar] [CrossRef]
- Siyal, A.A.; Shamsuddin, M.R.; Khan, M.I.; Rabat, N.E.; Zulfiqar, M.; Man, Z.; Siame, J.; Azizli, K.A. A review on geopolymers as emerging materials for the adsorption of heavy metals and dyes. J. Environ. Manag. 2018, 224, 327–339. [Google Scholar] [CrossRef] [PubMed]
- Lopes, C.; Lisboa, V.; Carvalho, J.; Mateus, A.; Martins, L. Challenges to access and safeguard mineral resources for society: A case study of kaolin in Portugal. Land Use Policy 2018, 79, 263–284. [Google Scholar] [CrossRef]
- Santos, I.; Costa, C.; Quintela, A.; Terroso, D.; Ferraz, E.; Rocha, F.; Dorzhieva, O.; Krupskaya, V.; Vigasina, M. Mineralogical composition of sedimentary and residual kaolin deposits from Portugal. Comun. Geológicas 2014, 101, 195–197. [Google Scholar]
- Andrejkovičová, S.; Sudagar, A.; Rocha, J.; Patinha, C.; Hajjaji, W.; Ferreira da Silva, E.; Velosa, A.; Rocha, F. The effect of natural zeolite on microstructure, mechanical and heavy metals adsorption properties of metakaolin based geopolymers. Appl. Clay Sci. 2016, 126, 141–152. [Google Scholar] [CrossRef]
- Sudagar, A.; Andrejkovičová, S.; Patinha, C.; Velosa, A.; McAdam, A.; Da Silva, E.F.; Rocha, F. A novel study on the influence of cork waste residue on metakaolin-zeolite based geopolymers. Appl. Clay Sci. 2018, 152, 196–210. [Google Scholar] [CrossRef]
- Methods of Test. for Mortar for Masonry—Part 11: Determination of Flexural and Compressive Strength of Hardened Mortar; BSI: London, UK, 1999.
- Cadar, O.; Senila, M.; Hoaghia, M.-A.; Scurtu, D.; Miu, I.; Levei, E.A. Effects of Thermal Treatment on Natural Clinoptilolite-Rich Zeolite Behavior in Simulated Biological Fluids. Molecules 2020, 25, 2570. [Google Scholar] [CrossRef]
- Cheng, T.; Lee, M.; Ko, M.; Ueng, T.; Yang, S. The heavy metal adsorption characteristics on metakaolin-based geopolymer. Appl. Clay Sci. 2012, 56, 90–96. [Google Scholar] [CrossRef]
- Zhong, Q.-Q.; Yue, Q.-Y.; Gao, B.-Y.; Li, Q.; Xu, X. A novel amphoteric adsorbent derived from biomass materials: Synthesis and adsorption for Cu(II)/Cr(VI) in single and binary systems. Chem. Eng. J. 2013, 229, 90–98. [Google Scholar] [CrossRef]
- Kara, I.; Yilmazer, D.; Akar, S.T. Metakaolin based geopolymer as an effective adsorbent for adsorption of zinc(II) and nickel(II) ions from aqueous solutions. Appl. Clay Sci. 2017, 139, 54–63. [Google Scholar] [CrossRef]
- Kesraoui-Ouki, S.; Cheeseman, C.; Perry, R. Effects of conditioning and treatment of chabazite and clinoptilolite prior to lead and cadmium removal. Environ. Sci. Technol. 1993, 27, 1108–1116. [Google Scholar] [CrossRef]
- Ćurković, L.; Cerjan-Stefanović, Š.; Filipan, T. Metal ion exchange by natural and modified zeolites. Water Res. 1997, 31, 1379–1382. [Google Scholar] [CrossRef]
- Ouki, S.K.; Kavannagh, M. Performance of Natural Zeolites for the Treatment of Mixed Metal-Contaminated Effluents. Waste Manag. Res. 1997, 15, 383–394. [Google Scholar] [CrossRef]
- Choi, H.-J.; Yu, S.-W.; Kim, K.H. Efficient use of Mg-modified zeolite in the treatment of aqueous solution contaminated with heavy metal toxic ions. J. Taiwan Inst. Chem. Eng. 2016, 63, 482–489. [Google Scholar] [CrossRef]
- Günay, A.; Arslankaya, E.; Tosun, I. Lead removal from aqueous solution by natural and pretreated clinoptilolite: Adsorption equilibrium and kinetics. J. Hazard. Mater. 2007, 146, 362–371. [Google Scholar] [CrossRef] [PubMed]
- Srivastava, S.K.; Tyagi, R.; Pant, N.; Pal, N. Studies on the removal of some toxic metal ions. Part II (removal of lead and cadmium by montmorillonite and kaolinite). Environ. Technol. Lett. 1989, 10, 275–282. [Google Scholar] [CrossRef]
- Jiang, M.-Q.; Jin, X.-Y.; Lu, X.-Q.; Chen, Z.-L. Adsorption of Pb(II), Cd(II), Ni(II) and Cu(II) onto natural kaolinite clay. Desalination 2010, 252, 33–39. [Google Scholar] [CrossRef]
- Al-Harahsheh, M.; Shawabkeh, R.; Al-Harahsheh, A.; Tarawneh, K.; Batiha, M.M. Surface modification and characterization of Jordanian kaolinite: Application for lead removal from aqueous solutions. Appl. Surf. Sci. 2009, 255, 8098–8103. [Google Scholar] [CrossRef]
- Bhattacharyya, K.G.; Gupta, S.S. Adsorptive Accumulation of Cd(II), Co(II), Cu(II), Pb(II) and Ni(II) Ions from Water onto Kaolinite: Influence of Acid Activation. Adsorpt. Sci. Technol. 2009, 27, 47–68. [Google Scholar] [CrossRef]
- Erdem, E.; Karapinar, N.; Donat, R. The removal of heavy metal cations by natural zeolites. J. Colloid Interface Sci. 2004, 280, 309–314. [Google Scholar] [CrossRef]
- Panayotova, M. Kinetics and thermodynamics of copper ions removal from wastewater by use of zeolite. Waste Manag. 2001, 21, 671–676. [Google Scholar] [CrossRef]
- Alvarez-Ayuso, E.; Garcia-Sanchez, A.; Querol, X. Purification of metal electroplating waste waters using zeolites. Water Res. 2003, 37, 4855–4862. [Google Scholar] [CrossRef] [PubMed]
- Sljivic, M.; Smiciklas, I.; Pejanovic, S.; Plecas, I. Comparative study of Cu2+ adsorption on a zeolite, a clay and a diatomite from Serbia. Appl. Clay Sci. 2009, 43, 33–40. [Google Scholar] [CrossRef]
- Yavuz, Ö.; Altunkaynak, Y.; Güzel, F. Removal of copper, nickel, cobalt and manganese from aqueous solution by kaolinite. Water Res. 2003, 37, 948–952. [Google Scholar] [CrossRef]
- El-Eswed, B.; Yousef, R.I.; Alshaaer, M.; Hamadneh, I.; Khalili, F. Adsorption of Cu(II), Ni(II), Zn(II), Cd(II) and Pb(II) onto kaolin/zeolite based-geopolymers. Adv. Mater. Phys. Chem. 2012, 2, 119–125. [Google Scholar] [CrossRef] [Green Version]
- Chai, W.; Huang, Y.; Su, S.; Han, G.; Liu, J.; Cao, Y. Adsorption behavior of Zn(II) onto natural minerals in wastewater A comparative study of bentonite and kaolinite. Physicochem. Probl. Miner. Process. 2016, 53, 264–278. [Google Scholar]
- Gupta, S.S.; Bhattacharyya, K.G. Removal of Cd(II) from aqueous solution by kaolinite, montmorillonite and their poly(oxo zir-conium) and tetrabutylammonium derivatives. J. Hazard. Mater. 2006, 128, 247–257. [Google Scholar] [CrossRef]
Features/Properties | Values | |
---|---|---|
Alvarães | Barqueiros | |
Whiteness | 65–75 | 75–85 |
Density (g/mL) | 2.4–2.7 | 2.4–2.7 |
Oil Absorption | 31–45 | 31–45 |
pH | 4–7 | 5–8 |
Residue at 53 μm (%) | <0.5 | <0.3 |
Water absorption (%) | 23 ± 3 (1180 °C) | 24 ± 3 (1220 °C) |
Sample | Composition, wt. (%) | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Na2O | MgO | Al2O3 | SiO2 | P2O5 | K2O | CaO | TiO2 | Fe2O3 | L.O.I. | ||
Alvarães | Kaolin | 0.048 | 0.22 | 38.86 | 45.06 | 0.09 | 1.19 | 0.01 | 0.52 | 1.14 | 12.63 |
MK | 0.079 | 0.24 | 44.13 | 51.20 | 0.10 | 1.36 | 0.01 | 0.61 | 1.34 | 0.66 | |
Barqueiros | Kaolin | 0.057 | 0.25 | 36.92 | 46.92 | 0.10 | 1.16 | 0.05 | 0.37 | 1.17 | 12.83 |
MK | 0.092 | 0.30 | 41.97 | 53.39 | 0.12 | 1.38 | 0.06 | 0.42 | 1.32 | 0.79 | |
Zeolite | 0.314 | 0.85 | 12.07 | 70.61 | 0.04 | 3.66 | 3.39 | 0.20 | 1.78 | 6.89 |
Heavy Metal | Adsorbent | Treatment | Source | Temperature (°C) | Time (h) | Q (mmol/g) | Reference |
---|---|---|---|---|---|---|---|
Pb(II) | Natural zeolite | Raw | - | - | 3 | 0.30 | [29] |
NaOH treated | - | - | 3 | 0.48 | |||
Raw | Croatia | 20 | 24 | 0.38 | [30] | ||
NaCl treated | Croatia | 20 | 24 | 0.44 | |||
NaCl treated | Croatia | 70 | 24 | 0.58 | |||
Raw | - | RT | 24 | 0.03 | [31] | ||
Mg-Zeolite | - | 23 | - | 0.28 | [32] | ||
Raw | - | 22 | 4 | 0.39 | [33] | ||
NaCl treated | - | 22 | 4 | 0.59 | |||
Natural kaolinite | H2O2 treated | USA | 30 | 48 | 0.03 | [34] | |
Heat-treated | China | 30 | 1 | 0.01 | [35] | ||
Raw | Jordan | 22 | 24 | 0.06 | [36] | ||
Acid treated | Jordan | 22 | 24 | 0.25 | |||
Surface modified | Jordan | 22 | 24 | 0.26 | |||
Raw | USA | 30 | 3 | 0.05 | [37] | ||
H2SO4 treated | USA | 30 | 3 | 0.06 | |||
Geopolymer | MK | - | 25 | 24 | 0.71 | [26] | |
Commercial MK-zeolite | - | RT | 7 | 1.26 | [22] | ||
Alvarães MK-zeolite | - | RT | 7 | 1.43 | This study | ||
Barqueiros MK-zeolite | - | RT | 7 | 1.50 | |||
Cu(II) | Natural zeolite | Raw | Anatolia | 25 | 5.5 | 0.14 | [38] |
Raw | Bulgaria | constant | 4 | 0.11 | [39] | ||
Raw | Greece | 22 | 6 | 0.09 | [40] | ||
Raw | - | RT | 24 | 0.06 | [31] | ||
Raw | Serbia | 20 | 24 | 0.13 | [41] | ||
Mg modified zeolite | - | 23 | - | 0.24 | [32] | ||
Natural kaolinite | Raw | Turkey | 25 | 2 | 0.17 | [42] | |
Heat-treated | China | 30 | 1 | 0.02 | [35] | ||
Raw | USA | 30 | 6 | 0.14 | [37] | ||
H2SO4 treated | USA | 30 | 6 | 0.16 | |||
Geopolymer | MK | - | 25 | 24 | 0.77 | [26] | |
Zeolite tuff | - | 25 | 24 | 0.52 | [43] | ||
Commercial MK-zeolite | - | RT | 7 | 0.70 | [22] | ||
Alvarães MK-zeolite | - | RT | 7 | 0.90 | This study | ||
Barqueiros MK-zeolite | - | RT | 7 | 0.93 | |||
Zn(II) | Natural zeolite | Raw | Anatolia | 25 | 5.5 | 0.13 | [38] |
Raw | Greece | 22 | 6 | 0.05 | [40] | ||
Raw | Turkey | 25 | 5.5 | 0.34 | [10] | ||
Raw | - | RT | 24 | 0.04 | [31] | ||
Natural kaolinite | Heat-treated | China | 25 | 1 | 0.097 | [44] | |
Geopolymer | MK | - | 25 | 24 | 1.14 | [28] | |
Zeolite tuff | - | 25 | 24 | 0.41 | [43] | ||
Commercial MK-zeolite | - | RT | 7 | 0.55 | [22] | ||
Alvarães MK-zeolite | - | RT | 7 | 0.66 | This study | ||
Barqueiros MK-zeolite | - | RT | 7 | 0.70 | |||
Cd(II) | Natural zeolite | Raw | - | - | 3 | 0.53 | [29] |
NaOH treated | - | - | 3 | 0.62 | |||
Raw | Croatia | 20 | 24 | 0.12 | [30] | ||
NaCl treated | Croatia | 20 | 24 | 0.21 | |||
Raw | - | RT | 24 | 0.03 | [31] | ||
Mg modified zeolite | - | 23 | - | 0.33 | [32] | ||
Raw | Greece | 22 | 6 | 0.04 | [40] | ||
Natural kaolinite | Raw | USA | 30 | 4 | 0.09 | [37] | |
H2SO4 treated | USA | 30 | 4 | 0.10 | |||
Raw | USA | 30 | 4 | 0.06 | [45] | ||
Poly(hydroxo zirconium) modified | USA | 30 | 4 | 0.05 | |||
Tetrabutylammonium modified | USA | 30 | 4 | 0.06 | |||
H2O2 treated | USA | 30 | 48 | 0.08 | [34] | ||
Heat-treated | China | 30 | 1 | 0.008 | [35] | ||
Geopolymer | MK | - | 25 | 24 | 0.60 | [26] | |
Zeolite tuff | - | 25 | 24 | 0.39 | [43] | ||
Commercial MK-zeolite | - | RT | 7 | 0.87 | [22] | ||
Alvarães MK-zeolite | - | RT | 7 | 1.00 | This study | ||
Barqueiros MK-zeolite | - | RT | 7 | 0.86 |
