1. Introduction
The problem of dynamic fragmentation is a scientific field that has been unresolved for a long time. Compared with the quasi-static fracture of plastic materials, a dynamic fracture is more difficult to understand [
1,
2,
3]. Dynamic fracture is challenging to study because this process involves complex interactions over an extensive period and space. The main hazard of dynamic fracture is the kinetic energy carried by the ejected fragments during the occurrence. The speed of the destruction of the block sometimes even exceeds 1000 m/s, which is extremely harmful to human activities and the natural environment. [
4,
5,
6]. The compression and fragmentation of brittle materials are not limited to impact loading. Under the action of the quasi-static compression load, ceramic specimens can still undergo “explosive” damage [
7]. Since the research by Mott [
8], the dynamic fracture and fragmentation of solids have been a hot research topic. The dynamic fracture of brittle materials can be studied by the uniaxial compression test [
9,
10], conventional triaxial unloading test [
11], true triaxial rock-burst test [
12,
13], and high-speed impact test [
14,
15]. Among them, the traditional uniaxial compression and triaxial tests have lower loading rates, which are generally considered to be quasi-static loading, while split Hopkinson pressure bar (SHPB) loading and high-speed impact tests are dynamic loadings [
10,
16]. Except for conventional triaxial tests restricted by hydraulic cylinders, dynamic fragmentation can be observed in other loading conditions. The most commonly used observation instrument is a high-speed camera that can track particle trajectories and speed measurement [
17].
The particle tracking dynamic system can realize the movement tracking of complex and large numbers of particles. This technology is mainly used in high-speed impact tests [
18]. The laboratory conducts dynamic fracture experiments of brittle materials to study phenomena such as rock bursts, volcanic eruptions, earthquakes, and planetary collisions. Commonly used experimental materials are basalt [
19], quartz [
20,
21], sandstone, etc. [
18]. The research focuses on the particle velocity distribution after dynamic fracture [
15], fragment size [
10], rebound angle [
14], etc.

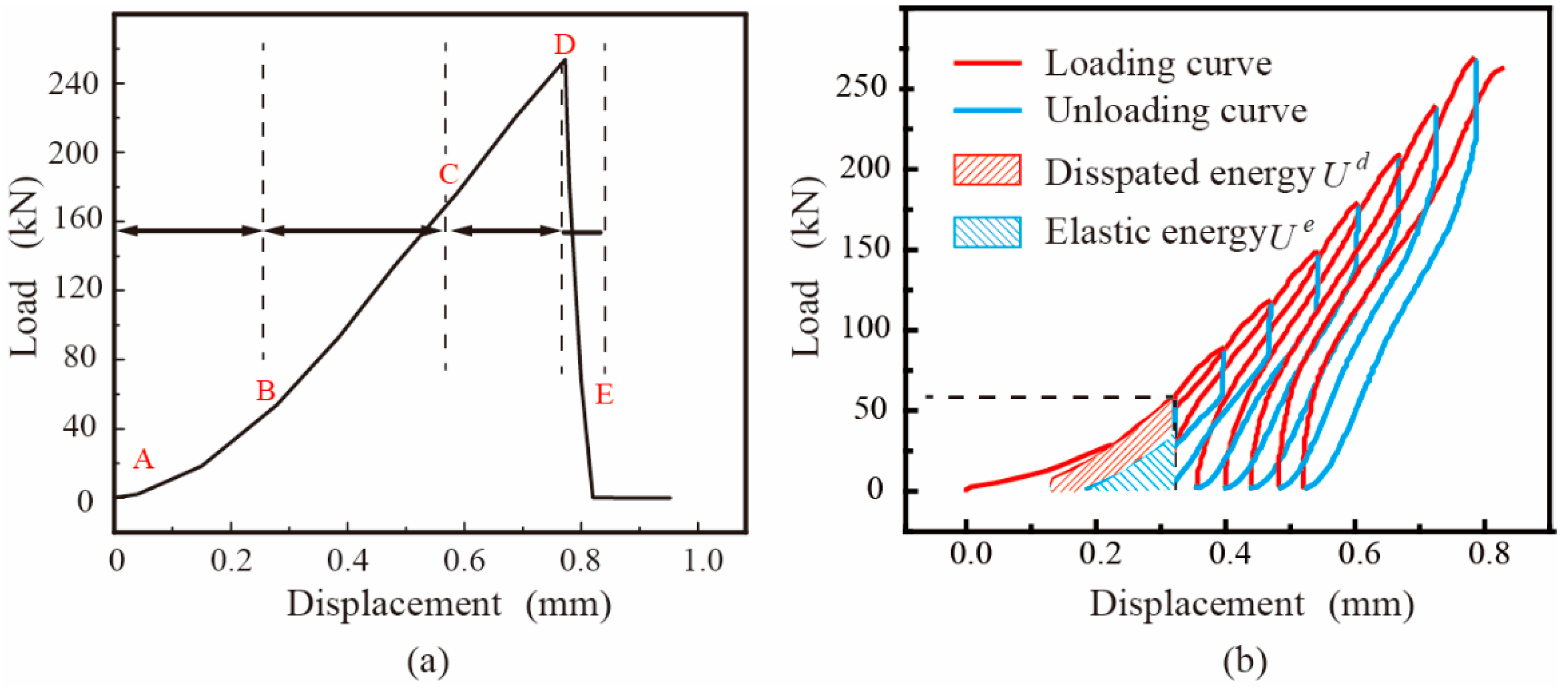

Energy evolution is a common method for studying dynamic fracture. The quasi-static loading method calculates the input energy through the load-displacement curve [
22], and the SHPB loading calculates the absorbed energy of the specimen through the incident and transmitted waves [
23]. The high-speed dynamic experiment considers that the kinetic energy of the bullet is input energy [
14].
The speed of broken particles can be measured by image tracking technology, and the kinetic energy can be calculated by weighing the particles. Based on the law of conservation of energy, the dissipative heat energy generated by the force-heat coupling process can be studied [
24]. Xie [
22,
25,
26] found that studying the energy dissipation and energy release of rock mass structures from the perspective of macroscopic energy conservation can be used to estimate the splash velocity of fragmented rock blocks. Li et al. [
10] used SHPB to study the dynamic crushing particle size characteristics, fragment distribution and crushing laws of rock materials. Rait et al. [
27] used the discrete element method to study the effect of the loading rate on static fracture and dynamic fracture and analyzed the relationship between the kinetic energy and frictional energy dissipation during the comminution process. Wang et al. [
28] studied the energy distribution during the quasi-static confined comminution of granular materials. Xiao et al. [
29] analyzed and compared the energy dissipation law of carbonate sand quasi-static and dynamic compression. Zhang [
30] studied the average fragmentation and velocity of the debris under a quasi-static load of brittle materials, which agree with the theoretical calculations. The above research mainly focused on the average particle size and velocity and did not involve the velocity and kinetic energy distribution of the characteristic particle size. Exploring the dynamic fracture mechanism of brittle materials requires in-depth research on the speed, kinetic energy, and temporal and spatial distribution characteristics of particles of different sizes produced by crushing.

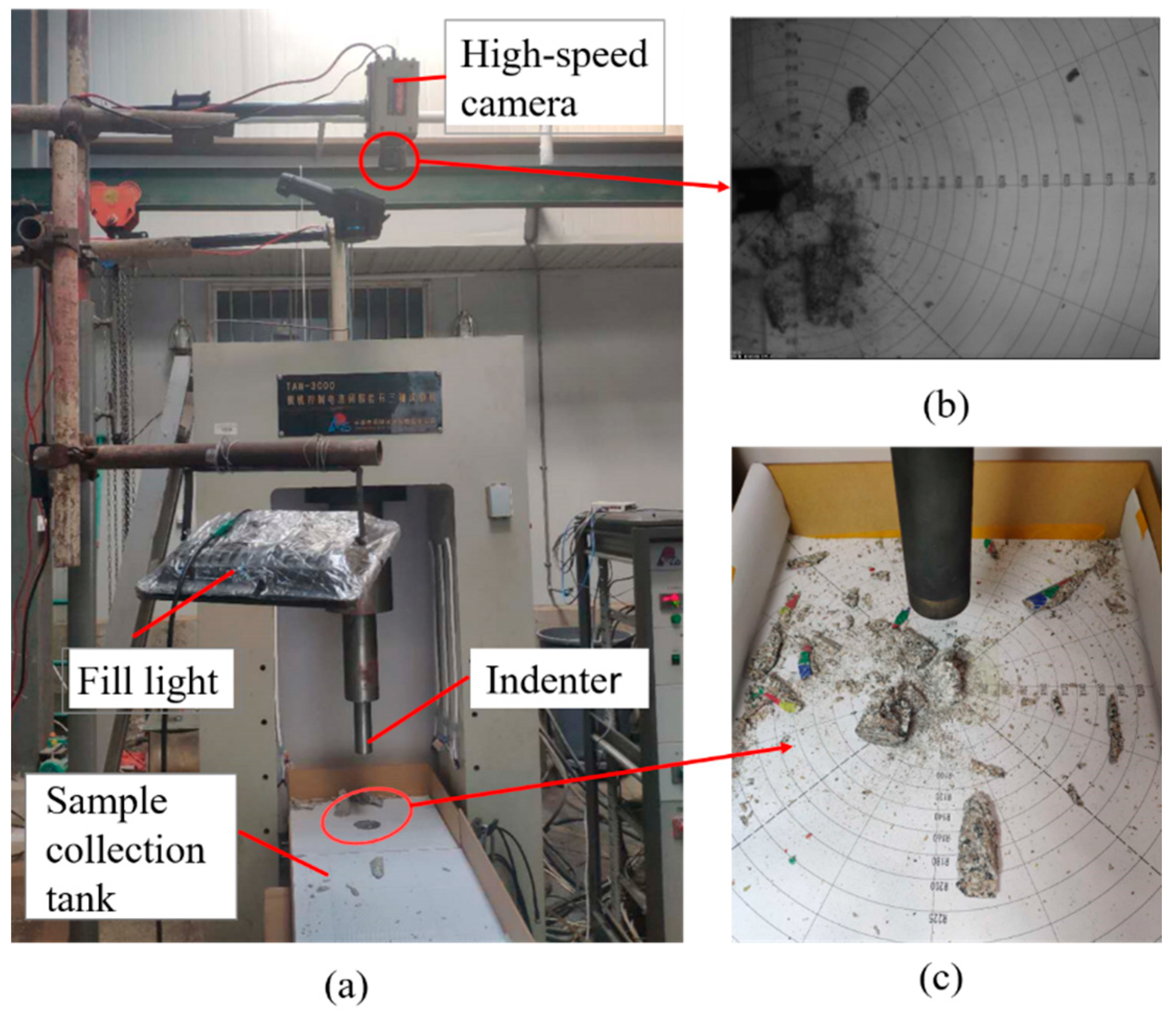

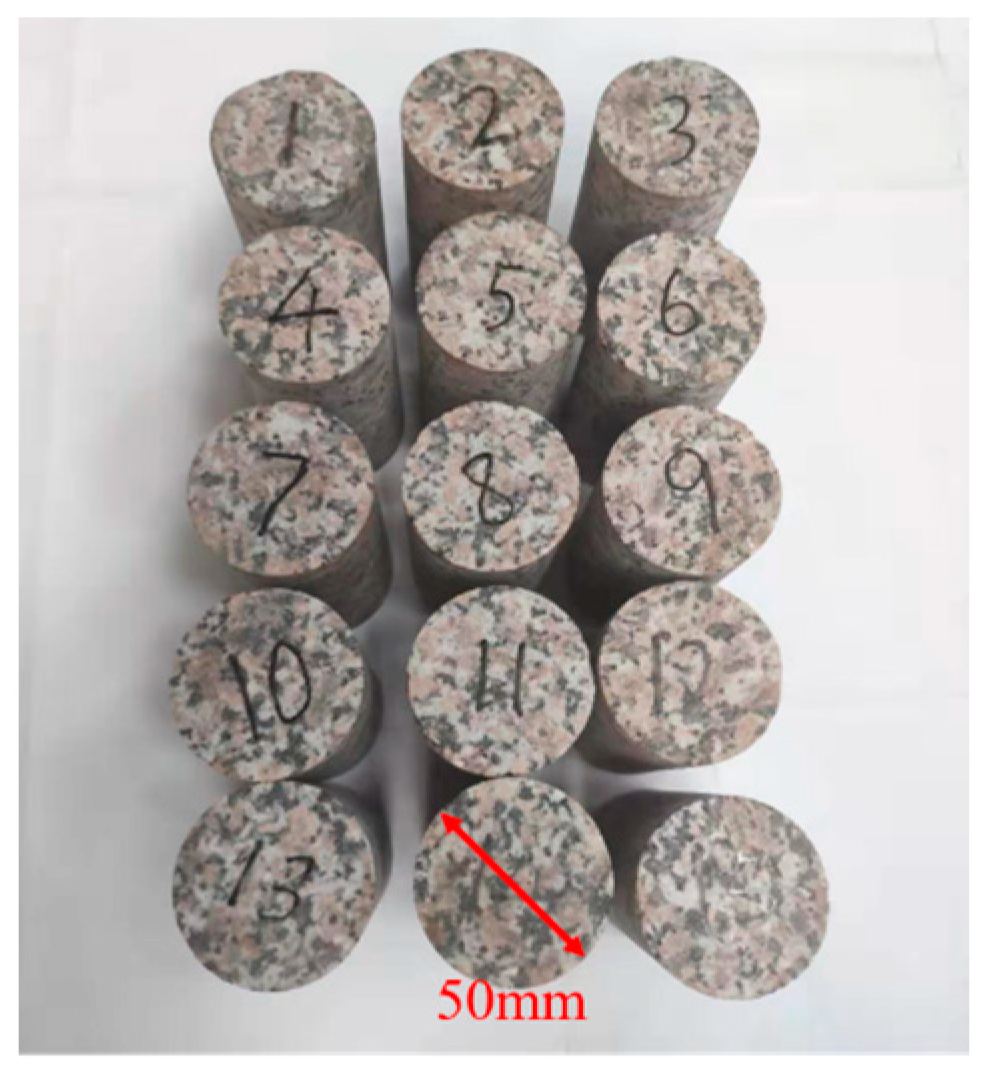

In response to the above problems, this paper uses high-speed camera technology and digital image motion analysis software to study the velocity–size relationship of particles produced by uniaxial compression crushing of granite and the contribution of products of different sizes to kinetic energy. The coordinate method is used to study the spatial characteristics of fragment distribution at different scales. The color tracking method is used to study the relationship between the spatial characteristics of the fragment distribution and the generation location. The research methods and results have positive significance for describing the splash particles’ temporal and spatial characteristics and revealing the kinetic energy release law of the dynamic fracture of brittle materials. At the same time, it is of positive significance for the quantitative calculation of dissipative heat energy and the study of energy evolution in the comminution process.
4. Conclusions

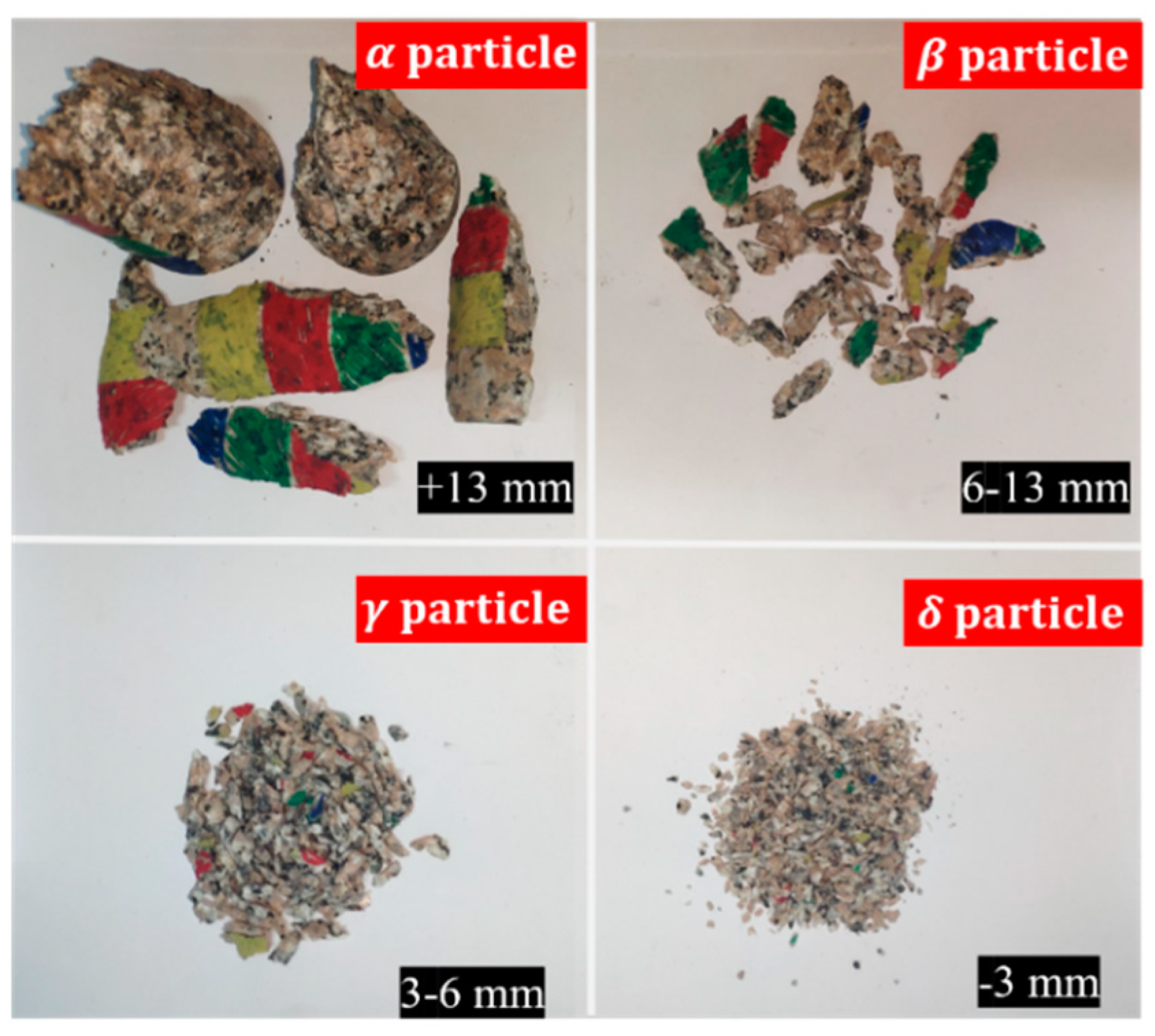

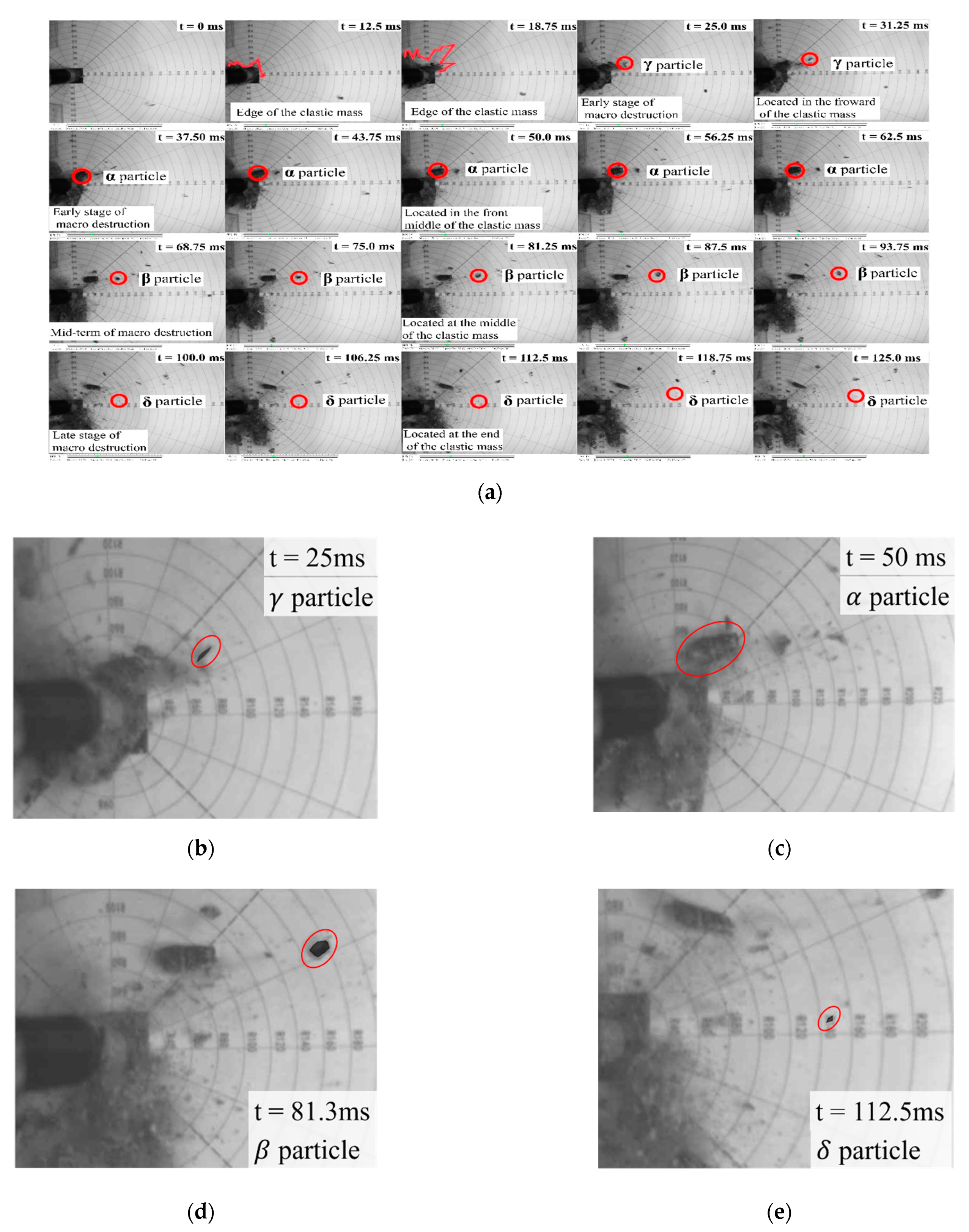

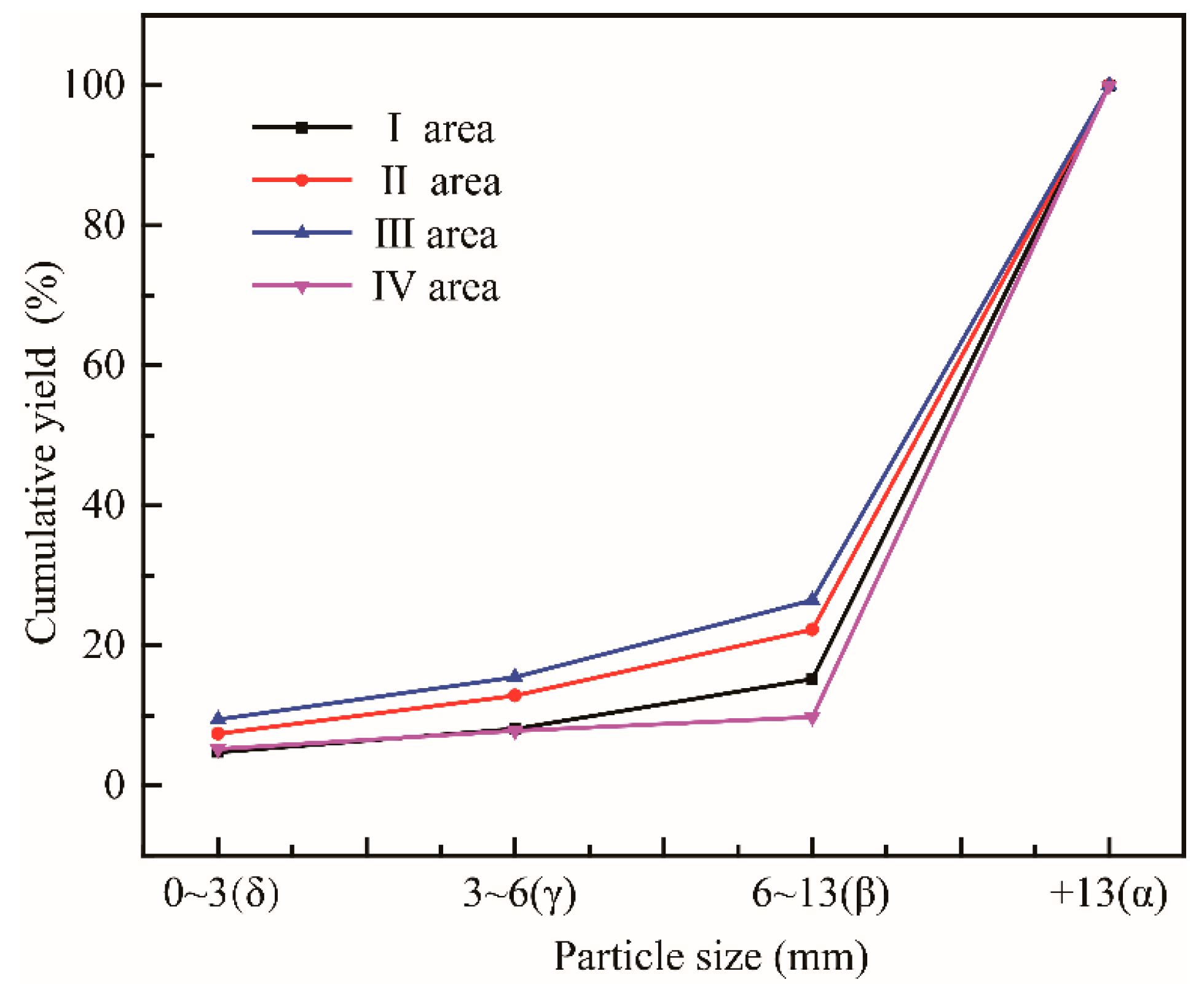

The fragments are divided into four types of particles according to the particle size.

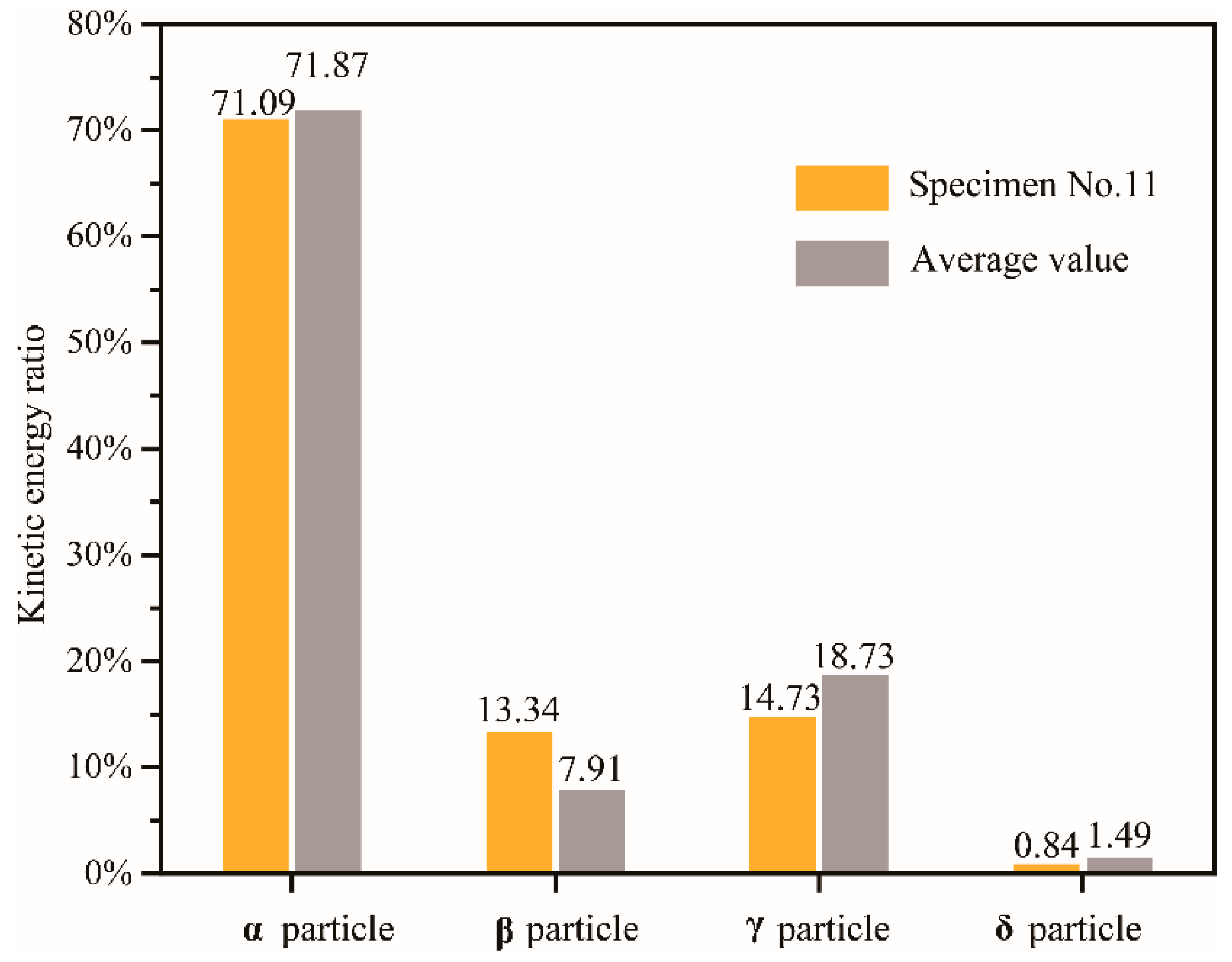

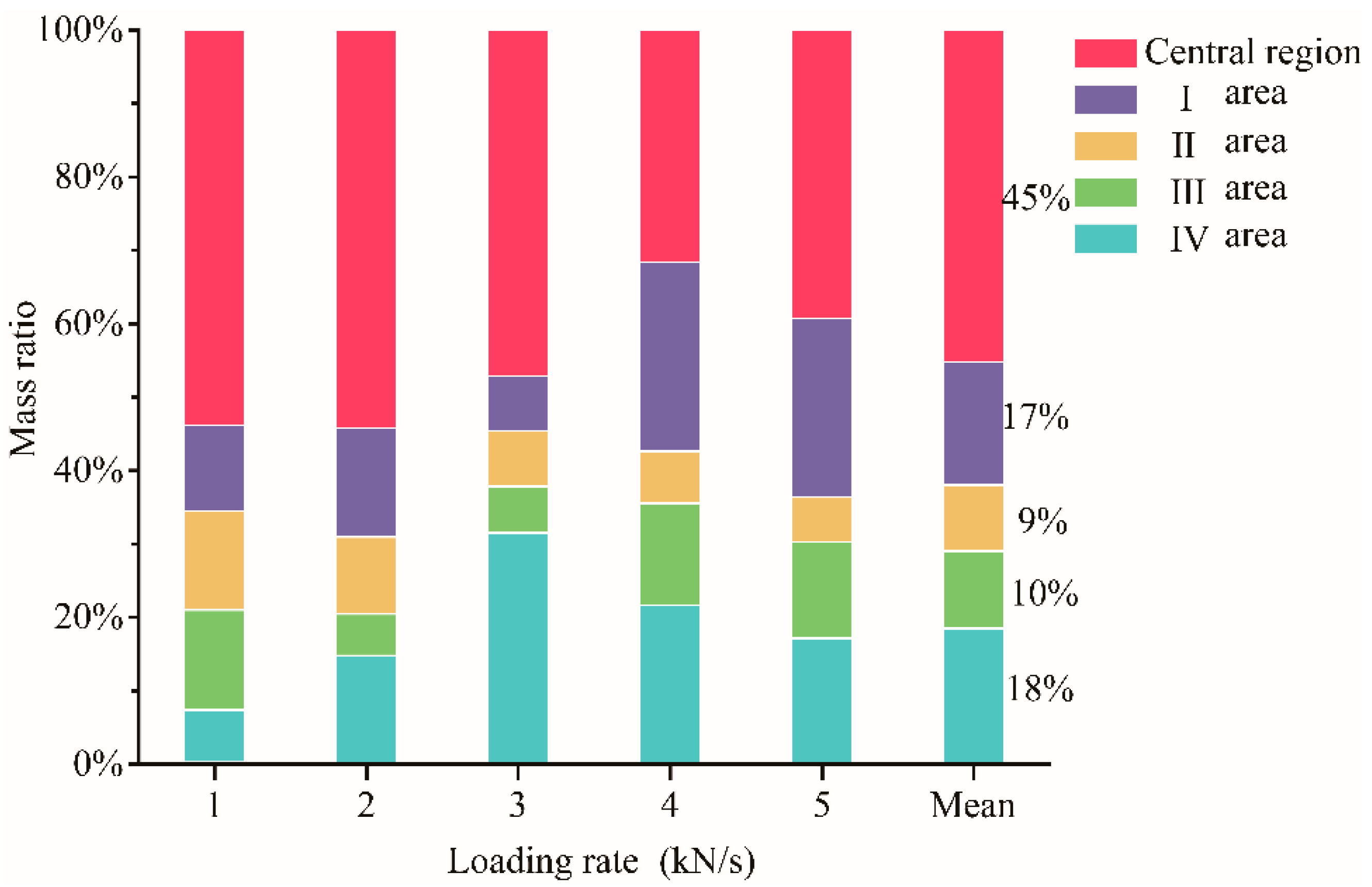

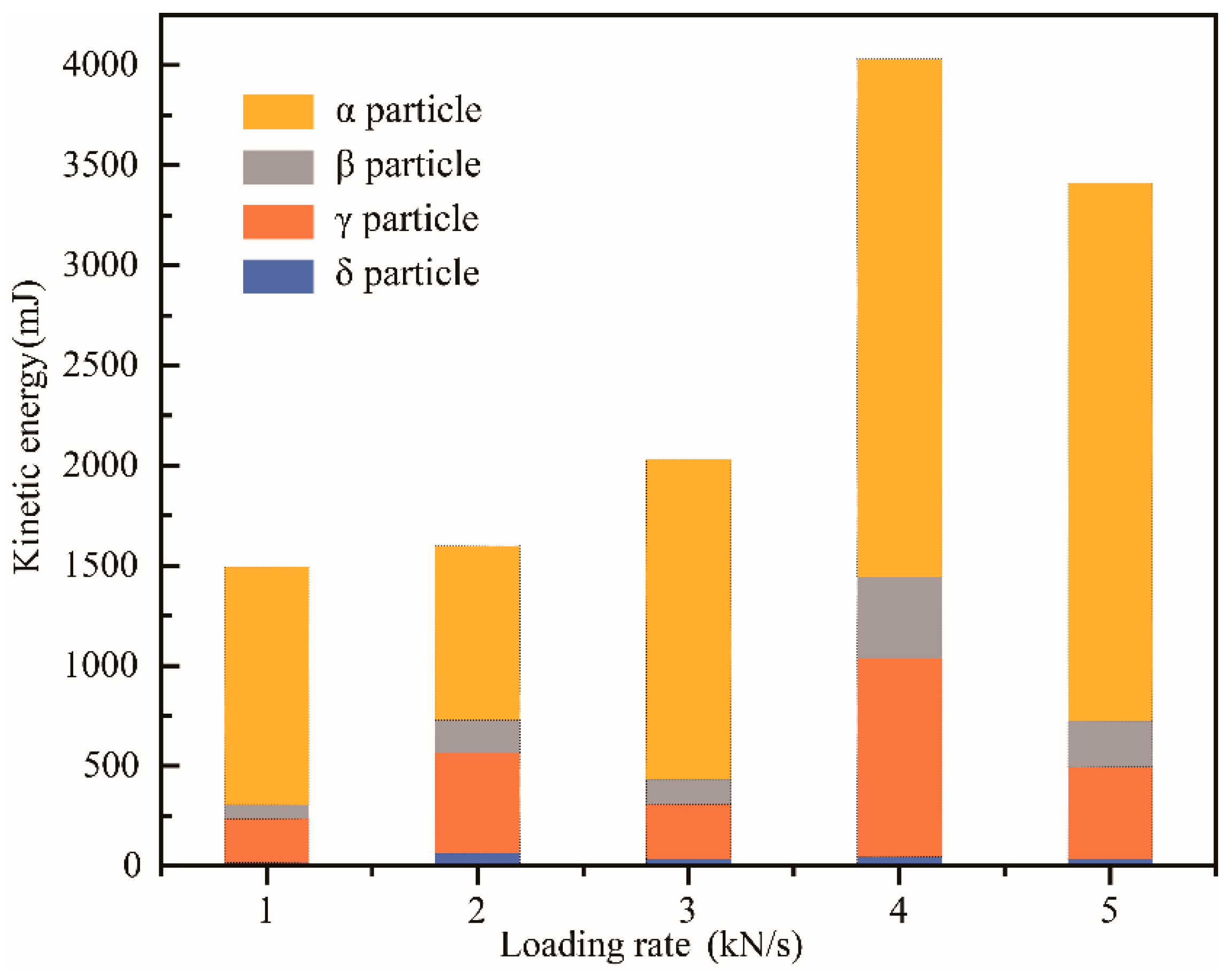

The average horizontal velocities of the four size particles α, β, γ, and δ are statistically calculated. The descending order of the particles’ average velocity is γ, β, α, and δ. Since the mass difference of different types of particles is greater than the influence of the velocity difference on kinetic energy, the descending order of the particles’ kinetic energy is α, β, γ, and δ. Among them, the contribution of alpha particles to the total kinetic energy exceeds 70%. The loading rate has little effect on the particle velocity. When the loading rate is higher, more alpha particles leave the central area, resulting in more input energy being converted into kinetic energy. The percentage of input energy converted into kinetic energy of specimen 11 is 5.9% during the crushing process.

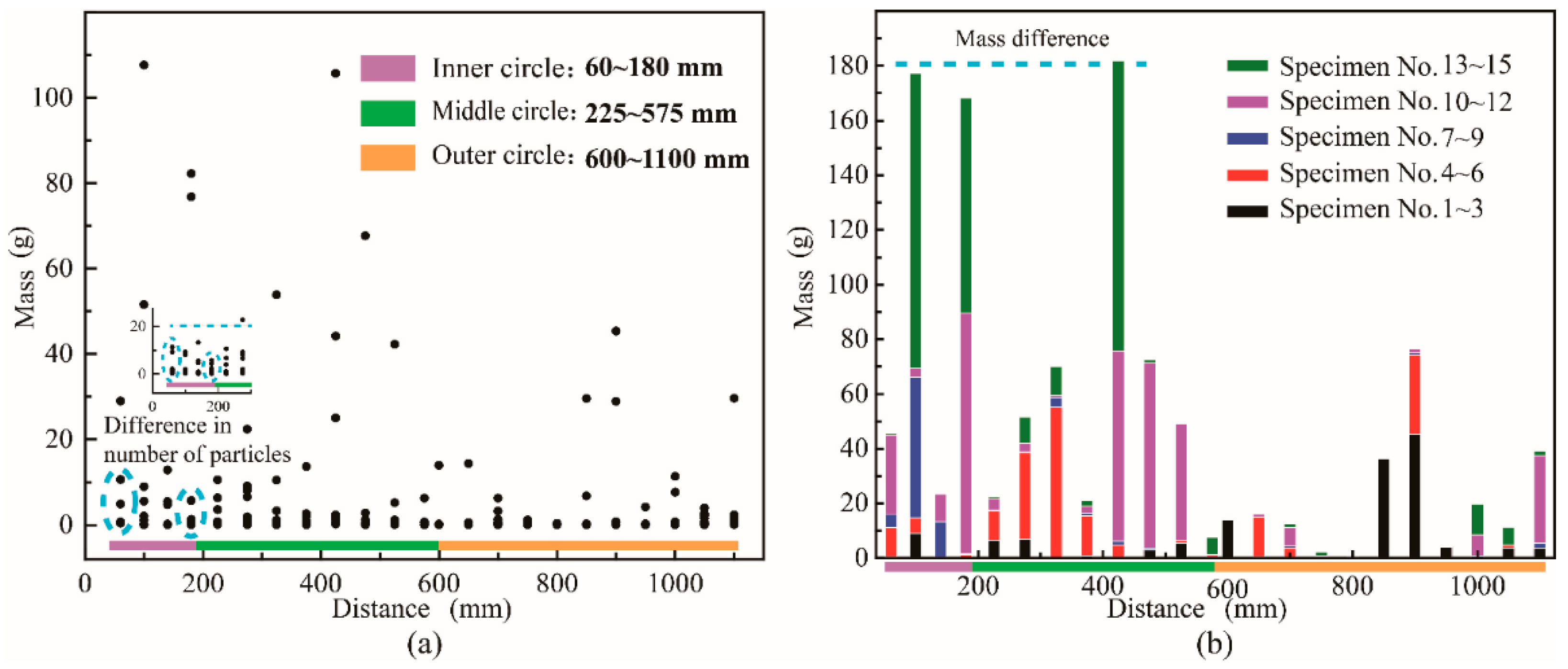

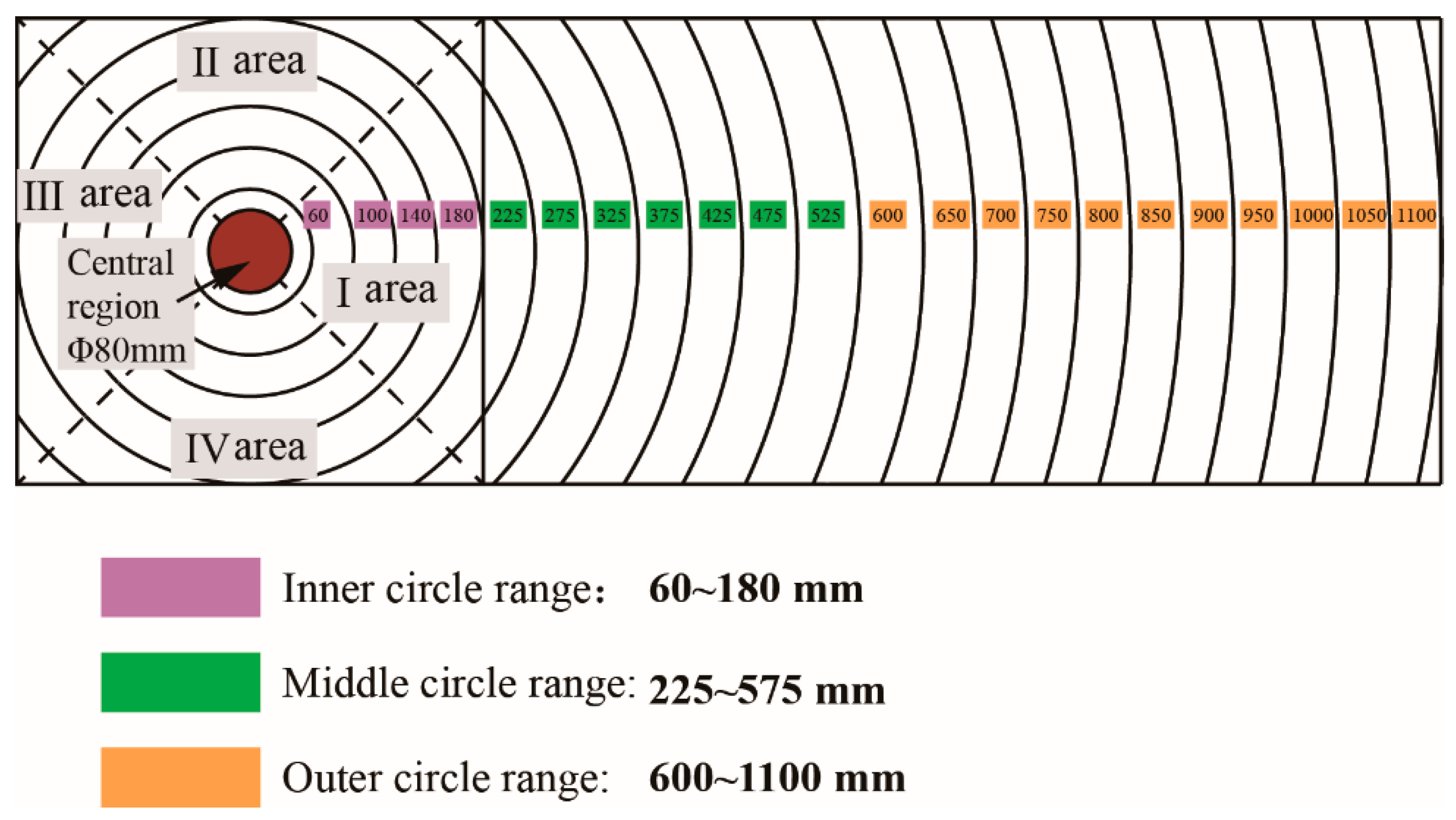

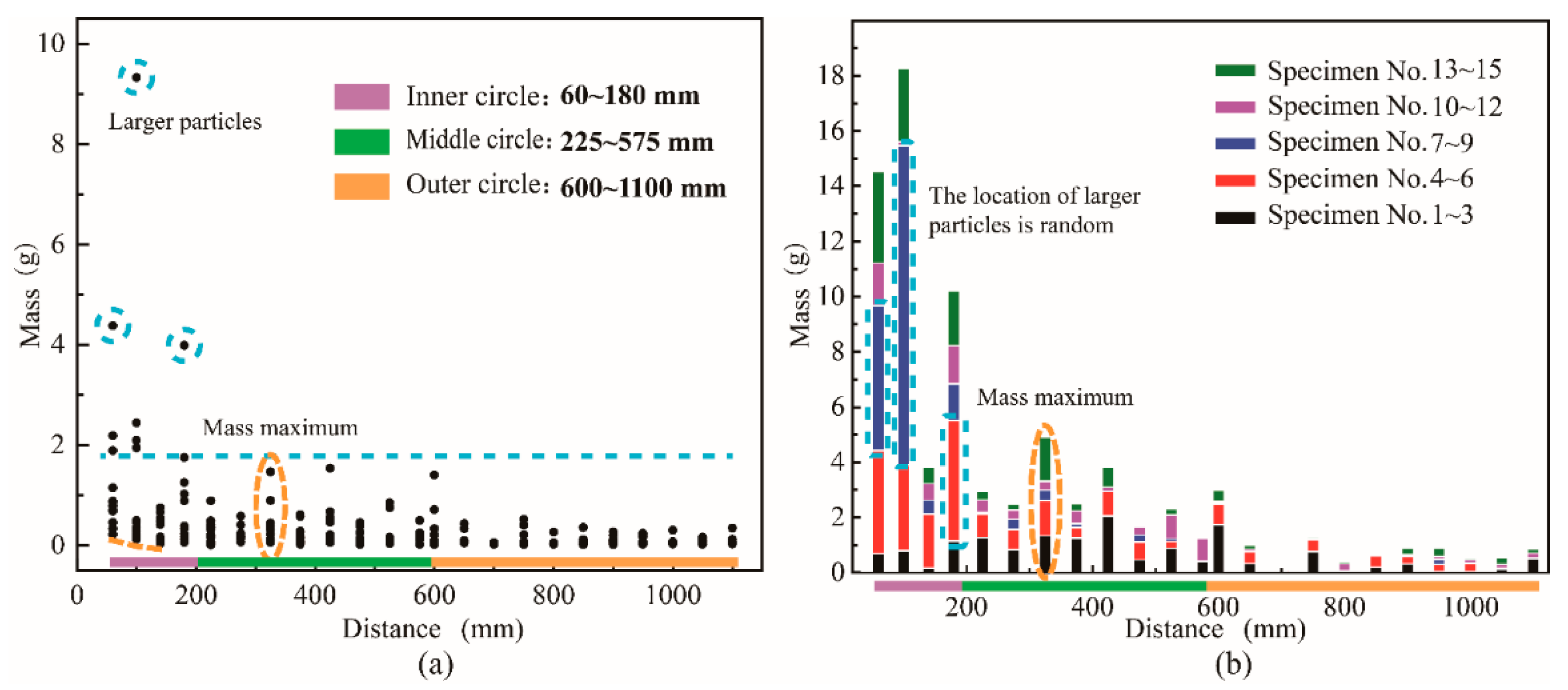

The spatial distribution characteristics of large particles and fine particles were analyzed by the coordinate method. As a result, it was found that there was a greater probability of fine particles appearing in the range closer to the central area; this reflects that most of the fine particles have a lower velocity. The maximum value of the fine particles’ mass appears in the middle circle, which indicates that there are also particles with higher speed in the fine particles, namely γ particles. These kinds of particles overlap with the slower particles, causing the phenomenon of mass maximum. The locations of large particles are random, but they are more likely to appear within the middle circle. A larger loading rate can produce more large splashing particles, which is consistent with the kinetic energy characteristics of the loading rate.
The color tracking method was used to study the location of particles larger than 6 mm in the specimen. It was found that at least one surface of the super large particles produced by crushing was the surface of the test specimen. Those particles produced entirely from the inside of the specimen are relatively small and have similar spatial distribution characteristics to fine particles. Therefore, it can be judged that fine particles and particles of smaller size are generally generated by friction between the cross-sections of the specimen when the specimen is broken. The speed of such particles is generally low. Most of the large particles and a few small particles are directly peeled off the surface of the broken specimen and have a higher splash speed.
