Tight Sandstone Reservoir Formation Mechanism of Upper Paleozoic Buried Hills in the Huanghua Depression, Bohai Bay Basin, Eastern China

Abstract

Carboniferous-Permian petroleum resources in the Huanghua Depression of the Bohai Bay Basin, a super petroleum basin, are important exploration successor targets. The reservoir sedimentary environment of coal measures in the Upper Paleozoic buried hills is variable, and the structural evolution process is complicated, which restricts the optimization of targeting sections. Using the analysis and testing results of logging, thin section, porosity, mercury injection, hydrochemistry, and basin simulation, this study revealed the formation mechanism differences of tight sandstones in the Upper Paleozoic period in different buried hills. The results show that the sandstones are mainly feldspathic sandstone, lithic arkose, feldspathic lithic sandstone, and feldspathic lithic quartz sandstone. The quartz content varies between 25% and 70%, averaging 41%. Feldspar and debris are generally high, averaging 31% and 28%, respectively. Secondary dissolution pores are the main reservoir spaces, with 45% of the tested samples showing porosity of 5–10%, and 15% being lower than 5%. The pore radium is generally lower than 100 nm, and the sandstones are determined as small pore with fine throat and medium pore with fine throat sandstones by mercury saturation results. Frequent changing sedimentary environments and complex diagenetic transformation processes both contribute to the reservoir property differences. The former determines the original pore space, and the latter determines whether they can be used as effective reservoirs by controlling the diagenetic sequences. Combining tectonic movement background and different fluid history, the different formation mechanisms of high-porosity reservoirs are recognized, which are atmospheric leaching dominated (Koucun buried hills), atmospheric water and organic acid co-controlled (Wangguantun and Wumaying buried hills), and organic acid dominated (Nandagang buried hills) influences. The results can be beneficial for tight gas exploration and development in coal measures inside clastic buried hills in the Bohai Bay Basin.

1. Introduction

China is rich in coal-derived tight gas resources, accounting for approximately 60% of the country’s natural gas resources, and is a key area for unconventional natural gas exploration and development [1,2,3]. China is expected to have a gas production of 2500 × 10⁸ m³ in 2025, reaching or being close to the present annual production of the United States, Russia, and Iran [4]. The Bohai Bay Basin is an offshore extension in a series of prolific oil-producing basins in NE China, which is also a super basin with huge oil and gas production [5,6]. However, the Upper Paleozoic tight gas still cannot be commercially produced, even though breakthroughs have been observed in different buried hills, such as Wangguantun, Wumaying, and Chenghai buried hills [7,8].

The Upper Paleozoic period in the Bohai Bay Basin experienced long-term tectonic evolution both in the Mesozoic and Cenozoic periods, with multiple subsidences and uplifts [9,10]. The diagenetic sequences of tight sandstones in the Carton basins, such as the Ordos and Sichuan basins, have been studied extensively [11,12]. The diagenesis of sandstones in different regions during the superimposed evolution of the basin varies significantly, and the reservoir heterogeneity is strong [13,14]. Presently, there are limited studies on the mechanisms and distribution of high-quality tight gas reservoirs in different buried hills, as different buried hills generally have different tectonic evolution histories.

The physical properties of tight sandstone and its controlling factors in the Upper Paleozoic period in the Bohai Bay Basin was investigated, and the purpose was 3-fold: (1) to analyze sandstone composition and pore types differences considering depositional environment; (2) to discuss different tectonic evolution histories based on different tectonic movement; and (3) to reveal high-quality tight sandstone reservoir formation mechanisms. Based on the above analysis, differential reservoir formation models for Upper Paleozoic tight sandstones were established considering future tight gas exploration.

2. Geological Setting

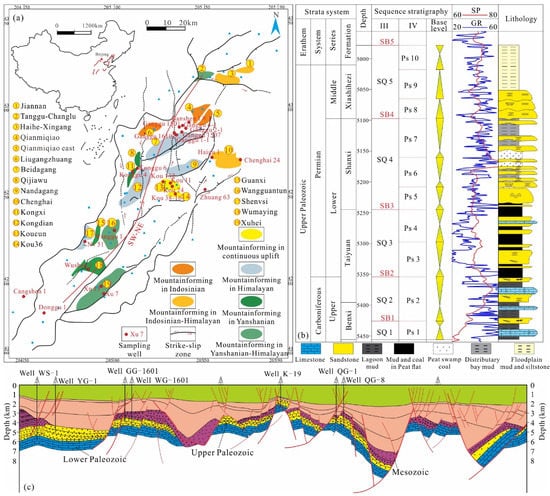

The Huanghua Depression is a secondary structural unit in the Bohai Bay Basin, which borders the Jiyang Depression and Bozhong Depression in the east and the Jizhong Depression in the west [15,16]. It is structurally a northeast–southwest depression, located in the Yanshan EW trending structure, the Taihangshan NE-trending structure, and the southern arc of the Bohai Bay Basin [17]. The area is rich in petroleum resources, with multiple sets of source rocks, such as the second to third members of the Shahejie Formation and the Carboniferous-Permian and multiple sets of reservoir-caprock assemblages [18,19]. Among them, the Carboniferous-Permian Upper Paleozoic clastic buried hill has attracted much attention because of its variable sedimentary process and complex diagenetic transformation.

The Upper Paleozoic in the Huanghua Depression is an epicontinental to continental sedimentary system with a stable craton background, which can be divided into multiple types of buried hills based on the tectonic background of the Mesozoic and Cenozoic periods (Figure 1). The strata can be divided into Carboniferous and Permian, which are a set of coal-bearing structural deposits of marine-terrestrial facies (Figure 1b). From bottom to top, the Benxi Formation, Taiyuan Formation, Shanxi Formation, and Xiashihezi Formation develop in sequence. In the Late Indosinian period, uplifts and folds were formed by north-south compression, and the superimposition of derived structures resulted in obvious stratigraphic differences. The Carboniferous–Permian in the southern area was relatively intact, and the northern area suffered differential denudation, with some areas being completely denuded (Figure 1c).

3. Materials and Methods

More than 100 samples from 25 core wells drilled into the Carboniferous-Permian system in the study area were subjected to conventional physical property analysis, X-ray diffraction whole-rock composition analysis, mercury intrusion, scanning electron microscope observation, cast thin section and fluorescent thin section observation, and groundwater isotope tests. The locations of all sampling wells have been marked in Figure 1.

Microscopic observation, including pore types and mineral compositions was conducted using a DMLP Polarizing Microscope produced by the Leica company (Wezlar, Germany), model 217400 [20,21]. Mineral point counting was used to determine the mineralogical characteristics and porosity of thin sections [22,23]. The maximum error range varies with the percentage of composition, from −3.6% at 50% content to −2.1% at 10% content. Each sample was quantified at approximately 200 points. A separated aqueous solution was used for the hydrogen and oxygen isotope analyses of groundwater. The zinc reduction method was used to prepare the hydrogen. The hydrogen isotopes of the water samples were analyzed. MAT 253 stable isotope mass spectrometer produced by Thermo Fisher Scientific (Bremen, Germany) GmbH was used in the experiment. The CO₂-H₂O balance method was used to analyze the oxygen isotope of water, and the result was indicated as the relative δV-SMOW value [24].

The conventional physical property test uses a vacuum pressure saturation device, DZSY-001 (Haian Petroleum Instrument Company, Nantong, China), and rock permeability tester, DZSY-002 (Haian Petroleum Instrument Company, Nantong, China), at 25 °C in a 35–50% humid environment [21]. A D/max-2200 X-ray diffractometer 2035C4 produced by Olympus (Tokyo, Japan) was used to analyze the total rock content and the relative content of clay minerals, and the analysis data were processed by Clayquan (2018 version, Research Institute of Petroleum Exploration and Development, Beijing, China) [20,25]. JSM-5500LV produced by the JEOL (Akishima, Japan) company in Japan was used to perform scanning electron microscopy (SEM) [26]. The detection environment, i.e., temperature and humidity, was 25 °C and 40%, respectively, and the samples were all plated with gold during sample preparation.

Mercury porosimetry was conducted using an Autopore IV 9500 produced by American Micromeritics high-pressure mercury injection experiment produced by the Micromeritics Instrument Corporation of the United States (Norcross, Georgia) [27]. Two key parameters in the mercury injection curve, the displacement pressure P_d and the mercury saturation median pressure P₅₀, were selected to characterize the pore structure. P_d refers to the capillary pressure of the largest connected pore in the pore structure, reflecting the maximum pore-throat connection radius R_max. P₅₀ refers to the capillary pressure corresponding to the mercury penetration curve when the mercury saturation is 50% and represents the distribution characteristics of the pore-throat size.

4. Results

4.1. Sandstone Composition

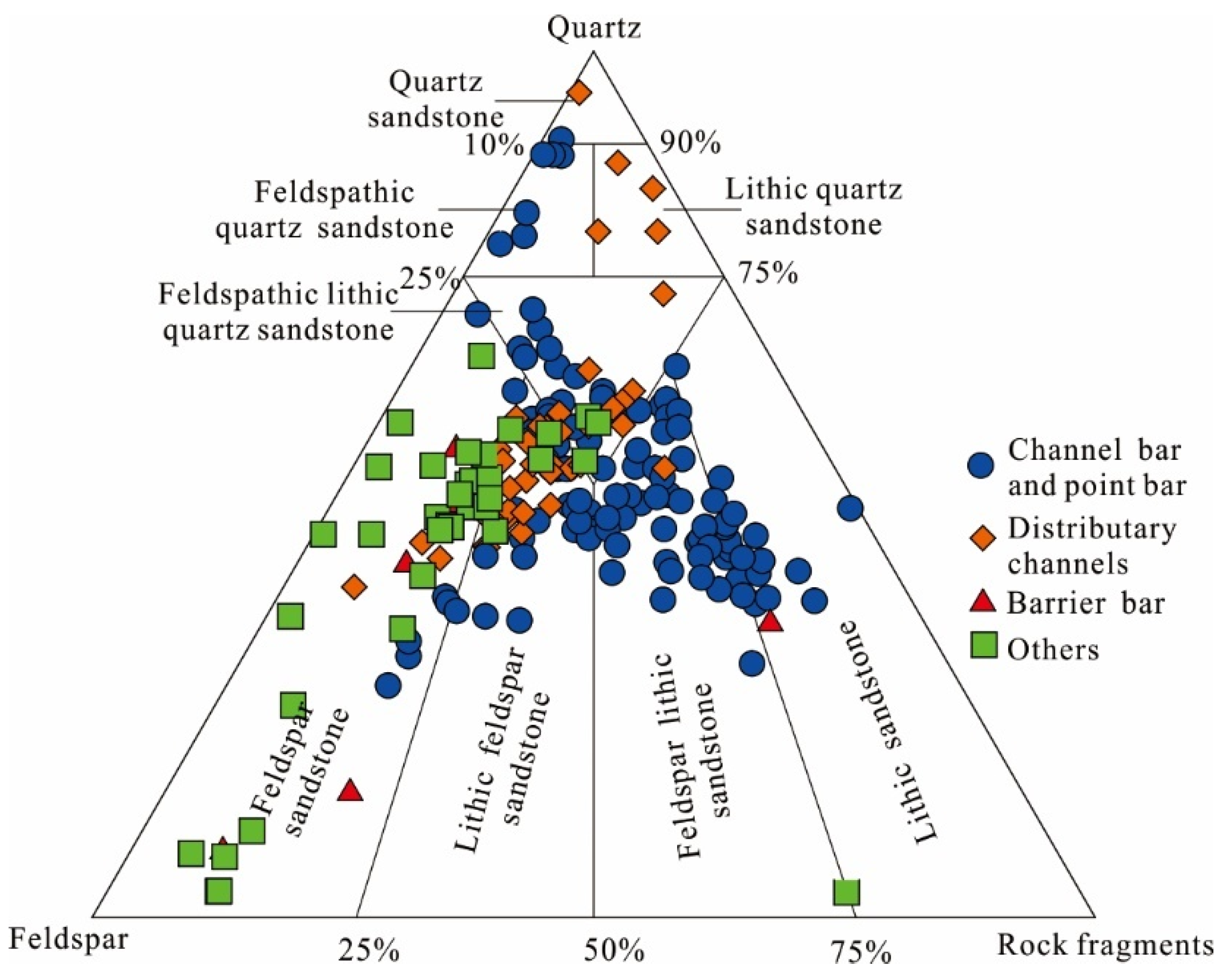

The tight sandstones are mainly feldspar sandstone, lithic feldspar sandstone, feldspar lithic sandstone, and feldspar lithic quartz sandstone and generally have low composition and structural maturity (Figure 2). Among them, the quartz content is mainly concentrated between 25% and 70%, with an average of 40.77%. Feldspar is mainly concentrated between 10% and 55%, with an average of 30.77%, mainly K-feldspar. The content of debris is mainly concentrated between 5% and 60%, with an average of 28.44%. The particle size distribution range of sandstone particles is mainly 0.1–0.25 mm, the textural maturity is medium, and the roundness of the particles is mainly sub-angular to subcircular.

Different dominant sedimentary microfacies sandstone types generally have similar characteristics, are controlled by similar hydrodynamic conditions, and have certain similarities in particle size and rock composition [28]. Meandering channels, braided channel bars, delta distributary channels, barrier islands, and barrier sand bars are all developed in areas with strong hydrodynamic conditions in a single depositional unit. The types of sandstone are feldspar sandstone with moderate quartz content, high feldspar or cuttings, lithic feldspar sandstone, feldspar lithic sandstone, and lithic sandstone. Fluvial channels, channel bars, and distributary channels are mainly supplied by terrigenous clastics, with relatively high quartz content, and feldspar lithic quartz sandstones are often developed. The sandstone grain size varied in the study area as follows: channel bar > point bar > distribution channel > barrier sand dam. The corresponding hydrodynamic conditions gradually weaken, and the sedimentary layer is produced because of the transition from large cross bedding to small cross bedding.

4.2. Porosity and Permeability

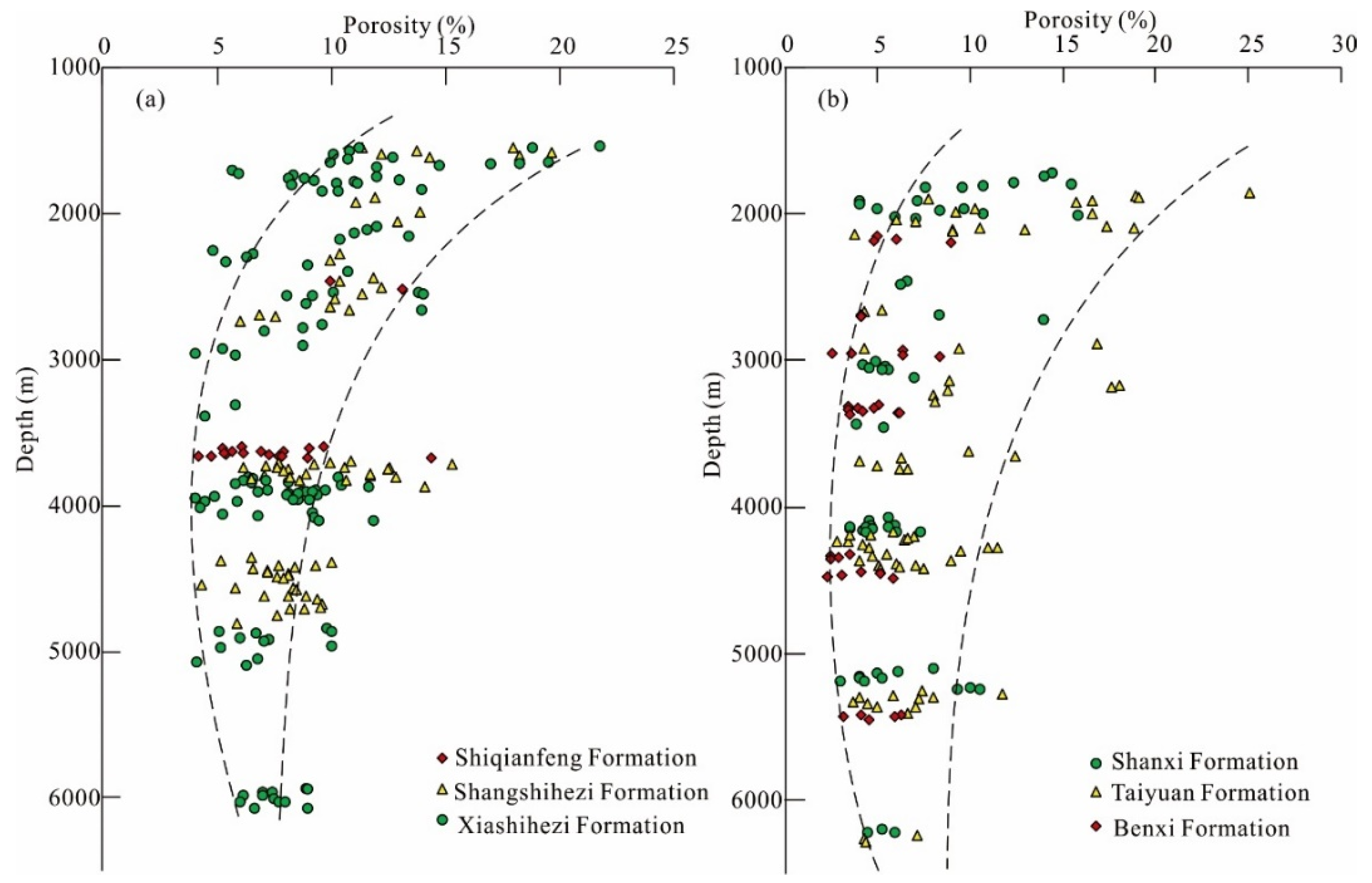

The coal-measure tight sandstones were generally of low porosity and permeability, of which 15% were samples with a porosity of less than 5%; samples with a porosity of 5–10% accounted for 45%, and samples with a porosity greater than 10% accounted for 30%. The permeability data had a poor correlation with the porosity. The samples from different formation in the Permian and Carboniferous systems all show characteristics of decreasing with depth (Figure 3b). Among them, in the Xiashihezi Formation, the physical properties of the group were the best, followed by the sandstones of the Taiyuan Formation, and the sandstones of the Shanxi Formation had the worst physical properties. The porosity and permeability of sandstone did not always decrease with an increase in burial depth, and sandstone with higher porosity existed in a certain interval. Among them, high-porosity and high-permeability sandstone was mainly developed in the Koucun area, which is obviously affected by diagenesis.

4.3. Pore Structure

4.3.1. Pore Types

According to the cast thin sections and SEM images, the pores were dominated by secondary dissolved pores, followed by a few micro-fractures (Figure 4a–i), and the primary pores were rare (

Table 1. Ratio of pores recognized from sandstone thin sections.

Samples	Residual Intergranular Pore (%)	Intergranular Dissolution Pore (%)	Intragranular Dissolution Pore (%)	Intergranular Pore (%)	Fractures (%)
Cangshen 1	0.00	1.60	0.30	0.79	0.15
Donggu 1	0.00	0.00	0.86	0.03	0.00
Ganggu 16102	0.12	0.31	0.28	0.00	0.14
Ganggu 2-1	0.00	0.00	1.00	0.00	0.00
Ganggu 4-1	0.00	0.00	6.00	0.00	0.00
Konggu 4	0.00	5.90	4.00	1.14	0.00
Kou 24	0.00	2.43	1.57	2.43	0.00
Wushen 1	0.00	1.13	0.00	1.53	0.00
Zhuang 63	0.00	2.25	0.25	0.05	0.00

). The secondary dissolution pores can be divided into intergranular dissolution pores and intragranular dissolution pores according to the dissolution position, and intragranular dissolution pores were the main ones. The intragranular dissolution pores were mainly formed by intragranular dissolution of feldspar and cuttings particles, especially intragranular dissolution pores formed by the dissolution of feldspar, and some particles were partly or completely dissolved (Figure 4d–f). The reservoirs of the Xiashihezi Formation in the Beidagang area had a strong dissolution effect, with a secondary dissolution face rate of up to 6%, and most of the reservoirs had a dissolution face rate of less than 1%.

The fractures in tight sandstone reservoirs of coal measures mainly included fractures formed by the strong compression of particles such as feldspar and quartz, and dissolution fractures in sandstones with high carbonate contents (Figure 4g–i). Fractures were the most developed in the Carboniferous Taiyuan Formation reservoir, and their opening could reach 30 μm.

4.3.2. Pore Throat Structure

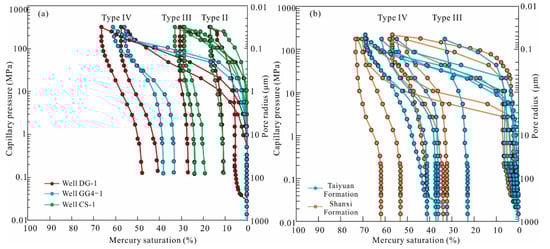

To accurately describe the difference in pore structure, P_d and P₅₀ were used to divide the pore structure of the study area into six categories (

Table 2. Pore type classification from mercury porosimetry. /: means no data.

Parameter	Pore Structure Types
	Type I	Type II	Type III	Type IV	Type V	Type VI
Pd (MPa)	0.08–15.38	0.09–3.97	0.09–1.76	0.09–0.74	0.05-0.25	0.12-0.13
P50 (MPa)	/	6.62–29.84	2.70–13.58	1.39–6.37	0.66–2.38	0.09–1.06
Rmax (μm)	0.05–3.45	0.25–8.17	0.42–8.00	1.00–8.24	2.96–15.00	0.09–1.06
Average aperture (μm)	0.06–12.90	0.25–23.34	0.48–20.89	0.64–25.56	2.78–13.50	3.33–11.55
Pore structure	Small pore with microthroat	Small pore with fine throat	Medium pore with fine throat	Medium pore with fine throat	Medium pore with medium throat	Macropore with medium throat

Note: P_d is the displacement pressure (MPa), P₅₀ is the median pressure of mercury saturation (MPa), and R_max is the maximum pore throat connection radius (μm).

). The type I pore structure was a small pore and micro throat type, with high drainage pressure, and the maximum mercury saturation was far below 50%; the storage capacity was extremely poor. The type II pore structure was a small pore and fine throat type, which was biased toward fineness. The mercury injection curve was flat, with a high discharge pressure, and the maximum mercury saturation was less than 50%, indicating poor storage capacity and weak percolation. Types III and IV pore structures were of mesoporous and fine throat type, and the displacement pressure was relatively reduced. Although small, the maximum mercury inlet saturation was greater than 50%, indicating that the storage capacity was relatively good. The type V pore structure consisted of the mesopore and middle throat type, which was biased toward fineness; the mercury injection curve no longer had a plateau, the discharge pressure was further reduced, and the maximum mercury inlet saturation was large. The type VI pore structure consisted of large pores and medium throat type, which was biased toward coarseness; the pressure curve platform slowed down, the pore throat distribution was uniform, the connectivity was good, the maximum mercury saturation was high, and the reservoir had superior performance. The pore structure of tight sandstone in coal measures in the study area was mainly of types II, III, and IV, of which type IV reservoirs were mainly developed in Beidagang buried hills (Figure 5b). On this basis, the pore throat radius distributions of 10 samples were calculated (

Table 3. Pore structure distribution by mercury porosimetry.

Samples	Pore Sizes Proportions (%)
	<10 nm	10–100 nm	100–1000 nm	>1000 nm
DG-1-1	35.82	53.94	9.61	0.63
DG-1-2	20.21	58.09	18.78	2.92
DG-1-3	56.79	40.95	2.26	0.00
DG-1-4	33.60	29.44	4.12	32.84
GG4-1-1	25.69	65.78	8.53	0.00
GG4-1-2	40.97	54.82	4.21	0.00
CS-1-1	53.98	39.64	6.38	0.00
CS-1-2	59.54	31.80	8.66	0.00
CS-1-3	53.33	46.64	0.03	0.00
CS-1-4	66.48	27.41	6.11	0.00

). The results show that a radius less than 10 nm accounts for about 20.21–66.48%, the radius between 10 and 100 nm accounts for about 27.41–65.78%, the content between 100 and 1000 nm is less, accounting for only 0.03–18.78%, and the content greater than 1000 nm is rare.

4.4. Diagenesis

The tight sandstone of the coal measures in the study area underwent a complex diagenetic transformation process. The main types of diagenesis include compaction, cementation, dissolution, and recrystallization.

The coal-measure tight sandstone had a relatively fine grain size, high content of plastic cuttings and miscellaneous bases, weaker compaction resistance, and high overall compaction strength. The shallow buried depth of the cored well section and the filling of miscellaneous bases made up the reservoir particles, and the contact relationship was mainly point-line contact. In addition, the flexural deformation of plastic particles, such as mica, and the compaction and crushing of brittle particles, such as feldspar, were common.

The dissolution of tight sandstones in the study area was generally developed, but the intensity was low. Among them, the dissolution of feldspar particles was the most common, and most of the dissolutions were weak, forming intragranular pores of feldspar or rock fragments (Figure 4c,e); the secondary pores ratio was between 0% and 3%. In some areas, such as Well Ganggu 1-1, the dissolution was strong. Mold holes were common (Figure 5a), and the secondary hole ratio reached 6%. Moreover, a small amount of carbonate cement dissolution could be observed.

There are various types of sandstone cementation in the study area, which are caused by various carbonate cements, including calcite and iron calcite, followed by various clay mineral cements, such as kaolinite, illite, chlorite, authigenic quartz, and quartz. Cement mostly occurred as filling pores, especially carbonate cement filling intergranular pores or feldspar dissolution pores (

Table 4. Relative content of clay minerals in typical wells. / means no data.

Well	Minerals Content (w%)						S% in I/S
	Illite	Smectite	I/S	Kaolinite	Chlorite	C/S
Donggu 1	21.42–69.89	0–9.27	1.68–36.75	0–42.83	12.79–24.70	0–20.47	15–65
	42.48	1.32	15.57	18.61	19.09	2.92	25
Nv 51	15.58–33.19	0–19.6	0–23.87	32.36–79.83	0–26.07	/	0–75
	23.04	2.5	8.27	53.35	12.84		38
Kou 38-16	4.19–30.95	/	1.54–18.7	50.35–94.27	0–9.61	/	10–82
	12.76		6.56	79.81	0.87		25
Kou 11	19.01–27.62	/	58.89–63.8	13.5–17.19	0–15.67	/	82–85
	23.31		61.34	15.34	1.52		84
Kou 24	0–24.71	0–19.6	0–32.27	43.02–69.12	0–14.27	/	10–65
	7.98	4.5	9.1	59.45	1.25		25

Note: I/S: Illite–smectite mixed-layer mineral; C/S: Chlorite–smectite mixed layer mineral; $\frac{minimum-maximum}{averge value}$.

).

5. Discussion

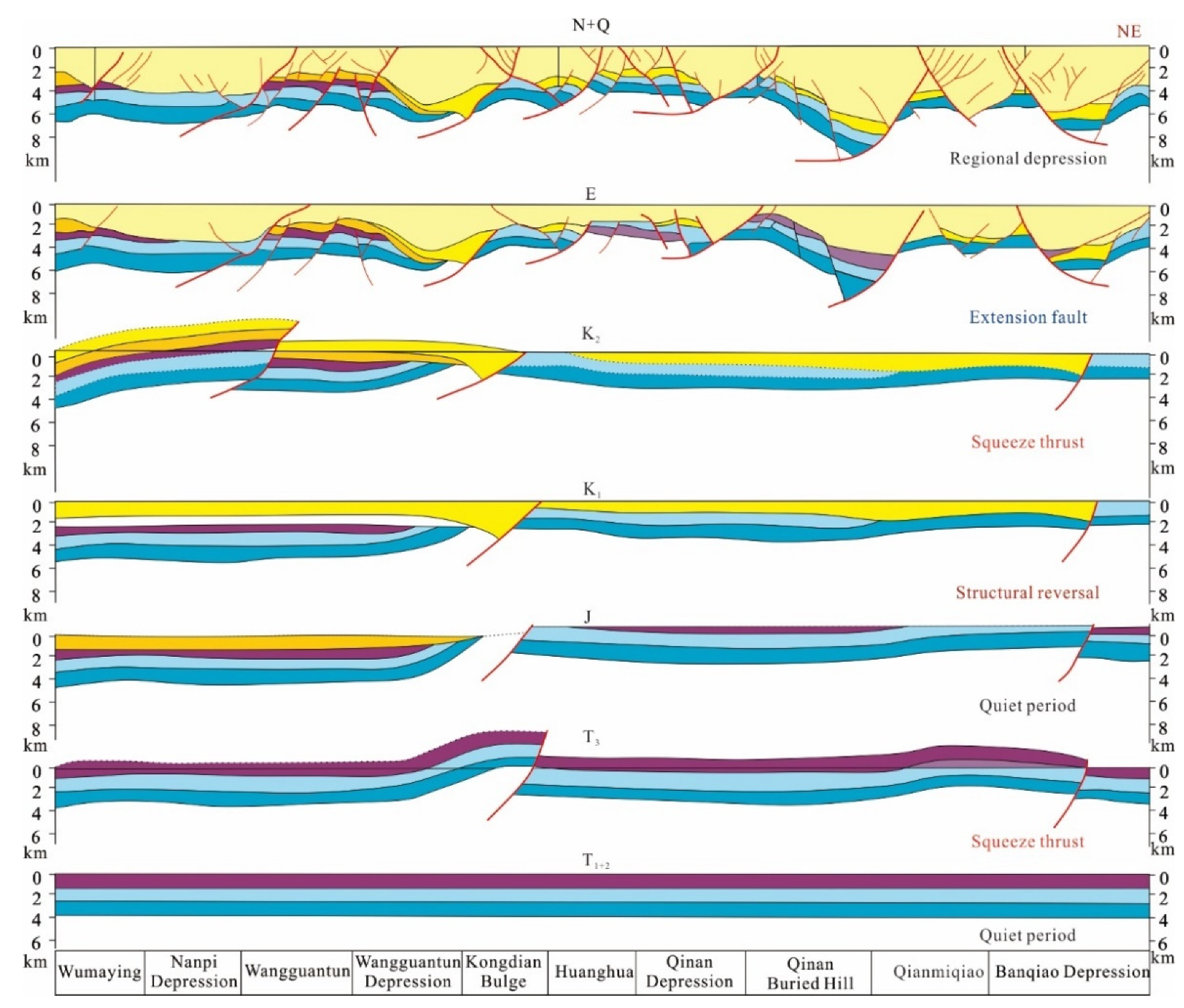

5.1. Diagenetic Sequences Affected by Differential Tectonic Evolution

When the Carboniferous-Permian Taiyuan Formation and Shanxi Formation were deposited, the sedimentary environment of the study area evolved from marine to marine-terrestrial transitional facies to continental facies [7]. The dominant sedimentary microfacies types were barrier sand dams in the barrier island environment and delta plain diversion channels. Its lithology was expressed as mudstone and sandstone interbedded with coal, limestone, or sand-mudstone interbedded with coal. Sandstone and argillaceous sediments were frequently interbedded and were close to or adjacent to the source rock. Sandstones were mostly produced in thin layers, and the development of thick sand bodies was limited. This type of formation had a low sand-to-ground ratio and poor connectivity between the sand bodies. The Xiashihezi Formation directly covers the Shanxi Formation and is far from the coal-measure source rocks. The geological history has experienced multiple periods of structural uplift and subsidence (Figure 6). The northern part of the study area was steadily deposited in the Early-Middle Triassic of the Mesozoic period and was compressed and uplifted in the Indosinian of the Late Triassic period. The strata suffered from denudation. NWW-trending folds developed in the east, and the denudation was stronger than that in the west. Inheriting the Indosinian tectonic framework, NE-trending folds developed in the west from the early Middle Jurassic. At this time, the tectonic framework was “high in the west and low in the east.” In the late Jurassic to the middle of the Early Cretaceous period, NNE (NE) trending basin-controlling faults formed and controlled deposition. In the late Yanshanian period of the Late Cretaceous period, the early normal faults reversed to thrust, and the stratum was denuded. In the Paleogene, the basin entered the rifting period, the early active faults were mainly tensile, and secondary faults developed [21]. From the Neogene to the Quaternary period, the basin as a whole was in the depression stage, with developed secondary faults and stable lateral deposits (Figure 6). Tectonic evolution corresponds to the differences in the evolutionary process of the Upper Paleozoic period in different regions. Tectonic evolution affects diagenesis by affecting the burial depth of the reservoir and the communication between the fractures and the surface, which in turn influences the effect of reservoir reformation.

The meandering point sand bar in the study area had good original properties, a thick single sand body, and effective sand body connectivity, which provide powerful conditions for the migration of formation fluids along the bed. The local area of uplift and denudation suffered from wind leaching, and the generation of acid from organic matter in coal measures in the later stage, the combined action of atmospheric leaching under the uplifting open system, and the generation of acid from coal source rocks at the burial stage improved the physical properties of sandstone reservoirs in the study area, with higher rigid particle content and early oil and gas charging preserved sandstone pores.

5.2. Physical Property Variations Affected by Different Diagenesis

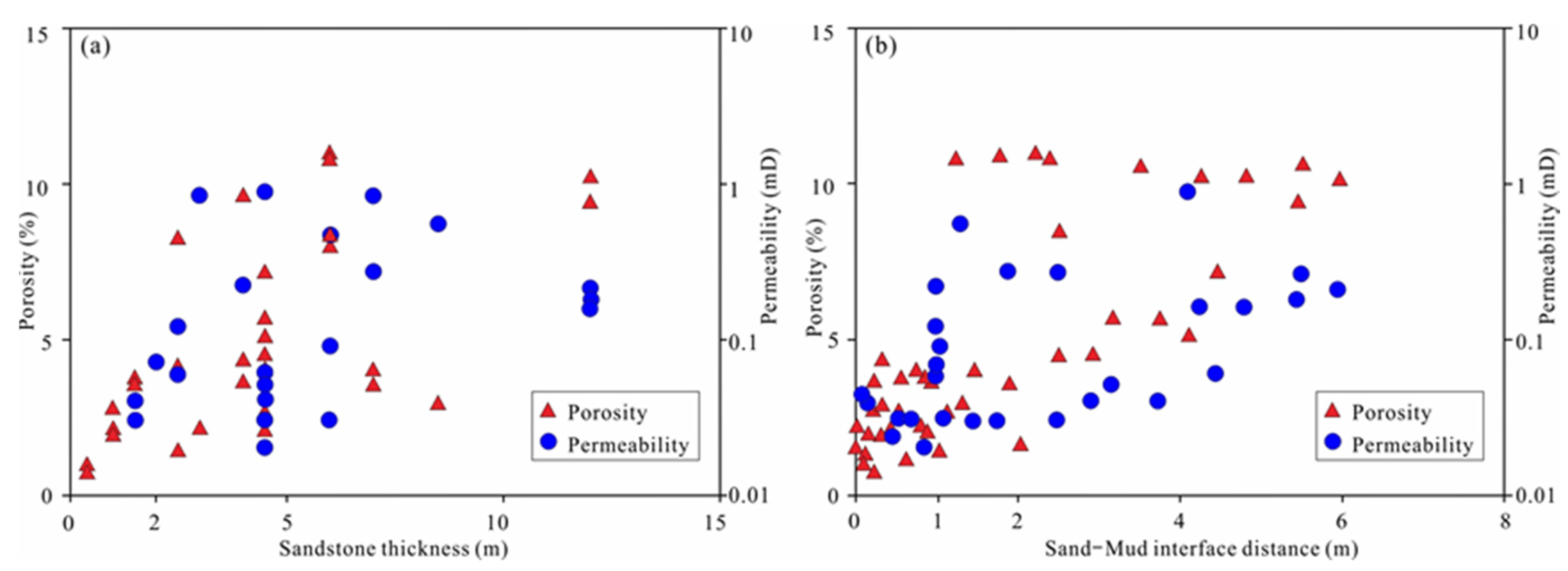

The thin sand bodies and thick sand bodies in the study area were close to the sand–mud interface, and carbonate cements were generally well developed. There were relatively few carbonate cements in thick sand bodies far away from the sand–mud interface. The relationship between the physical properties of the sandstone and the sand body thickness/sand–mud interface distance in the statistical study area (Figure 7a,b) showed that there is a positive correlation between the physical properties and the sand body thickness and the sand—mud interface distance. The physical properties of thick sandstone reservoirs were relatively high, and when the distance between the sample and the sand–mud interface was less than 1 m, the reservoir porosity was less than 5%. The reason for this phenomenon is that in an alkaline environment, the montmorillonite in the mudstone transforms into the Iraqi/smectite layer and dehydrates the gypsum to release a large amount of Ca²⁺, and metal ions, such as Mg²⁺ and Fe²⁺ enter the sand body to form carbonate cement fillings in pores. The concentration of metal ions was the largest at the contact between sand and mud and gradually decreased toward the interior of the sand body, resulting in tight cementation at the edge of the sand body and severe damage to the pores of the reservoir. Under such conditions, it is difficult for oil and gas to enter, and the effect of acidic fluid on its transformation in the later stage is also inhibited. Limited by the migration distance of the original material of the cement, the degree of carbonate cementation in the sand body was low; thus, a large number of pores could be preserved. Therefore, the sandstone in the study area exhibits a strong cementation at the sand–mudstone interface and gradually weakens the cementation degree inside the sand body.

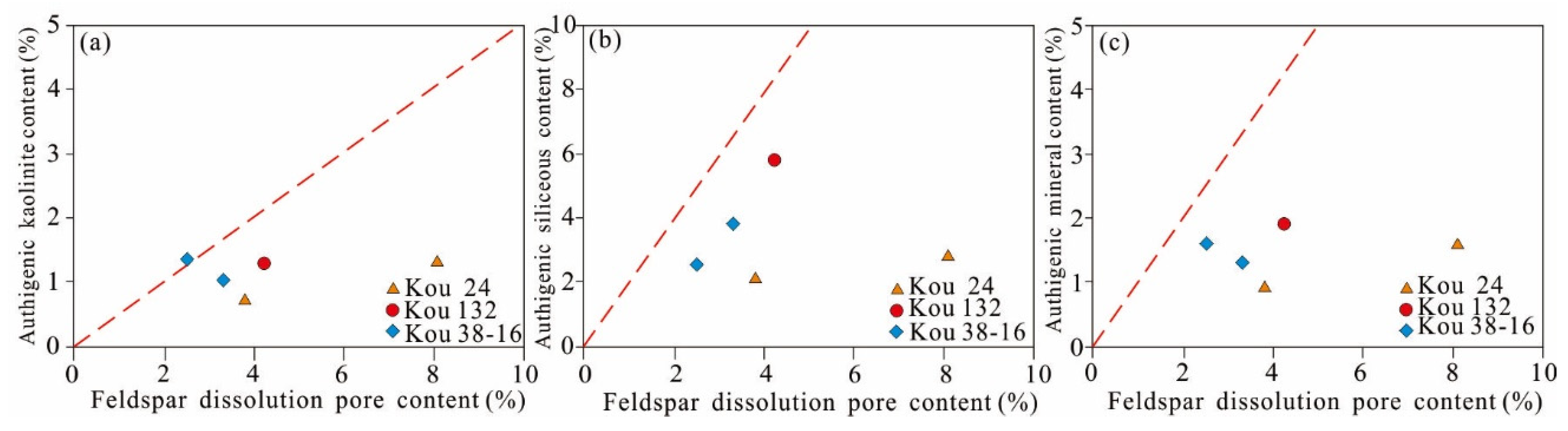

The dissolution of feldspar in sandstone reservoirs can form secondary pores, accompanied by by-products, such as kaolinite and quartz cement [29,30,31]. According to the statistics of its content using casting thin slices, the average content of feldspar dissolved pores in the Permian reservoirs in the study area can reach 4.38%, whereas the content of authigenic kaolinite was 1.1%, the content of siliceous cement was 3.4%, and the content of feldspar corrosion was significantly larger than that of authigenic minerals (Figure 8a–c), indicating that most of the feldspar dissolution products were transported out of the leaching dissolution zone at the top of the buried hill.

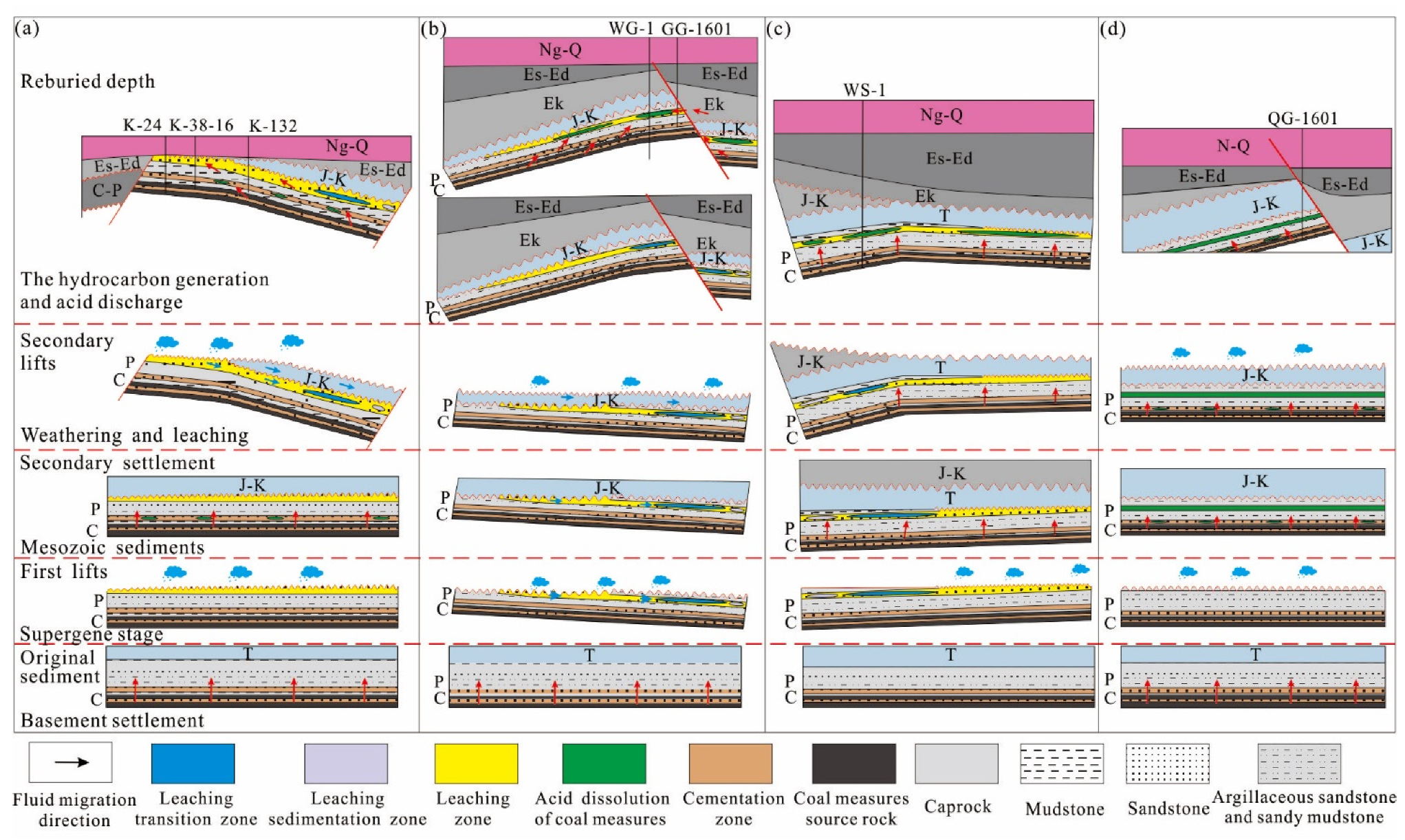

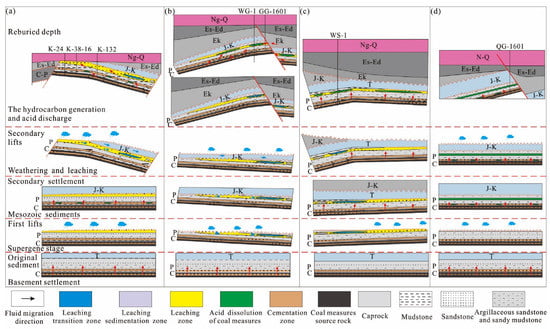

5.3. Formation Models of the Tight Sandstone Reservoirs

During the formation of the buried hill, the sand bodies were in different structural positions during different periods. For example, the wells 38–16 at the top of the buried hill in Kecun today, during the two stratigraphic uplifting processes of the Late Triassic and the Early Paleogene periods (Figure 9). At the top of the mountain, the Guangu 1601 well at the top of the Wangguantun buried hill was in the buried hill slope area during the Late Triassic period, and the stratum inverted during the later burial process [32,33]. The top of the early buried hill is now in a buried hill slope area. Results of the analysis of the structural evolution process of the main buried hills in the study area, summary of the following structural superimposition-acid source relay evolution model, and results of the analysis of the diagenetic evolution process of different types of buried hill reservoirs are provided in Figure 9.

According to the different burial processes, the burial history can be divided into three types. The first is represented by the Koucun buried hill. The Upper Paleozoic Shiqianfeng Formation is completely denuded, and the Upper Shihezi Formation is directly connected to the overlying Paleogene. The second type is represented by the buried hills of Wangguantun and Wumaying. The Shiqianfeng Formation in the Wangguantun area is severely denuded and partially remains. The upper Shihezi Formation strata and the overlying thin Shiqianfeng Formation or Jurassic strata direct contact and regional unconformity develop. The third type is represented by the Nandagang area, where the upper Shihezi Formation sand body in the Nandagang area is covered with thick Shiqianfeng Formation, and there is no obvious regional angular unconformity.

6. Conclusions

Combining thin section, porosity, mercury injection, hydrochemistry, and basin simulation results, the petrology and physical property of tight sandstone in the Upper Paleozoic, Bohai Bay Basin, eastern China was investigated, and the following conclusion was reached:

The sandstones are mainly of feldspar, lithic feldspar, feldspar lithic, and feldspar lithic quartz sandstones. The quartz content varies between 25% and 70%, averaging 41%. Feldspar and debris content are generally high, averaging 31% and 28%, respectively. The sandstones are generally of poor physical property, with 45% of samples having porosity of 5%~10% and 15% samples lower than 5%.

The sandstone mainly contains intergranular dissolution and intragranular dissolution pores, with a few microfractures. The pore radium is generally lower than 100 nm, showing small to medium pores with fine to medium throats.

Tectonic evolution and its related diagenetic sequences control sandstone physical property variation. And the key reasons dominating high-porosity sandstone formation can be recognized, which are atmospheric leaching dominant (Koucun buried hill), atmospheric water and organic acid co-controlled (Wangguantun and Wumaying buried hills), and organic acid dominant (Nandagang buried hill) influences.
