Partitioning and Surficial Segregation of Trace Elements in Iron Oxides in Hydrothermal Fluid Systems

Abstract

Partitioning experiments were done by hydrothermal synthesis of crystals containing trace elements (TEs) by internal sampling of fluid at the temperature of 450 °C and pressure of 1 kbar. The crystal phases obtained were magnetite, hematite, and Ni-spinel, which were studied using X-ray diffraction (XRD), X-ray electron probe microanalysis (EPMA), laser ablation inductively coupled plasma mass spectrometry (LA-ICP-MS), atomic absorption spectrometry (AAS), and atomic force microscopy (AFM). The solutions from the sampler’s fluid probes were analysed by AAS for TEs included elements of the iron group plus aluminium. The highest co-crystallisation coefficients of TE and Fe between mineral and fluid (D_TE/Fe) in magnetite were measured for V, Al, Ni and Cr (in decreasing order of n units in value), a lower value was observed for Co (2 × 10⁻¹), and still lower values for Ti, Zn, and Mn (n × 10⁻²–10⁻³). In hematite, D_TE/Fe values were highest for Al and V (order of n units in value), while lower values characterised Ti, Cr, and Co (n × 10⁻¹–10⁻³), and the lowest values were exhibited by Cu, Mn, and Zn (n × 10⁻⁵). Copper was confirmed to be the most incompatible with all minerals studied; however, Cu had a high content on crystal surfaces. This surficial segregation contributes to the average TE concentration even when a thin layer of nonautonomous phase (NAP) is enriched in the element of interest. The accumulation of TEs on the surface of crystals increased bulk content 1–2 orders of magnitude above the content of structurally-bound elements even in coarse crystals. The inverse problem—evaluation of TE/Fe ratios in fluids involved in the formation of magnetite-containing deposits—revealed that the most abundant metals in fluids were Fe followed by Mn, Zn, and Cu, which comprised 10 to 30% of the total iron content.

1. Introduction

Quantitative data on the partitioning of trace elements (TE) constrain the composition of the minerals that crystallise from melts and hydrothermal fluids. Such data are important for the interpretation of mineral genesis—magmatic, sedimentary, hydrothermal, or metamorphic—and validation of hypotheses of primary mineral re-equilibration by post-crystallisation processes involving the action of meteoric water and/or hydrothermal fluids.

Magnetite is considered “an ideal indicator mineral” [1] due to its stability, wide variation in composition and high density allowing it to be separated from sediment components. Moreover, magnetite is a common and widespread mineral that can form in different types of rocks and physicochemical conditions [2]. It is well known that the composition of magnetite is highly susceptible to the parameters controlling mineral formation and alteration ([3] and references therein). The elements concentrations in magnetite, their ratios and covariations are widely used to distinguish magnetite of igneous or hydrothermal origin and discriminate between different types of deposits [4,5,6]. It is a simple matter to increase the number of examples known from the literature to support the significance of magnetite (and more rarely hematite [7,8]) as an important and sensitive petrogenetic indicator applicable not only in theoretical aspects of ore formation but also in practical aspects [9,10,11,12,13,14,15].

Hematite (α-Fe₂O₃) is a characteristic component of epigenetic environments. It often accompanies magnetite and participates in the redistribution of TEs. As magnetite oxidises, it can be replaced by hematite, but it is not always easy to recognise the relationship between these two minerals. It is often assumed that similar TE contents indicate that the minerals were derived from the same ore fluid [12]; however, this assumption may be incorrect if the distribution and co-crystallisation coefficients of TEs in the mineral–fluid system differ for magnetite and hematite. These characteristics are unknown for most TEs specific to iron oxides, so the purpose of this research was to fill this gap in data and define any differences between magnetite and hematite in the partitioning of common TEs in mineral–fluid systems.

Little is known about the behaviour of TEs in geochemical processes that leads to the correlations observed in natural magnetite and other spinel-type crystals. The problem is solvable due to advancements in analytical methods such as electron probe microanalysis (EPMA), laser ablation inductively coupled plasma mass spectrometry (LA-ICP-MS), and secondary ion mass spectrometry (SIMS), which allow for the study of the distribution of TEs at low concentrations; however, rarely were these data used to reconstruct the composition of the mineral-forming fluids. With respect to magnetite, attempts to reconstruct the composition of source fluids were undertaken for Mn, Cu, and Zn [1,15] on the basis of previous experimental work [16]. Even in these limited cases, several problems remain unsolved, such as the reason for high and variable concentrations of Cu in hydrothermal magnetite which “remain suspect and enigmatic” [1] and disagreement (by several orders of magnitude) between Mn–Fe exchange coefficients calculated thermodynamically and extrapolated from experimental data [16]. The applications of a large base of analytical data on the content of TEs found in iron oxides to identify the TE ratios in hydrothermal fluids were limited. This is due to the lack of reliable quantitative data on the TE partition coefficients ($D_p^{min/fl}=C_{TE}^{min}/C_{TE}^{fl}$) and co-crystallisation coefficients ($D_{TE/Fe}^{min/fl}=C_{TE}^{min}/C_{Fe}^{min}\times C_{Fe}^{fl}/C_{TE}^{fl}$) in magnetite (and hematite) in hydrothermal fluid systems. Here C is the concentration; min and fl denote mineral and fluid, accordingly. The purpose of the work presented herein was to reduce this deficiency by adding new data.

Another problem discussed here is surficial segregation of TEs and their effect on the partitioning of elements. The extent of surface accumulation of the REEs Ce, Eu, Er, and Yb was more than two orders of magnitude greater in the outermost layer of magnetite and hematite crystals obtained from an experimental hydrothermal system at 450 °C and 100 MPa pressure [17]. X-ray photoelectron spectroscopy (XPS) revealed an oxyhydroxide composition for the surficial nonautonomous phase (NAP) that accumulated the REEs, with ratios of Fe³⁺/Fe²⁺ of 1.1 for both minerals, while the ratio of O²⁻/OH⁻ was 1.5 for magnetite and approximately 4 for hematite [17]. The tendency for TEs to accumulate near the surface of magnetite particles was reported for Cu, Mn, and Cd [18]. The surface enrichment of hydrothermal magnetite with TEs is possibly due to the accumulation of TE-containing nanoparticles (NPs) formed from supersaturated hydrothermal fluids by the mechanism of entrapment as the surface of magnetite crystals grow [19]. The interfacial fluid also plays an active role in the formation of supersaturated TEs in solid solution during crystal growth and was proposed as a mechanism to explain the formation of Al-rich lamellae and zinc spinel NPs in the host magnetite [20]. The effect of surface accumulation and segregation of TEs is important in the interpretation of experimental and analytical data, especially data obtained using bulk analytical techniques on small particles with high specific surface area.

2. Background

Under the crystallisation of isomorphous mixture (BE,TE)X, where X is an anion, TE is a trace (or minor) element and BE—basic element cation of the mineral, the exchange reaction $B{E}^{s }+ T{E}^{aq }= T{E}^{s }+B{E}^{aq }$ occurs where s and aq denote solid and aqueous (fluid) phases, accordingly. The effective bulk coefficient of TE and BE co-crystallisation is

$$D_{TE/BE}={\left(C_{TE}/C_{BE}\right)}^s\times {\left(C_{BE}/C_{TE}\right)}^{aq},$$

(1)

where C is the concentration of the element. Hereinafter we deal only with bulk contents of elements rather than with their concentrations in various chemical forms (complexes). Strictly speaking, the process of co-crystallisation depends on the activities rather than concentrations and the bulk co-crystallisation coefficient is not a true constant but dependent on the composition of aqueous and solid phases. However, according to the model of complex solvent, for which the bulk electrolyte dominates over precipitated components, the expression is valid

$$D_{TE/BE}=D_{TE/BE}^o\times F_{BE}/F_{TE}\times f_{BEX}/f_{TEX.}$$

(2)

Here $D_{TE/BE}^o$ is the “ideal” coefficient dependent only on the solubilities of the pure phases—solid solution end members, F is a Fronius function of the element complexation in aqueous solution, and f is the activity coefficient of the component in solid solution [21]. $D_{TE/BE}^o$ is the thermodynamic constant of the interphase ion exchange reaction independent of the presence of other components and phases in the system. It is proportional to the ratio of the activity products L_TEX/L_BEX, which is related to solubilities (S) of TEX and BEX:

$$D_{TE/BE}^o=S_{TEX}^2/S_{BEX}^2=L_{TEX}/L_{BEX}\times F_{TE}/F_{BE.}$$

(3)

F and f ratios in Equation (2) are often invariable for the elements, which are chemically similar and demonstrate the same chemical behaviour in the same solution [21,22,23].

The theoretical considerations were proved by studying the hydrothermal crystallization of sulphide minerals (galena, sphalerite) in presence of admixtures of Cd, Mn and Fe [22,24,25]. The experiments in the PbS–CdS–hydrothermal fluid system at the temperature of 300–430 °C and pressure of 1 kbar confirmed the obtained relations between bulk coefficient of co-crystallisation and solubilities of end members PbS and CdS [24]. The stability of this coefficient under various physicochemical conditions was demonstrated as well as the possibility of estimation of natural fluid composition using the co-crystallisation coefficients. These conclusions were supported by the example of Mn and Fe co-crystallisation with sphalerite in various mineralizing solutions at 400 and 500 °C and 1 and 1.5 kbar [22]. Stability of the D_Mn/Fe value allowed the proposal that the bulk co-crystallisation coefficient under the conditions of natural hydrothermal process does not vary significantly in a wide range of variations of physicochemical parameters and solution compositions.

With respect to the iron oxide minerals, the data on TE co-crystallisation under hydrothermal conditions are severely limited [16,26,27].

The main purpose of this work is to obtain the data on partitioning of the main TE of magnetite and hematite, estimate D_TE/Fe values and give geochemical implications allowing mineral’s composition to be used as a quantitative indicator of TE concentration in ore-forming fluids. The acquisition of reliable data on elements’ distribution in the mineral–hydrothermal fluid system suggests that the effect of surficial TE accumulation is taken into account, and this effect is also considered in the present paper.

3. Materials and Methods

3.1. Experimental Procedure

Standard techniques of hydrothermal thermogradient synthesis of iron oxides in presence of the TE were applied using stainless steel (200 cm³) autoclaves equipped with titanium alloy (VT−8) passivated inserts with a volume of ~50 cm³ each. An internal sampling method using perforated titanium traps was used to obtain data on the composition of the high-temperature fluid phase [17]. The temperature in the zone of crystal growth was 450 °C and the pressure was 1 kbar. These values of temperature and pressure were high enough for near-equilibrium crystal growth and for trapping fluid in quantities required for analysis [28]. The liquid-to-solid ratio in the experiments was ~5. The full duration of the experiments was 24 days with the first 4 days under an isothermal regime applied to homogenise the batch material and ensure near-equilibrium conditions for the subsequent 20 days of thermogradient recrystallisation with a temperature drop of 15 °C on the exterior wall of the autoclave. The actual temperature gradient inside the reaction vessel for this configuration was no more than 0.1 °C/cm [29]. The experiments were terminated by autoclave quenching under cold running water with a temperature drop of 5 °C/s. After insert unsealing, the solution was immediately extracted from the sampler which was rinsed with aqua regia to dissolve any remaining precipitates. The cleaning solution was subsequently combined with the first solution extracted, and a special chemical medium was created to analyse the elements using atomic absorption spectrometry (AAS). The conditions were not equal in different experiments and we did not attempt in this work to estimate the reproducibility of data in a parallel experiment. However, according to our experience with Au, the reproducibility of trapped fluid composition for trace elements is better than 30 rel.% [30]. pH measured in the solutions from samplers varied over the range of 7.2–8.1. The occurrence of fine-grained hematite as a quench phase (see below) suggests that the experimental conditions were close to the magnetite–hematite equilibrium (log fO₂ = −21.6 bar). The batch was made up of high purity reagents (pure reagent-grade) and comprising two parts. The basic components were represented by oxidised (Fe₂O₃) and reduced (FeO or metallic Fe) forms of iron in a molar ratio of 1 or 2, or solely in the oxidised form. The TEs were introduced to the batch as metal oxides (

Table 1. Conditions and results of hydrothermal experiments on synthesis of iron oxide phases with trace elements at 450 °C and 1 kbar.

Experiment No.	Batch Composition												NH4Cl in Solution (wt%)	Experiment Products
	Basic Components a			Trace Element Oxides (wt%)										Phases Obtained b	Fe in Trapped Fluid (wt%)
	Feox/Fered	Feox (wt%)	Fered (wt%)	Al2O3	TiO2	CoO	NiO	CuO	ZnO	Mn2O3	V2O3	Cr2O3
1	1	68.57	30.83	0.1	0.1	0.1	0.1	0.1	0.1	-	-	-	5	Mt	0.994
2	2	84.61	(14.79)	0.1	0.1	0.1	0.1	0.1	0.1	-	-	-	5	Mt	1.337
3	1	67.95	30.55	0.25	0.25	0.25	0.25	0.25	0.25	-	-	-	5	Mt	0.085
4	2	83.84	(14.66)	0.25	0.25	0.25	0.25	0.25	0.25	-	-	-	5	Ni-Sp	1.929
5 c	1	67.95	30.55	0.25	0.25	0.25	0.25	0.25	0.25	-	-	-	10	Mt	0.286
6	2	83.84	(14.66)	0.25	0.25	0.25	0.25	0.25	0.25	-	-	-	10	Ni-Sp	0.637
7 c	2	81.15	18.25	0.1	0.1	0.1	0.1	0.1	0.1	-	-	-	5	Mt	3.812
8 c	2	80.42	18.08	0.25	0.25	0.25	0.25	0.25	0.25	-	-	-	5	Mt	1.686
9 c	2	80.42	18.08	0.25	0.25	0.25	0.25	0.25	0.25	-	-	-	10	Hm	2.569
10	Feox only	99.1	0	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	5	Mt + Hm	0.968
11	same	97.75	0	0.25	0.25	0.25	0.25	0.25	0.25	0.25	0.25	0.25	10	Mt + Hm	0.233
12	same	99.1	0	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	10	Hm	0.380

^a Fe constituent of batch weight was 5 g. Fe_ox = Fe₂O₃, Fe_red = FeO or Fe (in parenthesis). Fe_ox/Fe_red is the molar ratio. ^b Mt—magnetite, Hm—hematite, Ni-Sp—nickel spinel (solid solution NiFe₂O₄-FeFe₂O₄ close to Ni end member). ^c Small quantities of potassium dichromate were added to improve growth of Fe oxide crystals [17]. Dash denotes that the component was not added to the batch.

). The Fe component of the batch weighed 5 g, and each TE oxide were 0.1 or 0.25 wt% of batch weight. The significant part of the batch (~10–30%) was left after the experiments. The crystals formed in the upper part of the insert yielded up to 600 mg. Solutions of ammonium chloride (NH₄Cl) of 5 and 10% were reported to be the most effective mineralising solutions for growing iron oxide crystals [17]. This solute is also significant for natural fluid systems [24,31,32].

3.2. Analytical Methods

3.2.1. X-ray Electron Probe Microanalysis (EPMA)

Iron oxide crystals of magnetite, hematite, and Ni-spinel were inserted into well-polished epoxy pellets after they were washed with distilled water and ethanol and analysed using EPMA with a Superprobe JXA−8200 (JEOL Ltd., Tokyo, Japan) microprobe supplied with energy dispersive and wavelength-dispersive spectrometers (WDS) in Vinogradov Institute of Geochemistry of SB RAS (Irkutsk, Russia). Quantitative WDS analyses were conducted at an accelerating voltage of 20 kV, a beam current of 20 nA, a beam diameter of 1 µm, and a counting time of 10 s for major elements and 20 s or 30 s for TEs. The background counts were 5 s or 10 s long for major elements and 15 s long for TEs. Matrix corrections and analysed element contents were calculated using the ZAF (atomic number, absorption, and fluorescence) approach applying the software for quantitative analysis for Superprobe JXA−8200 (V01.42© 2021–2007, JEOL Ltd., Tokyo, Japan). Standardisation was performed using well-characterised minerals (hematite Fe₂O₃ for Fe, spinel MgAl₂O₄ for Al, chalcopyrite CuFeS₂ for Cu, sphalerite ZnS for Zn, and rutile TiO₂ for Ti), alloys (FeNiCo for Ni and Co) and oxides (V₂O₅ for V, Cr₂O₃ for Cr, and MnO for Mn) as standard samples. Measurements were made at 10 to 20 points on each grain, depending on its homogeneity. Reliable estimates of the TE content by EPMA was possible for Co, Ni, Al, V, and Mn (the minimum detection limit (MDL) ≈ 0.1 wt%). TE concentrations and their standard deviations are presented in Appendix A (

Table A1. Compositions of obtained crystals, trapped fluids and calculated partition and co-crystallisation coefficients of trace elements in the mineral–hydrothermal fluid system at 450 °C and 1 kbar.

Experiment No.	Mineral	TE Content (µg/g) a			TE in Trapped Fluid (µg/g) b	(TE/Fe)at in Mineral	(TE/Fe)at in Fluid	${\mathit{D}}_{\mathit{p}}^{\mathit{m}\mathit{i}\mathit{n}/\mathit{f}\mathit{l}}$	${\mathit{D}}_{\mathit{m}\mathit{i}\mathit{n}/\mathit{f}\mathit{l}}^{\mathit{T}\mathit{E}/\mathit{F}\mathit{e}}$
		AAS	EPMA	LA-ICP-MS
Titanium
1	Mt	-	-	7 ± 2	4.4	1.2 × 10−5	5.3 × 10−4	1.6	2.3 × 10−2
2		-	-	3.7 ± 0.5	37	6.1 × 10−6	3.2 × 10−3	0.1	1.9 × 10−3
3		-	-	4.7 ± 0.5	2.8	8.0 × 10−6	3.8 × 10−3	1.7	2.1 × 10−3
5		-	-	1.4 ± 0.03	11	2.4 × 10−6	4.5 × 10−3	0.1	5.3 × 10−4
7		-	-	13 ± 5	60	2.2 × 10−5	1.8 × 10−3	0.2	1.2 × 10−2
8		-	-	12 ± 3	8.0	2.1 × 10−5	5.5 × 10−4	1.5	3.8 × 10−2
10c		-	-	12 ± 3	23	2.3 × 10−5	2.8 × 10−3	0.5	8.2 × 10−3
11 c		-	-	37 ± 12	4.6	6.3 × 10−5	2.3 × 10−3	8.0	2.7 × 10−2
4	Ni-Sp	-	-	3.7 ± 0.4	126	8.5 × 10−6	7.6 × 10−3	0.03	1.1 × 10−3
6		-	-	2.3 ± 0.6	22	4.9 × 10−6	4.0 × 10−3	0.1	1.2 × 10−3
9	Hm	-	-	100 ± 40	6.0	1.7 × 10−4	2.7 × 10−4	17	0.6
12		-	-	150 ± 60	2.5	2.6 × 10−4	7.7 × 10−4	60	0.3
10 c		-	-	60 ± 20	4.0	1.1 × 10−4	4.8 × 10−4	15	0.23
Cobalt
1	Mt	11,060	12,940 ± 120	14,260 ± 1150	964	1.7 × 10−2	9.2 × 10−2	13	0.18
2		-	11,200 ± 150	12,990 ± 1710	874	1.5 × 10−2	6.2 × 10−2	13	0.24
3		22,730	27,210 ± 410	23,920 ± 840	379	3.8 × 10−2	0.42	72	0.09
5		17,230	20,280 ± 190	18,420 ± 910	1200	2.8 × 10−2	0.4	17	0.07
7		10,740	13,570 ± 170	10,860 ± 740	5530	1.8 × 10−2	0.14	2	0.13
8		26,340	36,270 ± 320	29,480 ± 660	3120	5.2 × 10−2	0.18	12	0.29
10c		20,760	29,070 ± 750	31,020 ± 800	4150	4.5 × 10−2	0.41	7	0.11
4	Ni-Sp	-	7020 ± 280	7170 ± 1200	8220	1.3 × 10−2	0.4	0.9	0.03
6		-	11,190 ± 260	10,900 ± 1450	2140	1.9 × 10−2	0.32	5	0.06
9	Hm	680	-	300 ± 60	6090	4.1 × 10−4	0.22	0.05	1.9 × 10−3
12		460	-	260 ± 40	1730	3.7 × 10−4	0.43	0.2	8.6 × 10−4
11c		3200	-	760 ± 30	3130	1.1 × 10−3	1.27	0.2	8.7 × 10−4
Nickel
1	Mt	11,480	9750 ± 220	11,900 ± 1220	41	1.3 × 10−2	3.9 × 10−3	238	3.3
2		-	16,390 ± 930	22,410 ± 4420	216	2.2 × 10−2	1.5 × 10−2	76	1.5
3		14,290	17,420 ± 360	13,310 ± 1710	17	2.4 × 10−2	1.9 × 10−2	1025	1.3
5		21,030	20,000 ± 400	17,300 ± 2000	45	2.8 × 10−2	1.5 × 10−2	444	1.9
7		14,190	15,430 ± 700	13,350 ± 1350	191	2.1 × 10−2	4.8 × 10−3	81	4.4
8		21,300	19,750 ± 860	15,580 ± 1200	338	2.8 × 10−2	1.9 × 10−2	58	1.5
10c		85,470	93,800 ± 2240	84,790 ± 6300	224	0.15	2.2 × 10−2	419	6.8
4	Ni-Sp	-	220,550 ± 3850	-	1880	0.41	9.3 × 10−2	117	4.4
6		-	168,350 ± 1060	-	520	0.29	7.8 × 10−2	324	3.7
9	Hm	3000	1410 ± 130	1330 ± 340	1300	1.9 × 10−3	4.8 × 10−2	1.1	4.0 × 10−2
12		3560	1930 ± 130	2120 ± 340	922	2.8 × 10−3	0.21	2.1	1.3 × 10−2
11c		-	1980 ± 60	2050 ± 60	98	2.8 × 10−3	4.0 × 10−2	20	7.0 × 10−2
Copper
1	Mt	32	-	3.0 ± 0.4	3290	3.8 × 10−6	0.29	9 × 10−4	1.3 × 10−5
2		51	-	2.7 ± 0.2	1950	3.4 × 10−6	0.13	1.4 × 10−3	2.6 × 10−5
3		620	-	5.9 ± 0.4	5940	7.5 × 10−6	6.14	9.9 × 10−4	1.2 × 10−6
5		3500	-	3.0 ± 0.5	4350	3.9 × 10−6	1.34	6.9 × 10−4	2.9 × 10−6
7		67	-	17.1 ± 1.4	14,580	2.2 × 10−5	0.34	1.2 × 10−3	6.5 × 10−5
8		220	-	11.9 ± 1.5	23,280	1.6 × 10−5	1.21	5.1 × 10−4	1.3 × 10−5
10c		110	-	5.2 ± 1.0	7640	7.5 × 10−6	0.69	6.8 × 10−4	1.1 ×10−5
4	Ni-Sp	-	-	3.3 ± 0.7	80,840	5.7 × 10−6	3.68	4.1 × 10−5	1.5 × 10−6
6		-	-	3.1 ± 0.4	3620	5.0 × 10−6	0.5	8.6 × 10−4	1.0 × 10−5
9	Hm	110	-	5.2 ± 0.5	3710	6.6 × 10−6	0.13	1.4 × 10−3	5.1 × 10−5
12		390	-	8 ± 5	290	1.1 × 10−5	6.7 × 10−2	2.8 × 10−2	1.6 × 10−4
11c		270	-	2.8 ± 0.4	4670	3.6 × 10−6	1.76	6 × 10−4	2.0 × 10−6
Zinc
1	Mt	500	-	400 ± 40	3010	4.9 × 10−4	0.26	0.13	1.9 × 10−3
2		-	-	320 ± 40	1670	3.9 × 10−4	0.11	0.19	3.5 × 10−3
3		760	-	670 ± 50	3000	8.3 × 10−4	3.01	0.22	2.8 × 10−4
5		570	-	540 ± 30	4780	6.8 × 10−4	1.43	0.11	4.8 × 10−4
7		390	-	260 ± 20	11,140	3.2 × 10−4	0.25	0.02	1.3 × 10−3
8		1570	1200 ± 80	1520 ± 140	10,130	1.5 × 10−3	0.51	0.12	2.9 × 10−3
10c		650	-	940 ± 120	8290	1.3 × 10−3	0.73	0.11	1.8 × 10−3
4	Ni-Sp	-	-	150 ± 30	11,570	2.5 × 10−4	0.51	0.01	4.9 × 10−4
6		-	-	300 ± 40	3150	4.7 × 10−4	0.42	0.1	1.1 × 10−3
9	Hm	380	-	6.4 ± 1.6	14,420	7.9 × 10−6	0.48	4.4 × 10−4	1.6 × 10−5
12		310	-	7.6 ± 2.0	4110	9.8 × 10−6	0.92	1.8 × 10−3	1.1 × 10−5
11c		320	-	7.3 ± 1.6	8370	9.1 × 10−6	3.07	8.7 × 10−4	3.0 × 10−6
Aluminium
1	Mt	1940	2550 ± 150	-	17	7.5 × 10−3	3.5 × 10−3	150	2.1
2		-	1880 ± 60	-	50	5.5 × 10−3	7.7 × 10−3	38	0.71
3		1530	1930 ± 120	-	17	5.8 × 10−3	4.1 × 10−2	114	0.14
5		2130	-	610 ± 20	18	1.9 × 10−3	1.3 ×10−2	34	0.15
7		1930	2330 ± 200	2900 ± 500	19	6.9 × 10−3	1.0 × 10−3	123	6.9
8		14,350	3310 ± 160	3120 ± 450	5.7	1.0 × 10−2	7.0 × 10−4	581	14.3
10c		4400	5770 ± 550	7930 ± 1630	7.5	2.0 × 10−2	1.6 × 10−3	769	12.5
4	Ni-Sp	-	-	300 ± 40	44	1.2 × 10−3	4.7 × 10−3	7	0.26
6		-	-	780 ± 100	27	2.9 × 10−3	8.8 × 10−3	29	0.33
9	Hm	2810	-	820 ± 390	2.0	2.5 × 10−3	1.6 × 10−4	410	16
12		5960	8180 ± 340	9330 ± 450	11	2.5 × 10−2	6.0 × 10−3	744	4.2
11c		2820	2310 ± 160	3120 ± 450	3.4	7.0 × 10−3	3.0 × 10−3	679	2.3
Manganese
10c	Mt	1060	1690 ± 100	1630 ± 120	3550	2.8 × 10−3	0.37	0.48	7.6 × 10−3
12	Hm	-	-	14.4 ± 1.3	4300	2.2 × 10−5	1.15	3.3 × 10−3	1.9 × 10−5
11c		320	-	50 ± 2	8080	7.4 × 10−5	3.52	6.2 × 10−3	2.1 × 10−5
Chromium
9	Hm	190	-	6.7 ± 1.8	2.7	1.0 × 10−5	1.1 × 10−4	2.5	9.1 × 10−2
12		290	-	26 ± 9	1.5	4.2 × 10−5	4.2 × 10−4	17	0.1
11c		110	-	6.9 ± 1.7	0.7	1.1 × 10−5	3.2 × 10−4	9.9	3.4 × 10−2
Vanadium
12	Hm	22,450	25,310 ± 660	13,100 ± 1040	12	4.2 × 10−2	3.5 × 10−3	2110	12.0
10c		3740	3610 ± 480	2650 ± 500	35	6.5 × 10−3	4.0 × 10−3	103	1.6
11c		10,250	13,220 ± 110	10,450 ± 800	9.5	2.1 × 10−2	4.5 × 10−3	1390	4.7

^a AAS—atomic absorption spectrometry (bulk analysis), EPMA—X-ray electron probe microanalysis, LA-ICP-MS—laser ablation- inductively coupled plasma-mass spectrometry; dash indicating absence of data caused by insufficient material quantity for analysis or low TE concentration (<minimum detection limit (MDL)). Values taken for partitioning calculations in the cases when several methods were resultative are shown in bold. Errors were calculated as $\epsilon =t_{\alpha n}\times S_x/\sqrt{n}$ at a confidence level of 0.95, where $t_{\alpha n}$ is the Student’s coefficient for n degrees of freedom, $S_x$ is the root-mean-square deviation. ^b Accuracy of the method is estimated as ±10% rel. ^c Binary association Mt + Hm.

).

3.2.2. X-ray Diffraction (XRD)

XRD was used mainly for phase analysis and to recognize the phase composition of the minerals produced in the experiments (magnetite, hematite, magnetite + hematite, and Ni-spinel) employing powder diffraction patterns. Unit cell edges were measured with a D8 ADVANCE diffractometer (Bruker, Germany) using CuKα radiation in Vinogradov Institute of Geochemistry of SB RAS. Phases were identified using a base of powder diffraction data PDF−2 (ICCD PDF−2, Release 2007). Phase composition and unit cell edges were refined using the program TOPAS 4 (User’s Manual, Bruker AXS, 2008, Karlsruhe, Germany). Uncertainties in unit cell edges occurred at the level of ± 1–3 × 10^–4 nm; sensitivity to the presence of admixed phases was 0.5 wt%.

3.2.3. Atomic Absorption Spectrometry (AAS)

The AAS method was used to analyse trapped solutions [17,26,27]. As a bulk method, AAS played a supporting role to EPMA and LA-ICP-MS in the study of the solid phases obtained because of the phenomenon of surficial TE accumulation [17]. AAS measurements were performed on Perkin-Elmer instruments (Model 403 and Analyst 800, The Perkin Elmer Corp., Norwalk, CT, USA) in the Vinogradov Institute of Geochemistry of SB RAS. Elements were determined with a precision of ±5–10 rel.%. Element concentrations were calculated by external calibration using standard solutions prepared in-house from analytically pure substances.

3.2.4. Laser Ablation Inductively Coupled Plasma Mass Spectrometry (LA-ICP-MS)

(1) Bulk Crystals

For this analysis, we used the same crystals mounted in epoxy pellets that were analysed by EPMA. Measurements were performed on an Agilent 7500ce unit manufactured by Agilent Technologies with quadrupole mass analyser (Agilent Tech., Santa Clara, CA, USA) using a New Wave Research UP−213 laser ablation platform in the Limnological Institute of SB RAS (Irkutsk, Russia). Parameters of the LA-ICP-MS experiment were: plasma power of 1400 W, carrier gas flow rate of 1 L/min, plasma-forming gas flow rate of 15 L/min, cooling gas at 1 L/min, laser energy at 80%, frequency of 10 Hz, and a laser spot diameter of 55 μm. Dwell times per isotope/element were 0.15 s, and acquisition time was 14 s. Measurements were made at 15 to 16 points in several (3 to 4) grains from each sample. The content of Ni and Co was determined by EPMA in each grain of each sample analysed and used as internal standards. Due to high content in iron oxides, Fe is less sensitive to composition variations and less convenient as an element used for studying correlation of LA-ICP-MS and EPMA data when the local areas of crystals are analysed.

Calculations of TE concentrations were based on standard samples NIST 610 and NIST 612 which were well suited for this analysis and produced reliable results when measuring TE concentrations in magnetite on the order of ppm to sub-ppm [14]. Standard deviations are given in Table A1. MDLs (3× the standard deviation of the blank) were estimated as follows (µg/g): ⁶⁰Ni = 0.26, ⁵⁹Co = 0.25, ⁶³Cu = 0.22, ⁵¹V = 0.24, ⁵⁵Mn = 0.28, ⁶⁶Zn = 1.1, ²⁷Al = 1.8, ⁴⁷Ti = 2.9, and ⁵²Cr = 3.1.

(2) Outermost Crystal Layers

Only crystals of high quality with smooth faces were used to study TE distribution in the outermost layers by sequential laser removal in combination with ICP-MS analysis performed in the Vinogradov Institute of Geochemistry of SB RAS (see [33] for details). The requirements for the unpolished crystals studied were fulfilled exactly for magnetite crystals, while hematite crystals were often smooth-faced but the face areas were not large enough to analyse. The instrument system involved a quadrupole mass-spectrometer (Perkin Elmer NexION 300D) and a laser ablation platform (NWR−213). Plasma power was 1400 W, the carrier gas was Ar delivered at a rate of 0.8 L/min, and the rates of the auxiliary flows (plasma/cool and auxiliary gas) were 18 and 1 L/min, respectively. Due to the high scan rate, 63 scans per minute were recorded which allowed us to clearly discriminate variations in material flux with time. The YAG:Nd laser platform (wavelength = 213 nm) was optimised for aerosol transportation using pure He over the shortest distance to the mass spectrometer torch at a flow rate of 0.6 L/min. Laser power was set at 20%, frequency at 10 Hz, and laser spot diameter at 100 µm. The laser beam passed along a straight-line profile of each sample six times at a rate of 200 µm/s, so that the first and last spots occurred outside of the sample. Inasmuch as the end points of the profiles were outside the sample, we were able to clearly distinguish between the mass spectrometry data of all six ablation passes on each sample and eliminate the effect of deep laser ablation of the material at the beginning of the profiles because of the extra time needed to accurately position the platform. The calibration of elements to be analysed was carried out using the NIST 612 standard conformed to the in-house standard sample—highly homogeneous magnetite crystals synthesised hydrothermally. Unfortunately, it proved difficult to standardise the depth due to high surface roughness along the laser track and material sputtering along the ablation groove, thus the data obtained were rated as semiquantitative. However, the data obtained in [33] for hydrothermal magnetite crystal surface under similar conditions of analysis allowed us to estimate the depth of groove after one laser pass as ~1.5 µm.

3.2.5. Atomic Force Microscopy (AFM)

The surface morphology of the crystals was investigated in contact mode with an SMM−2000 scanning multi-microscope (Zelenograd, Russia) in Vinogradov Institute of Geochemistry of SB RAS. The microscope’s software made it possible to analyse roughness and other surface characteristics and determine the height and shape of nano-sized objects on the crystal surfaces. Standard Si₃N₄ cantilevers (Veeco, Park Scientific, USA) with a tip-rounding radius of 10 nm were used. The SMM−2000 microscope was a certified measurement tool (no. 980080025). According to the certificate, the maximum resolution was 2.5 nm in the X-Y plane and 1.1 nm in the Z direction.

4. Results

4.1. Characteristics of Phases Obtained

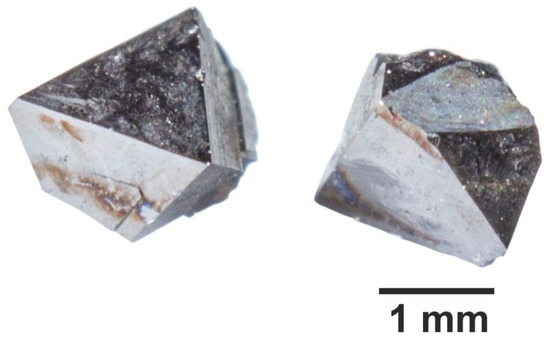

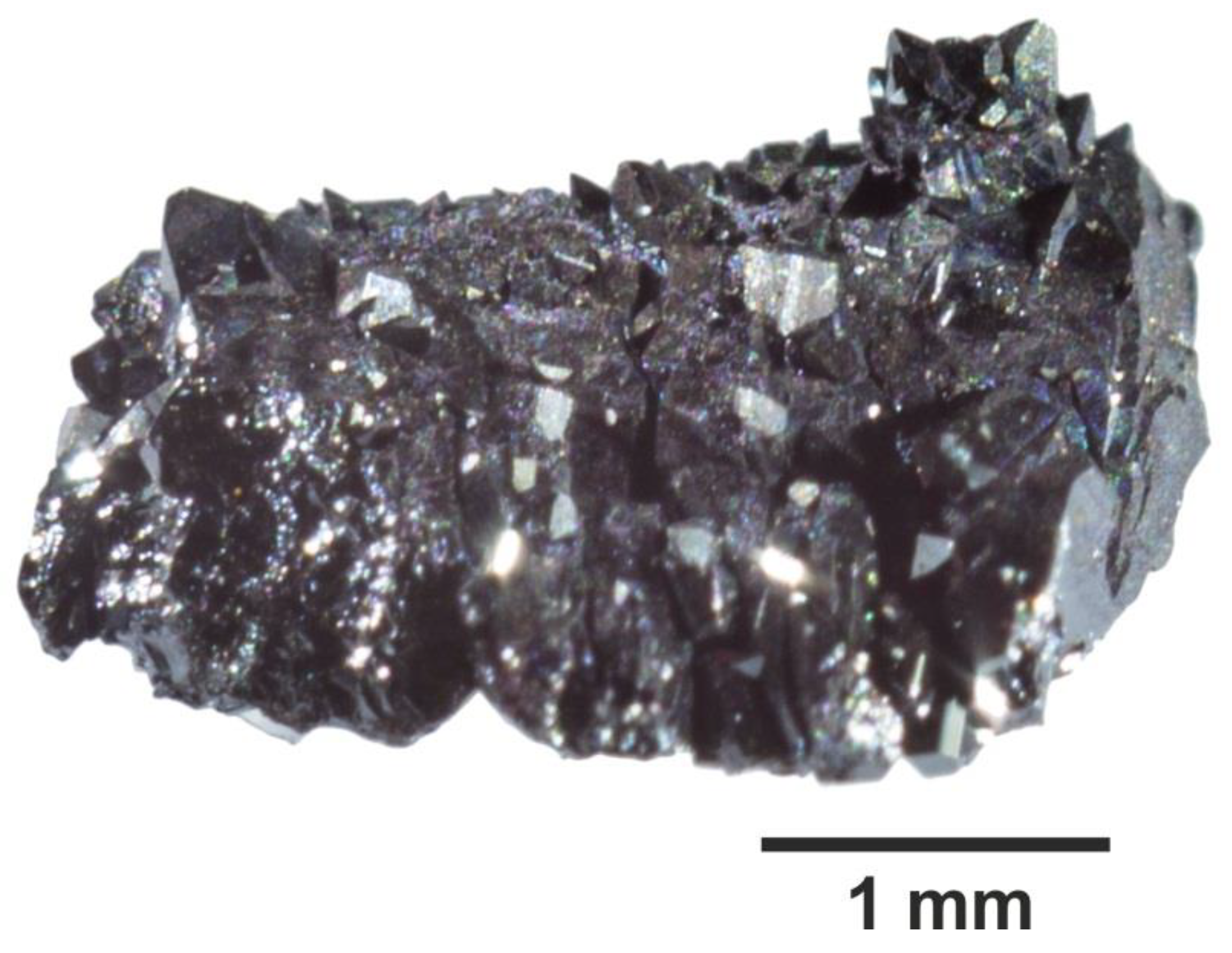

Sufficiently large crystals (up to 3 mm) of magnetite and smaller crystals (up to 1 mm) of Ni-spinel and hematite were obtained. In two experiments, magnetite and hematite were obtained together (Table 1). Magnetite crystals were usually octahedral (Figure 1), Ni-spinel demonstrated better development of {110} and {100} faces combined with {111}, and hematite crystals formed hexagonal prisms combined with well-developed pyramids of different indexes and usually assembled into compact-grained aggregates (Figure 2). TE oxides were not found in crystals as well as in the residual dispersed batch material. The quench phase was mainly the bricky-colour hematite crystals and aggregates of ~10–40 µm in size. The patches of quench phase were rarely observed on the surface of single crystals obtained because the solution was isolated from growth zone under quenching below ~380 °C, a critical point of NH₄Cl solution.

The unit cell edges of the phases obtained were (nm): magnetite, a = 0.8393–0.8396 nm, Ni-spinel, a = 0.8353–0.8360 nm, and hematite, a = 0.5031–0.5032 nm and c = 1.3710–1.3746 nm. The composition of Ni-spinel was calculated from EPMA data (Table A1, Experiments Nos. 4 and 6) using the formulas: $F{e}^{3+}{\left[F{e}_{1.04}^{3+}F{e}_{0.03}^{2+}N{i}_{0.88}^{2+}C{o}_{0.03}^{2+}\right]}_{1.98}{O}_4$ (Experiment No. 4) and $F{e}^{3+}{\left[F{e}_{1.06}^{3+}F{e}_{0.20}^{2+}N{i}_{0.67}^{2+}C{o}_{0.04}^{2+}\right]}_{1.97}{O}_4$ (Experiment No. 6) to account for the presence of Ni or Co in the octahedral sites of the magnetite (inverse spinel) structure in a bivalent state [34]. The content of other TEs was negligible (≤0.1 at.%); therefore, both phases are solid solutions of magnetite and trevorite (NiFe₂O₄₎ close to the Ni end-member.

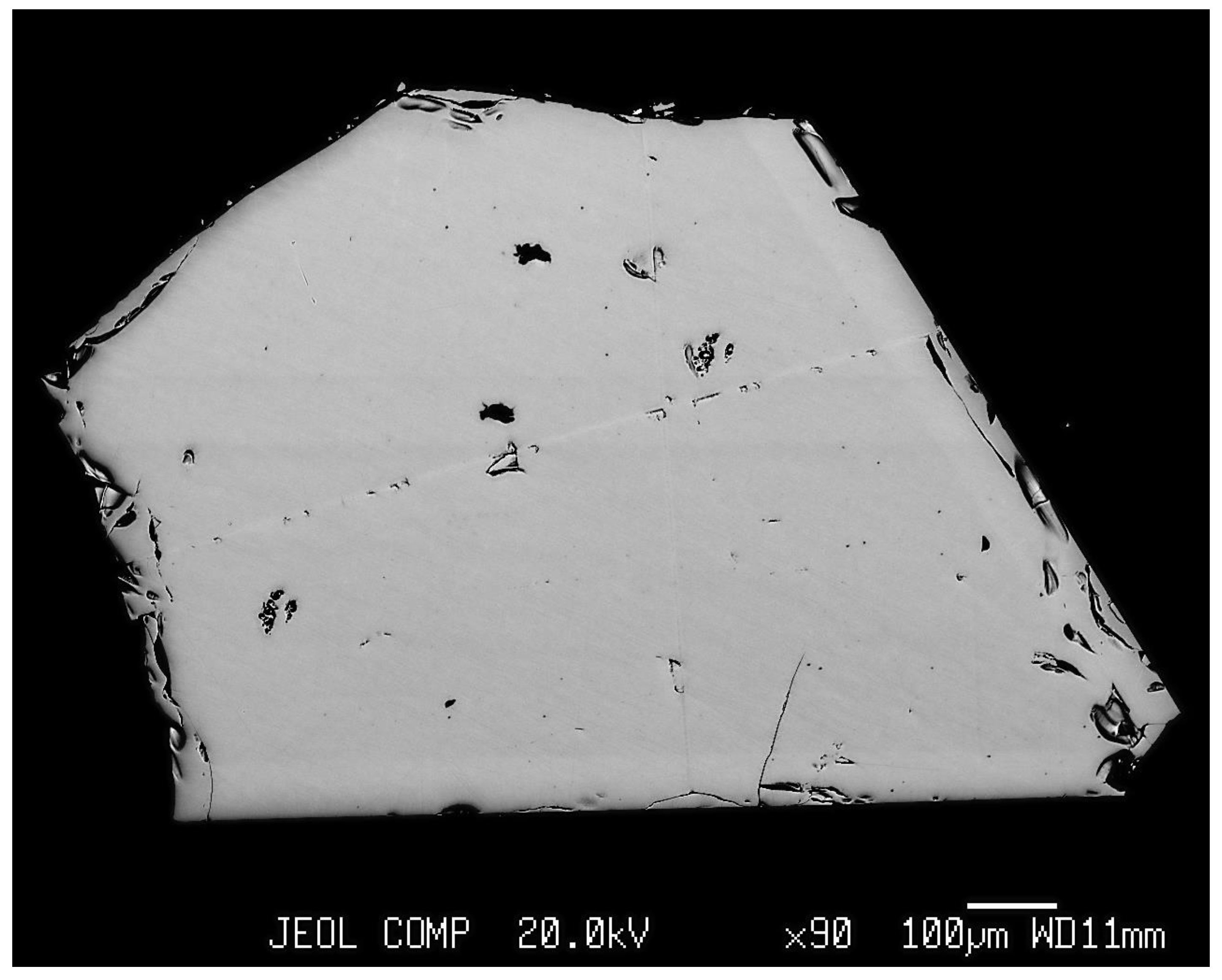

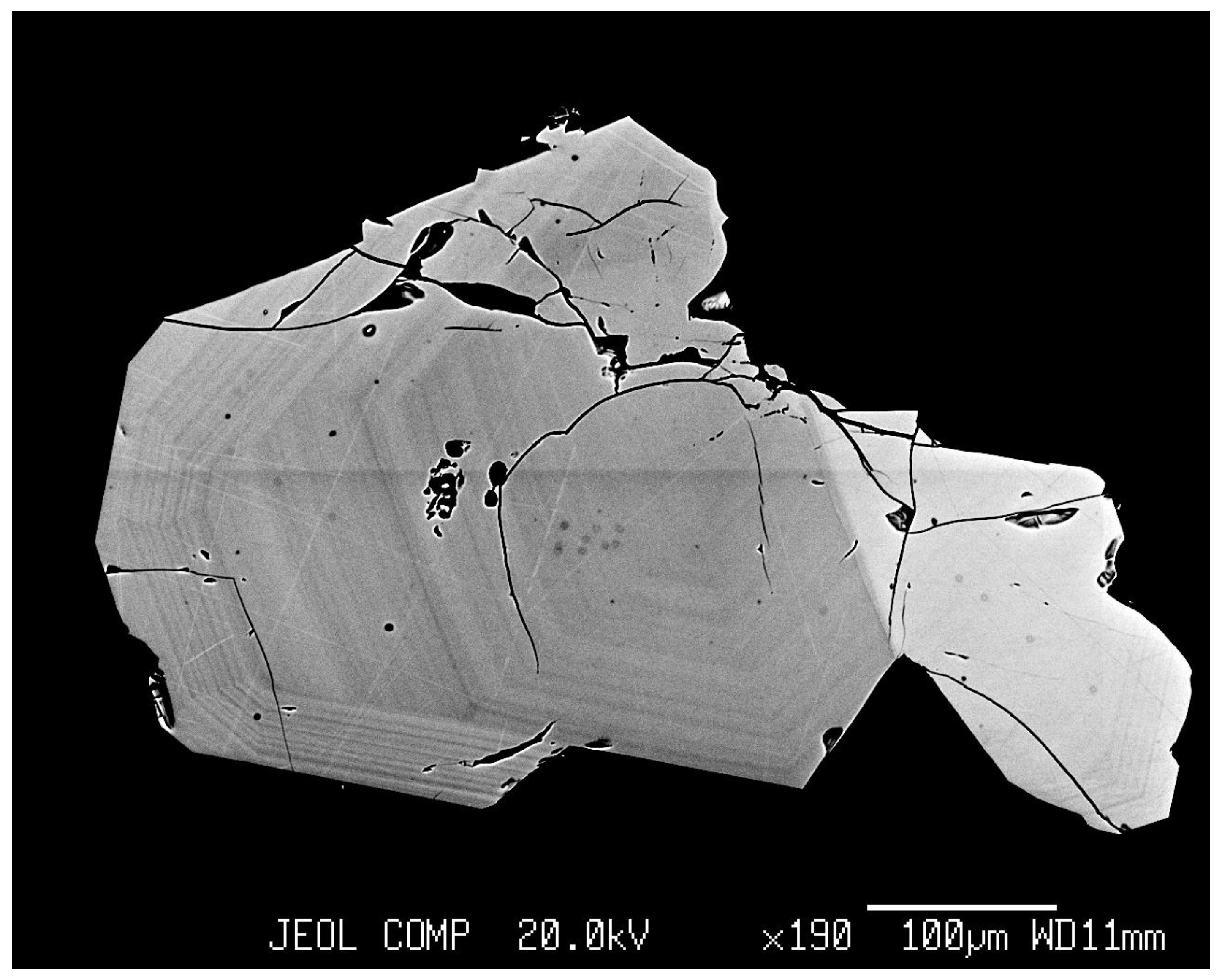

EPMA showed essential homogeneity of the interiors of magnetite crystals (Figure 3). Hematite crystals often manifested the growth zonality (Figure 4), and this was a possible reason for wider variations of TE contents in this phase.

4.2. Partition and Co-Crystallisation Coefficients

Table A1 in Appendix A presents the results of EPMA, LA-ICP-MS, and AAS of crystals obtained in the hydrothermal experiments (see Table 1 for conditions, phases synthesised, and Fe content in trapped fluids). The atomic ratios of TE/Fe in minerals and fluids and the partition and co-crystallisation coefficients calculated for the most reliable data with a minimum standard deviation of the mean (Table A1). Only limited data sets were obtained for hematite and Ni-spinel; thus, these results are considered preliminary and require further experimental validation to substantiate initial findings.

For a majority of elements, we noticed reasonable agreement among different analytical methods including the bulk AAS. Discrepancies between them did not exceed ±30%; however, some elements demonstrated a lack of correlation between the AAS data and the data obtained by other methods. This was dramatically evident for Cu; based on AAS results, the Cu content in magnetite and hematite crystals ranged from 32 to 3500 µg/g, whereas results from EPMA were below the MDL, and LA-ICP-MS only detected 2.7–17.1 µg/g Cu (Table A1). The elevated contents in comparison to LA-ICP-MS were also observed for Zn and Cr in hematite as determined by AAS. One possible reason for the effect of the lack of correlation between methods is the enrichment of TEs on crystal surfaces (see Section 4.3 and Section 5.3). The partition and co-crystallisation coefficients are shown in

Table 2. Average partition and co-crystallisation coefficients of trace elements (TE) in magnetite (Mt), Ni-spinel (Ni-Sp) and hematite (Hm) in the system mineral–hydrothermal fluid at 450 °C and 1 kbar.

Element	Mineral Phase	Dp ±ε *	DTE/Fe ±ε *
Ti	Mt Ni-Sp Hm	1.6 ± 1.8 0.1 31 ± 28	(1.4 ± 0.9) × 10−2 1.2 × 10−3 0.4 ± 0.3
Co	Mt Ni-Sp Hm	19 ± 17 3 0.2 ± 0.1	0.16 ± 0.07 0.05 (1.2 ± 0.6) × 10−3
Ni	Mt Ni-Sp Hm	330 ± 250 220 7.7	3.0 ± 1.5 4.0 (4 ± 3) × 10−2
Cu	Mt Ni-Sp Hm	(9.1 ± 2.3) × 10−4 4.5 × 10−4 0.01	(1.9 ± 1.6) × 10−5 5.8 × 10−6 7.1 × 10−5
Zn	Mt Ni-Sp Hm	0.13 ± 0.04 0.06 5 × 10−4	(1.7 ± 0.8) ×10−3 8 × 10−4 (1.0 ± 0.7) × 10−5
Al	Mt Ni-Sp Hm	260 ± 210 37 610 ± 190	5.3 ± 4 0.3 7.5 ± 7
Mn	Mt ** Hm	0.3 ± 0.1 4.8 × 10−3	(9 ± 2) × 10−3 (2.0 ± 0.3) × 10−5
Cr	Mt ** Hm	140 9.8 ± 8	1.2 ± 1 (7.5 ± 6) × 10−2
V	Mt ** Hm	540 1200	6.6 ± 3.8 6.1 ± 5.9

* Errors were calculated as $\epsilon =t_{\alpha n}\times S_x/\sqrt{n}$ at a confidence level of 0.9 for more than 3 experiments (n > 3) and at a confidence level of 0.8 for n = 3. For n = 2 and highly discrepant values at n = 3 (Table A1), the mean is given. $t_{\alpha n}$ is the Student’s coefficient, $S_x$ is the root-mean-square deviation. ** Data for magnetite obtained under similar conditions were taken from [26] (Mn) and [27] (Cr, V).

.

Data obtained in this work were supplemented with results for Mn [26] and Cr and V [27] partitioning in magnetite–fluid systems previously obtained under the same temperature and pressure parameters as before and a similar composition of mineralising solution. The co-crystallisation coefficients are presented in Table 2 and in Figure 5.

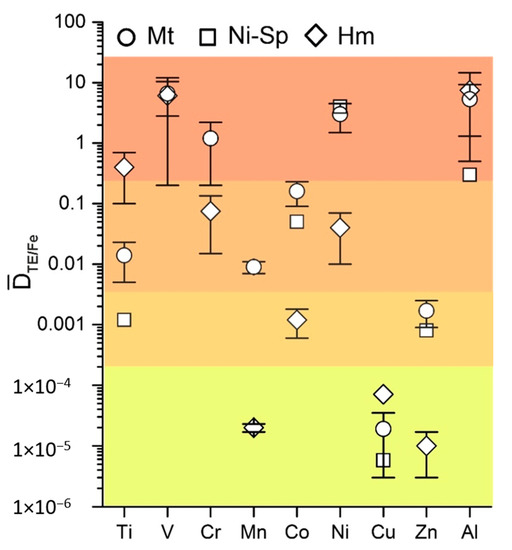

The elements under investigation were divided into four groups shown in different colours (Figure 5). The highest values for $D_{TE/Fe}^{min/fl}$ ≈ (0.n–n) characterised Ti in hematite, V in magnetite and hematite, Cr in magnetite, Ni in magnetite and Ni-spinel, and Al in all three phases. The second group with $D_{TE/Fe}^{min/fl}$ ≈ (0.0n–0.n) included Ti, Mn, and Co in magnetite, Cr and Ni in hematite, and Co in Ni-spinel.

The third group comprised Ti and Zn in Ni-spinel, Co in hematite, and Zn in magnetite with co-crystallisation coefficients at the level of ~10⁻³. The lowest values of $D_{TE/Fe}^{min/fl}$ (n × 10⁻⁵) are distinctive features of Mn and Zn in hematite and Cu in all three phases (Table 2). Variations in co-crystallisation and partition coefficients were sufficiently large, especially for Ni-spinel and hematite, for which only two and three experiments were available, respectively. The data for magnetite were more representative. In most cases, the coefficient of variation is lower for $D_{TE/Fe}^{min/fl}$ than for the partition coefficient $D_p^{min/fl}$ (

Table 3. Reproducibility of partition and co-crystallisation coefficients of TE in magnetite according to the coefficient of variation.

Element	v(Dp),%	v(DTE/Fe),%
Ti	160	100
Co	130	60
Ni	100	70
Cu	40	110
Zn	40	70
Al	110	100
Mn *	40	20
Cr *	160	70
V *	130	50

* Data from [26,27].

), demonstrating better reproducibility in the co-crystallisation coefficient compared to the partition coefficient. These data may be explained relying on Equation (2) (Section 2): F_TE/F_Fe can be tolerant to the changes of physicochemical conditions due to chemical similarity of the elements (TE and Fe), whereas F_TE by itself can vary in more wide range changing the $D_p^{min/fl}$ value.

4.3. Surficial Crystal Enrichment with TE

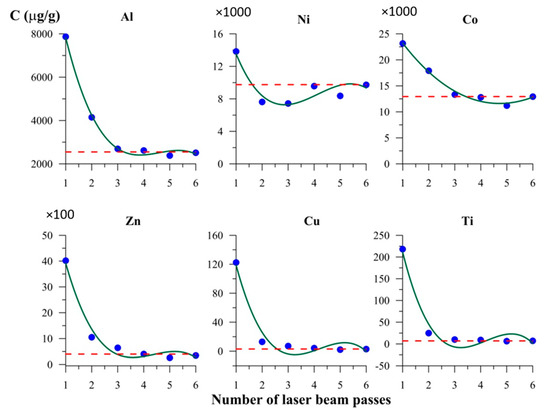

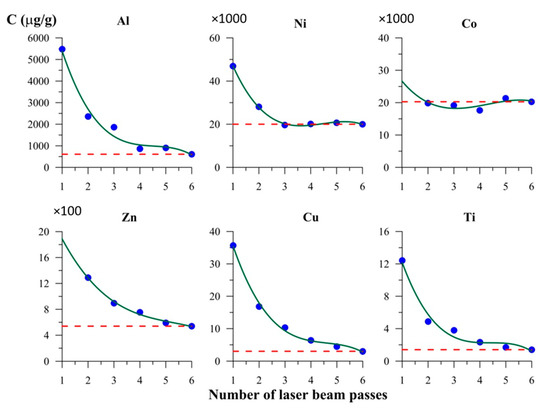

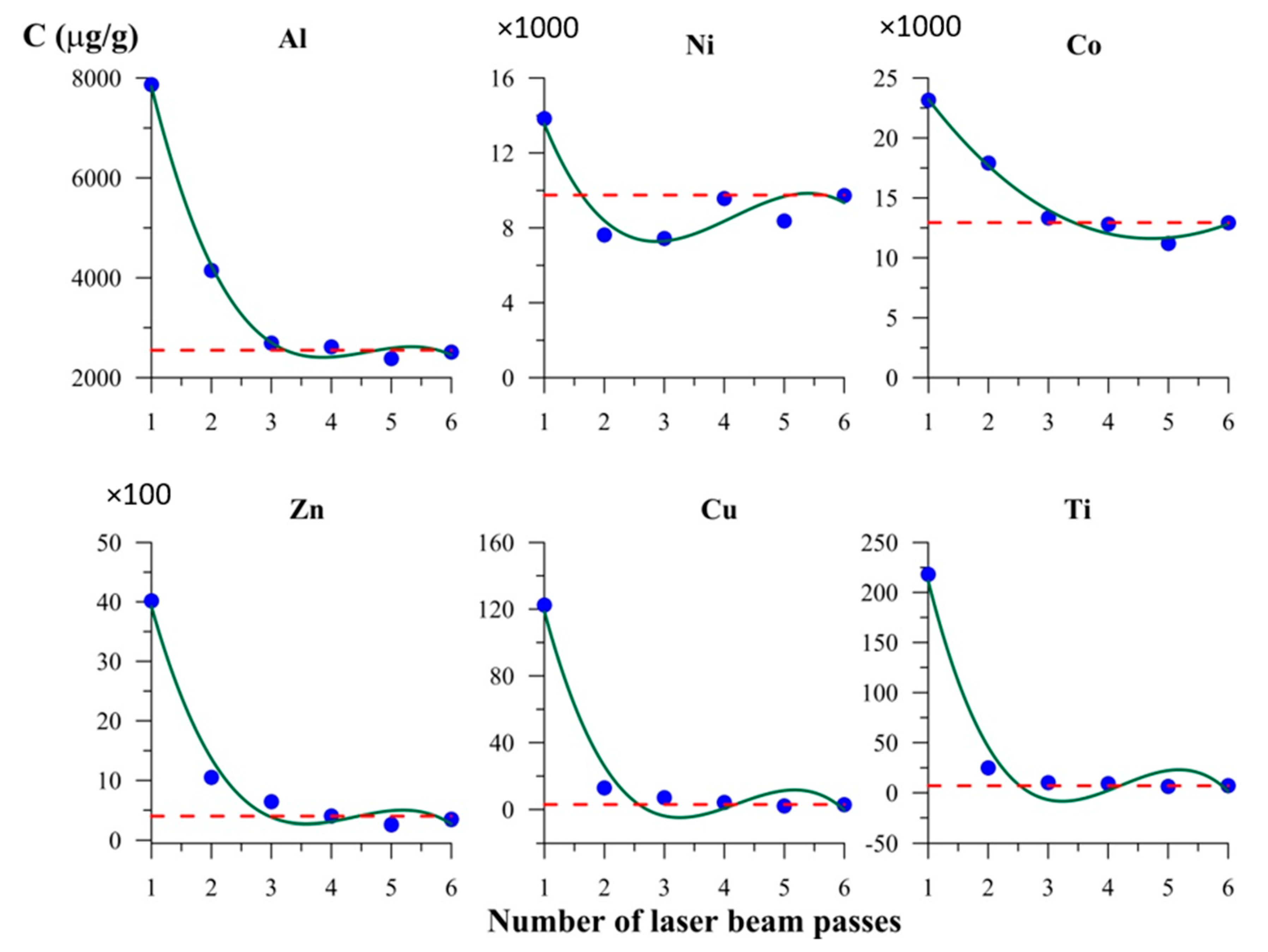

The result of layer-by-layer LA-ICP-MS analysis of magnetite crystals in six laser passes are shown in Figure 6 and Figure 7. Crystals from Experiments 1 and 5 (Table 1 and Table A1) with smooth faces and low mean surface roughness (~20 nm from AFM data) were used. The first one or two passes showed markedly higher TE contents than those for volume (Figure 6 and Figure 7). This was not as relevant for elements with relatively high contents (1–2% of Ni and Co each) but was clearly essential for minor elements (≤0.1% of TE). The highest concentrations of TEs were associated mostly with the first layer removed, for which the thickness was estimated at 1–1.5 µm (see also [17,33]). The second lasers pass partly utilised material spattered and redeposited after the first pass. Therefore, the scale of the effect observed was comparable to the size parameters of the NAP on the surface of hydrothermal magnetite crystals (~300 nm [30]).

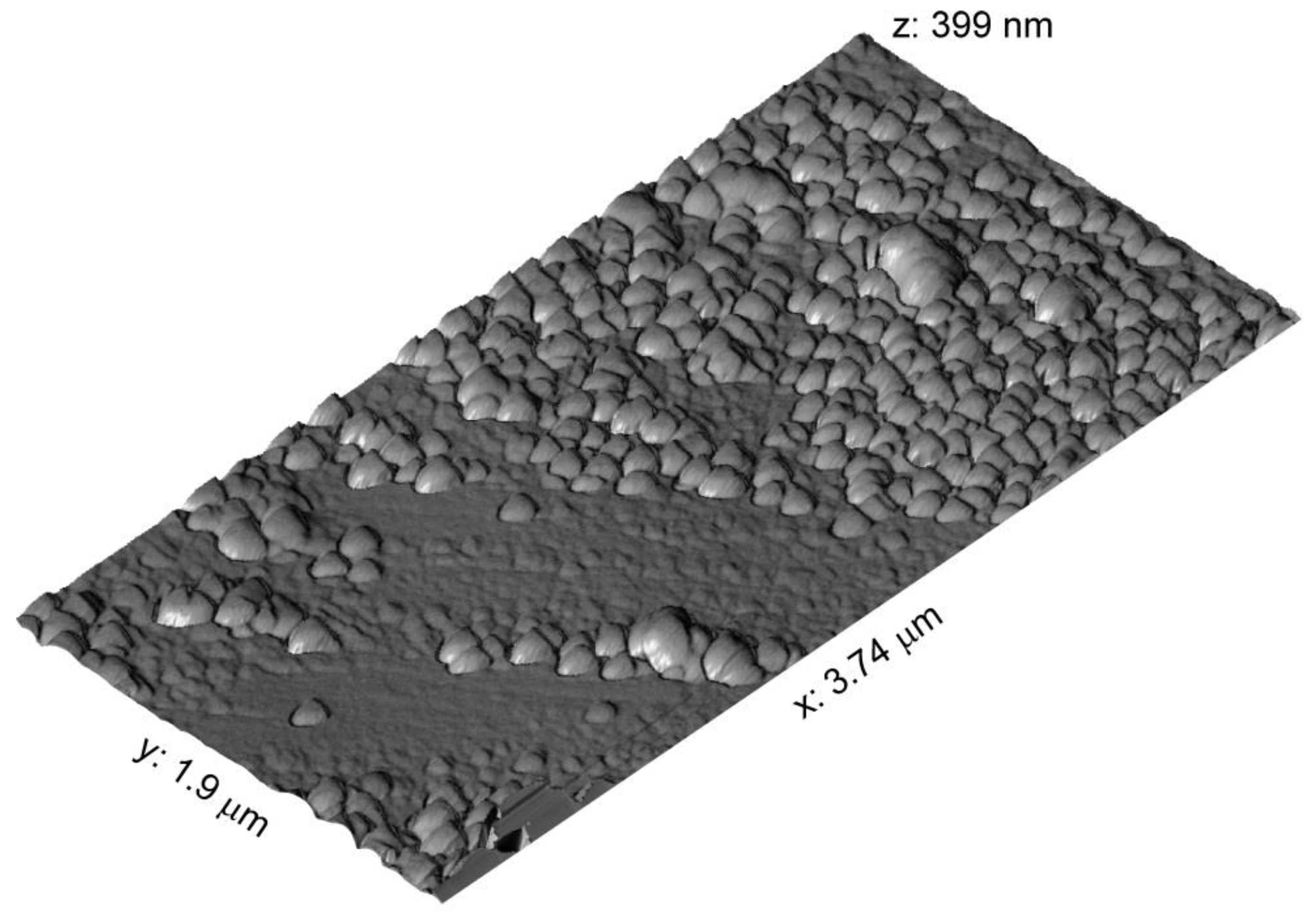

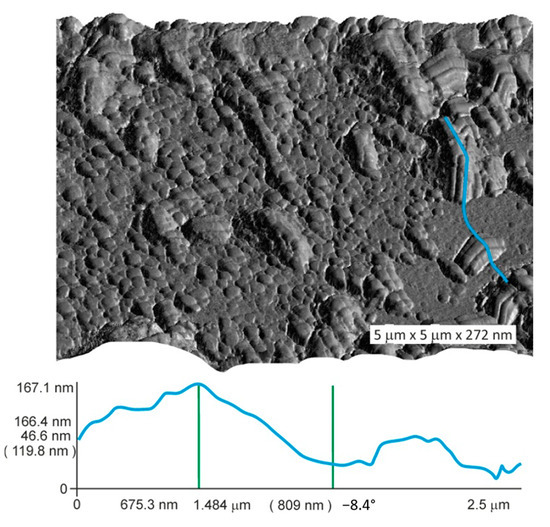

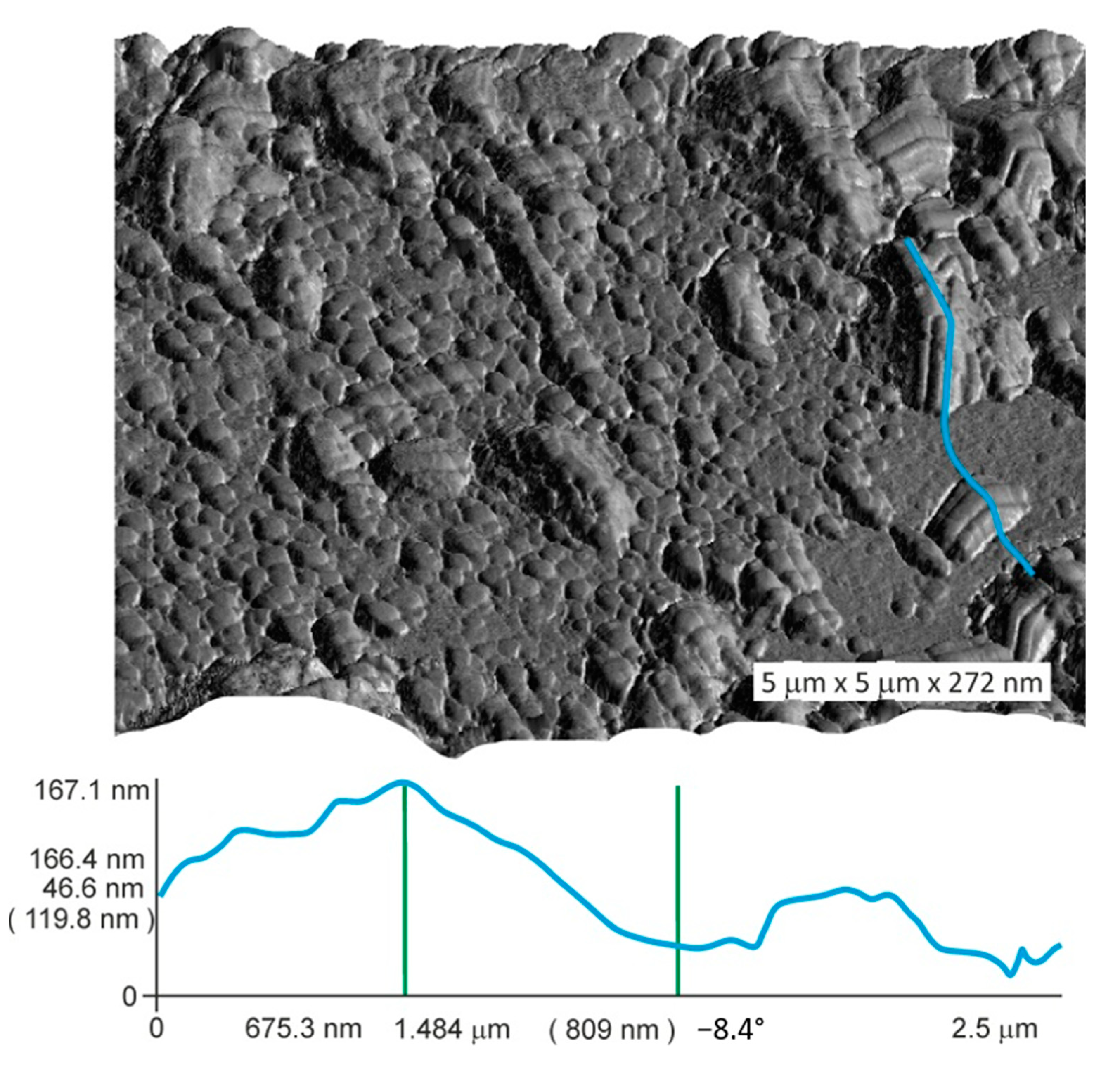

Figure 8 and Figure 9 show the fractal character of surficial objects distribution in the surficial layer of magnetite crystals. The heights of surficial objects relative to the surface area of minimal roughness rarely exceeded 100 nm (Figure 9).

5. Discussion

5.1. Comparison with Previous Experimental Data

Ilton and Eugster [16] studied Mn, Zn, Cu, and Cd co-crystallisation in magnetite at 600–800 °C and 2 kbar pressure. Although only two experimental points were available for Cu, the result at 650 °C ($D_{Cu/Fe}^{Mt/aq}$ = 1.3 × 10⁻⁵) was surprisingly close to that obtained in this study at 450 °C ($D_{Cu/Fe}^{Mt/aq}$ = 1.9 × 10⁻⁵, Table 2). Ilton and Eugster obtained the temperature dependences for Mn and Zn, which gave $D_{Mn/Fe}^{Mt/aq}$ = 3.7 × 10⁻³ and $D_{Zn/Fe}^{Mt/aq}$ = 1.8 × 10⁻³ when extrapolated to 450 °C using expressions given in [16]. The co-crystallisation coefficient for Zn conforms ideally to the one obtained here, that is, (1.7 ± 0.8) × 10⁻³ (Table 2); whereas a small offset was observed for Mn (7.6 × 10⁻³ in this work (Table A1) and (9 ± 2) × 10⁻³ in [26]). The mismatch becomes smaller if non-ideality in Mn-Fe mixing and occupation of octahedral B positions by Mn²⁺ in the magnetite structure is taken into account ($D_{Mn/Fe}^{450 °\mathrm{C}}$ = 0.011).

$D_{Cu/Fe}^{Mt/aq}$ is very small and may be weakly dependent on temperature, whereas Mn and Zn obey Henry’s law and exhibit linear dependence of ln1/$D_{TE/Fe}^{Mt/aq}$ on the reciprocal absolute temperature, at least in the interval 800–450 °C. An important inference was made when studying Mn partitioning in a multiphase magnetite–pyrrhotite–pyrite hydrothermal system at 450 °C and 1 kbar [26]. The value obtained ($D_{Mn/Fe}^{Mt/aq}$ = 9.5 × 10⁻³) demonstrated the independence of this parameter on the presence of sulphide phases coexisting with magnetite. Although in general case the co-crystallisation coefficient is dependent on the composition of multi-component system, in some special cases the effect of the system complexity is negligible. This occurs when D does not change significantly due to the chemical similarity of the elements co-crystallised, unmixing of coexisting solid phases (saturation in different kind of anions like sulphide and oxide) and validity of the model of complex solvent [21,24,25]. The most reliable data may be obtained from the study of “pair” co-crystallisation coefficients of chemically similar elements such as D_Ni/Co, D_V/Cr, D_Mn/Zn, D_Mg/Zn, etc. In addition, we partially confirmed the conclusion of [27] that the co-crystallisation coefficient is less variable than the partition coefficient D_p (Table 3), and therefore, is preferred for the analysis of element partitioning in fluid–mineral systems. However, Cu and Zn present an exception to this rule (Table 3). Moreover, data eliminate doubts about the application of distribution coefficients in the presence of components such as Ti, Al, and Cr [16] because in our experiments all elements were introduced into the system simultaneously.

In the present work, we dealt with partitioning of the majority of main discriminator elements for magnetite, which included Mg, Al, Ti, V, Cr, Mn, Co, Ni, Zn, and Ga, according to [14]. TE partitioning in magnetite in hydrothermal systems differs significantly from igneous magnetite. Among the elements studied in this work, only Al was clearly incompatible (D_p~0.1), whereas other elements (except Cu for which no data were presented) were compatible in magnetite and had D_p values from ~1 to 100 [14]. In contrast, our results revealed the compatibility of Al and the incompatibility of Zn and Mn in magnetite in a hydrothermal system (Table 2). The behaviour of Co, Ni, Cr, and V in the hydrothermal system did not contradict distribution constants in the magnetite–silicate melt systems.

5.2. TE Partitioning in Magnetite and Hematite: Implications for Natural Fluid Composition

Despite the lower reliability of data obtained for hematite as compared to magnetite (Table A1 and Table 2), it is essential to define differences between them with respect to partitioning of common TEs and compositions of the fluids coexisting in equilibrium with both minerals. If crystallised from one and the same hydrothermal solution, magnetite and hematite might have similar contents of elements such as Al, Cu, and V, whereas hematite might be enriched in Ti and depleted in Co, Ni, Zn, Mn, and Cr as compared to magnetite (Table 2). Therefore, it seems to be not necessarily that if magnetite and hematite from the same ores have similar trace element contents, then they were derived from the same ore fluids [12]. TE/Fe ratios in the fluid phase were calculated using the data presented in [12] and in Table 2 of the present work. The fluid coexisting with magnetite was enriched in Ti 25–30 times, and highly depleted in Cr, Mn, Co, Ni, and Zn (1–3 orders of magnitude), relative to fluid coexisting with hematite. This fact is impossible to explain under the assumption of one and the same fluid with a certain Fe content. Therefore, it is hardly possible that magnetite and hematite having similar TE compositions were formed simultaneously in equilibrium with the same fluid phase. The data presented in [12] show that fluids equilibrated with magnetite and hematite differed in composition with respect to the majority of TEs (except possibly Al and V).

An analysis of the composition of fluids involved in the formation of the Yuleken porphyry Cu-Mo deposit in northwestern China [15] was performed because temperatures during the hydrothermal stages of ore formation (450–400 °C) is close to the temperature used in the present study. Average TE/Fe ratios calculated for fluids at three stages of hydrothermal activity are presented in

Table 4. Proportions (TE/Fe)^fl calculated on the basis of obtained $D_{TE/Fe}^{Mt/fl}$ and the data of LA-ICP-MS for magnetites formed at hydrothermal stages (450–400 °C) of the formation of the Yuleken porphyry Cu-Mo deposit (NW China) [15]

Sample No.	Stage	(TE/Fe)fl
		Al	Ti	Mn	V	Cr	Co	Ni	Cu	Zn
MagII	Na-Ca alteration	4.9 × 10−4	0.056	0.11	3.8 × 10−4	2.5 × 10−5	2.7 × 10−4	3.3 × 10−6	0.08	0.16
MagIII-A	Early potassic with no sulphides	5.2 × 10−4	0.056	0.12	3.9 × 10−4	9.3 × 10−6	2.1 × 10−4	1.1 × 10−6	0.08	0.09
MagIII-B	Late potassic with sulphides	5.4 × 10−4	0.032	0.14	3.9 × 10−4	1.2 × 10−5	7.5 × 10−6	2.4 × 10−6	0.34	0.12

.

Changes in fluid composition appeared to accompany the transition from early to late potassic stage as distinguished by the appearance of sulphides. Ti/Fe and Co/Fe ratios decreased while Cu/Fe increased appreciably. It is interesting to note that Mn, Cu, and Zn were the most abundant metals in fluids after Fe; they contributed ~10 to 30% of the iron content. The second most abundant TE was Ti contributing about 5% of the Fe content, followed by V and Al at (4–5) × 10⁻²%, and then Co (2 × 10⁻²%), Cr (2 × 10⁻³%), and Ni (2 × 10⁻⁴%). However, this study does not intend to be exhaustive in application to different porphyry deposits where the magnetite stability and composition depends on several factors: changes in intensive parameters, late fluid overprinting, etc. Calculations performed for other deposits of magmatic–hydrothermal genesis [12,13] fully support the prevalence of Mn and Zn (Cu was rarely detected) and the intermediate position of Ti, whereas other TEs can vary in the interval (n × 10⁻¹–n × 10⁻⁴%) of the Fe content. The information that skarn fluids in equilibrium with magnetite containing minor Mn can have Mn/Fe ratios greater than one [16] should be supplemented with Zn/Fe ratios because Zn has a co-crystallisation coefficient $D_{TE/Fe}^{Mt/aq}$ even lower than Mn (Table 2).

5.3. Surficial Effect on TE Accumulation

The surficial effect is important and must be considered, especially in the study of dispersed mineral systems in both experimental and natural environments (sedimentary, diagenetic, seafloor Mn-Fe nodules, crusts, and so on). The XPS data revealed two valence states for iron (Fe³⁺ and Fe²⁺) as in the magnetite volume structure but in different proportions (1:1 instead of 2:1, respectively), and the presence of hydroxyl ions and cation vacancies support the hypothesis of the formation of surficial NAP of oxyhydroxide composition [17,33]. The incorporation of metal cations like Cr and Ni increased the amount of surface hydroxyls due to stronger Lewis acid activity of cations substituting iron [34]. The functional hydroxyl groups enhanced metal adsorption in the surficial crystal layer. The increased accumulation potential of NAP was due to the presence of hydroxyl ions, unsaturated chemical bonds, and structural disorder (including metal and oxygen vacancies), that weakened the crystal-chemical control of element incorporation [29]. For instance, there appeared to be an opportunity to realise the surficial goethite-like phases of oxyhydroxide composition and structural incorporation of elements from the iron group plus aluminium [35].

In this work, we rarely encountered discrepancies between data collected with bulk and local methods because we used relatively large crystals with low specific surface area. However, the example for Cu showed that for crystals as large as 1–2 mm, the surficial accumulation may increase the measured Cu bulk content up to 1–2 orders of magnitude (Table A1). Copper contents in the volume of crystals were determined as ~3–17 µg/g. The same level of TE concentrations was observed for Zn and Cr in hematite, and these cases also demonstrate the excess of bulk content compared to local one up to an order of magnitude and more. Figure 6 and Figure 7 leave no doubt that Cu and Ti are highly subjected to the TE accumulation effect due to NAP presence that might be the reason for inconsistency of the data on Cu distribution in hydrothermal magnetite (see Section 1).

The TE surface segregation provides a significant contribution to the average concentration of microelements even with a low thickness of the surficial NAP enriched with it, as the AFM study showed. The crystal surface contains nano-objects of different sizes with smaller surficial objects that repeat the morphological features of coarser objects (Figure 8 and Figure 9). The fractality is important for the absorption of TEs by NAP because it points to an increase in the real surface as compared to the topological surface. The data obtained show that one needs to be very careful with the results acquired through bulk analyses, with the crystals small enough and the lack of size control [36].

6. Conclusions

We present the first data on partitioning of several discriminator elements for magnetite in mineral–hydrothermal fluid systems at 450 °C and 1 kbar. The three mineral phases studied were magnetite, Ni-spinel, and hematite, the last two supported by a limited data set. The element series Ni, Co, Al, Cr, and V and Ti, Ni, Al, Cr, and V are shown to be compatible in magnetite and hematite, respectively. On the other hand, Zn, Mn, and Cu are incompatible in magnetite, and Co, Zn, Mn, and Cu are incompatible in hematite. The highest values for the co-crystallisation coefficient D_TE/Fe (0.n–n) characterised Ti in hematite, V in magnetite and hematite, Cr in magnetite, Ni in magnetite and Ni-spinel, and Al in all three phases. The second group with D_TE/Fe ≈ 0.0n–0.n includes Ti, Mn, and Co in magnetite, Cr and Ni in hematite, and Co in Ni-spinel. The third group is represented by Ti and Zn in Ni-spinel, Co in hematite, and Zn in magnetite characterised by co-crystallisation coefficients on the order of 10⁻³. The lowest values (n × 10⁻⁵) are distinctive features of Mn and Zn in hematite and Cu in all three phases. According to the co-crystallisation coefficients, magnetite and hematite crystallised from the same hydrothermal solution may display similar contents of Al, Cu, and V, whereas hematite must be enriched in Ti and depleted in Co, Ni, Zn, Mn, and Cr as compared to magnetite. Magnetite oxidation and its transformation into hematite under hydrothermal conditions will cause the release of Co, Ni, Zn, Mn, and Cr, and will not affect the behaviour of Cu, Al, and V and facilitate Ti absorption by the solid phase.

A fair amount of data on the composition of magnetite and hematite of various origins have been published; nevertheless, these data were of little relevance due to difficulties in adapting the data to reconstruct the composition of the ore-forming fluids. Using the partitioning data obtained in this study, the proportion of elements in the fluid involved in the formation of magnetite-containing deposits was evaluated. For the porphyry Cu-Mo deposit, Fe was most abundant metal component in fluids, followed by Mn, Cu, and Zn which comprised ~10 to 30% of iron content. The less abundant TE was Ti which comprised ~5% of Fe content, followed by V and Al (4–5) × 10⁻²%) and Co (2 × 10⁻²%), Cr (2 × 10⁻³%), and Ni (2 × 10⁻⁴%). The calculations performed to determine the fluid composition of magmatic–hydrothermal systems support the prevalence of Mn and Zn (and probably Cu) and the intermediate ratios of Ti, whereas other TEs can vary in the interval of 0.n to n × 10⁻⁴% of Fe content.

The surficial segregation of TEs contributes to the average concentration of microelements even with thin surficial NAP layers enriched with TE (~100 nm). At ppm and lower than ppm TE content, the surficial accumulation effect increased total TE content up to 1–2 orders of magnitude above concentrations inside of crystal even for coarse crystals.

Further development of this work involves the estimation of absolute TE concentrations over a wide range of temperature and salt composition of fluids. For this purpose, we plan to use magnetite solubility data [37] and physicochemical modelling [38]. Insights gained from this study can be applied to various hydrothermal systems using modern databases on thermodynamic properties of solid substances (magnetite and its solid solutions), hydrothermal solutions, and gas phases. This approach can help to solve the problem of using the magnetite composition as a quantitative indicator of TE concentrations in ore-forming fluids.
