Dissolution, Stability and Solubility of Tooeleite [Fe₆(AsO₃)₄(SO₄)(OH)₄·4H₂O] at 25–45 °C and pH 2–12

Abstract

Tooeleite [Fe₆(AsO₃)₄(SO₄)(OH)₄·4H₂O] was synthesized and characterized to investigate its possible immobilization for arsenic in acidic and alkali environments by a long-term dissolution of 330 d. The synthetic tooeleite was platy crystallites of ~1μm across, giving the lattice parameters of a = 6.4758 Å, b = 19.3737 Å and c = 8.9170 Å. For the tooeleite dissolution, the dissolved arsenic concentration showed the lowest value of 427.3~435.8 mg/L As at initial pH 12 (final pH 5.54). The constituents were dissolved preferentially in the sequence of SO₄²⁻ > AsO₃³⁻ > Fe³⁺ in the aqueous medium at initial pH 2–12. The dissolved iron, arsenite and sulfate existed mainly as FeSO₄⁺/Fe³⁺, H₃AsO₃⁰ and SO₄²⁻ at initial pH 2, and in the form of Fe(OH)₃⁰/Fe(OH)₂⁺, H₃AsO₃⁰ and SO₄²⁻ at initial pH 12, respectively. The tooeleite dissolution was characterized by the preferential releases of SO₄²⁻ anions from solid surface into aqueous medium, which was fundamentally controlled by the Fe-O/OH bond breakages and the outer OH⁻ group layers. From the data of the dissolution at 25 °C and initial pH 2 for 270–330 d, the ion-activity product [logˍIAP], which equaled the solubility product [K_sp] at the dissolution equilibrium, and the Gibbs free energy of formation [ΔG_f^o] were estimated as −200.28 ± 0.01 and −5180.54 ± 0.07 kJ/mol for the synthetic tooeleite, respectively.

1. Introduction

As arsenic is found widely in Earth’s crust and is one of the chemicals of greatest health concern, inorganic arsenic compounds were classified by the International Agency for Research on Cancer in Group 1 (carcinogenic to humans) [1]. The extremely toxic arsenic is common in wastes from the mining-metallurgical industry for non-ferrous and precious metals. It can be released into the environment and, finally, threaten human beings [1,2]. The elimination of the most toxic inorganic As(III) is more difficult owing to its higher solubility and mobility than As(V) [3,4]. It is still a practical challenge to eliminate trivalent arsenic effectively from contaminated waters with very high arsenic concentration and low pH [5].

As-bearing minerals are important in the dissolution–precipitation equilibria and geochemical cycling of arsenic [6,7]. It is difficult to assess the arsenic contamination scale exactly [8]. The weathering of the mining tailings of metallic sulfide ores can lead to the formations of acid mine drainages (AMDs), containing very high contents of iron, sulfate and toxic metal(loid)s including As, Pb, Zn, Cd, Co, Cu, Hg, Mo, Ni, Ru, Sb, Se, Sn, Te, Bi, etc. [9,10,11]. The oxidation of ferrous ions and the progressive neutralization of AMDs can commonly result in the precipitation of iron oxy-hydroxides and sulfates within the sequence ferrihydrite, goethite, lepidocrocite, jarosite and schwertmannite [12,13,14,15]. Arsenic can be removed by adsorption onto different mineral surfaces or by the structural substitution into various minerals, consequently restraining its mobility [14,15,16]. Therefore, the arsenic substitution into mineral crystal structure can offer an alternative remediation strategy for arsenic-polluted wastewaters [17,18,19], e.g., calcium arsenates [20], scorodite [21], reinerite and cafarsite [22], nealite [23], alunite group minerals [14,24,25], etc.

The precipitation of these minerals could be strengthened by the bacteria metabolism, e.g., Acidithiobacillus ferrooxidans could enhance the oxidation of ferrous ions into ferric ions by dissolved oxygen and result in the precipitation of tooeleite [Fe₆(AsO₃)₄(SO₄)(OH)₄·4H₂O] [10,13,14,15], a sole mineral of ferric arsenite sulfate that had drawn the attention of many scholars [26,27] and was proposed as a possible compound to fix trivalent arsenic due to its stable occurrence in mine areas [28,29,30]. Tooeleite is an As(III) mineral, even though for a long time it was first considered as a novel arsenate mineral from the US Mine at Gold Hill in Tooele County, Utah, USA, where tooeleite naturally occurred with arseno-pyrite, pyrite, scorodite and jarosite [31,32]. In fact, tooeleite was an arsenite mineral and could be simply synthesized from the aqueous solution of the pure constituents at temperature >90 °C [28]. The X-ray diffraction (XRD) data of the mineral indicated the orthorhombic structure which was accepted as No. 44-1468 by the International Centre for Diffraction Data (ICDD) [32]. In the crystal structure of tooeleite, the FeO₆-octahedra are linked with the AsO₃-pyramids by both corner- and edge-linkages, forming positively charged As-Fe (oxy-)hydroxide layers, and the isolated SO₄-tetrahedra reside in the interlayer space [31]. The high acidity/iron/sulfate concentration with proper Fe/As ratio played a very important role in the precipitation of well-crystalline tooeleite [28]. Tooeleite has also been found in the acid hydrometallurgical wastes in SãoBento gold mine, Brazil [33]. Tooeleite was recognized as the unique arsenite-sulfate in the extremely As(III)-rich AMD at the Carnoulès mine, Gard, France [15] and its precipitation decreased considerably the As(III) concentration in the Amous river downstream [34]. In the seriously polluted AMD, As(III) reached 80–280 mg/L in the acidic spring discharge of the waste-piles [34]. Characterization of the stromatolite and sediments showed the uncommon precipitation of As(III)-rich minerals, particularly the nano-crystalline tooeleite and amorphous Fe(III)-As(III)/As(V) (oxy-)hydroxides, which gave a better understanding of the natural process and might contribute to planning effective arsenic-elimination procedures [31]. The low pH environment was helpful in the tooeleite formation [35]. The tooeleite stability and crystallinity could be affected by the coexisting arsenate and sulfate ions [27]. Tooeleite precipitation could be an alternate technique to eliminate As(III) directly from high-As acid wastewaters [35]. The precipitation experiment indicated that the As(III) elimination efficiency could reach up to 99% at the As(III) concentrations greater than 0.75 g/L with the Fe/As mole ratio of 0.8~2.0 and the initial pH of 1.8~4.5 [5]. The leaching test of tooeleite with 0.01 M Na-acetate buffer of pH 4.93 exhibited that the leached arsenic concentration reached only about 9 mg/L [7]. However, a previous batch experiment showed also that tooeleite coprecipitated at pH 2~3.5 and would quickly transform to an amorphous ferric arsenite at pH > 4, which showed a higher As solubility in the leaching test [30]. In the dissolution experiment of tooeleite for 30 days, the concentration of arsenic released from solid into solution decreased in the first two days, which was possibly related to the re-immobilization of arsenite onto surface, and then slowly increased up to 100 mg/L [35]. The leached arsenic concentrations were >100 mg/L [36] or 350~650 mg/L [27], which indicated that the mineral tooeleite seemed an unlikely candidate for arsenite fixation at contaminated sites [10,37]. Nevertheless, the incongruent dissolution of tooeleite would lead to the precipitation of poorly crystallized iron hydroxides that could restrain the arsenite release again into the neighboring environment under alkaline conditions. Thus, it is required to evaluate the long-term fixation ability of tooeleite in the further work [27].

The solubilities of arsenic-containing minerals are significant in geological and environmental chemistry [16]. However, very few researches about tooeleite have been reported in literature, and henceforth the essential geochemical and mineralogical information is still lacking [29]. Moreover, there are many controversies in the literature about the dissolution process, solubility and stability of tooeleite, further research is needed on the co-incorporation and release of arsenic in/from the mineral and its long-term stability [25,27].

This work aimed to synthesize crystalline tooeleite by a simple hydrothermal method. Different instruments are then applied to inspect the structure and morphology of the obtained tooeleite. Its dissolution mechanism, solubility and long-term stability at diverse solution pHs and temperatures are examined, and simultaneously its suitability as storage materials for arsenic is also discussed.

2. Materials and Methods

2.1. Synthesis

The synthesis of tooeleite was completed in the same manner with slight modifications after the pre-experimental result as that used for measuring the heat capacity of tooeleite by relaxation calorimetry [37]. Firstly, 248.65 mL of ultrapure water were mixed with 1.35 mL 98% H₂SO₄ to prepare a sulfuric acid solution in a polyethylene bottle, into which 5.00 g of As₂O₃ was then added. The resulting slurry was heated in a 90 °C waterbath with a constant stirring at 600 rpm for 4h and then air-cooled. The undissolved solids were removed by filtration. After that, 10.50 g of Fe₂(SO₄)₃·9H₂O were added, and the resulting slurry was mixed and heated in a 90 °C water bath with a constant stirring at 600 rpm for 1 h. After air-cooling to room temperature, the mixed solution was adjusted to pH = 3.00 with 10 mol/L NaOH solution and then was heated in a 90 °C water bath with a constant stirring at 600 rpm for another 1 h. Finally, the suspension solution was air-cooled and separated using vacuum filtration. The obtained precipitates were rinsed 3 times using 50 mL ultrapure water and oven-dried at 110 °C for 24 h. The color of the tooeleite precipitate obtained in our work was yellow, like that observed for the mineral tooeleite in literature [32].

2.2. Characterization

The bulk elemental composition of the synthetic tooeleite was determined by digesting 50 mg of the prepared tooeleite in 20 mL of 6 M HCl solution, which was then diluted to 50 mL with ultrapure water. The iron, arsenic and sulfur concentrations were analyzed using an inductively coupled plasma-optical emission spectrometer (ICP-OES, Optima 7000DV, Perkin-Elmer Ltd., Waltham, MA, USA) or an atomic absorption spectrometer (AAS, PinAAcle 900T, Perkin-Elmer Ltd., Waltham, MA, USA) when the concentrations of iron or arsenic were less than the ICP-OES detection limits. The contents of the crystal water were then calculated based on the thermogravimetric analysis (TGA), which was completed using a thermal analyzer (TA, STA 409, Netzsch-Gerätebau GmbH, Selb, Germany) from room temperature to 1130 °C at 10 °C/min in a 20 mL/min N₂ atmosphere. The synthesis for tooeleite was repeated ten times to obtain enough products for the following tests, and all of them were characterized by an X-ray diffractometer (XRD, X’Pert PRO, PANalytical B.V., Almelo, the Netherlands) with Cu-Kα radiation of 1.540598 Å at 40 kV/40 mA and recognized by comparing with the reference for tooeleite (00-044-1468) from the International Centre for Diffraction Data (ICDD) to check the reproducibility in the synthesis procedure. The functional groups and the morphology of the tooeleite were observed using a Fourier transform infrared spectrophotometer (FT-IR, Nicolet Nexus 470, Thermo Fisher Scientific Inc., Waltham, MA, USA) over the 400~4000 cm⁻¹ range and a field emission scanning electron microscope (FE-SEM, S-4800, Hitachi Ltd., Tokyo, Japan), respectively.

2.3. Dissolution Experiments

In each dissolution test, five grams of the synthetic tooeleite were weighed into a 100 mL polythene bottle, in which 100 mL of HNO₃ or NaOH solution of different pHs (pH 2, 3, 4, 5, 6, 7, 8, 9, 10, 11 or 12) were then added. The capped bottle was placed in a thermostatic water bath (25 °C) and agitated by a magnetic stirring bar. The pH drifted freely and was recorded periodically. The experiments studying the effect of the temperature (25 °C, 35 °C or 45 °C) were conducted at initial pH 2. From each flask, 5 mL of the solution were collected periodically at 23 intervals form 1 h to 7920 h (330 d), filtered into a volumetric flask and instantly stabilized with 0.2% HNO₃ to 25 mL. After each sampling, 5 mL of HNO₃ or NaOH solution that had been adjusted to the pH measured at sampling were replenished into the bottle to hold a relatively constant solid/solution ratio. The variation of the solution components due to this sampling-replenishing was amended using the mass balance. The total iron, arsenic and sulfur concentrations were determined by the ICP-OES or AAS instrument. After 330 d dissolution, the residual solid of tooeleite was taken out from the bottle and characterized using XRD, FT-IR and FE-SEM as previously described to examine the possible variation of the mineral properties during dissolution. The dissolution experiment at different temperatures was made in triplicate (25 °C, initial pH = 2.00) or duplicate (35 °C and 45 °C, initial pH = 2.00) to check the repeatability.

2.4. Thermodynamic Calculation

The elemental speciation calculation for the tooeleite dissolution was conducted using the PHREEQC program (Version 3.6.2, U.S. Geological Survey, Denver, CO, USA) [38]. The aqueous activities of Fe³⁺, AsO₃³⁻, SO₄²⁻ and OH⁻ were first computed and then the ion-activity product [logˍIAP] was determined according to its definition, which was equal to the solubility product [logˍK_sp] for the synthetic tooeleite at the dissolution equilibrium. The minteq.v4.dat database was recompiled based on the MINTEQA2 database (Version 3.0, U.S. Environmental Protection Agency, Athens, GA, USA) [39], including the thermodynamic data of all aqueous species and solid phases for the speciation simulation, in which the Debye–Hückel equation was chosen automatically because the aqueous ionic strength in the present work was <0.07889 mol/L.

3. Results and Discussion

3.1. Chemical Analysis

The proportions of the major constituents were calculated from the ICP-OES and TGA analysis and described as: Fe₂O₃ 44.99%, As₂O₃ 38.57%, SO₃ 7.52% and H₂O 8.92%, which correspond to the chemical formula of tooeleite [Fe₆(AsO₃)₄(SO₄)(OH)₄·4H₂O] [28], and also agreed well with the values of Fe₂O₃ 44.3%, As₂O₃ 36.2% and SO₃ 9.7%, giving a total of 90.2 wt.% [31], and Fe₂O₃ 46.0%, As₂O₃ 35.1% and SO₃ 9.2%, total 85.5 wt% [32].

3.2. XRD

The XRD spectra of the synthetic tooeleite before and after 330 d dissolution are illustrated in Figure 1. The structural characterization was made by Rietveld refinements using the MDI Jade and the PANalytical HighScore Plus programs. The single crystal data of tooeleite (ICDD Powder Diffraction File as No. 00-044-1468) were applied as initial structural models [28]. The most intense peaks of all samples were principally in the identical positions with the similar intensities and matched very well the peaks for tooeleite [28] and the structural analysis showed that only the phase tooeleite was in the solid product with the space group Pbc₅₇ and the orthorhombic structure. The most intense peaks (d_obs, I_obs, hkl) in the powder XRD spectrum of the synthetic tooeleite were 9.69(76)020, 4.48(13)002, 3.46(18)122, 3.21(100)200, 3.06(21)061, 2.79(26)161, 2.69(35)240, 2.53(23)043 and 1.72(16)313, giving the cell parameters of a = 6.4758 Å, b = 19.3737 Å and c = 8.9170 Å, which were close to a = 6.4160 Å, b = 19.4500 Å and c = 8.9410 Å for tooeleite [28]. The XRD spectra of tooeleite, collected after 330 days of dissolution, did not show any evidence of other mineral phases even if it could not be excluded that new phases with low abundance and/or poor crystallinity presented eventually. Similar results were also reported in the literature for the hydroxyapatite dissolution in simple aqueous solutions [40].

3.3. FT-IR

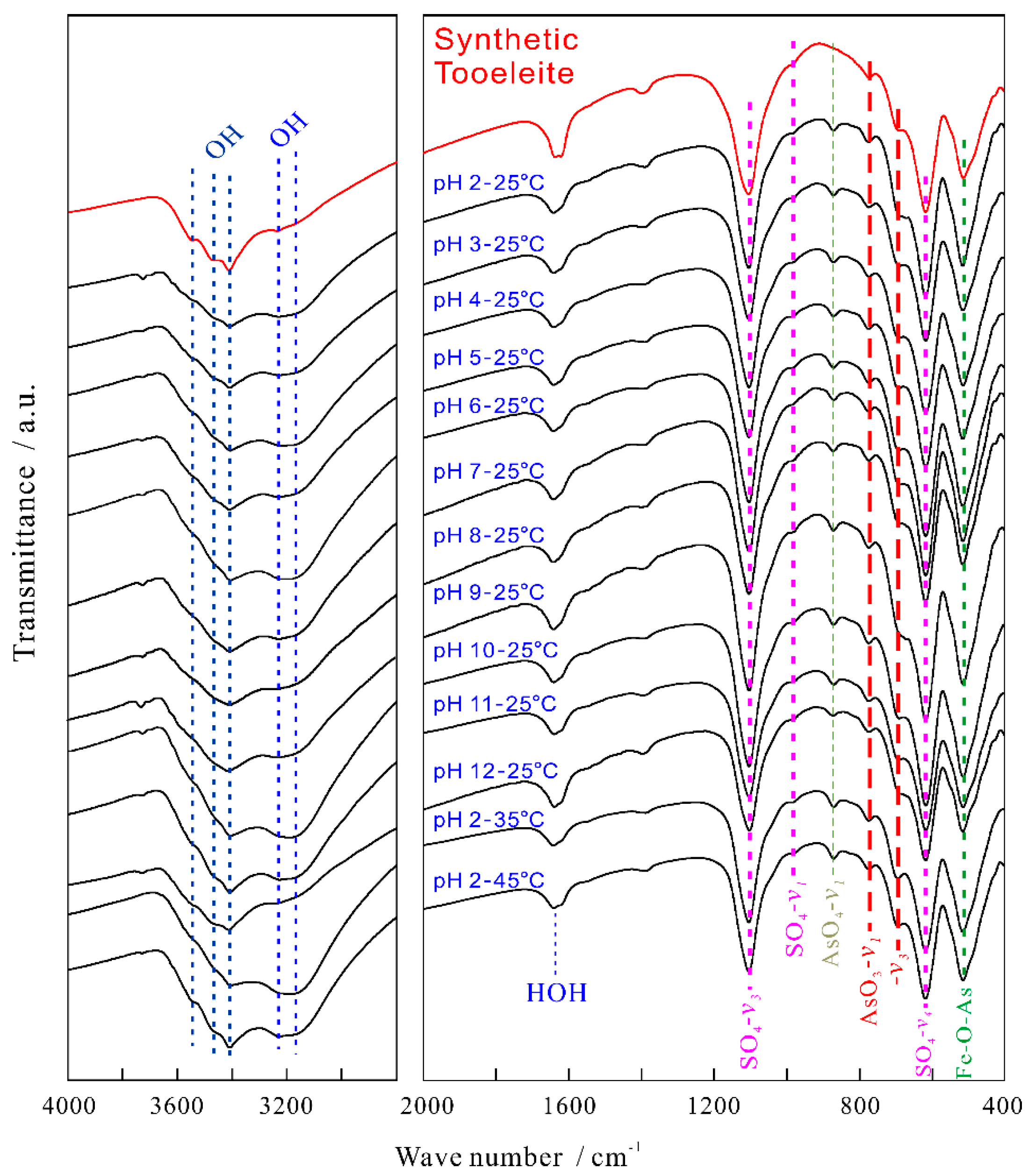

The FT-IR spectra were recorded for the synthetic tooeleite before and after dissolution for 330 d (Figure 2) and interpreted based on the literature data [5,22,41]. No obvious variation was detected in the FT-IR spectra after dissolution. All FT-IR spectra of the synthetic tooeleite presented the bending or stretching vibrations of AsO₃³⁻, SO₄²⁻ and OH⁻ as reported previously [42], but the split stretching vibration of the FeO₆ octahedra [41] was not observed in this work.

The 2800~3700 cm⁻¹ spectra of the OH stretching were characterized by the bands at 3549, 3466, 3406~3415, 3225~3242 and 3184~3199 cm⁻¹. The bands at 3184~3242 cm⁻¹ and 3406~3549 cm⁻¹ were ascribed to the OH stretching vibrations of the adsorbed H₂O and the crystal water in the tooeleite structure, respectively, which confirmed the presence of strong H-bonds in the crystal structure. The strong bands at 1637~1643 cm⁻¹ were easily assigned to the bending of the sorbed H₂O, i.e., the framework deformation vibration of H₂O [5].

The structural SO₄²⁻ of the tooeleite crystal exhibited three fundamental vibrations: the v₁ symmetric stretching vibration (982~985 cm⁻¹), the v₃ antisymmetric stretching vibration (1101~1105 cm⁻¹) and the v₄ anti-symmetric bending vibration (615 cm⁻¹) (Figure 2). The degenerate v₃ mode of SO₄²⁻ was not split into three bands as same as in the previous researches [26].

AsO₃³⁻ had a planar triangular shape and its fundamental vibrations in water had been studied by many researchers [27,43], which yet showed some differences in the related band positions. The characteristic bands at 752 and 680 cm⁻¹ were ascribed to the v₁ and v₃ vibrations of AsO₃³⁻, respectively [43]. The bands of the v₁ and v₃ vibrations were found at 690 and 672 cm⁻¹ [44]. The v₁ and v₃ vibration bands of AsO₃³⁻ were found to exist at 653 and 631 cm⁻¹ [45]. The v₁ and v₃ vibrations of AsO₃³⁻ were recorded at 772 and 696 cm⁻¹ for the synthetic tooeleite, respectively [27]. In this work, the arsenite IR spectra of tooeleite in 687~773 cm⁻¹ were observed as illustrated in Figure 2. The moderate bands at 771~773 cm⁻¹ and the weaker strong bands at 687~682 cm⁻¹ were ascribed to the antisymmetric stretching vibration (v₁) and the As-O stretching vibration (v₃) of AsO₃³⁻, respectively. The bands at 511~513 cm⁻¹ were assigned to the Fe-O-As vibration [5,46].

The very low intense bands at 870–872 cm⁻¹ were detected for the tooeleite after dissolution, which were ascribed to the v₁ symmetric stretching vibration of AsO₄³⁻ and thought as a spectroscopic evidence for the oxidization of AsO₃³⁻ to AsO₄³⁻, which was yet not confirmed by the XPS and XRD analysis [26].

3.4. FE-SEM

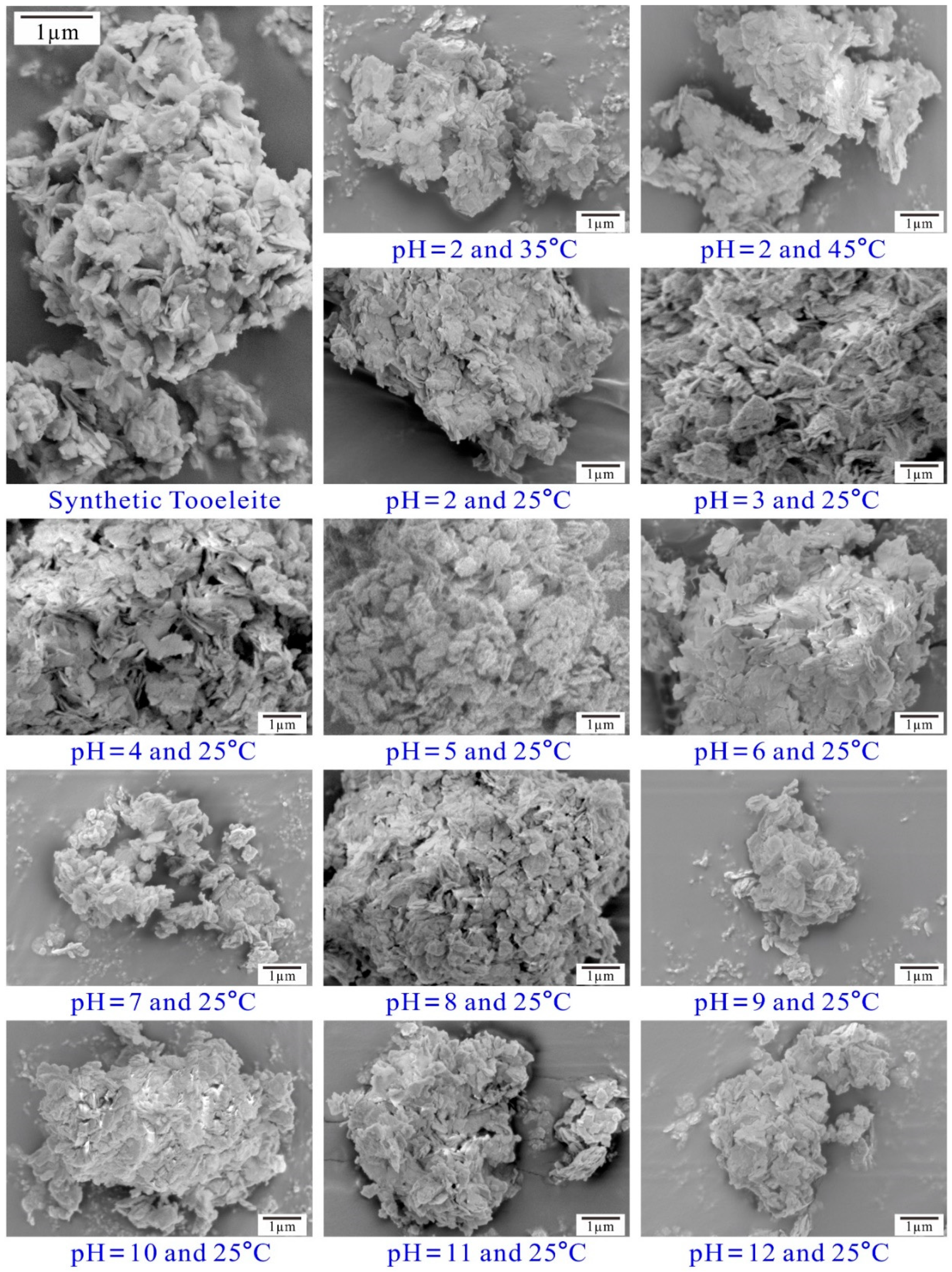

The morphologies of the synthetic tooeleite that was recognized by XRD were investigated using FE-SEM (Figure 3). The pure tooeleite consisted of platy crystallites of ~1 μm across, which aggregated together and exhibited a reticulated flower structure, which was in agreement with some previous research [6,7,27,28,35,37]. No significant morphological variation of the synthetic tooeleite was observed after dissolution at initial pH 2~12 and 25~45 °C for 330 d (Figure 3).

3.5. Evolution of the Aqueous Solutions and Dissolution Mechanism

The dissolution of the synthetic tooeleite is normally described by the following reaction (Equation (1)).

Fe₆(AsO₃)₄(SO₄)(OH)₄·4H₂O = 6Fe³⁺ + 4AsO₃³⁻ + SO₄²⁻ + 4OH⁻ + 4H₂O

(1)

Theoretically, 1.00 mol of the synthetic tooeleite could liberate 4.00 mol OH⁻ after Equation (1). Consequently, the dissolution in strong acidic solution could cause a solution pH rising, indicating the H⁺ consumption, or the dissolution in strong alkali solution could cause a solution pH reduction, indicating the OH⁺ consumption, and the aqueous complexations could control the speciation reactions of all released constituents (Equations (2)–(4)).

H⁺ + SO₄²⁻ = HSO₄⁻

(2)

nH⁺ + AsO₃³⁻ = H_nAsO₃⁽³⁻ⁿ⁾⁻  n = 1~3

(3)

mFe³⁺ + nOH⁻ = Fe_m(OH)_n^(3m−n)+  m = 1, n = 1~4; m = 2, n = 2; m = 3, n = 4

(4)

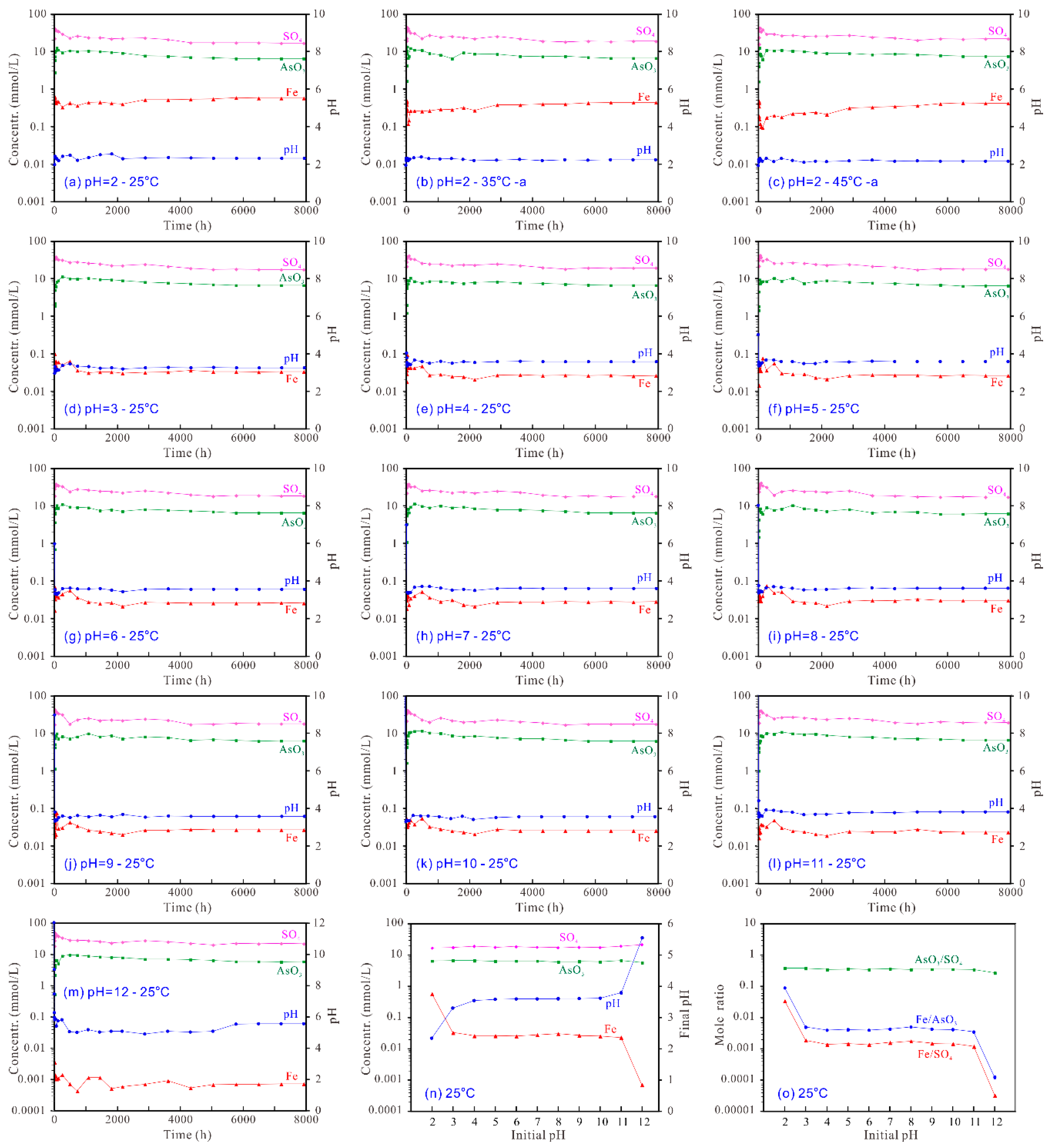

For the dissolution of tooeleite at 25 °C and initial pH 2.00~3.00 (Figure 4a,d), the aqueous pH rose up to 2.44~3.36 in the early 1 h of dissolution and then fluctuated and gradually decreased to 2.33~3.30 after 6480 h dissolution. For the dissolution at initial pH 4.00~12.00, the solution pH decreased gradually in the early 4300 h and then reached the steady state. The final solution pHs at the end of the experiment increased from 3.54 to 5.54 with the increasing initial pH from 4.00 to 12.00 (Figure 4n). The final solution pHs for the dissolution at initial pH 2.00 decreased with the increasing temperature, i.e., from 2.31~2.33 at 25 °C, 2.27~2.28 at 35 °C to 2.21~2.23 at 45 °C (Figure 4 a–c).

The dissolved Fe³⁺ concentration increased rapidly up to 0.6285 mmol/L in the early 1 h and then decreased to 0.3277 mmol/L from 1 h to 240 h; after that increased gradually to a steady state of 0.5747~0.5770 mmol/L after 6480 h of dissolution at initial 25 °C and pH 2.00 (Figure 4a). For the dissolution at 25 °C and initial pH 12.00, the dissolved Fe³⁺ concentration increased rapidly up to 0.003449 mmol/L in the early 1 h and then fluctuated with a general decreasing trend to a steady state of 0.000702~0.000718 mmol/L after 6480 h (Figure 4m). The final dissolved Fe³⁺ concentration decreased with the increasing initial pH from 2.00 to 12.00 with two sharp decreases from 2.00 to 3.00 and from 11.00 to 12.00 (Figure 4n). The final dissolved Fe³⁺ concentration for the dissolution at initial pH 2.00 decreased with the increasing temperature, i.e., from 0.5747~0.5770 mmol/L at 25 °C, 0.4324~0.4339 mmol/L at 35 °C to 0.4186~0.4234 mmol/L at 45 °C (Figure 4a–c).

The dissolved AsO₃³⁻ concentration increased quickly up to the peak values of 9.37~13.36 mmol/L in the early 72~480 h and then slightly decreased to a steady state of 5.78~6.70 mmol/L after 6480 h of dissolution (Figure 4a–m). For the tooeleite dissolution, the dissolved arsenic concentrations at the end of the experiment showed the lowest value of 5.70~5.82 mmol/L, i.e., 427.3~435.8 mg/L As, at initial pH 12 (final pH 5.54) (Figure 4n). The final dissolved AsO₃³⁻ concentration for the dissolution at initial pH 2.00 increased with the increasing temperature, i.e., from 6.43~6.48 mmol/L at 25 °C, 6.56~6.66 mmol/L at 35 °C to 7.50~7.53 mmol/L at 45 °C (Figure 4a–c).

The dissolved SO₄²⁻ concentration increased rapidly up to 37.61~46.83 mmol/L in the early 6~72 h and then decreased gradually to a steady state of 16.82~21.90 mmol/L after 6480 h of dissolution (Figure 4a–m). The final dissolved SO₄²⁻ concentration increased slightly from 16.82~16.93 mmol/L to 21.37~21.90 mmol/L with the increasing initial pH from 2.00 to 12.00 (Figure 4n). The final dissolved SO₄²⁻ concentration for the dissolution at initial pH 2.00 increased with the increasing temperature, i.e., from 16.82~16.93 mmol/L at 25 °C, 18.54~19.05 mmol/L at 35 °C to 21.48~21.80 mmol/L at 45 °C (Figure 4a–c).

For the tooeleite dissolution at 25 °C and initial pH 2.00, the aqueous Fe/AsO₃ mole ratio reached 0.227921 in the early 1 h and decreased with time gradually to 0.035462 in 240 h and then increased gradually to a steady state; the solution Fe/SO₄ mole ratio reached 0.028147 in the early 1 h and decreased gradually to 0.011208 in 240 h and then increased slowly to a steady state; the solution AsO₃/SO₄ mole ratio reached 0.457605 in the early 480 h and then decreased progressively with slight fluctuation to a steady state. After 6480 h, the aqueous pH and the total dissolved Fe³⁺, AsO₃³⁻ and SO₄²⁻ concentrations attained a steady state with the Fe/AsO₃ mole ratios of 0.088631~0.089192, the Fe/SO₄ mole ratios of 0.033950~0.034309 and the AsO₃/SO₄ mole ratios of 0.382033~0.384663, which were obviously lower than the stoichiometric Fe/AsO₃, Fe/SO₄ and AsO₃/SO₄ mole ratios of 1.50, 6.00 and 4.00 for the synthetic tooeleite, respectively (Figure 4o; Figure S1—Supplementary Material).

For the tooeleite dissolution at 25 °C and initial pH 12.00, the aqueous Fe/AsO₃ mole ratio reached 0.006608 in the early 1 h and then decreased slowly with a mild fluctuation to a steady state; the solution Fe/SO₄ mole ratio reached 0.000190 in the early 1 h and then decreased slowly with a mild fluctuation to a steady state; the solution AsO₃/SO₄ mole ratio reached 0.336264 in the early 480 h and then decreased slowly with a mild fluctuation to a steady state. After 6480 h, the aqueous pH and the detached Fe³⁺, AsO₃³⁻ and SO₄²⁻ concentrations attained a steady state with the Fe/AsO₃ mole ratios of 0.000121~0.000126, the Fe/SO₄ mole ratios of 0.000033 and the AsO₃/SO₄ mole ratios of 0.260367~0.272172, which were obviously smaller than the stoichiometric Fe/AsO₃, Fe/SO₄ and AsO₃/SO₄ mole ratios of 1.50, 6.00 and 4.00 for the synthetic tooeleite, respectively (Figure 4o; Figure S1—Supplementary Material).

It is concluded that all constituents were preferentially dissolved from solid into solution in the sequence of SO₄²⁻ > AsO₃³⁻ > Fe³⁺ in dissolution, indicating an incongruent dissolution of the synthetic tooeleite and/or formation of Fe-rich residuals. The total dissolved Fe³⁺, AsO₃³⁻ and SO₄²⁻ concentrations decreased with the increasing initial pH, which indicated that tooeleite was more soluble in the strong acidic solution. The decrease of the Fe/AsO₃, Fe/SO₄ and AsO₃/SO₄ mole ratios with the increasing initial pH suggested that the Fe³⁺ and AsO₃³⁻ ions were more easily released at lower pH in comparison to SO₄²⁻ ions.

For the tooeleite dissolution at initial pH 2.00, the dissolved iron, arsenite and sulfate existed mainly as FeSO₄⁺/Fe³⁺, H₃AsO₃⁰ and SO₄²⁻ at initial pH 2.00, respectively; all aqueous solutions were unsaturated with ferrihydrite [Fe(OH)₃], maghemite [γ-Fe₂O₃], arsenolite [As₂O₃], claudetite [As₂O₃] and Fe₂(SO₄)₃ from the PHREEQC simulation, i.e., all of these possible iron sulfates/oxides were thermodynamically unfavorable to precipitate. Instead, all solutions were saturated or very closely near-saturated with hematite [Fe₂O₃] (SI = 3.33~5.62), H-jarosite (H₃O)Fe₃(SO₄)₂(OH)₆] (SI = 2.20~4.03), goethite [α-FeO(OH)] (SI = 0.46~1.61) and lepidocrocite [γ-FeO(OH)] (SI = −0.33~0.73). It was possible to form iron-rich precipitates.

For the tooeleite dissolution at initial pH 12.00, the dissolved iron, arsenite and sulfate existed mainly in the form of Fe(OH)₃⁰/Fe(OH)₂⁺, H₃AsO₃⁰ and SO₄²⁻ at initial pH 12.00, respectively; all solutions were unsaturated with arsenolite [As₂O₃], claudetite [As₂O₃], Fe₂(SO₄)₃ and H-jarosite, i.e., all of these possible iron sulfates/oxides were thermodynamically unfavorable to precipitate. Instead, all aqueous solutions were saturated or very closely near-saturated with hematite [Fe₂O₃] (SI = 7.65~14.88), goethite [α-FeO(OH)] (SI = 2.63~6.24), lepidocrocite [γ-FeO(OH)] (SI = 1.75~5.36), maghemite [γ-Fe₂O₃], ferrihydrite [Fe(OH)₃] (SI = −0.07~3.54) and (SI = −0.15~7.07). It was possible to form iron-rich precipitates. Although the XRD spectra exhibited that no other minerals than tooeleite existed, it could not be confirmed here that they did not exist in smaller quantity, which was under the detection limit (Figure 1).

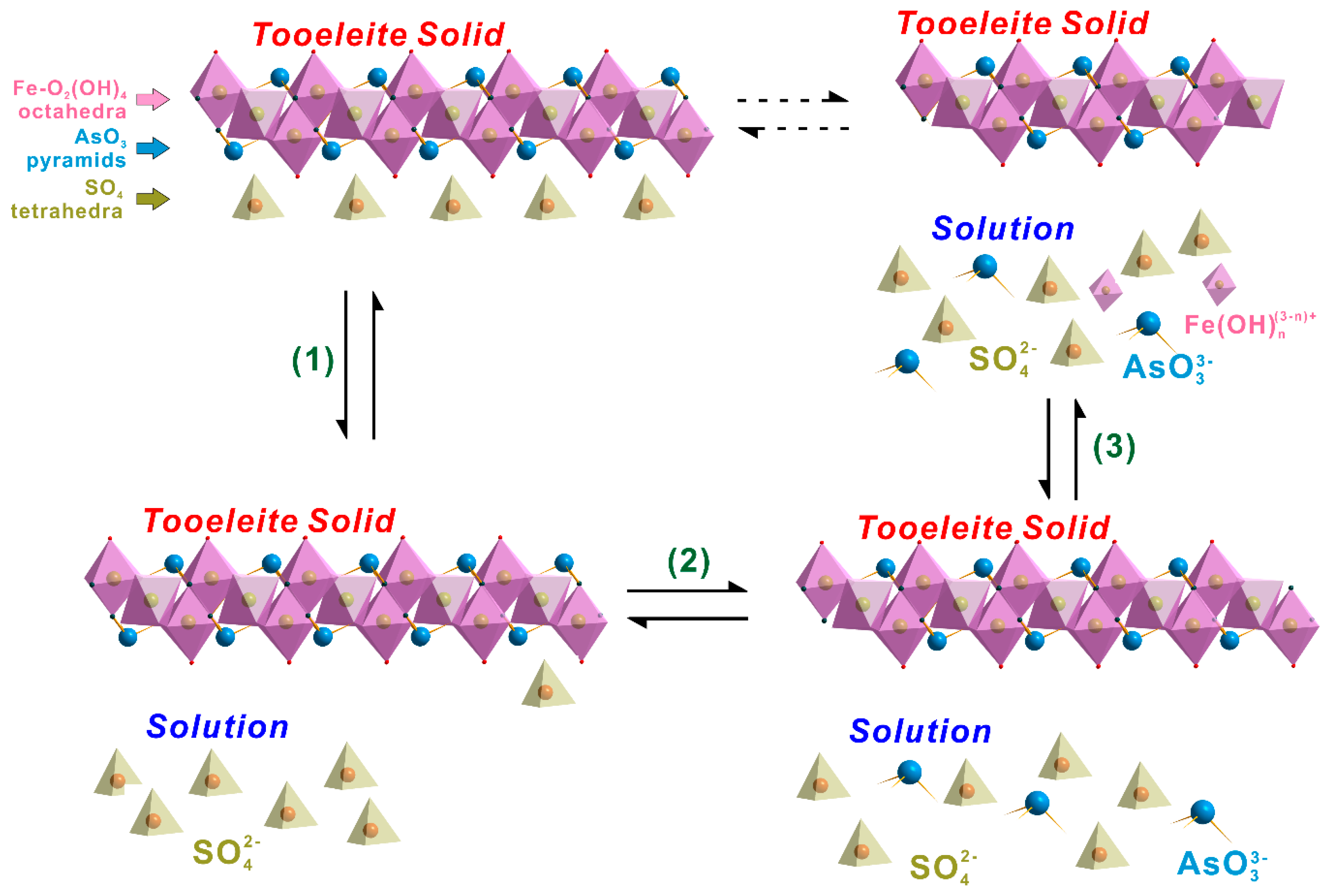

Two different mechanisms for the tooeleite dissolution happened at low and high pHs. At initial pH < 3, the aqueous pH increased gradually with time, suggesting a hydrion-consuming (Equation (5)); on contrary, at initial pH > 3, the aqueous pH decreased progressively with time, showing a hydroxyl-consumption (Equation (6)).

Fe₆(AsO₃)₄(SO₄)(OH)₄·4H₂O + 16H⁺ = 5Fe³⁺ + FeSO₄⁺ + 4H₃AsO₃⁰ + 8H₂O

(5)

Fe₆(AsO₃)₄(SO₄)(OH)₄·4H₂O + 8H₂O + OH⁻ = 5Fe(OH)₃⁰ + Fe(OH)₂⁺ + 4H₃AsO₃⁰ + SO₄²⁻

(6)

Because all constituents were preferentially released from solid into solution in the order of SO₄²⁻ > AsO₃³⁻ > Fe³⁺, the tooeleite dissolution could be expressed by the favored releasing of sulfate anions from solid surface into solution, followed by the releasing of arsenite anions and Fe³⁺ ions, while Fe³⁺ cations were favorably left behind as a residual octahedral layer of the solid (Figure 5). This was also confirmed by the SEM-EDS analysis on the tooeleite surface, which showed that the Fe/(AsO₃ + SO₄) and AsO₃/(AsO₃ + SO₄) mole ratios on the tooeleite surface increased from 1.01~1.16 and 0.76~0.80 to 1.01~1.24 and 0.76~0.81 after 330 d dissolution at 25 °C and initial pH 2.00, respectively (Table S1, Supplementary Material). The dissolution was fundamentally controlled by the breakages of Fe-O/OH bonds in the lattice structure of tooeleite and restrained by the outer OH⁻ layers, which was also found in the alunite dissolution previously [47]. Tooeleite dissolved congruently at initial pH 2 and incongruent when initial pH >3 [29].

3.6. Solubility Calculation

The aqueous activities of Fe³⁺, AsO₃³⁻, SO₄²⁻ and OH⁻ in the final steady state (6480 h, 7200 h and 7920 h) were first computed using the PHREEQC program with its built-in minteq.v4.dat database [38], which was supplemented with the thermodynamic data of some aqueous metal-arsenite species [19,48], and then the ion-activity product [logˍIAP] was computed according to its definition. At the dissolution equilibrium, the saturation index for the synthetic tooeleite [Fe₆(AsO₃)₄(SO₄)(OH)₄·4H₂O] [log_IAP/K_sp] will be zero, i.e., the ion activity product [IAP] equals the solubility product [K_sp] [38]. The aqueous species Fe³⁺, Fe(OH)₂⁺, Fe(OH)₃, Fe(OH)₄⁻, Fe₂(OH)₂⁴⁺, Fe₃(OH)₄⁵⁺, FeSO₄⁺, Fe(SO₄)₂⁻ and FeH₂AsO₃²⁺ were considered in the simulation for the total Fe; H₃AsO₃, AsO₃³⁻, HAsO₃²⁻, H₂AsO₃⁻ and FeH₂AsO₃²⁺ for the total arsenite; SO₄²⁻, HSO₄⁻, FeSO₄⁺ and Fe(SO₄)₂⁻ for the total sulfate. The main speciation reactions with the equilibrium constants in the PHREEQC computing are listed in

Table 1. Main speciation reactions involved in the PHREEQC simulation.

Speciation Reactions	log_K	Speciation Reactions	log_K
Fe3+ + H2O = FeOH2+ + H+	−2.187	Fe3+ + SO42− = FeSO4+	4.05
Fe3+ + 2H2O = Fe(OH)2+ + 2H+	−4.594	Fe3+ + 2SO42− = Fe(SO4)2−	5.38
Fe3+ + 3H2O = Fe(OH)3 + 3H+	−12.56	H3AsO3 = AsO33− + 3H+	−34.744
Fe3+ + 4H2O = Fe(OH)4− + 4H+	−21.588	H3AsO3 = HAsO32− + 2H+	−21.33
2Fe3+ + 2H2O = Fe2(OH)24+ + 2H+	−2.854	H3AsO3 = H2AsO3− + H+	−9.29
3Fe3+ + 4H2O = Fe3(OH)45+ + 4H+	−6.288	H3AsO3 + H+ = H4AsO3+	−0.305
H+ + SO42− = HSO4−	1.99	Fe3+ + H2AsO3− = FeH2AsO32+	7.28

.

The dissolution reaction of tooeleite [Fe₆(AsO₃)₄(SO₄)(OH)₄·4H₂O] can be expressed by Equation (1).

Its ion-activity product [IAP] is defined by Equation (7).

IAP = {Fe³⁺}⁶{AsO₃³⁻}⁴{SO₄²⁻}{OH⁻}⁴

(7)

where {} are the activities of the aqueous species of Fe³⁺, AsO₃³⁻, SO₄²⁻ and OH⁻.

Based on the following thermodynamic properties, ΔG_f^o[H₂O] = −237.18 kJ/mol, ΔG_f^o[Fe³⁺] =−4.6 kJ/mol, ΔG_f^o[AsO₃³⁻] = −421.8 kJ/mol, ΔG_f^o[SO₄²⁻] = −744.6 kJ/mol and ΔG_f^o[OH⁻] = −157.3 kJ/mol [19,49,50], the Gibbs free energy of formation, ΔG_f^o[Fe₆(AsO₃)₄(SO₄)(OH)₄·4H₂O] for the synthetic tooeleite was also calculated. The standard free energy of reaction (ΔG_r^o) at 25 °C and 0.101 MPa can be calculated from Equation (8).

ΔG_r^o = −5.708 logK_sp

(8)

For Equation (1),

ΔG_r^o = 6 ΔG_f^o[Fe³⁺] + 4 ΔG_f^o[AsO₃³⁻] + ΔG_f^o[SO₄²⁻] + 4 ΔG_f^o[OH⁻]+ 4 ΔG_f^o[H₂O]
− ΔG_f^o[Fe₆(AsO₃)₄(SO₄)(OH)₄·4H₂O]

(9)

Rearranging,

ΔG_f^o[Fe₆(AsO₃)₄(SO₄)(OH)₄·4H₂O]
= 6 ΔG_f^o[Fe³⁺] + 4 ΔG_f^o[AsO₃³⁻] + ΔG_f^o[SO₄²⁻] + 4 ΔG_f^o[OH⁻]+ 4 ΔG_f^o[H₂O] − ΔG_r^o

(10)

Because the relatively higher solid/water ratio (5 g/100 mL) was applied in the dissolution experiment, only <8% of the solid dissolved into water, i.e., the bulk constituent of the synthetic tooeleite showed no significant change after 7920 h of dissolution. The analytical data of the dissolution at 25 °C and initial pH 2 for 270 d (6480 h), 7200 h (300 d) and 7920 h (330 d) together with the calculated thermodynamic properties for the synthetic tooeleite are given in

Table 2. Analytical data and solubility determination of the synthetical tooeleite.

Temp (°C)	Initial pH	Time (h)	Analytical Data (mmol/L)				log_IAP	Average log_IAP	ΔGfo [kJ/mol]	Average ΔGfo [kJ/mol]
			pH	Fe	AsO3	SO4
a25	2.00	6480	2.33	0.5747	6.4841	16.9276	−200.29	−200.28	−5180.58	−5180.54
		7200	2.33	0.5770	6.4694	16.8184	−200.27	±0.01	−5180.47	±0.07
		7920	2.33	0.5759	6.4347	16.8434	−200.29		−5180.58
25	3.00	6480	3.30	0.0328	6.6603	17.3767	−194.64	−194.61	−5148.31	−5148.18
		7200	3.30	0.0335	6.6109	17.4889	−194.60	±0.03	−5148.09	±0.13
		7920	3.30	0.0333	6.6710	17.6698	−194.61		−5148.14
25	4.00	6480	3.53	0.0265	6.6580	19.0295	−193.19	−193.18	−5140.07	−5140.01
		7200	3.54	0.0258	6.5549	19.1262	−193.21	±0.04	−5140.19	±0.24
		7920	3.54	0.0263	6.6403	19.1511	−193.14		−5139.77
25	5.00	6480	3.57	0.0265	6.3787	17.8881	−192.94	−192.96	−5138.61	−5138.75
		7200	3.57	0.0259	6.4427	17.8164	−192.98	±0.02	−5138.86	±0.14
		7920	3.57	0.0261	6.4240	17.7509	−192.97		−5138.77
25	6.00	6480	3.58	0.0258	6.4854	19.0389	−192.92	−192.92	−5138.50	−5138.50
		7200	3.58	0.0259	6.4214	18.4713	−192.91	±0.01	−5138.47	±0.03
		7920	3.58	0.0257	6.4561	18.5586	−192.92		−5138.53
25	7.00	6480	3.58	0.0281	6.4668	17.7135	−192.67	−192.68	−5137.07	−5137.15
		7200	3.58	0.0277	6.4961	17.8289	−192.70	±0.02	−5137.28	±0.13
		7920	3.58	0.0279	6.5388	17.9692	−192.67		−5137.11
25	8.00	6480	3.59	0.0305	6.0450	17.3829	−192.50	−192.44	−5136.08	−5135.77
		7200	3.60	0.0304	6.1104	17.1334	−192.42	±0.06	−5135.63	±0.31
		7920	3.60	0.0304	6.1050	17.1552	−192.41		−5135.59
25	9.00	6480	3.60	0.0270	6.2265	17.8881	−192.70	−192.70	−5137.25	−5137.26
		7200	3.60	0.0269	6.2906	17.9973	−192.69	±0.01	−5137.20	±0.08
		7920	3.60	0.0268	6.2692	17.9442	−192.71		−5137.34
25	10.00	6480	3.61	0.0255	6.1958	17.5825	−192.78	−192.78	−5137.73	−5137.71
		7200	3.61	0.0257	6.1291	17.4172	−192.78	±0.00	−5137.72	±0.02
		7920	3.61	0.0257	6.1531	17.5201	−192.78		−5137.69
25	11.00	6480	3.79	0.0231	6.6203	19.4006	−191.82	−191.85	−5132.25	−5132.42
		7200	3.78	0.0230	6.6536	19.5971	−191.89	±0.04	−5132.60	±0.18
		7920	3.78	0.0232	6.7017	19.3788	−191.85		−5132.41
25	12.00	6480	5.54	0.0007	5.8167	21.3715	−193.66	−193.64	−5142.75	−5142.63
		7200	5.54	0.0007	5.7033	21.9048	−193.64	±0.02	−5142.60	±0.12
		7920	5.54	0.0007	5.7794	21.7863	−193.63		−5142.54
a25	2.00	6480	2.30	0.5690	6.6309	17.1740	−200.75	−200.68	−5183.20	−5182.79
		7200	2.30	0.5775	6.4895	17.0835	−200.74	±0.13	−5183.12	±0.74
		7920	2.31	0.5834	6.6136	17.2332	−200.55		−5182.05
a25	2.00	6480	2.31	0.5792	6.5495	17.5388	−200.62	−200.64	−5182.47	−5182.58
		7200	2.30	0.5811	6.6283	17.3954	−200.72	±0.08	−5183.04	±0.46
		7920	2.31	0.5828	6.5549	17.3268	−200.58		−5182.23
b35	2.00	6480	2.28	0.4324	6.5589	18.5399	−199.39	−199.39
		7200	2.28	0.4339	6.6456	19.0451	−199.42	±0.03
		7920	2.28	0.4337	6.6616	18.6366	−199.37
b35	2.00	6480	2.28	0.4393	6.5495	19.0233	−199.40	−199.35
		7200	2.28	0.4361	6.7324	18.6459	−199.33	±0.05
		7920	2.28	0.4412	6.7017	18.7800	−199.33
c45	2.00	6480	2.23	0.4234	7.4958	21.4776	−197.80	−197.83
		7200	2.23	0.4201	7.5279	21.7957	−197.85	±0.03
		7920	2.23	0.4186	7.5172	21.6678	−197.85
c45	2.00	6480	2.21	0.4627	7.3397	20.7354	−197.81	−197.80
		7200	2.21	0.4643	7.4558	20.8944	−197.79	±0.02
		7920	2.21	0.4623	7.3984	20.9225	−197.82

^a,b,c Dissolution tests in triplicate (25 °C, initial pH = 2.00) or duplicate (35 °C and 45 °C, initial pH = 2.00).

.

The dissolution tests were carried out until the differences in the ion activity products [IAPs] determined from the last three samples were within the analytical uncertainty of ±0.13 log units. The dissolution system reached equilibrium and all solutions could be considered to be saturated with tooeleite [51]. The ion-activity product [logˍIAP], which equaled the solubility product [logˍK_sp] at equilibrium, and the free energy of formation [ΔG_f^o] were computed to be −200.28 ± 0.01 and −5180.54 ± 0.07 kJ/mol for the synthetic tooeleite, respectively.

Very rare K_sp and ΔG_f^o data for tooeleite could be found in literature. The solubility product [logˍK_sp] and the standard Gibbs free energy for tooeleite were determined to be 7.7 and −3605 kJ/mol through the batch experiment of 30 d without the speciation consideration of the dissolved Fe³⁺, AsO₃³⁻ and SO₄²⁻ in the calculation, respectively [29]. The result of this work was not in good agreement with the solubility product of logˍK_sp ≈ 23 for tooeleite [10,31], which was estimated from the residual iron and arsenic analysis in the synthetic experiment [28]. However, it was very close to the thermodynamic properties of synthetic tooeleite that were measured by the calorimetry technique [37]. The ΔG_f^o and logˍK_sp values were calculated to be −5396.3 ± 9.3 kJ/mol and −17.25 ± 1.80 for the reaction Equation (11), respectively [37]; and the logˍK_sp was re-calculated to be −238.09 for the reaction Equation (1).

Fe₆(AsO₃)₄(SO₄)(OH)₄·4H₂O + 16H⁺ = 6Fe³⁺ + 4H₃AsO₃ + SO₄²⁻ + 8H₂O

(11)

Tooeleite was stable only at high arsenite and sulfate concentrations and formed under the oxidation of Fe²⁺ to Fe³⁺ and the firm conservation of the trivalent oxidation state of arsenic [37].

4. Conclusions

For the dissolution of the synthetic tooeleite [Fe₆(AsO₃)₄(SO₄)(OH)₄·4H₂O], the dissolved arsenic concentrations exhibited a minimum of 427.3~435.8 mg/L As at 25 °C and initial pH 12.00 with the final pH 5.54. The constituents were dissolved preferentially in the sequence of SO₄²⁻ > AsO₃³⁻ > Fe³⁺ at 25 °C and initial pH 2.00~12.00. The dissolved iron, arsenite and sulfate were present mainly as FeSO₄⁺/Fe³⁺, H₃AsO₃⁰ and SO₄²⁻ at 25 °C and initial pH 2.00, and as Fe(OH)₃⁰/Fe(OH)₂⁺, H₃AsO₃⁰ and SO₄²⁻ at 25 °C and initial pH 12.00, respectively. The tooeleite dissolution was characterized by the preferential release of SO₄²⁻ anions from solid surface into aqueous medium, which was controlled by the Fe-O/OH bond breakages and hindered by the outer OH⁻ group layers.

From the data of the dissolution at 25 °C and initial pH 2.00 for 6480~7920 h, the ion-activity product [logˍIAP], which was very close to the solubility product [logˍK_sp], and the Gibbs free energy of formation [ΔG_f^o] were computed to be −200.28 ± 0.01 and −5180.54 ± 0.07 kJ/mol for the synthetic tooeleite, respectively.
