Compaction Characteristics of Kaolin Reinforced with Raw and Rubberized Oil Palm Shell
Abstract
:1. Introduction
2. Material and Methodology
2.1. Water Absorption Test
2.2. Compaction Tests
3. Results and Discussion

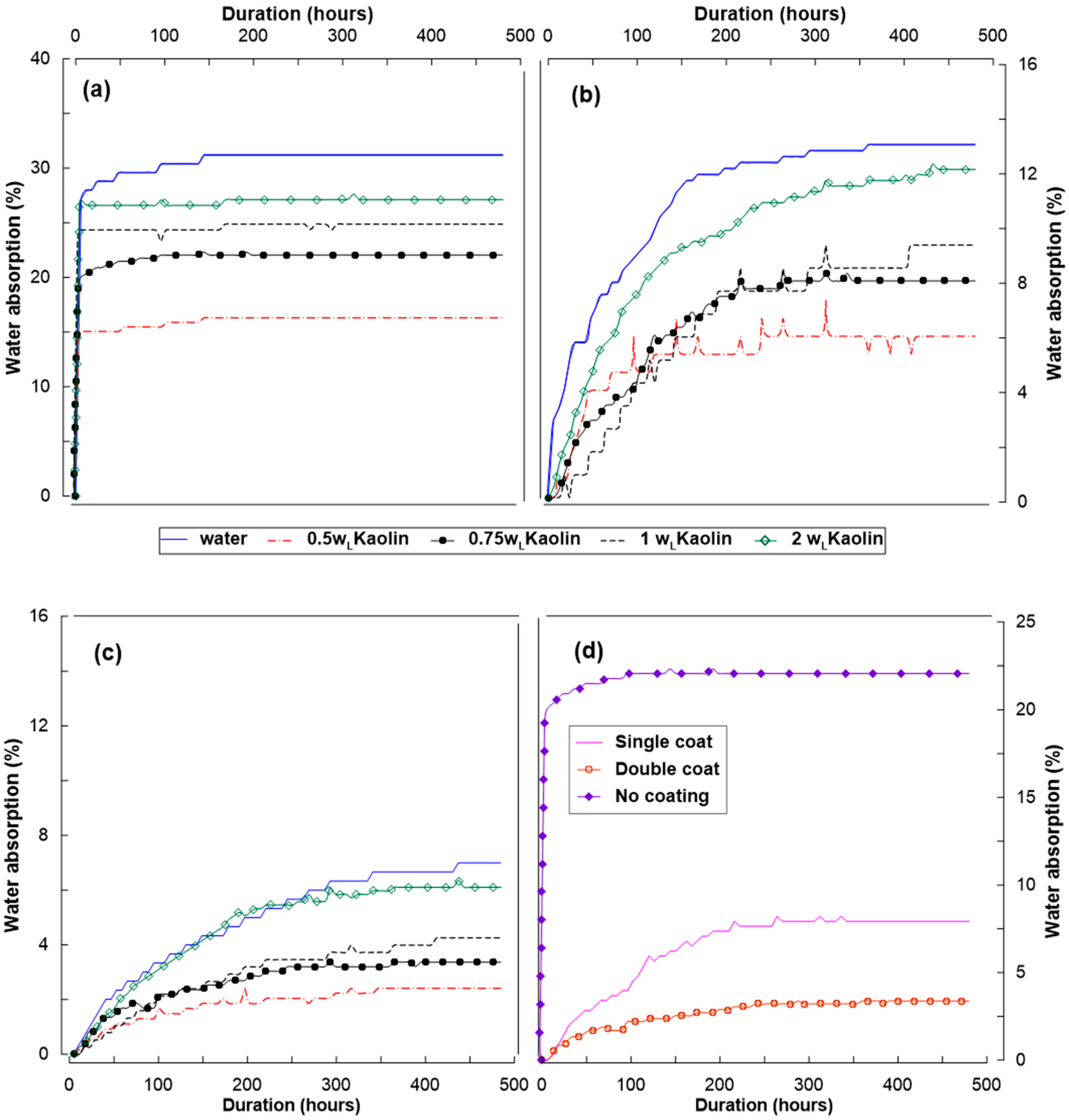

3.1. Water Absorption of OPS and ROPS Samples
3.2. Compaction Tests on OPS and ROPS Modified Kaolin
3.2.1. Specific Gravity of Kaolin Mixed with OPS and ROPS Sample

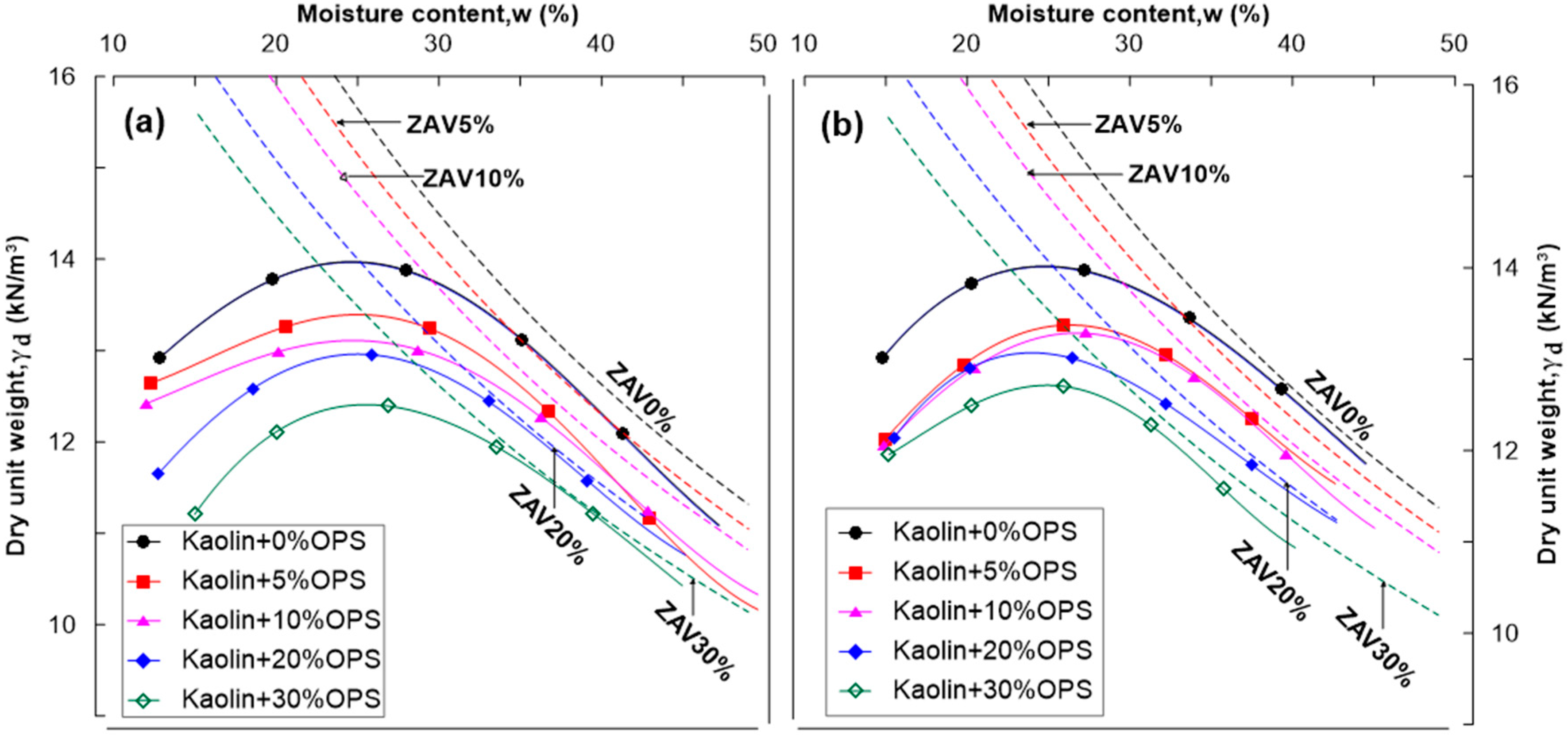

3.2.2. Compaction Characteristics of OPS-Reinforced Kaolin

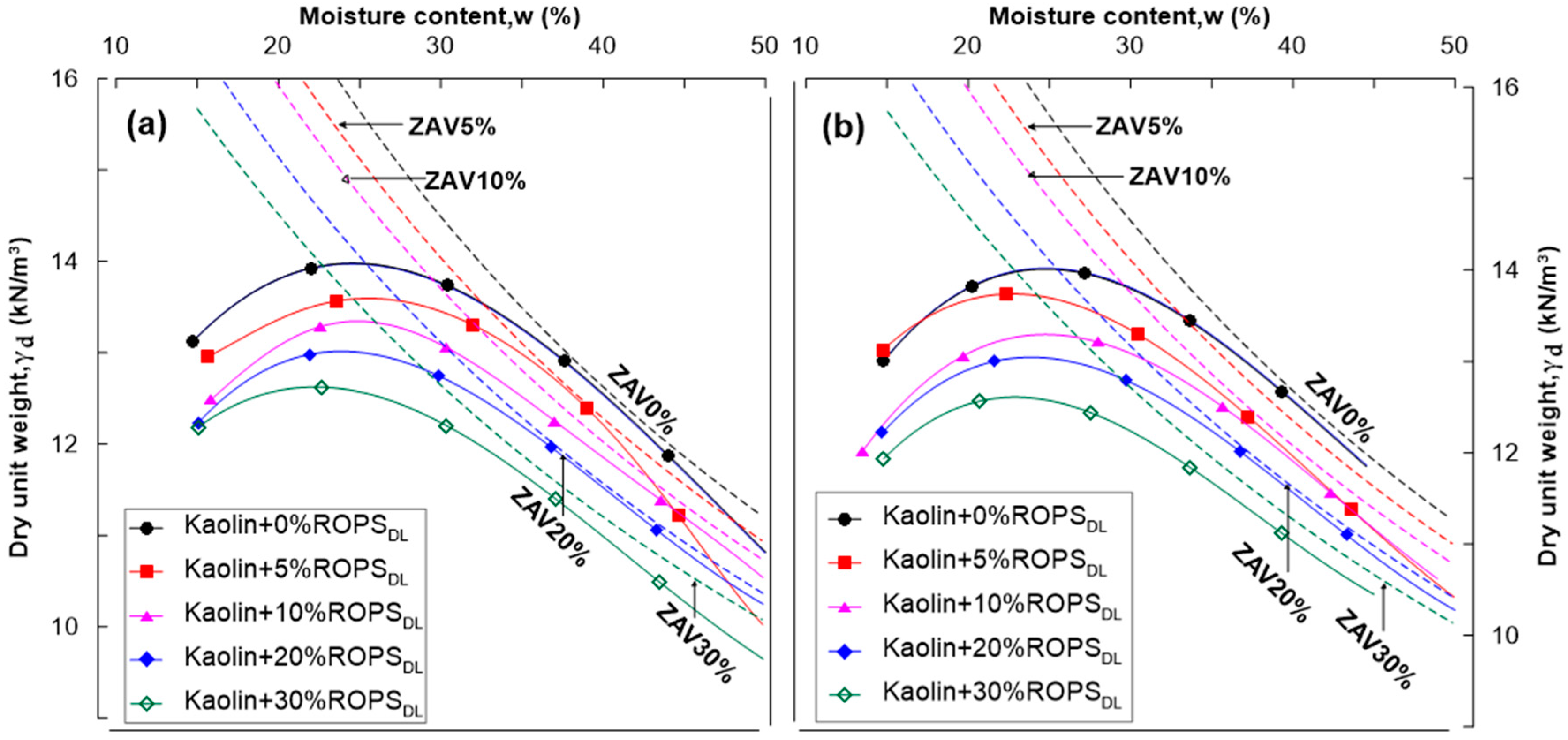

3.2.3. Compaction Characteristics of ROPSDL-Reinforced Kaolin

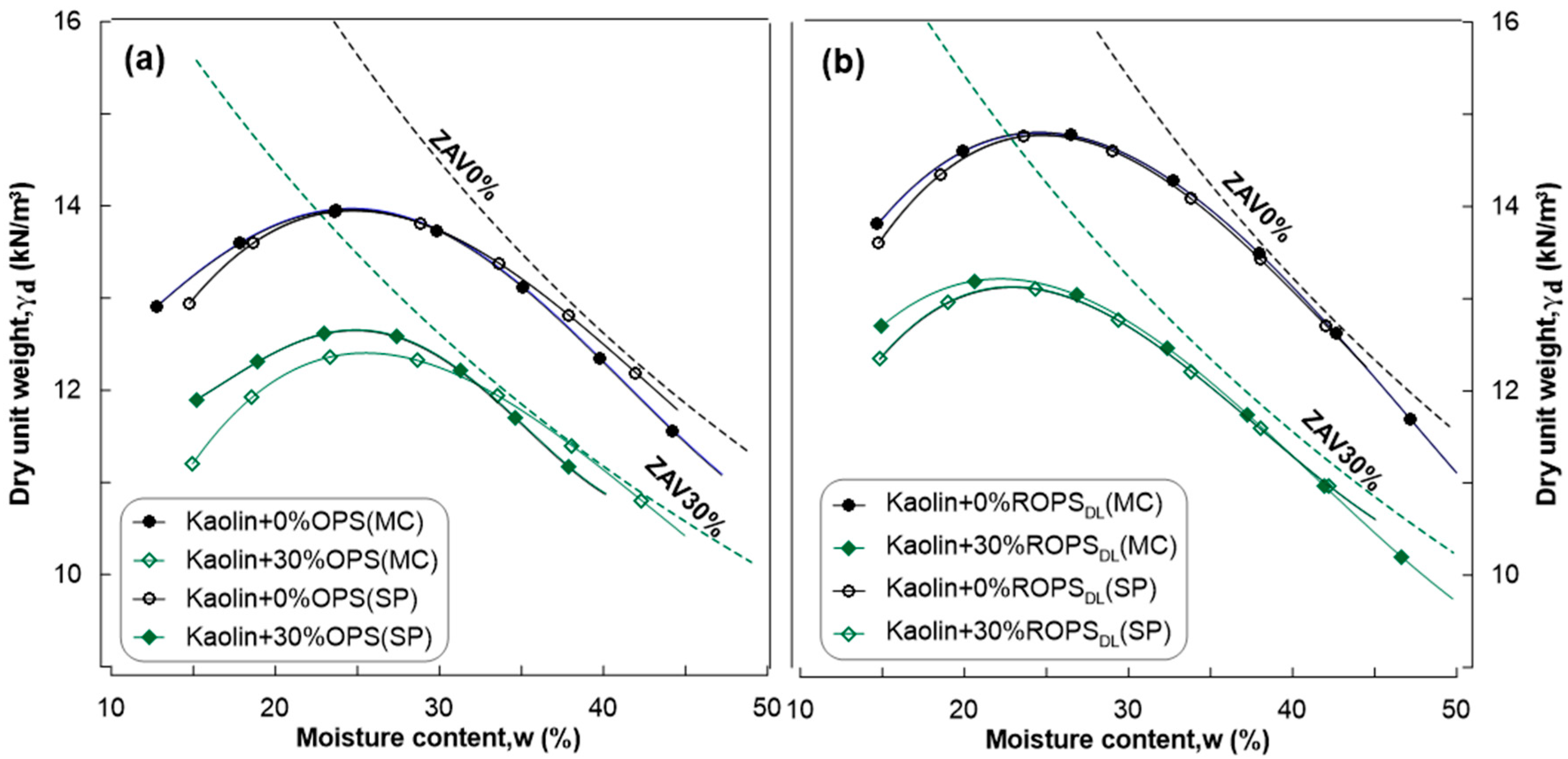

3.2.4. Comparison of Results Obtained from Standard Proctor Compaction and Mini-Compaction Tests

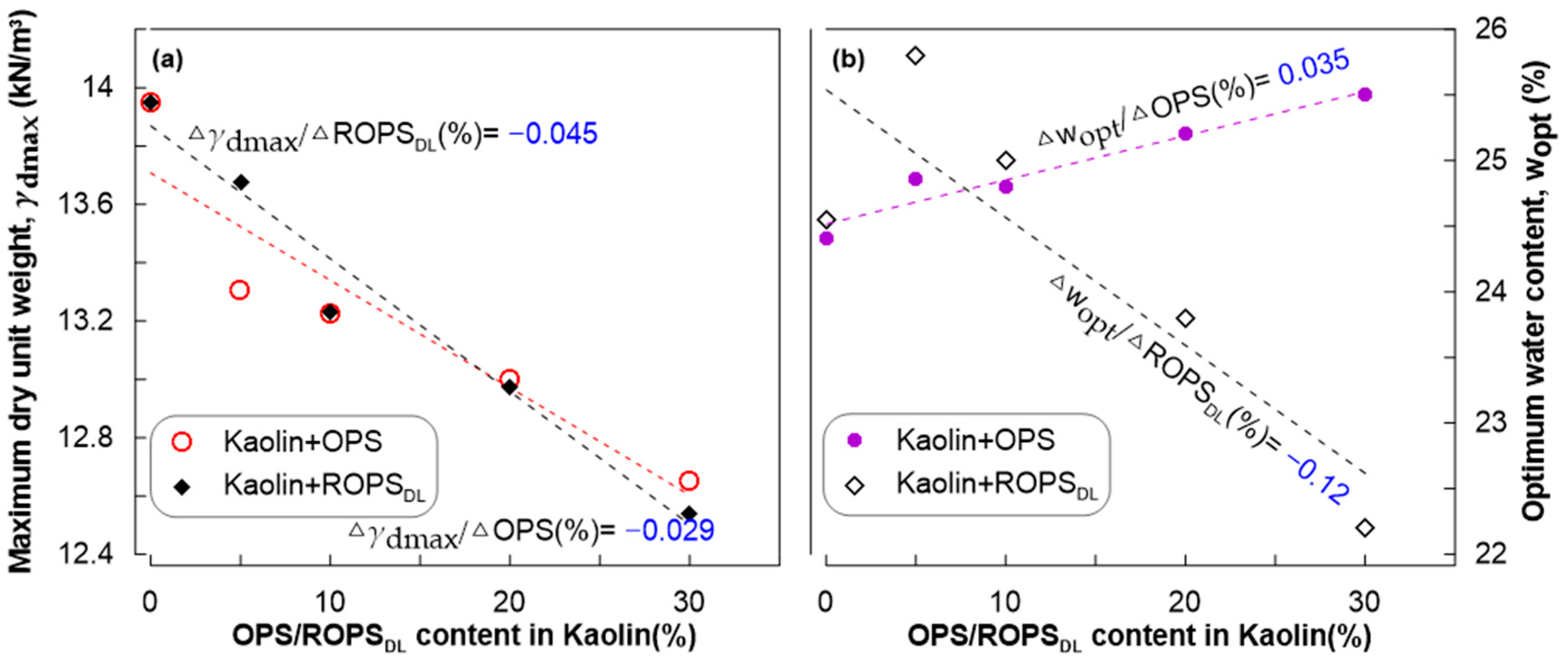

3.2.5. Effect of Rubber Coating on Compaction Characteristics of Kaolin-OPS Samples
4. Conclusions
- High water absorption of OPS is generally detrimental to the OPS, leading to material degradation. Thus, the less the water’s interaction with the OPS biomass, the less the degradation. To this end, surface coating using rubber sealant is deemed to be a favorable and eco-friendly alternative. The water absorption of the ROPS in water reduced to as low as 1.5% of the OPS, which recorded the water absorption of 31.2%. The water movement or diffusion was observed to be less when OPS was coated with rubber sealant, thereby signifying the capability of ROPSDL to perform as a relatively long term soil reinforcement for kaolin samples. However, more research evaluating the performance ROPSDL and exploring other options for surface treatment is strongly advised.
- For kaolin-ROPS samples, the compaction curves obtained using both standard proctor compaction and mini-compaction tests show γdmax to decrease with increasing OPS contents. This is related to the substitution of kaolin particles with the equivalent volume of OPS. The lower specific gravity of OPS leads to decrease in γdmax. However, variation of wopt is insignificant in this case.
- For kaolin-ROPSDL samples, the compaction curve at optimum exhibits a downward-leftward shift over the γd-w dimension, indicating a significant reduction in both γdmax and wopt. The lower specific gravity along with minor loss of compaction efficiency due to the elastic response of rubber on OPS during compaction could have led to this reduction in γdmax, while the lower wopt clearly relates to reduced water absorption capability of ROPSDL samples.
- This study also evaluated the possibility of using the mini-compaction test (a relatively quick test) to estimate the compaction characteristics of shell-like material in soil. The mini-compaction test results were compared with the standard proctor compaction test. The compaction curves for OPS and ROPSDL-reinforced kaolin samples obtained using mini-compaction apparatus showed a comparable and consistent results with the results abstained using standard proctor compaction tests. Results from this study therefore suggests that the mini-compaction test procedure proposed by Sridharan and Sivapullaiah [14] can be considered to estimate the compaction behavior of kaolin-OPS and kaolin-ROPS samples.
Author Contributions
Funding
Conflicts of Interest
References
- Babu, G.L.S.; Vasudevan, A.K. Strength and stiffness response of coir fiber-reinforced tropical soil. J. Mater. Civ. Eng. 2008, 20, 571–577. [Google Scholar] [CrossRef]
- Jamellodin, Z.; Abu Talib, Z.; Kolop, R.; Md Noor, N. The effect of oil palm fibre on strength behaviour of soil. In Proceedings of the 3rd International Conference on Southeast Asian Natural Resources and Environmental Management (SANREM), Kota Kinabalu, Sabah, Malaysia, 3–5 August 2010. [Google Scholar]
- Yew, M.K.; Bin Mahmud, H.; Ang, B.C.; Yew, M.C. Effects of oil palm shell coarse aggregate species on high strength lightweight concrete. Sci. World J. 2014, 2014, 387647. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Mannan, M.A.; Alexander, J.; Ganapathy, C.; Teo, D.C.L. Quality improvement of oil palm shell (OPS) as coarse aggregate in lightweight concrete. Build. Environ. 2006, 41, 1239–1242. [Google Scholar] [CrossRef]
- Alengaram, U.J.; Mahmud, H.; Jumaat, Z.; Shirazi, S. Effect of aggregate size and proportion on strength properties of palm kernel shell concrete. Int. J. Phys. Sci. 2010, 5, 1848–1856. [Google Scholar]
- Alengaram, U.J.; Muhit, B.A.A.; Jumaat, M.Z.B. Utilization of oil palm kernel shell as lightweight aggregate in concrete—A review. Constr. Build. Mater. 2013, 38, 161–172. [Google Scholar] [CrossRef]
- Teo, D.C.L.; Mannan, M.A.; Kurian, V.J.; Ganapathy, C. Lightweight concrete made from oil palm shell (OPS): Structural bond and durability properties. Build. Environ. 2007, 42, 2614–2621. [Google Scholar] [CrossRef]
- Moradi, A.; Teh, C.B.S.; Goh, K.J.; Husni, M.H.A.; Ishak, C.F. Decomposition and nutrient release temporal pattern of oil palm residues. Ann. Appl. Biol. 2014, 164, 208–219. [Google Scholar] [CrossRef]
- Hayawin, Z.; Astimar, A.A.; Ibrahim, M.; Wan Hassan, W.H.; Abdul Khalil, H.P.S. Vermicomposting of different types of oil palm fibre waste using eudrilus eugeniae: A comparative study. J. Oil Palm Res. 2011, 23, 979–989. [Google Scholar]
- Lee, S.T.; Handika, N.; Tjahjono, E.; Arijoeni, E. Study on the effect of pre-treatment of oil palm shell (OPS) as coarse aggregate using hot water 50 °C and room temperature water 28 °C to lightweight concrete strength. Int. Conf. Adv. Civ. Environ. Eng. 2019, 276, 01023. [Google Scholar]
- Wang, Y.; Zhou, Y.; Ma, Y.; Lu, H.; Sun, Y.; Zhao, G.; Liu, Y. Preparation of a natural rubber nanocomposite coating based on Fe3O4@ carbon materials and their corrosion resistance. Int. J. Electrochem. Sci. 2017, 12, 9798–9811. [Google Scholar] [CrossRef]
- Holtz, R.D. An Introduction to Geotechnical Engineering, 2nd ed.; Pearson: Upper Saddle River, NJ, USA, 2011. [Google Scholar]
- Sridharan, A.; Nagaraj, H.B. Plastic limit and compaction characteristics of fine grained soils. Proc. Inst. Civ. Eng. Ground Improv. 2005, 9, 17–22. [Google Scholar] [CrossRef]
- Sridharan, A.; Sivapullaiah, P.V. Mini compaction test apparatus for fine grained soils. Geotech. Test. J. 2005, 28, 240–246. [Google Scholar]
- Reddy, B.V.V.; Jagadish, K.S. The static compaction of soils. Géotechnique 1993, 43, 337–341. [Google Scholar] [CrossRef]
- ASTM D854-14. Standard Test Methods for Specific Gravity of Soil Solids by Water Pycnometer; ASTM International: West Conshohocken, PA, USA, 2014. [Google Scholar]
- ASTM D422-63. Standard Test Method for Particle-Size Analysis of Soils; ASTM International: West Conshohocken, PA, USA, 2017. [Google Scholar]
- ASTM D4318-17e1. Standard Test Methods for Liquid Limit, Plastic Limit, and Plasticity Index of Soils; ASTM International: West Conshohocken, PA, USA, 2017. [Google Scholar]
- ASTM D2487-17e1. Standard Practice for Classification of Soils for Engineering Purposes (Unified Soil Classification System); ASTM International: West Conshohocken, PA, USA, 2017. [Google Scholar]
- ASTM D698-12e2. Standard Test Methods for Laboratory Compaction Characteristics of Soil Using Standard Effort; ASTM International: West Conshohocken, PA, USA, 2012. [Google Scholar]
- ASTM D570-98. Standard Test Method for Water Absorption of Plastics; ASTM International: West Conshohocken, PA, USA, 2018. [Google Scholar]
- Trouzine, H.; Bekhiti, M.; Asroun, A. Effects of scrap tyre rubber fibre on swelling behaviour of two clayey soils in Algeria. Geosynth. Int. 2012, 19, 124–132. [Google Scholar] [CrossRef]
- Weitsman, Y.J. Effects of Fluids on Polymeric Composites—A Review; Contract Report for Office of Naval Research; No. N00014-90-J-1556; University of Tennessee: Knoxville, TN, USA, 1996. [Google Scholar]
- Azwa, Z.N.; Yousif, B.F.; Manalo, A.C.; Karunasena, W. A review on the degradability of polymeric composites based on natural fibres. Mater. Des. 2013, 47, 424–442. [Google Scholar] [CrossRef] [Green Version]
- Marom, G. The role of water transport in composite materials. In Polymer Permeability, 1st ed.; Comyn, J., Ed.; Springer: Dordrecht, The Netherlands, 1985; pp. 341–374. [Google Scholar]
- Sreekala, M.S.; George, J.; Kumaran, M.G.; Thomas, S. Water-sorption kinetics in oil palm fibers. J. Polym. Sci. Part B Polym. Phys. 2001, 39, 1215–1223. [Google Scholar] [CrossRef]
- Dhakal, H.N.; Zhang, Z.Y.; Richardson, M.O.W. Effect of water absorption on the mechanical properties of hemp fibre reinforced unsaturated polyester composites. Compos. Sci. Technol. 2007, 67, 1674–1683. [Google Scholar] [CrossRef]
- Loi, S.J.; Raghunandan, M.E.; Thong, T.B. Influence of Oil Palm Shell (OPS) on the Compaction Behavior and Strength Improvement of Soil-OPS Composites: A Pilot Study. International Congress and Exhibition “Sustainable Civil Infrastructures: Innovative Infrastructure Geotechnology”; Springer: Cham, Switzerland, 2018; pp. 119–132. [Google Scholar]
- Eskander, S.; Saleh, H.E.-D. Biodegradation: Process Mechanism. In Environmental Science and Engineering, 1st ed.; Studium Press LLC: Houston, TX, USA, 2017; pp. 1–31. [Google Scholar]
- Gungat, L.; Putri, E.E.; Makinda, J. Effects of Oil Palm Shell and Curing Time to the Load-Bearing Capacity of Clay Subgrade. Procedia Eng. 2013, 54, 690–697. [Google Scholar] [CrossRef] [Green Version]
- Priyadarshee, A.; Kumar, A.; Gupta, D.; Pushkarna, P. Compaction and Strength Behavior of Tire Crumbles–Fly Ash Mixed with Clay. J. Mater. Civ. Eng. 2018, 30, 04018033. [Google Scholar] [CrossRef]
- Yadav, J.S.; Tiwari, S.K. Effect of waste rubber fibres on the geotechnical properties of clay stabilized with cement. Appl. Clay Sci. 2017, 149, 97–110. [Google Scholar] [CrossRef]
- Hussain, S.; Garg, A.; Tiwari, S. Geotechnical properties of rubber reinforced cemented clayey soil. Transp. Infrastruct. Geotechnol. 2019, 6, 337–354. [Google Scholar]
- Özkul, Z.H.; Baykal, G. Shear strength of clay with rubber fiber inclusions. Geosynth. Int. 2006, 13, 173–180. [Google Scholar] [CrossRef]
- Soltani, A.; Deng, A.; Taheri, A.; Sridharan, A. Consistency limits and compaction characteristics of clay soils containing rubber waste. Proc. Inst. Civ. Eng. Geotech. Eng. 2019, 172, 174–188. [Google Scholar] [CrossRef] [Green Version]
- Yadav, J.S.; Tiwari, S.K. A study on the potential utilization of crumb rubber in cement treated soft clay. J. Build. Eng. 2017, 9, 177–191. [Google Scholar] [CrossRef]
Soil Type | Kaolin | Procedure |
---|---|---|
Specific Gravity, Gs | 2.65 | ASTM D854-14 [16] |
Particle Size Distribution | ||
Clay (%) | 22 | ASTM D422-07 [17] |
Silt (%) | 78 | |
Sand (%) | 0 | |
Gravel (%) | 0 | |
D90 (mm) | 0.013 | |
D60 (mm) | 0.008 | |
D50 (mm) | 0.004 | |
D30 (mm) | 0.003 | |
D10 (mm) | 0.001 | |
Coefficient of uniformity, Cu | 8.0 | |
Coefficient of curvature, Cc | 1.1 | |
Consistency Limits and Soil Classification | ||
Liquid Limit (wL) | 64 | ASTM D4318-17 [18] |
Plastic Limit (wP) | 38 | |
Plasticity Index (Ip) | 26 | |
USCS soil classification | MH a | ASTM D2487-17 [19] |
Compaction Characteristics—Standard Proctor Test | ||
Optimum moisture content, wopt (%) | 14.8 | ASTM D698-12 [20] |
Maximum dry unit weight, γdmax (kN/m3) | 13.0 | |
Compaction Characteristics—Mini-compaction Test | ||
Optimum moisture content, wopt (%) | 12.7 | Sridharan and Sivapullaiah [14] |
Maximum dry unit weight, γdmax (kN/m3) | 13.1 |
Soil Types | OPS |
---|---|
Specific gravity, Gs | 1.23 |
Shell thickness (mm) | 0.3–3.0 |
Field moisture content (%) | 13.7–24.5 |
Organic content (%) | 72.5–87.8 |
24-h water absorption (%) | 20.9–37.1 |
Scenarios | Descriptions (Sample + Medium) |
---|---|
1 | OPS + water |
2 | OPS + Kaolin (0.5wL) |
3 | OPS + Kaolin (0.75wL) |
4 | OPS + Kaolin (1wL) |
5 | OPS + Kaolin (2wL) |
6 | ROPSSL + water |
7 | ROPSSL + Kaolin (0.5wL) |
8 | ROPSSL + Kaolin (0.75wL) |
9 | ROPSSL + Kaolin (1wL) |
10 | ROPSSL + Kaolin (2wL) |
11 | ROPSDL + water |
12 | ROPSDL + Kaolin (0.5wL) |
13 | ROPSDL + Kaolin (0.75wL) |
14 | ROPSDL + Kaolin (1wL) |
15 | ROPSDL + Kaolin (2wL) |
Test Sample | Specific Gravity (Gs) |
---|---|
Kaolin | 2.65 |
OPS | 1.23 |
ROPSDL | 1.24 |
Kaolin + 5% OPS | 2.51 |
Kaolin + 10% OPS | 2.40 |
Kaolin + 20% OPS | 2.22 |
Kaolin + 30% OPS | 2.09 |
Kaolin + 5% ROPSDL | 2.51 |
Kaolin + 10% ROPSDL | 2.40 |
Kaolin + 20% ROPSDL | 2.23 |
Kaolin + 30% ROPSDL | 2.10 |
