# An Improved User Association Algorithm for MAP–FAPs Heterogeneous Networks

^{*}

## Abstract

**:**

## 1. Introduction

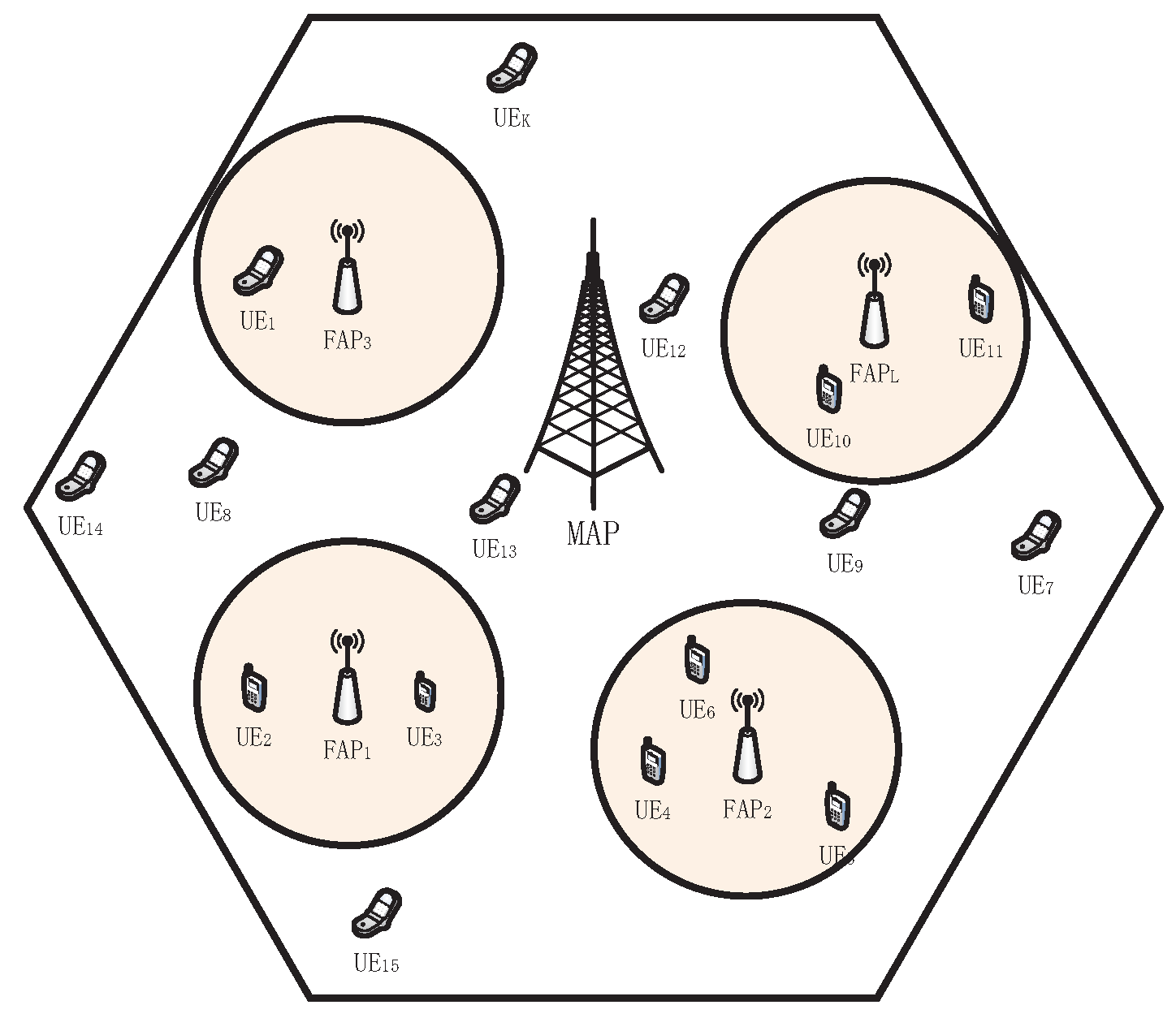

## 2. System Model

## 3. Problem Formulation and Optimal Solution

#### 3.1. Single Subcarrier User Rate

#### 3.2. Approximated Problem and Problem Formulation

## 4. The Proposed Algorithm

- 1.

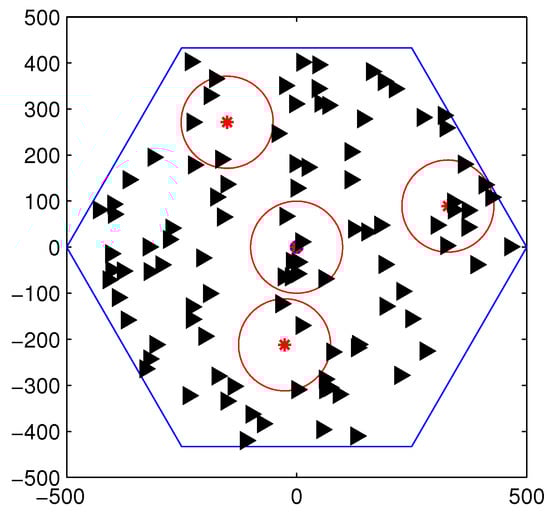

**Initialization**L FAPs and K users are randomly generated within the scope of MAP. Initialize ${K}_{M}={K}_{{F}_{i}}=0(i=1,\dots ,L)$, ${\mathbb{K}}_{\mathbb{M}}={\mathbb{K}}_{{\mathbb{F}}_{i}}=\varnothing (i=1,\dots ,L)$. Set that the $ith(i=1,\dots ,L)$ AP can serve a maximum of ${\lambda}_{max}^{i}$ users. To simplify, assume that each FAP has the same maximum service user number, ${\lambda}_{max}$, and to make sure that every available user will be served, MAP sets its quota ${\lambda}_{max}^{0}$ to be equal to the maximum number of UEs.- 2.
**Pre-selection****for**$k=1$ to KCalculate the $kth$ user rate ${r}_{ik}(i=0,1,\dots ,L)$ when it connects to the $ith$ AP, then the $kth$ user preselects the AP who can support the highest user rate.**end**Then ${K}_{M}$, ${K}_{{F}_{i}}(i=1,\dots ,L)$, ${\mathbb{K}}_{\mathbb{M}}$ and ${\mathbb{K}}_{{\mathbb{F}}_{i}}(i=1,\dots ,L)$ are obtained.- 3.
**Final selection****if**$i=0$${K}_{M}$=${K}_{M}$, ${\mathbb{K}}_{\mathbb{M}}$=${\mathbb{K}}_{\mathbb{M}}$**end****for**$i=1$ to LCalculate $\frac{{r}_{ik}}{{r}_{0k}}(k\in {\mathbb{K}}_{{\mathbb{F}}_{i}})$. Then sort $\frac{{r}_{ik}}{{r}_{0k}}(k\in {\mathbb{K}}_{{\mathbb{F}}_{i}})$ in an increasing manner; namely, $\frac{{r}_{i1}}{{r}_{01}}\u2a7d\frac{{r}_{i2}}{{r}_{02}}\u2a7d\cdots \u2a7d\frac{{r}_{i{K}_{{F}_{i}}}}{{r}_{0{K}_{{F}_{i}}}}$. Select the last $min({\lambda}_{max},{K}_{{F}_{i}})$ users according to the order.Accordingly, we obtain${\mathbb{K}}_{{\mathbb{F}}_{i}}=\{{K}_{{F}_{i}}-min({\lambda}_{max},{K}_{{F}_{i}})+1,\dots ,{K}_{{F}_{i}}\}$, ${\mathbb{K}}_{\mathbb{M}}={\mathbb{K}}_{\mathbb{M}}\cup \{1,\dots ,{K}_{{F}_{i}}-min({\lambda}_{max},{K}_{{F}_{i}})\}$${K}_{{F}_{i}}=min({\lambda}_{max},{K}_{{F}_{i}})$${K}_{M}={K}_{M}+{K}_{{F}_{i}}-min({\lambda}_{max},{K}_{{F}_{i}})$**end**

## 5. Simulation Results

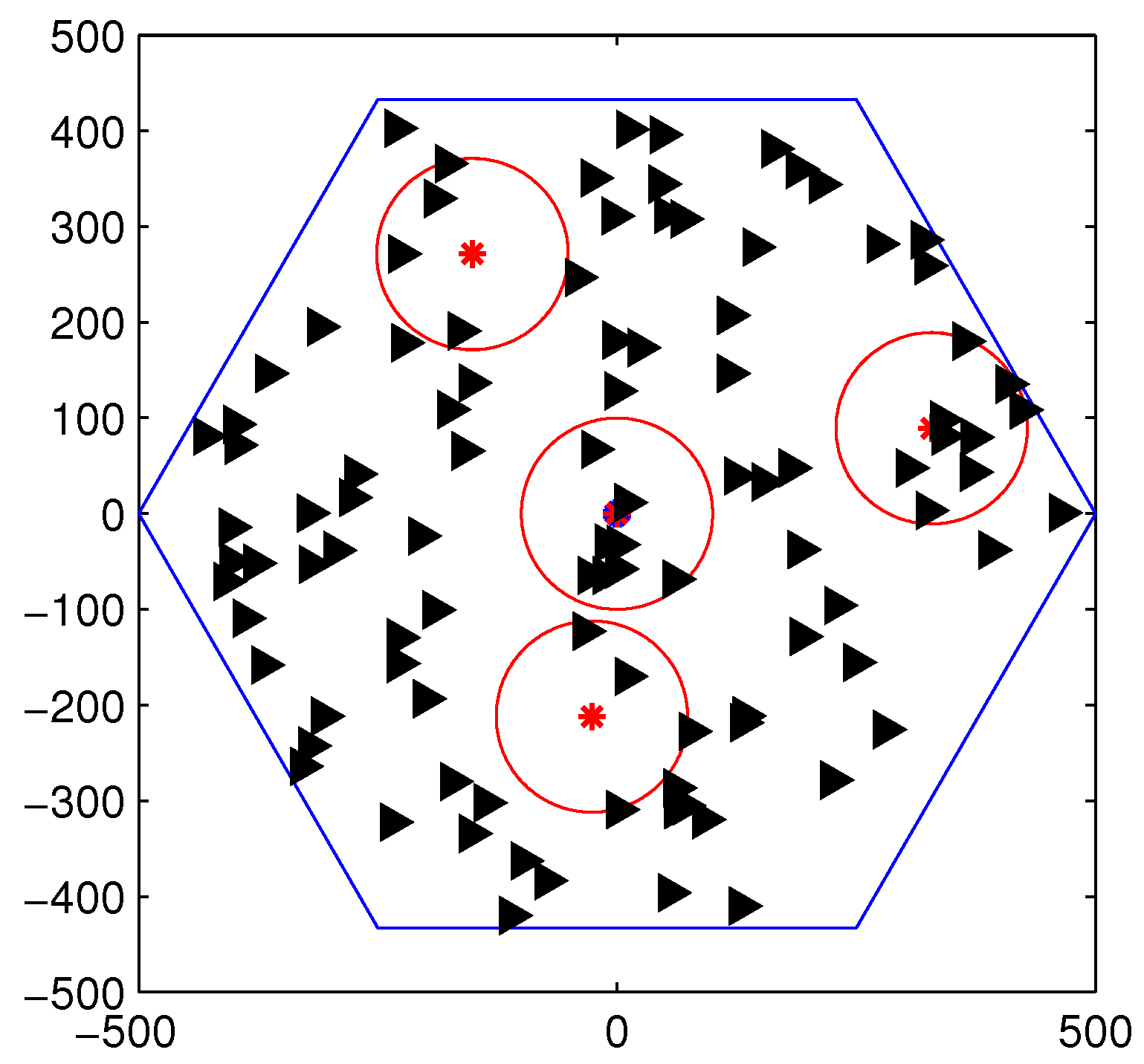

#### 5.1. Simulation Configuration

#### 5.2. Simulation Analysis

## 6. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- Liu, D.; Wang, L.; Chen, Y.; Elkashlan, M.; Wong, K.; Schober, R.; Hanzo, L. User association in 5G networks: A survey and an outlook. IEEE Commun. Surv. Tutor.
**2016**, 18, 1018–1044. [Google Scholar] [CrossRef] - Andrews, J.G.; Claussen, H.; Dohler, M.; Rangan, S.; Reed, M.C. Femtocells: Past, present, and future. IEEE J. Sel. Areas Commun.
**2012**, 30, 497–508. [Google Scholar] [CrossRef] - Peng, M.; Wang, C.; Li, J.; Xiang, H.; Lau, V. Recent advances in underlay heterogeneous networks: Interference control, resource allocation, and self-organization. IEEE Commun. Surv. Tutor.
**2015**, 17, 700–729. [Google Scholar] [CrossRef] - Li, Y.B.; Yang, R.; Ye, F.; Gao, Z. Improved spectrum sharing algorithm based on feedback control information in cognitive radio networks. J. Syst. Eng. Electron.
**2013**, 24, 564–570. [Google Scholar] [CrossRef] - Lee, Y.L.; Chuah, T.C.; Loo, J.; Vinel, A. Recent advances in radio resource management for heterogeneous LTE/LTE-A networks. IEEE Commun. Surv. Tutor.
**2014**, 16, 2142–2180. [Google Scholar] [CrossRef] - Luan, Z.; Qu, H.; Zhao, J.; Chen, B. Low complexity distributed max-throughput algorithm for user association in heterogeneous network. Wirel. Pers. Commun.
**2016**, 87, 1147–1156. [Google Scholar] [CrossRef] - Song, W.; Jiang, H.; Zhuang, W. Performance analysis of the WLAN-first scheme in cellular/WLAN interworking. IEEE Trans. Wirel. Commun.
**2007**, 6, 1932–1952. [Google Scholar] [CrossRef] - Nie, J.; Wen, J.C.; Dong, Q.; Zhou, Z. A seamless handoff in IEEE 802.16 a and IEEE 802.11 n hybrid networks. In Proceedings of the IEEE 2005 International Conference on Communications, Circuits and Systems, Hong Kong, China, 27–30 May 2005; Volume 1, pp. 383–387.
- Roy, J.J.J.; Vaidehi, V.; Srikanth, S. Always best-connected QoS integration model for the WLAN, WiMAX heterogeneous network. In Proceedings of the IEEE First International Conference on Industrial and Information Systems, Moratuwa, Sri Lanka, 8–11 August 2006; pp. 361–366.
- Lasaulce, S.; Tembine, H. Game Theory and Learning for Wireless Networks: Fundamentals and Applications; Academic Press: New York, NY, USA, 2011. [Google Scholar]
- Liang, L.; Feng, G.; Jia, Y. Game-theoretic hierarchical resource allocation for heterogeneous relay networks. IEEE Trans. Veh. Technol.
**2015**, 64, 1480–1492. [Google Scholar] [CrossRef] - Bayat, S.; Louie, R.H.Y.; Han, Z.; Vucetic, B.; Li, Y. Distributed user association and femtocell allocation in heterogeneous wireless networks. IEEE Trans. Commun.
**2014**, 62, 3027–3043. [Google Scholar] [CrossRef] - Xue, P.; Gong, P.; Park, J.H.; Park, D.; Kim, D.K. Radio resource management with proportional rate constraint in the heterogeneous networks. IEEE Trans. Wirel. Commun.
**2012**, 11, 1066–1075. [Google Scholar] [CrossRef] - Wong, I.C.; Shen, Z.; Evans, B.L.; Andrews, J.G. A low complexity algorithm for proportional resource allocation in OFDMA systems. In Proceedings of the SIPS IEEE Workshop on Signal Processing Systems, Austin, TX, USA, 13–15 October 2004; pp. 1–6.
- Shen, Z.; Andrews, J.-G.; Evans, B.-L. Adaptive resource allocation in multiuser OFDM systems with proportional rate constraints. IEEE Trans. Wirel. Commun.
**2005**, 4, 2726–2737. [Google Scholar] [CrossRef] - Zheng, J.; Li, J.D.; Shi, H.; Liu, Q.; Yang, X.N. Joint subcarrier, code, and power allocation for parallel multi-radio access in heterogeneous wireless networks. Sci. China Inf. Sci.
**2014**, 57, 1–5. [Google Scholar] [CrossRef] - Li, Y.; Nie, W.; Ye, F. A complex mixing matrix estimation algorithm based on single source points. Circuits Syst. Signal Process.
**2015**, 34, 3709–3723. [Google Scholar] [CrossRef] - Jia, C.; Lim, T.J. Resource partitioning and user association with sleep-mode base stations in heterogeneous cellular networks. IEEE Trans. Wirel. Commun.
**2015**, 14, 3780–3793. [Google Scholar] [CrossRef] - Ye, Q.; Rong, B.; Chen, Y.; Al-Shalash, M.; Caramanis, C.; Andrews, J.G. User association for load balancing in heterogeneous cellular networks. IEEE Trans. Wirel. Commun.
**2013**, 12, 2706–2716. [Google Scholar] [CrossRef] - Shen, K.; Yu, W. Distributed pricing-based user association for downlink heterogeneous cellular networks. IEEE J. Sel. Areas Commun.
**2014**, 32, 1100–1113. [Google Scholar] [CrossRef]

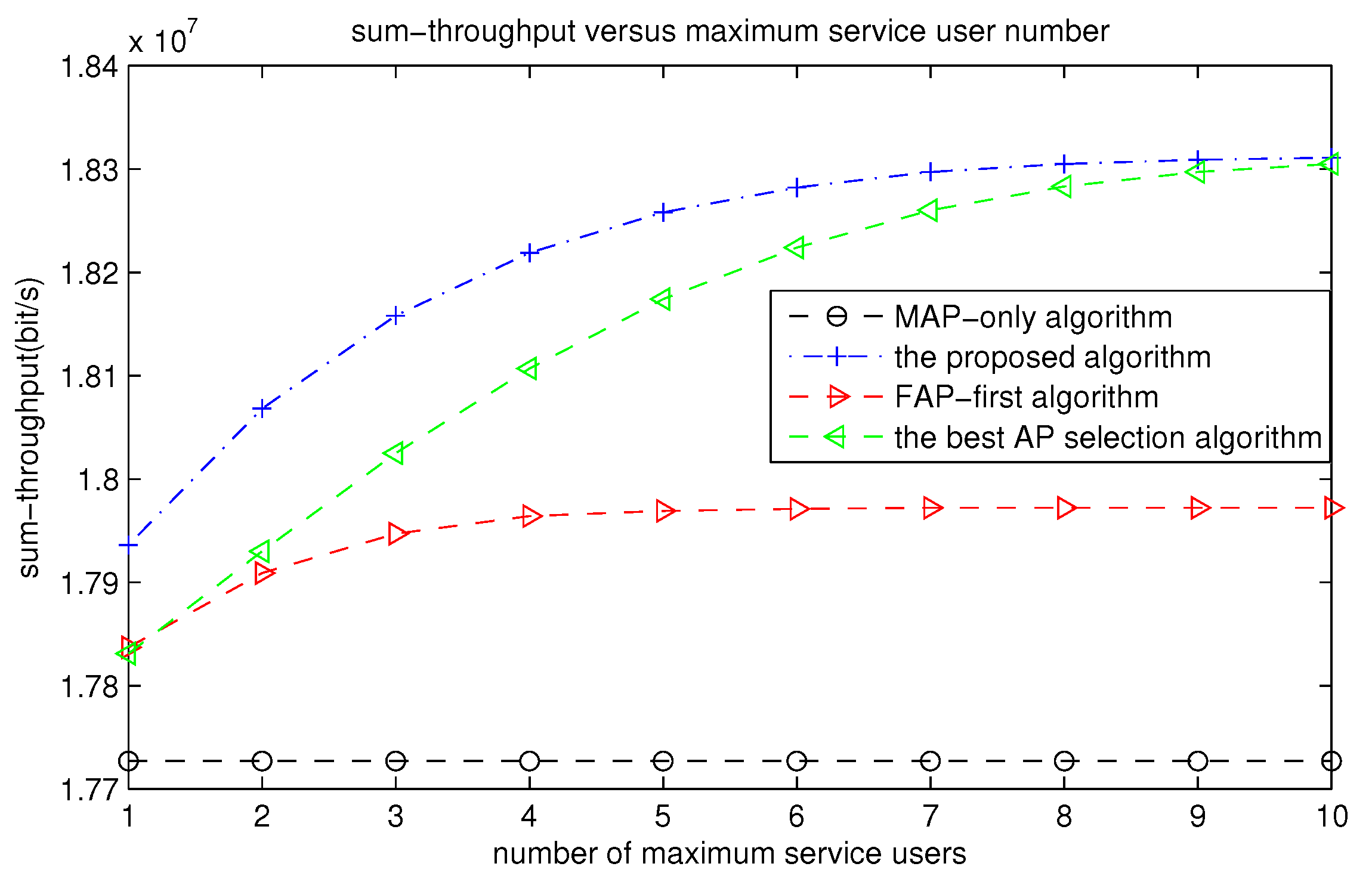

**Figure 6.**Performance comparison in terms of sum-throughput with different maximum service user numbers.

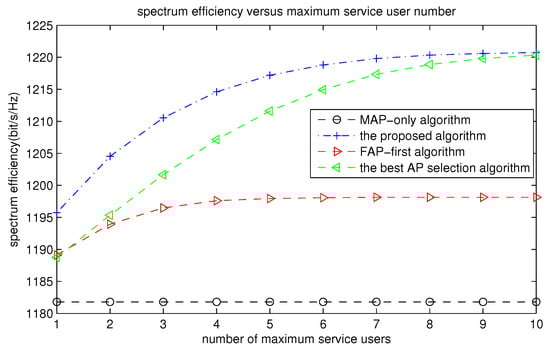

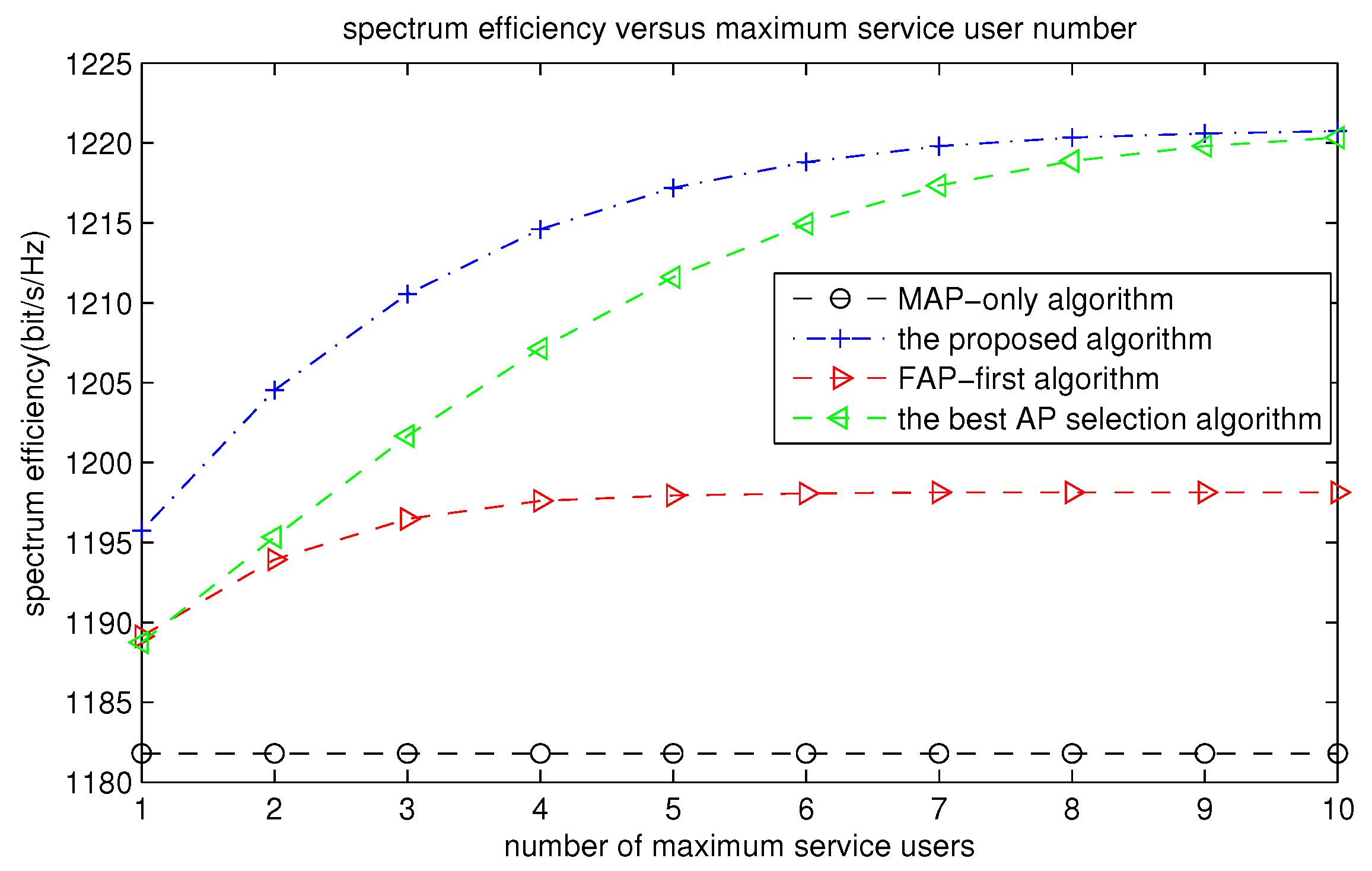

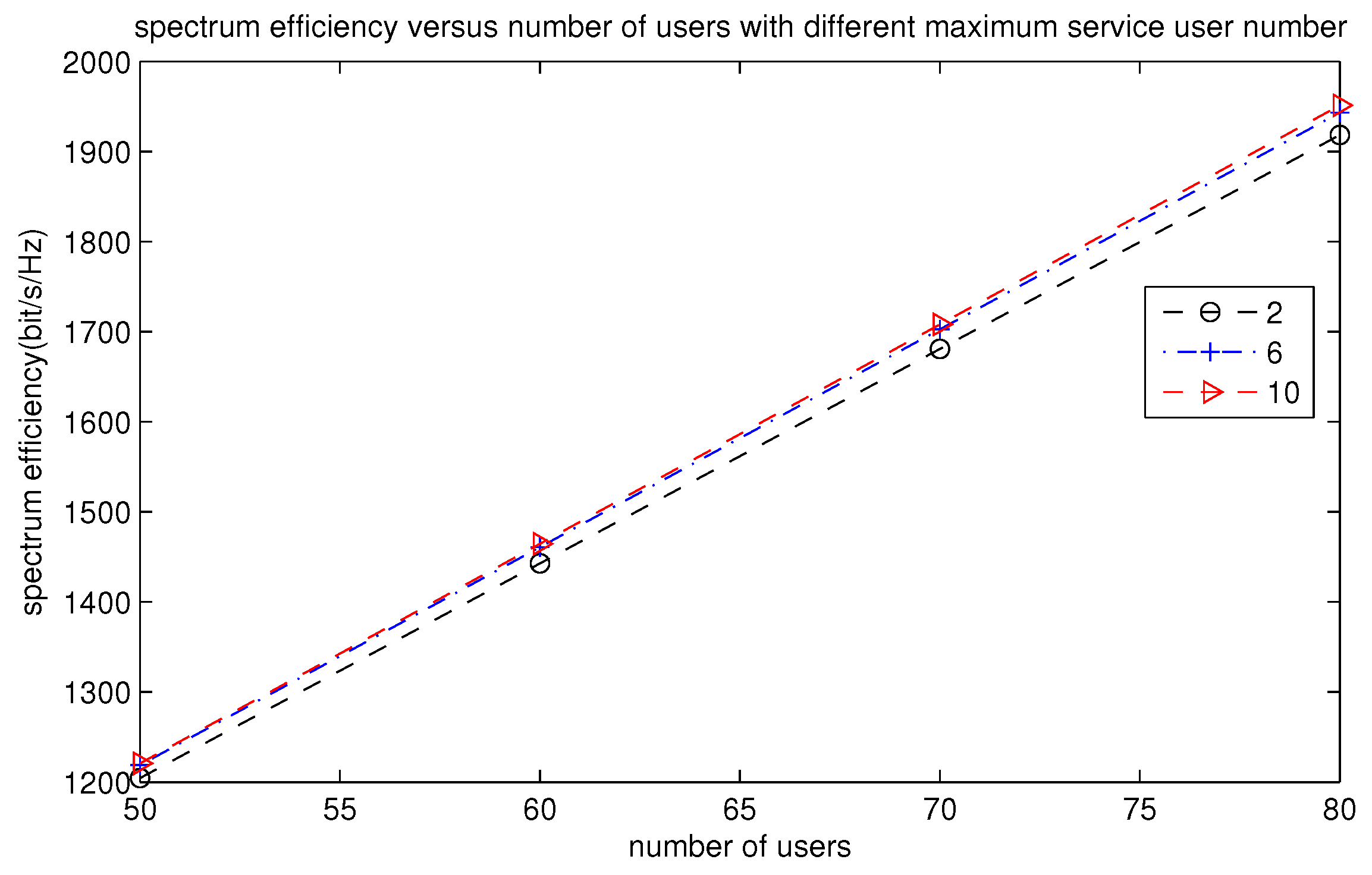

**Figure 7.**Performance comparison in terms of spectrum efficiency with different maximum service user numbers.

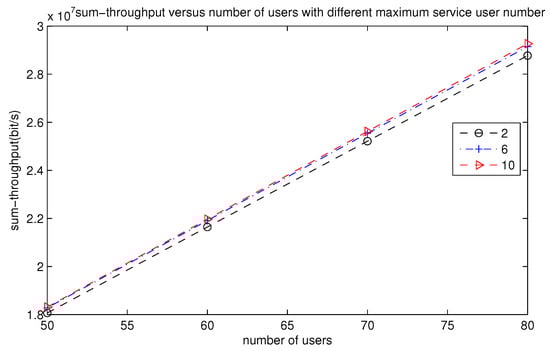

**Figure 8.**Performance comparison in terms of sum-throughput with different maximum service user numbers.

Parameter | Value |
---|---|

MAP transmission power | 43 dBm |

FAP transmission power | 20 dBm |

Bandwidth of subcarrier | 15 KHz |

Path loss (MAP) | 15.3 + 37.6 lg(d) |

Path loss (FAP) | 38.46 + 20 lg(d) |

Shadowing | Log-normal, 8 dB standard deviation |

Noise power density | −174 dBm/Hz |

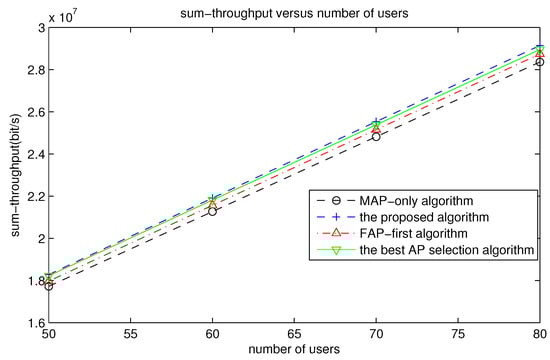

Algorithms | Sum-Throughput (${10}^{7}$ bit/s) | Improvement over MAP-Only (Percent) |
---|---|---|

The proposed algorithm | 2.5536 | 2.893 |

The best AP selection | 2.5388 | 2.297 |

FAP-first | 2.5155 | 1.358 |

MAP-only | 2.4818 | 0 |

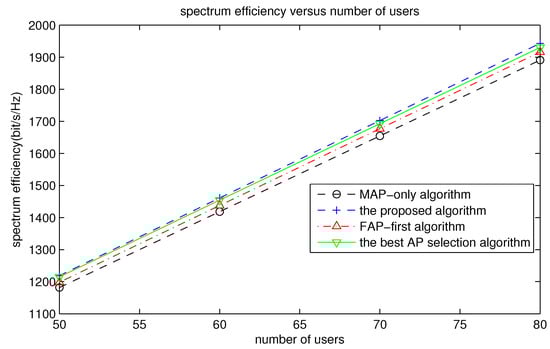

Algorithms | Spectrum Efficiency (${10}^{3}$ bit/s/Hz) | Improvement over MAP-Only (Percent) |
---|---|---|

The proposed algorithm | 1.7024 | 2.895 |

The best AP selection | 1.6925 | 2.297 |

FAP-first | 1.6770 | 1.360 |

MAP-only | 1.6545 | 0 |

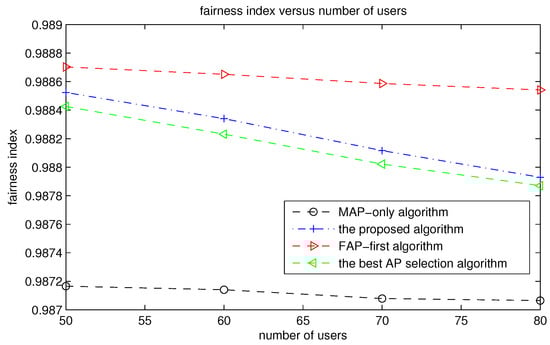

Algorithms | Fairness Index | Decrease from FAP-First (Percent) |
---|---|---|

FAP-first | 0.9886 | 0 |

The proposed algorithm | 0.9881 | 0.051 |

The best AP selection | 0.9880 | 0.061 |

MAP-only | 0.9871 | 0.152 |
