Reaction of Triazolic Aldehydes with Diisopropyl Zinc: Chirality Dissipation versus Amplification

by
Oleg A. Mikhaylov
1,
Elena Sh. Saigitbatalova
2,
Liliya Z. Latypova
2,
Almira R. Kurbangalieva
2,* and
Ilya D. Gridnev
1,*
1
N. D. Zelinsky Institute of Organic Chemistry, Leninsky Prosp. 47, 119991 Moscow, Russia
2
Biofunctional Chemistry Laboratory, A. Butlerov Institute of Chemistry, Kazan Federal University, 18 Kremlyovskaya Street, 420008 Kazan, Russia
*
Authors to whom correspondence should be addressed.
Symmetry 2023, 15(7), 1382; https://doi.org/10.3390/sym15071382
Submission received: 15 June 2023 / Revised: 3 July 2023 / Accepted: 5 July 2023 / Published: 7 July 2023
(This article belongs to the Special Issue Asymmetric Synthesis: Topics and Advances)
Browse Figures
Versions Notes

Abstract

:
The phenomenon of amplifying asymmetric autocatalysis (AAA) has recently been restricted to alkylation of several specific substrates with diisopropyl zinc (Soai reaction). Targeting the extension of the scope of this phenomenon, we studied the reaction of triazolic aldehydes with diisopropyl zinc. Experiments demonstrated a diversity of results for the dissipation of chirality, conserving the existent ee and spontaneous chirality generation. Computational analysis showed that depending on the level of oligomerization of the catalyst, one could expect amplification (monomeric catalyst) while maintaining the existing chirality (dimeric catalyst) or dissipation of chirality (tetrameric catalyst). These findings are promising for the elaboration of synthetic protocols controlling chirality generation. In addition, three optically active triazolic alcohols were characterized.

1. Introduction

The discovery of the autocatalytic and autoamplifying Soai reaction [1] made a strong impression on the chemists of that time. The capability of a chiral catalyst to reproduce and amplify its chirality inevitably results in an aptitude of this system for spontaneous chirality generation [2], which is extremely interesting from several points of view. First, this phenomenon is closely connected with the fundamental problem of the emergence of chiral life on Earth [3]. Not any less important are the conceivable synthetic applications if the regularities of this process could be elucidated to a sufficient extent. Additionally, the analysis of the structural requirements necessary for the reagents to promote such a complicated event opens new perspectives for understanding the details of molecular behavior in sophisticated and challenging systems [4].
The inherently stochastic character of spontaneous chirality generation implies an exponential increase in the number of experiments required to reach a reliable conclusion on the authentic event. However, the principal question of the authenticity of this phenomenon in a system demonstrating asymmetric autoamplification was solved positively 20 years ago in a series of publications [5,6,7]. On the other hand, Soai’s group provided ample evidence for the aptitude of various chiral additives to initiate the induction of chirality with the handedness determined by the structure of the inductor [8]. It is evident that both these events require the same thing, i.e., the presence of AAA (Amplifying Asymmetric Autocatalysis) [4].
These considerations lead to an important conclusion: if some reactions without chiral additives provide a scalemic product, we do not need to determine whether true absolute asymmetric synthesis was observed in this particular experiment or if this event was caused by the presence of tiny amounts of a chiral inductor of unspecified origin. In any case, AAA is effective, and if it would be absolutely necessary, real spontaneous chirality generation can be confirmed for this system.
Another important feature of the Soai reaction is its strict requirements regarding the structure of reagents. Thus, so far, only diisopropyl zinc has been successfully applied as an alkylating reagent. Structures of the effective substrates are also rigorously limited by combination of a pyrymidynic core, acetylenic linker and bulky terminal anchor (t-Bu, Me3Si, adamantyl). These limitations arise from a sophisticated tetrameric structure of the amplifying autocatalyst [9]; any simplification of the structure leads to a considerable worsening of the performance with the notable exception of a recently reported pyridine-based molecule with the same linker and anchor [10].
Numerous possibilities of AAA are conceivable for oligomeric catalysts following the Frank–Decker scheme for autoamplification or due to the reservoir effect for the monomeric catalyst [11]. As we were interested in extending the structural scope of autocatalytic and autoamplifying reactions, we have launched a project to search for new examples of such transformations.

2. Materials and Methods

2.1. Experimental Details

Diisopropylzinc 1M solution in toluene (Sigma-Aldrich, Schnelldorf, Germany) was used as received without further purification. All solvents were purified and distilled using standard procedures. Analytical thin-layer chromatography (TLC) was carried out on Sorbfil PTLC-AF-A-UF plates using acetone–chloroform (1:4) as the eluent and UV light (254 nm) as the visualizing agent. Silica gel 60A (Acros Organics, 400–230 mesh, 0.040–0.063 mm) was used for open-column chromatography. Melting points were recorded with a Boëtius melting point instrument and are uncorrected. NMR spectra were measured on a Bruker Avance 300 spectrometer at 300.13 MHz (1H) and 75.47 MHz (13C), Bruker Avance 600 spectrometer at 600.13 MHz (1H) and 150.90 MHz (13C) at 20 °C in the deuterated chloroform. The chemical shifts (δ) are expressed in parts per million (ppm) and are calibrated using residual undeuterated solvent peak as an internal reference (CDCl3: δH 7.26, δC 77.16). All coupling constants (J) are reported in Hertz (Hz), and multiplicities are indicated as follows: s (singlet), d (doublet) and m (multiplet). High-resolution mass spectra (HRMS) were obtained through electrospray ionization (ESI) with positive (+) ion detection on a Bruker micrOTOF–QIII quadrupole time-of-flight mass spectrometer. The ee measurements were performed via HPLC analysis. HPLC analysis was performed on an HPLC system equipped with chiral stationary phase columns (AD-H, AS-H, OD-H, OJ-H), detection at 220 or 254 nm. Synthetic procedures and characterization details for the new compounds can be found in the Supplementary Materials.

2.2. Chemical Synthesis

1-Benzyl-1H-1,2,3-triazole-4-carbaldehyde (1) [12], 1-phenyl-1H-1,2,3-triazole-4-carboxaldehyde (2) and 1-(4-chlorophenyl)-1H-1,2,3-triazole-4-carboxaldehyde (3) [13] were synthesized according to the known methods.
All reactions were carried out using standard Schlenk techniques under argon atmosphere.

2.3. Computational Details

Geometry optimizations were performed without any symmetry constraints (C1 symmetry) using the ωB97XD functional [14] as implemented in the Gaussian09 software package [15]. Frequency calculations were undertaken to confirm the nature of the stationary points, yielding one imaginary frequency for all transition states (TSs) and zero for all minima. Constrained energy hypersurface scans were conducted to investigate the molecular reactivity and to locate viable reaction channels. Where low-lying barriers were estimated, frequency calculations were performed at the crude saddle points, and the obtained force constants were used to optimize the transition-state structures employing the Berny algorithm [16]. All atoms were described with a 6–31G** basis set in the geometry optimization and frequency calculation [17,18,19,20,21,22]. Non-specific solvation was introduced by using the SMD continuum model [23] (acetonitrile).

3. Results

3.1. Development of a Strategy for the Screening of Promising Substrates

Despite the extensive development of various enantioselective reactions seen at the present time, practically all of them require more or less arbitrary optimization of the reaction conditions, i.e., structure of the catalyst, solvent, reaction temperature, pressure, additives, etc. Among a dozen chiral catalysts, most providing a high performance in some already-known transformations; only one or two are actually working in a newly discovered asymmetric catalytic reaction. Before these winners are actually found, the tables listing yields and ee values may look rather empty, and only persistence in this random search may result in a happy finding.
In our case, it is impossible to incorporate the same approach to each of the substrate candidates for AAA, since it would require too much time. Nevertheless, we need more readily available results that would justify the transfer of a reaction into step two of the screening. We decided to check if the ability to effectuate an autocatalytic reaction can serve as such a criterion without making the whole screening process unreasonably tiresome.
To do this, we designed and synthesized, to an extent, a small series of compounds similar to the effective substrates of the Soai reaction and used them in the following trial sequence (Scheme 1 and Scheme 2).

3.2. Design and Synthesis of the Perspecvtive Substrates

In looking for possible perspective substrates, we were attracted by the 1,2,3-triazole skeleton since it presents the possibility of introducing the aldehyde group into 1,4-position with the aromatic nitrogen atom (Scheme 2). Additionally, substituted triazoles find numerous applications in pharmaceuticals, supramolecular chemistry, organic synthesis, chemical biology and industry [24,25,26,27,28,29]. Moreover, compounds containing the 1,2,3-triazole moiety show a wide spectrum of biological activity [30] including antitubercular [31], antibacterial [32], antimalarial [33], anti-HIV [34], anticancer [35], antiallergic [36] and antifungal [37] properties.
A series of aldehydes with triazole fragments were prepared using the recently described procedures [12,13] (Scheme 3).

3.3. Reactions of Compounds 1–3 with Diisopropylzinc

Compounds 1–3 react with excess diisopropylzinc in the presence of a chiral catalyst or without any catalyst (Scheme 4 and Scheme 5, Table 1).
Analysis of the experimental data collected in Table 1 leads to the following conclusions:
  • A significant accelerating effect of a catalyst was observed only in the reaction of 2 catalyzed by (R,R)-QuinoxP* (entry 12). For 1 and 3, the highest yields were obtained in the non-catalyzed reactions (entries 1, 18).
  • Among the applied chiral catalysts, only ephedrine led to the formation of notably optically enriched products (entries 3–5, 11, 20). Even in these cases, a negative non-linear effect was observed, since the ee of the products was significantly lower than the ee of the catalyst.
  • Autocatalysis was not observed: compare entries 1 and 8; 10 and 15, 16; 17, 18 and 23.
  • Some of the results of the autocatalytic reactions roughly correspond to preserving the ee of the catalyst diluted by a larger amount of the non-chiral product (entries 9, 23). Other results indicate dissipation of chirality (entries 8, 15, 16).
  • Spontaneous chirality generation was observed for substrates 1 and 3 (entries 1, 2, 17, 18).
We assumed that these findings might be a result of different mechanisms operating under dissimilar reaction conditions. We leave the accurate elucidation of these conditions, extending the scope of the substrates, experimental studies of the reaction pools and kinetic simulations for a full paper. In this preliminary communication, we would like to perform a demonstration of principle by locating computationally probable catalysts in the reaction pool that are capable of exhibiting either positive or negative non-linear effects in one of the reactions under study. The former species might be operative in the synthetic protocol, resulting in the spontaneous generation of chirality, whereas the latter one might be responsible for the dissipation of the enantiomeric excess in the reactions with the pre-formed catalyst.

3.4. Computational Analysis of the Reaction of Aldehyde 3 with Diisopropyl Zinc

A primary product of the alkylation of aldehyde 3 is alcoholate 7 (Scheme 6). From previous studies, it is known that similar alcoholates readily form oligomers that play an important role in the autocatalysis. We have computed possible oligomerization pathways for 7.
Similarly to the previously studied cases [9,38], the dimerization of 7 is strongly exergonic and leads to the formation of the square dimers 8(SS) and 8(RS). However, unlike the previous cases, in which the stabilities of the homo- and heterochiral dimers were practically equal, 8(RS) was computed to be more stable than 8(SS) for 3.0 kcal/mol (Scheme 7).
The greater stability of 8(RS) is due to a larger number of CH…HC interactions across the Zn2O2 square (Figure 1) arising due to conformational restrictions created by the coordination binding of Zn with the nitrogen atoms in position 2 of the triazolic rings.
Importantly, the significantly higher stability of the heterochiral dimer 8(SR) implies a possibility of a positive NLE via the so-called “reservoir effect”. This means that the catalyst is a monomer capable of catalyzing an enantioselective reaction, and the minor enantiomer is deactivated via its accumulation in the more stable dimer [11]. We investigated this possibility computationally (Scheme 8).
Diisopropyl zinc coordinates in a chelate way to the oxygen and N(2) atoms of 7(S), yielding adduct 9(S). Aldehyde 3 coordinates to the Zn atom, yielding 10. The isopropyl groups in 10 can attack the prochiral plane from the opposite sides via TS1(S) or TS1(R), yielding the adducts 7(S) • 7(S) or 7(S) • 7(R), respectively.Since TS1(R) is 7.2 kcal/mol less stable than TS1(S) due to the significantly smaller number of stabilizing weak interactions between the substrate and the catalyst compared to TS1(S) (Figure 2), amplification of chirality takes place via predominant formation of 7(S) • 7(S).
Thus, we concluded that AAA is possible for compound 7 via the “reservoir” mechanism through the combination of the greater stability of the heterochiral dimer 8(SR) compared to 8(SS) and the enantioselective alkylation catalyzed by the monomeric alcoholate.
It is evident that very similar transition states can be found for the reactions catalyzed by the resting-state species, i.e., square dimers 8 (e.g., Scheme 9, Figure 3). In that case, the reservoir effect is absent and the enantiomeric pairs, 8(SS) and 8(RR) and 8(SR) and 8(RS), would do exactly the same job producing preferentially the opposite enantiomers, and neither amplifying nor dissipating effects are expected. This mechanism would correlate with the experimental results from entries 9 and 23 (Table 1).
The smaller size of the 5-membered heterocycle compared to the pyrimidine or pyridine rings in the classic Soai substrates does not allow for creating a 12-membered macrocycle as the core of the tetrameric cluster. Instead, a 10-membered ring is formed by one coordination N–Zn bond and one hydrogen O–H bond (Scheme 10).
As a result, only one Zn atom in the core remains capable of coordinating Zn(i-Pr)2, yielding 12(SSSS). Either of the two i-Pr groups of Zn(i-Pr)2 can participate in the alkylation (Figure 4). In this case, a preferential formation of the opposite enantiomer 7(R) from 8(SSSS)) was computed. The π-π stacking due to the practically coplanar orientation of the incoming aldehyde with one of the alcoholate units of the tetramer in TS3(R) makes it significantly more stable than TS3(S). Although it is evident that 8(RRRR) would generate 7(S) with the same efficiency, a simple analysis shows that in that situation, any existing enantiomeric excess will be degraded to microscopic values. This prediction corresponds to the experimental results from entries 8, 15, 16 and 21 in Table 1.

4. Discussion

Our computational results based on the preliminary experimental findings testify to the fact that in the reaction of diisopropyl zinc with triazoles 1–3, three different regimes of ee changes occur in the course of the reaction: accumulation to detectable amounts, keeping the microscopic ee unchanged and degradation of the macroscopic ee to microscopic values.
This situation must be a much more frequent occurrence compared to the perfect asymmetric auto amplification in the Soai reaction. On the other hand, the evidently increasing randomness of the chiral amplification makes its observation and proper characterization significantly more difficult.
We realize that a much larger set of experimental data would be necessary to claim the achievement of exercising some control over AAA. Extension of the substrates’ scope, serial experiments, NMR studies on the reaction pools of these reactions and kinetic simulations based on the computed catalytic cycles are in progress in our laboratories.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/sym15071382/s1. Experimental details, NMR and HPLC charts, computational details, cartesian coordinates for all computed minima and transition states. Table S1: describing changes in the thermodynamic parameters for the intermediates and transition states in the computed catalytic cycles.

Author Contributions

Conceptualization, I.D.G. and A.R.K.; investigation, O.A.M., L.Z.L. and E.S.S.; writing—original draft preparation, I.D.G.; writing—review and editing, A.R.K.; supervision, I.D.G.; project administration, I.D.G.; funding acquisition, I.D.G. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by a research grant from Russian Science Foundation #22-13-00275.

Data Availability Statement

Data available on request.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Soai, K.; Shibata, T.; Morioka, H.; Choji, K. Asymmetric autocatalysis and amplification of enantiomeric excess of a chiral molecule. Nature 1995, 378, 767–768. [Google Scholar] [CrossRef]
  2. Mislow, K. Absolute asymmetric synthesis: A commentary. Collect. Czech. Chem. Commun. 2003, 68, 849–864. [Google Scholar] [CrossRef]
  3. Soai, K. Asymmetric Autocatalysis, Absolute Asymmetric Synthesis and Origin of Homochirality of Biomolecules. In Progress in Biological Chirality; Palyi, G., Zucchi, C., Caglioti, L., Eds.; Elsevier: London, UK, 2004; Volume 1, pp. 355–364. [Google Scholar]
  4. Brown, J.M. Reaction Mechanism in the Study of Amplifying Asymmetric Autocatalysis. In Asymmetric Autocatalysis: The Soai Reaction; Soai, K., Kawasaki, T., Matsumoto, A., Eds.; Royal Society of Chemistry: Cambridge, UK, 2022; Volume 43, pp. 97–128. [Google Scholar]
  5. Soai, K.; Sato, I.; Shibata, T.; Komiya, S.; Hayashi, M.; Matsueda, Y.; Imamura, H.; Hayase, T.; Morioka, H.; Tabira, H.; et al. Asymmetric synthesis of pyrimidyl alkanol without adding chiral substances by the addition of diisopropylzinc to pyrimidine-5-carbaldehyde in conjunction with asymmetric autocatalysis. Tetrahedron Asymmetry 2003, 14, 185–188. [Google Scholar] [CrossRef]
  6. Gridnev, I.D.; Serafimov, J.M.; Quiney, H.; Brown, J.M. Reflections on spontaneous asymmetric synthesis by amplifying autocatalysis. Org. Biomol. Chem. 2003, 1, 3811–3819. [Google Scholar] [CrossRef]
  7. Singleton, D.A.; Vo, L.K. A Few Molecules Can Control the Enantiomeric Outcome. Evidence Supporting Absolute Asymmetric Synthesis Using the Soai Asymmetric Autocatalysis. Org. Lett. 2003, 23, 4337–4339. [Google Scholar] [CrossRef] [PubMed]
  8. Soai, K.; Shibata, T.; Sato, I. Discovery and Development of Asymmetric Autocatalysis. Bull. Chem. Soc. Jpn. 2004, 77, 1063–1073. [Google Scholar] [CrossRef]
  9. Gridnev, I.D.; Vorob’ev, A.K. Quantification of Sophisticated Equilibria in the Reaction Pool and Amplifying Catalytic Cycle of the Soai Reaction. ACS Catal. 2012, 2, 2137–2149. [Google Scholar] [CrossRef]
  10. Athavale, S.V.; Simon, A.; Houk, K.N.; Denmark, S.E. Structural Contributions to Autocatalysis and Asymmetric Amplification in the Soai Reaction. J. Am. Chem. Soc. 2020, 142, 18387–18406. [Google Scholar] [CrossRef]
  11. Girard, C.; Kagan, H.B. Nonlinear Effects in Asymmetric Synthesis and Stereoselective Reactions: Ten Years of Investigation. Angew. Chem. Int. Ed. 1998, 37, 2922–2959. [Google Scholar] [CrossRef]
  12. Song, H.; Rogers, N.J.; Brabec, V.; Clarkson, G.J.; Coverdale, J.P.C.; Kostrhunova, H.; Phillips, R.M.; Postings, M.; Shepherd, S.L.; Scott, P. Triazole-based, optically-pure metallosupramolecules; highly potent and selective anticancer compounds. Chem. Commun. 2020, 56, 6392–6395. [Google Scholar] [CrossRef]
  13. Dai, Z.C.; Chen, Y.F.; Zhang, M.; Li, S.K.; Yang, T.-T.; Shen, L.; Wang, J.X.; Qian, S.S.; Zhu, H.L.; Ye, Y.H. Synthesis and antifungal activity of 1,2,3-triazole phenylhydrazone derivatives. Org. Biomol. Chem. 2015, 13, 477–486. [Google Scholar] [CrossRef] [PubMed]
  14. Chai, J.-D.; Head-Gordon, M. Long-Range Corrected Hybrid Density Functionals with Damped Atom–Atom Dispersion Corrections. Phys. Chem. Chem. Phys. 2008, 10, 6615–6620. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G.A.; et al. Gaussian 09, Rev. D.01; Gaussian, Inc.: Wallingford, CT, USA, 2013. [Google Scholar]
  16. Becke, A.D. Density-functional exchange-energy approximation with correct asymptotic behavior. Phys. Rev. A 1988, 38, 3098–3100. [Google Scholar] [CrossRef] [PubMed]
  17. Ditchfield, R.; Hehre, W.J.; Pople, J.A. Self-Consistent Molecular-Orbital Methods. IX. An Extended Gaussian-Type Basis for Molecular-Orbital Studies of Organic Molecules. J. Chem. Phys. 1971, 54, 724–728. [Google Scholar] [CrossRef]
  18. Hehre, W.J.; Ditchfield, R.; Pople, J.A. Self-Consistent Molecular Orbital Methods. XII. Further Extensions of Gaussian-Type Basis Sets for Use in Molecular Orbital Studies of Organic Molecules. J. Chem. Phys. 1972, 56, 2257–2261. [Google Scholar] [CrossRef]
  19. Hariharan, P.C.; Pople, J.A. The influence of polarization functions on molecular orbital hydrogenation energies. Theor. Chim. Acta 1973, 28, 213–222. [Google Scholar] [CrossRef]
  20. Francl, M.M.; Pietro, W.J.; Hehre, W.J.; Binkley, J.S.; Gordon, M.S.; DeFrees, D.J.; Pople, J.A. Self-consistent molecular orbital methods. XXIII. A polarization-type basis set for second-row elements. J. Chem. Phys. 1982, 77, 3654–3665. [Google Scholar]
  21. Gordon, M.S.; Binkley, J.S.; Pople, J.A.; Pietro, W.J.; Hehre, W.J. Self-consistent molecular-orbital methods. Small split-valence basis sets for second-row elements. J. Am. Chem. Soc. 1982, 104, 2797–2803. [Google Scholar] [CrossRef]
  22. Rassolov, V.A.; Pople, J.A.; Ratner, M.A.; Windus, T.L. 6-31G * basis set for atoms K through Zn. J. Chem. Phys. 1998, 109, 1223–1229. [Google Scholar] [CrossRef]
  23. Marenich, A.V.; Cramer, C.J.; Truhlar, D.G. Universal Solvation Model Based on Solute Electron Density and on Continuum Model of the Solvent Defined by the Bulk Dielectric Constant and Atomic Surface Tensions. J. Phys. Chem. B 2009, 113, 6378–6396. [Google Scholar] [CrossRef]
  24. Dheer, D.; Singh, V.; Shankar, R. Medicinal attributes of 1,2,3-triazoles: Current developments. Bioorg. Chem. 2017, 71, 30–54. [Google Scholar] [CrossRef]
  25. Schulze, B.; Schubert, U.S. Beyond click chemistry–Supramolecular interactions of 1,2,3-triazoles. Chem. Soc. Rev. 2014, 43, 2522–2571. [Google Scholar] [CrossRef]
  26. Liang, L.; Astruc, D. The copper (I)-catalyzed alkyne-azide cycloaddition (CuAAC) “click” reaction and its applications. An overview. Coord. Chem. Rev. 2011, 255, 2933–2945. [Google Scholar] [CrossRef]
  27. Ngo, J.T.; Adams, S.R.; Deerinck, T.J.; Boassa, D.; Rodriguez-Rivera, F.; Palida, S.F.; Bertozzi, C.R.; Ellisman, M.H.; Tsien, R.Y. Click-EM for imaging metabolically tagged nonprotein biomolecules. Nat. Chem. Biol. 2016, 12, 459–465. [Google Scholar] [CrossRef] [Green Version]
  28. Astruc, D.; Liang, L.; Rapakousiou, A.; Ruiz, J. Click dendrimers and triazole-related aspects: Catalysts, mechanism, synthesis, and functions. A bridge between dendritic architectures and nanomaterials. Acc. Chem. Res. 2012, 45, 630–640. [Google Scholar] [CrossRef]
  29. Wang, X.; Huang, B.; Liu, X.; Zhan, P. Discovery of bioactive molecules from CuAAC click-chemistry-based combinatorial libraries. Drug Discov. Today 2016, 21, 118–132. [Google Scholar] [CrossRef] [PubMed]
  30. Bozorov, K.; Zhao, J.; Aisa, H.A. 1,2,3-Triazole-containing hybrids as leads in medicinal chemistry: A recent overview. Bioorg. Med. Chem. 2019, 27, 3511–3531. [Google Scholar] [CrossRef]
  31. Zhang, S.; Xu, Z.; Gao, C.; Ren, Q.C.; Chang, L.; Lv, Z.S.; Feng, L.S. Triazole derivatives and their anti-tubercular activity. Eur. J. Med. Chem. 2017, 138, 501–513. [Google Scholar] [CrossRef]
  32. Bangalore, P.K.; Vagolu, S.K.; Bollikanda, R.K.; Veeragoni, D.K.; Choudante, P.C.; Misra, S.; Sriram, D.; Sridhar, B.; Kantevari, S. Usnic Acid Enaminone-Coupled 1,2,3-Triazoles as antibacterial and antitubercular Agents. J. Nat. Prod. 2019, 83, 26–35. [Google Scholar] [CrossRef]
  33. Manohar, S.; Khan, S.I.; Rawat, D.S. Synthesis of 4-aminoquinoline-1,2,3-triazole and 4-aminoquinoline-1,2,3-triazole-1,3,5-triazine hybrids as potential antimalarial agents. Chem. Biol. Drug Des. 2011, 78, 124–136. [Google Scholar] [CrossRef] [PubMed]
  34. Pribut, N.; Veale, C.G.L.; Basson, A.E.; van Otterlo, W.A.L.; Pelly, S.C. Application of the Huisgen cycloaddition and ‘click’ reaction toward various 1, 2, 3-triazoles as HIV non-nucleoside reverse transcriptase inhibitors. Bioorg. Med. Chem. Lett. 2016, 26, 3700–3704. [Google Scholar] [CrossRef] [PubMed]
  35. Narsimha, S.; Nukala, S.K.; Jyostna, T.S.; Ravinder, M.; Rao, M.S.; Reddy, N.V. One-pot synthesis and biological evaluation of novel 4-[3-fluoro-4-(morpholin-4-yl)] phenyl-1H-1,2,3-triazole derivatives as potent antibacterial and anticancer agents. J. Heterocycl. Chem. 2020, 57, 1655–1665. [Google Scholar] [CrossRef]
  36. Buckle, D.R.; Outred, D.J.; Rockell, C.J.M.; Smith, H.; Spicer, B.A. Studies on v-triazoles. 7. Antiallergic 9-oxo-1H,9H benzopyrano[2, 3-d]-v-triazoles. J. Med. Chem. 1983, 26, 251–254. [Google Scholar] [CrossRef] [PubMed]
  37. Kant, R.; Kumar, D.; Agarwal, D.; Gupta, R.D.; Tilak, R.; Awasthi, S.K.; Agarwal, A. Synthesis of newer 1,2,3-triazole linked chalcone and flavone hybrid compounds and evaluation of their antimicrobial and cytotoxic activities. Eur. J. Med. Chem. 2016, 113, 34–49. [Google Scholar] [CrossRef] [PubMed]
  38. Gridnev, I.D.; Serafimov, J.M.; Brown, J.M. Solution Structure and Reagent Binding of the Zinc Alkoxide Catalyst in the Soai Asymmetric Autocatalytic Reaction. Angew. Chem. Int. Ed. 2004, 43, 4884–4887. [Google Scholar] [CrossRef]
Symmetry 15 01382 sch001 550

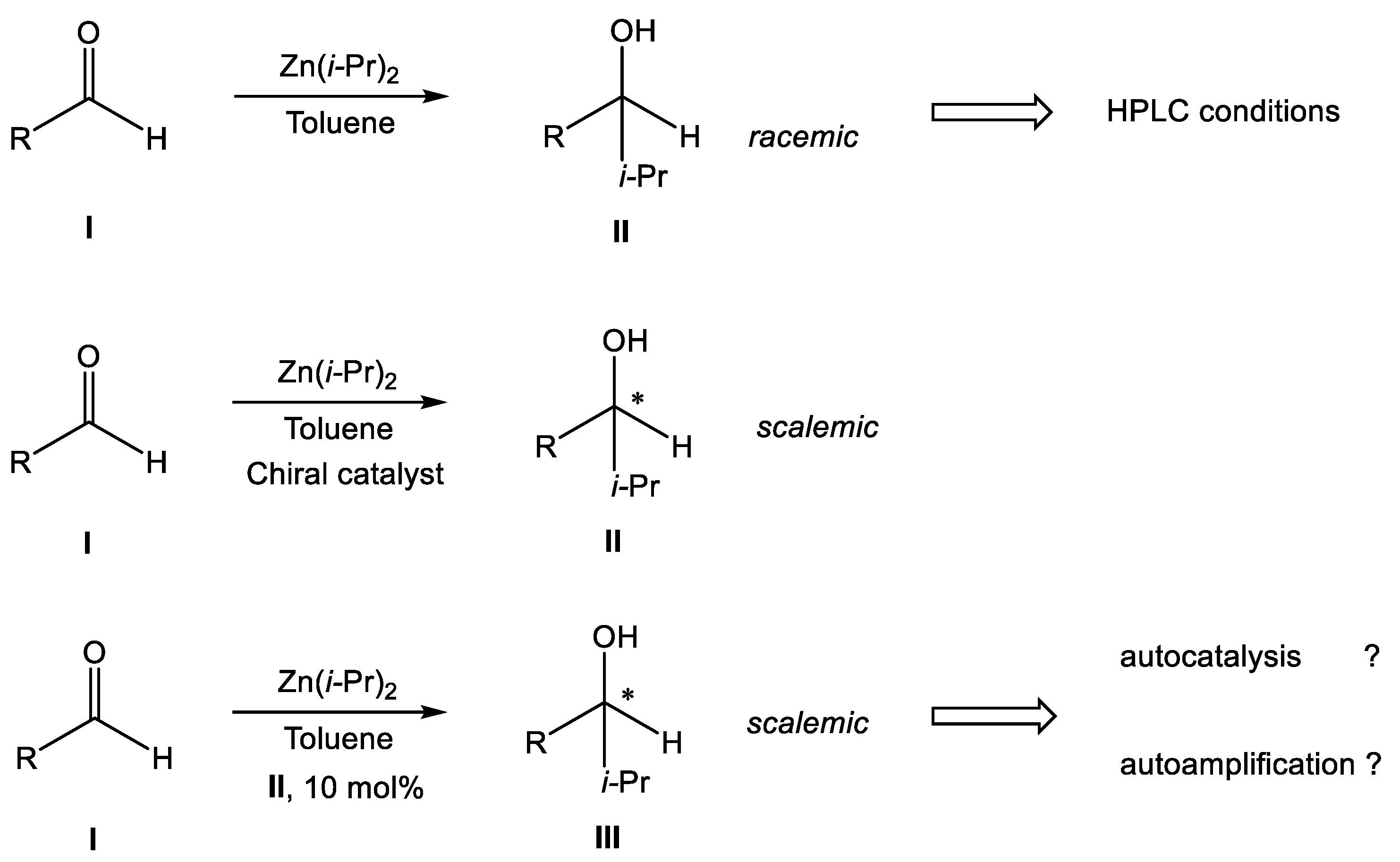

Scheme 1. Trial sequence for searching for perspective compounds for autoamplification (asterix means asymmetric carbon atom).
Scheme 1. Trial sequence for searching for perspective compounds for autoamplification (asterix means asymmetric carbon atom).
Symmetry 15 01382 sch001
Symmetry 15 01382 sch002 550

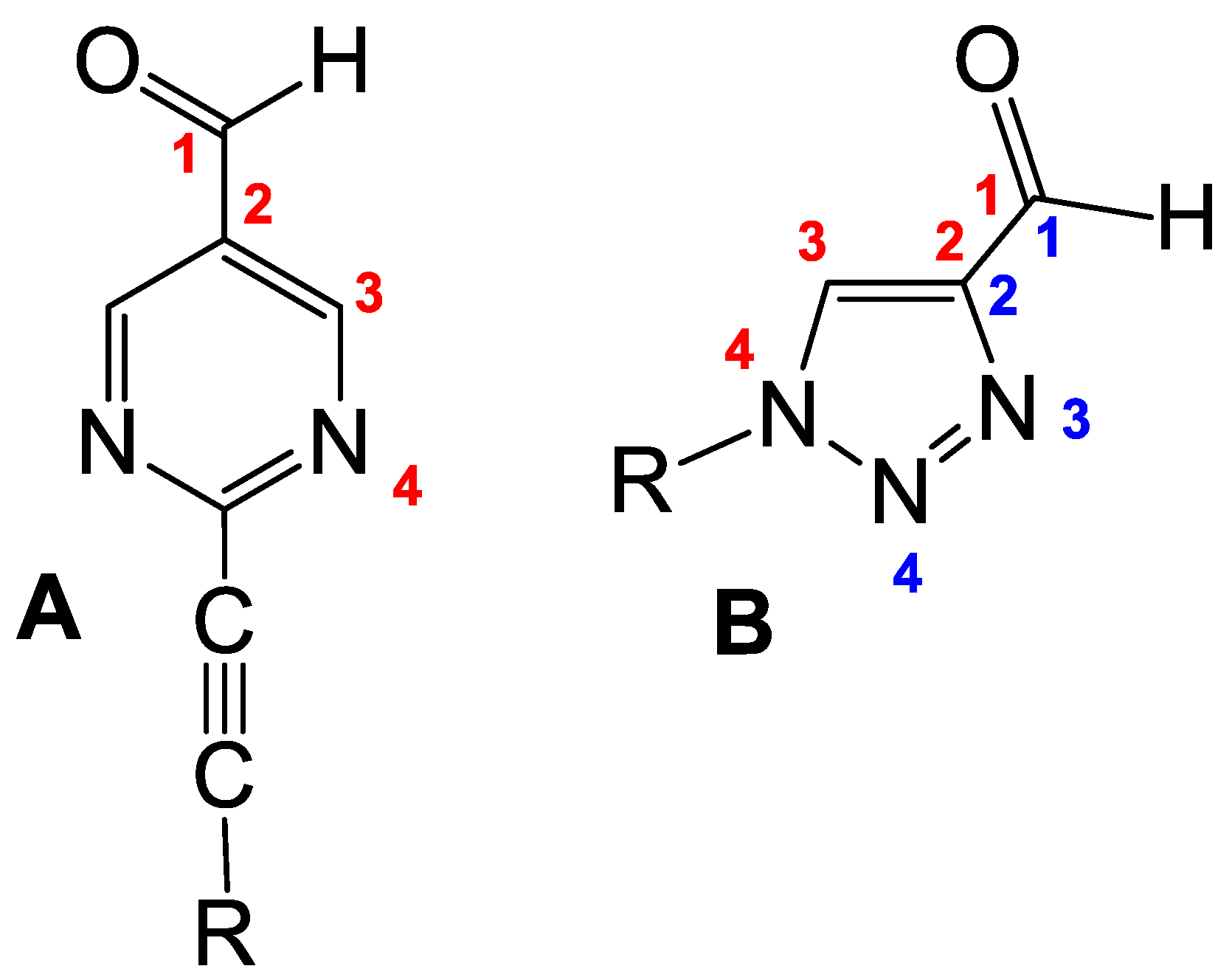

Scheme 2. Comparison of the general formula of Soai aldehydes (A) and perspective 1,2,3-triazoles (B).
Scheme 2. Comparison of the general formula of Soai aldehydes (A) and perspective 1,2,3-triazoles (B).
Symmetry 15 01382 sch002
Symmetry 15 01382 sch003 550

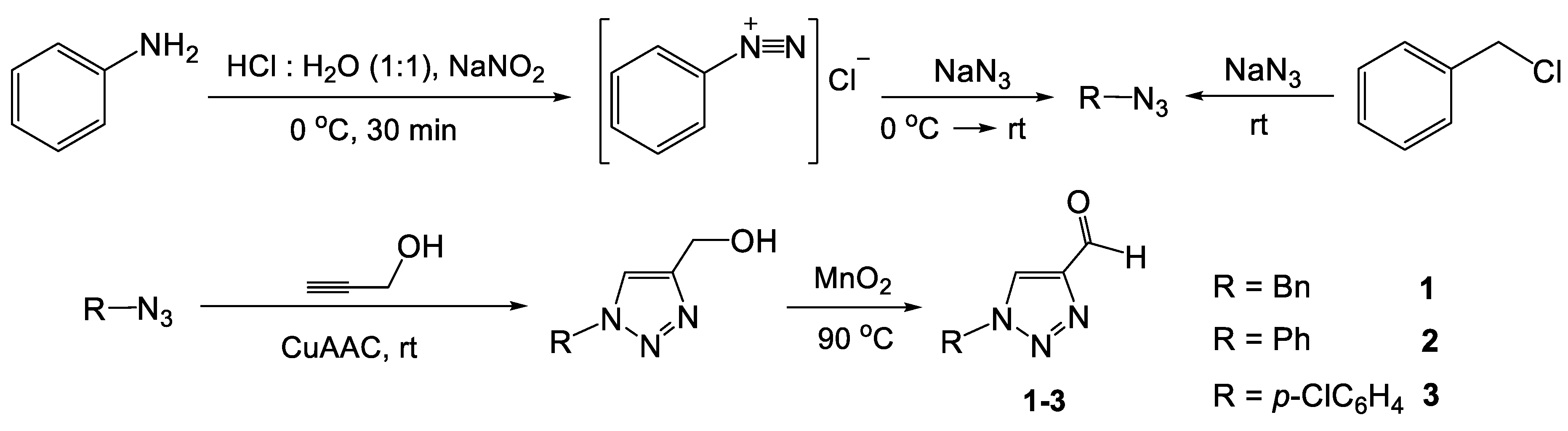

Scheme 3. Synthesis of substituted 1,2,3-triazole aldehydes 1–3.
Scheme 3. Synthesis of substituted 1,2,3-triazole aldehydes 1–3.
Symmetry 15 01382 sch003
Symmetry 15 01382 sch004 550

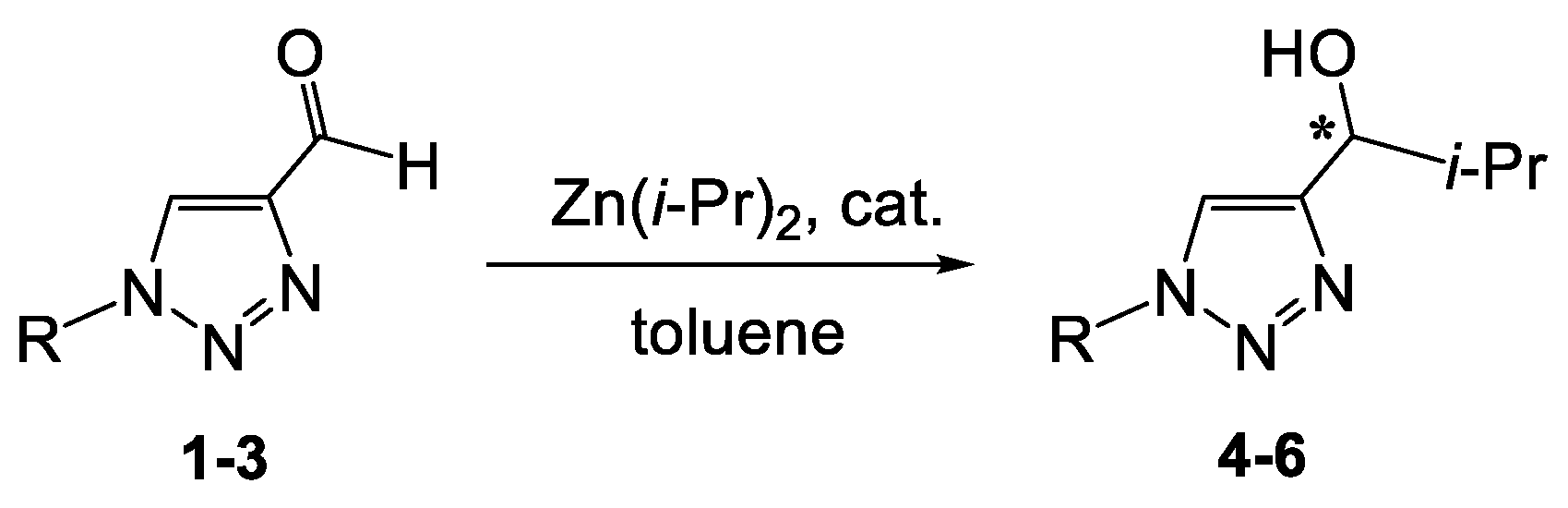

Scheme 4. Catalytic reactions of compounds 1–3 with diisopropyl zinc (asterix means asymmetric carbon atom).
Scheme 4. Catalytic reactions of compounds 1–3 with diisopropyl zinc (asterix means asymmetric carbon atom).
Symmetry 15 01382 sch004
Symmetry 15 01382 sch005 550

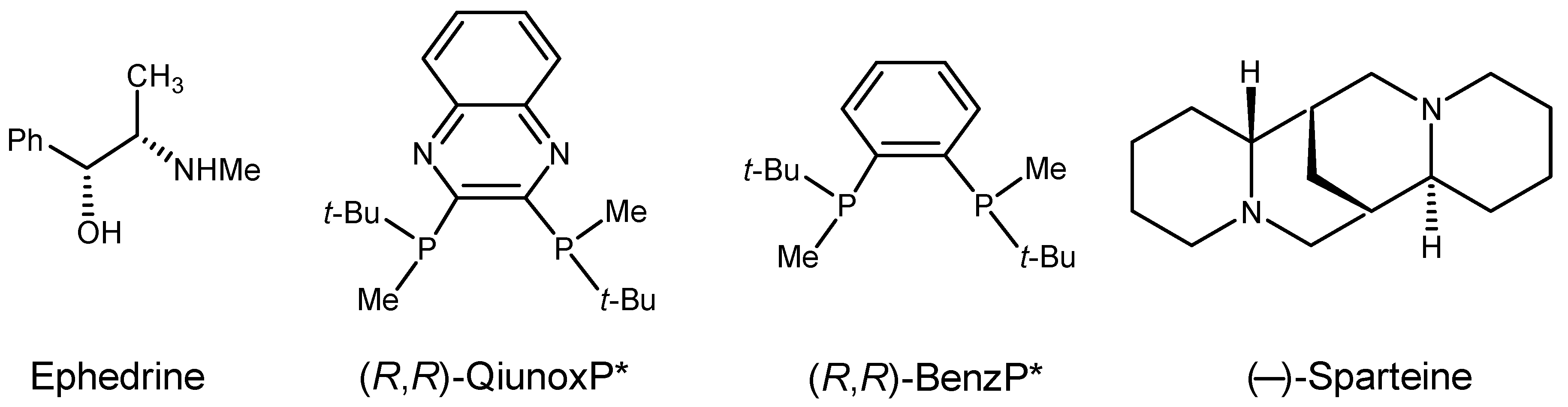

Scheme 5. Structural formula of the chiral catalysts (asterix means asymmetric carbon atom).
Scheme 5. Structural formula of the chiral catalysts (asterix means asymmetric carbon atom).
Symmetry 15 01382 sch005
Symmetry 15 01382 sch006 550

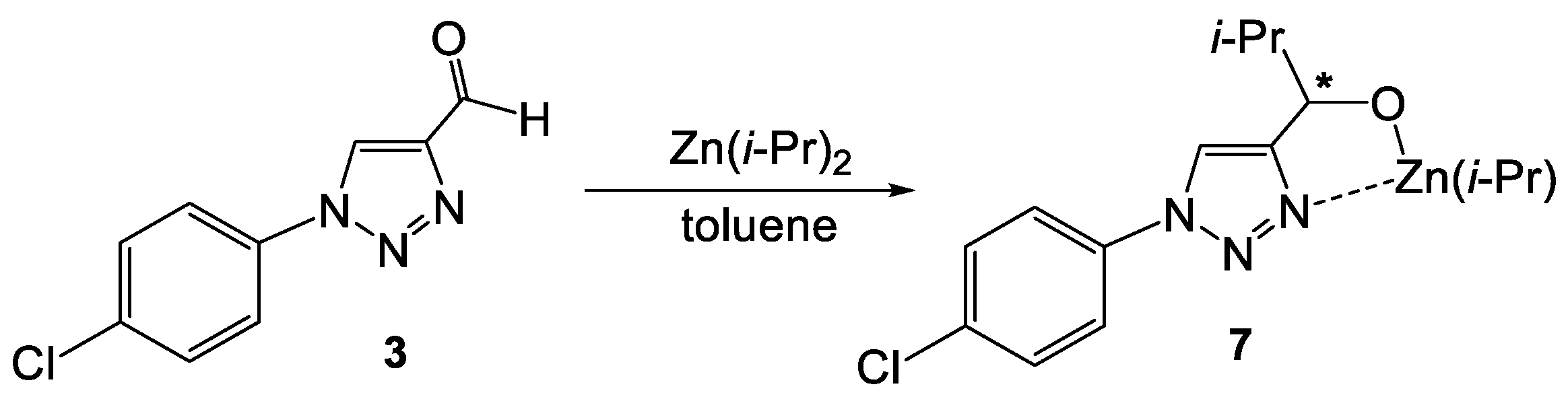

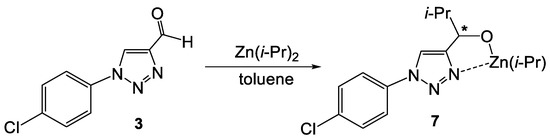

Scheme 6. Formation of monomeric alcoholate 7 (asterix means asymmetric carbon atom).
Scheme 6. Formation of monomeric alcoholate 7 (asterix means asymmetric carbon atom).
Symmetry 15 01382 sch006
Symmetry 15 01382 sch007 550

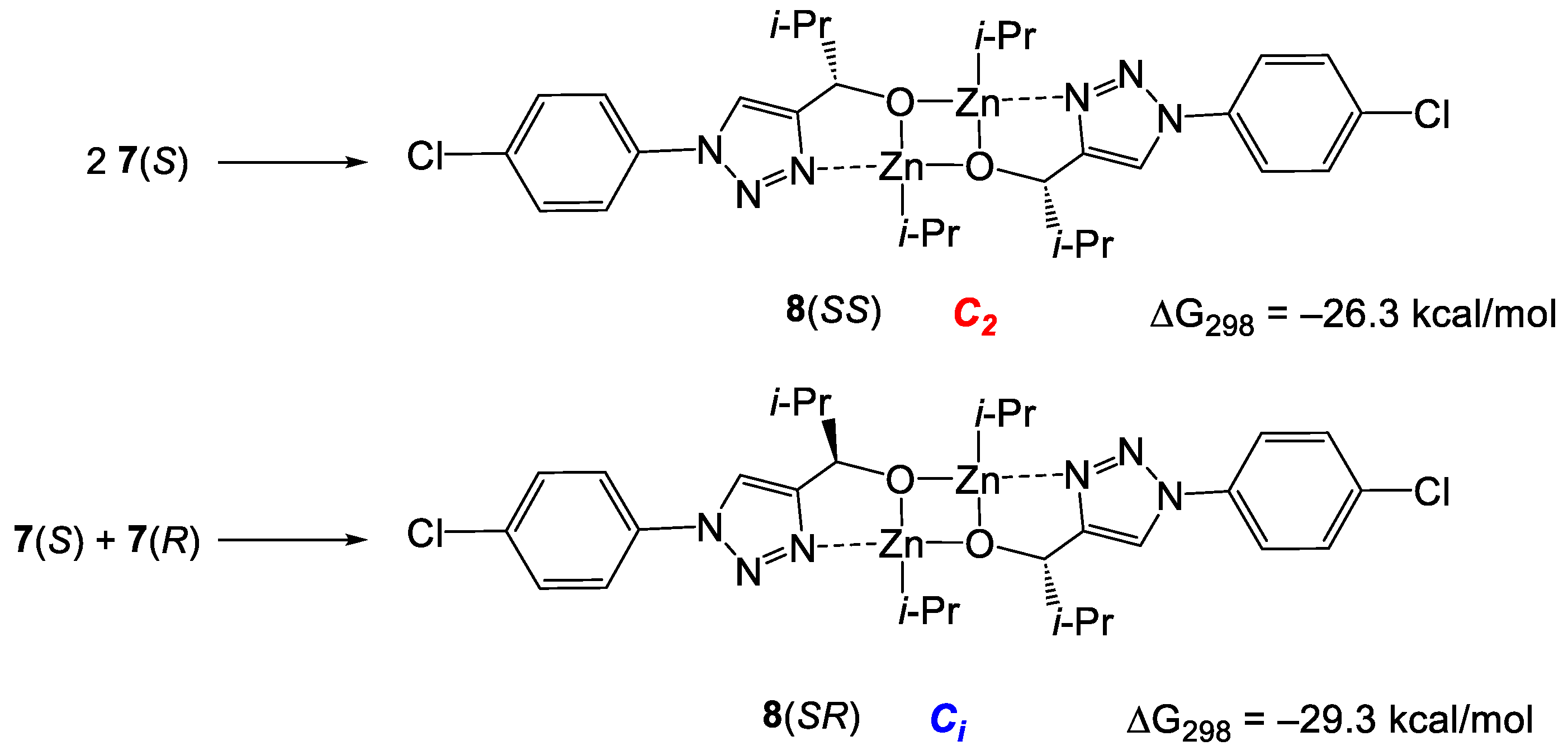

Scheme 7. Formation of square dimers 8(SS) and 8(SR).
Scheme 7. Formation of square dimers 8(SS) and 8(SR).
Symmetry 15 01382 sch007
Symmetry 15 01382 g001 550

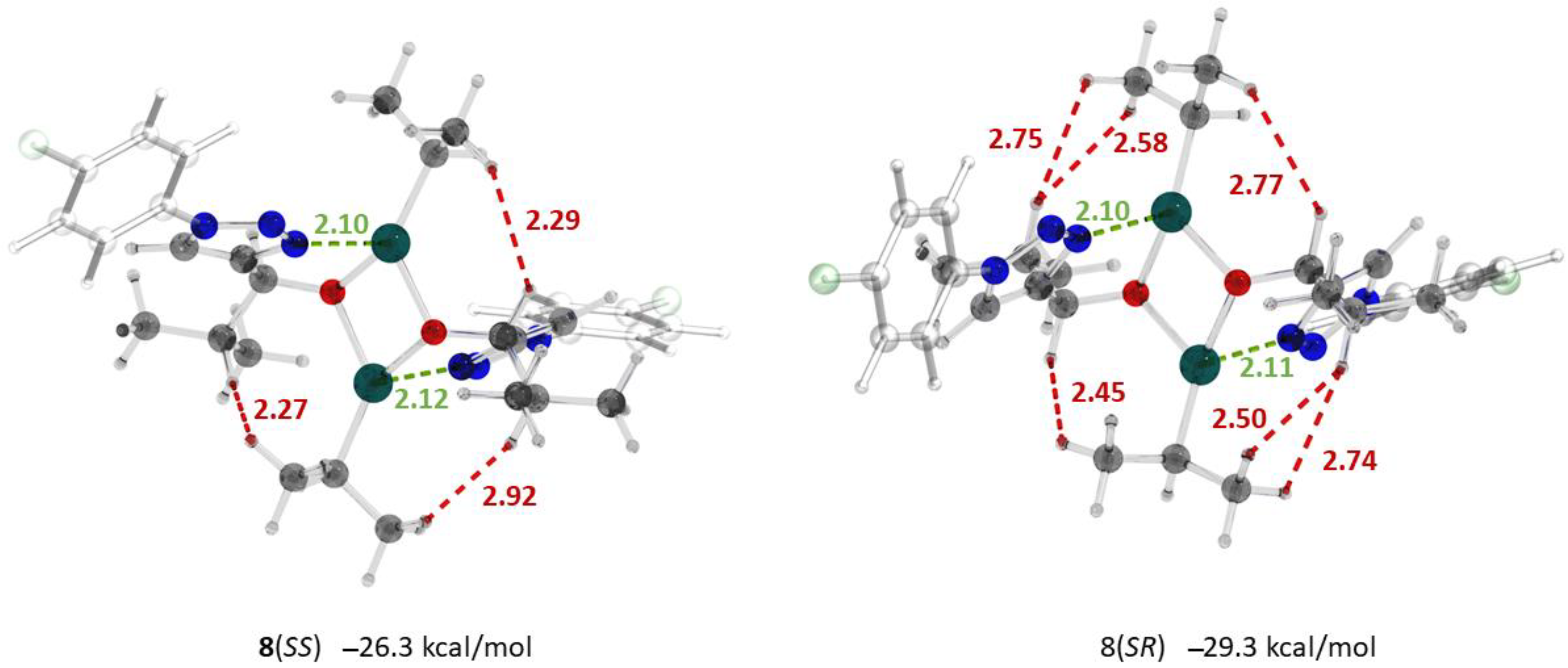

Figure 1. Optimized structures, important interatomic distances (Å) and relative Gibbs free energies (ΔG298, relative to 2 7(S)) of the square dimers 8(SS) and 8(SR). Atoms: gray—carbon; light gray—hydrogen; red—oxygen; blue—nitrogen; green—chlorine; turquoise—zinc. Interatomic distances: red—CH…HC; green—Zn–N.
Figure 1. Optimized structures, important interatomic distances (Å) and relative Gibbs free energies (ΔG298, relative to 2 7(S)) of the square dimers 8(SS) and 8(SR). Atoms: gray—carbon; light gray—hydrogen; red—oxygen; blue—nitrogen; green—chlorine; turquoise—zinc. Interatomic distances: red—CH…HC; green—Zn–N.
Symmetry 15 01382 g001
Symmetry 15 01382 g002 550

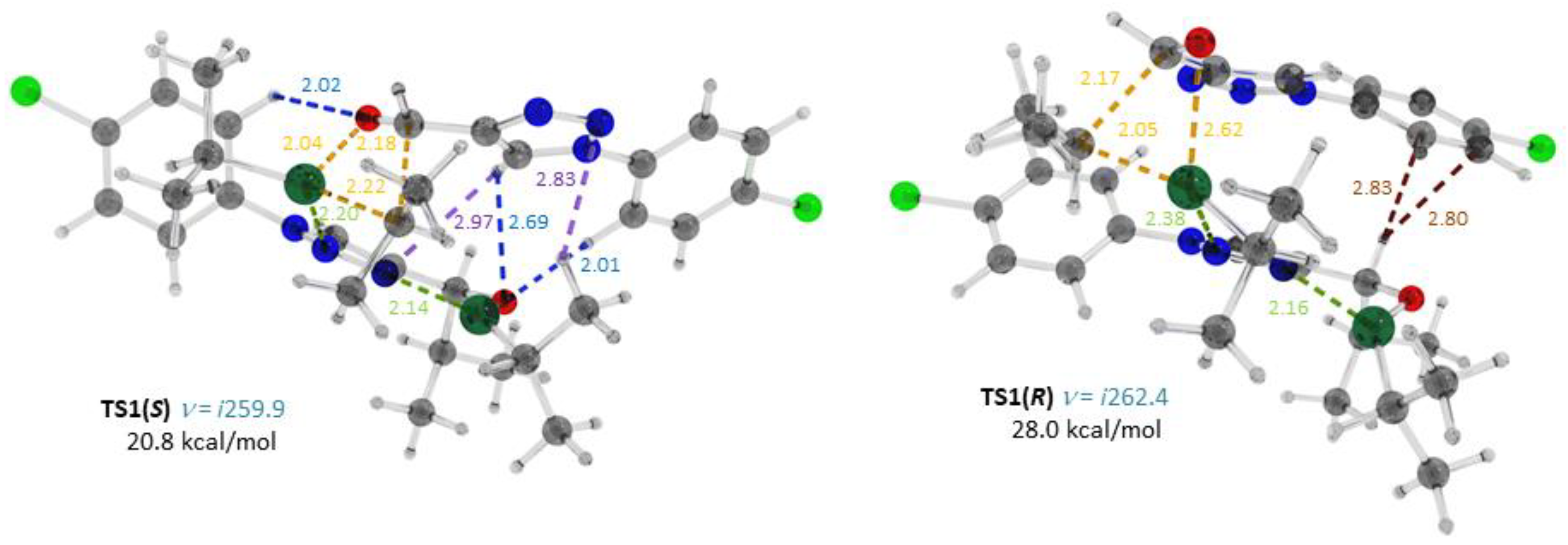

Figure 2. Optimized structures, important interatomic distances (Å) and Gibbs free energies (ΔG298, relative to 7(S) + Zn(i-Pr)2 + 3) of the transition states TS1(S) and TS1(R). Atoms: gray—carbon; light gray—hydrogen; red—oxygen; blue—nitrogen; green—chlorine; turquoise—zinc. Interatomic distances: yellow—forming bonds and those being broken; green—Zn–N; blue: CH…O; violet, CH…N; brown CH…π.
Figure 2. Optimized structures, important interatomic distances (Å) and Gibbs free energies (ΔG298, relative to 7(S) + Zn(i-Pr)2 + 3) of the transition states TS1(S) and TS1(R). Atoms: gray—carbon; light gray—hydrogen; red—oxygen; blue—nitrogen; green—chlorine; turquoise—zinc. Interatomic distances: yellow—forming bonds and those being broken; green—Zn–N; blue: CH…O; violet, CH…N; brown CH…π.
Symmetry 15 01382 g002
Symmetry 15 01382 sch008 550

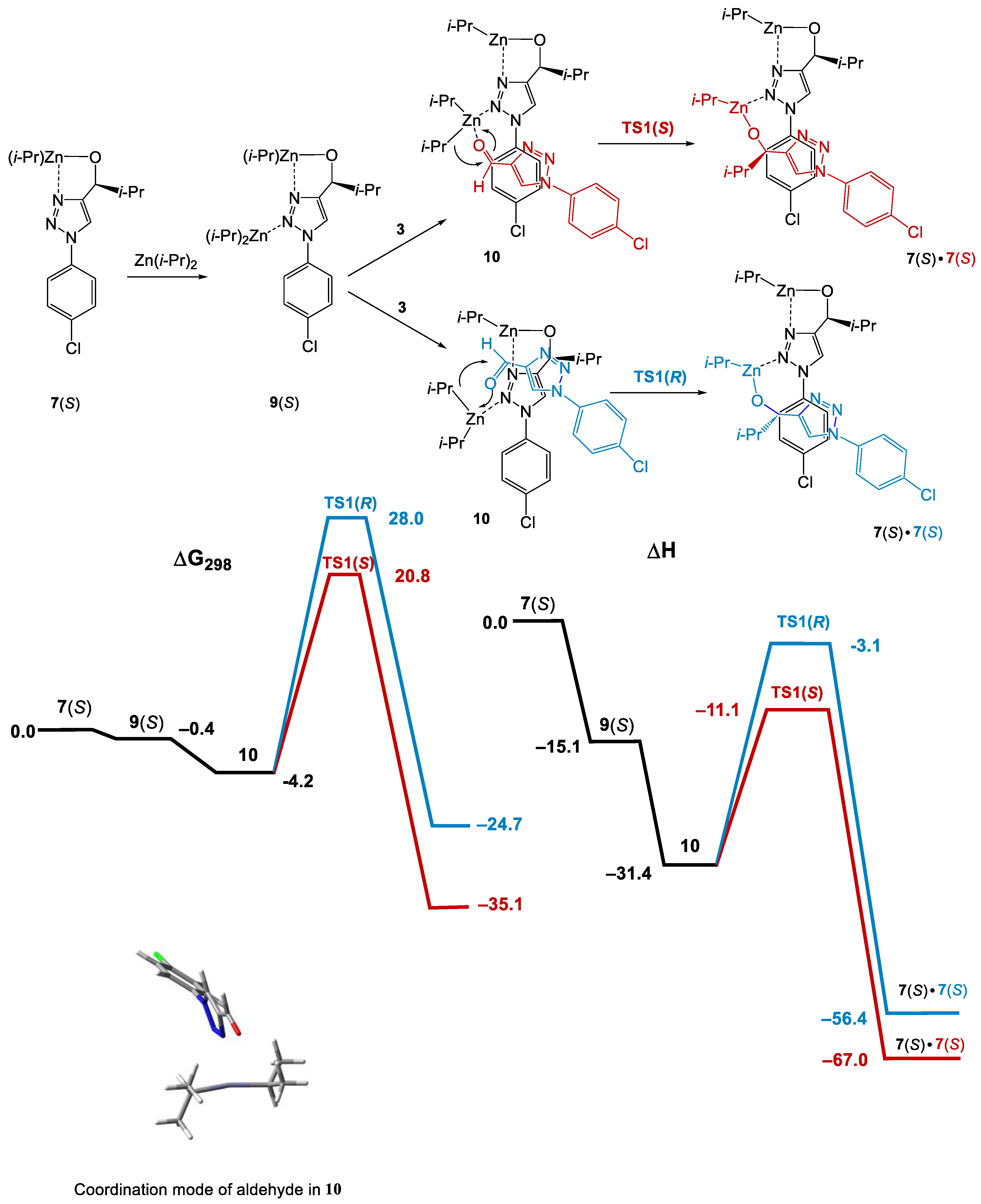

Scheme 8. Computational results (ΔG298 and ΔH relative to 7(S) + Zn(i-Pr)2 + 3) for the reaction of diisopropyl zinc with aldehyde 3 catalyzed by 7(S). AAA via reservoir mechanism.
Scheme 8. Computational results (ΔG298 and ΔH relative to 7(S) + Zn(i-Pr)2 + 3) for the reaction of diisopropyl zinc with aldehyde 3 catalyzed by 7(S). AAA via reservoir mechanism.
Symmetry 15 01382 sch008
Symmetry 15 01382 g003 550

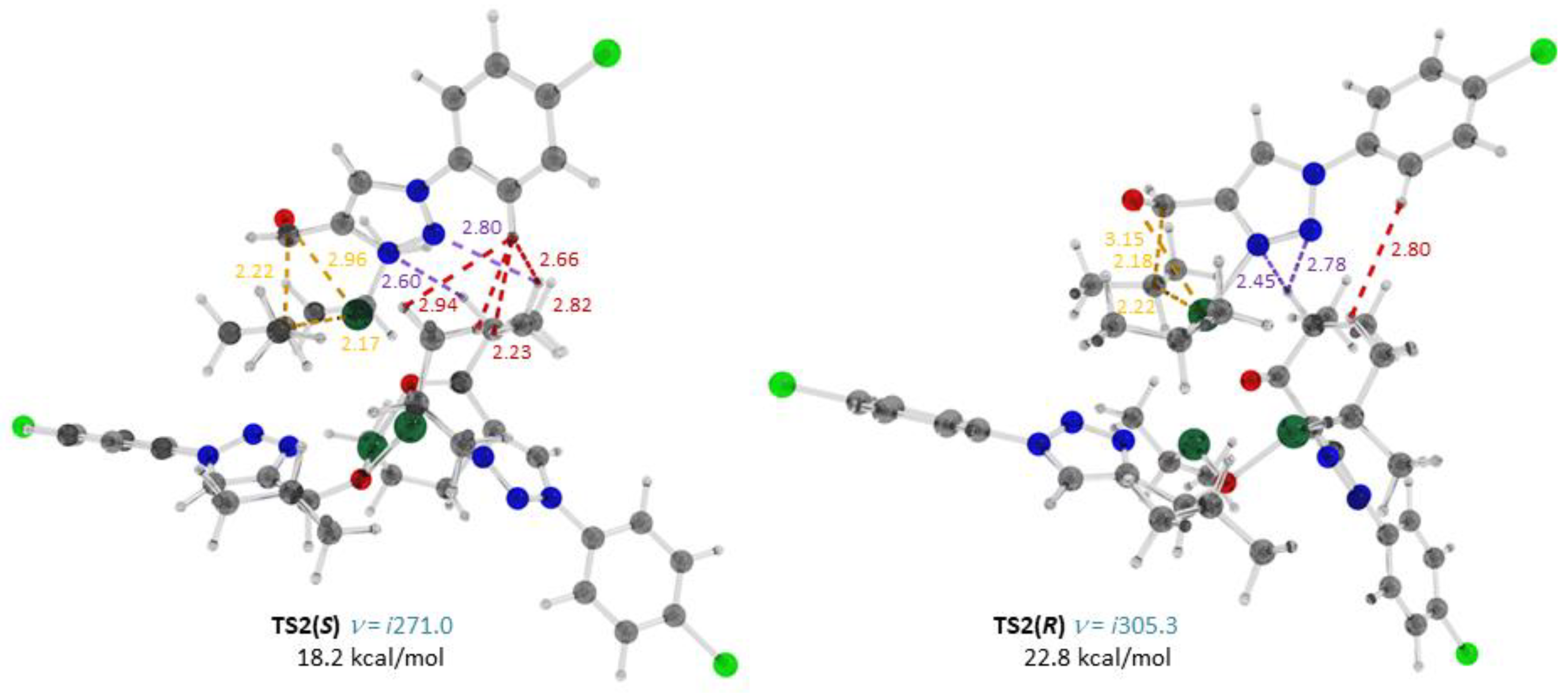

Figure 3. Optimized structures, important interatomic distances (Å) and Gibbs free energies (ΔG298, relative to 2 8(SS) + Zn(i-Pr)2 + 3) of the transition states TS2(S) and TS2(R) for the alkylation of 3 catalyzed with 8(SS). Atoms: gray—carbon; light gray—hydrogen; red—oxygen; blue—nitrogen; green—chlorine; turquoise—zinc. Interatomic distances: yellow—forming bonds and those being broken; green—Zn–N; blue: CH…O; violet, CH…N; red—CH…HC.
Figure 3. Optimized structures, important interatomic distances (Å) and Gibbs free energies (ΔG298, relative to 2 8(SS) + Zn(i-Pr)2 + 3) of the transition states TS2(S) and TS2(R) for the alkylation of 3 catalyzed with 8(SS). Atoms: gray—carbon; light gray—hydrogen; red—oxygen; blue—nitrogen; green—chlorine; turquoise—zinc. Interatomic distances: yellow—forming bonds and those being broken; green—Zn–N; blue: CH…O; violet, CH…N; red—CH…HC.
Symmetry 15 01382 g003
Symmetry 15 01382 sch009 550

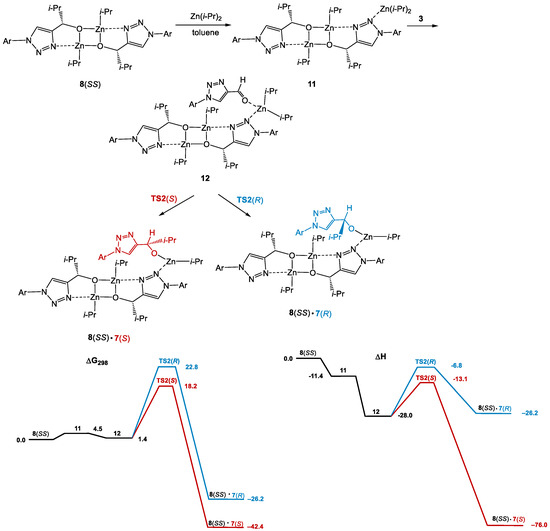

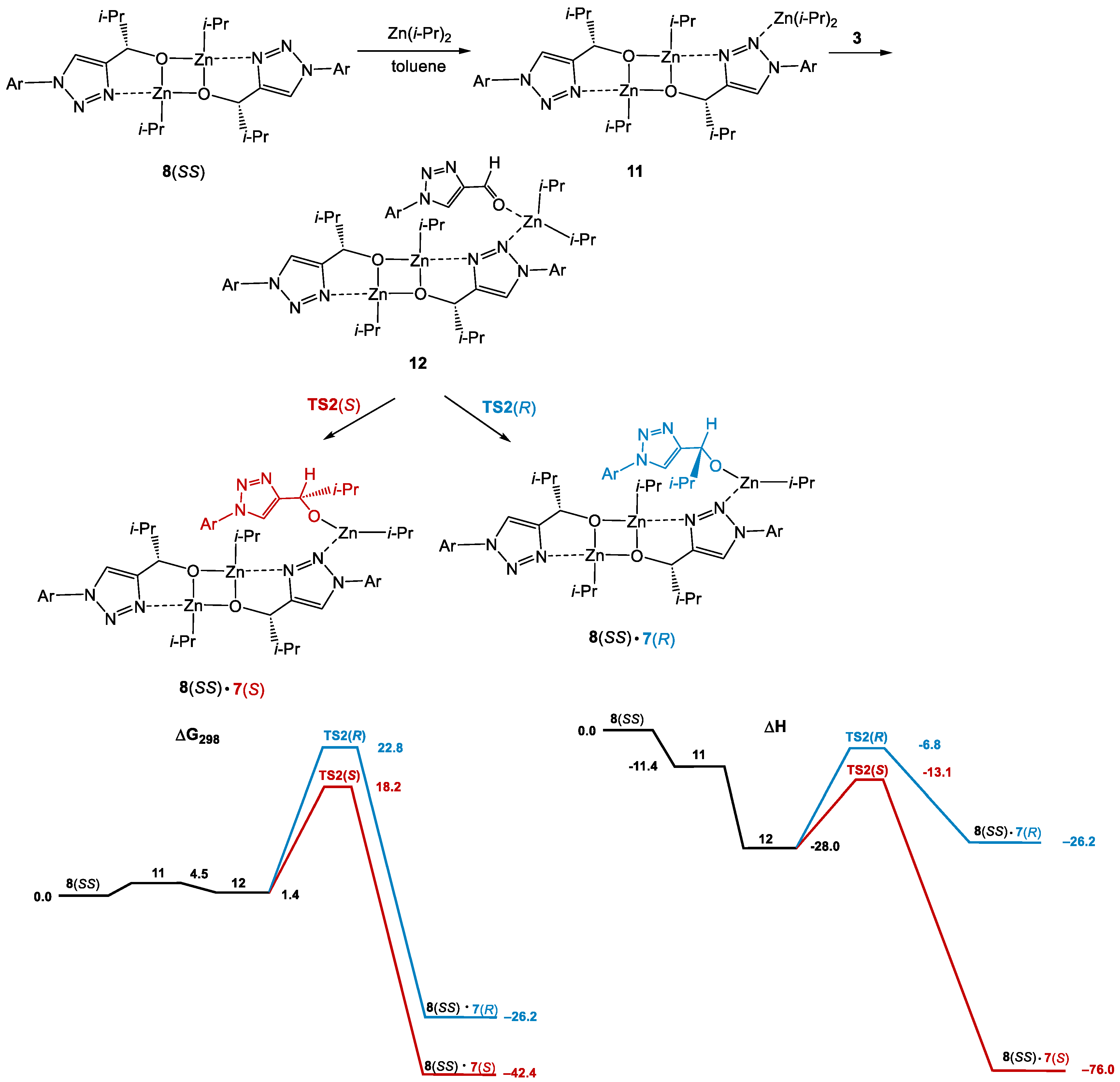

Scheme 9. Computational results (ΔG298 and ΔH relative to 7(S) + Zn(i-Pr)2 + 3) for the reaction of diisopropyl zinc with aldehyde 3 catalyzed by 8(SS). Optical activity is not affected.
Scheme 9. Computational results (ΔG298 and ΔH relative to 7(S) + Zn(i-Pr)2 + 3) for the reaction of diisopropyl zinc with aldehyde 3 catalyzed by 8(SS). Optical activity is not affected.
Symmetry 15 01382 sch009
Symmetry 15 01382 sch010 550

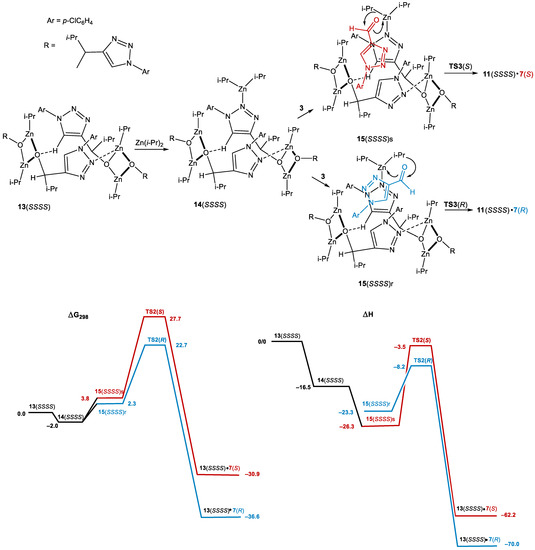

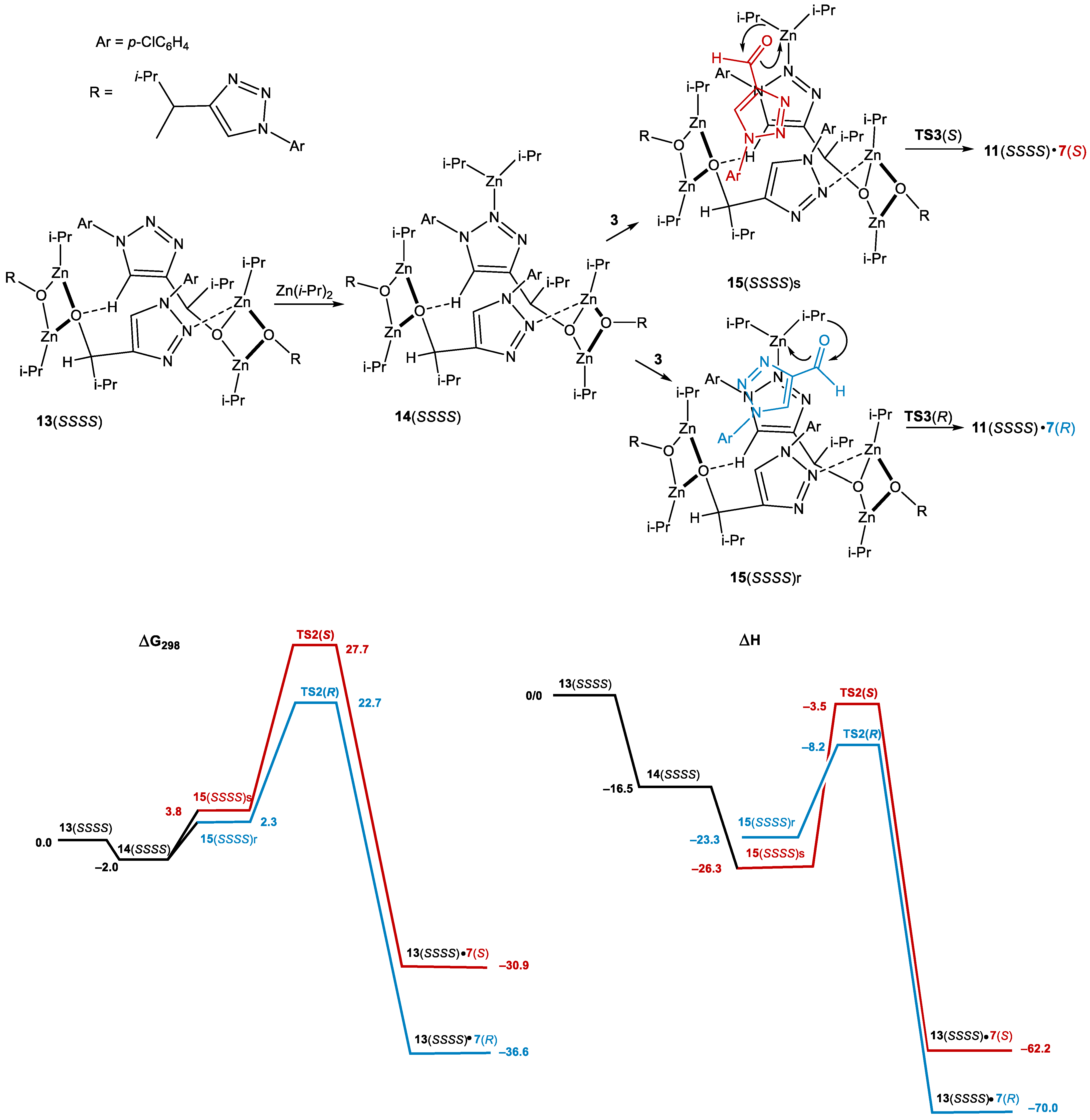

Scheme 10. Computational results (ΔG298, ΔH, kcal/mol relative to 13(SSSS) + Zn(i-Pr)2 + 3) for the reaction of diisopropyl zinc with aldehyde 3 catalyzed by 13(SSSS). Dissipation of ee.
Scheme 10. Computational results (ΔG298, ΔH, kcal/mol relative to 13(SSSS) + Zn(i-Pr)2 + 3) for the reaction of diisopropyl zinc with aldehyde 3 catalyzed by 13(SSSS). Dissipation of ee.
Symmetry 15 01382 sch010
Symmetry 15 01382 g004 550
Figure 4. Optimized structures, important interatomic distances (Å) and Gibbs free energies (relative to 13(SSSS) + Zn(i-Pr)2 + 3) of the transition states TS2(S) and TS2(R) for the alkylation of 3 catalyzed with 8(SS). Atoms: gray—carbon; light gray—hydrogen; red—oxygen; blue—nitrogen; green—chlorine; turquoise—zinc. Interatomic distances: yellow—forming bonds and those being broken.
Figure 4. Optimized structures, important interatomic distances (Å) and Gibbs free energies (relative to 13(SSSS) + Zn(i-Pr)2 + 3) of the transition states TS2(S) and TS2(R) for the alkylation of 3 catalyzed with 8(SS). Atoms: gray—carbon; light gray—hydrogen; red—oxygen; blue—nitrogen; green—chlorine; turquoise—zinc. Interatomic distances: yellow—forming bonds and those being broken.
Symmetry 15 01382 g004
Table
Table 1. Reactions of compounds 1–3 with diisopropyl zinc.
Table 1. Reactions of compounds 1–3 with diisopropyl zinc.
EntryCompound NumberCatRatio Ald:Zn(i-Pr)2:CatConditionsYield, %ee, %
1R = Bn (1)none1:10r.t., 4 h433
2 1:10reflux 0.1 h
(NMR tube)		2541
3 Ephedrine1:10:0.280 °C, 6 h2035
4 1:10:0.180 °C, 4 h3337
5 1:10:0.1reflux, 0.1 h
(NMR tube)		2910
6 (R,R)-QiunoxP *1:10:0.180 °C, 4 h252
7 (R,R)-BenzP *1:10:0.180 °C, 4 h3020
8 1, 20% ee1:10:0.2r.t., overnight110
9 1, 37% ee1:10:0.280 °C, 4 h3025
10R = Ph (2)none1:10r.t., 4 h480
11 Ephedrine1:10:0.1r.t., 1 h4027
12 (R,R)-QiunoxP *1:10:0.1r.t., 1 h752
13 (R,R)-BenzP *1:10:0.1r.t., overnight2413
14 (–)Sparteine1:10:0.1r.t., 4 h133
15 2, 13% ee1:10:0.2r.t., 3 h480
16 2, 27% ee1:10:0.2r.t., overnight470
17R = p-ClC6H4 (3)none1:10r.t., 4 h3710
18 1:10r.t., overnight5211
19 1:10reflux, 0.1 h
(NMR tube)		210
20 Ephedrine1:20:0.1r.t., overnight3133
21 (R,R)-QiunoxP *1:10:0.1reflux, 0.1 h
(NMR tube)		2515
22 (R,R)-BenzP *1:10:0.1reflux, 0.1 h
(NMR tube)		209
23 3, 33% ee1:10:0.2r.t., overnight535
Asterix means asymmetric carbon atom.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Mikhaylov, O.A.; Saigitbatalova, E.S.; Latypova, L.Z.; Kurbangalieva, A.R.; Gridnev, I.D. Reaction of Triazolic Aldehydes with Diisopropyl Zinc: Chirality Dissipation versus Amplification. Symmetry 2023, 15, 1382. https://doi.org/10.3390/sym15071382

AMA Style

Mikhaylov OA, Saigitbatalova ES, Latypova LZ, Kurbangalieva AR, Gridnev ID. Reaction of Triazolic Aldehydes with Diisopropyl Zinc: Chirality Dissipation versus Amplification. Symmetry. 2023; 15(7):1382. https://doi.org/10.3390/sym15071382

Chicago/Turabian Style

Mikhaylov, Oleg A., Elena Sh. Saigitbatalova, Liliya Z. Latypova, Almira R. Kurbangalieva, and Ilya D. Gridnev. 2023. "Reaction of Triazolic Aldehydes with Diisopropyl Zinc: Chirality Dissipation versus Amplification" Symmetry 15, no. 7: 1382. https://doi.org/10.3390/sym15071382

APA Style

Mikhaylov, O. A., Saigitbatalova, E. S., Latypova, L. Z., Kurbangalieva, A. R., & Gridnev, I. D. (2023). Reaction of Triazolic Aldehydes with Diisopropyl Zinc: Chirality Dissipation versus Amplification. Symmetry, 15(7), 1382. https://doi.org/10.3390/sym15071382

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
