# Symmetrically Construction Monitoring Analysis and Completed State Evaluation of a Tied Steel Box Arch Bridge Based on Finite Element Method

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Project Overview

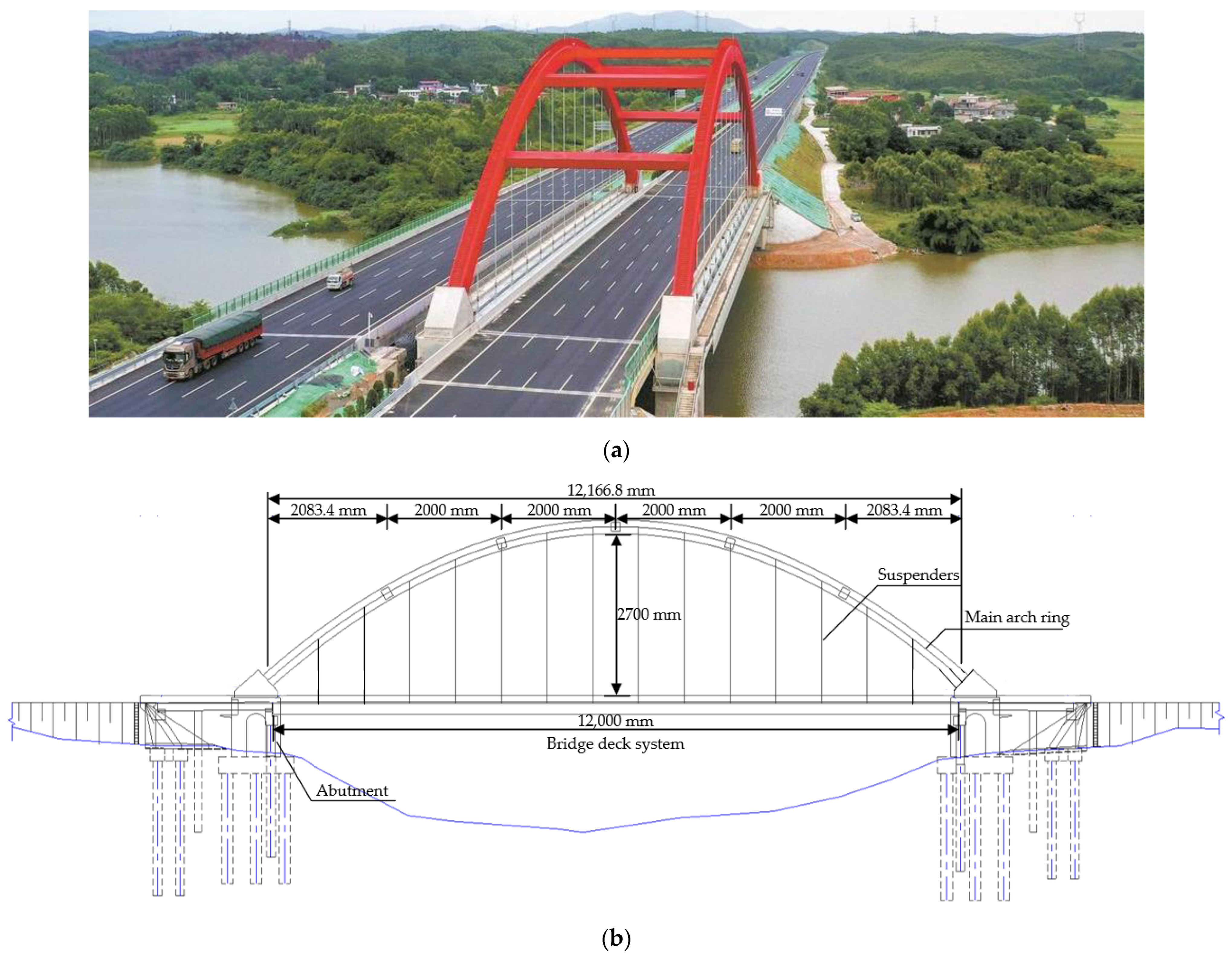

#### 2.1. Bridge Overview

#### 2.2. Finite Element Model of the Newly Built Dafeng River Bridge

^{s}15.24 is adopted as a suspender and tie rod. The permanent load mainly includes the dead weight of steel and concrete, referring to Table 1. Asphalt bridge deck pavement, anti-collision guardrail, handrail, tie box, and other structures are considered loads. The deck pavement load is 0.07 × 24 = 1.68 kN/m

^{2}. The anti-collision guardrail is applied according to the beam unit load, and the value is 9.5 kN/m. The sidewalk slab and handrail are applied according to the pressure load, and the value is 6.0 kN/m

^{2}. The access slab is applied according to the pressure load, and the value is 10.0 kN/m

^{2}. The shrinkage and creep of concrete shall be calculated according to the relevant provisions of JTG 3362-2018. The tie rods are tensioned two times. The first tensioning control force is 1400 kN, the second tensioning control force of tie rods N2~N8 is 2200 kN, and the tensioning control force of tie rods N10~N16 is 2250 kN.

## 3. Results and Discussion

#### 3.1. Finite Element Calculation and Analysis in Bridge Construction Stage

#### 3.1.1. Stress Calculation Results and Analysis

- 1.
- Stress of Main Arch and Transverse Brace during Construction

- 2.
- Stress of Lattice Beam during Construction

#### 3.1.2. Displacement Calculation Results and Analysis

## 3.2. Finite Element Structural Checking Calculation in Bridge Completion Stage

#### 3.2.1. Force Calculation Results and Analysis

#### 3.2.2. Structural Checking Calculation Results

- 1.
- Structural Checking of Main Arch, Transverse Brace, and Lattice Beam

- 2.
- Structural Checking of Suspender and Tie Rod

## 3.3. Analysis of Camber of Arch and Lattice Beam, Blanking Length of Suspender

- 1.
- Camber Calculation of Arch and Lattice Beam

_{dead}+ 0.5 × D

_{vehicle}+ D

_{construction}+ SC

_{10},

_{dead}is the dead load displacement, D

_{vehicle}is the load displacement, D

_{construction}is the construction load displacement, and SC

_{10}is 10 years of shrinkage creep.

- 2.

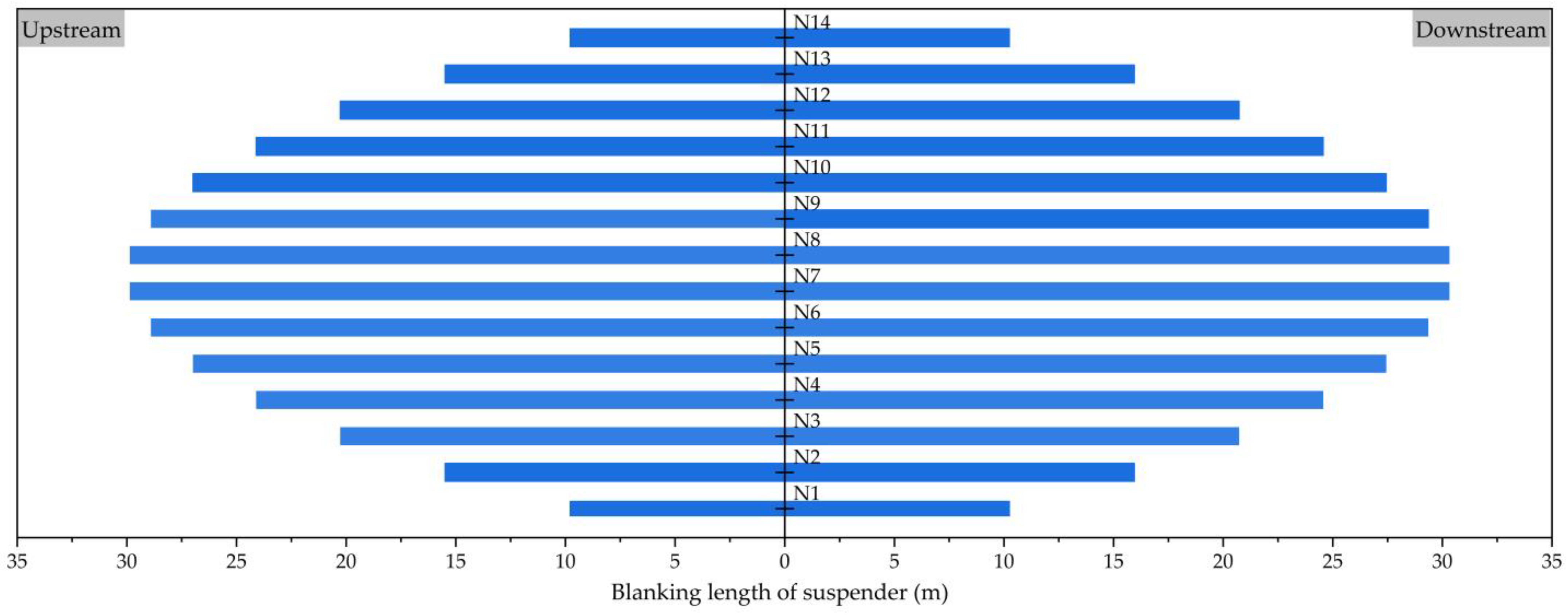

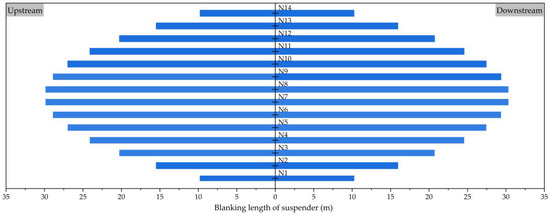

- Calculation of Blanking Length of Suspender

## 3.4. Comparative Analysis and Evaluation of Alignment and Cable Force after Bridge Construction Completion

## 4. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Conflicts of Interest

## References

- Granata, M.F. Stressing Sequence for Hanger Replacement of Tied-Arch Bridges with Rigid Bars. J. Bridg. Eng.
**2022**, 27, 04021099. [Google Scholar] [CrossRef] - Yang, K.; Gao, L.; Zheng, K.; Shi, J. Mechanical behavior of a novel steel-concrete joint for long-span arch bridges—Application to Yachi River Bridge. Eng. Struct.
**2022**, 265, 114492. [Google Scholar] [CrossRef] - Deng, N.; Yu, M.; Yao, X. Intelligent Active Correction Technology and Application of Tower Displacement in Arch Bridge Cable Lifting Construction. Appl. Sci.
**2021**, 11, 9808. [Google Scholar] [CrossRef] - Huang, Q.; Wu, X.; Zhang, Y.; Ma, M. Proposed New Analytical Method of Tower Load in Large-Span Arch Bridge Cable Lifting Construction. Appl. Sci.
**2022**, 12, 9373. [Google Scholar] [CrossRef] - Tan, G.; Li, H.; Wang, W.; Kong, Q.; Jiang, L.; Zhang, S.; Wei, X. A rapid evaluation method based on natural frequency for post-earthquake traffic capacity of small and medium span bridges. Eng. Struct.
**2023**, 280, 115681. [Google Scholar] [CrossRef] - Tian, Z.; Zhang, Z.; Peng, W.; Dai, Y.; Cai, Y.; Xu, B. Research on the Method of Temporary Prestressing to Regulate the Stress in the Section during the Construction of the Main Arch Ring of the Cantilever Cast Arch Bridge. Appl. Sci.
**2022**, 12, 10070. [Google Scholar] [CrossRef] - Gao, H.; Zhang, K.; Wu, X.; Liu, H.; Zhang, L. Application of BRB to Seismic Mitigation of Steel Truss Arch Bridge Subjected to Near-Fault Ground Motions. Buildings
**2022**, 12, 2147. [Google Scholar] [CrossRef] - Mao, W.; Gou, H.; He, Y.; Pu, Q. Local Stress Behavior of Post-Tensioned Prestressed Anchorage Zones in Continuous Rigid Frame Arch Railway Bridge. Appl. Sci.
**2018**, 8, 1833. [Google Scholar] [CrossRef] - Huang, Q.; Wu, X.; Wei, H.; Chen, Q. Innovative Design of Novel Main and Secondary Arch Collaborative Y-Shaped Arch Bridge and Research on Shear Lag Effect of Its Unconventional Thin-Walled Steel Box Arch Ribs. Appl. Sci.
**2022**, 12, 8370. [Google Scholar] [CrossRef] - Zhang, Q.; Sun, T.; Wang, J.; Liu, Q. Deflection distribution estimation of the main arch of arch bridges based on long-gauge fiber optic sensing technology. Adv. Struct. Eng.
**2019**, 22, 3341–3351. [Google Scholar] [CrossRef] - Álvarez, J.; Aparicio, A.; Jara, J.; Jara, M. Seismic assessment of a long-span arch bridge considering the variation in axial forces induced by earthquakes. Eng. Struct.
**2012**, 34, 69–80. [Google Scholar] [CrossRef] - Morcous, G.; Hanna, K.; Deng, Y.; Tadros, M.K. Concrete-Filled Steel Tubular Tied Arch Bridge System: Application to Columbus Viaduct. J. Bridg. Eng.
**2012**, 17, 107–116. [Google Scholar] [CrossRef] - Xie, K.; Wang, H.; Guo, X.; Zhou, J. Study on the safety of the concrete pouring process for the main truss arch structure in a long-span concrete-filled steel tube arch bridge. Mech. Adv. Mater. Struct.
**2021**, 28, 731–740. [Google Scholar] [CrossRef] - Lederman, G.; You, Z.; Glišić, B. A novel deployable tied arch bridge. Eng. Struct.
**2014**, 70, 1–10. [Google Scholar] [CrossRef] - De Backer, H.; Outtier, A.; Van Bogaert, P. Buckling design of steel tied-arch bridges. J. Constr. Steel Res.
**2014**, 103, 159–167. [Google Scholar] [CrossRef] - Peng, Y.; Zhang, Z. Development of a Novel Type of Open-Web Continuous Reinforced-Concrete Rigid-Frame Bridge. J. Bridg. Eng.
**2020**, 25, 05020005. [Google Scholar] [CrossRef] - Huang, C.; Wang, Y.; Xu, S.; Shou, W.; Peng, C.; Lv, D. Vision-Based Methods for Relative Sag Measurement of Suspension Bridge Cables. Buildings
**2022**, 12, 667. [Google Scholar] [CrossRef] - Xu, Y.; Luo, Y.; Zhang, J. Laser-scan based pose monitoring for guiding erection of precast concrete bridge piers. Autom. Constr.
**2022**, 140, 104347. [Google Scholar] [CrossRef] - Puri, N.; Turkan, Y. Bridge construction progress monitoring using lidar and 4D design models. Autom. Constr.
**2019**, 109, 102961. [Google Scholar] [CrossRef] - Cheng, Y.; Lin, F.; Wang, W.; Zhang, J. Vision-based trajectory monitoring for assembly alignment of precast concrete bridge components. Autom. Constr.
**2022**, 140, 104350. [Google Scholar] [CrossRef] - Kim, D.; Kwak, Y.; Sohn, H. Accelerated cable-stayed bridge construction using terrestrial laser scanning. Autom. Constr.
**2020**, 117, 103269. [Google Scholar] [CrossRef] - Chen, Z.; Sun, H.; Zhou, S.; Chen, Z.; Xue, X.; Peng, Y. A hybrid algorithm for cable force calculation of cfst arch bridges during construction. Int. J. Robot. Autom.
**2022**, 37, 192–199. [Google Scholar] [CrossRef] - Gou, H.; Liu, C.; Bao, Y.; Han, B.; Pu, Q. Construction Monitoring of Self-Anchored Suspension Bridge with Inclined Tower. J. Bridg. Eng.
**2021**, 26, 05021011. [Google Scholar] [CrossRef] - Li, X.-X.; Ren, W.-X.; Bi, K.-M. FBG force-testing ring for bridge cable force monitoring and temperature compensation. Sens. Actuators A Phys.
**2015**, 223, 105–113. [Google Scholar] [CrossRef] - Ren, W.-X.; Lin, Y.-Q.; Peng, X.-L. Field Load Tests and Numerical Analysis of Qingzhou Cable-Stayed Bridge. J. Bridg. Eng.
**2007**, 12, 261–270. [Google Scholar] [CrossRef] - Gaute-Alonso, A.; Garcia-Sanchez, D.; Alonso-Cobo, C.; Calderon-Uriszar-Aldaca, I. Temporary cable force monitoring techniques during bridge construction-phase: The Tajo River Viaduct experience. Sci. Rep.
**2022**, 12, 7689. [Google Scholar] [CrossRef] - Bayraktar, A.; Akköse, M.; Taş, Y.; Erdiş, A.; Kurşun, A. Long-term strain behavior of in-service cable-stayed bridges under temperature variations. J. Civ. Struct. Health Monit.
**2022**, 12, 833–844. [Google Scholar] [CrossRef] - Jin, H.-W.; Wang, G.-A.; Chen, Z.-M. Temperature Control Technology for Construction of Jinsha River Bridge. Adv. Civ. Eng.
**2021**, 2021, 3452167. [Google Scholar] [CrossRef] - Mei, X.D.; Lu, Y.Y.; Shi, J. Temperature monitoring and analysis of a long-span cable-stayed bridge during construction period. Struct. Monit. Maint.
**2021**, 8, 203–220. [Google Scholar] [CrossRef] - Zhu, L.; Wang, Y.; Zhou, G.; Han, B. Structural health monitoring on a steel-concrete composite continuous bridge during construction and vehicle load tests. Mech. Adv. Mater. Struct.
**2020**, 29, 1370–1385. [Google Scholar] [CrossRef] - Grace, N.F.; Mohamed, M.E.; Kasabasic, M.; Chynoweth, M.; Ushijima, K.; Bebawy, M. Design, Construction, and Monitoring of US Longest Highway Bridge Span Prestressed with CFRP Strands. J. Bridg. Eng.
**2022**, 27, 04022047. [Google Scholar] [CrossRef]

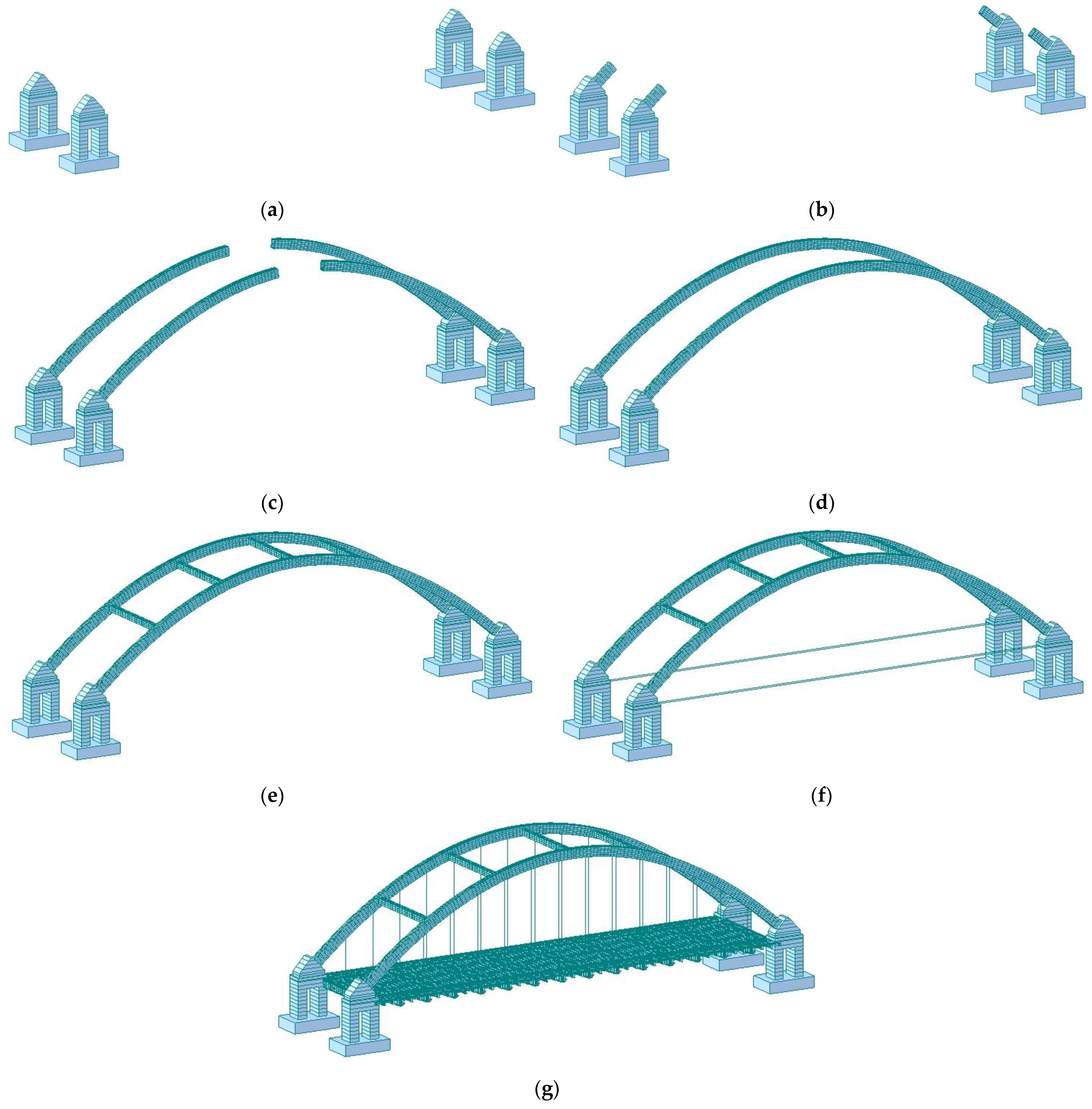

**Figure 2.**The structural schematic diagram of the key construction stages: (

**a**) arch abutment construction completed; (

**b**) arch rib section 1 installation completed; (

**c**) arch rib section 4 installation completed; (

**d**) arch rib closure; (

**e**) transverse brace installation completed; (

**f**) remove the arch rib bracket and tension the tie bar; and (

**g**) construction completion.

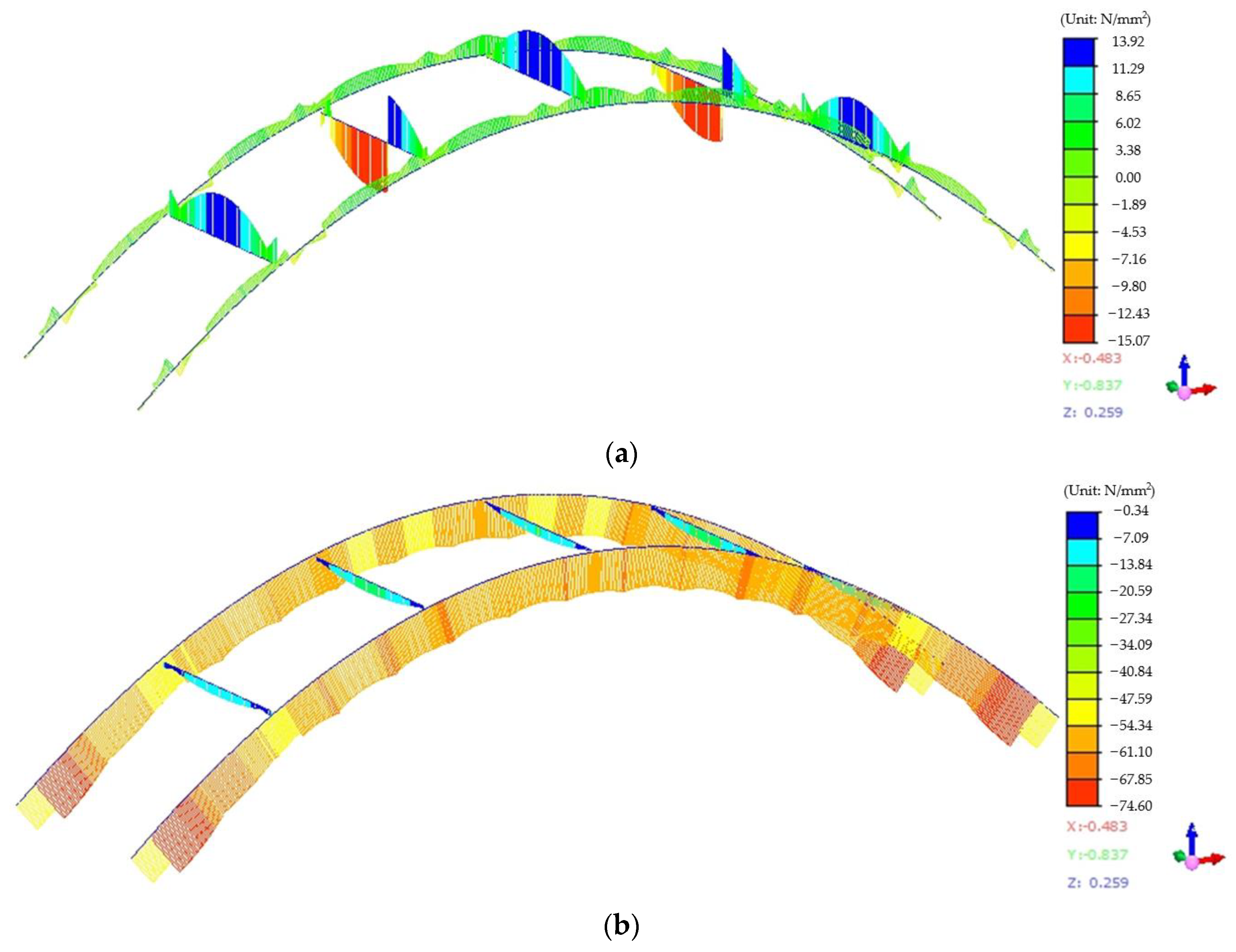

**Figure 3.**The maximum tensile and compressive stress of the main arch and transverse brace during the construction of the newly built Dafeng River Bridge: (

**a**) maximum tensile stress; (

**b**) maximum compressive stress.

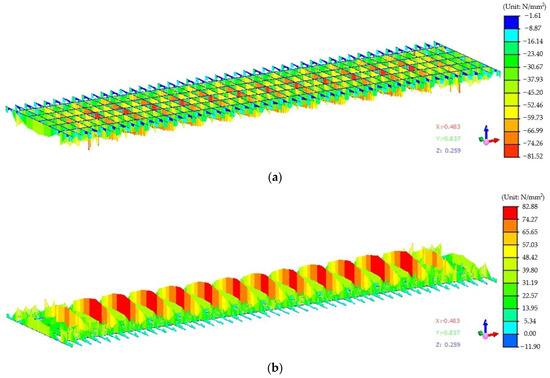

**Figure 4.**The maximum tensile and compressive stress of the lattice beam during the construction of the newly built Dafeng River Bridge: (

**a**) maximum tensile stress; (

**b**) maximum compressive stress.

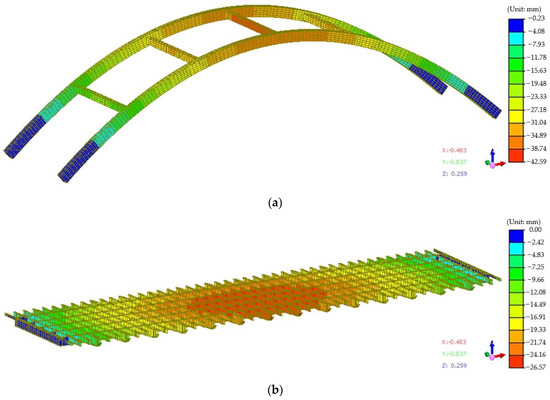

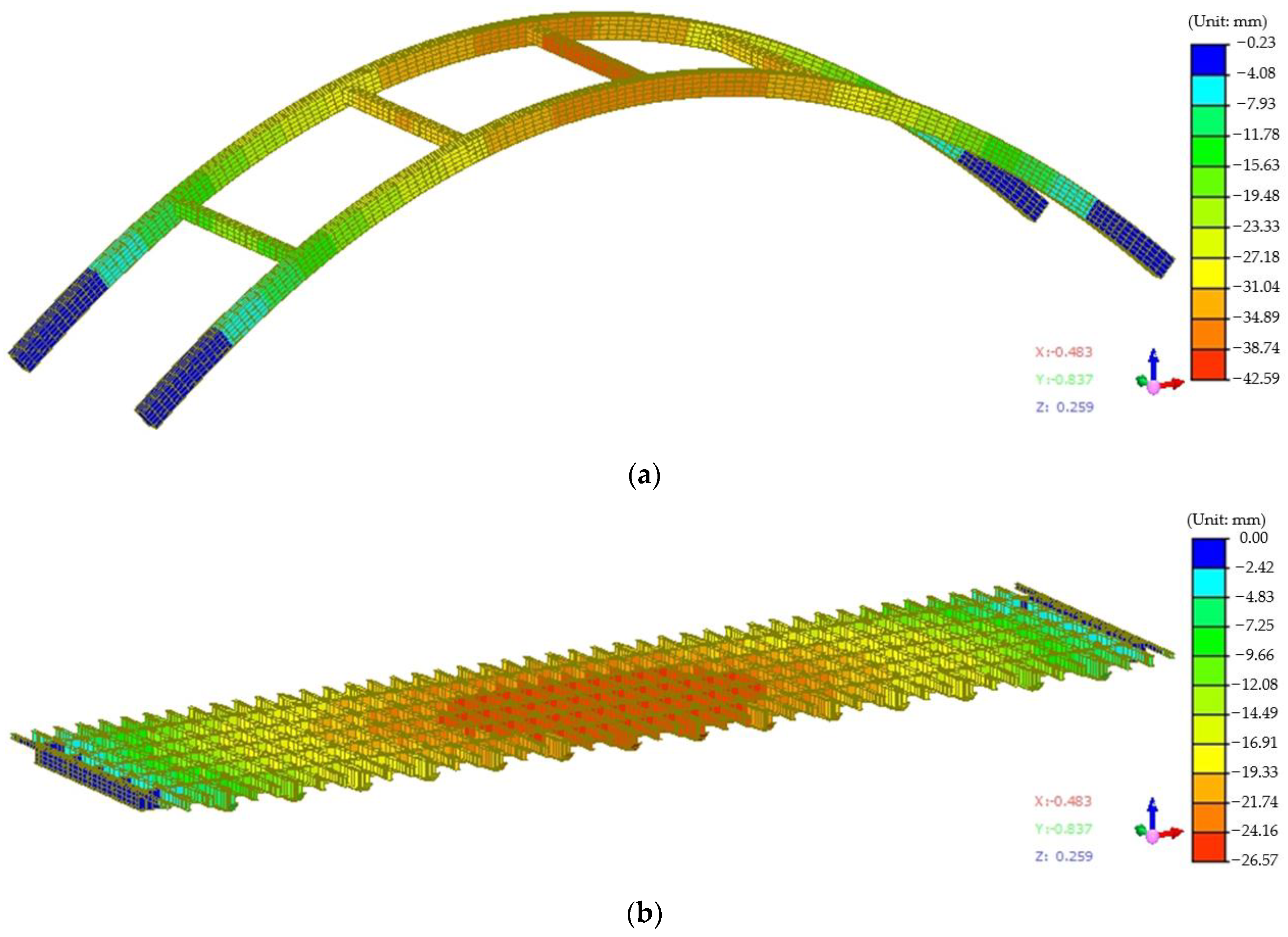

**Figure 5.**The cumulative displacement of the main arch and lattice beam of the main bridge during the construction of the newly built Dafeng River Bridge: (

**a**) cumulative displacement of the main arch; (

**b**) cumulative displacement of the lattice beam.

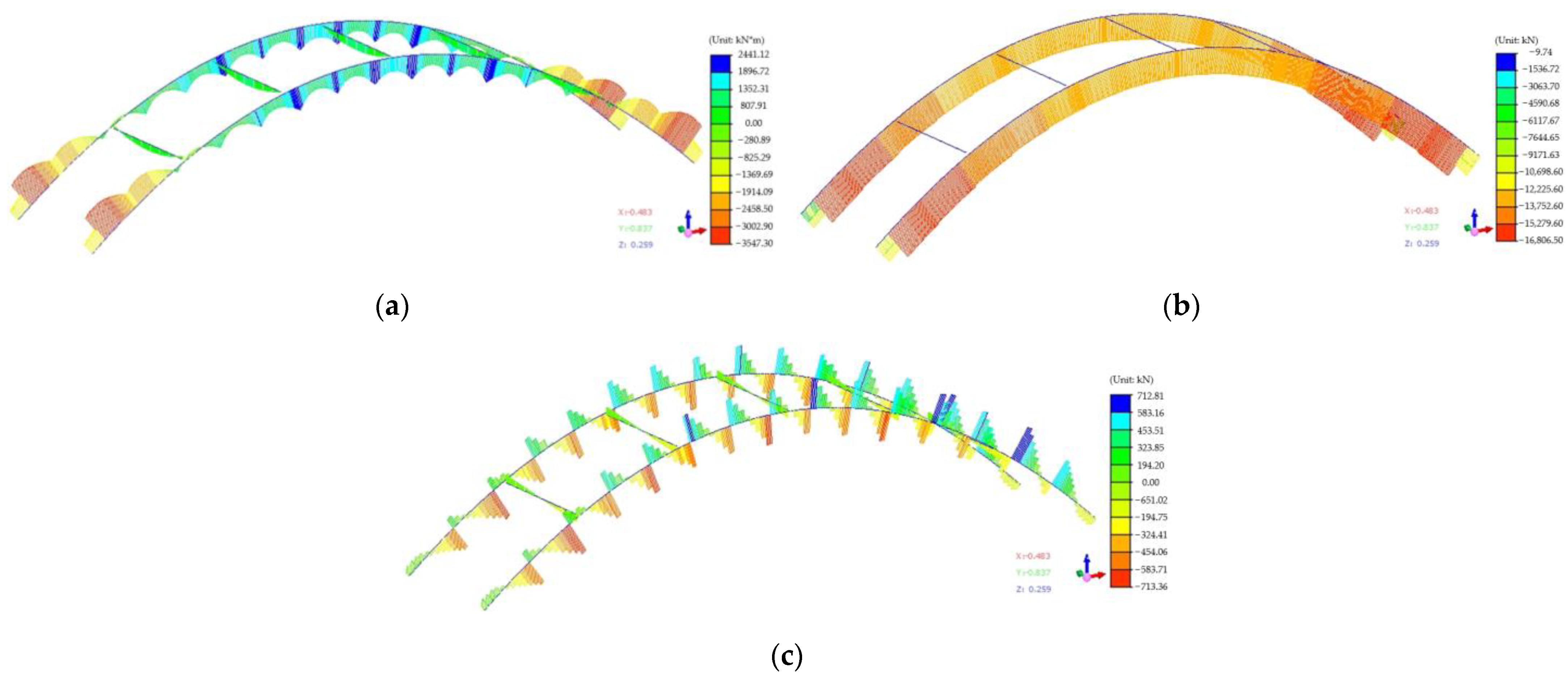

**Figure 6.**The force of main arch and transverse brace after the completion of the newly built Dafeng River Bridge: (

**a**) bending moment diagram; (

**b**) axial force diagram; and (

**c**) shear force diagram.

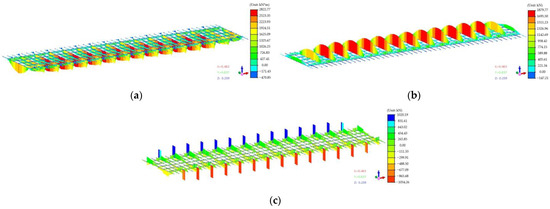

**Figure 7.**The force of lattice beam after the completion of the newly built Dafeng River Bridge: (

**a**) bending moment diagram; (

**b**) axial force diagram; and (

**c**) shear force diagram.

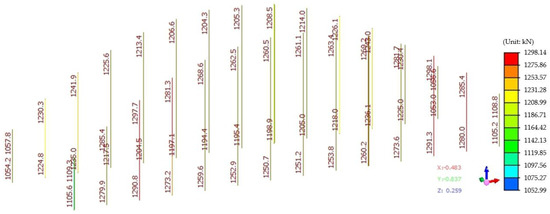

**Figure 8.**The cable force of the suspender after the completion of the newly built Dafeng River Bridge.

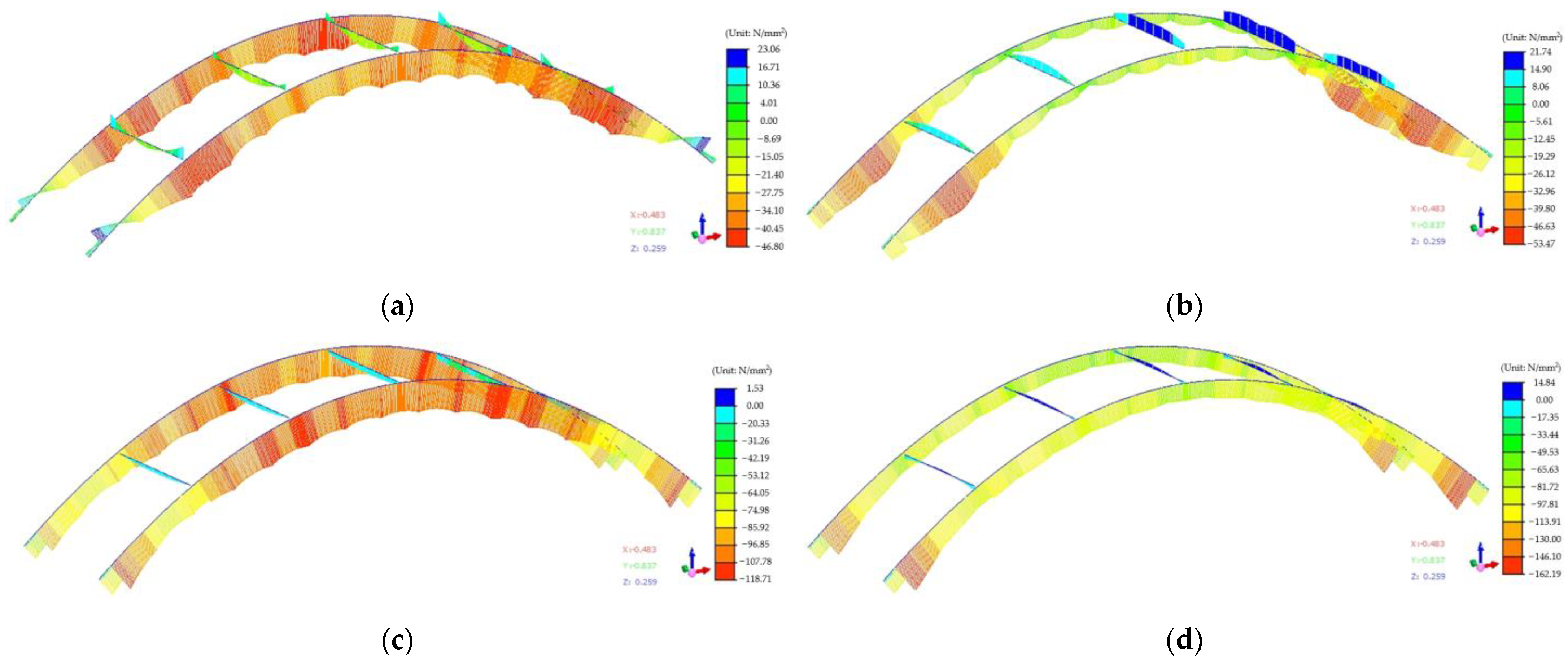

**Figure 9.**The maximum tensile and compressive stress envelope diagram of main arch and transverse brace under basic combinations of ultimate limit state of bearing capacity: (

**a**) envelope diagram of maximum tensile stress on top surface; (

**b**) envelope diagram of maximum tensile stress on bottom surface; (

**c**) envelope diagram of maximum compressive stress on top surface; and (

**d**) envelope diagram of maximum compressive stress on bottom surface.

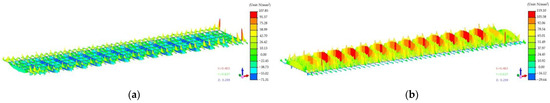

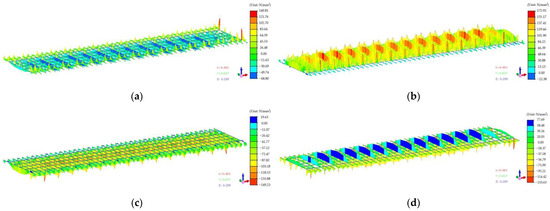

**Figure 10.**The maximum tensile and compressive stress envelope diagram of lattice beam under basic combinations of ultimate limit state of bearing capacity: (

**a**) envelope diagram of maximum tensile stress on top surface; (

**b**) envelope diagram of maximum tensile stress on bottom surface; (

**c**) envelope diagram of maximum compressive stress on top surface; and (

**d**) envelope diagram of maximum compressive stress on the bottom surface.

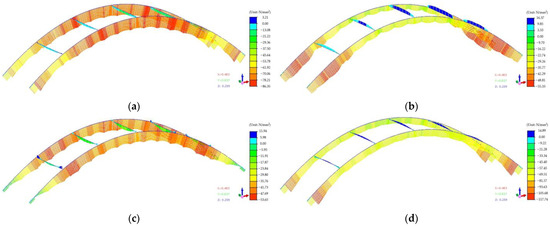

**Figure 11.**The maximum tensile and compressive stress envelope diagram of main arch and transverse brace under basic combinations of serviceability limit state: (

**a**) envelope diagram of maximum tensile stress on top surface; (

**b**) envelope diagram of maximum tensile stress on bottom surface; (

**c**) envelope diagram of maximum compressive stress on top surface; and (

**d**) envelope diagram of maximum compressive stress on bottom surface.

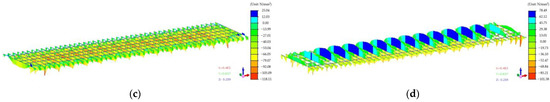

**Figure 12.**The maximum tensile and compressive stress envelope diagram of lattice beam under basic combinations of serviceability limit state: (

**a**) envelope diagram of maximum tensile stress on top surface; (

**b**) envelope diagram of maximum tensile stress on bottom surface; (

**c**) envelope diagram of maximum compressive stress on top surface; and (

**d**) envelope diagram of maximum compressive stress on the bottom surface.

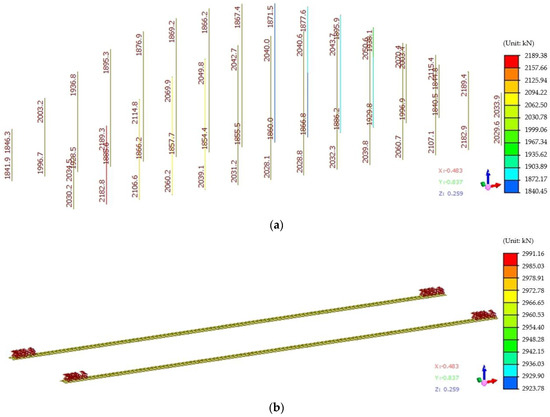

**Figure 13.**The cable forces of the newly built Dafeng River Bridge under basic combinations of ultimate limit state of bearing capacity: (

**a**) suspender; and (

**b**) tie rod.

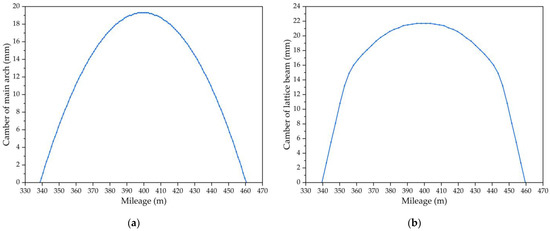

**Figure 14.**The camber calculation results of the main bridge for the newly built Dafeng River Bridge: (

**a**) main arch; and (

**b**) lattice beam.

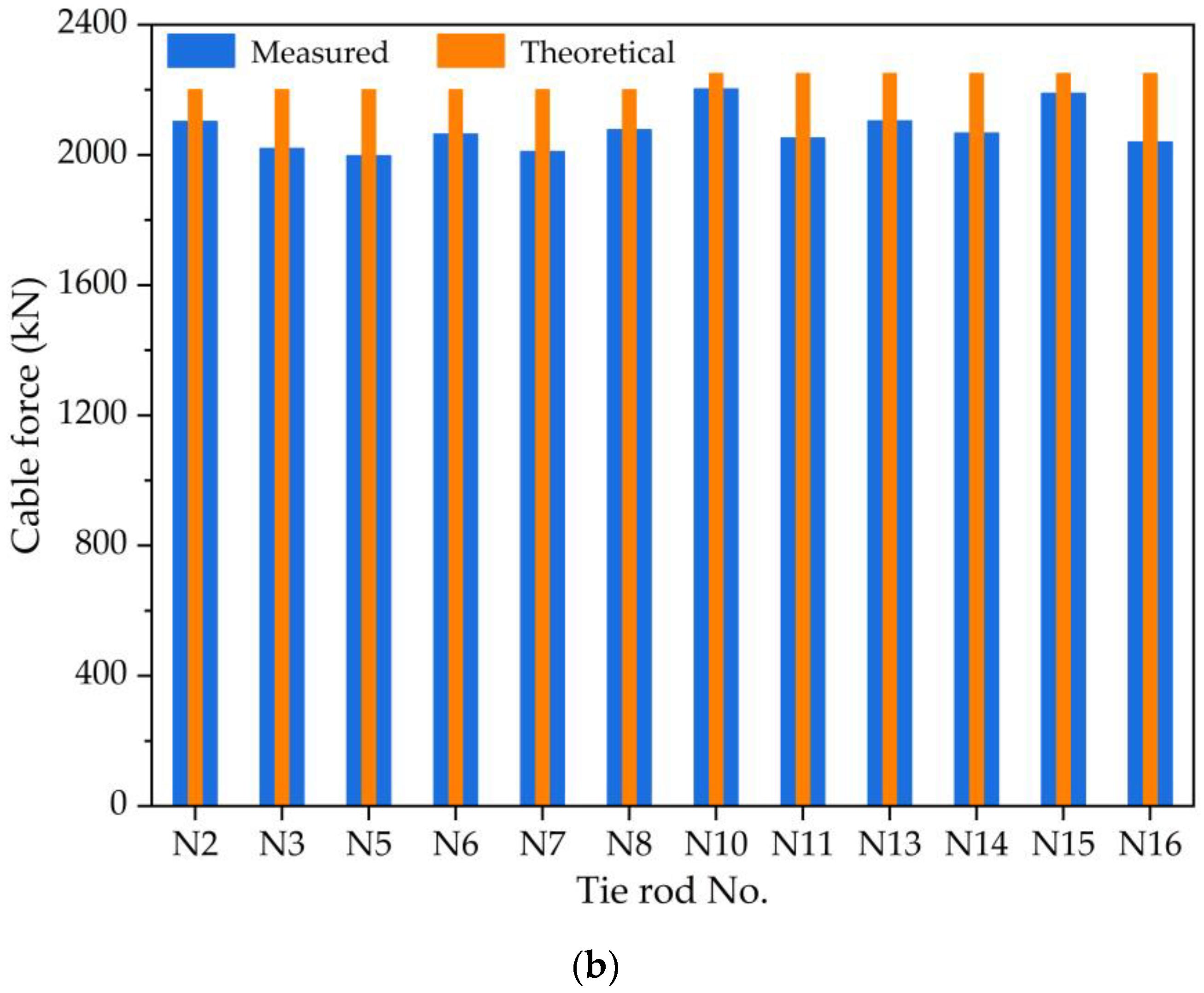

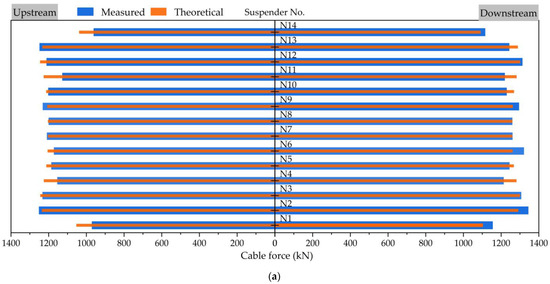

**Figure 16.**The cable force monitoring and calculated results of suspenders and tie rods after bridge construction completion: (

**a**) comparison analysis of suspender cable force; (

**b**) comparison analysis of tie rod cable force.

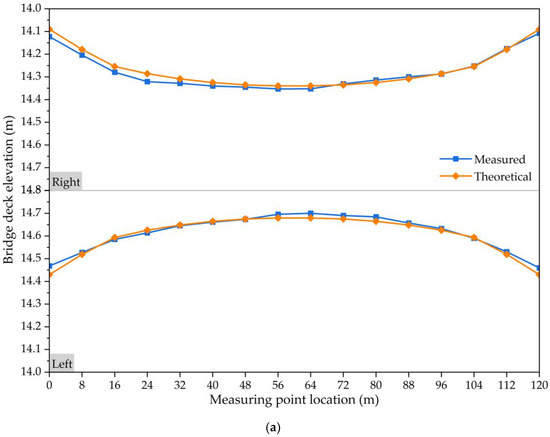

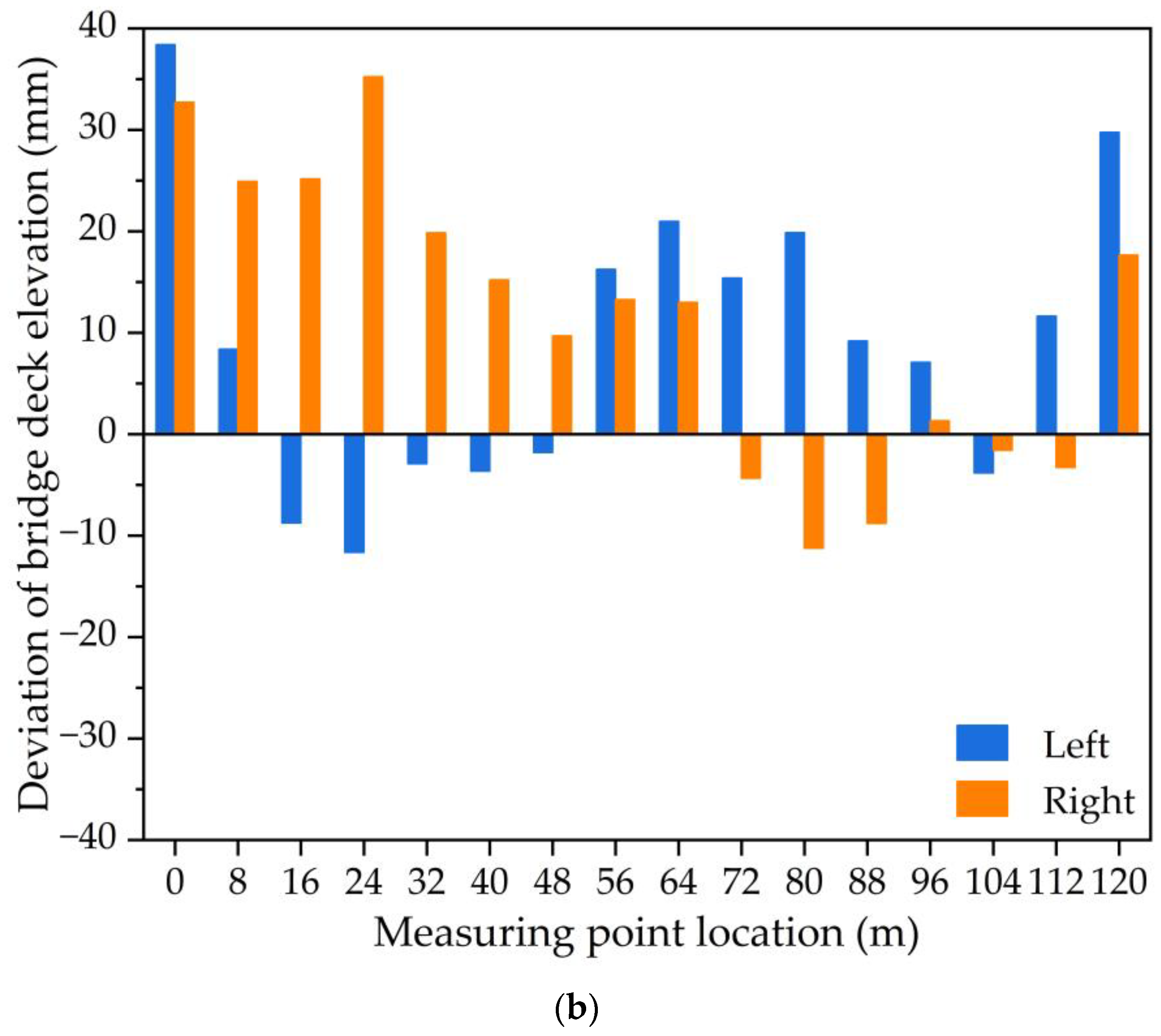

**Figure 17.**The alignment monitoring and calculated results of bridge deck elevation after bridge construction completion: (
