# Identification of Material Properties of Elastic Plate Using Guided Waves Based on the Matrix Pencil Method and Laser Doppler Vibrometry

^{*}

## Abstract

**:**

## 1. Introduction

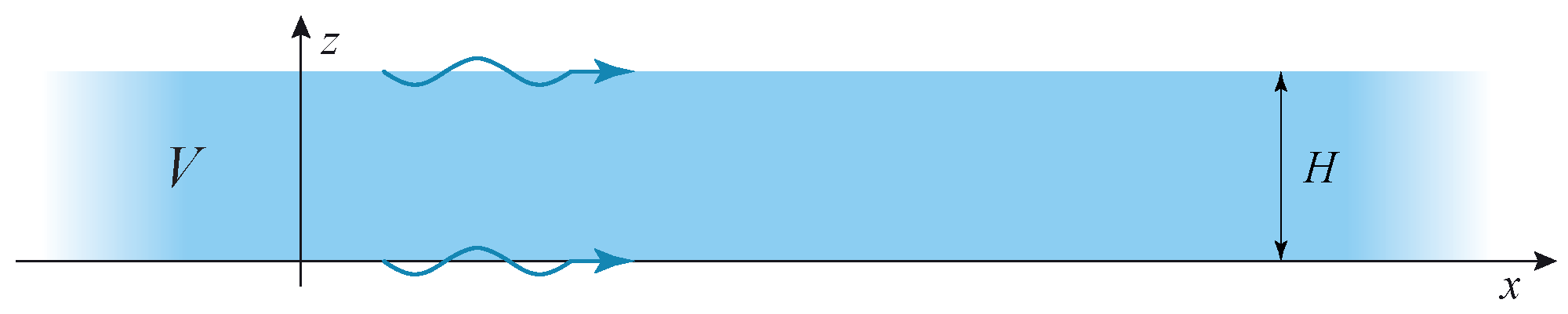

## 2. Theoretical Determination of Guided Waves Characteristics

## 3. Experimental Data Extraction Using the Matrix Pencil Method

## 4. Objective Functions for Material Properties Characterization

#### 4.1. Objective Function Using Residual of Slownesses

#### 4.2. Objective Function Based on the Fourier Transform of Green’s Matrix

## 5. Generation of Test Data Sets

## 6. Numerical Analysis

#### 6.1. Analysis of the Properties of Objective Functions

#### 6.2. Inverse Problem Solution Using Synthesized Data

#### 6.3. Inverse Problem Solution Using LDV Experimental Data

## 7. Discussions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Abbreviations

NDT | non-destructive testing |

SHM | structural health monitoring |

SCs | slowness curves |

GWs | guided waves |

LDV | laser Doppler vibrometer |

## References

- Pagnotta, L. Determining elastic constants of materials with interferometric techniques. Inverse Probl. Sci. Eng.
**2006**, 14, 801–818. [Google Scholar] [CrossRef] - Kam, T.; Chen, C.; Yang, S. Material characterization of laminated composite materials using a three-point-bending technique. Compos. Struct.
**2009**, 88, 624–628. [Google Scholar] [CrossRef] - Tam, J.; Ong, Z.; Ismail, Z.; Ang, B.; Khoo, S. Identification of material properties of composite materials using nondestructive vibrational evaluation approaches: A review. Mech. Adv. Mater. Struct.
**2017**, 24, 971–986. [Google Scholar] [CrossRef] - Tam, J.H. Identification of elastic properties utilizing non-destructive vibrational evaluation methods with emphasis on definition of objective functions: A review. Struct. Multidiscip. Optim.
**2020**, 61, 1677–1710. [Google Scholar] [CrossRef] - Chen, Q.; Xu, K.; Ta, D. High-resolution Lamb waves dispersion curves estimation and elastic property inversion. Ultrasonics
**2021**, 115, 106427. [Google Scholar] [CrossRef] - Okumura, S.; Nguyen, V.H.; Taki, H.; Haïat, G.; Naili, S.; Sato, T. Phase velocity estimation technique based on adaptive beamforming for ultrasonic guided waves propagating along cortical long bones. Jpn. J. Appl. Phys.
**2017**, 56, 07JF06. [Google Scholar] [CrossRef] [Green Version] - Okumura, S.; Nguyen, V.H.; Taki, H.; Haïat, G.; Naili, S.; Sato, T. Rapid High-Resolution Wavenumber Extraction from Ultrasonic Guided Waves Using Adaptive Array Signal Processing. Appl. Sci.
**2018**, 8, 652. [Google Scholar] [CrossRef] [Green Version] - Bochud, N.; Laurent, J.; Bruno, F.; Royer, D.; Prada, C. Towards real-time assessment of anisotropic plate properties using elastic guided waves. J. Acoust. Soc. Am.
**2018**, 143, 1138–1147. [Google Scholar] [CrossRef] [Green Version] - Webersen, M.; Johannesmann, S.; Düchting, J.; Claes, L.; Henning, B. Guided ultrasonic waves for determining effective orthotropic material parameters of continuous-fiber reinforced thermoplastic plates. Ultrasonics
**2018**, 84, 53–62. [Google Scholar] [CrossRef] - Tian, Z.; Yu, L. Lamb wave frequency-wavenumber analysis and decomposition. J. Intell. Mater. Syst. Struct.
**2014**, 25, 1107–1123. [Google Scholar] [CrossRef] - Eremin, A.; Glushkov, E.; Glushkova, N.; Lammering, R. Evaluation of effective elastic properties of layered composite fiber-reinforced plastic plates by piezoelectrically induced guided waves and laser Doppler vibrometry. Compos. Struct.
**2015**, 125, 449–458. [Google Scholar] [CrossRef] - Eremin, A.A.; Golub, M.V.; Wilde, M.V.; Pleshkov, V.N. Influence of retroreflective films on the behaviour of elastic guided waves measured with laser Doppler vibrometry. Measurement
**2022**, 190, 110572. [Google Scholar] [CrossRef] - Takahashi, V.; Lematre, M.; Fortineau, J.; Lethiecq, M. Elastic parameters characterization of multilayered structures by air-coupled ultrasonic transmission and genetic algorithm. Ultrasonics
**2022**, 119, 106619. [Google Scholar] [CrossRef] - Lu, L.; Charron, E.; Glushkov, E.; Glushkova, N.; Bonello, B.; Julien, F.H.; Gogneau, N.; Tchernycheva, M.; Boyko, O. Probing elastic properties of nanowire-based structures. Appl. Phys. Lett.
**2018**, 113, 161903. [Google Scholar] [CrossRef] [Green Version] - Pagnotta, L.; Stigliano, G. Elastic characterization of isotropic plates of any shape via dynamic tests: Practical aspects and experimental applications. Mech. Res. Commun.
**2009**, 36, 154–161. [Google Scholar] [CrossRef] - Wilde, M.V.; Golub, M.V.; Eremin, A.A. Experimental observation of theoretically predicted spectrum of edge waves in a thick elastic plate with facets. Ultrasonics
**2019**, 98, 88–93. [Google Scholar] [CrossRef] - Tu, J.H.; Rowley, C.W.; Luchtenburg, D.M.; Brunton, S.L.; Kutz, J.N. On dynamic mode decomposition: Theory and applications. J. Comput. Dyn.
**2014**, 1, 391–421. [Google Scholar] [CrossRef] [Green Version] - Schöpfer, F.; Binder, F.; Wöstehoff, A.; Schuster, T.; von Ende, S.; Föll, S.; Lammering, R. Accurate determination of dispersion curves of guided waves in plates by applying the matrix pencil method to laser vibrometer measurement data. CEAS Aeronaut. J.
**2013**, 4, 61–68. [Google Scholar] [CrossRef] - Chamaani, S.; Akbarpour, A.; Helbig, M.; Sachs, J. Matrix Pencil Method for Vital Sign Detection from Signals Acquired by Microwave Sensors. Sensors
**2021**, 21, 5735. [Google Scholar] [CrossRef] - Wilde, M.V.; Golub, M.V.; Eremin, A.A. Elastodynamic behaviour of laminate structures with soft thin interlayers: Theory and experiment. Materials
**2022**, 15, 1307. [Google Scholar] [CrossRef] - Thelen, M.; Bochud, N.; Brinker, M.; Prada, C.; Huber, P. Laser-excited elastic guided waves reveal the complex mechanics of nanoporous silicon. Nat. Commun.
**2021**, 12, 3597. [Google Scholar] [CrossRef] [PubMed] - Liu, Z.; Xu, K.; Li, D.; Ta, D.; Wang, W. Automatic mode extraction of ultrasonic guided waves using synchrosqueezed wavelet transform. Ultrasonics
**2019**, 99, 105948. [Google Scholar] [CrossRef] [PubMed] - Fairuschin, V.; Brand, F.; Backer, A.; Drese, K.S. Elastic Properties Measurement Using Guided Acoustic Waves. Sensors
**2021**, 21, 6675. [Google Scholar] [CrossRef] [PubMed] - Lan, B. Non-iterative, stable analysis of surface acoustic waves in anisotropic piezoelectric multilayers using spectral collocation method. J. Sound Vib.
**2018**, 433, 16–28. [Google Scholar] [CrossRef] - Grünsteidl, C.; Murray, T.W.; Berer, T.; Veres, I.A. Inverse characterization of plates using zero group velocity Lamb modes. Ultrasonics
**2016**, 65, 1–4. [Google Scholar] [CrossRef] [Green Version] - Neumann, M.N.; Hennings, B.; Lammering, R. Identification and Avoidance of Systematic Measurement Errors in Lamb Wave Observation With One-Dimensional Scanning Laser Vibrometry. Strain
**2013**, 49, 95–101. [Google Scholar] [CrossRef] - Fletcher, R. Practical Methods of Optimization, 2nd ed.; John Wiley & Sons: New York, NY, USA, 2000; p. 436. [Google Scholar]
- Golub, M.V.; Doroshenko, O.V.; Wilde, M.V.; Eremin, A.A. Experimental validation of the applicability of effective spring boundary conditions for modelling damaged interfaces in laminate structures. Compos. Struct.
**2021**, 273, 114141. [Google Scholar] [CrossRef] - Kammer, C. Aluminium Taschenbuch: Band 1: Grundlagen und Werkstoffe; Beuth Verlag: Berlin, Germany, 2021; p. 790. [Google Scholar]
- Rogers, W.P. Elastic property measurement using Rayleigh-Lamb waves. Res. Nondestruct. Eval.
**1995**, 6, 185–208. [Google Scholar] [CrossRef] - Fomenko, S.I.; Golub, M.V.; Doroshenko, O.V.; Wang, Y.; Zhang, C. An advanced boundary integral equation method for wave propagation analysis in a layered piezoelectric phononic crystal with a crack or an electrode. J. Comput. Phys.
**2021**, 447, 110669. [Google Scholar] [CrossRef] - Glushkov, E.; Glushkova, N.; Eremin, A.; Lammering, R. Group velocity of cylindrical guided waves in anisotropic laminate composites. J. Acoust. Soc. Am.
**2014**, 135, 148–154. [Google Scholar] [CrossRef]

**Figure 3.**Surfaces of the dispersion maps for $|{K}_{22}^{-1}(f,s,0,\mathit{\theta})|$ (

**a**) and ${log}_{10}\left|{K}_{22}^{-1}(f,s,0,\mathit{\theta})\right|$ (

**b**) at $\mathit{\theta}=\{70\phantom{\rule{3.33333pt}{0ex}}\mathrm{GPa},0.33,1.9\phantom{\rule{3.33333pt}{0ex}}\mathrm{mm}\}$.

**Figure 4.**Examples of artificially generated corrupted slowness-frequency pairs (${\stackrel{\u02d8}{s}}_{k}({\mathit{\theta}}^{*},{f}_{n}),{f}_{n}$) for ${\mathit{\theta}}^{*}=\{70\phantom{\rule{3.33333pt}{0ex}}\mathrm{GPa},0.33,1.9\phantom{\rule{3.33333pt}{0ex}}\mathrm{mm}\}$.

**Figure 5.**Surfaces of objective functions $F\left(\tilde{\mathit{\theta}}\right)$ (

**a**–

**d**) and ${G}_{1}\left(\tilde{\mathit{\theta}}\right)$ (

**e**–

**h**) at $\tilde{\mathit{\theta}}=(E,\nu =0.33,H)$ and for different degrees of corruptness $\sigma $ ($\delta =0.4$).

**Figure 6.**Surfaces of objective functions $F\left(\tilde{\mathit{\theta}}\right)$ (

**a**–

**d**) and ${G}_{1}\left(\tilde{\mathit{\theta}}\right)$ (

**e**–

**h**) at $\tilde{\mathit{\theta}}=(70\phantom{\rule{3.33333pt}{0ex}}\mathrm{GPa},\nu ,H)$ for different degrees of corruptness ($\delta =0.4$).

**Figure 7.**Surfaces of objective functions $F\left(\tilde{\mathit{\theta}}\right)$ (

**a**–

**d**) and ${G}_{1}\left(\tilde{\mathit{\theta}}\right)$ (

**e**–

**h**) at $\tilde{\mathit{\theta}}=(E,\nu ,1.9\phantom{\rule{3.33333pt}{0ex}}\mathrm{mm})$ for different degrees of corruptness $\sigma $ ($\delta =0.4$).

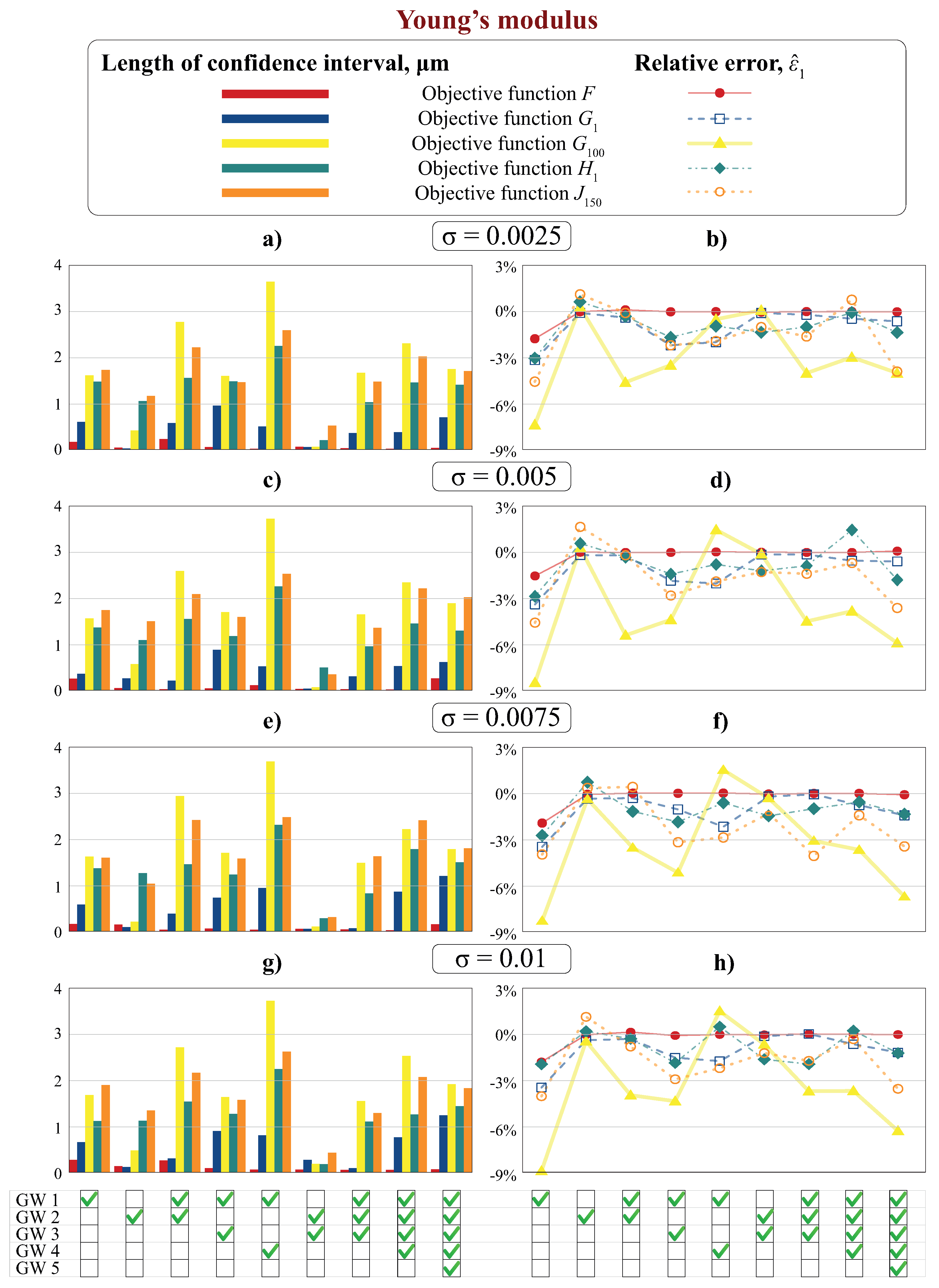

**Figure 8.**The length of confidence intervals (

**a**,

**c**,

**e**,

**g**) and the relative error ${\widehat{\u03f5}}_{1}$ (

**b**,

**d**,

**f**,

**h**) for Young’s modulus E identification obtained using five objective functions $F,{G}_{1},{G}_{100},{H}_{1},{J}_{150}$ for different levels of noise $\sigma $ at $\delta =40$%.

**Figure 9.**The length of confidence intervals (

**a**,

**c**,

**e**,

**g**) and the relative error ${\widehat{\u03f5}}_{2}$ (

**b**,

**d**,

**f**,

**h**) for Poisson’s ratio $\nu $ identification obtained using five objective functions $F,{G}_{1},{G}_{100},{H}_{1},{J}_{150}$ for different levels of noise $\sigma $ at $\delta =40$%.

**Figure 10.**The length of confidence intervals (

**a**,

**c**,

**e**,

**g**) and the relative error ${\widehat{\u03f5}}_{3}$ (

**b**,

**d**,

**f**,

**h**) for plate thickness H identification obtained using five objective functions $F,{G}_{1},{G}_{100},{H}_{1},{J}_{150}$ for different levels of noise $\sigma $ at $\delta =40$%.

**Figure 11.**Experimentally observed (circles) and theoretically predicted slownesses (lines) calculated at $\widehat{\mathit{\theta}}$ estimated using objective function F based on the slowness residuals (solid lines) and ${G}_{1}$ based on Green’s matrix (dash-dotted and dashed lines) for GW 1–GW 2 (dashed and thick solid lines) and GW 1–GW 5 (dash-dotted and thin solid lines).

**Table 1.**The cumulative percentages and the mean for the results calculated using objective function F based on the slowness residuals.

GW Modes | Statistics | |||
---|---|---|---|---|

2.5% | 97.5% | 50% | mean | |

Young’s modulus | ||||

69.44067 | 70.02778 | 69.53528 | 69.57336 | |

70.85072 | 70.93444 | 70.89058 | 70.86935 | |

70.57222 | 70.99317 | 70.94851 | 70.86905 | |

Poisson’s ratio | ||||

0.2814911 | 0.3088387 | 0.2851565 | 0.2868929 | |

0.3426350 | 0.345837 | 0.3443798 | 0.345837 | |

0.3498317 | 0.352299 | 0.3513940 | 0.3512925 | |

Thickness | ||||

2.038286 | 2.045689 | 2.044301 | 2.043785 | |

2.019506 | 2.022150 | 2.020586 | 2.020512 | |

2.001522 | 2.014291 | 2.013035 | 2.010527 |

**Table 2.**The cumulative percentages and the mean for the results calculated using objective function ${G}_{1}$ based on Green’s matrix.

GW Modes | Statistics | |||
---|---|---|---|---|

2.5% | 97.5% | 50% | mean | |

Young’s modulus | ||||

70.51223 | 70.55632 | 70.53855 | 70.54622 | |

68.29054 | 70.90552 | 70.88853 | 70.71145 | |

68.94975 | 71.68033 | 71.39863 | 71.13951 | |

Poisson’s ratio | ||||

0.3130311 | 0.3199611 | 0.3156035 | 0.3164631 | |

0.2584863 | 0.3394943 | 0.3394111 | 0.3352184 | |

0.2730250 | 0.3862568 | 0.3508503 | 0.3454789 | |

Thickness | ||||

2.050283 | 2.058020 | 2.056627 | 2.055417 | |

1.985751 | 2.081555 | 2.029845 | 2.029940 | |

2.008208 | 2.090551 | 2.030139 | 2.034077 |
