# Modeling of the Schemes for Organizing a Session of Person–System Interactions in the Information System for Critical Use Which Operates in a Wireless Communication Environment

^{*}

## Abstract

**:**

## 1. Introduction

## 2. State of the Art

## 3. Materials and Methods

#### 3.1. Statement of Research

#### 3.2. Mathematical Model of a Person–System Interaction Session in Discrete Time

- According to Scheme 1, the session is activated to satisfy the request that is waiting for the longest: $i\left(n\right)=\mathrm{arg}\underset{1\le i\le {\xi}_{n}}{\mathrm{max}{A}_{in}}$. The bandwidth $C\left(H\right)$ is determined on the basis of Equation (1): $C\left({H}_{i\left(n\right)}\left(n\right)\right)={\displaystyle \sum _{k=1}^{m}{\mathrm{log}}_{2}\left(1+{\lambda}_{k}\frac{1}{{\sigma}^{2}}{\rho}_{k}\right)}$;
- According to Scheme 2, the session is activated to satisfy a request from the person-user $i\left(n\right)$, which corresponds to the largest declared bandwidth among the requests waiting in line: $i\left(n\right)=\mathrm{arg}\underset{1\le i\le {\xi}_{n}}{\mathrm{max}}C\left({H}_{i}\left(n\right)\right)$, where the bandwidth $C\left(H\right)$ is determined by Equation (1);
- According to Scheme 3, the sessions are activated to satisfy requests from person-users from subset ${N}^{\infty}\left(n\right)$, while providing the best bandwidth: ${C}_{SR}\left({H}_{k}\left(n\right)\right)=\underset{{\Sigma}_{j}>0,{\Sigma}_{j}\left(n\right){\left({\Sigma}_{j}\left(n\right)\right)}^{T}\le {P}_{T}}{\mathrm{max}}{\mathrm{log}}_{2}\left|\mathrm{I}+{\displaystyle \sum _{j}{H}_{j}\left(n\right){\Sigma}_{j}\left(n\right){{H}^{\prime}}_{j}\left(n\right)}\right|$, $k=1,2,\dots ,{\xi}_{n}$. Accordingly, the subset ${N}^{\infty}\left(n\right)$ is identified by the expression ${N}^{\infty}\left(n\right)=\mathrm{arg}\underset{P\left\{1,2,\dots ,{\xi}_{n}\right\}}{\mathrm{max}}{C}_{SR}\left({H}_{k}\left(n\right)\right)$, $k=1,2,\dots ,{\xi}_{n}$.

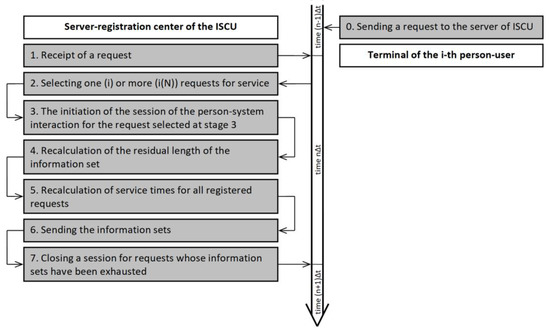

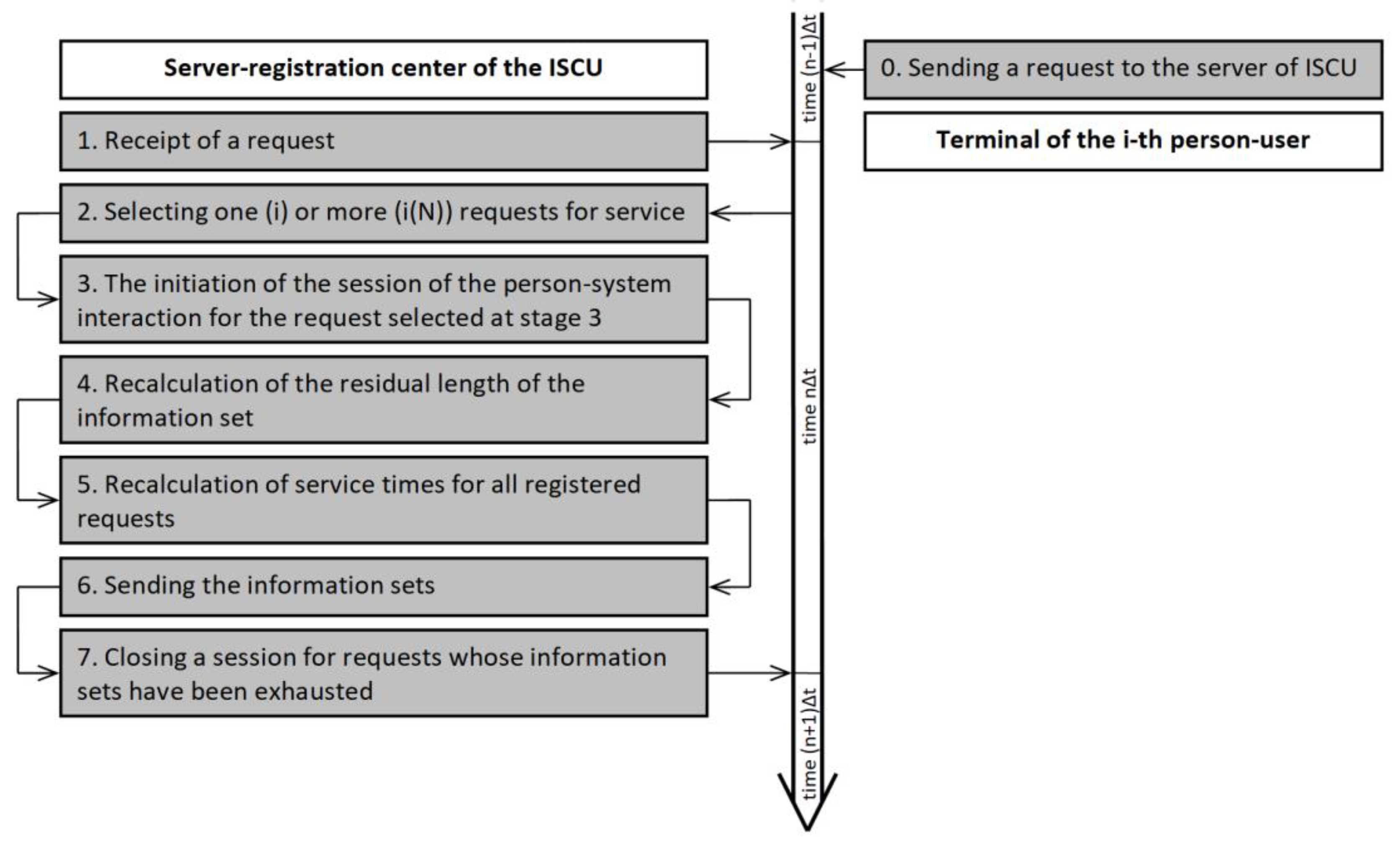

- The registration center server receives a request to activate a person–system interaction session. The probability of such an event is characterized by the stochastic parameter $a$, $0\le a\le 1$. Accordingly, the length of the queue of registered requests increases: ${\xi}_{n}={\xi}_{n-1}+1$. Additionally for the registered request: the final number of blocks of requested data is declared in the form of value of stochastic parameter ${F}_{{\xi}_{n}n}$; countdown of time of stay of request in the queue is considered by the value of parameter ${A}_{{\xi}_{n}n}$ begins (at the $n$th quantum of time ${A}_{{\xi}_{n}n}=1$); route matrix ${H}_{{\xi}_{n}}\left(n\right)$ is initiated by random values;
- Random values redefine route matrices ${H}_{i}\left(n\right)$ for active sessions of person–system interaction;
- According to the active scheme of organization of sessions of person–system or multi-person–system interactions, the values of the function $C\left(H\right)$ or ${C}_{SR}\left(H\right)$ are calculated for all registered requests;
- According to the used scheme of organization of sessions of person–system or multi-person–system interactions, the session of person–system interaction is activated for $i\left(n\right)$ or ${N}^{\infty}\left(n\right)$ request;
- For a newly activated person–system interaction session, the final number of blocks of requested data is recalculated: $i=i(n)\Rightarrow $${F}_{i\left(n\right)n}={F}_{i(n)n-1}-C\left({H}_{i\left(n\right)}\left(n\right)\right)\Delta t$, $i=k,k\in {N}^{\infty}\left(n\right)\Rightarrow $${F}_{kn}={F}_{kn-1}-C\left({H}_{k}\left(n\right)\right)\Delta t$;
- The time of each request in the queue is incremented: ${A}_{n}={A}_{n-1}+1$;
- The bandwidth for the newly activated person–system interaction session $C\left(H\right)$ is specified: the speed of loading the data block by the person-user terminal $T={A}_{in}$ is fixed, provided that the equality $\mathrm{max}\left(0,{F}_{in}\right)=0$ is not fulfilled;
- The person–system interaction sessions for which the equality $\mathrm{max}\left(0,{F}_{in}\right)=0$ holds are deactivated.

#### 3.3. Formalization in the Mathematical Apparatus of Queuing Systems of the Process of Person–System Interaction, Organized According to Schemes 1–3, in Discrete Time

#### 3.4. Formalization in the Mathematical Apparatus of Queuing Systems of the Process of Person–System Interaction, Organized According to Schemes 1–3, in a Continuous Time

## 4. Results

## 5. Discussion

## 6. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Nomenclature

${M}_{T}$ | is a set of receiving–transmitting devices on the side of the registration center server; |

${M}_{R}$ | is a set of receiving–transmitting devices on side of the terminals of each person-user; |

$i$ | is an index of the person-user terminal; |

${y}_{i}$ | is a power that characterizes such a session on the terminal of person-user on the $i$ side; |

${H}_{i}$ | is a route matrix; |

$s$ | is a vector formed by data blocks of the information message, which is transmitted by the registration center server to the $i$th terminal; |

${v}_{i}$ | is a vector formed by random values that characterize the noise affecting each receiving–transmitting device of the $i$th terminal; |

$N$ | is a peak power with zero mathematical expectation and variance ${\sigma}^{2}={N}_{0}/2$; |

${N}_{0}$ | is the spectral density of noise power; |

$V$ | is a covariance matrix of noise; |

${\mathrm{I}}_{{M}_{R}}$ | is a unit matrix; |

${P}_{T}$ | is a peak power of the information signal for the receiving–transmitting devices of the registration center server; |

${P}_{SNR}$ | is a signal-to-noise ratio; |

${\lambda}_{k}$ | are the eigen values of the matrix ${H}_{i}$; |

${\rho}_{k}$ | is the power of signal transmission via the $k$th route; |

$\mu $ | is a constant, the value of which is chosen so that the equality $\sum _{k=1}^{m}{\rho}_{k}}={P}_{T$ is satisfied; |

${C}_{SR}$ | is the total bandwidth (Equation (2)); |

${\Sigma}_{k}$ | is a covariance matrix of the person–system interaction sessions; |

$T$ | is an average time it takes a person-user to download a finite amount of data; |

$\Delta t$ | is a quantization period; |

${X}_{n}$ | is a stochastic process that describe a session of multi-person–system interaction in discrete time; |

${\xi}_{n}$ | is a stochastic value that characterizes the number of registered requests for session activation; |

${F}_{n}$ | is a vector formed by the values of the final queue lengths from data blocks for active sessions; |

${A}_{n}$ | is a vector formed by the values of the waiting times for the registered requests for activation of the session at the beginning of the $n$th quantum of time, $n\ge 1$; |

$a$ | is a stochastic parameter that characterizes such an event: a registration center server receives a request to activate a person–system interaction session; |

$T$ | is a speed of loading the data block by the person-user terminal; |

${p}_{i}$ | are stationary probabilities; |

$\rho $ | is a workload of the registration center server of ISCU; |

$w\left(z\right)$ | is a generating function that characterizes a stationary distribution of the waiting time for the start of service of the first request in the group (start time of service of request); |

$N$ | is an average number of requests served by the registration center server of ISCU; |

$E\left[T\right]$ | is the average time that the group request spends on the registration center server of ISCU (duration of downloading the information package); |

$\widehat{b}$ | is a value of the bandwidth $C\left(H\right)$ of the communication equipment of the terminal of the person-user. |

## References

- Bisikalo, O.V.; Kovtun, V.V.; Sholota, V.V. The Information System for Critical Use Access Process Dependability Modeling. In Proceedings of the 9th International Conference on Advanced Computer Information Technologies (ACIT), Ceske Budejovice, Czech Republic, 5–7 July 2019; pp. 5–8. [Google Scholar] [CrossRef]
- Bisikalo, O.V.; Kovtun, V.V.; Yukhimchuk, M.S. Modeling the security policy of the information system for critical use. In Radio Electronics, Computer Science, Control; National University “Zaporizhzhia Polytechnic”: Zaporizhia, Ukraine, 2019; pp. 132–149. [Google Scholar] [CrossRef] [Green Version]
- Bisikalo, O.V.; Kovtun, V.V.; Kovtun, O.V.; Romanenko, V.B. Research of safety and survivability models of the information system for critical use. In Proceedings of the 11th International Conference on Dependable Systems, Services and Technologies (DESSERT), Kyiv, Ukraine, 14–18 May 2020; pp. 7–12. [Google Scholar] [CrossRef]
- Maglogiannis, I.; Zafiropoulos, E. Modeling Risk in Distributed Healthcare Information Systems. In Proceedings of the International Conference of the IEEE Engineering in Medicine and Biology Society, New York, NY, USA, 30 August–3 September 2006; pp. 5447–5450. [Google Scholar] [CrossRef]
- Guo, Q.; Xie, P.; Li, F.; Guo, X.; Li, Y.; Ma, L. Research on Linkage Model of Network Resource Survey and Vulnerability Detection in Power Information System. In Proceedings of the 3rd Information Technology, Networking, Electronic and Automation Control Conference (ITNEC), Chengdu, China, 15–17 May 2019; pp. 1068–1071. [Google Scholar] [CrossRef]
- Maslyanko, P.; Riabushenko, A. Modeling information-communication system of financial investment management. In Proceedings of the International Conference on Modern Problems of Radio Engineering, Telecommunications and Computer Science (TCSET), Lviv-Slavske, Ukraine, 23–27 February 2010; p. 243. [Google Scholar]
- Rogozov, Y.; Sviridov, A.; Degtyarev, A. The information environment for the integrated life cycle model of configurable information system. In Proceedings of the 8th International Conference on Application of Information and Communication Technologies (AICT), Astana, Kazakhstan, 15–17 October 2014; pp. 1–5. [Google Scholar] [CrossRef]
- Lugović, S.; Dunđer, I.; Horvat, M. Primary and secondary experience in developing adaptive information systems supporting knowledge transfer. In Proceedings of the 40th International Convention on Information and Communication Technology, Electronics and Microelectronics (MIPRO), Opatija, Croatia, 22–26 May 2017; pp. 1207–1210. [Google Scholar] [CrossRef]
- Ongkasae, K.; Nakazato, H.; Koga, T.; Lu, X. QoS Implementation in System Wide Information Management (SWIM) Network Model. In Proceedings of the Twelfth International Symposium on Autonomous Decentralized Systems, Taichung, Taiwan, 25–27 March 2015; pp. 181–184. [Google Scholar] [CrossRef]
- Lopes RR, F.; Balaraju, P.H.; Sevenich, P. Creating Ever-changing QoS-constrained Dataflows in Tactical Networks: An Exploratory Study. In Proceedings of the International Conference on Military Communications and Information Systems (ICMCIS), Budva, Montenegro, 14–15 May 2019; pp. 1–8. [Google Scholar] [CrossRef]
- Mendes, P.; Andres-Colas, J.; Pinho, C. Information model for the specification of QoS agreements among ambient networks. In Proceedings of the 16th International Symposium on Personal, Indoor and Mobile Radio Communications, Berlin, Germany, 11–14 September 2005; Volume 3, pp. 1830–1834. [Google Scholar] [CrossRef]
- Juniang, Y.; Xiaoyuan, J.; Zhanwei, L.; Jia, D. Design and Implementation of Information Supporting System Model. In Proceedings of the WASE International Conference on Information Engineering, Taiyuan, Chanxi, 10–11 July 2009; pp. 427–430. [Google Scholar] [CrossRef]
- Sollfrank, M.; Trunzer, E.; Vogel-Heuser, B. Graphical Modeling of Communication Architectures in Network Control Systems with Traceability to Requirements. In Proceedings of the 45th Annual Conference of the IEEE Industrial Electronics Society, Lisbon, Portugal, 14–17 October 2019; pp. 6267–6273. [Google Scholar] [CrossRef]
- Heo, J.; Shin, J.W.; Kim, H.S.; Shin, D.H.; Lee, G.S.; Lee, J.I. A Study for a New IT Service Information Protection Framework. In Proceedings of the Second International Conference on Systems and Networks Communications (ICSNC 2007), Cap Esterel, France, 25–31 August 2007; p. 70. [Google Scholar] [CrossRef]
- Zhang, M.; Ranjan, R.; Menzel, M.; Nepal, S.; Strazdins, P.; Jie, W.; Wang, L. An Infrastructure Service Recommendation System for Cloud Applications with Real-time QoS Requirement Constraints. IEEE Syst. J.
**2017**, 11, 2960–2970. [Google Scholar] [CrossRef] - Gossett, J.; Noll, D.; Corman, D. Experiences in a distributed, real-time avionics domain-Weapons System Open Architecture. In Proceedings of the Fifth IEEE International Symposium on Object-Oriented Real-Time Distributed Computing. ISIRC-2002, Washington, DC, USA, 7 August 2002; pp. 307–314. [Google Scholar] [CrossRef]
- Airy, M.; Bhadra, S.; Heath, R.W.; Shakkottai, S. Transmit Precoding for the Multiple Antenna Broadcast Channel. In Proceedings of the IEEE 63rd Vehicular Technology Conference, Melbourne, Australia, 7–10 May 2006; pp. 1396–1400. [Google Scholar] [CrossRef]
- Bhadra, S.; Gupta P: Shakkottai, S. On Network Coding for Interference Networks. In Proceedings of the International Symposium on In Information Theory, Seattle, WA, USA, 9–14 July 2006; pp. 207–211. [Google Scholar] [CrossRef] [Green Version]
- Bisikalo, O.V.; Kovtun, V.V.; Kovtun, O.V. Modeling of the Estimation of the Time to Failure of the Information System for Critical Use. In Proceedings of the 10th International Conference on Advanced Computer Information Technologies (ACIT), Deggendorf, Germany, 13–15 May 2020; pp. 140–143. [Google Scholar] [CrossRef]
- Bisikalo, O.; Kovtun, O.; Kovtun, V.; Vysotska, V. Research of pareto-optimal schemes of control of availability of the information system for critical use. CEUR Workshop Proc.
**2020**, 2623, 174–193. [Google Scholar] - Bisikalo, O.V.; Kovtun, V.V.; Kovtun, O.V.; Danylchuk, O.M. Mathematical modeling of the availability of the information system for critical use to optimize control of its communication capabilities. Int. J. Sens.
**2020**, 10. [Google Scholar] [CrossRef] - Gibson, J. Information Theory and Rate Distortion Theory for Communications and Compression. Morgan Claypool
**2013**. [Google Scholar] [CrossRef] - Rong, L.; Baiping, L.; Xinrong, M. The application of modern information technology in communication theory teaching. In Proceedings of the 2nd International Conference on Consumer Electronics, Communications and Networks (CECNet), Yichang, China, 21–23 April 2012; pp. 3566–3569. [Google Scholar] [CrossRef]
- Razavi, S.M.; Zamiri-Jafarian, H. Joint subspace beamforming and space-time coding in wireless MIMO systems. In Proceedings of the International Conference on Advanced Technologies for Communications, Hai Phong, Vietnam, 12–14 October 2009; pp. 99–103. [Google Scholar] [CrossRef]
- Fasano, A.; Barbarossa, S. Information Lossless Space-Time Coding for Multiple Access Systems. In Proceedings of the International Conference on Acoustics, Speech and Signal Processing—ICASSP ’07, Honolulu, HI, USA, 15–20 April 2007; pp. III-45–III-48. [Google Scholar] [CrossRef]
- Tang, L.; Jing, X.; Zhang, Z. Adaptive switching based on Markov model for multiuser MIMO-OFDM systems. In Proceedings of the 22nd Wireless and Optical Communication Conference, Chongqing, China, 16–18 May 2013; pp. 101–104. [Google Scholar] [CrossRef]
- Liu, X.; Liu, C.; Liu, W.; Zeng, X. Wireless channel modeling and performance analysis based on Markov chain. In Proceedings of the 29th Chinese Control And Decision Conference (CCDC), Chongqing, China, 28–30 May 2017; pp. 2256–2260. [Google Scholar] [CrossRef]
- Mo, J. Performance Modeling of Communication Networks with Markov Chains. Morgan Claypool
**2010**. [Google Scholar] [CrossRef] [Green Version] - Tang, X.; Wang, Z.; Li, X.; Han, Z.; He, Z.; Fu, Y. Performance analysis for multimedia communication systems with a multilayer queuing network model. China Commun.
**2018**, 15, 67–76. [Google Scholar] [CrossRef] - Basukala, R.K.; Han, K.; Choi, D.; Kim, Y.; Han, S. QoS Assurance of Multimedia Traffic in Residential Network with Hybrid Co-ordination Function and Queuing Disciplines. In Proceedings of the Pacific-Asia Conference on Circuits, Communications and Systems, Chengdu, China, 16–17 May 2009; pp. 767–770. [Google Scholar] [CrossRef]
- Ciampa, M.; Franciosi, M.; Poletti, M. A note on impulse response for continuous, linear, time-invariant, continuous-time systems. IEEE Trans. Circuits Syst. I Regul. Pap.
**2006**, 53, 106–113. [Google Scholar] [CrossRef]

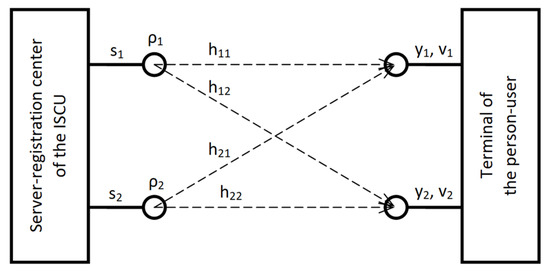

**Figure 1.**Basic scheme of organization of the session of person–system interaction at ${M}_{T}={M}_{R}=2$ (ISCU is an information system for critical use).

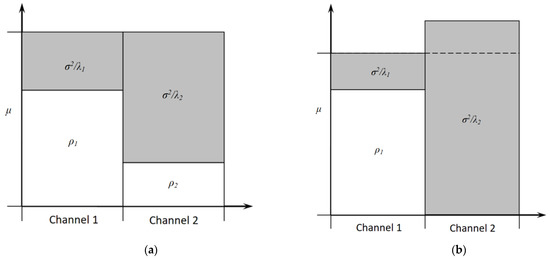

**Figure 2.**Example of application of the water filling principle to the basic scheme of organization of the session of person–system interaction at: (

**a**) ${\rho}_{1}+{\rho}_{2}={P}_{T}$ variant; (

**b**) ${\rho}_{1}={P}_{T}$ variant.

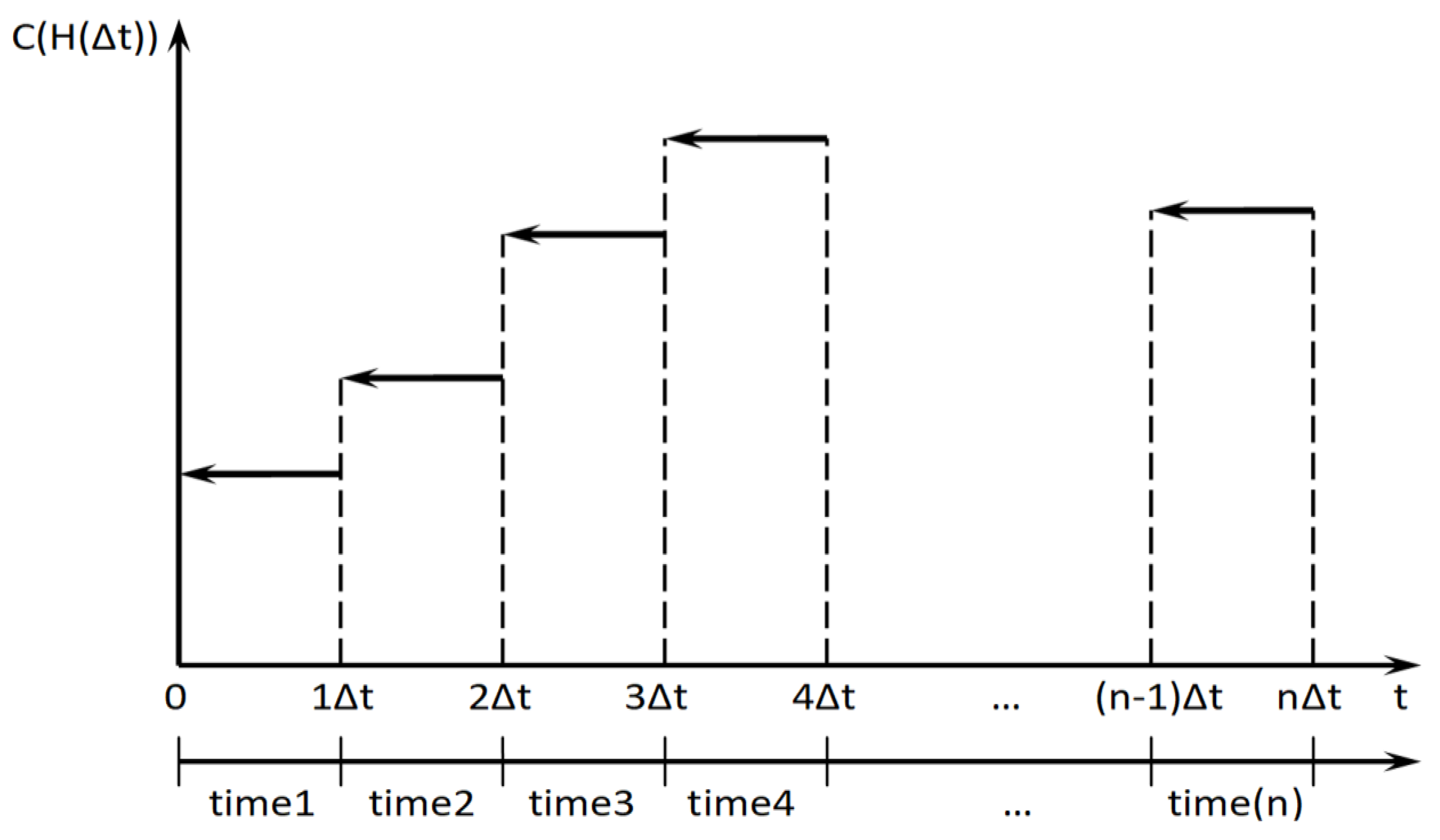

**Figure 3.**Schematic interpretation of bandwidth of a person–system interaction session in discrete time.

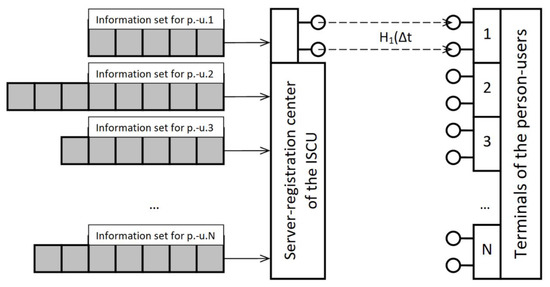

**Figure 4.**Structural model of a multi-person–system interaction session at ${M}_{T}={M}_{R}=2$, $i=\overline{1,N}$.

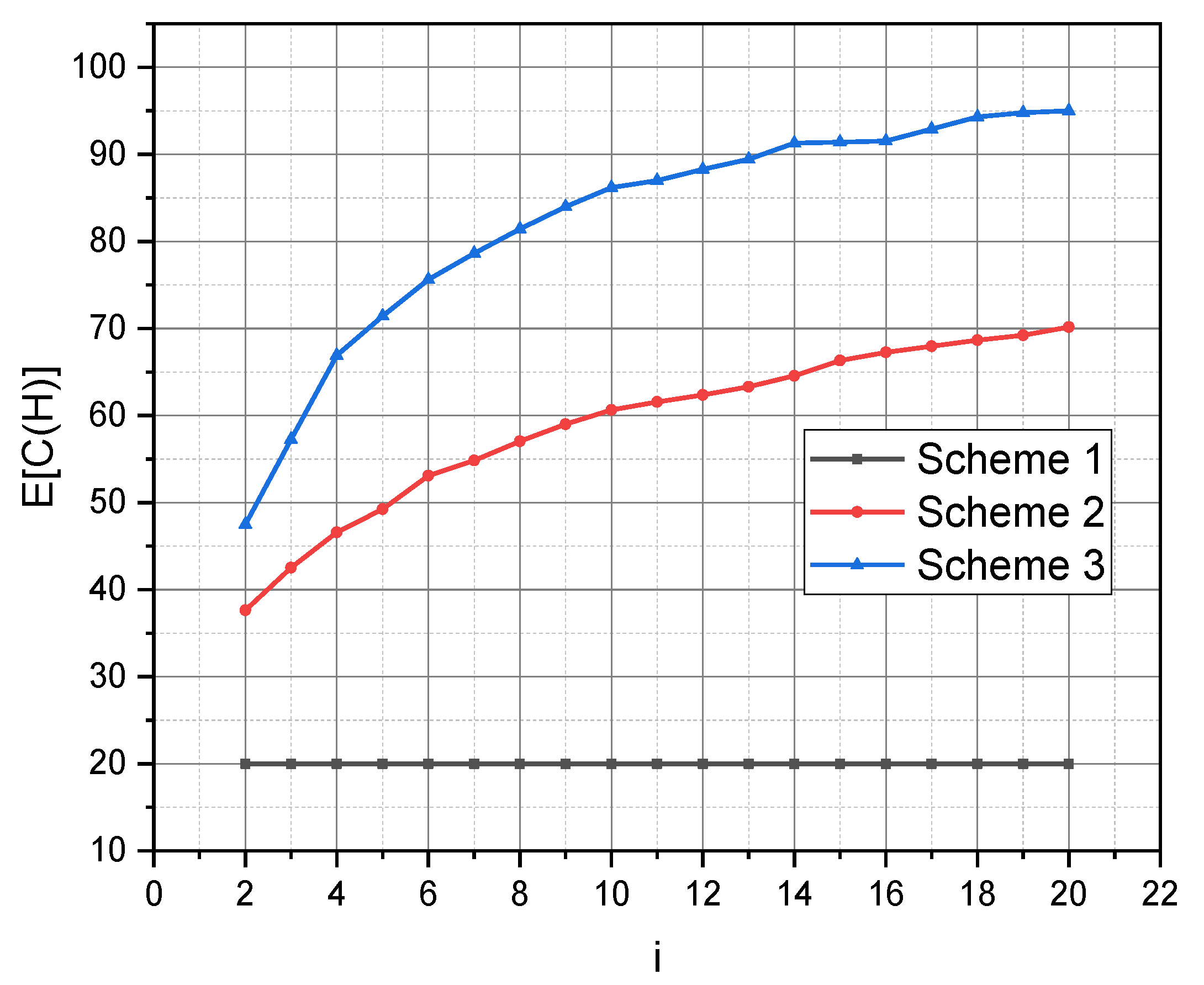

**Figure 6.**Dependence of average throughput on the number of requests and the scheme of organization of sessions of person–system interaction.

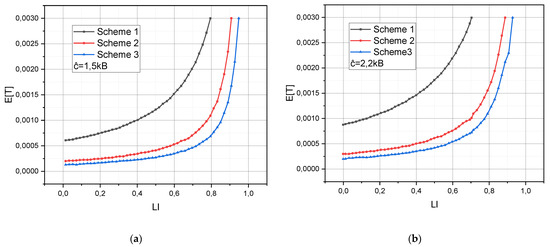

**Figure 7.**The dependence of the average duration of the person–system interaction session on the scheme involved for its organization and the intensity of the load on the registration center server, provided that: (
