Article

Strongly Lensed Supernovae in Well-Studied Galaxy Clusters with the Vera C. Rubin Observatory

by
Tanja Petrushevska
Centre for Astrophysics and Cosmology, University of Nova Gorica, Vipavska 11c, 5270 Ajdovščina, Slovenia
Symmetry 2020, 12(12), 1966; https://doi.org/10.3390/sym12121966
Submission received: 30 September 2020 / Revised: 15 November 2020 / Accepted: 24 November 2020 / Published: 27 November 2020
(This article belongs to the Special Issue Gravitational Lensing)
Browse Figures
Versions Notes

Abstract

:
Strong lensing by galaxy clusters can be used to significantly expand the survey reach, thus allowing observation of magnified high-redshift supernovae that otherwise would remain undetected. Strong lensing can also provide multiple images of the galaxies that lie behind the clusters. Detection of strongly lensed Type Ia supernovae (SNe Ia) is especially useful because of their standardizable brightness, as they can be used to improve either cluster lensing models or independent measurements of cosmological parameters. The cosmological parameter, the Hubble constant, is of particular interest given the discrepancy regarding its value from measurements with different approaches. Here, we explore the feasibility of the Vera C. Rubin Observatory Legacy Survey of Space and Time (LSST) of detecting strongly lensed SNe in the field of five galaxy clusters (Abell 1689 and Hubble Frontier Fields clusters) that have well-studied lensing models. Considering the 88 systems composed of 268 individual multiple images in the five cluster fields, we find that the LSST will be sensitive to SNe Ia (SNe IIP) exploding in 41 (23) galaxy images. The range of redshift of these galaxies is between 1.01 < z < 3.05 . During its 10 years of operation, LSST is expected to detect 0.2 ± 0.1 SN Ia and 0.9 ± 0.3 core collapse SNe. However, as LSST will observe many more massive galaxy clusters, it is likely that the expectations are higher. We stress the importance of having an additional observing program for photometric and spectroscopic follow-up of the strongly lensed SNe detected by LSST.

1. Introduction

Supernovae (SNe) have proved to be invaluable tools for various astrophysical and cosmological applications. The strong gravitational lensing effect is another powerful tool; it occurs when a foreground mass distribution is located along the line of sight to a background source. The observer can see multiple images of the background source appearing around the foreground lens (see, e.g., in [1] for a review). As the images have taken different paths through space before reaching us, the time differences between the images are sensitive to the expansion rate of the universe, parametrized by the Hubble constant, H 0 [2]. These time delays are sensitive to other cosmological parameters, albeit to a much lesser extent [3]. Using time delay of strongly lensed variable sources for measuring H 0 is also known as the Refsdal method as it was suggested by the author more than 50 years ago [4]. The time delays depend also on the lensing potential; therefore, strongly lensed SNe can be used for both cosmological and cluster lens studies [5,6,7,8].
In recent years, a discrepancy at least at the 4.4 σ level is emerging between the value of H 0 inferred from the indirect measurement from the cosmic microwave background [9] and the value derived from the local distance scale composed of classical Cepheid variable stars and SNe Type Ia (SNe Ia) [10,11,12]. The Refsdal method provides a third independent alternative to measure H 0 , and as strongly lensed SNe are rare events, it has been used on quasars (see, e.g., in [3,13]). The H0LiCOW collaboration measured H 0 to 2.4% accuracy, combining six lensed quasars, each with 6–10% precision [14]. However, quasar light curves are stochastic and unpredictable; therefore, they require long observations spanning over years and even more than a decade (see, e.g., in [13]). Relative to quasars, lightcurves of SNe Ia form a homogeneous group (see, e.g., in [15,16]). Knowing the absolute brightness of SNe Ia allows to estimate the absolute magnification of SNe Ia, and therefore to break the so-called mass-sheet degeneracy of gravitational lenses [17]. Thus, they could be used to put constraints on the lensing potential, if a cosmological model is assumed (see, e.g., in [18,19,20]).
Systematic searches for SNe in background galaxies behind clusters have been performed with both space- and ground-based instruments [19,20,21,22,23,24]. Very large Hubble Space telescope (HST) programs with more than thousand orbits have been targeting galaxy clusters, to improve cluster lensing models and search for SNe [25,26]. Remarkably, they resulted in the discovery of the first multiply-imaged SN (dubbed “SN Refsdal”) behind a galaxy cluster [27,28] and it was most probably a core-collapse (CC) type of explosion [28]. Several teams predicted the reappearance of SN Refsdal almost a year later, which allowed testing of their lens models [29,30]. By measuring the time delays of SN Refsdal and having a high-quality strong lensing model of the galaxy cluster, it was shown that it is possible to measure H 0 with 6% total uncertainty [31]. Dedicated ground-based searches for lensed SNe behind galaxy clusters have been performed using near-infrared instruments at the Very Large Telescope [22,23,24,32]. Most notably, they reported the discovery of one of the most distant CC SN ever found, at redshift z = 1.703 with a lensing magnification factor of 4.3 ± 0.3 [33]. Furthermore, thanks to the power of the lensing cluster, it was possible to estimate the volumetric CC SN rates for 0.4 ≤ z < 2.9 and compare it with the predictions from cosmic star formation history [23].
The first resolved multiply-imaged SN Ia, iPTF16geu, with four resolved images arranged symmetrically around the lens galaxy, was magnified by a galaxy lens [34]. Before the discovery of iPTF16geu, only one other strongly lensed SN Ia by galaxy lens was known, PS1-10afx, but only few years later it was realized that it was a SN Ia magnified ∼ 30 times by the foreground galaxy [35]. PS1-10afx most probably had multiple images, which could not be resolved with the available data [35,36]. The multiple images of iPTF16geu were well resolved by HST and ground-based images with adaptive optics, but the estimated time delays were about half a day, which is difficult to measure with SNe Ia light curves [37]. Cluster lensing timescales are much longer, typically at the order of months and years [7,23,24,38]. Therefore, the microlensing effects, i.e., the stellar-scale lensing which is important at micro-arcsecond scales and causes fluctuations on timescales of weeks to months [39], become subdominant. These two considerations could make cluster lens time delays measurement potentially more feasible, in the cases where the lens potential is well studied, so the predicted time delays have small uncertainties [8].
In this work, we focus on prospects of observing SNe which are strongly lensed by well-studied galaxy clusters with the upcoming Vera C. Rubin Observatory (Rubin Observatory, hereafter). The Rubin Observatory will scan the transient sky through its Legacy Survey for Space and Time (LSST) with a 8.4 m telescope, targeting at least 18,000 deg 2 of the southern hemisphere with a field of view of 9.6 deg 2 [40]. Its duration is set to at least ten years and it will use set of six broad photometric bands, u g r i z y . The LSST observing strategy has not been finalized [40], which means that distribution of observations to a field within a year and the distribution between filters have not been decided. Choosing an observing strategy is an important and challenging task as the main science goals of the LSST are quite broad, ranging from constraining dark energy to exploring the Solar System, the Milky Way, and the transient optical sky. There will be a main “wide-fast-deep” (WFD) survey which will consume ∼ 80 % of the whole survey time, covering the equatorial declination range − 6 2 ° < δ < + 2 ° , and excluding the central portion of the Galactic plane. In the WFD survey, two visits in either the same or different filters are acquired each night, to allow identification of moving objects and rapidly varying transients. These pairs of visits are repeated every three to four nights throughout the period the field is visible in each year. Currently, the official LSST observation is a pair of 15 s exposures, which helps to reject cosmic rays, but there is a possibility that it could be switched a single 30 s exposure because of a potential gain of 7% efficiency and improved image quality [41]. Here, we consider the baseline observing strategy (https://cadence-hackathon.readthedocs.io/en/) which uses 2 × 15 s exposures, simulated with the LSST Operations Simulator (OpSim) [40], based on a model of the observatory (including telescope) and historical data of observational conditions [42]. We use the latest baseline OpSim simulation released in August 2020 (http://astro-lsst-01.astro.washington.edu:8080/?runId=16).

2. Estimating the Expected Number of Strongly Lensed Supernovae Observable by the Rubin Observatory

We consider the six galaxy clusters from the Hubble Frontier Fields (HFF) [26] program with the HST. These are Abell 2744, MACS J0416.1-2403, MACS J0717.5+3745, MACS J1149.5+2223, Abell S1063, and Abell 370. We add to this list the well-studied galaxy cluster Abell 1689. The reason for this choice is the existence of reliable lensing models for these clusters, thus well constrained magnification maps, based on good quality data, such as deep HST images and Multi-Unit Spectroscopic Explorer (MUSE) spectroscopy. Using recently published lensing models of the HFF clusters [43,44,45], the predicted magnifications and time delays between the images were presented in [24,38]. In the same studies, by using multi-band HST photometry, the global properties of the multiply-imaged galaxies were inferred. These properties are the stellar mass, star formation rate (SFR), and SN rate, which depend on the luminosity of the galaxy corrected for the predicted magnification. This means that the inferred galaxy properties depend on the lensing model.
From these seven galaxy clusters, two (MACS J1149.5+2223 and MACS J0717.5+3745) are not visible from the latitude of the Rubin Observatory. The final list is given in the Table 1 together with number of the background galaxies, number of multiple images that these galaxies have, and their redshifts. An example of one galaxy cluster with the background galaxies and its 67 multiple images are shown in Figure 1. We only consider the multiply imaged galaxies that have a spectroscopic redshift. Considering the redshifts of the SNe from Table 1, the most important filters are at the longest wavelengths: i, z, and y. The reason for this is because most of the light of nearby SNe is in the optical bands, so their light is redshifted to the longer wavelengths when higher redshifts are considered. An example of typical SN Ia and SN IIP at redshift that can be observed in the galaxy cluster fields considered here is given in Figure 2, together with the LSST filter response system. Most of the pairs of images that have time delays that are shorter than ten years (see column 3 of Table 2 from the work in [24] and column 3 of Table 3 from the work in [38]), which is the planned duration of LSST. In Table 1, we also include the number of visits to the clusters that the LSST will dedicate in ten years. In the baseline observing strategy considered here, there is no large difference between the number of visits per filter or per cluster because LSST is designed to observe at least 825 times each field over the duration of the WFD survey. However, the image depth differs between filters; it is the highest in the i and the lowest in the y band. The average 5 σ image depth of the selected cluster fields in i band is ∼ 23.4 , ∼ 22.7 in z, and ∼ 22.0 in y band.
We use the procedures outlined in [23] to calculate the sensitivity of LSST to detect strongly lensed SNe in the multiply lensed background galaxies of the five galaxy clusters. First, we estimate the control time for each galaxy image, T i , which indicates the amount of time the survey is sensitive of detecting a SN candidate [46]. The control time above the detection threshold, is a function of the SN light curve, absolute intrinsic SN brightness, the image depth, dates of observation, filter, extinction by dust and the lensing magnification. The peak V band brightness and its one standard deviation is assumed as 19.3 ± 0.3 for SNe Ia, while for CC SNe we use the values compiled by the authors of [47] in their Table 1. The probability distribution of the absolute intrinsic brightness is assumed to be Gaussian. As in [23,24], the values for the color excess were drawn from a positive Gaussian distribution with a mean E ( B − V ) = 0.15 and σ E = 0.02 justified by extinction studies of high-redshift galaxies behind Abell 1689 [48]. The dates of observation, filter, and image depth are taken from the simulated survey strategy generated with OpSim.
LSST can detect a SN in those galaxies that have positive control time. Few examples of simulated SN Ia light curves that could be observed with LSST are shown in Figure 3. The synthetic light curves in the observer filters for redshift z were obtained by applying cross-filter k-corrections [49]. Furthermore, to obtain the “observed” magnitude in the chosen LSST filter, the lensing magnification from the galaxy cluster is also taken into consideration. For example, the multiple images (labeled 5.1, 5.2, 5.3, and 5.4 in the last column in Figure 3) of galaxy source 5 at redshift z = 1.28 , are magnified by 2.99 ± 0.08 , 4.09 ± 0.09 , 4.27 ± 0.12 , and 4.21 ± 0.13 mag, respectively (Table 2 from the work in [24]). With this magnification, typical SNe are detectable with the LSST, even at this high redshift. Furthermore, the estimated time delays between 5.4 and the other three images is 94 ± 4 , 104 ± 8 , and 135 ± 7 days, respectively (Table 2 from the work in [24]). The length of these time delays is within the duration of LSST, so if a SN explodes in this galaxy, there is a possibility that it will be detected in the other images during the survey, as the median revisit of the same field is 1 to 8 days, depending on the filter. However, there are gaps of observations up to 200–300 days, due to, for example, visibility issues. Therefore, it is not guaranteed that LSST will observe that specific field when the other SN images appear, and observations with another photometric and spectroscopic program should be scheduled when the reappearance is expected.
Second, we calculate the expected number of SNe in each galaxy N i , by multiplying the SN rate R i and the control time T i ,
N i = R i · T i ,
where i indicates the individual galaxy. As the control time is dependent on the SN type, it is computed separately for each SN type. The total CC control time is obtained by weighting the contributions for the CC SN types. We use the values for the relative CC SN fractions from [47], compiled in their Table 1. The expected SN Ia rate in a galaxy, R i , depends on the SFR and the stellar mass through an empirical relation [50], while the CC SN rate scales with the SFR. We used the SFR, stellar masses and SN rates estimates from the works in [24,38] for the HFF clusters and from the work in [7] for Abell 1689. To obtain the total expected number of SNe Ia and CC SNe over all the systems, we sum the expectations over the individual galaxies.

3. Results

First, considering the five well-studied galaxy clusters and their background strongly lensed galaxies with multiple images, we find that the LSST will be sensitive to SNe Ia exploding in 41 galaxies, while for the most common CC SNe, SNe IIP, the number is lower, 23. The main reason for this is that SNe IIP are simply fainter. The galaxies for which LSST is sensitive of detecting SNe have redshift between 0.73 < z < 1.95 for SNe Ia, while for CC SNe 0.73 < z < 3.05 . SNe IIP are visible to LSST at higher redshifts because they emit much more in the rest-frame UV, so at high redshift that region is shifted and it is still visible with the LSST filters at the longest wavelengths (see Figure 2). As SNe Ia are not bright at rest-frame UV, they are practically not observable at z ≳ 2 with an optical survey. The sensitivity of LSST for each galaxy cluster is shown in Table 2.
Second, we show the estimated number of expected strongly lensed SNe in the selected galaxy cluster fields in 10 years of the Rubin Observatory, presented in Table 3. The observability of a SN in the multiply-imaged galaxies is sensitive to the SN properties such as light curve, absolute intrinsic SN brightness; galaxy properties such as redshift, star formation rate, extinction in the line of site and magnification of the galaxy, but also on the survey parameters such as image depth, cadence and filter. Considered the baseline observing strategy of the 10 years of operation, LSST is expected to detect 0.2 ± 0.1 SN Ia and 0.9 ± 0.3 CC SN in the five cluster fields. However, since we have considered only SNe in multiply-imaged galaxies with spectroscopic redshift of five galaxy clusters, this is a lower limit. As there are more galaxies with photometric redshift only, it is likely that the expectations are higher. We note that, as the LSST official observing strategy might be adjusted in the future, our forecast will also change.

4. Discussion

The Rubin Observatory is not optimal for the discovery of strongly lensed SNe in galaxy cluster fields, given that it is a ground-based observatory with filters which do not extend to the near-infrared and infrared, where most of the light is emitted of SNe at redshifts considered here (see Figure 2). The problem is especially accentuated for SNe Ia. Therefore, for this purpose, a space-based observatory with extended near-infrared and infrared filters such as the upcoming James Webb Space Telescope (JWST [51]) or the Nancy Grace Roman Space Telescope [52] would be more appropriate. By considering only four visits of one hour which can be taken in one year in the broad near-infrared filter F150W to the clusters considered here, the JWST/NIRCam instrument is expected to find 0.19 ± 0.07 SNe Ia [38]. When CC SNe are considered, the expected number is much higher, 1.7 ± 0.5 . SN rates at high redshifts are dominated by CC SNe, so it is likely that the strongly lensed SNe by galaxy clusters will by dominated by the CC type [23,38]. Obtaining observing time for a dedicated multi-year search with JWST relatively small field of view of 2.2 ′ × 2.2 ′ will most-likely be competitive with high over-subscription rates. On the other hand, LSST observations of the galaxy cluster fields will be part of the nominal program and the data can be searched for strongly lensed SNe immediately. However, the Rubin Observatory will serve to detect the strongly lensed SNe, but it is better to have additional follow-up by other photometric and spectroscopic instruments for detailed study of the lensed SNe and their time delays.
One way to improve LSST sensitivity to high-redshift SNe is to obtain better image depth in the reddest bands ( i z y ) through co-adding images from visits closely separated in time. Improving the image depth means that the survey becomes sensitive to detecting SNe in more multiply-imaged galaxies. This can be done through a dedicated program which will focus on monitoring the galaxy cluster fields. A similar strategy is currently implemented by the Zwicky Transient Facility [53] for searching for strongly lensed SNe Ia by lens galaxies [54,55,56].
As we noted in the previous section, the results presented in this work are lower limits, as we have only considered five galaxy clusters and the multiply-imaged galaxies in the field with spectroscopic redshift. It is expected that LSST will observe ∼ 70 galaxy clusters with Einstein radii larger than θ E > 20 ″ [57]. More systems behind galaxy clusters will be measured with spectroscopic campaigns with instruments such as MUSE at the Very Large Telescope (see, e.g., in [43,45,58]), which not only will increase the number of multiply-imaged galaxies with spectroscopic redshifts in the clusters considered here, but will also allow to have more galaxy clusters with high quality lensing models.
For the purpose of inferring H 0 with high precision, it would be most useful to measure time delays of SNe Ia, which have a well-established relationship between their optical peak luminosity and rate of brightness decline, which makes them excellent standardizable candles. However, detecting strongly lensed and magnified CC SNe, which are much more common at high redshifts [59], is also beneficial for several reasons. Despite the fact that SN Refsdal is a CC type of explosion, thanks to the high-quality strong lensing model of the galaxy cluster, it was shown that it is possible to measure H 0 with 6% total uncertainty [31]. Furthermore, the discovery and the photometric and spectroscopic follow-up data that can be obtained could also help understand CC SNe at high redshifts. This would be interesting, as CC SNe are on average intrinsically fainter than SNe Ia and often embedded in dusty environments, making their studies at z > 0.4 challenging (see, e.g., in [60]). Therefore, the magnification from galaxy clusters can provide an advance in redshift and can even allow the constraints of the CC SN rate at high redshifts [23]. As both the area and the flux of background galaxies are magnified, it also allows for accurately studying the host environment, which would not be possible in unlensed scenario [33]. Therefore, even if the LSST detects the more common case, strongly lensed CC SNe with significant magnification, but no multiple images, they can still be useful for the means of studying SNe and their host environment at unprecedented redshifts.

5. Conclusions

As there is a current tension regarding the H 0 value, one of the priorities of the community is to provide an independent measure of H 0 , which can be done by monitoring time delays of cluster lensed SNe. There is a further utility of magnified SNe by clusters. They can be used as test of galaxy cluster lens models, or in the cases of well-known lensing models, there is the opportunity to study SNe and their host environment in the early universe.
In a previous work, we estimated the magnifications and the time delays of the multiply-imaged galaxies behind HFF clusters based on high-quality lens models by the authors of [43,44,45]. We also inferred their properties such as SFRs, stellar masses, and SN rates by using very deep HST photometry. Here, we explored the feasibility of detecting strongly lensed SNe with the Rubin Observatory behind these galaxy clusters. We found that in the 10 years of LSST in the five galaxy cluster fields, the expectations are 0.2 ± 0.1 SN Ia and 0.9 ± 0.3 CC SN, though these are likely lower limits, as LSST will observe dozens more massive galaxy clusters. Given the redshift range of 0.73 < z < 5.75 , the ground-based Rubin Observatory filter set is not optimal for detecting SNe in these galaxies. Next generation space telescopes will be much more appropriate for this task. Nevertheless, massive clusters as those considered in this study will work as precious gravitational telescopes providing concrete possibility for LSST to observe strongly SNe at high redshift.

Funding

This research was funded by the Slovenian Research Agency (grants I0-0033, P1-0031, J1-8136 and Z1-1853).

Conflicts of Interest

The author declares no conflict of interest.

Abbreviations

The following abbreviations are used in this manuscript:
CC SNCore collapse supernova
H 0 Hubble constant
HFFHubble Frontier Fields
HSTHubble Space telescope
JWSTJames Webb Space Telescope
LSSTLegacy Survey for Space and Time
SFRStar formation rate
SNSupernova
SN IaSupernova Type Ia
Rubin ObservatoryVera C. Rubin Observatory

References

  1. Oguri, M. Strong gravitational lensing of explosive transients. Rep. Prog. Phys. 2019, 82, 126901. [Google Scholar] [CrossRef] [Green Version]
  2. Taubenberger, S.; Suyu, S.H.; Komatsu, E.; Jee, I.; Birrer, S.; Bonvin, V.; Courbin, F.; Rusu, C.E.; Shajib, A.J.; Wong, K.C. The Hubble constant determined through an inverse distance ladder including quasar time delays and Type Ia supernovae. A&A 2019, 628, L7. [Google Scholar] [CrossRef] [Green Version]
  3. Treu, T.; Marshall, P.J. Time delay cosmography. Astron. Astrophys. Rev. 2016, 24, 11. [Google Scholar] [CrossRef] [Green Version]
  4. Refsdal, S. On the possibility of determining Hubble’s parameter and the masses of galaxies from the gravitational lens effect. Mon. Not. R. Astron. Soc. 1964, 128, 307. [Google Scholar] [CrossRef]
  5. Goobar, A.; Mörtsell, E.; Amanullah, R.; Nugent, P. Cosmological parameters from lensed supernovae. Astron. Astrophys. 2002, 393, 25–32. [Google Scholar] [CrossRef] [Green Version]
  6. Coe, D.; Moustakas, L.A. Cosmological Constraints from Gravitational Lens Time Delays. Astrophys. J. 2009, 706, 45–59. [Google Scholar] [CrossRef] [Green Version]
  7. Riehm, T.; Mörtsell, E.; Goobar, A.; Amanullah, R.; Dahlén, T.; Jönsson, J.; Limousin, M.; Paech, K.; Richard, J. Near-IR search for lensed supernovae behind galaxy clusters. III. Implications for cluster modeling and cosmology. Astron. Astrophys. 2011, 536, A94. [Google Scholar] [CrossRef]
  8. Grillo, C.; Rosati, P.; Suyu, S.H.; Balestra, I.; Caminha, G.B.; Halkola, A.; Kelly, P.L.; Lombardi, M.; Mercurio, A.; Rodney, S.A.; et al. Measuring the Value of the Hubble Constant a la Refsdal. Astrophys. J. 2018, 860, 94. [Google Scholar] [CrossRef] [Green Version]
  9. Collaboration, P.; Aghanim, N.; Akrami, Y.; Ashdown, M.; Aumont, J.; Baccigalupi, C.; Ballardini, M.; Banday, A.J.; Barreiro, R.B.; Bartolo, N.; et al. Planck 2018 results - VI. Cosmological parameters. A&A 2020, 641, A6. [Google Scholar] [CrossRef] [Green Version]
  10. Riess, A.G.; Macri, L.M.; Hoffmann, S.L.; Scolnic, D.; Casertano, S.; Filippenko, A.V.; Tucker, B.E.; Reid, M.J.; Jones, D.O.; Silverman, J.M.; et al. A 2.4% Determination of the Local Value of the Hubble Constant. Astrophys. J. 2016, 826, 56. [Google Scholar] [CrossRef]
  11. Riess, A.G.; Casertano, S.; Yuan, W.; Macri, L.; Anderson, J.; MacKenty, J.W.; Bowers, J.B.; Clubb, K.I.; Filippenko, A.V.; Jones, D.O.; et al. New Parallaxes of Galactic Cepheids from Spatially Scanning the Hubble Space Telescope: Implications for the Hubble Constant. Astrophys. J. 2018, 855, 136. [Google Scholar] [CrossRef] [Green Version]
  12. Riess, A.G.; Casertano, S.; Yuan, W.; Macri, L.M.; Scolnic, D. Large Magellanic Cloud Cepheid Standards Provide a 1% Foundation for the Determination of the Hubble Constant and Stronger Evidence for Physics beyond ΛCDM. Astrophys. J. 2019, 876, 85. [Google Scholar] [CrossRef]
  13. Suyu, S.H.; Marshall, P.J.; Auger, M.W.; Hilbert, S.; Blandford, R.D.; Koopmans, L.V.E.; Fassnacht, C.D.; Treu, T. Dissecting the Gravitational lens B1608+656. II. Precision Measurements of the Hubble Constant, Spatial Curvature, and the Dark Energy Equation of State. Astrophys. J. 2010, 711, 201–221. [Google Scholar] [CrossRef]
  14. Wong, K.C.; Suyu, S.H.; Chen, G.C.F.; Rusu, C.E.; Millon, M.; Sluse, D.; Bonvin, V.; Fassnacht, C.D.; Taubenberger, S.; Auger, M.W.; et al. H0LiCOW XIII. A 2.4% measurement of H0 from lensed quasars: 5.3σ tension between early and late-Universe probes. Mon. Not. R. Astron. Soc. 2020. [Google Scholar] [CrossRef]
  15. Goobar, A.; Leibundgut, B. Supernova Cosmology: Legacy and Future. Annu. Rev. Nucl. Part. Sci. 2011, 61, 251–279. [Google Scholar] [CrossRef] [Green Version]
  16. Pierel, J.D.R.; Rodney, S. Turning Gravitationally Lensed Supernovae into Cosmological Probes. Astrophys. J. 2019, 876, 107. [Google Scholar] [CrossRef] [Green Version]
  17. Holz, D.E. Seeing Double: Strong Gravitational Lensing of High-Redshift Supernovae. Astrophys. J. Lett. 2001, 556, L71–L74. [Google Scholar] [CrossRef]
  18. Nordin, J.; Rubin, D.; Richard, J.; Rykoff, E.; Aldering, G.; Amanullah, R.; Atek, H.; Barbary, K.; Deustua, S.; Fakhouri, H.K.; et al. Lensed Type Ia supernovae as probes of cluster mass models. Mon. Not. R. Astron. Soc. 2014, 440, 2742–2754. [Google Scholar] [CrossRef] [Green Version]
  19. Patel, B.; McCully, C.; Jha, S.W.; Rodney, S.A.; Jones, D.O.; Graur, O.; Merten, J.; Zitrin, A.; Riess, A.G.; Matheson, T.; et al. Three Gravitationally Lensed Supernovae behind CLASH Galaxy Clusters. Astrophys. J. 2014, 786, 9. [Google Scholar] [CrossRef] [Green Version]
  20. Rodney, S.A.; Patel, B.; Scolnic, D.; Foley, R.J.; Molino, A.; Brammer, G.; Jauzac, M.; Bradač, M.; Broadhurst, T.; Coe, D.; et al. Illuminating a Dark Lens: A Type Ia Supernova Magnified by the Frontier Fields Galaxy Cluster Abell 2744. Astrophys. J. 2015, 811, 70. [Google Scholar] [CrossRef]
  21. Gal-Yam, A.; Maoz, D.; Sharon, K. Supernovae in deep Hubble Space Telescope galaxy cluster fields: Cluster rates and field counts. Mon. Not. R. Astron. Soc. 2002, 332, 37–48. [Google Scholar] [CrossRef] [Green Version]
  22. Goobar, A.; Paech, K.; Stanishev, V.; Amanullah, R.; Dahlén, T.; Jönsson, J.; Kneib, J.P.; Lidman, C.; Limousin, M.; Mörtsell, E.; et al. Near-IR search for lensed supernovae behind galaxy clusters. II. First detection and future prospects. Astron. Astrophys. 2009, 507, 71–83. [Google Scholar] [CrossRef] [Green Version]
  23. Petrushevska, T.; Amanullah, R.; Goobar, A.; Fabbro, S.; Johansson, J.; Kjellsson, T.; Lidman, C.; Paech, K.; Richard, J.; Dahle, H.; et al. High-redshift supernova rates measured with the gravitational telescope A 1689. Astron. Astrophys. 2016, 594, A54. [Google Scholar] [CrossRef] [Green Version]
  24. Petrushevska, T.; Goobar, A.; Lagattuta, D.J.; Amanullah, R.; Hangard, L.; Fabbro, S.; Lidman, C.; Paech, K.; Richard, J.; Kneib, J.P. Searching for supernovae in the multiply-imaged galaxies behind the gravitational telescope A370. Astron. Astrophys. 2018, 614, A103. [Google Scholar] [CrossRef] [Green Version]
  25. Treu, T.; Schmidt, K.B.; Brammer, G.B.; Vulcani, B.; Wang, X.; Bradač, M.; Dijkstra, M.; Dressler, A.; Fontana, A.; Gavazzi, R.; et al. The Grism Lens-Amplified Survey from Space (GLASS). I. Survey Overview and First Data Release. Astrophys. J. 2015, 812, 114. [Google Scholar] [CrossRef]
  26. Lotz, J.M.; Koekemoer, A.; Coe, D.; Grogin, N.; Capak, P.; Mack, J.; Anderson, J.; Avila, R.; Barker, E.A.; Borncamp, D.; et al. The Frontier Fields: Survey Design and Initial Results. Astrophys. J. 2017, 837, 97. [Google Scholar] [CrossRef]
  27. Kelly, P.L.; Rodney, S.A.; Treu, T.; Foley, R.J.; Brammer, G.; Schmidt, K.B.; Zitrin, A.; Sonnenfeld, A.; Strolger, L.G.; Graur, O.; et al. Multiple images of a highly magnified supernova formed by an early-type cluster galaxy lens. Science 2015, 347, 1123–1126. [Google Scholar] [CrossRef] [Green Version]
  28. Kelly, P.L.; Brammer, G.; Selsing, J.; Foley, R.J.; Hjorth, J.; Rodney, S.A.; Christensen, L.; Strolger, L.G.; Filippenko, A.V.; Treu, T.; et al. SN Refsdal: Classification as a Luminous and Blue SN 1987A-like Type II Supernova. Astrophys. J. 2016, 831, 205. [Google Scholar] [CrossRef] [Green Version]
  29. Grillo, C.; Karman, W.; Suyu, S.H.; Rosati, P.; Balestra, I.; Mercurio, A.; Lombardi, M.; Treu, T.; Caminha, G.B.; Halkola, A.; et al. The Story of Supernova Refsdal Told by Muse. Astrophys. J. 2016, 822, 78. [Google Scholar] [CrossRef] [Green Version]
  30. Kelly, P.L.; Rodney, S.A.; Treu, T.; Strolger, L.G.; Foley, R.J.; Jha, S.W.; Selsing, J.; Brammer, G.; Bradač, M.; Cenko, S.B.; et al. Deja Vu All Over Again: The Reappearance of Supernova Refsdal. Astrophys. J. Lett. 2016, 819, L8. [Google Scholar] [CrossRef] [Green Version]
  31. Grillo, C.; Rosati, P.; Suyu, S.H.; Caminha, G.B.; Mercurio, A.; Halkola, A. On the Accuracy of Time-delay Cosmography in the Frontier Fields Cluster MACS J1149.5+2223 with Supernova Refsdal. Astrophys. J. 2020, 898, 87. [Google Scholar] [CrossRef]
  32. Stanishev, V.; Goobar, A.; Paech, K.; Amanullah, R.; Dahlén, T.; Jönsson, J.; Kneib, J.P.; Lidman, C.; Limousin, M.; Mörtsell, E.; et al. Near-IR search for lensed supernovae behind galaxy clusters. I. Observations and transient detection efficiency. Astron. Astrophys. 2009, 507, 61–69. [Google Scholar] [CrossRef] [Green Version]
  33. Amanullah, R.; Goobar, A.; Clément, B.; Cuby, J.G.; Dahle, H.; Dahlén, T.; Hjorth, J.; Fabbro, S.; Jönsson, J.; Kneib, J.P.; et al. A Highly Magnified Supernova at z = 1.703 behind the Massive Galaxy Cluster A1689. Astrophys. J. Lett. 2011, 742, L7. [Google Scholar] [CrossRef] [Green Version]
  34. Goobar, A.; Amanullah, R.; Kulkarni, S.R.; Nugent, P.E.; Johansson, J.; Steidel, C.; Law, D.; Mörtsell, E.; Quimby, R.; Blagorodnova, N.; et al. iPTF16geu: A multiply imaged, gravitationally lensed type Ia supernova. Science 2017, 356, 291–295. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Quimby, R.M.; Oguri, M.; More, A.; More, S.; Moriya, T.J.; Werner, M.C.; Tanaka, M.; Folatelli, G.; Bersten, M.C.; Maeda, K.; et al. Detection of the Gravitational Lens Magnifying a Type Ia Supernova. Science 2014, 344, 396–399. [Google Scholar] [CrossRef] [Green Version]
  36. Quimby, R.M.; Werner, M.C.; Oguri, M.; More, S.; More, A.; Tanaka, M.; Nomoto, K.; Moriya, T.J.; Folatelli, G.; Maeda, K.; et al. Extraordinary Magnification of the Ordinary Type Ia Supernova PS1-10afx. Astrophys. J. Lett. 2013, 768, L20. [Google Scholar] [CrossRef] [Green Version]
  37. Dhawan, S.; Johansson, J.; Goobar, A.; Amanullah, R.; Mörtsell, E.; Cenko, S.B.; Cooray, A.; Fox, O.; Goldstein, D.; Kalender, R.; et al. Magnification, dust and time-delay constraints from the first resolved strongly lensed Type Ia supernova iPTF16geu. Mon. Not. R. Astron. Soc. 2019. [Google Scholar] [CrossRef]
  38. Petrushevska, T.; Okamura, T.; Kawamata, R.; Hangard, L.; Mahler, G.; Goobar, A. Prospects for Strongly Lensed Supernovae Behind Hubble Frontier Fields Galaxy Clusters with the James Webb Space Telescope. Astron. Rep. 2018, 62, 917–925. [Google Scholar] [CrossRef] [Green Version]
  39. Foxley-Marrable, M.; Collett, T.E.; Vernardos, G.; Goldstein, D.A.; Bacon, D. The impact of microlensing on the standardization of strongly lensed Type Ia supernovae. Mon. Not. R. Astron. Soc. 2018, 478, 5081–5090. [Google Scholar] [CrossRef] [Green Version]
  40. Collaboration, L.S.; Marshall, P.; Anguita, T.; Bianco, F.B.; Bellm, E.C.; Brandt, N.; Clarkson, W.; Connolly, A.; Gawiser, E.; Ivezic, Z.; et al. Science-Driven Optimization of the LSST Observing Strategy. 2017. Available online: https://arxiv.org/abs/1708.04058 (accessed on 1 November 2020).
  41. Lochner, M.; Scolnic, D.M.; Awan, H.; Regnault, N.; Gris, P.; Mandelbaum, R.; Gawiser, E.; Almoubayyed, H.; Setzer, C.N.; Huber, S.; et al. Optimizing the LSST Observing Strategy for Dark Energy Science: DESC Recommendations for the Wide-Fast-Deep Survey. arXiv 2018, arXiv:1812.00515. [Google Scholar]
  42. Biswas, R.; Daniel, S.F.; Hložek, R.; Kim, A.G.; Yoachim, P. Enabling Catalog Simulations of Transient and Variable Sources Based on LSST Cadence Strategies. Astrophys. J. Suppl. Ser. 2020, 247, 60. [Google Scholar] [CrossRef] [Green Version]
  43. Lagattuta, D.J.; Richard, J.; Clément, B.; Mahler, G.; Patrício, V.; Pelló, R.; Soucail, G.; Schmidt, K.B.; Wisotzki, L.; Martinez, J.; et al. Lens modelling Abell 370: Crowning the final frontier field with MUSE. Mon. Not. R. Astron. Soc. 2017, 469, 3946–3964. [Google Scholar] [CrossRef]
  44. Kawamata, R.; Ishigaki, M.; Shimasaku, K.; Oguri, M.; Ouchi, M.; Tanigawa, S. Size–Luminosity Relations and UV Luminosity Functions at z = 6–9 Simultaneously Derived from the Complete Hubble Frontier Fields Data. Astrophys. J. 2018, 855, 4. [Google Scholar] [CrossRef] [Green Version]
  45. Mahler, G.; Richard, J.; Clément, B.; Lagattuta, D.; Schmidt, K.; Patrício, V.; Soucail, G.; Bacon, R.; Pello, R.; Bouwens, R.; et al. Strong-lensing analysis of A2744 with MUSE and Hubble Frontier Fields images. Mon. Not. R. Astron. Soc. 2018, 473, 663–692. [Google Scholar] [CrossRef]
  46. Zwicky, F. On the Frequency of Supernovae. Astrophys. J. 1938, 88, 529. [Google Scholar] [CrossRef]
  47. Vincenzi, M.; Sullivan, M.; Firth, R.E.; Gutiérrez, C.P.; Frohmaier, C.; Smith, M.; Angus, C.; Nichol, R.C. Spectrophotometric templates for core-collapse supernovae and their application in simulations of time-domain surveys. Mon. Not. R. Astron. Soc. 2019, 489, 5802–5821. [Google Scholar] [CrossRef]
  48. Alavi, A.; Siana, B.; Richard, J.; Stark, D.P.; Scarlata, C.; Teplitz, H.I.; Freeman, W.R.; Dominguez, A.; Rafelski, M.; Robertson, B.; et al. Ultra-faint Ultraviolet Galaxies at z ∼ 2 behind the Lensing Cluster A1689: The Luminosity Function, Dust Extinction, and Star Formation Rate Density. Astrophys. J. 2014, 780, 143. [Google Scholar] [CrossRef] [Green Version]
  49. Kim, A.; Goobar, A.; Perlmutter, S. A Generalized K Correction for Type IA Supernovae: Comparing R-band Photometry beyond z = 0.2 with B, V, and R-band Nearby Photometry. Publ. ASP 1996, 108, 190. [Google Scholar] [CrossRef] [Green Version]
  50. Scannapieco, E.; Bildsten, L. The Type Ia Supernova Rate. Astrophys. J. Lett. 2005, 629, L85–L88. [Google Scholar] [CrossRef] [Green Version]
  51. Kalirai, J. Scientific discovery with the James Webb Space Telescope. Contemp. Phys. 2018, 59, 251–290. [Google Scholar] [CrossRef]
  52. Spergel, D.; Gehrels, N.; Baltay, C.; Bennett, D.; Breckinridge, J.; Donahue, M.; Dressler, A.; Gaudi, B.S.; Greene, T.; Guyon, O.; et al. Wide-Field InfrarRed Survey Telescope-Astrophysics Focused Telescope Assets WFIRST-AFTA 2015 Report. arXiv 2015, arXiv:1503.03757. [Google Scholar]
  53. Bellm, E. The Zwicky Transient Facility. Available online: https://iopscience.iop.org/journal/1538-3873/page/Zwicky-Transient-Facility (accessed on 1 November 2020).
  54. Goldstein, D.A.; Nugent, P.E. How to Find Gravitationally Lensed Type Ia Supernovae. Astrophys. J. Lett. 2017, 834, L5. [Google Scholar] [CrossRef] [Green Version]
  55. Shu, Y.; Bolton, A.S.; Mao, S.; Kang, X.; Li, G.; Soraisam, M. Prediction of Supernova Rates in Known Galaxy-Galaxy Strong-lens Systems. Astrophys. J. 2018, 864, 91. [Google Scholar] [CrossRef] [Green Version]
  56. Goldstein, D.A.; Nugent, P.E.; Goobar, A. Rates and Properties of Supernovae Strongly Gravitationally Lensed by Elliptical Galaxies in Time-domain Imaging Surveys. Astrophys. J. Suppl. Ser. 2019, 243, 6. [Google Scholar] [CrossRef]
  57. LSST Science Collaboration; Abell, P.A.; Allison, J.; Anderson, S.F.; Andrew, J.R.; Angel, J.R.P.; Armus, L.; Arnett, D.; Asztalos, S.J.; Axelrod, T.S.; et al. LSST Science Book, Version 2.0. arXiv 2009, arXiv:0912.0201. [Google Scholar]
  58. Bina, D.; Pelló, R.; Richard, J.; Lewis, J.; Patrício, V.; Cantalupo, S.; Herenz, E.C.; Soto, K.; Weilbacher, P.M.; Bacon, R.; et al. MUSE observations of the lensing cluster Abell 1689. Astron. Astrophys. 2016, 590, A14. [Google Scholar] [CrossRef]
  59. Strolger, L.G.; Dahlen, T.; Rodney, S.A.; Graur, O.; Riess, A.G.; McCully, C.; Ravindranath, S.; Mobasher, B.; Shahady, A.K. The rate of core collapse supernovae to redshift 2.5 from the candels and clash supernova surveys. Astrophys. J. 2015, 813, 93. [Google Scholar] [CrossRef] [Green Version]
  60. Heikkilä, T.; Tsygankov, S.; Mattila, S.; Eldridge, J.J.; Fraser, M.; Poutanen, J. Progenitor constraints for core-collapse supernovae from Chandra X-ray observations. Mon. Not. R. Astron. Soc. 2016, 457, 1107–1123. [Google Scholar] [CrossRef] [Green Version]
Symmetry 12 01966 g001 550

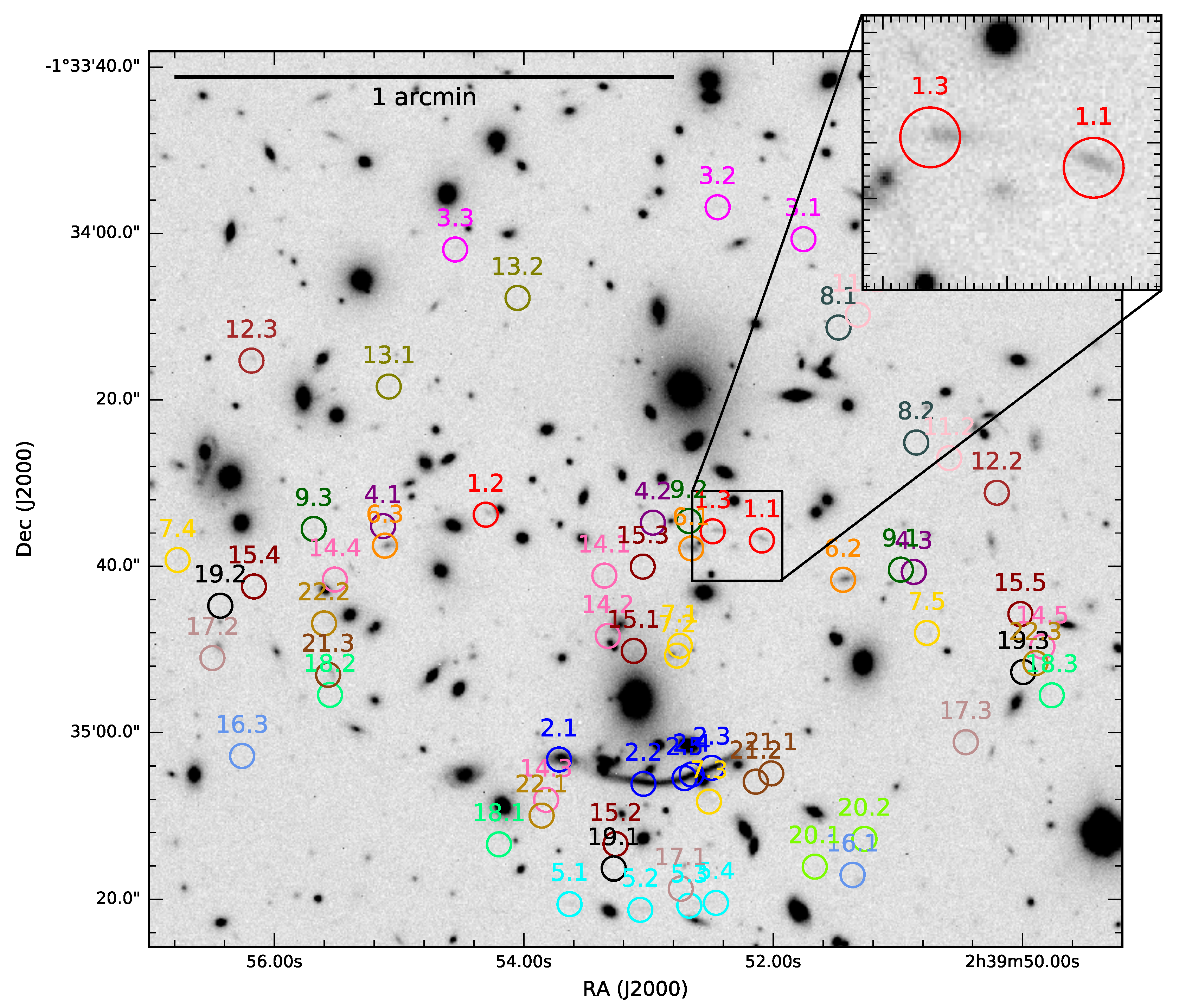

Figure 1. Galaxy cluster Abell 370 overplotted with the positions of all the 21 background galaxies with 67 multiple images with expected time delays presented in [24]. The images that belong to the same system are shown with the same color. The predicted magnifications for these galaxies from the lensing model are approximately ∼1–4 magnitudes. As an example, a zoomed-in view of multiply-imaged galaxies 1.3 and 1.1 is shown, which are magnified by 2.81 ± 0.08 and 2.80 ± 0.07 mag, respectively. Adopted from the work in [24].
Figure 1. Galaxy cluster Abell 370 overplotted with the positions of all the 21 background galaxies with 67 multiple images with expected time delays presented in [24]. The images that belong to the same system are shown with the same color. The predicted magnifications for these galaxies from the lensing model are approximately ∼1–4 magnitudes. As an example, a zoomed-in view of multiply-imaged galaxies 1.3 and 1.1 is shown, which are magnified by 2.81 ± 0.08 and 2.80 ± 0.07 mag, respectively. Adopted from the work in [24].
Symmetry 12 01966 g001
Symmetry 12 01966 g002 550

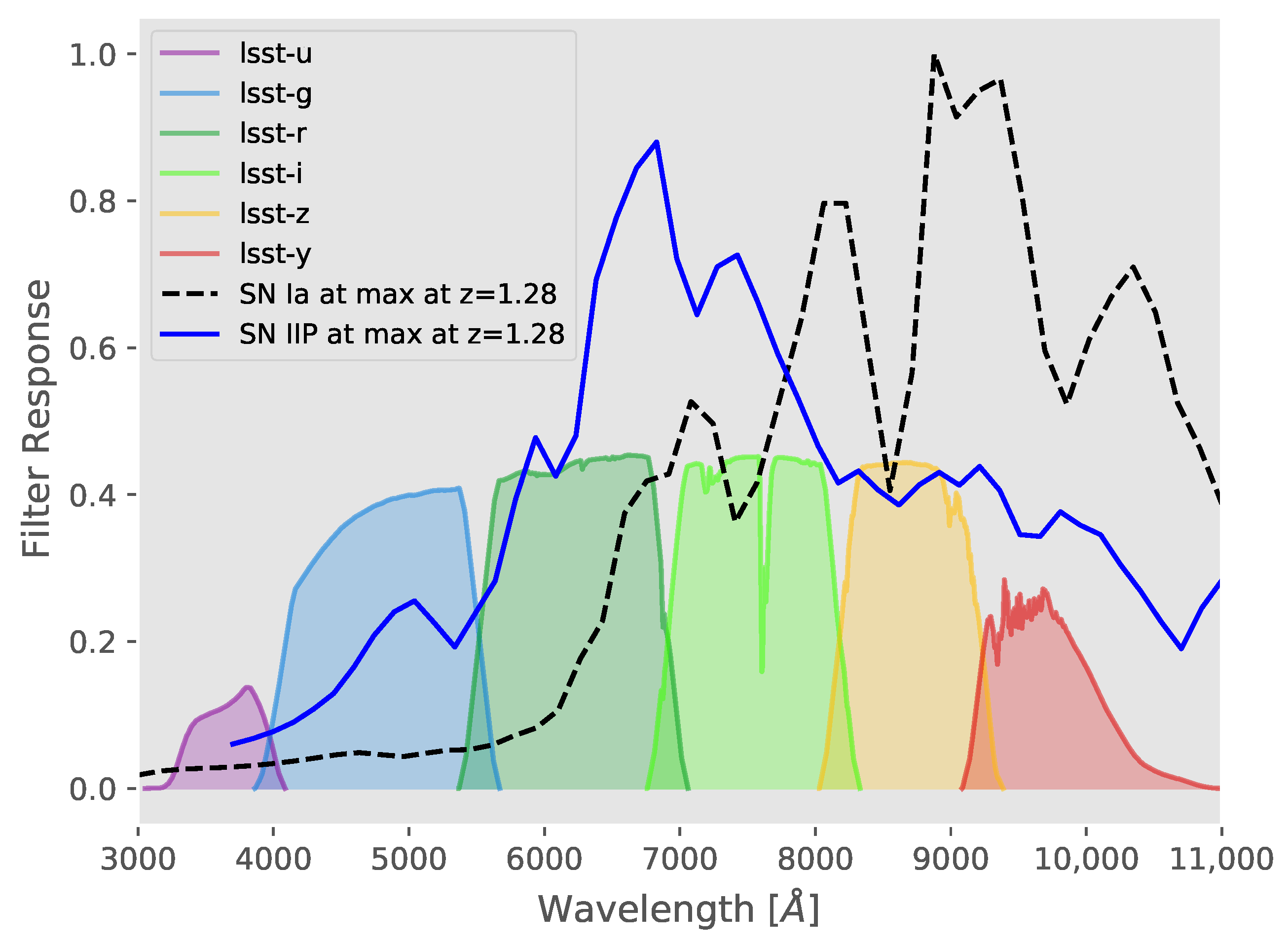

Figure 2. The filter response system that will be on the Rubin Observatory overplotted with a typical spectra of SN Ia and SN IIP. The redshift of the SN spectra is at 1.28, as the examples from Figure 3 where multiply-imaged galaxies in Abell 370 are shown at which the survey will be sensitive, considering the image depth and the magnification from the galaxy cluster.
Figure 2. The filter response system that will be on the Rubin Observatory overplotted with a typical spectra of SN Ia and SN IIP. The redshift of the SN spectra is at 1.28, as the examples from Figure 3 where multiply-imaged galaxies in Abell 370 are shown at which the survey will be sensitive, considering the image depth and the magnification from the galaxy cluster.
Symmetry 12 01966 g002
Symmetry 12 01966 g003 550

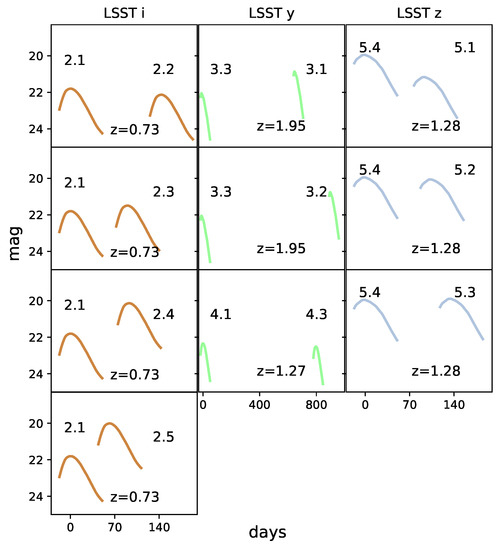

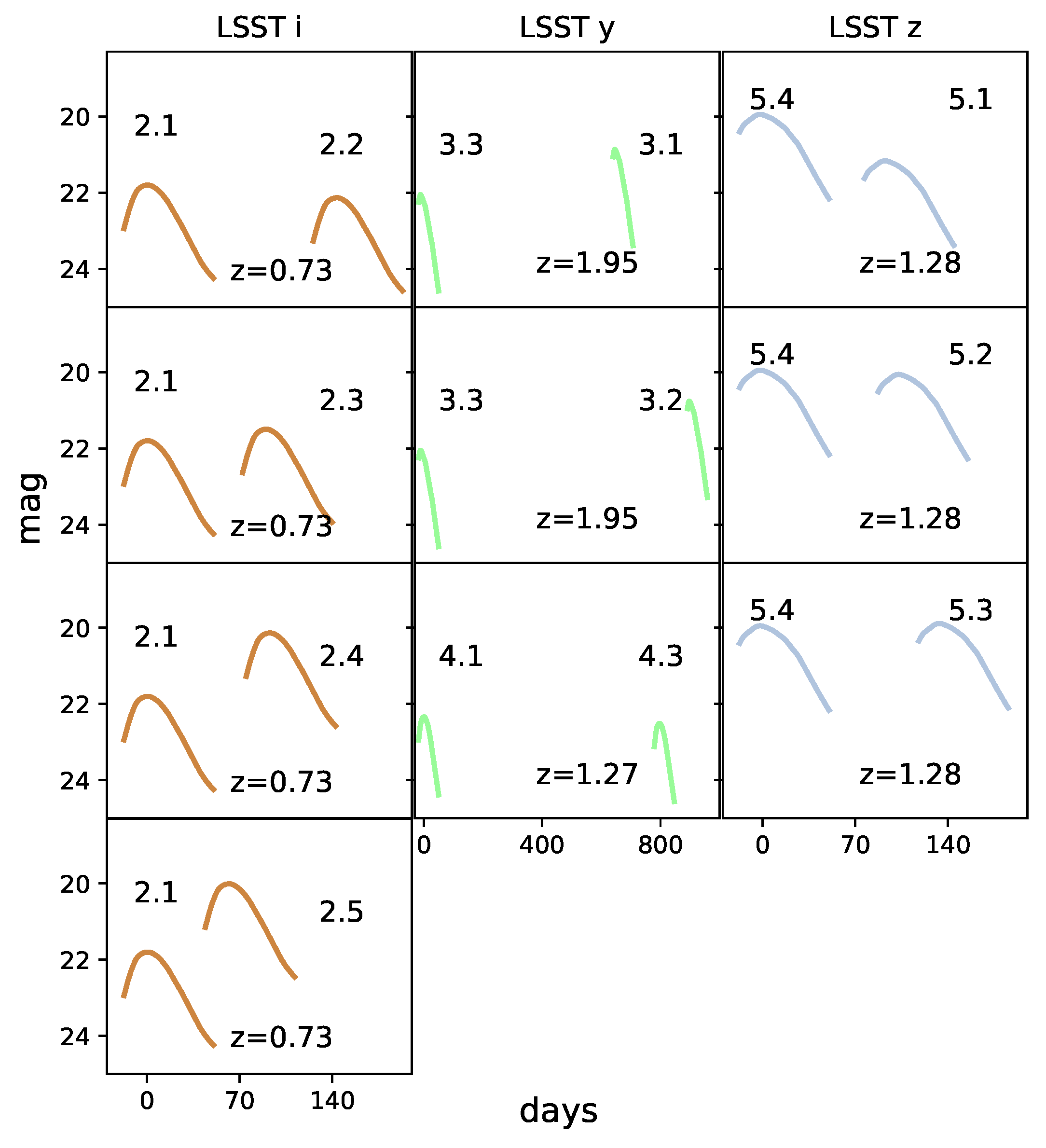

Figure 3. Examples of simulated light curves of SNe Ia for pairs of images of strongly lensed galaxies behind Abell 370. The first column are in the LSST i band, the second in the y, while the third is in z band. If a SN explodes in one of the galaxies, the explosion should appear in the corresponding images, thus allowing for scheduling observations accordingly. Without the magnification from the galaxy cluster, the SNe Ia exploding in these galaxies would hardly be observable with the Rubin Observatory.
Figure 3. Examples of simulated light curves of SNe Ia for pairs of images of strongly lensed galaxies behind Abell 370. The first column are in the LSST i band, the second in the y, while the third is in z band. If a SN explodes in one of the galaxies, the explosion should appear in the corresponding images, thus allowing for scheduling observations accordingly. Without the magnification from the galaxy cluster, the SNe Ia exploding in these galaxies would hardly be observable with the Rubin Observatory.
Symmetry 12 01966 g003
Table
Table 1. The galaxy clusters considered in this work. The number of unique galaxies behind the cluster is given in column 2, and the number of their multiple images of these galaxies in column 3. The redshift range of these galaxies is given in column 4. Columns 5–7 show the numbers of observations that the cluster field will have in the 10 years of the LSST, divided by filter i z y .
Table 1. The galaxy clusters considered in this work. The number of unique galaxies behind the cluster is given in column 2, and the number of their multiple images of these galaxies in column 3. The redshift range of these galaxies is given in column 4. Columns 5–7 show the numbers of observations that the cluster field will have in the 10 years of the LSST, divided by filter i z y .
ClusterN systems N images z min − max Observed
10 yrs, Band i		Observed
10 yrs, Band z		Observed
10 yrs, Band y
Abell 168918511.15–3.4188167175
Abell 37021670.73–5.75194174174
Abell 274412401.03–3.98198181170
Abell S106314421.03–3.71203180189
MACS J0416.1-240323681.01–3.87200176189
Total88268
Table
Table 2. Sensitivity of LSST to SNe Ia exploding in the the multiply-imaged galaxies in HFF galaxy clusters + Abell 1689 fields. Columns 2 (4) show the number of galaxy images in which LSST could detect a SN Ia (SN IIP) explosion. In columns 3 and 5 the largest redshift of these galaxies is reported.
Table 2. Sensitivity of LSST to SNe Ia exploding in the the multiply-imaged galaxies in HFF galaxy clusters + Abell 1689 fields. Columns 2 (4) show the number of galaxy images in which LSST could detect a SN Ia (SN IIP) explosion. In columns 3 and 5 the largest redshift of these galaxies is reported.
ClusterN gal Ia c z max Ia N gal IIP c z max IIP
Abell 168981.8343.05
Abell 370171.95142.75
Abell 274451.040/
AS106391.2621.26
MACSJ041621.0132.28
Total41 23
Table
Table 3. Expectations for the number of lensed SNe in the multiply-imaged galaxies that could be detected behind the HFF galaxy clusters + Abell 1689 in the 10 years of the Rubin Observatory. The errors in the N I a and N C C originate from the propagated uncertainty in the SFR.
Table 3. Expectations for the number of lensed SNe in the multiply-imaged galaxies that could be detected behind the HFF galaxy clusters + Abell 1689 in the 10 years of the Rubin Observatory. The errors in the N I a and N C C originate from the propagated uncertainty in the SFR.
ClusterN Ia
10 yrs		N CC
10 yrs
Abell 1689 0.13 ± 0.10 0.24 ± 0.17
Abell 370 0.04 ± 0.01 0.41 ± 0.24
Abell 2744 0.0012 ± 0.0001 0.02 ± 0.01
Abell S1063 0.014 ± 0.01 0.14 ± 0.10
MACS J0416.1-2403 0.014 ± 0.004 0.10 ± 0.05
Total 0.20 ± 0.10 0.91 ± 0.31
